Numerical Analysis of Roadway Rock-Burst Hazard under Superposed Dynamic and Static Loads

1
State Key Laboratory of Mining Disaster Prevention and Control, Shandong University of Science and Technology, Qingdao 266590, China
2
State Key Laboratory for Geomechanics and Deep Underground Engineering, China University of Mining and Technology, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(19), 3761; https://doi.org/10.3390/en12193761
Received: 10 September 2019 / Revised: 27 September 2019 / Accepted: 30 September 2019 / Published: 30 September 2019
(This article belongs to the Special Issue Advanced Technologies for Energy Exploitation of Coals)

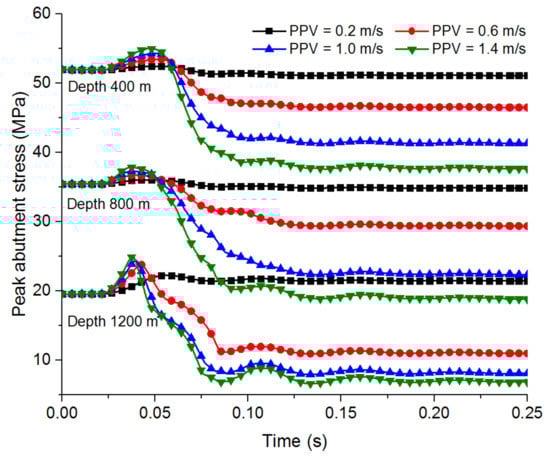

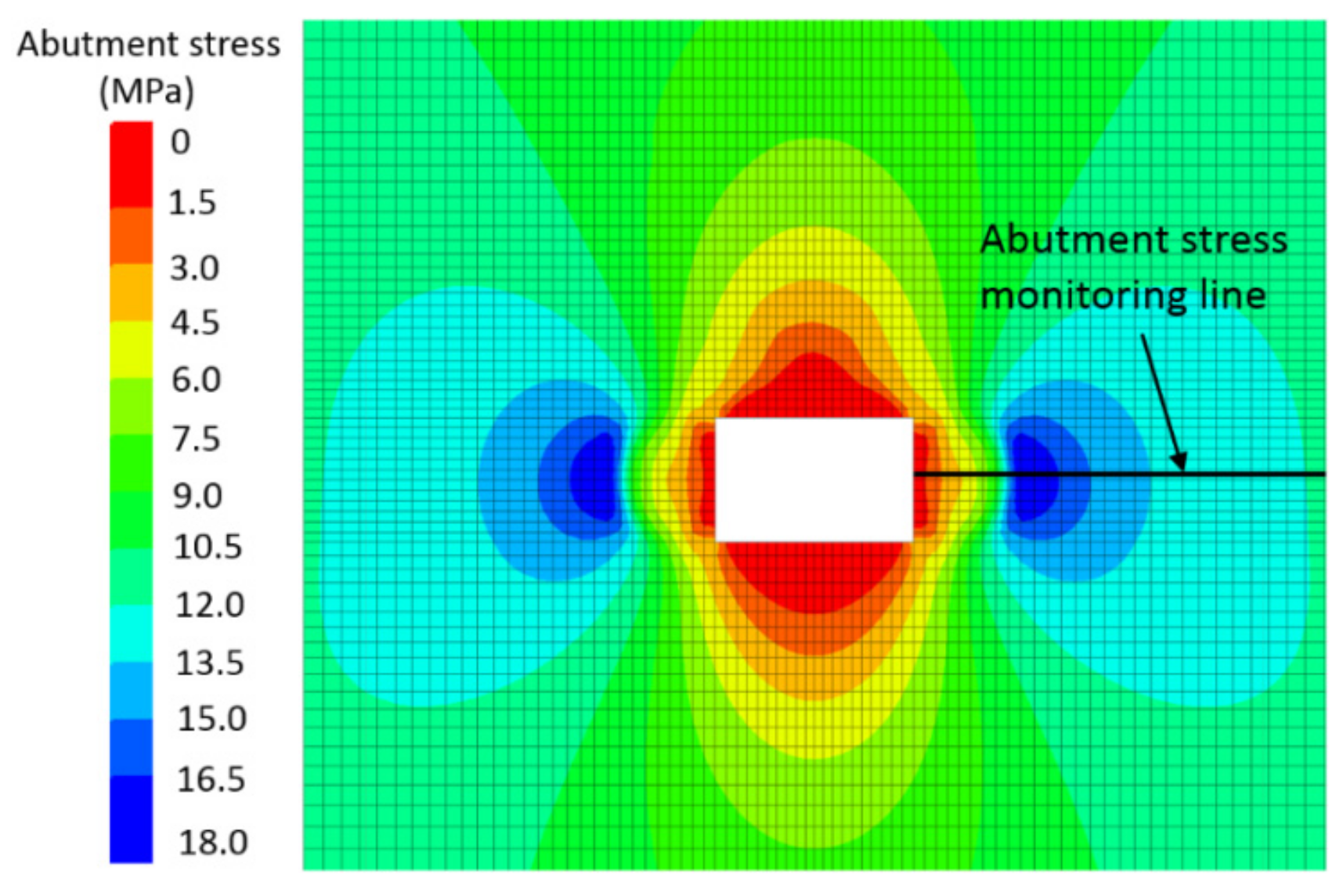

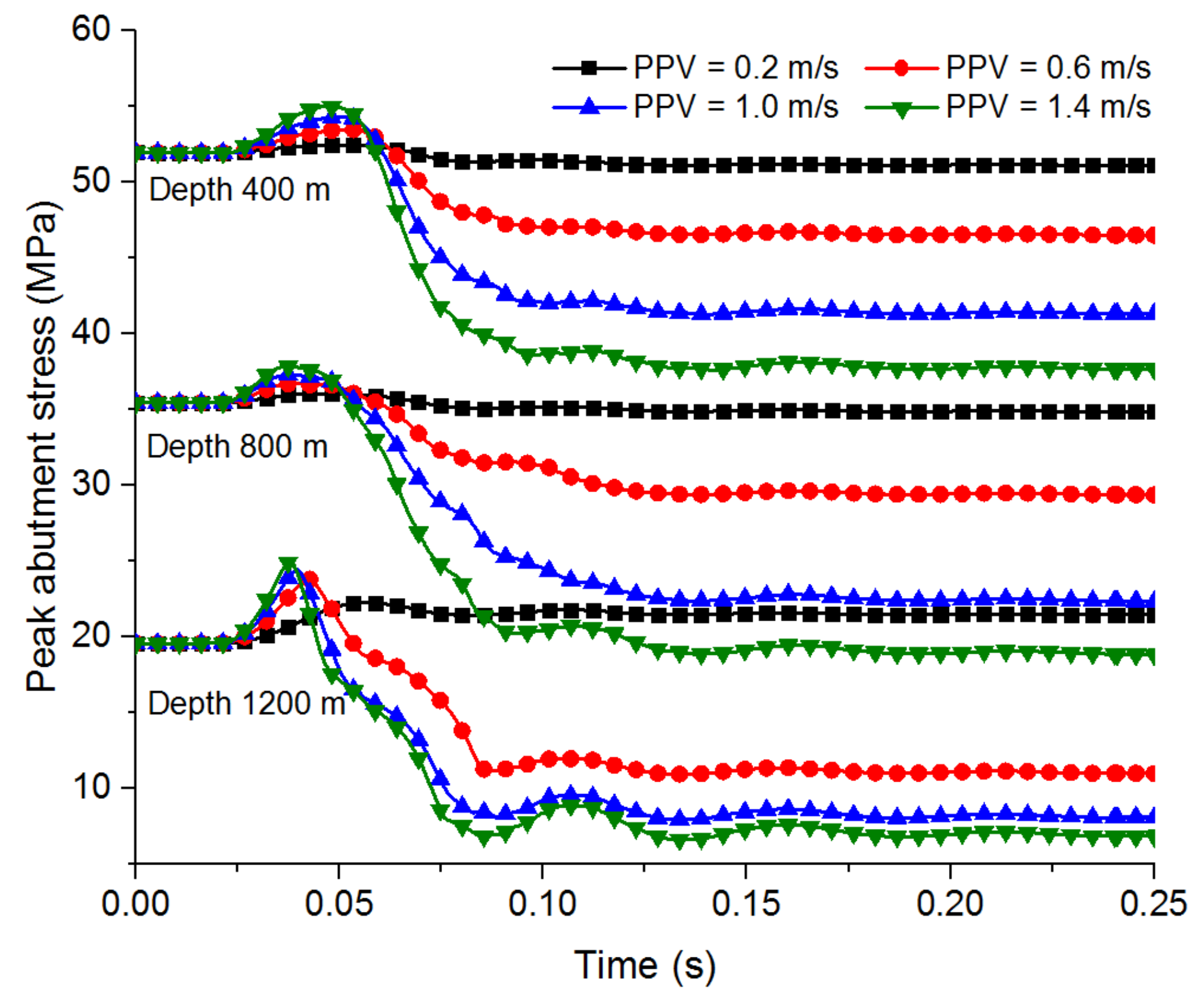

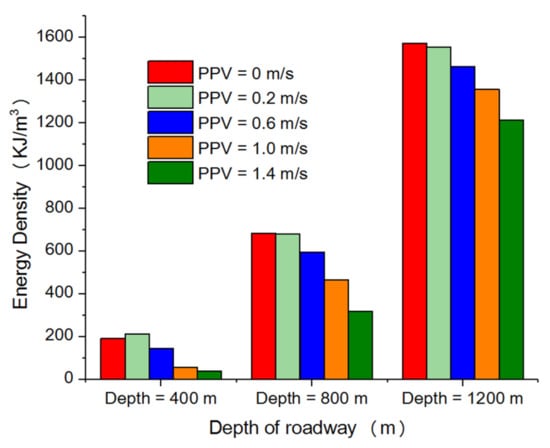

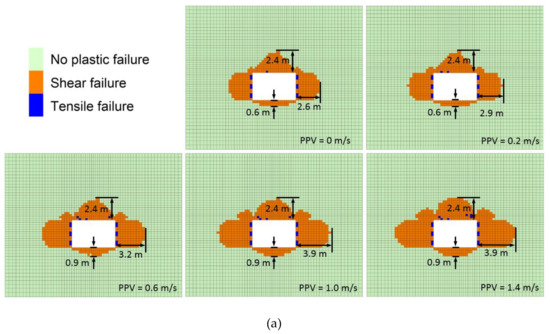

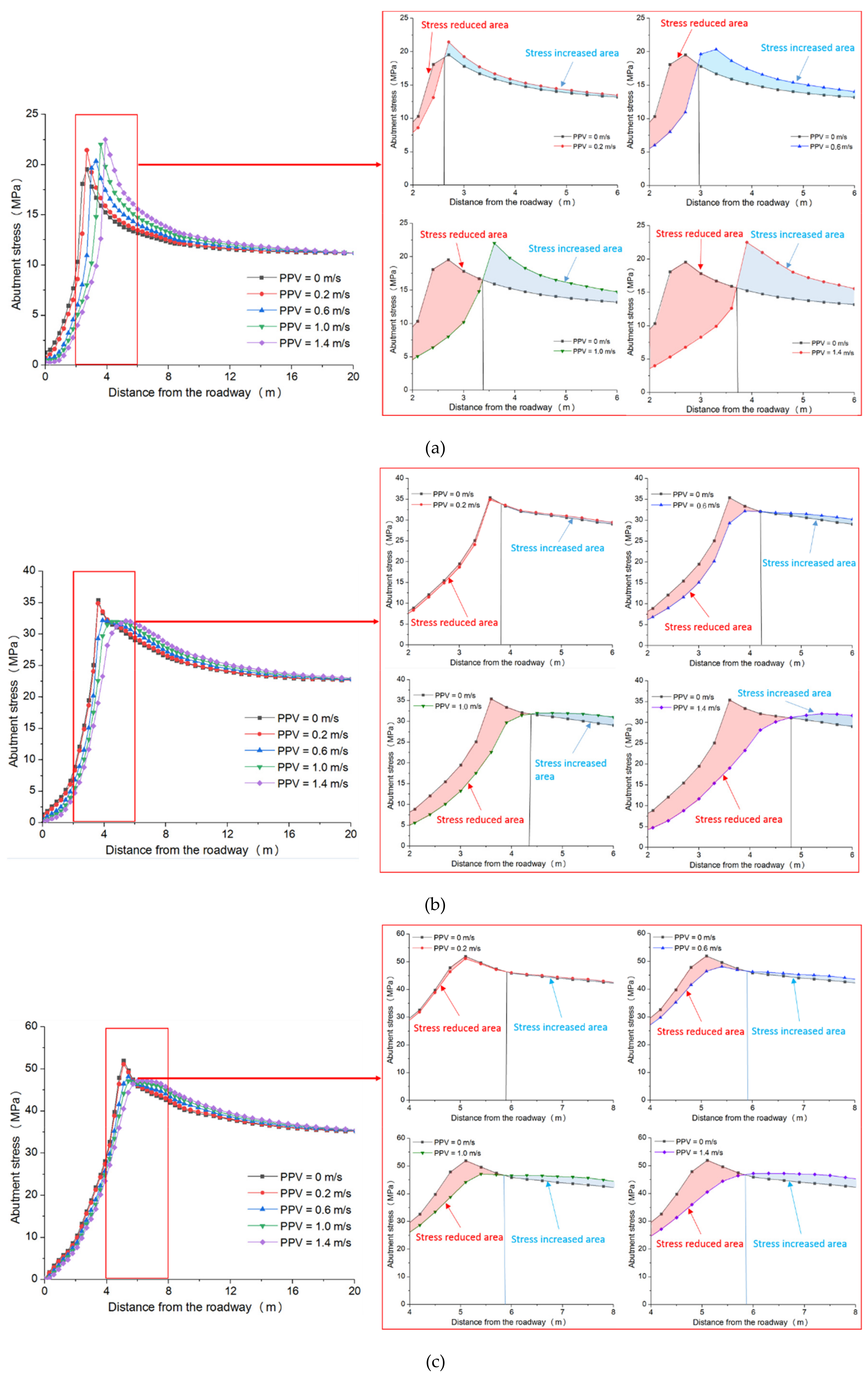

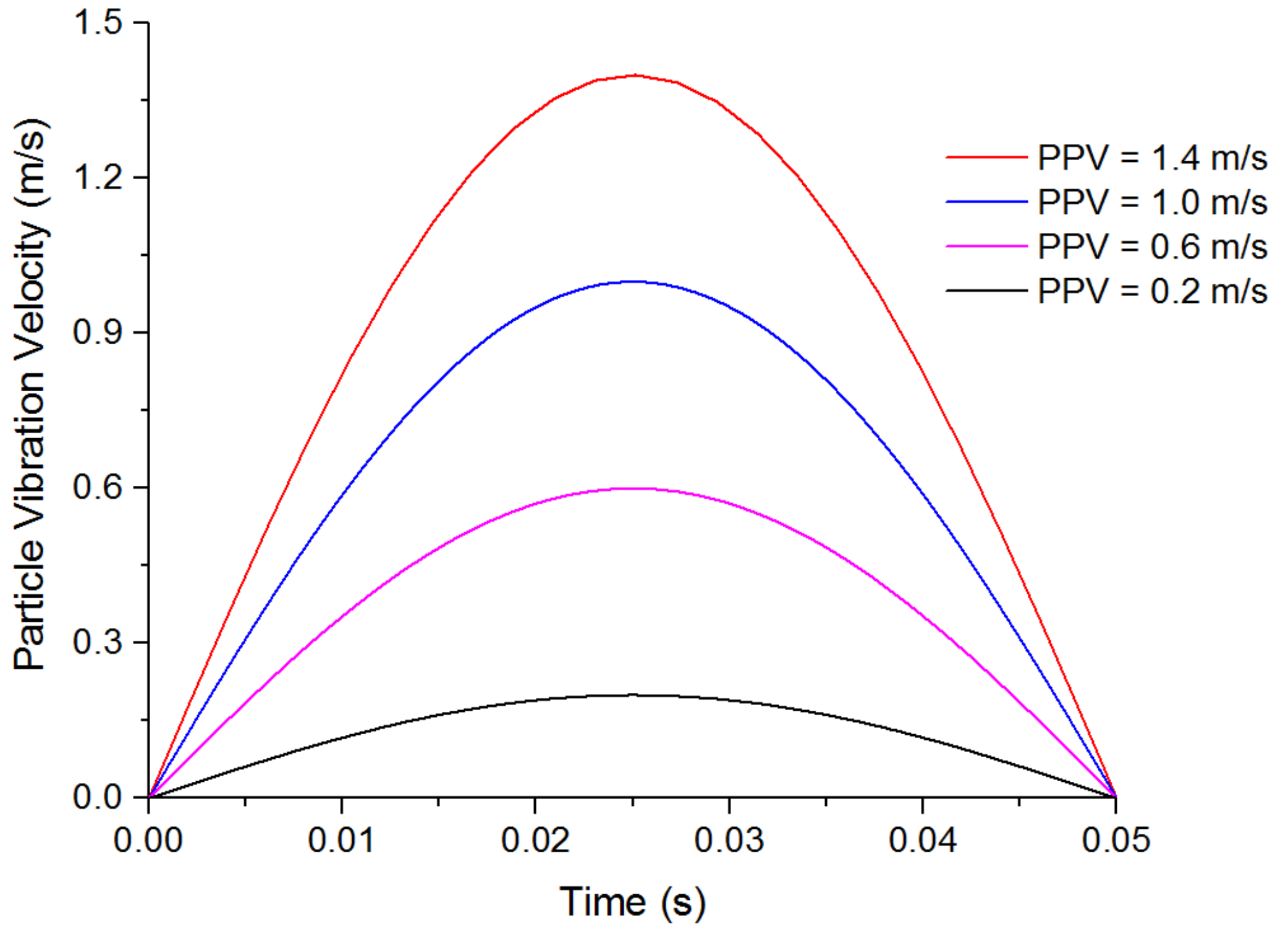

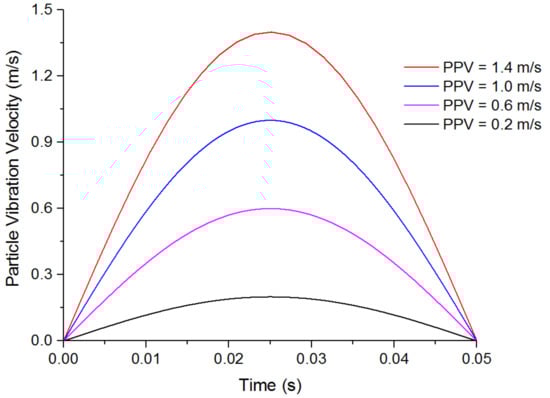

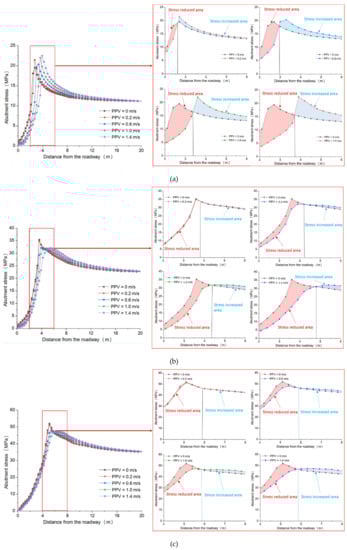

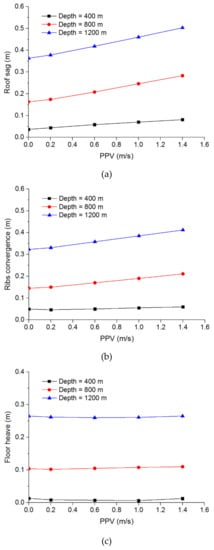

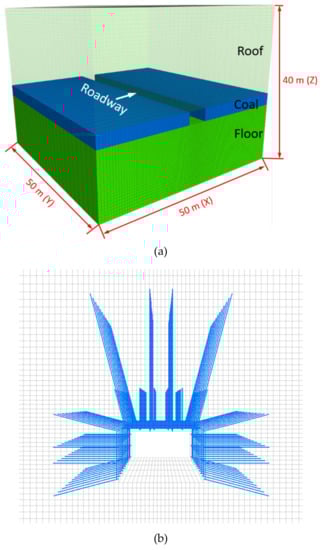

Microseismic events commonly occur during the excavation of long wall panels and often cause rock-burst accidents when the roadway is influenced by dynamic loads. In this paper, the Fast Lagrangian Analysis of Continua in 3-Dimensions (FLAC3D) software is used to study the deformation and rock-burst potential of roadways under different dynamic and static loads. The results show that the larger the dynamic load is, the greater the increase in the deformation of the roadway under the same static loading conditions. A roadway under a high static load is more susceptible to deformation and instability when affected by dynamic loads. Under different static loading conditions, the dynamic responses of the roadway abutment stress distribution are different. When the roadway is shallow buried and the dynamic load is small, the stress and elastic energy density of the coal body in the area of the peak abutment stress after the dynamic load are greater than the static calculations. The dynamic load provides energy storage for the coal body in the area of the peak abutment stress. When the roadway is deep, a small dynamic load can still cause the stress in the coal body and the elastic energy density to decrease in the area of the peak abutment stress, and a rock-burst is more likely to occur in a deep mine roadway with a combination of a high static load and a weak dynamic load. When the dynamic load is large, the peak abutment stress decreases greatly after the dynamic loading, and under the same dynamic loading conditions, the greater the depth the roadway is, the greater the elastic energy released by the dynamic load. Control measures are discussed for different dynamic and static load sources of rock-burst accidents. The results provide a reference for the control of rock-burst disasters under dynamic loads. View Full-Text

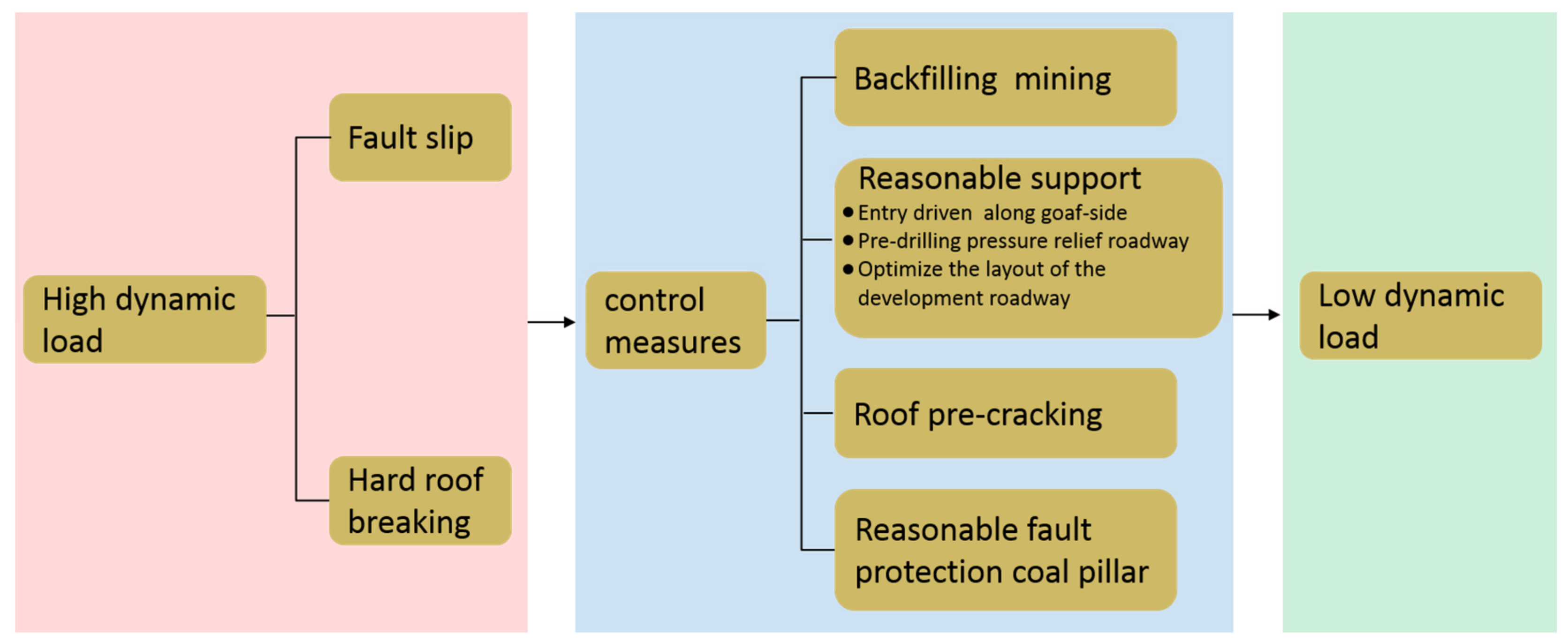

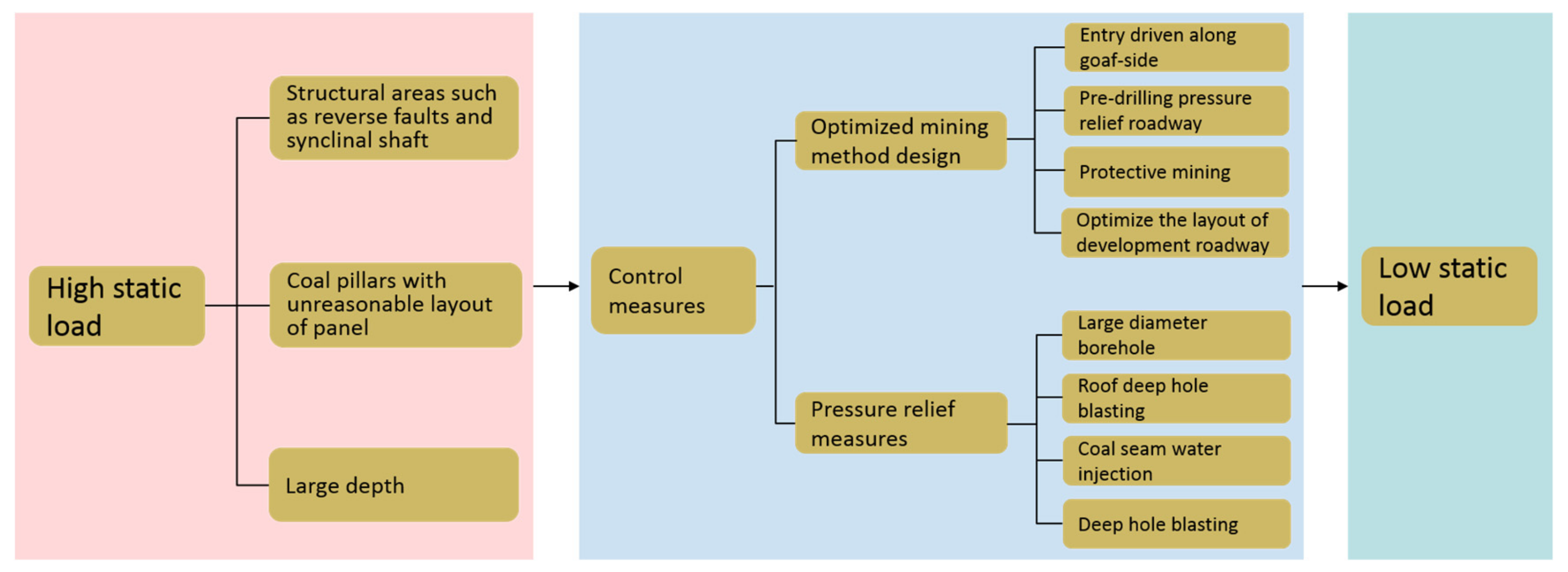

Keywords: rock-burst; numerical simulation; dynamic load; mining stress; control measures rock-burst; numerical simulation; dynamic load; mining stress; control measures
Show Figures

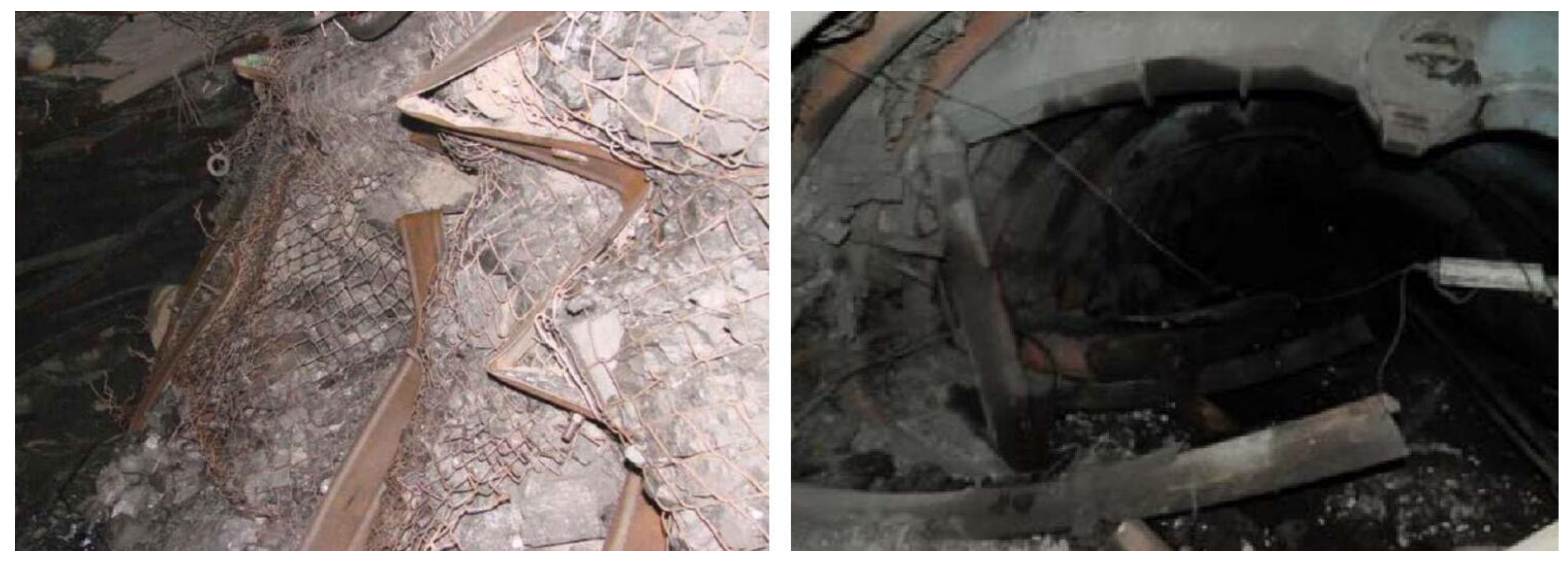

Figure 1

MDPI and ACS Style

Kong, P.; Jiang, L.; Jiang, J.; Wu, Y.; Chen, L.; Ning, J. Numerical Analysis of Roadway Rock-Burst Hazard under Superposed Dynamic and Static Loads. Energies 2019, 12, 3761.
