Atomistic Simulations of the Defect Chemistry and Self-Diffusion of Li-ion in LiAlO₂

Abstract

Lithium aluminate, LiAlO₂, is a material that is presently being considered as a tritium breeder material in fusion reactors and coating material in Li-conducting electrodes. Here, we employ atomistic simulation techniques to show that the lowest energy intrinsic defect process is the cation anti-site defect (1.10 eV per defect). This was followed closely by the lithium Frenkel defect (1.44 eV per defect), which ensures a high lithium content in the material and inclination for lithium diffusion from formation of vacancies. Li self-diffusion is three dimensional and exhibits a curved pathway with a migration barrier of 0.53 eV. We considered a variety of dopants with charges +1 (Na, K and Rb), +2 (Mg, Ca, Sr and Ba), +3 (Ga, Fe, Co, Ni, Mn, Sc, Y and La) and +4 (Si, Ge, Ti, Zr and Ce) on the Al site. Dopants Mg²⁺ and Ge⁴⁺ can facilitate the formation of Li interstitials and Li vacancies, respectively. Trivalent dopants Fe³⁺, Ni³⁺ and Mn³⁺ prefer to occupy the Al site with exoergic solution energies meaning that they are candidate dopants for the synthesis of Li (Al, M) O₂ (M = Fe, Ni and Mn) compounds.

1. Introduction

The ever-increasing demand for energy generated, initiated further research into alternate methods of renewable energy production and storage methodologies for the power production. In that respect, Li-based ceramics are technologically important and considered by the community for applications ranging from nuclear fusion to batteries [1,2,3,4,5,6,7,8]. LiAlO₂, a lithium based ceramic material, has been considered with the prospect of being used as a tritium breeder material in magnetic confined nuclear fusion reactors after promising initial research regarding the physical and thermodynamic properties of the material as well as the potential tritium breeding ratio (TBR) [8,9]. In addition, this material has great potential as a coating material in Li-conducting electrodes [10].

Previous studies have highlighted the importance of atomic scale calculation to gain insights on the defect processes (intrinsic defect processes, doping and diffusion) of oxides for energy applications [11,12,13,14,15]. Previous experimental and theoretical studies determined a wide range of activation energies for Li self-diffusion in γ-LiAlO₂ (0.50–1.26 eV) [16,17,18,19,20,21,22]. Additionally, there are no systematic studies of the intrinsic defect processes and doping in this material. In the present study, we have employed atomistic simulations to investigate the structure, intrinsic defect processes, Li self-diffusion and the introduction of dopants.

2. Computational Methods

The present computational study was based on classical pair-wise potential calculations to describe LiAlO₂ via the General Utility Lattice Program (GULP) code [23,24]. In the present approach, the total energy (lattice energy) is determined by long range (i.e., Coulombic) and short range [i.e., electron-electron repulsive and attractive intermolecular forces (van der Waals forces)]. The latter were modelled using Buckingham potentials (refer to the supplementary information). The van der Waals forces arising from the spontaneous formation of instantaneous dipoles are very important as the formation energy results are sensitive to those forces. The present modelling approach takes into the account of Van der Waals forces as a function of the interatomic distance (r) [23,24]. Two-body Buckingham potential mentioned in the supplementary information consists of two parts. The first part of the equation represents the Pauli repulsion (electron-electron) and the second part denotes the van der Waals interaction. Ionic positions and lattice parameters were relaxed using the Broyden-Fletcher-Goldfarb-Shanno (BFGS) algorithm [24]. Convergence criteria dictated that in relaxed configurations, forces on each atom was <0.001 eV/Å. To introduce point defects in the lattice we used the Mott-Littleton methodology [25] similarly to recent work [26,27,28]. It is established that although the present methodology may overestimate the defect formation enthalpies at the dilute limit, the trends will be unchanged [29]. In a thermodynamic perspective defect parameters can be described by comparing the real (i.e., defective) crystal to an isobaric or isochoric ideal (i.e., non-defective) crystal. Defect formation parameters can be interconnected through thermodynamic relations [30,31], with the present atomistic simulations corresponding to the isobaric parameters for the migration and formation processes [32,33,34].

3. Results

3.1. Crystal Structure, Intrinsic Defect Processes and Li Diffusion

The LiAlO₂ crystal structure considered in the present study is the tetragonal γ-phase (Figure 1) with lattice parameters a = b = 5.1687 Å, c = 6.2679 Å, and α = β = γ = 90° [35]. This crystal structure consists of LiO₄ and AlO₄ tetrahedra. They are inter-connected via edge and corner sharing to form three dimensional channels. The calculated structural parameters are given in

Table 1. Calculated structural parameters for LiAlO₂ (space group P4₁2₁2) as compared to the experimental determinations [35].

Parameter	Exp	Calc	|∆|(%)
a = b (Å)	5.1687	5.1403	0.55
c (Å)	6.2679	6.3860	1.88
α = β = γ (°)	90.00	90.00	0.00
Volume [V = a × b × c (Å3)]	167.4498	168.7370	0.77

and it can be seen that there is excellent agreement with experiment [35] validating the potentials (refer to Table S1 in the Supplementary Materials) used in this study.

Next, we considered the process of calculating the defect energy required for the key intrinsic defect processes such as Frenkel, Schottky and anti-site in LiAlO₂. Frenkel and Schottky defect formation energies were calculated by combining individual point defects. Frenkel energy is the sum of vacancy and interstitial energies. Schottky energy was calculated by adding appropriate vacancy energies and substracting cohesive energy. Relative energetics of these defect processes are useful in predicting the electrochemical behaviour of LiAlO₂. The reaction energies for the intrinsic defect processes can be represented by using the established Kröger-Vink notation [36].

$$\mathrm{Li}\mathrm{Frenkel}:{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}\to V_{\mathrm{Li}}^{\prime }+{\mathrm{Li}}_{\mathrm{i}}^{•}$$

(1)

$$\mathrm{Al}\mathrm{Frenkel}:{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to V_{\mathrm{Al}}^{‴}+{\mathrm{Al}}_{\mathrm{i}}^{•••}$$

(2)

$$\mathrm{O}\mathrm{Frenkel}:{\mathrm{O}}_{\mathrm{O}}^{\mathrm{X}}\to V_{\mathrm{O}}^{••}+{\mathrm{O}}_{\mathrm{i}}^{″}$$

(3)

$$\mathrm{Schottky}:{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}+{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}+2{\mathrm{O}}_{\mathrm{O}}^{\mathrm{X}}\to V_{\mathrm{Li}}^{\prime }+V_{\mathrm{Al}}^{‴}+2V_{\mathrm{O}}^{••}+{\mathrm{LiAlO}}_2$$

(4)

$${\mathrm{Li}}_2\mathrm{O}\mathrm{Schottky}:2{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}+{\mathrm{O}}_{\mathrm{O}}^{\mathrm{X}}\to 2V_{\mathrm{Li}}^{\prime }+V_{\mathrm{O}}^{••}+{\mathrm{Li}}_2\mathrm{O}$$

(5)

$$\mathrm{Li}/\mathrm{Al}\mathrm{antisite}\left(\mathrm{isolated}\right):{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}+{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to {\mathrm{Li}}_{\mathrm{Al}}^{″}+{\mathrm{Al}}_{\mathrm{Li}}^{••}$$

(6)

$$\mathrm{Li}/\mathrm{Al}\mathrm{antisite}\left(\mathrm{cluster}\right):{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}+{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to \{{\mathrm{Li}}_{\mathrm{Li}}^{″}:{\mathrm{Al}}_{\mathrm{Li}}^{••}{\}}^{\mathrm{X}}$$

(7)

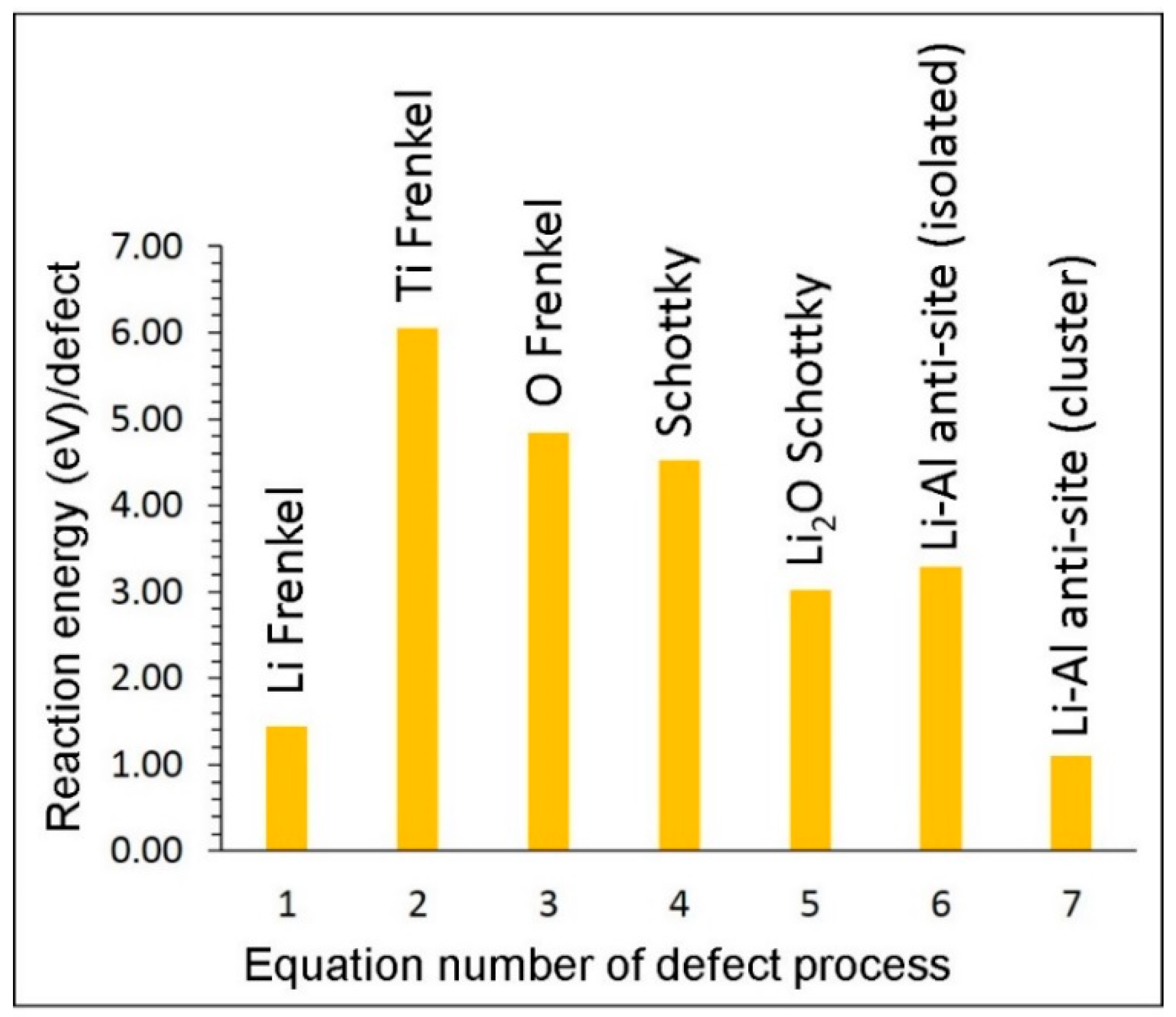

The reaction energies are reported in Figure 2. The lowest intrinsic defect energy process was calculated to be the cation mixing (anti-site) in which Li and Al exchange their atomic positions. This defect was noted in various oxide materials experimentally and theoretically [37,38,39,40,41,42,43,44,45,46,47]. The primary reasons for this defect include experimental conditions for the preparation of as-prepared compounds and cycling of as-prepared materials particularly in battery applications. Using the Pechini sol–gel process, Dominko et al. [48] synthesised a pure orthorhombic phase of Li₂MnSiO₄. Later, Politaev et al. [39] observed a small amount of cation exchange (Li-Mn) defect in their experimental preparation (solid-state reactions in hydrogen at 950–1150 °C) of monoclinic phase of Li₂MnSiO₄. Nyten et al. [38] observed a shift in the potential plateau between first and second cycles in Li₂FeSiO₄ and suggested that this is due to the structural rearrangement associated with the interchange of some of the Li and Fe ions. The second lowest reaction energy is calculated for the Frenkel defect and this process is higher only by 0.34 eV than the anti-site defect. This would signify the concentration of lithium vacancies and interstitials, inferring this material is suitable for use as a tritium breeder. Other defects exhibit high reaction energies meaning that they are not significant in this material.

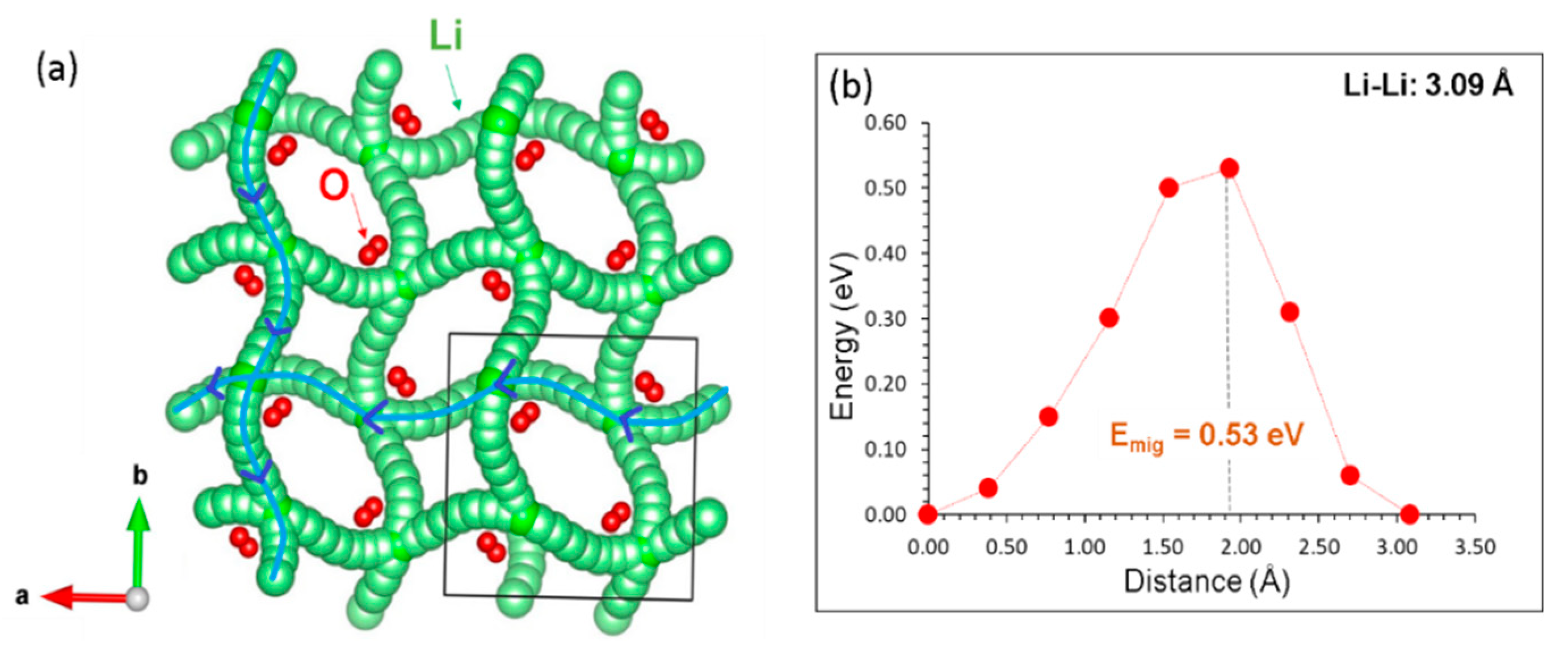

Ion diffusion is a key issue in many energy related materials, including cathode materials for batteries. The current simulation approach has the ability to calculate Li-ion diffusion pathways together with activation energies. As experimental determination of Li-ion diffusion is quite challenging, simulation results would be useful to assist in the investigation of experimental data. The results reveal that there is a single Li local hop with the jump distance of 3.09 Å. The activation energy for this hop is calculated to be 0.53 eV. Long range diffusion pathway was constructed by connecting local Li hops. Figure 3a shows the three dimensional long range diffusion pathway with a non-linear pattern. This shows that Li-ion conduction in this material is high. In a previous theoretical study based on the molecular dynamics by Jacobs et al. [18], it is shown that Li-ion diffusion is three dimensional though the pathway is not clear enough from their calculated snapshots derived at different temperatures. Density functional theory simulations were also employed to calculate the Li-ion diffusivity in γ-LiAlO₂ [21,22]_. In those calculations, Li hopping mechanisms and activation energies for different Li-Li separations are reported. However, the information regarding the Li migration pathway (linear or non-linear) is unclear. Our simulation clearly presents the diffusion pathway that can be directly compared in experiments.

The activation energy calculated here (0.53 eV) is within the range of previous theoretical studies (0.5–0.63 eV) [18,21,22] and lower that previous experimental (NMR spectroscopy and conductivity measurements) work by Idris et al. (0.70 eV) [17]. More direct experimental work (e.g., secondary ion mass spectrometry, SIMS) would be required to experimentally pinpoint the activation energy of Li self-diffusion. As was previously demonstrated, simple atomistic models can yield reliable activation energies of diffusion as compared to experiment with mechanisms compatible with DFT [49].

The calculated activation energy exceeds 0.5 eV and it is therefore anticipated that LiAlO₂ will only be a mediocre ion conductor. In

Table 2. Activation energies (eV) of ion self-diffusion (Li, Na, Mg) in recently investigated oxides considered for battery applications.

Material	Calculation	Experiment
LiAlO2	0.53 (this study)	0.70–1.23 [17]
Li3V2(PO4)3	0.46–0.87 [50]	0.73–0.83 [51]
Li2TiO3	0.51–0.72 [52]	0.47–0.80 [53], 0.60–0.90 [54]
Na2MnSiO4	0.81 [55]	-
Na3V(PO4)2	0.59 [56]	-
Na3Fe2(PO4)3	0.45 [15]	-
MgTiO3	0.88 [57]	-

we compare the activation energies of migration of recently investigated Li, Na, Mg ion conducting oxides considered for battery applications. There is a good agreement between our calculations and experiments for some oxide materials. As mentioned earlier, experimental investigation of activation energy is often difficult. Current simulations, in addition to giving activation energy information, have the added bonus of elucidating diffusion pathways that can be useful in the interpretation of experimental data.

3.2. Solution of Dopants

This section details the processes of monovalent, divalent, trivalent and tetravalent doping into the lithium aluminate lattice. Monovalent dopants (R = Na, K and Rb) and divalent dopants (M = Mg, Ca, Sr and Ba) were considered on the Al site in order to increase the Li content in the form of Li interstitials in LiAlO₂ according the following reaction equations:

$$2{\mathrm{Li}}_2\mathrm{O}+{\mathrm{R}}_2\mathrm{O}+2{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to 2{\mathrm{R}}_{\mathrm{Al}}^{″}+4{\mathrm{Li}}_{\mathrm{i}}^{•}+{\mathrm{Al}}_2{\mathrm{O}}_3$$

(8)

$${\mathrm{Li}}_2\mathrm{O}+2\mathrm{MO}+2{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to 2{\mathrm{M}}_{\mathrm{Al}}^{\prime }+2{\mathrm{Li}}_{\mathrm{i}}^{•}+{\mathrm{Al}}_2{\mathrm{O}}_3$$

(9)

This efficient engineering strategy can increase the lithium density in lithium-based ceramics and tune mechanical, electrical and optical properties of materials such as lithium aluminate to further increase the applicability for use as a tritium breeding material. Solution enthalpies calculated for monovalent dopants are highly endothermic (>4.5 eV) suggesting that the doping process is quite difficult (refer to Figure 4a). Solution enthalpy gradually increases with ionic radius. High solution enthalpies are due to the larger radii of cations than that of Al³⁺ (0.53 Å). In the case of divalent cations, Mg²⁺ is promising as the solution enthalpy of MgO is −5.66 eV (refer to Figure 4b). The highly exothermic solution enthalpy is due to the ionic radius of Mg²⁺ (0.57 Å) which is closer to the ionic radius of Al³⁺. The other three dopants exhibit endoergic solution enthalpies, as their ionic radii significantly deviate from the ionic radius of Al³⁺.

Next, we considered trivalent dopants (X = Ga, Fe, Co, Ni, Mn, Sc, Y and La) on the Al site according to the following reaction equation:

$${\mathrm{X}}_2{\mathrm{O}}_3+2{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}\to 2{\mathrm{X}}_{\mathrm{Al}}^{\mathrm{X}}+{\mathrm{Al}}_2{\mathrm{O}}_3$$

(10)

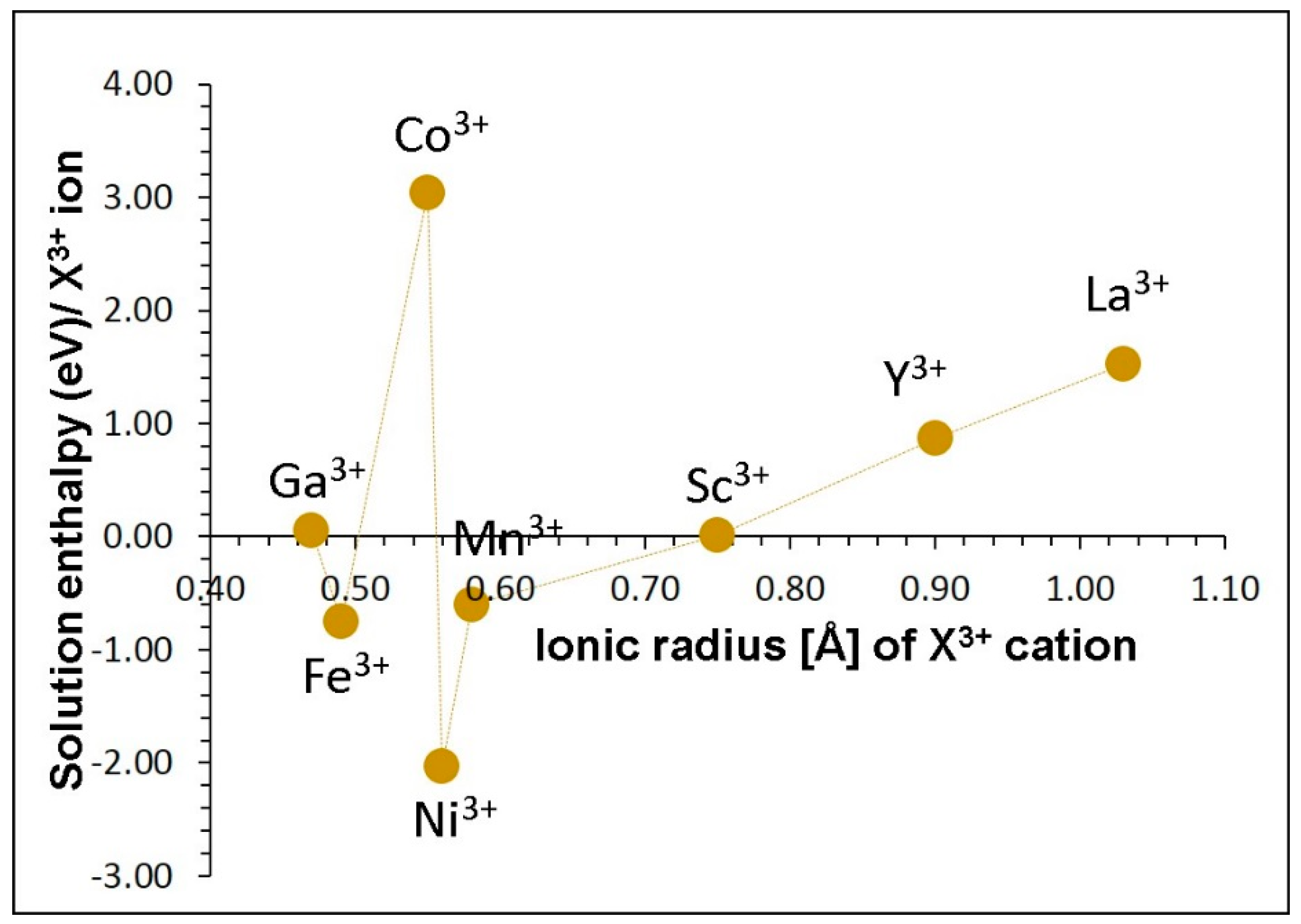

Figure 5 shows the solution enthalpies of X₂O₃. The results present nickel as the favourable isovalent dopant on the Al site, having the lowest solution enthalpy of −2.03 eV to integrate into the lattice. Solution enthalpies for both Fe³⁺ and Mn³⁺ are also negative implying that these two dopants are also worth examining experimentally. The favourable nature of potential candidate dopants (Fe³⁺, Ni³⁺ and Mn³⁺) can be due to their ionic radii which are closer to the ionic radius of Al³⁺ (0.53 Å). However, the dopant Co³⁺ exhibits a positive solution enthalpy though its ion radius is closer to that of Al³⁺ indicating other factors should be responsible. The dopants Ga³⁺ and Sc³⁺ exhibit almost zero solution enthalpies. Other dopants are not favourable as their solution enthalpies are endoergic. From Mn³⁺ to La³⁺ solution enthalpy gradually increases with ionic radius.

Finally, tetravalent dopants (Y = Si, Ge, Ti, Zr and Ce) were considered on the Al site. This doping process will introduce additional Li vacancies in LiAlO₂ assisting vacancy mediated self-diffusion according to the following equation:

$$2{\mathrm{YO}}_2+2{\mathrm{Al}}_{\mathrm{Al}}^{\mathrm{X}}+2{\mathrm{Li}}_{\mathrm{Li}}^{\mathrm{X}}\to 2{\mathrm{Y}}_{\mathrm{Al}}^{•}+2{\mathrm{V}}_{\mathrm{Li}}^{\prime }+{\mathrm{Al}}_2{\mathrm{O}}_3+{\mathrm{Li}}_2\mathrm{O}$$

(11)

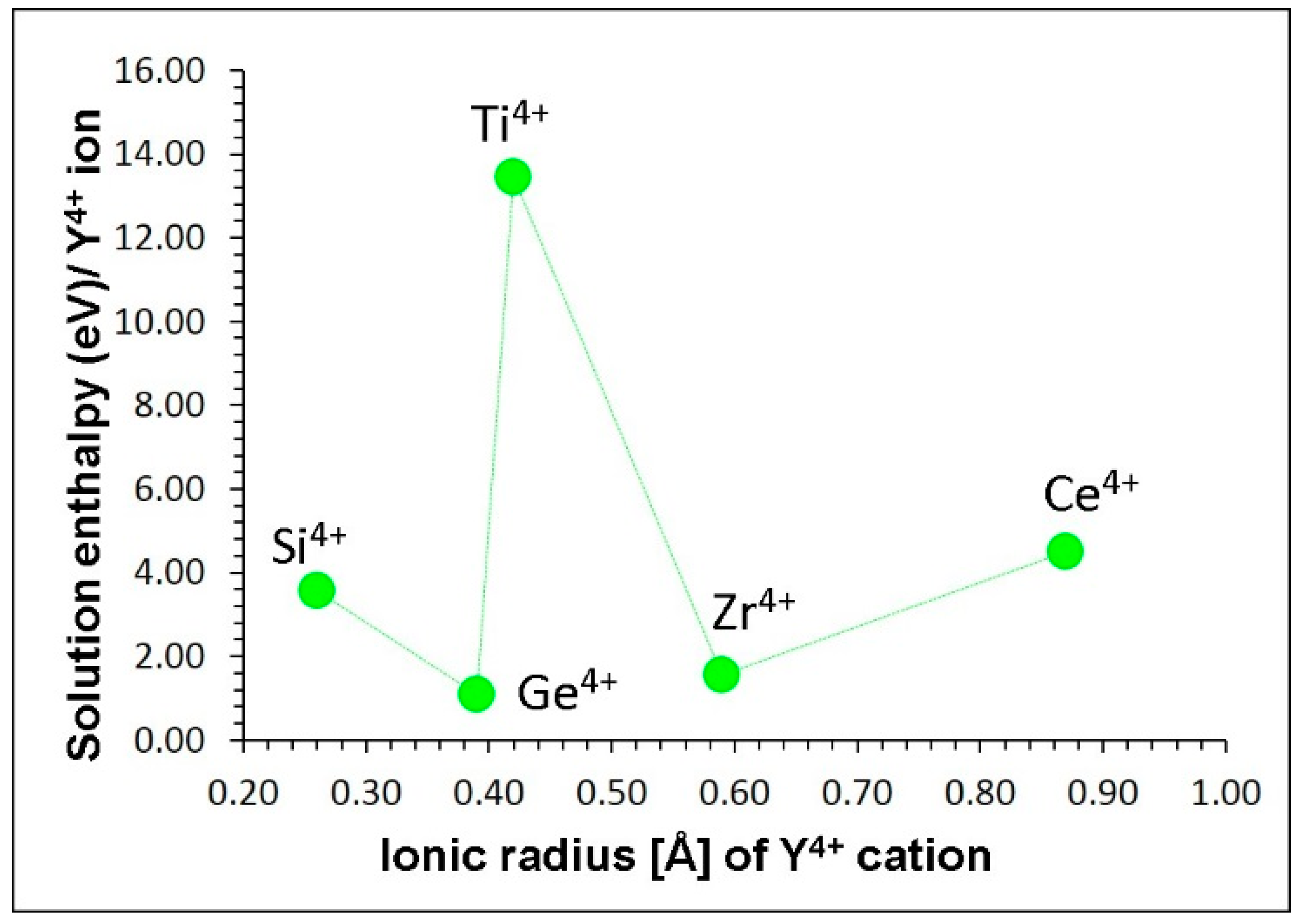

We report the solution energies in Figure 6. The results present germanium as the favourable tetravalent dopant on the aluminium site, having the lowest solution enthalpy of 1.08 eV to integrate into the lattice. The second most stable dopant is Zr with the solution enthalpy of 1.54 eV. The ionic radii of these two dopants are closer to the ionic radius of Al³⁺. However, the high positive solution enthalpy of Ti (~14 eV) is unclear though its ionic radius is somewhat closer to that of Al³⁺. Furthermore, this dopant cannot be doped under any condition. Both Si and Ce exhibit high solution enthalpies (~4 eV) due to the mismatching of their ionic radii with that of Al³⁺.

4. Conclusions

In this computational modelling investigation, we have employed static atomistic simulation techniques to study the defect processes (intrinsic disorder mechanisms and doping) and Li self-diffusion in LiAlO₂. The lowest energy intrinsic defect process is the Li-Al anti-site implying that a small concentration of Li on the Al site and Al on the Li site will be present. The long range Li-ion diffusion is three-dimensional with an activation energy of migration of 0.53 eV. Numerous dopants were considered and it is calculated that the solution of GeO₂ will increase the concentration of the Li vacancies that are required to act as vehicles of diffusion. Furthermore, Mg²⁺ on the Al site would increase the concentration of Li interstitials that are necessary for the enhancement in the capacity of NaAlO₂. It is anticipated that the present atomistic simulation work will encourage the further experimental investigation of LiAlO₂.
