3.1. Influence of Ionic Liquids on the Structure of Buckwheat Straw
The greatest impediment associated with the production of bioethanol from lignocellulose is the structure of the biomass, which constitutes a complex of three major components—cellulose, hemicellulose, and lignin—of which the first two components should constitute a good source of sugars that can be fermented. The objective of pretreatment with ionic liquids is to disrupt the bonds between the cellulose, hemicellulose, and lignin fibers, and to increase the content of so-called free cellulose, which can be hydrolyzed with the help of enzymes. Certain ionic liquids may cause the removal of lignin, which often constitutes a barrier for enzymes and yeast in the production of ethanol [9
]. Therefore, in this study, we examined the applicability of four ionic liquids to process buckwheat straw and demonstrated the effect of ionic liquids on the transformation of the content of cellulose, hemicellulose, and lignin. Furthermore, it was assumed that the task of ionic liquids is to change the structure of cellulose fibers from crystalline to amorphous, increasing the space between the fibers and removal of lignin—the inhibitor of the subsequent hydrolysis and fermentation processes. To this end, 4 different ionic liquids were used for buckwheat pretreatment and the hemicellulose and lignin content was determined in samples before and after treatment. Furthermore, a variant was verified where buckwheat straw was subject to treatment with 2 ILs. The objective of this treatment was removal of lignin with the use of EMIMCl and change of the cellulose structure and disruption of the bonds between fibers via EMIMOAc.
The study of morphology of buckwheat straw under an SEM microscope showed that untreated buckwheat straw had a highly crystalline structure and ordered morphology with minor areas of mechanical damage resulting from the cutting process (Figure 1
). However, after the pretreatment with ionic liquids, EMIMOAc and BMIMOAc and after the pretreatment with two ionic liquids (EMIMOAc and EMIMCl), the structure of the cellular walls became loose; cracks between the neighboring cellular walls occurred, and the entire structure of straw particles became scattered and distorted. The photographs below present singular fibers of cellulose, which, following the application of precipitation with deionized water, constituted a bright, adhesive mass surrounded by lignin and hemicellulose. The observed morphological changes were not found for samples treated with EMIMDEP and EMIMCl, which may indicate the lower capacity of these ionic liquids to change the crystallization of cellulose in buckwheat straw.
Processing the buckwheat straw with two ionic liquids resulted in the disintegration of the ordered fibrous structure of the biomass as well as reduction in the content of free lignin, which was visible in each sample after purification in the form of soot (stains) on cellulose and hemicellulose fibers. This indicates that, during processing with ionic liquids, lignin is not entirely dissolved and extracted by the solvent; rather, it is only removed from the plant cell walls and transferred outside of the structure. In order to confirm this hypothesis, the content of cellulose, hemicellulose, and lignin was tested in straw samples both before and after processing with ionic liquids (Table 1
The use of EMIMCl to purify buckwheat straw resulted in a decrease in the content of lignin, by approximately 5%. Unfortunately, EMIMCl caused a considerable loss of free cellulose (up to 10%) compared with the sample of the native form. Minor changes in the content of lignin were also observed in those samples that were purified with EMIMDEP, but the lignin content was found to be 1.7% lower, whereas the amount of cellulose remained unchanged. Lower amounts of lignin and cellulose were also demonstrated after purification with BMIMOAc. After processing with EMIMOAc and EMIMCl, a 50% reduction in the content of lignin was observed, yet the loss of cellulose, which was approximately 9%, was not significant in this case. SEM microscopic analysis showed that only EMIMCl caused delignification of buckwheat straw. Li et al. [10
] also indicated delignification of eucalyptus after treatment with BMIMOAc and EMIMOAc. Lignin solubilization during pretreatment with ionic liquids has been reported to be assisted by the π–π interactions of the ionic liquids’ cations with lignin [11
]. Purification of buckwheat straw with selected ionic liquids resulted in an increase in the content of hemicellulose in samples. The highest amount of hemicellulose was observed in straw purified with EMIMDEP. Ionic liquids resulted in the release of hemicellulose from the biomass complex, thus facilitating its determination after processing. A higher content of hemicellulose after processing may also be associated with the removal of lignin from the biomass [10
]. In unprocessed straw, only 8.38% of hemicellulose was found, and application of processing with two ionic liquids resulted in an increase in the content of hemicellulose of over 10%. Literature data indicate higher delignification of lignocellulose when dissolved with acetate-based ionic liquids than that in the case of chloride-based ionic liquids. Moreover, removal of lignin depended on the duration of dissolution of the material in ionic liquids and the temperature of the process [12
The influence of individual ionic liquids on the structure of biomass can also be observed during the spectral analysis of samples in the NIR region. Using an NIR spectrophotometer, and then classification of samples with the PCA method, clear data concerning the applicability of individual ionic liquids for the process of lignocellulose are obtained. The observation chart presents the location of grouping variables in a new dimensional space defined by the F1 and F2 components as determined during the analysis. Buckwheat straw samples were classified in terms of similar Euclidean distances and thus 5 groups were distinguished (Figure 2
The fifth group consists of buckwheat straw samples after treatment with EMIMOAc and these are most distant from the samples of the first group—buckwheat straw in native form. With the help of the NIR test and PCA classification, it is possible to classify lignocellulosic samples in terms of the amount of cellulose available to enzymes and thus estimate which of these materials will be the best for bioethanol production. In addition, NIR spectra in the range of 900–1680 nm, despite their monotonous character, may also provide information on the changes in the structure of the examined straw. The upper peaks of absorption for samples of buckwheat straw are presented in Figure 3

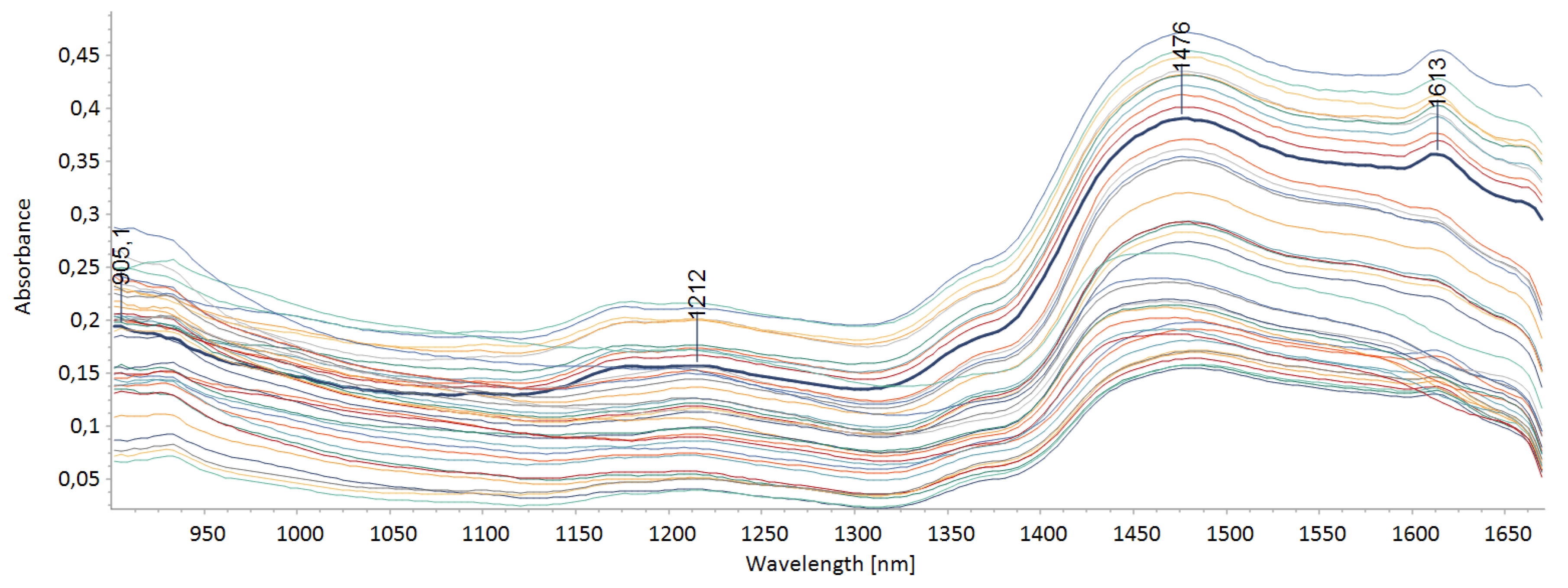

The wide absorption spectrum with a maximum at approximately 1212 nm results from the presence of valence vibrations C-H (a band with lower energy). For the above bond, the basic measurement band is located within the 1600–1650 nm wavelength, with an absorption maximum at 1613 nm. Absorption at 1476 nm is associated with the presence of a band characteristic of valence vibrations of the O-H group (first band of overtone). The band for this bond with lower energy is also found at a wavelength of 905 nm [14
]. In order to examine the possibility of the determination of the percentage of cellulose in buckwheat straw based on the measured spectra, the PLS regression analysis was conducted. To achieve this, spectra measured in the entire range were used (900–1680 nm). Table 2
presents the results of this regression analysis.
Analysis of the model showed that the model was correctly matched (R2
= 0.96). Low MSE and RMSE values obtained in the analysis also indicate good prediction capability. The developed calibration model was used to predict the percentage content of cellulose, both in raw buckwheat straw as well as after processing with ionic liquids. Table 3
shows example results from the estimation. The obtained results indicate the good accuracy of the model.
The present method may be of use for the determination of cellulose content in biomass. Such determination is quick and easy, thus being competitive with physicochemical methods utilizing acids and bases. Information on the amount of available cellulose before enzymatic hydrolysis is significant due to the precise selection of the dose of cellulolytic enzymes and it enables minimization of hydrolysis process costs. Furthermore, the NIR data enabled ordering of the type of pretreatment and indicate those where the efficacy is highest. Subsequent research should include further validation of the model, which will enable PLS models to be obtained that are more stable and resistant to fluctuation. Thus, the present study is treated by the authors as a preliminary study, and will naturally be continued.
3.2. Influence of the Use of Ionic Liquids on Enzymatic Hydrolysis and Alcoholic Fermentation
The efficacy of enzymatic hydrolysis of lignocellulosic raw materials is strictly linked to the efficacy of biomass pretreatment, which in turn translates into the availability of cellulose [16
]. In the first place, the concentration of glucose was determined before and after processing with ionic liquids. The subsequent stage consisted in enzymatic hydrolysis, in which three commercially available enzymatic agents were used. Cellulases from Aspergillus
sp. and Trichoderma reesei
are enzymes that hydrolyze cellulose, a linear polymer of anhydroglucose units linked together by β-1,4-glycosidic bonds, to glucose. Endo-β-d
-glucanase is one of the major component enzymes of the cellulase complex. It catalyzes the hydrolysis of cellulose by randomly splitting the sugar residues within the molecule. Exo-β-d
-glucanase and β-glucosidase can synergistically convert cellulose into glucose and hence are used on an industrial scale [17
]. Cellic CTec2 enzymatic preparation is characterized by increased activity of β-glucosidase, enabling improvement of the efficacy of hydrolysis of lignocellulosic raw materials as a result of restriction of the inhibitory effect of cellobiose.
In accordance with our expectations, glucose was found to be increased in buckwheat straw samples treated with ionic liquids. The highest content of glucose was found in straw purified with EMIMOAc (5.5 g/dm3
) and BMIMOAc (5.1 g/dm3
). The difficulty of enzymatic hydrolysis in untreated lignocellulosic materials was attributed to the presence of hemicelluloses and lignin and their spatial bonds, which created physical barriers that protect cellulose against degradation [18
]. Lee et al. [20
] have demonstrated that the degree of crystallization of cellulose treated with BMIMOAc ionic liquid is lower than that of BMIMCl, which is directly linked to the lower conversion degree of lignocellulose purified with chloride-based ionic liquids.
Our results demonstrated a lack of association between delignification of buckwheat straw with EMIMCl or EMIMDEP ionic liquids with more efficient enzymatic hydrolysis. However, glucose content was found to increase after the hydrolysis of samples purified with EMIMOAc and BMIMOAc. Thus, this confirms that the complete removal of lignin and hemicellulose is not necessary. However, the use of acetate-based ionic liquids (EMIMOAc and BMIMOAc) is more important, as they efficiently facilitate the access of enzymes to cellulose with a lower degree of crystallization, which is a good source of fermenting sugars [19
]. With regards to the above, the amount of glucose found in buckwheat straw purified with EMIMOAc and BMIMOAc and after enzymatic hydrolysis was no higher than that of purification with EMIMOAc alone.
Thus, future studies with respect to the use of ionic liquids with lignocellulosic raw materials should place special emphasis on the search for solvents that will mainly result in the depolymerization of cellulose, and that will not, as demonstrated by the currently available literature, lead to the delignification of the material [9
]. Removal of lignin in the process of bioethanol production from biomass may be significant primarily from the economic standpoint, as lignin itself is a valuable waste that is utilized in numerous industrial applications such as the energy, textile, paper, and other industries [23
Another significant stage in second generation bioethanol production is the selection of a suitable enzymatic agent, which will enable the “release” of the fermenting sugars, which will be used in the process of fermentation in the next stage. It is important that the application of the selected enzymatic preparation is favorable from the economic standpoint (the price), and the applied dose is correctly chosen.

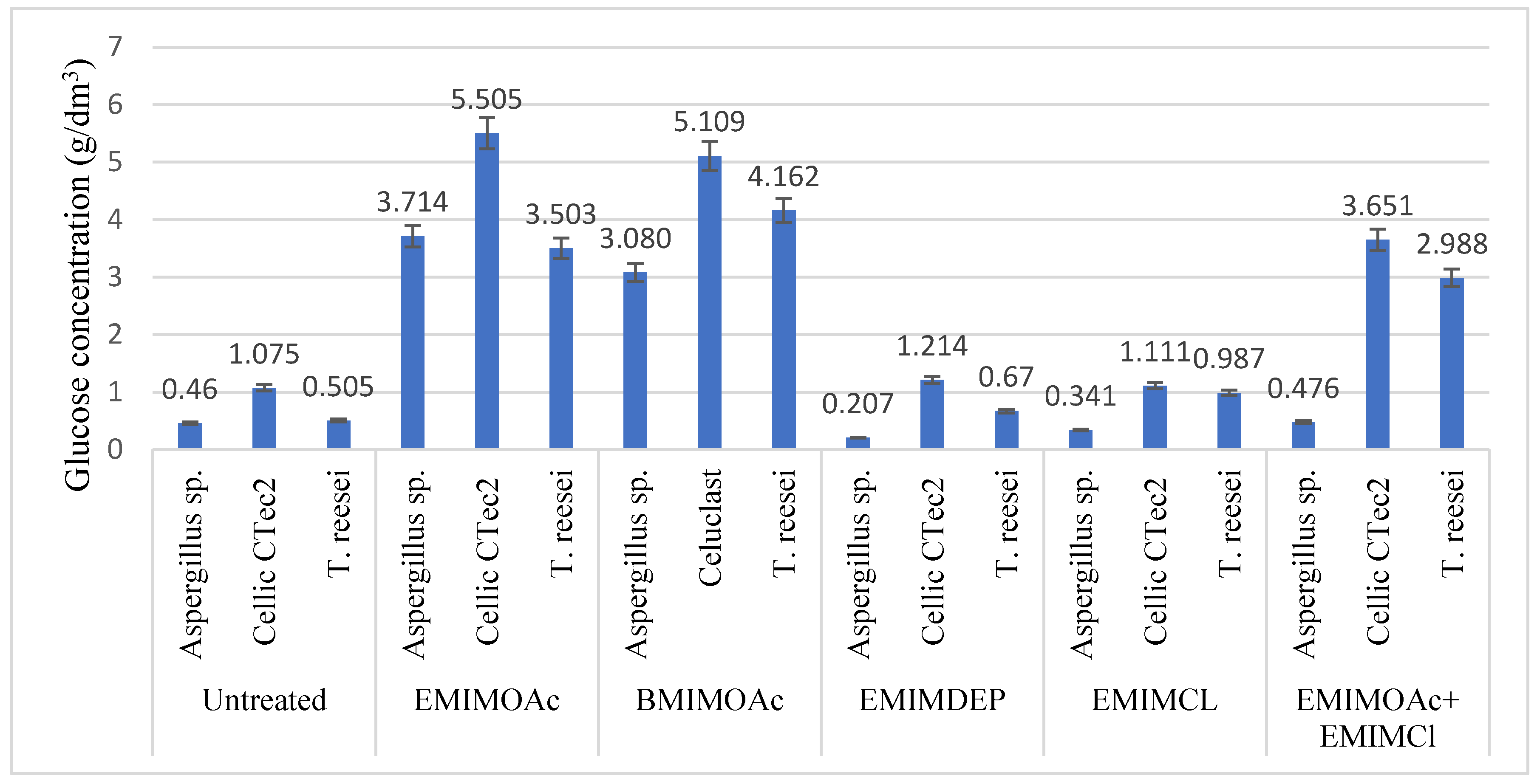

In this study, we tested the use three enzymatic agents that will enable a concomitant efficient hydrolysis of cellulose as well as ethanol fermentation without being disrupted by the presence of inhibitors. According to the results, the highest level of efficiency in hydrolysis was obtained by using the Cellic CTec2 agent, irrespective of the type of ionic liquid used. The highest content of glucose after treatment with Cellic CTec2 was 5.5 g/dm3
followed by the use of EMIMOAc and 5.1 g/dm3
followed by the use of BMIMOAc. The lowest amount of glucose was recorded for samples where cellulase from Aspergillus
sp. was used, irrespective of the type of ionic liquid used earlier (Figure 4

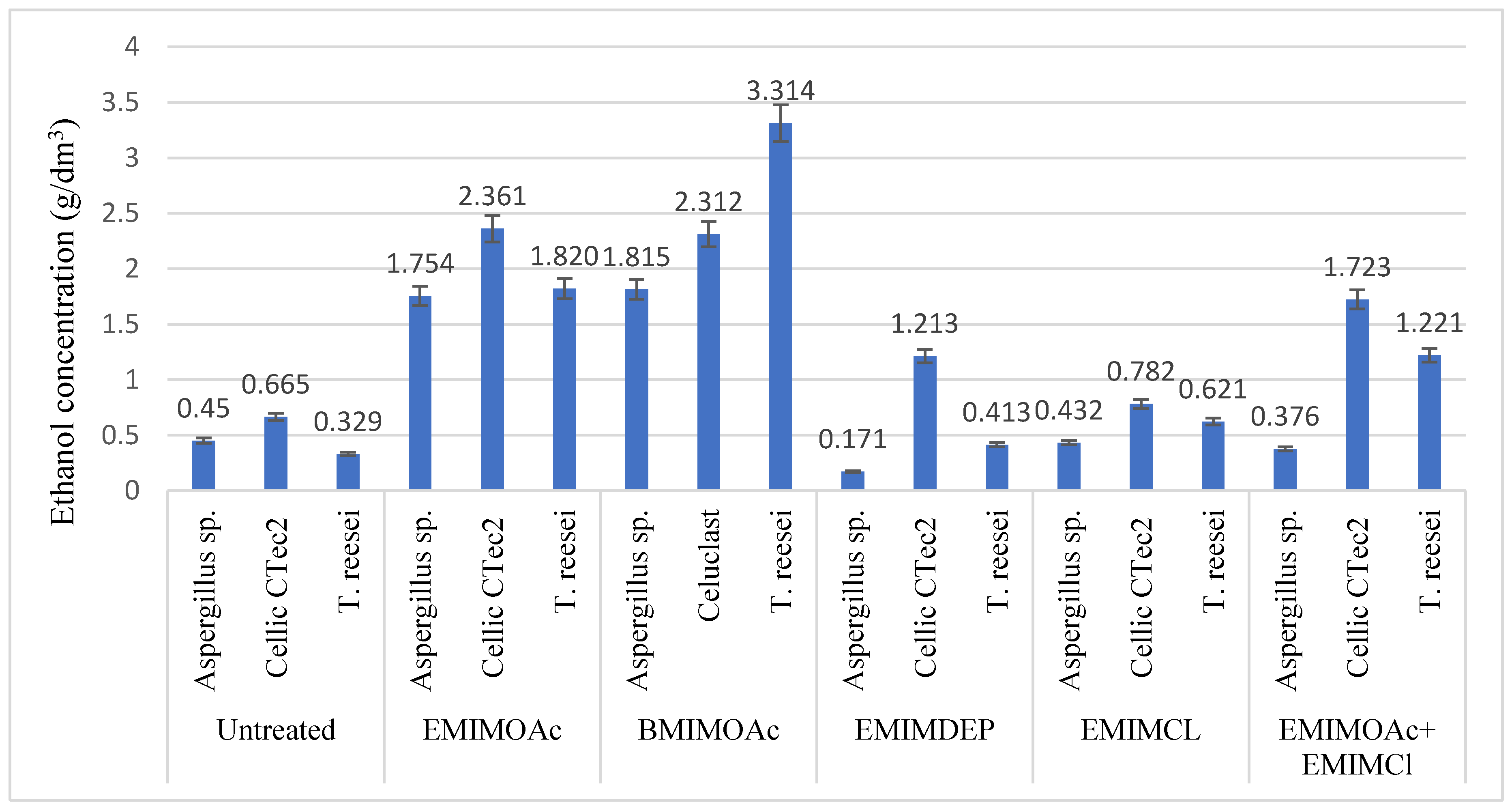

In the next stage, we studied the ethanol fermentation process on the prepared raw material (Figure 5
). The fermentation process was performed using S. cerevisiae
yeast. According to the results, the highest ethanol concentration was obtained for those variants where the following ionic liquids were used: EMIMOAc and Cellic CTec2 (2.46 g/dm3
) and in the variant with BMIMOAc and T. reesei
). These results are compatible with the amount of sugar, and the concentration of glucose, which at the beginning of the fermentation process was 5.5 g/dm3
and 4.16 g/dm3
, respectively. The lowest concentration of fermenting sugars was obtained after enzymatic hydrolysis using cellulase from Aspergillus
sp., which translated into the lowest ethanol concentrations. The environment to which microorganisms are introduced (after pretreatment with ionic liquids and after enzymatic hydrolysis) is typically not favorable for the microorganisms performing the process of ethanol fermentation [25
]. The presence of an ionic liquid in the fermentation environment, as well as inhibitors constituting the outcome of enzymatic hydrolysis, the source of which is the raw material itself, may have a negative impact on the microorganisms involved in the fermentation process. Indisputably, microorganisms are the weakest link in the process of obtaining ethanol from lignocellulosic raw materials. Thus, not only is the control of yeast count important but also their viability as the specific marker (indicator) of the proper course of the bioprocess is important. In our experiments, the highest count of yeast (8.4 × 105
CFU) in combination with a high yeast viability (78%) was demonstrated for the variant EMIM OAC + Cellic CTec2, which translated into a high concentration of ethanol. In addition, high counts (4.5 × 105
CFU) and viability (81%) were determined for the variant EMIMOAc + EMIMCl in combination with the enzymatic agent from T. reesei
). While in the first case, the glucose concentration as well as the counts and viability of yeast translated into a high ethanol concentration, in the second variant, the concentration of ethanol was lower (1.22 g/dm3
) due to the smaller pool of available fermenting sugars (2.98 g/dm3
). A chromatographic analysis demonstrated that the substrate concentration at 96 h of fermentation in all analyzed variants was zero (results not shown), thus indicating that the entire pool of fermenting sugars was used. The complete use of glucose by the S. cerevisiae
strain shows that the process had a correct course. However, only analysis of the detailed kinetics of glucose as well as analysis of kinetic indicators such as the productivity of the bioprocess would allow a detailed interpretation of the influence of individual variables on the process of ethanol fermentation. Moreover, an increase in the substrate concentration subjected to the technological process seems to be a key factor. On the one hand, an increase in the pool of fermenting sugars would translate into greater production of ethanol; yet on the other hand, the efficiency of pretreatment and enzymatic hydrolysis, and their influence on microorganisms leading to the fermentation, in this case higher inhibitor concentration, are questionable. Overall, this could have influenced the efficacy of fermentation. In addition, yeast viability was found to be in the range of 43–81%, which may indicate the negative impact of factors in the mixture subject to fermentation. However, in this case, the factor influencing reduced yeast viability may be due to the low concentration of glucose.
One of the main issues in the production of bioethanol from lignocellulose is the low concentration of ethanol obtained as the effect of the fermentation process. This was also observed in this study. The final concentration of ethanol is influenced by the concentration of the substrate and the efficiency of enzymatic hydrolysis, which is associated with the availability of cellulose (efficiency of pretreatment) and its content in the raw materials. Selection of the correct raw material, type of pretreatment, and selection of enzymatic agent as well as its doses are the key diagnostic issues to be met during the development of a method utilizing a new raw material [28
]. Moreover, present-day biotechnology does not only have to deal with the development of screening of microorganisms with industrial potential, which will enable the development of markers used in the selection of proper microorganisms for the process of fermentation. The challenge is also to choose microorganisms that can use hexoses and pentoses and that are resistant to toxins and inhibitors, which are present due to the degradation of lignin [32
]. Such compounds formed during fermentation often block ethanol fermentation (e.g., furfural, methylhydroxyfurfural, acetic acid, lactic acid, phenols, aldehydes, and heavy metal ions). Due to the absence of such natural microorganisms, the use of metabolic engineering to construct organisms with the required characters has been gaining interest. This enhances the activity of cells as a result of enhanced enzymatic, transportation, and regulatory functions by means of DNA recombination. Such interest includes analysis of metabolic pathways, design of genetic changes, and creation of recombined cells with changed properties [34
