HIL Co-Simulation of Finite Set-Model Predictive Control Using FPGA for a Three-Phase VSI System

1
Graduate School of Life Science and Systems Engineering, Kyushu Institute of Technology, Kitakyushu 808-0196, Fukuoka, Japan
2
Next Generation Power Electronics Research Center, Kyushu Institute of Technology, Kitakyushu 808-0196, Fukuoka, Japan
*
Author to whom correspondence should be addressed.
Energies 2018, 11(4), 909; https://doi.org/10.3390/en11040909
Received: 18 February 2018 / Revised: 8 April 2018 / Accepted: 10 April 2018 / Published: 12 April 2018
(This article belongs to the Section Electrical Power and Energy System)
  |
PDF [13028 KB, uploaded 3 May 2018]
  |

Abstract

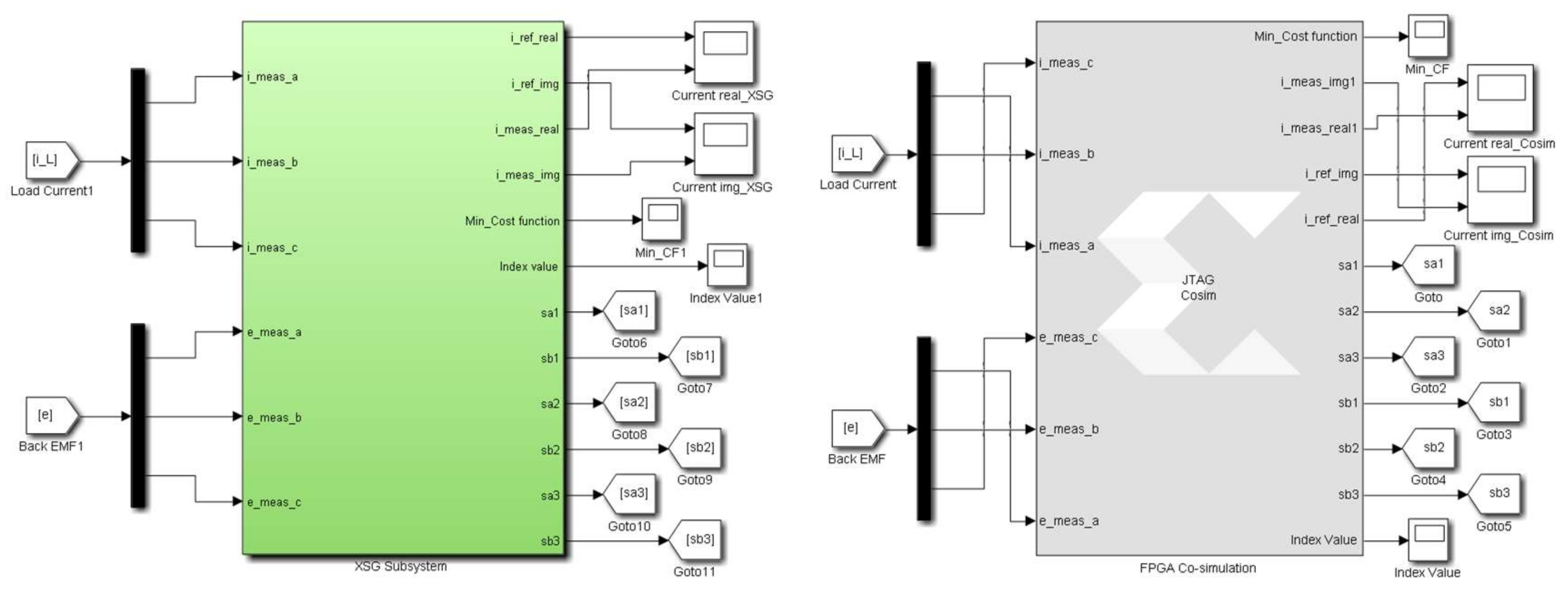

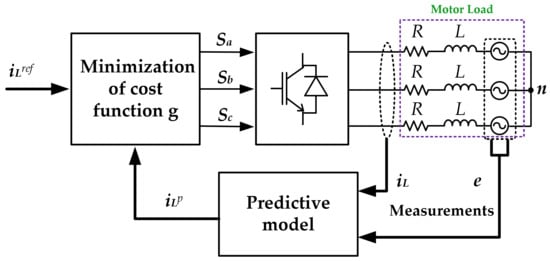

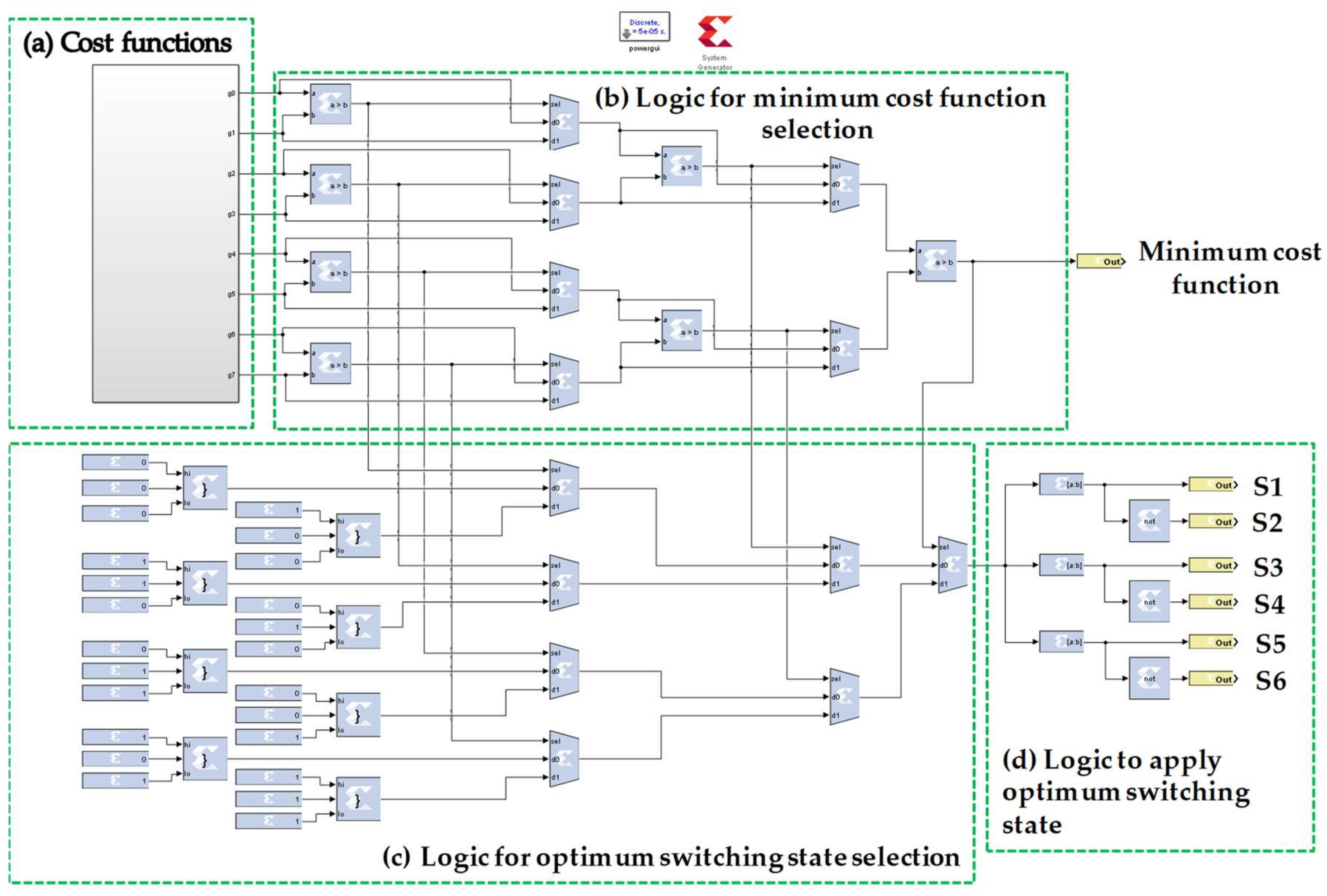

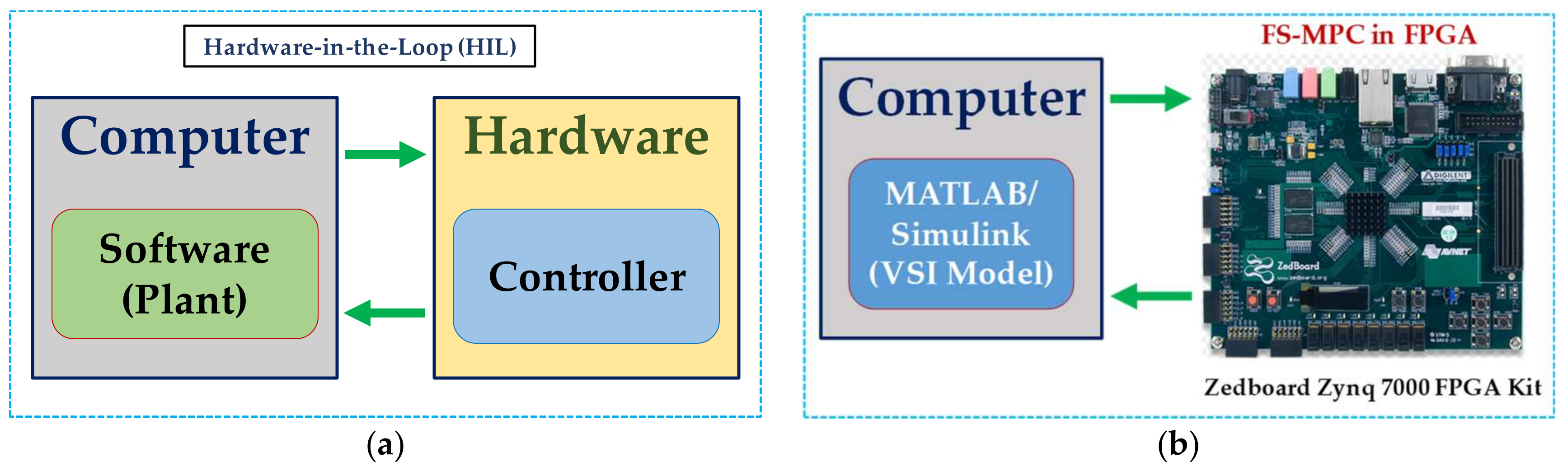

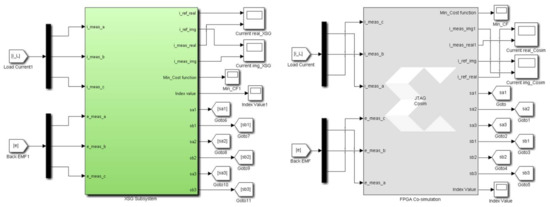

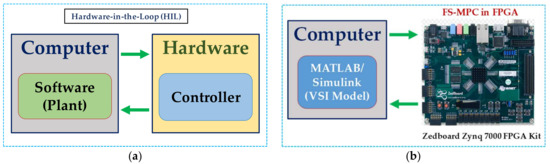

The conversion and control for the utilization of power generated from energy sources can be performed using a power electronic converter system. The voltage source inverter (VSI) is one of the commonly used converter topologies, being controlled by a switching control algorithm for power conversion. Finite set-model predictive control (FS-MPC) is a modern switching control algorithm and has received significant attention due to its predictive nature. In this paper, the implementation of FS-MPC is presented for the load-side current control of a three-phase VSI system using an integrated platform of MATLAB/Simulink and Xilinx system generator (XSG). The XSG provides the functionality of digital design and intuitive implementation of field-programmable gate array (FPGA) controlled systems. The additional functionality of hardware-in-the-loop (HIL) co-simulation using FPGA is used for the testing and validation of controller performance. The controller performance is validated through three platforms: MATLAB/Simulink, XSG and HIL co-simulation using ZedBoard Zynq evaluation and development FPGA kit. View Full-Text
Keywords: voltage source inverter (VSI); Xilinx system generator (XSG); finite set-model predictive control (FS-MPC); hardware-in-the-loop (HIL) co-simulation; field-programmable gate array (FPGA) voltage source inverter (VSI); Xilinx system generator (XSG); finite set-model predictive control (FS-MPC); hardware-in-the-loop (HIL) co-simulation; field-programmable gate array (FPGA)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
