Article

Nitrogen Doped Ordered Mesoporous Carbon as Support of PtRu Nanoparticles for Methanol Electro-Oxidation

1
Instituto de Carboquímica (CSIC), Miguel Luesma Castán 4, 50018 Zaragoza, Spain
2
Dpto. Química-Física, Universidad de La Laguna, Avda. Astrofísico Francisco Sánchez s/n, 38071 La Laguna, Spain
*
Authors to whom correspondence should be addressed.
Energies 2018, 11(4), 831; https://doi.org/10.3390/en11040831
Submission received: 23 February 2018 / Revised: 23 March 2018 / Accepted: 30 March 2018 / Published: 4 April 2018
(This article belongs to the Special Issue Direct Alcohol Fuel Cells 2018)

Abstract

:
The low oxidation kinetics of alcohols and the need for expensive platinum group metals are still some of the main drawbacks for the commercialization of energy efficient direct alcohol fuel cells. In this work, we investigate the influence of nitrogen doping of ordered mesoporous carbon (CMK) as support on the electrochemical activity of PtRu nanoparticles. Nitrogen doping procedures involve the utilization of pyrrole as both nitrogen and carbon precursor by means of a templating method using mesoporous silica. This method allows obtaining carbon supports with up to 14 wt. % nitrogen, with an effective introduction of pyridinic, pyrrolic and quaternary nitrogen. PtRu nanoparticles were deposited by sodium formate reduction method. The presence of nitrogen mainly influences the Pt:Ru atomic ratio at the near surface, passing from 50:50 on the bare (un-doped) CMK to 70:30 for the N-doped CMK catalyst. The electroactivity towards the methanol oxidation reaction (MOR) was evaluated in acid and alkaline electrolytes. The presence of nitrogen in the support favors a faster oxidation of methanol due to the enrichment of Pt at the near surface together with an increase of the intrinsic activity of PtRu nanoparticles.

1. Introduction

Direct alcohol fuel cells represent a good alternative to current systems for the production of electricity, especially in low power consumers (laptop, cell phones, etc.) [1,2,3,4]. The use of methanol as fuel (instead of hydrogen, which is conventionally used in low temperature fuel cells) presents several advantages such as its high volume energy-density and easy storage/transportation, which allows using existing infrastructures [5]. However, challenging issues must be addressed in order to commercialize the direct methanol fuel cell (DMFC) technology [6], like the low catalytic activity for the methanol oxidation reaction (MOR) on anode electrode, catalyst poisoning by the formation of CO-like intermediates during MOR and high costs of the Pt-based electrocatalysts [5].
In recent years, great efforts have been made to design efficient and stable catalysts for MOR, especially in binary catalytic systems, such as PtRu [7,8,9,10,11], PtCu [12] or PtCo [13]. Among them, bimetallic electrocatalysts of PtRu are considered to date the most promising anode catalysts for methanol oxidation [5], where Pt sites dehydrogenate methanol and Ru oxidizes the CO intermediates into CO2 [2].
In order to enhance the dispersion and activity/stability of metal nanoparticles, nanostructured carbon materials are commonly used as electrocatalyst supports, such as carbon blacks [14], carbon nanofilaments [14,15,16,17,18], graphene [13,19], carbon gels [18,20,21] or mesoporous carbon [18,22,23,24,25,26]. Among them, ordered mesoporous carbons have attracted special attention in the field of electrocatalysis due to their developed mesoporosity and regular pore channels [22,23,24], which may facilitate a high nanoparticle dispersion and reactant/product diffusion to/from the active sites. In particular, a series of ordered mesoporous carbons synthesized by the nanocasting method from mesoporous silica and denoted as CMKs (denoted in the literature as CMKs, standing for carbon mesostructures from Korea) have been widely used as catalyst support obtaining promising results [22,27]. Interestingly, Maiyalagan and coworkers [22] reported a higher activity and stability on PtRu nanoparticles supported on CMK-8 in comparison to the commercial PtRu/C catalyst (E-TEK).
On the other hand, the physicochemical properties of carbon materials can be tuned by the introduction of different heteroatoms (such as N, B, S or P) into the carbon structure [28,29,30,31,32,33,34,35]. In general, doping carbon materials with nitrogen leads to a high dispersion of smaller nanoparticles with narrower size distributions, and consequently, higher catalytic activities toward MOR have been reported on N-doped carbon/catalyst systems compared to undoped analogues [15,16,19,29,36,37]. In this context, Liu et al. [36] showed a high catalytic activity for methanol oxidation of PtRu nanoparticles supported on N-doped porous carbon nanospheres, which was attributed to the presence of nitrogen functional groups and the high dispersion of the nanoparticles. On the other hand, Kang and coworkers [37] showed a much better catalytic performance when a nanotube-graphene hybrid nanostructure was doped with nitrogen compared to electrodes based on conventional carbon nanotubes or commercial catalysts.
In this work, we report an investigation of the influence of nitrogen doping in ordered mesoporous carbon materials as support for PtRu catalysts. Pyrrole was studied as both nitrogen and carbon source. We demonstrate that the effective introduction of pyrrolic, pyridinic and quaternary nitrogen groups in the carbon support leads to a positive effect on the electrocatalytic activity for the oxidation of methanol on PtRu nanoparticles.

2. Results

2.1. Physico-Chemical Properties of N-Doped Carbon Materials

Ordered mesoporous carbons were synthesized by impregnating a silica template (SBA-15) with two different carbon precursors: a nitrogen-free precursor, furanic resin (the resulting carbon will be labelled in this work as CMK), and pyrrole. Pyrrole, a nitrogen-rich organic molecule (20.9 wt. % N), was infiltrated into the silica pores following two strategies: directly impregnating the liquid into the porosity of the silica powder (labelled CMK-N-imp), or flowing its vapor through the solid (labelled CMK-N-vap). For more details, please refer to the Experimental section. All materials were thermally treated for the carbonization of the carbon (or carbon/nitrogen) precursor and etched in HF to remove the silica template. Using pyrrole as precursor is advantageous since it serves both as carbon and nitrogen source simultaneously.
The amount of nitrogen in N-doped CMKs is about 14 wt. % (Table 1) according to elemental analysis (EA). The amorphous nature of carbon in CMKs, with a high density of defects and high surface area, together with the templating process, favor the doping extent of the carbon matrix with nitrogen. X-ray photoelectron spectroscopy (XPS) was utilized to investigate the chemical composition at the near surface, resulting in a nitrogen content between 8 and 10 at %. By comparing bulk (EA) and surface (XPS) analysis results, it appears that using pyrrole vapor as precursor favors the presence of nitrogen atoms on the surface, since the atomic percentage in XPS results is 2.2 at % higher for the CMK-N-vap sample while bulk analyses do not indicate significant differences (<0.5 wt. %). However, the XPS profile (Figure 1a,b) for N1s barely changes between CMK-N-imp and CMK-N-vap, pointing to a similar nitrogen speciation, as will be explained later.
The most significant difference between the two nitrogen doping treatments is the detrimental effect of direct impregnation on the porous structure of CMK-N-imp. In this case, the surface area (SBET) is about 6-fold lower than in the CMK-N-vap, derived from pyrrole vapor impregnation. The latter presents a similar SBET than the CMK from the furanic resin, considering also the different nature of the precursor. However, a more developed mesoporosity and consequently a larger total pore volume was obtained for the CMK-N-vap material in comparison to CMK, which could be associated to a different pore covering of the silica template during the impregnation stage. The pore volume (Vpore) is also affected by the nitrogen incorporation procedure, indicating a much dense material resulting from the direct impregnation, presumably due to the formation of carbon agglomerates derived from pyrrole not entering efficiently into the porosity of the template.
The chemical speciation of nitrogen was evaluated by deconvoluting the high resolution N1s spectra into four contributions [28,38], as depicted in Figure 1 and summarized in Table 2. The types of nitrogen functionalities are represented in Figure 1c. The XPS spectra present two main peaks for both N-doped CMKs, centered at about 398 and 400.5 eV, which are ascribed mainly to the presence of three main nitrogen-containing species: pyridinic, pyrrolic (or pyridonic) and quaternary nitrogen atoms.
From the analysis of N1s spectra, it appears that the method to introduce pyrrole by either liquid impregnation or vapor into the silica template does not significantly influence the chemical nature of nitrogen groups. Upon thermal treatment at 700 °C, a significant percentage of pyrrolic nitrogen from the precursor converts to pyridinic and quaternary N, in accordance to published results [39].

2.2. Physico-Chemical Properties of N-Doped Carbon-Supported PtRu Catalysts

PtRu nanoparticles were deposited on the carbon supports by reduction with formate ions, as described in more detail in the Experimental section. Due to the substantially lower surface area of CMK-N-imp, we decided to deposit a limited amount of metal (20 wt. %) in order to minimize the effect of porosity on metal particle size distribution. The chemical composition of the catalysts was elucidated by means of XPS and energy dispersive X-ray spectroscopy (EDX), whereas the crystallinity was studied by X-ray diffraction (XRD). Interestingly, the nitrogen atomic concentration (Table 3) is noticeably larger in the PtRu/CMK-N-vap catalyst compared to PtRu/CMK-N-imp, according to the content of the bare supports (Table 1).
Figure 2 shows the X-ray diffractograms of the PtRu catalysts, while the structural parameters from XRD are displayed in Table 3. The reflections can be ascribed to the presence of crystalline Pt (JCPDS #04-0802) together with a broad contribution of carbon (JCPDS #01-0604) centered at about 2θ = 25.9°, as indicated in the figure. The absence of Ru related reflections together with the shift of Pt reflections towards wider Bragg angles indicate that Ru is alloyed with Pt. This is confirmed by the contraction of the lattice parameter from 0.392 nm for Pt to 0.390–0.388 nm for the PtRu catalysts, indicating the formation of the PtRu alloy. The alloying degree was determined using Vegard’s law [40]. Interestingly, the Ru content in the PtRu alloy decreases as the concentration of nitrogen increases (XPS, Table 3), from XRu = 0.4 for the N-free catalyst to values of 0.3 and 0.2 for PtRu/CMK-N-imp and PtRu/CMK-N-vap, respectively. A part of Ru might have been deposited on the carbon material as amorphous phase [41]. According to the bibliography [42,43], the un-alloyed amorphous Ru is generally found as oxide (i.e., RuOx). Additionally, the Pt:Ru atomic ratio was determined by EDX and XPS. The Pt content in the bulk (EDX), about 45–58 at %, slightly increases with nitrogen content. This trend is exacerbated when examining the Pt:Ru ratio in the near surface (XPS), with about 70 at % of Pt for the PtRu/CMK-N-vap catalyst, characterized by the largest nitrogen content. Thus, the introduction of nitrogen on carbon structure seems to decrease the Ru alloyed with Pt, as well as to enrich the Pt amount on the catalyst surface. This behavior could be related with a modification of the electronic structure of the carbon support by the introduction of nitrogen [29,44,45]. Kim et al. obtained a different surface metal composition in bimetallic catalysts (PdPt) supported on nitrogen-doped materials in comparison with its nitrogen-free analogue [44]. The contribution of surface nitrogen on the reduction of Pt and Ru during the synthesis cannot be discarded. The yield of Ru reduction by formate ions relies on pH, as demonstrated in previous works [46,47]. This indicates that different local pH might cause a variation in Pt and Ru reduction/deposition kinetics, thus contributing to the Pt surface enrichment.
The crystallite size of PtRu nanoparticles was calculated applying the Scherrer equation to the (220) peak at 2θ = 68.1°. The crystallite sizes of PtRu/CMK and PtRu/CMK-N-imp were very similar (about 2.9 nm) while the narrower XRD reflections of PtRu/CMK-N-vap indicate larger crystallite size, of 5.8 nm. This may indicate some partial agglomeration of metallic crystallites during the reduction process in the presence of a larger nitrogen content. Nieto-Marquez et al. found a correlation between quaternary N concentration and the relative growth of Ni crystallites, attributed to enhanced electron mobility [48]. On mesoporous carbons, Pt nanoparticles are known to attach preferably on the surface of open mesopore walls. Whereas, most Pt particles are buried in micropores when microporous carbon materials are used as support [25]. In this work, the three carbon materials exhibited different textural properties (Table 1). However, a clear trend of the porosity and PtRu crystallite size has not been found, probably due to the relatively low metal concentration employed (20 wt. %). As it will be shown in the discussion of TEM images, some particle agglomerates are formed during the synthesis process, giving place to a certain population of large noble metal particles that contribute to the narrowing of XRD reflections.
Transmission electron microscopy (TEM) images (Figure S1 of the Supplementary Information) of the catalysts at low magnification evidenced the ordered structure of the carbons supports. CMKs exhibit an arrangement of carbon nanorods with a uniform spacing (mesopores) between them. The morphology and distribution of PtRu nanoparticles on the surface of CMKs was also studied by TEM. Representative micrographs for all three PtRu/CMK catalysts are depicted in Figure 3a,c,e. PtRu particle size distributions are shown in Figure 3b,d,f for these catalysts. PtRu nanoparticles appear well distributed on the carbonaceous surface, presenting some aggregation in a few localized zones, presumably due to the presence of surface defects or small pores that favor the growth of nanoparticles and a certain agglomeration on the support.
Particle size distributions (PtRu) are shown in Figure 3, obtained from the analysis of more than 300 particles by TEM. The average particle size slightly increases from 2.1 nm for the catalyst supported on the bare CMK to 2.8 nm for the PtRu/CMK-N-vap catalyst. Catalysts supported on N-doped CMKs present a distribution tail for particles larger than 3 nm, more evident in the case of PtRu/CMK-N-vap catalyst, characterized by the largest amount of surface nitrogen according to XPS analyses (Table 3). These bigger nanoparticles contribute in a larger extent to X-ray diffraction, explaining the narrower reflections for the CMK-N-vap supported catalyst in XRD (Figure 2) and consequently larger crystallite size. Nonetheless, more than 50% population of particles are between 1.5 and 3.0 nm size regardless the nature of the support. Small nanoparticles represent the most important contribution to active surface area in surface sensitive reactions like methanol electrooxidation.
Aimed to investigate eventual effects of the chemical composition of the catalysts, XPS analyses were also carried out for the CMK-supported PtRu catalysts. The high resolution N1s spectra are depicted in Figure 4, whereas the Pt4f and Ru3p spectra are shown in Figure 5. The peak profile for nitrogen is very similar to the profiles obtained for the support alone, with about 33–34% as pyridinic N, 31–32% as pyrrolic/pyridonic nitrogen and 25–26% quaternary N, as summarized in Table 4. The similar N1s XPS signal indicates a negligible effect of PtRu deposition on the chemical speciation of nitrogen in the carbonaceous phase.
The deconvolution of Pt 4f spectra (Figure 5 and Table 4) indicate above 60 at % of metallic Pt in all catalysts. The synthesis with sodium formate is effective in reducing a substantial percentage of Pt, with no significant influence of the presence of nitrogen on its chemical state. Whereas, the binding energy (BE) associated to Pt0 is slightly shifted towards lower values, 0.2 eV, in the catalysts based on N-doped CMKs. This small shift has been ascribed by some authors to the effect of surface nitrogen on the electronic environment of metal particles [15], which in the end may positively influence the electro-catalytic activity by favoring the electron transfer processes during the oxidation of methanol. It has been demonstrated that the lone pair of electrons at surface nitrogen sites in the sp2 orbital may favor a stronger binding of Pt and Ru during catalyst synthesis, leading to enhanced activity in MOR [49].
The oxidation state of Ru, as analyzed from the deconvolution of Ru 3p spectra, varies slightly with the support characteristics. The broadening of each peak in the Ru 3p doublet indicates the presence of both metallic Ru and oxidized Ru4+. The contribution of oxidized Ru to total is the highest for the PtRu/CMK-N-vap catalyst, which is characterized by the highest Pt:Ru atomic ratio at the surface (Table 3).
In summary, the presence of nitrogen species influences mainly the Pt:Ru ratio at the surface, according to XPS and EDX analyses, and the oxidation state of Ru, although in a much lesser extent. Other important features remain unaltered, allowing us a proper discussion of the influence of nitrogen doping in the electro-catalytic activity of carbon-supported PtRu catalysts.

2.3. Electrochemical Assessment of Activity for Methanol Electro-Oxidation on CMK-Supported PtRu Catalysts

PtRu/C catalysts were evaluated in the methanol oxidation reaction (MOR) both in acid (0.5 M H2SO4) and alkaline (0.1 M NaOH) environments. Figure 6 shows linear sweep voltammetric profiles for the MOR. In both acid and alkaline electrolytes, the PtRu catalysts supported on N-modified CMKs show better performances than the one supported on bare CMK.
In acid electrolyte (Figure 6a), the onset potential in the oxidation of methanol appears at significantly more negative values (lower overpotential) for the PtRu/CMK-N-vap catalyst compared to the other two formulations. The current density increase follows the same trend than surface nitrogen concentration (XPS) in the support. This enhancement could be explained by the partial enrichment of Pt at the surface or it could be a result of a better metal-support interaction. At low temperature (here room temperature) and acid environment, the dehydrogenation of methanol is a slow step conditioning the rate of the whole oxidation process. In the bifunctional MOR mechanism, the key role of Pt is dehydrogenating the organic molecule to give adsorbed CO, which is further oxidized to CO2 by the formation of hydroxyl species on the surface of Ru atoms [40]. In our work, PtRu catalysts supported on N-doped CMKs present similar or even larger particle size than the one supported on the bare CMK, which means similar or even lower metal surface area. The current density is a function of the product between the available surface area (m2 g−1) and the intrinsic activity (A m−2) for equivalent catalyst loadings on the working electrode. This means that the higher activity of catalysts supported on N-doped CMKs, with similar or lower surface area, is a result of a larger intrinsic activity compensating the lower surface from bigger nanoparticles. A larger intrinsic activity can be ascribed to enhanced surface methanol oxidation kinetics. As a consequence, catalysts with a larger surface Pt:Ru ratio, together with a favoring interaction of metal particles with the nitrogen-doped support, present improved behavior for the MOR, like PtRu/CMK-N-vap.
In alkaline electrolyte (Figure 6b) the situation is different. Even though N-doped catalysts present higher current densities than the bare CMK one, the trend of activity is not related to the amount of nitrogen, like in the case of acid electrolyte. Similar current-voltage behavior was observed for PtRu/CMK-N-vap and PtRu/CMK-N-imp, with about 40 mV difference between them, the latter being more active. Interestingly, the highest activity was observed for the catalyst supported on CMK-N-imp in alkaline environment. Methanol oxidation kinetics are affected by both pH and adsorbing anions, these latter having an inhibiting effect on methanol dehydrogenation steps [50]. Apparently, the interactions between PtRu nanoparticles and the N-doped CMKs are somehow influenced by the electrolyte. In sulfuric acid, it appears that either the coverage of OH species from oxidative water decomposition in acid, or the adsorption of sulfate anions, affect in a larger and more negative extent to the PtRu/CMK-N-imp catalyst, characterized by the least developed porosity among the samples herein investigated. Whereas, in alkaline electrolyte, where OH discharge is favored, the characteristics of N-doped CMK-supported PtRu catalysts aid in methanol oxidation, presumably due to favored metal-support interaction from enhanced Lewis basicity derived from strong π electron delocalization of N-doped carbon increasing the electron-donor capacity of the support [51].
Chronoamperometric curves were carried out to assess the behavior of the PtRu catalysts under constant potential conditions. Figure 7 shows the current density-time curves obtained at 0.5 V vs. RHE. The curves exhibit the typical current drop in the very first seconds associated to the oxidation of methanol adsorbed on the catalyst thin layer when applying 0.5 V vs. RHE, followed by a slower variation with time, ascribed to the oxidation of methanol under steady-state conditions. In sulfuric acid (Figure 7a), PtRu/CMK-N-vap presents the highest current density with about twice the current obtained with the other two catalysts. In alkaline electrolyte (Figure 7b) the current densities are higher than in acid electrolyte for the same catalyst. It is well known that the methanol oxidation kinetics in alkaline environment is faster than in acid [50]. Under constant potential, the differences among the three tested catalysts are exacerbated in 0.1 M NaOH. Considering the similarities found in the catalysts with regard to some key features controlling the oxidation of methanol, like particle size, metal oxidation state and composition, a significant part of the electro-catalytic enhancement must derive from the influence of nitrogen on the metal-support interaction.
Table 5 summarizes the values of current density for all the catalysts, both in acid and alkaline electrolytes and according to linear voltammetry (LV, 0.55 V vs. RHE) and chronoamperometry (CA, 0.5 V vs. RHE) experiments. The current normalization was carried out considering the Pt loading in the electrode to better compare results regardless the amount of deposited catalyst. Similar conclusions can be extracted than those discussed above, with PtRu/CMK-N-vap as the best MOR catalyst in acid and PtRu/CMK-N-imp being the most performing in alkaline electrolyte.

3. Materials and Methods

3.1. Preparation of Ordered Mesoporous Carbons

CMKs were synthesized by the carbonization of a carbon precursor impregnated in a mesoporous silica, SBA-15, as described in previous works [52,53]. In the case of bare CMKs, the carbon precursor was a furanic resin (furfuryl alcohol and formaldehyde, Huttenes-Albertus, Düsseldorf, Germany). Whereas, for N-doped CMKs, pyrrole (Sigma Aldrich, Saint Louis, MO, USA) was used as precursor. In a first strategy, 50 mL of pyrrole was directly impregnated into 1 g of silica (SBA-15) by stirring the mixture during 20 h (CMK-N-imp). A second strategy consisted of flowing pyrrole vapor (40 °C) through the SBA-15 during 24 h (CMK-N-vap), as described in [54]. Afterwards, the method was the same for both N-doped CMK materials: the solid was mixed in a 0.5 M FeCl3 aqueous solution for 2 h. It was subsequently washed with water and acetone and dried overnight in an oven. To obtain the carbonaceous material, the three mixtures (two from pyrrole and one from furanic resin) were thermally treated at 700 °C in inert atmosphere during 3 h. Finally, to remove the silica template, each carbonaceous material was etched with HF during 24 h, thoroughly washed with water and dried overnight at 70 °C.

3.2. Synthesis of Carbon-Supported PtRu Electrocatalysts

PtRu electrocatalysts were synthesized by a sodium formate reduction method, as described in previous works [46]. Briefly, the metal precursors (H2PtCl6 and RuCl3, Sigma-Aldrich, St. Louis, MO, USA) were dissolved in formic acid (98%, Merck, Kenilworth, NJ, USA) under sonication and the pH was adjusted to 12 by adding 1 M NaOH aqueous solution. After that, CMKs were dispersed in the solution containing the metal precursors and the mixture was refluxed at 80 °C for 2 h. The resultant catalysts were filtered, washed with ultrapure water and dried at 70 °C overnight.

3.3. Physicochemical Characterization

N2 adsorption–desorption isotherms of CMKs were measured at −196 °C with a Micromeritics ASAP 2020. The total surface area was determined from BET (Brunauer, Emmett and Teller) equation and the total pore volume was estimated using the single point method at P/P0 = 0.99. The micropore volume was obtained by the t-plot method, while the mesopore volume was estimated as the difference between the total pore volume and the micropore one.
EA of carbon supports were carried out with a CHNS Analyzer Thermo FlashEA 1112 (Thermo Fisher Scientific, Waltham, MA, USA).
TEM micrographs of PtRu catalysts were obtained using a JEOL-2000 FXII microscope with a LaB6 filament. The samples were grounded, dispersed in ethanol and then a drop of solution was deposited on a copper grid covered with Lacey carbon film. The analysis of particle size distribution was carried out using ImageJ (version 1.50i) and OriginLab software (OriginPro 2015).
X-ray diffraction (XRD) patterns of the materials were recorded using a Bruker AXS D8 Advance (Bruker AXS, Karlsruhe, Germany) diffractometer with a θ–θ configuration and using Cu Kα radiation (λ = 0.15406 nm) at a scan rate of 1° min−1 for 2θ values from 10° to 100°. Crystallite sizes were calculated from Debye–Scherrer equation and considering the (220) reflection peak of Pt.
A scanning electron microscopy—energy Dispersive X-ray (SEM-EDX) analyzer Röntec XFlash Si(Li) was used to determine the Pt and Ru bulk elemental composition.
XPS measurements were performed using a ESCAPlus OMICRON system equipped with a hemispherical electron energy analyser. A non-monochromatic Al Kα (1486.7 eV) anode was used operating at 225 W (15 mA, 15 kV) and under vacuum (<5 × 10−9 Torr). A survey scan (1 sweep/200 ms dwell) was acquired between 0 and 1100 eV, at 0.5 eV step, 0.2 s dwell and 50 eV pass energy. Detailed scans for N 1s, Pt 4f and Ru 3p were obtained at 0.1 eV step, 0.5 s dwell and 20 eV pass energy. C 1s binding energy (BE) of the graphitic peak was referenced at 284.6 eV for calibration. The quantitative evaluation of each peak was obtained by dividing the integrated peak area by atomic sensitivity factors and using the CasaXPS software after Shirley background subtraction and 70%/30% Gauss/Lorentzian peaks. XPS data were interpreted by using the NIST X-ray Photoelectron Spectroscopy Database (NIST Standard Reference Database 20, Version 4.1) [55] and the Physical Electronics Handbook of X-ray photoelectron spectroscopy [56].

3.4. Electrochemical Characterization

Electrochemical performance of PtRu electrocatalysts was evaluated in a three-electrode electrochemical cell at room temperature using an Autolab PGSTAT302 potentiostat/galvanostat (Metrohm). The counter electrode was a high surface area carbon rod and a reversible hydrogen electrode (RHE) placed inside a Luggin capillary was used as reference. All potentials in the text are referred to the latter electrode. The working electrodes were prepared by depositing a thin electrocatalyst layer on a pyrolitic graphite disk (7 mm diameter). The electrocatalyst layer was obtained by sonicating an ink containing 1 mg mL−1 of the catalyst in isopropyl alcohol and Nafion (30 wt. % ionomer, 70 wt. % catalyst). Subsequently, an aliquot of the ink was deposited onto the carbon disk for a PtRu loading of 50 µg cm−2, and dried at room temperature.
Sulphuric acid (96%, Panreac) and sodium hydroxide (99.99%, Sigma-Aldrich) were used for the preparation of the base electrolytes: 0.5M H2SO4 and 0.1M NaOH, respectively. First, potential cycles were performed from 0.05 and 0.85 V vs. RHE at 100 mV s−1, to clean and activate the electrode surface. Methanol electrooxidation was evaluated by linear sweep voltammetry and chronoamperometry in a methanol solution in the base electrolyte. Linear sweep voltammetries were carried out from 0.05 to 0.85 V vs. RHE at a scan rate of 20 mV s−1. Current transients were recorded at 0.5 V vs. RHE during 900 s. Methanol concentration in the solution was 2 M for all the experiments. All currents were normalized considering the geometrical area of the electrode (0.38 cm2).

4. Conclusions

Ordered mesoporous carbon materials have been doped with nitrogen by using pyrrole as nitrogen and carbon precursor in a mesoporous silica template. The chemical and porous features have been investigated, concluding that an adequate porosity is favored when impregnating the silica template with pyrrole vapor rather than liquid impregnation. However, the nitrogen speciation is independent of the impregnating process, with a similar contribution of pyrrolic (not discarding pyridonic), pyridinic and quaternary nitrogen as the most abundant species.
PtRu catalysts with low noble metal loading (20 wt. %) and supported on nitrogen-doped ordered mesoporous carbons were synthesized by formate reduction method, and their activity was assessed in both acid and alkaline solutions for the electro-oxidation of methanol. N groups appear to favor the electroactivity of PtRu nanoparticles. On one hand, there is an enrichment of Pt on the surface of PtRu nanoparticles with the increase of surface nitrogen. This characteristic may cause an improvement of the methanol dehydrogenation kinetics. On the other hand, the intrinsic activity is also higher for the catalysts supported on the N-doped mesoporous carbons, confirming the positive effect of nitrogen-doping. Interestingly, the best catalyst in acid electrolyte presents lower activity than the best catalyst in alkaline electrolyte, both overcoming the activity of the PtRu catalyst supported on the bare CMK (un-doped).

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1073/11/4/831/s1, Figure S1: TEM images of PtRu/CMK, PtRu/CMK-N-imp and PtRu/CMK-N-vap.

Acknowledgments

The work has received financial support from the Spanish Ministry of Economy and Competitiveness (MINECO) through projects ENE2014-52158-C2-1-R and 2-R (co-founded by FEDER) and from Aragon Government to the Fuel Conversion Group. M.J. Nieto-Monge has also received funding for her Ph.D. grant from MINECO. D. Sebastián acknowledges also MINECO for his Ramón y Cajal research contract (RYC-2016-20944).

Author Contributions

María Jesús Lázaro and Elena Pastor conceived and designed the experiments; María Jesús Nieto-Monge synthesized the materials and performed the experiments; David Sebastián, Sara Pérez-Rodríguez and Elena Pastor analyzed and discussed the data; María Jesús Nieto-Monge and Sara Pérez-Rodríguez contributed reagents/materials/analysis tools; David Sebastián and Sara Pérez-Rodríguez wrote the paper; all authors revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Antolini, E.; Gonzalez, E.R. Alkaline direct alcohol fuel cells. J. Power Sources 2010, 195, 3431–3450. [Google Scholar] [CrossRef]
  2. Aricò, A.S.; Baglio, V.; Antonucci, V. Direct Methanol Fuel Cells; Nova Science Publishers, Inc.: New York, NY, USA, 2010; ISBN 9781608768653. [Google Scholar]
  3. Sgroi, M.F.; Zedde, F.; Barbera, O.; Stassi, A.; Sebastián, D.; Lufrano, F.; Baglio, V.; Aricò, A.; Bonde, J.L.; Schuster, M. Cost Analysis of Direct Methanol Fuel Cell Stacks for Mass Production. Energies 2016, 9, 1008. [Google Scholar] [CrossRef]
  4. Sebastián, D.; Serov, A.; Matanovic, I.; Artyushkova, K.; Atanassov, P.; Aricò, A.S.; Baglio, V. Insights on the extraordinary tolerance to alcohols of Fe-N-C cathode catalysts in highly performing direct alcohol fuel cells. Nano Energy 2017, 34, 195–204. [Google Scholar] [CrossRef]
  5. Zhao, X.; Yin, M.; Ma, L.; Liang, L.; Liu, C.; Liao, J.; Lu, T.; Xing, W. Recent advances in catalysts for direct methanol fuel cells. Energy Environ. Sci. 2011, 4, 2736–2753. [Google Scholar] [CrossRef]
  6. Lo Vecchio, C.; Aricò, A.S.; Monforte, G.; Baglio, V. EDTA-derived CoNC and FeNC electro-catalysts for the oxygen reduction reaction in acid environment. Renew. Energy 2018, 120, 342–349. [Google Scholar] [CrossRef]
  7. Hsin, Y.L.; Hwang, K.C.; Yeh, C.-T. Poly(vinylpyrrolidone)-Modified Graphite Carbon Nanofibers as Promising Supports for PtRu Catalysts in Direct Methanol Fuel Cells. J. Am. Chem. Soc. 2007, 129, 9999–10010. [Google Scholar] [CrossRef] [PubMed]
  8. Iwasita, T.; Hoster, H.; John-Anacker, A.; Lin, W.F.; Vielstich, W. Methanol Oxidation on PtRu Electrodes. Influence of Surface Structure and Pt−Ru Atom Distribution. Langmuir 2000, 16, 522–529. [Google Scholar] [CrossRef]
  9. Sebastian, D.; Stassi, A.; Siracusano, S.; Vecchio, C.L.; Arico, A.S.; Baglio, V. Influence of Metal Oxide Additives on the Activity and Stability of PtRu/C for Methanol Electro-Oxidation. J. Electrochem. Soc. 2015, 162, F713–F717. [Google Scholar] [CrossRef]
  10. Huang, L.; Zhang, X.; Wang, Q.; Han, Y.; Fang, Y.; Dong, S. Shape-Control of Pt–Ru Nanocrystals: Tuning Surface Structure for Enhanced Electrocatalytic Methanol Oxidation. J. Am. Chem. Soc. 2018, 140, 1142–1147. [Google Scholar] [CrossRef] [PubMed]
  11. Sebastián, D.; Suelves, I.; Pastor, E.; Moliner, R.; Lázaro, M.J. The effect of carbon nanofiber properties as support for PtRu nanoparticles on the electrooxidation of alcohols. Appl. Catal. B Environ. 2013, 132, 13–21. [Google Scholar] [CrossRef]
  12. Wang, Q.; Zhao, Z.; Jia, Y.; Wang, M.; Qi, W.; Pang, Y.; Yi, J.; Zhang, Y.; Li, Z.; Zhang, Z. Unique Cu@CuPt Core–Shell Concave Octahedron with Enhanced Methanol Oxidation Activity. ACS Appl. Mater. Interfaces 2017, 9, 36817–36827. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, H.; Hu, X.; Zhang, J.; Su, N.; Cheng, J. Facile Fabrication of Platinum-Cobalt Alloy Nanoparticles with Enhanced Electrocatalytic Activity for a Methanol Oxidation Reaction. Sci. Rep. 2017, 7, 45555. [Google Scholar] [CrossRef] [PubMed]
  14. Sharma, S.; Pollet, B.G. Support materials for PEMFC and DMFC electrocatalysts—A review. J. Power Sources 2012, 208, 96–119. [Google Scholar] [CrossRef]
  15. Chetty, R.; Kundu, S.; Xia, W.; Bron, M.; Schuhmann, W.; Chirila, V.; Brandl, W.; Reinecke, T.; Muhler, M. PtRu nanoparticles supported on nitrogen-doped multiwalled carbon nanotubes as catalyst for methanol electrooxidation. Electrochim. Acta 2009, 54, 4208–4215. [Google Scholar] [CrossRef]
  16. Cheng, Y.; Xu, C.; Shen, P.K.; Jiang, S.P. Effect of nitrogen-containing functionalization on the electrocatalytic activity of PtRu nanoparticles supported on carbon nanotubes for direct methanol fuel cells. Appl. Catal. B Environ. 2014, 158–159, 140–149. [Google Scholar] [CrossRef]
  17. Sebastián, D.; Lázaro, M.J.; Moliner, R.; Suelves, I.; Aricò, A.S.; Baglio, V. Oxidized carbon nanofibers supporting PtRu nanoparticles for direct methanol fuel cells. Int. J. Hydrog. Energy 2014, 39, 5414–5423. [Google Scholar] [CrossRef]
  18. Gálvez, M.E.; Calvillo, L.; Alegre, C.; Sebastián, D.; Suelves, I.; Pérez-Rodríguez, S.; Celorrio, V.; Pastor, E.; Pardo, J.I.; Moliner, R.; et al. Nanostructured carbon materials as supports in the preparation of direct methanol fuel cell electrocatalysts. Catalysts 2013, 3, 671–682. [Google Scholar] [CrossRef]
  19. Zhao, S.; Yin, H.; Du, L.; Yin, G.; Tang, Z.; Liu, S. Three dimensional N-doped graphene/PtRu nanoparticle hybrids as high performance anode for direct methanol fuel cells. J. Mater. Chem. A 2014, 2, 3719–3724. [Google Scholar] [CrossRef]
  20. Alegre, C.; Baquedano, E.; Galvez, M.E.; Moliner, R.; Lazaro, M.J. Tailoring carbon xerogels’ properties to enhance catalytic activity of Pt catalysts towards methanol oxidation. Int. J. Hydrog. Energy 2015, 40, 14736–14745. [Google Scholar] [CrossRef]
  21. Alegre, C.; Gálvez, M.; Moliner, R.; Lázaro, M. Influence of the Synthesis Method for Pt Catalysts Supported on Highly Mesoporous Carbon Xerogel and Vulcan Carbon Black on the Electro-Oxidation of Methanol. Catalysts 2015, 5, 392–405. [Google Scholar] [CrossRef]
  22. Maiyalagan, T.; Alaje, T.O.; Scott, K. Highly Stable Pt–Ru Nanoparticles Supported on Three-Dimensional Cubic Ordered Mesoporous Carbon (Pt–Ru/CMK-8) as Promising Electrocatalysts for Methanol Oxidation. J. Phys. Chem. C 2012, 116, 2630–2638. [Google Scholar] [CrossRef]
  23. Dong, C.-D.; Chen, C.-W.; Chen, C.-F.; Hung, C.-M. Platinum particles supported on mesoporous carbons: Fabrication and electrocatalytic performance in methanol-tolerant oxygen-reduction reactions. Sci. Rep. 2015, 4, 5790. [Google Scholar] [CrossRef] [PubMed]
  24. Walcarius, A. Mesoporous materials and electrochemistry. Chem. Soc. Rev. 2013, 42, 4098–4140. [Google Scholar] [CrossRef] [PubMed]
  25. Joo, S.H.; Pak, C.; You, D.J.; Lee, S.-A.; Lee, H.I.; Kim, J.M.; Chang, H.; Seung, D. Ordered mesoporous carbons (OMC) as supports of electrocatalysts for direct methanol fuel cells (DMFC): Effect of carbon precursors of OMC on DMFC performances. Electrochim. Acta 2006, 52, 1618–1626. [Google Scholar] [CrossRef]
  26. Bruno, M.M.; Petruccelli, M.A.; Viva, F.A.; Corti, H.R. Mesoporous carbon supported PtRu as anode catalyst for direct methanol fuel cell: Polarization measurements and electrochemical impedance analysis of mass transport. Int. J. Hydrog. Energy 2013, 38, 4116–4123. [Google Scholar] [CrossRef]
  27. Calderón, J.; Calvillo, L.; Lázaro, M.; Rodríguez, J.; Pastor, E. Effect of the Dendrimer Generation Used in the Synthesis of Pt-Ru Nanoparticles Supported on Carbon Nanofibers on the Catalytic Activity towards Methanol Oxidation. Energies 2017, 10, 159. [Google Scholar] [CrossRef]
  28. Alegre, C.; Sebastián, D.; Gálvez, M.E.; Baquedano, E.; Moliner, R.; Aricò, A.S.; Baglio, V.; Lázaro, M.J. N-Doped Carbon Xerogels as Pt Support for the Electro-Reduction of Oxygen. Materials 2017, 10, 1092. [Google Scholar] [CrossRef] [PubMed]
  29. Zhou, Y.; Neyerlin, K.; Olson, T.S.; Pylypenko, S.; Bult, J.; Dinh, H.N.; Gennett, T.; Shao, Z.; O’Hayre, R. Enhancement of Pt and Pt-alloy fuel cell catalyst activity and durability via nitrogen-modified carbon supports. Energy Environ. Sci. 2010, 3, 1437–1446. [Google Scholar] [CrossRef]
  30. Su, F.; Tian, Z.; Poh, C.K.; Wang, Z.; Lim, S.H.; Liu, Z.; Lin, J. Pt Nanoparticles Supported on Nitrogen-Doped Porous Carbon Nanospheres as an Electrocatalyst for Fuel Cells. Chem. Mater. 2010, 22, 832–839. [Google Scholar] [CrossRef]
  31. Lei, M.; Wang, J.; Li, J.R.; Wang, Y.G.; Tang, H.L.; Wang, W.J. Emerging methanol-tolerant AlN nanowire oxygen reduction electrocatalyst for alkaline direct methanol fuel cell. Sci. Rep. 2014, 4, 6013. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, Z.; Nie, H.; Yang, Z.; Zhang, J.; Jin, Z.; Lu, Y.; Xiao, Z.; Huang, S. Sulfur–nitrogen co-doped three-dimensional carbon foams with hierarchical pore structures as efficient metal-free electrocatalysts for oxygen reduction reactions. Nanoscale 2013, 5, 3283–3288. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, S.; Cochell, T.; Manthiram, A. Boron-doped carbon nanotube-supported Pt nanoparticles with improved CO tolerance for methanol electro-oxidation. Phys. Chem. Chem. Phys. 2012, 14, 13910–13913. [Google Scholar] [CrossRef] [PubMed]
  34. Liu, Z.; Shi, Q.; Peng, F.; Wang, H.; Yu, H.; Li, J.; Wei, X. Enhanced methanol oxidation activity of Pt catalyst supported on the phosphorus-doped multiwalled carbon nanotubes in alkaline medium. Catal. Commun. 2012, 22, 34–38. [Google Scholar] [CrossRef]
  35. Alegre, C.; Sebastián, D.; Gálvez, M.E.; Moliner, R.; Lázaro, M.J. Sulfurized carbon xerogels as Pt support with enhanced activity for fuel cell applications. Appl. Catal. B Environ. 2016, 192, 260–267. [Google Scholar] [CrossRef]
  36. Liu, Z.; Su, F.; Zhang, X.; Tay, S.W. Preparation and characterization of PtRu nanoparticles supported on nitrogen-doped porous carbon for electrooxidation of methanol. ACS Appl. Mater. Interfaces 2011, 3, 3824–3830. [Google Scholar] [CrossRef] [PubMed]
  37. Lv, R.; Cui, T.; Jun, M.-S.; Zhang, Q.; Cao, A.; Su, D.S.; Zhang, Z.; Yoon, S.-H.; Miyawaki, J.; Mochida, I.; et al. Open-Ended, N-Doped Carbon Nanotube-Graphene Hybrid Nanostructures as High-Performance Catalyst Support. Adv. Funct. Mater. 2011, 21, 999–1006. [Google Scholar] [CrossRef]
  38. Luque-Centeno, J.M.; Martínez-Huerta, M.V.; Sebastián, D.; Lemes, G.; Pastor, E.; Lázaro, M.J. Bifunctional N-doped graphene Ti and Co. nanocomposites for the oxygen reduction and evolution reactions. Renew. Energy 2018, 125, 182–192. [Google Scholar] [CrossRef]
  39. Pels, J.R.; Kapteijn, F.; Moulijn, J.A.; Zhu, Q.; Thomas, K.M. Evolution of nitrogen functionalities in carbonaceous materials during pyrolysis. Carbon 1995, 33, 1641–1653. [Google Scholar] [CrossRef]
  40. Garcia, G.; Baglio, V.; Stassi, A.; Pastor, E.; Antonucci, V.; Aricò, A.S. Investigation of Pt–Ru nanoparticle catalysts for low temperature methanol electro-oxidation. J. Solid State Electrochem. 2007, 11, 1229–1238. [Google Scholar] [CrossRef]
  41. Gan, L.; Du, H.; Li, B.; Kang, F. Influence of reaction temperature on the particle-composition distributions and activities of polyol-synthesized Pt-Ru/C catalysts for methanol oxidation. J. Power Sources 2009, 191, 233–239. [Google Scholar] [CrossRef]
  42. Guo, J.; Sun, G.; Shiguo, S.; Shiyou, Y.; Weiqian, Y.; Jing, Q.; Yushan, Y.; Qin, X. Polyol-synthesized PtRu/C and PtRu black for direct methanol fuel cells. J. Power Sources 2007, 168, 299–306. [Google Scholar] [CrossRef]
  43. Celorrio, V.; Calvillo, L.; Pérez-Rodríguez, S.; Lázaro, M.J.; Moliner, R. Modification of the properties of carbon nanocoils by different treatments in liquid phase. Microporous Mesoporous Mater. 2011, 142, 55–61. [Google Scholar] [CrossRef]
  44. Kim, J.; Jang, J.-S.; Peck, D.-H.; Lee, B.; Yoon, S.-H.; Jung, D.-H. Methanol-Tolerant Platinum-Palladium Catalyst Supported on Nitrogen-Doped Carbon Nanofiber for High Concentration Direct Methanol Fuel Cells. Nanomaterials 2016, 6, 148. [Google Scholar] [CrossRef] [PubMed]
  45. Wood, K.N.; O’Hayre, R.; Pylypenko, S. Recent progress on nitrogen/carbon structures designed for use in energy and sustainability applications. Energy Environ. Sci. 2014, 7, 1212–1249. [Google Scholar] [CrossRef]
  46. Calderón, J.C.; García, G.; Calvillo, L.; Rodríguez, J.L.; Lázaro, M.J.; Pastor, E. Electrochemical oxidation of CO and methanol on Pt–Ru catalysts supported on carbon nanofibers: The influence of synthesis method. Appl. Catal. B Environ. 2015, 165, 676–686. [Google Scholar] [CrossRef]
  47. Dos Santos, L.; Colmati, F.; Gonzalez, E.R. Preparation and characterization of supported Pt-Ru catalysts with a high Ru content. J. Power Sources 2006, 159, 869–877. [Google Scholar] [CrossRef]
  48. Nieto-Márquez, A.; Toledano, D.; Sánchez, P.; Romero, A.; Valverde, J.L. Impact of nitrogen doping of carbon nanospheres on the nickel-catalyzed hydrogenation of butyronitrile. J. Catal. 2010, 269, 242–251. [Google Scholar] [CrossRef]
  49. Roy, S.C.; Harding, A.W.; Russell, A.E.; Thomas, K.M. Spectroelectrochemical Study of the Role Played by Carbon Functionality in Fuel Cell Electrodes. J. Electrochem. Soc. 1997, 144, 2323–2328. [Google Scholar] [CrossRef]
  50. Tripkovic, A.V.; Popovic, K.D.; Grgur, B.N.; Blizanac, B.; Ross, P.N.; Markovic, N.M. Methanol electrooxidation on supported Pt and PtRu catalysts in acid and alkaline solutions. Electrochim. Acta 2002, 47, 3707–3714. [Google Scholar] [CrossRef]
  51. Zhang, L.; Gao, A.; Liu, Y.; Wang, Y.; Ma, J. PtRu nanoparticles dispersed on nitrogen-doped carbon nanohorns as an efficient electrocatalyst for methanol oxidation reaction. Electrochim. Acta 2014, 132, 416–422. [Google Scholar] [CrossRef]
  52. Pérez-Rodríguez, S.; Rillo, N.; Lázaro, M.J.; Pastor, E. Pd catalysts supported onto nanostructured carbon materials for CO2 valorization by electrochemical reduction. Appl. Catal. B Environ. 2015, 163, 83–95. [Google Scholar] [CrossRef]
  53. Lázaro, M.J.; Calvillo, L.; Bordejé, E.G.; Moliner, R.; Juan, R.; Ruiz, C.R. Functionalization of ordered mesoporous carbons synthesized with SBA-15 silica as template. Microporous Mesoporous Mater. 2007, 103, 158–165. [Google Scholar] [CrossRef]
  54. Valle-Vigón, P.; Sevilla, M.; Fuertes, A.B. Functionalization of mesostructured silica–carbon composites. Mater. Chem. Phys. 2013, 139, 281–289. [Google Scholar] [CrossRef]
  55. Naumkin, A.V.; Kraut-Vass, A.; Gaarenstroom, S.W.; Powell, C.J. NIST X-ray Photoelectron Spectroscopy Database, NIST Standard Reference Database 20, Version 4.1. 2017. Available online: http://srdata.nist.gov/xps/Default.aspx (accessed on 20 December 2017).
  56. Briggs, D. Handbook of X-Ray Photoelectron Spectroscopy; Wanger, C.D., Riggs, W.M., Davis, L.E., Moulder, J.F., Muilenberg, G.E., Eds.; Perkin-Elmer Corp.: Eden Prairie, MN, USA, 1979. [Google Scholar]

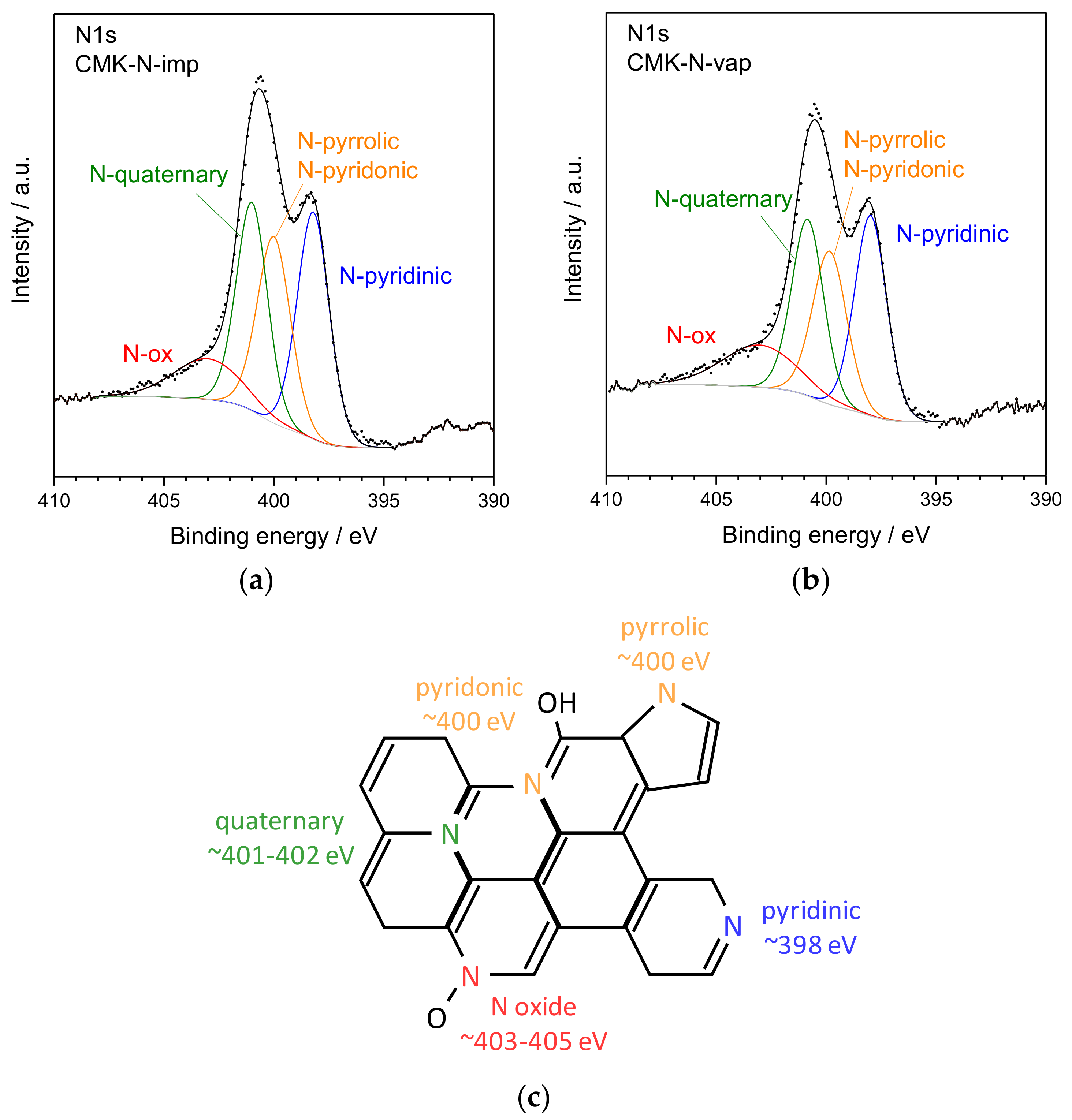

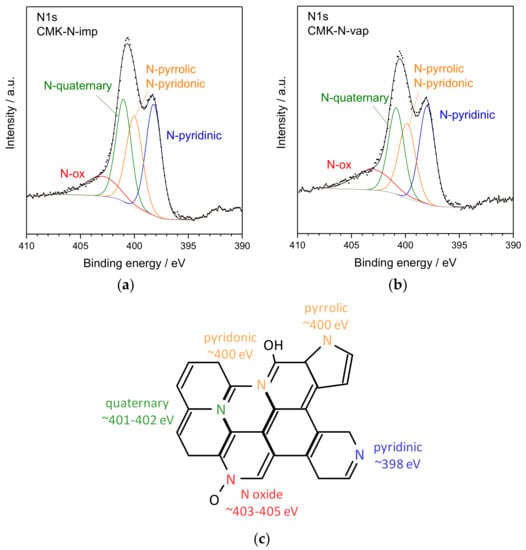

Figure 1. XPS high-resolution N1s spectra of: (a) CMK-N-imp; (b) CMK-N-vap; (c) Illustration of nitrogen groups in carbon and their associated binding energy (eV).
Figure 1. XPS high-resolution N1s spectra of: (a) CMK-N-imp; (b) CMK-N-vap; (c) Illustration of nitrogen groups in carbon and their associated binding energy (eV).
Energies 11 00831 g001

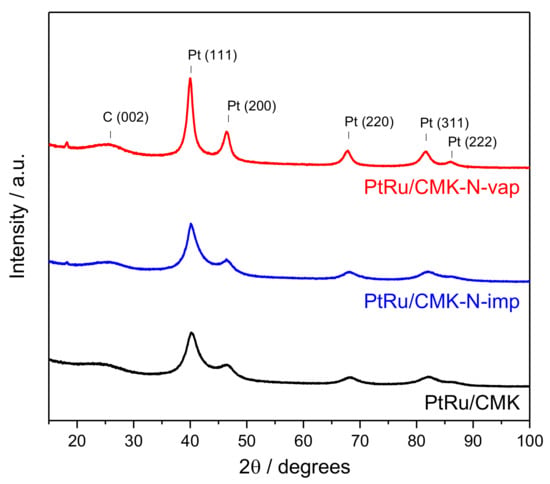

Figure 2. X-ray diffractograms of PtRu catalysts.
Figure 2. X-ray diffractograms of PtRu catalysts.
Energies 11 00831 g002

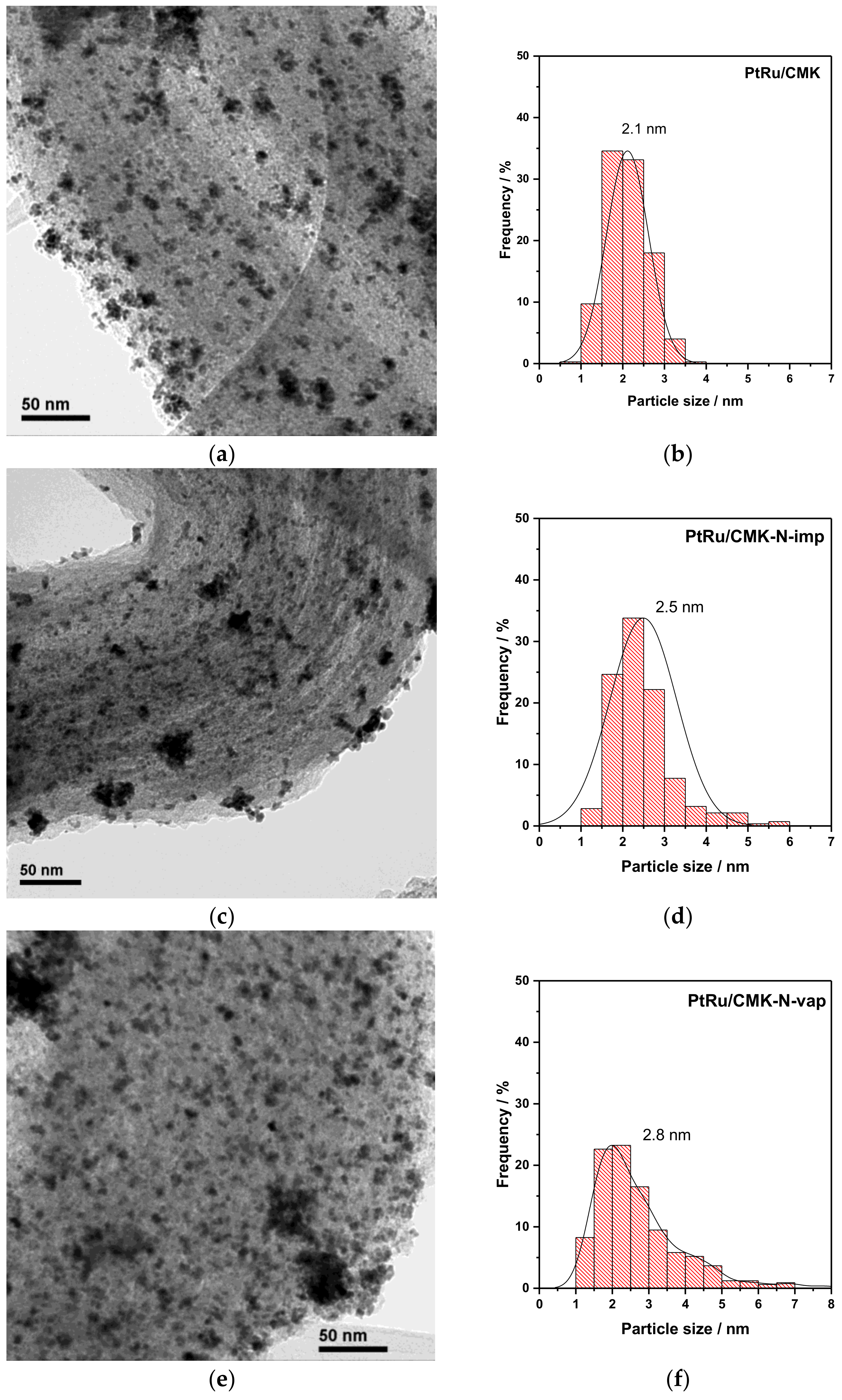

Figure 3. TEM images of (a) PtRu/CMK; (c) PtRu/CMK-N-imp and (e) PtRu/CMK-N-vap catalysts. PtRu particle size histograms of (b) PtRu/CMK; (d) PtRu/CMK-N-imp and (f) PtRu/CMK-N-vap catalysts.
Figure 3. TEM images of (a) PtRu/CMK; (c) PtRu/CMK-N-imp and (e) PtRu/CMK-N-vap catalysts. PtRu particle size histograms of (b) PtRu/CMK; (d) PtRu/CMK-N-imp and (f) PtRu/CMK-N-vap catalysts.
Energies 11 00831 g003

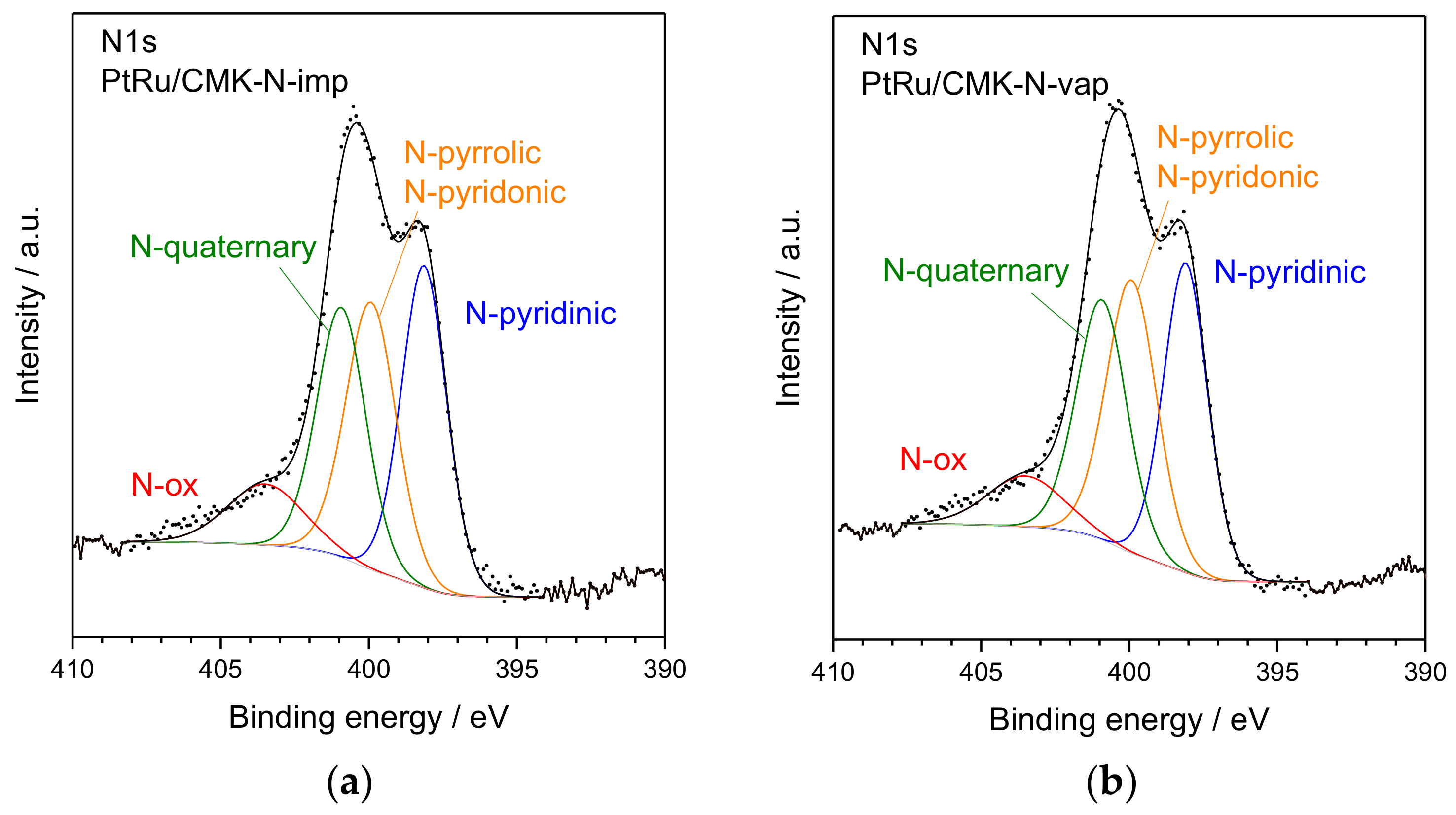

Figure 4. XPS high-resolution N1s spectra of: (a) PtRu/CMK-N-imp; (b) PtRu/CMK-N-vap.
Figure 4. XPS high-resolution N1s spectra of: (a) PtRu/CMK-N-imp; (b) PtRu/CMK-N-vap.
Energies 11 00831 g004

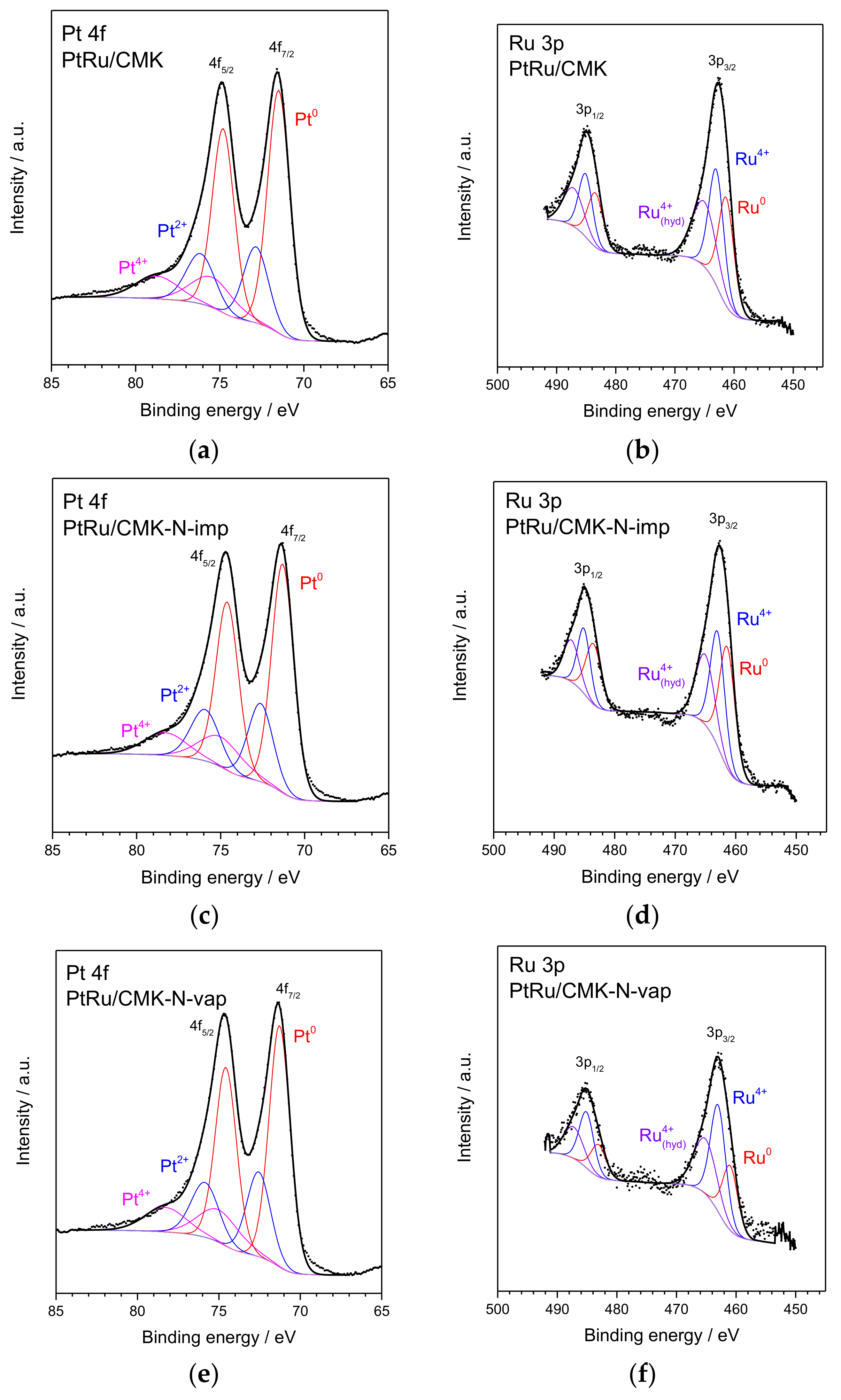

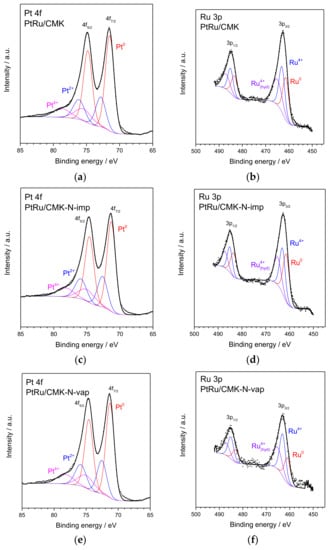

Figure 5. XPS high-resolution spectra of Pt 4f (left) and Ru 3p (right) for: (a,b) PtRu/CMK; (c,d) PtRu/CMK-N-imp; (e,f) PtRu/CMK-N-vap.
Figure 5. XPS high-resolution spectra of Pt 4f (left) and Ru 3p (right) for: (a,b) PtRu/CMK; (c,d) PtRu/CMK-N-imp; (e,f) PtRu/CMK-N-vap.
Energies 11 00831 g005

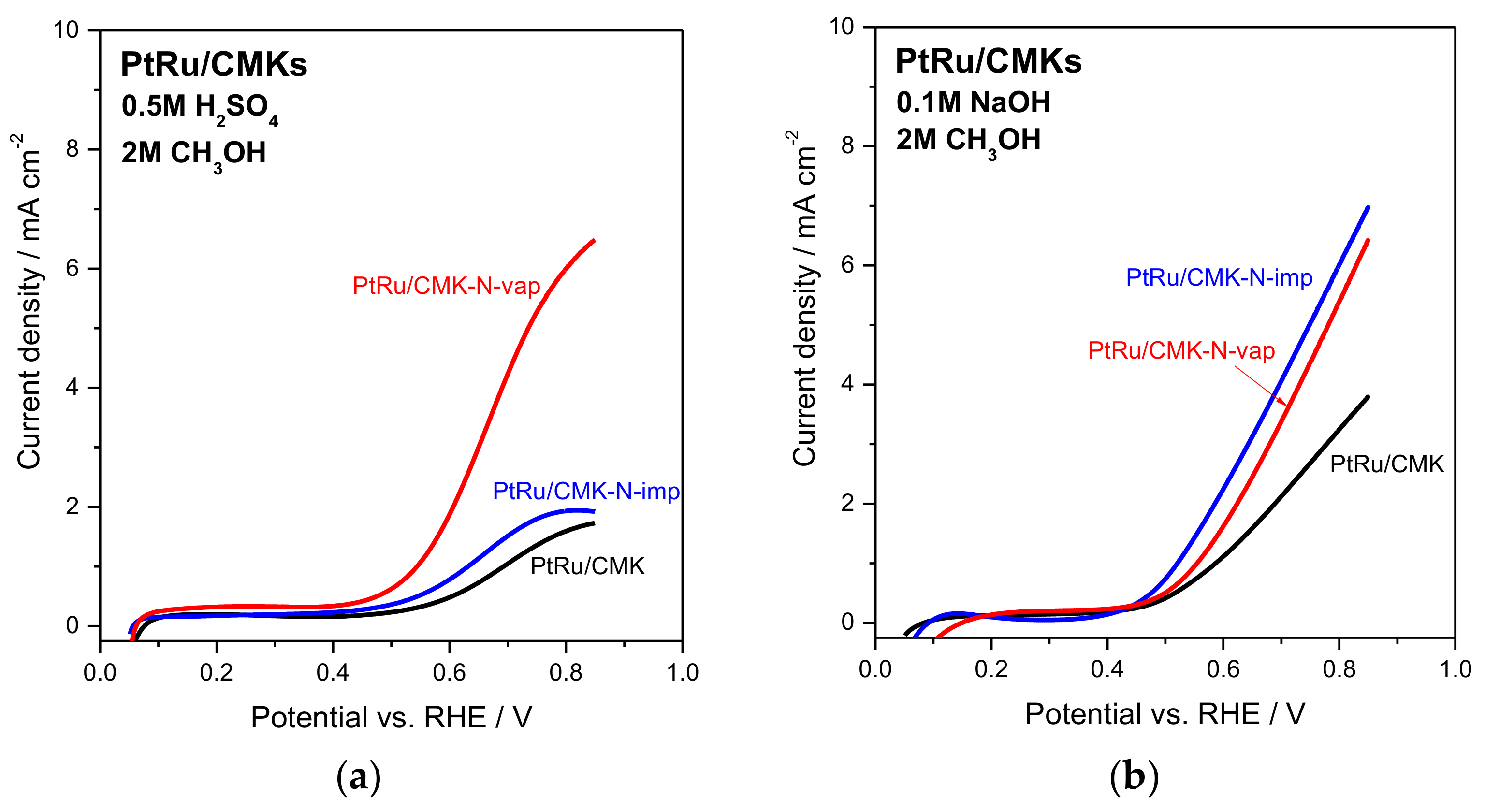

Figure 6. Electrooxidation of methanol by linear sweep voltammetry at 20 mV s−1 in deareated 2 M methanol (CH3OH) in: (a) 0.5 M H2SO4 electrolyte; (b) 0.1 M NaOH electrolyte. Room temperature, 50 µg PtRu cm−2.
Figure 6. Electrooxidation of methanol by linear sweep voltammetry at 20 mV s−1 in deareated 2 M methanol (CH3OH) in: (a) 0.5 M H2SO4 electrolyte; (b) 0.1 M NaOH electrolyte. Room temperature, 50 µg PtRu cm−2.
Energies 11 00831 g006

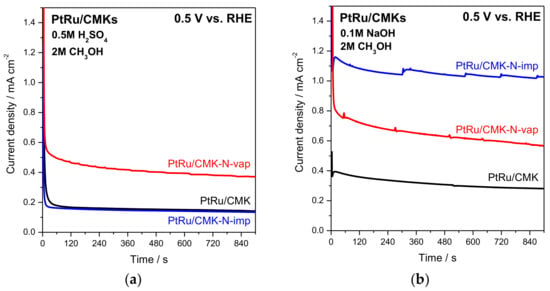

Figure 7. Electrooxidation of methanol by chronoamperometry at 0.5 V vs. RHE for 900 s in deareated 2 M methanol (CH3OH) in: (a) 0.5 M H2SO4 electrolyte; (b) 0.1 M NaOH electrolyte. Room temperature, 50 µg PtRu cm−2.
Figure 7. Electrooxidation of methanol by chronoamperometry at 0.5 V vs. RHE for 900 s in deareated 2 M methanol (CH3OH) in: (a) 0.5 M H2SO4 electrolyte; (b) 0.1 M NaOH electrolyte. Room temperature, 50 µg PtRu cm−2.
Energies 11 00831 g007
Table 1. Physico-chemical features of N-doped ordered mesoporous carbon materials.
Table 1. Physico-chemical features of N-doped ordered mesoporous carbon materials.
MaterialNitrogen Content/wt. % (EA)Nitrogen Content/at % (XPS)SBET/m2 g−1Vpore/cm3 g−1Vmicropore/cm3 g−1Vmesopore/cm3 g−1
CMK<0.10.110060.680.470.21
CMK-N-imp14.27.91510.140.010.13
CMK-N-vap13.710.18860.880.240.64
Table 2. Nitrogen speciation from XPS analyses of N-doped carbon materials.
Table 2. Nitrogen speciation from XPS analyses of N-doped carbon materials.
MaterialPyridinic N (398.2 eV)/%Pyrrolic/Pyridonic N (400 eV)/%Quaternary N (401 eV)/%N Oxides (403–405 eV)/%
CMK-N-imp32.127.328.512.1
CMK-N-vap31.425.627.615.4
Table 3. Physico-chemical features of PtRu/C catalysts.
Table 3. Physico-chemical features of PtRu/C catalysts.
CatalystN Content (XPS) /at %PtRu Crystallite Size (XRD) 1/nmPt (111) 2θ (°)Lattice Parameter (nm)XRu in PtRu AlloyPt:Ru Atomic Ratio (EDX)Pt:Ru Atomic Ratio (XPS)
PtRu/CMK-2.840.260.3880.444:5652:48
PtRu/CMK-N-imp5.52.940.130.3890.347:5363:37
PtRu/CMK-N-vap9.05.840.000.3900.258:4270:30
1 From Scherrer equation applied to Pt (220) reflection.
Table 4. Physico-chemical features of N-doped carbon-supported PtRu catalysts from XPS analyses.
Table 4. Physico-chemical features of N-doped carbon-supported PtRu catalysts from XPS analyses.
SpeciesPtRu/CMKPtRu/CMK-N-impPtRu/CMK-N-vap
BE/eV%BE/eV%BE/eV%
Ru 3p 3/2
Metallic Ru461.333.1461.438.8461.025.5
Ru4+463.035.0463.033.9463.042.0
Ru4+ hydrate465.131.9465.127.3465.232.5
Pt 4f 7/2
Metallic Pt71.562.771.361.971.360.2
Pt2+72.822.672.722.472.623.8
Pt4+75.414.775.315.775.016.0
N 1s
Pyridinic N--398.234.2398.133.2
Pyrrolic/Pyridonic N--400.030.9400.032.5
Quaternary N--401.024.9401.025.9
N oxides--403.510.0403.68.4
Table 5. Electrochemical mass activity towards methanol oxidation of PtRu catalysts.
Table 5. Electrochemical mass activity towards methanol oxidation of PtRu catalysts.
CatalystLV 1 MOR Activity at 0.55 V vs. RHE in 0.5 M H2SO4/mA mgPt−1LV 1 MOR Activity at 0.55 V vs. RHE in 0.1 M NaOH/mA mgPt−1CA 2 (t = 10 min) MOR Activity at 0.5 V vs. RHE in 0.5 M H2SO4/mA mgPt−1CA 2 (t = 10 min) MOR Activity at 0.5 V vs. RHE in 0.1 M NaOH/mA mgPt−1
PtRu/CMK11.624.24.610.0
PtRu/CMK-N-imp16.245.34.432.9
PtRu/CMK-N-vap30.025.611.016.8
1 Linear sweep voltammetry; 2 Chronoamperometry.

Share and Cite

MDPI and ACS Style

Sebastián, D.; Nieto-Monge, M.J.; Pérez-Rodríguez, S.; Pastor, E.; Lázaro, M.J. Nitrogen Doped Ordered Mesoporous Carbon as Support of PtRu Nanoparticles for Methanol Electro-Oxidation. Energies 2018, 11, 831. https://doi.org/10.3390/en11040831

AMA Style

Sebastián D, Nieto-Monge MJ, Pérez-Rodríguez S, Pastor E, Lázaro MJ. Nitrogen Doped Ordered Mesoporous Carbon as Support of PtRu Nanoparticles for Methanol Electro-Oxidation. Energies. 2018; 11(4):831. https://doi.org/10.3390/en11040831

Chicago/Turabian Style

Sebastián, David, María Jesús Nieto-Monge, Sara Pérez-Rodríguez, Elena Pastor, and María Jesús Lázaro. 2018. "Nitrogen Doped Ordered Mesoporous Carbon as Support of PtRu Nanoparticles for Methanol Electro-Oxidation" Energies 11, no. 4: 831. https://doi.org/10.3390/en11040831

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
