Novel Method for Rapidly Constructing Active Power Steady-State Security Regions Incorporating the Equivalent Reactances of TCSCs

Abstract

Active power steady-state security regions (APSSRs), which can provide guidance for prevention and control through security checks, is of great importance for the safe operation of power systems in which more and more sustainable energy power generation is integrated. As a mature flexible AC transmission system (FACTS) device, thyristor-controlled series compensators (TCSCs) can carry out series compensation for the transmission line by controlling its equivalent reactance. With the change of the equivalent reactance parameter of a TCSC, the nodal admittance matrix and power flow distribution of the power system also changes. Inevitably, the APSSR will be different. Therefore, it is necessary and important to further incorporate the equivalent reactance parameters of TCSCs in the APSSR expression, which is generally established in the space of node active power injections. In this paper, a rapid construction method of APSSRs incorporating the equivalent reactances of TCSCs is proposed. Firstly, applicability and efficiency of the conventional APSSR construction method for power systems with TCSCs are analyzed. Further, with equivalent disconnection of TCSC branches, the effect of TCSC equivalent reactances on the distribution of active power flow through changing the structure parameters is treated as modifying node active power injections. On this basis, explicit expressions of APSSRs with a single TCSC equivalent reactance parameter and double TCSC equivalent reactance parameters are derived, respectively. Moreover, by deducing the general formula of APSSRs with multiple TCSC equivalent reactance parameters, the feasibility of the proposed method for power systems with multiple TCSCs is analyzed. Eventually, via benchmarks with different scales and a different number of TCSCs, validity and superiorities of the proposed method in computational efficiency are demonstrated.

1. Introduction

With the continuous integration of sustainable energy power generation such as wind power and photovoltaics, and the increase of load uncertainty in power markets under competitive mechanisms, the power flow of smart grids is becoming more complex with random variations of power supply output and uncertainty of load [1,2,3,4]. As an important part of security region methodology, steady-state security regions can be used for real-time on-line security analysis and monitoring as well as prevention and control of the power system [5].

The concept of a steady-state security region (SSR) was first proposed by [6] in 1975. It is the set of node power injections that can ensure the safe and stable operation of a power system under a given network structure. An active power SSR (APSSR), which is more concerned with the transmission network, mainly considers the branch active power flow constraint and output active power constraints of generators. In the DC power flow model, there exists a linear relationship between the node active power injections and the branch active power flow/phase difference. On this basis, an APSSR can be approximated as a convex superset polyhedron, which is formed by the hyperplanes in the parameter space of node active power injections [7,8,9]. Furthermore, in [10,11,12], when the APSSR is applied in analyzing unit commitment, optimal power flow, and power pricing, good results have been achieved. However, existing research focuses on the analysis of APSSRs in the parameter space of node active power injections. Research on APSSRs rarely considers the effect of structural parameters that can change continuously, for example, the equivalent reactance of TCSCs.

As one of the most important features of the modern smart grid, the flexible AC transmission system (FACTS), which can realize the fast and flexible control of the structure and parameters of the AC transmission system, is used to promote reliability, economy, and stability of the power grid. In particular, as a mature FACTS device, the thyristor-controlled series compensator (TCSC), which can carry out series compensation for the transmission line by controlling its equivalent reactance, is an effective means to adjust the power flow of the power system [13,14,15,16]. The equivalent reactance of the TCSC can be adjusted continuously by controlling the trigger angle. With the change of equivalent reactance parameters of the TCSC, the nodal admittance matrix also changes. Further, power flow distribution of the power system is varied. Inevitably, the APSSR will be different. Therefore, it is necessary to further incorporate the equivalent reactance parameter of TCSCs in the APSSR expression, which is generally established in the space of node active power injections. Relationships among SSR, APSSR, and TCSC are as shown in Figure 1.

For the conventional construction method of APSSRs, the nodal admittance matrix is parameterized by considering the equivalent reactance parameter of the TCSC. As there is a high computational burden caused by the inversion of the parameter matrix, the efficiency of the conventional method is not ideal to construct an APSSR incorporating the equivalent reactance of the TCSC.

In this paper, a rapid construction method of APSSRs, which incorporates the equivalent reactance parameter of TCSCs, is proposed. Firstly, the applicability and efficiency of the conventional APSSR construction method for the power system with a TCSC are analyzed. It is pointed out that the efficiency of the existing method will not be ideal due to the heavy computational burden in obtaining the inversion of a high-dimensional parametric matrix caused by the parameterization of the node admittance matrix. To avoid this issue with equivalent disconnection of TCSC branches, the effect of TCSC equivalent reactances on the distribution of active power flow through changing the structure parameters is treated as modifying node active power injections. On this basis, the explicit expressions of APSSRs with a single TCSC equivalent reactance parameter and double TCSC equivalent reactance parameters are deduced, respectively. Moreover, by deducing the general formula of the APSSR with multiple TCSC equivalent reactance parameters, the applicability of the proposed method for a power system with multiple TCSCs is analyzed.

2. Applicability Analysis of the Existing APSSR Construction Method for a Power System with TCSC

2.1. Brief Illustrations of the Existing APSSR Construction Method

According to the literature [7,8], brief illustrations of the existing APSSR construction method can be summarized as follows.

For a high voltage transmission network, by ignoring the effect of reactive power, the following assumptions can be established with the DC power flow model:

(1)

The resistance of transmission lines is much smaller than the reactance, thus G_ij ≈ 0. G_ij is the element of the real part of the nodal admittance matrix.

(2)

Voltage phase angle difference θ_ij of branch i-j is very small, therefore sinθ_ij ≈ θ_ij, cosθ_ij ≈ 1.

Under these assumptions, the active power flow equation of the power system can be simplified as follows:

$$P_{Gi}-P_{Di}={\displaystyle \sum _{j\in i,j\ne i}{b}_{ij}{\theta }_{ij}}(\forall i\in N)$$

(1)

where P_Gi and P_Di are generation output active power and load active power of node i, respectively. b_ij is the susceptance of branch i-j.

Further, Equation (1) can be transformed into the following Equation (2):

θ = XP

(2)

where P is the vector of node active power injection. θ is the vector of node voltage phase. X = B⁻¹, B is the imaginary part of nodal admittance matrix Y.

Thus, the active power flow of branch i-j can be expressed as a function of node active power injections as Equation (3).

$$P_{ij}=\left(V_i{V}_j/x_{ij}\right)\sin {\theta }_{ij}\approx {\theta }_{ij}/x_{ij}={\mathit{K}}_l\mathit{P}$$

(3)

where K_l = (k_d1, k_d2, …, k_dm, …, k_dn), n is the total number of nodes without the slack node. k_dm = −b_ij(X_im − X_jm), X_im is the element of X in row i and column m.

Therefore, the APSSR of branch i-j can be represented as:

$$P_{ij\min }\le P_{ij}={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_m}\le P_{ij}{}_{\max }$$

(4)

where k_dm is the hyper-plane coefficient (HPC) of P_m.

From Equations (1)–(4), it can be found that:

When the system contains a TCSC, Y will be changed with the variation of the equivalent reactance of the TCSC. Then, X = B⁻¹ is about to change and further affect the APSSR via essentially influencing k_dm.

Therefore, it is necessary to further incorporate the equivalent reactance parameter of the TCSC in the existing APSSR expression, which is established in the space of node active power injections.

2.2. Applicability Analysis for Power System with TCSC

For the grid whose structure parameters are fixed values, and Y, B and X are both constant matrices, the APSSR can be constructed conveniently with the existing method as Equations (1)–(4).

However, if there is a TCSC whose equivalent reactance is denoted as X_TCSC, Y will be parameterized as Y(X_TCSC). Correspondingly, B and X will be parameter matrices as B(X_TCSC) and X(X_TCSC) = B(X_TCSC)⁻¹ as well.

And, it can be seen that:

(1)

When using Equations (1)–(4) to construct an APSSR of power grid with a TCSC, inversion of the n-order parameter matrix B(X_TCSC) is needed.

(2)

Moreover, the inversion of a parameter matrix is much more time-consuming than the inversion of a numerical matrix with the same dimension.

Therefore, the efficiency of the existing method is not ideal to construct an APSSR incorporating the equivalent reactance of a TCSC, due to the high computational burden caused by the inversion of parameter matrix B(X_TCSC).

In other words, to realize rapid construction of the APSSR expression with X_TCSC, the key issue that needs to be solved is to avoid or overcome the inversion of the n-order parameter matrix B(X_TCSC) caused by the parameterization of Y.

3. Derivations of APSSRs with a Single TCSC and Double TCSCs

To avoid parameterization of the X = B⁻¹ calculation, this paper proposes to equivalently disconnect the TCSC branch. The active power flowing through the original TCSC branch is equivalent to two X_TCSC related node active power injections. Then:

(1)

Via the equivalent disconnection of the TCSC branch, the network structure parameter no longer contains the variable X_TCSC, and Y and B will be constant matrices. That is, X = B⁻¹ is also the constant matrix, which can be obtained conveniently.

(2)

The effect of X_TCSC on the APSSR can be analyzed by influencing node active power injections rather than parameterization of X = B⁻¹.

With the above analysis, the explicit expressions of APSSR with a single TCSC and double TCSCs are derived, respectively.

3.1. APSSR Incorporating a Single TCSC

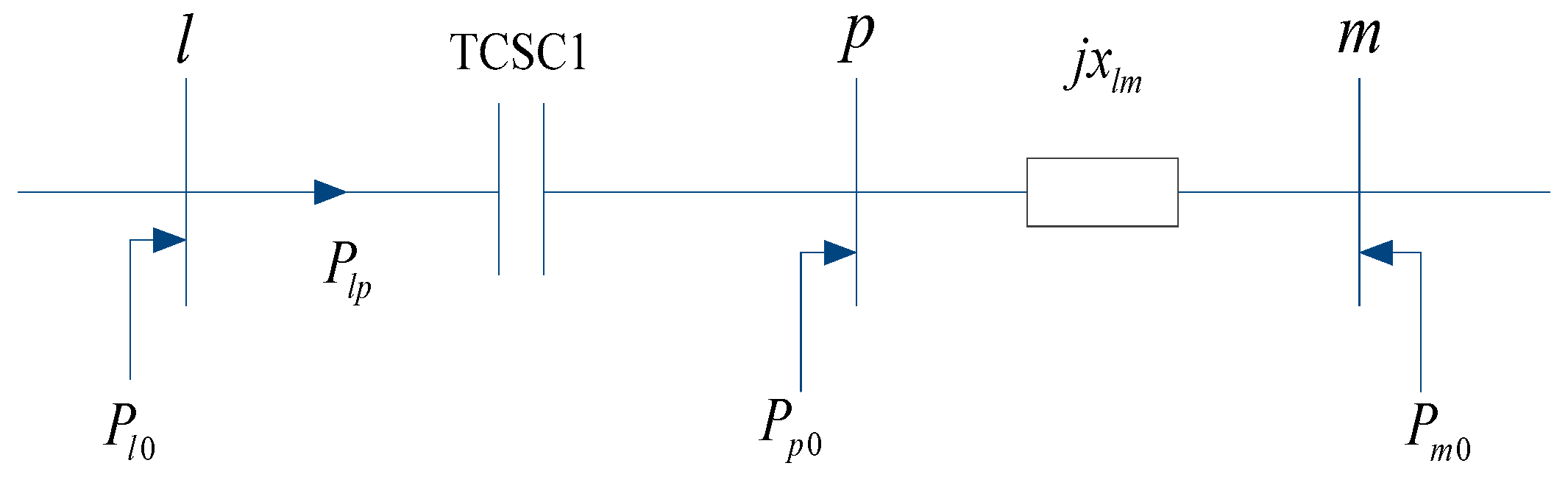

As in the DC power flow model shown in Figure 2, assume that TCSC1 is located near node l on branch l-m. Also, the original active power injection of each node is defined as (P₁₀, P₂₀, …, P_m0, …, P_n0).

Active power flows out from node l and injects into node p through the TCSC branch is as Equation (5).

$$P_{lp}=\frac{V_l{V}_p}{X_{\mathrm{TCSC}1}}\sin {\theta }_{lp}\approx \frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}$$

(5)

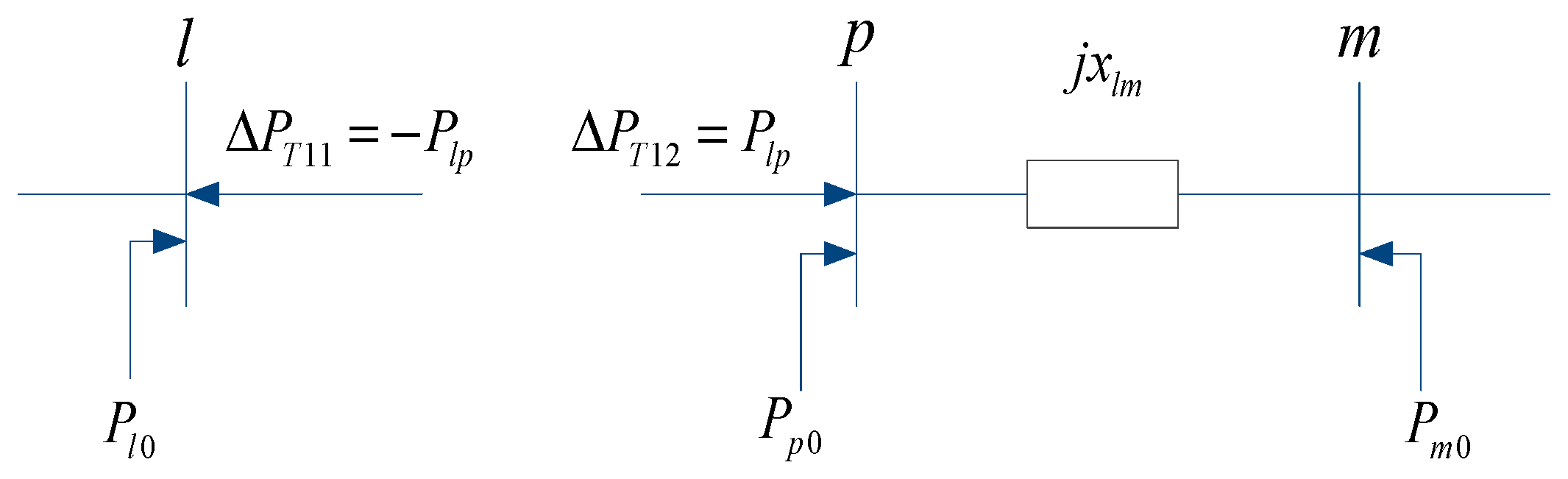

As in the equivalent schematic diagram shown in Figure 3, by the substitution theorem, the TCSC branch can be disconnected. Also, P_lp can be equivalent to two active power injection net increments ΔP_T1 and ΔP_T2 at node l and node p, respectively.

$$\Delta P_{T11}=-\Delta P_{T12}=-\frac{{\theta }_{lp}}{X_{\mathrm{TCSC1}}}$$

(6)

(1) According to Equation (6), via the above equivalent disconnection of TCSC branch l-p, active power injections of the two endpoints l and p can be modified as the following Equation (7):

$$\{\begin{array}{l}{P}_l=P_{l0}+\Delta P_{T11}=P_{l0}-\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}\\ P_p=P_{p0}+\Delta P_{T12}=P_{p0}+\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}\end{array}$$

(7)

(2) With the disconnection of the TCSC branch, the structure parameters of the system will no longer contain the variable X_TCSC1. That is, Y, B and X are constant matrices. Therefore, according to Equations (4) and (6), the APSSR of branch i-j can be expressed as follows:

$$\begin{array}{ll}{P}_{ij\min }\le P_{ij}=& {\displaystyle \sum _{m=1}^n{k}_{dm}{P}_m}\\ & ={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+k_{dl}\Delta P_{T1}+k_{dp}\Delta P_{T2}\\ & ={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}+(}{k}_{dp}-k_{dl})\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}\le P_{ij\max }\end{array}$$

(8)

(3) In Equation (8), it can be seen that there still exists an intermediate variable θ_lp, which shall be eliminated and be written as an expression composed of (P₁₀, P₂₀, …, P_m0, …, P_n0) and X_TCSC1. Referring to Equation (2), the following equation can be derived:

$$\begin{array}{ll}{\theta }_{lp}& ={\theta }_l-{\theta }_p={\displaystyle \sum _{m=1}^n{X}_{lm}{P}_m}-{\displaystyle \sum _{m=1}^n{X}_{pm}{P}_m}\\ & ={\displaystyle \sum _{m=1}^n(X_{lm}-X_{pm})P_{m0}}+(X_{ll}-X_{pl})P_{T1}+(X_{lp}-X_{pp})P_{T2}\\ & ={\displaystyle \sum _{m=1}^n{e}_m{P}_{m0}}+(k_{r2}-k_{r1})\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}}}\end{array}$$

(9)

where e_m = (X_lm − X_pm), k_r1 = (X_ll − X_pl), k_r2 = (X_lp − X_pp).

Therefore, θ_lp can be obtained as follows:

$${\theta }_{lp}=\frac{X_{\mathrm{TCSC}}}{X_{\mathrm{TCSC}}-k_{r2}+k_{r1}}{\displaystyle \sum _{m=1}^n{e}_m{P}_{m0}}$$

(10)

(4) Substituting Equation (10) into Equation (8), the APSSR of branch i-j for the system with a single TCSC can be derived as Ω₁.

$${\Omega }_1\{\begin{array}{l}{P}_{ij\min }\le P_{ij}={\displaystyle \sum _{m=1}^n(k_{dm}}+\frac{k_{dp}-k_{dl}}{X_{\mathrm{TCSC}}-k_{r2}+k_{r1}}{e}_m)P_{m0}\le P_{ij\max }\\ P_{m-\min }\le P_{m0}\le P_{m-\max }\end{array}$$

(11)

From Equation (11), the hyper-plane coefficient (HPC) of P_m0 for Ω₁ can be obtained as λ_m1.

$${\lambda }_{m1}=k_{dm}+\frac{k_{dp}-k_{dl}}{X_{\mathrm{TCSC}}-k_{r2}+k_{r1}}{e}_m$$

(12)

3.2. APSSR Incorporating Double TCSCs

Based on section A in this chapter, it is further assumed that branch s-t is also a TCSC branch (namely TCSC2), whose equivalent impedance is denoted as X_TCSC2.

According to Equations (5)–(7), equivalent disconnection is carried out for TCSC2 as well. Thus, active power injections of node s and node t can be modified as the following equation.

$$\{\begin{array}{l}{P}_s=P_{s0}+\Delta P_{T21}=P_{s0}-\frac{{\theta }_{st}}{X_{\mathrm{TCSC}2}}\\ P_t=P_{t0}+\Delta P_{T22}=P_{t0}+\frac{{\theta }_{st}}{X_{\mathrm{TCSC}2}}\end{array}$$

(13)

(1) With the disconnections of TCSC1 and TCSC2, Y, B and X are constant matrices. Referring to Equations (4) and (8), the APSSR of branch i-j with double TCSCs can be expressed as Equation (14).

$$\begin{array}{lll}{P}_{ij\min }\le P_{ij}& =& {\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+k_{dl}\Delta P_{T1}+k_{dp}\Delta P_{T2}+\\ & & k_{ds}\Delta P_{T21}+k_{dt}\Delta P_{T22}\\ & =& {\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+(k_{dp}-k_{dl})\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}+\\ & & (k_{dt}-k_{ds})\frac{{\theta }_{st}}{X_{\mathrm{TCSC}2}}\le P_{ij\max }\end{array}$$

(14)

where k_dt = −B_ij(X_it − X_jt), k_ds = −B_ij(X_is − X_js).

(2) In Equation (14), it can be seen that there are two intermediate variables θ_st and θ_lp, which shall be eliminated and be written as the expressions composed of (P₁₀, P₂₀, …, P_m0, …, P_n0), X_TCSC1, and X_TCSC2. Referring to Equations (2) and (9), the following equations can be established.

$$\{\begin{array}{l}{\theta }_{lp}={\displaystyle \sum _{m=1}^n{a}_m{P}_{m0}}+(a_{r2}-a_{r1})\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}+(b_{r2}-b_{r1})\frac{{\theta }_{st}}{X_{\mathrm{TCSC}2}}\\ {\theta }_{st}={\displaystyle \sum _{m=1}^n{c}_m{P}_{m0}}+(c_{r2}-c_{r1})\frac{{\theta }_{lp}}{X_{\mathrm{TCSC}1}}+(d_{r2}-d_{r1})\frac{{\theta }_{st}}{X_{\mathrm{TCSC}2}}\end{array}$$

(15)

where,

$$\{\begin{array}{l}{b}_{r1}=\left(X_{ls}-X_{ps}\right),b_{r2}=\left(X_{lt}-X_{pt}\right)\\ c_m=\left(X_{sm}-X_{tm}\right)\\ c_{r1}=\left(X_{sl}-X_{tl}\right),c_{r2}=\left(X_{sp}-X_{tp}\right)\\ d_{r1}=\left(X_{ss}-X_{ts}\right),d_{r2}=\left(X_{st}-X_{tt}\right)\end{array}$$

For Equation (15), there are two variables and two equations. Therefore, the explicit expressions of θ_lh and θ_st can be achieved as Equation (16).

$$\left[\begin{array}{c}{\theta }_{lp}\\ {\theta }_{st}\end{array}\right]={\left[\begin{array}{cc}1-\frac{a_{r2}-a_{r1}}{X_{\mathrm{TCSC}1}}& -\frac{b_{r2}-b_{r1}}{X_{\mathrm{TCSC}2}}\\ -\frac{c_{r2}-c_{r1}}{X_{\mathrm{TCSC}1}}& 1-\frac{d_{r2}-d_{r1}}{X_{\mathrm{TCSC}2}}\end{array}\right]}^{-1}\left[\begin{array}{c}{\displaystyle \sum _{m=1}^n{a}_m{P}_{m0}}\\ {\displaystyle \sum _{m=1}^n{c}_m{P}_{m0}}\end{array}\right]$$

(16)

(3) Substituting Equation (16) into Equation (14), the specific expression of the APSSR for the system with two TCSCs can be derived as Ω₂.

$${\Omega }_2\{\begin{array}{l}{P}_{ij\min }\le {\displaystyle \sum _{m=1}^n[k_{dm}+(k_{dp}-k_{dl})\frac{g_m}{X_{\mathrm{TCSC}1}}+(k_{dt}-k_{ds})\frac{h_m}{X_{\mathrm{TCSC}2}}]P_{m0}}\le P_{ij\max }\\ g_m=\frac{X_{\mathrm{TCSC}1}[(X_{\mathrm{TCSC}2}-d_{r2}+d_{r1})\times a_m+(b_{r2}-b_{r1})\times c_m]}{(X_{\mathrm{TCSC}1}-a_{r2}+a_{r1})(X_{\mathrm{TCSC}1}-d_{r2}+d_{r1})-(b_{r2}-b_{r1})(c_{r2}-c_{r1})}\\ h_m=\frac{X_{\mathrm{TCSC}2}[(c_{r2}-c_{r1})\times a_m+(X_{\mathrm{TCSC}1}-a_{r2}+a_{r1})\times c_m]}{(X_{\mathrm{TCSC}1}-a_{r2}+a_{r1})(X_{\mathrm{TCSC}1}-d_{r2}+d_{r1})-(b_{r2}-b_{r1})(c_{r2}-c_{r1})}\\ P_{m-\min }\le P_{m0}\le P_{m-\max }\end{array}$$

(17)

From Equation (17), the hyper-plane coefficient (HPC) of P_m0 for Ω₂ can be obtained as λ_m2.

$${\lambda }_{m2}=k_{dm}+(k_{dp}-k_{dl})\frac{g_m}{X_{\mathrm{TCSC}1}}+(k_{dt}-k_{ds})\frac{h_m}{X_{\mathrm{TCSC}2}}$$

(18)

4. Feasibility Analysis of the Proposed Method for the System with Multiple TCSCs

Moreover, the feasibility of the proposed method for the system with multiple TCSCs is analyzed from the perspective of the solvability of linear equations.

Based on the derivations in Chapter 3, the following analyses can be illustrated.

(1) If the number of TCSCs in the system is K, with equivalent disconnections of the TCSCs, the general expression of the APSSR of branch i-j can be summarized as Equation (19) according to Equations (9) and (14).

$$P_{ij\min }\le P_{ij}={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+{\displaystyle \sum _{x=1}^K{\gamma }_x\frac{\Delta {\theta }_x}{X_{\mathrm{TCSC}x}}}\le P_{ij\max }$$

(19)

where X_TCSC1, X_TCSC2, …, X_TCSCK are the equivalent reactance parameters of the TCSCs. ∆θ₁, ∆θ₂, …, ∆θ_K are the phase angle differences of each TCSC branch. k_dm, γ_x are constants that can be obtained via X = B⁻¹.

(2) For eliminating ∆θ₁, ∆θ₂, …, ∆θ_K, the following linear equations can be established referring to Equations (9) and (15).

$$\{\begin{array}{l}\Delta {\theta }_1={\displaystyle \sum _{m=1}^n{a}_{1m}{P}_{m0}}+{\displaystyle \sum _{x=1}^K{b}_{1x}\frac{\Delta {\theta }_x}{X_{\mathrm{TCSC}x}}}\\ ⋮\\ \Delta {\theta }_K={\displaystyle \sum _{m=1}^n{a}_{Km}{P}_{m0}}+{\displaystyle \sum _{x=1}^K{b}_{Kx}\frac{\Delta {\theta }_x}{X_{\mathrm{TCSC}x}}}\end{array}$$

(20)

where a_Km, b_Kx are constants that can be obtained based on X.

(3) For Equation (20), it has K variables and K linear equations. Therefore, the explicit expressions of ∆θ₁, ∆θ₂, …, ∆θ_K, which consist of P₁₀, P₂₀, …, P_n0 and X_TCSC1, X_TCSC2, …, X_TCSCK, can be derived as the following Equation (21).

$$\left[\begin{array}{c}\Delta {\theta }_1\\ \Delta {\theta }_2\\ ⋮\\ \Delta {\theta }_K\end{array}\right]={\left[\begin{array}{cccc}1-\frac{b_{11}}{X_{\mathrm{TCSC}1}}& -\frac{b_{12}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{1K}}{X_{\mathrm{TCSC}K}}\\ -\frac{b_{21}}{X_{\mathrm{TCSC}1}}& 1-\frac{b_{22}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{2K}}{X_{\mathrm{TCSC}K}}\\ ⋮& ⋮& \ddots & ⋮\\ -\frac{b_{K1}}{X_{\mathrm{TCSC}K}}& -\frac{b_{K2}}{X_{\mathrm{TCSC}K}}& \cdots & 1-\frac{b_{KK}}{X_{\mathrm{TCSC}K}}\end{array}\right]}^{-1}\left[\begin{array}{c}{\displaystyle \sum _{m=1}^n{a}_{1m}{P}_{m0}}\\ {\displaystyle \sum _{m=1}^n{a}_{2m}{P}_{m0}}\\ ⋮\\ {\displaystyle \sum _{m=1}^n{a}_{Km}{P}_{m0}}\end{array}\right]$$

(21)

(4) Substituting Equation (21) into Equation (19), the explicit general expression of the APSSR with multiple TCSCs can be eventually derived as the following equation.

$${\Omega }_K\{\begin{array}{l}{P}_{ij}={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+{\left[\begin{array}{c}\frac{{\gamma }_1}{X_{\mathrm{TCSC}1}}\\ \frac{{\gamma }_2}{X_{\mathrm{TCSC}2}}\\ ⋮\\ \frac{{\gamma }_K}{X_{\mathrm{TCSC}K}}\end{array}\right]}^T{\left[\begin{array}{cccc}1-\frac{b_{11}}{X_{\mathrm{TCSC}1}}& -\frac{b_{12}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{1K}}{X_{\mathrm{TCSC}K}}\\ -\frac{b_{21}}{X_{\mathrm{TCSC}1}}& 1-\frac{b_{22}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{2K}}{X_{\mathrm{TCSC}K}}\\ ⋮& ⋮& \ddots & ⋮\\ -\frac{b_{K1}}{X_{\mathrm{TCSC}K}}& -\frac{b_{K2}}{X_{\mathrm{TCSC}K}}& \cdots & 1-\frac{b_{KK}}{X_{\mathrm{TCSC}K}}\end{array}\right]}^{-1}\left[\begin{array}{c}{\displaystyle \sum _{m=1}^n{a}_{1m}{P}_{m0}}\\ {\displaystyle \sum _{m=1}^n{a}_{2m}{P}_{m0}}\\ ⋮\\ {\displaystyle \sum _{m=1}^n{a}_{Km}{P}_{m0}}\end{array}\right]\\ \\ P_{ij\min }\le P_{ij}\le P_{ij\max }\\ P_{m-\min }\le P_{m0}\le P_{m-\max }\end{array}$$

(22)

(5) From Equation (22), the hyper-plane coefficient (HPC) of P_m0 for Ω_K can be obtained as λ_mK.

$${\lambda }_{mK}=k_{dm}+{\left[\begin{array}{c}\frac{{\gamma }_1}{X_{\mathrm{TCSC}1}}\\ \frac{{\gamma }_2}{X_{\mathrm{TCSC}2}}\\ ⋮\\ \frac{{\gamma }_K}{X_{\mathrm{TCSC}K}}\end{array}\right]}^T\mathit{T}{\mathit{s}}^{K\times K}(X_{\mathrm{TCSC}1},\cdots ,X_{\mathrm{TCSC}K})\left[\begin{array}{c}{a}_{1m}\\ a_{2m}\\ ⋮\\ a_{Km}\end{array}\right]$$

(23)

where,

$$\mathit{T}{\mathit{s}}^{K\times K}(X_{\mathrm{TCSC}1},\cdots ,X_{\mathrm{TCSC}K})={\left[\begin{array}{cccc}1-\frac{b_{11}}{X_{\mathrm{TCSC}1}}& -\frac{b_{12}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{1K}}{X_{\mathrm{TCSC}K}}\\ -\frac{b_{21}}{X_{\mathrm{TCSC}1}}& 1-\frac{b_{22}}{X_{\mathrm{TCSC}2}}& \cdots & -\frac{b_{2K}}{X_{\mathrm{TCSC}K}}\\ ⋮& ⋮& \ddots & ⋮\\ -\frac{b_{K1}}{X_{\mathrm{TCSC}K}}& -\frac{b_{K2}}{X_{\mathrm{TCSC}K}}& \cdots & 1-\frac{b_{KK}}{X_{\mathrm{TCSC}K}}\end{array}\right]}^{-1}$$

From Equations (19)–(23), the following conclusions can be summarized:

(1)

The feasibility of the proposed method is theoretically not affected by the number of TCSCs. Of course, with the increase of K, concrete expression of Equation (22) will be gradually complicated.

(2)

The computational burden of the proposed method mainly depends on the inversion of K-order matrix Ts^K×K(X_TCSC1, …, X_TCSCK). Also, the number of TCSCs is generally much smaller than the number of nodes of a power grid (i.e., K << n). Therefore, the proposed method has much higher computational efficiency compared with the existing method, by avoiding inversion of the n-order parameter matrix B(X_TCSC).

5. Cases Studies

The effectiveness and superiorities of the proposed method are verified with different scale benchmarks. Specifically, this chapter will firstly demonstrate the effectiveness of the proposed method via the IEEE 10-generator 39-node system [17] shown in Figure 4.

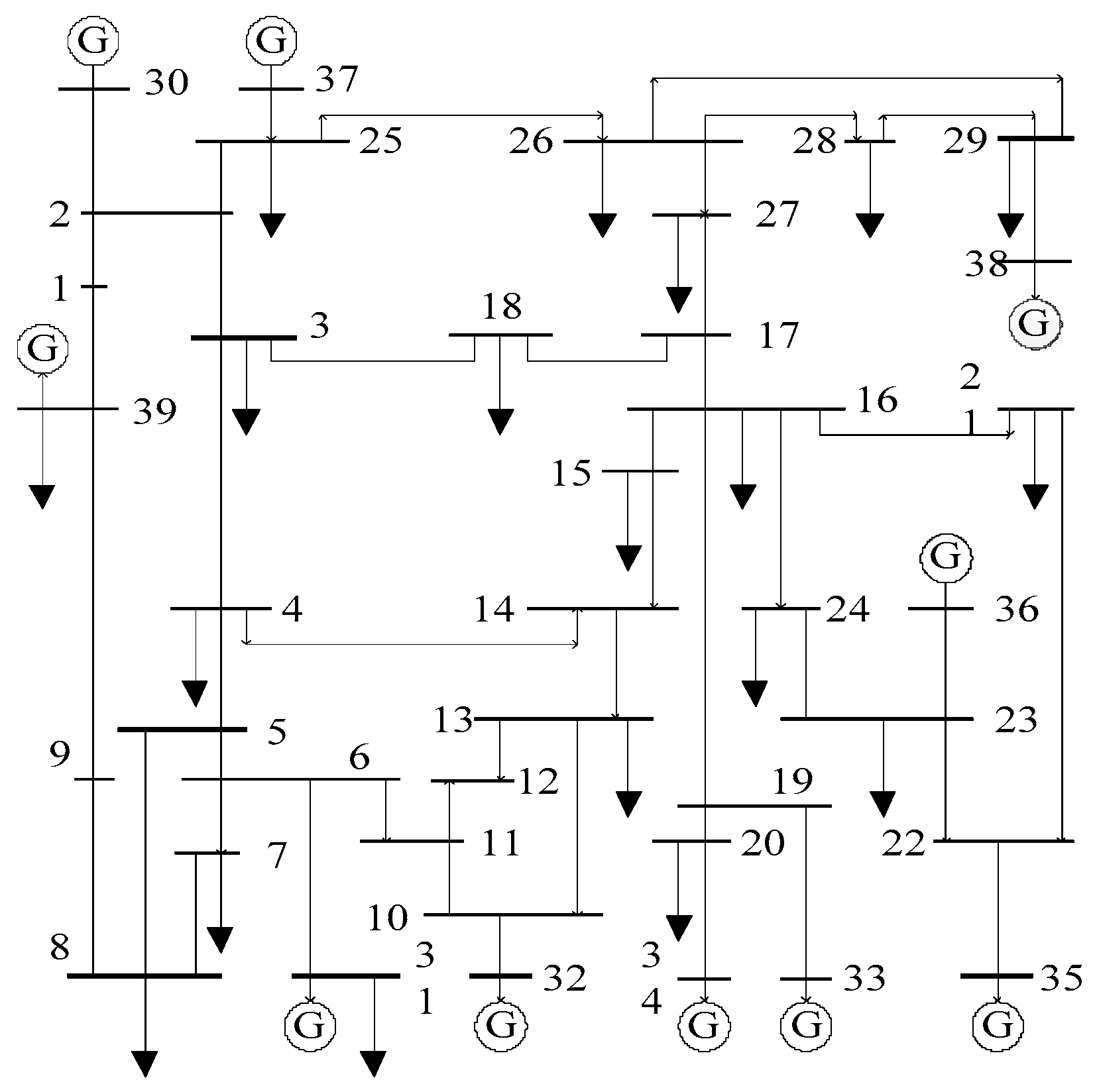

Further, with the IEEE 3-generator 9-node system [18], IEEE 18-node system [19], and IEEE 10-generator 39-node system, the superiorities of the proposed method in computational efficiency are verified by changing system scale and the number of TCSCs.

All data in this chapter are obtained by a desktop computer with i7-4790@3.60GHZ CPU and 8G RAM. The software environment is Windows 10 Professional and MATLAB 2013a.

5.1. Verification of the Effectiveness of the Proposed Method

5.1.1. The Scenario with a Single TCSC

Firstly, the effectiveness of the proposed method is tested by scenario 1 as follows:

Scenario 1: Suppose a TCSC, whose equivalent reactance is defined as X_TCSC1, is connected in series with branch 9-39 in Figure 4, and the APSSR of branch 3-4 incorporating X_TCSC1 is to be constructed.

After equivalent disconnection of the TCSC branch, via Equations (5)–(10), k_dm and e_m can be obtained as shown in

Table 1. Results of k_dm and e_m for scenario 1.

m	kdm	em	m	kdm	em
1	0.6847	−0.0767	20	0.4221	−0.0183
2	0.6847	−0.0356	21	0.4221	−0.0183
3	0.7183	−0.0235	22	0.4221	−0.0183
4	−0.0408	−0.0089	23	0.4221	−0.0183
5	−0.0063	−0.0003	24	0.4221	−0.0183
6	0	0	25	0.6656	−0.0339
7	−0.0023	0.0040	26	0.5939	−0.0275
8	−0.0035	0.0060	27	0.5612	−0.0245
9	−0.0035	0.0423	28	0.5939	−0.0275
10	0.0326	−0.0040	29	0.5939	−0.0275
11	0.0221	−0.0027	30	0.6847	−0.0356
12	0.0326	−0.0040	32	0.0326	−0.0040
13	0.0432	−0.0053	33	0.4221	−0.0183
14	0.0704	−0.0086	34	0.4221	−0.0183
15	0.3158	−0.0154	35	0.4221	−0.0183
16	0.4221	−0.0183	36	0.4221	−0.0183
17	0.5228	−0.0211	37	0.6656	−0.0339
18	0.5974	−0.0220	38	0.5939	−0.0275
19	0.4221	−0.0183	39	0.6847	−0.1017

. k_r1, k_r2, k_dl and k_dp can be derived as listed in

Table 2. k_r1, k_r2, k_dl and k_dp for scenario 1.

kr1	kr2	kdl	kdp
0.0423	−0.1267	−0.0035	0.06847

.

Then, according to Equation (11), the APSSR of branch 3-4 can be obtained as the following equation:

$$\{\begin{array}{l}{P}_{ij\min }\le P_{ij}={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+0.6882(\frac{({\displaystyle \sum _{m=1}^n{e}_m{P}_{m0}})}{X_{\mathrm{TCSC}1}+0.1690})\le P_{ij\max }\\ P_{m-\min }\le P_{m0}\le P_{m-\max }\end{array}$$

(24)

On one hand, set X_TCSC1 = 0.003, hyper-plane coefficients (HPCs) of Equation (24) can be obtained as the results in the 2nd and 5th columns of

Table 3. HPCs obtained by the proposed method and the existing method under X_TCSC1 = 0.0030 for scenario 1.

m	Proposed Method	Existing Method	m	Proposed Method	Existing Method
1	0.3668	0.3668	20	0.3462	0.3462
2	0.5371	0.5371	21	0.3462	0.3462
3	0.6208	0.6208	22	0.3462	0.3462
4	−0.0775	−0.0775	23	0.3462	0.3462
5	−0.0075	−0.0075	24	0.3462	0.3462
6	0	0	25	0.5251	0.5251
7	0.0143	0.0143	26	0.4800	0.4800
8	0.0215	0.0215	27	0.4595	0.4595
9	0.1720	0.1720	28	0.4800	0.4800
10	0.0161	0.0161	29	0.4800	0.4800
11	0.0109	0.0109	30	0.5371	0.5371
12	0.0161	0.0161	32	0.0161	0.0161
13	0.0212	0.0212	33	0.3462	0.3462
14	0.0346	0.0346	34	0.3462	0.3462
15	0.2520	0.2520	35	0.3462	0.3462
16	0.3462	0.3462	36	0.3462	0.3462
17	0.4354	0.4354	37	0.5251	0.5251
18	0.5061	0.5061	38	0.4800	0.4800
19	0.3462	0.3462	39	0.2631	0.2631

.

On the other hand, the reactance parameter of branch 9-39 is set as 0.025–0.003 (namely 0.022; 0.025 is the original reactance of branch 9-39), then the existing method is used to construct the APSSR. The obtained HPCs are as shown in the 3rd and 6th columns of Table 3.

In Table 3, it can be seen that the results in the 2nd and 5th columns are in perfect agreement with the results in the 3rd and 6th columns, respectively. That is, for X_TCSC1 = 0.0030, an APSSR of Equation (24), which is constructed by the proposed method, is correct.

For other scenarios with different values of X_TCSC1 at different branches, test results are in line with the above conclusion.

5.1.2. The Scenario with Multiple TCSCs

Moreover, the effectiveness of the proposed method is tested for scenario 2 with multiple TCSCs.

Scenario 2: Suppose three TCSCs, whose equivalent reactances are defined as X_TCSC1, X_TCSC2, and X_TCSC3, are connected in series with branch 2-25, branch 3-4, and branch 4-5 in Figure 4, and the APSSR of branch 14-4 incorporating X_TCSC1, X_TCSC2, and X_TCSC3 is to be constructed.

On one hand, via Equations (19)–(22), the APSSR of branch 14-4 can be obtained as the following Equation (25):

$$\begin{array}{l}{P}_{ij\min }\le P_{ij}={\displaystyle \sum _{m=1}^n{k}_{dm}{P}_{m0}}+{\displaystyle \sum _{m=1}^n{P}_{m0}}\frac{{\gamma }_1{T}_1+{\gamma }_2{T}_2+{\gamma }_3{T}_3}{\Delta }\le P_{ij\max }\\ \Delta =X_{\mathrm{TCSC}1}{X}_{\mathrm{TCSC}2}{X}_{\mathrm{TCSC}3}-0.051X_{\mathrm{TCSC}1}{X}_{\mathrm{TCSC}2}\\ -0.0797X_{\mathrm{TCSC}1}{X}_{\mathrm{TCSC}3}-0.1038X_{\mathrm{TCSC}2}{X}_{\mathrm{TCSC}3}+0.0037X_{\mathrm{TCSC}1}\\ +0.0053X_{\mathrm{TCSC}2}+0.0081X_{\mathrm{TCSC}3}-0.0041\\ T_1=(X_{\mathrm{TCSC}2}{X}_{\mathrm{TCSC}3}-0.051X_{\mathrm{TCSC}2}-0.0797X_{\mathrm{TCSC}3}+0.0037)a_{1m}\\ +(0.012X_{\mathrm{TCSC}3}-0.0005)a_{2m}+(-0.0042X_{\mathrm{TCSC}2}+0.0001)a_{3m}\\ T_2=(X_{\mathrm{TCSC}1}{X}_{\mathrm{TCSC}3}-0.051X_{\mathrm{TCSC}1}-0.1038X_{\mathrm{TCSC}3}+0.0053)a_{2m}\\ +(0.012X_{\mathrm{TCSC}3}-0.0005)a_{1m}+(-0.02X_{\mathrm{TCSC}1}+0.002)a_{3m}\\ T_3=(X_{\mathrm{TCSC}1}{X}_{\mathrm{TCSC}2}-0.0797X_{\mathrm{TCSC}1}-0.1038X_{\mathrm{TCSC}3}+0.0081)a_{3m}\\ +(-0.0042X_{\mathrm{TCSC}2}+0.0001)a_{1m}+(-0.02X_{\mathrm{TCSC}1}+0.002)a_{2m}\end{array}$$

(25)

Set X_TCSC1, X_TCSC2, and X_TCSC3 all equal to −0.002, the HPCs can be obtained by Equation (25) as shown in the 2nd column and 5th column of

Table 4. HPCs obtained by the proposed method and the existing method.

m	Proposed Method	Existing Method	m	Proposed Method	Existing Method
1	−0.0359	−0.0359	20	0.1528	0.1528
2	−0.0427	−0.0427	21	0.1528	0.1528
3	−0.0695	−0.0695	22	0.1528	0.1528
4	−0.2702	−0.2702	23	0.1528	0.1528
5	−0.0373	−0.0373	24	0.1528	0.1528
6	0	0	25	−0.0257	−0.0257
7	−0.0144	−0.0144	26	0.0262	0.0262
8	−0.0216	−0.0216	27	0.0498	0.0498
9	−0.0276	−0.0276	28	0.0262	0.0262
10	0.1927	0.1927	29	0.0262	0.0262
11	0.1304	0.1304	30	−0.0427	−0.0427
12	0.1927	0.1927	32	0.1927	0.1927
13	0.2549	0.2549	33	0.1528	0.1528
14	0.4156	0.4156	34	0.1528	0.1528
15	0.2322	0.2322	35	0.1528	0.1528
16	0.1528	0.1528	36	0.1528	0.1528
17	0.0776	0.0776	37	−0.0257	−0.0257
18	0.0215	0.0215	38	0.0262	0.0262
19	0.1528	0.1528	39	−0.0318	−0.0318

.

On the other hand, the reactances of branch 2-25, branch 3-4, and branch 4-5 are set as 0.0086−0.002, 0.0213−0.002, and 0.0128−0.002, respectively. (0.0086, 0.0213, and 0.0128 are the original reactances of branch 2-25, branch 3-4, and branch 4-5.) Then, the existing method is used to construct the APSSR. The obtained HPCs are as shown in the 3rd and 6th columns of Table 4.

In Table 4, it can be seen that the results in the 2nd and 5th columns are in perfect agreement with the results in the 3rd and 6th columns, respectively. That is, for X_TCSC1 = −0.002, X_TCSC2 = −0.002, and X_TCSC3 = −0.002, the APSSR of Equation (25) constructed by the proposed method is correct.

For other scenarios with multiple TCSCs, test results are in line with the above conclusion.

Therefore, from the above comparisons and analyses, the following conclusions can be obtained:

(1)

The proposed method can correctly construct the explicit expression of the APSSR, which consists of the equivalent reactance parameters of TCSCs and node active power injections.

(2)

The effectiveness of the proposed method is not influenced by the number of TCSCs and the values of TCSC equivalent reactances.

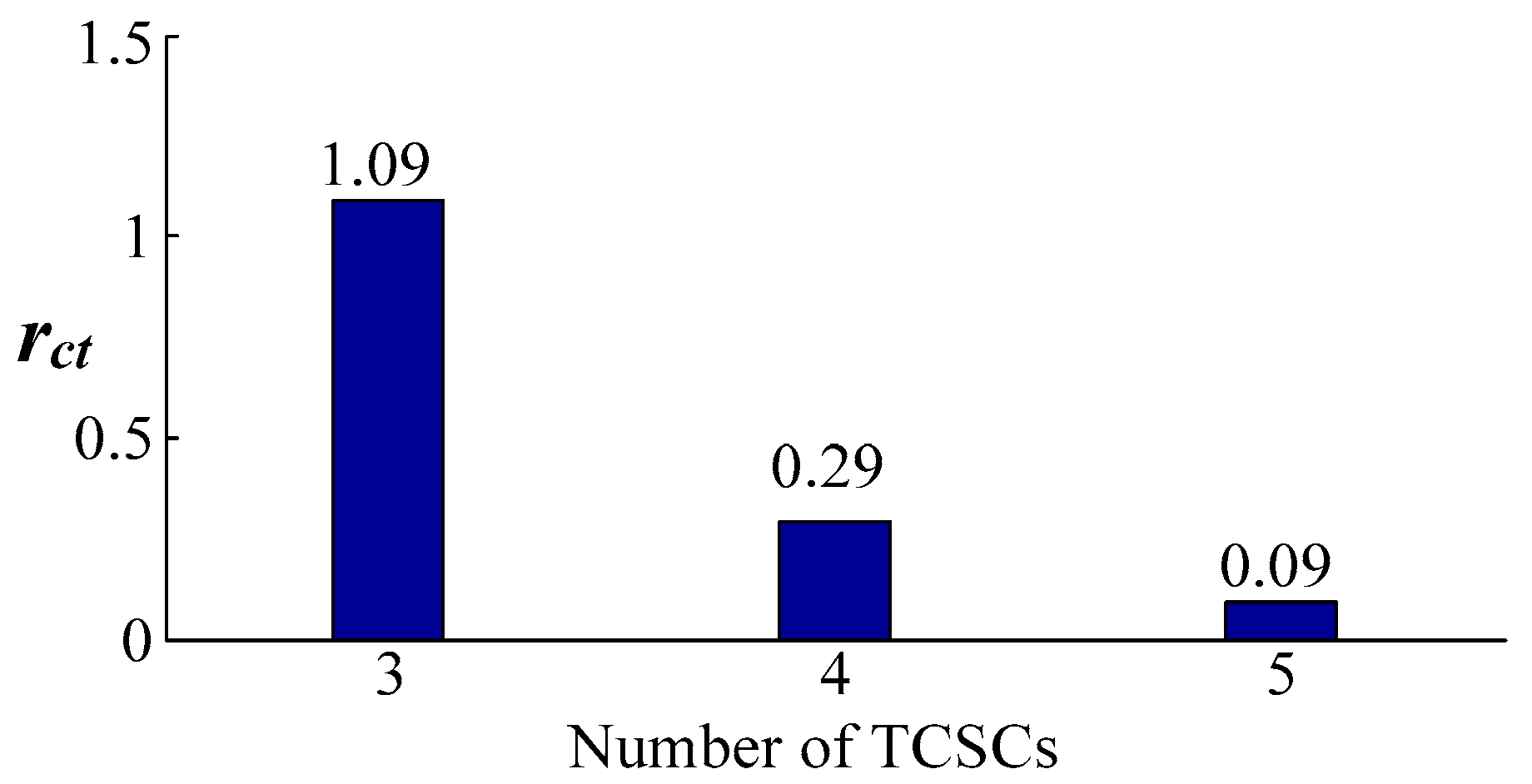

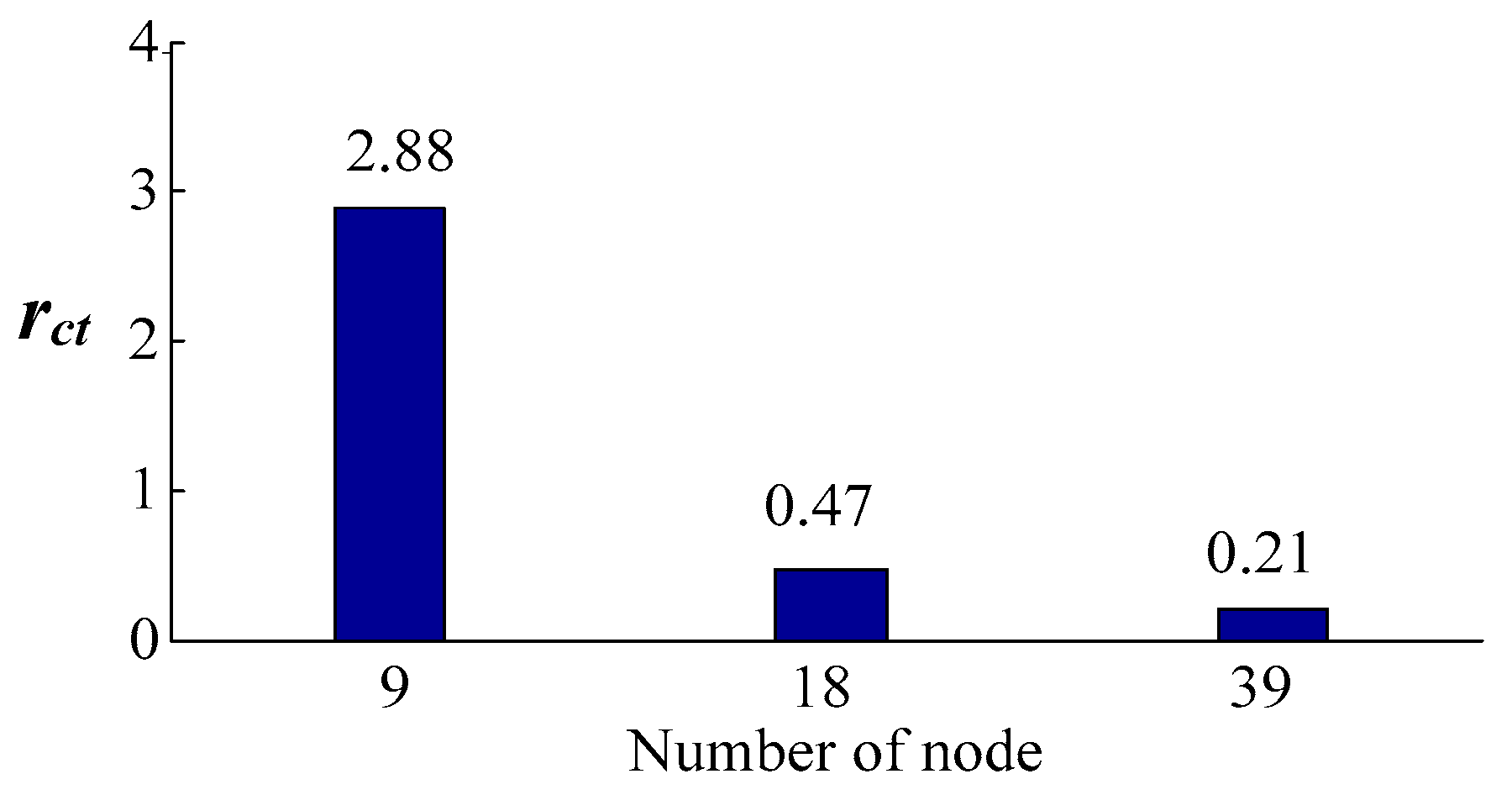

5.2. Effects of System Scale and the Number of TCSCs on the Computational Efficiency of the Proposed Method

In the above section, the effectiveness of the proposed method is verified. Further, the effects of system scale and the number of TCSCs on the computational efficiency of the proposed method are tested.

For illustration, the following definitions are given:

(1)

Method 1: The existing method via inversion of parameter matrix B(X_TCSC)

(2)

Method 2: The proposed method

Detailed tests are illustrated as follows.

5.2.1. The Effect of System Scale

On one hand, the following tests are conducted to investigate the impact of system size/number of nodes on computational efficiency. Under the premise of only one TCSC, Method 1 and Method 2 are used to construct the APPSR incorporating the TCSC equivalent reactance parameter for the three benchmarks in different scale. Eventually, the results for computing time listed in

Table 5. Comparisons of computing time for three different benchmarks.

Number of Nodes	Method 1/s	Method 2/s
9	0.1353	0.0039
18	1.0700	0.0050
39	2.9307	0.0061

below can be obtained.

From Table 5, the following conclusions can be obtained:

(1)

When node number increases, the computing times of both Method 1 and Method 2 increase.

(2)

Compared with the proposed Method 2, the computing time of Method 1 increases much faster.

For quantitive comparison, an index of computing time ratio is defined as r_ct as follows:

$$r_{ct}=\frac{t_{m2}}{t_{m1}}\times 100\%$$

(26)

where t_m1 and t_m2 are the computing times of Method 1 and Method 2, respectively.

From Table 5, the change of r_ct with the increase of the number of nodes can be obtained as shown in Figure 5.

From Figure 5, it can be seen that r_ct shows a trend of decrease with the increase of system scale. When the number of nodes is 9, 18, and 39, r_ct is 2.88%, 0.47%, and 0.21%, respectively.

To sum up, it shows that the superiority of the proposed method in computational efficiency will be more prominent with the increase of benchmark scale.

5.2.2. The Effect of the Number of TCSCs

On the one hand, the following tests are conducted to investigate the impact of the number of TCSCs on computational efficiency. For the IEEE 10-generator 39-node benchmark, Method 1 and Method 2 are used to construct the APSSR for the three scenarios with three TCSCs, four TCSCs, and five TCSCs, respectively. Eventually, the results for computing time listed in

Table 6. Comparison of computing time with the change of TCSC number.

Number of TCSCs	Method 1/s	Method 2/s
3	5.2401	0.0571
4	21.8122	0.0630
5	136.9217	0.1227

below can be obtained.

From Table 6, the following conclusions can be obtained:

(1)

When the number of TCSCs increases, the computing times of both Method 1 and Method 2 increase.

(2)

Compared with the proposed Method 2, the computing time of the proposed Method 1 increases much faster.

From Table 6, the change of r_ct with the increase of the number of TCSCs can be obtained as shown in Figure 6.

From Figure 6, it can be seen that r_ct shows a trend of decrease with the increase of the number of TCSCs. When the number of TCSCs is 9, 18, and 39, r_ct is 1.09%, 0.29%, and 0.09%, respectively.

To sum up, it shows that the superiority of the proposed method in computational efficiency will be more prominent with the increase of the number of TCSCs.

6. Conclusions

In this paper, a fast construction method of active power steady-state security regions (APSSRs) incorporating equivalent reactance parameters of TCSCs is proposed. Concretely, with equivalent disconnection of TCSC branches, the effect of TCSC equivalent reactances on the distribution of active power flow through changing the structure parameters is treated as modifying node active power injections. On this basis, the explicit expressions of APSSRs with a single TCSC equivalent reactance parameter and double TCSC equivalent reactance parameters are deduced, respectively. Furthermore, the general formula of an APSSR with multiple TCSC equivalent reactance parameters is generalized. Eventually, via benchmarks with different scales and different numbers of TCSCs, validity and superiorities of the proposed method are demonstrated as follows:

(1)

It can correctly construct an explicit expression of the APSSR, which consists of the equivalent reactance parameters of TCSCs and node active power injections.

(2)

It is suitable for a system with a single TCSC, two TCSCs, and multiple TCSCs. That is, its feasibility is not influenced by the number of TCSCs.

(3)

Compared with the conventional method, it shows much higher efficiency in constructing explicit expressions of APSSRs incorporating the equivalent reactance parameters of TCSCs. Moreover, the larger the system scale or the greater the number of TCSCs, the more significant the superiority in computational efficiency the proposed method is.

In future, the construction method of APSSRs for the system with other FACTS devices, for example, a unified power flow controller (UPFC), will be further studied.
