Identifying the Optimal Offshore Areas for Wave Energy Converter Deployments in Taiwanese Waters Based on 12-Year Model Hindcasts

Abstract

A 12-year sea-state hindcast for Taiwanese waters, covering the period from 2005 to 2016, was conducted using a fully coupled tide-surge-wave model. The hindcasts of significant wave height and peak period were employed to estimate the wave power resources in the waters surrounding Taiwan. Numerical simulations based on unstructured grids were converted to structured grids with a resolution of 25 × 25 km. The spatial distribution maps of offshore annual mean wave power were created for each year and for the 12-year period. Waters with higher wave power density were observed off the northern, northeastern, southeastern (south of Green Island and southeast of Lanyu) and southern coasts of Taiwan. Five energetic sea areas with spatial average annual total wave energy density of 60–90 MWh/m were selected for further analysis. The 25 × 25 km square grids were then downscaled to resolutions of 5 × 5 km, and five 5 × 5 km optimal areas were identified for wave energy converter deployments. The spatial average annual total wave energy yields at the five optimal areas (S1)–(S5) were estimated to be 64.3, 84.1, 84.5, 111.0 and 99.3 MWh/m, respectively. The prevailing wave directions for these five areas lie between east and northeast.

1. Introduction

Oceans cover over 70% of the Earth’s surface and represent a wealth of renewable energy resources [1]. Many potential candidates for ocean energy sources exist, including wave energy, tide energy, tidal current energy, thermal gradients and salinity gradients [2,3]. Of these, wave power is currently the most researched area; it represents the largest ocean energy resource and is the most widely distributed marine renewable energy around the world. Many methods of wave energy conversion have been developed to extract wave power from oceans. The overtopping/terminator type of wave energy converter (WEC) consists of two wave reflectors that collect overtopping water and convert the pressure head into power [4]. The raft-type WEC uses relative rotation around a hinge to drive an electrical generation system to convert wave energy to electricity [5]. Another approach involves a point-oscillating absorber type WEC, which utilizes relative translational motion in which the oscillating motion of the floater is converted into electricity by a power take off (PTO) system for the oscillating-body WEC. This type of WEC is widely used for offshore deployments [6]. The two-floater WEC also uses a PTO system to convert ocean wave-induced motion into electricity [7]. The attenuator type of WEC captures energy from the relative motions of two arms as waves pass.

The use of numerical models to assess ocean wave power has been widely adopted on both regional [8,9,10,11] and global scales [12,13,14,15] and has been implemented for several islands, including the Canary Islands, Madeira, and the Azores in the Atlantic Ocean [16,17,18,19], Hawaii and Taiwan in the Pacific Ocean [20,21,22,23], Fuerte Island in the Caribbean Sea [24], and Sardinia and Menorca in the Mediterranean Sea [25,26,27].

Hashemi and Neill [28] used a wave-tide coupled model called the Simulating WAves Nearshore-Regional Ocean Modeling System (SWAN-ROMS) to investigate wave energy resources in the seas along the northwest European shelf. Their results suggested that tidal impact is significant and that the contributions from the effects of tidal currents on wave power resources are greater than the contribution from variations in tide levels. The maximum current speeds of the Kuroshio in the eastern offshore sea of Taiwan range between 0.6 and 1.2 m/s [29]. Therefore, using a tide-surge-wave coupled model is essential for accurately assessing the distribution of wave power in Taiwanese waters.

There are substantial ocean energy resources around the Island of Taiwan. However, the statistical data issued from the Ministry of Economic Affairs, Taiwan, revealed that the annual total electricity generating capacity of Taiwan was 264.1 billion kWh in 2016, of which fuel-fired power accounted for 82% (216.56 billion kWh), nuclear power accounted for 12% (31.69 billion kWh), hydroelectric power accounted for 1.2% (3.17 billion kWh), and renewable power accounted for 4.8% (12.68 billion kWh). Regarding renewable energy, only wind power and solar power are currently utilized in Taiwan. However, exploitation of energy resources in the ocean is urgently needed in Taiwan because they are renewable and do not contribute to atmospheric pollution.

Assessments of optimal locations or hotspots for deploying wave energy converters in previous studies have usually been conducted by reporting the location of selected “points”. For instance, Morim et al. [30] evaluated the wave energy resources and optimal locations along the southeast coast of Australia, and Su et al. [23] assessed the distribution of wave power and hotspots for the surrounding waters of Taiwan. Although this method is quite straightforward, the possible energetic “sea area” where wave energy converters can be deployed is not definite. This is an important issue; wave energy converters should be placed in an “area” rather than at a “point”. In the present study, numerical simulations based on unstructured grids were converted to structured (square) grids to identify energetic “sea areas” using the gridding method available through ArcGIS software. The annual mean wave energy yields of the final optimal areas for WEC deployments were acquired by spatial averaging over 5 km square regions. The approach proposed in the present study is both innovative and helpful for assessing the most appropriate offshore sea areas in which to deploy wave energy converters in Taiwanese waters.

The primary objectives of the present study were as follows: (1) implement a tide-surge-wave fully coupled high-resolution model for Taiwanese waters; (2) validate the fully coupled model with available observations; (3) create spatial distribution maps for annual and 12-year-average wave power; (4) using the gridding method, identify the most energetic and optimal areas in the offshore seas of Taiwan for deploying wave energy converters; and (5) assess the annual total wave energy density and the dominant wave direction in each optimal area.

2. Methods and Data

2.1. Ocean Circulation Model

The sea surface elevations and currents of the waters surrounding Taiwan were simulated with the community ocean model Semi-implicit Cross-scale Hydroscience Integrated System Model (SCHISM). SCHISM is an upgraded and evolved version of the original Semi-implicit Eulerian-Lagrangian Finite-Element/volume (SELFE [31]) model that includes many enhancements and improvements such as a new extension to simulate large-scale eddying regimes and a seamless cross-scale capability ranging from creeks to oceans [32]. SCHISM and SELFE have been widely used to simulate the propagation of tsunami waves [33], to predict water quality and ecosystem dynamics [34,35,36], analyze oil spill diffusion and transport [37], generate flooding maps [38,39], evaluate the extent of inundation induced by extreme river flows, typhoons or hurricanes [40,41] and to estimate tidal-current power [42]. In Taiwanese waters, the surface circulation feature is highly similar to that on the bottom during the spring [43], and weak winter stratification is caused by vertical mixing [44]; therefore, a two-dimensional SCHISM model (SCHISM-2D) vertically integrated with the barotropic mode was employed in this study. The governing equations in the Cartesian coordinate system and two-dimensional form are as follows:

$$\frac{\partial \eta }{\partial t}+\frac{\partial uH}{\partial x}+\frac{\partial vH}{\partial y}=0,$$

(1)

$$\frac{Du}{Dt}=fv-\frac{\partial }{\partial x}\left\{g(\eta -\alpha \widehat{\psi })+\frac{P_A}{{\rho }_0}\right\}+\frac{{\tau }_{sx}+{\tau }_{rx}-{\tau }_{bx}}{{\rho }_{0}H},$$

(2)

$$\frac{Dv}{Dt}=-fu-\frac{\partial }{\partial y}\left\{g(\eta -\alpha \widehat{\psi })+\frac{P_A}{{\rho }_0}\right\}+\frac{{\tau }_{sy}+{\tau }_{ry}-{\tau }_{by}}{{\rho }_{0}H},$$

(3)

where η(x, y, t) is the free-surface elevation, H = η + h is the total water depth, h is the bathymetric depth, u(x, y, t) and ν(x, y, t) are the horizontal velocity components in the x, y direction, respectively, f is the Coriolis factor, g is the acceleration due to gravity, $\widehat{\psi }$ is the Earth’s tidal potential, α is the effective earth elasticity factor, ρ₀ is the reference density of water, and P_A(x, y, t) is the atmospheric pressure at the free surface. In Equations (2) and (3), τ_sx and τ_sy are the wind stress components in the x, y direction, respectively, and can be expressed as follows:

$${\tau }_{sx}={\rho }_a{C}_s\sqrt{W_x{}^2+W_y{}^2}{W}_x$$

(4a)

$${\tau }_{sy}={\rho }_a{C}_s\sqrt{W_x{}^2+W_y{}^2}{W}_y$$

(4b)

where C_s is the wind drag coefficient; ρ_a is the air density; and W_x, W_y are the wind-speed components 10 m above the sea surface in the x, y directions, respectively. C_s is often regarded as an increasing function of wind velocity; however, Powell et al. [45] suggested that C_s should be limited at high wind speeds. The formula to calculate C_s in SCHISM-2D is:

$$C_s={1.0}^{-3}\{\begin{array}{c}\left(0.61+0.063\times 6.0\right),\hspace{1em}W<6.0\\ \left(0.61+0.063W\right),6.0\le W\le 50.0\\ \left(0.61+0.063\times 50.0\right)\hspace{1em},W>50.0\end{array}$$

(5)

where W is the resultant wind speed at 10 m above the sea surface.

Here, τ_bx and τ_by are the bottom shear stress components in the x, y directions and are computed by the following formulas:

$${\tau }_{bx}={\rho }_0{C}_d\sqrt{u^2+v^2}u$$

(6a)

$${\tau }_{by}={\rho }_0{C}_d\sqrt{u^2+v^2}v$$

(6b)

where C_d is the bottom drag coefficient, which can be parameterized as follows:

$$C_d=g{n}^2/H^{1/3}$$

(7)

where n is the Manning coefficient, which was set to 0.025 in the model due to the lack of knowledge of the sea-bottom material type. However, the bottom drag coefficient C_d varies with H based on Equation (7).

Here, τ_rx and τ_ry are the radiation stress components in the x, y directions, respectively, and can be computed following Longuet-Higgins and Stewart [46,47], as shown below:

$${\tau }_{rx}=-\frac{\partial S_{xx}}{\partial x}-\frac{\partial S_{xy}}{\partial y}$$

(8a)

$${\tau }_{ry}=-\frac{\partial S_{xy}}{\partial x}-\frac{\partial S_{yy}}{\partial y}$$

(8b)

where S_xx, S_xy and S_yy are the wave radiation stress components and are represented according to Battjes [48]:

$$S_{xx}={\displaystyle \underset{0}{\overset{2\mathsf{\pi }}{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}N\sigma \frac{C_g}{C_p}}}\sin \left(\theta \right)\mathrm{d}\theta \mathrm{d}\sigma ,$$

(9a)

$$S_{xy}=S_{yx}={\displaystyle \underset{0}{\overset{2\pi }{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}N\sigma \left[\frac{C_g}{C_p}\left({\cos }^2\left(\theta \right)+1\right)-\frac{1}{2}\right]}}\mathrm{d}\theta \mathrm{d}\sigma$$

(9b)

$$S_{yy}={\displaystyle \underset{0}{\overset{2\pi }{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}N\sigma \left[\frac{C_g}{C_p}\left({\sin }^2\left(\theta \right)+1\right)-\frac{1}{2}\right]}}\mathrm{d}\theta \mathrm{d}\sigma$$

(9c)

where N is the spectral wave action density, and the independent variables are the wave relative frequency, σ, and the wave direction, θ. Here, C_g and C_p are the wave group velocity and the wave phase velocity, respectively.

2.2. Spectral Wind Wave Model

A third-generation spectral wind wave model, Wind Wave Model III (WWM-III, 3.0, College of William & Mary, Williamsburg, VA, USA), was adopted to predict the significant wave heights (SWH) and wave peak period (Tp) in the coastal waters of Taiwan. The wave-action equation that governs WWM-III is given as:

$$\frac{\partial N}{\partial t}+\frac{\partial \left(C_{gx}+u\right)N}{\partial x}+\frac{\partial \left(C_{gy}+v\right)N}{\partial y}+\frac{\partial \left(C_{\sigma }N\right)}{\partial \sigma }+\frac{\partial \left(C_{\theta }N\right)}{\partial \theta }=\frac{S_{tot}}{\sigma }$$

(10)

where C_gx and C_gy are the wave group velocity components in the x, y direction, C_σ and C_θ are the propagation velocities in σ, θ space, respectively, and S_tot is the sum of the source terms for wave variance, including non-linear interactions, wind growth and dissipation by white-capping, bottom friction and wave breaking. The bottom friction and peak enhancement factors are set to 0.067 and 3.3, respectively, based on the formulation of the Joint North Sea WAve Project (JONSWAP) [49]. WWM-III computes waves breaking in shallow-water areas using the method proposed by [50]. A constant wave-breaking coefficient of 0.78 was adopted. The maximum wave direction is 360°, which is discretized into 36 bins in WWM-III. The low- and high-frequency limits of the discrete wave frequency are 0.03 and 1.0 Hz, respectively and are also divided into 36 bins.

SCHISM-2D (College of William & Mary, Williamsburg, VA, USA) computes the depth-averaged current and water surface elevation and then passes the results to the wave model, WWM-III, which sends the radiation stress to SCHISM-2D after solving the wave action equation. More details about the model coupling procedures of SCHISM-WWM-III can be found in [51].

2.3. Meteorological and Boundary Conditions

The wind forcing data used to drive SCHISM-WWM-III were the wind field at 10 m above sea level and the sea level pressure produced by ERA-Interim, which were acquired from public datasets available from the European Center for Medium-Range Weather Forecasts (ECMWF). ERA-Interim is the latest global atmospheric reanalysis, which is normally updated monthly with a two-month delay [52]. The 10-m wind speed in the x, y components were extracted from the ERA-Interim reanalysis results with a temporal resolution of 6 h (four analysis fields per day, at 00:00, 06:00, 12:00 and 18:00 UTC) and a spatial resolution of 0.125° × 0.125° and converted to the unstructured grids of SCHISM-WWM-III using the Inverse Distance Weighting (IDW) method. The IDW formula is:

$$p_e\left(x,y\right)=\frac{{\displaystyle \sum _{i=1}^n\frac{1}{d_i}{p}_m\left(x_i,y_i\right)}}{{\displaystyle \sum _{i=1}^n\frac{1}{d_i}}}$$

(11)

where p_e(x, y) is the value to be estimated (the wind speed in SCHISM-WWM-III), p_m(x, y) is the known value (the wind speed in ERA-Interim), and d_i represents the distances from the n data points to the point estimated n.

The wave boundary conditions of the regional SCHISM-WWM-III, including the significant wave height, the mean wave direction, the mean directional spreading, the peak frequency, and the zero down-crossing frequency, were obtained from a global WaveWatch III (WW III) model developed by the French Research Institute for Exploitation of the Sea (IFREMER) with a spatial resolution of 0.5° × 0.5° and a temporal resolution of 3 h. To obtain the tide boundary conditions, the harmonic constants of eight tidal constituents (M2, S2, N2, K2, K1, O1, P1, and Q1) were extracted from a regional inverse tidal model, China Seas & Indonesia 2016 [53], with a resolution of 1/30° and were set at each node on the open boundary to drive the model.

2.4. Estimation of Wave Power

The extractable wave power per unit of the wave crest length can be calculated through the spectral output of SCHISM-WWM-III and is given in kW per meter as shown below:

$$P=\rho g{\displaystyle \underset{0}{\overset{2\pi }{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}{c}_g\left(\sigma ,d\right)S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta$$

(12)

where S(σ, θ) is the directional wave variance density spectrum, ρ is the density of seawater, g is the acceleration due to gravity, and d is the water depth. The wave group velocity, c_g(σ, θ), can be expressed as follows:

$$c_g\left(\sigma ,d\right)=\frac{g}{4\mathsf{\pi }\sigma }\left[1+\frac{2\kappa d}{\sin h\left(2\kappa d\right)}\right]\tan \left[h\left(\kappa d\right)\right]$$

(13)

where κ = 2π/L is the number of waves, and L is the wave length. In deep water conditions (d > 0.5L) and c_g(σ, θ) = g/4πσ, Then:

$$P=\frac{\rho g^2}{4\mathsf{\pi }}{\displaystyle \underset{0}{\overset{2\mathsf{\pi }}{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}{\sigma }^{-1}S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta$$

(14)

The spectral moments of order, n, are defined as follows:

$$m_n=\frac{\rho g^2}{4\mathsf{\pi }}{\displaystyle \underset{0}{\overset{2\mathsf{\pi }}{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}{\sigma }^{n}S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta$$

(15)

The energy period T_e and the significant wave height H_s in terms of spectral moment are as follows:

$$T_e=\frac{m_{-1}}{m_0}=\frac{{\displaystyle \underset{0}{\overset{2\mathsf{\pi }}{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}{\sigma }^{-1}S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta }{{\displaystyle \underset{0}{\overset{2\mathsf{\pi }}{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta }$$

(16)

$$H_s=4{\left(m_0\right)}^{1/2}=4{\left({\displaystyle \underset{0}{\overset{2\pi }{\int }}{\displaystyle \underset{0}{\overset{\infty }{\int }}S\left(\sigma ,\theta \right)}}\mathrm{d}\sigma \mathrm{d}\theta \right)}^{1/2}$$

(17)

Therefore, Equation (11) can be simplified to:

$$P=\frac{\rho g^2}{64\mathsf{\pi }}{H}_s^2{T}_e$$

(18)

If ρ is assumed to be 1025 kg/m³, Equation (18) becomes:

$$P\left(\mathrm{kilowatt}/\mathrm{meter},\mathrm{kw}/\mathrm{m}\right)=0.49H_s^2{T}_e$$

(19)

It has been suggested that T_e is rarely specified and must be estimated from other variables, while the peak period T_p is often specified by measurements of sea states [23,49,50]. T_e is equal to T_p when multiplied by a coefficient α:

$$T_e=\alpha T_p$$

(20)

in which α = 0.9 was adopted from the standard JONSWAP spectrum with a peak enhancement factor of γ = 3.3 [23,27,54,55]. Thus, the theoretical wave power at any point can be computed using the following expression:

$$P\left(\mathrm{kilowatt}/\mathrm{meter},\mathrm{kw}/\mathrm{m}\right)=0.44H_s^2{T}_p.$$

(21)

The present study used Equation (15) to evaluate the wave power resources in Taiwanese waters, even when the deep-water hypothesis was not strictly satisfied [56].

Thus, the total annual wave energy per unit length can be generated for a given time interval and is calculated as follows:

$$E_t\left(\mathrm{kilowatt}\mathrm{hour}/\mathrm{meter},\mathrm{kwh}/\mathrm{m}\right)={\displaystyle \sum _i{P}_i\times \Delta t_i},$$

(22)

where Δt_i is the temporal sampling interval; Δt_i = 1 h in the present study.

2.5. Model Configuration

The computational domain covers Taiwan in its entirety as well as its main offshore islands. The region covers the area from a longitude of 114° E to 130° E and a latitude of 19° N to 29° N, as shown in Figure 1a. Two gridded bathymetry datasets were employed in this study. One dataset consists of global data obtained from the General Bathymetric Chart of the Oceans (GEBCO) and has a resolution of 30 arc-seconds. It was generated by combining quality-controlled ship depth soundings with interpolations between the sounding points guided by satellite-derived gravitational data. The other dataset is local data provided by the Department of Land Administration, Ministry of the Interior in Taiwan, with a resolution of 200 m and is distributed over a longitude of only 100° E to 128° E and a latitude of 4° N to 29° N. The bathymetry data for the coupled model were produced by merging the GEBCO and local bathymetry datasets. The method for combining two bathymetry sets is to merge the values in some order of priority using Surface-water Modeling System (SMS) software. A priority must be adopted because data overlaps exist in the source datasets. In the present study, when overlap occurs, the GEBCO data points in a set are considered as lower priority than the local data points; thus, they are not included in the final merged set. When no overlap occurs, all data points are merged. This approach ensured the preservation of the high-resolution local data. Our modeling domain is composed of 278,630 triangular cells and 142,041 non-overlapping, unstructured grids. Coarse meshes with 30 km resolution were arranged on the open ocean boundaries, while fine meshes with 300 m resolution were used along the coastline of Taiwan and the small offshore islands (Figure 1b). After the unstructured grids were created, the final merged, gridded bathymetry dataset was interpolated to each node to represent the bottom elevations in the coupled model (Figure 1a) using the linear interpolation method in SMS software.

In the ocean circulation model, a time step of 120 s was used for the present unstructured-grid system with numerical stability. SCHISM and WWM-III exchange the computational results every five hydrodynamic time steps (i.e., the time step of WWM-III is 600 s).

3. Model Validation

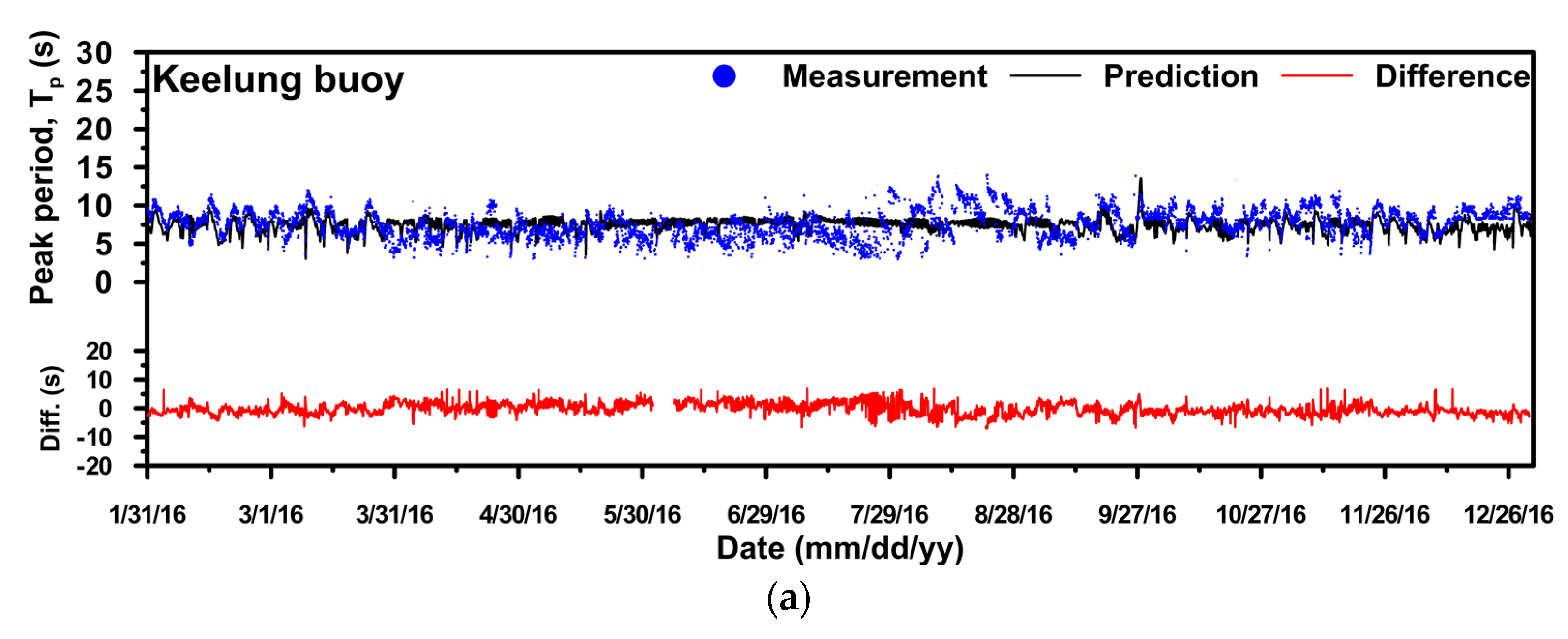

The observations adopted to validate SCHISM-WWM-III were measured significant wave heights (SWH) and peak periods (Tp) provided by the Harbor and Marine Technology Center (HMTC) in Taiwan at four buoys. The distribution map of these four wave buoys around Taiwanese waters is shown in Figure 2. The Keelung, Suao, and Hualien buoys are situated along the northeastern and eastern coast of Taiwan, while the Penghu buoy lies on the western coast of Taiwan (the Taiwan Strait). Figure 3 and Figure 4 present the comparisons of SWH (Figure 3) and Tp (Figure 4) between the model hindcasts and the measurements at the four buoys from 31 January 2016 to 30 December 2016. This period includes normal wind-generated waves (Tp), monsoon-induced waves (Tp) and the abnormal waves (Tp) caused by strong winds from Typhoon Nepartax (a severe typhoon, from 6 July 2016 to 9 July 2016), Typhoon Meranti (a severe typhoon, from 12 September 2016 to 15 September 2016) and Typhoon Megi (a moderate typhoon, from 25 September 2016 to 28 September 2016). The maximum SWH and Tp reached approximately 5.5 m and 14 s, 9.5 m and 16 s, 7.5 m and 15 s and 3.5 m and 13 s at the Keelung, Suao, Hualien, and Penghu buoys, respectively, due to the approach of Typhoon Megi. Peak SWH occurred at Keelung, Suao, and Hualien buoys on 28 September 2016, with a lag of almost one day at the Penghu buoy (as shown in Figure 3 and Figure 4). This result occurred because Typhoon Megi crossed Taiwan from east to west.

The statistical errors of the differences between the model hindcasts and the observations at the four wave buoys are also estimated. The correlation coefficients of the SWH and Tp are 0.86 and 0.74, 0.83 and 0.84, 0.87 and 0.83 and 0.80 and 0.73 for the Keelung, Suao, Hualien, and Penghu buoys, respectively. Even though the hindcasted SWH and Tp agree well with the measurements during both ordinary and extraordinary meteorological conditions, slight discrepancies still exist. It must be emphasized that the numerical wave models fail to capture Tp well, especially during normal meteorological conditions, for instance, April, May and June. The possible reasons include the nature of wave models. Some of the setup assumptions and numerical solutions within the models affect their accuracy [57]. In addition, the lower spatial and temporal resolutions of the wind field data from the ERA-Interim dataset affected model hindcasting, which is more sensitive to Tp. The adoption of higher spatial and temporal resolution wind data could improve the performance [58]. Yet a third reason for poor Tp hindcasts may be due to observational error. However, based on the model-data comparison, the hindcasts of SWH and Tp by SCHISM-WWM-III are relatively reliable and can be further applied to assess the distribution of wave power and wave energy in the waters surrounding Taiwan.

4. Results and Discussion

Sea-state hindcasts covering the period from 2005 to 2016 were conducted to estimate the wave power and wave energy output. Additionally, numerical simulations based on unstructured grids were converted to structured grids with a resolution of 25 × 25 km to locate the energetic sea areas.

4.1. Spatial Distribution of Annual Mean Significant Wave Height and Wave Power

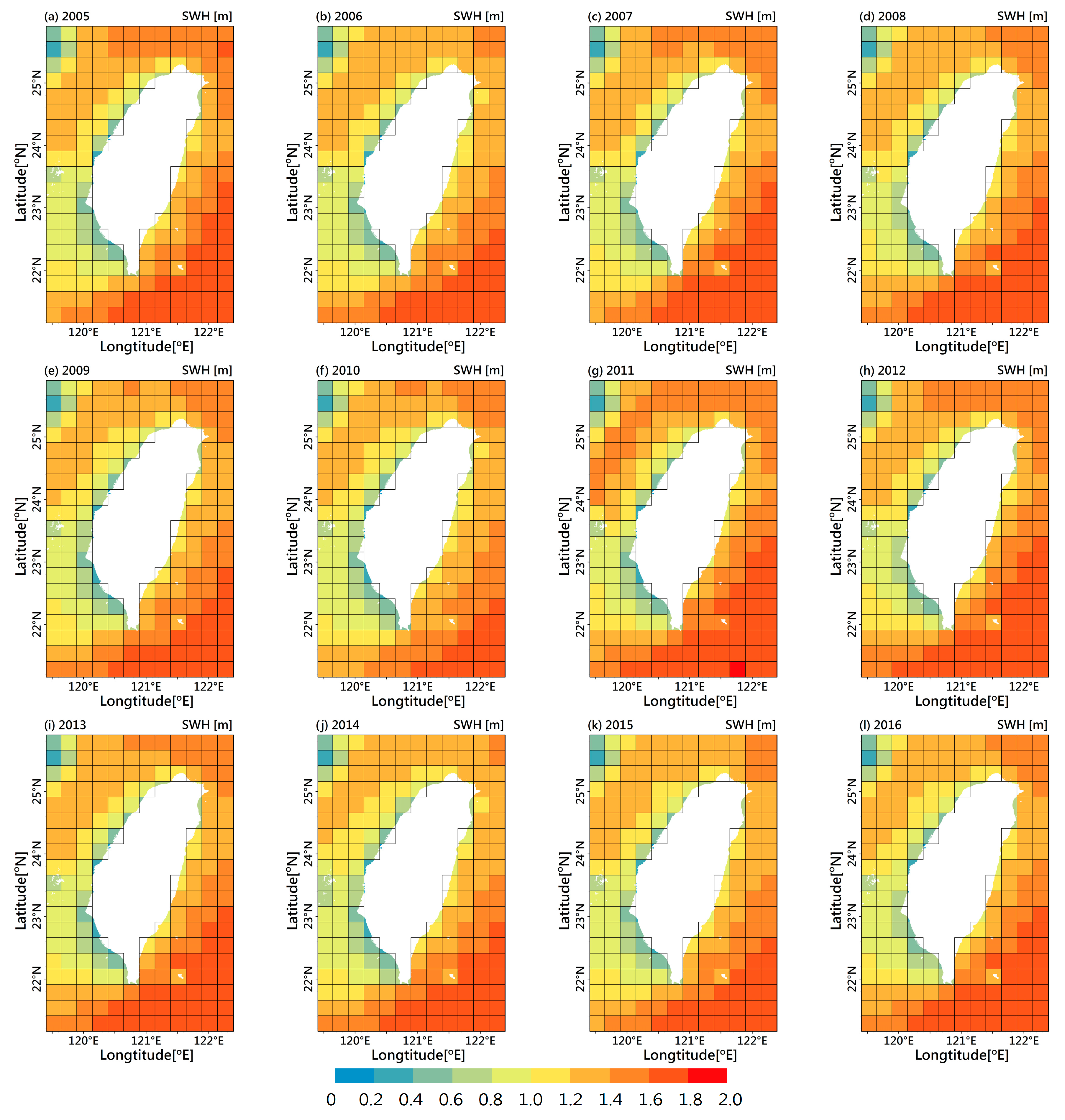

Figure 5 illustrates the spatial distribution of offshore annual mean SWH in Taiwanese waters for each year from 2005 to 2016 and shows highly similar patterns of mean SWH distribution. The mean SWH gradually increased from the nearshore region (shallower water) to the offshore areas (deeper water). This predictable phenomenon is due to the dissipation of SWH by depth effects [59]. The offshore sea areas with the higher SWH lie off the northeastern, eastern and southern coasts of Taiwan. The SWH values range from 1.2 m to 1.6 m along the northeastern coast and 1.4 m–1.8 m along the eastern and southern coasts. Figure 5 also shows that the mean SWH values are relatively low in the Taiwan Strait, ranging from only 0.6 m to 1.2 m. The spatial distribution of offshore SWH was averaged over 12 years (2005–2016) and is presented in Figure 6. The offshore sea areas southeast of Taiwan exhibit the highest mean SWH values, ranging from 1.2 m to 1.8 m. Although the prevalence of the strong northeast monsoon plays an important role in the higher SWH values, the deeper waters in this area also contribute to the SWH increases.

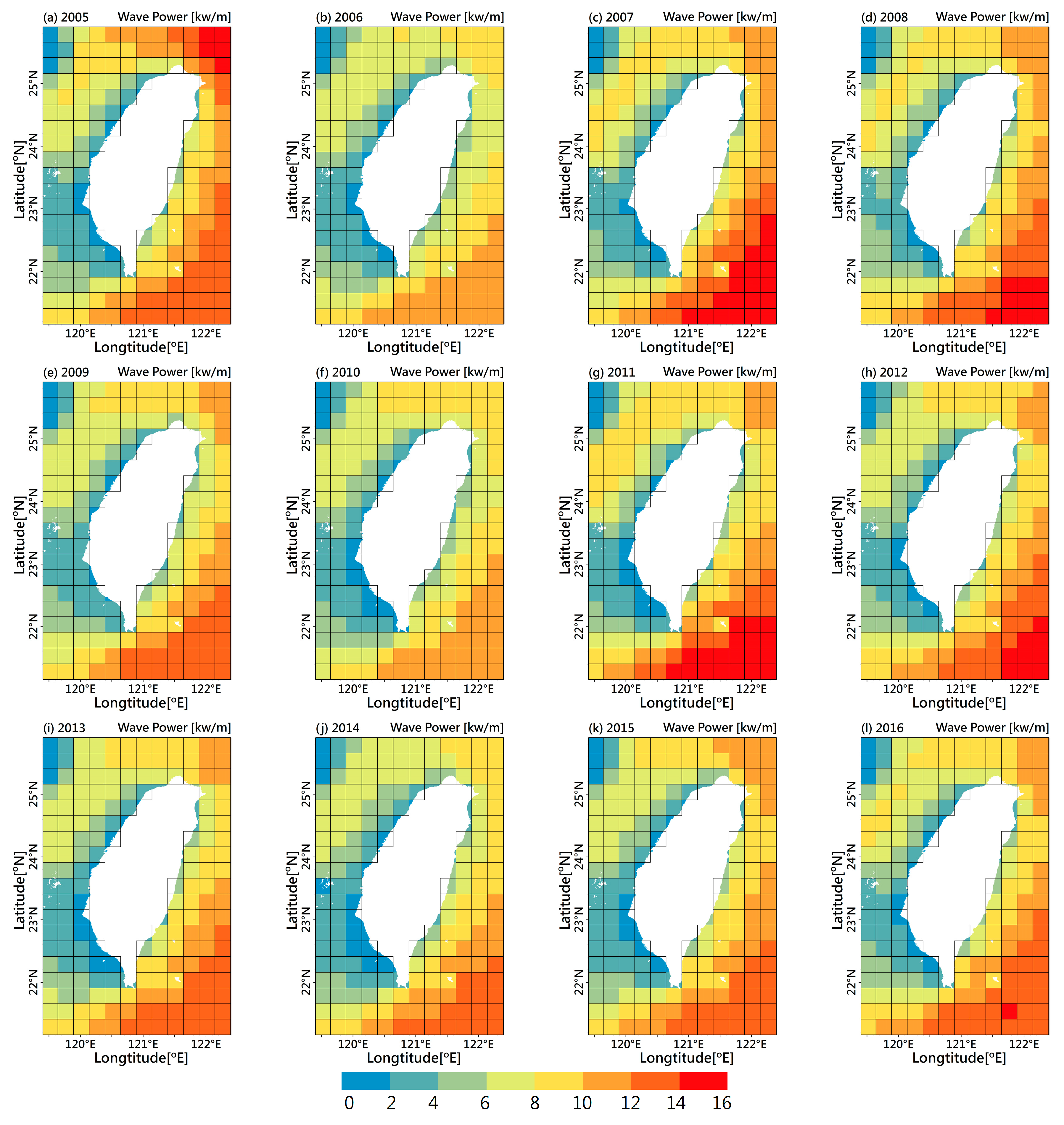

The SWH and Tp were output hourly from SCHISM-WWM-III to compute the wave power for each grid using Equation (21). Figure 7 demonstrates the spatial distribution of offshore annual mean wave power (in kW/m) in the waters surrounding Taiwan from 2005 to 2016. The more energetic sea areas are along the northeastern, eastern and southern coasts of Taiwan, and these locations are consistent with the distributions of the higher SWH. The mean wave power values were 6–12 kW/m for the northeastern coast and 8–16 kW/m for the eastern and the southern coast. The offshore wave power distribution for the 12-year annual mean is displayed in Figure 8. The most energetic areas are the eastern and the southeastern waters of Lanyu, with mean wave power values of 12–14 kW/m.

4.2. Identifying the Optimal Offshore Areas for Wave Energy Converter Deployment

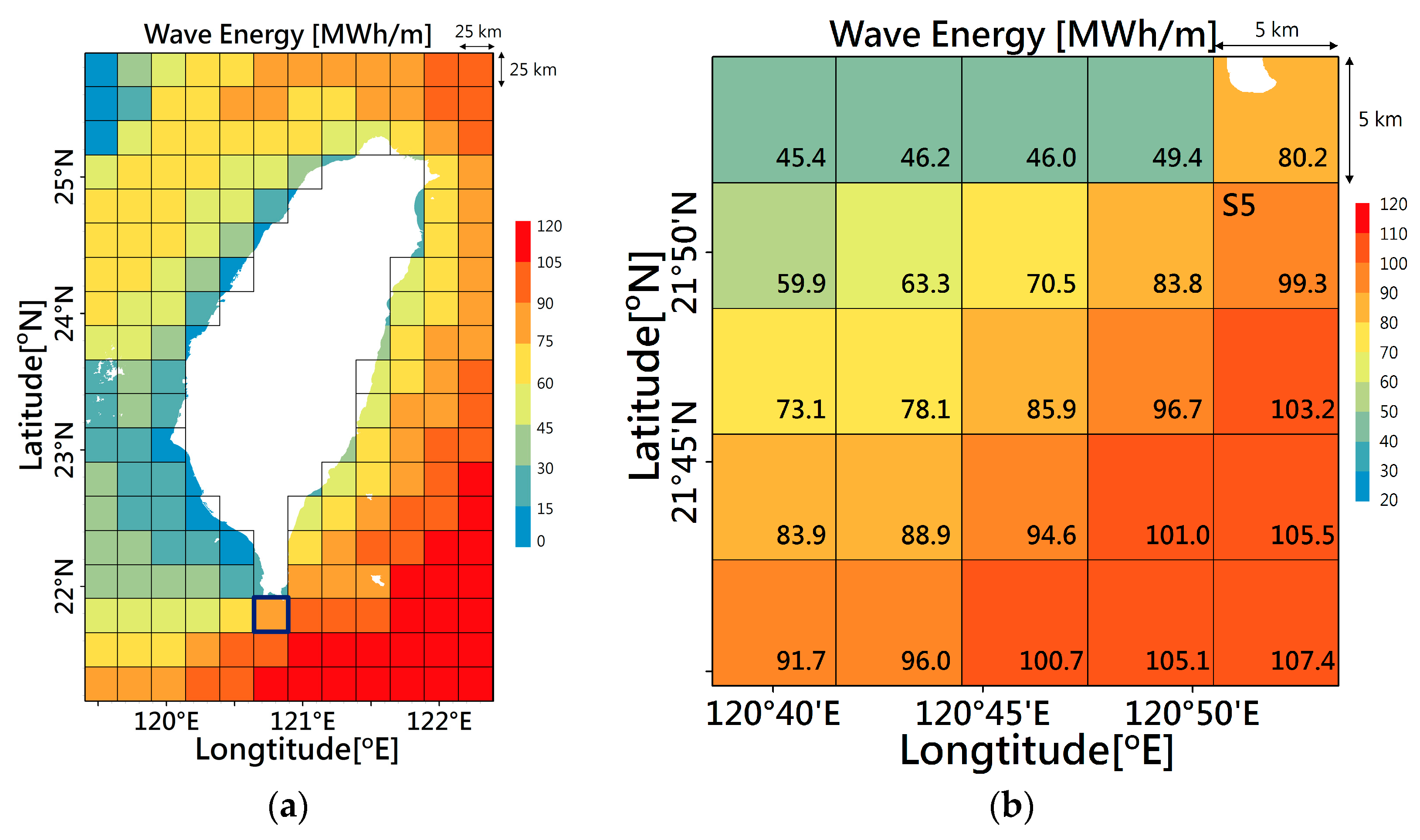

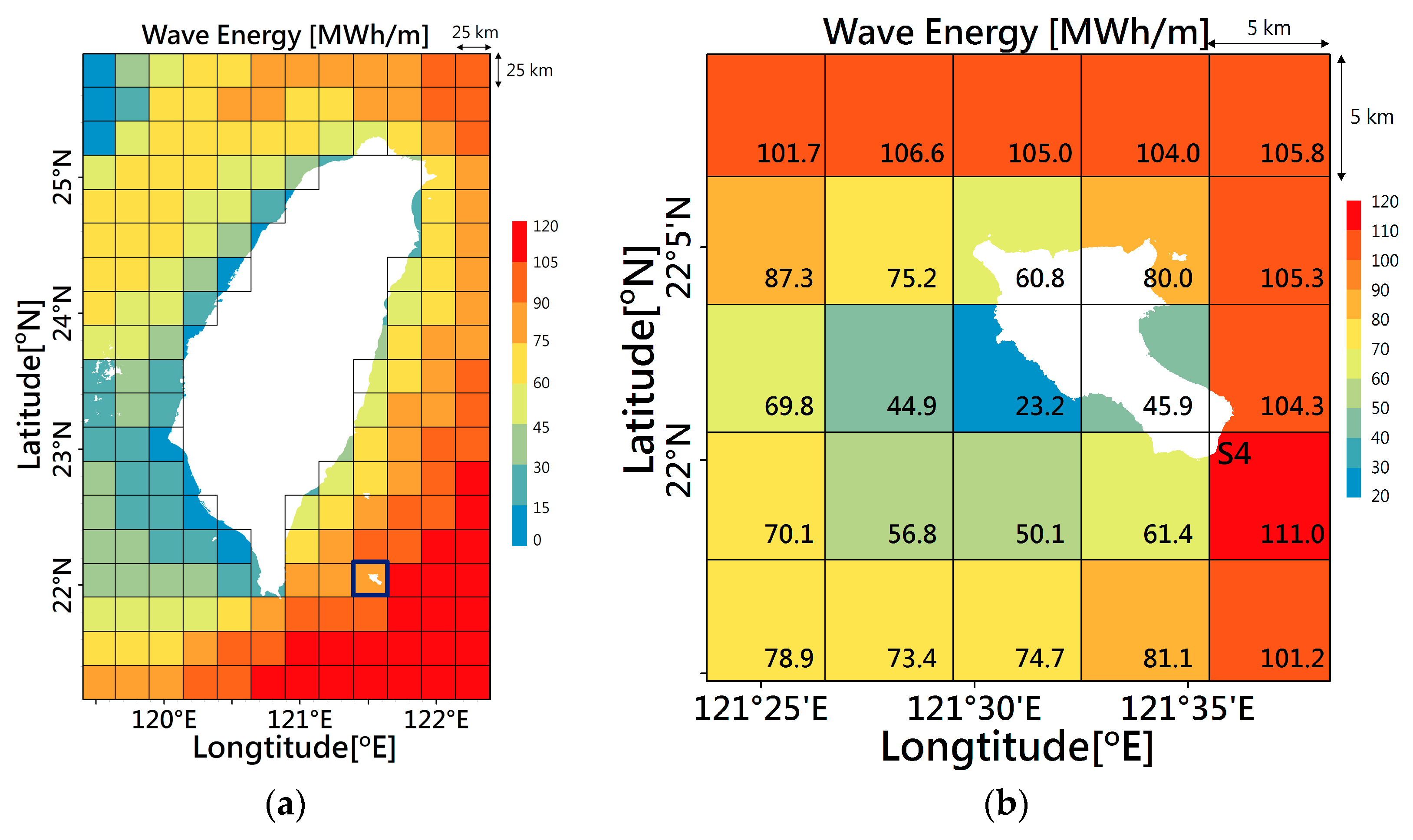

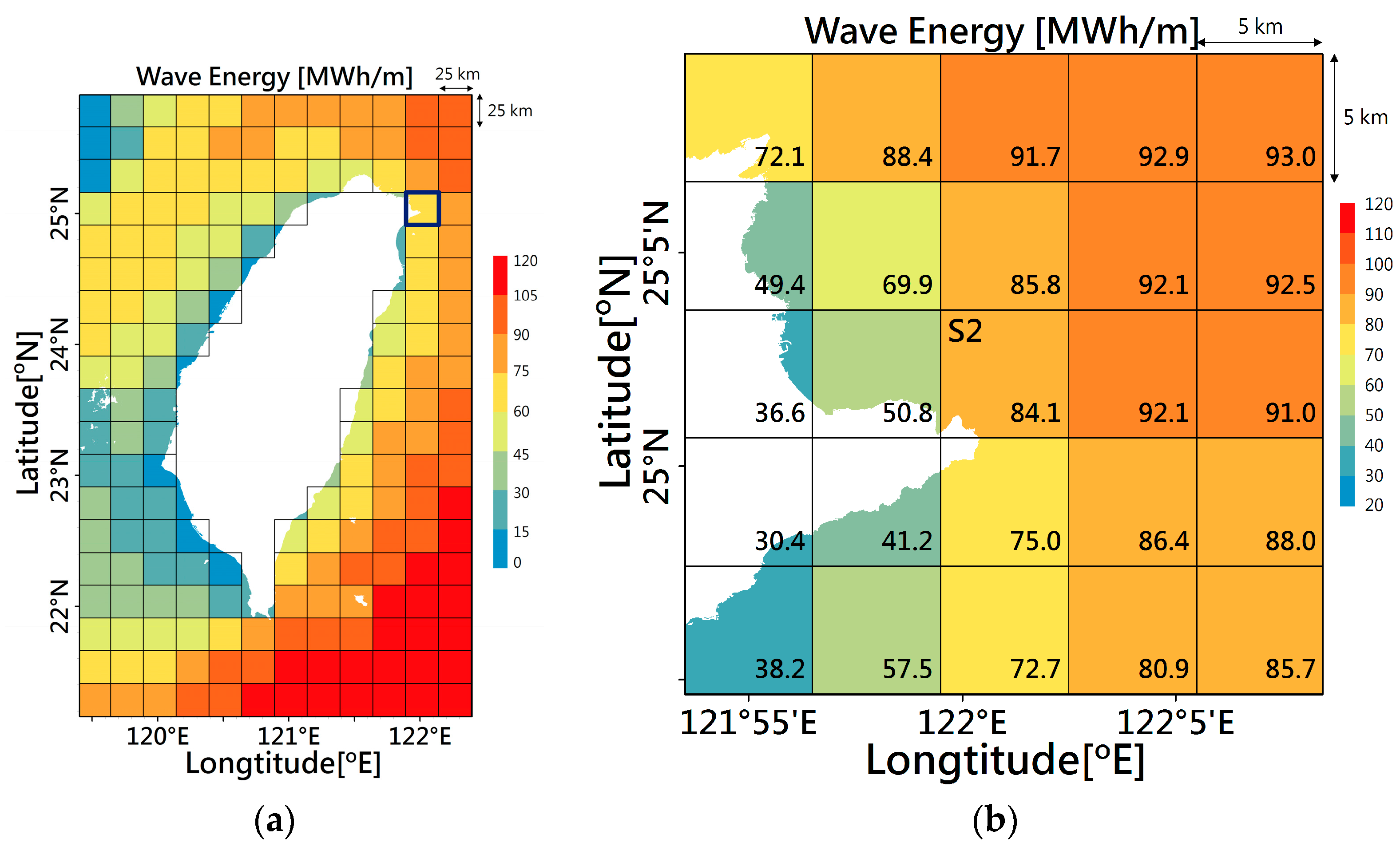

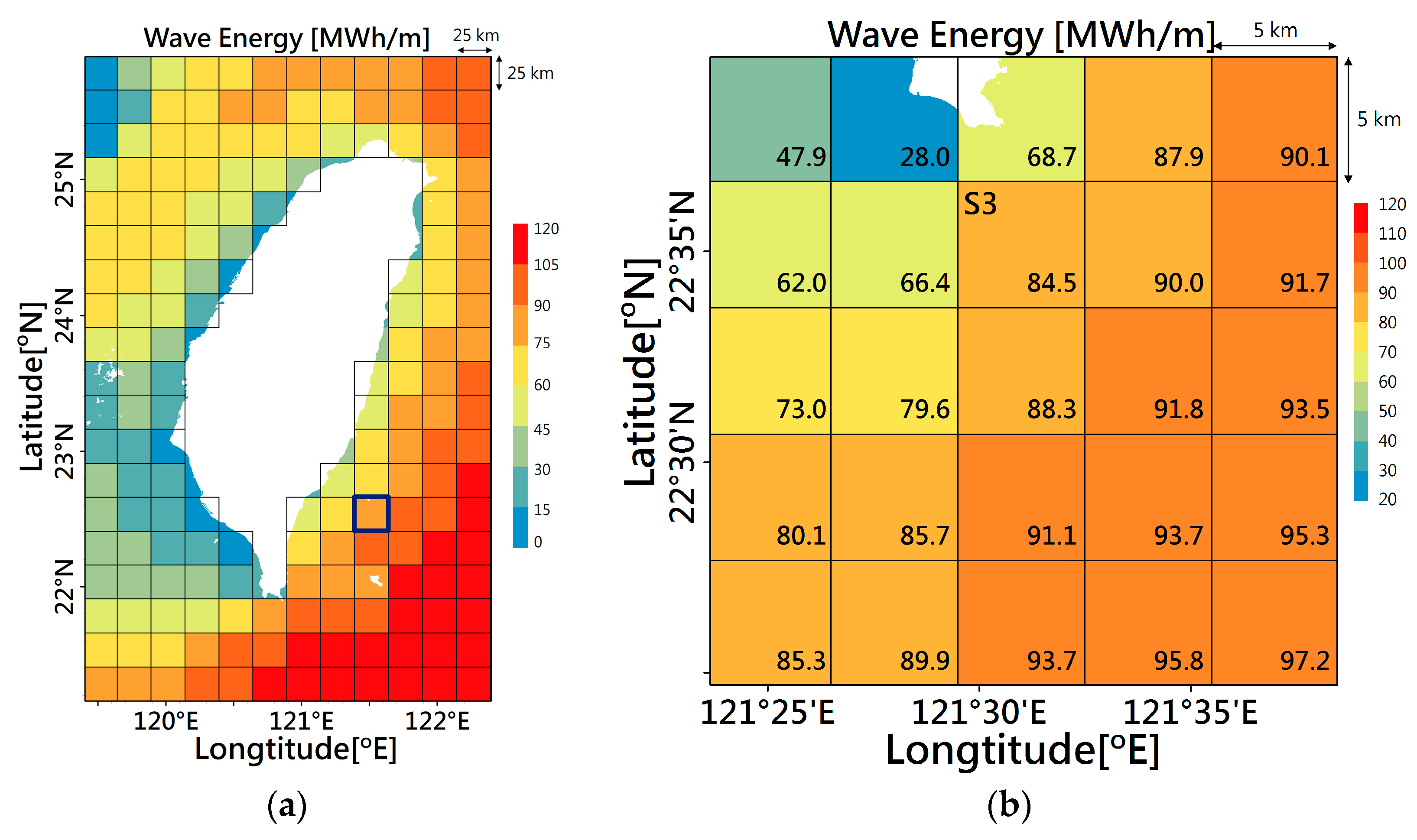

As shown in Figure 8, the offshore areas with the highest wave power density were observed off the northern, northeastern, southeastern (south of Green Island and southeast of Lanyu) and southern coasts of Taiwan. The annual total wave energy yields based on the 12-year average for each 25 × 25 km square grid were calculated by applying Equation (22) and are shown in Figure 9 (left panel). Even though higher wave energies exist in several sea areas, especially in the southeast (105–120 kW/m), the distance between coast and wave energy converter (WEC) should also be considered because of the cabling costs [19]. The five 25 × 25 km energetic sea areas marked with deep blue lines, with spatial average annual total wave energy density of 60–90 kW/m were selected for further analysis (as shown in the left panel of Figure 9, Figure 10, Figure 11, Figure 12 and Figure 13). The selected 25 × 25 km grid for the northern coast of Taiwan was downscaled to a resolution of 5 × 5 km. A total of 25 square grids are exhibited in the right panel of Figure 9. The grids are within 5 km of the coasts, have higher wave energies and were determined to be optimal areas for WEC deployments (see S1 in the right panel of Figure 9). The same approach was adopted to select an optimal area for the northeastern coast of Taiwan (S2 in the right panel of Figure 10), for the southern coast of Green Island (S3 in the right panel of Figure 11), for the southeastern coast of Lanyu (S4 in the right panel of Figure 12) and for the southern coast of Taiwan (S5 in the right panel of Figure 13). The spatial average (average over a square of 5 × 5 km) annual total wave energy densities are estimated to be 64.3, 84.1, 84.5, 111.0 and 99.3 MWh/m at S1, S2, S3, S4 and S5, respectively. The central longitudes, latitudes, and average water depths for these five optimal areas are listed in

Table 1. Central latitudes, longitudes, and average water depths of five optimal areas for wave energy converter (WEC) deployment.

Area	Longitude (°)	Latitude (°)	Depth * (m)
S1	121.71	25.23	100.01
S2	122.01	25.03	123.39
S3	121.51	22.58	1008.28
S4	121.61	21.91	122.51
S5	120.86	21.83	208.86

* Depth is below the sea level.

. In other words, the sea areas within 2.5 km of the central coordinate (as listed in Table 1) are considered to be appropriate sites for WEC deployments.

Tsai et al. [21] utilized the SWAN (Simulating WAves Nearshore) driven by NECP (National Centers for Environmental Prediction) global reanalysis wind field to hindcast waves and periods around Taiwanese waters. They revealed that higher significant wave heights were found near Lanyu. Chiu et al. [22] analyzed the temporal and spatial characteristics of wave power density in the coastal areas of Taiwan wave parameter hindcasts (significant wave height and period) based on the TaiCOMS model and observational data. Their results also indicated that the maximum annual mean wave power was found in Lanyu. Su et al. [23] employed the WWM-III model to assess the distribution of wave power in the waters surrounding Taiwan and suggested that the most energetic sea area is southeast of Lanyu. Thus, our results are consistent with those of previous studies.

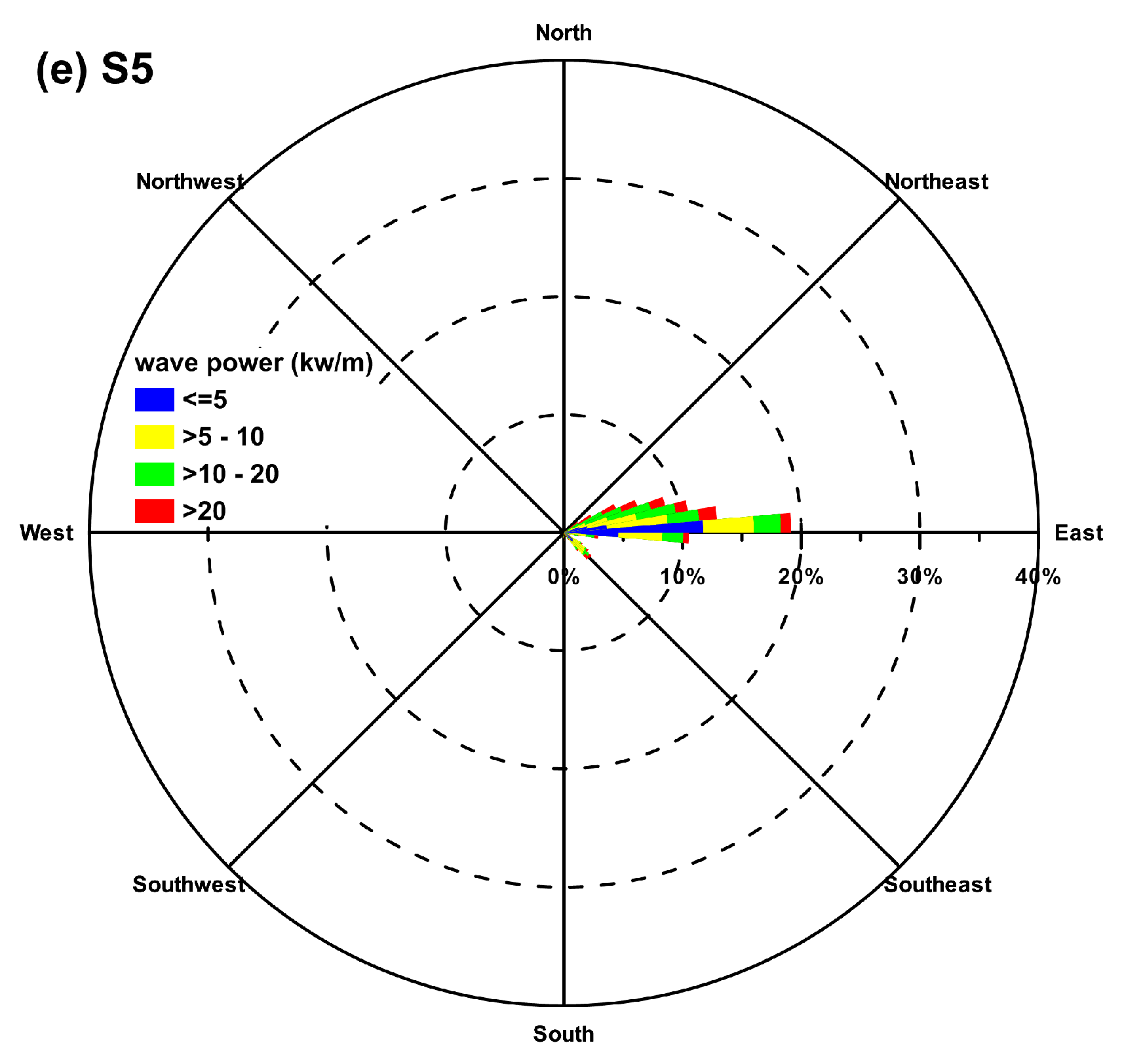

Wave direction is another important parameter that should be considered in WEC placements [60]. This is particularly true for attenuator-type and terminator-type Weeks: attenuators should be parallel to the predominant wave direction while the principal axis of terminator devices should be perpendicular to the predominant wave direction [61]. Point absorbers are buoy-type WECs that harvest incoming wave energy from all directions, however, arrays of this type of WEC can be sensitive to wave direction when they are deployed in offshore regions [6]. Figure 14 shows wave rose plots for the 12-year average at the centers of S1, S2, S3, S4 and S5. The dominant wave directions for these five optimal areas lie between east and northeast.

4.3. Discussion

In many coastal areas, nearshore regions have been considered to be the ideal locations for deploying wave energy converters due to their lower costs. However, by comparing wave lengths to wave energy conversion, the nearshore areas can be regarded as shallow-water areas. The effect of water depth on wave propagation is significant and cannot be neglected for wave energy assessment in shallow-water regions [62]. However, the effects of water depths are typically ignored because studies usually employ the formulas for deep-water waves. This simplification may underestimate the wave energy in finite water depths. Sheng and Li [63] conducted wave power assessment at a water depth of 50 m using the deep-water formula and the proposed method in their study and compared the results to the actual values. They found that the deep-water formula underestimated the annual mean wave power by up to 10.18% at the studied finite water depth (50 m). However, when the water depth modification factor (C_h) was considered, the underestimation of the annual mean wave power fell to 1.47%. Their results suggested that a modification of the deep-water formula is necessary to accurately assess wave power, especially in cases that involve finite water depth effects. Additionally, tide levels and wind intensity may influence the wave characteristics in shallow-water locations [64]. These effects are considered in our tide-surge-wave fully coupled model.

Additional uncertainties in wave power density assessments might be introduced by using a deep-water assumption (Equations (14)–(22)). However, this assumption causes obvious errors only in shallow water areas (i.e., those with water depths <0.5 × wavelength) [65]. The more energetic sea areas such as S1–S5 are located in the northern, eastern and southern offshore waters of Taiwan and can be regarded as deep-water areas. Therefore, the uncertainty of wave power density using Equation (21) can be ignored.

Guillou [66] employed SWAN (Simulating Waves Nearshore model) and TOAWAC (TELEMAC-based Operational Model Addressing Wave Action Computation) to evaluate wave power for the Iroise Sea. The results revealed that SWAN calculates a 15% lower mean wave power than does TOAWAC in offshore waters. Therefore, inter-model comparisons of wave power computation will be performed for Taiwanese waters in the near future.

The wind field data with a temporal resolution of 6 h and a spatial resolution of 0.125° by 0.125° from the ERA-interim dataset seems too low to accurately force a tide-surge-wave coupled model, although it is convenient for providing meteorological boundary conditions and producing an acceptable sea-state hindcast. Consequently, a three-layer nested WRF (Weather Research and Forecast, [67]) model with a temporal resolution of 1 h and a spatial resolution of 45 × 45 km for domain 1, 15 × 15 km for domain 2 and 5 × 5 km for domain 3 will be considered in the future as an alternative source of meteorological information to produce more accurate wave power estimations.

5. Conclusions

A tide-surge-wave fully coupled model based on an unstructured grid system, SCHISM-WWM-III, was implemented to simulate the sea states in the waters surrounding Taiwan. The wind field 10 m above sea level from the ERA-Interim reanalysis data and harmonic constants of eight tidal constituents extracted from a regional inverse tidal model were used to drive SCHISM-WWM-III. The fully coupled model was verified against available significant wave height and peak period measurements. Twelve-year model hindcasts for 2005–2016 were conducted to evaluate the spatial distributions of wave power and wave energy and to determine the most energetic areas in the offshore seas of Taiwan. Numerical simulations with unstructured grids were converted to 25 × 25 km structured grids to identify the most energetic sea areas. An offshore wave power and wave energy distribution map was created for the 12-year annual mean. Five 25 × 25 km energetic sea areas with spatial average annual total wave energy densities of 60–90 kW/m were selected and subsequently downscaled to resolutions of 5 × 5 km. The 5 × 5 km grids are within 5 km of the coasts and have higher wave energies and were determined to be optimal areas for WEC deployments. Five 5 × 5 km square areas off the northern, northeastern and southern coasts of Taiwan (S1, S2 and S5), the southern coast of Green Island (S3) and the southeastern coast of Lanyu (S4) were selected as the optimal areas for WEC deployments. The spatial average annual total wave energy densities are estimated to be 64.3, 84.1, 84.5, 111.0 and 99.3 MWh/m for the areas S1, S2, S3, S4 and S5, respectively. The dominant wave directions for these five optimal areas lie between east and northeast.
