# Energy Consumption and Life Cycle Costs of Overhead Catenary Heavy-Duty Trucks for Long-Haul Transportation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Methodology

#### 2.2. Modeling of Overhead Catenary Truck

#### 2.2.1. Route Model

_{OC}. The actual position is calculated by integrating the actual speed v

_{act}over simulation time and the signal’s reference speed v

_{ref}, slope, and maximum available catenary power P

_{OC}are provided to the following blocks.

#### 2.2.2. Driver Model

_{set}to meet the reference speed by accelerating or decelerating the vehicle. The set acceleration is shown in Figure 3. The value of the set acceleration varies depending on the actual velocity and corresponds to the acceleration of a 40 t diesel truck [10] multiplied by a factor 0.7, as it is assumed that the vehicle does not accelerate at full power at standard driving situation. The deceleration is assumed to be constant at 0.9 m/s

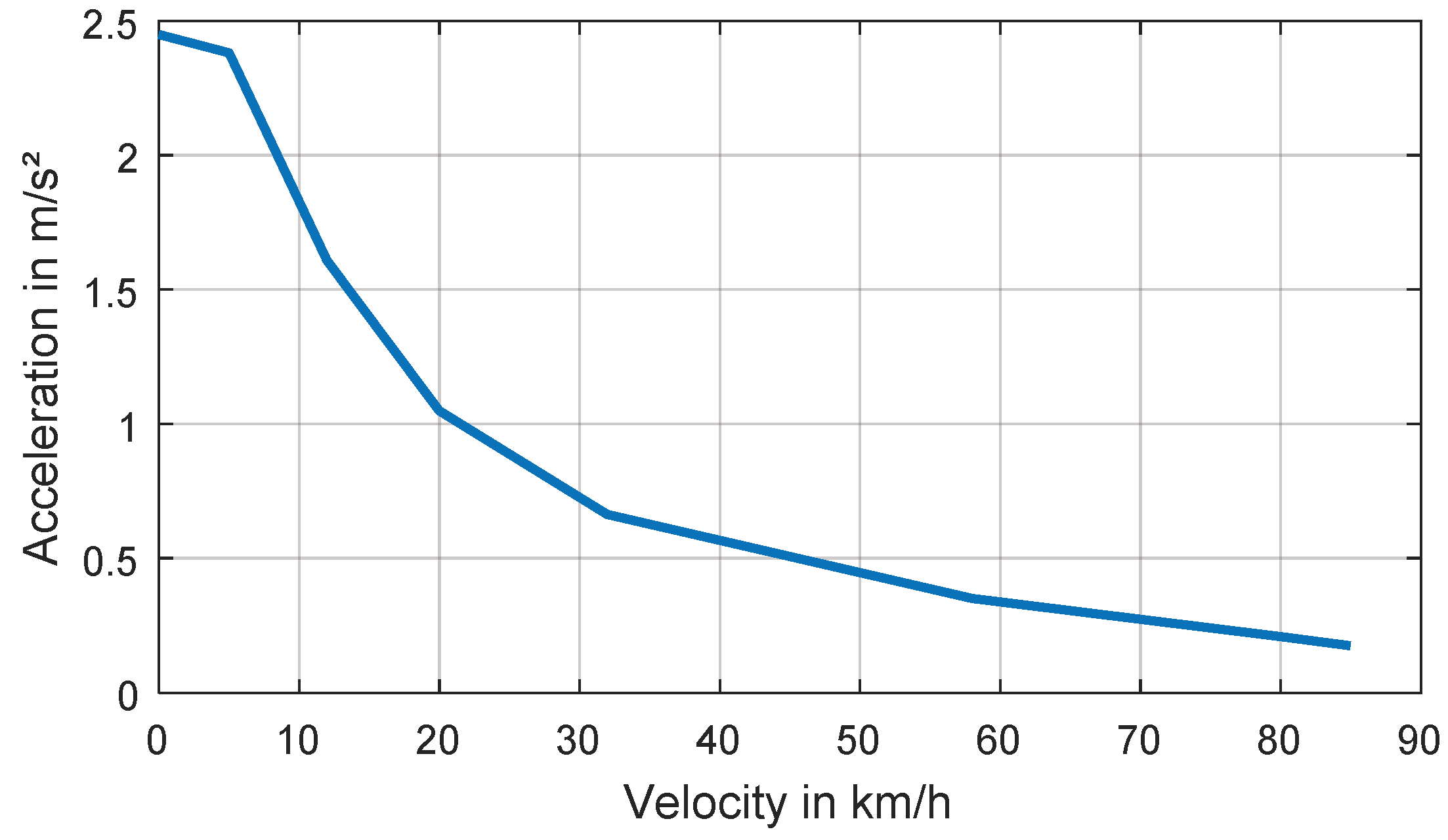

^{2}. Both the acceleration and the deceleration values were chosen to fit the typical acceleration and deceleration times of heavy-duty trucks on highways that can be observed.

#### 2.2.3. Driving Resistances Model

_{set}, the slope, and the actual velocity v

_{act}and calculates the set drivetrain power P

_{drive,set}to overcome the actual driving resistance. The actual driving resistance is the sum of air resistance, rolling resistance, slope resistance, and acceleration resistance. The driving resistances model is described in detail in the previous study [4].

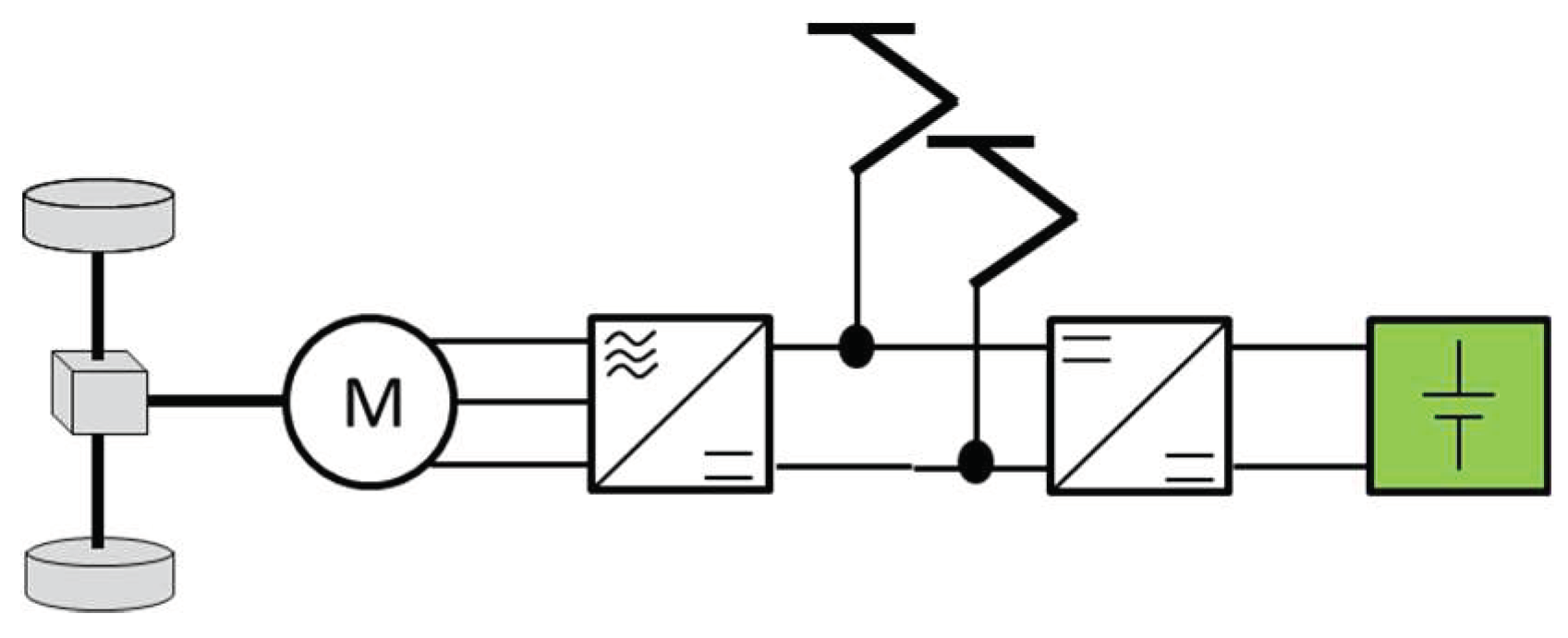

#### 2.2.4. Drivetrain Model

_{OC}, the battery power P

_{bat}, the power P

_{drive}to overcome the driving resistances and the power P

_{aux}for auxiliary consumers, the following power balance at the direct current link results:

_{pan}is the pantograph efficiency, η

_{BC}is the efficiency of the battery converter, η

_{gearbox}is the gearbox efficiency, and η

_{mot&conv}is the efficiency of the electric motor and its converter. The pantograph efficiency η

_{pan}is set to 0.99 according to the measurement results of a prototype overhead catenary truck in the project ENUBA 2 [8]. The efficiency η

_{BC}of the battery converter is assumed in this study to 0.95. According to the gearbox efficiencies for heavy-duty trucks given in [13], the gearbox efficiency η

_{gearbox}is assumed as 0.94. The electric machine and the traction converter were implemented as an efficiency map [14]. Their efficiency η

_{mot&conv}depends on the shaft speed and torque. As the implemented three-phase permanent magnet electric motor has a nominal power of 188 kW, two these motors were implemented, providing a total power of 376 kW that is suitable for a heavy-duty truck. The auxiliary power P

_{aux}is assumed constant as 5 kW.

_{bat,set}using Equation (1), the set drivetrain power P

_{drive,set}to overcome the actual driving resistance, and the overhead catenary power P

_{OC}. Afterwards, the battery power P

_{bat,act}is simulated by a separate block that is described in the next subsection. Finally, the inverse drivetrain model calculates the actual available drivetrain power P

_{drive,act}to overcome the driving resistances.

#### 2.2.5. Battery Model

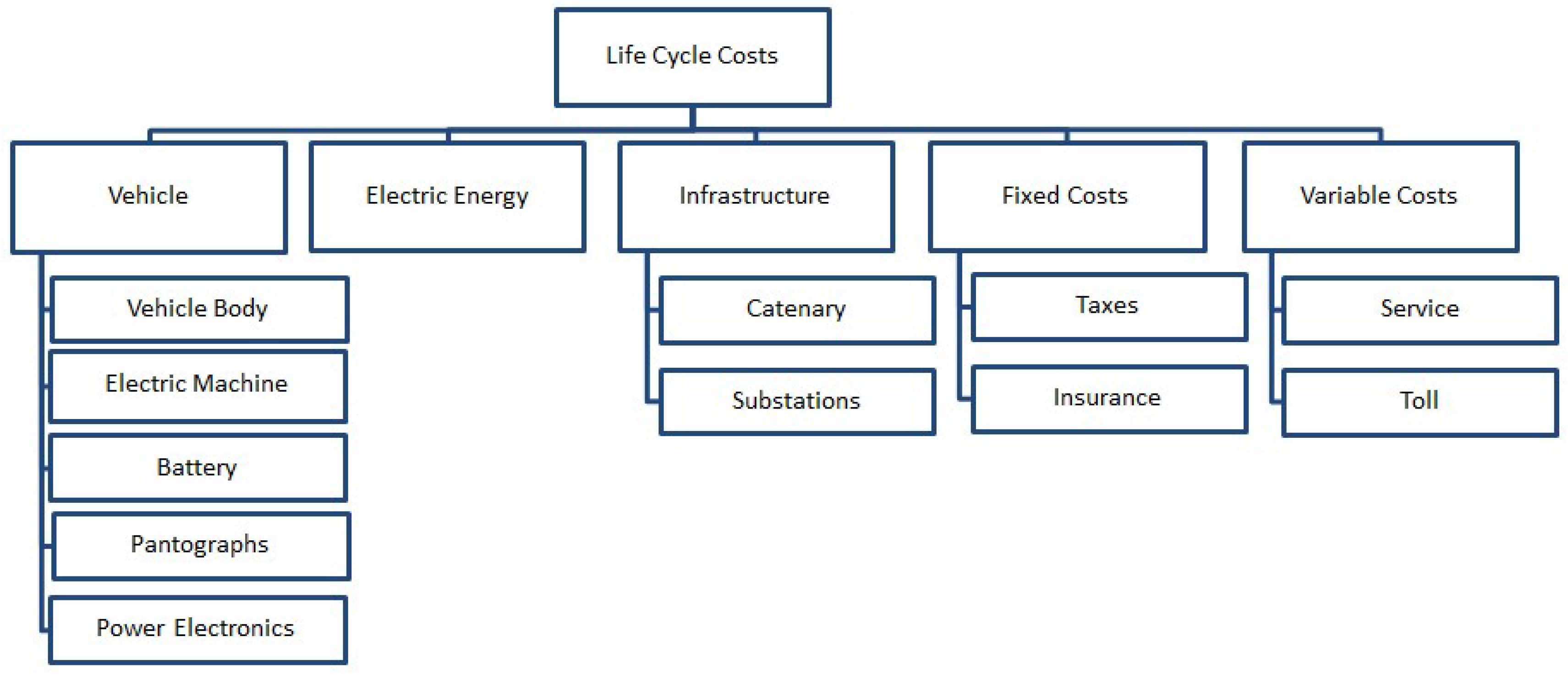

#### 2.3. Modeling of Life Cycle Costs

## 3. Calculation

#### 3.1. Dimensioning of Traction Battery

_{bat,dch}is connected to the battery capacity C

_{bat}via discharge current rate R

_{dch}according to the equation:

#### 3.2. Dimensioning of Catenary Power System

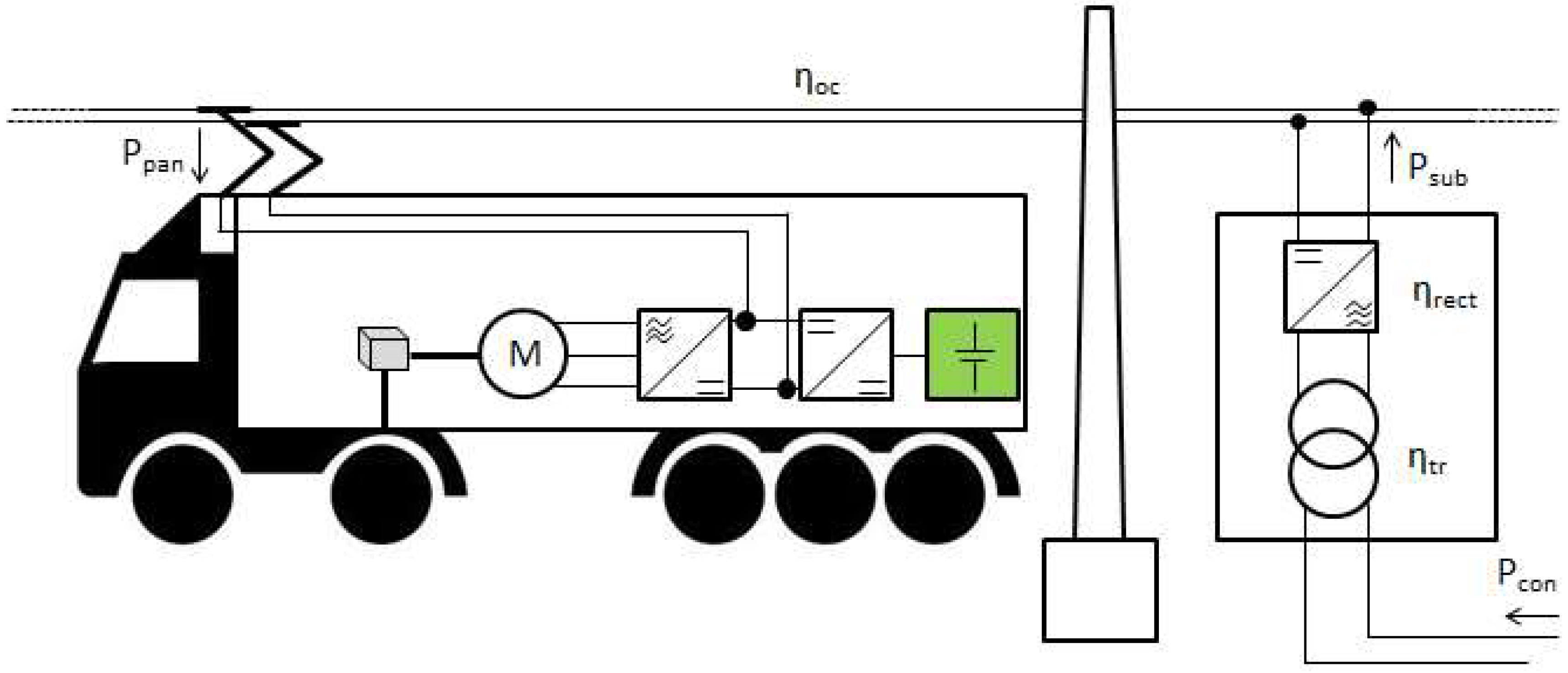

_{pan}provided to the pantograph in order to charge the battery and to cover the traction power, the following equation is used:

_{pan}is the pantograph efficiency of 0.99, S

_{bat}is the distance driven by battery, and S

_{oc}is the distance driven by the overhead catenary. For the battery charging efficiency η

_{bat,cha}the previous simulations showed an efficiency of 0.97. The first summand in this formula gives the average traction power and the second summand gives the required power to charge the battery during driving on a catenary section.

_{pan}for the considered catenary configurations assuming a daily driving distance of 720 km (Section 3.4). For the continuous catenary configuration, the distance S

_{bat}driven with energy from battery is 40 km for the route sections apart the highway at the beginning and at the end of the daily route. The remaining distance of 680 km is driven with energy from catenary. Also, for the sectional catenary configuration, 40 km driving distance on route sections apart the highway is assumed. So, one third of the remaining 680 km distance is equipped with catenary. The resulting pantograph power for both catenary configurations using Equation (3) are stated in Table 3.

_{trucks}for trucks on highways and the substations number n

_{sub}per 100 km. According to [19], the average daily traffic intensity on a German highway is 8620 trucks per driving direction. Assuming that most trucks drive between 6 a.m. and 10 p.m. and disregarding the night traffic, the average hourly traffic intensity n

_{trucks}results in ca. 540 trucks per driving direction. The substations number n

_{sub}is given in [7] as 20 substations per 100 km highway at 1.5 kV catenary voltage with direct current. Using the average hourly traffic intensity n

_{trucks}, the substations number n

_{sub}per 100 km and the average speed v of 80 km/h, the trucks number n

_{trucks,sub}fed from one substation on both driving directions can be calculated:

_{trucks,sub}is 67.5 trucks that are fed from one substation. Taking the catenary line efficiency η

_{oc}of 0.95, the rectifier efficiency η

_{rect}of 0.98, the transformer efficiency η

_{tr}of 0.97 [8] and the calculated pantograph power P

_{pan}for the considered catenary configurations, the output power P

_{sub}and the electricity grid connection power P

_{con}of one substation can be calculated using the following equations:

#### 3.3. Calculation of Vehicle Weight

#### 3.4. Definition of Transportation Scenario

## 4. Results

#### 4.1. Truck Performance

#### 4.2. Life Cycle Costs

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

Parameter | Value | Source |
---|---|---|

Overhead Catenary Truck | ||

Vehicle Body (w/o drivetrain) | 91,800 € | [3] |

Battery with HEa Cells | 300 €/kWh | [23] and own estimation |

Battery with HPa Cells | 400 €/kWh | [23] and own estimation |

Battery Price Development | −6.7%/a | [23] |

E-Machine | 27.5 €/kW | [3] |

Power Electronics | 35 €/kW | [3] |

Pantograph | 38,000 € | [3] |

Battery Electric Truck | ||

Vehicle Body (w/o drivetrain) | 91,800 € | [3] |

Battery with HEa Cells | 300 €/kWh | [23] and own estimation |

Battery Price Development | −6.7%/a | [23] |

E-Machine | 27.5 €/kW | [3] |

Power Electronics | 35 €/kW | [3] |

Diesel Truck | ||

Diesel Truck | 120,000 € | [3] |

Parameter | Value | Source |
---|---|---|

Electricity | ||

Electricity, net | 0.139 €/kWh | [27] |

Electricity Price Development | 5.3%/a | [27] |

Diesel Fuel | ||

Diesel Fuel, net | 0.949 €/L | [28,29] |

Diesel Fuel Price Development | 2.3%/a | [28] |

Parameter | Value | Source |
---|---|---|

Substation | ||

Rectifier | 80 €/kW | [30] |

Transformer | 45 €/kW | [30] |

Finishing Costs | 85,000 € | [30] |

Grid Connection | ||

Connection to Grid (assuming 2.5 km distance) | Fix: 25.9 €/kW, Var: 140 €/m | [6,30] |

Contribution towards Network | 60.44 €/kW | [30] |

Catenary | ||

Catenary incl. Pylons (per Direction) | 730 €/m | [8,17] |

Lifetimes | ||

Lifetime Transformer | 25 a | [30] |

Lifetime Power Electronics | 12 a | [30] |

**Table A4.**Cost parameters for charging station infrastructure. The source for the costs parameters in this table is private communication with manufacturers, who want to stay anonymous [30].

Parameter | Value |
---|---|

Charging Station | |

Power Electronics (Fast Charging Station) | 149,000 € |

Power Electronics (Slow Charging Station) | 9800 € |

Coupling Connection (Fast Charging Station) | 21,000 € |

Coupling Connection (Slow Charging Station) | 1400 € |

Finishing Costs (Fast Charging Station) | 85,000 € |

Finishing Costs (Slow Charging Station) | 10,000 € |

Transformer | 45 €/kW |

Grid Connection | |

Connection to Grid (assuming 2.5 km distance) | Fix: 25.9 €/kW, |

Var: 140 €/m, | |

Total: 609,000 € | |

Contribution towards Network | 60,44 €/kW |

Lifetimes | |

Lifetime Transformer | 25 a |

Lifetime Power Electronics | 12 a |

## References

- Yazdanie, M.; Noembrini, F.; Dossetto, L.; Boulouchos, K. A comparative analysis of well-to-wheel primary energy demand and greenhouse gas emissions for the operation of alternative and conventional vehicles in Switzerland, considering various energy carrier production pathways. J. Power Sources
**2014**, 249, 333–348. [Google Scholar] [CrossRef] - Sen, B.; Ercan, T.; Tatari, O. Does a battery-electric truck make a difference?—Life cycle emissions, costs, and externality analysis of alternative fuel-powered Class 8 heavy-duty trucks in the United States. J. Clean. Prod.
**2017**, 141, 110–121. [Google Scholar] [CrossRef] - Den Boer, E.; Aarnink, S.; Kleiner, F.; Pagenkopf, J. Zero Emissions Trucks: An Overview of State-of-the-Art Technologies and their Potential; CE Delft, DLR: Delft, The Netherlands, 2013. [Google Scholar]
- Mareev, I.; Becker, J.; Sauer, D.U. Battery Dimensioning and Life Cycle Costs Analysis for a Heavy-Duty Truck Considering the Requirements of Long-Haul Transportation. Energies
**2018**, 11, 55. [Google Scholar] [CrossRef] - Hülsmann, F.; Mottschall, M.; Hacker, F.; Kasten, P. Konventionelle und alternative Fahrzeugtechnologien bei Pkw und schweren Nutzfahrzeugen—Potenziale zur Minderung des Energieverbrauchs bis 2050; Öko-Institut e.V.: Freiburg, Germany, 2014. [Google Scholar]
- Wietschel, M.; Gnann, T.; Kühn, A.; Plötz, P.; Moll, C.; Speth, D.; Buch, J.; Boßmann, T.; Stütz, S.; Schellert, M.; et al. Machbarkeitsstudie zur Ermittlung der Potentiale des Hybrid-Oberleitungs-Lkw; Fraunhofer ISI: Karlsruhe, Germany; Fraunhofer IML: Munich, Germany; PTV Transport Consult GmbH: Karlsruhe, Germany; TU Hamburg—IUE, M-Five: Harburg, Germany, 2017. [Google Scholar]
- Siemens, AG. ENUBA—Elektromobilität bei schweren Nutzfahrzeugen zur Umweltentlastung von Ballungsräumen; Siemens AG: Munich, Germany, 2012. [Google Scholar]
- Lehmann, M.; Arnd, S.; Mazzega, J. ENUBA 2—Elektromobilität bei schweren Nutzfahrzeugen zur Umweltentlastung von Ballungsräumen; Siemens AG: Munich, Germany; TU Dresden: Dresden, Germany; DLR e.V.: Cologne, Germany, 2016. [Google Scholar]
- NDR Pilotprojekt E-Highway: Lkw an der Oberleitung. Available online: /nachrichten/schleswig-holstein/Pilotprojekt-E-Highway-Lkw-an-der-Oberleitung,elkw120.html (accessed on 27 March 2018).
- Biermann, J.-W. Fahrzeugauslegung. In Energiemanagement im Kraftfahrzeug: Optimierung von CO
_{2}-Emissionen und Verbrauch Konventioneller und Elektrifizierter Automobile; Liebl, J., Lederer, M., Rohde-Brandenburger, K., Roth, M., Schäfer, H., Eds.; ATZ/MTZ-Fachbuch; Springer Vieweg: Wiesbaden, Germany, 2014; pp. 101–162. ISBN 978-3-658-04450-3. [Google Scholar] - Fahrmechanik. Nutzfahrzeugtechnik: Grundlagen, Systeme, Komponenten; Hoepke, E., Appel, W., Eds.; ATZ-MTZ Fachbuch; Springer Vieweg: Wiesbaden, Germany, 2013; pp. 37–119. ISBN 978-3-8348-1795-2. [Google Scholar]
- European Union (EC). Regulation (EC) No 661/2009 of the European Parliament and of the Council of 13 July 2009 Concerning Type-Approval Requirements for the General Safety of Motor Vehicles, Their Trailers and Systems, Components and Separate Technical Units Intended Therefor; European Union: Brussels, Belgium, 2009. [Google Scholar]
- Schmalstieg, J.; Käbitz, S.; Ecker, M.; Sauer, D.U. A holistic aging model for Li(NiMnCo)O
_{2}based 18650 lithium-ion batteries. J. Power Sources**2014**, 257, 325–334. [Google Scholar] [CrossRef] - Käbitz, S.; Gerschler, J.B.; Ecker, M.; Yurdagel, Y.; Emmermacher, B.; André, D.; Mitsch, T.; Sauer, D.U. Cycle and calendar life study of a graphite|LiNi1/3Mn1/3Co1/3O2 Li-ion high energy system. Part A: Full cell characterization. J. Power Sources
**2013**, 239, 572–583. [Google Scholar] [CrossRef] - Ecker, M.; Gerschler, J.B.; Vogel, J.; Käbitz, S.; Hust, F.; Dechent, P.; Sauer, D.U. Development of a lifetime prediction model for lithium-ion batteries based on extended accelerated aging test data. J. Power Sources
**2012**, 215, 248–257. [Google Scholar] [CrossRef] - Nykvist, B.; Nilsson, M. Rapidly falling costs of battery packs for electric vehicles. Nat. Clim. Chang.
**2015**, 5, 329–332. [Google Scholar] [CrossRef][Green Version] - Nießen, N. Umdruck Lehrveranstaltung Eisenbahnwesen I; RWTH Aachen: Aachen, Germany, 2015. [Google Scholar]
- Logivest Gewerbegebiete. Available online: https://www.gewerbegebiete.de/ (accessed on 12 October 2018).
- Fitschen, A.; Nordmann, H. Verkehrsentwicklung auf Bundesfernstraßen 2013; Bundesanstalt für Straßenwesen: Bergisch Gladbach, Germany, 2014. [Google Scholar]
- DAF Trucks Deutschland Modellbeschreibung XF 440 FT 4 x 2 Sattelzugmaschine. Available online: http://www.daftrucks.de/de-de/trucks/specsheets-search-page (accessed on 12 October 2018).
- DAF Components MX-11 Euro 6 Coach & Bus Engine 2013. Available online: https://www.google.com.sg/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&ved=2ahUKEwjrub7k3ZHfAhWJzLwKHQBqBswQFjAAegQIABAC&url=http%3A%2F%2Fwww.dafcomponents.com%2F~%2Fmedia%2Ffiles%2Fdaf%2520trucks%2Ftrucks%2Fcomponents%2Fmx-11%2Fcomponents_mx-11-my2017-70208.pdf&usg=AOvVaw3lRys30x0Y6reLepZCQ5xi (accessed on 12 October 2018).
- Volvo Trucks. Fahrzeugspezifikation Volvo FH 500 4 x 2 Sattelzugmaschine; Volvo Trucks: Gothenburg, Sweden, 2015. [Google Scholar]
- GKN Land Systems GKN Electric Motor and Generator Technology: Technical Datasheet. Available online: http://products.gknlandsystems.info/fileadmin/user_upload/pdf/Electrics/DS_GKN_electric_motor_technology_64_GB_1214.pdf (accessed on 12 October 2018).
- ZF Friedrichshafen. Truck & Van Driveline Technology—Product Overview; ZF Friedrichshafen: Friedrichshafen, Germany, 2015. [Google Scholar]
- European Union (EC). Regulation (EC) No 561/2006 of the European Parliament and of the Council of 15 March 2006 on the Harmonisation of Certain Social Legislation Relating to Road Transport and Amending Council Regulations (EEC) No 3821/85 and (EC) No 2135/98 and Repealing Council Regulation (EEC) No 3820/85 (Text with EEA Relevance)—Declaration; European Union: Brussels, Belgium, 2006. [Google Scholar]
- Kathmann, T.; Schroeder, S.; Bär, A. Lkw-Parken auf BAB—Auswertung der bundesweiten Erhebung der Parkstandnachfrage an BAB 2013; Bundesministerium für Verkehr, Bau und Stadtentwicklung: Berlin, Germany, 2014. [Google Scholar]
- Bundesverband der Energie- und Wasserwirtschaft e.V. (BDEW). BDEW-Strompreisanalyse; Bundesverband der Energie- und Wasserwirtschaft e.V. (BDEW): Berlin, Germany, June 2014. [Google Scholar]
- Statista GmbH Durchschnittlicher Dieselpreis in Deutschland bis 2017. Available online: https://de.statista.com/statistik/daten/studie/779/umfrage/durchschnittspreis-fuer-dieselkraftstoff-seit-dem-jahr-1950/ (accessed on 12 October 2018).
- Statista GmbH Zusammensetzung des Dieselpreises im Juni 2017. Available online: https://de.statista.com/statistik/daten/studie/803/umfrage/zusammensetzung---verbraucherpreis-fuer-diesel/ (accessed on 12 October 2018).
- Mareev, I. Personal Communication with Charging Equipment Manufacturers; RWTH Aachen: Aachen, Germany, 2016. [Google Scholar]
- KraftStG KraftStG—Kraftfahrzeugsteuergesetz. Available online: https://www.gesetze-im-internet.de/kraftstg/BJNR005090927.html (accessed on 12 October 2018).
- Hacker, F.; von Waldenfels, R.; Mottschall, M. Wirtschaftlichkeit von Elektromobilität in gewerblichen Anwendungen: Betrachtung von Gesamtnutzungskosten, ökonomischen Potenzialen und möglicher CO
_{2}-Minderung; Öko-Institut e.V.: Freiburg im Breisgau, Germany, 2015. [Google Scholar] - Toll Collect GmbH Toll Collect—Toll Rates. Available online: https://www.toll-collect.de/en/toll_collect/bezahlen/maut_tarife/maut_tarife.html (accessed on 12 October 2018).

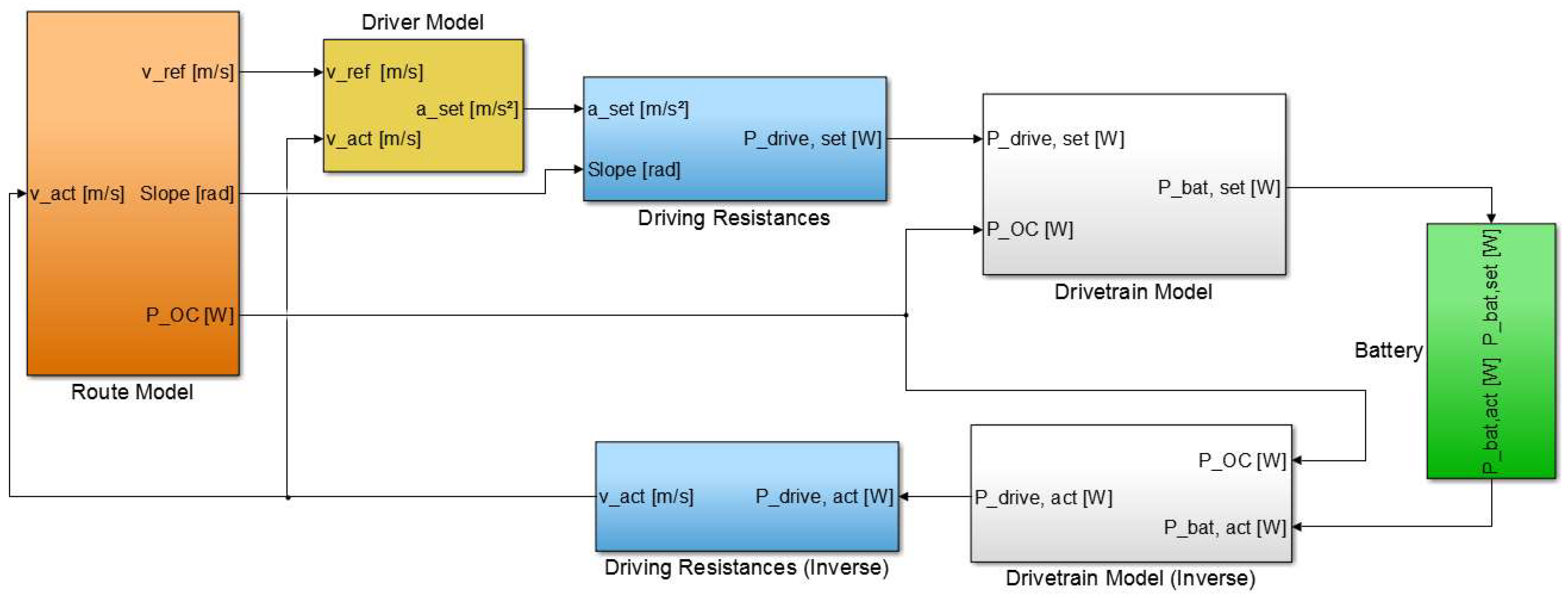

**Figure 1.**Overview of the holistic model including the vehicle simulation model and the life cycle costs (LCC) model.

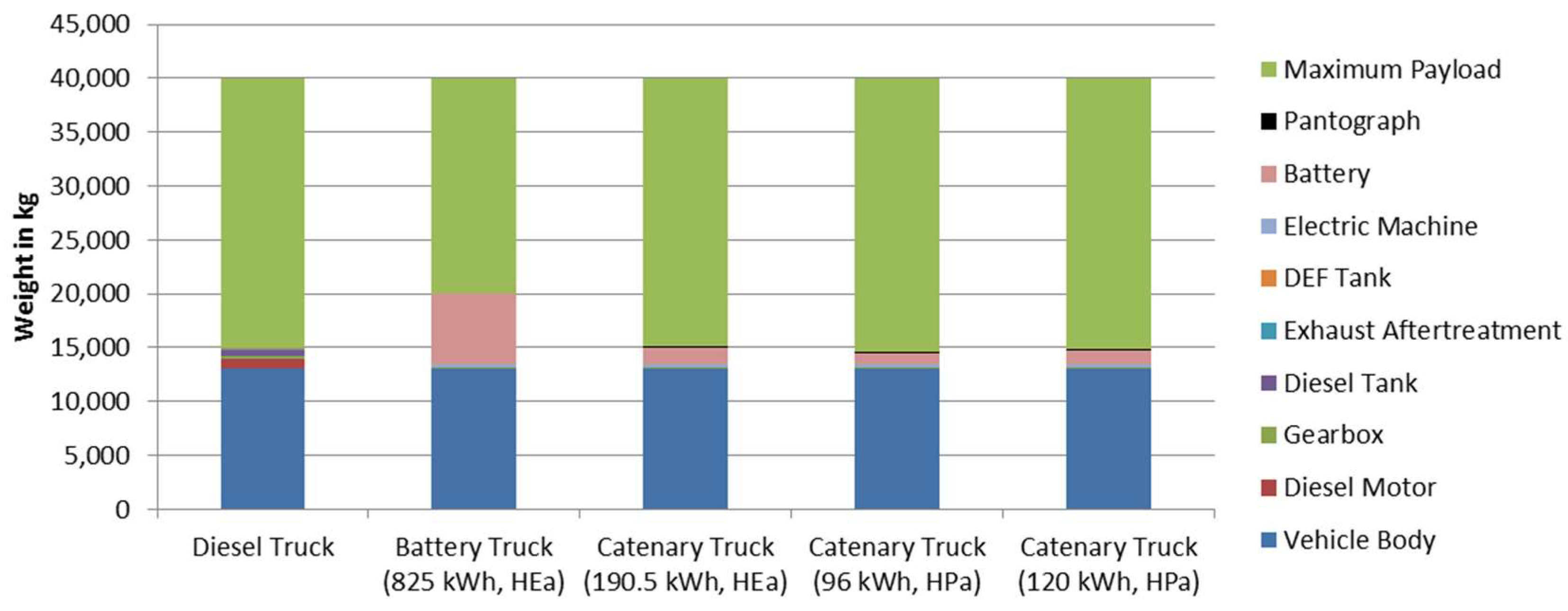

**Figure 7.**Weight breakdown of the main truck components for the overhead catenary trucks with different traction batteries and battery cells compared to diesel trucks and battery electric trucks.

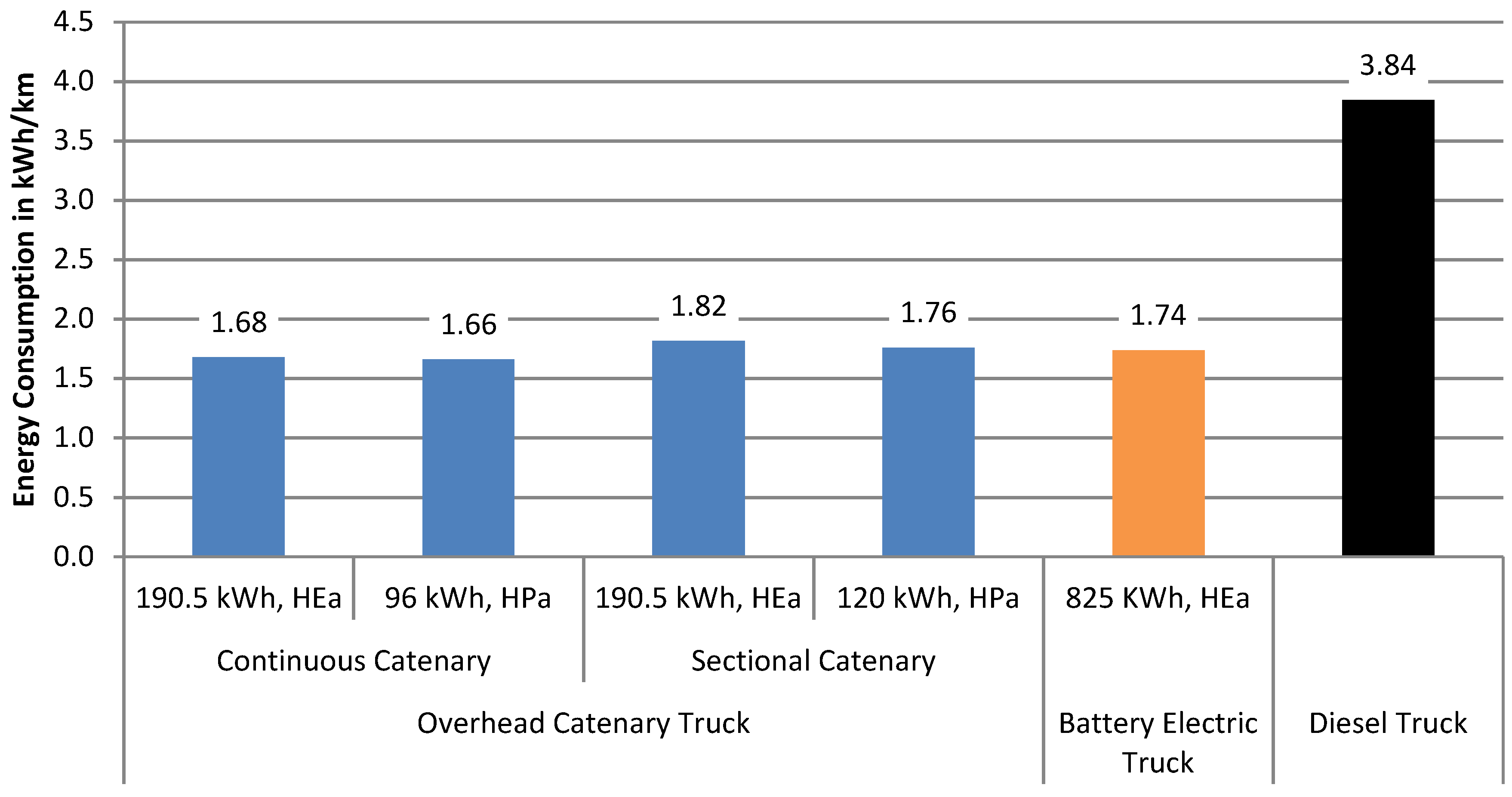

**Figure 8.**Energy consumption for the overhead catenary trucks with different configurations of catenary and traction batteries compared to battery electric truck and diesel truck.

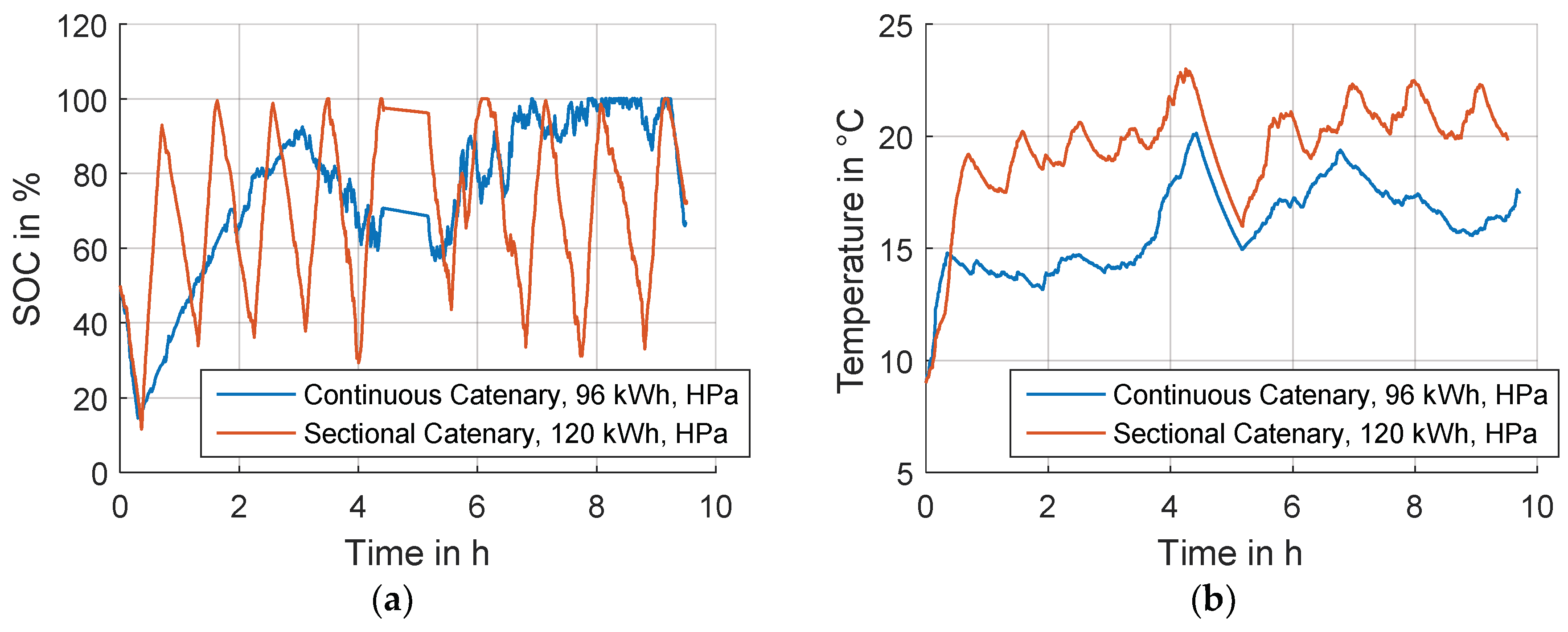

**Figure 9.**(

**a**) State of charge (SOC) and (

**b**) temperature of the traction battery during the daily transportation scenario for the overhead catenary trucks using the continuous and sectional catenary configurations.

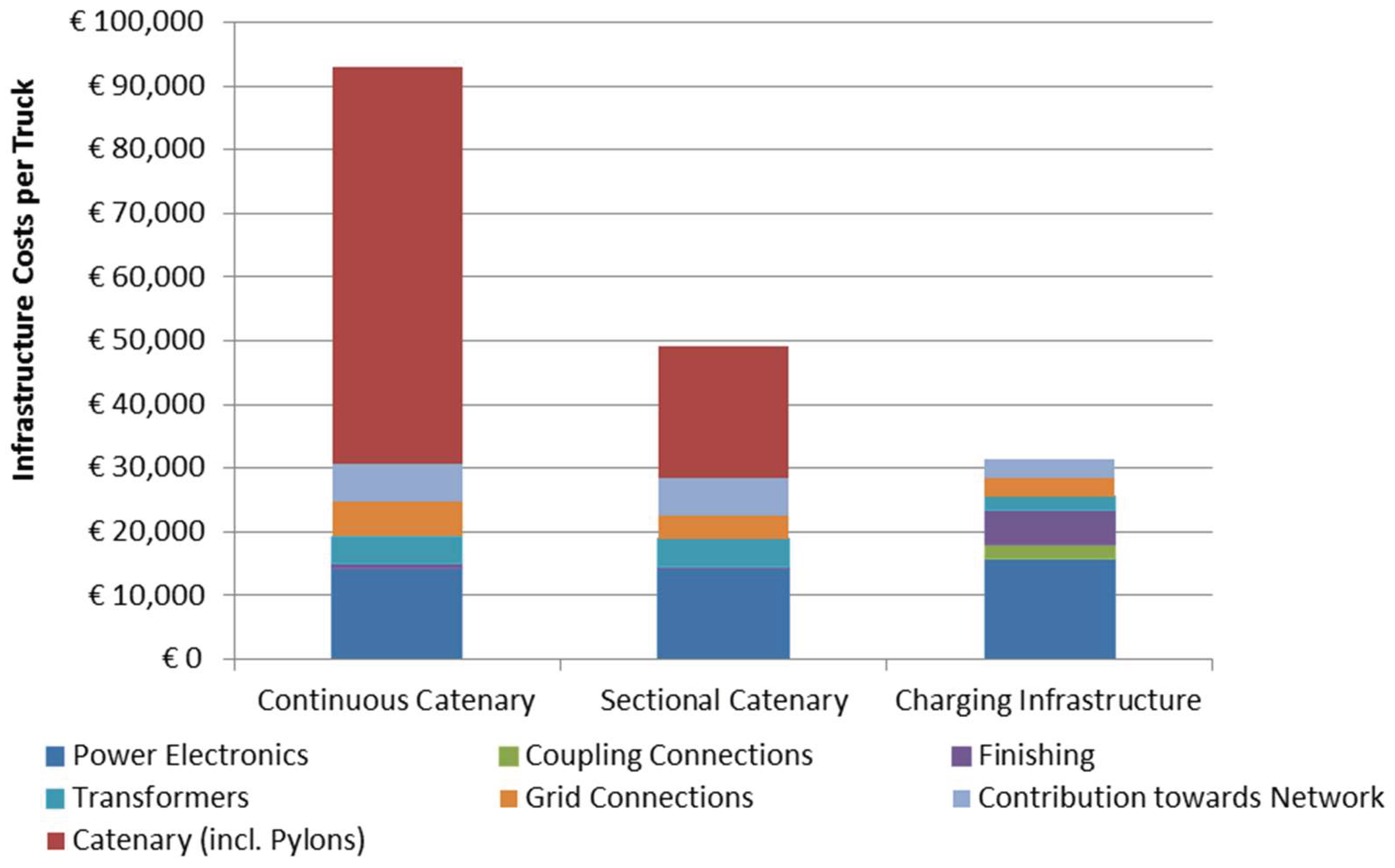

**Figure 10.**Net present values for catenary infrastructure and charging infrastructure per one truck in the specified transportation scenario.

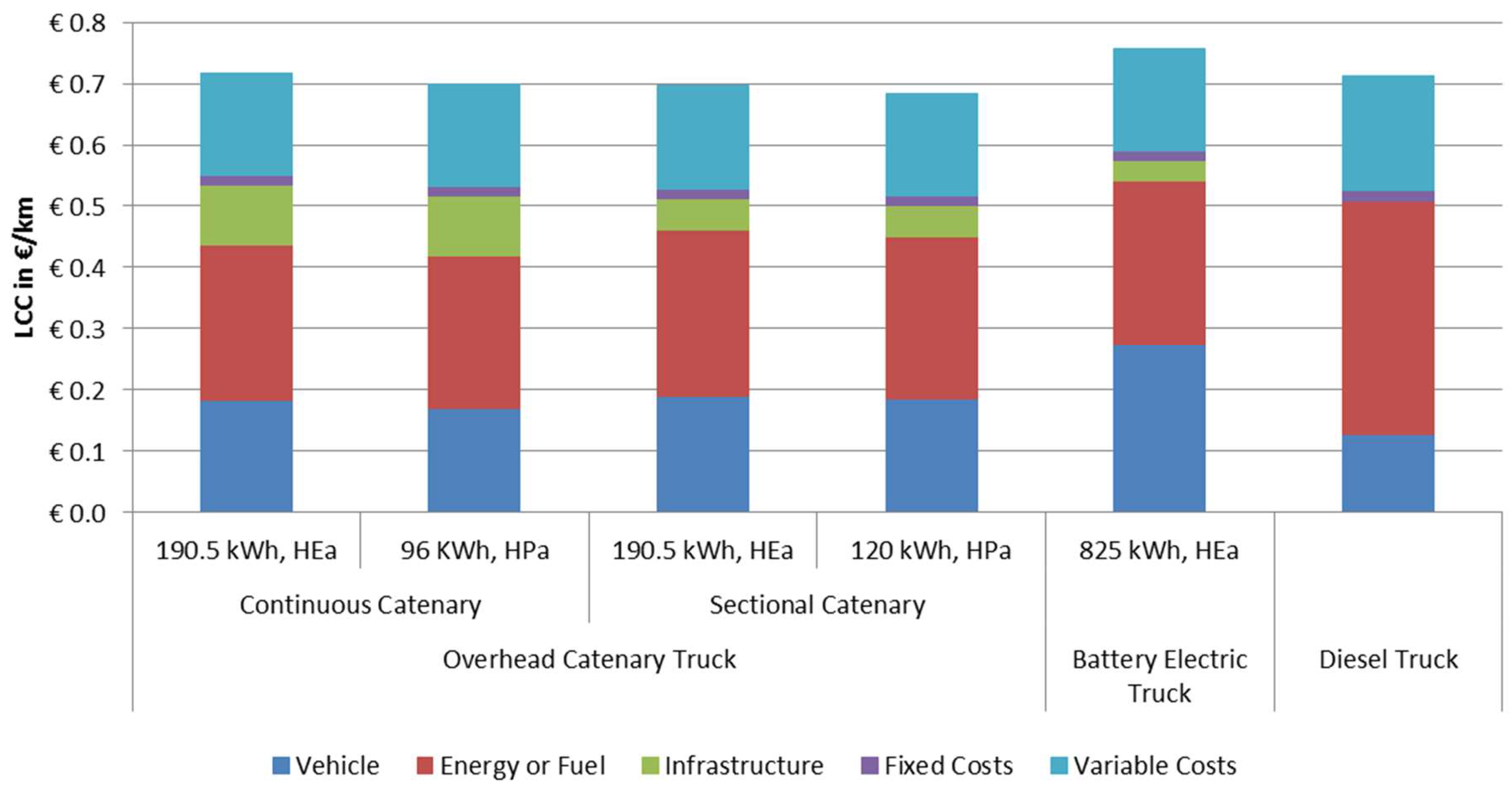

**Figure 11.**Life cycle costs of the considered overhead catenary trucks, battery electric trucks, and diesel trucks in the specified transportation scenario related to the total mileage.
