Open AccessArticle
Energies 2018, 11(12), 3425; https://doi.org/10.3390/en11123425

A Novel Thermal Module with 3-D Configuration Pulsating Heat Pipe for High-Flux Applications

1
Green Energy & Environment Research Laboratories, Industrial Technology Research Institute, 195, Sec.4, Chung Hsing Rd., Hsinchu 31040, Taiwan
2
Department of Power Mechanical Engineering, National Tsing Hua University, 101, Sec.2 Kuang Fu Rd., Hsinchu 30013, Taiwan
3
Department of Mechanical Engineering, National Chiao Tung University, EE474, 1001 University Rd., Hsinchu 30010, Taiwan
*
Author to whom correspondence should be addressed.
Received: 26 October 2018 / Revised: 27 November 2018 / Accepted: 4 December 2018 / Published: 6 December 2018
(This article belongs to the Section Thermal Management)
Full-Text   |   PDF [4079 KB, uploaded 11 December 2018]   |

Abstract

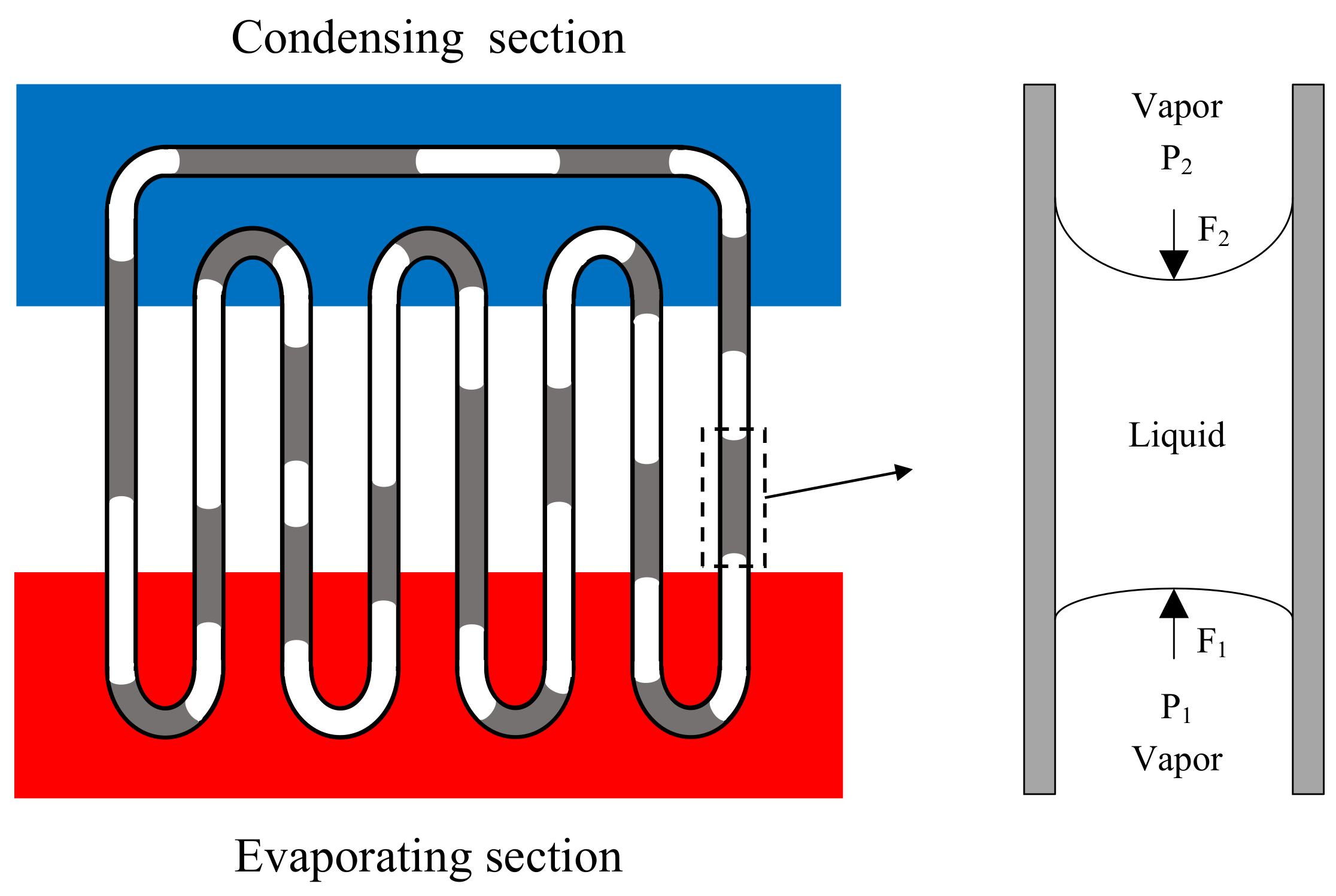

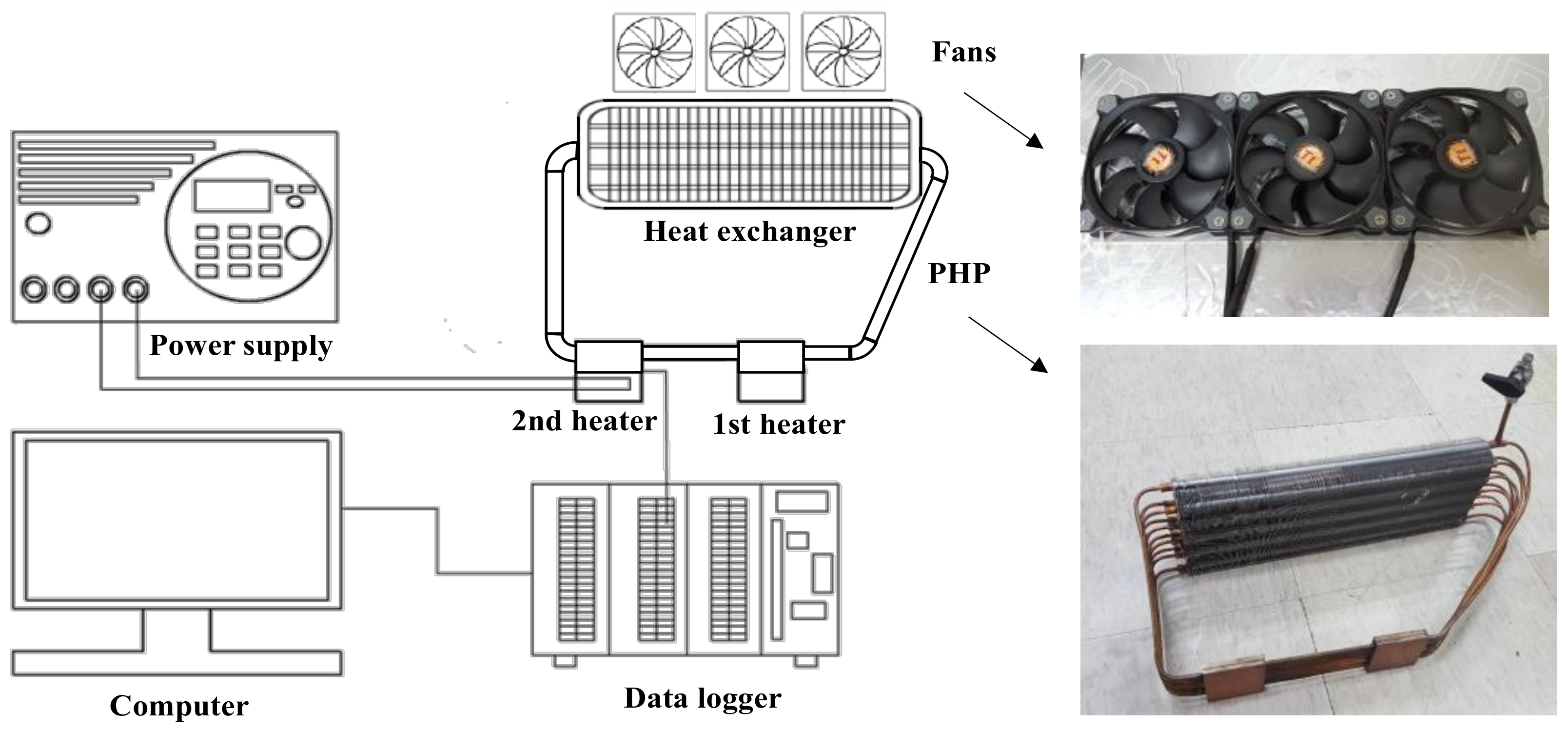

A pulsating heat pipe (PHP) contains a wickless design with aligned serpentine tube configuration whose simple structure offers a comparatively easy manufacturing capability. The bends with large curvature are often used for serpentine PHPs. This eventually results in a decline in effective contact surface area between evaporator/condenser and PHP circuitry, thereby impairing the benefit of the wickless design of a PHP. A novel thermal module featuring a 3-D configuration pulsating heat pipe, an evaporator, and a fin-and-tube condenser is proposed to tackle the high-flux application. Methanol is used as the working fluid with a filling ratio of around 60%. Test results indicate the thermal resistance of the proposed module varies from 0.148 K/W to 0.0595 K/W when the supplied power changes from 100 to 1000 W. The proposed thermal module can handle a supplied power up to 1 kW and the corresponding power or heat flux is much higher than any existing literatures. View Full-Text
Keywords: pulsating heat pipe; thermal resistance; junction temperature; thermal module pulsating heat pipe; thermal resistance; junction temperature; thermal module
Figures

Figure 1
