CFD Modeling on Hydrodynamic Characteristics of Multiphase Counter-Current Flow in a Structured Packed Bed for Post-Combustion CO_{2} Capture

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

_{2}capture is a promising technology for industrial application. Gas-liquid interfaces and interactions in the packed bed are considered one of the key factors affecting the overall CO

_{2}absorption rate. Understanding the hydrodynamic characterizations within packed beds is essential to identify the appropriate enhanced mass transfer technique. However, multiphase counter-current flows in the structured packing typically used in these processes are complicated to visualize and optimize experimentally. In this paper, we aim to develop a comprehensive 3D multiphase, counter-current flow model to study the liquid/gas behavior on the surface of structured packing. The output from computational fluid dynamics (CFD) clearly visualized the hydrodynamic characterizations, such as the liquid distributions, wettability, and film thicknesses, in the confined packed bed. When the liquid We (Weber number) was greater than 2.21, the channel flow became insignificant and flow streams became more disorganized with more droplets at larger sizes. The portion of dead zones is decreased at higher liquid We, but it cannot be completely eliminated. Average film thickness was about 0.6–0.7 mm, however, its height varied significantly.

## 1. Introduction

_{2}) concentrations, which is attributed to the anthropogenic emissions from the use of fossil fuels, and the use of coal alone accounted for 43% of global CO

_{2}emissions [1]. Post-combustion CO

_{2}capture using solvent-based CO

_{2}absorption technologies is one of the most promising approaches among the current CO

_{2}capture technologies and may be implemented at the large-scale in power generation [2]. A schematic diagram of a solvent-based CO

_{2}absorption process is presented in Figure 1. It includes an absorber, a stripper, and their necessary auxiliary equipment for an aqueous solvent circulating between the two reactors [3]. Both reactors typically use a packed bed to improve the mass transfer by providing an effective contact area between gas and liquid phase reactants [4] due to relatively slow reaction kinetics. The packing materials are in many different forms, but they can be generally divided into random and structured packing. The structured packing can provide a similar effective surface area but much less pressure drop compared to random packing, making it a good candidate for application in post-combustion CO

_{2}capture processing, and is investigated herein [5].

_{2}capture. For example, a CO

_{2}absorber capable of handling 90% capture of CO

_{2}from a 0.7 MWe power system would be approximately 19.5 m in height and have at least 13.7 m of structure packing [6,7]. Therefore, understanding the hydrodynamic characterizations within packed beds is of the essence, which will provide insights for gas/liquid mixing enhancement, channel flow prevention, and surface wettability estimation, and then develop techniques to enhance the mass transfer by intensifying the gas/liquid contact and mixing.

_{2}absorption processes are typically two-phase counter-current unstable flow, and current simulations are insufficient to provide a clear understanding of the dependencies for their 3D hydrodynamics in structured packing. In order to reduce computing complexity, researchers [6,16] used a porous media zone to simulate structured packing. This method could provide certain information in the simulation and design of new geometries. However, it cannot precisely present the interactions between the two phases under counter-current flow. Thus, no information can be acquired to enhance the gas/liquid mixing. Table 1 lists representative CFD models in structured-packing bed hydrodynamic study.

_{2}capture reactions is to build a true packing geometry instead of a porous media configuration, and consider the solvent properties along the packing length. In this study, a 3D CFD model will be built to understand the hydraulic characterizations in the structured bed, and to provide insights to estimate the surface wettability, prevent the channel flow, and identify the way to enhance the gas/liquid mixing. These results expand the CFD model for efficient industrial application.

## 2. Computational Model

#### 2.1. Governing Equations

#### 2.2. Geometry

_{2}absorber processes [28]; the number 250 in its designation indicates a specific surface area of 250 m

^{2}m

^{−3}and the symbol Y means a surface inclined angle of 45° relative to the flow direction. Mellapak 250 Y is made of corrugated metal sheets arranged side-by-side with opposing channel orientations, as illustrated in Figure 2a,b. To save computational time, one slice was chosen as the modeling geometry, thus, a “sandwich-like” packing was built, as shown in Figure 2c.

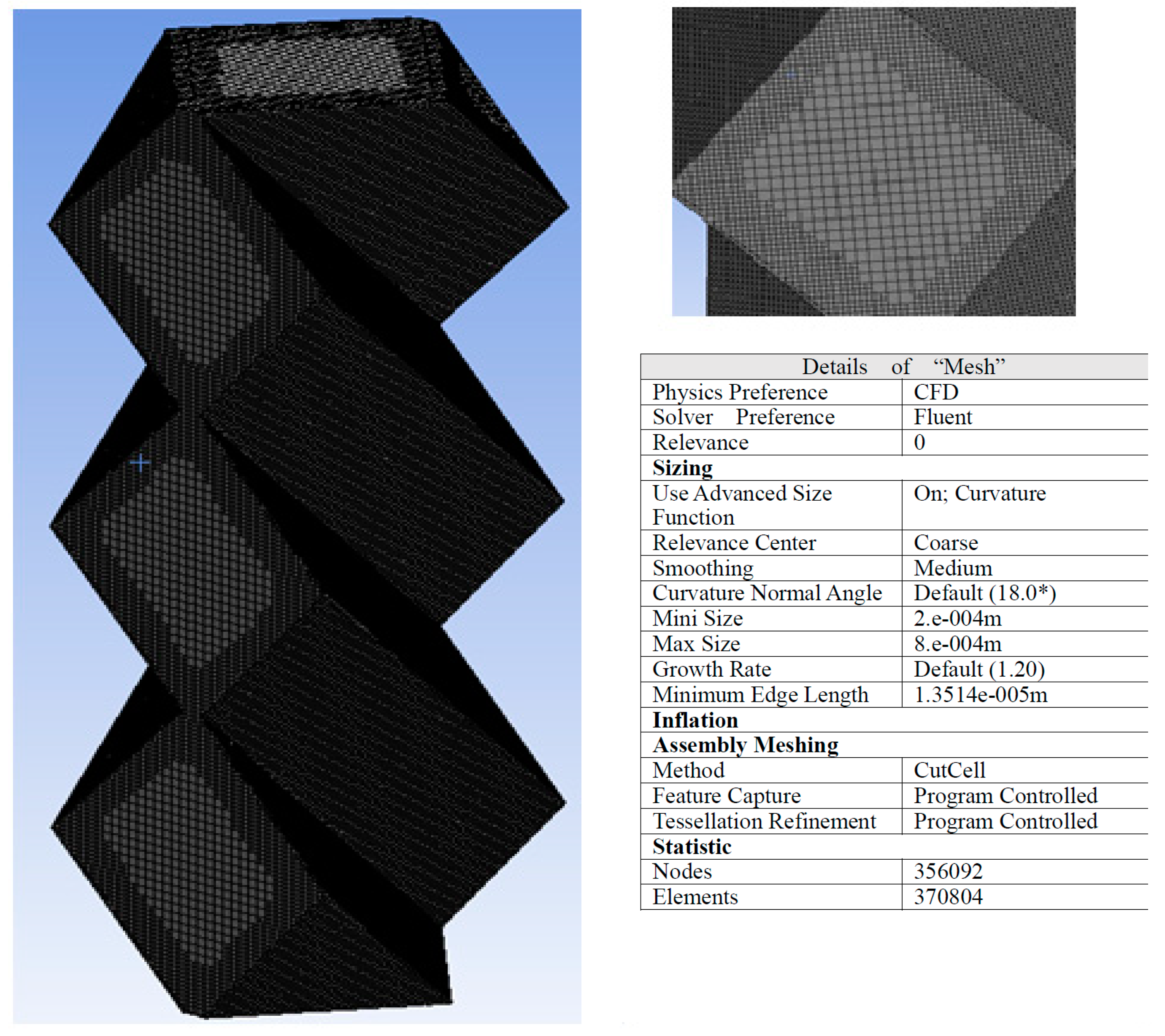

#### 2.3. Meshing

#### 2.4. Turbulence Model

^{3}), $v$ is its velocity (m/s), and $\mu $ is the viscosity (kg/m/s).

#### 2.5. Boundary Conditions

## 3. Results and Discussion

#### 3.1. Validation of Simulation Model

_{G}is gas velocity.

_{L}is the liquid velocity in m/s, $a$ is the specific surface area in m

^{2}m

^{−3}, g is the gravity in m/s

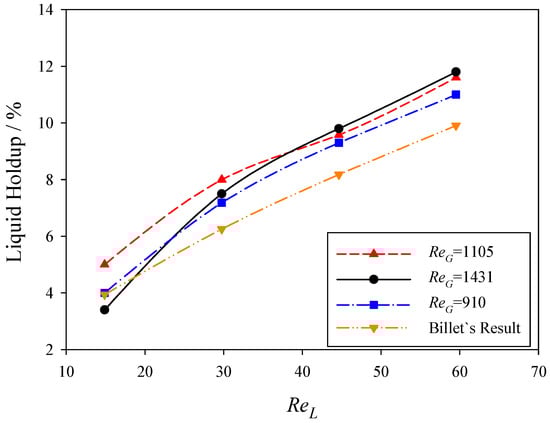

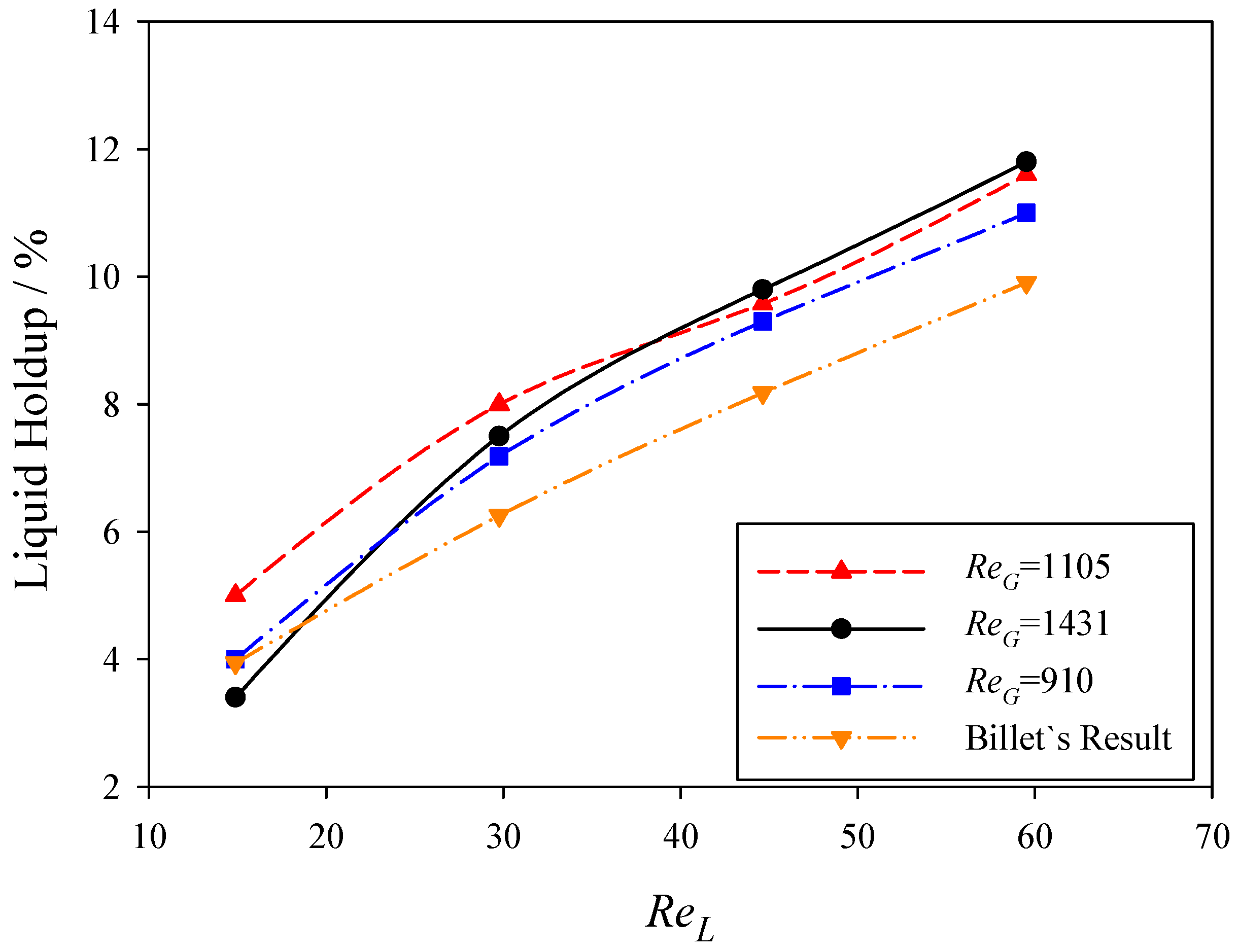

^{−2}, and $\epsilon $ is the void fraction in %. Liquid holdups using the developed CFD model at low liquid flow rates and three different gas flow rates were compared to this empirical equation as presented in Figure 6 and show that different gas flow rates had only a very weak effect on liquid holdup, a result consistent with data from the empirical model. Such a weak dependency on gas flow rates may be a result of the liquid film becoming thinner as the gas flow rates were increased. As a consequence of the agreement between the 3D simulations and empirical model results, the CFD model for structured packing was considered validated.

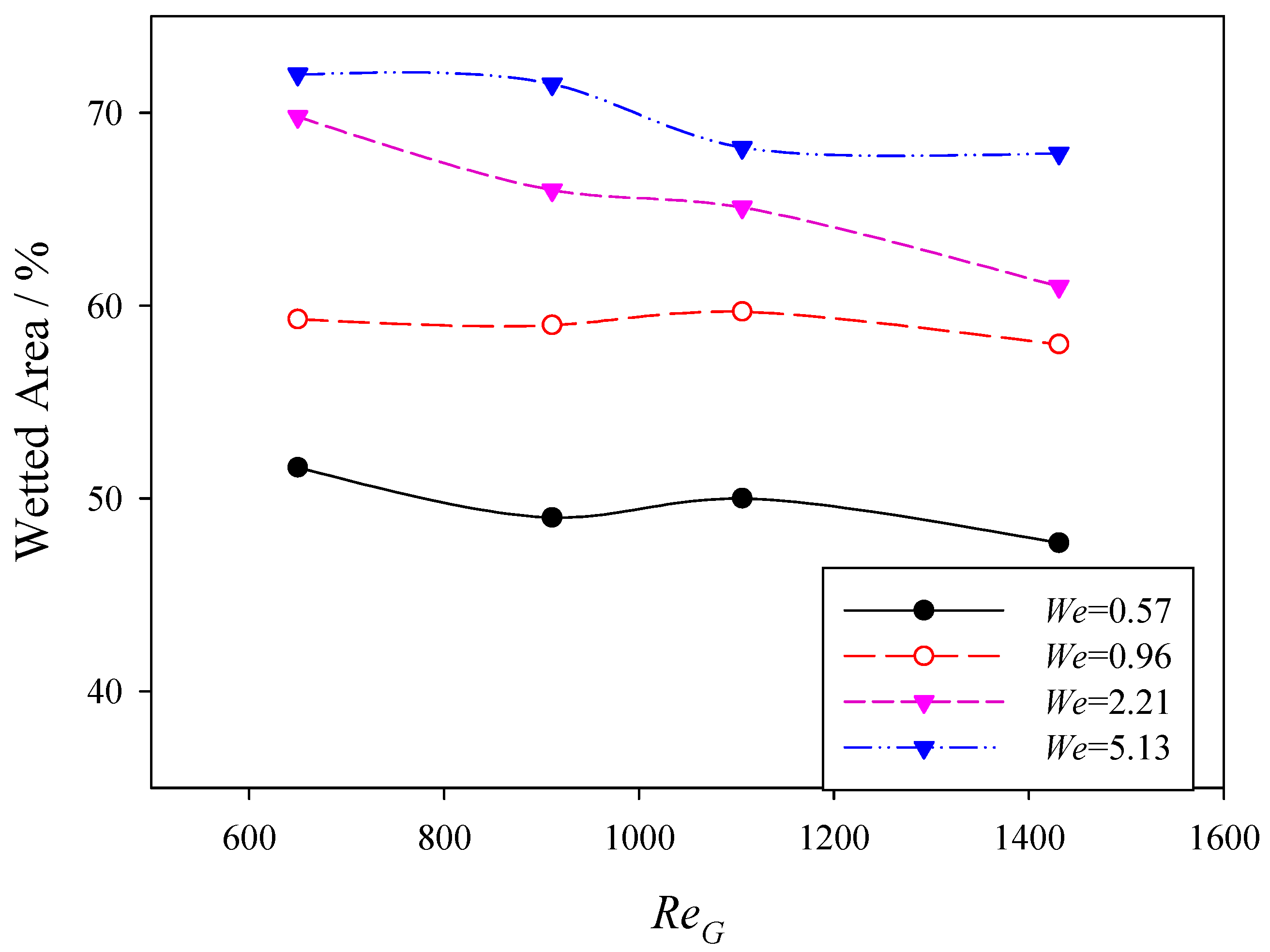

#### 3.2. Liquid Distribution and Surface Wettability

^{3}), $v$ is the fluid velocity (m/s), $l$ is its characteristic length—typically the droplet diameter (m), and $\sigma $ is the surface tension (N/m) of the liquid.

_{2}capture mass transfer. Further increasing We to 5.13, the flow pattern did not change too much besides increasing the liquid fraction in the packing space compared to We = 2.21, resulting in higher pressure drop which kept on increasing with the increase of gas velocity at this condition, as shown in Figure 8, and implied the potential flooding as demonstrated by the packing operating curve obtained experimentally.

#### 3.3. Formation of Droplets

_{G}= 1431 and We = 5.13. At t = 0.011 s, the liquid reached the packing surface and flowed along its 45° trajectory. At t = 0.058 s, the liquid wetted the first element and began to flow onto the second element. Several droplets are seen to have been formed at t = 0.058 s at the frontier of the flow stream and turning point of the two packing elements; the area of the neck is smaller than above or below it and, as a consequence, the gas flow velocity is higher in the neck. By t = 0.134 s, the second element had been wetted, and by t = 0.232 s the liquid had flowed throughout the whole domain; droplets can be found in every element region by t = 0.232 s.

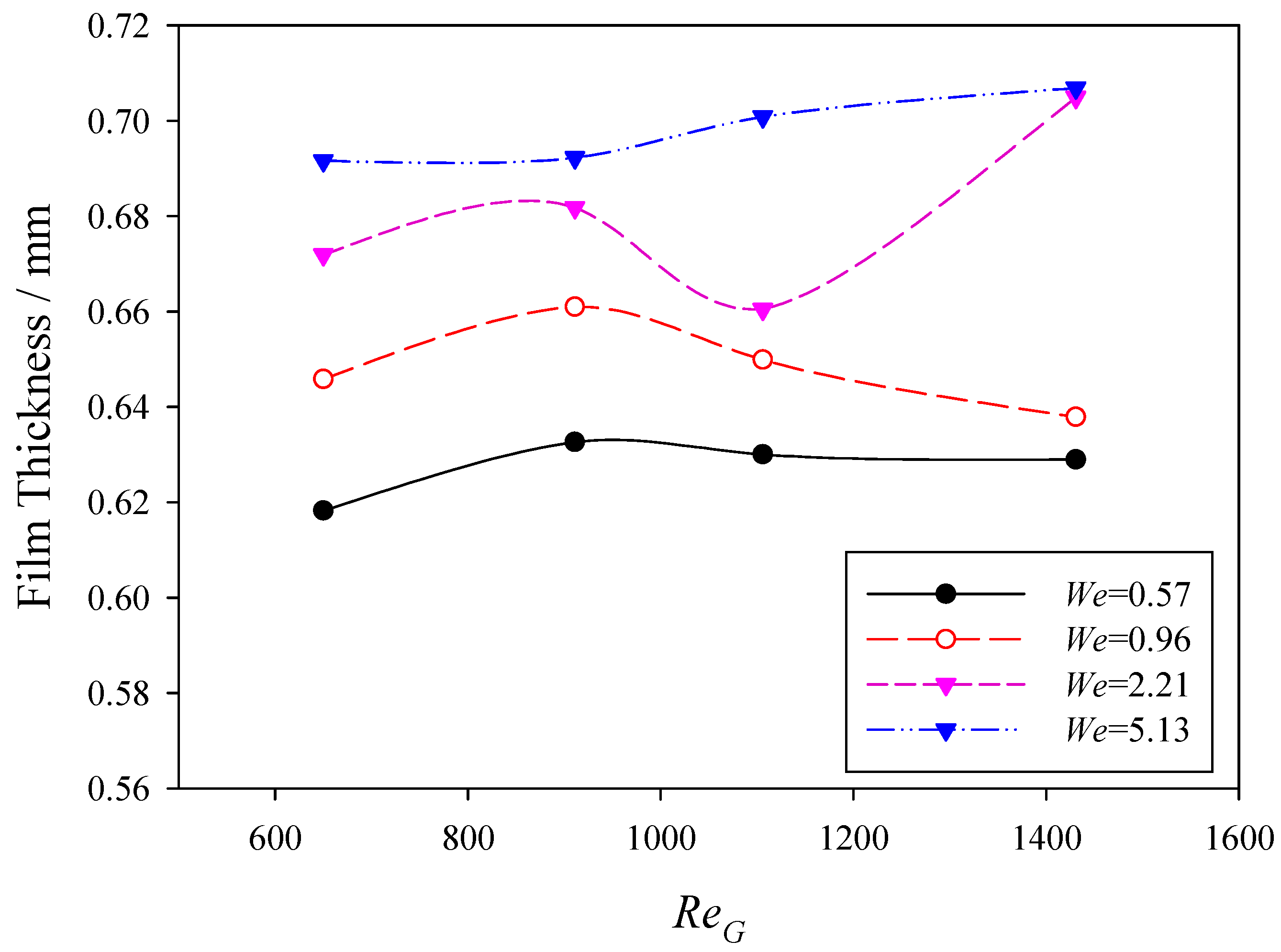

#### 3.4. Film Thickness

_{G}= 1431. When We was below 2.21, the packing surface was not fully wetted and the film thickness was not uniform; this result indicated that surface tension dominated the liquid flow. When We was increased to 2.21 and beyond, liquid film increased in thickness, and the film thicknesses became more uniform at We = 2.21. However, as also shown in Figure 13, the liquid film became less uniform with significant protrusions at We = 5.13, which implied strong interactions between the gas and liquid phases. This also implied that the film thickness will be influenced by the time, gas flow rates, and liquid flow rates. However, the average film thickness can be estimated using this model. Figure 14 shows the influence of gas flow rates and liquid flow rates on the average film thickness where film thicknesses were between 0.6–0.7 mm. Larger liquid flow rates created thicker liquid films; for example, the film thickness was near 0.62 mm at We = 0.57 and increased to near 0.7 mm when We = 5.13. However, changing the gas flow rates had no significant effects or result in any consistent trends to arise on film thickness. However, with increasing gas flow rates, the liquid flow will become unstable.

## 4. Conclusions

_{2}capture process. The model was validated by experimental data in the public domain. The hydrodynamics in a structured packing under various flow conditions were examined and discussed. Inertial forces and surface tension affecting the flow patterns, and a higher We number leads to a more uniform liquid distribution, high wettability, and a minimum probability for channel flow. However, a large We number (e.g., high liquid flow rate) may lead to flooding. The wetted surface area and average film thickness were greatly affected by the liquid flow rate while slight effects by the gas flow rate were observed. However, increasing the gas flow rate will enhance the gas–liquid interactions, leading to increased liquid film instability and large amount of liquid droplet generation. Average film thickness was about 0.6–0.7mm. The unparalleled counter flow direction of the gas and liquid is the main reason for droplet formation, where it is more obvious at the turning point of two packing elements.

## Author Contributions

## Funding

_{2}Capture and Geological Storage, Jiangsu Province (China University of Mining and Technology) (NO: 2017A02).), and by the Natural Science Foundation of Jiangsu Province (BK20180645), the author also thanks the support from the Key Project of Scientific Research Frontiers of CUMT (2017XKZD02).

## Conflicts of Interest

## References

- Yu, H. Carbon capture and storage: A challenging approach for mitigation of global warming. Int. J. Clean Coal Energy
**2013**, 2, 23–24. [Google Scholar] [CrossRef] - Thompson, J.G.; Combs, M.; Abad, K.; Bhatnagar, S.; Pelgen, J.; Beaudry, M.; Rochelle, G.; Hume, S.; Link, D.; Figueroa, J.; et al. Pilot testing of a heat integrated 0.7 MWe CO2 capture system with two-stage air-stripping: Emission. Int. J. Greenh. Gas Control
**2017**, 64, 267–275. [Google Scholar] [CrossRef] - Yang, L.; Liu, F.; Song, Z.; Liu, K.; Saito, K. 3D Numerical Study of Multiphase Counter-Current Flow within a Packed Bed for Post Combustion Carbon Dioxide Capture. Energies
**2018**, 11, 1441. [Google Scholar] [CrossRef] - Ranade, V.; Chaudhari, R.; Gunjal, P. Hydrodynamics and Flow Regimes. In Trickle Bed Reactors; Elsevier: Amsterdam, The Netherlands, 2011; Chapter 2; pp. 25–75. [Google Scholar]
- Haroun, Y.; Legendre, D.; Raynal, L. Direct numerical simulation of reactive absorption in gas–liquid flow on structured packing using interface capturing method. Chem. Eng. Sci.
**2010**, 65, 351–356. [Google Scholar] [CrossRef] - Kim, J.; Pham, D.A.; Lim, Y.-I. Gas−liquid multiphase computational fluid dynamics (cfd) of amine absorption column with structured-packing for CO2 capture. Comput. Chem. Eng.
**2016**, 88, 39–49. [Google Scholar] [CrossRef] - Saito, K.; Ito, A.; Nakamura, Y. Progress in Scale Modeling. In The International Symposia on Scale Modeling, ISSM VI (2009) and ISSM VII (2013); Springer: Berlin, Germany, 2013; Volume II. [Google Scholar]
- Pangarkar, K.; Schildhauer, T.; Ommen, J.; Nijenhuis, J.; Kapteijn, F.; Moulijn, J.A. Structured Packings for Multiphase Catalytic Reactors. Ind. Eng. Chem. Res.
**2008**, 47, 3720–3751. [Google Scholar] [CrossRef] - Basden, M.; Eldridge, R.B.; Farone, J.; Feng, E.; Hussey, D.S.; Jacobson, D.L. Liquid holdup profiles in structured packing determined via neutron radiography. Ind. Eng. Chem. Res.
**2013**, 52, 17263–17269. [Google Scholar] [CrossRef] - Guo, X.; Sun, Y.; Li, R.; Yang, F. Experimental investigations on temperature variation and inhomogeneity in a packed bed clc reactor of large particles and low aspect ratio. Chem. Eng. Sci.
**2014**, 107, 266–276. [Google Scholar] [CrossRef] - Yeoh, G.; Tu, J. Computational Techniques for Multiphase Flows. Butterworth-Heinemann: Oxford, UK, 2010. [Google Scholar]
- Zhang, H. High Temperature Flow Solver for Aerothermodynamics Problems. Ph.D. Thesis, University of Kentukcy, Lexington, KY, USA, August 2015. [Google Scholar]
- Lopes, R.J.G.; Quinta-Ferreira, R.M. Cfd modelling of multiphase flow distribution in trickle beds. Chem. Eng. J.
**2009**, 147, 342–355. [Google Scholar] [CrossRef] - Gunjal, P.; Kashid, M.; Ranade, V.; Chaudhari, R.V. Hydrodynamics of Trickle-Bed Reactors: Experiments and CFD Modeling. Ind. Eng. Chem. Res.
**2005**, 44, 6278–6294. [Google Scholar] [CrossRef] - Wen, X.; Shu, Y.; Nandakumar, K.; Chuang, K.T. Predicting liquid flow profile in randomly packed beds from computer simulation. AIChE J.
**2001**, 47, 1770–1779. [Google Scholar] [CrossRef] - Hoffmann, A.; Ausner, I.; Repke, J.; Wozny, G. Fluid dynamics in multiphase distillation processes in packed towers. Comput. Chem. Eng.
**2005**, 29, 1433–1437. [Google Scholar] [CrossRef] - Yu, D.; Cao, D.; Li, Z.; Li, Q. Experimental and CFD studies on the effects ofsurface texture on liquid thickness, wetted areaand mass transfer in wave-like structured packings. Chem. Eng. Res. Des.
**2018**, 129, 170–181. [Google Scholar] [CrossRef] - Olenberg, A.; Reschetnikb, W.; Kullmer, G.; Kenig, E.Y. Optimization of structured packings using twisted tape inserts. Chem. Eng. Res. Des.
**2018**, 132, 1–8. [Google Scholar] [CrossRef] - Haroun, Y.; Raynal, L.; Alix, P. Prediction of effective area and liquid hold-up in structured packings by cfd. Chem. Eng. Res. Des.
**2014**, 92, 2247–2254. [Google Scholar] [CrossRef] - Ding, H.; Li, J.; Xiang, W.; Liu, C. Cfd simulation and optimization of winpak-based modular catalytic structured packing. Ind. Eng. Chem. Res.
**2015**, 54, 2391–2403. [Google Scholar] [CrossRef] - Fourati, M.; Roig, V.; Raynal, L. Liquid dispersion in packed columns: Experiments and numerical modeling. Chem. Eng. Sci.
**2013**, 100, 266–278. [Google Scholar] [CrossRef] [Green Version] - Haroun, Y.; Raynal, L.; Legendre, D. Mass transfer and liquid hold-up determination in structured packing by cfd. Chem. Eng. Sci.
**2012**, 75, 342–348. [Google Scholar] [CrossRef] [Green Version] - Ginzburg, I.; Wittum, G. Two-phase flows on interface refined grids modeled with vof, staggered finite volumes, and spline interpolants. J. Comput. Phys.
**2001**, 166, 302–335. [Google Scholar] [CrossRef] - Renardy, Y.; Renardy, M. Prost: A parabolic reconstruction of surface tension for the volume-of-fluid method. J. Comput. Phys.
**2002**, 183, 400–421. [Google Scholar] [CrossRef] - Zhang, C.; Zhang, W.; Lin, N.; Tang, Y.; Zhao, C.; Gu, J.; Lin, W.; Chen, X.; Qiu, A. A two-phase flow model coupling with volume of fluid and immersed boundary methods for free surface and moving structure problems. Ocean Eng.
**2013**, 74, 107–124. [Google Scholar] [CrossRef] - Hirt, C.; Nichols, B. Volume of fluid (VOF) method for the dynamics of free boundaries. J. Comput. Phys.
**1981**, 39, 201–225. [Google Scholar] [CrossRef] - Olsson, E.; Kreiss, G. A conservative level set method for two phase flow. J. Computat. Phys.
**2005**, 210, 225–246. [Google Scholar] [CrossRef] - Olujić, Ž.; Seibert, A.; Fair, J. Influence of corrugation geometry on the performance of structured packings: An experimental study. Chem. Eng. Process. Process Intensif.
**2000**, 39, 335–342. [Google Scholar] [CrossRef] - Cable, M. An Evaluation of Turbulence Models for the Numerical Study of Forced and Natural Convective Flow in Atria. Master’s Thesis, Queen’s University, Kingston, ON, Canada, May 2009. [Google Scholar]
- Stikkelman, R.; Teeuw, H.; Wesselingh, H.; de Graauw, J.; Olujic, Z. A study of gas and liquid distributions in structured packings. Chem. Eng. Technol.
**1989**, 12, 445–449. [Google Scholar] [CrossRef] - Ergun, S.; Orning, A.A. Fluid Flow through Randomly Packed Columns and Fluidized Beds. Ind. Eng. Chem.
**1949**, 41, 1179–1184. [Google Scholar] [CrossRef] - Billet, R. Packed Towers: In Processing and Environmental Technology; Wiley-VCH: Wernheim, Germany, 1995. [Google Scholar]
- Sebastia-Saez, D.; Gu, S.; Ranganathan, P.; Papadikis, K. 3D modeling of hydrodynamics and physical mass transfer characteristics of liquid film flows in structured packing elements. Int. J. Greenh. Gas Control.
**2013**, 19, 492–502. [Google Scholar] [CrossRef] - Jo, D. Hydrodynamic model of interfacial area for trickling flow in a packed bed. J. Mech. Sci. Technol.
**2016**, 30, 171–178. [Google Scholar] [CrossRef]

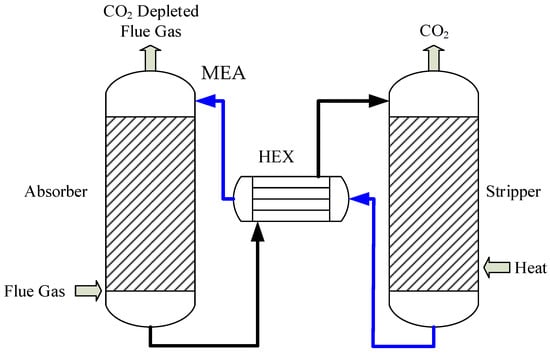

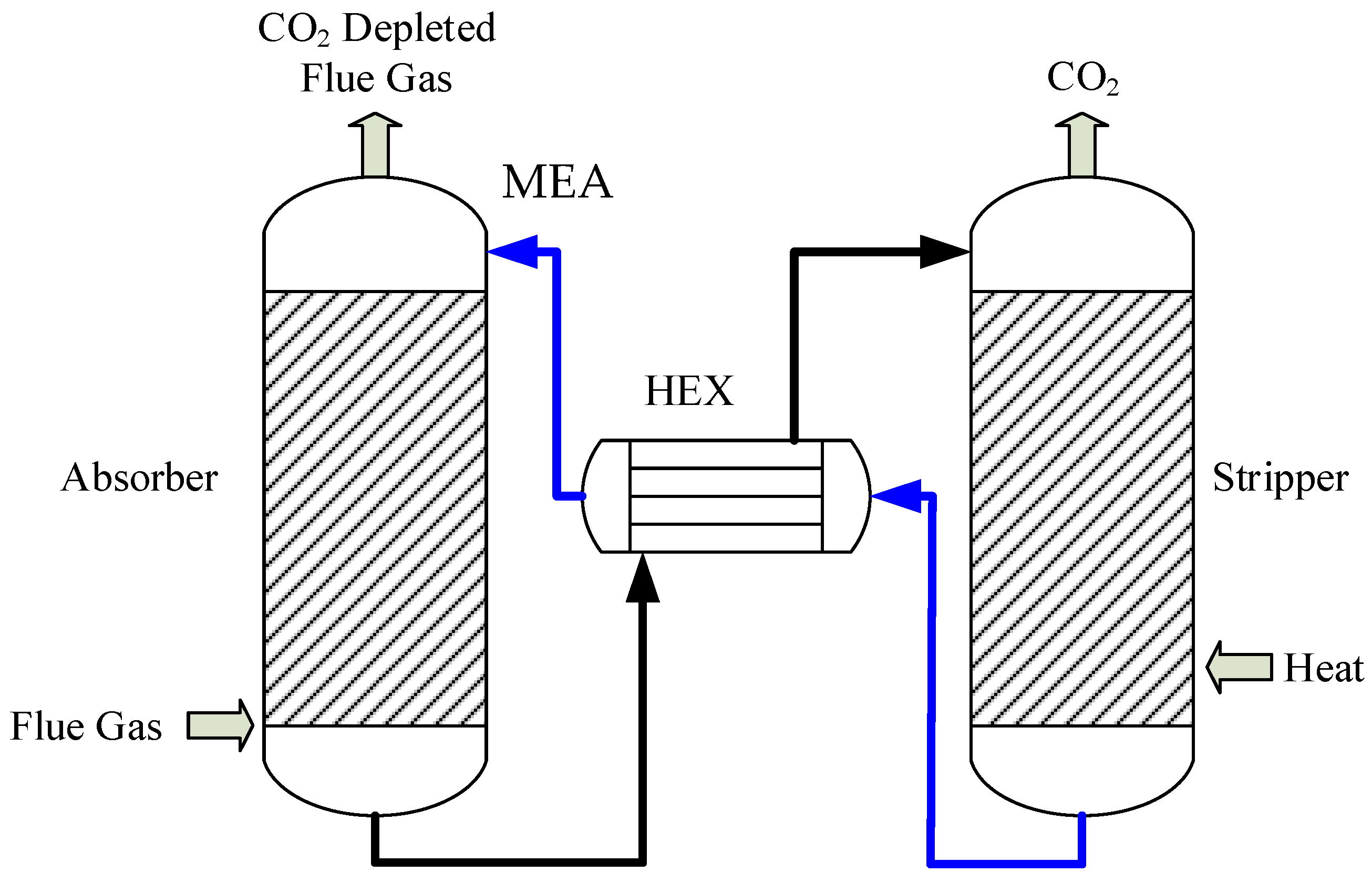

**Figure 1.**Schematic diagram of a post combustion solvent-based CO

_{2}capture process. MEA means monoethanolamine; HEX means heat exchanger.

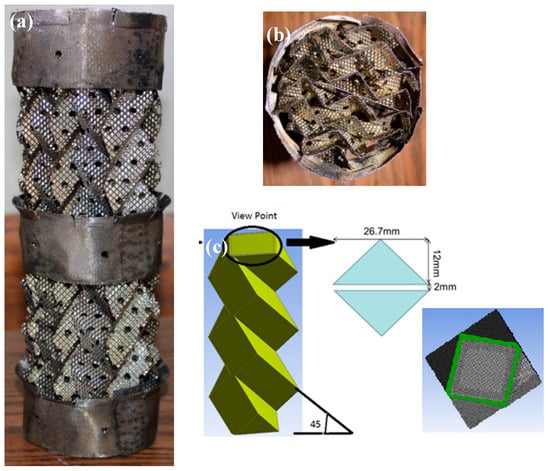

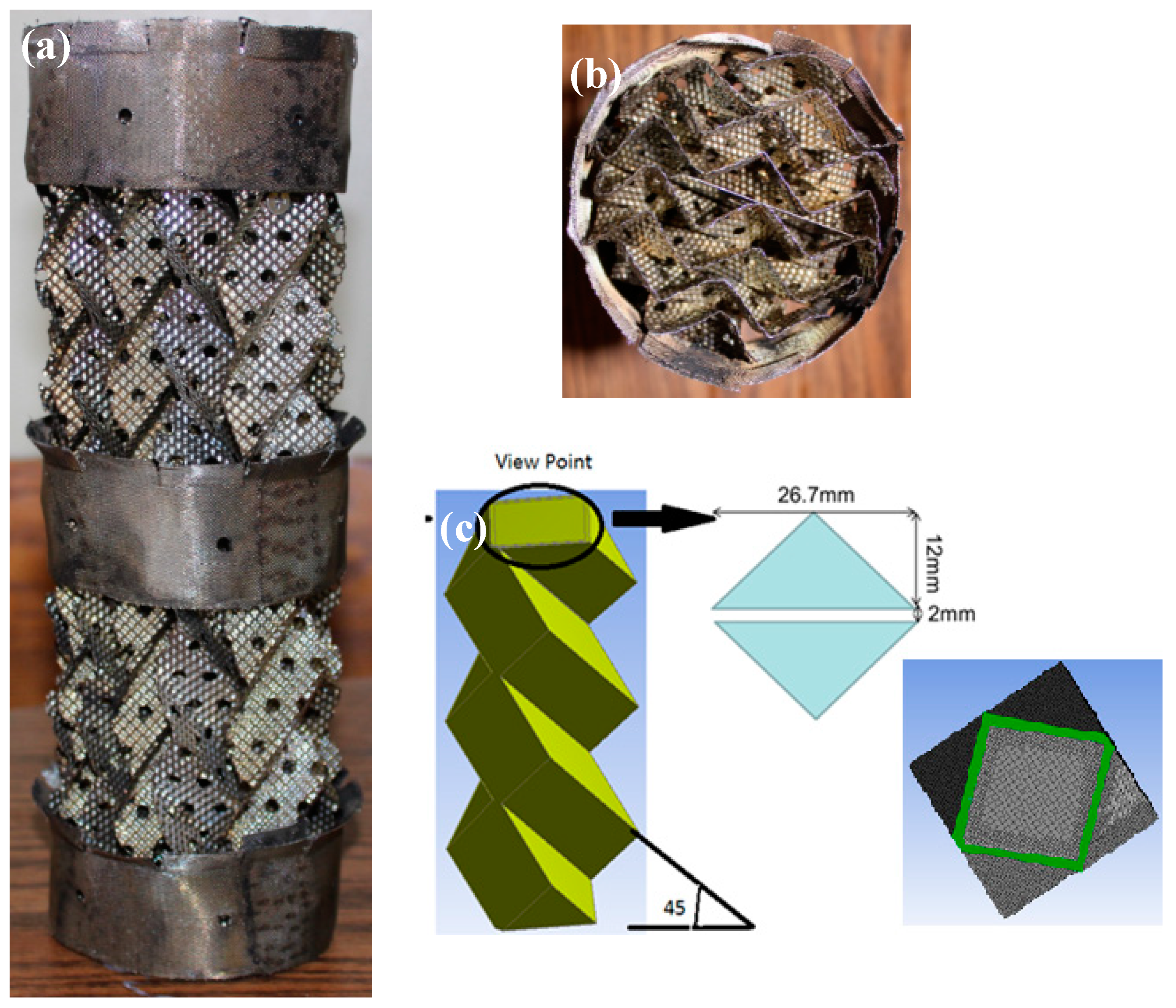

**Figure 2.**Images of the Mellapak 250 Y structured packing within a bed: (

**a**) overview; (

**b**) top view; and (

**c**) the geometric model.

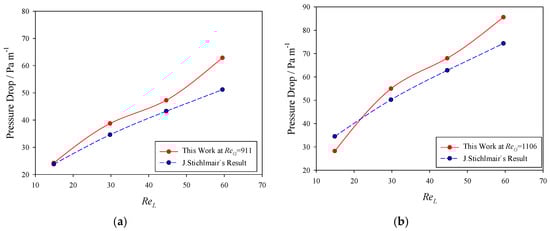

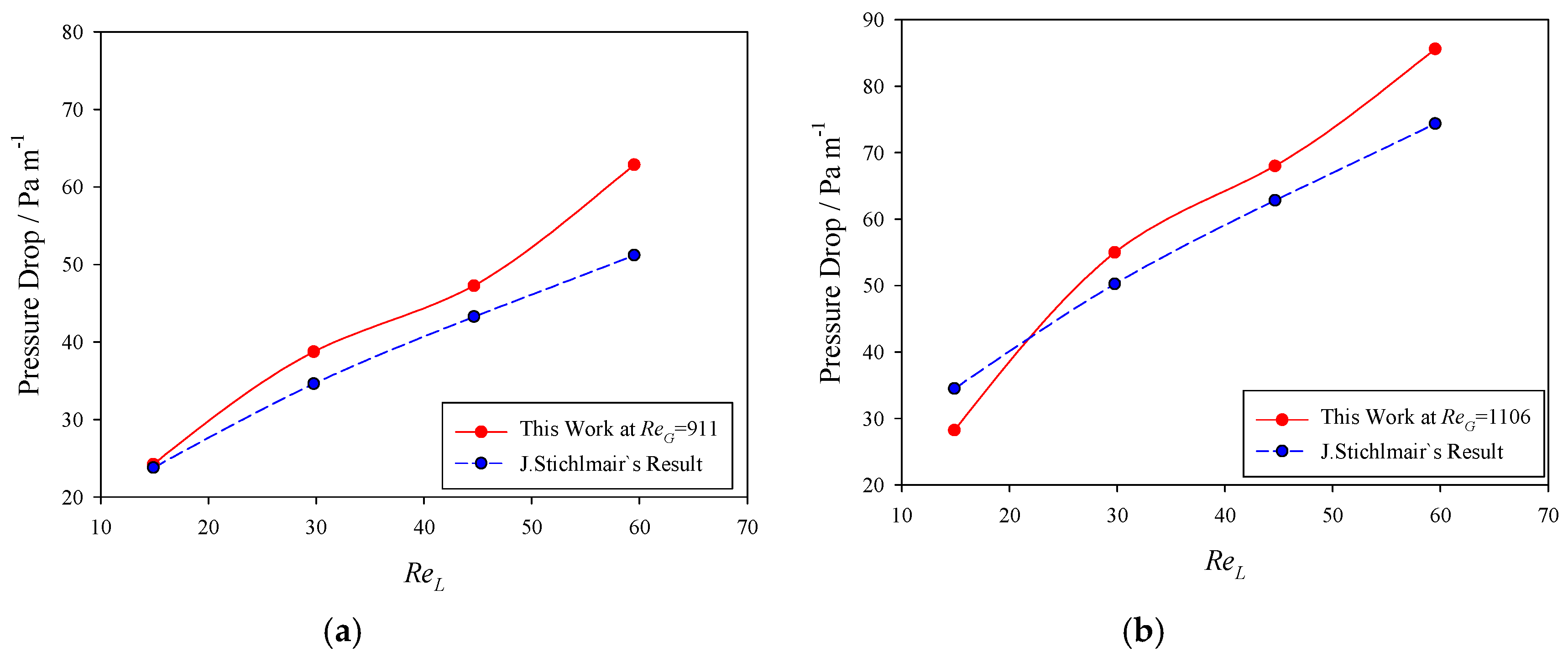

**Figure 5.**A comparison of pressure drops from Stichlmair’s empirical model and the CFD simulation results for different gas flow rates: (

**a**) $R{e}_{G}=911$, (

**b**) $R{e}_{G}=1106$.

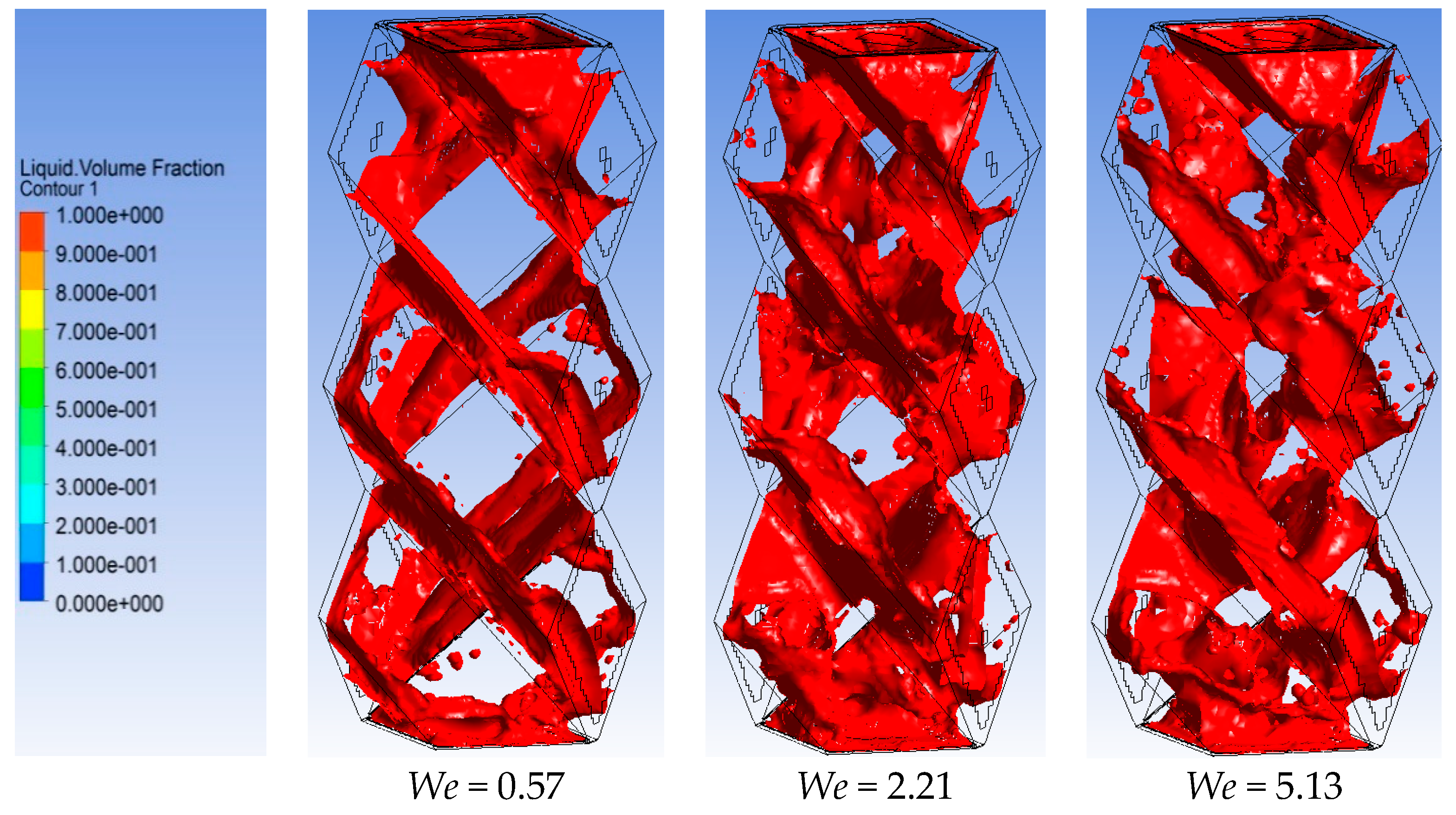

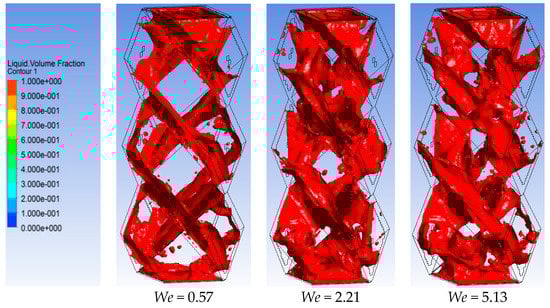

**Figure 7.**Liquid distribution for structured packing at different liquid We numbers from 0.57 to 5.13 and fixed $R{e}_{G}=1431$.

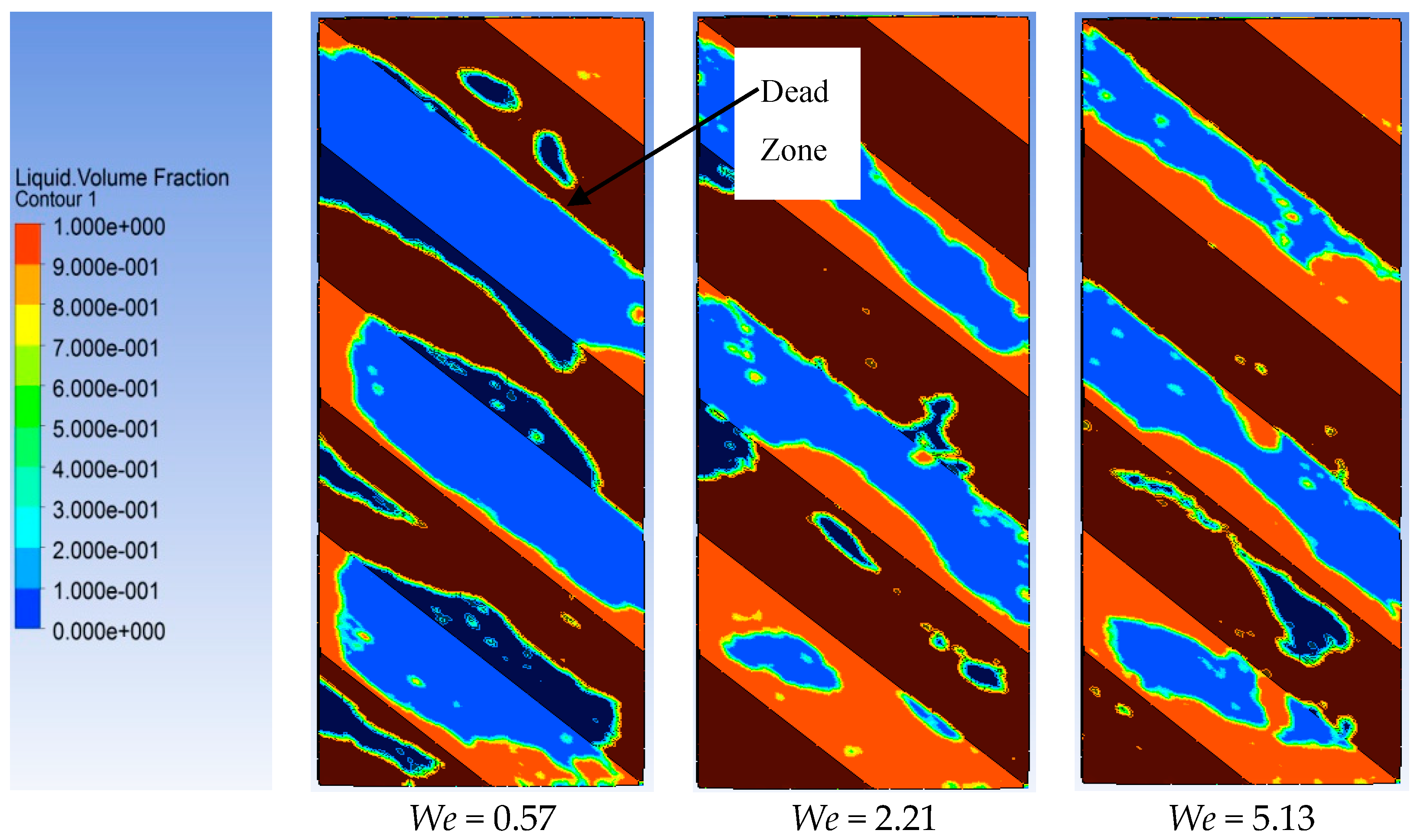

**Figure 9.**Wettability for structured packing at different liquid We numbers from 0.57 to 5.13 and fixed $R{e}_{G}=1431$.

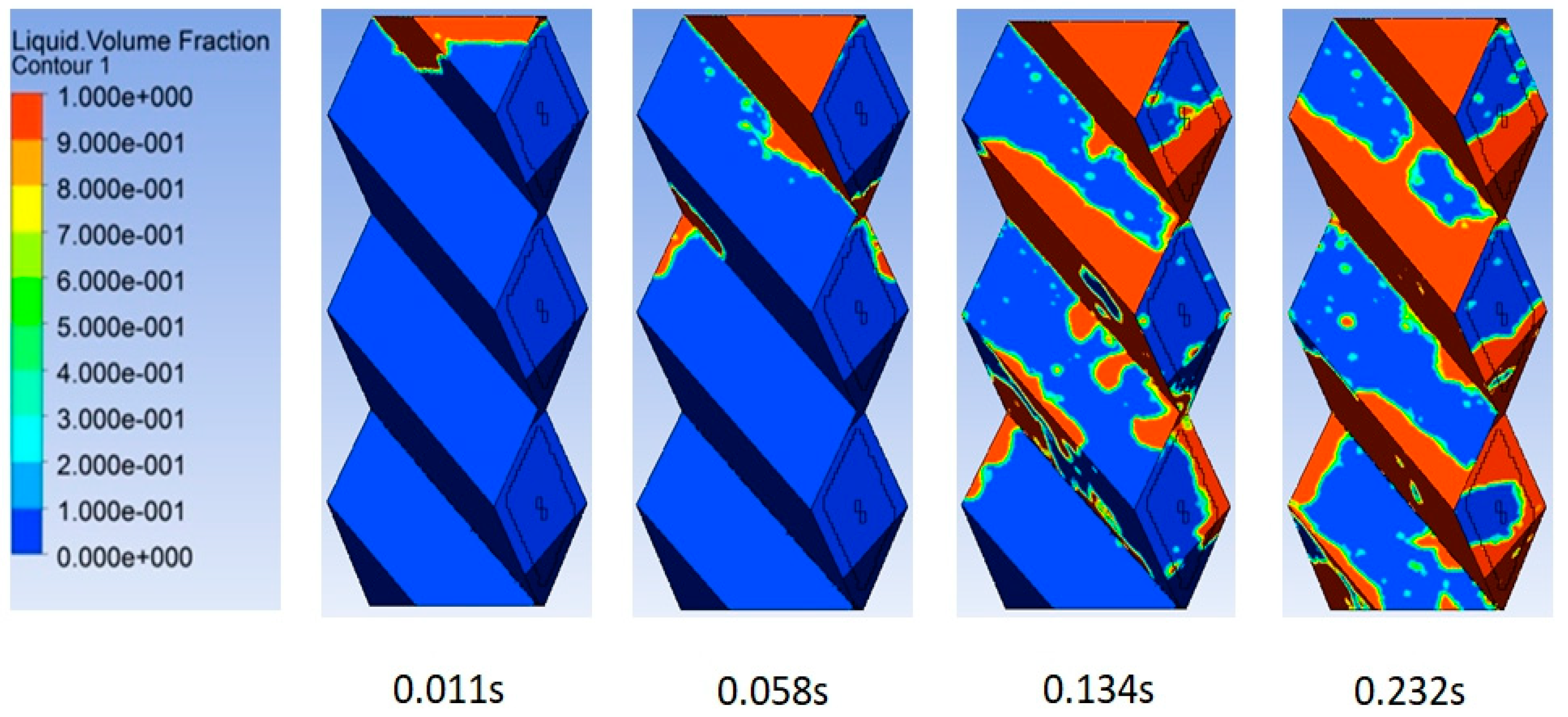

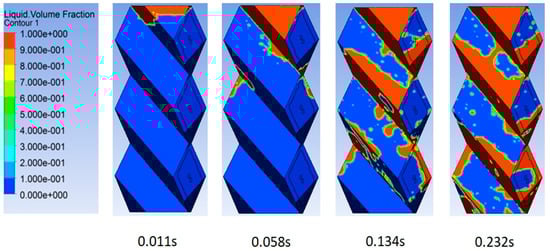

**Figure 11.**Flow development with time at $R{e}_{G}=1431$ and We = 5.13 (red color represents 100 vol. % of liquid and blue color represents 100 vol. % of gas).

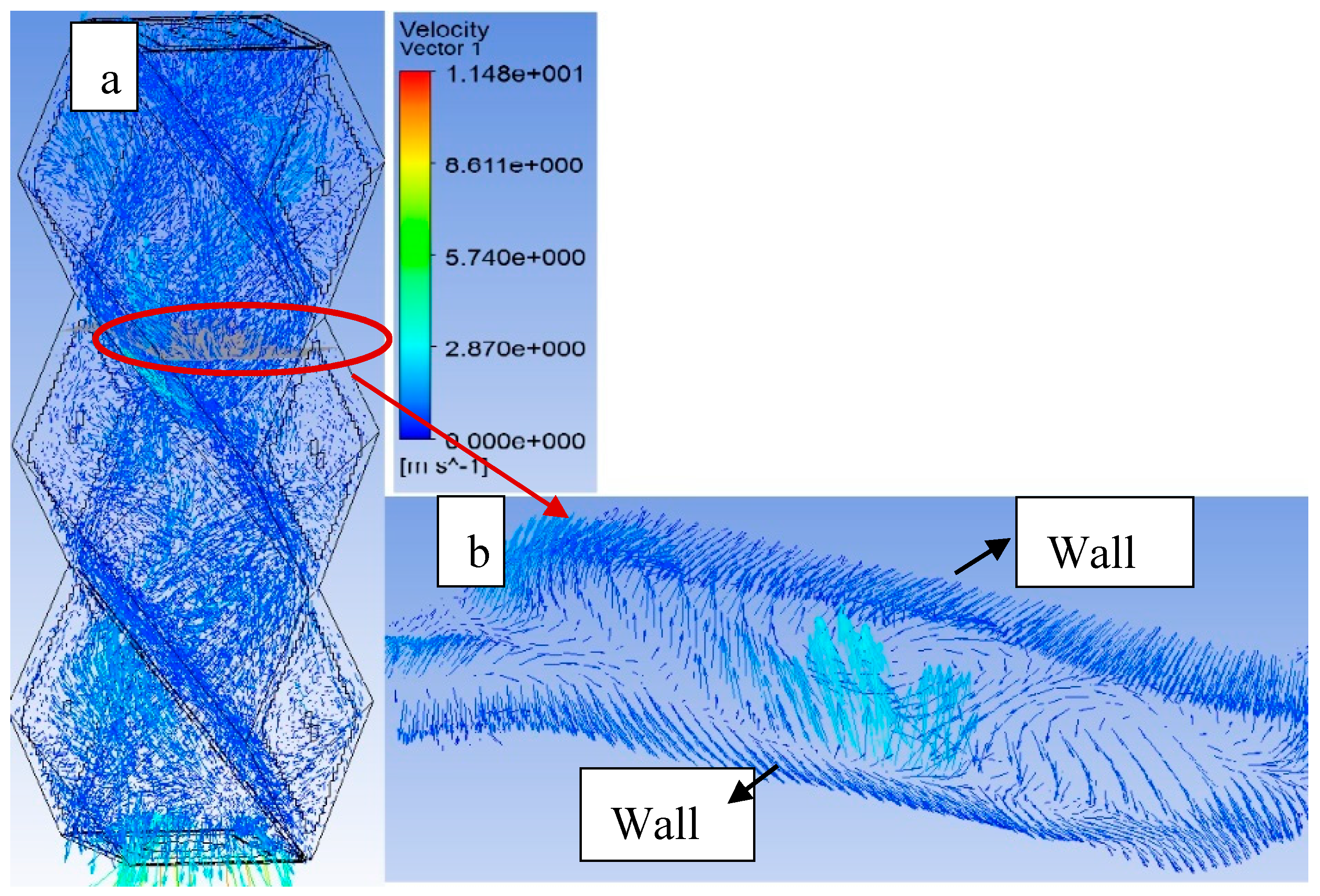

**Figure 12.**Gas and liquid flow vectors at $R{e}_{G}=1431$ and We = 5.13. (

**a**) The velocity vectors in the whole domain. (

**b**) Velocity vectors in a neck area or element channel within the packing.

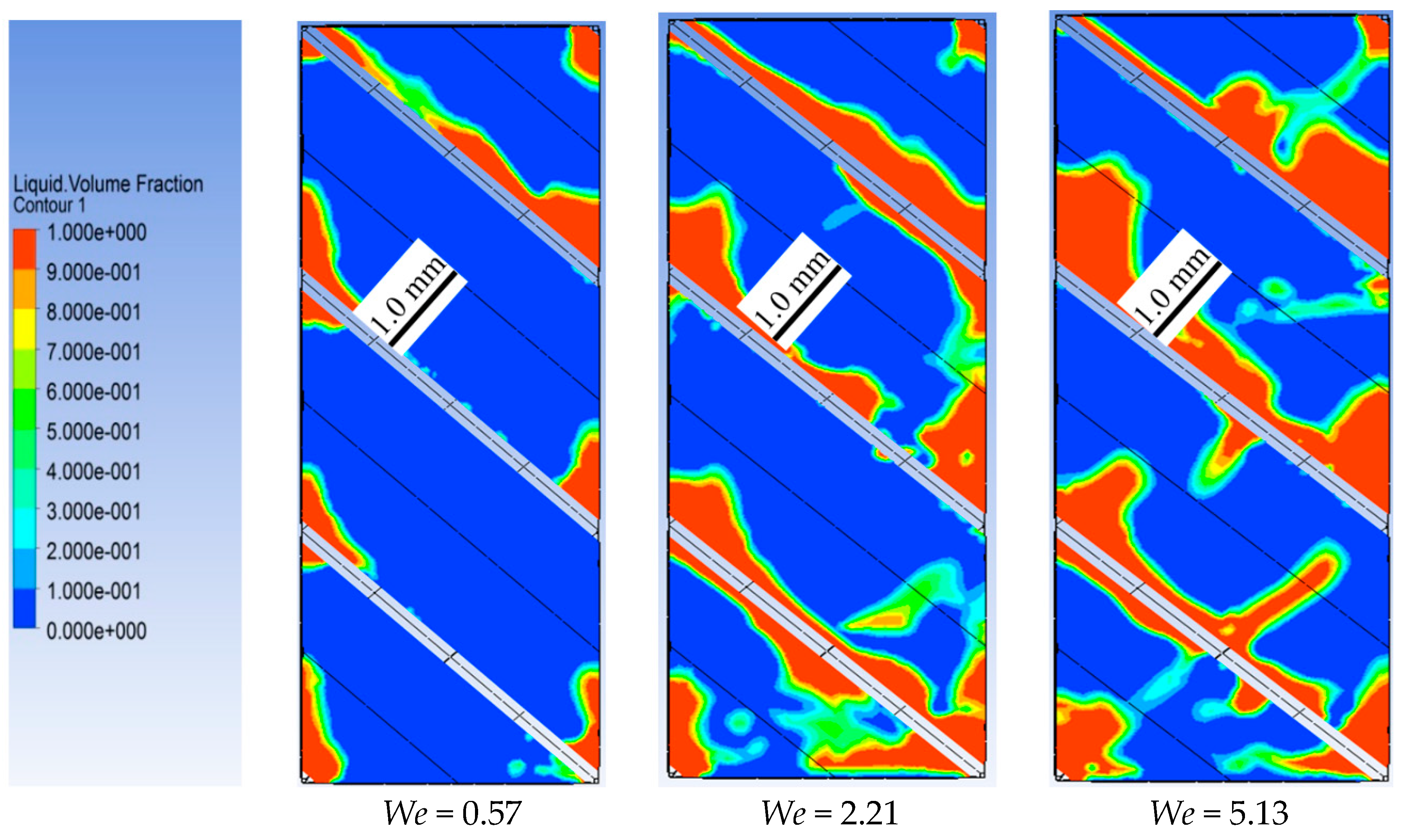

**Figure 13.**Film thicknesses as a function of liquid flow rates at constant $R{e}_{G}=1431$ (a red color represents 100 vol. % of liquid and blue color is 100 vol. % of gas).

Reference | Geometry Models | Contribution |
---|---|---|

Yu et al. (2018) [17] | 2D Structured and 3D Porous Model | From the 2D volume of fluid (VOF) model, the accumulation of the liquid in the troughs of the rough surface caused the average film thickness to be larger on the rough surface than on the smooth surface, particularly for low liquid loads. In the 3D VOF model, the flow paths were similar on the two surfaces, but the effective wetted area was slightly larger on the rough surface than on the smooth surface. |

Olenberg et al. (2017) [18] | Montz B1-250 Structured Model | Built a single-phase CFD simulation model, and predicted the pressure drop in structured packings. |

Haroun et al. (2014) [19] | 3-D Vertical Plate Model | Prediction of effective area and liquid hold-up in structured packings. |

Ding et al. (2015) [20] | 3D Structured Model | Characterized the pressure drop trend. |

Fourati et al. (2013) [21] | 1D Model | The Eulerian two-fluid framework with user-defined functions and associated models are taken into account in the liquid dispersion model. |

Haroun et al. (2012) [22] | 2-D Structured Packing Model | Studied mass transfer and liquid hold-up in a 2D cross section structured packing using the VOF method. |

Boundary | Materials | Type | Value | Velocity | Reynolds Number | Weber Number |
---|---|---|---|---|---|---|

Liquid inlet | Water | Mass Flow Rate | 12.2–48.8 m^{3}/(m^{2}·h) | 0.015–0.6 m/s | 15–600 | 0.02–5.13 |

Gas inlet | Air | Velocity m/s | 0.5–1.1 m/s | 0.5–1.1 m/s | 325–1200 | - |

Liquid outlet | - | Pressure-outlet | 0 Pa | - | - | - |

Gas outlet | - | Pressure-outlet | 0 Pa | - | - | - |
