Anisotropy in Thermal Recovery of Oil Shale—Part 1: Thermal Conductivity, Wave Velocity and Crack Propagation

Institute of Mining Technology, Taiyuan University of Technology, Taiyuan 030024, China
Author to whom correspondence should be addressed.
Received: 4 November 2017 / Revised: 21 December 2017 / Accepted: 22 December 2017 / Published: 1 January 2018
Full-Text   |   PDF [5214 KB, uploaded 1 January 2018]   |

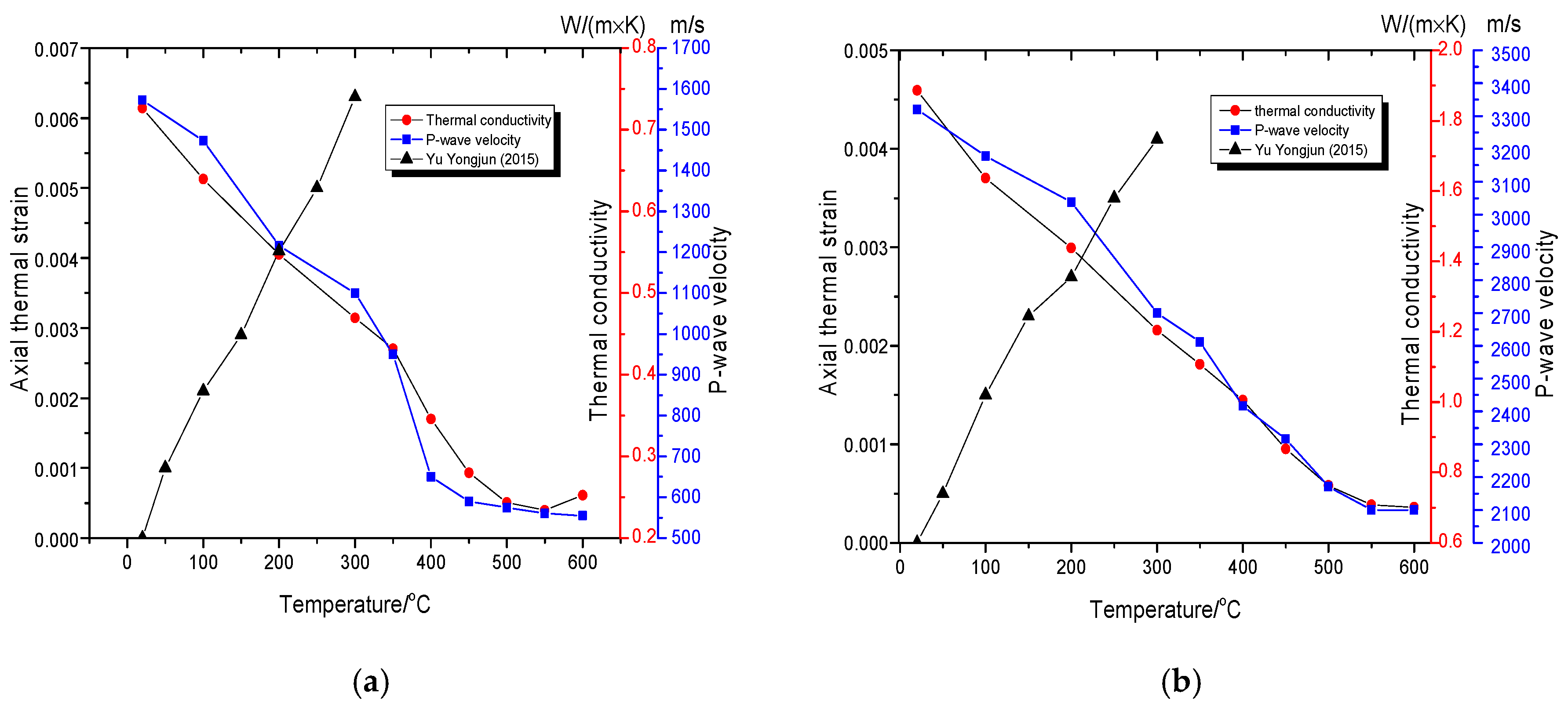

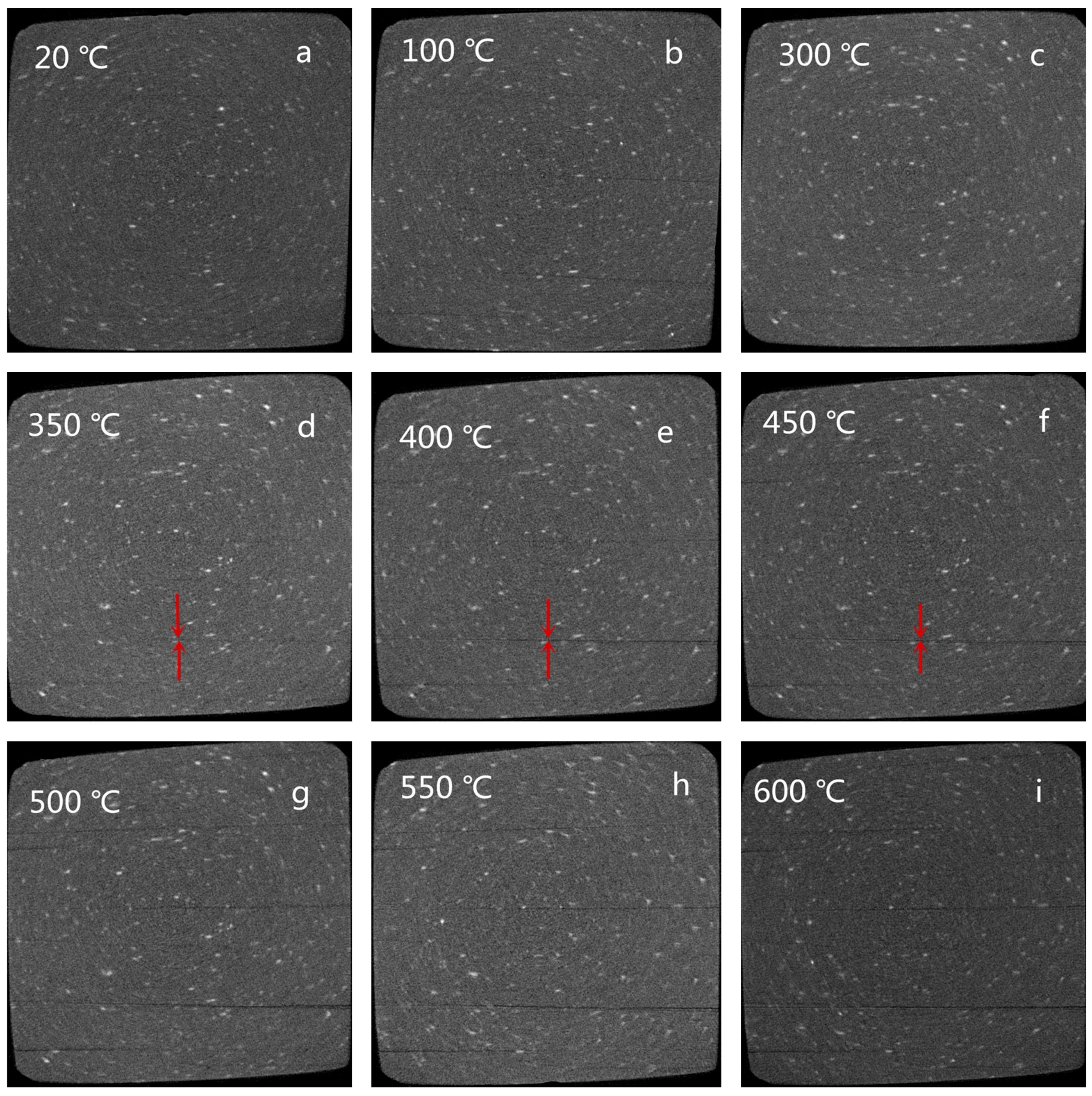

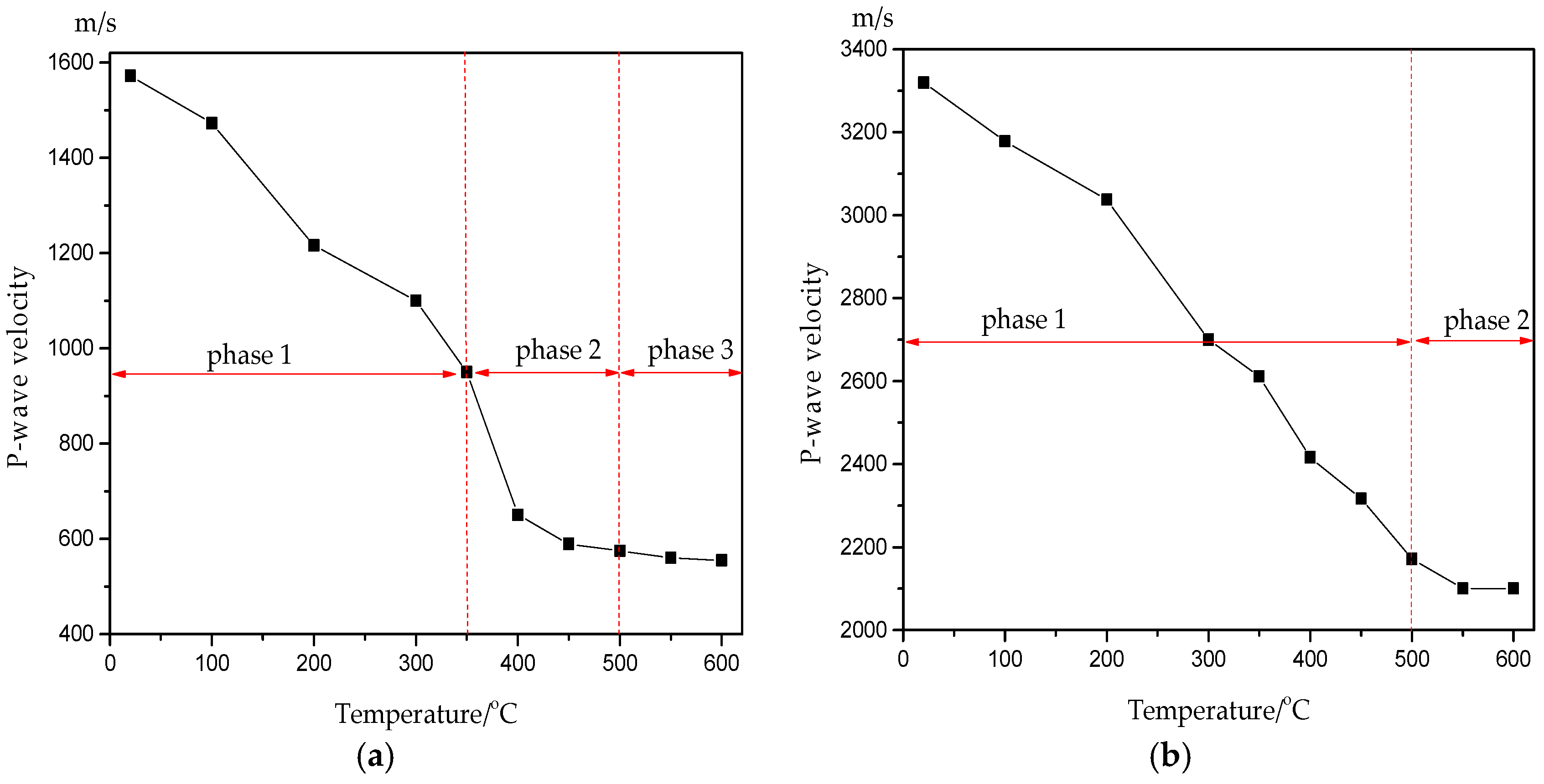

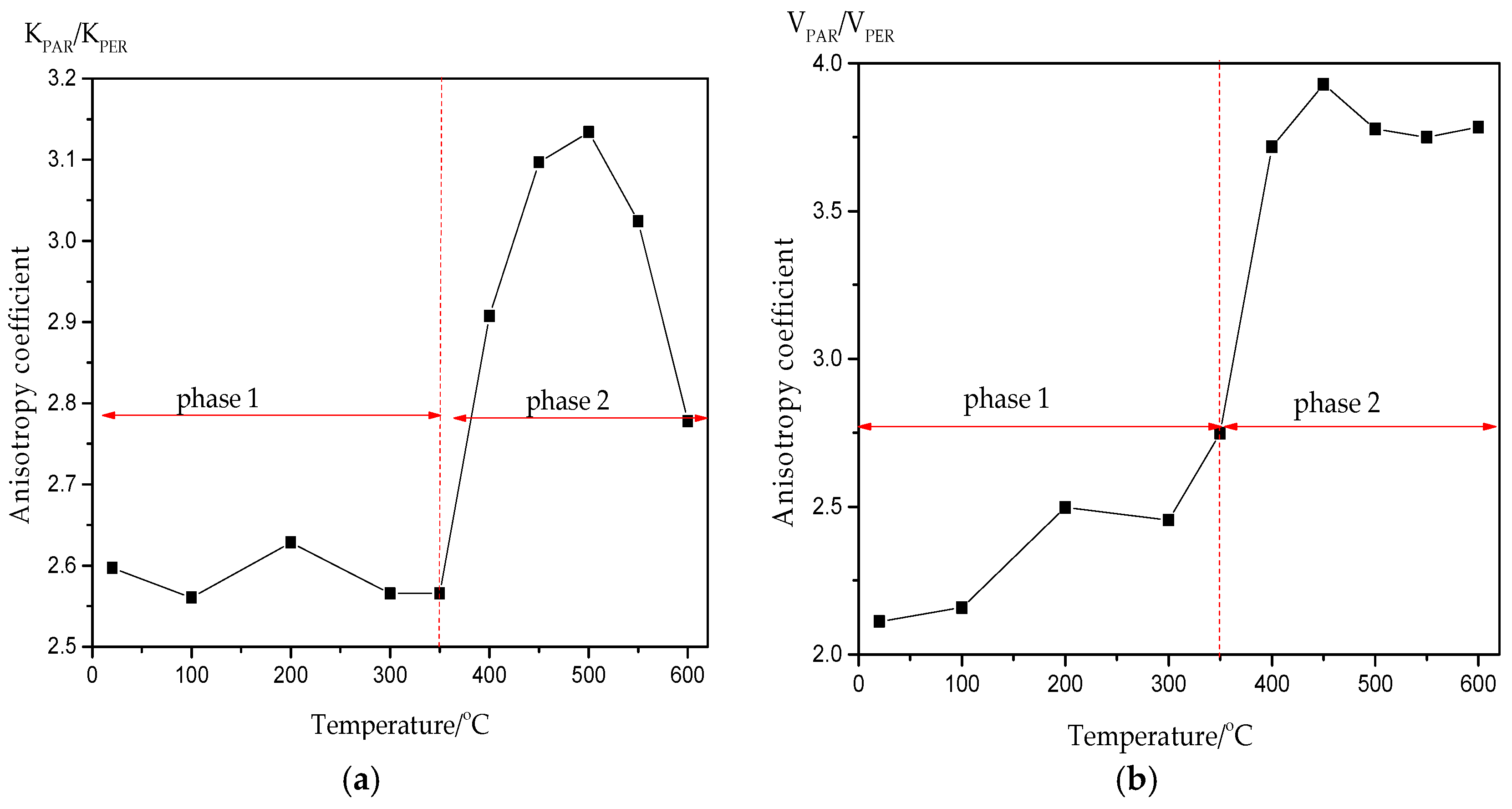

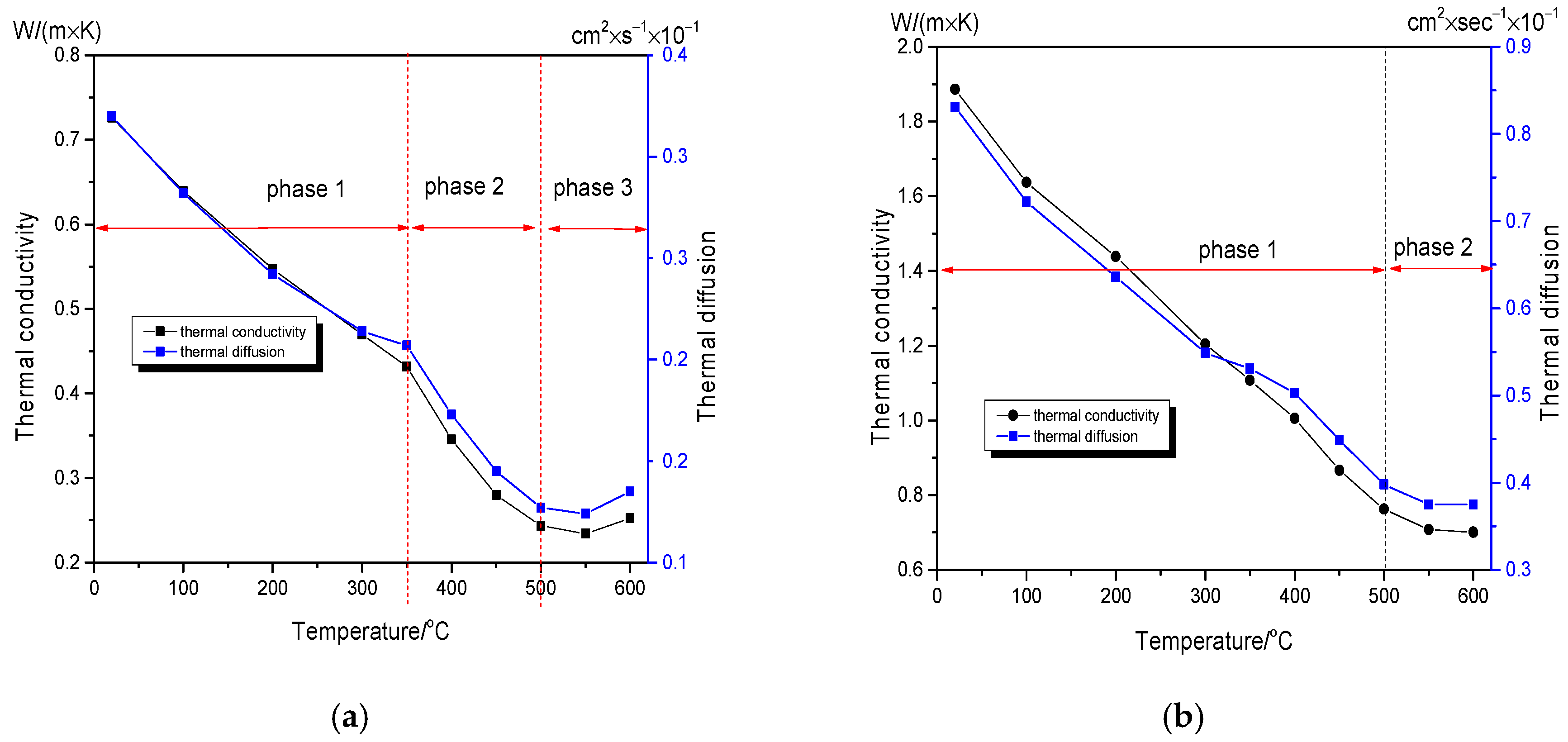

In this paper, the evolution of thermal conductivity, wave velocity and microscopic crack propagation both parallel and perpendicular to the bedding plane in anisotropic rock oil shale were studied at temperatures ranging from room temperature to 600 °C. The results show that the thermal conductivity of the perpendicular to bedding direction (KPER) (PER: perpendicular to beeding direction), wave velocity of perpendicular to bedding diretion (VPER), thermal conduction coefficient of parallel to beeding direction (KPAR) and wave velocity of parallel to beeding direction (VPAR) (PAR: parallel to bedding direction) decreased with the increase in temperature, but the rates are different. KPER and VPER linearly decreased with increasing temperature from room temperature to 350 °C, with an obvious decrease at 400 °C corresponding to a large number of cracks generated along the bedding direction. KPER, VPER, KPAR and VPAR generally maintained fixed values from 500 °C to 600 °C. 400 °C has been identified as the threshold temperature for anisotropic evolution of oil shale thermal physics. In addition, the relationship between the thermal conductivity and wave velocity based on the anisotropy of oil shale was fitted using linear regression. The research in this paper can provide reference for the efficient thermal recovery of oil shale, thermal recovery of heavy oil reservoirs and the thermodynamic engineering in other sedimentary rocks. View Full-Text
Keywords: anisotropy; temperature; heat conduction; wave velocity; crack propagation anisotropy; temperature; heat conduction; wave velocity; crack propagation

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, G.; Yang, D.; Kang, Z.; Zhao, J. Anisotropy in Thermal Recovery of Oil Shale—Part 1: Thermal Conductivity, Wave Velocity and Crack Propagation. Energies 2018, 11, 77.
