# Data–Driven Fault Diagnosis of a Wind Farm Benchmark Model

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

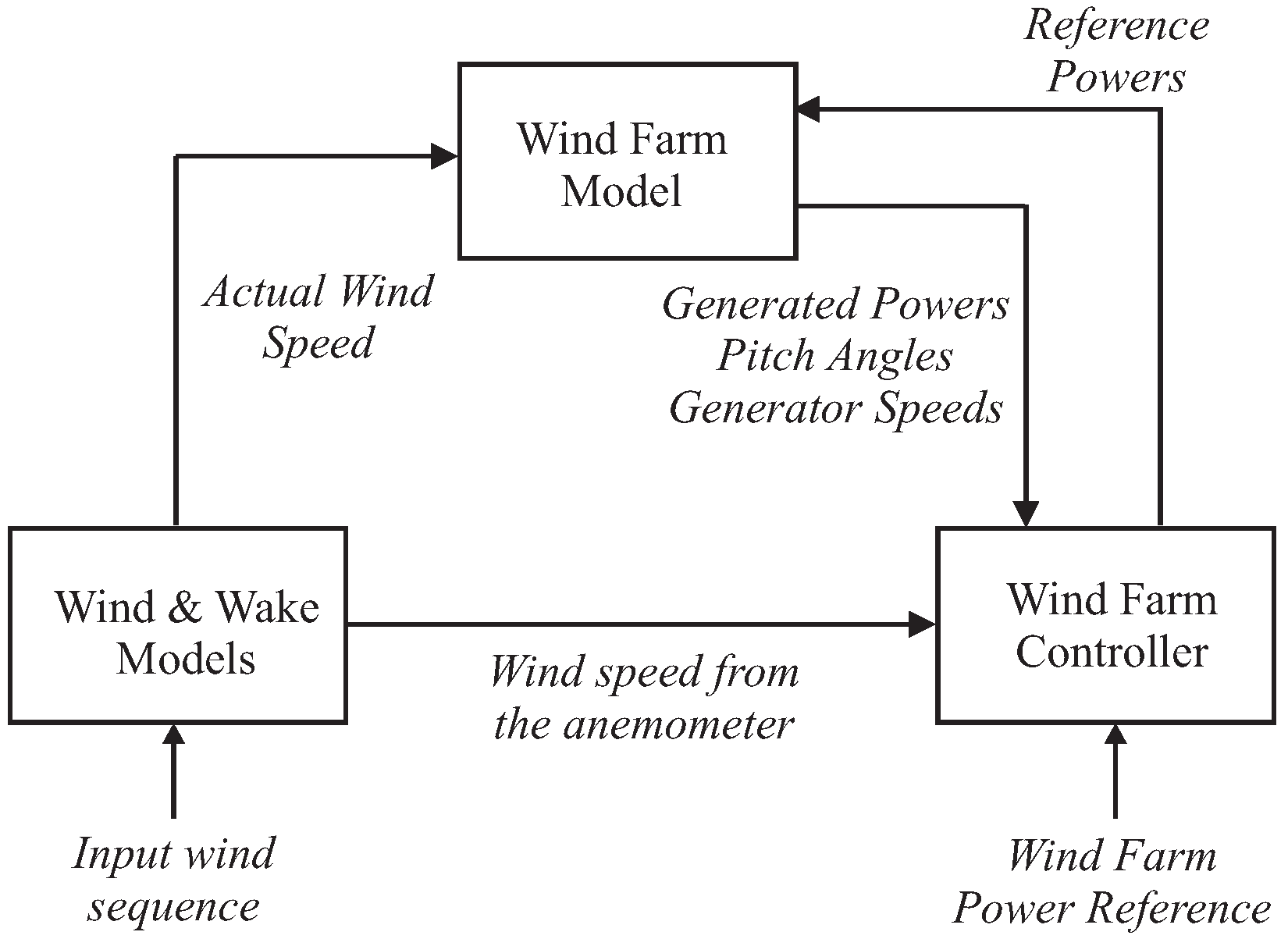

## 2. Wind Farm Benchmark Model

#### 2.1. Wind Farm Fault Scenario and Model Parameters

## 3. Data-Driven Fault Diagnosis Strategies

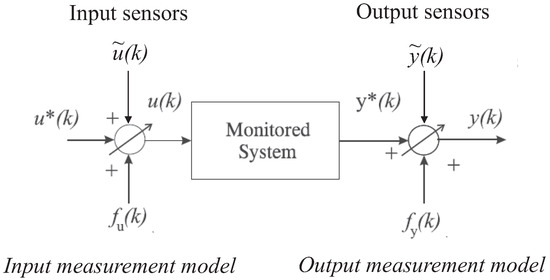

#### 3.1. Fault Diagnosis Scheme

#### 3.2. Fault Sensitivity Analysis for the Wind Farm System

#### 3.3. Fuzzy System Modelling

- the data matrix $\mathbf{Z}$ of Equation (13) is defined;
- the so-called fuzzy partition matrix $\mathbf{U}=\left[{\mu}_{ik}\right]$ is defined, which contains the values of the membership function for the couple i-th measurement/k-th cluster;
- the vector $\mathbf{V}=[{\mathbf{v}}_{1},\phantom{\rule{0.166667em}{0ex}}\dots ,\phantom{\rule{0.166667em}{0ex}}{\mathbf{v}}_{{n}_{C}}]$ containing the cluster prototypes is defined; they have to be determined and represent the centres from which the distance of each measurement is computed.

#### 3.3.1. Fuzzy Model Parameter Estimation

#### 3.4. Neural Network Modelling

#### 3.4.1. Fault Diagnosis Design Procedure

## 4. Model-Based Fault Diagnosis Method

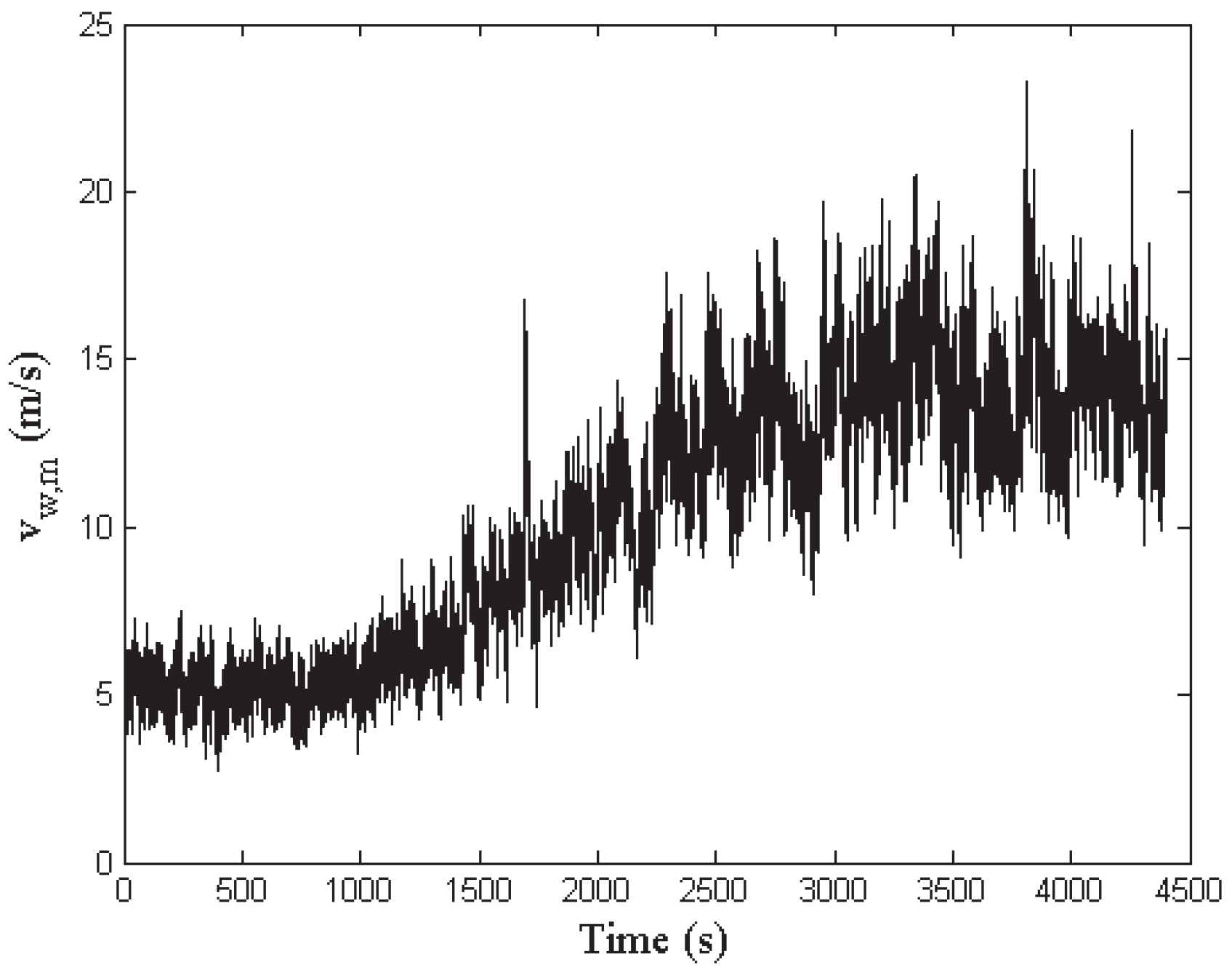

## 5. Simulation Results

#### 5.1. Fuzzy Estimator Results

#### 5.2. Neural Network Estimator Results

#### 5.3. Fault Diagnosis NLGA Simulations

#### 5.4. Validation and Comparative Analysis

**False Alarm Rate**(FAR): the ratio between the number of wrongly detected faults and the number of simulated faults;**Missed Fault Rate**(MFR): the ratio between the total number of missed faults (detection/isolation) and the number of simulated faults;**True Fault diagnosis Rate**(TFR): the ratio between the number of correctly detected/isolated faults and the number of simulated faults (complementary to MFR);**Mean Fault diagnosis Delay**(MFD): the delay time between the fault occurrence and the fault detection/isolation.

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Odgaard, P.; Patton, R. FDI/FTC wind turbine benchmark modelling. In Proceedings of the Workshop on Sustainable Control of Offshore Wind Turbines, Hull, UK, 19–20 September 2012. [Google Scholar]
- Odgaard, P.F.; Stoustrup, J. Fault tolerant wind farm control. A benchmark model. In Proceedings of the 2013 IEEE International Conference on Control Applications (CCA), Hyderabad, India, 28–30 August 2013; pp. 412–417. [Google Scholar]
- Odgaard, P.F.; Stoustrup, J. A benchmark evaluation of fault tolerant wind turbine control concepts. IEEE Trans. Control Syst. Technol.
**2015**, 23, 1221–1228. [Google Scholar] [CrossRef] - Chen, W.; Ding, S.X.; Sari, A.; Naik, A.; Khan, A.Q.; Yin, S. Observer-based FDI schemes for wind turbine benchmark. In Proceedings of the IFAC World Congress, Milano, Italy, 28 August–2 September 2011; Volume 18, pp. 7073–7078. [Google Scholar]
- Gong, X.; Qiao, W. Bearing fault diagnosis for direct-drive wind turbines via current-demodulated signals. IEEE Trans. Ind. Electron.
**2013**, 60, 3419–3428. [Google Scholar] [CrossRef] - Parker, M.A.; Ng, C.; Ran, L. Fault-tolerant control for a modular generator—Converter scheme for direct-drive wind turbines. IEEE Trans. Ind. Electron.
**2011**, 58, 305–315. [Google Scholar] [CrossRef] - Odgaard, P.F.; Stoustrup, J. Results of a wind turbine FDI competition. In Proceedings of the 8th IFAC symposium on fault detection, supervision and safety of technical processes, Mexico City, Mexico, 29–31 August 2012; pp. 102–107. [Google Scholar]
- Odgaard, P.F.; Shafiei, S.E. Evaluation of wind farm controller based fault detection and isolation. In Proceedings of the IFAC SAFEPROCESS Symposium 2015, Paris, France, 2–4 September 2015; Elsevier: Paris, France, 2015; Volume 48, pp. 1084–1089. [Google Scholar]
- Borcehrsen, A.B.; Larsen, J.A.; Stoustrup, J. Fault detection and load distribution for the wind farm challenge. In Proceedings of the 19th IFAC World Congress—IFAC’14, Cape Town, South Africa, 24–29 August 2014; Elsevier: Cape Town, South Africa, 2014; Volume 47, pp. 4316–4321. [Google Scholar] [CrossRef]
- Blesa, J.; Jimenez, P.; Rotondo, D.; Nejjari, F.; Puig, V. Fault Diagnosis of a Wind Farm Using Interval Parity Equations. In Proceedings of the 19th IFAC World Congress—IFAC’14, Cape Town, South Africa, 24–29 August 2014. [Google Scholar] [CrossRef]
- Simani, S.; Farsoni, S.; Castaldi, P. Residual Generator Fuzzy Identification for Wind Farm Fault Diagnosis. In Proceedings of the 19th World Congress of the International Federation of Automatic Control—IFAC’14, Cape Town, South Africa, 24–29 August 2014. [Google Scholar] [CrossRef]
- Simani, S.; Castaldi, P. Active actuator fault-tolerant control of a wind turbine benchmark model. Int. J. Robust Nonlinear Control
**2014**, 24, 1283–1303. [Google Scholar] [CrossRef] - De Persis, C.; Isidori, A. A geometric approach to nonlinear fault detection and isolation. IEEE Trans. Autom. Control
**2001**, 46, 853–865. [Google Scholar] [CrossRef] - Castaldi, P.; Mimmo, N.; Simani, S. Differential Geometry Based Active Fault Tolerant Control for Aircraft. Control Eng. Pract.
**2014**, 32, 227–235. [Google Scholar] [CrossRef] - Simani, S.; Fantuzzi, C.; Rovatti, R.; Beghelli, S. Parameter identification for piecewise-affine fuzzy models in noisy environment. Int. J. Approx. Reason.
**1999**, 22, 149–167. [Google Scholar] [CrossRef] - Chen, J.; Patton, R.J. Robust Model-Based Fault Diagnosis for Dynamic Systems; Springer Science & Business Media: Berlin, Germany, 2012; Volume 3. [Google Scholar]
- Jensen, N.O. A Note on Wind Generator Interaction; Riso National Laboratory: Roskilde, Denmark, 1983. [Google Scholar]
- Johnson, K.E.; Pao, L.Y.; Balas, M.J.; Fingersh, L.J. Control of variable-speed wind turbines: Standard and adaptive techniques for maximizing energy capture. IEEE Control Syst.
**2006**, 26, 70–81. [Google Scholar] [CrossRef] - Fantuzzi, C.; Simani, S.; Beghelli, S.; Rovatti, R. Identification of piecewise affine models in noisy environment. Int. J. Control
**2002**, 75, 1472–1485. [Google Scholar] [CrossRef] - Stamatis, D.H. Failure Mode and Effect Analysis: FMEA from Theory to Execution; ASQ Quality Press: New York, NY, USA, 2003. [Google Scholar]
- Takagi, T.; Sugeno, M. Fuzzy identification of systems and its applications to modeling and control. IEEE Trans. Syst. Man Cybern.
**1985**, 116–132. [Google Scholar] [CrossRef] - Babuška, R. Fuzzy Modeling for Control; Springer Science & Business Media: Berlin, Germany, 2012; Volume 12. [Google Scholar]
- Fantuzzi, C.; Rovatti, R. On the approximation capabilities of the homogeneous Takagi-Sugeno model. In Proceedings of the Fifth IEEE International Conference on Fuzzy Systems, New Orleans, LA, USA, 8–11 September 1996; Volume 2, pp. 1067–1072. [Google Scholar]
- Rovatti, R. Takagi-Sugeno models as approximators in sobolev norms: The siso case. In Proceedings of the Fifth IEEE International Conference on Fuzzy Systems, New Orleans, LA, USA; 1996; Volume 2, pp. 1060–1066. [Google Scholar]
- Jain, A.K.; Murty, M.N.; Flynn, P.J. Data clustering: A review. In ACM Computing Surveys (CSUR); ACM Digital Library: New York, NY, USA, 1999; Volume 31, pp. 264–323. [Google Scholar]
- Jun, W.; Shitong, W.; Chung, F.l. Positive and negative fuzzy rule system, extreme learning machine and image classification. Int. J. Mach. Learn. Cybern.
**2011**, 2, 261–271. [Google Scholar] [CrossRef] - Graaff, A.J.; Engelbrecht, A.P. Clustering data in stationary environments with a local network neighborhood artificial immune system. Int. J. Mach. Learn. Cybern.
**2012**, 3, 1–26. [Google Scholar] [CrossRef] - Bezdek, J.C. Pattern Recognition with Fuzzy Objective Function Algorithms; Springer Science & Business Media: Berlin, Germany, 2013. [Google Scholar]
- Beghelli, S.; Guidorzi, R.P.; Soverini, U. The Frisch scheme in dynamic system identification. Automatica
**1990**, 26, 171–176. [Google Scholar] [CrossRef] - Haykin, S.S. Neural Networks and Learning Machines; Pearson Education Upper Saddle River: Hoboken, NJ, USA, 2009; Volume 3. [Google Scholar]
- Liu, G.P. Nonlinear Identification and Control: A Neural Network Approach; Springer Science & Business Media: Berlin, Germany, 2012. [Google Scholar]
- Medsker, L.; Jain, L.C. Recurrent Neural Networks: Design and Applications; CRC Press: Boca Raton, FL, USA, 1999. [Google Scholar]
- Marquardt, D.W. An algorithm for least-squares estimation of nonlinear parameters. J. Soc. Ind. Appl. Math.
**1963**, 11, 431–441. [Google Scholar] [CrossRef] - Hagan, M.T.; Menhaj, M.B. Training feedforward networks with the Marquardt algorithm. IEEE Trans. Neural Netw.
**1994**, 5, 989–993. [Google Scholar] [CrossRef] [PubMed] - Simani, S.; Castaldi, P. Estimation of the power coefficient map for a wind turbine system. In Proceedings of the 9th European Workshop on Advanced Control and Diagnosis (ACD’11), Budapest, Hungary, 17–18 November 2011; pp. 1–7. [Google Scholar]
- De Persis, C.; Isidori, A. On the observability codistributions of a nonlinear system. Syst. Control Lett.
**2000**, 40, 297–304. [Google Scholar] [CrossRef] - Castaldi, P.; Geri, W.; Bonfè, M.; Simani, S.; Benini, M. Design of residual generators and adaptive filters for the fdi of aircraft model sensors. Control Eng. Pract.
**2010**, 18, 449–459. [Google Scholar] [CrossRef] - Rovatti, R.; Fantuzzi, C.; Simani, S. High-speed DSP-based implementation of piecewise-affine and piecewise-quadratic fuzzy systems. Signal Process. J.
**2000**, 80, 951–963. [Google Scholar] [CrossRef] - Simani, S. Identification and Fault Diagnosis of a Simulated Model of an Industrial Gas Turbine. IEEE Trans. Ind. Inform.
**2005**, 1, 202–216. [Google Scholar] [CrossRef]

Sample Availability: The software simulation codes for the proposed control strategies and the simulated wind farm benchmark are available from the authors in the MATLAB and Simulink environments. |

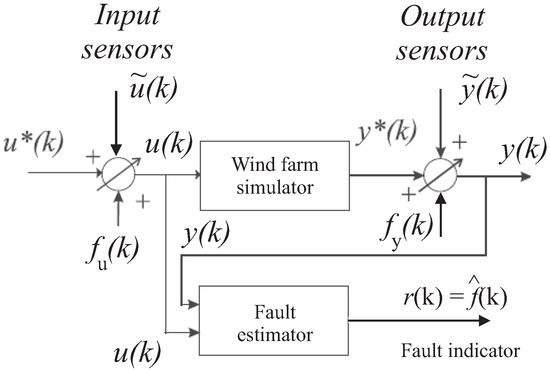

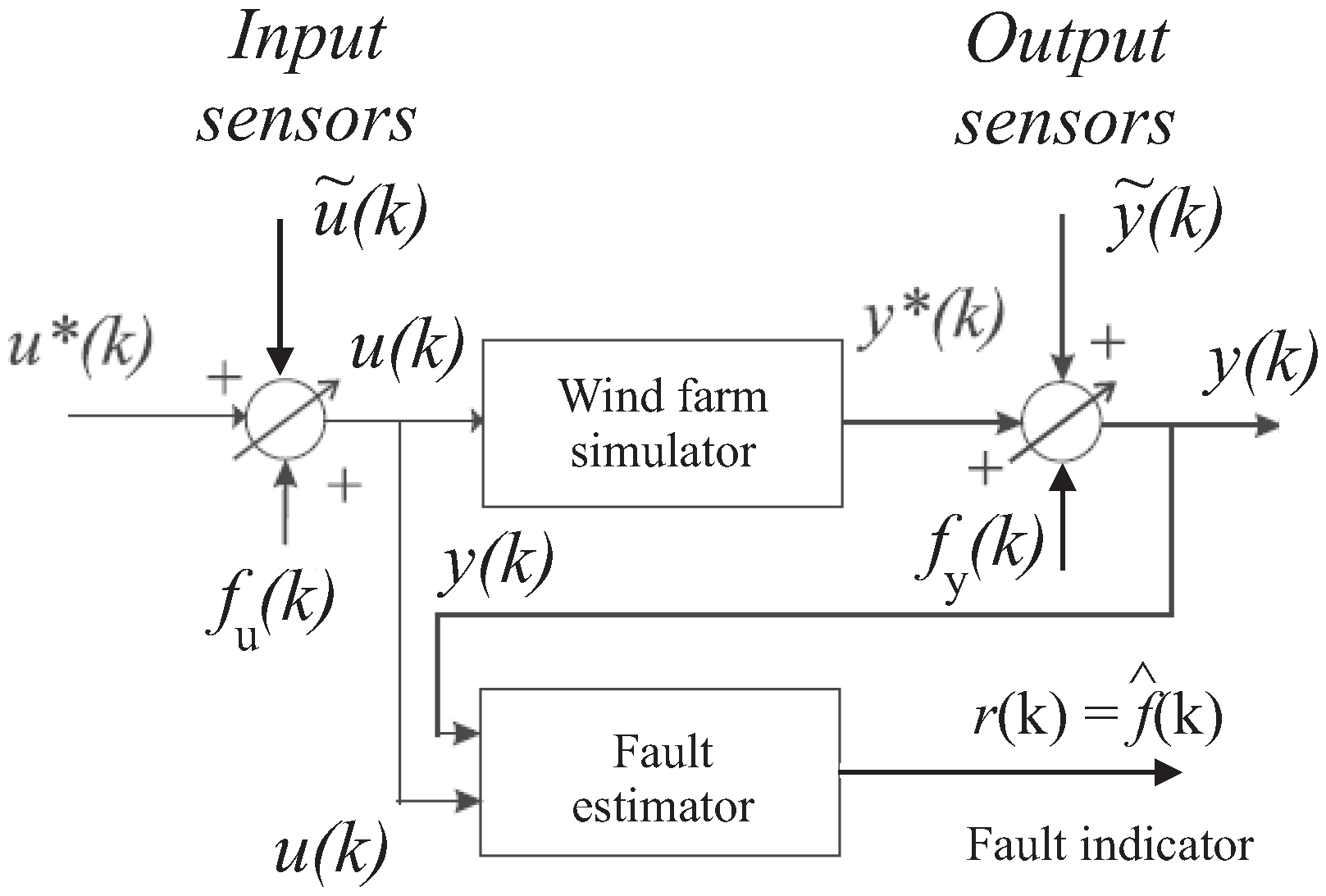

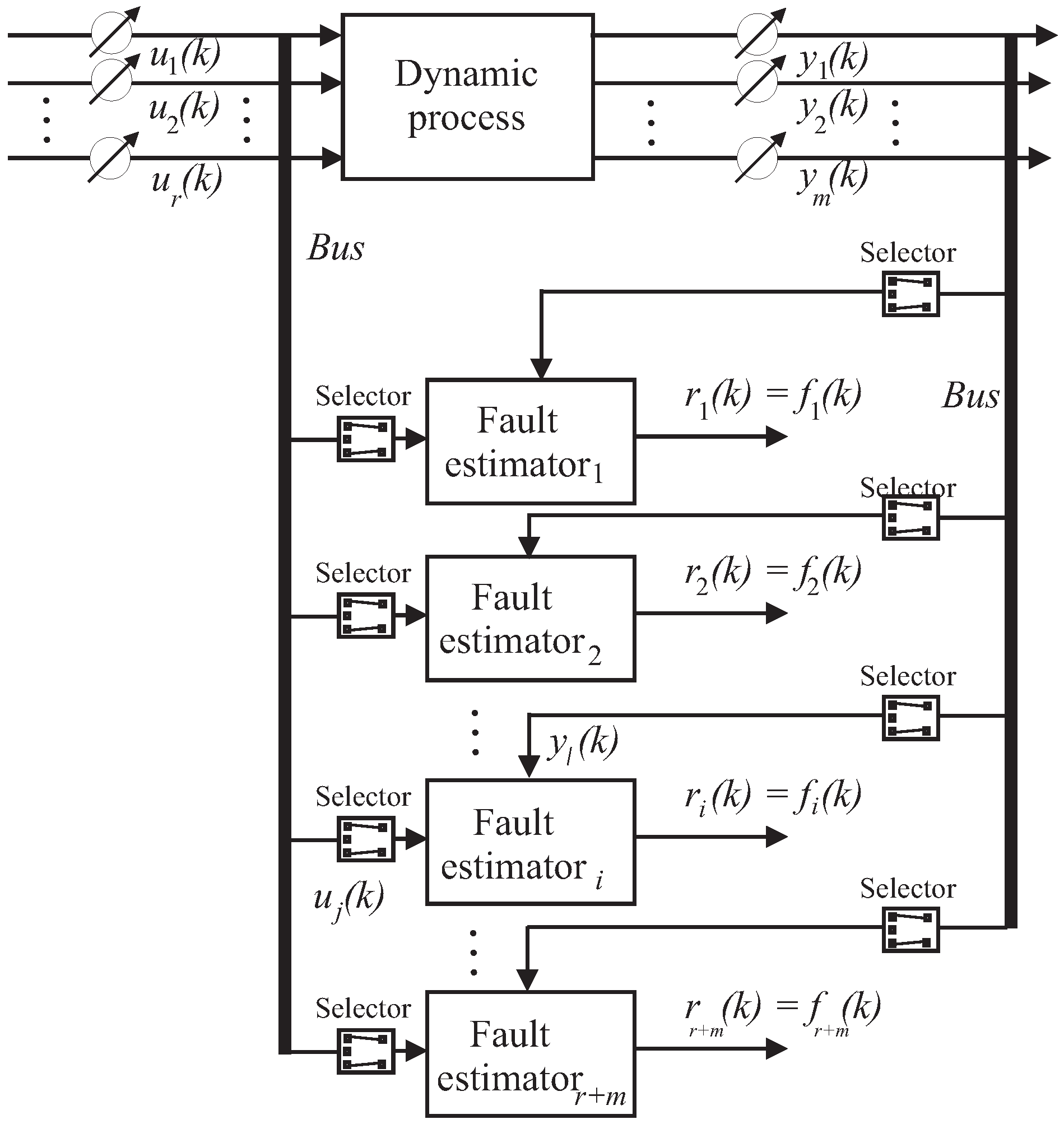

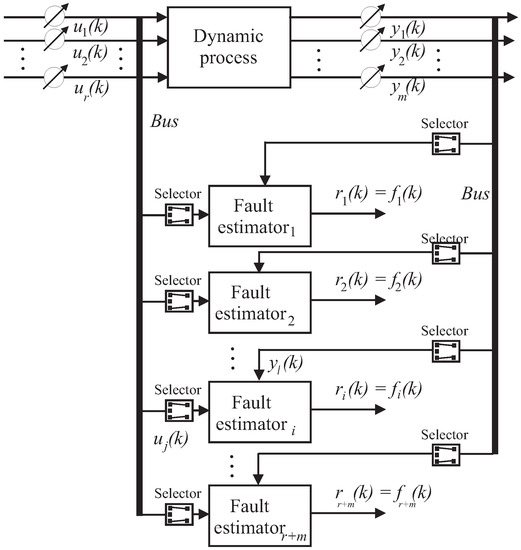

**Figure 4.**The general estimator scheme for the reconstruction of the equivalent input or output faults, ${f}_{u}$ or ${f}_{y}$.

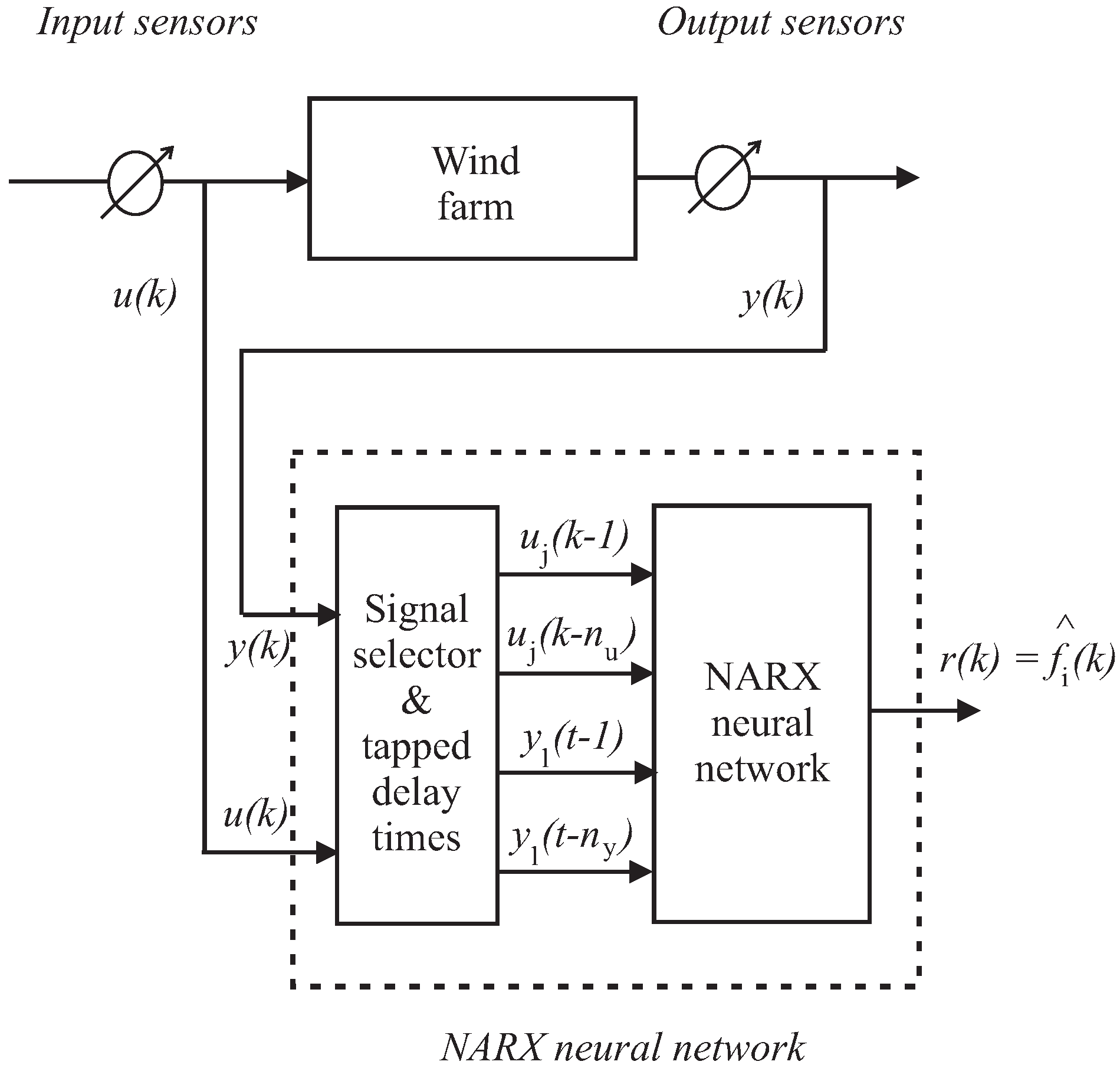

**Figure 5.**The nonlinear autoregressive neural network with exogenus input topology (NN–NARX) used to reconstruct of the general fault signal ${\widehat{f}}_{i}\left(k\right)$.

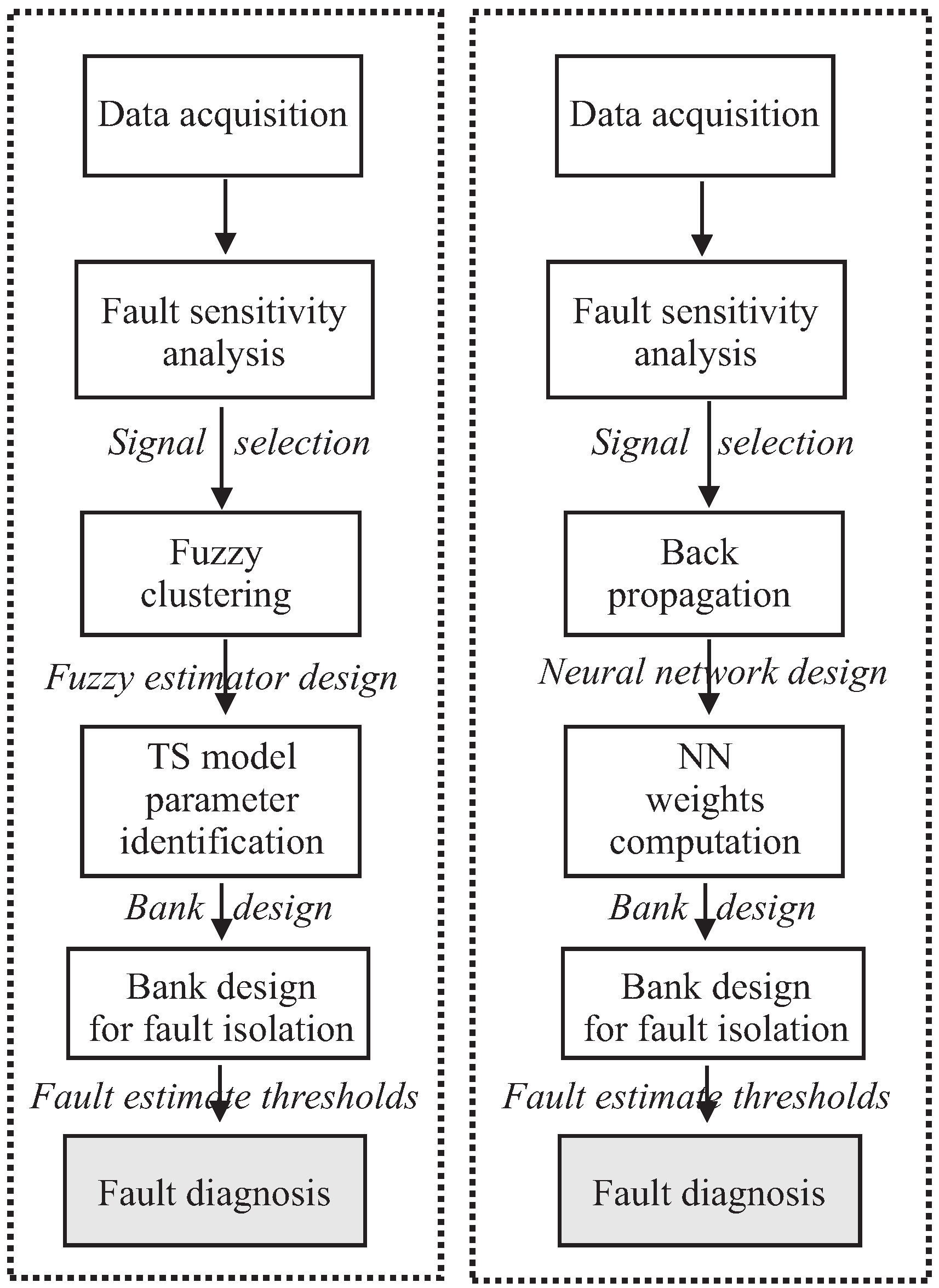

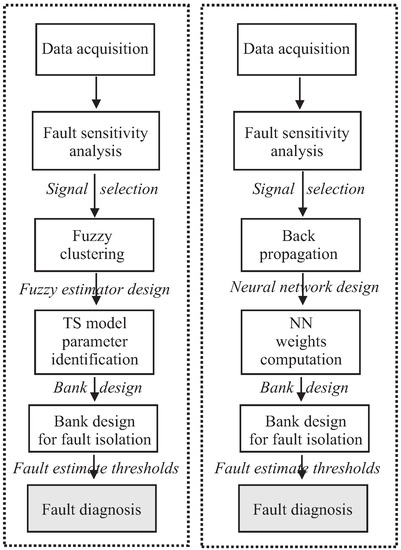

**Figure 6.**Neural networks and fuzzy model similarity in the general design procedure. NN: neural network; TS: Takagi–Sugeno.

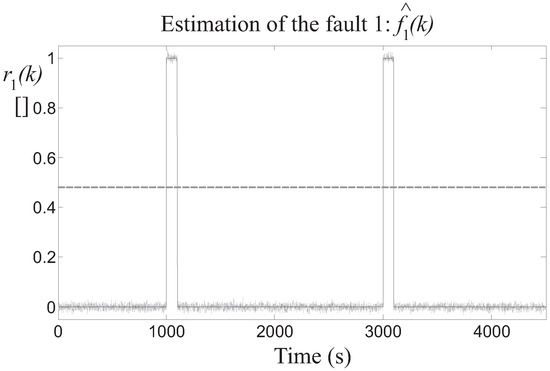

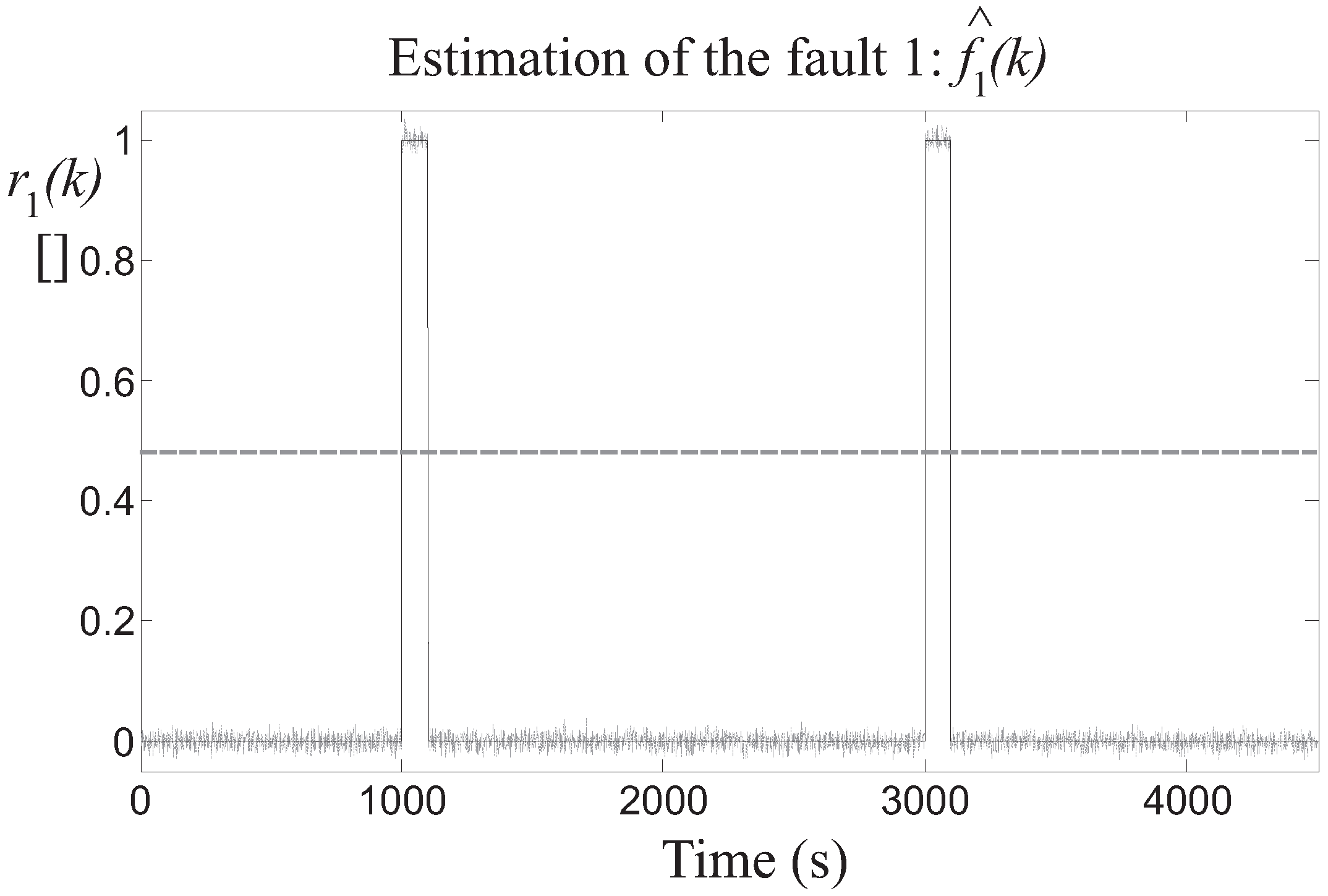

**Figure 8.**Fault 1 estimator residual ${r}_{1}\left(k\right)$ (continuous lines) and its threshold level (dotted line).

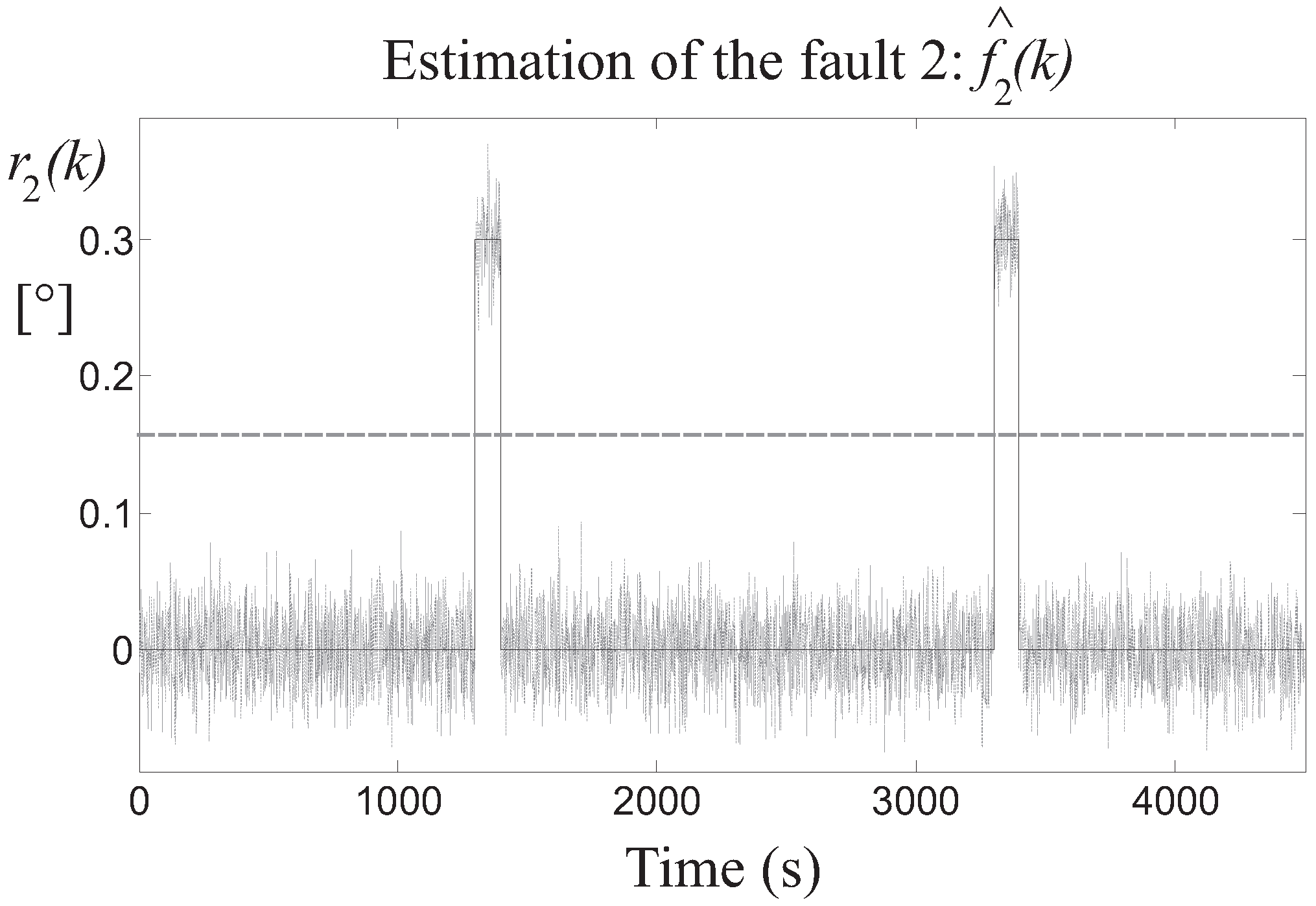

**Figure 9.**Fault 2 estimator residual ${r}_{2}\left(k\right)$ (continuous lines) and its threshold level (dotted line).

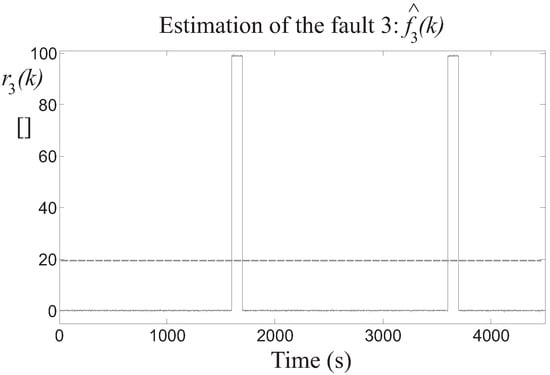

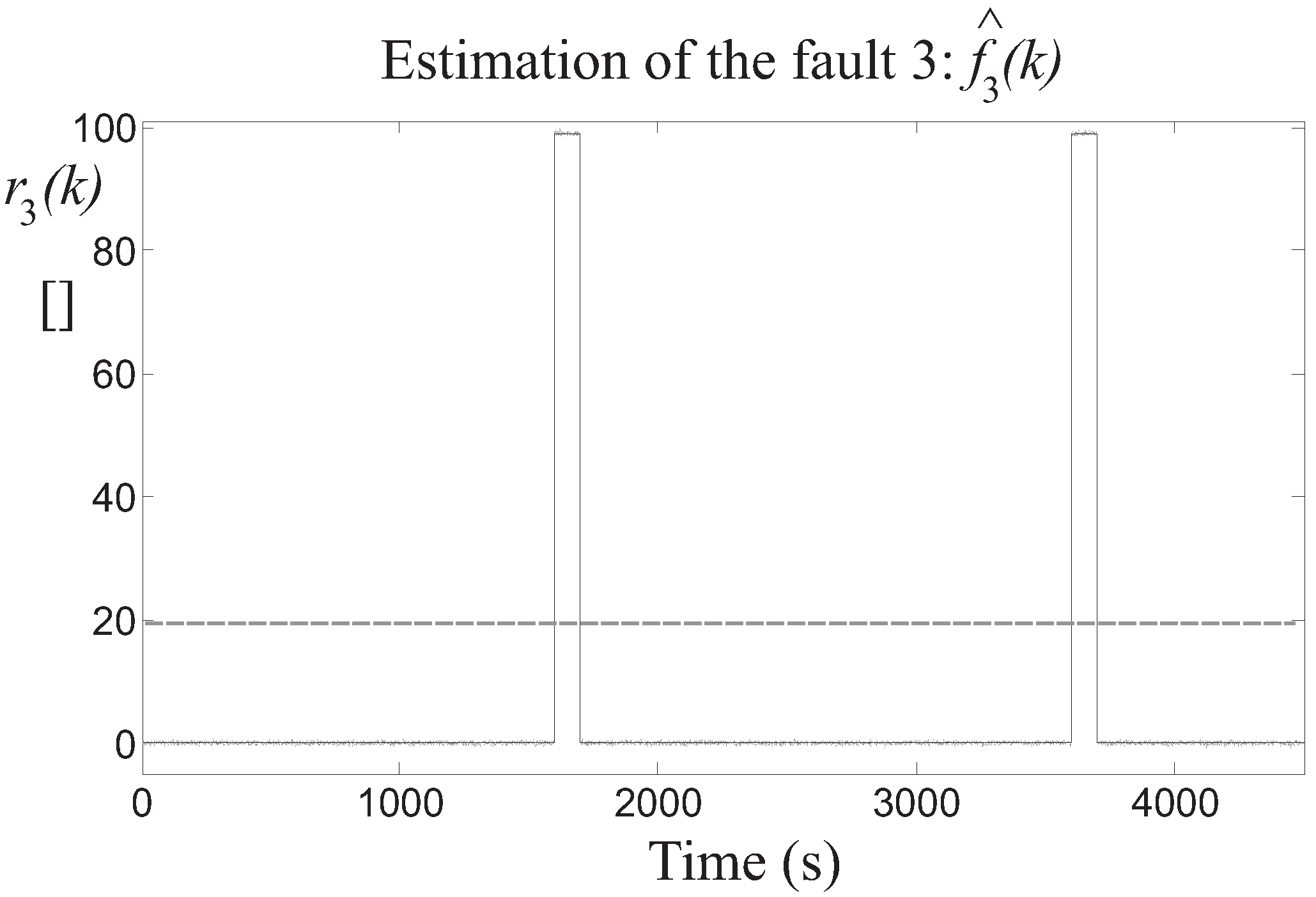

**Figure 10.**Fault 3 estimator residual ${r}_{3}\left(k\right)$ (continuous lines) and its threshold level (dotted line).

Fault # | Fault Cause | Description | Fault Effect |
---|---|---|---|

1 | Blade surface debris build-up | Scaling factor (aerodyn. model) | Reduced generated power |

2 | Blade misalignment | Sensor offset | Measured pitch angle offset |

3 | Drive-train wear and tear | Drive-train model params. | Generator speed oscillation |

Variable Name | Parameter Value |
---|---|

R | 57.5 m |

${\tau}_{p}$ | 1.2 rad/s |

${\gamma}_{p}$ | 1000 W |

${\sigma}_{p}$ | 10 Hz |

${\tau}_{\beta}$ | 1.6 rad/s |

${\omega}_{g,max}$ | 158 rad/s |

Residual/Fault | ${\mathit{f}}_{1}$ | ${\mathit{f}}_{2}$ | … | ${\mathit{f}}_{\mathit{r}}$ | ${\mathit{f}}_{\mathit{r}+1}$ | ${\mathit{f}}_{\mathit{r}+2}$ | … | ${\mathit{f}}_{\mathit{r}+\mathit{m}}$ |
---|---|---|---|---|---|---|---|---|

${r}_{1}$ | 1 | 0 | … | 0 | 0 | 0 | … | 0 |

${r}_{2}$ | 0 | 1 | … | 0 | 0 | 0 | … | 0 |

⋮ | ⋱ | … | ⋮ | |||||

${r}_{r}$ | 0 | 0 | … | 1 | 0 | 0 | … | 0 |

${r}_{r+1}$ | 0 | 0 | … | 0 | 1 | 0 | … | 0 |

${r}_{r+2}$ | 0 | 0 | … | 0 | 0 | 1 | … | 0 |

⋮ | … | ⋱ | ⋮ | |||||

${r}_{r+m}$ | 0 | 0 | … | 0 | 0 | 0 | … | 1 |

Fault Case ${\mathit{f}}_{\mathit{i}}\left(\mathit{k}\right)$ | Most Sensitive Measurements ${\mathit{u}}_{\mathit{j}}\left(\mathit{k}\right)$ and ${\mathit{y}}_{\mathit{l}}\left(\mathit{k}\right)$ |
---|---|

1 | ${\beta}_{2}$, ${P}_{g,2}$, ${\beta}_{7}$, ${P}_{g,7}$, ${v}_{w,m}$ |

2 | ${\beta}_{1}$, ${\omega}_{g,1}$, ${\beta}_{5}$, ${\omega}_{g,5}$, ${v}_{w,m}$ |

3 | ${\beta}_{6}$, ${P}_{g,6}$, ${\beta}_{8}$, ${\omega}_{g,8}$, ${v}_{w,m}$ |

Fault | # Affected Turbine: (i, j) | Time (s) |
---|---|---|

1 | # 7: (3, 1) | 1000–1100 |

# 2: (1, 2) | 3000–3100 | |

2 | # 1: (1, 1) | 1300–1400 |

# 5: (2, 2) | 3300–3400 | |

3 | # 6: (2, 3) | 1600–1700 |

# 8: (3, 2) | 3600–3700 |

2*Data Set | RMSE (%) | ||
---|---|---|---|

Fault 1 Estimator | Fault 2 Estimator | Fault 3 Estimator | |

Estimation | 0.0090 | 0.0087 | 0.0092 |

Validation | 0.0103 | 0.0101 | 0.0105 |

Test | 0.0108 | 0.0103 | 0.0109 |

Fault Estimator # | 1 | 2 | 3 |
---|---|---|---|

RMSE % (training set) | 0.0089 | 0.0091 | 0.0092 |

RMSE % (validation set) | 0.0091 | 0.0093 | 0.0095 |

RMSE % (test set) | 0.0106 | 0.0104 | 0.0123 |

**Table 8.**The optimal values of the parameter $\delta $ used for fault diagnosis purposes by the designed residual generators.

Residual ${\mathit{r}}_{\mathit{i}}\left(\mathit{k}\right)={\widehat{\mathit{f}}}_{\mathit{i}}\left(\mathit{k}\right)$ | $\mathit{\delta}$ for the Fuzzy Estimators | $\mathit{\delta}$ for the Neural Network Estimators |
---|---|---|

1 | 2.15 | 2.34 |

2 | 2.23 | 2.45 |

3 | 2.34 | 2.89 |

**Table 9.**RMSE of the nonlinear differential geometric approach (NLGA) fault estimator with disturbance decoupling.

Fault Case | Fault 1 Estimator | Fault 2 Estimator | Fault 3 Estimator |
---|---|---|---|

RMSE (%) | 0.0007 | 0.0008 | 0.0009 |

Parameter | Nominal Value | Error Value |
---|---|---|

$\rho $ | 1.225 kg/m${}^{3}$ | $\pm 20\%$ |

J | 7.794 × 10${}^{6}$ kg/m${}^{3}$ | $\pm 30\%$ |

${C}_{p}$ | ${C}_{p0}$ | $\pm 50\%$ |

**Table 11.**Comparison of the fault diagnosis results with the different fault diagnosis strategies. FF: fuzzy filter; IPE: interval parity equation; NLGA-AF: NLGA adaptive filter; NNF: neural network filter; CBD: CUSUM–based detection.

Fault Case | Index | FF | NNF | NLGA-AF | CBD | IPE |
---|---|---|---|---|---|---|

1 | FAR | 0.0010 | 0.0010 | 0.0006 | 0.0013 | 0.0024 |

MFR | 0.0010 | 0.0010 | 0.0007 | 0.0000 | 0.0005 | |

TFR | 0.9990 | 0.9990 | 0.9994 | 0.9999 | 0.9995 | |

MFD (s) | 0.02 | 0.01 | 0.007 | 4.7 | 1.1 | |

2 | FAR | 0.0010 | 0.2280 | 0.0004 | 0.0111 | 0.0015 |

MFR | 0.0030 | 0.0010 | 0.0005 | 0.0015 | 0.0005 | |

TFR | 0.9970 | 0.9990 | 0.9996 | 0.9985 | 0.9995 | |

MFD (s) | 0.08 | 0.08 | 0.008 | ND | 12.4 | |

3 | FAR | 0.0030 | 0.0010 | 0.0005 | 0.0055 | 0.0007 |

MFR | 0.0080 | 0.0010 | 0.0006 | 0.0000 | 0.0010 | |

TFR | 0.9920 | 0.9990 | 0.9995 | 0.9999 | 0.9990 | |

MFD (s) | 0.02 | 0.01 | 0.006 | 13.1 | 15.2 |

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
