Article

Review of the Life Cycle Greenhouse Gas Emissions from Different Photovoltaic and Concentrating Solar Power Electricity Generation Systems

by
Raghava Kommalapati
1,2,*,
Akhil Kadiyala
1,
Md. Tarkik Shahriar
1,2 and
Ziaul Huque
3
1
Center for Energy & Environmental Sustainability, Prairie View A&M University, Prairie View, TX 77446, USA
2
Department of Civil & Environmental Engineering, Prairie View A&M University, Prairie View, TX 77446, USA
3
Department of Mechanical Engineering, Prairie View A&M University, Prairie View, TX 77446, USA
*
Author to whom correspondence should be addressed.
Energies 2017, 10(3), 350; https://doi.org/10.3390/en10030350
Submission received: 8 October 2016 / Revised: 2 March 2017 / Accepted: 6 March 2017 / Published: 11 March 2017
Browse Figures
Versions Notes

Abstract

:
This paper contains an extensive review of life cycle assessment (LCA) studies on greenhouse gas emissions (GHG) from different material-based photovoltaic (PV) and working mechanism-based concentrating solar power (CSP) electricity generation systems. Statistical evaluation of the life cycle GHG emissions is conducted to assess the role of different PVs and CSPs in reducing GHG emissions. The widely-used parabolic trough and central receiver CSP electricity generation systems emitted approximately 50% more GHGs than the paraboloidal dish, solar chimney, and solar pond CSP electricity generation systems. The cadmium telluride PVs and solar pond CSPs contributed to minimum life cycle GHGs. Thin-film PVs are also suitable for wider implementation, due to their lower Energy Pay-Back Time (EPBT) periods, in addition to lower GHG emission, in comparison with c-Si PVs.

1. Introduction

Solar energy may be defined as the energy harnessed from the solar radiation reaching the Earth’s surface. Solar energy may be harnessed for electricity generation by using (a) photovoltaic (PV) and (b) concentrating solar power (CSP) systems. The PV systems work on the principle of direct conversion of solar radiation into electricity when sunlight comes in contact with materials (e.g., semiconductors) exhibiting the photoelectric effect (where there is a release of electrons after absorption of photons of light). A combination of multiple PV modules (a combination of a number of solar cells connected to each other and mounted over a frame) is generally referred to as an array. The PV modules or arrays may be connected in series or parallel to generate electricity. The CSP systems accumulate the sun's energy to a receiver that serves as a heat source to be used, subsequently, in moving steam or wind turbines to generate electricity. An intermediate medium (referred to as the heat transfer fluid) is used for the transfer of thermal energy to generate electricity with the case of CSP being located at a place different from the location of the receiver.
The total electricity generation in 2012 across the world was reported to be 21.53 trillion kWh [1]. The projected world electricity generation for 2040 is 39 trillion kWh (an increase of 81% from 2012) [2]. Renewable energy sources have been projected to account for 9.6 trillion kWh (25%) of the world’s total electricity generation in 2040. With the continuing depletion of traditional non-renewable energy sources, the necessity for generating electricity through the use of renewable energy sources (solar, hydro, wind, biomass, geothermal) increased manifold. Solar energy accounted for only 0.096 trillion kWh (0.44%) of the world’s total electricity generated in 2012. Based on the 2012 statistics, solar energy was the fourth largest renewable energy source for electricity generation after hydro (3.646 trillion kWh), wind (0.52 trillion kWh), and biomass (0.384 trillion kWh) [1]. These statistics indicate that there is ample scope to generate electricity on a large scale using solar energy. In the United States of America (USA) alone, solar energy-based electricity generation is projected to increase from 8 gigawatts (GW) in 2012 to 48 GW in 2040. Increasing the contribution of renewables, like solar, is imperative to lower global GHG emissions and meet climate goals [3].
Under such a projected increase, one needs to evaluate the sustainability of different types of PVs and CSPs by analyzing life cycle greenhouse gas (GHG) emissions resulting from their adoption. The life cycle assessment (LCA) approach helps evaluate the net GHG emissions resulting from the use of solar energy as a fuel. LCA is an analytical method that provides an assessment of the environmental impacts of the considered products and technologies from a ‘cradle to grave’ systems perspective utilizing the detailed input and output parameters that operate within the designated system boundaries.
Many studies analyzed the LCA of PVs [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34] and CSPs [35,36,37,38,39,40,41,42,43,44,45,46]. The use of PV/CSP electricity generation systems around the world is being encouraged in view of the advantages that solar energy is a free and abundant resource from which electricity may be generated with relatively low operational and maintenance costs in comparison with other renewable energy sources. The use of PV/CSP electricity generation systems is inhibited by issues such as the intermittency and the unpredictability of solar radiation on cloudy days/nights and the requirement of large areas of land for utility-scale CSP installation. A more detailed description of the LCA boundary conditions, greenhouse gas (GHG) emissions, and site-specific characteristics associated with each of the aforementioned PV and CSP electricity generation system studies is provided in the Section 3.1 and Section 3.2.
The majority of the PV and CSP LCA publications to date have emphasized on the determination of the life cycle GHG emissions from select PV/CSP electricity generation systems. There were limited studies that analyzed the life cycle GHG emissions from a broader spectrum of PV [47,48] and CSP [48] electricity generation systems. None of the earlier studies examined the life cycle GHG emissions and compared them across all off the currently available distinct PV and CSP electricity generation system types. This study aims to fill this knowledge gap by performing a comprehensive review of the literature on all the currently available PV and CSP LCA studies, followed by a statistical evaluation of the life cycle GHG emissions from the reviewed PV and CSP electricity generation systems individually. The results from the statistical evaluation of the life cycle GHG emissions will assist energy policy-makers and environmental professionals in decision-making and selection of sustainable solar solutions to power production.

2. Methodology

A review of the literature showed that the PV and CSP electricity generation systems may further be categorized on the basis of material type and working mechanism governing the accumulation of solar energy, respectively. The different categories of PV electricity generation systems [49] are as follows:
  • Non-organic material-based PVs:as follows:
    ➢
    Crystalline-silicon (c-Si): light is allowed to filter through a series of layers comprising of a protective glass cover, a transparent adhesive, and an anti-reflective coating material to reach positive- and a negative-type silicon crystalline materials bound together and held with positive and negative electrical contacts. The c-Si cells are referred to as the mono- or single-crystalline silicon (sc-Si) cells, when they are cut from a single high-purity crystal. If the c-Si cells are obtained in the form of wafers resulting from the process of cooling and solidification of molten silicon crystal blocks, then, they are designated as poly- or multi-crystalline silicon (mc-Si) cells.
    ➢
    Thin-films: light is allowed to filter through a series of layers comprising a transparent coating, an anti-reflective layer, positive and negative semi-conductor materials, a contact plate and a substrate. Thin films may further be categorized as amorphous-silicon (a-Si), multi-junction thin-film silicon (µc-Si), cadmium telluride (CdTe), copper-indium-diselenide (CIS), and copper-indium-gallium-diselenide (CIGS) thin films on the basis of the material components used.
  • Organic material based PVs:
    ➢
    Organic PVs (OPV): built from thin films of organic semiconductors that include polymers.
    ➢
    Dye-sensitized solar cells (DSSC): consists of a photosensitive dye and is based on a semiconductor formed between a photo-sensitized anode and an electrolyte that facilitates the movement of electrons to generate electricity
The different categories of CSP electricity generation systems [48] are as follows:
  • Parabolic trough: arrays of parabolic trough reflectors reflect the sunlight to a black absorber tube that is cooled by a heat-transferring fluid. The heat-transferring fluid when hot, is pumped to the heat exchanger of a steam Rankine cycle for power generation.
  • Central receiver: solar radiation is reflected on to a centrally placed receiver mounted over the top of a tower by a collector that comprises of two large heliostats.
  • Paraboloidal dish: a paraboloidal dish reflector is used as a solar collector and the heat to electricity conversion is achieved by using a Stirling engine.
  • Solar chimney: a flat area is covered by a glass cover (with soil and air underneath) that is inclined toward the middle, where a chimney is located at the center and is exposed to the sun. The hot air rising up through the chimney generates electricity by using a wind turbine.
  • Solar pond: a large reservoir of water with a black bottom absorbs solar radiation and transforms it into heat in the form of hot water.
This study adopted the same classification of PVs (sc-Si, mc-Si, a-Si, µc-Si, CdTe, CIS, CIGS, OPV, DSSC) and CSPs (parabolic trough, central receiver, paraboloidal dish, solar chimney, solar pond) on the basis of the classifications proposed by the IPCC Report [49] and Amponsah et al. [48], respectively, to evaluate the life cycle GHG emissions from using different PV and CSP electricity generation systems. Each of the reviewed PV and CSP LCA study was first assigned a distinct category. Next, the life cycle GHG emissions from material-based PV and working mechanism-based CSP electricity generation systems were evaluated using statistical metrics (sample size, mean, standard deviation, minimum, maximum, standard error of the mean, quartile 1, quartile 2 or median, quartile 3) and graphical representations (error bars representing the mean with 95% confidence intervals, box plots representing the quartiles with outliers). While the error bars demonstrate the degree of confidence in the mean GHG emissions, the box plots provide information on the degree of variation among the LCA studies characterized by different PV and CSP categories.

3. Results and Discussion

3.1. Review of PV LCA Studies

There are numerous studies [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34] that evaluated the life cycle environmental impacts of using PVs for electricity generation. One needs to define the system boundary conditions (that includes details on the activities or processes to be considered in the analysis) and a functional unit of measure (that enables quantification of the net environmental impacts from carrying out an activity or a process as defined within the LCA system boundary conditions) when performing a LCA.
The majority of the aforementioned studies [6,8,13,17,18,19,22,23,28,30,31,32,34] that performed the LCA of PV electricity generation systems defined the system boundary conditions to include activities such as raw material extraction, manufacturing processes, transport, installation, operation, maintenance, and end-of-life processes (dismantling, recycling, and final disposal). Some studies [11,16,29] excluded the consideration of end-of-life processes to define their system boundaries to be limited to raw material extraction, manufacturing processes, transport, installation, operation, and maintenance. The remaining studies [4,5,7,9,10,12,14,15,18,20,21,24,25,26,27,33] limited the system boundaries to PV module production.
The common functional unit of measure adopted by the majority of the PV LCA studies is grams of carbon dioxide equivalent per kilowatt hour (gCO2e/kWh) of electricity produced. Accordingly, this study also adopts the functional unit of measure for GHG emissions to be gCO2e/kWh of electricity produced.
Table 1 provides a summary of the PV module categorization (based on the type of material) along with the corresponding GHG emissions (in gCO2e/kWh) and energy payback time (EPBT, expressed in years) periods for each of the reviewed PV LCA study. Table 1 also provides additional site-specific details that included module efficiency (η1, expressed in %), performance ratio (η2, expressed in %), power rating (PR, expressed in kW), available solar radiation at the location (SR, expressed in kWh/m2/yr), the type of installation (TI: roof-top/ground-mount/building-integrated with the angle of tilt), and the geographical location (GL) for the installed PV systems. The EPBT may be defined as the time period for which a PV system should operate to recover an equivalent amount of energy spent in the production of the installed PV system. η1 provides a measure of the performance of the PV module in generating energy from sunlight and is defined as the ratio of energy output from the PV module to the input energy from the sun. η2 is defined as the ratio of the actual and theoretically possible energy outputs and may be used in comparing the PV systems at different locations across the world (considering that η2 is independent of the orientation and the amount of incident solar radiation). Based on the review of 31 PV electricity generation LCA studies (refer to Table 1), one may note that mc-Si (N = 35) PV electricity generation systems were more in number compared to sc-Si (N = 24), CdTe (N = 21), a-Si (N = 16), CIS (N = 3), DSSC (N = 2), µc-Si (N = 1), and CIGS (N = 1) PV electricity generation systems. There were no LCA studies on the use of OPVs in electricity generation.

3.2. Review of CSP LCA Studies

Many studies [35,36,37,38,39,40,41,42,43,44,45,46] evaluated the life cycle environmental impacts of using CSP electricity generation systems. The majority of the CSP studies [35,37,39,40,41,42,44,45,46] defined the LCA boundary conditions to include activities, such as manufacturing (extraction of raw materials, transportation to the manufacturing facility, component manufacturing processes, transportation of the final product to regional storage), construction (activities associated with site improvements, transporting components to the site, plant assembly), operation, and maintenance (manufacture of replacement components and their transportation to the site, water consumption in the power block and for mirror cleaning, fuel consumption in cleaning/maintenance vehicles, on-site natural gas combustion, electricity consumption from the regional power grid), dismantling (energy required to disassemble the major CSP plant systems), and disposal (energy required to transport demolition waste to the landfill, incinerator, recycling plant, or re-manufacturer and the energy required for final disposal). One study [38] limited the life cycle boundary conditions to include only material production.
Table 2 provides a summary of the CSP electricity generation systems (based on the type of working mechanism) along with the corresponding GHG emissions (in gCO2e/kWh) and EPBT periods (in years) for each of the reviewed CSP electricity generation LCA study. Table 2 also presents additional site-specific features that included power rating (PR, expressed in kW), available solar radiation at the location (SR, expressed in kWh/m2/yr), and the geographical location (GL) for the installed CSP systems. Based on the review of 12 CSP electricity generation LCA studies (refer to Table 2), one may note that parabolic trough (N = 10) CSP electricity generation systems were greater in number compared to central receiver (N = 9), solar chimney (N = 3), paraboloidal dish (N = 2), and solar pond (N = 2) CSP electricity generation systems.

3.3. Statistical Evaluation of PV LCA Studies

Figure 1 provides a graphical representation of the (a) error bars (mean ± 95% confidence interval (CI) statistics) and (b) box plots (quartiles + outlier statistics) for GHG emissions from the different PV electricity generation systems reviewed in this study. Table 3 provides a statistical summary of the life cycle GHG emissions with details on the sample size (N), mean (X) ± standard deviation (SD), minimum (Min.), maximum (Max.), standard error of the mean (SE), quartile 1 (Q1), quartile 2 or median (Q2), and quartile 3 (Q3) for the different PV electricity generation systems reviewed in this study.
From Figure 1a and Table 3, one may note that the mean life cycle GHG emissions obtained from the use of sc-Si, mc-Si, a-Si, µc-Si, CdTe, CIS, CIGS, and DSSC in PV electricity generation systems are 85.33 gCO2e/kWh, 73.68 gCO2e/kWh, 57.49 gCO2e/kWh, 39.2 gCO2e/kWh, 23.22 gCO2e/kWh, 50.5 gCO2e/kWh, 39.2 gCO2e/kWh, and 33 gCO2e/kWh, respectively. These results indicate that lower GHGs are emitted from the organic and thin film non-organic material-based PV electricity generation systems in comparison to the widely adopted c-Si non-organic material-based PV electricity generation systems. The higher mean life cycle GHG emissions for sc-Si/mc-Si may be attributed to the fact that higher energy consumption (a fraction delivered by fossil fuels) is associated with the silicon purification and crystallization processes when manufacturing the sc-Si/mc-Si PV modules [47]. The mc-Si PV electricity generation systems produced less GHG emissions in comparison to sc-Si PV electricity generation systems. Similar observations were made by several other studies [4,7,10,12,23,26,29,31,33,47]. Among the thin film PV categories, a-Si PVs had the highest GHG emissions (attributed to silicon processing activities utilizing a fraction of fossil fuel energy). The CdTe material-based PV electricity generation systems produced the minimum GHG emissions among all the different material-based PV electricity generation system options considered in this study. Similar observations were made by a number of studies [20,21,23,25,26,31,33]. The lower GHG emissions from CdTe PV electricity generation systems in comparison to other PV electricity generation systems may be attributed to the recovery of CdTe from the waste modules [20]. The GHGs emitted by DSSC PV electricity generation systems were also found to be on the lower side. From Figure 1b, one may note the degree of variation in GHG emissions was less for thin film (a-Si, CdTe, CIS, CIGS) and organic (DSSC) PV electricity generation systems when compared to the c-Si (sc-Si, mc-Si) PV electricity generation systems. More LCA studies utilizing µc-Si and CIGS PV electricity generation systems are to be considered before one generalizes the influence of µc-Si and CIGS on the life cycle GHG emissions (note that the mean life cycle GHG emission statistics of µc-Si and CIGS PVs in this study were based on a sample size equal to one).
Figure 2 provides a graphical representation of the (a) error bars (mean ± 95% confidence interval (CI) statistics) and (b) box plots (quartiles + outlier statistics) for EPBT periods from the different PV electricity generation systems reviewed in this study. Table 4 provides a statistical summary of the EPBT periods for the different PV electricity generation systems reviewed in this study. From Figure 2a and Table 4, one may note that the mean EPBT period was found to be the highest for sc-Si PVs (6.07 years), followed by a-Si (3.18 years), mc-Si (3.15 years), µc-Si/CIGS (2.5 years), CIS (2.07 years), and CdTe (1.25 years). These results indicate sc-Si PVs takes longer time periods for energy pay back in comparison to other PVs and the longer EPBT periods may be attributed to the additional energy inputs involving fossil fuel energy that are required for various silicon processing activities. Among the thin film PVs, a-Si PV had the highest EPBT period. This may be attributed as a consequence of the lower conversion efficiencies associated with it [47]. The lower EPBT periods for thin film PVs are associated with less raw materials and energy consumption than those required for c-Si PVs [47]. The median quartile statistic showed a consistent pattern with the mean EPBT periods from different PV electricity generation systems (refer to Figure 2b and Table 4).
η2 represents the percentage energy exported to the grid after the deduction of energy losses and energy consumption for operation, thereby providing a qualitative measure to compare PV systems across different locations. Figure 3 provides a graphical representation of the (a) error bars (mean ± 95% confidence interval (CI) statistics) and (b) box plots (quartiles + outlier statistics) for η2 of the different PV electricity generation systems reviewed in this study. Table 5 provides a statistical summary of η2 for the different PV electricity generation systems reviewed in this study. From Figure 3a and Table 5, one may note the mean η2 for sc-Si, mc-Si, a-Si, µc-Si, CdTe, CIS, CIGS, and DSSC to be 78.19%, 77.73%, 79.16%, 75%, 78.49%, 76.87%, 75%, and 53%, respectively. These results indicate a relatively equivalent performance for all the PV electricity generation systems (75%–78.3%) with the exception of DSSC, which had a lower η2 value. From Figure 3b, one may note the degree of variation in η2 is less and approximately equivalent for all the material-based PV electricity generation systems reviewed in this study.

3.4. Statistical Evaluation of CSP LCA Studies

Figure 4 provides a graphical representation of the (a) error bars (mean ± 95% confidence interval (CI) statistics) and (b) box plots (quartiles + outlier statistics) for GHG emissions for the different CSP electricity generation systems reviewed in this study. Table 6 provides a statistical summary of the GHG emissions from different CSP electricity generation systems reviewed in this study. From Figure 4a and Table 6 one may note that the central receiver CSP electricity generation system had the highest mean GHG emissions (85.67 gCO2e/kWh), followed by the parabolic trough (79.8 gCO2e/kWh), the paraboloidal dish (41 gCO2e/kWh), the solar chimney (35.67 gCO2e/kWh), and the solar pond (5.5 gCO2e/kWh) electricity generation systems. These results indicate that the widely used central receiver and parabolic trough CSP electricity generation systems emitted more GHGs than the paraboloidal dish, the solar chimney, and the solar pond CSP electricity generation systems. The paraboloidal dish and the solar chimney CSP electricity generation systems produced approximately only 50% of the GHGs emitted by the paraboloidal dish and the central receiver CSP electricity generation systems. The solar pond CSP electricity generation system produced the least amount of GHG emissions. From Figure 4b, one may note the degree of variation in GHG emissions was less for the solar pond, the paraboloidal dish, and the solar chimney CSP electricity generation systems in comparison with the central receiver and the parabolic trough CSP electricity generation systems. The parabolic trough and the central receiver had approximately equivalent EPBT periods of one year (refer to Table 2). For the remaining three CSP electricity generation systems, there were no established data with regards to EPBT periods. While more LCA research is needed to analyze the performance of CSP electricity generation systems in general, priority needs to be given to analyzing the LCA of solar pond, paraboloidal dish, and solar chimney CSP electricity generation systems.

4. Conclusions

This paper examined the life cycle GHG emissions from all of the currently available material-based PV (sc-Si, mc-Si, a-Si, µc-Si, CdTe, CIS, CIGS, DSSC) and the working mechanism-based CSP (parabolic trough, central receiver, paraboloidal dish, solar chimney, solar pond) electricity generation systems. The life cycle GHG emissions from PV and CSP electricity generation systems were examined in this study by performing a review of the PV and CSP LCA studies (with categorization of all the identified PV and CSP LCA studies) and the subsequent computation of statistical parameters.
A review of the literature on solar energy related LCA studies showed that there are numerous studies that evaluated the life cycle GHG emissions of PVs and there are only a limited number of studies that analyzed the life cycle GHG emissions of CSPs. A total of 31 PV LCA case studies and 12 CSP LCA case studies were reviewed in this study.
The mean life cycle GHG emissions from sc-Si, mc-Si, a-Si, µc-Si, CdTe, CIS, CIGS, and DSSC PV electricity generation systems were computed to be 85.33 gCO2e/kWh, 73.68 gCO2e/kWh, 57.49 gCO2e/kWh, 39.2 gCO2e/kWh, 23.22 gCO2e/kWh, 50.5 gCO2e/kWh, 39.2 gCO2e/kWh, and 33 gCO2e/kWh, respectively. Prior PV LCA studies identified the level of solar radiation, position of modules, modules manufacturing energy intensity, and corresponding fuel mix, and solar radiation conversion efficiency to be the major factors influencing the life cycle performance of PVs. The mc-Si PVs proved to be a better cost-effective and environmental-friendly option than sc-Si PVs (considering the relatively lower GHG emissions and lesser EPBT period for an approximately equivalent η2 value of 78%). Thin-film PVs may be recommended for a wider implementation due to their positive attributes of emitting less GHGs and lower EPBT periods in comparison with c-Si PVs. The lower GHG emissions and EPBT periods for thin-films are associated with less raw materials and energy consumption. Amongst all of the different categories of PVs considered in this study, the most environmentally friendly option is the CdTe PV system (lowest GHG emission and EPBT periods for η2 value of 78.49%). While no representative LCA studies were noted in the literature for the OPV electricity generation systems, only a single LCA case study to represent µc-Si, DSSC PV electricity generation systems. More research efforts are needed to study the LCA of organic material based PV electricity generation systems.
The mean life cycle GHG emissions for the parabolic trough, central receiver, paraboloidal dish, solar chimney, and solar pond CSP electricity generation systems were computed to be 79.8 gCO2e/kWh, 85.67 gCO2e/kWh, 41 gCO2e/kWh, 35.67 gCO2e/kWh, and 5.5 gCO2e/kWh, respectively. The widely-used parabolic trough and central receiver CSP electricity generation systems emitted approximately 50% more GHGs than the paraboloidal dish, solar chimney, and solar pond CSP electricity generation systems. Future CSP LCA studies need to focus more on analyzing the environmental contributions from the paraboloidal dish, solar chimney, and solar pond electricity generation systems, for which there were limited references.

Acknowledgments

This work was supported by the US National Science Foundation through the CREST Center for Energy and Environmental Sustainability (CEES) at Prairie View A&M University, award number 1036593. The authors would like to thank Dr. Venkata Botlaguduru for his assistance with the revisions of the manuscript.

Author Contributions

Raghava Kommalapati conceived the idea and initiated the LCA work on different energy technologies. Akhil Kadiyala scrutinized the solar PV and CSP electricity generation system life cycle GHG emissions in-detail, with assistance from Md. Tarkik Shahriar. Professor Huque participated in many discussions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. International Energy Statistics. Available online: http://www.eia.gov/cfapps/ipdbproject/iedindex3.cfm?tid=44&pid=44&aid=2&cid=ww,r1,&syid=2008&eyid=2012&unit=QBTU (accessed on 9 November 2015).
  2. International Energy Outlook 2013. Available online: http://www.eia.gov/forecasts/ieo/pdf/0484(2013).pdf (accessed on 9 November 2015).
  3. Annual Energy Outlook 2015 with Projections to 2040. Available online: http://www.eia.gov/forecasts/aeo/pdf/0383%282015%29.pdf (accessed on 9 November 2015).
  4. Schaefer, H.; Hagedorn, G. Hidden energy and correlated environmental characteristics of PV power generation. Renew. Energy 1992, 2, 159–166. [Google Scholar] [CrossRef]
  5. Environmental Life-Cycle Assessment of Multicrystalline Silicon Solar Cell Modules. Available online: https://stuff.mit.edu/afs/athena/dept/cron/project/urban-sustainability/Old%20files%20from%20summer%202009/Bjorn/solar/LCA%20silicon%20solar%20cell%20modules%201995.pdf (accessed on 21 December 2014).
  6. Nieuwlaar, E.; Alsema, E.; Van Engelenburg, B. Using life-cycle assessments for the environmental evaluation of greenhouse gas mitigation options. Energy Convers. Manag. 1996, 37, 831–836. [Google Scholar] [CrossRef]
  7. Kato, K.; Murata, A.; Sakuta, K. An evaluation on the life cycle of photovoltaic energy system considering production energy of off-grade silicon. Sol. Energy Mat. Sol. Cells 1997, 47, 95–100. [Google Scholar] [CrossRef]
  8. Dones, R.; Frischknecht, R. Life cycle assessment of photovoltaic systems: Results of Swiss studies on energy chains. Prog. Photovolt. Res. Appl. 1998, 6, 117–125. [Google Scholar] [CrossRef]
  9. Frankl, P.; Masini, A.; Gamberale, M.; Toccaceli, D. Simplified life-cycle analysis of PV systems in buildings: Present situation and future trends. Prog. Photovolt. Res. Appl. 1998, 6, 137–146. [Google Scholar] [CrossRef]
  10. Kato, K.; Murata, A.; Sakuta, K. Energy pay-back time and lifecycle CO2 emission of residential PV power system with silicon PV module. Prog. Photovolt. Res. Appl. 1998, 6, 105–115. [Google Scholar] [CrossRef]
  11. PV-BILD: A Life Cycle Environmental and Economic Assessment Tool for Building-Integrated Photovoltaic Installations. Available online: http://css.snre.umich.edu/publication/pv-bild-life-cycle-environmental-and-economic-assessment-tool-building-integrated (accessed on 21 December 2014).
  12. Alsema, E.A. Energy pay-back time and CO2 emissions of PV systems. Prog. Photovolt. Res. Appl. 2000, 8, 17–25. [Google Scholar] [CrossRef]
  13. Oliver, M.; Jackson, T. The evolution of economic and environmental cost for crystalline silicon photovoltaics. Energy Policy 2000, 28, 1011–1021. [Google Scholar] [CrossRef]
  14. Greijer, H.; Karlson, L.; Lindquist, S.E.; Hagfeldt, A. Environmental aspects of electricity generation from a nanocrystalline dye sensitized solar cell system. Renew. Energy 2001, 23, 27–39. [Google Scholar] [CrossRef]
  15. Kato, K.; Hibino, T.; Komoto, K.; Ihara, S.; Yamamoto, S.; Fujihara, H. A life-cycle analysis on thin-film CdS/CdTe PV modules. Sol. Energy Mat. Sol. Cells 2001, 67, 279–287. [Google Scholar] [CrossRef]
  16. Nomura, N.; Inaba, A.; Tonooka, Y.; Akai, M. Life-cycle emission of oxidic gases from power-generation systems. Appl. Energy 2001, 68, 215–227. [Google Scholar] [CrossRef]
  17. Life-Cycle Assessment of Electricity Generation Systems and Applications for Climate Change Policy Analysis. Available online: http://fti.neep.wisc.edu/pdf/fdm1181.pdf (accessed on 21 December 2014).
  18. Ito, M.; Kato, K.; Sugihara, H.; Kichimi, T.; Song, J.; Kurokawa, K. A preliminary study on potential for very large scale photovoltaic power generation (VLS-PV) system in the Gobi desert from economic and environmental viewpoints. Sol. Energy Mat. Sol. Cells 2003, 75, 507–517. [Google Scholar] [CrossRef]
  19. Fthenakis, V.M.; Kim, H.C. Energy use and greenhouse gas emissions in the life cycle of thin film CdTe photovoltaics. In Proceedings of the Symposium G-Life Cycle Analysis, MRS Fall Meeting, Boston, MS, USA, 28–30 November 2005.
  20. Alsema, E.A.; de Wild-Scholten, M.J.; Fthenakis, V.M. Environmental impacts of PV electricity generation—A critical comparison of energy supply options. In Proceedings of the 21st European Photovoltaic Solar Energy Conference, Dresden, Germany, 4–8 September 2006.
  21. Fthenakis, V.M.; Alsema, E. Photovoltaics energy payback times, greenhouse gas emissions and external costs: 2004–early 2005 status. Prog. Photovolt. Res. Appl. 2006, 14, 275–280. [Google Scholar] [CrossRef]
  22. Kannan, R.; Leong, K.C.; Osman, R.; Ho, H.K.; Tso, C.P. Life cycle assessment study of solar PV systems: An example of a 2.7 kWp distributed solar PV system in Singapore. Sol. Energy 2006, 80, 555–563. [Google Scholar] [CrossRef]
  23. Fthenakis, V.M.; Kim, H.C. Greenhouse-gas emissions from solar electric- and nuclear power: A life-cycle study. Energy Policy 2007, 35, 2549–2557. [Google Scholar] [CrossRef]
  24. Pacca, S.; Sivaraman, D.; Keoleian, G.A. Parameters affecting the life cycle performance of PV technologies and systems. Energy Policy 2007, 35, 3316–3326. [Google Scholar] [CrossRef]
  25. Raugei, M.; Bargigli, S.; Ulgiati, S. Life cycle assessment and energy pay-back time of advanced photovoltaic modules: CdTe and CIS compared to poly-Si. Energy 2007, 32, 1310–1318. [Google Scholar] [CrossRef]
  26. Fthenakis, V.M.; Kim, H.C.; Alsema, E. Emissions from photovoltaic life cycles. Environ. Sci. Technol. 2008, 42, 2168–2174. [Google Scholar] [CrossRef]
  27. Ito, M.; Kato, K.; Komoto, K.; Kichimi, T.; Kurokawa, K. A comparative study on cost and life-cycle analysis for 100 MW very large-scale PV (VLS-PV) systems in deserts using m-Si, a-Si, CdTe, and CIS modules. Prog. Photovolt. Res. Appl. 2008, 16, 17–30. [Google Scholar] [CrossRef]
  28. García-Valverde, R.; Miguel, C.; Martínez-Béjar, R.; Urbina, A. Life cycle assessment study of a 4.2 kWp stand-alone photovoltaic system. Sol. Energy 2009, 83, 1434–1445. [Google Scholar] [CrossRef]
  29. Ito, M.; Komoto, K.; Kurokawa, K. Life-cycle analyses of very-large scale PV systems using six types of PV modules. Curr. Appl. Phys. 2010, 10, S271–S273. [Google Scholar] [CrossRef]
  30. Bravi, M.; Parisi, M.L.; Tiezzi, E.; Basosi, R. Life cycle assessment of a micromorph photovoltaic system. Energy 2011, 36, 4297–4306. [Google Scholar] [CrossRef]
  31. Fthenakis, V.M.; Kim, H.C. Photovoltaics: Life-cycle analyses. Sol. Energy 2011, 85, 1609–1628. [Google Scholar] [CrossRef]
  32. Held, M.; Iig, R. Update of environmental indicators and energy payback time of CdTe PV systems in Europe. Prog. Photovolt. Res. Appl. 2011, 19, 614–626. [Google Scholar] [CrossRef]
  33. Life Cycle Inventories and Life Cycle Assessments of Photovoltaic Systems. Available online: https://www.bnl.gov/pv/files/pdf/226_Task12_LifeCycle_Inventories.pdf (accessed on 21 December 2014).
  34. Desideri, U.; Proietti, S.; Zepparelli, F.; Sdringola, P.; Bini, S. Life cycle assessment of a ground-mounted 1778 kWp photovoltaic plant and comparison with traditional energy production systems. Appl. Energy 2012, 97, 930–943. [Google Scholar] [CrossRef]
  35. Kreith, F.; Norton, P.; Brown, D. A comparison of CO2 emissions from fossil and solar power plants in the United States. Energy 1990, 15, 1181–1198. [Google Scholar] [CrossRef]
  36. Central Research Institute of Electric Power Industry (CRIEPI). 1995 Annual Research Report. Energy Technology Life Cycle Analysis that Takes CO2 Emission Reduction into Consideration; CRIEPI: Tokyo, Japan, 1995. [Google Scholar]
  37. Martin, J.A. A total fuel cycle approach to reducing greenhouse gas emissions: Solar generation technologies as greenhouse gas offsets in U.S. utility systems. Sol. Energy 1997, 59, 195–203. [Google Scholar] [CrossRef]
  38. Norton, B.; Eames, P.C.; Lo, S.N.G. Full-energy-chain analysis of greenhouse gas emissions for solar thermal electric power generation systems. Renew. Energy 1998, 15, 131–136. [Google Scholar] [CrossRef]
  39. Weinrebe, G.; Bohnke, M.; Trieb, F. Life cycle assessment of an 80MWSEGS plant and a 30MWPHOEBUS power tower. In Proceedings of the 1998 ASME International Solar Energy Conference ‘Solar Engineering’, Albuquerque, NM, USA, 14–17 June 1998; ASME: New York, NY, USA, 1998; pp. 417–424. [Google Scholar]
  40. Lenzen, M. Greenhouse gas analysis of solar-thermal electricity generation. Sol. Energy 1999, 65, 353–368. [Google Scholar] [CrossRef]
  41. Lechon, Y.; de la Rúa, C.; Sáez, R. Life cycle environmental impacts of electricity production by solar thermal power plants in Spain. J. Sol. Energy Eng. 2008, 130, 021012. [Google Scholar] [CrossRef]
  42. Final Report on Technical Data, Costs, and Life Cycle Inventories of Solar Thermal Power Plants. Available online: http://www.needs-project.org/RS1a/RS1a%20D12.2%20Final%20report%20concentrating%20solar%20thermal%20power%20plants.pdf (accessed on 3 June 2015).
  43. Niemann, H.J.; Lupi, F.; Hoeffer, R.; Hubert, W.; Borri, C. The solar updraft power plant: Design and optimization of the tower for wind effects. In Proceedings of the 5th European and African Conference on Wind Engineering EACWE5, Florence, Italy, 19–23 July 2009.
  44. Burkhardt, J.J.; Heath, G.A.; Turchi, C.S. Life cycle assessment of a parabolic trough concentrating solar power plant and the impacts of key design alternatives. Environ. Sci. Technol. 2011, 45, 2457–2464. [Google Scholar] [CrossRef] [PubMed]
  45. CSP Technologies, Environmental Impact 2012. Available online: https://www.esmap.org/sites/esmap.org/files/ESMAP_IFC_RE_CSP_Training_World%20Bank%20Fabrizi.pdf (accessed on 3 June 2015).
  46. Zongker, J.D. Life Cycle Assessment of Solar Updraft Tower Power Plant: EROEI and GWP as a Design Tool. Master’s Thesis, Wichita State University, Wichita, KS, USA, 2013. [Google Scholar]
  47. Peng, J.; Lu, L.; Yang, H. Review on life cycle assessment of energy payback and greenhouse gas emission of solar photovoltaic systems. Renew. Sustain. Energy Rev. 2013, 19, 255–274. [Google Scholar] [CrossRef]
  48. Amponsah, N.W.; Troldborg, M.; Kington, B.; Aalders, I.; Hough, R.L. Greenhouse gas emissions from renewable energy sources: A review of lifecycle considerations. Renew. Sustain. Energy Rev. 2014, 39, 461–475. [Google Scholar] [CrossRef]
  49. IPCC Special Report on Renewable Energy Sources and Climate Change Mitigation. Available online: http://srren.ipcc-wg3.de/report (accessed on 21 December 2014).
Energies 10 00350 g001 550
Figure 1. GHG emissions from PV electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Figure 1. GHG emissions from PV electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Energies 10 00350 g001
Energies 10 00350 g002 550

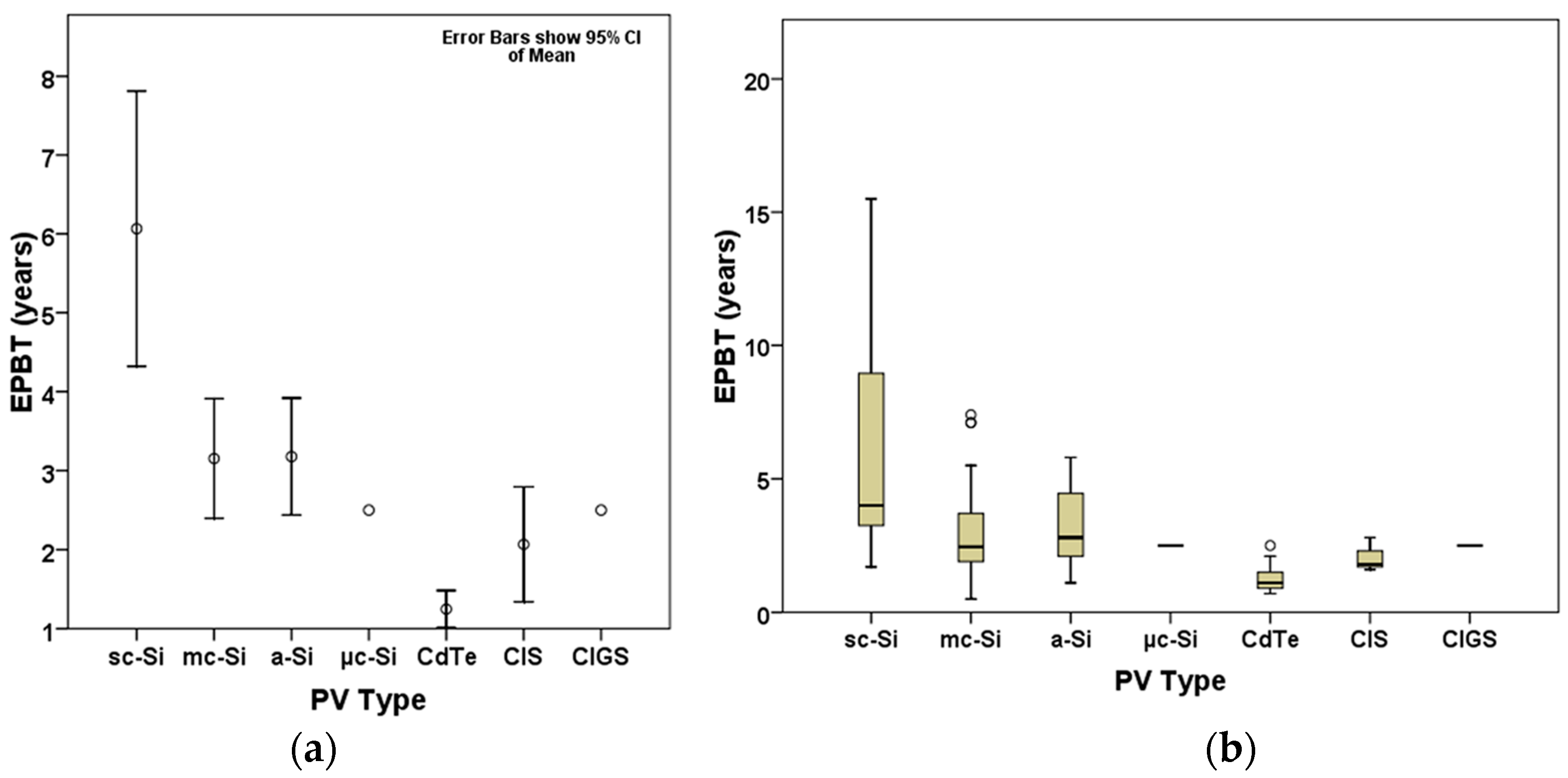

Figure 2. EPBT periods for PV electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Figure 2. EPBT periods for PV electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Energies 10 00350 g002
Energies 10 00350 g003 550
Figure 3. η2 for different PV systems: (a) mean ± 95% CI error bars; (b) quartile box plots.
Figure 3. η2 for different PV systems: (a) mean ± 95% CI error bars; (b) quartile box plots.
Energies 10 00350 g003
Energies 10 00350 g004 550
Figure 4. GHG emissions from CSP electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Figure 4. GHG emissions from CSP electricity generation systems: (a) mean ± 95% CI error bars and (b) quartile box plots.
Energies 10 00350 g004
Table
Table 1. Greenhouse Gas (GHG) emissions and Energy Pay-Back Time (EPBT) periods for photovoltaic (PV) electricity generation systems.
Table 1. Greenhouse Gas (GHG) emissions and Energy Pay-Back Time (EPBT) periods for photovoltaic (PV) electricity generation systems.
SourcePV Category (Supplementary Case Description)GHG Emissions (gCO2e/kWh)EPBT (Years)Additional Features
η1 (%), η2 (%), PR (kW), SR (kWh/m2/yr), TI, GL
Schaefer and Hagedorn [4]sc-Si (annual cell production of 2.5 MW per year; annual load duration time of 2000 h per year)1303.7η1 = 14; PR = 300; GL = Germany
sc-Si (annual cell production of 2.5 MW per year; annual load duration time of 1000 h per year)2507.3η1 = 14; PR = 300; GL = Germany
sc-Si (annual cell production of 25 MW per year; annual load duration time of 2000 h per year)703.7η1= 15.5; PR = 1500; GL = Germany
sc-Si (annual cell production of 25 MW per year; annual load duration time of 1000 h per year)1507.3η1 = 15.5; PR = 1500; GL = Germany
mc-Si (annual cell production of 2.5 MW per year; annual load duration time of 2000 h per year)1203.6η1 = 12; PR = 300; GL = Germany
mc-Si (annual cell production of 2.5 MW per year; annual load duration time of 1000 h per year)2507.1η1 = 12; PR = 300; GL = Germany
mc-Si (annual cell production of 25 MW per year; annual load duration time of 2000 h per year)503.6η1 = 13.5; PR = 1500; GL = Germany
mc-Si (annual cell production of 25 MW per year; annual load duration time of 1000 h per year)1107.1η1 = 13.5; PR = 1500; GL = Germany
a-Si (annual cell production of 2.5 MW per year; annual load duration time of 2000 h per year)902.9η1 = 6; PR = 300; GL = Germany
a-Si (annual cell production of 2.5 MW per year; annual load duration time of 1000 h per year)1705.8η1 = 6; PR = 300; GL = Germany
a-Si (annual cell production of 25 MW per year; annual load duration time of 2000 h per year)502.9η1 = 8; PR = 1500; GL = Germany
a-Si (annual cell production of 25 MW per year; annual load duration time of 1000 h per year)1005.8η1 = 8; PR = 1500; GL = Germany
Netherlands Agency for Energy and the Environment Report [5]mc-Si (worst case)1673.8η1 = 13; η2 = 75; SR = 1000; GL = Netherlands
mc-Si (base case)311.3η1 = 16; η2 = 80; SR = 1000; GL = Netherlands
mc-Si (best case)9.80.5η1 = 18; η2 = 85; SR = 1000; GL = Netherlands
Nieuwlaar et al. [6]a-Si474η1 = 10; TI = roof-top; GL = Netherlands
Kato et al. [7]sc-Si (worst case)9115.5η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
sc-Si (base case)6511η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
sc-Si (optimistic case)214η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
mc-Si182.5η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
a-Si151.5η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
Dones and Frischknecht [8]mc-Si189NAη1 = 14; PR = 3; TI = roof-top; GL = Switzerland
sc-Si114NAη1 = 16.5; PR = 3; TI = roof-top; GL = Switzerland
Frankl et al. [9]sc-Si2009η1 = 11.2; PR = 20; SR = 1700; TI = roof-top, 30° tilt; GL = Italy
Kato et al. [10]sc-Si (worst case)8311.8η1 = 12.2; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
sc-Si (base case)618.9η1 = 12.2; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
sc-Si (best case)253.3η1 = 12.2; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
mc-Si (annual cell production of 10 MW per year)202.4η1 = 11.6; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
mc-Si (annual cell production of 30 MW per year)182.2η1 = 11.7; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
mc-Si (annual cell production of 100 MW per year)131.5η1 = 15.7; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
a-Si (annual cell production of 10 MW per year)172.1η1 = 8; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
a-Si (annual cell production of 30 MW per year)131.7η1 = 10; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
a-Si (annual cell production of 100 MW per year)91.1η1 = 12; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
Lewis et al. [11]a-Si187.85.14η1 = 3.89; TI = building-integrated; GL = USA
Alsema [12]sc-Si603.2η1 = 14; SR = 1700; TI = roof-top; GL = Netherlands
mc-Si503.2η1 = 13; SR = 1700; TI = roof-top; GL = Netherlands
a-Si502.7η1 = 7; SR = 1700; TI = roof-top; GL = Netherlands
Oliver and Jackson [13]mc-Si120NAη1 = 14; η2 = 55; TI = building-integrated; GL = Swiss Jura Alps, Europe
mc-Si170NAη1 = 14; η2 = 85; TI = building-integrated; GL = Swiss Jura Alps, Europe
Greijer et al. [14]DSSC19NAη1 = 7; η2 = 53; SR = 2190; GL = Sahara Desert, Africa
DSSC47NAη1 = 12; η2 = 53; SR = 2190; GL = Sahara Desert, Africa
Kato et al. [15]CdTe (annual cell production of 10 MW per year)141.7η1 = 10.3; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
CdTe (annual cell production of 30 MW per year)11.51.4η1 = 11.2; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
CdTe (annual cell production of 100 MW per year)8.91.1η1 = 12.4; η2 = 81; PR = 3; SR = 1427; TI = roof-top; GL = Japan
Nomura et al. [16]mc-Si104NAGL = Japan
mc-Si133NAGL = Japan
Meier [17]a-Si394.9η1 = 5.7; TI = building-integrated; GL = USA
Ito et al. [18]mc-Si121.7η1 = 12.8; η2 = 78; PR = 1,000,000; SR = 1854 (10° tilt)-2037 (40° tilt); TI = ground-mount; GL = Gobi Desert, China
Fthenakis and Kim [19]CdTe23.61.2η1 = 9; η2 = 80; PR = 25,000; SR = 1800; TI = ground-mount; GL = USA
Alsema et al. [20]sc-Si352.6η1 = 14; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
mc-Si321.9η1 = 13.2; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
CdTe251.1η1 = 9; η2 = 75; SR = 1700; TI = ground-mount; GL = Europe
Fthenakis and Alsema [21]mc-Si372.2η1 = 13.2; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
CdTe211η1 = 8; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
CdTe251.1η1 = 9; η2 = 75; SR = 1700; TI = roof-top; GL = US
Kannan et al. [22]sc-Si1654.47η1 = 11.86; PR = 2.7; SR = 1635; TI = roof-top; GL = Singapore
Fthenakis and Kim [23]mc-Si37NAη1 = 13.2; η2 = 80; SR = 1700; TI = roof-top; GL = Europe
sc-Si45NAη1 = 14; η2 = 80; SR = 1700; TI = roof-top; GL = Europe
CdTe16NAη1 = 9; η2 = 80; SR = 1700; TI = roof-top; GL = Europe
Pacca et al. [24]a-Si34.33.2η1 = 6.3; SR = 1359; TI = roof-top, 12° tilt; GL = Michigan, USA
mc-Si72.47.4η1 = 12.92; SR = 1359; TI = roof-top, 12° tilt; GL = Michigan, USA
Raugei et al. [25]mc-Si (worst case)1675.5η1 = 14; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
mc-Si (base case)722.4η1 = 14; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
mc-Si (best case)572.5η1 = 14; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
CIS952.8η1 = 11; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
CdTe481.5η1 = 9; η2 = 75; SR = 1700; TI = roof-top; GL = Europe
Fthenakis et al. [26]sc-Si (CrystalClear project with Ecoinvent database)32NAη1 = 14; η2 = 80; SR = 1700; TI = ground-mount; GL = Europe
sc-Si (UCTE grid mixture with Ecoinvent database)42NAη1 = 14; η2 = 80; SR = 1700; TI = ground-mount; GL = Europe
sc-Si (US grid mixture with Franklin database)52NAη1 = 14; η2 = 80; SR = 1700; TI = ground-mount; GL = USA
mc-Si (CrystalClear project with Ecoinvent database)31NAη1 = 13.2; η2 = 80; SR = 1700; TI = ground-mount; GL = Europe
mc-Si (UCTE grid mixture with Ecoinvent database)41NAη1 = 13.2; η2 = 80; SR = 1700; TI = ground-mount; GL = Europe
mc-Si (US grid mixture with Franklin database)51NAη1 = 13.2; η2 = 80; SR = 1700; TI = ground-mount; GL = USA
CdTe (UCTE grid mixture with Ecoinvent database)20NAη1 = 9; η2 = 80; SR = 1700; TI = roof-top; GL = Europe
CdTe (US grid mixture with Franklin database)26NAη1 = 9; η2 = 80; SR = 1700; TI = roof-top; GL = USA
Ito et al. [27]mc-Si12.11. 9η1 = 12.8; η2 = 78; PR = 100,000; SR = 1702 (horizontal)-2017 (30° tilt); TI = ground-mount; GL = Gobi Desert, China
mc-Si9.41. 5η1 = 15.8; η2 = 78; PR = 100,000; SR = 1702 (horizontal)-2017 (30° tilt); TI = ground-mount; GL = Gobi Desert, China
a-Si15.62.5η1 = 6.9; η2 = 77.1; PR = 100,000; SR = 1702 (horizontal)-2017 (30° tilt); TI = ground-mount; GL = Gobi Desert, China
CdTe12.81.9η1 = 9; η2 = 77.2; PR = 100,000; SR = 1702 (horizontal)-2017 (30° tilt); TI = ground-mount; GL = Gobi Desert, China
CIS10.51.6η1 = 11; η2 = 77.6; PR = 100,000; SR = 1702 (horizontal)-2017 (30° tilt); TI = ground-mount; GL = Gobi Desert, China
García-Valverde et al. [28]sc-Si1319.08η2 = 62; PR = 4.24; SR = 1932; TI = roof-top, 30° tilt; GL = Murcia, Spain
Ito et al. [29]sc-Si512.5η2 = 78; SR = 1702; TI = ground-mount; GL = Gobi Desert, China
mc-Si422η2 = 78; SR = 1702; TI = ground-mount; GL = Gobi Desert, China
a-Si432.1η2 = 78; SR = 1702; TI = ground-mount; GL = Gobi Desert, China
CIS461.8η2 = 78; SR = 1702; TI = ground-mount; GL = Gobi Desert, China
CdTe512.1η2 = 78; SR = 1702; TI = ground-mount; GL = Gobi Desert, China
Bravi et al. [30]sc-Si98.93.8η2 = 75; SR = 1700; TI = roof-top, 22° tilt; GL = Grosseto, Italy
mc-Si180.33.5η2 = 75; SR = 1700; TI = roof-top, 22° tilt; GL = Grosseto, Italy
a-Si, CIGS, CdTe, µc-Si39.22.5η2 = 75; SR = 1700; TI = roof-top, 22° tilt; GL = Grosseto, Italy
Fthenakis and Kim [31]sc-Si382.4η1 = 14; η2 = 80; PR = 24; SR = 1700-2280; TI = roof-top; GL = Europe
mc-Si301.9η1 = 13.2; η2 = 80; PR = 24; SR = 1700-2280; TI = roof-top; GL = Europe, USA
CdTe190.7η1 = 9; η2 = 80; PR = 24; SR = 1700-2280; TI = roof-top; GL = Europe, USA
Held and Iig [32]CdTe29.51.1η1 = 10.9; η2 = 80; PR = 200,000; SR = 1200; TI = ground-mount; GL = Central Europe (Germany)
CdTe20.90.76η1 = 10.9; η2 = 80; PR = 200,000; SR = 1700; TI = ground-mount; GL = Mediterranean region, Europe (Italy)
CdTe20.90.9η1 = 10.9; η2 = 80; PR = 200,000; SR = 1700; TI = ground-mount; GL = Mediterranean region, Europe (EU-25)
CdTe18.70.7η1 = 10.9; η2 = 80; PR = 200,000; SR = 1900; TI = ground-mount; GL = Spain
CdTe18.70.9η1 = 10.9; η2 = 80; PR = 200,000; SR = 1900; TI = ground-mount; GL = Portugal
International Energy Agency Report [33]sc-Si381.7η1 = 14; η2 = 75; SR = 1700; TI = roof-top; GL = Southern Europe
mc-Si341.7η1 = 13.2; η2 = 75; SR = 1700; TI = roof-top; GL = Southern Europe
CdTe180.8η1 = 10.9; η2 = 75; SR = 1700; TI = roof-top; GL = Southern Europe
Desideri et al. [34]mc-Si88.744.17η1 = 14.4; η2 = 80; PR = 1778; TI = ground-mount, 25° tilt; GL = Perugia, Italy
Tilt of solar panels: due South unless specified. NA: not available. PR: power rating. SR: solar radiation. TI: type of installation. GL: geographical location.
Table
Table 2. GHG emissions and EPBT periods for CSP electricity generation systems.
Table 2. GHG emissions and EPBT periods for CSP electricity generation systems.
SourceCSP Category (Supplementary Case Description)GHG Emissions (gCO2e/kWh)EPBT (Years)Additional Features
PR (kW), SR (kWh/m2/yr), GL
Kreith et al. [35]Central receiver43NAPR = 100,000; GL = USA
CRIEPI Report [36]Central receiver213NAPR = 5000; GL = Saijo, Japan
Martin [37]Parabolic trough166 GL = USA
Norton et al. [38]Central receiver (energy efficient materials)21NAGL = Europe
Central receiver (conventional materials)48NAGL = Europe
Paraboloidal dish (energy efficient materials)24NAGL = Europe
Paraboloidal dish (conventional materials)58NAGL = Europe
Parabolic trough (energy efficient materials)30NAGL = Europe
Parabolic trough (conventional materials)80NAGL = Europe
Solar pond (energy efficient materials)5NAGL = Europe
Solar pond (conventional materials)6NAGL = Europe
Weinrebe et al. [39]Parabolic trough17NAPR = 80,000; SR = 2300; GL = California, USA
Central receiver25NAPR = 30,000; SR = 2300; GL = California, USA
Lenzen [40]Central receiver60NASR = 2350; GL = Australia
Parabolic trough90NASR = 2350; GL = Australia
Lechon et al. [41]Parabolic trough1851.04PR = 17,000; SR = 2016; GL = Andalucía, Spain
Central receiver2031.02PR = 50,000; SR = 1997; GL = Andalucía, Spain
NEEDS Report [42]Parabolic trough161NASR = 2000; GL = Spain
Central receiver140NASR = 2000; GL = Spain
Niemann et al. [43]Solar chimney10NAPR = 50; GL = Manzanares, Spain
Burkhardt et al. [44]Parabolic trough (wet: use of wet-cooling systems)261PR = 103,000 kW; SR = 2700; GL = California, USA;
Parabolic trough (dry: elimination of wet-cooling systems)281.08PR = 103,000 kW; SR = 2700; GL = California, USA;
Fabrizi [45]Parabolic trough15<1GL = USA
Central receiver18<1GL = USA
Zongker [46]Solar chimney34.1NAGL = USA
Solar chimney62.9NAGL = USA
NA: not available.
Table
Table 3. GHG emission (gCO2e/kWh) statistics from PV electricity generation systems.
Table 3. GHG emission (gCO2e/kWh) statistics from PV electricity generation systems.
PV TypeNX ± SDMin.Max.SEQ1Q2Q3
sc-Si2485.33 ± 59.432125012.133863114
mc-Si3573.68 ± 63.449.425010.723050120
a-Si1657.49 ± 53.969187.813.491541.150
µc-Si139.2 ± 039.239.2039.239.239.2
CdTe2123.22 ± 10.948.9512.391820.925
CIS350.5 ± 42.4310.59524.510.54695
CIGS139.2 ± 039.239.2039.239.239.2
DSSC233 ± 19.8194714193347
Table
Table 4. EPBT period (years) statistics for PV electricity generation systems.
Table 4. EPBT period (years) statistics for PV electricity generation systems.
PV TypeNX ± SDMin.Max.SEQ1Q2Q3
sc-Si196.07 ± 3.881.715.50.893.248.9
mc-Si243.15 ± 1.890.57.40.391.92.43.6
a-Si163.18 ± 1.511.15.80.382.12.84
µc-Si12.5 ± 02.52.502.52.52.5
CdTe181.25 ± 0.510.72.50.120.91.11.5
CIS32.07 ± 0.641.62.80.371.61.82.8
CIGS12.5 ± 02.52.502.52.52.5
Table
Table 5. η2 (%) statistics for PV electricity generation systems.
Table 5. η2 (%) statistics for PV electricity generation systems.
PV TypeNX ± SDMin.Max.SEQ1Q2Q3
sc-Si1678.19 ± 4.8862811.22758081
mc-Si2677.73 ± 5.5255851.08757980
a-Si779.16 ± 2.4675810.9377.18181
µc-Si175 ± 075750757575
CdTe2178.49 ± 2.4275810.53758080
CIS376.87 ± 1.6375780.947577.678
CIGS175 ± 075750757575
DSSC253 ± 053530535353
Table
Table 6. GHG emission (gCO2e/kWh) statistics from CSP electricity generation systems.
Table 6. GHG emission (gCO2e/kWh) statistics from CSP electricity generation systems.
CSP TypeNX ± SDMin.Max.SEQ1Q2Q3
parabolic trough1079.8 ± 67.821518521.452655161
central receiver985.67 ± 78.481821326.162548140
paraboloidal dish241 ± 24.04245817244158
solar chimney335.67 ± 26.491062.915.291034.162.9
solar pond25.5 ± 0.71560.555.55

Share and Cite

MDPI and ACS Style

Kommalapati, R.; Kadiyala, A.; Shahriar, M.T.; Huque, Z. Review of the Life Cycle Greenhouse Gas Emissions from Different Photovoltaic and Concentrating Solar Power Electricity Generation Systems. Energies 2017, 10, 350. https://doi.org/10.3390/en10030350

AMA Style

Kommalapati R, Kadiyala A, Shahriar MT, Huque Z. Review of the Life Cycle Greenhouse Gas Emissions from Different Photovoltaic and Concentrating Solar Power Electricity Generation Systems. Energies. 2017; 10(3):350. https://doi.org/10.3390/en10030350

Chicago/Turabian Style

Kommalapati, Raghava, Akhil Kadiyala, Md. Tarkik Shahriar, and Ziaul Huque. 2017. "Review of the Life Cycle Greenhouse Gas Emissions from Different Photovoltaic and Concentrating Solar Power Electricity Generation Systems" Energies 10, no. 3: 350. https://doi.org/10.3390/en10030350

APA Style

Kommalapati, R., Kadiyala, A., Shahriar, M. T., & Huque, Z. (2017). Review of the Life Cycle Greenhouse Gas Emissions from Different Photovoltaic and Concentrating Solar Power Electricity Generation Systems. Energies, 10(3), 350. https://doi.org/10.3390/en10030350

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
