# Pressure Losses in Hydraulic Manifolds

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Discussion of Past Literature

_{m}and with different orientation of the second elbow compared to the first one, thereby changing the relative angle between the axis of the first and last part of the pipe (twisting angle). The geometry varies from a U shape (twisting angle 0°) to an S shape (twisting angle 180°). The authors found that, if the distance between the elbows is lower than five times the diameter, the upstream elbow can strongly influence the downstream one and the loss coefficient is no longer constant with the twisting angle, reaching a maximum for values spanning in the range of 120°–140°. They found that the distance at which the presence of the elbows stops influencing the fluid flow is lower for the U and S shapes compared to the others. The U shape is the one that introduces the lowest pressure drop. In [15], the authors confirm these results applying CFD analysis to an hydraulic manifold with the bend geometries described in [14]. These results were also confirmed in [16,17], where, moreover, CFD analysis was used to analyze the pressure drop through a complicated internal passage with multiple elbows, for which the empirical formulation cannot be applied. Comparing the numerical results with the experimental ones, CFD was assessed as a good method to evaluate pressure drop according to the authors, even if a certain gap between the numerical and experimental results is evident.

## 3. Computational Fluid Dynamic (CFD) Preliminary Analysis

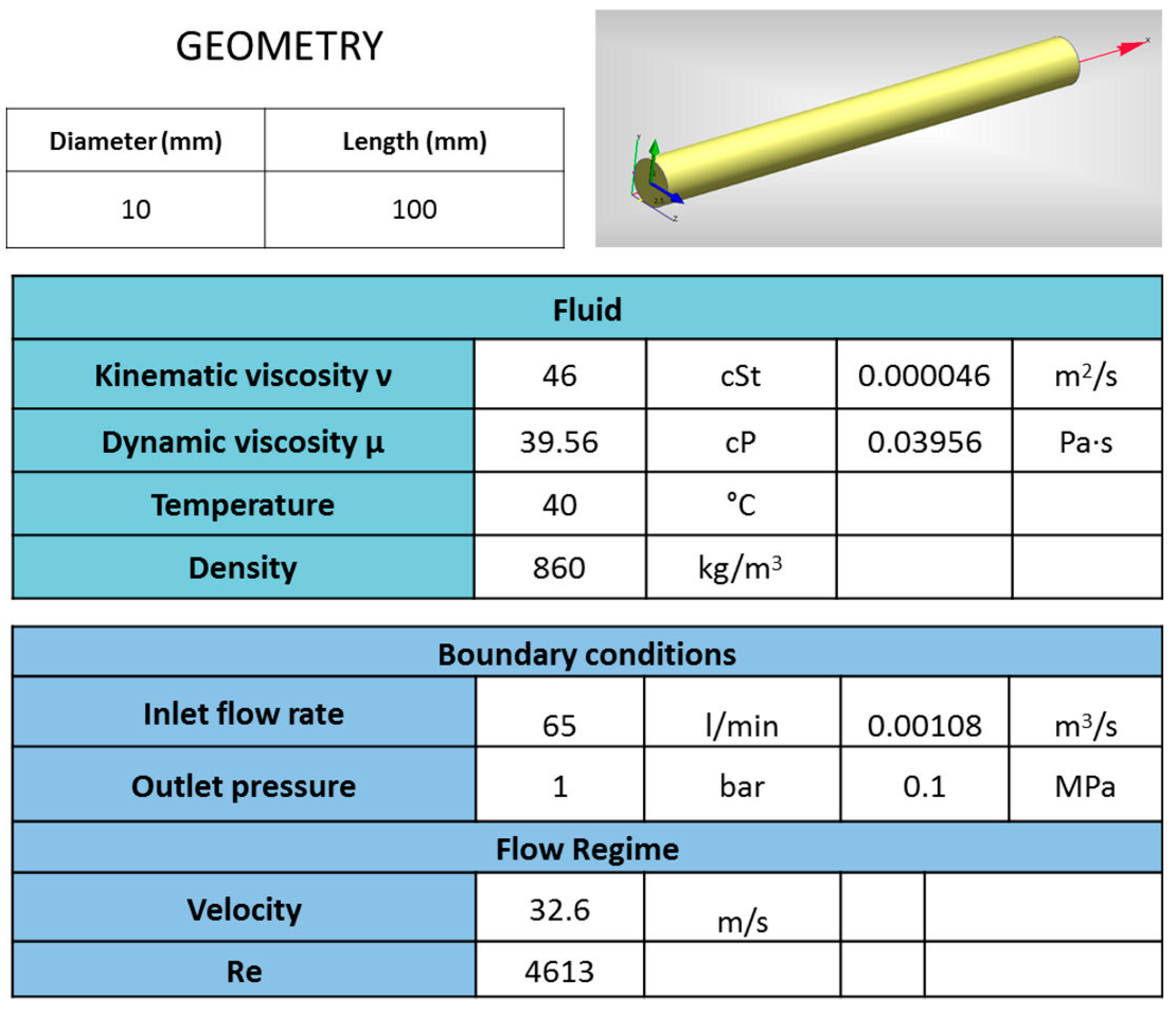

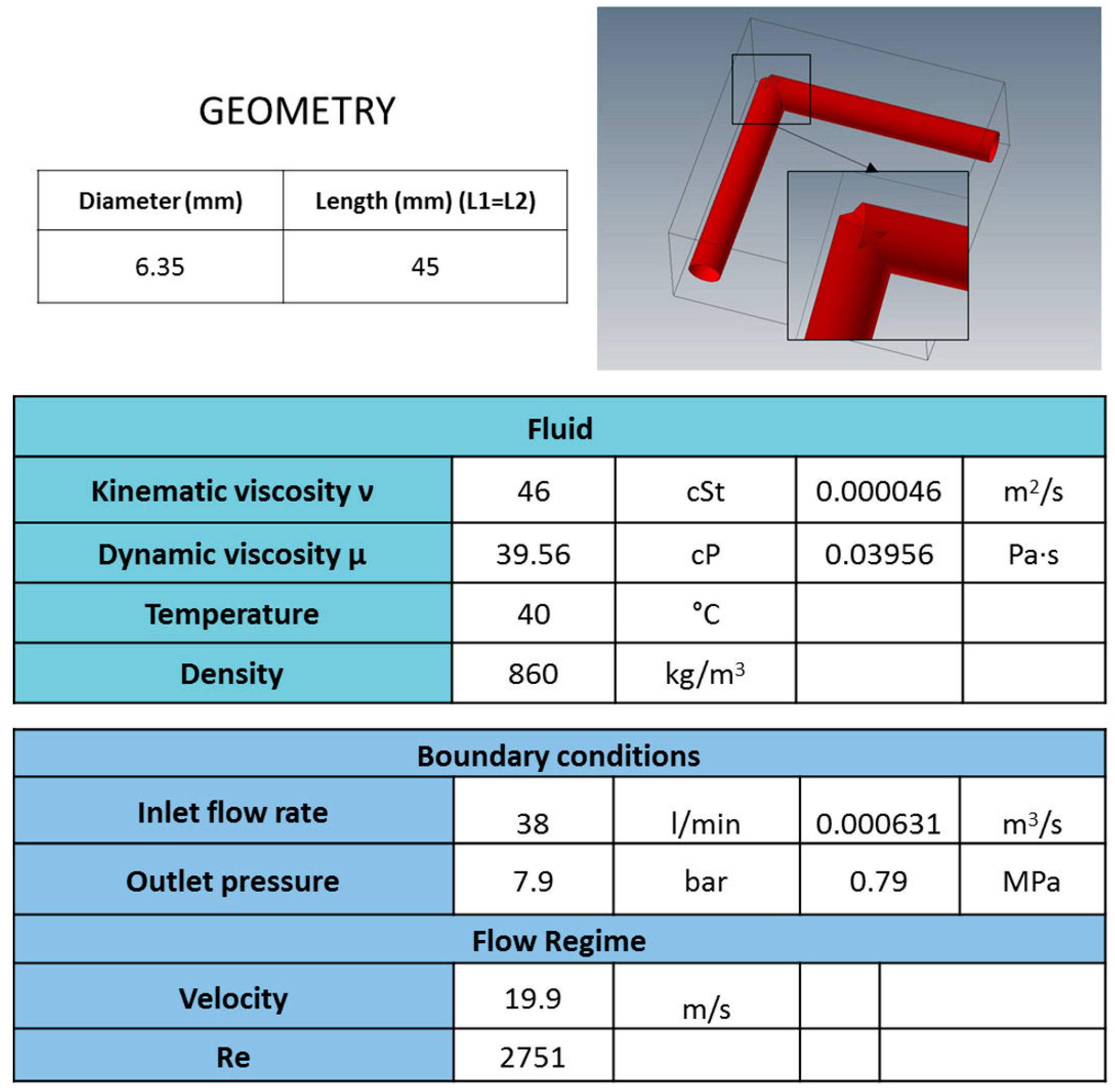

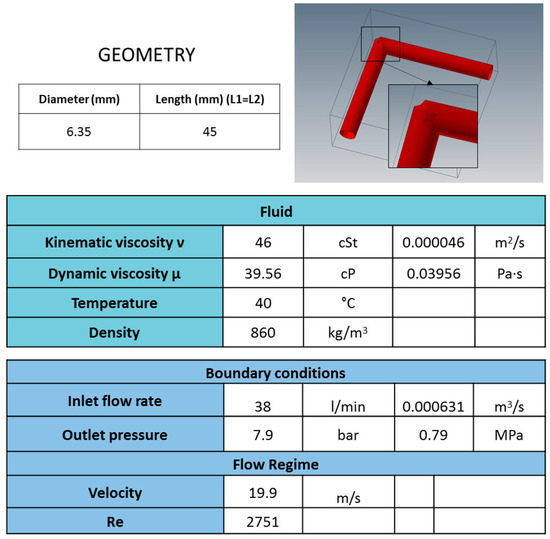

^{3}; it is the same fluid available in the test rig described in the following and used for the experimental analysis. The imposed boundary conditions were atmospheric pressure at the outlet of the system and a flow rate at the inlet. An additional portion of the channel (entry region) was also considered in the analysis in a way that, after this region, the velocity profile became fully developed and continued unchanged. An estimate of the entry length for different types of flow depends on the Reynolds number Re and the channel diameter d and is given by ~0.06∙Re∙d for laminar flow while it is approximated with different formulas for turbulent flow, in which the influence of Re number is weaker; in many pipes’ flow of practical engineering interest, the entrance effect are insignificant after a pipe length equal to 10∙d [19].

## 4. Experimental Setup

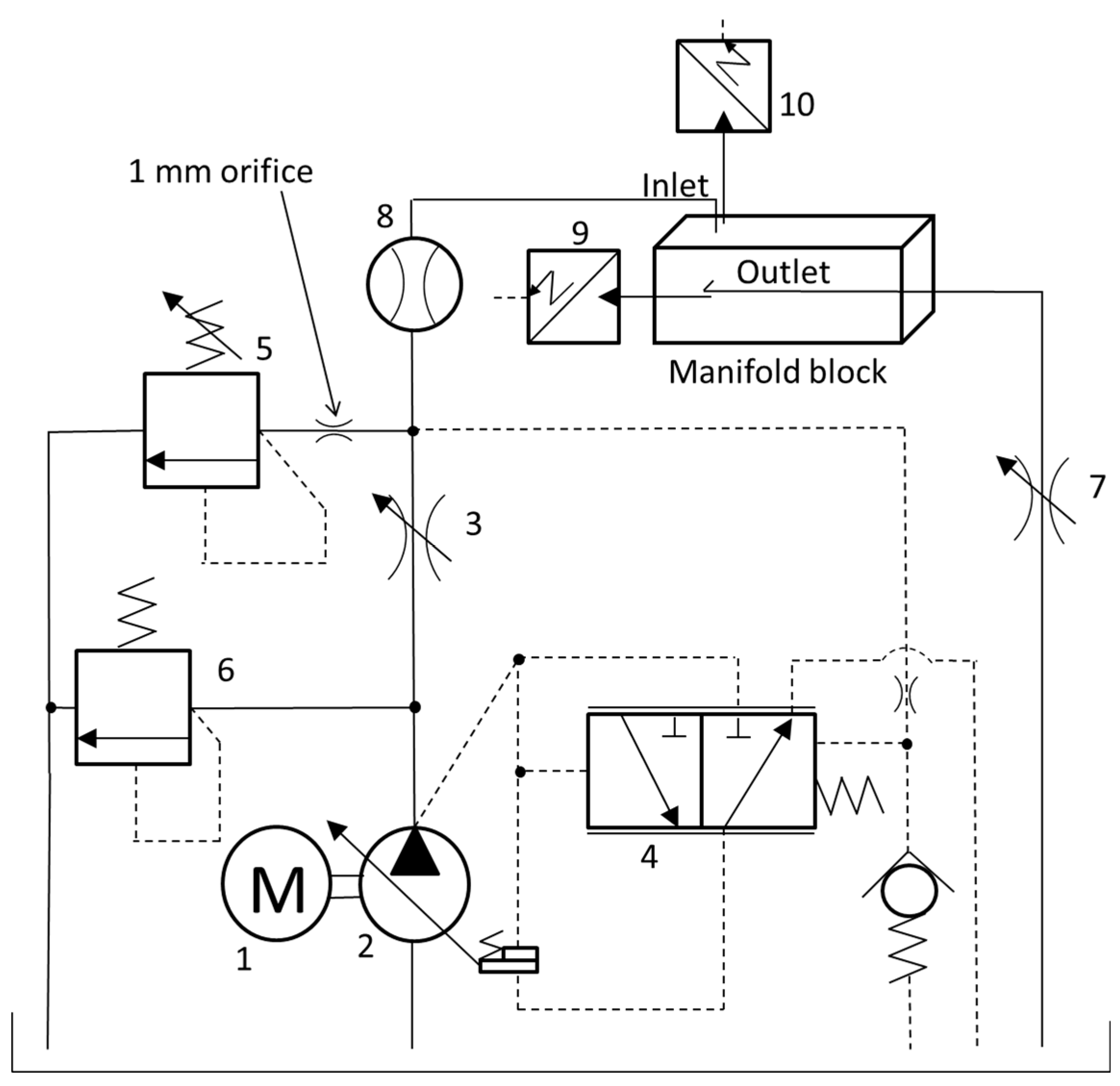

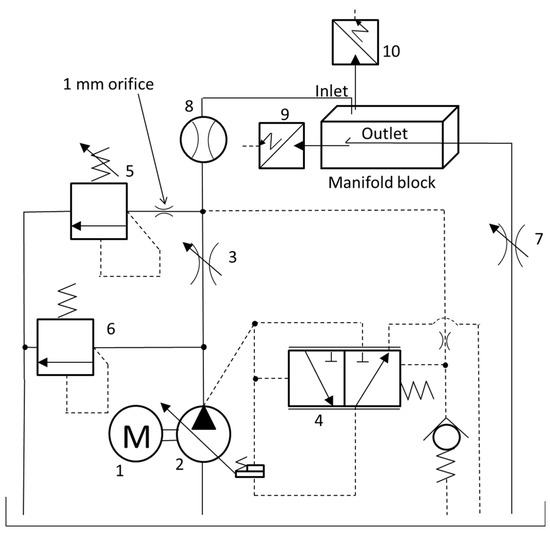

- 15 kW electric motor, 4-pole, operating at 380 V, 50 Hz ((1) in Figure 5);
- A variable displacement swashplate axial piston pump with flow and pressure compensator (maximum flow 65 L/min, maximum pressure 28 MPa) ((2) in Figure 5);
- An external gear pump feeding the off-line circuit dedicated to the cooling and filtering of the fluid (not represented in figure); the heat exchanger allows maintaining a controlled temperature (38 °C ± 2–3 °C).

## 5. Single-Elbow Geometries

#### 5.1. Simple 90° Elbow

#### 5.2. Expanding and Contracting Elbow

#### 5.3. Offset Elbow

#### 5.4. General Considerations

- Elbow with expansion: in the first experimental tests, cavitation and aeration strongly affect the pressure drop-flow rate curves. After repeating the tests restricting with the downstream orifice, the trends maintain a parabolic shape only for the lower expansion ratio, 1.25; whereas for higher expansion ratio values, the pressure drop trends are very low (and the accuracy of the measurements are very small in these cases). Instead, CFD results for the elbow with expansion show that the pressure drop-flow rate trend is always parabolic.
- With an expansion ratio of 1.25, the pressure drop is drastically reduced with respect to the normal elbow and both experimental and CFD results show this trend;
- In the case of a contraction elbow, there is no significant variation of the pressure drop with the contraction ratio (this is true both for CFD and experimental results) and CFD results still follow the experimental trends in always overestimating them;
- Looking at the offset elbow, attention must be paid to the fact that, with relatively high distances s and t, the intersection area between the channels may be drastically reduced, thereby causing very high pressure drop values.

## 6. Two Elbows

^{−2}(MPa) (same order of the measurement accuracy), i.e., the pressure drop is not sensitive to the backpressure if cavitation is not occurring.

## 7. Discrepancy between Numerical and Experimental Results

## 8. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Murrenhoff, H.; Sgro, S.; Vukovic, M. An overview of energy saving architectures for mobile applications. In Proceedings of the 9th International Fluid Power Conference, Aachen, Germany, 24–26 March 2014; Volume 2.
- Eriksson, B. Mobile Fluid Power Systems Design with a Focus on Energy Efficiency. In Linköping Studies in Science and Technology Dissertations; Linköping University Electronic Press: Linköping, Sweden, 2010; p. 77. [Google Scholar]
- Borghi, M.; Zardin, B.; Pintore, F.; Belluzzi, F. Energy Savings in the Hydraulic Circuit of Agricultural Tractors. Energy Procedia
**2014**, 45, 352–361. [Google Scholar] [CrossRef] - Love, L.; Lanke, E.; Alles, P. Estimating the Impact (Energy, Emissions and Economics) of the U.S. Fluid Power Industry ORNL/TM-2011/14. 2012. Available online: http://www.osti.gov/scitech/biblio/1061537-estimating-impact-energy-emissions-economics-us-fluid-power-industry (accessed on 2 March 2017). [Google Scholar]
- Chambon, R.; Tollenaere, M. Automated Al-based mechanical design of hydraulic manifold blocks. Comput.-Aided Des.
**1991**, 23, 213–222. [Google Scholar] [CrossRef] - Xiang, W.; Chuen, C.W.; Wong, C.M.; Yam, L.H. Feature Representation and Database Schema of an Object-Oriented Feature-Based Product Model for Hydraulic Manifold Blocks. Int. J. Adv. Manuf. Technol.
**2000**, 16, 182–188. [Google Scholar] [CrossRef] - Manmatha, K.R.; Sukanta, K.D. Two-phase pressure drop caused by sudden flow area contraction/expansion in small circular pipes. Int. J. Numer. Methods Fluids
**2011**, 66, 1420–1446. [Google Scholar] - Martinopoulos, G.; Missirlis, D.; Tsilingiridis, G.; Yakinthos, K.; Kyriakis, N. CFD Modeling Of A Polymer Solar Collector. Renew. Energy
**2010**, 35, 1499–1508. [Google Scholar] [CrossRef] - Missirlis, D.; Martinopoulos, G.; Tsilingiridis, G.; Yakinthos, K.; Kyriakis, N. Investigation of the heat transfer behaviour of a polymer solar collector for different manifold configurations. Renew. Energy
**2014**, 68, 715–723. [Google Scholar] [CrossRef] - Jones, G.F.; Lior, N. Flow distribution in manifolded solar collectors with negligible buoyancy effects. Sol. Energy
**1994**, 52, 289–300. [Google Scholar] [CrossRef] - Wang, J. Theory of flow distribution in manifolds. Chem. Eng. J.
**2011**, 168, 1331–1345. [Google Scholar] [CrossRef] - Rennels, D.C.; Hudson, H.M. Pipe Flow, A Practical and Comprehensive Guide; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2012. [Google Scholar]
- Idelchik, I.E. Handbook of Hydraulic Resistance, 2nd ed.; Hemisphere Publishing Co.: London, UK, 1986. [Google Scholar]
- Murakami, M.; Shimizu, Y.; Shiragami, H. Studies on fluid flow in three-dimensional bend conduits. Bull. JSME
**1969**, 12, 1369–1379. [Google Scholar] [CrossRef] - Song, Z.A.; Wang, Y.A. Research and Analysis of the Resistance Characteristic of Combined Flow Channel. In Proceedings of the International Workshop on Information Security and Application (IWISA 2009), Qingdao, China, 21–22 November 2009.
- Abe, O.; Tsukiji, T.; Hara, T.; Yasunaga, K. Pressure drop of pipe flow in manifold block. In Proceedings of the 8th JFPS International Symposium on Fluid Power, Okinawa, Japan, 25–28 October 2011.
- Abe, O.; Tsukiji, T.; Hara, T.; Yasunaga, K. Flow analysis in pipe of a manifold block. IJAT
**2012**, 6, 494–501. [Google Scholar] - Autodesk
^{®}Simulation CFD 2013 Manual. Available online: https://knowledge.autodesk.com/support/cfd/downloads (accessed on 2 March 2017). - Merritt, H.E. Hydraulic Control Systems; John Wiley & Sons: Hoboken, NJ, USA, 1967. [Google Scholar]
- Lu, L.; Zhong, L.; Liu, Y. Turbulence models assessment for separated flows in a rectangular asymmetric three-dimensional diffuser. Eng. Comput.
**2016**, 33, 978–994. [Google Scholar] [CrossRef] - MDTools
^{®}750 Manual. Available online: http://www.vestusa.com/Download/MDTools-750-User-Manual.pdf (accessed on 2 March 2017). - MULTI SYSTEM 5060 PLUS, Hydrotechnik. Available online: http://www.hydrotechnik.com/en-uk/products/instruments/multisystem/multisystem-5060-plus/ (accessed on 2 March 2017).
- Manring, N.D. Measuring Pump Efficiency: Uncertainty Considerations. ASME J. Energy Resour. Technol.
**2005**, 127, 280–284. [Google Scholar] [CrossRef] - ANSYS Release 16 Guide. Available online: http://www.ansys.com/Resource-Library (accessed on 2 March 2017).

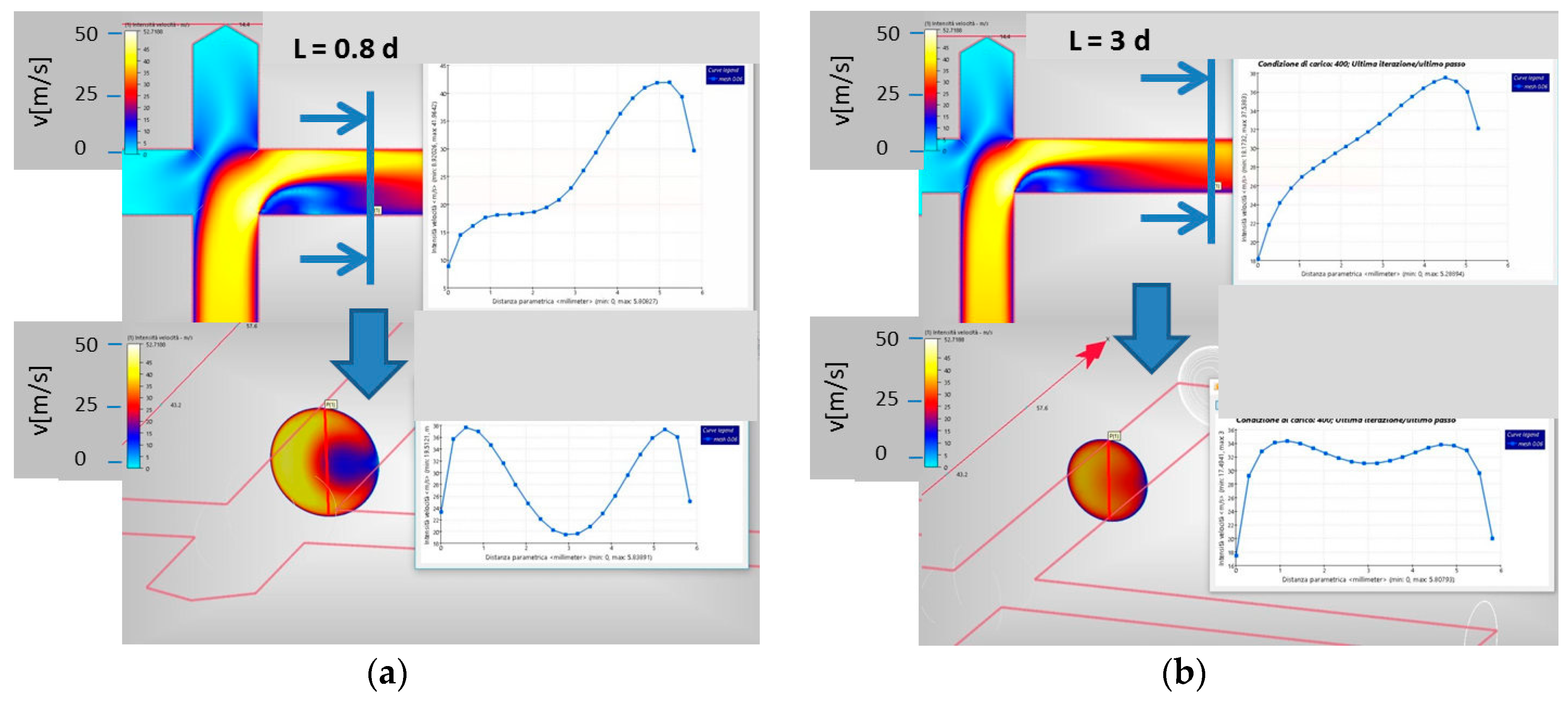

**Figure 1.**Computational Fluid Dynamic (CFD) analysis of a 90° bend, results presented as in [14]: velocity map and profiles on the curved and normal plane at a distance 0.8·d from the curvature (

**a**) and 3·d from the curvature (

**b**).

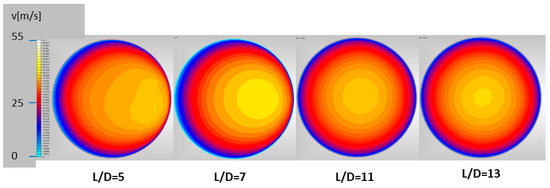

**Figure 2.**Qualitative velocity map (yellow is highest speed value) at different distance L/d from the curvature.

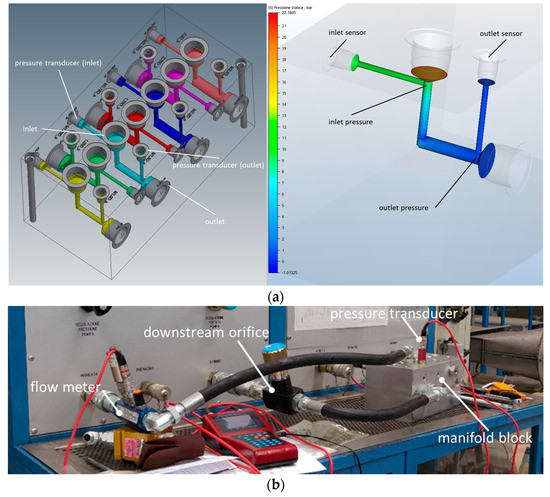

**Figure 6.**(

**a**) The manifold block CAD Model and the position of the pressure transducers in the single-elbow case (pressure field is shown); (

**b**) image of the test rig and the connections.

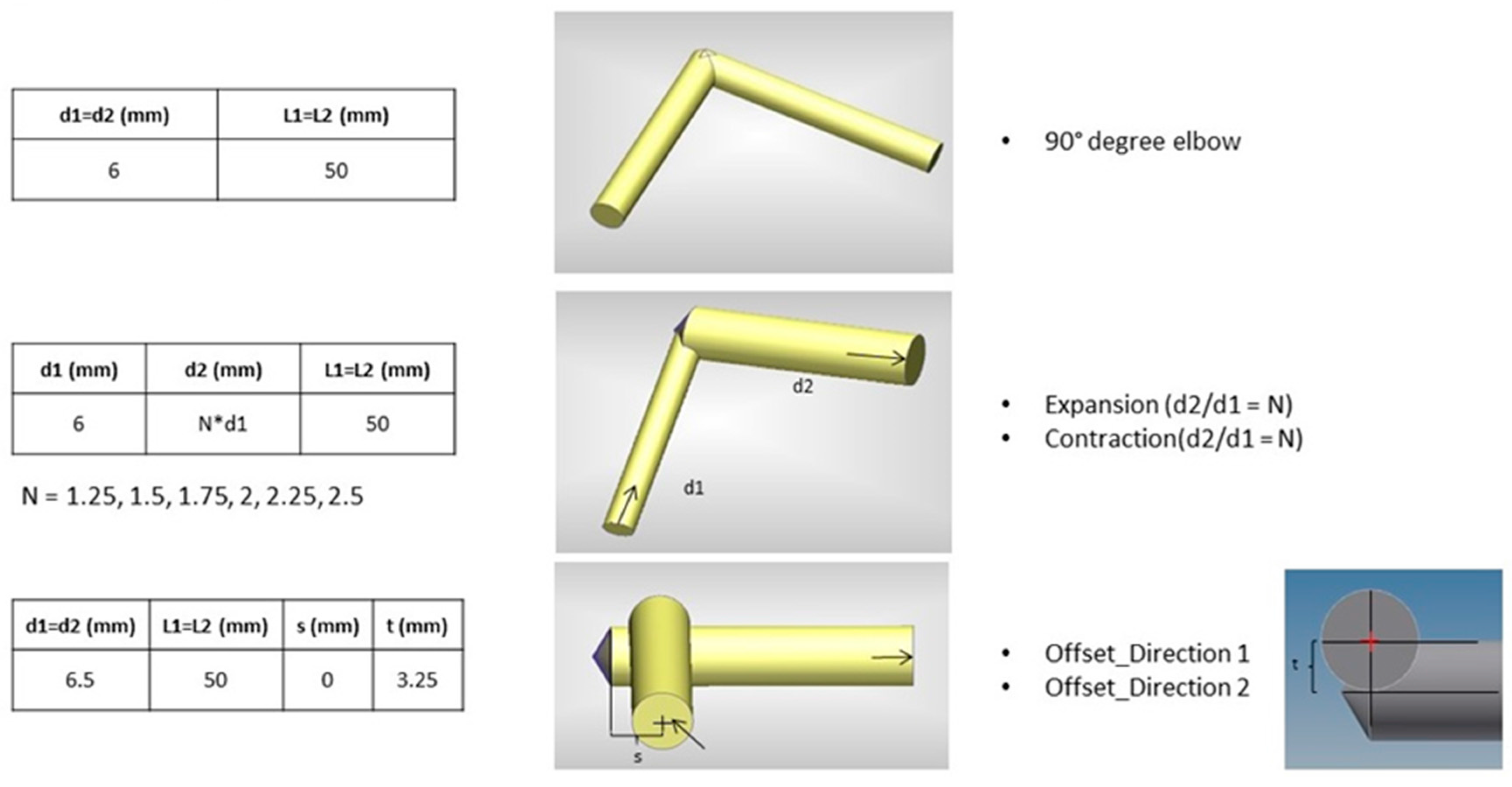

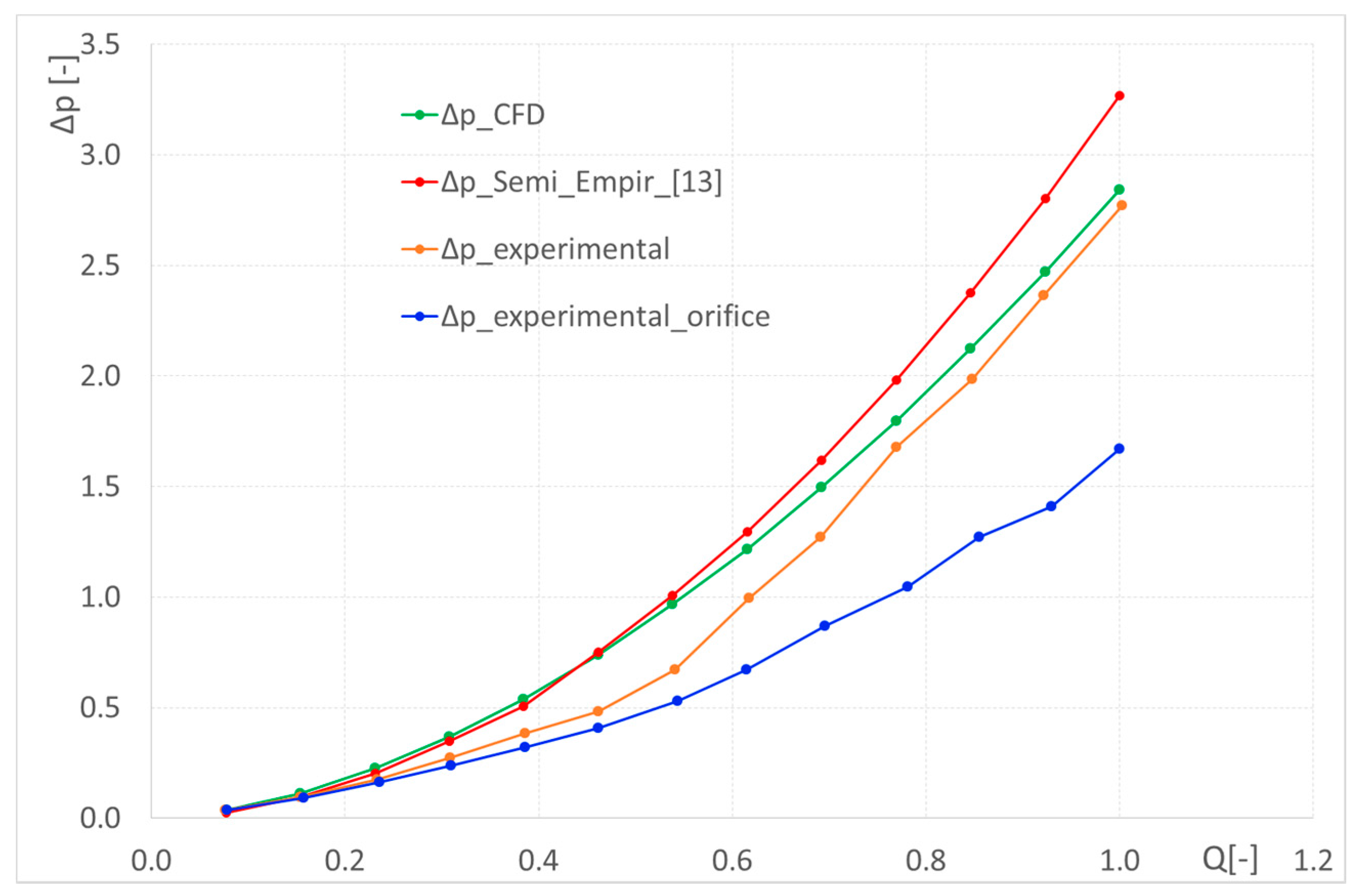

**Figure 8.**Pressure drop trends coming from: experimental test—with and without the restriction of the downstream orifice; CFD simulations; calculated according to the semi-empirical formulation of [13].

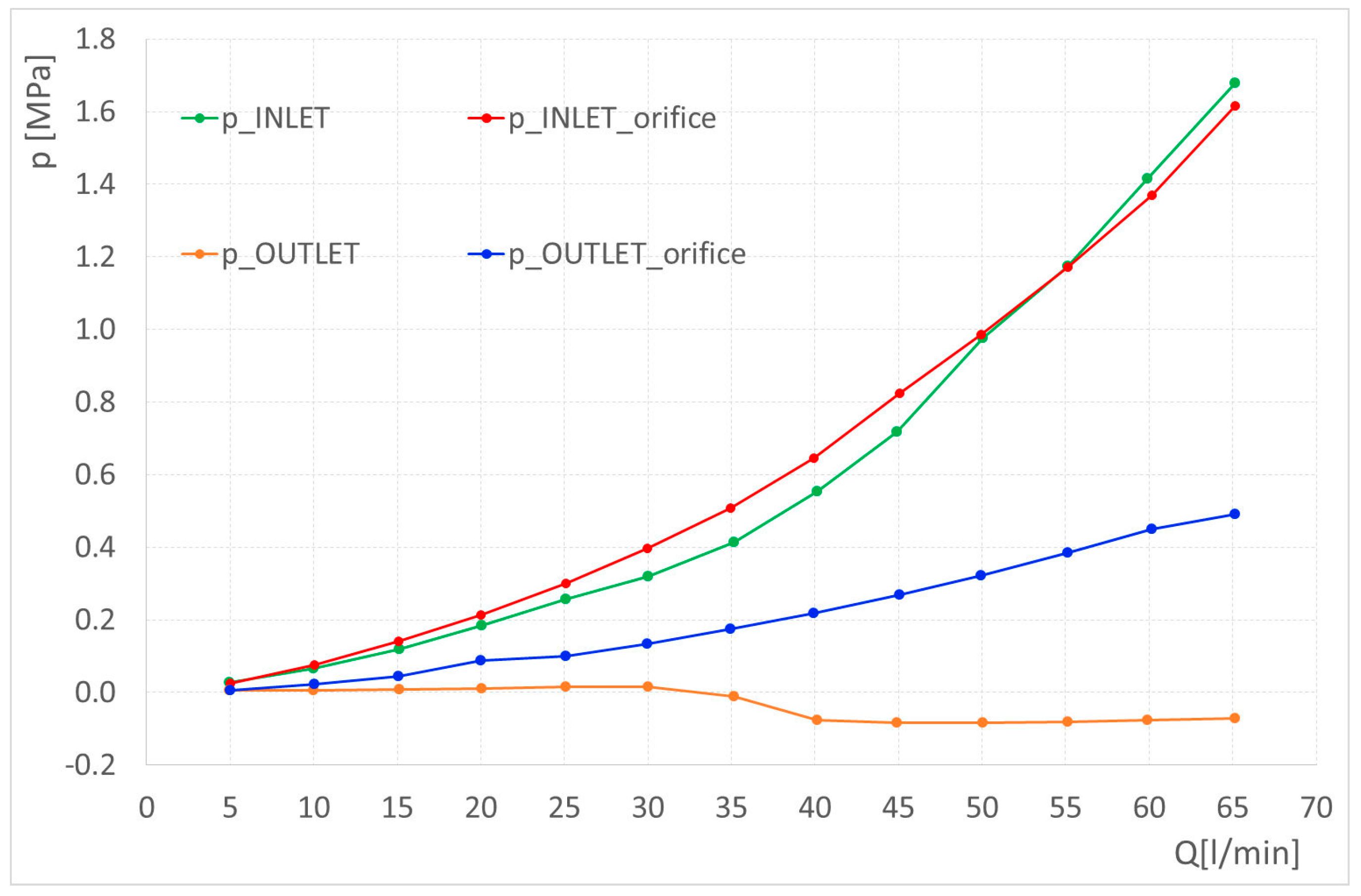

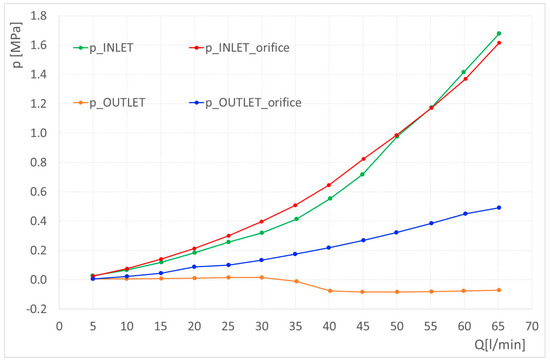

**Figure 9.**Experimental pressure trends coming from the experimental test with and without the restriction of the downstream orifice.

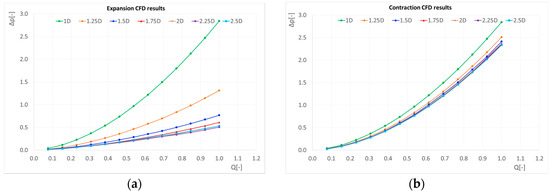

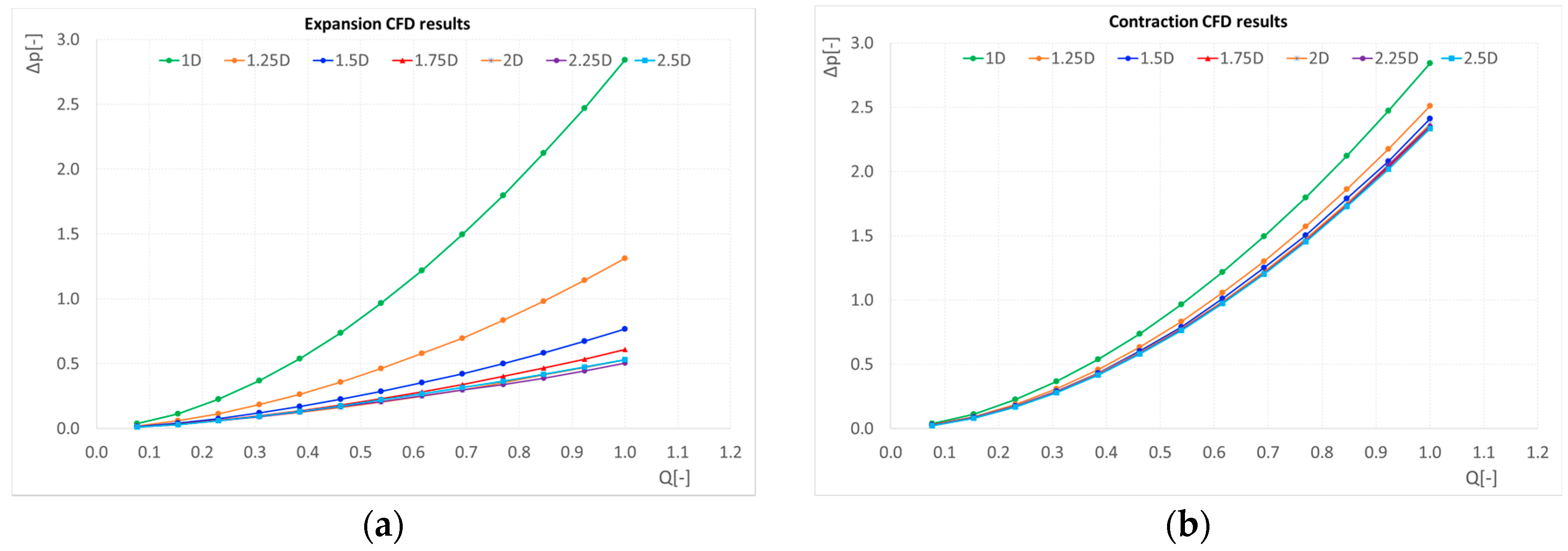

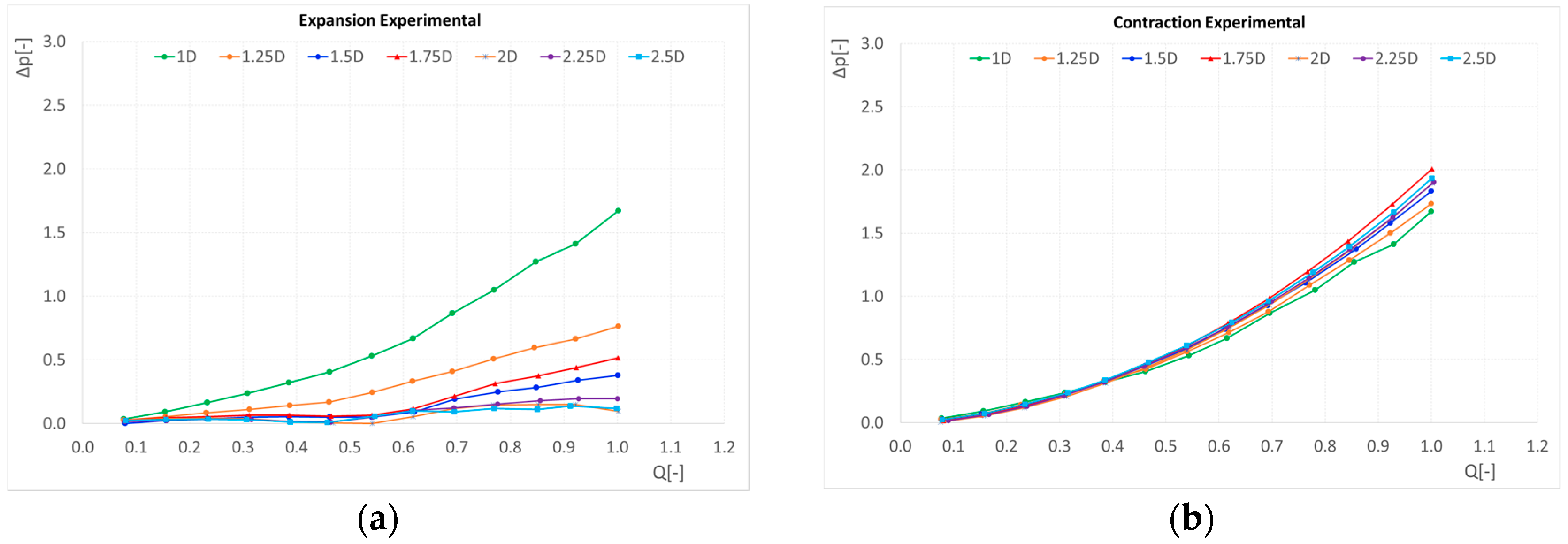

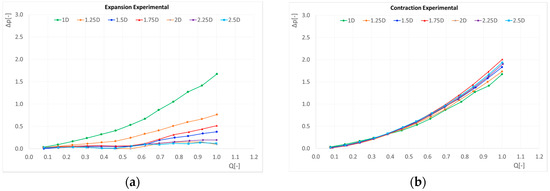

**Figure 11.**Pressure drop experimentally measured restricting the downstream orifice, expansion (

**a**) contraction (

**b**).

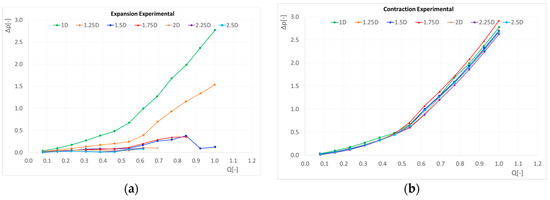

**Figure 12.**Pressure drop experimentally measured without restricting the downstream orifice, expansion (

**a**) contraction (

**b**).

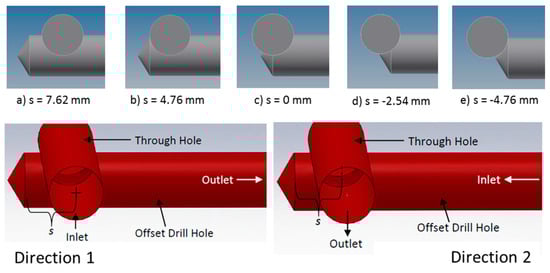

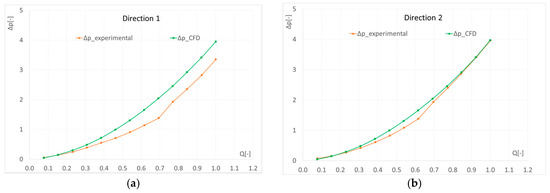

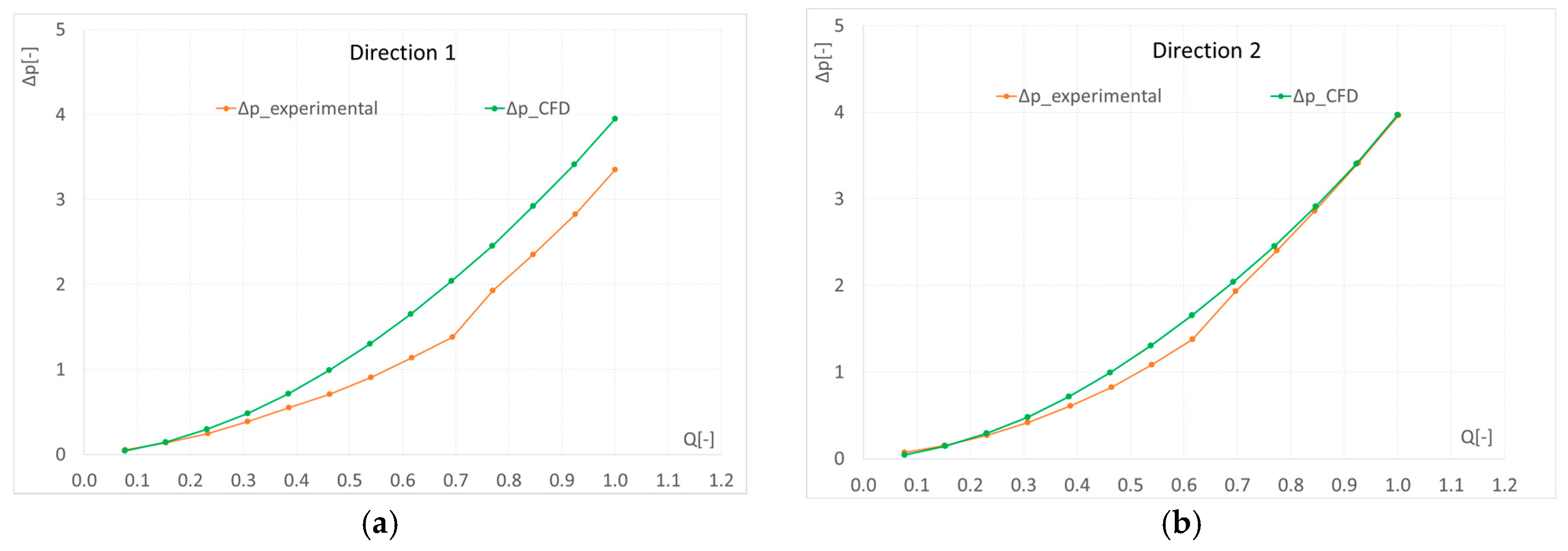

**Figure 14.**Pressure drop calculated with CFD and experimentally measured in the offset connection test, in both the directions of flow ((

**a**) direction 1; (

**b**) direction 2).

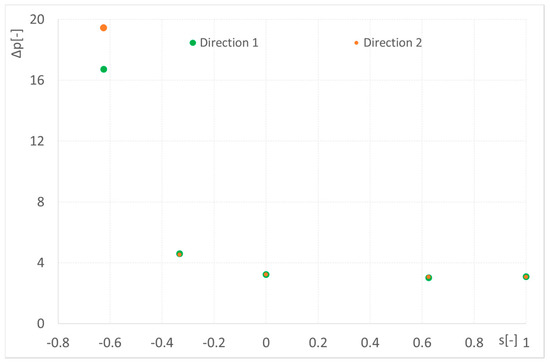

**Figure 15.**Pressure drop calculated with CFD in the offset connection geometries with variable distance s.

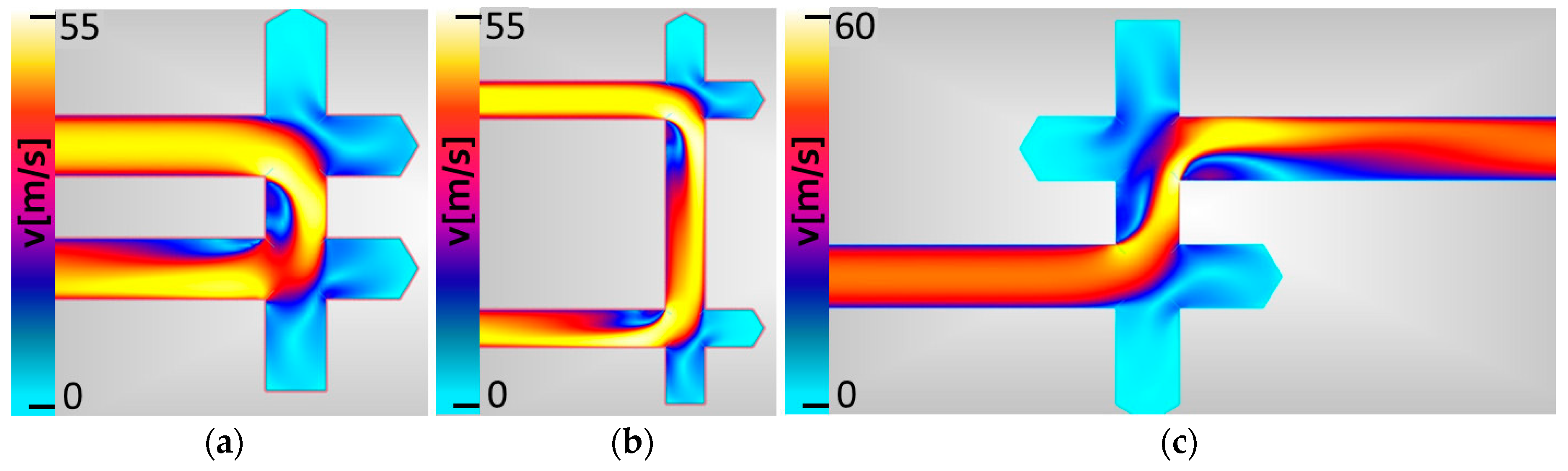

**Figure 16.**Velocity map in the two-elbow geometries: (

**a**) twisting angle equal to zero; (

**b**) twisting angle equal to zero, more distance between the elbows with respect to case (

**a**); (

**c**) twisting angle equal to 180°.

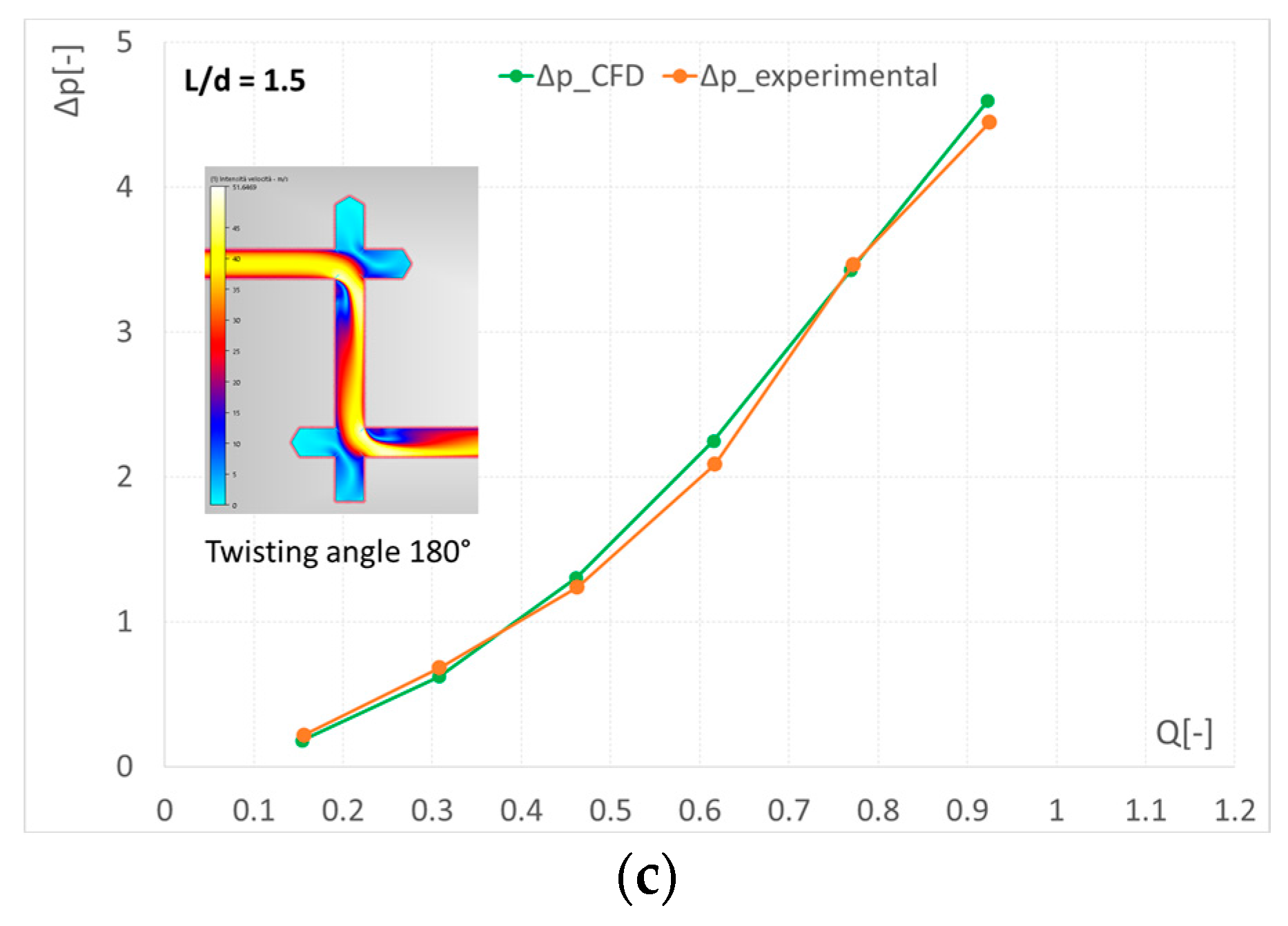

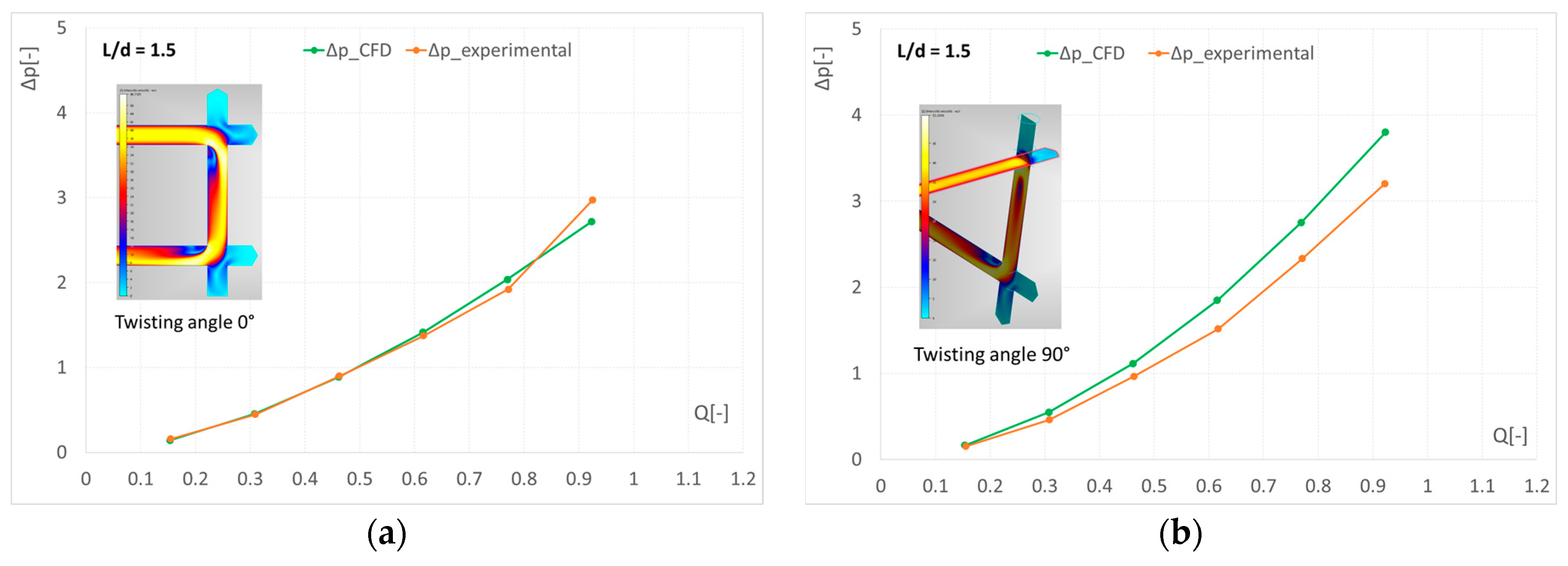

**Figure 17.**Pressure drop trends for different twisting angle values: 0° (

**a**); 90° (

**b**); 180° (

**c**); the elbows are at a constant distance L = 1.5·d.

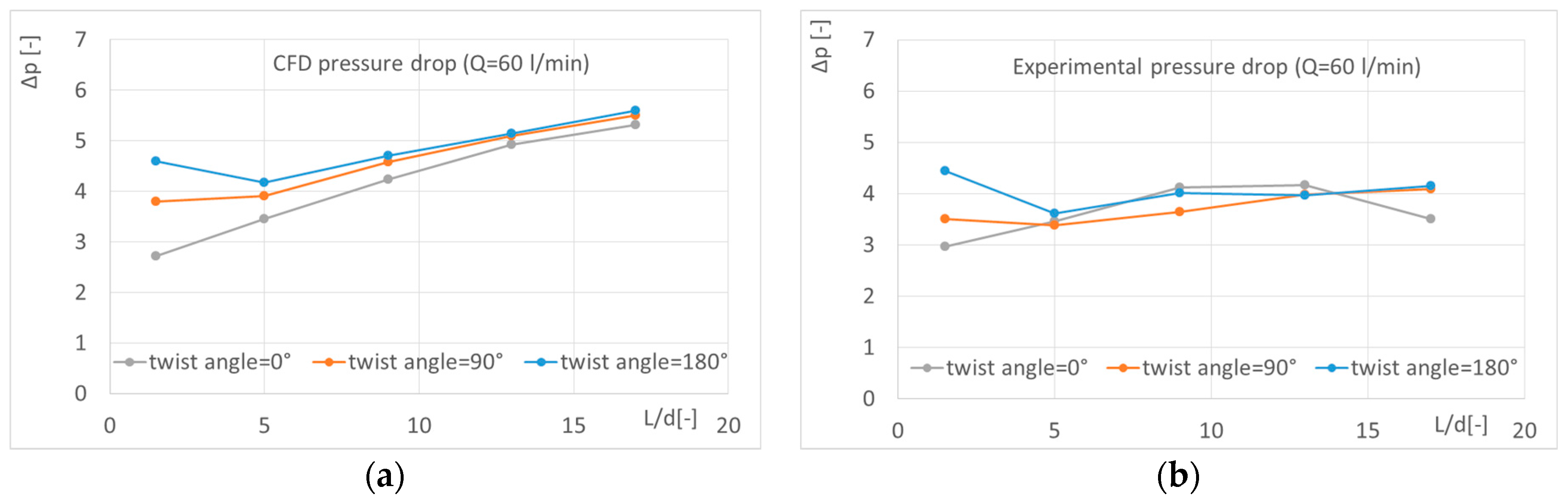

**Figure 18.**Pressure drop trends as function of the distance L/d between the elbows, for different twisting angle values (0°, 90° and 180°), calculate with CFD analysis (

**a**); measured (

**b**).

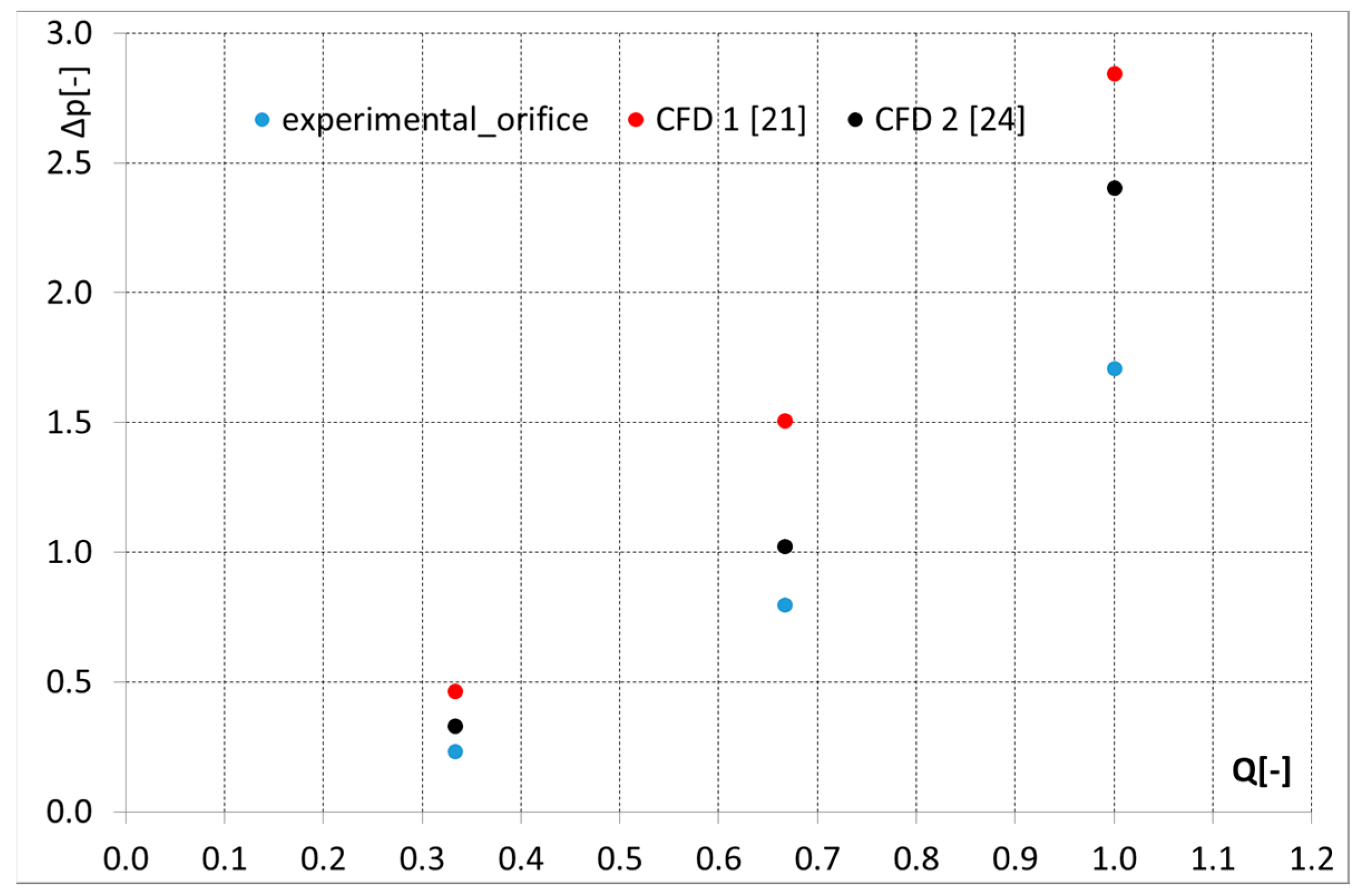

**Figure 19.**Pressure drop trends as function of the flow for the two CFD analyses performed and the experimental test.

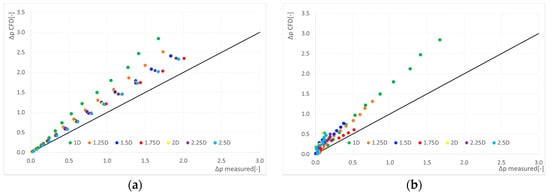

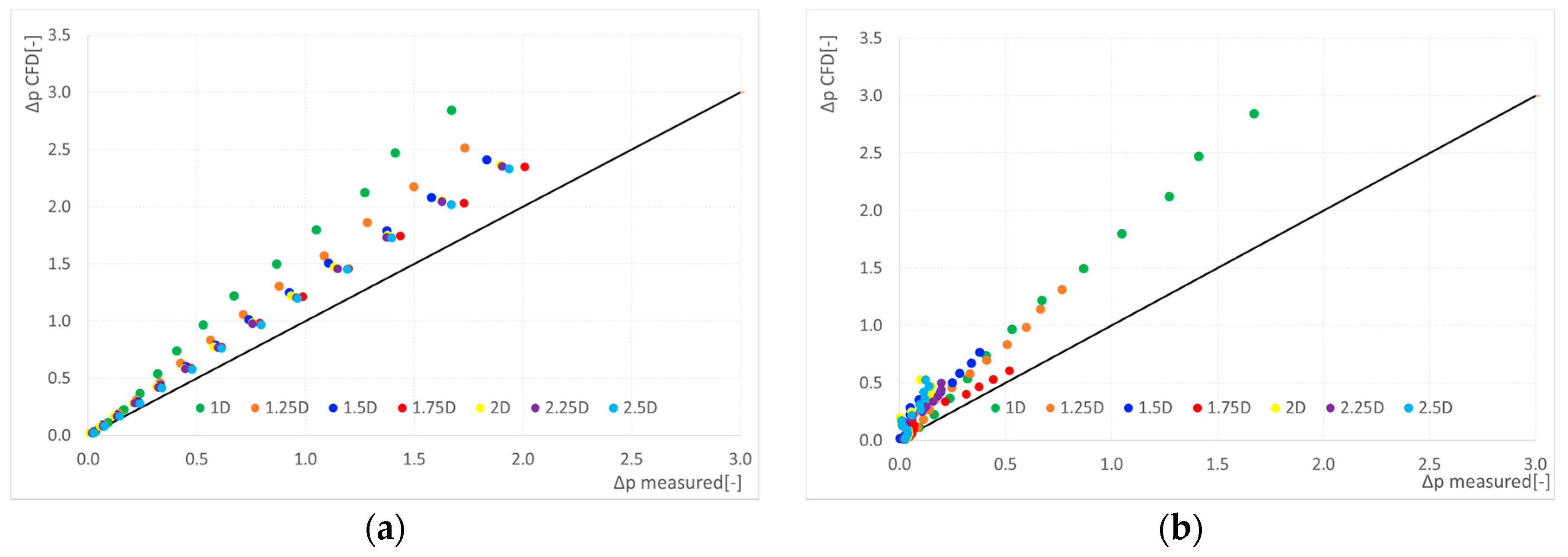

**Figure 20.**Relation between the experimental and numerical pressure drops in the contraction case (
