Open AccessArticle
Energies 2017, 10(10), 1489; https://doi.org/10.3390/en10101489

Performance Analysis of Thermoelectric Based Automotive Waste Heat Recovery System with Nanofluid Coolant

1,2
,
1,3,* and 4
1
Hubei Key Laboratory of Advanced Technology for Automotive Components, Wuhan University of Technology, Wuhan 430070, China
2
Institute of Power Machinery and Vehicular Engineering, Zhejiang University, Hangzhou 310027, China
3
Hubei Collaborative Innovation Center for Automotive Components Technology, Wuhan University of Technology, Wuhan 430070, China
4
School of Mechanical and Electronic Engineering, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Academic Editor: Chang Sik Lee
Received: 3 August 2017 / Revised: 31 August 2017 / Accepted: 20 September 2017 / Published: 26 September 2017
(This article belongs to the Section Energy Fundamentals and Conversion)
Full-Text   |   PDF [4379 KB, uploaded 26 September 2017]   |

Abstract

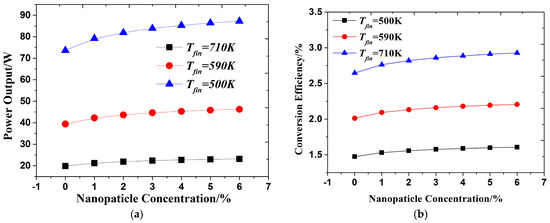

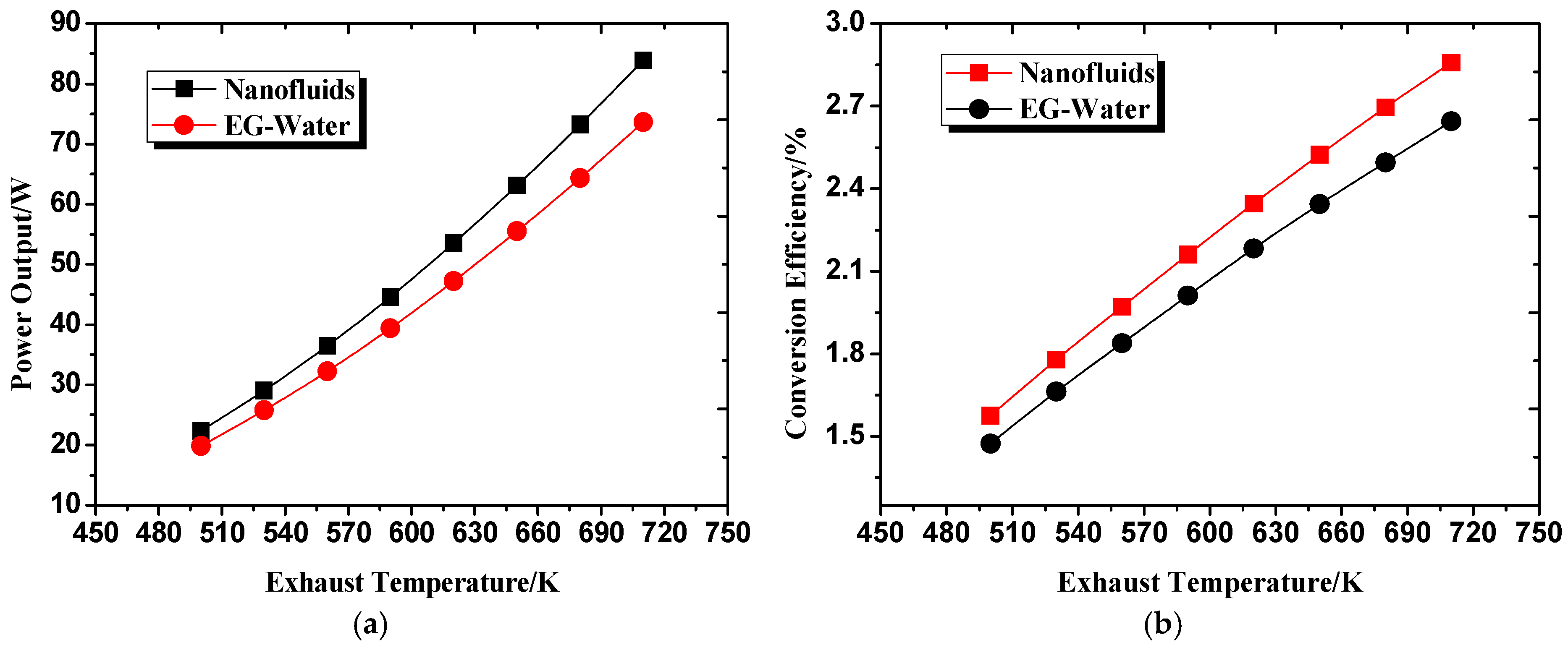

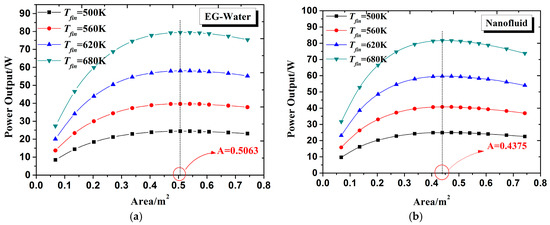

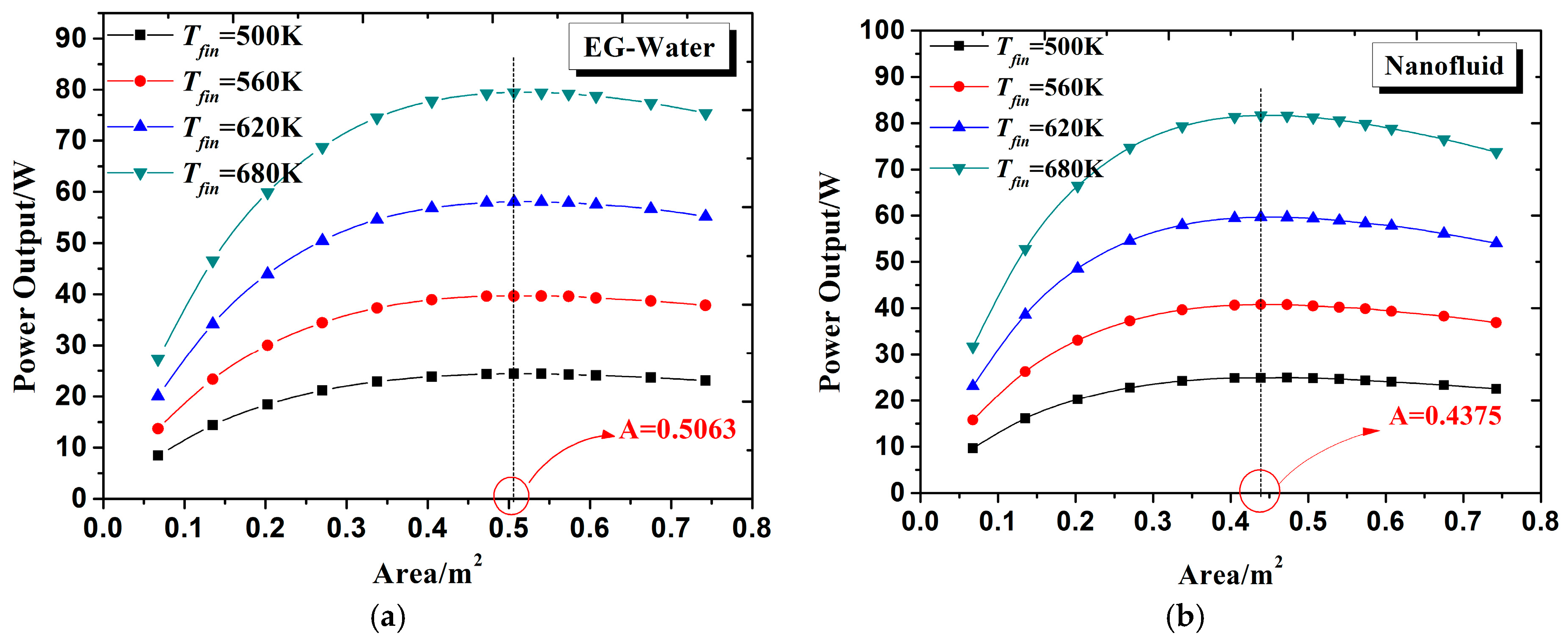

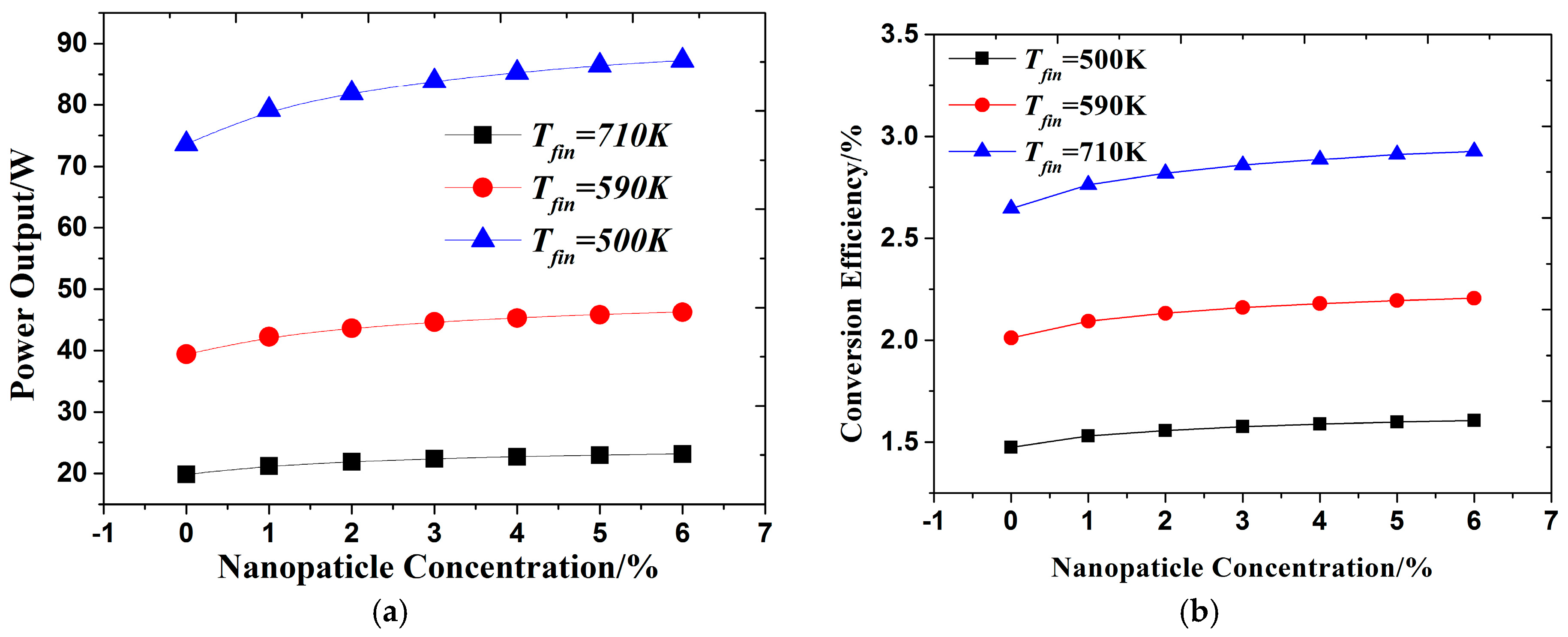

Output performance of a thermoelectric-based automotive waste heat recovery system with a nanofluid coolant is analyzed in this study. Comparison between Cu-Ethylene glycol (Cu-EG) nanofluid coolant and ethylene glycol with water (EG-W) coolant under equal mass flow rate indicates that Cu-EG nanofluid as a coolant can effectively improve power output and thermoelectric conversion efficiency for the system. Power output enhancement for a 3% concentration of nanofluid is 2.5–8 W (12.65–13.95%) compared to EG-Water when inlet temperature of exhaust varies within 500–710 K. The increase of nanofluid concentration within a realizable range (6%) has positive effect on output performance of the system. Study on the relationship between total area of thermoelectric modules (TEMs) and output performance of the system indicates that optimal total area of TEMs exists for maximizing output performance of the system. Cu-EG nanofluid as coolant can decrease optimal total area of TEMs compared with EG-W, which will bring significant advantages for the optimization and arrangement of TEMs whether the system space is sufficient or not. Moreover, power output enhancement under Cu-EG nanofluid coolant is larger than that of EG-W coolant due to the increase of hot side heat transfer coefficient of TEMs. View Full-Text
Keywords: nanofluid; heat transfer enhancement; thermoelectric generator; waste heat recovery nanofluid; heat transfer enhancement; thermoelectric generator; waste heat recovery
Figures

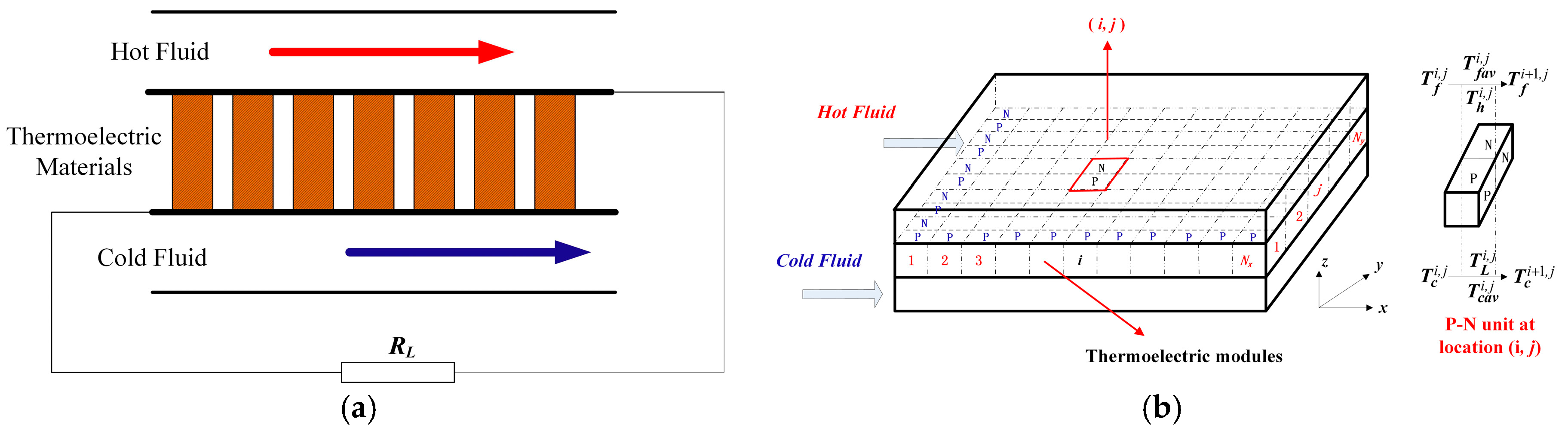

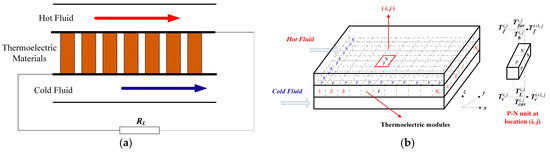

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
