Myositis Ossificans of the Left Medial Pterygoid Muscle: Case Report and Review of the Literature of Myositis Ossificans of Masticatory Muscles

Abstract

Myositis ossificans is a disease that is characterized by nonneoplastic, heterotopic bone formation within a muscle. Myositis ossificans traumatica, also called myositis ossificans circumscripta, is a disease in which muscles are ossified presumably following acute trauma, burns, surgical manipulation, or repeated injury. It is often remitted after surgical excision though some patients have repeated recurrences. Myositis ossificans traumatica of masticatory muscles is not frequently reported in the literature, with the most common clinical finding being a progressive limitation of motion in the mandible. The aim of this article is to present and discuss a case of myositis ossificans traumatica of the left medial pterygoid muscle and to review the literature of myositis ossificans of the masticatory muscles.

Myositis ossificans (MO) is a disease that is characterized by nonneoplastic, heterotopic bone formation within a muscle. MO can be classified into MO progressive (or fibrodysplasia ossificans progressive), that is the autosomal dominant disease with multiple, heterotopic ossifications in the systemic muscle, fascia, tendons, and ligaments, and MO traumatica [1,2,3,4,5,6].

MO traumatica, also called MO circumscripta, is a disease in which muscles are ossified presumably following acute trauma, burns, surgical manipulation, or repeated injury [1,3,4].

Unlike MO progressive, MO traumatica is often remitted after surgical excision though some patients have repeated recurrences [1].

MO traumatica of masticatory muscles is not frequently reported in the literature [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37], with the most common clinical finding being a progressive limitation of motion in the mandible [2,3,4].

The aim of this article is to present and discuss a case of MO traumatica of the left medial pterygoid muscle and to review the literature of MO of the masticatory muscles.

Case Report

A 37-year-old woman referred to the Division of Maxillofacial Surgery of the University of Turin with a complaint of trismus. She reported a blow to the left side of her face several years before and a progressively increasing limitation of mandibular motion for the last 2 years. Her medical and family history was unremarkable.

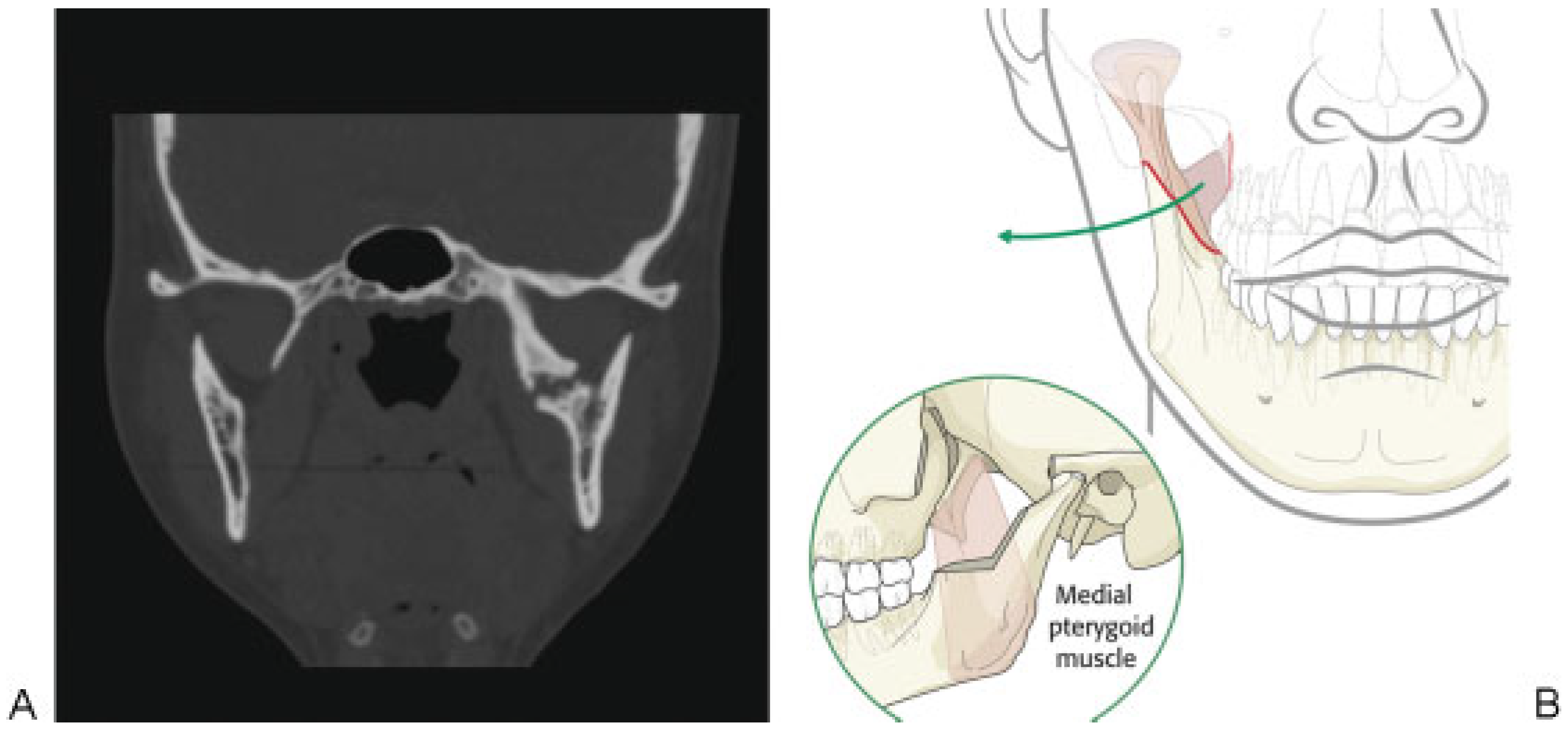

At clinical examination, she had trismus, with a maximum interincisal opening of the mouth of 5 mm. The patient was also unable to protrude or produce a left lateral excursion. The occlusion was stable, without significant intraoral findings. Neither swelling nor pain of the left side of her face could be appreciated on palpation (Figure 1). Submandibular and cervical lymph nodes were nonpalpable and nontender. Results of hemogram and tests for serum phosphatase, parathyroid hormone, and calcitonin were within normal limits. A panoramic radiograph revealed a radiopaque calcified region with apparent bony features in correspondence of the left coronoid process and sigmoid notch. (Figure 2) Axial and coronal computed tomography (CT) scans confirmed the presence of irregular heterotopic calcification involving the left medial pterygoid muscle (Figure 3 and Figure 4).

Surgical excision of the ossification was planned under general anesthesia.

After fiber optic-assisted nasotracheal intubation, a combined intraoral and extraoral (submandibular and preauricular) approach was performed. The calcified mass within the left medial pterygoid muscle was exposed and completely excised together with the left coronoid and condyle by surgical burs and trimmer. After removal of the fused mass and site preparation, Biomet/W Lorenz Surgical System temporomandibular joint (TMJ) prosthesis (Biomet/Lorenz, Warsaw, IN) with condylar and fossa components was placed. An intraoperative interincisal mouth opening of 35 mm was achieved. The wound was closed in layers after complete hemostasis.

Histopathological examination showed heterotopic foci of osteoid woven bone, cartilage, and collagen fibers consistent with the diagnosis of MO.

Aggressive jaw physical therapy was started postoperatively. A rigorous physiotherapy was recommended, and the patient was regularly followed up. Follow-up at 30 days confirmed the restoration of the posterior ramus height and the maintained facial symmetry (Figure 5); furthermore, maximum spontaneous opening mouth recovered to 31 mm. Postoperative radiographs showed excision of the ossification and the correct placement of the TMJ prosthesis (Figure 6 and Figure 7). Follow-up at 3 years was unremarkable without any evidence of recurrence.

Discussion

MO traumatica is an extraskeletal bone-forming disease in the head and neck region [4].

The term “MO traumatica” may be inadequate to describe this disorder, because in various cases a history of trauma cannot be recognized [3,4,7,15,32] and there is little inflammation.

The pathogenesis of MO is still controversial and several theories have been proposed. The most widely accepted theory involves the differentiation of extraosseous cells exposed to bone morphogenic proteins that would have been released from native bone sources following trauma or surgical injury [1,2,4].

Other theories suggested the displacement of bony fragments into the surrounding tissue and hematoma with subsequent bony proliferation, the detachment of periosteal fragments into the soft tissue with proliferation of osteoprogenitor cells, or the migration of subperiosteal osteoprogenitor cells into surrounding tissue through periosteal perforations [2].

Laboratory tests are usually within normal ranges, except for some cases with a reported elevated alkaline phosphatase level that might be due to disease progression [4].

An English literature review revealed 42 cases of MO of the masticatory muscles, including our case. The results are shown in

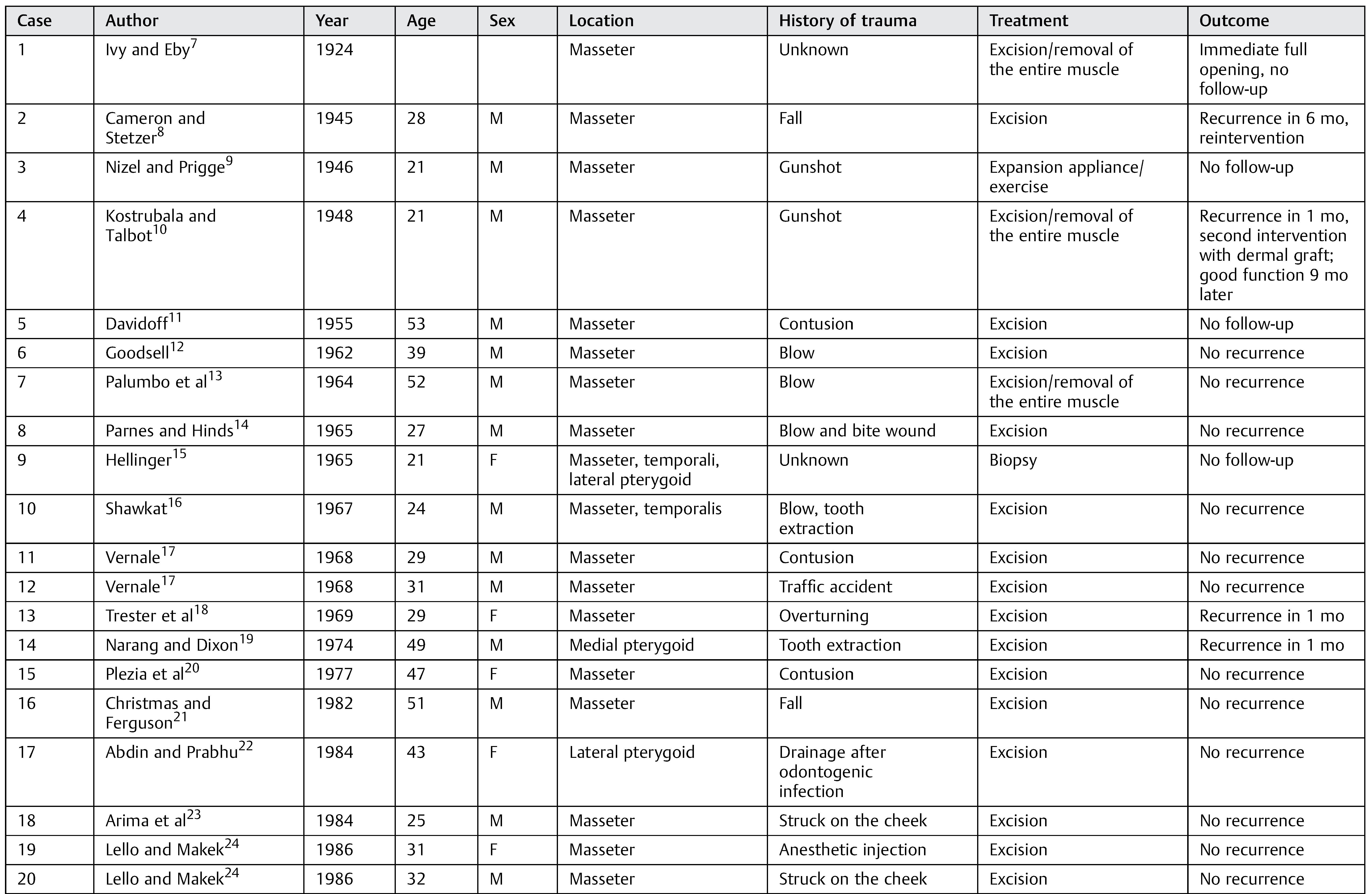

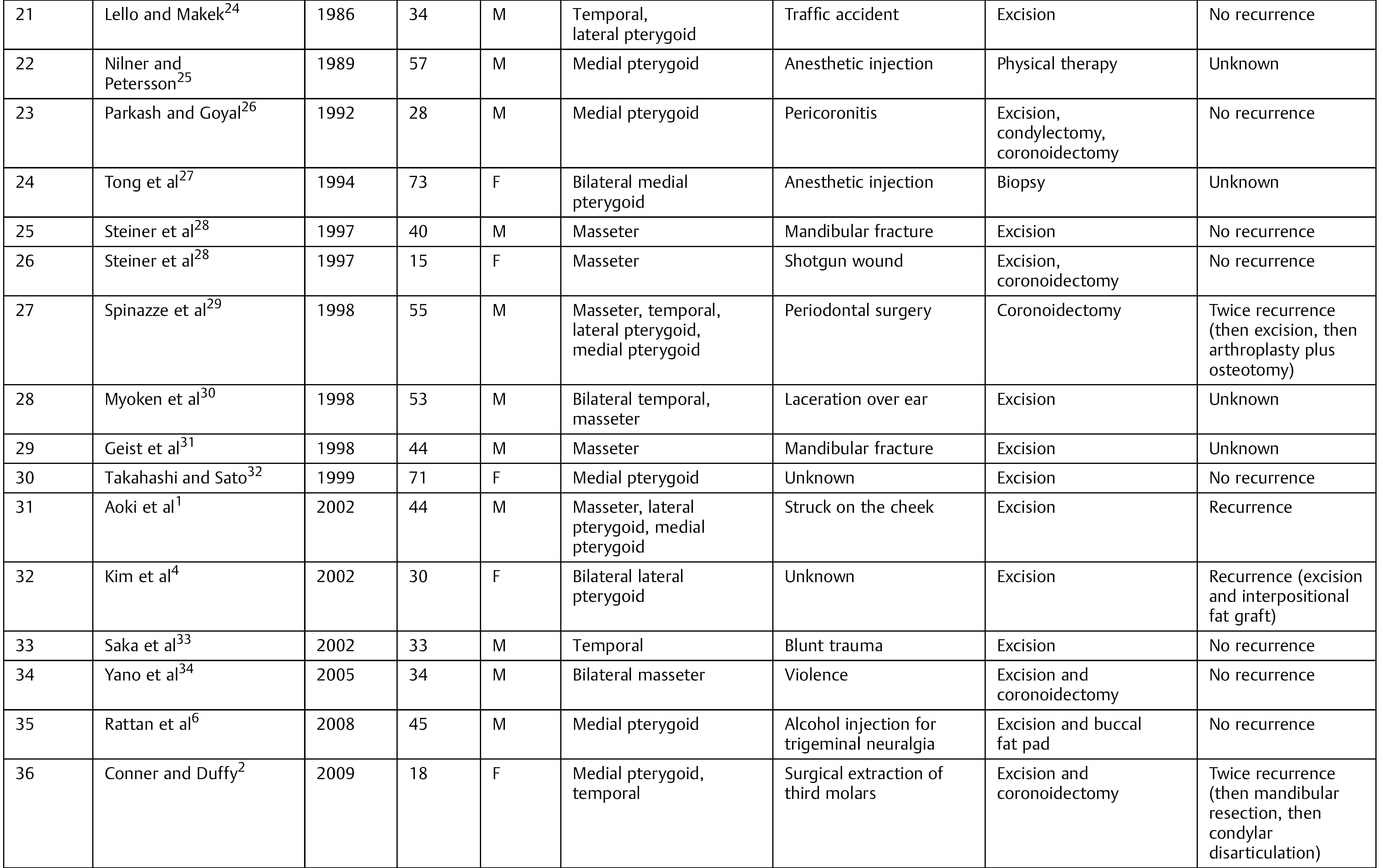

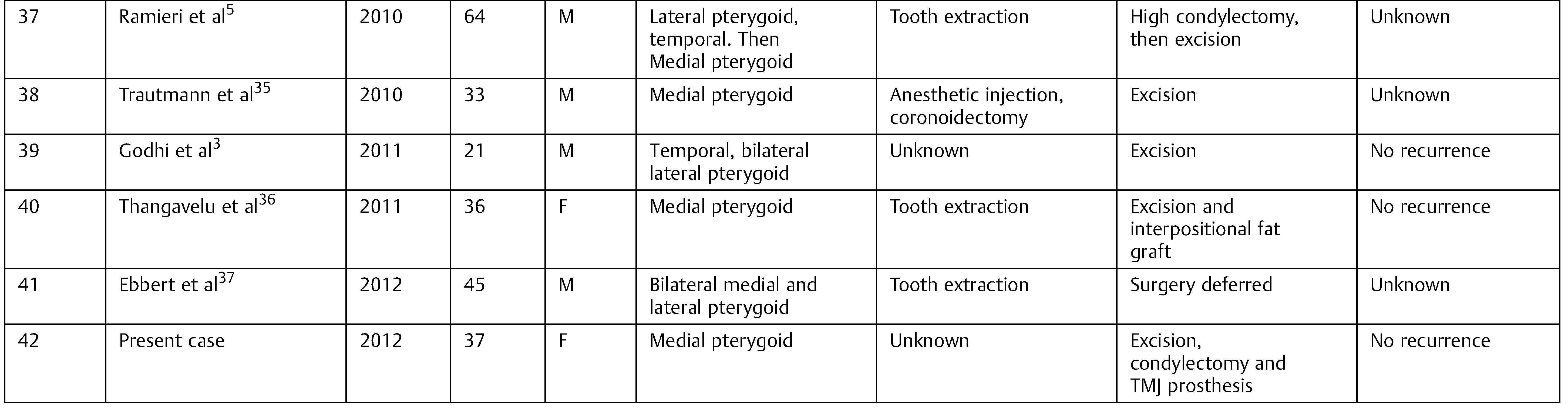

Table 1. Review of cases of myositis ossificans of masticatory muscles in the literature.

Abbreviation: F, female; M, male; mo, month(s).

. Mean age of affected patients is 38.1 years (range, 15–73 y; median, 34 y; standard deviation, 14.2). Men were 29, whereas female patients were 12, with a ratio M:F of 2.4:1.

In 29 patients only a masticatory muscle was involved, while in the remaining 13 cases two or more muscles were affected by MO. Masseter was the most frequently involved muscle, with 25 patients, followed by medial pterygoid muscle (14 patients), lateral pterygoid muscle (9 patients), and temporalis muscle (5 patients).

The higher incidence of MO of masseter may be attributed to the external position of this muscle that is likely to receive a direct trauma [1].

The most frequent subjective symptom of MO is trismus [1,3], that should be differentiated from trismus related to perimandibular inflammation or abscess, tumor, trauma, or TMJ diseases [38,39].

Diagnosis of MO may be challenging, and an accurate history is essential, as a history of trauma, previous surgical intervention, or injection was recognized in 35 cases [2].

On plain radiographs, that are usually performed first, it may be difficult to identify the real amount and site of ossification because of the superimposition of the cranial bones [1,2]. CT scans are fundamental to perform a correct diagnosis, and to accurately plan a surgical treatment.

The pathognomonic feature of MO is a well-circumscribed, high-attenuating periphery with a low-attenuating central portion, whereas lesions may or may not be attached to the adjacent bone depending on the maturity of MO.

As Kim et al. [4] said, early lesions of the axial skeletons are reported to appear as amorphous calcifications within soft tissue, more mature lesions appear well circumscribed with a ring of calcification surrounding a relatively radiolucent central portion, and finally long-standing lesions may appear diffusely calcified and attached to the adjacent bone.

Histopathologically, MO typically present a peripheral zone with mature lamellar bone and active osteoclasts, an intermediate area made up of osteoid and cartilage, and a central cellular area with proliferating fibroblasts, spindle cells, and prominent giant mesenchymal cells [4,33].

Several different treatment strategies of MO have been proposed in the literature: mostly, a simple excision of the calcified mass was performed (25 cases). Some surgeons proposed a further surgical phase in addition to the excision of the mass: the removal of the entire muscle (3 cases), a coronoidectomy and/or condylectomy (6 cases), or an interpositional fat graft (2 cases). Interestingly, some authors just performed a biopsy or suggested functional exercise [9,15,25,27].

Therefore, treatment of MO is controversial and may be challenging. There are no treatment protocols, as the literature almost always just includes single case reports, and authors are often unclear as for surgical timing [2]. In particular, some authors insist that early surgical intervention (within 3–6 wk postinjury) is ideal for curative excision [14,23], whereas others have stated that surgical intervention should be initiated only when the disease has completely halted [2]. Biopsy is usually contraindicated, though a biopsy is often performed to exclude the possibility of malignant tumors [3]. However, complete excision of the ossified mass seems to be the universally accepted treatment for this disease.

On the other hand, reconstruction options vary widely and are much more controversial. In fact, several authors did not perform any reconstruction after the removal of the ossified mass, whereas few articles mentioned the use of interpositional fat graft [6,36].

Literature data about recurrences are quite poor, as few articles offer follow-up greater than 1 year [2].

We decided to perform a total TMJ replacement in addition to the removal of the mass, the coronoidectomy, and the condylectomy. The aim of this treatment was to avoid a relapse of the disease and to allow a reestablished mandibular motion. The use of a total alloplastic TMJ prosthesis may give several advantages in comparison with other surgical reconstruction techniques: in fact, physical therapy can begin immediately, there is no need of donor site, the restoration of the posterior ramus height can be immediately obtained after the removal of the mass, and last but not the least facial symmetry can be maintained too.

In conclusion, recommendations about treatment of MO should be cautiously made as limited data are available about recurrences and long-term follow-up.
