Computer-Assisted Secondary Orbital Reconstruction

Abstract

Study Design: This study presents a case-control study of 33 patients who underwent secondary orbital reconstruction, evaluating techniques and outcome. Objective: Adequate functional and aes-thetical appearance are main goals for secondary orbital reconstruction. Insufficient premorbid orbital re-construction can result in hypoglobus, enophthalmos, and diplopia. Computer-assisted surgery and the use of patient-specific implants (PSIs) is widely described in the literature. The authors evaluate the use of se-lective laser-melted PSIs and hypothesize that PSIs are an excellent option for secondary orbital reconstruction. Methods: The sample was composed of 33 patients, previously treated with primary orbital reconstruction, presenting themselves with indications for secondary reconstruction (i.e. enophthalmos, diplopia, or limited eye motility). Computed tomography and/or cone beam data sets were assessed before and after secondary reconstruction comparing intraorbital volumes, infraorbital angles, and clinical symptoms. Clinical outcomes were assessed using a standardized protocol. Results: Results show a significant change in intraorbital volumes and a reduction of clinical symptoms after secondary recon-struction. Conclusions: Outcomes of this study suggest that secondary orbital reconstruction can be performed routinely using selective laser-melted PSIs and titanium spacers.

Introduction

Primary orbital reconstruction after trauma or ablative surgery can be extremely challenging.[1] Reconstructive orbital procedures primarily aim to reconstruct premorbid bony anatomy in order to restore functionality.[2] Computed tomography (CT) is helpful for diagnosis and treatment planning.[1,3] However, a significant minority of patients with, for instance, complex two-wall injuries will have postoperative enophthalmos, hypoglobus, and diplopia, requiring secondary orbital reconstruction.[4] Patients with both functional (diplopia) and esthetic (globe malposition) deformities will benefit from early revision surgery to precisely reconstruct the premorbid orbital contour.[5,6] To our knowledge, there is no existing workflow to correct secondary orbital deformities. Frequently secondary reconstruction is solemnly based on surgeons’ experience in orbital reconstruction.[7] Usually clinical symptoms occur due to changes in intraorbital volume. Experimental alternatives to adjust the orbital volume are, that is, bioabsorbable sheets (polylactic acid, polyglycolic acid, etc.),[8,9] the use of expanders,[10] titanium meshes, glass-bioceramic implants,[11] and fat augmentation.[12] Recent advances in computer-aided 3D printing allows for the use of selective laser melting for fabrication of patient-specific titanium implants. Benefits of patient-specific implants (PSIs) are extremely accurate shape, biocompatibility, structural stability, radio-opacity, and ease of insertion/stabilization.[13]

Aim of this study was to describe a solution for simulation of the globe position and the restoration of bony orbital boundaries. By using virtual planning techniques such as mirroring of the unaffected side and the smart shaper tool for overcorrection, an adequate secondary reconstruction of complex orbital fractures could be performed.

Materials and Methods

After approval by the Ethics Committees of the University of Hannover School of Medicine and the Medical School of Heinrich-Heine University of Duesseldorf, 33 consecutive patients with previously treated, unilateral orbital or orbitozygomatic injuries were identified. Indications for secondary orbital reconstruction included significant enophthalmos (>2 mm), significant exophthalmos (>2 mm), limited eye motility, and persistent diplopia over a period of at least 6 months. Thin cut (0.75-1.25 mm) preoperative CT data were uploaded into presurgical planning software (iPlan 3.0.5, BrainLab), which was used to evaluate each orbital injury.

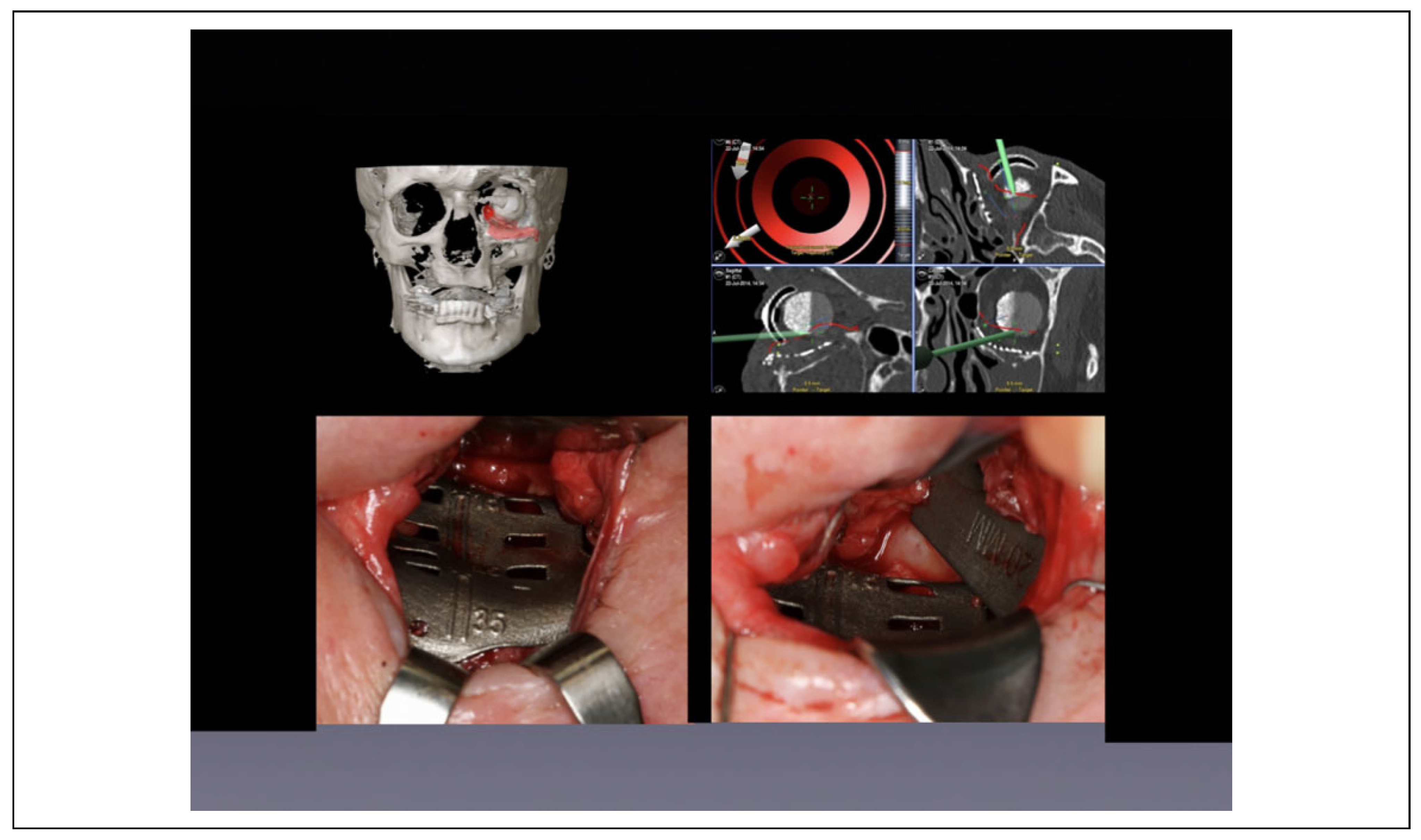

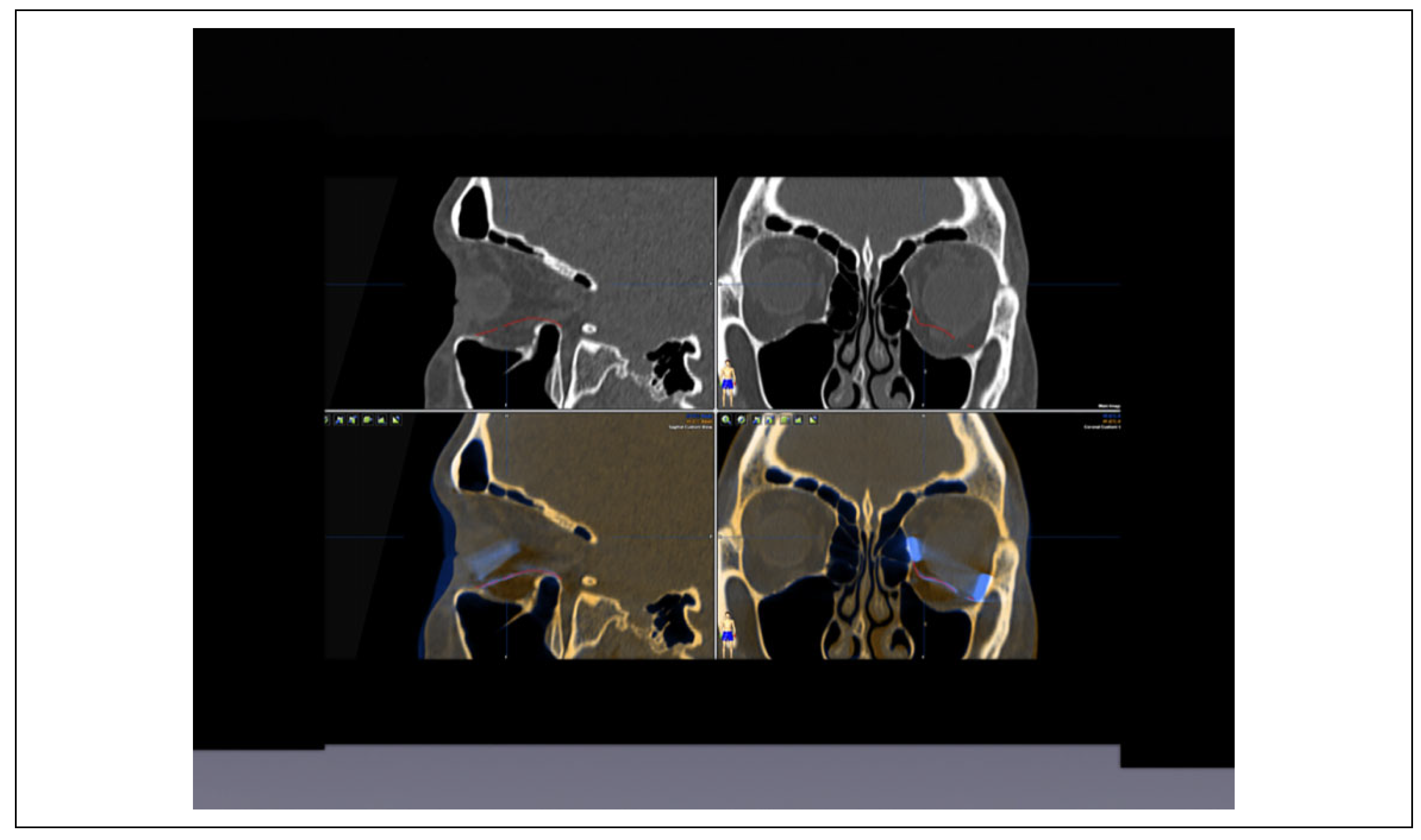

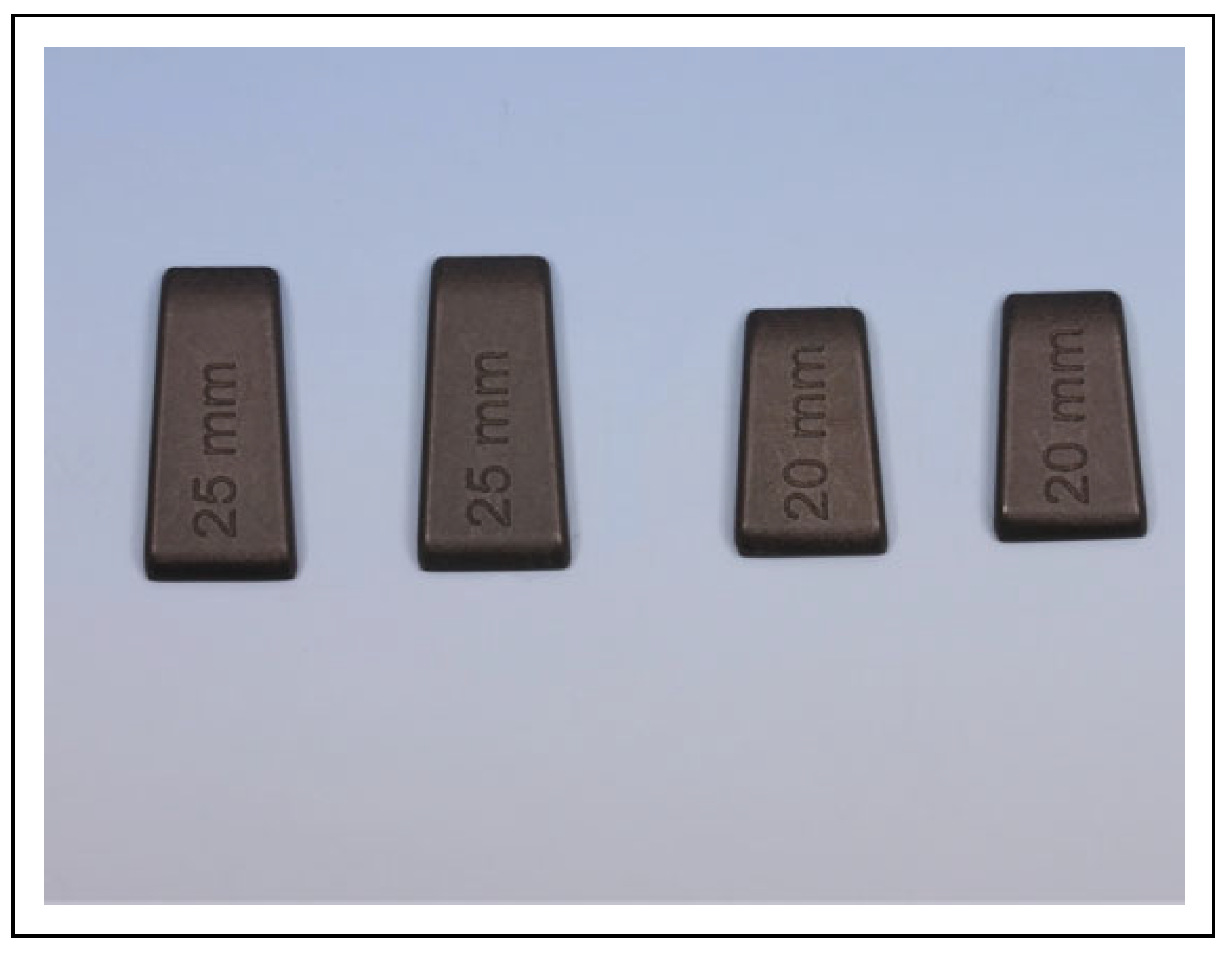

The unaffected bony contour of the contralateral side was segmented into an isolated virtual object (i.e. virtual orbit). The virtual object was then mirrored across the midline and positioned over the injured side. Uninjured landmarks at the periphery of the injury were used to align with the virtual orbit, generating a virtual plan, which was then used for surgical reconstruction. The virtual plan was then exported as an STL file and used as a template for planning the PSI. In order to adjust intraorbital volumes, the smart shaper tool was used (iPlan 3.0.5, BrainLab). In cases of great intraorbital volume adjustments, additional titanium spacers were used (Figure 1, Figure 2 and Figure 3; the indication for additional spacers was a greater volume in comparison to the unaffected side in combination with clinical symptoms and an interoperative lack of volume due to changes in soft tissue). If the orbital volume had to be increased, a re-osteotomy and zygomatic repositioning was performed. In collaboration with engineers (KLS-Martin), a virtual implant was fabricated, covering the orbital injury and resting on stable bone. Once a final implant contour was approved, the PSI was fabricated using selective laser melting. Fabrication time was around 5 days. The patient was then taken to the operating room and the injured orbit was exposed using a transconjunctival (retroseptal incision without lateral canthotomy, n = 32) or an infraorbital (n = 1) approach. Previous hardware, that is, titanium meshes or previous PSIs, were removed if these were hindering the secondary reconstruction, infection or if it appeared they were causing the clinical symptoms (objectified by clinical assessment in combination with 3D imaging). The implant was initially positioned to cover the area of injury using peripheral anatomic landmarks for alignment. Precise implant position was confirmed (to within 1 mm) by comparison to the planned virtual reconstruction using intraoperative navigation (Kick, BraiLab). Confirmation points included the infraorbital rim, lateral rim, orbital floor, medial/lateral orbital walls, posteromedial bulge, posterior shelf, and globe projection. The implant was then fixated with 1.3-mm microscrews (DePuy, Synthes-Compact) and the incision was in all cases a retroseptal transconjunctival approach. All operations were performed by the same surgeon. Postoperative cone beam (NewTom DVT 9000, Deutschland AG) or intraoperative fan beam scans (Siemens Arcadis Orbic 3D) were obtained in all patients. If the insertion of the PSI did not create the desired changes in soft tissue, additional spacers were added. Their use was an intraoperative, subjective decision by the head surgeon and made by trial and error. In order not to dislocate or hinder eye movement, spacers were placed in periosteal pockets on the lateral or medial orbital wall depending on globe dislocation. There were no typical intraoperative complications. The postoperative images were then superimposed onto the preoperative plan. Any differences of the actual implant position and the planned implant position were documented. All patients were evaluated for postoperative enophthalmos, diplopia, visual acuity, and hypoesthesia. Times of follow-up imaging ranged from 2 to 14 days. Clinical follow-up was performed weekly over a period of 1 month and again after 3 months.

Postoperatively, all data sets were aligned following the lower orbital rim to the external ear canal and the medial–sagittal axis. Furthermore, all patients were examined by an ophthalmologist. Primary outcome measurements were:

• Orbital Volume: Pre- and postoperative orbital CT volumes were measured (iPlan CMF 3.0.5, Brain-Lab).[14] The preoperative volume of the affected exe was compared to the volume of the unaffected side and to the postoperative volume. Analysis was performed by the primary surgeon (M.R.) to assure intra-observer repeatability. To calculate volumes, the orbital cavities were segmented automatically and in case of remaining defects or reduction of the orbital cavity due to titanium meshes, extensive scaring, bone fragments, and so on were manually adjusted using the smart shaper tool.
• Intraorbital angles (anterior, medial, and posterior angles between the medial orbital wall and the orbital floor): Intraorbital angles were compared at three points (anterior, middle, and posterior) in both the virtual plan and postoperative CT scan. They were measured in the coronal layers. The measurements were made using the anterior orbital rim, the posterior ledge and the exact in-between as fixed reference points in sagittal layers.
• Diplopia: Diplopia was documented as either negative or positive. If positive, it was documented as being either in primary gaze or with globe excursion (including the direction of excursion that resulted in diplopia).
• Visual acuity: Visual acuity was graded as either normal (0) or reduced (1). It was determined via finger perimetry.
• Enophthalmos/Exophthalmos: Preand postoperative globe position was documented using a Naugle Exophthalmometer (Oculus).[15,16] Persistent enophthalmos/exophthalmos was defined as a difference of >2 mm between sides.
• Motility: Extraocular movement was checked having the patient follow the examiner’s finger moving across their full range of horizontal and vertical eye movement.
• Hypesthesia: Reduced sensitivity in V2 areas was checked by clinical evaluation (sharp–dull, hot– cold, and 2-point discrimination using the Nerve Evaluation Protocol of 2014 by the California Association of Oral and Maxillofacial Surgeons, classified by the MRC Scale).

In this prospective study, data were analyzed using IBM SPSS for Mac, Version 22.0 (IBM Corp.). Each study variable was computed by descriptive statistics. The Shapiro– Wilk test was used for evaluation of normal distribution. For testing differences between planned versus achieved orbital volume and three angles (anterior, medial, posterior), a matched pair t-test was used to assess the differences. The level of statistical significance was set at P ≤ 0.05. All P values were two-sided. Because of the small number of the sample, means and ranges were used as descriptive statistics.

3. Results

Fourteen women and 19 men were included in the study, with an age range of 17-74 years (mean 33 years). Indications for surgery were enophthalmos (n = 4), diplopia (n = 2), limited motility (n = 1), hypoglobe (n = 1), and a combination of symptoms (additionally including hypoesthesia and exophthalmos) (n = 25). The anteroposterior dimension of the disrupted orbital floor measured on average 19.1 × 24.6 mm (axial × sagittal). For previous orbital reconstruction, poly-p-dioxanone (PDS) foil (n = 15), titanium-dynamic mesh (n = 10), PDS foil and titanium-dynamic mesh in combination (n = 2), and open reduction and fixation only (n = 6) had been used.

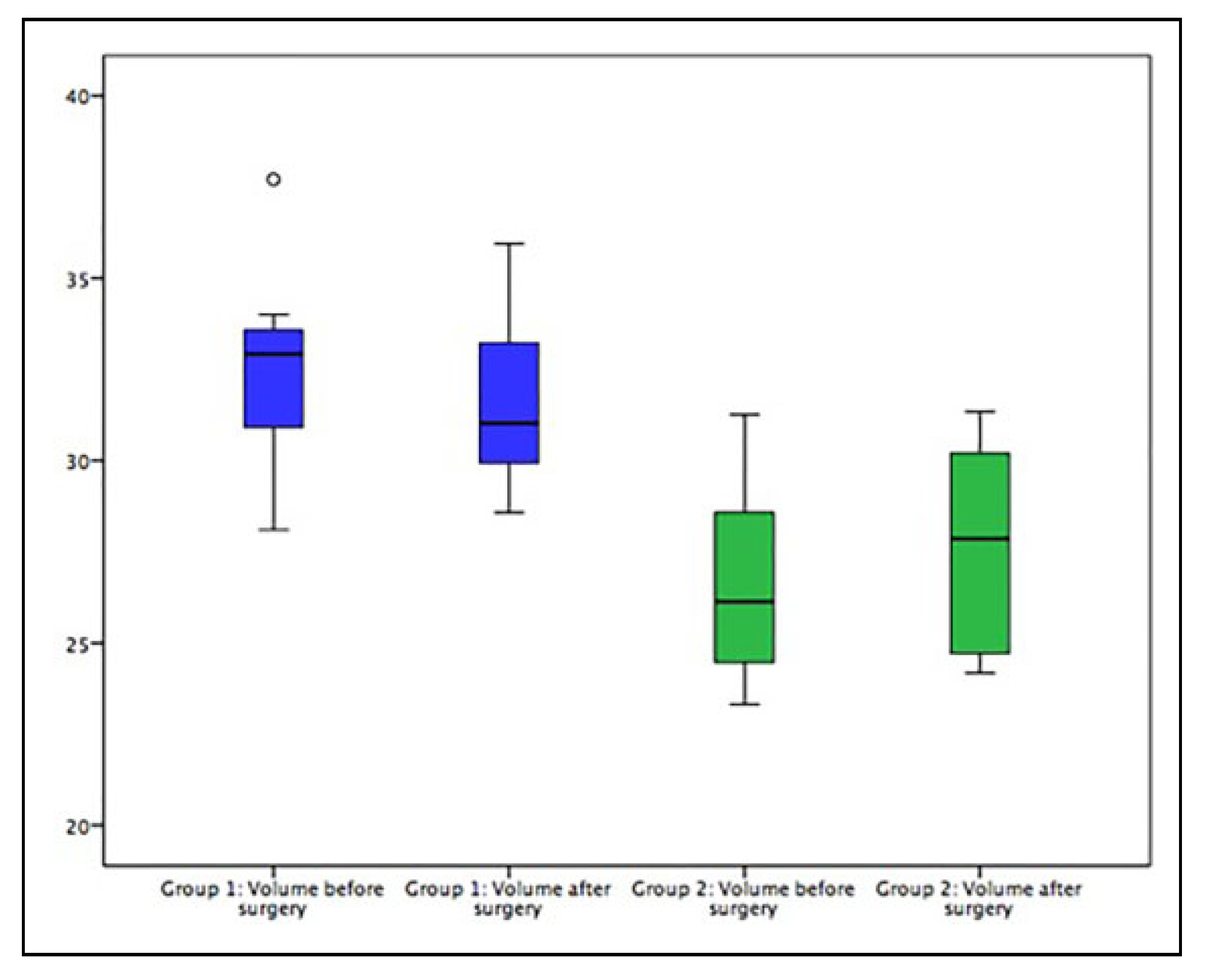

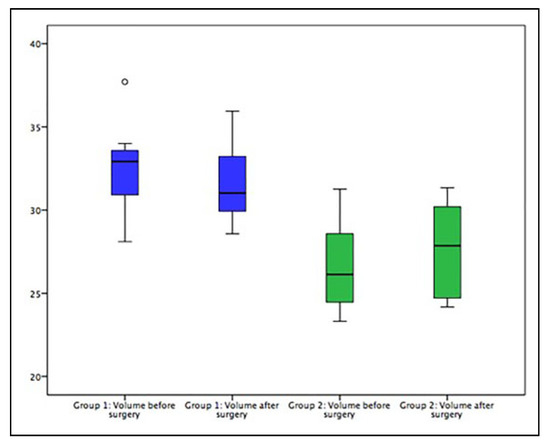

Intraorbital volumes were evaluated before and after secondary reconstructive surgery. Cases were divided into two groups. Group 1: The orbital volume was bigger than the volume of the unaffected side (i.e. due to insufficient fracture reposition etc.), causing clinical symptoms (n = 18). Group 2: The orbital volume was smaller than of the unaffected other orbit (i.e. due to mispositioned titanium meshes, extensive scaring, etc.), causing clinical symptoms (n = 8). For group 1, the mean volume was 28.35 cm³ (SD + 4.44 cm³) before secondary surgery and 27.28 cm³ (SD + 4.46 cm³) after secondary surgery. There was a significant difference in infraorbital volumes pre- and postoperatively (–1.07 cm³, P ≤ 0.001). In group 2, a mean volume of 26.44 cm³ (SD + 2.92 cm³) before surgery and 27.35 cm³ after surgery (SD + 2.94 cm³) was evaluated, creating a statistically significant difference of +0.91 cm³ (P = 0.034) (Figure 4). Additionally, differences in volume before and after surgery were compared to those of the unaffected mirrored side. The presurgical mean of differences was 1.95 cm³ (SD + 2.11 cm³), the postsurgically average difference in comparison to the volume of the healthy side was 1.88 cm³ (SD + 2.28 cm³). The infraorbital angles were measured pre- and postoperatively. There were no statistically significant changes in angle sizes (values of the two groups mentioned above were tested separately but results showed no further statistical benefit). Furthermore, clinical symptoms consecutively leading to surgical revision (i.e. diplopia, enophthalmos, etc.) were assessed and reevaluated after secondary reconstruction. In general, clinical symptoms decreased. Diplopia could be reduced from occurrence in nine cases down to five cases and motility could be improved from five cases down to only one (Figure 5). One case of hypoesthesia was reported (classified as grade S0 on the MRC Scale), which did not change after surgery.

4. Discussion

Complex orbital fractures are frequently associated with complications, such as persistent diplopia, infraorbital and optical nerve injuries, enophthalmos, facial disproportion, and hypoglobe.[17] Exact reconstruction cannot always be achieved, requiring secondary surgery.[17] Accuracy of secondary orbital reconstruction is even harder to obtain and cannot always fully restore the original condition.[18] Computer-assisted navigated surgery has many advantages compared to conventional surgical techniques.[19] Virtual modeling and planning provides large benefits for the surgeon: better preparation and a shorter duration of the operation itself.[20] When it comes to secondary reconstruction, cases are predominantly more challenging because the orbital anatomy is harmed and landmarks are hard to find.[21] Nkenke et al. compared prefabricated implants with titanium meshes for the correction of post-traumatic enophthalmos and concluded that titanium meshes should be favored.[11] However, the use of preplanned PSIs allows accurate intraoperative navigation and verifies correct positioning of the implant. In the past years, many studies and case reports have proven the advantages of digital planning together with customized orbital implants.[6,19,22,23,24,25] A recent study by Chen et al. combined intraoperative navigation with endoscopic assistance giving even greater intraoperative overview.[26] When using PSIs, size and thickness are variable providing solutions for difficult anatomic situations as in secondary orbital reconstruction. In addition, titanium spacers can be used for intraorbital volume adjustments (Figure 1, Figure 2 and Figure 3). Different techniques for secondary reconstruction are currently under development. Gaffre´e et al. for example, presented a case in which a titanium mesh in combination with a buccal fat pad graft has successfully been used.[27] Results of this study show a significant change in intraorbital volume. PSIs were created mirroring the unaffected bony side. The correction was planned true to original. A change in volume might alleviate clinical symptoms. Due to the nature of the operation with primarily reconstructed defects, extensive changes in infraorbital angles or volume modifications to meet the exact volume of the healthy side could not be expected. Since changes in soft tissue and contractions by scar tissue currently cannot be predicted by planning software, desired changes in soft tissue were corrected intraoperatively by trial and error using additional spacers. There is no protocol to follow for the use of theses spacers yet. It will be subject to further research. A potential side effect of the use of titanium spacers might be dislocation due to incorrect spacer placement. In addition, one might think that the spacer itself or extensive scar formation might create an obstacle for eye motility over time. So far no complication of this kind has been reported. Recurring clinical checkups will hopefully uncover yet unknown side effects. Furthermore, when comparing results of this study, changes in volumes remained low. Unpredictable shifts in soft tissue might be the reason for a possible alleviation of symptoms not the volume change itself. Unfortunately, no correlation between the volume discrepancy and degree of enophthalmos could be calculated because although using a Naugle Exophthalmometer the exact degree of exophthalmos was not examined. This presents a limitation of this study and constraints its informative value.

A well-planned PSI appears important, selective laser melting seems to be a suitable technique. In comparison to other materials, selective laser-melted implants are still pricey to produce. Moreover, the navigation system is expensive to obtain.[1] Furthermore, bioresorbable materials have recently proven to be an option for secondary reconstruction. Pan et al. could improve diplopia, exophthalmos, and ocular motility in 16 cases using Rapidsorb implants.[28] However, long-term results still have to follow and an ideal solution for secondary reconstruction has not yet been found. This innovative approach might be another step to provide best functional care and esthetic appearance for patients.

In conclusion, the use of PSIs appears to be a possible solution for delayed secondary orbital reconstruction. This technique is a valuable tool for optimization and assessment regarding the bony structures after reestablishing correct anatomical conditions. The results obtained from this study may be summarized as follows:

• Secondary orbital reconstruction can be performed using PSIs.

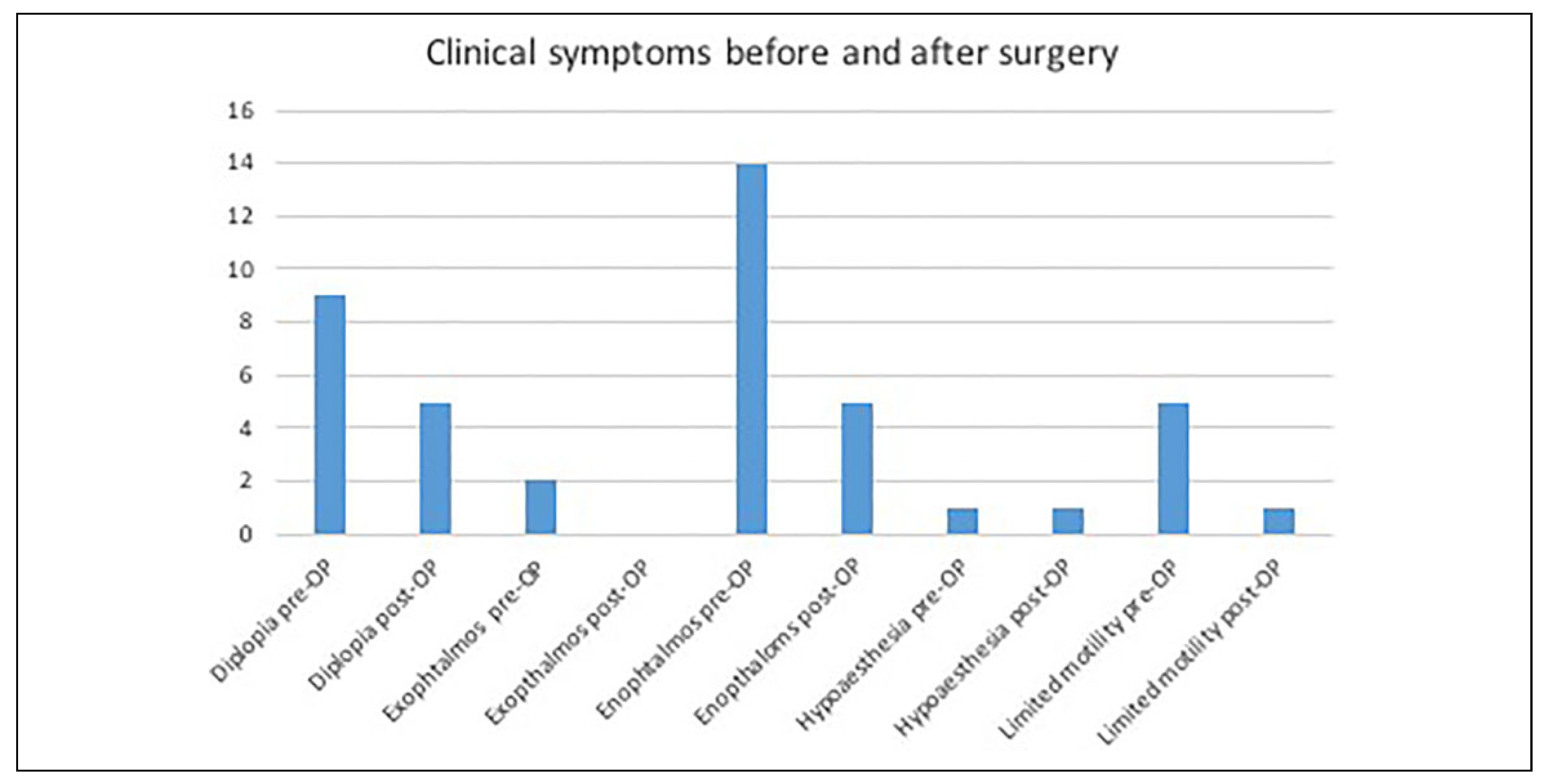

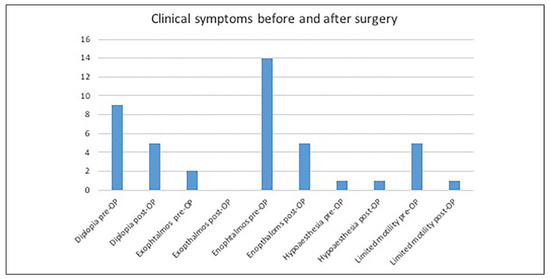

• In two-thirds of all cases, clinical symptoms can be eliminated or reduced when treated with customized intraorbital volume changes through the use of PSIs and titanium spacers.

Considering the advantages, these techniques provide a valuable tool for optimization of secondary reconstruction of bony structures. The effect on facial soft tissues is still insufficient and has to be taken into account when preforming surgery.
