Electroless Deposits of ZnO and Hybrid ZnO/Ag Nanoparticles on Mg-Ca0.3 Alloy Surface: Multiscale Characterization

by
José Luis González-Murguía
1,
Veleva Lucien
1,* and
Mario Alpuche-Avilés
2
1
Applied Physics Department, Center for Investigation and Advanced Study (CINVESTAV), Mérida 97310, Mexico
2
Department of Chemistry, University of Nevada, Reno, NV 89557, USA
*
Author to whom correspondence should be addressed.
Coatings 2022, 12(8), 1109; https://doi.org/10.3390/coatings12081109
Submission received: 7 July 2022 / Revised: 26 July 2022 / Accepted: 29 July 2022 / Published: 3 August 2022
(This article belongs to the Section Surface Characterization, Deposition and Modification)
Browse Figures
Review Reports Versions Notes

Abstract

:
ZnO and hybrid of ZnO/Ag structures in the nanometer size were electroless deposited on the Mg-Ca0.3 alloy surface, achieved from aqueous solutions (10−3 M at 21 °C) of ZnO (suspension), Zn(NO3)2 and AgNO3. The surface characterization of the deposits was carried out by Scanning Electron Microscopy-Energy Dispersive Spectroscopy (SEM-EDS), X-Ray Photoelectron Spectroscopy (XPS), Fourier transform infrared (FTIR), UV-Visible and Raman spectroscopy. The nanoparticles (NPs) area size distribution analysis revealed that the average of ZnO-NPs was ~85 nm. Likewise, the Ag-NPs of electroless deposits had an average area size of ~100 nm and nucleated in the vicinity of ZnO-NPs as Ag+ ions have been attracted by the negatively charged O2− atoms of the Zn-O dipole. The ZnO-NPs had the wurtzite structure, as indicated by Raman spectroscopy analysis and XRD complementary analysis. The UV-Visible spectroscopy analysis gave a peak at ~320 nm associated with the decrease in the imaginary part (k) of the refractive index of Ag-NPs. On the Mg-Ca0.3 surface, MgO, Mg(OH)2 and MgCO3 are present due to the Mg-matrix. XRD spectra of Ag-NPs indicated the presence of planes arranged with the FCC hexagonal structure. The reported hybrid ZnO/Ag electroless deposits of NPs are of interest for temporary implant devices, providing antibacterial properties to Mg-Ca0.3 surface, a widely used biodegradable material.

1. Introduction

Magnesium and its alloys have attracted research interest as biodegradable and biocompatible materials when used as temporary implants in physiological media, presenting an alternative over the non-resorbable biomaterials [1,2,3,4,5,6,7,8,9,10]. During the biodegradation process, magnesium Mg2+ ions are released, which are non-toxic, and used for the synthesis of proteins, activating a variety of enzymes and regulating the central nervous and neuromuscular systems; these ions also help regulate blood glucose, blood pressure, and play an important role in the prevention and treatment of diabetes and cardiovascular diseases [11,12,13,14,15,16,17,18]. Because of these many advantages, Mg and its alloys are potential materials for the design of new temporary orthopedic devices, providing mechanical properties similar to those of the human bone, maintaining mechanical integrity on a scale of 12–18 weeks, while the bone tissue heals [5,19,20,21]. However, to help fight against bacterial infection during and after surgery requires an additional modification of the material surface to achieve antibacterial activity [19,22,23,24,25,26,27,28]. According to a prior report, the hybrid structures are based on the combination of deposited semiconductor oxides (micro- or nanostructured) and noble metal nanoparticles (NPs) on the implantable metallic surfaces is a current and pressing research topic in this area to improve antibacterial properties to these alloys [12,13,24,28,29,30,31,32,33,34].
In this aspect, ZnO, a wide-bandgap semiconductor oxide and its nanoparticles (NPs), known for their mechanical resistance [33], have been considered one of the novel antibacterial biologically active materials through several possible mechanisms. On the one hand, the release of Zn2+ ions in physiological media results in the activation of antibacterial mechanisms against different bacteria species [34]. The antibacterial activity of ZnO-NPs has been suggested to be based on their ability to induce excessive generation (stress) of Reactive Oxygen Species (ROS), such as superoxide anion (O2−), hydroxyl radicals (OH−) and the production of hydrogen peroxide (H2O2). This oxidative stress results in the formation of electron losses that cause cell death in different bacteria [29]. One study reports that the possible antibacterial mechanism of ZnO-NPs against the bacteria Escherichia coli is due to the NPs coming into direct contact with the phospholipid bilayer of the bacteria membrane, destroying its integrity and causing cell death [32].
Several studies report the antibacterial efficiency of Ag-NPs against different bacteria (Straphylococcus Epidermis, Straphylococcus Aureus, Pseudomonas Aeruginosa, Escherichia Coli, Klepsiella Pneumonia, Citrobacter Koseri and Salmonella Typhii), although the mechanism of action is not yet fully understood [27,29,30,35]. However, it has been shown that Ag-NPs, by binding to and infiltrating the cell wall, may cause physical changes and damage to the cell wall, leading to leakage of cell content and subsequent destruction of the bacteria [36,37]. Some reported results have demonstrated that the antibacterial activity of Ag-NPs against Escherichia coli has been associated with the perforation of its cell wall, where an accumulation of Ag+ occurs, resulting in cell death [29].
In this work, we report the deposition of ZnO and Ag because semiconductor oxides, such as ZnO, may provide a large surface area that serves as better structural support for the deposits of noble metals such as Ag-NPs. In this regard, the Ag-NPs deposit on the ZnO surface may considerably increase the antibacterial activity against Gram-positive and Gram-negative strains [12,13,38,39,40]. For example, one study reported that composite coatings of Zn and Ag particles (Zn/Ag), electrodeposited on AISI 1019 steel, may improve the antibacterial properties of the steel surface [41]. A separate study found that an Ag-ZnO nanostructured coating on Mg-2Ca-0.5Mn-6Zn was prepared through physical vapor deposition (PVD), and it was found that the corrosion resistance and antibacterial activity of the coated surface were improved in Simulated Body Fluid (SBF) physiological media, suggesting that this coating is suitable for permanent implant applications [42]. Another report of a composite coating of ZnO deemed nanostructured ZnO/Ca3ZrSi2O9 was fabricated as an over-layer on Mg-Zn-Ca surface via physical vapor deposition (PVD) coupled with electrophoretic deposition (EPD), and it was considered as another suitable coating for Mg alloy; in this material intended for a permanent orthopedic implant, the authors reported improved corrosion resistance in SBF media with better antibacterial activity [43]. Here, we present the simple electroless deposition of ZnO and ZnO/Ag coatings on Mg-Ca0.3 alloy, which does not require vapor phase deposition, complex agents or reductive additives for the preparation of the solutions. We demonstrate that ZnO/Ag hybrid coating is of interest for temporary implant materials, and because of the intrinsic provisional applications of the materials, the coating should provide antibacterial properties but without increasing the corrosion resistance, as in the examples above [41,42,43].
Mg-Ca alloys have attracted significant attention in material bioengineering in the design of orthopedic implants and bone tissue because the Ca element has a high natural abundance in the human body, mainly in bones and teeth [44]. The Ca2+ ion and its compounds (phosphate type) can be tolerated (low toxicity) by the human body at relatively high levels of ~4 g/day. The Mg-Ca alloys are also mechanically compatible with bone, biodegradable and exhibit interesting characteristics as a potential material for implants, providing cell adhesion (osteoconductivity) and cell growth stimulation on the implant surface [44,45]. In a previous study, we reported the antibacterial effect of Ag-NPs electroless deposited on the Mg-Ca0.3 surfaces, with a percentage inhibition of diameter growth (PIDG) of up to 64% against E. coli and 83% against S. aureus [45].
Among the methods developed for the deposition of the coating on metals surface, the electroless deposition (ELD) method without external polarization is well-known [46,47,48,49]. Electroless deposition is usually limited to a few monolayers without the addition of a catalyst [50]. The objective of this work is to obtain and provide a multiscale characterization of ZnO-NPs and hybrid ZnO/Ag -NPs electroless deposited on the surface of the Mg-Ca0.3 alloy, obtained from aqueous solutions (10−3 M, at 21 °C) of ZnO, Zn(NO3)2 and AgNO3. The characterization of the nanoparticles was carried out by SEM-EDS, XPS, FTIR, UV-Visible and Raman spectroscopy techniques. The Ag-NPs size and surface distribution were also determined.

2. Materials and Methods

2.1. Samples and Solution Preparation

The Mg-Ca0.3 alloy (0.3 wt.%) was supplied by Helmholtz-Zentrum Hereon, Institute for Material and Process Design (Geesthacht, Germany); the alloy was manufactured by extrusion in the form of 1 cm diameter cylindrical bars. Table 1 presents the nominal composition (wt.%) according to the manufacturer. The Mg-Ca0.3 samples (0.78 cm2) were sanded with 600 to 4000 grit SiC paper with ethanol as a lubricant, then sonicated for 5 min and dried at room temperature.
Electroless deposits of ZnO and ZnO/Ag on Mg-Ca0.3 surface (0.78 cm2) were achieved by immersion in 10−3 M aqueous suspensions of ZnO and solutions of Zn(NO₃)₂ (for 5 min) and AgNO3 (for 3 min) at 21 °C [51,52,53,54,55]. Consequently, the previously ZnO coated samples were immersed in 10−3 M AgNO3 solution [56,57,58,59,60,61,62,63,64,65,66,67,68] for 3 min (Table 2). The aqueous solutions were prepared from analytical grade reagents (Sigma-Aldrich, St. Louis, MO, USA) and deionized ultrapure water (18.2 MΩ cm). The measured pH (pH60, Apera Instruments, Columbus, OH, USA) and ion content of the solutions (photometry HI83200, Hanna Instruments, Woonsocket, RI, USA) are presented in Table 2. Note that the ion concentrations were measured using a standard method and reactants (Hanna Instruments), and we report their average and standard deviation after three replicates.
The coated samples were taken to the oven (Thermolyne 46100 High Temperature Chamber Furnace, Dubuque, IA, USA) and baked at 200 °C for 48 h so that at this temperature, strapped water would be removed from their structure [55,59,60,61].

2.2. Electroless Deposits of ZnO-NPs and Hybrid ZnO/Ag-NPs on Mg-Ca0.3 Surface and Their Characterization

The morphology and composition of the deposits on the Mg-Ca0.3 surfaces were characterized by: SEM-EDS (SEM-EDS, XL-30 ESEM-JEOL JSM-7600F, JEOL Ltd., Tokyo, Japan) and XPS (K-Alpha Surface Analyzer, ThermoFisher Scientific, Waltham, MA, USA). The binding energies of all XPS spectra were corrected so that the C1s peak would be at 284.8 eV. The ZnO and ZnO/Ag deposits were characterized by the UV-Vis technique (AVASpec 2048, AVANTES, Eerbeek, The Netherlands), FTIR (Specular Apertured Grazing Angle, SAGA; Nicolet nexus 670, ThermoFisher Scientific, Waltham, MA, USA), XRD (Siemens D-5000 diffractometer, Grazing Beam 1 Th, 34 kV 25 mA, Munich, Germany) and Raman spectroscopy (Ar-ion laser of 488 nm, 50× of 1800 grooves/mm, spectral resolution of 1 cm−1; confocal Raman alpha300 WITec GmbH, Ulm, Germany).

3. Results and Discussion

3.1. Surface Characterization of Mg-Ca0.3

3.1.1. SEM-EDS Analysis

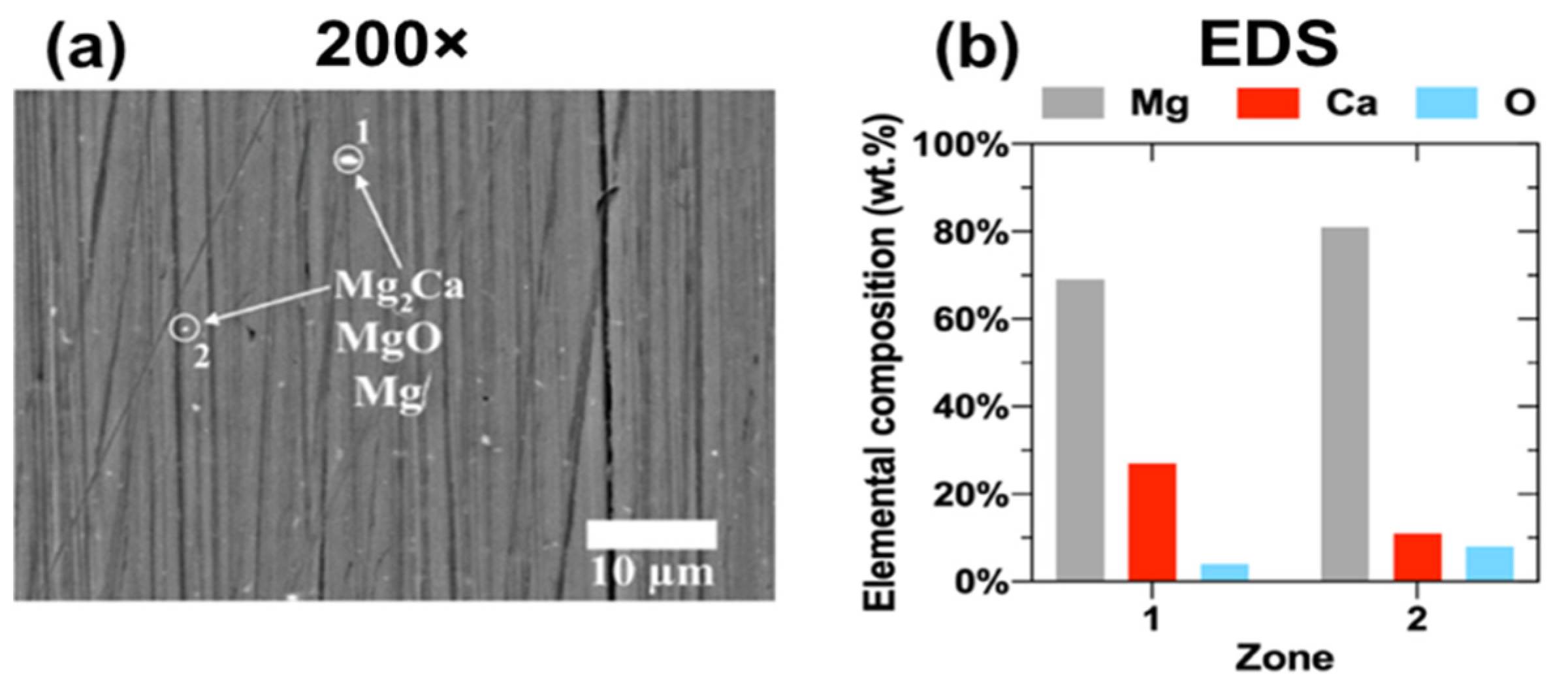

Figure 1 presents the SEM image (2000×) of the freshly polished reference surface of Mg-Ca0.3. The EDS analysis of the zones (labeled as 1 and 2, Figure 1b) revealed the highest value for the element Mg (the metallic matrix), as well as suggested the presence of MgO and Mg2Ca particles, widely reported in the metallurgy literature [59,60,61,62].

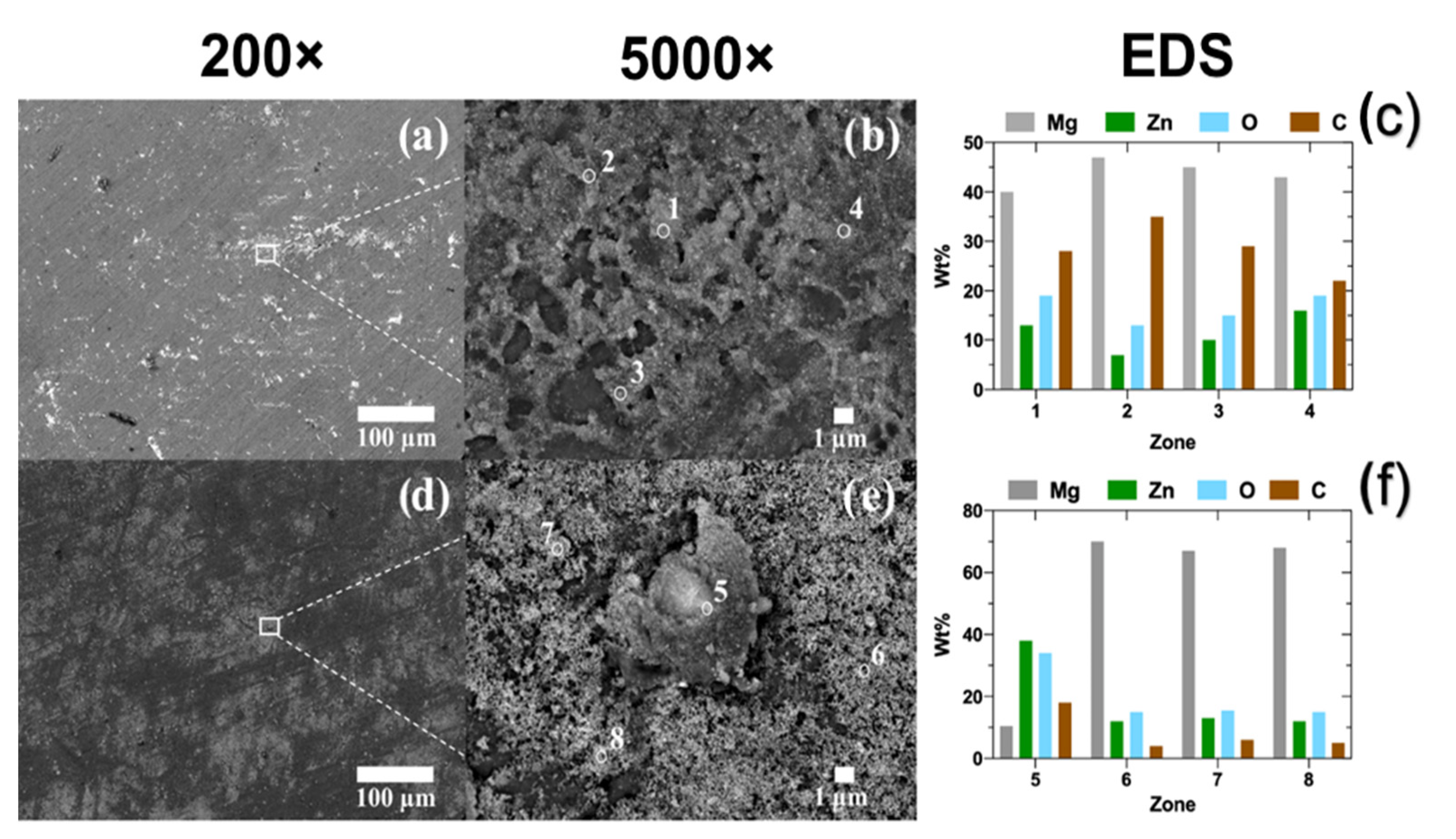

Figure 2 compares the SEM images (200× and 5000×) of the Mg-Ca0.3 surfaces on which ZnO was electroless deposited from the 10−3 M solutions of ZnO (Figure 2a,b) and Zn(NO3)2 (Figure 2d,e).
The deposits showed the tendency of a cluster formation, more nucleated on the substrate surface (Figure 2d,e) when achieved from the Zn(NO3)2 solution (Table 2). The EDS analysis (wt.%) of the zones labeled as 1–8 (Figure 2b,c,e,f) indicated that besides the main component of Mg (the matrix of the alloy), Zn and O are present, and C at relatively lower content.

3.1.2. XPS Analysis

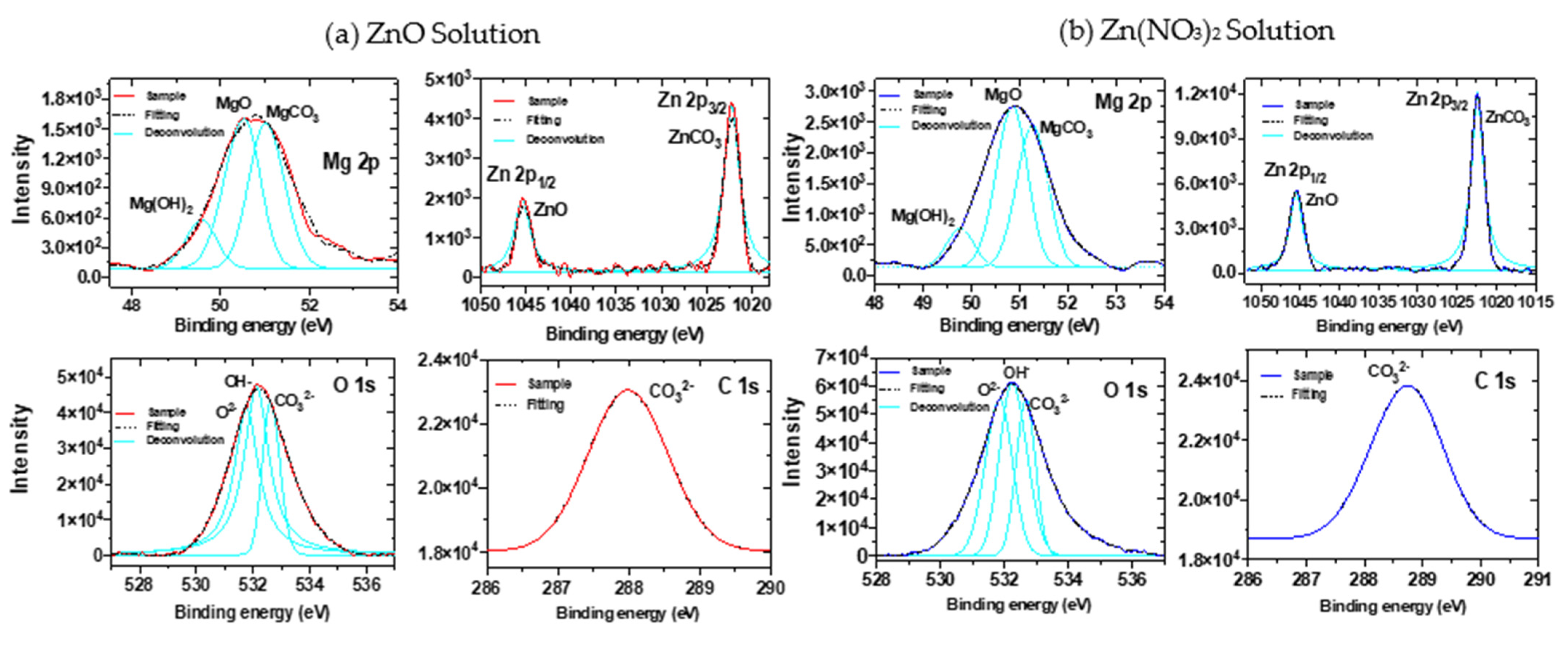

In order to correlate the EDS elemental quantification analysis (Figure 2) with the composition of electroless deposits formed on the Mg-Ca0.3 surface, XPS analysis was carried out; Figure 3 presents the high-resolution spectra of Mg, Zn, O and C elements. The O1s spectrum shows a maximum peak at ≈531.9 eV associated with the presence of hydroxide [66,67,68,69,70], as also two deconvoluted peaks at ≈531.2 eV ascribed to metal oxide [71,72,73,74,75,76,77] and at ≈532.3 eV belonged to inorganic carbonate [66,67,73,78,79,80]. The high-resolution spectrum of Mg2p presented a maximum peak at ≈50.2 eV associated with the presence of MgO [67,69,71,72,81]; likewise, two deconvoluted peaks were detected at ≈49.8 eV ascribed to Mg(OH)2 [66,67,68,69], and at ≈51.2 eV suggesting the presence of MgCO3 [66,67,73]. The high-resolution spectrum of C1s presented a maximum peak at ≈287.9 eV associated with the presence of carbon in MgCO3 [66,67,73]. Because of the spin-orbit splitting, the Zn2p spectrum has two peaks: at ≈1045.7 eV, characteristic of ZnO [66,67,73,74,75,78,79,80,81], and at ≈1022.5 eV associated with the presence of ZnCO3. According to a previous study, MgO has shown a high potential for CO2 adsorption due to its high porosity and the tunable nature of the pores [82]. The formation of ZnCO3 is associated with the CO2 adsorption on polar surfaces of ZnO, where CO2 dissociates at oxygen vacancy [83]. It may be noted that the deposits obtained from Zn(NO3)2 solution exhibited ≈3 times higher intensity of the Zn2p spectrum peaks (Figure 3b) than those of the deposits achieved from the ZnO solution (Figure 3a). These facts correlate with the EDS analysis (Figure 2).

3.1.3. EDS Mapping of the Elements

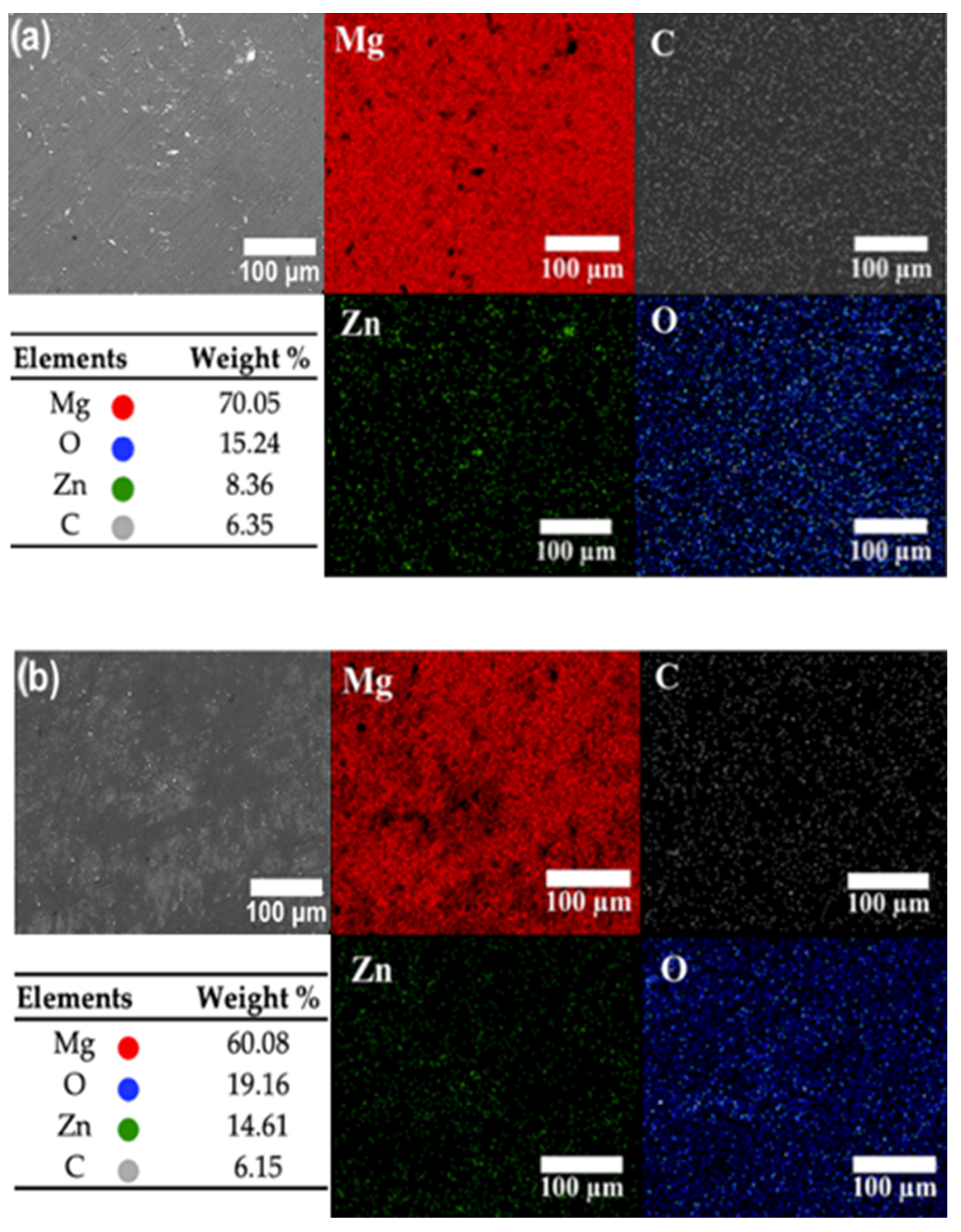

Figure 4 presents the EDS maps (200×) of Mg, Zn, O and C elements (wt.%) and their distribution as a part of the ZnO electroless deposits on Mg-Ca0.3 (Figure 4a,b). As it was suggested by the XPS analysis (Figure 3), the Mg, O, C and Zn belong to the MgO, Mg(OH)2, MgCO3, ZnCO3 and ZnO compounds. The deposits obtained from Zn(NO3)2 aqueous solution (Table 2) presented ≈2 times higher concentration of Zn (Figure 4b) compared to the content of Zn of the deposit from ZnO solution (Figure 4a).

3.1.4. ZnO Nanoparticle Size Distribution

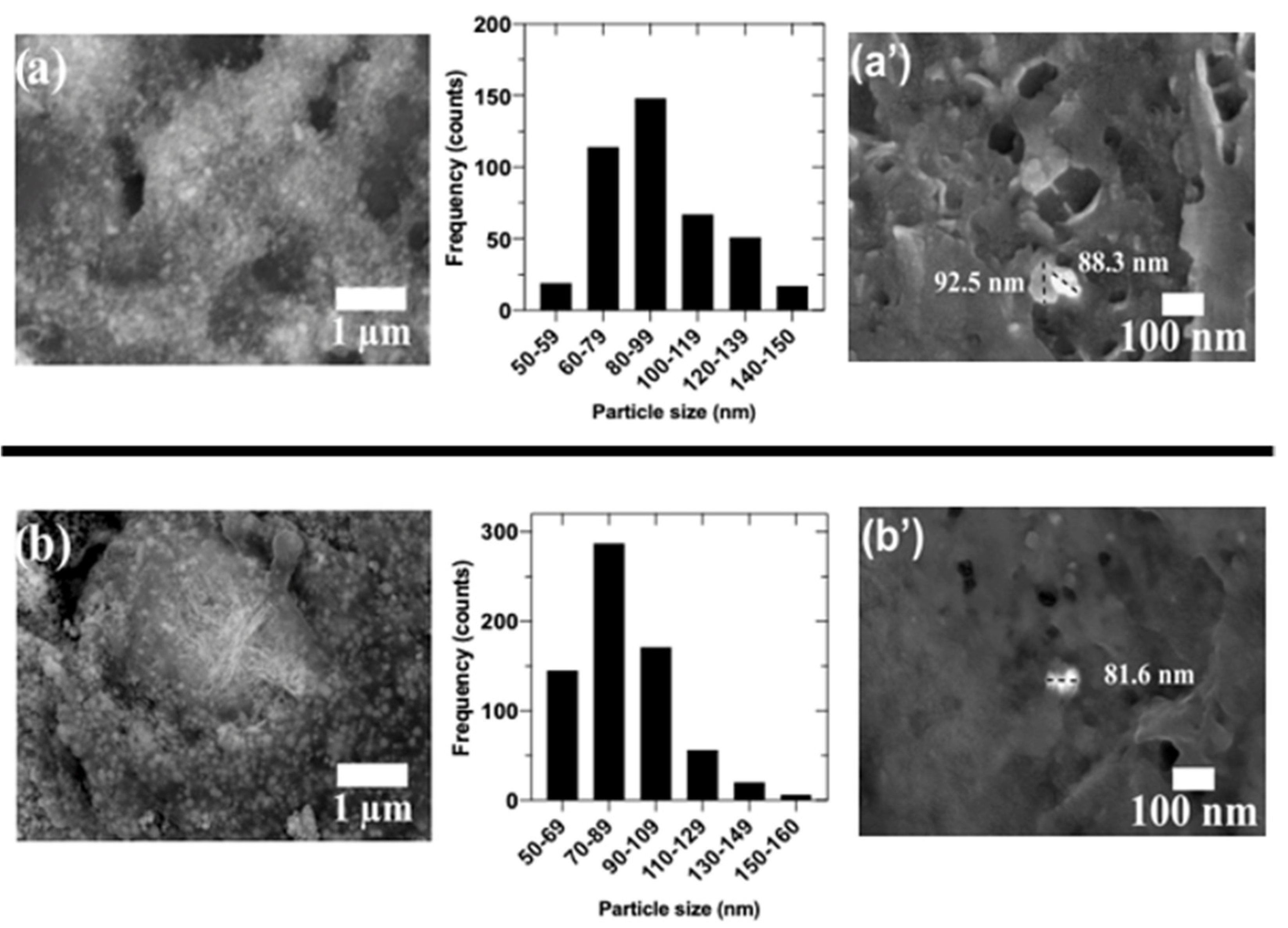

Figure 5 displays the particle size distribution of ZnO (this analysis was carried out with the ImageJ software of the National Institutes of Health, Bethesda, Maryland, USA). Note that the average size of an individual particle is ≈90 ± 3 nm (Figure 5a) and ≈79 ± 3 nm (Figure 5b). Furthermore, the frequency of these ZnO nanoparticles is ≈2 times higher for the ZnO deposits (Figure 5b) obtained from the Zn(NO3)2 solution (Table 2) and apparently more dispersed on the surfaces (Figure 2). Figure 5a′,b′ present the SEM images (100,000×) of isolated particles on the Mg-Ca0.3 surface for both deposits, which size agrees with the particle distribution analysis (88.3, 92.5 and 81.6 nm).

3.1.5. FTIR Analysis

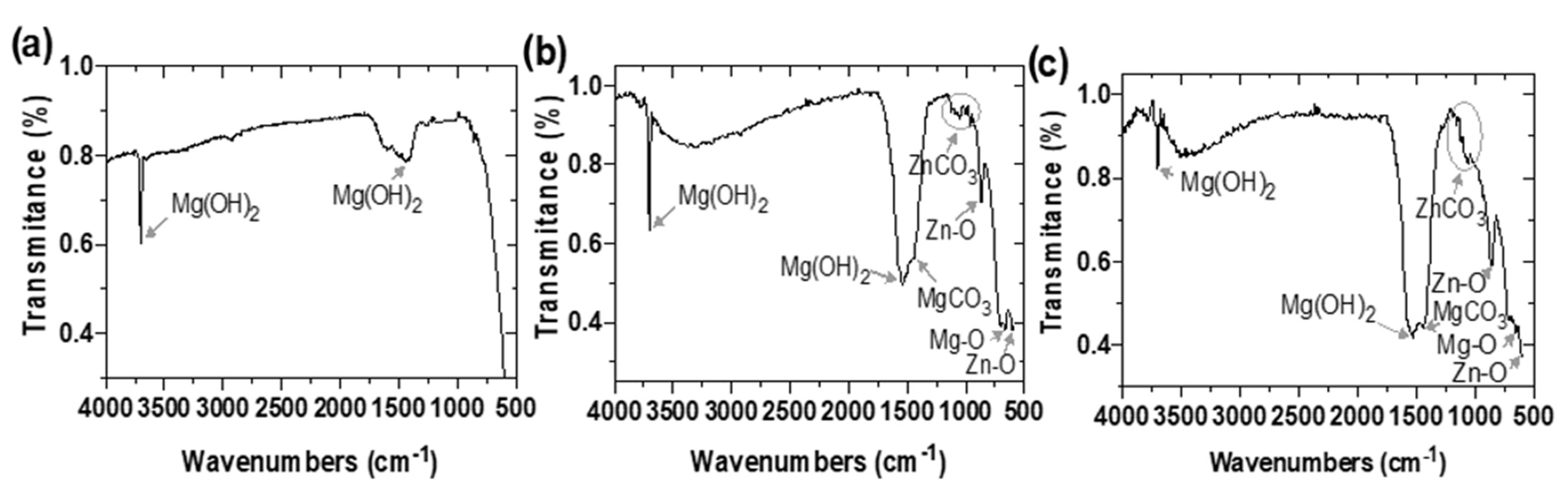

Figure 6 shows the FTIR spectra (Specular Apertured Grazing Angle) of the ZnO electroless deposits on the Mg-Ca0.3 surfaces. The peak at ≈650 cm−1 is characteristic of the Mg-O vibration [84,85], while the narrow peaks at ≈3680 cm−1 and ≈1510 cm−1 were attributed to the vibration of the structural hydroxyl group in Mg(OH)2 [85,86], both compounds as corrosion products formed in aqueous solutions (Figure 6b,c). Additionally, very faint bands between ≈960 and 1140 cm−1 are assigned to a very small amount of poorly crystalline ZnCO3 (smithsonite) [87,88]. The peak observed at ≈1430 cm−1 was associated with MgCO3 [87,89] and those at ≈860 cm−1 and ≈600 cm−1 as characteristic of the Zn-O bond [90,91,92,93,94,95].

3.1.6. UV-Vis Spectroscopy Analysis

This analysis was carried out to characterize the electroless ZnO deposits on Mg-Ca0.3 surface. The UV-Vis spectra (Figure 7) confirmed the presence of the characteristic absorption peak at ≈380 nm, which is consistent with the intrinsic band-gap of ZnO due to the electronic transition from the valence band to the conduction band (O2p to Zn3d) [96,97]. Such peak was reported for ZnO obtained by the sol-gel method [98] and from colloidal solutions [99,100], as well as by spontaneous hydrolysis [101] and alkaline hydrolysis [102].

3.1.7. Raman Spectroscopy Analysis

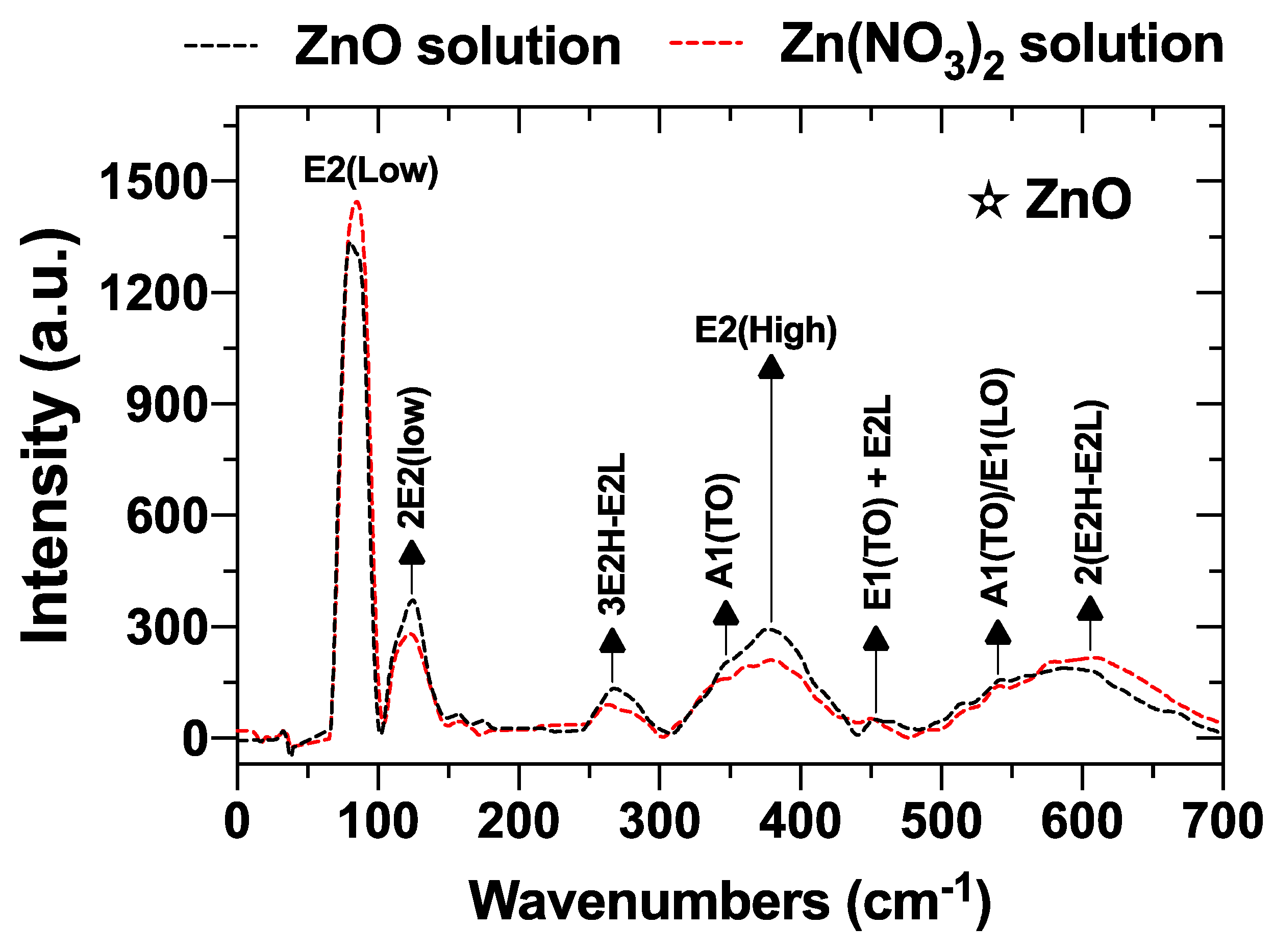

Raman spectroscopy study was carried out on the ZnO deposits (Figure 8) as a sensitive diagnostic tool for the nanocrystal structure and morphology. It is known that ZnO is a semiconductor (a direct wide band gap of 3.37 eV and a large excitation binding energy of 60 meV), and the ZnO surface can be described as a dipole oriented (+ −), negatively charged by the O2− and positively charged by the Zn2+ ions, tetrahedrally coordinated and resulting in spontaneous polarization. The hexagonal ZnO wurtzite structure belongs to the C 6 v 4 group. According to this group theory, A1 + 2E2 + E1 are Raman-active modes, corresponding to optical phonons of Low and High frequency.
The Raman-scattering spectra of ZnO electroless deposits (Figure 8) revealed that the main phonon modes are as follows: E2(Low) at ≈88.97 cm−1, E2(High) at ≈392.80 cm−1 and A1(TO) at ≈346.20 cm−1, previously reported for hexagonal wurtzite [103,104,105,106,107]. The higher intensity of E2(Low) mode indicates that the vibrations of the heavy Zn sublattice are dominating in this structure, while the E2 of High frequency, attributed to the oxygen atoms, is at a significantly lower intensity. These facts may suggest that the ZnO structure of the deposits on the Mg-Ca0.3 presents defects because of the oxygen vacancies [108,109,110]. The shifts in the reported signals (Figure 8) have been influenced by the specifics of the Mg-Ca0.3 surface as substrate, as well as by ions impurities in the ZnO nanostructures, being a part of the used electrolytes for the electroless deposition [105,106,108].

3.1.8. X-ray Diffraction Patterns

In order to characterize the ZnO-NPs, a complementary analysis by XRD was carried out. The X-ray diffraction spectra of ZnO nanoparticles electroless deposited on Mg-Ca0.3 surface are presented in Appendix A to this manuscript (Figure A1). The peaks of X-ray diffraction are observed at 2θ values of 31.84°, 34.5°, 36.38°, 47.64°, 56.70° and 68.10°, which can be indexed for diffractions from the (100), (002), (101), (110), (103) and (112) planes, consistent with the hexagonal crystal structure of ZnO (wurtzite, JCPDS No. 361451).

3.2. Characterization of the Hybrid ZnO/Ag Electroless Deposits on Mg-Ca0.3

3.2.1. SEM-EDS Analysis

Figure 9 presents the SEM images (200× and 5000×) of the hybrid ZnO/Ag electroless deposits on the Mg-Ca0.3 surface. The EDS analysis suggested that more Ag was electroless nucleated on the ZnO/Mg-Ca0.3 substrate (Figure 9a–c), which surface was less covered by clusters of ZnO electroless, previously collected from the ZnO solution (Table 2).

3.2.2. XPS Analysis

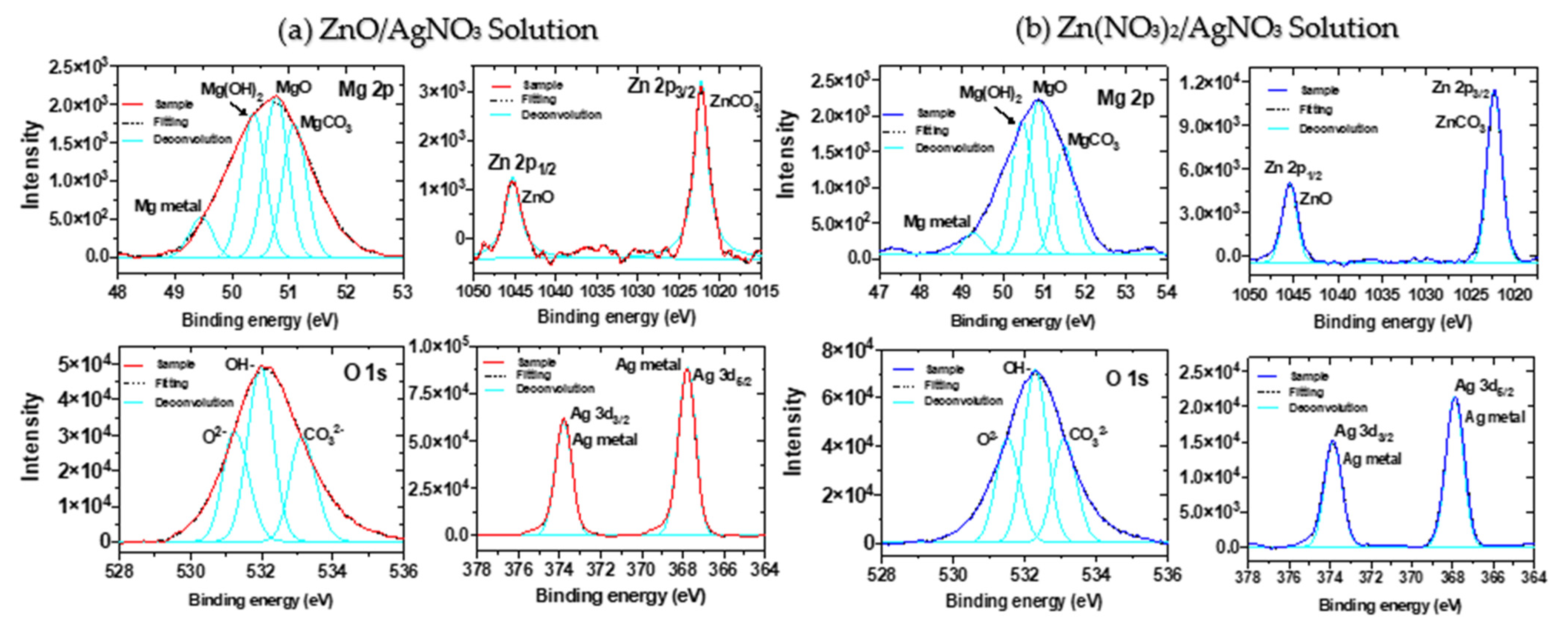

The surface analysis was performed to correlate with the EDS analyzes by zones (Figure 9c,f). The high-resolution XPS spectra were for ZnO/Ag hybrid electroless deposits on the Mg-Ca0.3 surface (Figure 10). In a similar way to ZnO nano-coating (Figure 3), the high-resolution binding energy spectra identified the presence of Mg(OH)2 (at ≈49.98 eV) [65,66,67,68], MgO (at ≈50.54 eV) [66,68,71,72,81], MgCO3 (at ≈51.32 eV) [66,67,73], ZnO (at ≈1045.30 eV) [66,67,73,74,75,78,79,80] and ZnCO3 (at ≈1022.40 eV) [78,79,80].
Furthermore, the spectrum of Ag displayed two characteristic peaks at ≈367.77 eV and ≈373.75 eV [66,67,68,69,71,72,73,74,75,76,77], and based on their intensities, it indicates that the higher concentration of electroless Ag deposit nucleated on the ZnO/Mg-Ca0.3 substrate. We propose that ZnO particles deposit first from the aqueous suspension of ZnO (Table 2). The deposition from ZnO suspension resulted in less coverage of the Mg-Ca0.3 substrate surface. This fact correlates well with the SEM-EDS analysis (Figure 9c).

3.2.3. EDS Mapping of the Elements

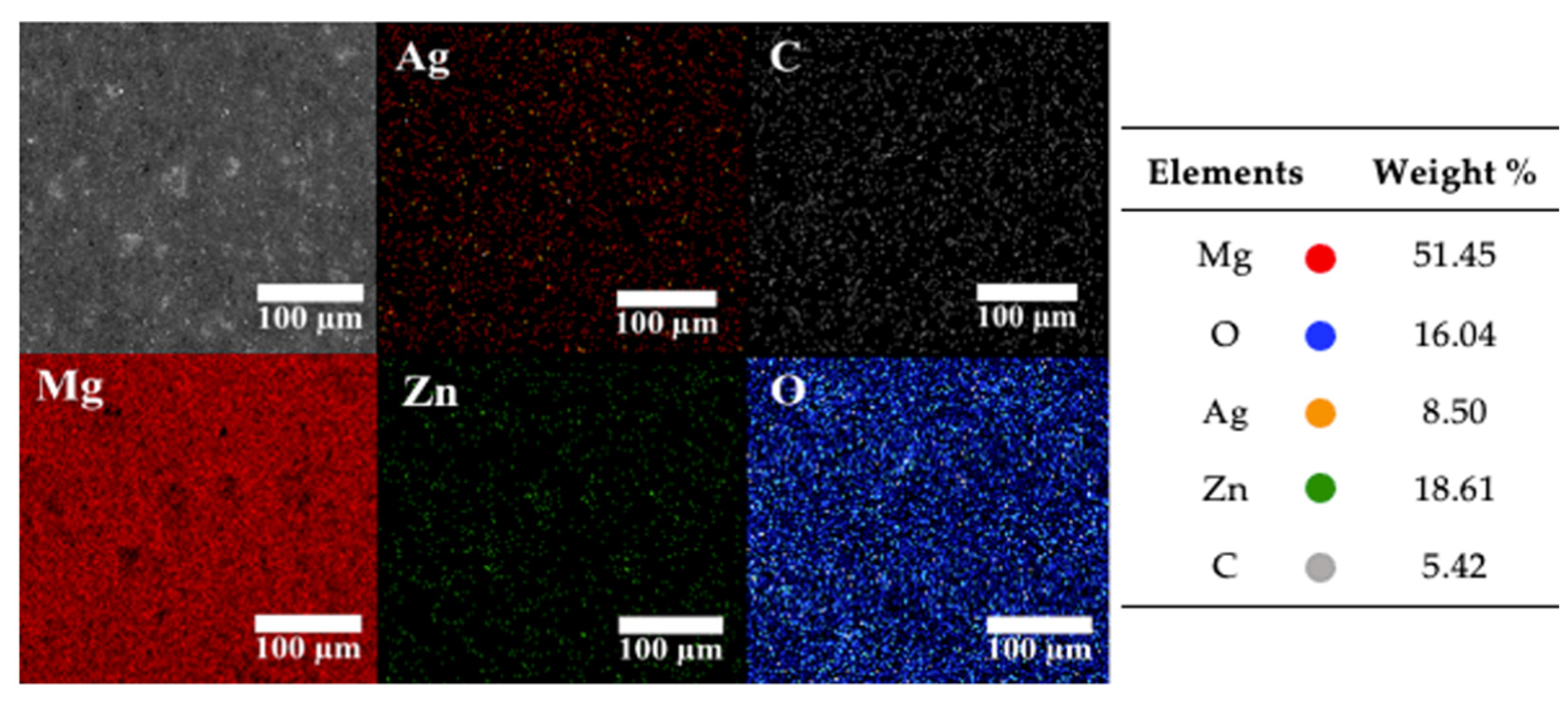

Similarly, the analysis of the EDS maps (200×) of the ZnO/Ag electroless deposits on the Mg-Ca0.3 surface (Figure 11 and Figure 12) indicates that ≈2 times higher concentration of Ag was nucleated on the ZnO/Mg-Ca0.3 surface (Figure 11), which was less covered by clusters of electroless ZnO, previously obtained from ZnO solution without Ag (Table 1).

3.2.4. Ag Nano-Particle Size Distribution

The size distribution of Ag-NPs as part of ZnO/Ag hybrid deposits (Figure 13) indicates that Ag-NPs tend to nucleate and grow as islands in the substrate. Being a member of the wurtzite structural family, the ZnO surface exhibits a normal, non-central dipole moment in symmetry. These unique characteristics of ZnO, as well as the negative electrochemical potential of the Mg-Ca0.3 substrate during the electroless deposition (−1.17 V vs. SCE), may facilitate the attraction of positively charged Ag+ ions and their deposition without electricity. The predominant sizes of Ag-NPs are ≈120 ± 3 nm (Figure 13a) and ≈94 ± 3 nm (Figure 13b). On the other hand, there is ≈2 times higher frequency of Ag-NPs nucleated on the ZnO deposits (Figure 13a) obtained from the ZnO aqueous suspension free of Ag (Table 2).
The measured open circuit potential (OCP) during the electroless deposition of ZnO on Mg-Ca0.3 was ≈−1.63 V (vs. SCE) and ≈−1.17 V (vs. SCE) on ZnO/Mg-Ca0.3 surface when the Ag-NPs were deposited; this 0.5 V difference is due to the free energy spent in the deposition of Ag+ ions. We propose that there is a synergistic effect between the highly negative potential of the alloy (mostly of Mg) and the surface charges of ZnO/Mg-Ca0.3 that facilitate the deposition of Ag+ ions.

3.2.5. UV-Visible Spectroscopy Analysis

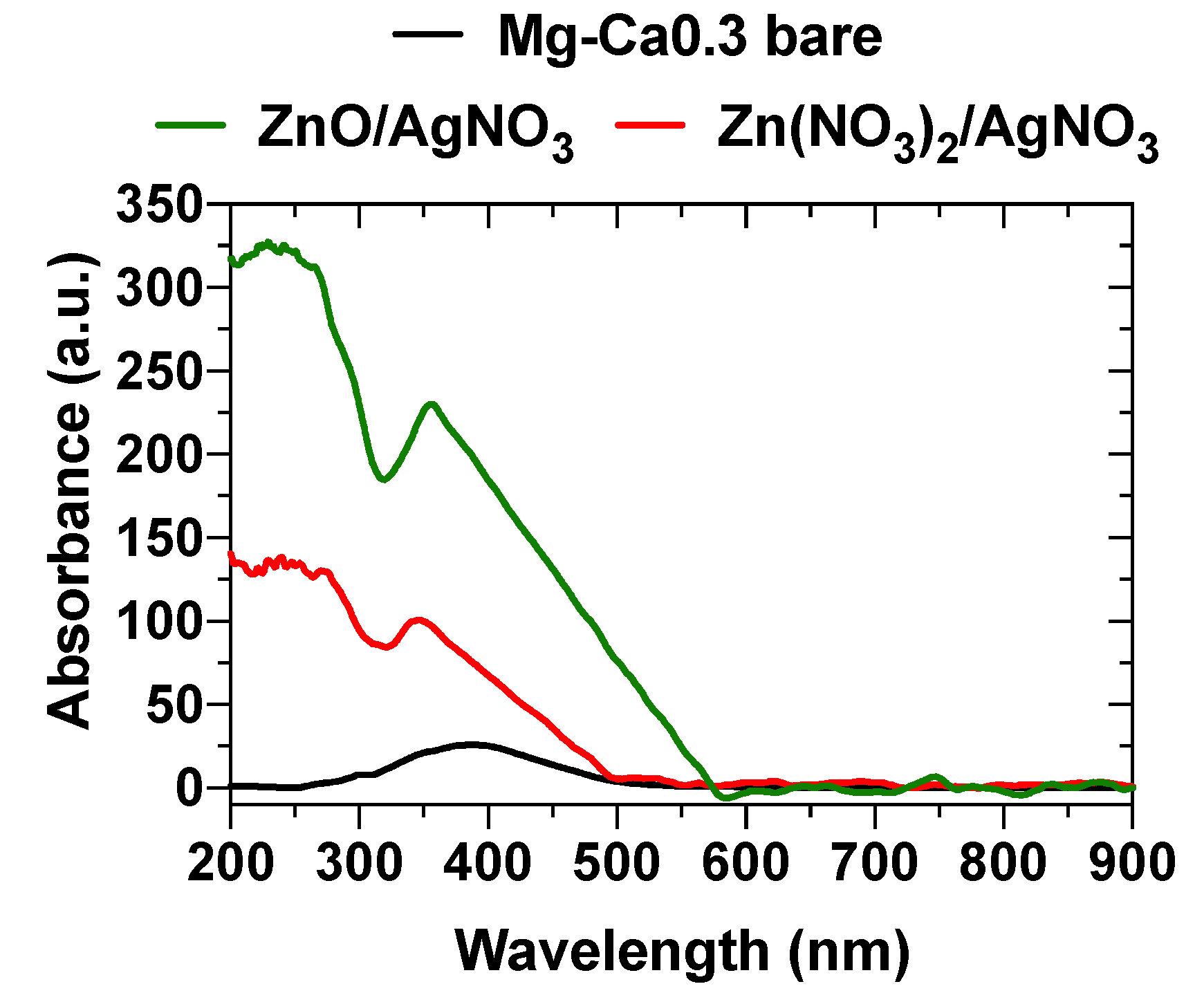

Figure 14 shows the UV-Visible absorption spectra of the hybrid ZnO/Ag deposits on Mg-Ca0.3 alloy. The maximum peak at ≈380 nm is related to the optical behavior of ZnO-nanoparticles (NPs) [84,85,86,90], and the valley at ≈320 nm is attributed to the decrease in the imaginary part (k) of the refractive index of Ag-NPs [91].
The noise in this area of the spectrum is attributed to the low concentration of Ag-NPs added to the high optical absorbance associated with ZnO [92].

3.2.6. FTIR Analysis

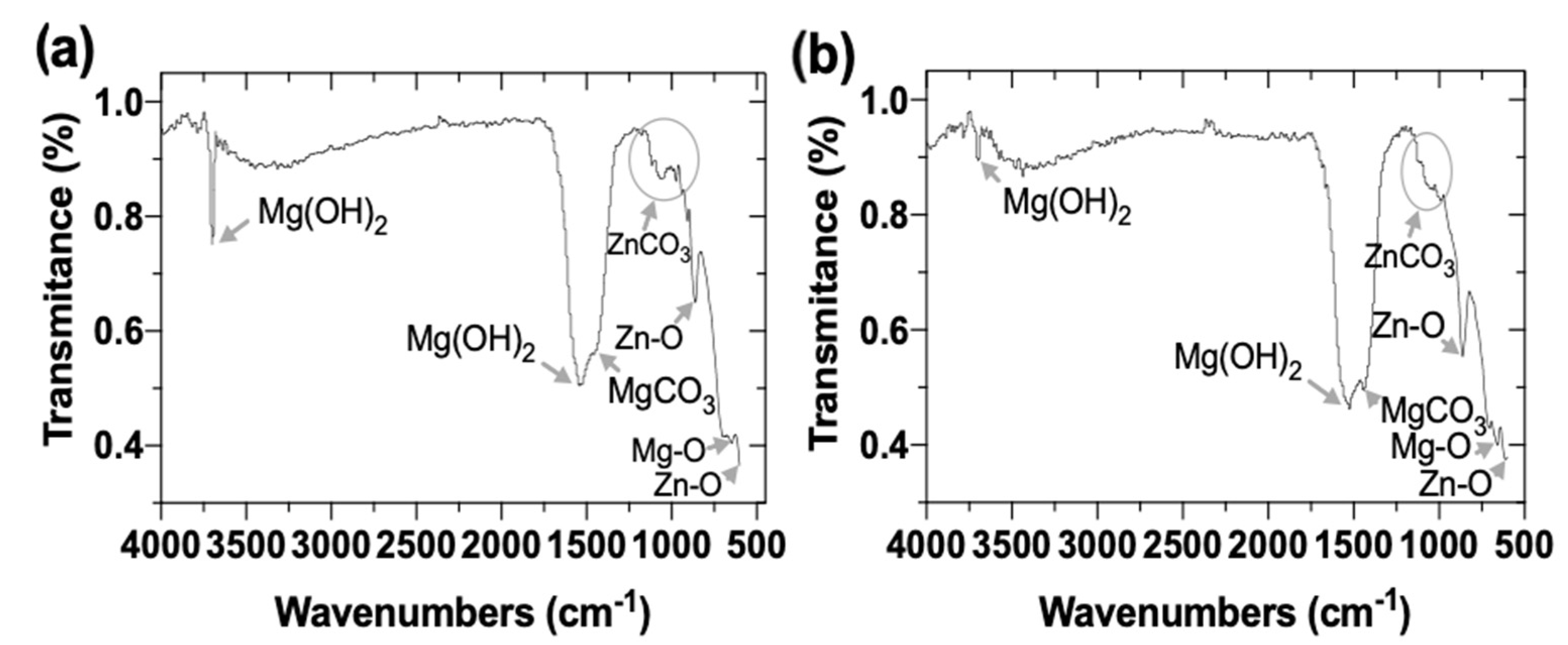

The FTIR spectra (Specular Apertured Grazing Angle) of the hybrid electroless ZnO/Ag nano-particles deposits on Mg-Ca0.3 surfaces (Figure 15) revealed the characteristic peaks for the vibration of the Mg-O bond [82,83,84,85], hydroxyl group in Mg(OH)2 [85,86] and carbonate group in ZnCO3 [87,88], MgCO3 [87,89] and Zn-O bond [90,91,92,93,94,95], all similar to those peaks corresponding to ZnO deposit (Figure 6b,c).
The presence of Ag-NPs in the deposits did not lead to significant changes or additional peaks in FTIR spectra (Figure 6b,c and Figure 15a,b), suggesting that chemical bonds between Ag, Mg and ZnO were not formed on most of the surface deposits [92].

3.2.7. Raman Spectroscopy Analysis

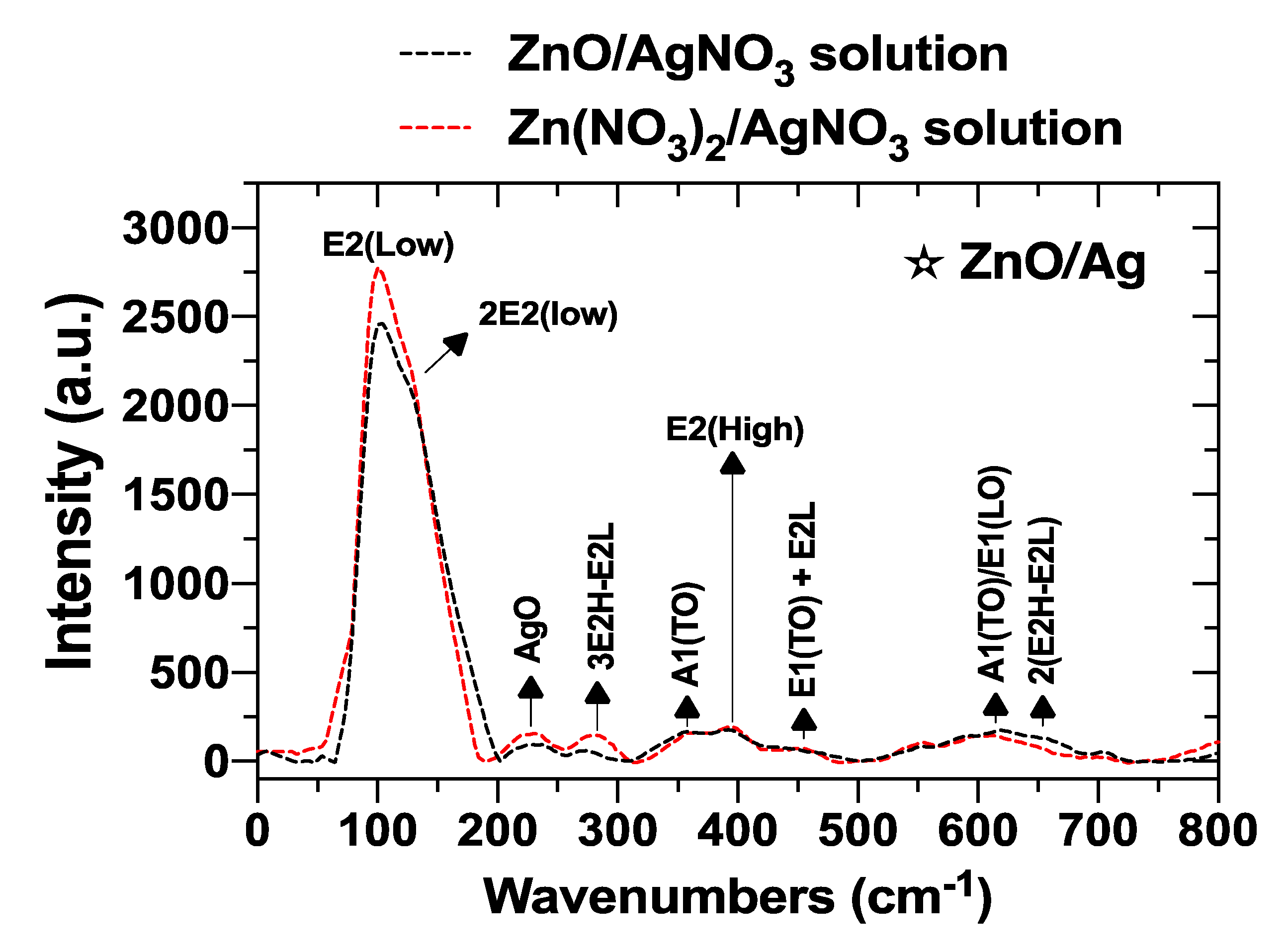

Figure 16 presents the Raman scattering spectra of the hybrid ZnO/Ag deposits. The peak of Ag detected at 230.94 cm−1 may associate with the Ag-O bond, according to the literature [111,112,113,114].
When comparing the ZnO/Ag-NPs Raman spectra (Figure 16) with those of ZnO-NPs electroless deposits (Figure 6), noted that the intensity of the E2(Low) phonon mode of the Zn2+ ions has increased (Figure 16), consistent with the nucleation (deposition) process the Ag+ ions interacting with the negatively charged O2− atoms, thus diminishing their polar moment. On the other hand, the main phonon modes of ZnO are as follows: E2(Low) at ≈100.6 cm−1, E2(High) at ≈397.17 cm−1 and A1(TO) at ≈360.71 cm−1. The shifts towards higher wave numbers may be attributed to the influence of the changed surface structure after the deposition of Ag-NPs from the AgNO3 electrolyte.

3.2.8. X-ray Diffraction Patterns

To collaborate with the Ag-Nps characterization, an XRD analysis was carried out. The peaks of X-ray diffraction of Ag nanoparticles (Figure A2, Appendix A), electroless deposited on ZnO/Mg-Ca0.3, are observed at 2θ values of 38.18°, 44.25°, 64.72° and 77.46°, indexed for diffractions from the (111), (200), (220) and (311) planes, corresponding to the presence of Ag crystals of FCC cell structure (JCPDS No.04-0783). In our previous work, the Ag nanoparticles electroless deposited on Mg-Ca0.3 presented similar XRD spectra [45].

4. Conclusions

The hybrid of ZnO/Ag structures in the nanometer size, ca. 200 nm, were electroless deposited on Mg-Ca0.3 alloy surface, known as biodegradable and biocompatible material in physiological media. The ZnO NPs were achieved from 10−3 M aqueous solutions of ZnO (suspension) and Zn(NO3)2 on Mg-Ca0.3 substrate and later baked at 200 °C for 48 h. On the baked ZnO/Mg-Ca0.3 surface, Ag-NPs were electroless deposited from 10−3 M aqueous solution of AgNO3; the hybrid ZnO/Ag deposits also were baked.
The electroless deposits were characterized by SEM-EDS, FTIR and XRD, as well as by UV-Visible and Raman spectroscopy, as sensitive diagnostic tools for nanocrystal structure.
The average size of solitary ZnO-NPs was estimated in the order of ≈85 nm, and once nucleated, the NPs tend to agglomerate; their coverage surface area is ≈2 times higher for the deposits obtained from Zn(NO3)2 solution.
XRD spectra of Ag-NPs indicated the presence of planes arranged with the FCC hexagonal structure.
Likewise, the Ag-NPs of electroless deposits, of an estimated size of ≈100 nm, nucleated in the vicinity of ZnO-NPs. The UV-Visible spectroscopy analysis identified the peak at ≈320 nm associated with the decrease in the imaginary part (k) of the refractive index of Ag-NPs, all consistent with the expectation that the Ag deposits correspond to metallic Ag in the nanoscale.
We propose that the Ag+ ions were attracted by the negatively charged O2− atoms of the Zn-O dipole, presenting the wurtzite structure, as suggested by Raman spectroscopy analysis. Thus, it may suggest that there is a synergistic effect between the highly negative potential of the alloy (mostly of Mg) and the surface charges of ZnO/Mg-Ca0.3 that facilitate the deposition of Ag+ ions.
During the process of electroless deposition of the NPs of ZnO and Ag on the Mg-Ca0.3 surface, MgO, Mg(OH)2 and MgCO3 compounds were formed, according to XPS and FTIR.
Overall, the techniques are consistent with the deposition of a non-uniform layer that consists of crystalline nanoparticles. The deposition of ZnO is crystalline and of sufficient coverage so that it shows in the UV VIs. These nanoparticles of ZnO and Ag are in intimate contact based on the Raman results. The corrosion products on the surface suggest that the Mg is oxidized during the deposition of the Ag, which is consistent with a galvanic displacement reaction. The ZnO/Ag nanostructures are expected to provide antibacterial protection to the temporary structure.
The reported hybrid ZnO/Ag electroless deposits of NPs are of interest for temporary implant devices, providing antibacterial properties to Mg-Ca0.3 surface, used as biodegradable material.

Author Contributions

J.L.G.-M. performed the electroless deposition experiments and characterization of their surface. J.L.G.-M., V.L. and M.A.-A. discussed the results. J.L.G.-M. and V.L. wrote the manuscript. V.L. supervised the project. All correspondence should be directed to V.L. All authors have read and agreed to the published version of the manuscript.

Funding

FOMIX-Yucatán 2008-108160, CONACYT LAB-2009-01-123913, 292692, 294643, 188345 and 204822 and Grant NSF CHE-2108462 covered part of the publication funds.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data presented in this study are available on request from the corresponding author. The data are not public due to privacy issues.

Acknowledgments

J. Luis González-Murguía acknowledges the Mexican National Council for Science and Technology (CONCAYT) for the scholarship granted to him for his Ph.D. study. The authors gratefully thank the National Laboratory of Nano- and Biomaterials (LANNBIO-CINVESTAV) for allowing the use of DRX, SEM-EDS and XPS facilities, and to José Antonio Azamar-Barrios, Daniel Aguilar, Victor Rejón, José Bante and William Cauich for their support in data aquisition.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Coatings 12 01109 g0a1 550

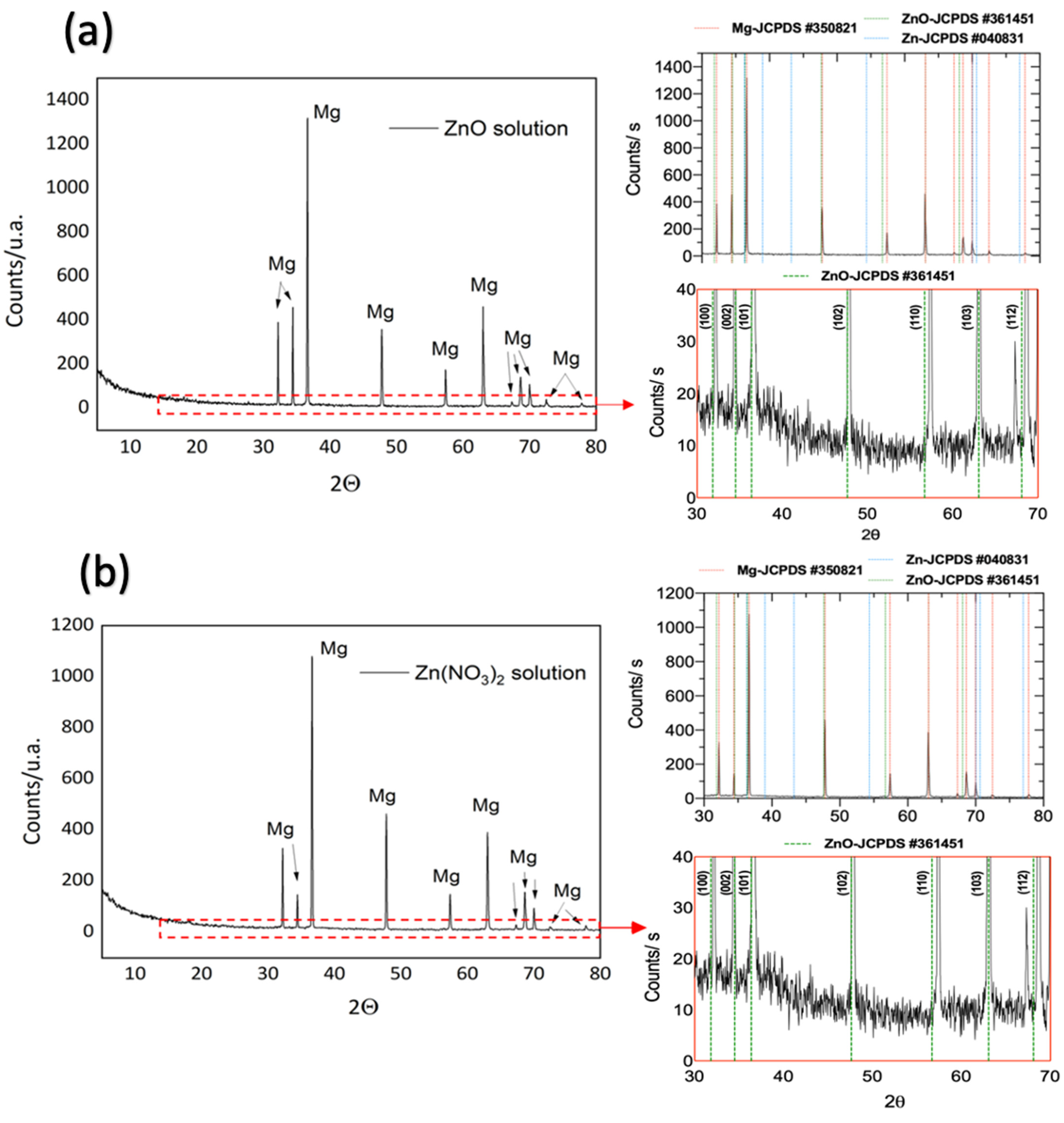

Figure A1. XRD spectra of ZnO-NPs electroless deposits on Mg-Ca0.3 surface achieved from 10−3 M solutions of ZnO (a) and Zn(NO3)2 (b).
