Research on the Governance Relationship among Stakeholders of Construction Waste Recycling Based on ANP-SNA

by
Siling Yang
1,2,3,
Jie Qiu
2,* and
Heping Huang
3,*
1
College of City Construction, Jiangxi Normal University, Nanchang 330022, China
2
School of Civil Engineering and Architecture, East China Jiaotong University, Nanchang 330013, China
3
Institute of Ecological Economics, Jiangxi University of Finance and Economics, Nanchang 330013, China
*
Authors to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(24), 16864; https://doi.org/10.3390/ijerph192416864
Submission received: 7 September 2022 / Revised: 5 October 2022 / Accepted: 8 October 2022 / Published: 15 December 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
A method based on Analytic Network Process and Social Network Analysis (ANP-SNA) was proposed in this paper to determine and better clarify the governance relationship among various stakeholders involved. Firstly, fourteen stakeholders of construction waste recycling were identified using the snowball sampling method, and the governance relationships of these stakeholders were summarized into four aspects with eight indicators. Secondly, the weights of the stakeholder governance relationship indicators were determined based on Analytic Network Process (ANP). Thirdly, the Social Network Analysis (SNA) method was used to model the governance relationship network of the stakeholders, and the governance relationships among different stakeholders in the network were described by quantitative analysis of network cohesion, network centrality, structural holes, and other indicators. Finally, key points for optimizing the governance relationships among stakeholders of construction waste recycling were proposed in this paper, so as to provide a new solution for the collaborative governance of stakeholders.

1. Introduction

Over the past few years, as urbanization is accelerating, the amount of construction wastes has also been on the rise. According to statistics, construction wastes account for 40% of urban wastes, which poses prominent threats to the ecological environment [1]. Against such a background, more attention has been paid to recycling, the best approach for construction waste disposal. Construction waste recycling involves a large number of stakeholders who interplay with each other, the relationships among whom are complicated and may evolve with the wider application of construction waste recycling, making the stakeholder governance relationships even more complex and uncertain [2]. Therefore, it is necessary to study the governance relationships among the stakeholders of construction waste recycling.
At present, many scholars have already carried out studies on the issue of construction waste recycling stakeholders and the relationships between stakeholders in governance from different perspectives, as evidenced by the following examples. In 1946, Glushge from Russia became the first scholar to propose the concept of construction waste recycling. Yeheyis et al. believed that the governance over construction waste recycling required the participation of various stakeholders [3,4,5]. Ding. et al. explored the modes, mechanisms, and strategies of stakeholders such as the public, enterprises, and social groups participating in construction waste resource management [6]. Melo et al. studied the costs and benefits of stakeholders such as construction waster producers, landfill owners, and resource-based enterprises in disposing construction wastes, and measured them using a cost-benefit approach [7]. As theories concerning construction waste recycling become richer and more mature, the governance relationships among stakeholders have attracted more and more attention of scholars both in China and abroad. Luo et al. suggested that government departments can attract more social capital to participate in the construction waste recycling governance by enhancing the return rate on investment of these projects, and only by doing so can construction waste recycling gain further boosts [8]. Jorge de Brito et al. analyzed the factors affecting the classification and use of construction waste aggregates. The government’s legislation and standardization of construction waste recycled aggregates will help enhance stakeholders’ confidence in the quality of construction waste recycling products, thereby promoting the development of a construction waste recycling industry [9,10,11]. Burcu et al. argued that companies focusing on construction waste recycling could not maximize their benefits without the cooperation between government departments and construction waste producers [12]. Jin et al. pointed out that with the improvement of the ability of construction waste recyclers to recycle waste, construction companies and contractors could enjoy more benefits [13]. So, it is reasonable that the three parties should enhance their cooperation and collaboration. Ma et al. explored the interest relationships among the government, construction waste producers, and resource-based enterprises in construction waste recycling, and constructed a three-party asymmetric evolutionary game model by combining their decision-making behaviors [14].
In a comprehensive view, research on the stakeholders of construction waste recycling has increased in quantity both in China and abroad, and some scholars have also enriched the theories of construction waste recycling from the perspective of stakeholder governance relationship research. However, methods adopted in the existing research are mainly qualitative analysis, cost-benefit analysis, game theory, and so on, and few scholars have used a network method to describe the relationships among the stakeholders and to probe deeply into the interaction between the stakeholders. Various stakeholders are engaged in the governance of construction waste recycling, and their interactions form a relationship network. In this paper, Analytic Network Process (ANP) and Social Network Analysis (SNA) were adopted to conduct a systematic study on the governance relationships among stakeholders of construction waste recycling [15,16,17]. There are two reasons for adopting the method combining ANP and SNA. First, ANP can deal with problems of non-independent hierarchical structure which fail to be addressed by traditional methods in decision-making. Besides, ANP is capable of describing and analyzing the complicated network of governance relationships among stakeholders of construction waste recycling and can determine the weights of relationship indicators. Second, SNA can determine the laws of function of deep networks hidden in complex social systems. When analyzing the interactions and interplay of stakeholders of construction waste recycling, SNA can take a holistic approach to deal with problems in the governance relationships among the stakeholders, thus providing a theoretical basis for the collaborative governance of the stakeholders in construction waste recycling.

2. Stakeholders of Construction Waste Recycling and Their Governance Relationships

2.1. Stakeholders of Construction Waste Recycling

Stakeholder theory holds that project stakeholders are such individuals or groups that have a certain impact on the realization of project objectives to some extent or will be affected in the process of achieving project objectives [18]. Guided by the stakeholder theory, this paper believes that the individuals or groups who can influence or be influenced by the governance network of construction waste recycling are the stakeholders. Snowball sampling was used to identify stakeholders of construction waste recycling, and the steps are as follows: first, data of construction waste recycling enterprises were collected as the initial samples, and the investigations were conducted on pilot programs for construction waste recycling in cities such as Beijing, Shanghai, Shenzhen, Jinan, Xi’an, and Chongqing, in a bid to select stakeholders; second, experts and scholars in the field of construction waste recycling were invited to make judgments and corrections. As shown in Appendix A, Table A1, a total of 14 stakeholders from four categories were identified.

2.2. Governance Relationships among Stakeholders of Construction Waste Recycling

After determining the stakeholders of construction waste recycling, the governance relationships among these stakeholders were identified and optimized by using a literature analysis and expert interviews in this paper. First, keywords were used for the literature retrieval. Through the collation of relevant theoretical literature, it was determined that the governance relationships among stakeholders of construction waste recycling mainly included several aspects such as contract, cooperation, dependence, and communication (these are the first-level indicators) [19,20,21]. Second, these first-level indicators were subdivided into second-level indicators on the basis of suggestions from experts in the interviews to make sure that the research results could be widely and deeply applied.
In order to ensure the feasibility and efficiency of the interview, 10 experts were selected for the semi-structural interviews, including six middle and senior managers of some related parties who had participated in construction waste recycling projects, and four scholars who had many years of research experience in construction waste recycling in universities. The final governance relationship of construction waste recycling stakeholders includes four first-level indicators and eight second-level indicators, as shown in Appendix A, Table A2. Various relationships are interconnected and interdependent, and stakeholders may be correlated to each other in a relationship or in multiple relationships.

3. Index Weighting of Governance Relationships among Stakeholders of Construction Waste Recycling

Many existing methods can weight the indicators, such as the correlation coefficient method, analytical hierarchy process, and factor analysis; however, these methods are based on the complete independence of each indicator and ignore the correlations among indicators, which may lead to a distortion of the results. ANP, first proposed by Professor Saaty in 1996, can correlate relationships between indicators at the same level or different levels, and the results of ANP are more accurate and practical [22]. For this reason, ANP was selected in this paper to weight indicators of governance relationships among stakeholders of construction waste recycling.

3.1. ANP Introduction

ANP is a decision-making method developed on the basis of analytic hierarchy process (AHP) to adapt to complex structures. ANP builds the relationships between elements in the system into a form similar to the network structure, so as to describe the complex relationships between things in practical problems more accurately.
ANP solves practical problems through the following steps: (1) build control layer and network layer; (2) build judgment matrix: (3) build unweighted super matrix; (4) build weighted super matrix; and (5) calculate limit super matrix.
ANP determines the weight by means of super matrix. However, due to the complexity and difficulty of manual calculation of the super matrix, this paper uses Super Decision software, a special calculation tool of ANP, for the analysis.

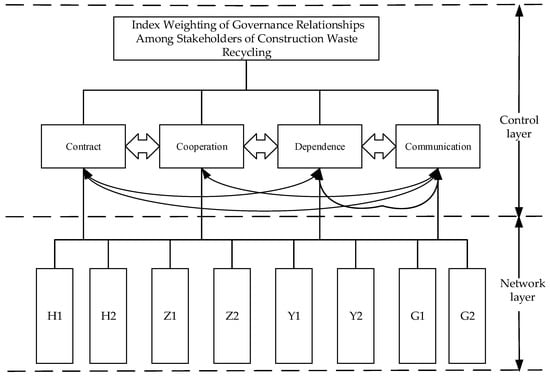

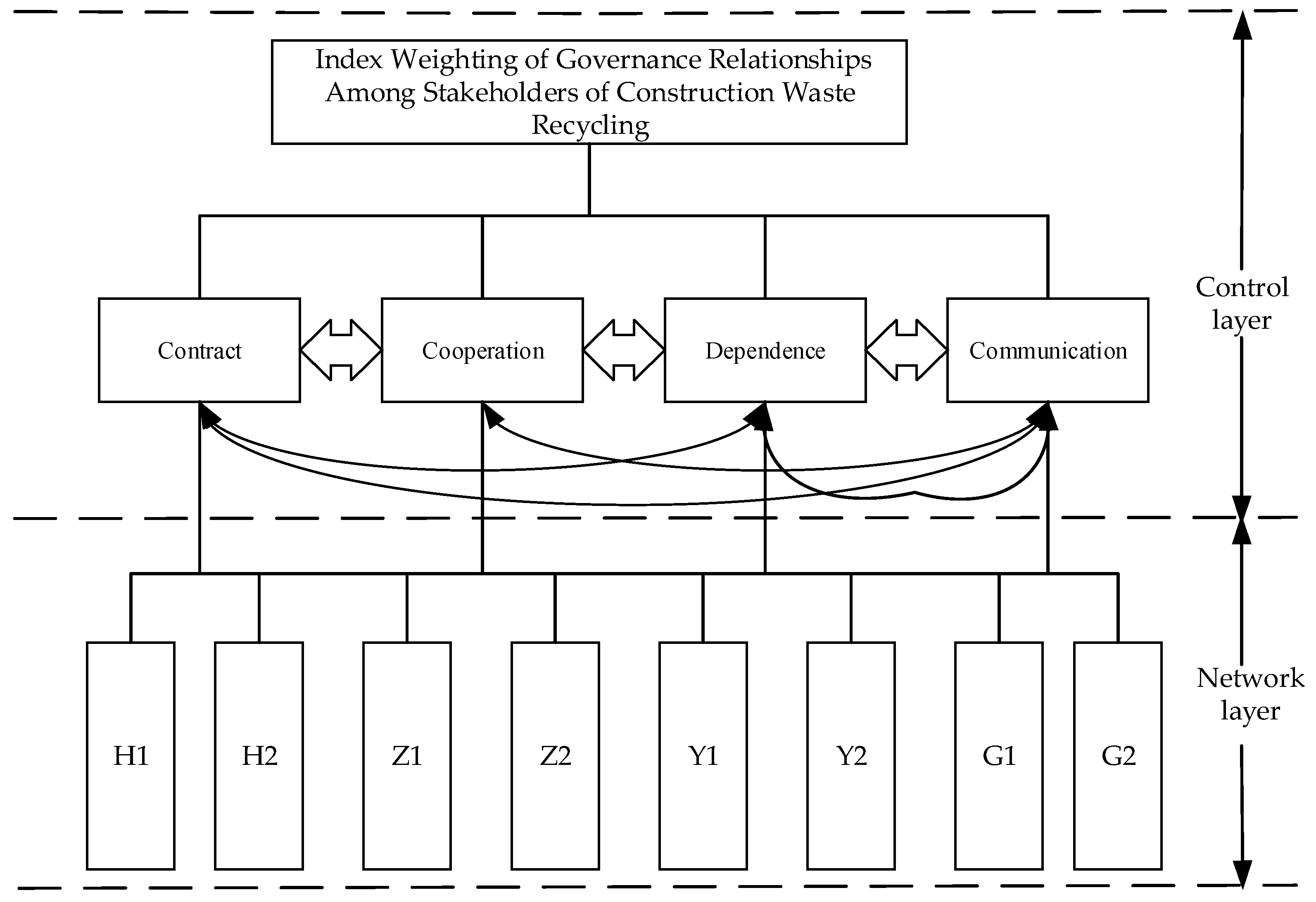

3.2. ANP Structural Model of Governance Relationships among Stakeholders

According to the characteristics of the governance relationship indicators and comprehensively considering the correlation between the indicators, the ANP model of the governance relationships among stakeholders of construction waste recycling constructed is shown in Figure 1.

3.3. Calculation of Index Weights of Governance Relationships among Stakeholders

Since the index system of governance relationships was established, five experts who have been engaged in the research of construction waste recycling and stakeholder governance relationship for many years were invited to discuss the importance of each index according to the 1–9 scale method and determine the final score. In this paper, the judgment matrix was obtained by arithmetic averaging of the same index values, so as to reduce errors caused by experts’ thinking mode and positions.

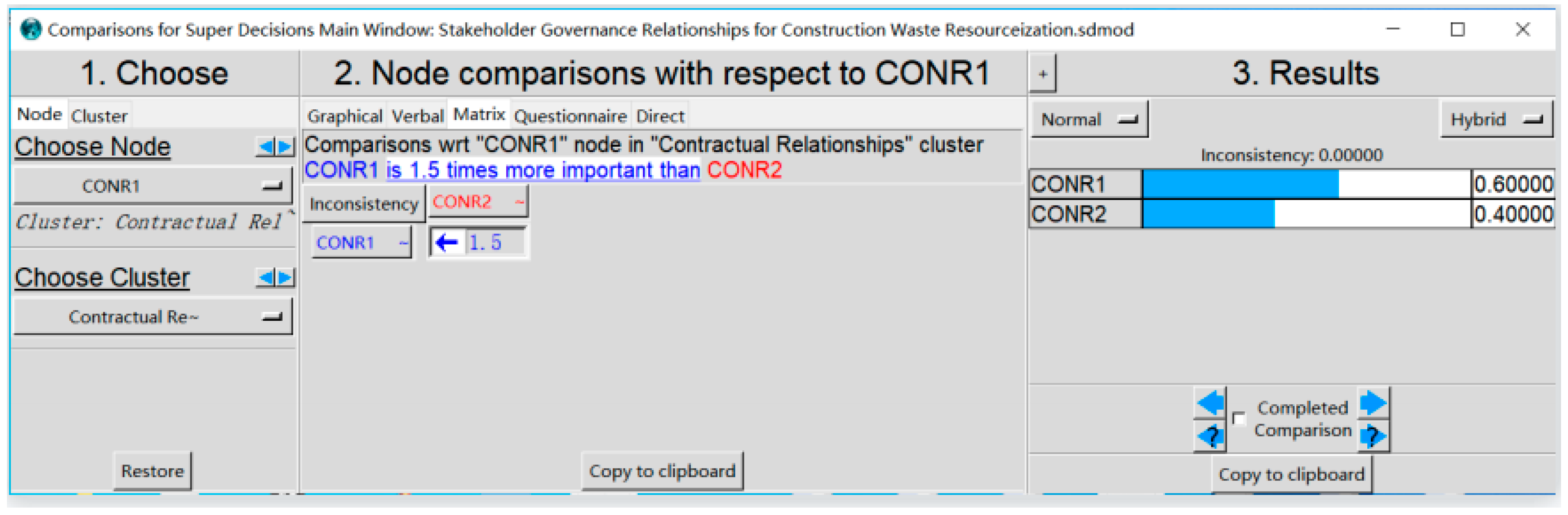

For example, with the control layer in Figure 1 as the criterion, and element H1 of contract relationship (HT) in the element set of network layer as the sub-criterion, the relative importance of the indicators associated with it in the HT was determined. A judgment matrix was established in the software of Super Decisions, as shown in Figure 2. It can be seen that Inconsistency = 0.0000 < 0.1, which meets the demands of the consistency test.
According to the rule of the above methods, all the index data in the criterion layer were obtained to establish the unweighted super matrix, as shown in Table 1.
With the control layer as the criterion, and elements in the network layer as the sub-criterion, the relative importance between the element sets was judged, so as to obtain the weighted super matrix, as shown in Table 2. The judgment matrix was input using the same steps presented in Figure 2.
Then, the weighted super matrix was self-multiplied to obtain a limit super matrix. Finally, the priorities of the governance relationship index were ranked by the Priorities Command to obtain the comprehensive weights, and the final results are shown in Table 3.
It can be seen from Table 3 that among the second-level indicators of governance relationships among stakeholders in construction waste recycling, indicators such as the validity of contract, resource dependence, and cooperation intention have greater weight values, indicating that indicators have a greater impact on the governance relationship of stakeholders.

4. SNA on Governance Relationships among Stakeholders of Construction Waste Recycling

Social network analysis is an analytical method based on sociometrics and graph theory, which uses relational data to quantitatively analyze the characteristics of network structure from multiple perspectives. As one of the most popular social network analysis software, Ucinet software is commonly used for one-dimensional and two-dimensional data analysis.
The stakeholders of construction waste recycling are interconnected, and interact with each other, forming complicated relationships of a network structure. Based on the SNA method, this paper uses Ucinet software to conduct an in-depth study on the structural characteristics of governance relationship network among stakeholders by selecting multiple indicators including network cohesion, network centrality, core edge analysis, and structural holes [23]. The calculation formula of these indicators can be referred to in Appendix B.

4.1. Matrix of Stakeholder Governance Relationships

Data of stakeholder governance relationships of construction waste recycling were collected by using a snowball-style questionnaire, and the steps are presented as follows: first, select the construction waste recycling enterprise as the first stakeholder for investigation and then obtain information about other stakeholders relevant to the first stakeholder; second, select an uninvestigated stakeholder from the existing stakeholders for investigation; third, repeat the second step until the investigation objects of all 14 stakeholders mentioned in Section 2.1 are identified and determined. Finally, a total of 500 questionnaires were launched, and 424 questionnaires were collected, with a collection rate of 84.8%. After excluding 61 invalid questionnaires with incomplete answers, identical answers, and inconsistent answers, 363 valid questionnaires in total were obtained, with an efficiency rate of 85.6%.
When establishing a governance relationship network among stakeholders inspired by methods from Almeida et al., the respondents were asked about the direct relationship(s) of their company with stakeholders so as to make clear the structure of relationships among stakeholders of construction waste recycling [24]. Results show that over half of the subjects claimed the presence of such direct relationship(s).
Based on the results of the questionnaire survey, combined with the weights of the indicators shown in Table 3, the already processed basic data of governance relationships among stakeholders were multiplied by the weight of the relationship indicators, so that the governance relationship intensities of various stakeholders can be obtained [25,26,27]. These intensities were then used as weights of edges in the governance relationship network among stakeholders of construction waste recycling to establish the matrix of governance relationships among stakeholders of construction waste recycling. The matrix is shown in Table 4.

4.2. Establishment of Relationship Models

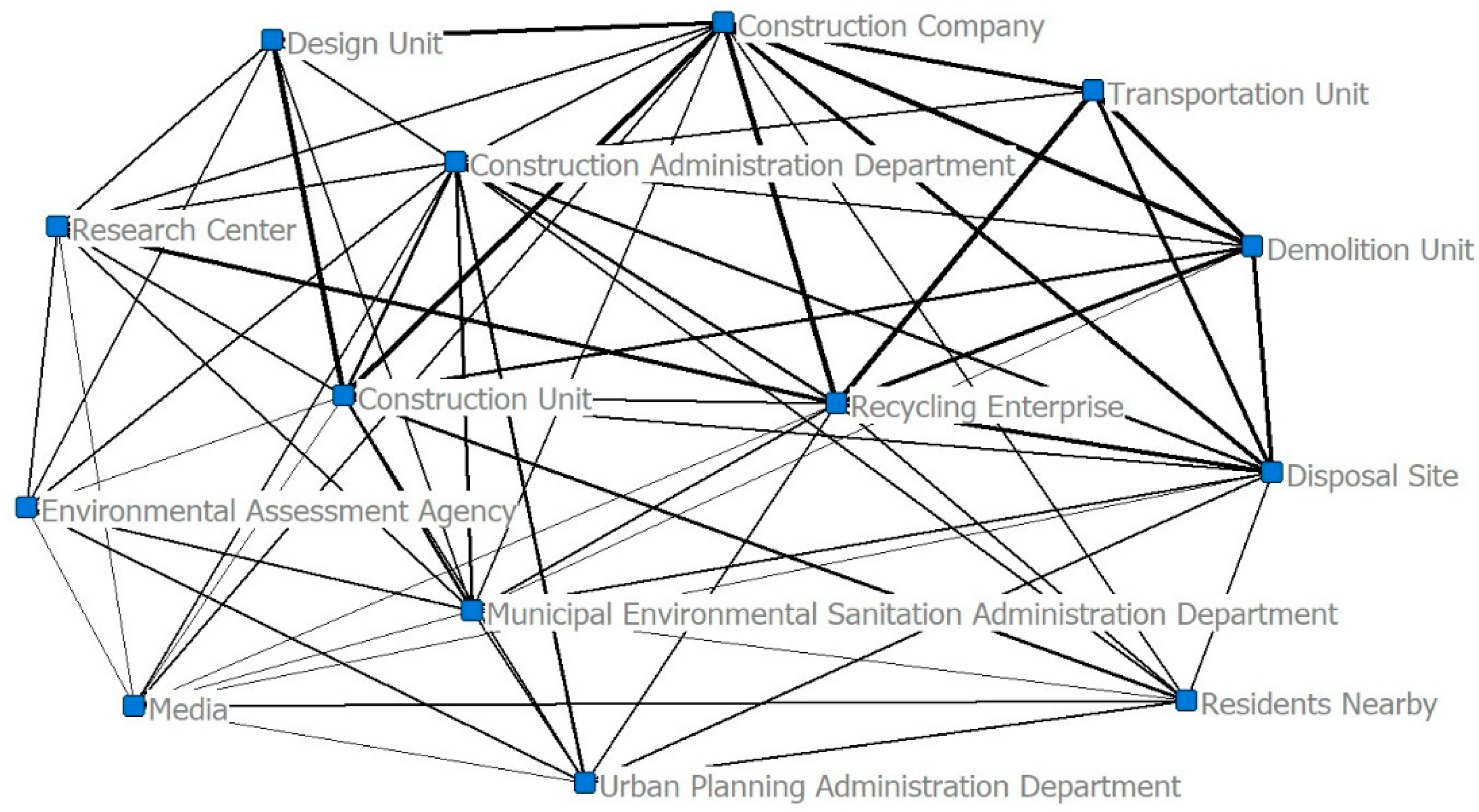

In order to facilitate further quantitative analysis on governance relationship network among stakeholders of construction waste recycling, binarization processing was conducted on the relationship matrix in Table 4 by the software of Ucinet according to the conditions that the relationship is marked as “1” if its average intensity value is above 1.51; otherwise, the relationship is marked as “0”. Then, the adjacency matrix was established, and the Ucinet software was used to construct the network model of the governance relationship of stakeholders in construction waste, as shown in Figure 3. Figure values on the graph represent the intensity weights of relationships among stakeholders, and the thick lines indicate strong relationship while slim lines refer to weak relationships.

4.3. Analysis on Characteristics of Relationship Network

4.3.1. Analysis on Network Cohesion

In order to analyze the whole cohesion of governance relationship network among stakeholders of construction waste recycling, this paper conducted a network density measurement based on Ucinet software and obtained the stakeholder governance relationship network density [28]. Results show that the network density of this model is 0.5824 and the density standard deviation is 0.4932, indicating the close and strong relationships among stakeholders. That is to say, the change in the behavior of individual stakeholders in the network is more likely to cause behavior changes of other stakeholders in the network.
In SNA, the E-I index was used as a split index to measure how close the relationships between subgroups were. Network density matrices among four category stakeholders were taken as the attribute matrices to measure E-I indexes, and the E-I indexes were then calculated in Ucinet, as shown in Table 5.
It can be seen from Table 5 that the values of E-I indexes of four category stakeholders are all above zero and fall into the range of 0–1, indicating that subgroups of the relationship are relatively open and can communicate with each other.
In terms of the density matrix, construction waste disposal units presented the highest density of 3.724, indicating that the internal network of the group is closely related; construction-related units and government departments ranked second and third, with densities of 3.054 and 2.722, respectively; the public showed the lowest density of 1.048, which showed that the governance relationships among members within the network of stakeholders were not very strong. Besides, in terms of cohesion among the four category stakeholders, the density between construction-related units and construction waste disposal units, and that between construction waste disposal units and government departments are 2.230 and 1.626, respectively, while the density between construction-related units and the public, and that between construction waste disposal units and the public are only 1.017 and 0.870, respectively. These results show that the higher value the density is, the stronger the cohesion strength between the two types of stakeholders is. In general, the network density among the four category stakeholder groups is lower than the network density within each category of stakeholders. This is because relationships among different category of stakeholders are weak while relationships within each stakeholder group are strong.

4.3.2. Analysis on Network Centrality

The network centrality of stakeholders was analyzed by Multiple Measures in Ucinet, and the results are shown in Table 6.
It can be observed from Table 6 that the degree centrality and closeness centrality of the construction administration department are far ahead of other stakeholders, so these departments are at the absolute center; followed by the construction unit and recycling enterprise in the sub-center; the point centrality value and closeness centrality value of media, transportation unit and environmental assessment agency are the lowest. These results indicate that the construction administration department, as the core node, has the greatest influence in the network, and exerts influence on other stakeholders to a large extent; the four stakeholders, including construction administration department construction unit, construction company, and recycling enterprise, are located in the center of the whole network, because they frequently exchange information and are less restricted by other stakeholders within the network [29,30]. In contrast, the media, transportation unit, and environmental assessment agency have weak influence within the network and are prone to be affected by, and dependent on, other stakeholders to a large extent.
The intermediate centrality values of the four stakeholders of the construction administration department, the construction company, the construction unit, and the recycling enterprise are in the leading position, whose intermediate centrality values are 21.987, 5.021, 4.167 and 4.167, respectively, while the intermediate centrality values of other eight stakeholders are all below 4. These results have two indications. First, the front four stakeholders serve as the distribution center of network information interactions in the whole network. These four stakeholders are the bridge of information interactions among different stakeholders within the network, controlling the information resources of the whole network. Second, within the whole network, only these four stakeholders have effective intermediate centrality values, which indicate there is a lack of effective network information interaction among other stakeholders.

4.3.3. Core-Periphery Analysis

In Ucinet, core-periphery analysis was conducted on the governance relationship network among stakeholders of construction waste recycling according to the menu path of Network-Core/Periphery-Categorical. The results are shown in Table 7.
It can be seen from Table 7 that with the core degree of 0.3 as the boundary, the core and peripheral stakeholders of construction waste recycling are distinguished. The construction administration department construction unit, recycling enterprise, construction company, disposal site, and municipal environmental sanitation administration department are classified as “core zone”, and the other eight stakeholders as “peripheral zone”. The average core degree of the core zone is 0.337 and that of the peripheral zone is 0.187, indicating that these two zones have obvious differences in relationship structure.
According to Table 4 and Table 7, the average value of the relationship strength of the whole relationship network is 1.51. In the core zone, average values of strength of relationships among stakeholders are all above 1.51, of which the highest is 2.304 for the construction company, the lowest is 1.673 for the municipal environmental sanitation administration department, and the average value is 2.029. In the peripheral zone, relationship strength among the other eight stakeholders is relatively low, with an average value of 1.347. These figures indicate that the relationship strength of the core zone is much higher than that of the peripheral zone; the stronger the relationship strength, the more core is the position of the stakeholder in the network [31].

4.3.4. Analysis on Structural Holes

Analysis on structural holes can effectively distinguish between the different structural characteristics of relationship subjects in the network. Based on the specific measurement method of structural holes theory, the measurement data results of the network structure hole of governance relationships among stakeholders of construction waste recycling were calculated by Ucinet software and are shown in Table 8.
It can be seen from Table 8 that the construction administration department has the highest efficient scale and occupies a dominant position in the network, so it has strong control over the interactions of other stakeholders. The construction administration department, media, and construction company achieve higher scores in efficiency degree, indicating that these three stakeholders conduct high-efficiency actions in the network. The construction administration department, construction company, construction unit, and recycling enterprise have small restriction degrees, indicating that these four stakeholders are located in the structural hole position in the network and control the core resources. However, the media, transportation unit, and environmental assessment agency have weak capability in utilizing structural holes, so these three stakeholders are somewhat “dissociated” with other stakeholders.

5. Conclusions

Based on the stakeholder theory, this paper established a governance relationship network among stakeholders of construction waste recycling by using ANP-SNA, and analyzed the constructed network model. Results showed that the network can be optimized by considering the following aspects:
(1)
In terms of network cohesion, various stakeholders have close contacts with each other, and there is no obvious clique in the relationship network, but the collaborative activities of stakeholders tend to be carried out within each category of stakeholders, and the collaboration between various categories of stakeholders in the network needs to be strengthened so as to facilitate the integration and coordination capability of the network;
(2)
As the core of the whole network, the construction administration department is controlling the whole network, influencing, and even determining, the relationships between other stakeholders in the network. For this reason, the construction administration department, which has the greatest influence in the network, should give full play to its role as the core of the network, and maximize the efficiency under the premise of satisfying the interests of all stakeholders so as to realize collaborative governance of stakeholders for construction waste recycling;
(3)
The members of the core zone, such as the construction administration department and construction unit have a strong network relationship strength, as they maintain frequent contacts and information exchanges with other stakeholders. In contrast, members of the peripheral zone, such as the media and environmental assessment agency, obviously are overly marginalized rather than fully involved, so they fail to give full play to their potential as stakeholders. Therefore, the functions of these peripheral stakeholders should be enhanced;
(4)
The three stakeholders including construction administration department, media, and construction company have the highest influence efficiency in the whole network, indicating that they can influence the cooperation between other stakeholders in a more efficient and direct way. Four stakeholders, including construction administration department, construction company, construction unit, and recycling enterprise are located in places with rich structural holes, so they can improve the cooperation efficiency of the whole network by guiding the collaborative cooperation among various stakeholders;
(5)
Overall, to realize collaborative governance of stakeholders for construction waste recycling, the once separated subjects must be integrated and linked into a whole so that all relevant stakeholders can work together to achieve the balanced development of interests and optimal governance.
This paper proposes a visualized and innovative research method based on ANP-SNA, which can solve the problem of interplay and interaction among stakeholders of construction waste recycling and can accurately quantify the correlations of governance relationships among stakeholders. However, this paper also has the following deficiencies. First, this paper assumes that the governance relationships among stakeholders are undirected and fails to take into consideration the direction of information and resource transmission. Second, in the long term, stakeholders of construction waste recycling are changing both in their roles and positions, so in the future more emphasis should be laid on how to effectively analyze the dynamic evolution of the relationship network.

Author Contributions

S.Y.: Conceptualization, Methodology, Analysis, Investigation, Writing—review and editing, Visualization, Conceptualization. J.Q.: Conceptualization, Analysis, Writing—original draft, Data collection, Methodology, writing—review and editing. H.H.: Data collection, Methodology, Visualization and Project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Jiangxi Postdoctoral Research Merit-based Grant Program in China (grant no. 2020KY56) and National Natural Science Foundation of China (grant no.41661113).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data are available from the authors upon request.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Introduction of stakeholders.
Table A1. Introduction of stakeholders.
CategoryStakeholderResponsibility
Government DepartmentsS1: Construction Administration DepartmentOrganizing the compilation of relevant standards and regulations, guiding the implementation of construction waste recycling, and promoting experience of implementation
S2: Municipal Environmental Sanitation Administration DepartmentManaging urban environmental sanitation, promoting construction waste recycling and improving the city image through supervision and management
S3: Urban Planning Administration DepartmentPlanning the whole layout of the construction waste treatment plant, and determining the site selection
Construction-related UnitsS4: Construction UnitInvesting in engineering projects, generating the majority of construction wastes and consuming resource-based products
S5: Design UnitDesigning an optimal plan based on the full-life circle for recycling and reusing of construction materials so as to reduce the production of construction wastes
S6: Construction CompanyConstructing the engineering projects, generating construction wastes and consuming resource-based products
S7: Demolition UnitDismantling buildings and handing over the subsequent construction wastes to transportation unit
Construction Waste Disposal UnitsS8: Recycling EnterpriseRecycling construction wastes and marketizing the recycled products, which contributes to the core values and interests of the company itself
S9: Disposal SiteConducting on-site landfill of construction wastes and making a profit by providing landfill services
S10: Transportation UnitTransporting construction wastes to disposal area
The PublicS11: Residents NearbyInvolved indirectly in the advocacy of reducing construction wastes for a better urban environment
S12: Research CenterProviding scientific and technological support for resource-based enterprises and relevant government departments.
S13:Environmental Assessment AgencyAssessing the available space for landfill of existing construction waste disposal sites, analyzing, predicting and evaluating the potential environmental impact after the implementation of the construction waste disposal project
S14: MediaIndirectly involved in the advocacy of reducing construction wastes; supervising environmental protection by public opinion
Table
Table A2. Interpretation of Stakeholder Governance Relationship Indicators.
Table A2. Interpretation of Stakeholder Governance Relationship Indicators.
Stakeholder Governance Relationship Indicator SystemFirst-Level IndicatorSecond-Level IndicatorDescription
Contract
(HT)		Timeliness of the contract(H1)Stakeholders fulfill the contract obligations after signing the contract
Efficiency of the contract(H2)Obligations in the contract are science-based and comprehensive
Cooperation
(HZ)		Shared goals(Z1)Stakeholders have shared goals
Cooperation intention(Z2)Stakeholders have strong intentions for cooperation
Dependence
(YL)		Time dependence(Y1)One party cannot start its tasks until that of other stakeholders are completed
Resource dependence(Y2)One party needs resources (including equipment, raw materials, information, etc.) from stakeholders
Communication
(GT)		Communication frequency(G1)Stakeholders have frequent communication
Communication effect(G2)Communication between stakeholders is effective

Appendix B

Appendix B.1. Social Network Analysis Indicators

Appendix B.1.1. Network Cohesion

Network cohesion is a measure of the cohesion and solidarity of groups within a network, which can be analyzed by network density and E-I index.
Network density is used to measure the correlation between nodes. The larger the network density is, the closer the connections between network nodes are. The expres-sion is shown in Formula (A1).
D = K N ( N − 1 ) / 2
In the formula, D is the overall network density; K is the actual number of relationships contained in the relationship network; N indicates the maximum number of relationships that can be contained in the network.
The E-I index can better analyze the internal and external connections between factions in the network, and its numerical value range from −1 to +1. The closer the value is to +1, the more open the subgroup is; The closer the value is to −1, the more closed the subgroup is. The expression is as in Equation (A2).
E - I   i n d e x = E L − I L E L + I L
In the formula, EL represents the number of relationships between subgroups; and IL stands for the number of relationships within the subgroups.

Appendix B.1.2. Centrality

Centrality is used to evaluate the importance of individual nodes in the network, and to measure the superiority of their position and reputation. The evaluation indica-tors include degree centrality, proximity centrality and intermediate centrality.
The degree centrality is used to measure the communication ability between a node and other nodes in the network. The greater the degree centrality, the closer the node is to the network center. The expression is as in Formula (A3).
C d ( n i ) = ∑ i = 1 n r i j
In the formula, Cd(ni) is the degree centrality, n is the number of other nodes connected with node i, and rij is the effective number of connections between node i and other nodes.
The proximity centrality measures the centrality of a node by distance. The closer the node is to other nodes, the higher the centrality. The formula is as in Formula (A4).
C c ( n i ) = ∑ i = 1 n 1 d ( n i , n j )
In the formula, Cc(nj) is the proximity centrality, and d(ni,nj) represents the shortest distance between node ni and nj (i.e., the number of lines included in the shortest path).
The between centrality indicates the control ability of a node over other nodes in the network. The larger the value, the stronger the control ability. The formula is as in Equation (A5).
C b ( n i ) = 2 N 2 − 3 N + 2 ∑ j ∈ N ∑ k ∈ N g j k ( i ) g j k
In the equation, Cb(nj) is the between centrality, gjk(i) represents the number of shortest paths connected by node j and k and passing through node i, gjk represents the number of shortest paths connected by node j and node k, and N indicates the maximum number of relationships that can be contained in the network.

Appendix B.1.3. Core-Periphery Structure

Core-periphery structure analysis is to study which nodes are in the core position and which nodes are in the edge position in social networks. The core-periphery structure refers to the core and edge structural areas with relevant connections in the network. By finding core nodes in the core area and edge nodes in the edge area, the status, importance and core strength of nodes in the network are reflected.

Appendix B.1.4. Structural Hole

Structural hole is used to measure the non-redundant relationship between nodes in the network. Effective scale, efficiency degree and restriction degree are the measurement indexes of structural hole.
The effective scale is affected by non-redundant factors in the network. The larger the effective scale is, the more freely the nodes act in the network, and the greater the possibility of structural holes. The formula is shown in Equation (A6):
E = ∑ j ( 1 − ∑ q P i q M q j )
In the equation, E is the effective scale, j represents all nodes connected with ego node i, q is any node except i or j, PiqMqj refers to the redundancy between ego node and specific node j, Piq represents the proportion of the relationships that node i invests in q.
Efficiency is the ratio between the effective scale and the actual scale of a node. High efficiency means that the node acts efficiently in the network. The formula is shown in Equation (A7):
E i = E / S i
In the equation, Ei is the efficiency degree, and Si represents the actual scale of the individual network of node i.
The restriction degree indicates how closely a node is directly or indirectly connected with other nodes in the network. The lower the restriction degree is, the greater the number of its structural holes. The expression is as in Equation (A8):
C i j = ( P i j + ∑ q p i q m q j ) 2
In the formula, Cij is the restriction degree; pij is the direct restriction; piqmqj is indirect restriction; piq represents the proportion of the relationships between node i and node q in all the relationships of node i; mqj represents the proportion of the value of the relationship between node j and node q to the maximum value of the relationship between node j and other nodes.

References

  1. Lu, W.; Lou, J.; Webster, C.; Xue, F.; Bao, Z.; Chi, B. Estimating construction waste generation in the Greater Bay Area, China using machine learning. Waste Manag. 2021, 134, 78–88. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, S.Y.; Nguyen, M.V.; Zeng, X.L.; Luu, V.T. A performance evaluation framework for construction and demolition waste management: Stakeholder perspectives. Eng. Constr. Archit. Manag. 2020, 27, 3189–3213. [Google Scholar] [CrossRef]
  3. Gluzhge, P.J. The work of scientific research institute. Gidrotekhnicheskoye Stroit. 1946, 4, 27–28. [Google Scholar]
  4. Yeheyis, M.; Hewage, K.; Alam, M.S.; Eskicioglu, C.; Sadiq, R. An overview of construction and demolition waste management in Canada: A lifecycle analysis approach to sustainability. Clean Technol. Environ. Policy 2013, 15, 81–91. [Google Scholar] [CrossRef]
  5. Ajayi, S.O.; Oyedele, L.O. Policy imperatives for diverting construction waste from landfill: Experts’ recommendations for UK policy expansion. J. Clean. Prod. 2017, 147, 57–65. [Google Scholar] [CrossRef] [Green Version]
  6. Ding, Z.K.; Yi, G.Z.; Tam, V.W.Y.; Huang, T.Y. A system dynamics-based environmental performance simulation of construction waste reduction management in China. Waste Manag. 2016, 51, 130–141. [Google Scholar] [CrossRef] [PubMed]
  7. Melo, A.B.D.; Gonçalves, A.F.; Martins, I.M. Construction and demolition waste generation and management in Lisbon (Portugal). Conserv. Recycl. 2011, 55, 1252–1264. [Google Scholar] [CrossRef]
  8. Luo, Z.H.; Sun, Y.; Zhu, Z.X. Research on Risk Sharing of Construction Waste Recycling PPP Project Based on Game Theory. In Proceedings of the 24th International Symposium on Advancement of Construction Management and Real Estate, Chongqing, China, 29 November–2 December 2019; Springer: Berlin/Heidelberg, Germany, 2021; Volume 8, pp. 481–495. [Google Scholar]
  9. De Brito, J.; Pereira, A.S.; Correia, J.R. Mechanical behaviour of non-structural concrete made with recycled ceramic aggregates. Cem. Concr. Compos. 2005, 27, 429–433. [Google Scholar] [CrossRef]
  10. Silva, R.V.; de Brito, J.; Dhir, R.K. Availability and processing of recycled aggregates within the construction and demolition supply chain: A review. J. Clean. Prod. 2017, 143, 598–614. [Google Scholar] [CrossRef] [Green Version]
  11. De Matos, P.R.; Sakata, R.D.; Onghero, L.; Uliano, V.G.; de Brito, J.; Campos, C.E.; Gleize, P.J. Utilization of ceramic tile demolition waste as supplementary cementitious material: An early-age investigation. J. Build. Eng. 2021, 38, 102187. [Google Scholar] [CrossRef]
  12. Burcu, T. Research on the project managers’ behavioral intentions to construction waste sorting under the background of zero-waste city. Environ. Res. Technol. 2021, 4, 97–110. [Google Scholar]
  13. Jin, R.Y.; Li, B.; Zhou, T.Y.; Wanatowski, D.; Piroozfar, P.T. An empirical study of perceptions towards construction and demolition waste recycling and reuse in China. Resour. Conserv. Recycl. 2017, 126, 86–98. [Google Scholar] [CrossRef]
  14. Ma, L.; Zhang, L. Evolutionary game analysis of construction waste recycling management in China. Resour. Conserv. Recycl. 2020, 161, 104863. [Google Scholar] [CrossRef]
  15. Liu, P.C.Y.; Luo, H.W.; Liou, J.J.H. A Combination of DEMATEL and BWM-Based ANP Methods for Exploring the Green Building Rating System in Taiwan. Sustainability 2020, 12, 3216. [Google Scholar] [CrossRef] [Green Version]
  16. Kumar, S.; Raut, R.D.; Nayal, K.; Kraus, S.; Yadav, V.S.; Narkhede, B.E. To identify industry 4.0 and circular economy adoption barriers in the agriculture supply chain by using ISM-ANP. J. Clean. Prod. 2021, 293, 126023. [Google Scholar] [CrossRef]
  17. Zhang, D.N.; Yan, M.; Wang, H.W.; Li, W.W. Sustainable-Development Measurement of China’s Coworking Industry Using Social-Network Analysis Method. Sustainability 2021, 13, 5902. [Google Scholar] [CrossRef]
  18. Zhao, X.B. Stakeholder-Associated Factors Influencing Construction and Demolition Waste Management: A Systematic Review. Buildings 2021, 11, 149. [Google Scholar] [CrossRef]
  19. Yu, B.; Wang, J.; Liao, Y.; Wu, H.; Wong, A.B. Determinants Affecting Purchase Willingness of Contractors towards Construction and Demolition Waste Recycling Products: An Empirical Study in Shenzhen, China. Int. J. Environ. Res. Public Health 2021, 18, 4412. [Google Scholar] [CrossRef]
  20. Huang, S.; Wang, H.; Ahmad, W.; Ahmad, A.; Ivanovich Vatin, N.; Mohamed, A.M.; Deifalla, A.F.; Mehmood, I. Plastic Waste Management Strategies and Their Environmental Aspects: A Scientometric Analysis and Comprehensive Review. Int. J. Environ. Res. Public Health 2022, 19, 4556. [Google Scholar] [CrossRef]
  21. Wang, J.; Song, Y.; Wang, W.; Wang, S.; Guo, F.; Lu, J. Marine Construction Waste Recycling Mechanism Considering Public Participation and Carbon Trading: A Study on Dynamic Modeling and Simulation Based on Sustainability Policy. Sustainability 2022, 14, 10027. [Google Scholar] [CrossRef]
  22. Saaty, T.L. Decision making—The analytic hierarchy and network processes (AHP/ANP). J. Syst. Sci. 2004, 13, 1–35. [Google Scholar] [CrossRef]
  23. Yu, A.T.W.; Wong, I.; Wu, Z.Z.; Poon, C.S. Strategies for Effective Waste Reduction and Management of Building Construction Projects in Highly Urbanized Cities-A Case Study of Hong Kong. Buildings 2021, 11, 214. [Google Scholar] [CrossRef]
  24. Almeida, F.; Vieira, C.S.; Carneiro, J.R.; Lopes, M.d.L. Drawing a Path towards Circular Construction: An Approach to Engage Stakeholders. Sustainability 2022, 14, 5314. [Google Scholar] [CrossRef]
  25. Xue, X.L.; Zhang, X.L.; Wang, L.; Skitmore, M.; Wang, Q. Analyzing collaborative relationships among industrialized construction technology innovation organizations: A combined SNA and SEM approach. J. Clean. Prod. 2017, 173, 265–277. [Google Scholar] [CrossRef] [Green Version]
  26. Gong, P.; Teng, Y.; Li, X.; Luo, L.Z. Modeling Constraints for the On-Site Assembly Process of Prefabrication Housing Production: A Social Network Analysis. Sustainability 2019, 11, 138. [Google Scholar] [CrossRef] [Green Version]
  27. Liu, S.; Xiao, Q. An empirical analysis on spatial correlation investigation of industrial carbon emissions using SNA-ICE model. Energy 2021, 224, 12018. [Google Scholar] [CrossRef]
  28. Venegas, C.; Sánchez-Alfonso, A.C.; Vesga, F.-J.; Martín, A.; Celis-Zambrano, C.; González Mendez, M. Identification and Evaluation of Determining Factors and Actors in the Management and Use of Biosolids through Prospective Analysis (MicMac and Mactor) and Social Networks. Sustainability 2022, 14, 6840. [Google Scholar] [CrossRef]
  29. Wu, W.; He, F.; Zhuang, T.; Yi, Y. Stakeholder Analysis and Social Network Analysis in the Decision-Making of Industrial Land Redevelopment in China: The Case of Shanghai. Int. J. Environ. Res. Public Health 2020, 17, 9206. [Google Scholar] [CrossRef]
  30. Bao, Z.; Lu, W. A decision-support framework for planning construction waste recycling: A case study of Shenzhen, China. J. Clean. Prod. 2021, 309, 127499. [Google Scholar] [CrossRef]
  31. Tan, R.; Qing, X.; Yang, J.; Zhang, J.; Li, D. Analysis on Recycling Channel Selection of Construction and Demolition Waste in China from the Perspective of Supply Chain. Int. J. Environ. Res. Public Health 2022, 19, 4975. [Google Scholar] [CrossRef]
Ijerph 19 16864 g001 550
Figure 1. ANP model of governance relationships among stakeholders.
Figure 1. ANP model of governance relationships among stakeholders.
Ijerph 19 16864 g001
Ijerph 19 16864 g002 550
Figure 2. Pairwise comparison matrix of elements in HT set under H1 criterion.
Figure 2. Pairwise comparison matrix of elements in HT set under H1 criterion.
Ijerph 19 16864 g002
Ijerph 19 16864 g003 550
Figure 3. Model graph of governance relationship network among stakeholders.
Figure 3. Model graph of governance relationship network among stakeholders.
Ijerph 19 16864 g003
Table
Table 1. Unweighted super matrix.
Table 1. Unweighted super matrix.
IndexH1H2Z1Z2Y1Y2G1G2
H10.6000.4000.6150.4280.5320.4280.4440.453
H20.4000.6000.3840.5710.4670.5710.5550.546
Z10.5710.4610.4280.3070.3840.3010.3070.357
Z20.4280.5380.5710.6920.6150.6990.6920.642
Y10.5390.4440.4280.5320.6660.2220.4600.333
Y20.4600.5550.5710.4670.3330.7770.5390.666
G10.4440.4280.3750.5000.4000.4000.7240.272
G20.5550.5710.6250.5000.6000.6000.2750.727
Table
Table 2. Weighted super matrix.
Table 2. Weighted super matrix.
IndexH1H2Z1Z2Y1Y2G1G2
H10.2000.1330.1530.1070.1490.1200.1260.129
H20.1330.2000.0960.1420.1310.1600.1580.156
Z10.1260.1020.1360.0970.0920.0720.0430.051
Z20.0950.1190.1810.2200.1470.1670.0980.091
Y10.1390.1150.1070.1330.2130.0710.0980.071
Y20.1190.1440.1420.1160.1060.2480.1150.142
G10.0820.0790.0680.0900.0640.0640.2580.097
G20.1020.1050.1130.0900.0960.0960.0980.259
Table
Table 3. Index weights of governance relationships.
Table 3. Index weights of governance relationships.
Second-Level IndicatorGlobal Weight
Timeliness of the contract (H1)0.140
Efficiency of the contract (H2)0.150
Shared goals (Z1)0.091
Cooperation intention (Z2)0.141
Time dependence (Y1)0.119
Resource dependence (Y2)0.144
Communication frequency (G1)0.095
Communication effect (G2)0.120
Table
Table 4. Matrix of governance relationships among stakeholders.
Table 4. Matrix of governance relationships among stakeholders.
NumberS1S2S3S4S5S6S7S8S9S10S11S12S13S14
S103.0752.9342.4671.8061.8651.6622.8842.7431.8032.0382.2171.8941.542
S23.07502.1572.4491.8012.0371.0951.9421.85101.3562.1572.0621.447
S32.9342.15702.0660001.821.58801.67901.8541.215
S42.4672.4492.06603.964.0312.6662.232202.4511.8961.4781.356
S51.8061.80103.9603.666000001.8511.710
S61.8652.03704.0313.666044.0553.4313.6481.9422.08601.5
S71.6621.09502.6660403.8163.5534.0260000
S82.8841.9421.822.23204.0553.81603.2354.292.0373.34501.359
S92.7431.8511.588203.4313.5533.23503.6482.276001.43
S101.80300003.6484.0264.293.64800000
S112.0381.3561.6792.45101.94202.0372.27600001.989
S122.2172.15701.8961.8512.08603.34500001.8231.261
S131.8942.0621.8541.4781.710000001.82301.215
S141.5421.4471.2151.35601.501.3591.4301.9891.2611.2150
Table
Table 5. Density matrices and E-I indices among stakeholders.
Table 5. Density matrices and E-I indices among stakeholders.
Density MatrixGovernment DepartmentsConstruction-Related UnitsConstruction Waste Disposal UnitsThe PublicE-I Index among Stakeholders
Government Departments2.7221.4371.6261.6220.333
Construction-related Units1.4373.0542.2301.0170.610
Construction Waste Disposal Units1.6262.2303.7240.8700.333
The Public1.6221.0170.8701.0480.520
Table
Table 6. Analysis on Network Centrality.
Table 6. Analysis on Network Centrality.
StakeholderCentrality
PointClosenessBetweenFeature Vector
Construction Administration Department100.000100.00021.98753.789
Municipal Environmental Sanitation
Administration Department		69.23176.4712.94942.918
Urban Planning Administration Department53.84668.4211.85934.726
Construction Unit76.92381.2504.16747.382
Design Unit46.15465.0000.57729.599
Construction Company76.92381.2505.02146.503
Demolition Unit46.15465.0000.25631.511
Recycling Enterprise76.92381.2504.16747.049
Disposal Site69.23176.4712.58543.366
Transportation Unit38.46261.9050.00026.468
Residents Nearby53.84668.4213.41933.737
Research Center53.84668.4211.15434.606
Environmental Assessment Agency38.46261.9050.57723.302
Media15.38554.1670.00010.425
Table
Table 7. Core Degree of Stakeholders.
Table 7. Core Degree of Stakeholders.
NumberStakeholderCore DegreeRanking
1Construction Administration Department0.4041
2Municipal Environmental Sanitation Administration Department0.3026
3Urban Planning Administration Department0.2377
4Construction Unit0.3412
5Design Unit0.19811
6Construction Company0.3334
7Demolition Unit0.21510
8Recycling Enterprise0.3393
9Disposal Site0.3075
10Transportation Unit0.17812
11Residents Nearby0.2319
12Research Center0.2368
13Environmental Assessment Agency0.15213
14Media0.06914
Table
Table 8. Analysis on Structural Holes of Stakeholders.
Table 8. Analysis on Structural Holes of Stakeholders.
OrganizationEfficient ScaleEfficiency DegreeRestriction Degree
Construction Administration Department6.8460.5270.266
Municipal Environmental Sanitation Administration Department3.2220.3580.384
Urban Planning Administration Department2.4290.3470.476
Construction Unit3.8000.3800.353
Design Unit1.6670.2780.551
Construction Company4.0000.4000.352
Demolition Unit1.3330.2220.555
Recycling Enterprise3.8000.3800.353
Disposal Site3.0000.3330.388
Transportation Unit1.0000.2000.648
Residents Nearby2.7140.3880.470
Research Center2.1430.3060.482
Environmental Assessment Agency1.8000.3600.627
Media1.0000.5001.125
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, S.; Qiu, J.; Huang, H. Research on the Governance Relationship among Stakeholders of Construction Waste Recycling Based on ANP-SNA. Int. J. Environ. Res. Public Health 2022, 19, 16864. https://doi.org/10.3390/ijerph192416864

AMA Style

Yang S, Qiu J, Huang H. Research on the Governance Relationship among Stakeholders of Construction Waste Recycling Based on ANP-SNA. International Journal of Environmental Research and Public Health. 2022; 19(24):16864. https://doi.org/10.3390/ijerph192416864

Chicago/Turabian Style

Yang, Siling, Jie Qiu, and Heping Huang. 2022. "Research on the Governance Relationship among Stakeholders of Construction Waste Recycling Based on ANP-SNA" International Journal of Environmental Research and Public Health 19, no. 24: 16864. https://doi.org/10.3390/ijerph192416864

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
