Role of Mesh Pore Size in Dynamic Membrane Bioreactors
Abstract
:1. Introduction
2. Materials and Methods

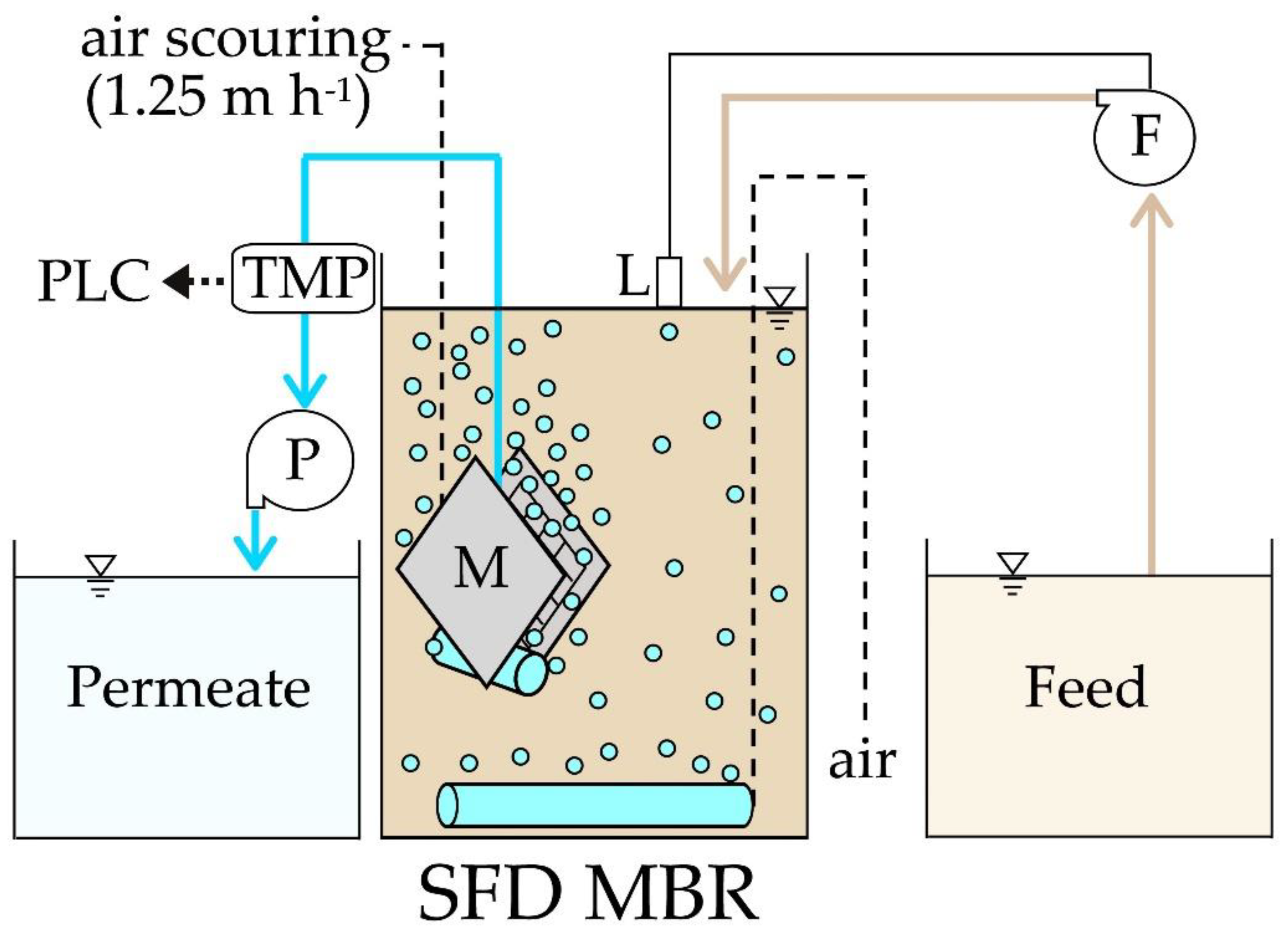

2.1. Bioreactor Operation
2.2. Monitoring and Analyses
3. Results
3.1. Average Performance

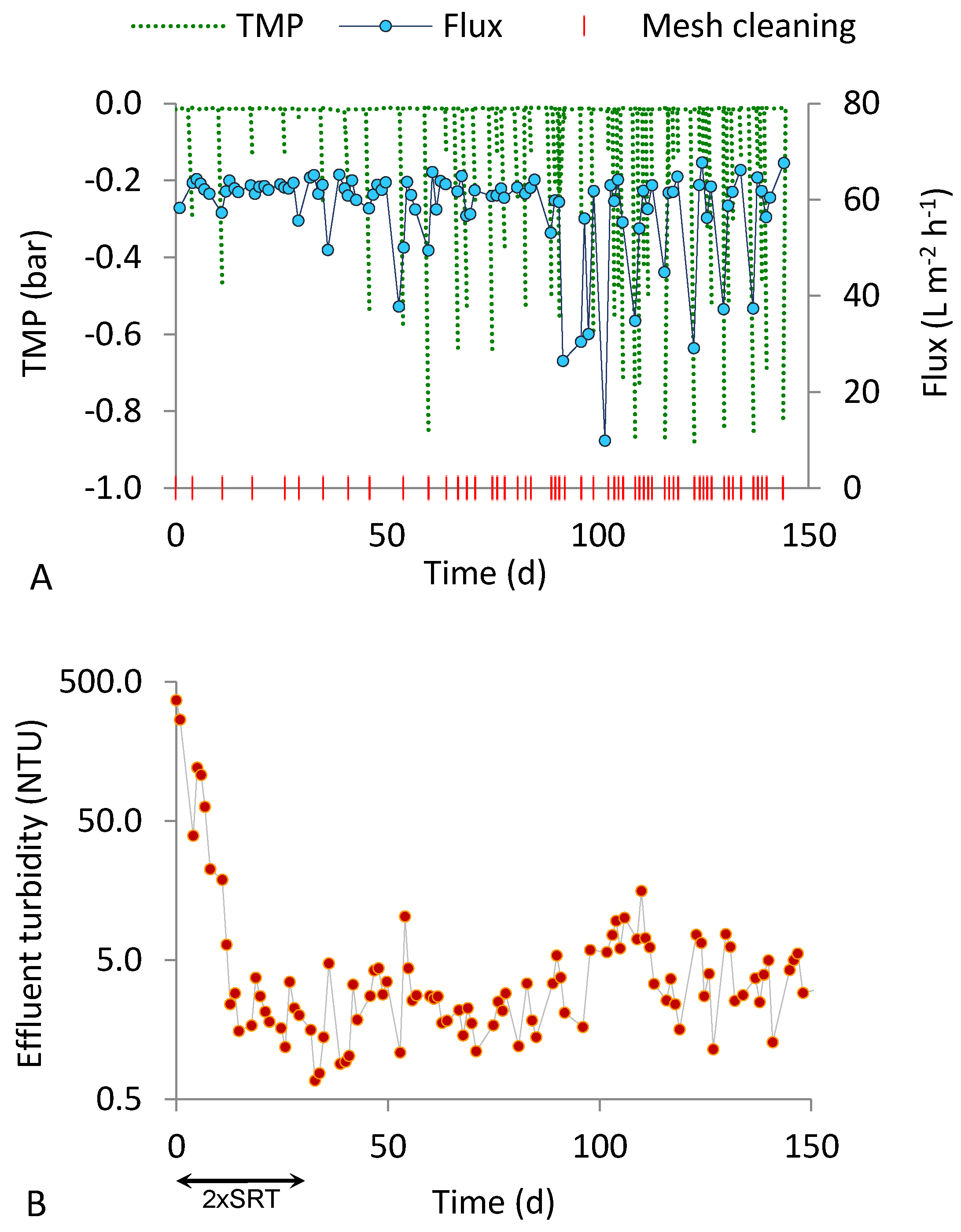

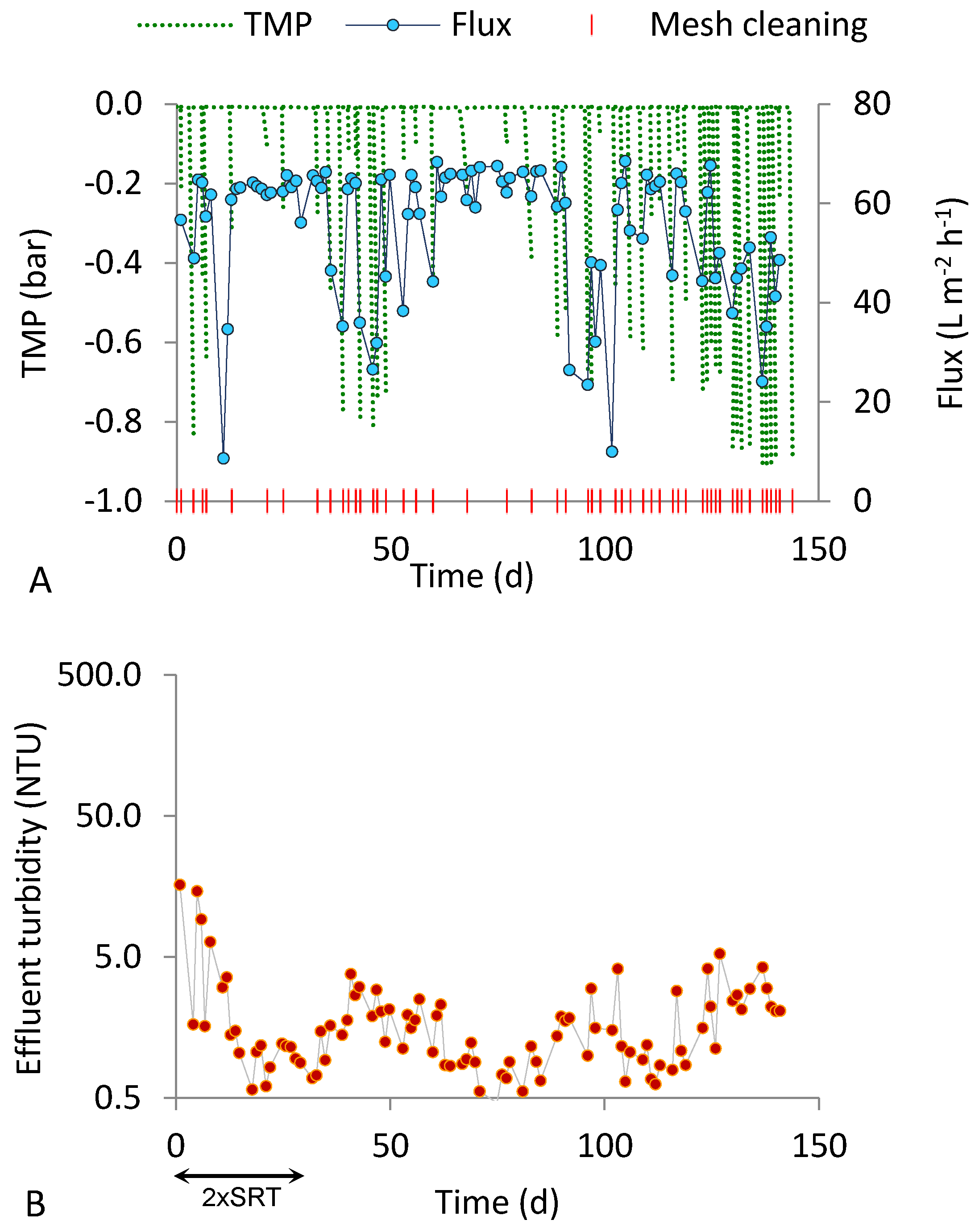

3.2. 15 D SRT

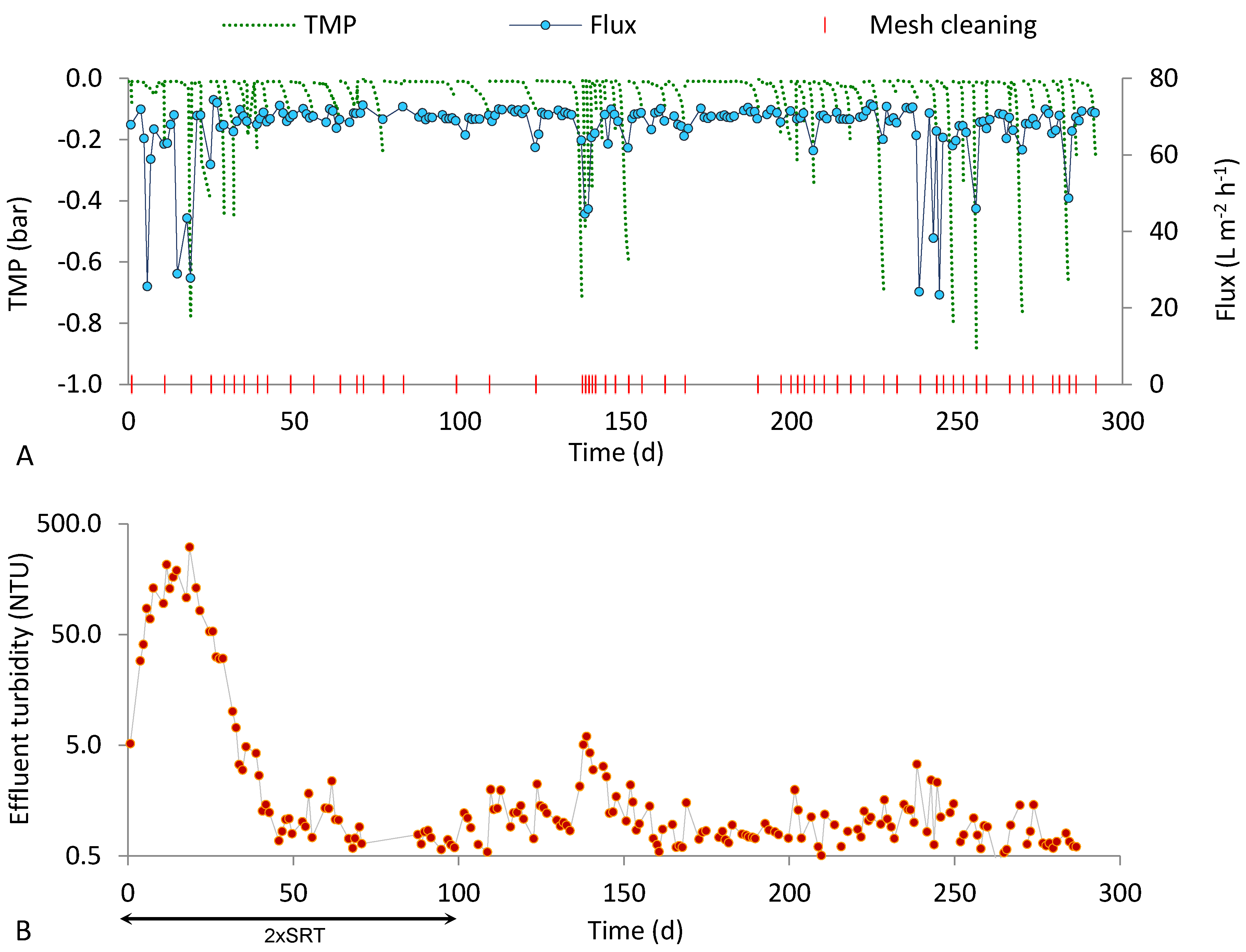

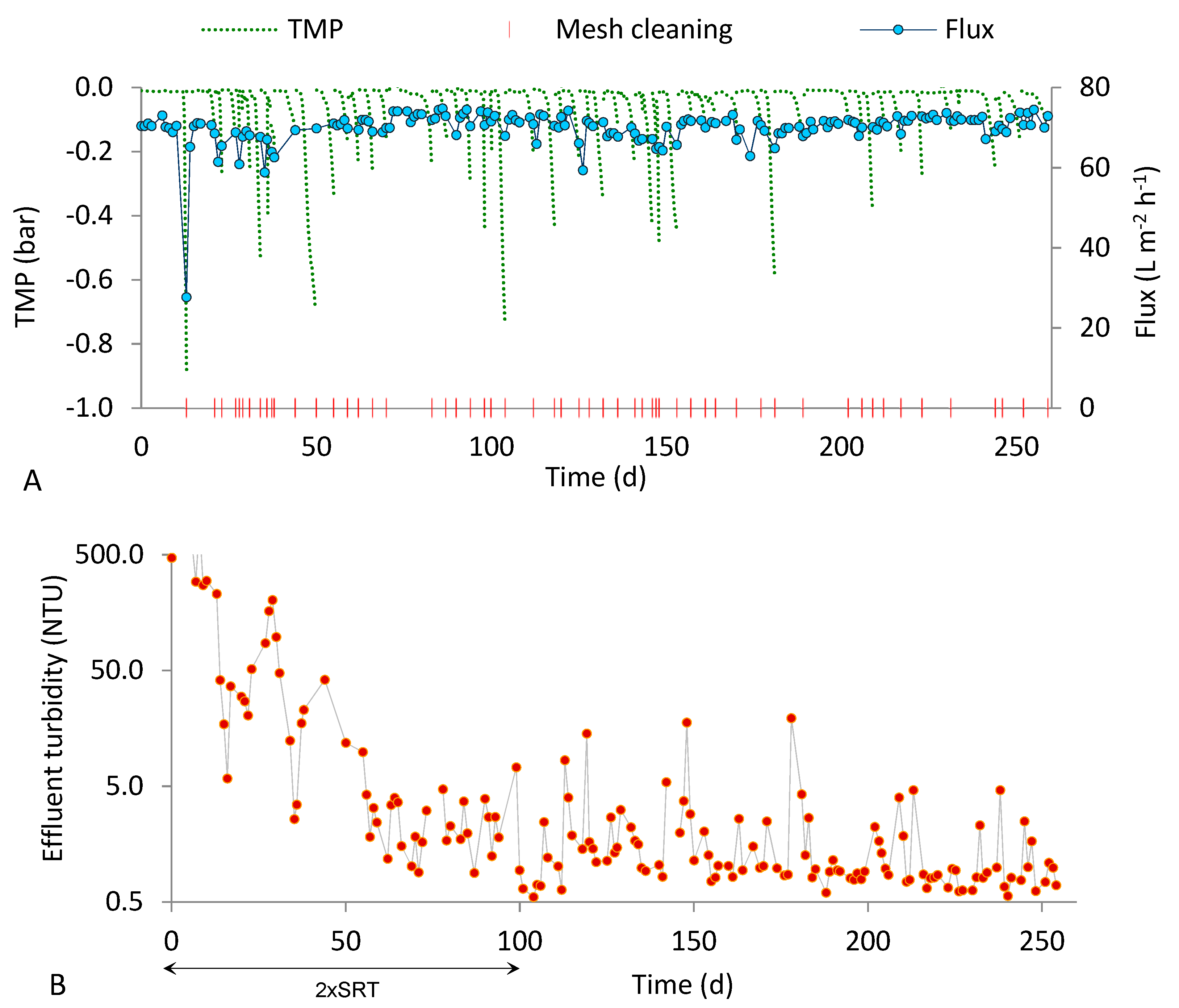

3.3. 50 D SRT

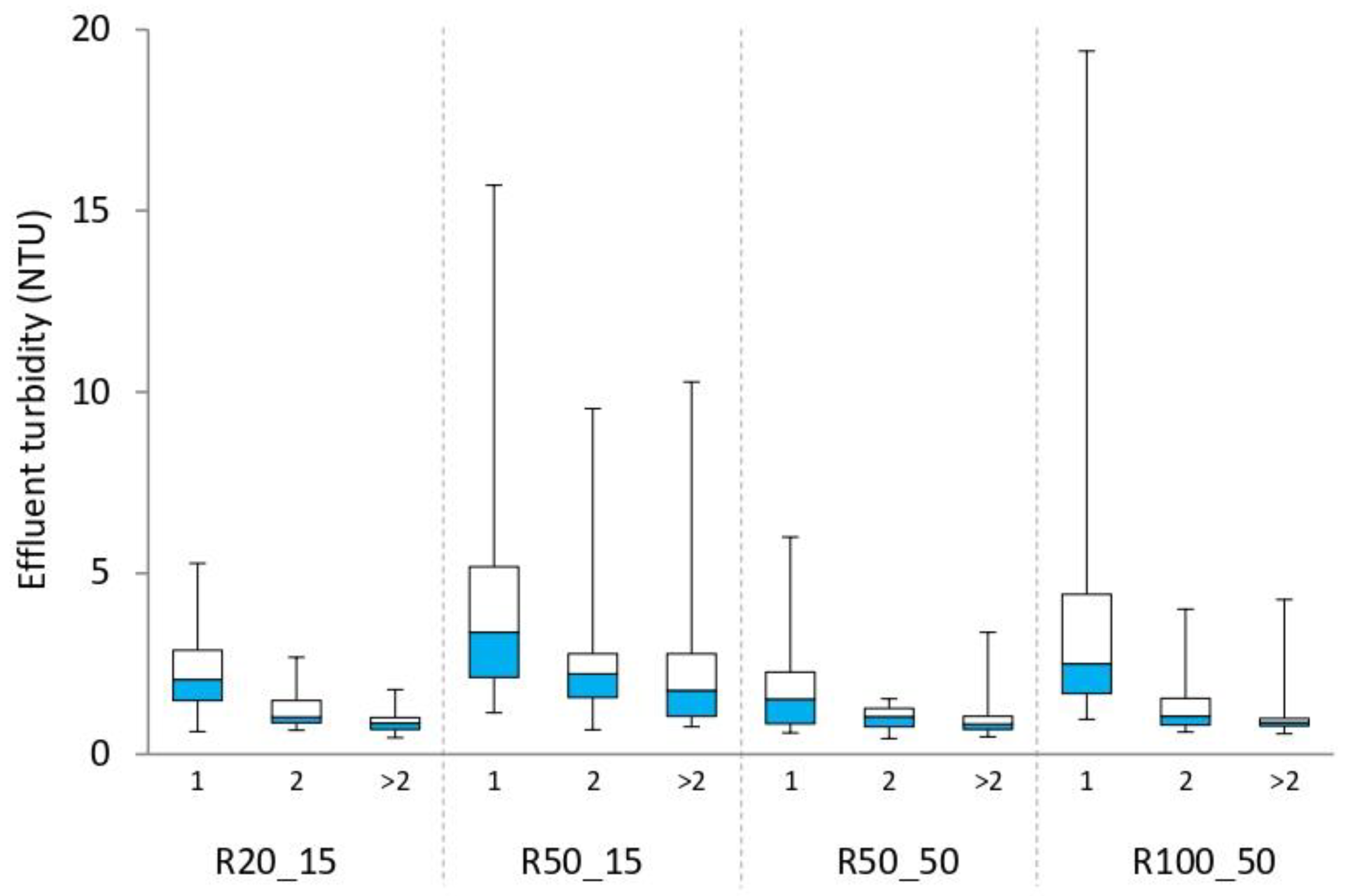

3.4. Statistical Inference
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Judd, S. The MBR Book; Elsevier Ltd.: Amsterdam, The Netherland, 2011. [Google Scholar]
- Xiao, L.; Liang, S.; Wang, X.; Chen, C.; Huang, X. Current state and challenges of full-scale membrane bioreactor applications: A critical review. Bioresour. Technol. 2019, 271, 476–481. [Google Scholar] [CrossRef]
- Liu, H.; Yang, C.; Pu, W.; Zhang, J. Formation mechanism and structure of dynamic membrane in the dynamic membrane bioreactor. Chem. Eng. J. 2009, 148, 290–295. [Google Scholar] [CrossRef]
- Hu, Y.; Wang, X.C.; Tian, W.; Ngo, H.H.; Chen, R. Towards stable operation of a dynamic membrane bioreactor (DMBR): Operational process, behavior and retention effect of dynamic membrane. J. Membr. Sci. 2016, 498, 20–29. [Google Scholar] [CrossRef]
- Xiong, J.; Fu, D.; Prasad Singh, R.; Ducoste, J.J. Structural characteristics and development of the cake layer in a dynamic membrane bioreactor. Sep. Purif. Technol. 2016, 167, 88–96. [Google Scholar] [CrossRef]
- Vergine, P.; Salerno, C.; Berardi, G.; Pollice, A. Sludge cake and biofilm formation as valuable tools in wastewater treatment by coupling Integrated Fixed-Film Activated Sludge (IFAS) with Self Forming Dynamic Membrane BioReactors (SFD-MBR). Bioresour. Technol. 2018, 268, 121–127. [Google Scholar] [CrossRef] [PubMed]
- Pollice, A.; Vergine, P. Self-forming dynamic membrane bioreactors (SFD MBR) for wastewater treatment: Principles and applications. In Advanced Membrane Separation Processes for Sustainable Water and Wastewater Management-Case Studies and Sustainability Analysis; Mannina, G., Pandey, A., Larroche, C., Ng, H.Y., Ngo, H.H., Eds.; Elsevier: Amsterdam, The Netherland, 2020; pp. 235–258. [Google Scholar] [CrossRef]
- Rezvani, F.; Mehrnia, M.R.; Poostchi, A.A. Optimal operating strategies of SFDM formation for MBR application. Sep. Purif. Technol. 2014, 124, 124–133. [Google Scholar] [CrossRef]
- Fakhimi, N.; Mehrnia, M.R. Control of mixing for optimal formation of dynamic membrane in MBRs. Desalin. Water Treat. 2015, 57, 15759–15771. [Google Scholar] [CrossRef]
- Salerno, C.; Vergine, P.; Berardi, G.; Pollice, A. Influence of air scouring on the performance of a Self Forming Dynamic Membrane BioReactor (SFD MBR) for municipal wastewater treatment. Bioresour. Technol. 2017, 223, 301–306. [Google Scholar] [CrossRef] [PubMed]
- Saleem, M.; Alibardi, L.; Cossu, R.; Lavagnolo, M.C.; Spagni, A. Analysis of fouling development under dynamic membrane filtration operation. Chem. Eng. J. 2017, 312, 136–143. [Google Scholar] [CrossRef]
- Saleem, M.; Spagni, A.; Alibardi, L.; Bertucco, A.; Lavagnolo, M.C. Assessment of dynamic membrane filtration for biological treatment of old landfill leachate. J. Environ. Manag. 2018, 213, 27–35. [Google Scholar] [CrossRef] [Green Version]
- Cai, D.; Huang, J.; Liu, G.; Li, M.; Yu, Y.; Meng, F. Effect of support material pore size on the filtration behavior of dynamic membrane bioreactor. Bioresour. Technol. 2018, 255, 359–363. [Google Scholar] [CrossRef]
- Ersahin, M.E.; Ozgun, H.; Tao, Y.; van Lier, J.B. Effect of Support Material Properties on Dynamic Membrane Filtration Performance. Sep. Sci. Technol. 2013, 48, 2263–2269. [Google Scholar] [CrossRef]
- Vergine, P.; Salerno, C.; Berardi, G.; Pollice, A. Self-Forming Dynamic Membrane BioReactors (SFD MBR) for municipal wastewater treatment: Relevance of solids retention time and biological process stability. Sep. Purif. Technol. 2021, 255, 117735. [Google Scholar] [CrossRef]
- American Public Health Association (APHA); American Water Works Association (AWWA); Water Environment Federation (WEF). Standard Methods for the Examination of Water and Wastewater, 21st ed.; APHA: Washington, DC, USA, 2005. [Google Scholar]
- Fan, B.; Huang, X. Characteristics of a self-forming dynamic membrane coupled with a bioreactor for municipal wastewater treatment. Environ. Sci. Technol. 2002, 36, 5245–5251. [Google Scholar] [CrossRef] [PubMed]
- Fuchs, W.; Resch, C.; Kernstock, M.; Mayer, M.; Scoeberl, P.; Braun, R. Influence of operational conditions on the performance of a mesh filter activated sludge process. Water Res. 2005, 39, 803–810. [Google Scholar] [CrossRef] [PubMed]
- Zahid, W.M.; El-Shafai, S.A. Use of cloth-media filter for membrane bioreactor treating municipal wastewater. Bioresour. Technol. 2011, 102, 2193–2198. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.K.; Sheng, G.P.; Li, W.W.; Yu, H.Q. A pilot investigation into membrane bioreactor using mesh filter for treating low-strength municipal wastewater. Bioresour. Technol. 2012, 122, 17–21. [Google Scholar] [CrossRef]
- Ozdemir, B.; Saatci, A.; Yenigun, O. Evaluation of cake filtration biological reactors (CFBR) vs. membrane biological reactors (MBR) in a pilot scale plant. Desalination 2012, 135–144. [Google Scholar] [CrossRef]
- Chu, L.; Li, S. Filtration capability and operational characteristics of dynamic membrane bioreactor for municipal wastewater treatment. Sep. Purif. Technol. 2006, 51, 173–179. [Google Scholar] [CrossRef]
- Sabaghian, M.; Mehrnia, M.R.; Esmaieli, M.; Noormohammadi, D. Formation and performance of selfforming dynamic membrane (SFDM) in membrane bioreactor (MBR) for treating low-strength wastewater. Water Sci. Technol. 2018, 78, 904–911. [Google Scholar] [CrossRef] [PubMed]
- Alavi Moghaddam, M.R.; Satoh, H.; Mino, T. Effect of important operational parameters on performance of coarse pore filtration activated sludge process. Water Sci. Technol. 2002, 46, 229–236. [Google Scholar] [CrossRef] [Green Version]
- Ahmed, Z.; Cho, J.; Lim, B.; Song, K.; Ahn, K. Effects of sludge retention time on membrane fouling and microbial community structure in a membrane bioreactor. J. Membr. Sci. 2007, 287, 211–218. [Google Scholar] [CrossRef]
- Al-Halbouni, D.; Traber, J.; Lyko, S.; Wintgens, T.; Melin, T.; Tacke, D.; Janote, A.; Dott, W.; Hollender, J. Correlation of EPS content in activated sludge at different sludge retention times with membrane fouling phenomena. Water Res. 2008, 42, 1475–1488. [Google Scholar] [CrossRef]
- Guan, D.; Dai, J.; Watanabe, Y.; Chen, G. Changes in the physical properties of the dynamic layer and its correlation with permeate quality in a self-forming dynamic membrane bioreactor. Water Res. 2018, 140, 67–76. [Google Scholar] [CrossRef]
- Vergine, P.; Salerno, C.; Berardi, G.; Pappagallo, G.; Pollice, A. The Self Forming Dynamic Membrane Bio-Reactor (SFD MBR) as a suitable technology for agro-industrial wastewater treatment. New Biotechnol. 2020, 56, 87–95. [Google Scholar] [CrossRef] [PubMed]
- Mahat, S.B.; Omar, R.; Lee, J.L.; Idris, A.I.M.; Man, H.C.; Kamal, S.M.M.; Idris, A. Effect of pore size of monofilament woven filter cloth as supporting material for dynamic membrane filtration on performance using aerobic membrane bioreactor technology. Asia-Pac. J. Chem. Eng. 2020, 15, e2453. [Google Scholar] [CrossRef]
Parameter | 10th Percentile | Median | 90th Percentile |
---|---|---|---|
pH | 7.0 | 7.5 | 7.9 |
Electrical conductivity (µS cm−1) | 1831 | 2340 | 2656 |
Chemical oxygen demand (mgO2 L−1) | 357 | 389 | 410 |
Total suspended solids (mg L−1) | 121 | 186 | 279 |
Total nitrogen (mg L−1) | 46.3 | 61.5 | 71.3 |
N–NH4+ (mg L−1) | 32.4 | 43.0 | 52.1 |
Total phosphorus (mg L−1) | 9.1 | 12.8 | 17.2 |
Run | Mesh Pore Size (µm) | SRT (d) | Flow Rate (*) (L d−1) | Flux (*) (L m−2 h−1) | HRT (*) (h) | VLR (*) (gCOD L−1 d−1) | Test Time (d) |
---|---|---|---|---|---|---|---|
R20_15 | 20 | 15 | 10.6 | 61.3 | 9.5 | 0.93 | 141 |
R50_15 | 50 | 15 | 10.6 | 61.3 | 9.5 | 0.93 | 141 |
R50_50 | 50 | 50 | 11.7 | 67.7 | 8.6 | 1.09 | 293 |
R100_50 | 100 | 50 | 12.3 | 71.2 | 8.2 | 1.14 | 253 |
Parameter | R20_15 | R50_15 | R50_50 | R100_50 |
---|---|---|---|---|
MLSS (g L−1) | 2.3 ± 0.6 | 2.0 ± 0.7 | 7.7 ± 0.7 | 7.4 ± 0.4 |
Effluent COD (mgO2 L−1) | 28.7 ± 6.7 | 34.2 ± 6.8 | 24.6 ± 3.6 | 25.0 ± 8.7 |
Effluent TSS (mg L−1) | 5.1 ± 2.7 | 9.4 ± 6.1 | 4.9 ± 1.6 | 7.0 ± 7.9 |
Effluent turbidity (NTU) | 1.7 ± 1.0 | 4.1 ± 3.5 | 1.2 ± 0.8 | 1.8 ± 2.9 |
Cleaning requirements (d−1) (*) | 0.39 | 0.42 | 0.20 | 0.20 |
Compared Runs (Variables Changed) | Compared Dataset | ||||
---|---|---|---|---|---|
All Data | 1st Day | 2nd Day | >2 Days | ||
1 | R20_15 vs. R50_15 (pore size) | <0.01 | <0.01 | 0.293 | <0.01 |
2 | R50_50 vs. R100_50 (pore size) | 0.016 | 0.013 | 0.285 | 0.327 |
3 | R50_15 vs. R100_50 (pore size and SRT) | <0.01 | 0.395 | 0.025 | <0.01 |
4 | R20_15 vs. R50_50 (pore size and SRT) | <0.01 | 0.129 | 0.430 | 0.490 |
5 | R20_15 vs. R100_50 (pore size and SRT) | 0.046 | 0.180 | 0.897 | 0.184 |
Pore Size (µm) | Sludge | Test Type | Influence on Productivity (Pressure and/or Flux Measures) | Influence on Effluent Quality (Turbidity or TSS) | Reference |
---|---|---|---|---|---|
10, 40 | Anaerobic | Short filtration test (1–2 h) | 3 different materials were tested. Significant differences only in one case | Not studied | [14] |
10, 52, 85, 200 | Anaerobic | Short filtration test (5 h) | No significant differences (p-value > 0.05) | No significant differences (p-value > 0.05) | [11] |
10, 52, 85, 200 | Anoxic-aerobic | Long-term operation (120 d) | Lower productivity at smaller pore size | Lower quality at larger pore size | [12] |
1, 5, 10, 25, 50 | Aerobic | Short filtration test (70 h) | Significantly lower productivity only with 1 and 5 µm | Significantly lower quality for 25 and 50 µm | [13] |
5, 10, 25 | Aerobic | Long-term operation (120 d) | Lower productivity at smaller pore size | No significant differences | [13] |
20, 40, 60 | Aerobic | Short-term operation (4 d) | No significant differences | Lower quality at bigger pore size | [29] |
20, 50 | Aerobic | Long-term operation (60 d) | Lower productivity at smaller pore size | 3 different air scouring rates were tested. Significant differences (p-value < 0.05) in 2 cases | [10] |
20, 50, 100 | Aerobic | Long-term operation (141–293 d) | No significant differences | Lower quality at larger pore size | This study |
