Brief Report

Brief Report on Double-Chamber Syringes Patents and Implications for Infusion Therapy Safety and Efficiency

Liliana B. Sousa
Paulo Santos-Costa
Inês A. Marques
Arménio Cruz
Anabela Salgueiro-Oliveira
1 and
Pedro Parreira
Health Sciences Research Unit: Nursing (UICISA:E), Nursing School of Coimbra (ESEnfC), 3046-851 Coimbra, Portugal
Instituto de Ciências da Saúde, Universidade Católica Portuguesa, 4169-005 Porto, Portugal
Biophysics Institute, Coimbra Institute for Clinical and Biomedical Research (iCBR) Area of CIMAGO, Faculty of Medicine, CNC.IBILI, Faculty of Medicine, University of Coimbra, Polo das Ciências da Saúde Azinhaga de Santa Comba, 3000-354 Coimbra, Portugal
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(21), 8209;
Submission received: 13 October 2020 / Revised: 29 October 2020 / Accepted: 5 November 2020 / Published: 6 November 2020


This review aimed to map the existing patents of double-chamber syringes that can be used for intravenous drug administration and catheter flush. A search was conducted in the Google patents database for records published prior to 28 October 2020, using several search terms related to double-chamber syringes (DCS). Study eligibility and data extraction were performed by two independent reviewers. Of the initial 26,110 patents found, 24 were included in this review. The 24 DCS that were found display two or more independent chambers that allow for the administration of multiple solutions. While some of the DCS have designated one of the chambers as the flushing chamber, most patents only allow for the sequential use of the flushing chamber after intravenous drug administration. Most DCS were developed for drug reconstitution, usually with a freeze-dried drug in one chamber. Some patents were designed for safety purposes, with a parallel post-injection safety sheath chamber for enclosing a sharpened needle tip. None of the DCS found allow for a pre- and post-intravenous drug administration flush. Given the current standards of care in infusion therapy, future devices must allow for the sequential use of the flushing chamber to promote a pre-administration patency assessment and a post-administration device flush.

1. Introduction

The administration of different fluids through a Vascular Access Device (VAD) is a common practice in a variety of clinical settings [1,2,3]. Syringes are commonly used in clinical contexts to inject drugs and other fluids into the human body. Typical syringes have a plastic chamber (also known as barrel) with an internal piston that must be moved in order to inject the fluid out through a small opening opposite to the piston. Commonly, syringes are linked to a VAD by a connector (e.g., anti-reflux valve, three-way stopcock) and intravenous drugs are administered into the bloodstream. The most commonly found VAD is the peripheral intravenous catheter (PIVC), which is inserted in patients’ peripheral veins and enables the intravenous administration of fluids, blood products, and drugs directly on the bloodstream [1,2,3].
Intraluminal deposits of medication can form a thrombus or constitute an optimal environment for bacterial growth, both leading to significant complications for patients with a PIVC such as catheter occlusion, phlebitis, or bloodstream infection [3,4,5,6]. Such complications are associated with a higher chance of VAD failure and premature removal, delaying intravenous treatments and significantly increasing care costs [4,5,7].
Likewise, after drug administration, a small amount of medication remains in both the tip of the syringe and in the VAD’s lumen. The recurrence of this can pose several challenges to care efficiency and safety, given that the prescribed amount of medicine will not be entirely administered and can result in the mixing of incompatible drugs if sequential drug administration is performed [8,9,10,11].
To avoid such complications, several international guidelines and standards of care on infusion therapy recommend the flushing of VADs before drug administration, allowing for a patency assessment, as well as after every single administration [12,13,14]. To do so, healthcare professionals should perform a pulsatile flushing before and between multiple intravenous drug administrations, followed by the final administration of a cleaning solution while applying positive pressure on the plunger (also referred to as VAD locking) [12,13,14]. This process requires the use of at least two different syringes, one for the preparation and administration of the intravenous drug and another for the flushing solution (0.9% sodium chloride being the most used [3,12,13].
However, the recommended steps for drug administration through a VAD are associated with longer preparation and administration times and the use of larger quantities of medical supplies such as syringes and needles. This may explain why VAD flushing is not always performed by healthcare professionals [15,16,17]. Likewise, the use of several syringes increases the number of catheter manipulations, which can enhance the possibility of catheter-related complications such as phlebitis, dislodgement, or accidental removal.
Considering this, we can infer that a single syringe capable of accomplish both the drug administration and the flushing procedure would significantly reduce the outlined challenges. In recent years, attention has been given to the potentialities of using double-chamber syringes (DCS) for intravenous drug administration and flushing, which is expected to reduce the number of catheter manipulations, contamination risks, economic costs, and procedural time. DCS involve a complex and costly manufacturing process when compared with single barrel syringes, and only a few such devices have been launched in the medical device’s market [18,19]. However, references to DCS are scattered in the literature, making it difficult for healthcare professionals and managers to access information about the characteristics and potential that these medical devices offer.
Therefore, this study aims to map the existing patents on DCS that can be used for intravenous drug administration according to international guidelines and standards of care, and synthesize their main characteristics.

2. Materials and Methods

There is an excess of 60 million patent documents from more than 100 patent issuing authorities around the world [20]. Therefore, conducting a patent review must follow rigorous criteria in order to produce a relevant landscape report. This patent review followed the recommendations of the World Intellectual Property Organization [20] for conducting patent reviews, which included: (i) definition of the countries covered; (ii) definition of the time period covered; (iii) assessment of whether a patent family reduction is viable; and (iv) assessment of whether non-patent literature (NPL) will be included in the analysis.
Thus, as inclusion criteria, patents had to be published until 1 October 2020, in Portuguese, Spanish, and English, without geographical limitations. As the exclusion criteria, this review did not included patents deriving from the same patent family and non-patent literature, those devices being used for drug reconstitution, not having two chambers that allow for intravenous injection, and not representing DCS. Regarding the search strategy, between March and July 2019 (initial search) and then on the 28 October 2020 (follow-up search), a comprehensive search was conducted in the Google patents database; no preference was giving to conducting individual searches in local patent offices. The search terms used were: “double-chamber syringe”, “double chamber syringe”, “double-chamber system”, “double chamber system”, “dual-chamber syringe”, “dual chamber syringe”, “double-barrel syringe”, “double barrel syringe”, “dual-chamber system”, “dual chamber syringe”, “double-barrel system”, “double barrel syringe”, “two-chamber syringe”, “two-chamber system”, “two-barrel syringe”, “two-barrel system”, “multi-chamber syringe”, “multi-chamber system”, “auto-flush syringe”, “auto flush syringe”, “auto-flush system”, and “auto flush system”.
Two independent reviewers from the research team screened the patents’ titles, abstracts, and claims prior to retrieving full texts. Each of the eligible papers was assessed independently by two reviewers and data extraction was performed. Any disagreements that arose between the reviewers were resolved through discussion with a third element of the research team.

3. Results

The search identified 26,110 potentially relevant patents. Of these, 16,041 were excluded for being patents of the same device family. The remaining patents were first screened by title and 9956 were excluded. Subsequently, 113 patents were included for abstract and claim analysis by two independent reviewers. Overall, 89 patents were excluded, mainly due being written in another language (n = 58), being used for drug reconstitution (n = 20), not having two chambers that allow for intravenous injection (n = 9), and not representing DCS (n = 2). Therefore, 24 patents were included for data extraction and synthesis (Figure 1).
Overall, the included patents were developed between 1975 [21,22] and 2020 [23]. All the included patents have two or more chambers that allow for the administration of multiple fluids (Table 1). Of these, seven patents report the existence of a specific chamber for the flush solution [22,23,24,25,26,27,28], with only one referring that the flushing chamber is pre-filled with 0.9% sodium chloride [24]. Twenty-one devices describe a sequential fluid delivery [22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42], in which the solution in the second chamber is only delivered when the first chamber is emptied. One DCSs presents an automatic flush mechanism that is immediately triggered after intravenous drug administration [25].
Some of the DCS found (n = 7) incorporate a hypodermic needle [21,22,24,26,33,37,42]. In two of these patents, the hypodermic needle is projected inwardly into the first chamber after the first solution is fully dispensed. The needle passes through the barrier to dispense the second solution. Then, the barrier seals the first solution away from the needle to prevent the contamination of the second solution [21,22].
Usually, some of the DCS that we found are structured into a distal and proximal chamber [23,26,31,32,33,34,38,40]. In some DCS, the proximal and distal chambers are separated by a closed valve [26,31,33,34,35,36,37,38] with different opening mechanisms, although the majority is supported on the application of positive differential pressure. Given that some of the found DCSs can be used with pre-filled solutions (which when stored, form gas inside the respective chamber), three of these devices present a gas separator that allows for the safe administration of the intravenous solutions without injecting the formed gas [31,35,38].
Some patents have an inner and an outer chamber for different fluids [27,28,29,30,39,44]. For example, in some patents the outer chamber contains the first fluid/drug and the inner chamber (that moves inside the external chamber) contains the flush solution. Usually, in the locked configuration, the latching mechanism prevents the second piston from longitudinal movement and will only permit the longitudinal motion of the second piston in the unlocked configuration [27,28]. Other DCS patents describe their devices as a syringe that is divided by a vertical plate forming two chambers [21,22,24], designed in the same or different sizes [24]. Three patents [21,22,40] highlight that the double compartment syringe may be filled with two or more medications and pre-packaged in a sterile container by a pharmaceutical company.
Syringes with external chambers (for medication and flushing solution) are referred in some patents to ensure the delivery of both solutions without contamination [42,43,44]. One patent concerns a device that has more than two chambers [43], defined as a multi-chamber injection device that includes multiple syringes arrayed in a circular, linear or other format. This syringe’s chambers may be loaded with different drugs and solutions. Another patent describes an automatic flushing mechanism triggered immediately after the administration of the intravenous drug, ensuring that the amount of drug prescribed is fully administered [44]. Another patent describes the existence of two flow-isolated chambers, where each lumen is isolated to prevent that the solutions in each chamber are contaminated before reaching the syringe’s joint outlet port [42]. Given its design, while using one chamber, the others are mechanically blocked, preventing the accidental mixing of solutions [42].

4. Discussion

The majority of the DCS patents were designed for drug reconstitution, usually with a freeze-dried drug in a syringe chamber or cartridge, and a reconstitution solution in another chamber. The chambers are usually separated by a middle plunger that allows the diluent to enter the drug chamber for reconstitution. The main advantages of these pre-filled DCS are the increase of dose accuracy, the lower risk of microbial contamination, and the reduction of the procedure time and handling steps required [37,38,39]. Nonetheless, several challenges were identified, such as the freeze-drying and reconstitution processes [39] and the product shelf life [12]. Other DCSs incorporate a parallel post-injection safety sheath chamber for enclosing a sharpened needle tip. These syringes are developed as a protection of the inadvertent contact with the needles after the syringe has been used, which can be extremely important in the reduction of needle-stick injuries and contact with blood-transmitted diseases such as hepatitis or acquired immune deficiency syndrome [40]. Despite the importance of these DCS, they did not comply with the initial purpose of this review, and were thus excluded.
A closer analysis of the 22 included patents was carried out to understand if they can fulfil the requirements for a secure intravenous drug administration according to current international standards on infusion therapy: initial flushing to ascertain VAD patency, drug delivery, and patency maintenance after/between drug administrations. Although the 22 patents included reported, at least, two independent chambers, only seven had a specific chamber for flushing solution. Several of the included patents identified current challenges in infusion therapy as a significant reason for their development, such as the deliver a 0.9% sodium chloride flush after drug administration to assist pharmacodynamics [26], to ensure that the full dosage been correctly and timely administrated [27,28,29,30]. In fact, the main purpose of VAD flushing involves not only the maintenance of the PIVC patency, reducing build-up of blood or other products on the device’s internal surface, and preventing the mixing of incompatible drugs [45,46,47,48,49], but also ensures that the prescribed amount of drug will be entirely administered [10,50]. Even in the DCS patents that did not specify that one of the chambers was intended for the flush solution, their background sections emphasize the need to flush the vascular access with 0.9% sodium chloride or another physiologically compatible flushing solution [31,35,38].
While three of the included DCS patents enable the administration of two different intravenous solutions (one in each independent chamber), they do not meet international requirements on infusion therapy, since catheter flushing can only be performed after drug administration [12,13]. Moreover, none of the included DCS patents enables the assessment of VAD patency before the drug administration, which constitutes a significant gap and unsafe practice. As an example, in the presence of PIVC-related complications such as severe phlebitis, catheter dislodgement, or infiltration/extravasation, the lack of an initial flush to assess catheter patency can result in the administration of potentially irritating or vesicant drugs in the adjacent anatomical tissues and structures, which can lead to the depletion of the peripheral vascular network. The frequent assessment of VAD patency should be considered as an essential practice in infusion therapy, enabling the earlier identification of VAD mal-functioning and prevention of related complications.
Finally, the authors would like to address the limitations of their work. First, the findings of this review are limited to the combination of the database and search terms used, as well as the inclusion criteria defined (e.g., language). Future patent reviews within this topic must address these limitations to conduct a more comprehensive overview of existing innovation. Although patent reviews support decision-making through an data-driven and evidence-based approach [20], this review could not explore which of the found DCS patents were successfully commercialized and implemented in clinical practice. This limitation derives from the lack of studies on DCS development (from concept definition to industrial development and end-user testing) and efficacy in real clinical settings [9].

5. Conclusions

This review allowed the mapping of current DCS devices, highlighting their characteristics and potentialities for a safe and efficient intravenous drug administration, considering the importance of performing pre- and post-drug administration flushes. While a few of the reviewed DCS devices enable the administration of a flushing solution during infusion therapy, structural and mechanical barriers prevent health professionals from performing VAD flushing in accordance with the latest guidelines and standards of care in this scope. Future DCS device manufacturers must reflect on these results and develop a syringe that allows health professionals to perform an initial PIVC flush to assess catheter patency, while still being able to complete a final flush after drug administration. Such features will likely increase healthcare professionals’ compliance with current international recommendations while reducing infusion therapy-related costs.

Author Contributions

Conceptualization, L.B.S., P.S.-C. and I.A.M.; methodology, L.B.S., P.S.-C. and I.A.M.; formal analysis, L.B.S. and P.S.-C.; data curation, L.B.S.; writing—original draft preparation, L.B.S., P.S.-C. and I.A.M.; supervision, A.C., A.S.-O. and P.P.; project administration, A.C., A.S.-O. and P.P. All authors have read and agreed to the published version of the manuscript.


This research was funded by RESEARCH & TECHNOLOGICAL DEVELOPMENT INCENTIVE SYSTEM (SI I&DT Co-Promotion); grant number POCI-01-0247-FEDER-017604.


The authors would like to thank the Health Sciences Research Unit: Nursing (UICISA: E) from Nursing School of Coimbra (ESEnfC) for all the support. The authors P.S.-C. (SFRH/BD/136487/2018) and I.A.M. (SFRH/BD/136973/2018) thank the Portuguese National Funding Agency for Science, Research and Technology (FCT) for the financial support granted through the 2018 Ph.D. Scholarship program.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Alexandrou, E.; Ray-Barruel, G.; Carr, P.J.; Frost, S.; Inwood, S.; Higgins, N.; Lin, F.; Alberto, L.; Mermel, L.; Rickard, C.M. International prevalence of the use of peripheral intravenous catheters: Prevalence of the Use of PIVCs. J. Hosp. Med. 2015, 10, 530–533. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Alexandrou, E.; Ray-Barruel, G.; Carr, P.J.; Frost, S.A.; Inwood, S.; Higgins, N.; Lin, F.; Alberto, L.; Mermel, L.; Rickard, C.M.; et al. Use of Short Peripheral Intravenous Catheters: Characteristics, Management, and Outcomes Worldwide. J. Hosp. Med. 2018, 13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Barton, A. Intravenous infusion drug administration: Flushing guidance. Br. J. Nurs. 2019, 28, S16–S17. [Google Scholar] [CrossRef] [PubMed]
  4. Braga, L.M.; Parreira, P.M.S.D.; Arreguy-Sena, C.; Carlos, D.M.; Mónico, L.D.S.M.; Henriques, M.A.P. Taxa de incidência e o uso do flushing na prevenção das obstruções de cateter venoso periférico. Texto Contexto Enferm. 2018, 27, e2810017. [Google Scholar] [CrossRef] [Green Version]
  5. Braga, L.M.; Parreira, P.M.; Oliveira, A.D.S.S.; Mónico, L.D.S.M.; Arreguy-Sena, C.; Henriques, M.A. Phlebitis and infiltration: Vascular trauma associated with the peripheral venous catheter. Rev. Lat. Am. Enferm. 2018, 26. [Google Scholar] [CrossRef] [Green Version]
  6. Salgueiro-Oliveira, A.; Parreira, P. Incidence of phlebitis in patients with peripheral intravenous catheters: The influence of some risk factors. Aust. J. Adv. Nurs. 2012, 30, 32–39. [Google Scholar]
  7. Parreira, P.; Serambeque, B.; Costa, P.S.; Mónico, L.S.; Oliveira, V.; Sousa, L.B.; Gama, F.; Bernardes, R.A.; Adriano, D.; Marques, I.A.; et al. Impact of an Innovative Securement Dressing and Tourniquet in Peripheral Intravenous Catheter-Related Complications and Contamination: An Interventional Study. Int. J. Environ. Res. Public Health 2019, 16, 3301. [Google Scholar] [CrossRef] [Green Version]
  8. López-Briz, E.; Ruiz Garcia, V.; Cabello, J.B.; Bort-Martí, S.; Sanchis, R.C.; Burls, A. Heparin versus 0.9% sodium chloride locking for prevention of occlusion in central venous catheters in adults. Cochrane Database Syst. Rev. 2018. [Google Scholar] [CrossRef]
  9. Werk, T.; Ludwig, I.S.; Luemkemann, J.; Mahler, H.-C.; Huwyler, J.; Hafner, M. Technology, Applications, and Process Challenges of Dual Chamber Systems. J. Pharm. Sci. 2016, 105, 4–9. [Google Scholar] [CrossRef]
  10. Broome, R.I.; Gibson, A.A. The importance of flushing injection ports. Anaesthesia 2019, 74, 396. [Google Scholar] [CrossRef] [Green Version]
  11. Cooper, D.M.; Whitfield, M.D.; Newton, D.; Chiarella, J.; Machaczek, K.K. Introduction of a non-ported peripheral intravenous catheter with multi-use blood control septum offers improvements in the overall efficiency of the procedure and is clinically well accepted. IJHTM 2016, 15, 177. [Google Scholar] [CrossRef] [Green Version]
  12. Gorski, L.A.; Hadaway, L.; Hagle, M.; McGoldrick, M.; Orr, M.; Doellman, D. The 2016 Infusion Therapy Standards of Practice; Wolters Kluwer: South Holland, The Netherlands, 2016. [Google Scholar]
  13. Royal College of Nursing. Standards for Infusion Therapy; Royal College of Nursing: London, UK, 2016. [Google Scholar]
  14. Chopra, V.; Flanders, S.A.; Saint, S.; Woller, S.C.; O’Grady, N.P.; Safdar, N.; Trerotola, S.O.; Saran, R.; Moureau, N.; Wiseman, S.; et al. The Michigan Appropriateness Guide for Intravenous Catheters (MAGIC): Results from a Multispecialty Panel Using the RAND/UCLA Appropriateness Method. Ann. Intern. Med. 2015, 163, S1. [Google Scholar] [CrossRef] [Green Version]
  15. Parreira, P.; Vicente, R.; Bernardes, R.A.; Sousa, L.B.; Serambeque, B.; Costa, P.; Braga, L.M.; Mónico, L.; Salgueiro-Oliveira, A. The flushing procedure in nursing practices: A cross-sectional study with Portuguese and Brazilian nurses. Heliyon 2020, 6, e04579. [Google Scholar] [CrossRef] [PubMed]
  16. Oliveira, A.; Costa, P.; Graveto, J.; Costa, F.; Osório, N.; Cosme, A.; Parreira, P. Práticas dos enfermeiros na cateterização intravenosa: Um estudo descritivo. Rev. Enf. Ref. 2019, IV Série, 111–120. [Google Scholar] [CrossRef]
  17. Keogh, S.; Shelverton, C.; Flynn, J.; Davies, K.; Marsh, N.; Rickard, C. An observational study of nurses’ intravenous flush and medication practice in the clinical setting. J. Vasc. Access Devices 2017, 3, 3–10. [Google Scholar]
  18. Keogh, S.; Flynn, J.; Marsh, N.; Higgins, N.; Davies, K.; Rickard, C.M. Nursing and midwifery practice for maintenance of vascular access device patency. A cross-sectional survey. Int. J. Nurs. Stud. 2015, 52, 1678–1685. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Parreira, P.; Sousa, L.B.; Marques, I.A.; Costa, P.; Cortez, S.; Carneiro, F.; Cruz, A.; Salgueiro-Oliveira, A. Development of an innovative double-chamber syringe for intravenous therapeutics and flushing: Nurses’ involvement through a human-centred approach. PLoS ONE 2020, 15, e0235087. [Google Scholar] [CrossRef]
  20. Trippe, A. Guidelines for Preparing Patent Landscape Reports; World Intellectual Property Organization (WIPO): Geneva, Switzerland, 2015; pp. 1–131. [Google Scholar]
  21. Weingarten, C.Z. Multi-Chamber Syringe. U.S. Patent US3896805A, 29 July 1975. [Google Scholar]
  22. Weingarten, C.Z. Multi-Chamber Syringe. U.S. Patent US3923058A, 2 December 1975. [Google Scholar]
  23. Mansour, G.; Mason, E.; Callahan, R.; Oda, T.; Underwood, W.; Shams, A.; Beyhl, D.; Borojerdi, S.S. Dual-Chamber Syringe with Dual-Lumen Intravenous Set. WO Patent WO2020/077134 A1, 16 April 2020. [Google Scholar]
  24. Oloodmiyazdi, M. Double Chamber Syringe. U.S. Patent US20070208295A1, 6 September 2007. [Google Scholar]
  25. Talonn, D.A. Auto-Flush Syringe Pump. U.S. Patent US4857056A, 15 August 1989. [Google Scholar]
  26. Greenfield, C.J. Syringe for Sequential Delivery of Different Fluids. U.S. Patent US7077827B2, 18 July 2006. [Google Scholar]
  27. Lee, M.N. Autoflush Syringe. U.S. Patent US8529517B2, 10 September 2013. [Google Scholar]
  28. Lee, M.N. Autoflush Syringe Method. U.S. Patent US20090287184A1, 19 November 2009. [Google Scholar]
  29. Lee, M.N.; Willis, G.H.; Christian, J.J. Two Chamber Syringe with Locking. U.S. Patent US20120029471A1, 2 February 2012. [Google Scholar]
  30. Lee, M.N.; Willis, G.H.; Christian, J.J. Two Chamber Syringe with Locking Mechanism. WO Patent WO2012006555A1, 12 January 2012. [Google Scholar]
  31. Howlett, M.W.; Mercer, J.V.; Thorne, G.H., Jr.; Thorne, G.H. Multi-Chamber, Sequential Dose Dispensing Syringe. U.S. Patent US6997910B2, 14 February 2006. [Google Scholar]
  32. Morningstar, R.L. Dual Action Syringe. U.S. Patent CA2218734C, 4 September 2001. [Google Scholar]
  33. Lodice, C. Single Barrel Double Chamber Syringe. U.S. Patent US20020035351A1, 21 March 2002. [Google Scholar]
  34. Lümkemann, J.; Mahler, H.-C.; WERK, T. Multi Chamber Syringe Unit and Method of Preparing a Multi Chamber Syringe. U.S. Patent US20180256818A1, 13 September 2018. [Google Scholar]
  35. Thorne, G.H., Jr.; Thorne, K.P.; Thorne, G.H. Dual-Chamber Syringe and Associated Connecting Systems. U.S. Patent US9950114B2, 24 April 2018. [Google Scholar]
  36. Howlett, M.; Mercer, J.; Thorne, G.H.; Thorne, G.H., Jr. Multi-Chamber Sequential Dose Dispensing Syringe. Australia Patent AU2012202861A1, 7 June 2012. [Google Scholar]
  37. Halseth, T.R. Sequential Delivery Syringe. U.S. Patent US6723074B1, 20 April 2004. [Google Scholar]
  38. Thorne, G.H., Jr.; Thorne, G.H.; Robinson, B.C.; Howlett, M.W.; Mercer, J.V.; Juan, N.R.S. Multi-Chamber Syringe Having a Gas Separator. U.S. Patent US20080319400A1, 25 December 2008. [Google Scholar]
  39. Kazuhiro, K.; Kurimoto, M. Dual Chamber Syringe. U.S. Patent US20100228121A1, 9 September 2010. [Google Scholar]
  40. Lümkemann, J.; Werk, T. Multi Chamber Syringe Unit. U.S. Patent US2019/0038836 A1, 7 February, 2019. [Google Scholar]
  41. Thorne, G.H., Jr.; Juan, N.R.S.; Michael, W.H.; Robinson, B.C.; Thorne, G.H. Multi-Chamber, Sequential Dose Dispensing Syringe. U.S. Patent CA2665697A1, 10 October 2006. [Google Scholar]
  42. Boehm Jr, F.H.; Melnick, B.D. Dual Chamber Syringe and Dual Lumen Needle. U.S. Patent US6972005B2, 6 December 2005. [Google Scholar]
  43. Tennican, P.O.; Phipps, L.M. Multi-Chamber Injection Device. U.S. Patent US20160030671A1, 4 February 2016. [Google Scholar]
  44. Waldenburg, O. Dual-Chamber Syringe and Methods. U.S. Patent US6692468B1, 17 February 2004. [Google Scholar]
  45. Bishop, L.; Dougherty, L.; Bodenham, A.; Mansi, J.; Crowe, P.; Kibbler, C.; Shannon, M.; Treleaven, J. Guidelines on the insertion and management of central venous access devices in adults. Int. J. Lab. Haematol. 2007, 29, 261–278. [Google Scholar] [CrossRef]
  46. Guiffant, G.; Durussel, J.J.; Merckx, J.; Flaud, P.; Vigier, J.P.; Mousset, P. Flushing of Intravascular Access Devices (IVADs)—Efficacy of Pulsed and Continuous Infusions. J. Vasc. Access 2012, 13, 75–78. [Google Scholar] [CrossRef]
  47. Ngo, A.; Murphy, S. A Theory-based Intervention to Improve Nurses’ Knowledge, Self-efficacy, and Skills to Reduce PICC Occlusion. J. Infus. Nurs. 2005, 28, 173–181. [Google Scholar] [CrossRef]
  48. Royon, L.; Durussel, J.J.; Merckx, J.; Flaud, P.; Vigier, J.P.; Guiffant, G. The fouling and cleaning of venous catheters: A possible optimization of the process using intermittent flushing. Chem. Eng. Res. Des. 2012, 90, 803–807. [Google Scholar] [CrossRef]
  49. Vigier, J.P.; Merckx, J.; Coquin, J.Y.; Flaud, P.; Guiffant, G. The use of a hydrodynamic bench for experimental simulation of flushing venous catheters: Impact on the technique. ITBM-RBM 2005, 26, 147–149. [Google Scholar] [CrossRef]
  50. Cooper, D.M.; Rassam, T.; Mellor, A. Non-flushing of IV administration sets: An under-recognised under-dosing risk. Br. J. Nurs. 2018, 27, S4–S12. [Google Scholar] [CrossRef]

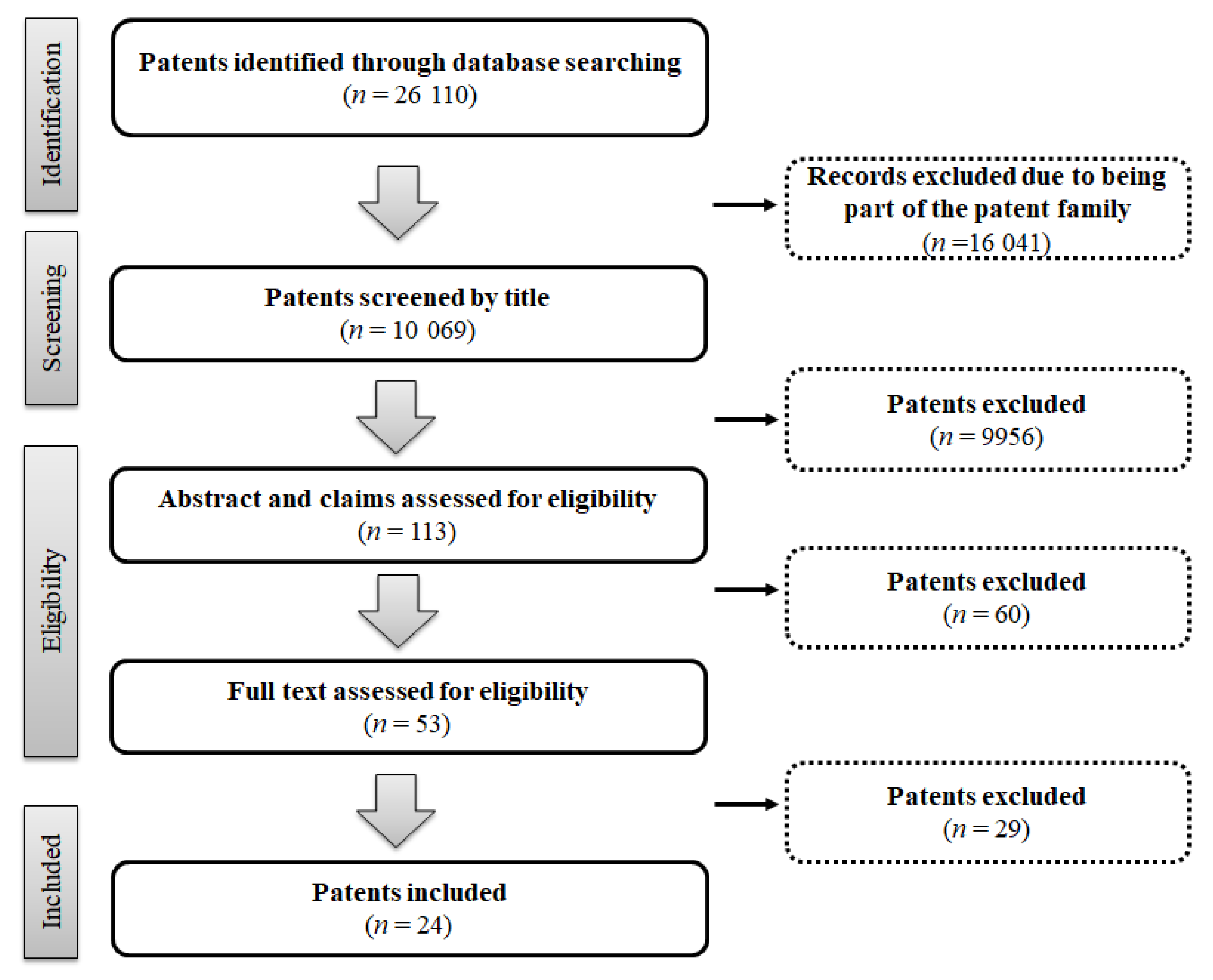

Figure 1. PRISMA flow diagram (adapted).
Figure 1. PRISMA flow diagram (adapted).
Ijerph 17 08209 g001
Table 1. Main characteristics of the double-chamber syringes (DCS) included for review.
Table 1. Main characteristics of the double-chamber syringes (DCS) included for review.
Ref.Patent numberChambersFlush SolutionNeedleSequential Delivery
