Article

Cyclist Injury Severity in Spain: A Bayesian Analysis of Police Road Injury Data Focusing on Involved Vehicles and Route Environment

1
School of Architecture and Cities, Westminster University, London NW1 5LS, UK
2
Escuela Politécnica Superior, Universidad de Burgos, 09001 Burgos, Spain
3
Center for Environmental Policy, Imperial College London, London SW7 2AZ, UK
4
Meteorology Group, Applied Mathematics and Computer Science, Universidad de Cantabria, 39005 Santander, Spain
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2020, 17(1), 96; https://doi.org/10.3390/ijerph17010096
Received: 19 November 2019 / Revised: 13 December 2019 / Accepted: 18 December 2019 / Published: 21 December 2019
(This article belongs to the Special Issue Traffic Accident Control and Prevention)

Abstract

:
This study analyses factors associated with cyclist injury severity, focusing on vehicle type, route environment, and interactions between them. Data analysed was collected by Spanish police during 2016 and includes records relating to 12,318 drivers and cyclist involving in collisions with at least one injured cyclist, of whom 7230 were injured cyclists. Bayesian methods were used to model relationships between cyclist injury severity and circumstances related to the crash, with the outcome variable being whether a cyclist was killed or seriously injured (KSI) rather than slightly injured. Factors in the model included those relating to the injured cyclist, the route environment, and involved motorists. Injury severity among cyclists was likely to be higher where an Heavy Goods Vehicle (HGV) was involved, and certain route conditions (bicycle infrastructure, 30 kph zones, and urban zones) were associated with lower injury severity. Interactions exist between the two: collisions involving large vehicles in lower-risk environments are less likely to lead to KSIs than collisions involving large vehicles in higher-risk environments. Finally, motorists involved in a collision were more likely than the injured cyclists to have committed an error or infraction. The study supports the creation of infrastructure that separates cyclists from motor traffic. Also, action needs to be taken to address motorist behaviour, given the imbalance between responsibility and risk.

1. Introduction

Cyclists are considered ‘vulnerable road users’ because, like pedestrians, they are at relatively high risk of serious injury compared to drivers of motor vehicles. However, recent research highlights the overall population health benefits that result from cycling implying the need to increase active travel as well as to make it safer [1].
Much previous research on cyclist injury severity has examined cyclist characteristics, often focusing on helmet wearing and head injuries [2]. Another group of studies examined (mis)behaviours including use of alcohol or drugs [3]. Other research has targeted demographic correlates of injury risk, finding older people to be more vulnerable to severe injury [4]. Another strand of work concentrated on route conditions, from permanent fixed infrastructure to temporary conditions such as weather or light levels [5,6,7,8]. In some studies, bicycle infrastructure has been found to reduce injury severity, as have street characteristics such as lower speed limits, and secondary or tertiary roads compared to primary roads. There is relatively little work studying factors relating to drivers, although some work did examine vehicle types, finding that larger vehicles—particularly lorries—are associated with higher injury severity [9].
Most research effort focused on Anglophone countries, or on high-cycling contexts such as Denmark. Here the study setting is Spain, a European country with generally low cycling rates. The first priority listed in the Spanish Road Safety Strategy 2011–2020 [10] is “to protect the most vulnerable users”. One of the Strategy’s 13 goals is to achieve 1,000,000 more cyclists without an increase in what is described as the ‘cyclist death rate’ at baseline (2009). Yet while the number of cycling deaths remained stable from 2007 to 2016 (66 ± 12), Spain saw a 60% increase in hospitalised cyclists and a 215% increase in cyclist injuries not requiring a hospital stay [11]. For all injured casualties, in the same period of time (from 2007 to 2016), the percentage of cyclists almost doubled, from 4% to 7% [12]. Alongside this substantial growth in injuries, growth in cycling remains uneven across Spain. While some cities, such as Seville, have seen major growth from a low base [13], others, such as Madrid, continue to have very low cycling levels. Given unevenness in take-up alongside growing injury numbers, there is debate about how best to increase cycling uptake and cycle safety.
Unfortunately, Spain no longer conducts a regular national travel survey. The 2006/2007 Movilia survey is the most recently available data, ten years earlier than the injury data we are analysing. Hence, we are unable to assess injury risk in relation to exposure. Instead, the paper aims to explore whether a diverse range of factors are associated with cyclist injury severity in the Spanish context. In this way it contributes to discussion about how to reduce the risk of severe injury for cyclists involved in collisions.
This study investigates the following questions:
(i) What route environment, vehicle, and rider/driver-related factors are associated with elevated cyclist KSI risk (Risk of being killed or seriously injured, if involved in an injury collision recorded by the police)?
(ii) What interactions can be identified between these factors?

2. Methods

2.1. Approach

Authors have investigated and studied the causes of road traffic collisions using diverse methods and techniques [14]. Traditionally, classical statistical methods such as regression models, ordered probit models, and decision trees have been used to predict the severity of traffic collisions and to determine contributing factors. Moreover, artificial intelligence techniques like genetic algorithms, artificial neural networks, principal component analysis and fuzzy logic have been widely used in injury prediction models [15].
Recently, the number of Studies using Bayesian networks in safety context is rising as this method provides reliable inferences regarding safety issues [16,17,18,19,20,21,22,23]. This includes evaluating the severity of traffic collisions, analysing their causes and/or predicting the probability of fatal and serious injuries. Previous research efforts demonstrated that Bayesian networks predict collision severity better than traditional methods such as regression models [24,25].
This study proposes a Bayesian network model in which the outcome variable is ‘KSI’ which represents the injury severity (killed or serious injured versus slightly injured) experienced by an injured cyclist in a collision. By using vehicle-level data (both cyclists and other involved vehicles) the study examines the extent to which factors related to injured cyclists and other parties, alongside route environment factors, are associated with a cyclist being killed or seriously injured in a collision.

2.2. Variables

Data used in this study have been collected from the 2016 traffic collision database provided by the Directorate General of Traffic, which is responsible for managing the "National Registry of Victims of Traffic Accidents” in Spain [26]. Variables used in this study are fully described in Table 1 and relate to cyclist/motorist behaviour and route environment conditions. The rest of this subsection provides context for international readers about three key types of infrastructure/zonal characteristics related to urban zone or not, presence of bicycle infrastructure, and traffic calming. The dataset classifies a location as a ‘calle’ (“street”) or not. ‘Calle’ here is translated as ‘urban zone’, with other locations comprised of inter-urban zones or urban highways which are also defined as inter-urban.
Spanish traffic regulations [27] refer to several types of bicycle infrastructure; “cycle lane” (on-road cycle path), “protected cycle lane” (on-road cycle path with some kind of physical protection), “sidewalk cycle path” (delimitated cycle path located on pedestrian spaces), “cycle track” (completely separated from the rest of the traffic) and “cycle path” (separated from traffic, shared with pedestrians, and within green spaces). The variable ‘30-zone’ might be best defined as ‘traffic calmed’, including streets where speed limits are lower than 30 kph or where motor traffic is excluded or restricted. Within urban areas generally, the default national speed limit is 50 kph. However, municipalities can install 30 kph and 20 kph zones and some, including Barcelona and Madrid, have implemented 30 kph limits across much of the city.

2.3. Model

This section describe the principle of the Bayesian network model which is implemented in MATLAB software (Matlab 2014b). In the proposed Bayesian Network model, in which the outcome variable is the cyclist severity injury (KSI), the Bayes Classifier (BC) minimizes the probability of misclassification by solving the following optimization problem:
a r g m a x K S I [ P ( K S I | { X 1 , , X n } ) ] ,
Discrete Bayesian Networks (BN) are probabilistic graphical models to learn the joint probability distribution (JPD) of a multivariate problem involving multinomial variables (22). The model is based on a directed acyclic graph that expresses the direct/conditional dependencies/independencies between the variables and simplifies the learning of the JPD, based on the factorization associated to the independencies given by the directed acyclic graph, DAG (Equation 1), and the interpretability of the resulting model. The equation 1 represents the Joint Probability Function of the Bayesian Network. Where { x 1 , , x n } are the variables considered in the model and π i are the set of parents of the variable x i given by the DAG.
p ( x 1 , x 2 , x 3 , , x n ) = i = 1 n p ( x i | π i ) ,
As a result, the learning is divided in two phases: structural and parametric. First, the DAG is obtained by applying the greedy learning algorithm proposed by Buntine [28]. This is a score-based algorithm that tries to obtain the DAG corresponding to the lowest Bayesian Information Criterium (BIC) which is a measure of the goodness of fit of a Bayesian model based on the likelihood function that penalizes the complexity of the model to avoid overfitting (See Schwarz [29] and Wit [30] for detailed explanation of the score definition). To this aim, for each step the algorithm evaluates all the possible links between the variables introducing the DAG with lowest BIC that best represent the independencies of the data. Please note that we have not included a minimum improvement threshold to add new links to the graph due to the penalty term of the BIC, limiting the inclusion of new links. Other algorithms introduce a pre-order of the variables (K2-algorithm, [31]) limiting the possible parents of a particular variables in order to reduce the computational costs but introducing a dependence on the order established, so we decided discard this option. Secondly, the parameters given by the DAG are obtained by maximum likelihood as the ones that better explain the observed data. Note that the DAG doesn’t reflect causality but the statistical dependences between the variables, and from a mathematical point of view an equivalent factorization can be obtained keeping the non-directed graph and the v-structures relating three variables (e.g., Age → Gender ← Helmet), but it is not necessary to maintain the direction of the links between variables [31].
Based on the resulting JPD and DAG, new knowledge for one or several variables of the model (evidence) can be easily propagated to the rest of the BN obtaining the new probabilities of the rest of variables included in the model (inference).
JPD BN = p ( KSI , X 1 , , X n ) ,
Finally, the resulting JPD of both, factors and target variable (KSI), allows us to define a natural BC by establishing a threshold above/below which the occurrence/absence of KSI is identified.
According to the objectives of the study, two experiments were defined. First, a 10-fold cross-validation experiment was developed to obtain the skill and generalization capabilities of our Bayesian Network, and to identify possible biases. To this aim a random partition of the database in 10 subsets was defined. For each subset 90% of data used for training and the remaining used for predicting. As a result, a prediction of the full sample is obtained by joining the ten subsets. Several parameters have been considered to evaluate the resulting model. The Area Under the Receiver Operating Characteristic Curve (AUC, [32]) was used to evaluate the skill for both each fold and the full series obtained by joining the ten predictions. This measure is based on the ROC Curve, that plots the Hit Rate versus the False Alarm Ratio as the probability threshold varies, obtained by integrating the curve. The score varies between 0 (opposite predictor) and 1 (perfect predictor), being the 0.5 equivalent to a random predictor system. The result of the AUC in the present study was between 0.91 and 0.95.
As the AUC can be biased to one of the categories, mainly when there is an unbalance in the sample to a state of the variable, the sensitivity and specificity have been defined as follows:
Sensitivity = TP / P Specificity = TN / N ,
where TP/TN stands for the number of predicted True Positives/Negatives, and P/N the number of observed Positives/Negatives, respectively. Furthermore, the accuracy index was defined as:
Accuracyindex = TP + TN P + N ,
The results of the Sensitivity and Specificity for KSI in the present study were 0.60 and 0.99 respectively, and the accuracy index was 0.95.
Secondly, taking advantage of the properties of the BNs, a sensitivity analysis was proposed by evaluating how the KSI’s probability changes when different factors are evidenced.
Note that only events without missing data in both the factors and target variable, which corresponds to the 99.7% of the sample size, have been considered. This approach lets us to consider a unique model for the sensitivity analysis, removing bias related with the sample, avoiding problems in the model adjustment, and prevents the introduction of noise in the results due to any filling gaps procedure or the availability of different variables for each event. In addition, once the model has been evaluated and its predictability tested, 100% of the database has been considered to train the model used for the sensitivity analysis.
Many programs have been developed to efficiently train Bayesian Networks, such as Netica Software, Hugin Investigator, Genie, Matlab, R or Microsoft with MSBNx sotfware. For our study, we used the Bayesnet toolbox for Matlab (Matlab 2014b).

3. Results

3.1. Descriptive Statistics

In 2016 there were 102,362 injury collisions on Spanish roads, involving 179,295 vehicles and 174,679 drivers or riders, of whom 12,318 were involved in a cyclist collision with at least one injured cyclist. This included 7488 cyclists involved in these collisions, of whom 66 were killed and 711 seriously injured. A collision that injures a cyclist is unlikely to injure a motorist: of 4830 drivers or motorcyclists involved in collisions with cyclists, 4626 (95.8%) were uninjured; 184 (3.8%) sustained a slight injury, with 17 (0.4%) seriously injured and 3 (0.1%) killed (see Table 1).
As presented in the last row in Table 2, of the 7488 cyclists involved, 4880 (65.2%) were involved in collisions with motor vehicles. The other 2608 cyclists were involved in falls or in collisions involving other cyclists (the injury data contained records relating to 258 cyclists who were not injured but were involved in a collision that injured other cyclists) (see the last variable in Table 2).
Here we focus on factors related to motorised vehicle involvement, also presenting analysis related to the 2608 (34.8%) of cyclists injured in falls or collisions involving other non-motorised users. Within non-motorized incidents the number of pedestrian-cyclist collisions is unknown, and in this case a pedestrian-cyclist collision is considered as cycle-only collision. Of the motor vehicles involved in cycle collisions, 4262 (88.2%) were cars; 313 (6.5%) were motorcycles; 155 (3.2%) were HGVs; 53 (1.1%) buses; and 47 (1.0%) other types of vehicle.
Table 1 shows the distribution of our modelled variables in relation to cyclists and to the motorists involved in these injury cyclist collisions. Key descriptive findings highlight the distributions of different crash types. While 7% of cyclists were involved in an incident taking place on cycling infrastructure, only 0.2% (10) of motor vehicles collided with a cyclist on cycling infrastructure. In other words, cycle infrastructure seems to sharply reduce the likelihood of collision with a motor vehicle, with non-motorised falls/collisions being more typical. Similar but less striking findings are true for urban zones (where non-motorised crashes are more typical than in inter-urban zones), but not for 30 kph zones. Over three-quarters of collisions took place in clear, dry weather, without any surface related issues, with the same true for visibility, although with a very high number of missing values.
Cyclists and motorists have different age profiles; specifically, children are unsurprisingly almost absent among the latter category. By contrast, those aged under 18 made up 10.8% (806) of injured cyclists. Men dominated among both cyclists and motorists, but even more so among cyclists (83.1% vs. 73.4%). Just under half of the involved cyclists (44.9%) were recorded as definitely having worn a helmet, albeit with a high level of missing data.
Finally, the data record the prevalence of infractions and errors attributed both to cyclists and involved motorists. Motorists, while unlikely to have sustained an injury, are relatively more likely to have committed an infraction or error, compared to cyclists. For other drivers and riders, 32.0% (1544) were recorded as having committed an infringement of some type, while for cyclists the figure was 14.1% (1057). For errors, the respective figures are 22.4% (1084) and 12.8% (960).

3.2. Factors Associated with High Risk

Table 3 highlights factors associated with high KSI risk for cyclist, based on our Bayesian network model (see the directed acyclic graph in Figure 1). The table shows the probabilities of a cyclist being killed or seriously injured by effect of each variable.
The involvement of an HGV is associated with an elevated risk of death or serious injury (23.9%, compared to 13.3% for buses and 10.1% for cars) as is the involvement of ‘other’ vehicles. Conversely, collisions involving motorcycles are associated with lower risk of death or serious injury to the cyclist (8.1%). Perhaps surprisingly, non-motorised collisions are associated with a higher KSI risk (12.0%) than collisions involving cars (10.1%) or motorcycles (8.1%). However, this overstates the severity of the risks related to these collisions, as few deaths (as opposed to serious injuries) occur in non-motorised incidents. Of 541 KSI cyclist incidents involving motor vehicles, 71 (13.1%) were deaths, while of 320 KSI cyclist incidents not involving motor vehicles, only 11 (3.4%) were deaths.
Other notable findings relate to the location. A location with bicycle infrastructure is associated with a somewhat lower risk of KSI compared to one without (8.8% vs. 12.2%), while an urban zone has a lower risk of KSI than an inter-urban zone (7.9% vs. 19.0%), as does a 30 zone (8.3% vs. 11.9%). Other factors had little relationship to injury severity, apart from poor visibility.
Table 4 illustrates the probability of the cyclist injury severity risk associated with factors specific to the motorist or the cyclist involved in the incident. The Bayesian network inference was generated after turning ‘vehicle type’ into two discrete states (bicycles and other vehicles). Motorists aged between 40–60 and those under 18 had an elevated risk of seriously injuring a cyclist, while middle aged adults had a somewhat elevated risk of being severely injured. No gender differences were found, nor were there much differences in behaviour terms, such as whether the driver was wearing a seatbelt, or carrying the correct drivers’ licence.
The motorist not using a helmet (mostly referring to motorcyclists) had more probability of seriously injuring a cyclist, 16.1% versus 13.6%. Perhaps surprisingly, helmet use among cyclists was associated with higher risk of severe injury (14.2%, vs. 10.8%). Infringements and responsibilities in the incident did not appear to influence the injury severity of the cyclist, but as demonstrated above, the level of culpability for drivers is higher than for cyclists.

3.3. Interactions between Vehicle Type and Route Environment

Table 4 has shown that certain types of route environment (bicycle infrastructure, 30 kph/traffic calmed zone, and urban zones) are associated with lower risk of serious injury for people cycling, while larger vehicles (particularly HGVs) are associated with elevated KSI risk. This section provides data on interactions between vehicle type and injury severity. For instance, traffic calmed areas reduce KSI risk in general, but do they specifically mitigate risks for crashes involving the most dangerous vehicles, such as HGVs?
Before presenting the analysis, Table 5 shows the likelihood of (i) an injured cyclist and (ii) an involved motor vehicle being present in different types of location. Except for motorcycles (who are not allowed to use bicycle infrastructure, but nevertheless may sometimes do so) few motor vehicles were involved in collisions with cyclists on bicycle infrastructure. Urban zone-based collisions dominated across vehicle groups except HGVs, where slightly more than half of all collisions took place in non-urban zones. Collisions with HGVs were particularly unlikely to happen on both dedicated cycle infrastructure and on 30 zones.
Table 6 presents the KSI risk by zone type (urban/non-urban and 30-zone/others) based on the involvement of different motor vehicles. A gradient can be seen both for vehicle type (if ordered by weight: Motorcycles, Cars and then Trucks and buses) and for location type. For instance, the KSI risk associated with truck involvement is 14.1% for urban zones; higher than for all other road user types except ‘others’, but lower than the KSI risk associated with truck involvement in inter-urban zones (32.5%).
As there were few cases of collisions with motor vehicles on bicycle infrastructure, they could not be split up by type of motor vehicle involved. Instead, Table 7 separates collisions involving motor vehicles or not and compares KSI risk by presence of cycle infrastructure. In both cases, presence of bicycle infrastructure reduces injury severity.

4. Discussion

This study found a higher risk for cyclists in Spain of being killed or seriously injured where HGVs are involved in a collision, compared to other vehicles, which is consistent with previous studies that used national-level data [33]. Motorists involved in collisions that injure cyclists are highly unlikely to be killed or seriously injured; in 95.8% of cases they are uninjured. However, according to the police, involved motorists are around twice as likely as the injured cyclists who have committed an infraction or made an error which is consistent with the findings of Bíl et al. for the Czech Republic [34]. The study did not find a protective effect associated with helmets but an increase of risk. Most studies have reported a protective effect of helmet wearing in relation to head injuries and fatality [35]; however, other studies have found helmet wearing may increase the risk of other type of injuries [36].
The research did find a reduction in KSI risk associated with three infrastructure categories: bicycle infrastructure, urban zones (excluding major roads within these), and 30 kph or less zones (reduced speed limit, pedestrianised, and/or residential areas). Few collisions involving motor vehicles happened at locations with bicycle infrastructure, and where bicycle infrastructure was present both collisions involving motor vehicles and those not involving motor vehicles were less likely to be serious. Sensitivity analysis focused on urban and 30 kph zones (due to only 10 cases of motor vehicle collisions on bicycle infrastructure) and found that this reduction in KSI risk held for all vehicle types.
The results in relation to each of the categories found to be protective are aligned with the findings in literature. Reynolds et al.’s review [8] documented the protective effects of bicycle infrastructure. No review comparing cycling injury risk in urban vs. rural roads has been found, but our results are consistent with the studies that used national databases [5]. Cleland et al reported that the introduction of 20 mph (approx. 30 kph) zones would decrease cyclist-involved collisions [37].

5. Limitations and Generalisability

It is well known that police injury data do not capture all injuries, and in particular slight injuries are under-represented. Under-representation of cyclist-involved collisions have been evidenced over-time and at international level [38,39] and it is an intrinsic limitation of this study due to the use of police data [40]. Police definitions of ‘serious injury’ also cover quite diverse levels of injury.
As not all regions in Spain used the same road collision data collection system during 2014 and 2015, this study has been carried out only with data for 2016 that contains few cases of deaths. Therefore, we were unable to define the target variable in four states (no injury, minor injury, serious injury or death). Instead, we used the KSI variable by combing serious and fatal injuries. This makes the study results consistent as the resulting model has a favourable accuracy index (0.95).
Some findings may not be specific to the Spanish context. For instance, the low KSI risk following a motorcycle collision may not be transferable to other countries with different motorcycle usage: in Spain, 10% of registered motor vehicles are motorcycles [12].
The counter-intuitive finding for helmets may be related to Spanish helmet laws as helmets are compulsory on non-urban roads, where the risk is higher. The probability of an injured cyclist having used a helmet in inter-urban zones calculated with Bayesian network inference was 81.6%, compared to only 28.1% on urban areas. This is likely to be in turn related to different types of cyclist and cycling, not controlled for in this analysis. Hence the results showing a higher KSI risk for helmet-wearing cyclists may not transfer to other contexts.

6. Conclusions

The study suggests that separating cyclists from motorised traffic (as via bicycle paths) and/or reducing levels and speeds of motor traffic (as 30 zones, which include pedestrianised and residential streets, aim to do) can help reduce cyclist injury severity. For example, in collisions involving motor vehicles, the presence of cycle infrastructure reduces the probability of KSI risk from 11.8% to 8.6%. This happens partly by reducing the likelihood of collisions with motor vehicles, particularly HGVs: in Spain, HGVs are often restricted in pedestrian and residential areas. However, where interactions with other vehicles do appear (which might happen, for instance, where pedestrianized areas allow timed loading by larger vehicles) the risk of serious injury to the cyclist is reduced (9.6% KSI risk in collision not involving motor vehicles versus 8.6% KSI risk in collision with other vehicles).
The study thus supports the creation of bicycle infrastructure and/or traffic-calmed/30kph zones in urban areas. It highlights the relatively high risk associated with major roads, often outside urban zones (19% of KSI in inter-urban zones versus 7.9% in urban areas). Despite eight of ten injured cyclists in inter-urban zones having worn a helmet, these zones are associated with high risk of severe injury, perhaps partly due to risky overtaking manoeuvres on rural roads, with Spain’s legal minimum passing distance of 1.5 m being insufficient at high speeds [41] or in poorly maintained roads. Implementation of cycle infrastructure on these roads (rare in Spain, where bicycle infrastructure has mostly been built in urban areas and most of the country lacks supra-local cycle network planning) is further recommended.
Finally, the study finds high rates of infractions (19% of cases versus 7.9%) and errors (22.4% versus 12.8%) committed by motorists involved by comparison to involved cyclists. Although those operating motor vehicles must pass a test and undergo licensing, they seem more likely than cyclists to be culpable in collisions that injure cyclists. While not associated with higher injury severity, such poor driving may contribute to the higher overall collision risk that cyclists experience, per km, on the roads, compared with motorists. Hence as well as infrastructure there is a role for driver education and enforcement focused around behaviour towards cyclists.

Author Contributions

Conceptualization, R.A., S.G.-H., E.A.; Data curation, S.G.-H. and S.H.; Funding acquisition, S.G.-H.; Investigation, R.A., S.G.-H. and E.A.; Methodology, S.H.; Project administration, S.G.-H.; Resources, S.G.-H.; Software, S.H.; Supervision, S.G.-H.; Writing—original draft, R.A.; Writing—review & editing, S.G.-H., E.A. and M.Á.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded through a grant from the European Regional Development Fund (Ref. FEDER BU300P18).

Acknowledgments

As well as the funders, we would like to thank the DGT (Dirección General de Tráfico) for facilitating access to data.

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Götschi, T.; Garrard, J.; Giles-Corti, B. Cycling as a part of daily life: A review of health perspectives. Transp. Rev. 2016, 36, 45–71. [Google Scholar] [CrossRef][Green Version]
  2. Sieg, G. Costs and benefits of a bicycle helmet law for Germany. Transportation 2016, 43, 935–949. [Google Scholar] [CrossRef][Green Version]
  3. Martínez-Ruiz, V.; Lardelli-Claret, P.; Jiménez-Mejías, E.; Amezcua-Prieto, C.; Jiménez-Moleón, J.J.; del Castillo, J.d.D.L. Risk factors for causing road crashes involving cyclists: An application of a quasi-induced exposure method. Accid. Anal. Prev. 2013, 51, 228–237. [Google Scholar] [CrossRef] [PubMed]
  4. Wisch, M.; Lerner, M.; Vukovic, E.; Hynd, D.; Fiorentino, A.; Fornells, A. Injury patterns of older car occupants, older pedestrians or cyclists in road traffic crashes with passenger cars in Europe—Results from SENIORS. In Proceedings of the 2017 IRCOBI conference, Antwerp, Belgium, 13–15 September 2017. [Google Scholar]
  5. Boufous, S.; Rome, L.; Senserrick, T.; Ivers, R. Risk factors for severe injury in cyclists involved in traffic crashes in Victoria, Australia. Accid. Anal. Prev. 2012, 49, 404–409. [Google Scholar] [CrossRef]
  6. Cripton, P.A.; Shen, H.; Brubacher, J.R.; Chipman, M.; Friedman, S.M.; Harris, M.A.; Winters, M.; Reynolds, C.O.; Cusimano, M.D.; Babul, S.; et al. Severity of urban cycling injuries and the relationship with personal, trip, route and crash characteristics: analyses using four severity metrics. BMJ Open 2015, 5, e006654. [Google Scholar] [CrossRef] [PubMed]
  7. Kaplan, S.; Vavatsoulas, K.; Prato, C.G. Cyclist injury severity in a cycling nation: evidence from Denmark. Geographic. 2013. Available online: https://www.semanticscholar.org/paper/Cyclist-injury-severity-in-a-cycling-nation%3A-from-Kaplan-Vavatsoulas/8819c4fbbbb68d0b8fb3df52171d618d329b35bd (accessed on 21 December 2019).
  8. Reynolds, C.C.; Harris, M.A.; Teschke, K.; Cripton, P.A.; Winters, M. The impact of transportation infrastructure on bicycling injuries and crashes: A review of the literature. Environ. Health. 2009, 8, 47. [Google Scholar] [CrossRef][Green Version]
  9. Morgan, A.S.; Dale, H.B.; Lee, W.E.; Edwards, P.J. Deaths of cyclists in London: Trends from 1992 to 2006. BMC Public Health 2010, 10, 699. [Google Scholar] [CrossRef][Green Version]
  10. DGT. Spanish Road Safety Estrategy. Available online: https://ec.europa.eu/transport/road_safety/sites/roadsafety/files/pdf/20160107_estrategico_2020_006.pdf (accessed on 19 December 2019).
  11. DGT. Main figures on road traffic accidents. Available online: http://www.dgt.es/Galerias/seguridad-vial/estadisticas-e-indicadores/publicaciones/principales-cifras-siniestralidad/2017-2799_Summary_Main_figures_on_road_safety_data_Spain_2016_ACCESIBLE.pdf (accessed on 19 December 2019).
  12. DGT. Siniestralidad Vial. Available online: http://www.dgt.es/Galerias/seguridad-vial/estadisticas-e-indicadores/publicaciones/principales-cifras-siniestralidad/Las-principales-cifras-2016.pdf (accessed on 19 December 2019).
  13. Marqués, R.; Hernández-Herrador, V.; Calvo-Salazar, M.; García-Cebrián, J.A. How infrastructure can promote cycling in cities: Lessons from Seville. Res. Transp. Econ. 2015, 53, 31–44. [Google Scholar] [CrossRef]
  14. Chang, L.-Y.; Wang, H.-W. Analysis of traffic injury severity: An application of non-parametric classification tree techniques. Accid. Anal. Prev. 2006, 38, 1019–1027. [Google Scholar] [CrossRef]
  15. Halim, Z.; Kalsoom, R.; Bashir, S.; Abbas, G. Artificial intelligence techniques for driving safety and vehicle crash prediction. Artif. Intell. Rev. 2016, 46, 351–387. [Google Scholar] [CrossRef]
  16. Tang, T.; Zhu, S.; Guo, Y.; Zhou, X. Evaluating the safety risk of rural roadsides using a Bayesian network method. Int. J. Environ. Res. Public Health 2019, 16, 1166. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Sanmiquel, L.; Bascompta, M.; Garriga, J.M.R.; Anticoi, H. Analysis of occupational accidents in underground and surface mining in Spain using data-mining techniques. Int. J. Environ. Res. Public. Health. 2018, 15, 462. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. García-Herrero, S.; Gutierrez, J.M.; Herrera, S.; Azimian, A.; Mariscal, M.A. Sensitivity analysis of driver’s behavior and psychophysical conditions. Saf. Sci. (in press).
  19. García-Herrero, S.; Aldred, R.; Boig, E.A.; Saldaña, M.A.M. Vulnerability of Cyclists on the Road. a Probabilistic Analysis of the Database of Traffic Injuries in Spain Focusing on Type of Involved Vehicle and Driver Culpability. In Proceedings of the 29th European Safety and Reliability Conference, Hannover, Germany, 22–26 September 2019. [Google Scholar]
  20. Febres, J.D.; Mohamadi, F.; Mariscal, M.A.; Herrera, S.; García-Herrero, S. The Role of Journey Purpose in Road Traffic Injuries: A Bayesian Network Approach. J. Adv. Transp. 2019, 1–10. [Google Scholar] [CrossRef]
  21. García-Herrero, S.; Saldaña, M.A.M.; Beltrán, R.; Gutiérrez, J.M. Variables Influencing the Severity of Motorcycle and Moped Traffic Accidents in Spain. In Risk, Reliability and Safety. Innovating Theory and Practice; Walls, M.R.L., Bedford, T., Eds.; CRC Press Taylor & Francis Group: London, UK, 2017; p. 34. [Google Scholar]
  22. García-Herrero, S.; Lopez-Garcia, J.R.; Herrera, S.; Fontaneda, I.; Báscones, S.M.; Mariscal, M.A. The influence of recognition and social support on european health professionals’ occupational stress: A Demands-Control-Social Support-Recognition Bayesian Network Model. Biomed. Res. Int. 2017, 1–14. [Google Scholar] [CrossRef][Green Version]
  23. García-Herrero, S.; Mariscala, M.A.; García-Rodríguez, J.; Ritzel, D.O. Working conditions, psychological/physical symptoms and occupational accidents. Bayesian network models. Saf. Sci. 2012, 50, 1760–1774. [Google Scholar]
  24. Castro, Y.; Kim, Y.J. Data mining on road safety: Factor assessment on vehicle accidents using classification models. Int. J. Crashworthiness 2016, 21, 104–111. [Google Scholar] [CrossRef]
  25. Zong, F.; Xu, H.; Zhang, H. Prediction for traffic accident severity: Comparing the Bayesian network and regression models. Math. Probl. Eng. 2013, 1–9. [Google Scholar] [CrossRef]
  26. BOE. Orden INT/2223/2014, de 27 de octubre, por la que se regula la comunicación de la información al Registro Nacional de Víctimas de Accidentes de Tráfico. 2014. Available online: https://www.boe.es/eli/es/o/2014/10/27/int2223/dof/spa/pdf (accessed on 19 December 2019).
  27. BOE-A-2015-11722. Real Decreto Legislativo 6/2015, de 30 de octubre, por el que se aprueba el texto refundido de la Ley sobre Tráfico, Circulación de Vehículos a Motor y Seguridad Vial. 2015. Available online: https://www.boe.es/eli/es/rdlg/2015/10/30/6 (accessed on 19 December 2019).
  28. Buntine, W. Theory Refinement on Bayesian Networks. In Proceedings of the Seventh conference on Uncertainty in Artificial Intelligence, San Francisco, CA, USA, 13–15 July 1991. [Google Scholar]
  29. Schwarz, G. Estimating the Dimension of a Model. Ann. Statist. 1978, 6, 461–464. [Google Scholar] [CrossRef]
  30. Wit, E.; Heuvel, E.v.d.; Romeijn, J.-W. ‘All models are wrong…’: An introduction to model uncertainty. Stat. Neerl. 2012, 66, 217–236. [Google Scholar] [CrossRef][Green Version]
  31. Castillo, E.; Gutiérrez, J.M.; Hadi, A.S. Sensitivity analysis in discrete Bayesian networks. IEEE Trans. Syst. Man Cybern. Part A Syst. Humans 1997, 27, 412–423. [Google Scholar] [CrossRef][Green Version]
  32. Fawcett, T. An introduction to ROC analysis. Pattern. Recognit. Lett. 2006, 27, 861–874. [Google Scholar] [CrossRef]
  33. Kaplan, S.; Vavatsoulas, K.; Prato, C.G. Aggravating and mitigating factors associated with cyclist injury severity in Denmark. J. Saf. Res. 2014, 50, 75–82. [Google Scholar] [CrossRef] [PubMed]
  34. Bíl, M.; Bílová, M.; Müller, I. Critical factors in fatal collisions of adult cyclists with automobiles. Accid. Anal. Prev. 2010, 42, 1632–1636. [Google Scholar] [CrossRef]
  35. Høye, A. Bicycle helmets—To wear or not to wear? A meta-analyses of the effects of bicycle helmets on injuries. Accid. Anal. Prev. 2018, 117, 85–97. [Google Scholar] [CrossRef]
  36. Kim, J.-K.; Kimb, S.; Ulfarsson, G.F.; Porrello, L.A. Bicyclist injury severities in bicycle‑motor vehicle accidents. Accid. Anal. Prev. 2007, 39, 238–251. [Google Scholar] [CrossRef]
  37. Cleland, C.L.; McComb, K.; Kee, F.; Jepson, R.; Kelly, M.P.; Milton, K.; Nightingale, G.; Kelly, P.; Baker, G.; Craig, N.; et al. Effects of 20 mph interventions on a range of public health outcomes: A meta-narrative evidence synthesis. J. Transp. Health 2019. [Google Scholar] [CrossRef]
  38. Elvik, R.; Bjørnskau, T. Safety-in-numbers: A systematic review and meta-analysis of evidence. Saf. Sci. 2017, 92, 274–282. [Google Scholar] [CrossRef][Green Version]
  39. Shinar, D.; Shinar, D.; Valero-Mora, P.; van Strijp-Houtenbos, M.; Haworth, N.; Schramm, A.; De Bruyne, G.; Cavallo, V.; Chliaoutakis, J.; Dias, J.; et al. Under-reporting bicycle accidents to police in the COST TU1101 international survey: Cross-country comparisons and associated factors. Accid. Anal. Prev. 2018, 110, 177–186. [Google Scholar] [CrossRef]
  40. OECD/International Transport Forum. Cycling, health and safety; OECD Publishing/ITF: Paris, France, 2013. [Google Scholar]
  41. Llorca, C.; Angel-Domenech, A.; Agustin-Gomez, F.; Garcia, A. Motor vehicles overtaking cyclists on two-lane rural roads: Analysis on speed and lateral clearance. Saf. Sci. 2017, 92, 302–310. [Google Scholar] [CrossRef]

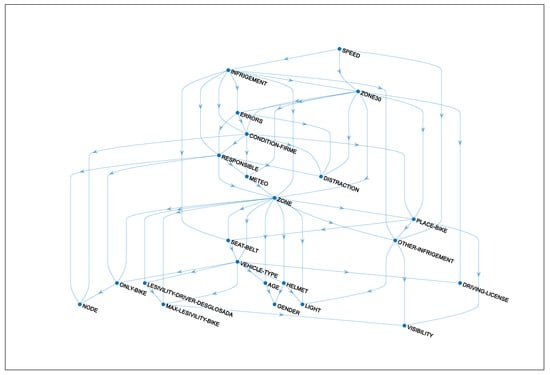

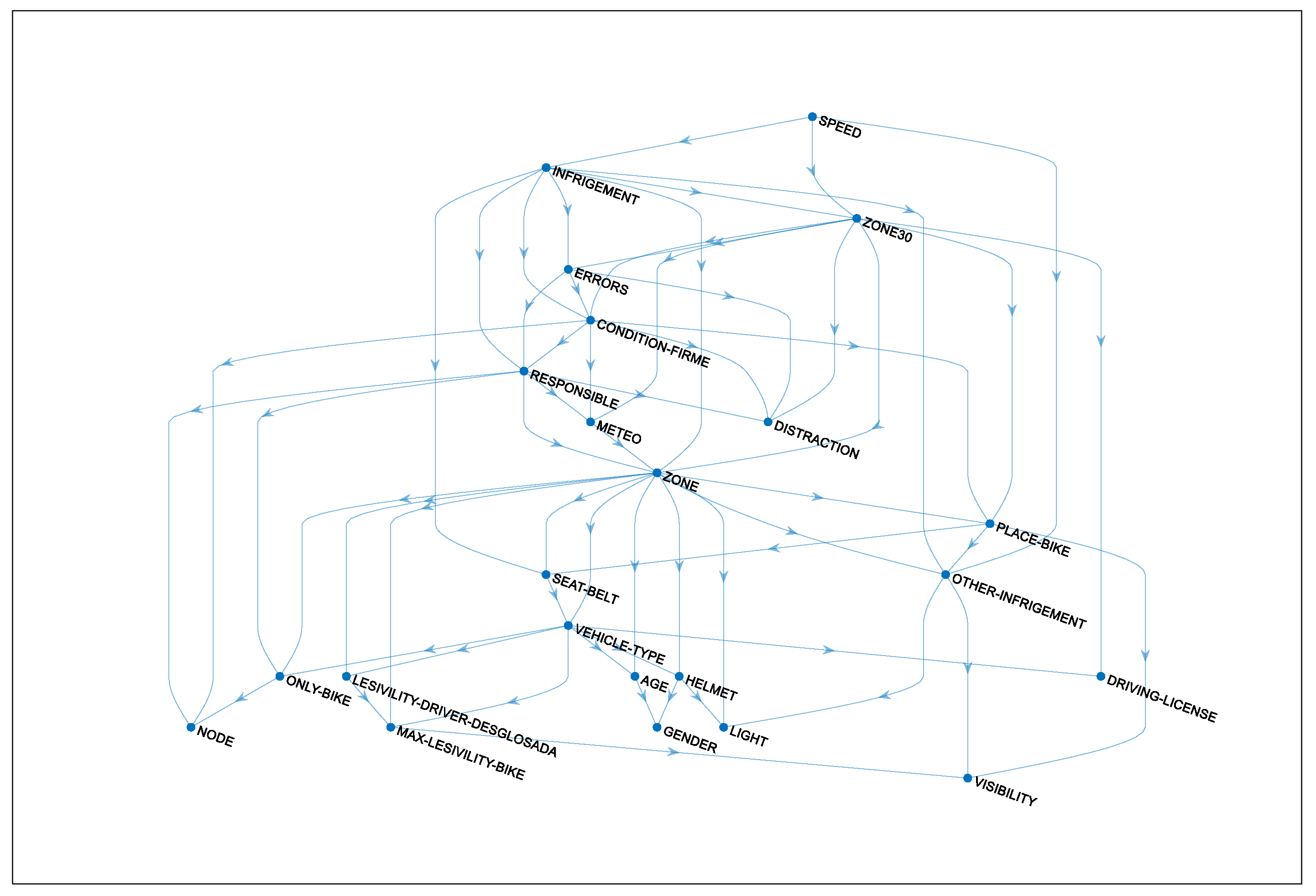

Figure 1. Directed acyclic graph obtained.
Figure 1. Directed acyclic graph obtained.
Ijerph 17 00096 g001
Table 1. Factors related to cyclists and to other road users in injured cyclist collisions.
Table 1. Factors related to cyclists and to other road users in injured cyclist collisions.
VariablesNº Total Cases% CasesNº Cases Cyclists% Cases CyclistsNº Cases Non Cyclists% Cases Non CyclistsComments
Vehicle involved in an incident in which a cyclist was injured
Bicycle748860.8%7488100.0%00.0%Bicycle
Car426234.6%00.0%426288.2%Car, van, SUV
Motorcycle3132.5%00.0%3136.5%Moped, motorcycle (125 cc)
Lorry/truck1551.3%00.0%1553.2%Truck, articulated truck, articulated vehicle
Bus530.4%00.0%531.1%Minibus (up to 17 passengers), bus, articulated bus
Others470.4%00.0%471.0%Other vehicles
Bicycle infrastructure present?
Yes5374.4%5277.0%100.2%Footway bicycle lane, bicycle lane, protected bicycle lane, “Pista-bici” (cycle track shared with pedestrians)
No580447.1%327343.7%253152.4%
Unknown597748.5%368849.3%228947.4%
Zone
Urban874071.0%513868.6%360274.6%Street
Inter-urban or urban highway357229.0%234431.3%122825.4%Highway/motorway, road, secondary road
Traffic calming (30 kph or less)
Yes12149.9%7029.4%51210.6%Residential, pedestrian areas, zone limited to 30 kph, any other area under speed reduction regulations
Others632951.4%384351.3%248651.5%Peri-urban area, ring roads
Unknown476938.7%293739.2%183237.9%
Intersection
Yes592448.1%320542.8%271956.3%At a junction
No638851.9%427757.1%211143.7%Not at a junction
Weather conditions
Clear932975.7%560674.9%372377.1%Clear day, sunny, not cloudy
Other7596.2%4506.0%3096.4%Cloudy, light rain, heavy rain, hailing, snowing
Unknown223018.1%143219.1%79816.5%
Surface
Good10,41384.5%624683.4%416786.3%Dry and clean
Others8677.0%5968.0%2715.6%Sandy or gravel, wet, waterlogged or flooded, icy, snowy, oily, other
Unknown10388.4%6468.6%3928.1%
Light
Good10,07281.8%618982.7%388380.4%Natural daylight
Others224018.2%129317.3%94719.6%Sunrise or sunset, night-time, without natural light, with artificial light or without artificial light or any light
Unknown60.0%60.1%00.0%
Visibility
Good361929.4%224530.0%137428.4%Good visibility
Others8617.0%5066.8%3557.3%Buildings, facilities or elements on the road, atmospheric factors, blinded by sun, artificial lighting or headlights of another vehicle, works, vegetation or trees, decorative elements, other objects on the road, panels and advertising, others
Unknown783863.6%473763.3%310164.2%
Age
<188186.6%80610.8%120.2%
18–25123410.0%84911.3%3858.0%
25–40835767.8%480064.1%355773.6%
40–60164813.4%87911.7%76915.9%
>602612.1%1542.1%1072.2%
Gender
Men976679.3%622383.1%354373.4%
Women246820.0%122316.3%124525.8%
Unknown840.7%420.6%420.9%
Driving licence
Yes268221.8%00.0%268255.5%Correct driving licence
No1941.6%00.0%1944.0%Not carrying a valid licence with them. Redeemed, inappropriate, timed out, cancelled or suspended, never had a licence, exhausted all licence points (in Spain there is a penalty points system for drivers)
Unknown944276.7%7488100.0%195440.5%
Seat-Belt
Yes293523.8%00.0%293560.8%Seat-belt fastened
No2301.9%00.0%2304.8%Seat-belt not fastened
Unknown or N/A915374.3%7488100.0%166534.5%
Helmet
Yes362729.4%336344.9%2645.5%Wearing a helmet or it was apparently expelled
No214817.4%213428.5%140.3%Not wearing a helmet
Unknown654353.1%199126.6%455294.2%
Infringement
No infraction440235.7%311941.7%128326.6%No presumed infraction
Yes260121.1%105714.1%154432.0%Not obeying the STOP sign, failing to "give away", not obeying the traffic light, not obeying generic priority rule, not respecting a signalised pedestrian crossing, not obeying the indications of an agent, not obeying other priority signs of way, partially invading the opposite direction, zigzagging, turning or changing direction illicitly, illicit driving in reverse gear, stopping without a due cause, not keeping the safety distance, stopping or parking when forbidden or dangerous, not indicating or wrongly indicating a manoeuvre, driving in the wrong direction, driving in a prohibited space, participating in unauthorised competitions or races
Unknown531543.1%331244.2%200341.5%
Speed
No infraction624950.7%376450.3%248551.4%Adequate speed
Yes3032.5%2483.3%551.1%Inadequate speed for road conditions, exceeding the established speed or going too slowly/hindering circulation
Unknown576646.8%347646.4%229047.4%
Other infringement
No infraction473038.4%286538.3%186538.6%No infractions
Yes2011.6%1151.5%861.8%Not using adequate lights, dazzling headlights, badly conditioned load, excess of load, load detachment, opening doors without precaution, excess of occupants, another infraction
Unknown738760.0%450860.2%287959.6%
Responsible
No337427.4%234531.3%102921.3%The driver/rider is not responsible
Yes435935.4%218129.1%217845.1%The driver/rider is responsible
Unknown458537.2%296239.6%162333.6%
Distraction
No307124.9%195126.1%112023.2%No distracting factors
Yes3773.1%2142.9%1633.4%Use of mobile phone, use of hand-free devices, use of GPS devices, radio or music on, watching DVD or video device, wearing headphones, smoking, simultaneous driving activities (eating, drinking, finding objects…), interacting with other occupants, distracted by a previous collision, looking at the environment (landscape, advertising, signs...), lost in thought or absent minded, sleep, fatigue, sudden illness, indisposition
Unknown887072.0%532371.1%354773.4%
Errors
No330326.8%227530.4%102821.3%No errors
Yes204416.6%96012.8%108422.4%Failing to see a road sign, failing to see a vehicle/pedestrian/obstacle, not understanding a road sign or confused by it, hesitation or delay in making a decision, incorrect execution of a manoeuvre or inadequate manoeuvre, forgetting to signalise (with the vehicle indicators or lights…)
Unknown697156.6%425356.8%271856.3%
Seriously injured or killed?
No1152193.5%671189.6%481099.6%Moderately injured or uninjured in the collision
Yes7976.5%77710.4%200.4%Seriously injured or killed in the collision
Incident involving one or more motor vehicles?
Yes967878.6%488065.2%479899.3%Motor vehicles involved in the collision
No260821.2%260834.8%00.0%No motor vehicles involved in the collision
Table 2. Injured cyclist collisions.
Table 2. Injured cyclist collisions.
Type of InjuryDrivers or Riders Involved In a Collision in Which One or More Cyclists were InjuredCyclistsOther Road Users (Motorists)
Uninjured4884258 (3.4%)4626 (95.8%)
Slightly injured66376453 (86.2%)184 (3.8%)
Seriously injured728711 (9.5%)17 (0.4%)
Killed6966 (0.9%)3 (0.1%)
Total 74884830
Table 3. Probability of cyclist KSI risk associated with different general variables.
Table 3. Probability of cyclist KSI risk associated with different general variables.
FactorVariablesKSI
Other vehicle involvementNo motor vehicles involved0.120
Car0.101
Motorcycle0.081
Truck0.239
Bus0.133
Others0.238
Bicycle infrastructure presentYes0.088
No0.122
ZoneUrban0.079
Inter-urban or urban highway0.190
Traffic calming (30 kph or less)Yes0.083
No0.119
IntersectionYes0.110
No0.111
WeatherClear0.116
Other0.113
SurfaceGood0.113
Other0.114
LightGood0.114
Other0.095
VisibilityGood0.203
Other0.270
Table 4. Probability of cyclists KSI. Effect of variables related to cyclists and to other drivers/riders.
Table 4. Probability of cyclists KSI. Effect of variables related to cyclists and to other drivers/riders.
VariablesValueKSI
Age
Cyclist<180.093
18–250.094
25–400.115
40–600.128
>600.091
Motorist<180.160
18–250.107
25–400.108
40–600.122
>600.089
Gender
CyclistMen0.113
Women0.101
MotoristMen0.111
Women0.108
Seat-belt
MotoristYes0.109
No0.118
Driving-Licence
MotoristYes0.113
No0.112
Helmet
CyclistYes0.142
None0.108
MotoristYes0.136
None0.161
Infringement
Cyclistno infraction0.115
Yes0.112
Motoristno infraction0.114
Yes0.113
Speed
Cyclistno infraction0.115
speed infraction0.116
Motoristno infraction0.114
speed infraction0.113
Other Infringement
Cyclistno infraction0.123
Yes0.097
Motoristno infraction0.119
Yes0.106
Responsible
Cyclistno 0.116
Yes0.109
Motoristno 0.111
Yes0.112
Distraction
Cyclistno 0.119
Yes0.126
Motoristno 0.119
Yes0.123
Errors
Cyclistno 0.118
Yes0.123
Motoristno 0.117
Yes0.120
Table 5. Probability of collision locations. An analysis by different vehicle types.
Table 5. Probability of collision locations. An analysis by different vehicle types.
Bicycle InfrastructureYesNo
Bicycle0.0570.447
Car0.0220.513
Motorcycle0.0520.447
Truck0.0180.569
Bus0.0230.486
Others0.0240.571
Urban ZoneUrban ZoneNon-Urban (or major)
Bicycle0.6930.307
Car0.7540.246
Motorcycle0.8360.164
Truck0.4660.534
Bus0.7560.244
Others0.5530.447
‘30 zone’YesNo
Bicycle0.0930.520
Car0.1080.503
Motorcycle0.1100.530
Truck0.0700.577
Bus0.1050.537
Others0.0800.614
Table 6. KSI risk by place, for different involved vehicle.
Table 6. KSI risk by place, for different involved vehicle.
KSIUrbanNon-Urban
Car0.0770.176
Motorcycle0.0550.211
Truck0.1410.325
Bus0.0770.308
Others0.2000.286
KSIZone 30Others
Car0.0790.110
Motorcycle0.0580.093
Truck0.1560.258
Bus0.0830.149
Others0.2060.248
Table 7. KSI risk by involvement or not of motor vehicles, and presence of cycling infrastructure.
Table 7. KSI risk by involvement or not of motor vehicles, and presence of cycling infrastructure.
KSIBicycle InfrastructureNo Bicycle Infrastructure
Collision involving motor vehicles0.0860.118
Collision not involving motor vehicles0.0960.136

Share and Cite

MDPI and ACS Style

Aldred, R.; García-Herrero, S.; Anaya, E.; Herrera, S.; Mariscal, M.Á. Cyclist Injury Severity in Spain: A Bayesian Analysis of Police Road Injury Data Focusing on Involved Vehicles and Route Environment. Int. J. Environ. Res. Public Health 2020, 17, 96. https://doi.org/10.3390/ijerph17010096

AMA Style

Aldred R, García-Herrero S, Anaya E, Herrera S, Mariscal MÁ. Cyclist Injury Severity in Spain: A Bayesian Analysis of Police Road Injury Data Focusing on Involved Vehicles and Route Environment. International Journal of Environmental Research and Public Health. 2020; 17(1):96. https://doi.org/10.3390/ijerph17010096

Chicago/Turabian Style

Aldred, Rachel, Susana García-Herrero, Esther Anaya, Sixto Herrera, and Miguel Ángel Mariscal. 2020. "Cyclist Injury Severity in Spain: A Bayesian Analysis of Police Road Injury Data Focusing on Involved Vehicles and Route Environment" International Journal of Environmental Research and Public Health 17, no. 1: 96. https://doi.org/10.3390/ijerph17010096

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
