Advanced Hepatitis C Virus Replication PDE Models within a Realistic Intracellular Geometric Environment

Abstract

The hepatitis C virus (HCV) RNA replication cycle is a dynamic intracellular process occurring in three-dimensional space (3D), which is difficult both to capture experimentally and to visualize conceptually. HCV-generated replication factories are housed within virus-induced intracellular structures termed membranous webs (MW), which are derived from the Endoplasmatic Reticulum (ER). Recently, we published 3D spatiotemporal resolved diffusion–reaction models of the HCV RNA replication cycle by means of surface partial differential equation (sPDE) descriptions. We distinguished between the basic components of the HCV RNA replication cycle, namely HCV RNA, non-structural viral proteins (NSPs), and a host factor. In particular, we evaluated the sPDE models upon realistic reconstructed intracellular compartments (ER/MW). In this paper, we propose a significant extension of the model based upon two additional parameters: different aggregate states of HCV RNA and NSPs, and population dynamics inspired diffusion and reaction coefficients instead of multilinear ones. The combination of both aspects enables realistic modeling of viral replication at all scales. Specifically, we describe a replication complex state consisting of HCV RNA together with a defined amount of NSPs. As a result of the combination of spatial resolution and different aggregate states, the new model mimics a cis requirement for HCV RNA replication. We used heuristic parameters for our simulations, which were run only on a subsection of the ER. Nevertheless, this was sufficient to allow the fitting of core aspects of virus reproduction, at least qualitatively. Our findings should help stimulate new model approaches and experimental directions for virology.

1. Introduction

Viral infections are a major challenge to human health and prosperity. This is not only true for acute outbreaks, e.g., of Ebola infections with high public awareness, but also true for chronic infections that have a major impact on health care management. Infection with the Hepatitis C virus (HCV) [1] causes chronic liver diseases such as liver cirrhosis and liver carcinoma. As chronic infection with HCV affects 2–3 % of the World population, HCV is the main reason for liver transplantations in the Western World [2]. Consequently, HCV receives extensive attention in the scientific research community [1,3,4]. There is no HCV vaccine available but substantial progress has been made in the development of direct acting antiviral agents (DAAs) [5], which specifically target certain virus-encoded gene proteins (e.g., the HCV protease and polymerase). However, there is still considerable room for deeper “mechanistic” insight into the HCV replication cycle. This includes spatiotemporal analysis of HCV RNA translation, replication, and assembly as well as the understanding of the involvement of host factors in these processes [6]. Deeper knowledge of these processes may also have implications for the understanding of fundamental virus–host interactions of related viruses.

Previous mathematical/biophysical models describing HCV replication dynamics at an intracellular level focused on kinetic compartment models (see, e.g., [7,8,9,10,11,12,13,14,15,16,17,18,19]). (Ordinary differential equation (ODE) systems are the basis of kinetic compartment models.) These investigations led to important new insights; however, data and model approaches on single cell HCV RNA kinetics are still limited [20].

Recent experimental work has already generated insight into more detailed spatiotemporal resolved processes of the HCV replication (see, e.g., [3,20,21]). Nevertheless, there is still a limited understanding of the basic processes leading to HCV RNA replication. (Note that viral RNA is sometimes also called “vRNA”). Furthermore, spatial resolution of these processes has received little attention in modeling simulations to date, although strong biological evidence suggests that intracellular spatial dependence is a crucial factor in the process HCV uses to replicate its genome [3,22,23]. Specifically, HCV genome replication occurs in specialized compartments within virus-infected cells called replication complexes (RCs). These RCs are housed within membranous webs (MW), which are built from altered regions of the Endoplasmic Reticulum (ER) [1,3,24,25,26,27].

Formation, function, and trafficking of replication complexes, and their components (viral proteins, HCV RNA, and host factors), is a dynamic process occurring in three dimensions [20,28]. The importance of spatial dynamic patterns of one of the key components of HCV replication and virus assembly (the virus-encoded NS5A protein) is evidenced through the abrogation of HCV replication following application of NS5A inhibitors (NS5aIs) [29,30]. This leads to a spatial redistribution of NS5a [31] and also changes its mobility properties [32,33], which likely contributes to the antiviral effects of the compounds.

In a recent paper [34], we not only gave an overview on spatial virus models and simulations at higher scales, but also introduced fully 3D resolving spatiotemporal models of the HCV RNA replication cycle of HCV. Our starting point was the introduction of spatiotemporal resolved models mimicking the core elements and components of the HCV RNA replication cycle of HCV within a realistic geometric environment at the intracellular level. This HCV RNA replication cycle model consists of a set of surface partial differential equations (sPDEs). However, due to a lack of adequate parameters for the diffusion–reaction equations, the model is more qualitative than quantitative. Therefore, we also built up a modeling framework to estimate the diffusion constant of the HCV NS5A viral protein on the ER surface [35,36,37]. Overall, our previous work on modeling the HCV RNA replication cycle [34] and first spatial parameter estimation [35,36,37] are likely the first attempts in the literature to establish a fully spatiotemporally resolved biophysical description of virus dynamics at an intracellular level.

However, the spatial model described previously [34] focuses on a simplified diffusion-reaction model of the HCV RNA replication cycle. Model parameters include multilinear coefficients leading, e.g., to unrealistic fast depletion of host factors. Furthermore, there is biological evidence that the function of viral (+) strand RNA should be differentiated not only according to the spatial resolution, but also according to the specific role (translation, replication or packaging [20,38]).

Therefore, the scope of this manuscript is to extend our previously published mathematical model of HCV RNA replication dynamics [34]. The new set of sPDEs modeling the HCV RNA cycle overcomes the limitation of multilinear diffusion and reaction coefficients and differentiates between the function of HCV RNA and also between the function of NSPs. Our model was evaluated using the simulation platform UG4 within a Finite Volume method (FV) [39,40]. Using fast multigrid solvers [41], our in silico model was evaluated on fast, massively parallel supercomputers [37]. Despite the more realistic approach and extension of the previous models, most of the parameters are still defined heuristically. Although our simulations were run only on part of the intracellular ER, the new model is now flexible enough to allow adjustments to experimental situations, as in [42,43], and the interplay between in silico and in vitro/in vivo investigations might even suggest new experiments for a deeper understanding of virus dynamics.

2. Materials, Methods and Models

2.1. Basis of Spatio-Temporal Resolved HCV RNA Replication Cycle Model Development

Experimental approaches in HCV research first focused on studying the HCV RNA replication cycle [1] and subsequently upon viral assembly [6,44]. The basis of our in silico framework is to translate the knowledge from experimental research on the HCV RNA replication cycle into a spatiotemporal resolved mathematical description. Therefore, we start with a realistically reconstructed part of cell environment, namely the ER surface. This enables us to model active and passive transport phenomena undergone by viral components on the ER surface using adequate surface grids.

2.2. Hepatoma Cells Used as Basis for Geometry Reconstruction

Huh-7 cells (derived from human hepatoma, non-polarized) were propagated in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal calf serum as described previously [45]. Huh-7 cells were infected with HCV strain JFH-1 and analyzed using confocal microscopy as described by Targett-Adams et al. [22]. We note that these experimental data were generated within a former study.

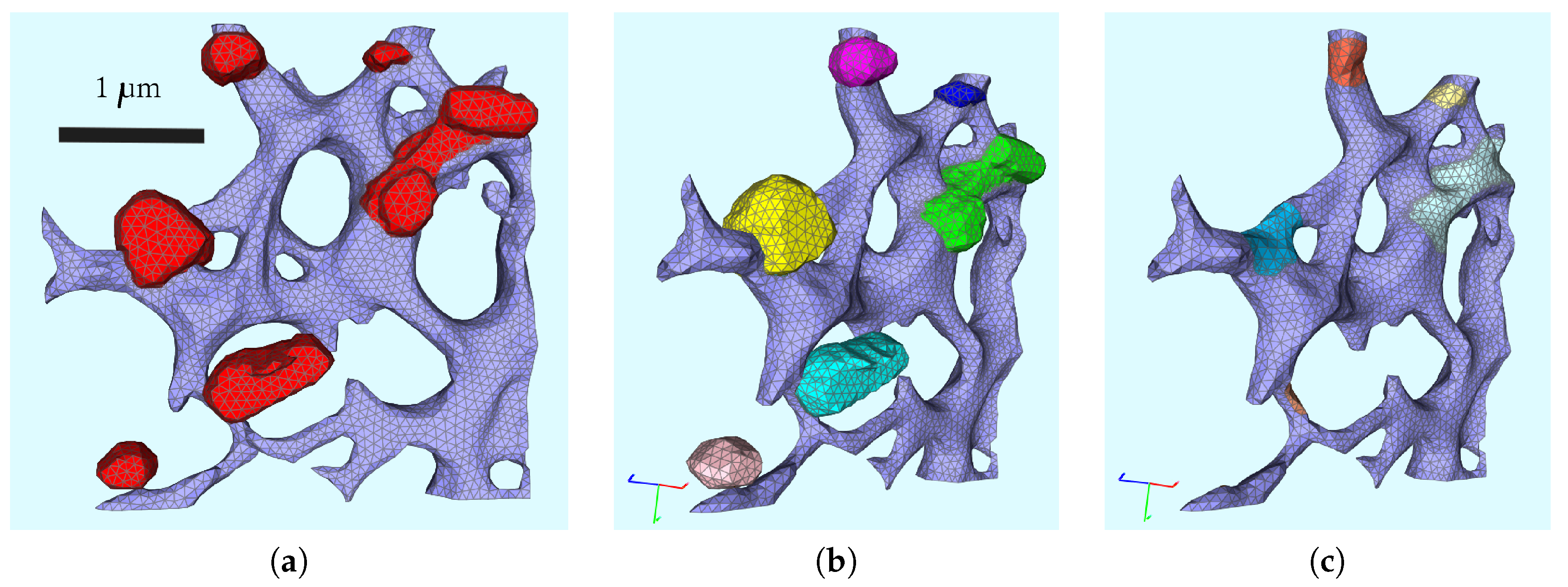

2.3. The Geometric Base for the Model

We used fluorescence z-stacks of the cells described directly before (cf. Section 2.2), labeled for the ER surface (calnexin marker) and for the MWs (dsRNA marker). Based on these z-stacks, we used the reconstructed various realistic ER surfaces as described previously [35,36,37] with the aid of NeuRA2 [35,36,46,47]. (For a brief overview over the reconstruction procedure, we refer to Appendix H.) The geometric setup of this study was based on the setup that we described in our former paper [34]. In brief, our spatially resolved model was evaluated on a small subsection of the ER, as shown in Figure 1a.

We denote by $\mathcal{D}=\mathcal{E}\cup \mathcal{W}$ the surface obtained by the union of the surface of the ER, $ℰ$, and the boundaries of the (seven) unconnected MW regions, i.e., $\mathcal{W}={\cup }_{i=1}^7{\mathcal{W}}_i$ (see Figure 1, where the web regions ${\mathcal{W}}_i$, $i=1,1,2,\dots ,7$, are marked in red). The ER surface and each ${\mathcal{W}}_i$ define a subdomain. For each $i=1,2,\dots ,7$, the intersection ${\mathcal{R}}_i=\mathcal{E}\cap {\mathcal{W}}_i$ is a subdomain referred to as a ribosomal region. We also set $\mathcal{R}={\cup }_{i=1}^7{\mathcal{R}}_i$. The single subdomains depicted with different colors pairwise are shown in Figure 1b. Each of the separated MW regions defines a subdomain, as well as the ER surface, whereas the ribosomal regions are the “root” regions of the ER surface where the MWs are located on top, i.e., the intersection of the MW surface and the ER surface. The single subdomains depicted with different colors pairwise are shown in Figure 1c. The ribosomes are located at the intersection of the ER surface and experimentally defined web regions reflecting the experimental observation of the MW generation close to the NSP creation, ${\mathcal{R}}_i=\mathcal{E}\cap {\mathcal{W}}_i$. Therefore, we define the intersection surface of each MW surface region ${\mathcal{W}}_i$ and the ER surface $ℰ$ to be the ribosomal region ${\mathcal{R}}_i$.

The rectangular hexahedron enclosing the subsection of the triangular surface mesh is $3.45\mathsf{\mu }$m long, $3.36\mathsf{\mu }$m high, and $0.87\mathsf{\mu }$m deep.

2.4. First Simplified sPDE Model

In our former study [34], we introduced a first sPDE model of the HCV RNA cycle upon the afore-mentioned geometric setup. In particular, we assumed that the diffusion process of the viral proteins takes place only on the ER surface and on the surface of the MW regions. The mathematical description of the HCV RNA movement, protein translation, NSP movement, accumulation, and clustering of the NSPs within the geometric MW regions (as reconstructed from the data), HCV RNA copying, and the movement of the new HCV RNA to the ribosomal regions to produce new NSP were summarized by a model with four compartments, which are all regarded as functions of space ($x\in \mathcal{D}\subset {\mathbb{R}}^3$) and time:

• $R(x,t)$, concentration of HCV RNA
• $P(x,t)$, concentration of the viral polyprotein
• $W(x,t)$, concentration of the web protein
• $H(x,t)$, host factor concentration

We assumed that the “web proteins” are NSPs originating from the cleaved polyprotein and accumulating at the MW regions. The MW regions are defined geometrically by means of the subdomains which arise from the reconstructions of the stained cell data. The accumulation of the “web proteins” (inside the geometrically defined MW regions) forms the entire functional MW. The spatiotemporal evaluation of R, P, W, and H is thus modeled by the nonlinear coupled surface PDEs (sPDEs) together with appropriate initial and boundary conditions:

$$\begin{array}{cc}\hfill {\partial }_{t}R& ={\mathrm{div}}_{\mathrm{T}}\left(D_R{\nabla }_{\mathrm{T}}R\right)+r_{1}WHR,\hfill \end{array}$$

(1a)

$$\begin{array}{cc}\hfill {\partial }_{t}P& ={\mathrm{div}}_{\mathrm{T}}\left(D_P{\nabla }_{\mathrm{T}}P\right)+r_{2}R-r_{3}P,\hfill \end{array}$$

(1b)

$$\begin{array}{cc}\hfill {\partial }_{t}W& ={\mathrm{div}}_{\mathrm{T}}\left(D_W{\nabla }_{\mathrm{T}}W\right)+r_{3}P,\hfill \end{array}$$

(1c)

$$\begin{array}{cc}\hfill {\partial }_{t}H& ={\mathrm{div}}_{\mathrm{T}}\left(D_H{\nabla }_{\mathrm{T}}H\right)-r_{4}WHR,\hfill \end{array}$$

(1d)

where $D_R$, $D_P$, $D_W$, and $D_H$ are the piecewise constant diffusion coefficients of the aforementioned quantities and the reaction rates, $r_i\left(x\right)$, $i=1,2,3,4$, were piecewise constant functions [34].

Here, ${\mathrm{div}}_{\mathrm{T}}$ and ${\nabla }_{\mathrm{T}}$ are the tangential divergence and tangential gradient operators, respectively. Note that the diffusion–reaction laws (Equations (1a)–(1d)) are surface differential equations describing the diffusion and reaction processes occurring on the membranes of the ER. The surface diffusion is governed by the Laplace–Beltrami operator, i.e., the projection of the Laplace operator to the tangential space of the two-dimensional ER-hypersurface $ℰ$, which is embedded into the complete 3D space [48]. (For more detailed explanations and insight into motivations of the mathematical operators div${}_T$ and ${\nabla }_T$, we refer to the Appendix G).

In our former paper [34], we also introduced the following notation: Given a (scalar) physical quantity $f:\mathcal{D}\to \mathbb{R}$ and a non-empty set $\mathsf{{\rm Y}}\in \mathcal{D}$, we write ${\left[f\right]}_{\mathsf{{\rm Y}}}$ to indicate the restriction of f to the set in which it is nonzero. This is done to visualize more clearly when f has to be evaluated. Hence, Equations (1a)–(1d) become

$$\begin{array}{cc}\hfill {\partial }_{t}R& ={\mathrm{div}}_{\mathrm{T}}\left(D_R{\nabla }_{\mathrm{T}}R\right)+{\left[r_{1}RWH\right]}_{\mathcal{W}\cup \mathcal{R}}\hfill \end{array}$$

(2a)

$$\begin{array}{cc}\hfill {\partial }_{t}P& ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_P{\nabla }_{\mathrm{T}}P\right)+r_{2}R-r_{3}P\right]}_{\mathcal{R}}\hfill \end{array}$$

(2b)

$$\begin{array}{cc}\hfill {\partial }_{t}W& ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_W{\nabla }_{\mathrm{T}}W\right)\right]}_{\mathcal{W}\cup \mathcal{R}}+{\left[r_{3}P\right]}_{\mathcal{R}}\hfill \end{array}$$

(2c)

$$\begin{array}{cc}\hfill {\partial }_{t}H& ={\mathrm{div}}_{\mathrm{T}}\left(D_H{\nabla }_{\mathrm{T}}H\right)-{\left[r_{4}RWH\right]}_{\mathcal{W}\cup \mathcal{R}}\hfill \end{array}$$

(2d)

2.5. Extension of the sPDE Model Approach

The sPDE model in Equations (2a)–(2d), has the previously mentioned limitations. As in existing models based on ODEs (see, e.g., [7,8,18]), the reaction term $r_{1}RWH$ is a multilinear function of $R,W$ and H. This may be plausible for sufficiently small concentrations $R,W$ and H but is now replaced by more realistic terms.

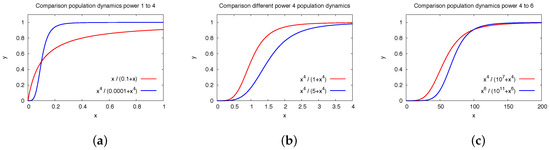

We use concentration dependent reaction terms in Equations (2a)–(2d) to provide more accurate expressions of these quantities. In particular, the new reaction terms tend towards zero for vanishing concentrations and they approach constant values for increasing concentrations. Therefore, the reaction terms $r_{1}WHR$ and $r_{4}WHR$ are replaced by

$$\begin{array}{c}{\widehat{r}}_1(W,H)R={\overline{r}}_1\frac{H^n}{H^n+H_0^n}\frac{W^m}{W^m+W_0^m}R,\hfill \end{array}$$

(3a)

$$\begin{array}{c}{\widehat{r}}_4(W,H)R={\overline{r}}_4\frac{H^n}{H^n+H_0^n}\frac{W^m}{W^m+W_0^m}R\hfill \end{array}$$

(3b)

with constants ${\overline{r}}_1$ and ${\overline{r}}_4$, the exponents n and m being positive integers, and the constants $H_0$ and $W_0$ being reference values of the host factor and web protein concentration, respectively. Then, Equations (2a)–(2d) are replaced by

$$\begin{array}{cc}\hfill {\partial }_{t}R& ={\mathrm{div}}_{\mathrm{T}}\left(D_R{\nabla }_{\mathrm{T}}R\right)+{\left[{\widehat{r}}_{1}R\right]}_{\mathcal{W}},\hfill \end{array}$$

(4a)

$$\begin{array}{cc}\hfill {\partial }_{t}P& ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_P{\nabla }_{\mathrm{T}}P\right)\right]}_{\mathcal{R}}+{[r_{2}R-r_{3}P]}_{\mathcal{R}},\hfill \end{array}$$

(4b)

$$\begin{array}{cc}\hfill {\partial }_{t}W& ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_W{\nabla }_{\mathrm{T}}W\right)\right]}_{\mathcal{W}\cup \mathcal{R}}+{\left[r_{3}P\right]}_{\mathcal{R}},\hfill \end{array}$$

(4c)

$$\begin{array}{cc}\hfill {\partial }_{t}H& ={\mathrm{div}}_{\mathrm{T}}\left(D_H{\nabla }_{\mathrm{T}}H\right)-{\left[{\widehat{r}}_{4}R\right]}_{\mathcal{W}}.\hfill \end{array}$$

(4d)

Note that Equations  (3a) and (3b) imply that the reaction terms ${\widehat{r}}_1(H,W)$ and ${\widehat{r}}_4(H,W)$ are zero when either H or W is zero. Such conditions hold true, for instance, in the case of the depletion of the host factor described in Equation (4d). Further, these expressions tend to the constant values ${\overline{r}}_1$ and ${\overline{r}}_4$, respectively, in the limits $H_0/H\to 0$ or $W_0/W\to 0$. This process is independent of H, when the ratio $H_0^n/H^n$ tends towards zero, implying that the depletion rate is independent of H when H is sufficiently higher than the reference value $H_0$.

Additionally, the new model distinguishes between different states of the components, e.g., differentiates between HCV RNA bound to ribosomes and HCV RNA that gets replicated inside of the webs. At the beginning of the HCV RNA replication process, the HCV RNA is assumed to be bound at one ribosomal region ${\mathcal{R}}_i$ and may not diffuse outside of it. Moreover, this HCV RNA causes the ribosomes to translate the polyprotein, which is also allowed to diffuse only within the ribosomal region. The concentration of the HCV RNA bound to the ribosomes is denoted by $R_{\mathrm{r}}$ and the concentration of the polyprotein is described by P. The polyprotein is cleaved into two viral proteins, namely the web protein, with concentration W, and another protein (e.g., the non-structural protein 5a, NS5a) with concentration N. The web protein is allowed to diffuse within the ribosomal region and the geometrically defined MW subdomain ${\mathcal{W}}_i$, and forms the MW within this experimentally defined region. The non-structural protein NS5a, instead, may diffuse freely over the ER surface $ℰ$ and the ribosomal regions $\mathcal{R}$.

We start with modeling the replication complex (RC) represented by the concentration C as being formed by HCV RNA together with a certain amount of web proteins. This RC may diffuse within the ribosomal region and the MW. The replication process within the RC produces free HCV RNA, $R_{\mathrm{f}}$ while consuming also a not further specified host factor H during this process. The free HCV RNA may diffuse through the entire domain $𝒟$. Besides this, some parts of it will be bound again to the same ribosomal region before escaping. Other parts will diffuse on the ER surface to other ribosomal regions to start the same process that we have observed at the first web: the free HCV RNA is caught at the next ribosomal region to form ribosomal bound HCV RNA, which translates polyproteins, the polyproteins split into the NSPs which create the MW, and so on.

The diffusion coefficients are modeled in a way that they depend not only on the subdomain, but also on the concentration of viral components and host factor. In addition, various processes will only be allowed if enough host factor is still available, i.e., H acts as some sort of catalyst for various steps. Hence, the diffusion–reaction equations (Equations (4a)–(4d)) are rewritten as

$$\begin{array}{cc}{\partial }_t{R}_{\mathrm{r}}\hfill & ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_{R_{\mathrm{r}}}{\nabla }_{\mathrm{T}}{R}_{\mathrm{r}}\right)\right]}_{\mathcal{R}}+{\left[{\tilde{r}}_1{R}_{\mathrm{f}}\frac{H^i}{H^i+F_1}-{\tilde{r}}_2{R}_{\mathrm{r}}\frac{R_r^p}{R_r^p+F_0}\frac{W^j}{W^j+F_2}\frac{H^k}{H^k+F_3}\right]}_{\mathcal{R}}\hfill \end{array}$$

(5a)

$$\begin{array}{cc}{\partial }_{t}P\hfill & ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_P{\nabla }_{\mathrm{T}}P\right)\right]}_{\mathcal{R}}+{\left[{\tilde{r}}_4{R}_{\mathrm{r}}\frac{R_r^p}{R_r^p+F_0}\frac{H^q}{H^q+F_6}\right]}_{\mathcal{R}}-{\left[{\tilde{r}}_{5}P\right]}_{\mathcal{R}}\hfill \end{array}$$

(5b)

$$\begin{array}{cc}{\partial }_{t}N\hfill & ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_N{\nabla }_{\mathrm{T}}N\right)\right]}_{\mathcal{R}\cup \mathcal{E}}+{\left[{\tilde{r}}_{5}P\right]}_{\mathcal{R}}\hfill \end{array}$$

(5c)

$$\begin{array}{cc}{\partial }_{t}W\hfill & ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_W{\nabla }_{\mathrm{T}}W\right)\right]}_{\mathcal{W}\cup \mathcal{R}}+{\left[{\tilde{r}}_{5}P-v{\tilde{r}}_2{R}_{\mathrm{r}}\frac{R_r^p}{R_r^p+F_0}\frac{W^j}{W^j+F_2}\frac{H^k}{H^k+F_3}\right]}_{\mathcal{R}}\hfill \end{array}$$

(5d)

$$\begin{array}{cc}{\partial }_{t}C\hfill & ={\left[{\mathrm{div}}_{\mathrm{T}}\left(D_C{\nabla }_{\mathrm{T}}C\right)\right]}_{\mathcal{W}\cup \mathcal{R}}+{\left[{\tilde{r}}_2{R}_{\mathrm{r}}\frac{R_r^p}{R_r^p+F_0}\frac{W^j}{W^j+F_2}\frac{H^k}{H^k+F_3}\right]}_{\mathcal{R}}\hfill \end{array}$$

(5e)

$$\begin{array}{cc}{\partial }_t{R}_{\mathrm{f}}\hfill & ={\mathrm{div}}_{\mathrm{T}}\left(D_{R_{\mathrm{f}}}{\nabla }_{\mathrm{T}}{R}_{\mathrm{f}}\right)+{\left[{\tilde{r}}_{6}C\frac{H^m}{H^m+F_4}\frac{W^n}{W^n+F_5}\right]}_{\mathcal{W}}-{\left[{\tilde{r}}_1{R}_{\mathrm{f}}\frac{H^i}{H^i+F_1}\right]}_{\mathcal{R}}\hfill \end{array}$$

(5f)

$$\begin{array}{cc}{\partial }_{t}H\hfill & ={\mathrm{div}}_{\mathrm{T}}\left(D_H{\nabla }_{\mathrm{T}}H\right)-{\left[{\tilde{r}}_{3}C\frac{H^m}{H^m+F_4}\frac{W^n}{W^n+F_5}\right]}_{\mathcal{W}}\hfill \end{array}$$

(5g)

The parameters and coefficients of this system have the following characteristics: The exponents i, j, k, m, n, p, and q are positive integers, ${\tilde{r}}_1,\dots ,{\tilde{r}}_6$ are real constants with physical units $\left[{\mathrm{s}}^{-1}\right]$ and represent the characteristic values of the reaction terms in Equations (5a)–(5g). The parameter $v>1$ is a real constant introduced to highlight the fact that the adsorption rate of the web-proteins must be larger then that pertaining to the ribosomal HCV RNA (in fact, $v\gg 1$). The parameters $F_0,\dots ,F_6$ are all positive and therefore cause that the reaction rates have constant asymptotic values for increasing values of the species concentration. The diffusion coefficients $D_{R_{\mathrm{r}}}$, $D_P$, $D_N$, and $D_W$ are taken as constants, whereas $D_C$, $D_{R_{\mathrm{f}}}$, and $D_H$ are concentration dependent and are given by

$$\begin{array}{c}{D}_C:={\widehat{D}}_C\left(W\right)=D_C^{\left(0\right)}\frac{W}{W+F_7},\hfill \end{array}$$

(6a)

$$\begin{array}{c}{D}_{R_{\mathrm{f}}}:={\widehat{D}}_{R_{\mathrm{f}}}(W,N)=D_{R_{\mathrm{f}}}^{\left(0\right)}\left[\mathfrak{F}\frac{N}{N+F_8}+\frac{W}{W+F_9}\right],\hfill \end{array}$$

(6b)

$$\begin{array}{c}{D}_H:={\widehat{D}}_H(W,N)=D_H^{\left(0\right)}\left[\mathfrak{G}\frac{N}{N+F_{10}}+\frac{W}{W+F_{11}}\right].\hfill \end{array}$$

(6c)

In Equations (6a)–(6c), $D_C^{\left(0\right)}$, $D_{R_{\mathrm{f}}}^{\left(0\right)}$, and $D_H^{\left(0\right)}$ are constant diffusion coefficients, and $\mathfrak{F}$ and $\mathfrak{G}$ are model parameters tuning the influence of the terms $N/(N+F_8)$ and $N/(N+F_{10})$ on $D_{R_{\mathrm{f}}}$ and $D_H$, respectively, and $F_7,\dots ,F_{11}$ have an equivalent meaning, similar to $F_0,\dots ,F_6$.

Equations (5a)–(5g) are solved by enforcing Neumann zero boundary condition on $\partial \mathcal{D}$ and employing the initial conditions

$$\begin{array}{cc}\hfill R_{\mathrm{r}}(x,t_0)& =\left\{\begin{array}{cc}{R}_{\mathrm{r}0},\hfill & \forall x\in {\mathcal{R}}_{i_{\star }},\mathrm{with}{i}_{\star }\in \{1,\dots ,7\}(\mathrm{we}\mathrm{choose}{i}_{\star }=2),\hfill \\ 0,\hfill & \forall x\in \mathcal{D}\backslash {\mathcal{R}}_{i_{\star }},\hfill \end{array}\right.\hfill \end{array}$$

(7a)

$$\begin{array}{cc}\hfill H(x,t_0)& =H_0,\forall x\in \mathcal{D},\hfill \end{array}$$

(7b)

$$\begin{array}{cc}\hfill \left.\begin{array}{c}P(x,t_0)\\ W(x,t_0)\\ N(x,t_0)\\ C(x,t_0)\\ R_{\mathrm{f}}(x,t_0)\end{array}\right\}& =0,\forall x\in \mathcal{D}.\hfill \end{array}$$

(7c)

Various NSPs are involved in the HCV RNA replication cycle (NS2, NS3, NS4a, NS4b, NS5a, and NS5b). However, among all these, NS5a (described by the concentration N) plays a crucial role [11,21,30,31,32,33,49,50,51,52,53], since it seems to be involved in all steps of the HCV RNA replication. Hence, our component N refers to the freely diffusing part of NS5a. However, the web protein refers to that fraction of NSPs which accumulates to create double membrane vesicles (DMV) and thus the MW. Therefore, the “web protein” is considered to be a combination of all of the NSPs within our present modeling approach still.

Finally, we introduce the abbreviations:

$$G_C={\tilde{r}}_2{R}_{\mathrm{r}}\frac{R_r^p}{R_r^p+F_0}\frac{W^j}{W^j+F_2}\frac{H^k}{H^k+F_3}$$

(8)

and

$$\begin{array}{ccc}\hfill {\mathfrak{A}}_C^W& =& \frac{W^j}{W^j+F_2}\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill {\mathfrak{A}}_C^R& =& \frac{R_r^p}{R_r^p+F_0}\hfill \end{array}$$

(10)

$$\begin{array}{ccc}\hfill {\mathfrak{A}}_C^H& =& \frac{H^k}{H^k+F_3}\hfill \end{array}$$

(11)

with $j,k,p\in \mathbb{N}$. These abbreviations simplify a detailed analysis of the new form of replication complex creation as modeled by means of Equation (5e) (see the Appendix C.3).

Note: We use the same factor ${\mathfrak{A}}_C^R$ for polyprotein translation and replication complex construction, since we assume that both processes require a similar amount of ribosomal bound HCV RNA.

2.6. Well-Posedness of the Model

To ensure the well-posedness of the problem given by Equations (5a)–(5g) and the considered set of initial and boundary conditions, one should prove that the problem admits a unique solution, and that such solution depends on the input data in a continuous way. However, since the non-linearity of Equations (5a)–(5g) makes it difficult to construct a rigorous proof, one can look at the well-posedness of a linearized version of the problem. To this end, we initially notice that each equation of the system in Equations (5a)–(5g) describes a nonlinear diffusion–reaction process, with the non-linearity featuring both in the reaction terms and in the diffusion coefficients of Equations (5a)–(5g). In addition, we notice that the subsystems in Equations (5a)–(5d) and Equations (5e)–(5g) exhibit a remarkable difference: While the diffusion coefficients of Equations (5a)–(5d) are strictly positive constants, those of Equations (5e)–(5g) are functions of W and N. Such functions, in turn, are positive only when W and N are different from zero, and are equal to zero otherwise. Hence, a characterization of the well-posedness of Equations (5a)–(5g) should be done by distinguishing between the case in which W and N are nonzero from the cases in which W and N are zero, or at least one of them is zero. For the sake of brevity, we consider here only the first two cases.

When W and N are both nonzero, all the diffusion coefficients of the system in Equations (5e)–(5g) are strictly positive. In this situation, the problem complies with the hypotheses of the Lax–Milgram Theorem. Consequently, each of the bilinear forms arising from the weak formulation of the linearized problem turns out to be continuous and coercive (please see [54,55] for details), and the solution is unique and stable in the sense of the Lax–Milgram Theorem [54].

When W and N are both zero, the diffusion coefficients $D_C$, $D_{R_{\mathrm{f}}}$, and $D_H$ vanish identically. Equations (5e)–(5g) become ordinary differential equations, while Equations (5a)–(5d) are partial differential equations, all characterized by positive definite diffusion coefficients. The problem, in this case, is well-posed. In particular, the initial and boundary conditions can be chosen in such a way that the only solution to Equations (5a)–(5g) is the null one, i.e., $R_{\mathrm{r}}=P=N=W=C=R_{\mathrm{f}}=H=0$.

Since an explicit mathematically well-founded proof of existence and uniqueness of at least weak solutions of the entire general nonlinearized system in Equations (5a)–(5g) is beyond the scope of the present study, we studied the behavior of the simulation data under grid refinement; when we iteratively refined our computational grid to increase resolution, we saw the data remained consistent. The grid refinement studies are shown in the Appendix F. The demonstration of grid convergency may be considered as a strong hint that the system we use is mathematically well-posed, even though it does not replace a formally rigorous proof. Indeed, we intend to elaborate an extended rigerous, mathematically strict proof as part of a future project.

From the biological point of view, the “well-posedness” of Equations (5a)–(5g) is related to their capability of describing the virus dynamics in a physically sound way. This requires one to express the diffusion coefficients and the reaction terms through constitutive laws determined experimentally. In the absence of more precise experimental information on this subject, we fulfill this task by hypothesizing that the diffusion coefficients and the reaction terms follow the theory of population dynamics. In doing this, we introduce several reference parameters and exponents with the purpose of making our model as flexible as possible.

2.7. Technical Details of the Solution of the sPDEs

The set of Equations (5a)–(5g), along with the boundary conditions and the initial conditions  in Equations (7a)–(7c), was solved numerically by adopting the Finite Volume method [36] and enforcing a geometric multigrid (GMG) cycle involving up to four grid levels. The problem consists of 39,515 degrees of freedom (DoFs) on the coarse grid and about 10 millions of DoFs on the finest level we use, which is grid refinement level 4.

The node number at base level and the number of the DoFs of the sPDE evaluations at all levels used for evaluation are shown in

Table 1. Geometry info of the 3D surface ER representation that is used for the evaluation of the population dynamics inspired sPDE model. DoF number at base level and from one to four global refinement levels in space. (The triangular elements are named “faces”.)

Refinements	0	1	2	3	4
vertices	5645	22,769	91,418	366,320	1,466,540
edges	17,124	68,649	274,902	1,100,220	4,402,104
faces	11,467	45,868	183,472	733,888	2,935,552
DoFs	39,515	159,383	639,926	2,564,240	10,265,780

. Hence, the simulations presented afterwards were performed within a four-fold spatial refinement GMG environment, and the results were compared to coarser levels, inclusively the base level without refinement.

The numerical simulations were performed with the aid of the software toolbox UG4 [40,41].

2.8. Parameter Set Used for the Numerical Evaluation of the sPDE System

The basic parameters we used for demonstration purposes of our new model, i.e., of Equations (5a)–(5g), are reported in

Table 2. Basic parameter set for the sPDE model evaluations, Equations (5a)–(5g), (6a)–(6c) and (7a)–(7c). Parameters determining the basic diffusion–reaction parameters and initial conditions. We emphasize that our code is not restricted to these parameters in any way and the stability does not depend on the use of the parameters reported in this table.

	Value	Unit
$D_{R_r}$	0.2	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_H^{\left(0\right)}$	0.1	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_P$	0.2	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_N$	1	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_W$	0.5	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_C^{\left(0\right)}$	0.1	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$D_{R_f}^{\left(0\right)}$	0.1	$\frac{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}{\mathrm{s}}$
$r_1$	20	$s^{-1}$
$r_2$	10	$s^{-1}$
$r_3$	0.25	$s^{-1}$
$r_4$	1000	$s^{-1}$
$r_5$	970	$s^{-1}$
$r_6$	50	$s^{-1}$
v	50
$R_0$	10	$\frac{1}{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}$
$H_0$	1	$\frac{1}{{\left(\mathsf{\mu }\mathrm{m}\right)}^2}$

and

Table 3. Basic parameter set for the sPDE model evaluations. Parameters determining the population dynamics form parameters of Equations (5a)–(5g) and (6a)–(6c). We mention that the choice of $i,n,p$ is free in this case since we have chosen $F_0,F_1,F_5=0$ (code not restricted to these parameters).

	Value
$F_0$	0
$F_1$	0
$F_2$	100
$F_3$	10
$F_4$	0.001
$F_5$	0
$F_6$	0.0001
$F_7$	0.1
$F_8$	1
$F_9$	0.1
$F_{10}$	0.1
$F_{11}$	0.1
𝔙	50
𝔉	10
𝔊	1
i	N/A
j	1
k	1
m	1
n	N/A
p	N/A
q	1

.

We emphasize that our program code is not limited to these set of parameters; we only used it for demonstration purposes.

Finally, we note that the surface diffusion coefficient of the NSPs (i.e, web accumulating protein in the geometric MW regions and free NS5a on the ER surface) are chosen differently. We assume that free NS5A diffuses more quickly than NSPs inside the MWs [35].

2.9. Integrals of Concentrations over Subdomains

To evaluate the simulations, we computed the integrals of the concentrations over distinct subdomains. For example, to evaluate the integral of the concentration of ribosomal bound RNA over the ribosomal region number 2, such an integral would be denoted by

$${\mathcal{I}}_{R_{\mathrm{r}}}\left({\mathcal{R}}_2\right):={\int }_{{\mathcal{R}}_2}{R}_{\mathrm{r}}\mathrm{d}\sigma .$$

(12)

More generally, we employ the notation

$${\mathcal{I}}_Q\left(\mathcal{S}\right):={\int }_{\mathcal{S}}Q\mathrm{d}\sigma .$$

(13)

where Q is the generic concentration, and $\mathcal{S}$ is the generic surface over which the integration is performed.

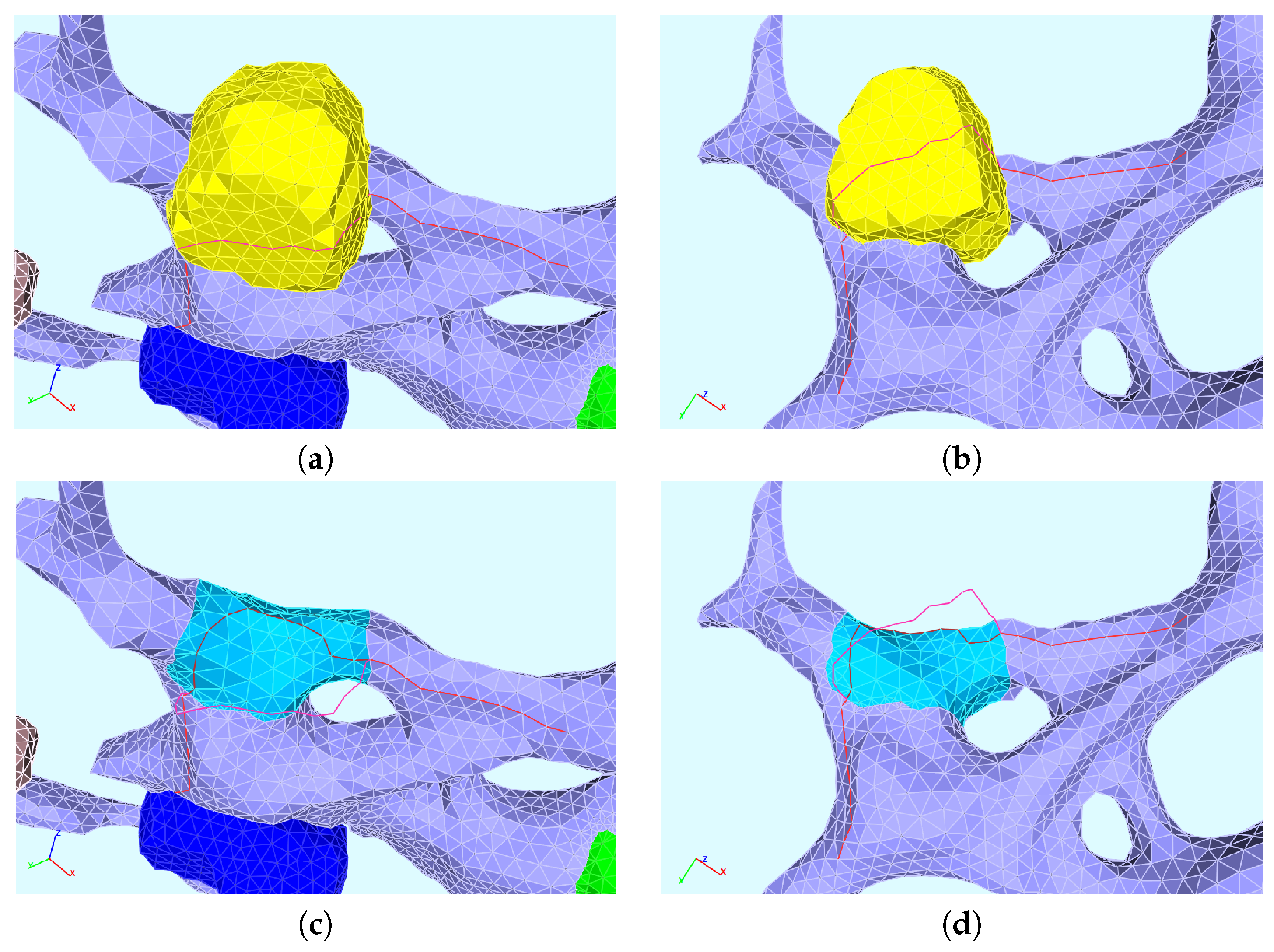

2.10. 1D Trajectories on the ER Surface for Concentration Profiles Evaluation

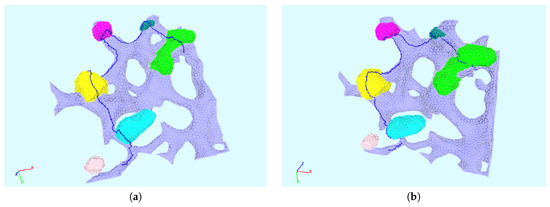

We evaluated the profiles of concentrations upon 1D pathways for special cases. Therefore, we chose two types of paths:

• One long path, which is located along the ER and crosses various web regions. On this path, we evaluated the concentrations of free RNA and host factor to enable a global overview. The path is depicted in Figure 2.
• The shorter path resolves the processes around and within one single web region. The path is shown in Figure 3. This path decomposes into four subsections, which we call “sub paths” in the forthcoming:

  –

  The “right” path is the direction from where the free RNA originates. This means that this sub path is located in the direction of a web that was hijacked before by the virus particles. On this path, we show the concentrations of free RNA, host factor, and NS5a.

  –

  The “upper” path is located on the outer surface of the web, and we evaluated the concentrations of free RNA, host factor, web protein, and replication complex.

  –

  The “lower” path is located at the ribosomal region, which belongs to the web region. On this path, we evaluated free RNA, ribosomal bound RNA, replication complex, polyprotein, web protein, NS5a, and host factor.

  –

  The “left” path is that sub-path where there is nearly no free RNA located when the corruption of the web region under consideration starts, since it is on the “opposite” side of the “influx” direction of the free RNA. Therefore, the major part of the free RNA synthesized at the web region under consideration will diffuse away on this path in order to hijack the next web region. As in the case of the “right” path, we show the concentrations of free RNA, host factor and NS5a.

We mention that, on each of these sub paths, only the depicted concentrations may have values different from zero due to the given model structure. A schematic presentation of the sub paths is shown in Figure 4.

The directions of evaluation were anti-clockwise for both types of paths. In the case of the short path, the concentration profiles were plotted as indicated by the location (although the path lengths used as x-axis may cause confusion due to their direction), while the results of the long path were plotted directly upon the path length.

2.11. General Notes On Scaling Within Figures

Note that in the case of all figures of this paper, the factors given in the legends of certain concentrations have to be understood as multiplication factors: For example, if we write host[10], this means that the displayed value of the host factor has to be multiplied with a factor of 10 in order to correspond to the value as given by the simulation (value 200 in the figure indicates value “host” 20 in reality/in simulation). Or, if we write web[10⁻⁴], this means that 1 “web” in the figure corresponds to 10,000 web proteins in reality/in simulation. The scaling is performed to allow for visualization of the values of different components within one figure.

3. Results

3.1. Simulation of the Population Dynamics Inspired sPDE Model

We consider simulations of the basic set of Equations (5a)–(5g). The diffusion coefficients are defined in Equations (6a)–(6c). The initial conditions are given by Equations (7a)–(7c). The test parameters are those reported in Table 2 and Table 3.

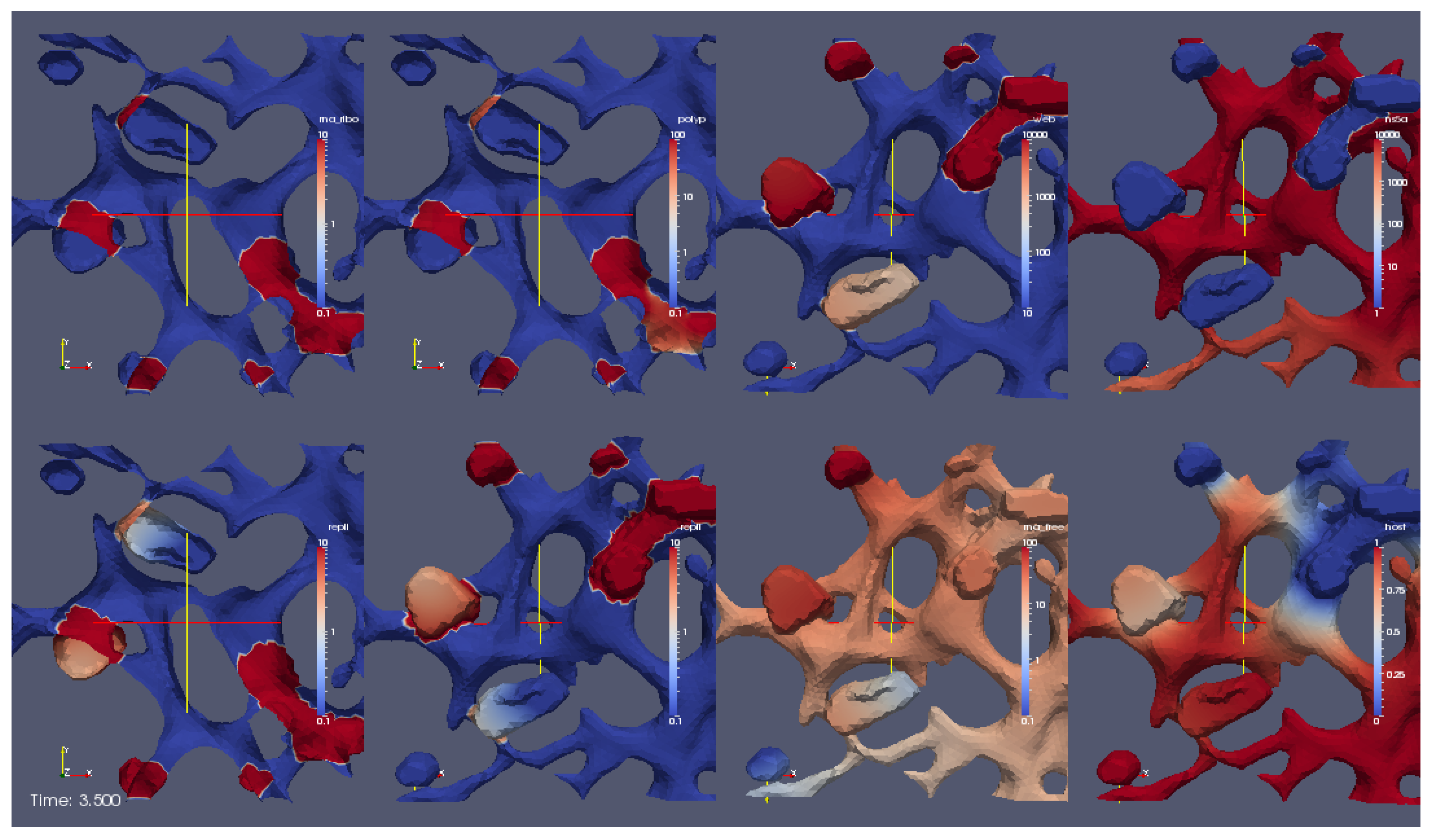

A movie in which the whole simulation can be visualized is attached as Supplemental S1, “Video S1—Population Dynamics Inspired sPDE Model Static View” (cf. Section 3.1.1 for an extended description, movie cf. Supplemental S1). A frame (screenshot) of this simulation movie is shown in Figure 5, where each image represents the spatial distribution of the concentration of one of species accounted for in the model. (The time scale of the screenshot at time $t=3.5\mathrm{s}$ is qualitative due to the qualitative character of the model parameters, i.e., also of the time scale.) The images in the first row describe, from left to right, the distributions of the ribosomal bound HCV RNA, $R_r$, polyprotein, P, web protein, W, and NS5A, N. The first two images of the second row, instead, describe the distribution of the replication complexes, C, viewed by two different perspectives. Moreover, the third and fourth image of the second row report the concentration of the free HCV RNA, $R_f$, and of the host factor, H, respectively. In detail, we observe processes which we describe in the forthcoming section.

3.1.1. Video S1—Detailed Description

In the upper left sector, we observe the evolution of the concentration of ribosomal bound HCV RNA ($R_r$). This sector deploys a part of the computational domain. This part was generated by a cut of the computational domain by means of a cut plane. This procedure allows for the visualization of the initial concentration of ribosomal bound HCV RNA $R_r(x,0)$. Without using a cut plane, it would be impossible to observe the evolution of the concentration of ribosomal bound HCV RNA $R_r$, since it can only be different from zero at the ribosomes. We recall that we model the ribosomes such that they are located at those spatial points in which the ER surface intersects with the MW regions. These ribosomal regions are hidden unless the domain is disclosed by means of a cutting plane. Hence, we observe the concentration of ribosomal bound HCV RNA from a backward perspective, upon the computational domain that is disclosed by means of the cutting plane. This effectively allows for observing the ribosomal region (where the first initial ribosomal bound HCV RNA concentration is located) from inside. At the beginning, HCV RNA is attached to ribosomes and may not move away. The ribosomal bound HCV RNA may only translate viral polyprotein.

Indeed, in the second upper sector from the left of the movie, we observe that the ribosomal bound HCV RNA $R_r$ translates the polyprotein P. The perspective of this sector is the same as before for the ribosomal bound HCV RNA. The polyprotein cleaves into web (accumulating) protein and another NSP that may move freely on the ER surface, which we called NS5A. (We recall that the NSP has properties reminiscent of NS5A but could be a different NSP or a combination of some NSPs, without restriction of the generality.) We observe the concentrations of the cleaved web protein and the cleaved NS5A within the two sectors of the upper right of the simulation movie “S1 Video—Population Dynamics Inspired sPDE Model Static View”. The NSPs anchor to the ER surface. The web protein accumulates at the geometric MW regions. NS5A diffuses away on the ER surface. In detail, the second sector from the upper right deploys the evolution of the web protein, i.e., W, while the sector on the upper right deploys the evolution of NS5A, i.e., N. Note that the perspectives of W and N are different from those before, i.e., we consider the scene for the concentration dynamics of W and P from another viewpoint than those those of $R_r$ and P. The web protein and NS5A are shown from the front perspective, and without a cut plane. We observe that the web protein accumulates at the experimentally based geometric MW regions. Hence, the web protein accumulation causes the MW regions to grow and to get functional and active. Our free NS5A does not move into the webs; moreover, it diffuses away at the ER surface.

Let us consider the lower sectors of the simulation movie: The first two sectors on the lower left deploy the replication complex (RC, whose concentration is denoted by C), which arises once enough web protein is available, or, in other words, the RC is constructed once the MW gets dense. The evolution of the concentration of the replication complex is visualized within the first two sectors of the lower left of the simulation movie “S1 Video—Population Dynamics Inspired sPDE Model Static View”. For a sufficient amount of web protein (visible in the second sector from the upper right), one observes how the RC arises (visible in the sectors at the lower left). In detail, once a substantial amount of web proteins has filled the geometrically defined web regions, one ribosomal bound HCV RNA $R_r$ dissolutes from the ribosomes and “picks up” a defined amount of web proteins W to form one RC C. This behavior is due to the fact that the reaction term in Equation (5e) allows for the coupling of web proteins and ribosomal bound HCV RNA to form the RC only when the web protein concentration reaches a certain level. The number of web proteins involved in the RC formation is greater than the number of involved HCV RNAs (Equation (5a)), due to the factor $v\gg 1$ in Equation (5d).The number of RCs per MW region is not restricted to one but depends on the local concentrations of available species. This combination of ribosomal bound HCV RNA and web proteins is a bound state, and forms the RC. The relation HCV RNA/web protein number remains practically constant within each RC. This is an important new feature of our model structure. The relation of HCV RNA and web proteins within an RC is realized by means of a parameter of our model. We also assume that, within in vivo/in vitro cell experiments, the number of NSPs that are involved in the replication of one HCV RNA is more or less always similar. Therefore, our description is close to biological reality. (This feature cannot be realized by means of multilinear reaction coefficient models. For a detailed discussion of our new and precise mathematical form referring to the RC creation, we refer to the Appendix C.3).

The simulation shows that the replication complex diffuses into the MW region (i.e., the subdomain that is based on the reconstruction of the stained cell data). We use two different sectors for RC observation in order to be able to observe the RC from two different perspectives. The first sector at the lower left visualizes the RC concentration by means of the cut plane from the perspective of behind. This viewpoint indicates that the ER and the MW regions are opened, and we also observe the ribosomal regions. The second (lower) sector from the left deploys the RC concentration from the front and without using a cut plane. Thus, we see the webs directly from the front, the ribosomal regions being hidden.

The RC may only diffuse within the web regions and only to such regions where the web is already dense, i.e., the RC may only diffuse into those regions of the geometrically defined web regions where already enough web proteins have accumulated. Once the RC diffuses into the MW region, it polymerizes new free HCV RNA, $R_f$, as required by Equation (5f).

At the third upper sector from the left (equivalently the second sector from the right), we observe the free HCV RNA concentration. Indeed, with increasing RC concentration, free HCV RNA is produced. In this movie, a front view of the web regions and of the ER is provided. While the new free HCV RNA is polymerized, the host factor H is consumed, as shown by Equation (5g). The host factor consumption is practically constant per newly synthesized HCV RNA. (In addition, this property, even though in principle natural, only arises due to population dynamics and is not the current state of the art). The host factor depletion is visualized within the lower right picture. Hence, the replication complex produces new free HCV RNA.

The newly polymerized free HCV RNA $R_f$ diffuses unbound as long as it does not get bound to ribosomes. A small part is sequestered directly again at the ribosomes of the local web to translate new polyprotein on-site. However, a substantial part of $R_f$ diffuses away at the ER surface, visible at the second (lower) sector from the right.

Once free HCV RNA reaches the subsequent ribosomal region, free HCV RNA is sequestered by the ribosomes (visible at the second upper sector from the left) to ribosomal bound HCV RNA, $R_r$. Hence, polyprotein P is translated (cf. the second upper sector from the left). Then, a new HCV RNA cycle starts also at this web region. To this end, a “wave” of HCV RNA and NSPs propagates through the cell and consumes the host factor. This property is also reflected in a previous work of ours [34].

3.2. Qualitative Stage and Robustness of the Model

The model developed in the present study, although largely inspired by our former study [34], resolves the details of the processes with greater refinement compared to previous. Nevertheless, it is still qualitative, rather than quantitative, as it relies on parameters that are not always derived from experimental data. This is due to the fact that—at least to the best of our knowledge—most diffusion coefficients featuring in the diffusion–reaction equations are not available in the dedicated literature. In addition, the reaction rates are usually not resolved in space, since they feature as sink or source terms in ODEs. This limitation notwithstanding, a parametric study of our model has shown its robustness for a large range of parameters, thereby leading to the conclusion that it can give plausible results also when suitable experimental data are available.

3.3. Experimentally Motivated Hypothesis within the Model

An interesting feature of our new model is that the mathematical form allows one to choose the diffusion coefficient of HCV RNA so that HCV RNA transport depends upon NSP concentration. This means that, within the webs, (free) HCV RNA diffusion velocity depends upon the web protein concentrations. On the ER, (free) HCV RNA transport depends on the NS5A concentration. NSPs/NS5A “shuttle” HCV RNA. The “shuttle” hypothesis means that NSP/NS5A concentration boosts HCV RNA transport for high NSP (NS5A) concentrations, while low NSP (NS5A) concentrations disable HCV RNA transport, i.e., HCV RNA is shuttled by the NSPs (NS5A). Therefore, HCV RNA may only move on such paths where NSPs are available. Our speculation is based upon experimental hints [21], which we explain in more detail in the Appendix B.2. Since this property is speculative to some extent, our model scenario incorporates also the limit case of HCV RNA diffusion which decouples from the NSP/NS5a concentrations—adequate parameter choice allows for a NSP independent HCV RNA diffusion coefficient.

Future experimental efforts may hopefully address the “boost/shuttle” hypothesis. For more detail about the current experimentally difficult question about the HCV RNA movement properties [20], we refer to Section “4.6. The HCV RNA Transport and the Web Movement” of our previous paper [34]. We further refer to some recent and relevant experimental studies that define [20,21] “The spatiotemporal dynamics of Hepatitis C Virus (HCV) RNA localisation are poorly understood” [21].

Finally, the combination of different aggregate states of the agents of the HCV RNA cycle with full spatial resolution leads to an interesting model property: The model aims to mimic the condition that NSPs only replicate their own “mother” HCV RNA. This condition is also called cis requirement condition [20,56,57]. The construction process of the RC of our model ensures that the HCV RNA may pick up web proteins exclusively close to that location where they have been created. In fact, the RC arises as a combination of HCV RNA and web protein translated by just the same HCV RNA. Indeed, the web proteins that the HCV RNA can only pick up belong to one (namely the same) web region: exactly that web region that is created by web proteins translated by the ribosomal region where the HCV RNA dissolutes to form RC. Hence, the web proteins of the RC have their origin within the HCV RNA of the RC. Therefore, the web proteins of the RC always translate their own “mother” HCV RNA. The “cis” requirement for HCV RNA replication is fulfilled, as assumed based on experimental data [56,57] (for more detail, see the Appendix B.1). To the best of our knowledge, this property has not yet been captured by any published mathematical virus replication model.

However, the model structure is not limited to this condition. Small model extensions would also enable replication complex formation by means of the combination of a free HCV RNA genome with NSPs, that have not been translated by this free HCV RNA genome. Such model extensions would just incorporate an additional reaction term. However, we have not performed such an extension.

3.4. Quantitative Evaluation in Subdomains

As described in Section 2.9, we wanted to evaluate the temporal evolution of the integrals of the concentrations over distinct subdomains. Each curve in Figure 6a–d refers to the integral of the concentration of a species present in a given subdomain (as defined by Equation (13)). For example, the curve labelled with ${\mathrm{rna}}_{\mathrm{ribo}}$ in Figure 6a shows the time evolution of the integral of the concentration $R_{\mathrm{r}}$ of the ribosomal bound HCV RNA computed over the ribosomal region ${\mathcal{R}}_2$ (cf. Equation (12)).

In detail, we evaluated the evolution of the integrals of the species’ concentrations within the first ribosomal region, i.e., where the initial ribosomal bound HCV RNA concentration is located (ribosomal region number 2, ${\mathcal{R}}_2$). The results of these evaluations are reported in Figure 6a,b for the short and middle term time scales, respectively. For the middle term, we also show the evolution at web region number 2, ${\mathcal{W}}_2$, which is attached to the ribosomal region ${\mathcal{R}}_2$ (cf. Figure 6c). Figure 6d reports the evolution of the species’ concentrations within the complete computational domain for the long term evolution. Whereas the integrals of the concentrations of the free HCV RNA, $R_{\mathrm{f}}$, host factor, H, and polyprotein, P, decrease in time due to the presence of sink terms featured in Equations (5b), (5f), and (5g), the integrals of $R_{\mathrm{r}}$, W, C, and N increase in time. This behavior is due to the fact that the reaction terms of Equations (5a) and (5c)–(5e) are positive over the long time scale, and no degradation term has been accounted for. We emphasize that these terms have not been neglected on the basis of biological considerations, but only because we had no available experimental data for them. However, should such data become accessible, the corresponding sinks could be easily taken into account in the model and implemented in the UG framework. Our choice is motivated by the need of focussing our attention on aspects of the dynamics that, to the best of our knowledge, have not been addressed so far in the literature.

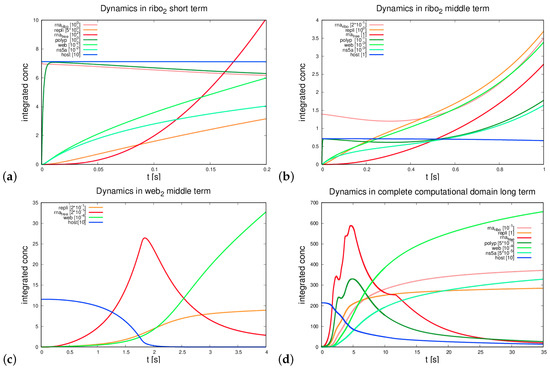

For example, with reference to Figure 6d, we notice that the integrals ${\mathcal{I}}_{R_{\mathrm{f}}}\left(\mathcal{D}\right)$ and ${\mathcal{I}}_P\left(\mathcal{D}\right)$, associated with the free HCV RNA and the polyprotein, respectively, exhibit rather marked local peaks at given instances of time. The decrease between two subsequent peaks is due to the fact that both species are partially transformed. Indeed, the free HCV RNA is partially bounded to the ribosomes thereby generating $R_{\mathrm{r}}$, and the polyprotein is cleaved into the NSPs, namely web-protein and NS5a. A similar result has been reported in our former paper [34]. However, the new model allows for the visibility of the local decrease of free RNA when free RNA reaches a new ribosomal region and binds to the ribosomes.

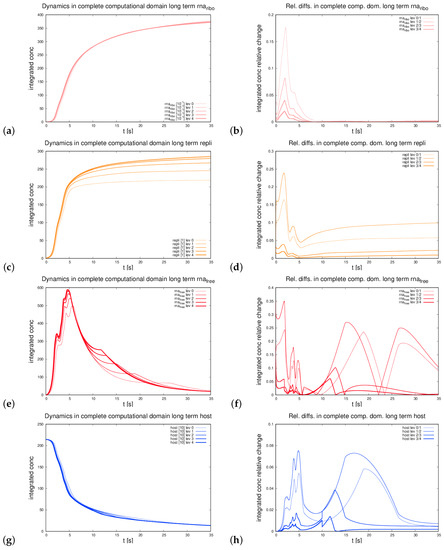

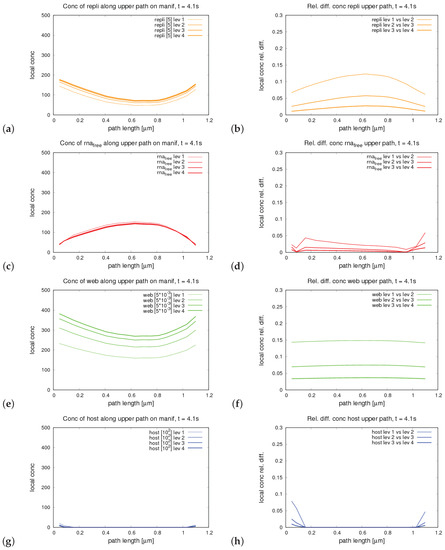

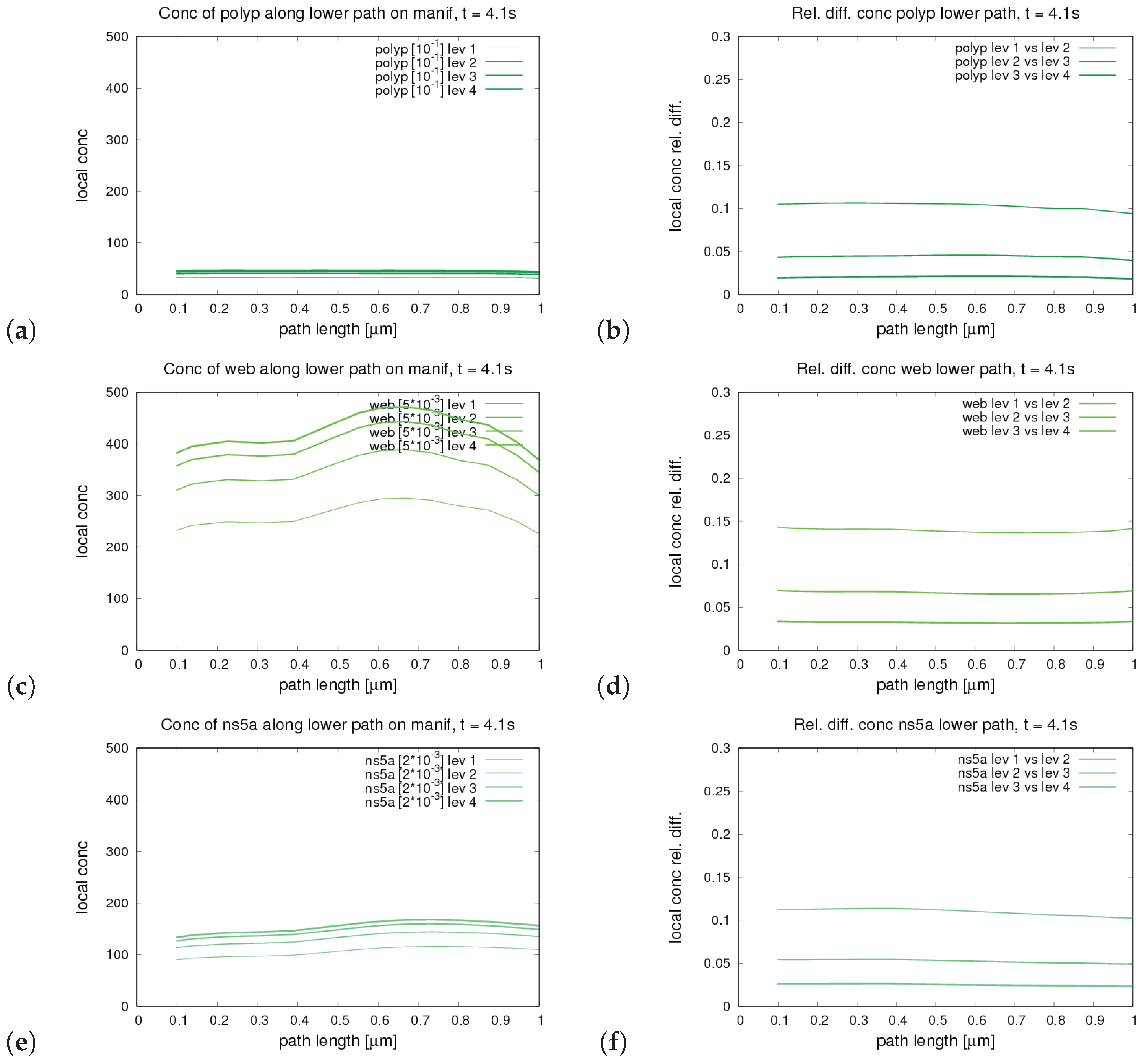

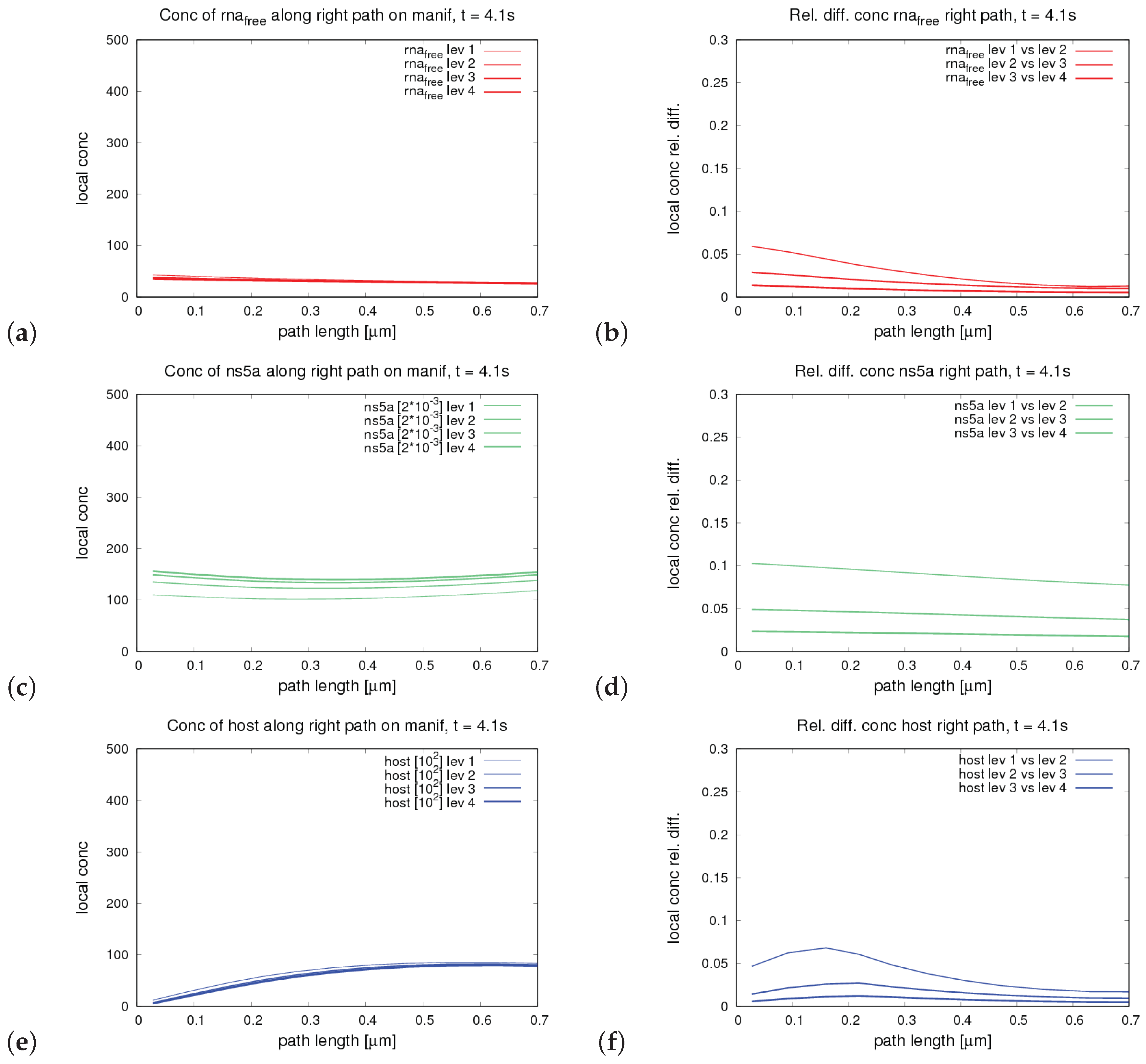

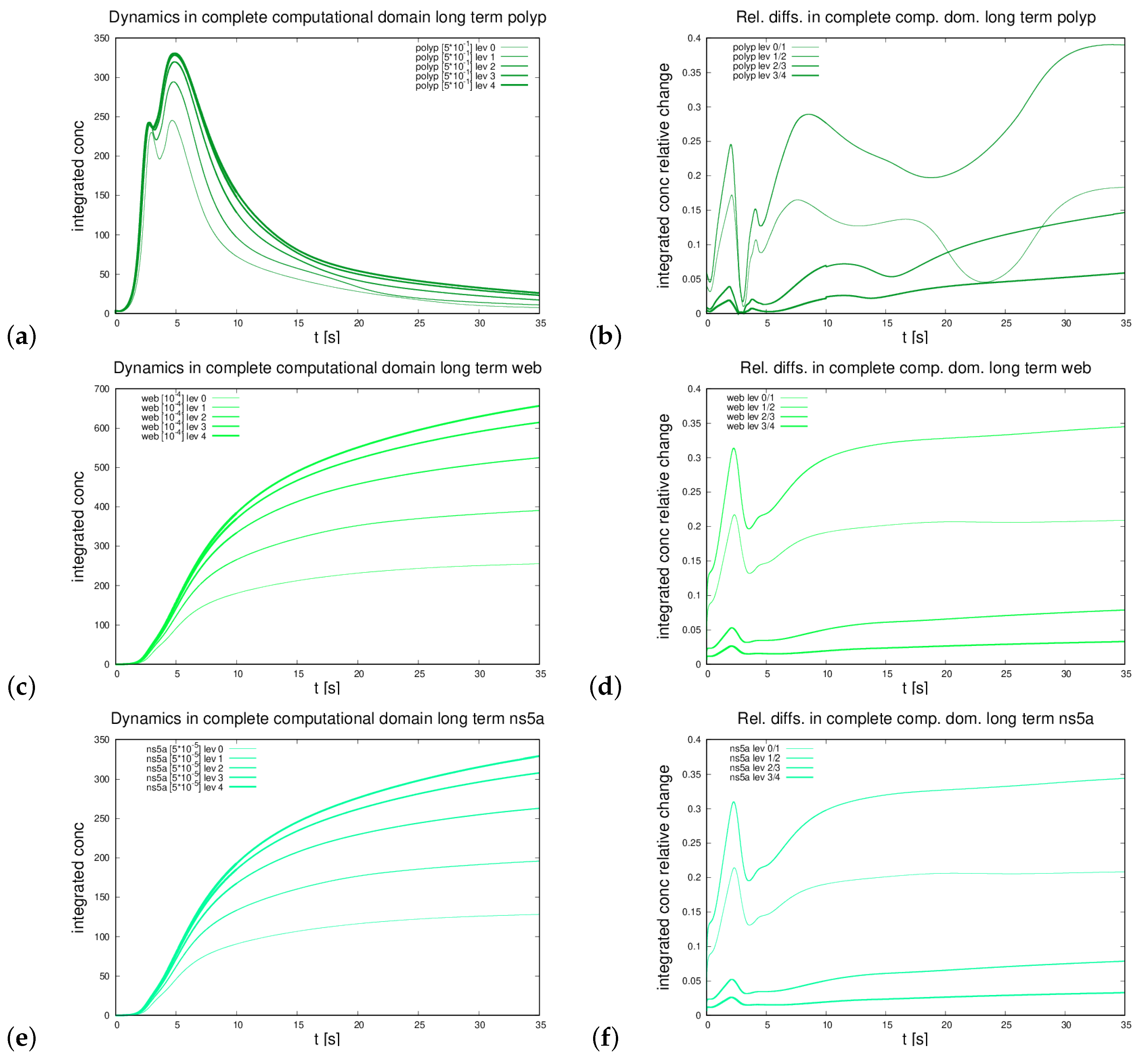

For the integrals over the complete domain, we show intensive refinement test studies in the Appendix F.1.

A Test for the Model Calculations

Looking at the evolution of the concentrations within the considered subdomains, one could conclude that the translation of the polyprotein, the formation of the replication complex, or the polymerization of new free HCV RNA are allowed to continue also in the absence of a sufficient amount of the host factor. This, however, cannot be the case, since it would contradict the model principles. Moreover, a more careful analysis of the simulations, performed for example by conducting a parametric study on the model, highlights the physical reason for which the above-mentioned processes should stop when the concentration of the host factor goes below a certain threshold.

In fact, by switching off the diffusion coefficient of the host factor on the ER surface, one forces this species to diffuse over the web regions only, thereby preventing it to enter the web regions from the surrounding ER. (To “switch off” the diffusion coefficient means to set it to zero within a special region.) In this case, we found that, once the host factor is depleted, all the processes whose evolution depends on the availability of the host factor stop immediately. This result is consistent with what we reported in our former study [34].

3.5. Profiles of the Distribution of the Concentrations Across One-Dimensional Trajectories on the ER Manifold

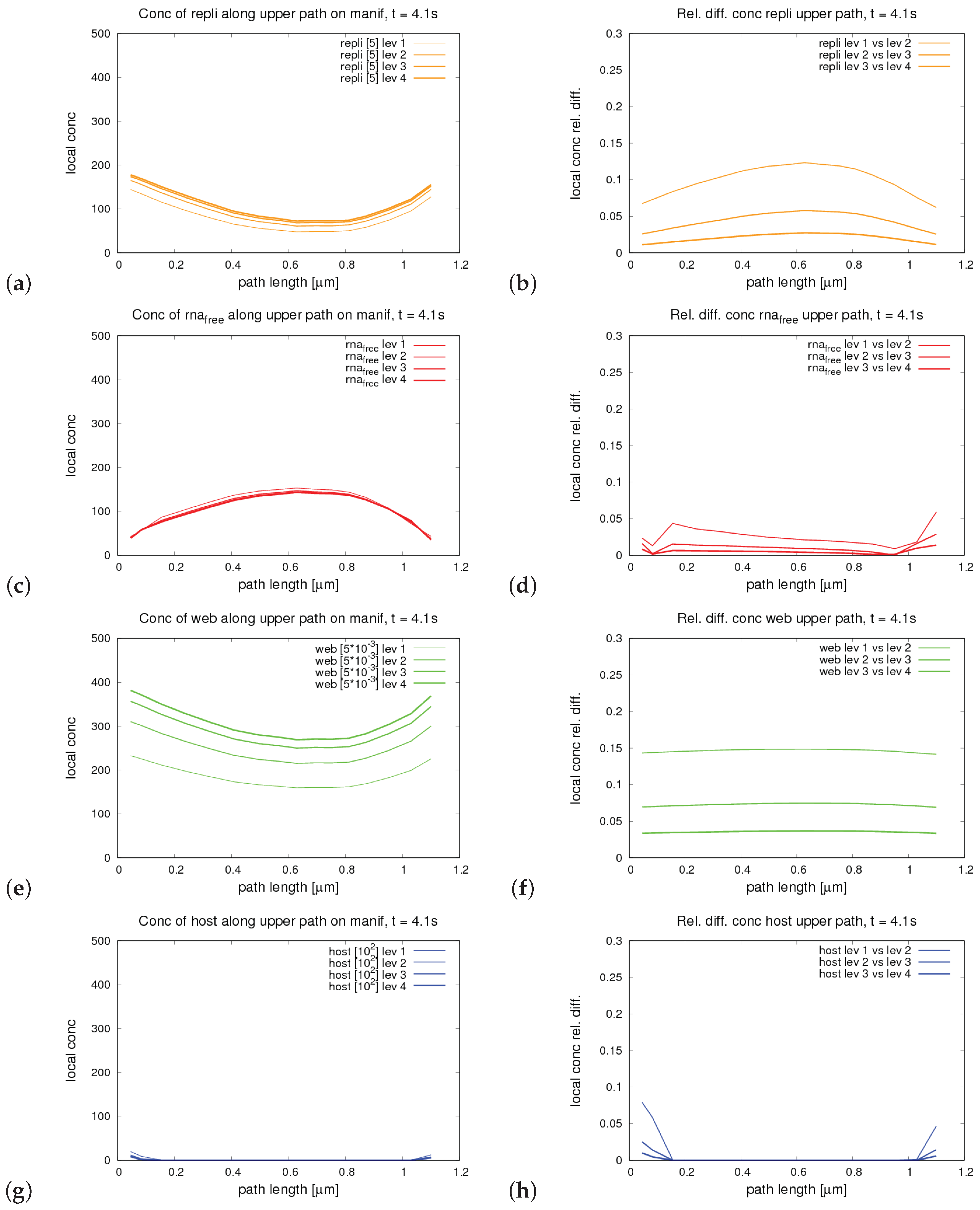

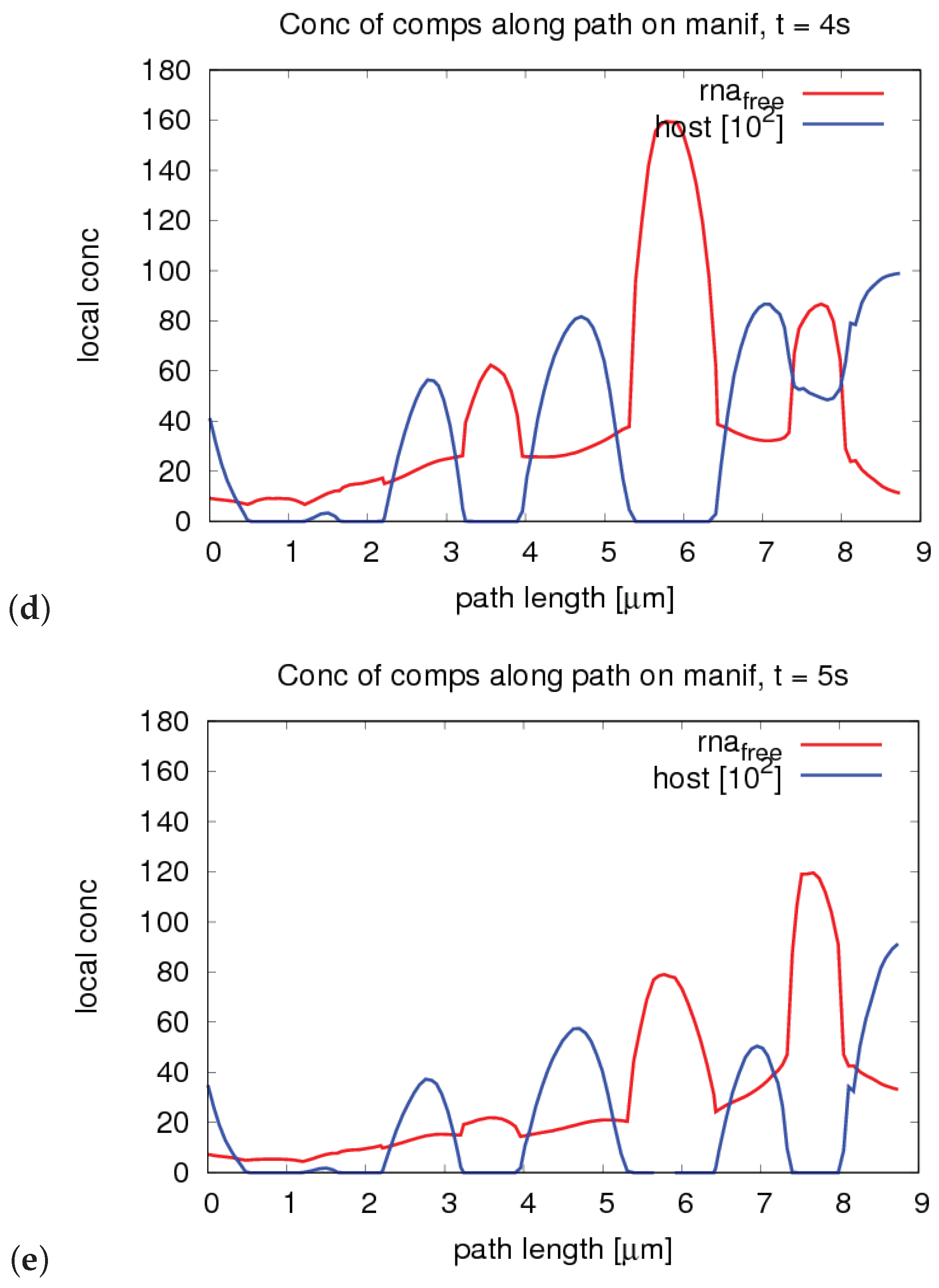

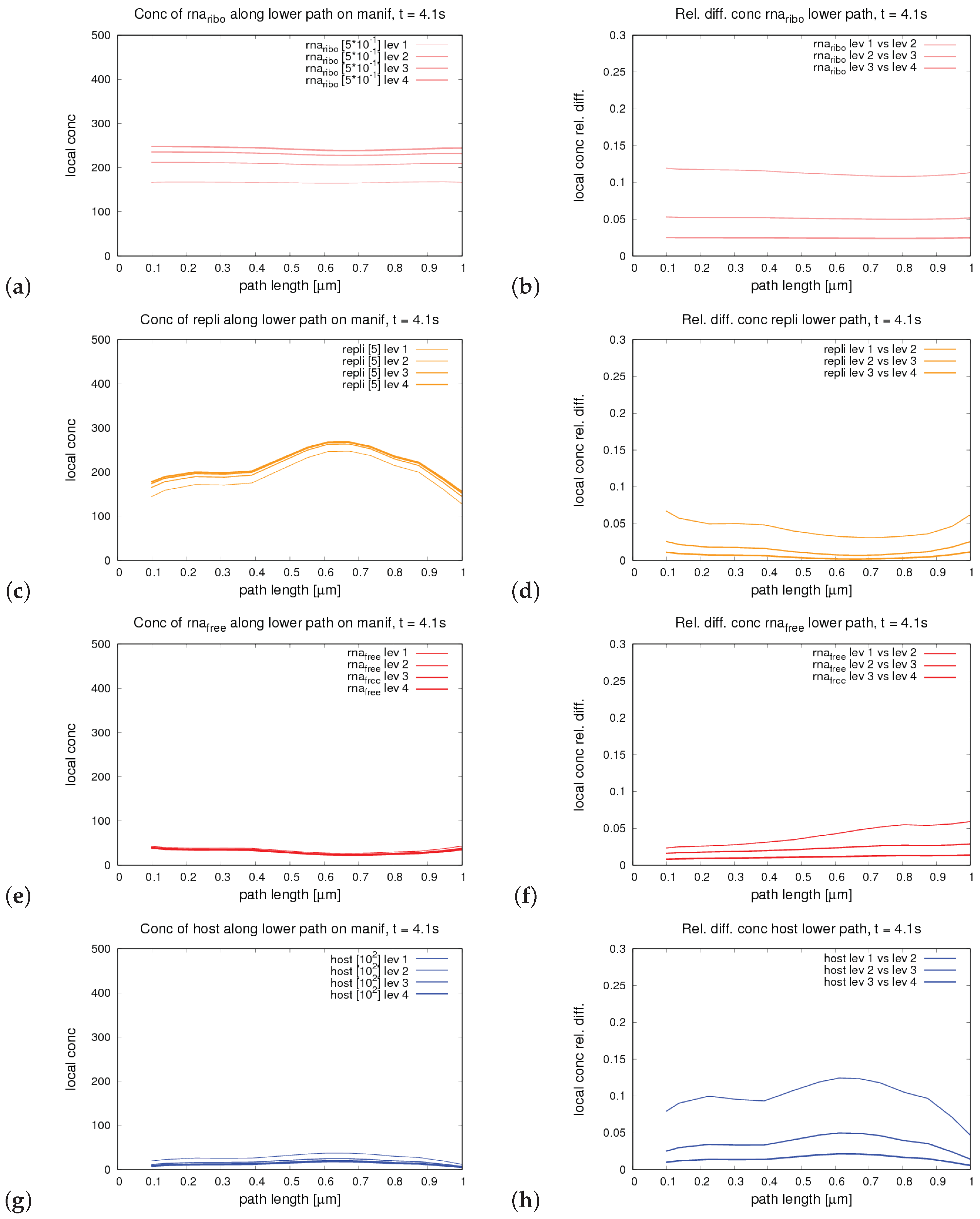

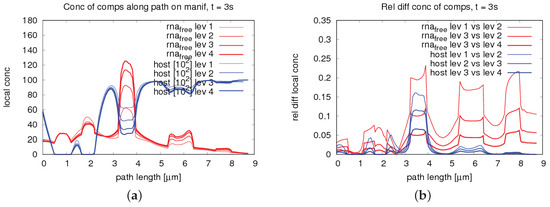

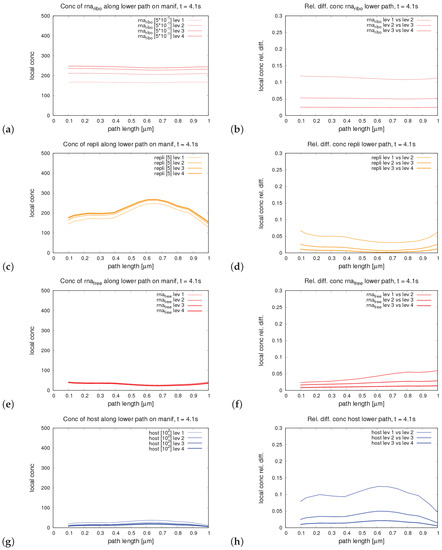

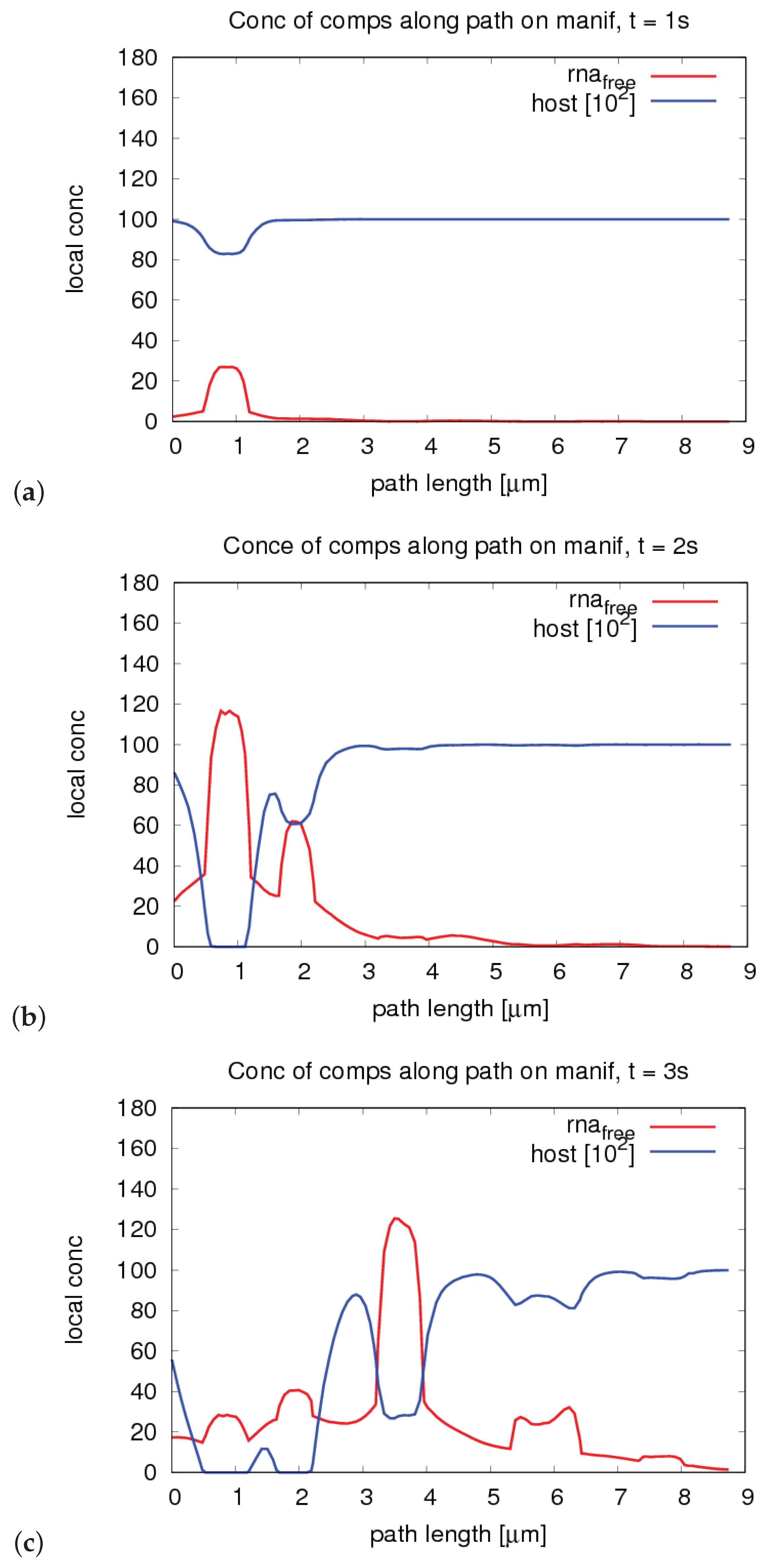

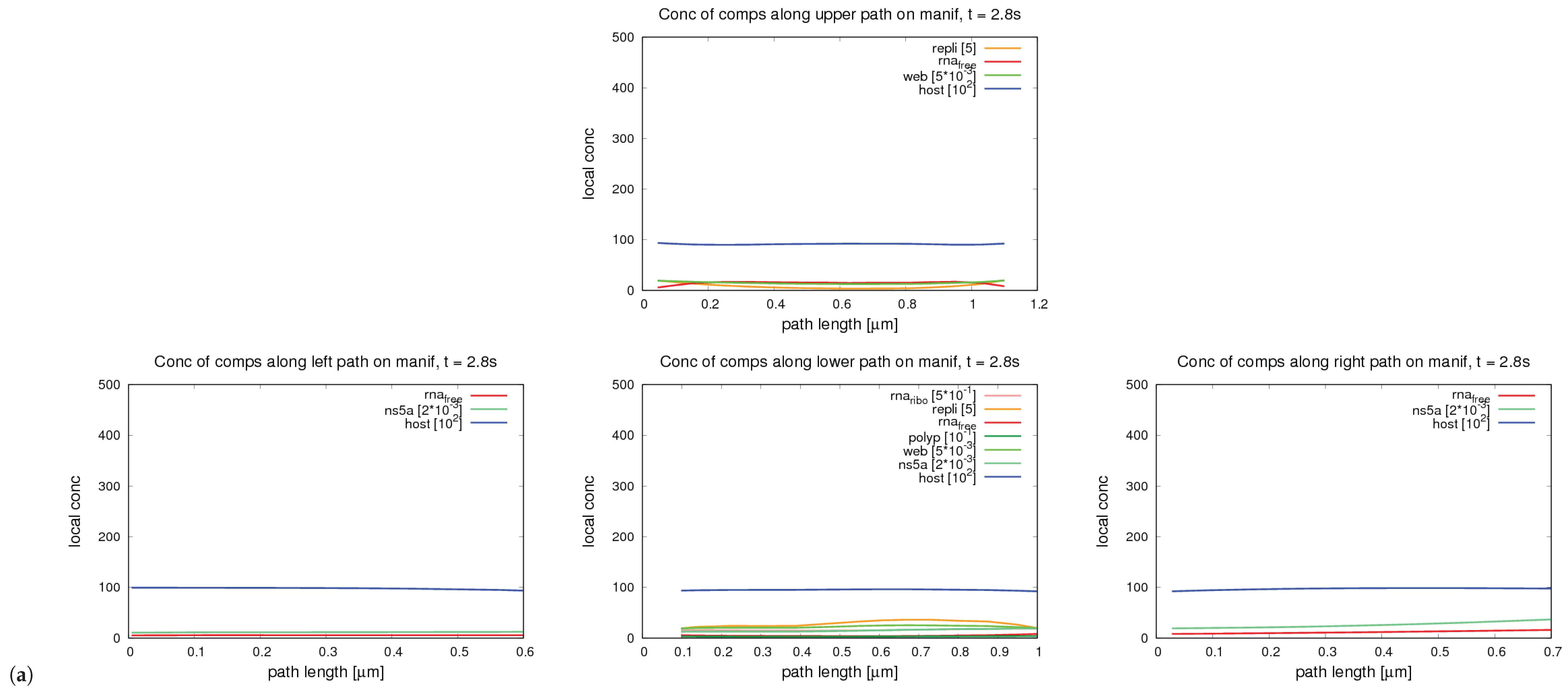

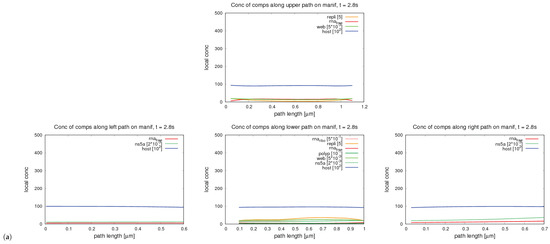

We evaluated the concentration profiles of different components along one dimensional trajectories on the ER manifold. (The trajectories we used were displayed in Section 2.10.) As described in detail within Section 2.10, we evaluated free RNA and host factor on the long ER and web crossing path, whereas we evaluated all concentrations that appear within the corresponding sub paths for the case of the small region around a special web, i.e., the path which splits into four sub parts, as explained in Section 2.10.

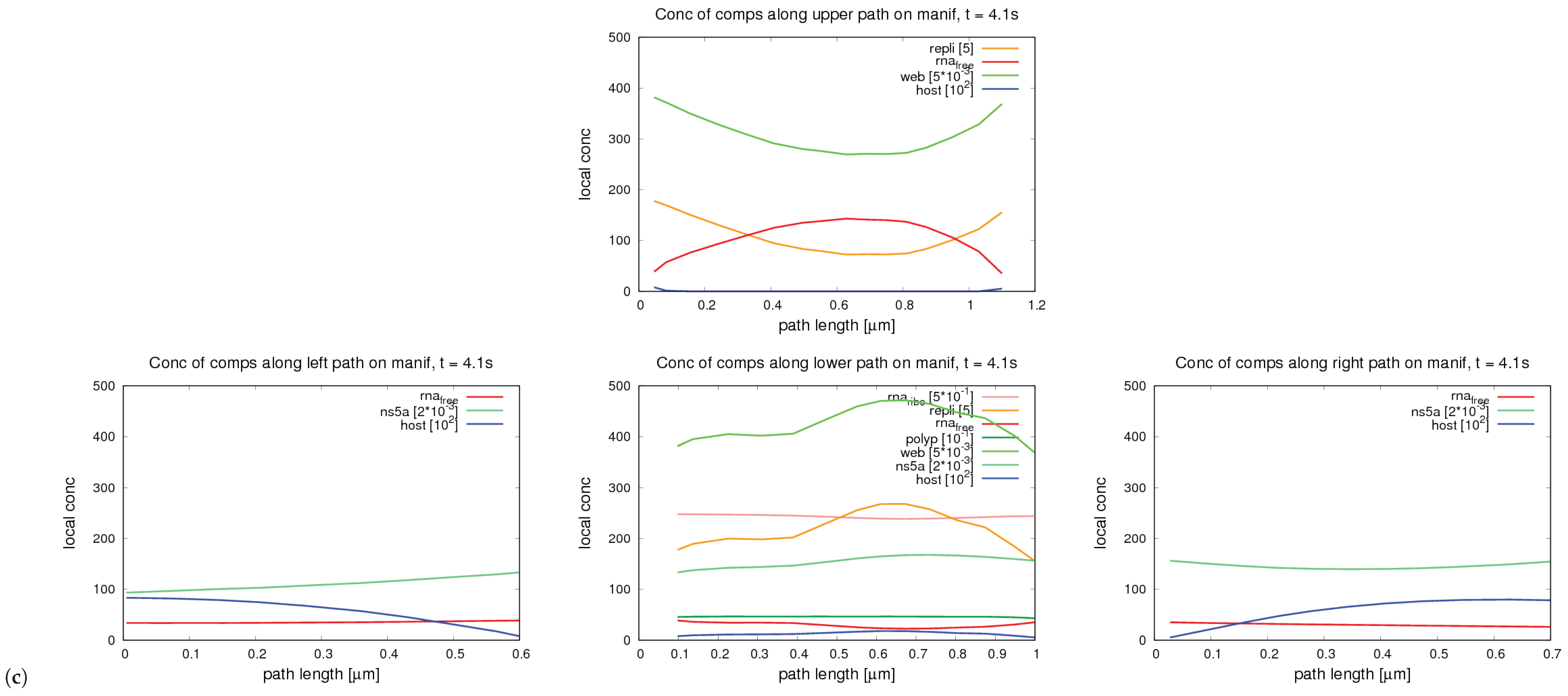

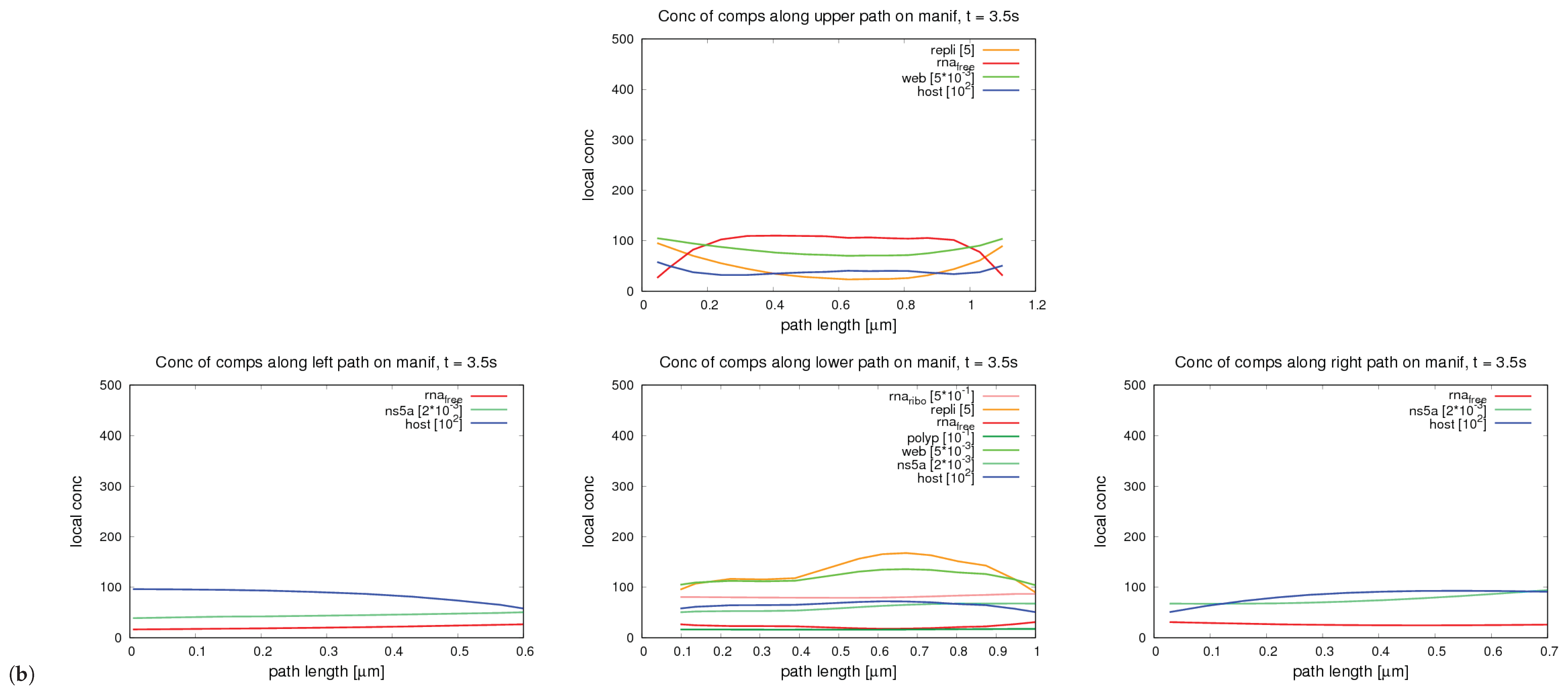

We show the time evolution for both cases for time points within windows where there are important changes visible. The free HCV RNA “flow” is coming originally from the right and continues to the left. In Figure 7, we show concentration profiles along the long path, as depicted in Figure 2. An example of the four sub paths around one web, as depicted in Figure 3, is shown in Figure 8.

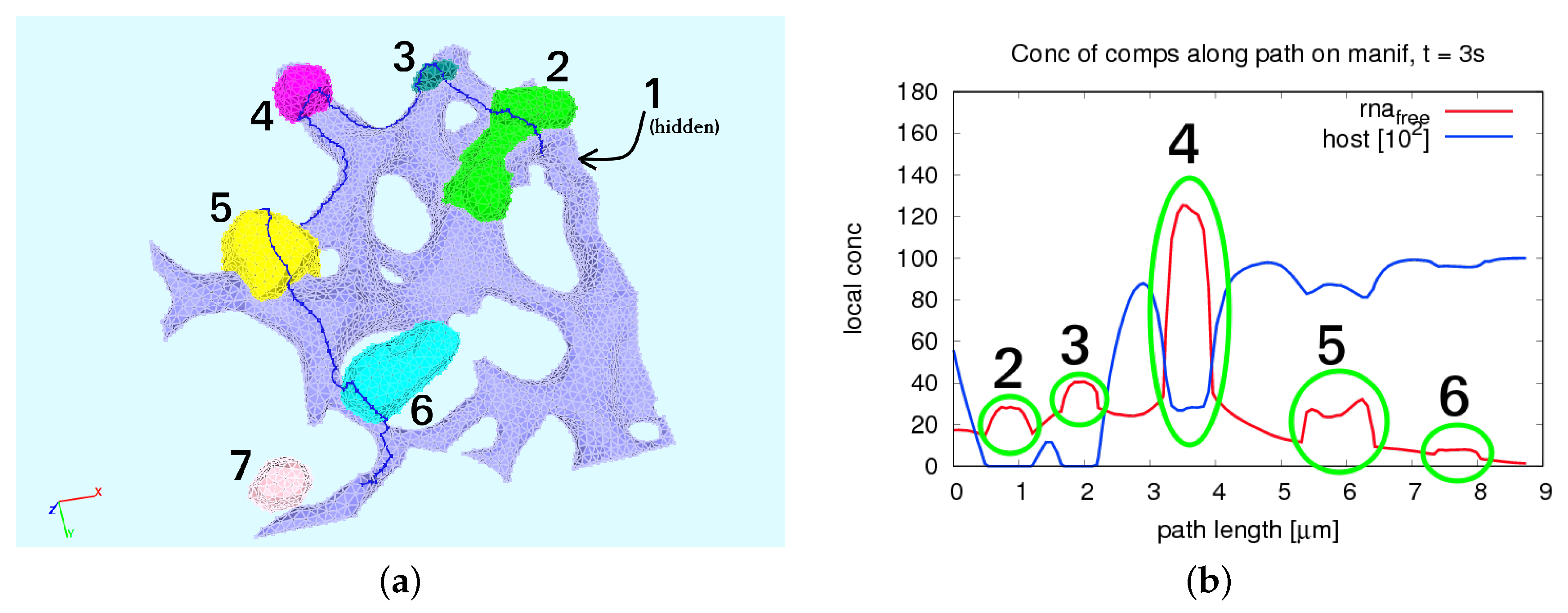

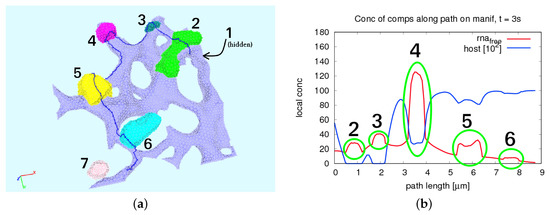

The relationship of peaks and corresponding web regions is shown in Figure 9 for a special time point in the case of the “long” path, corresponding to the evaluation shown in Figure 7. Since the graphs of the concentrations along the “small” path (cf. Figure 8) show the evaluation around one special web (web # 5 using the notation of Figure 9, left picture), the peaks are related to the same web of course in this case. Hence, we do not show additional graphs in this case.

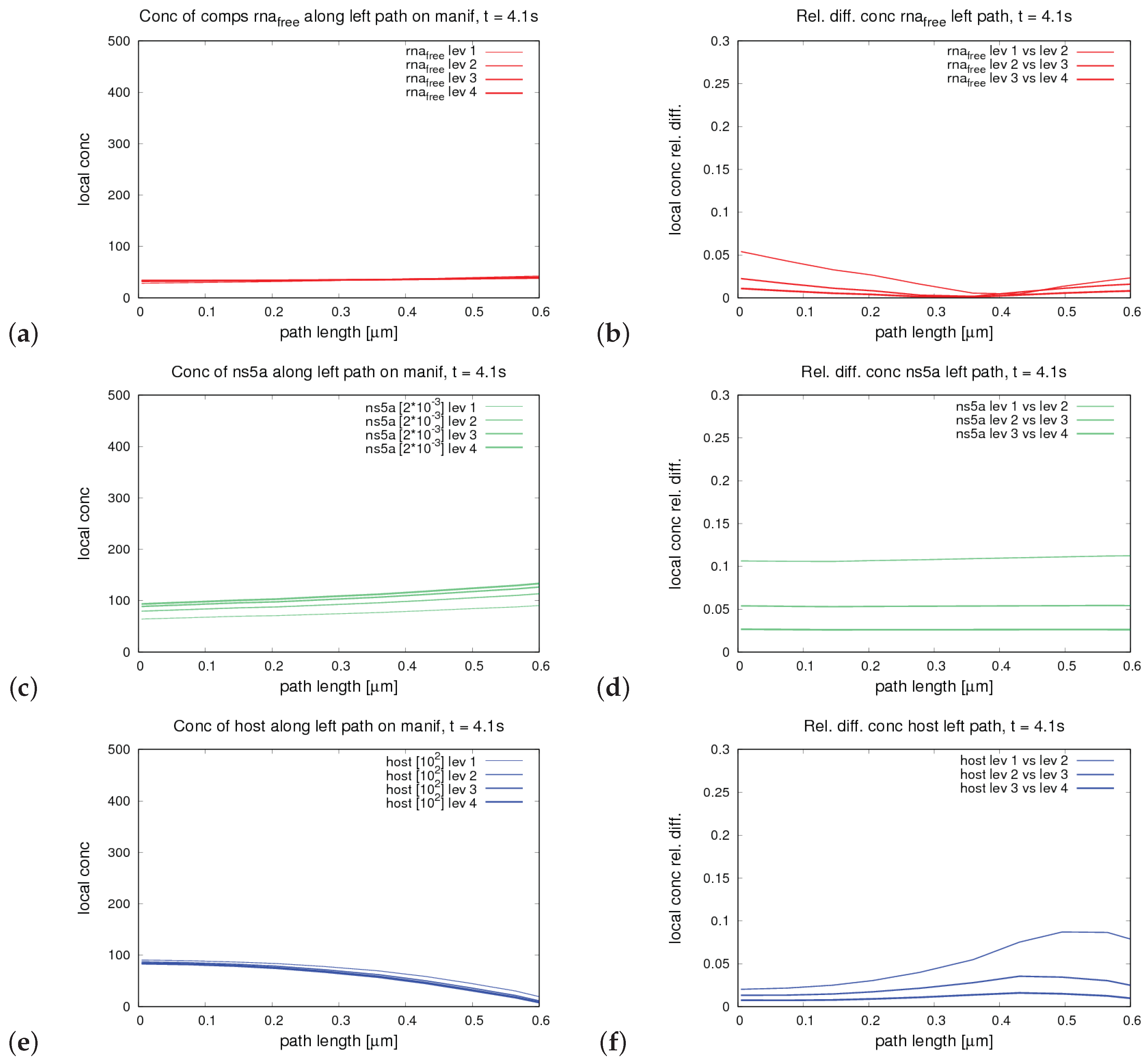

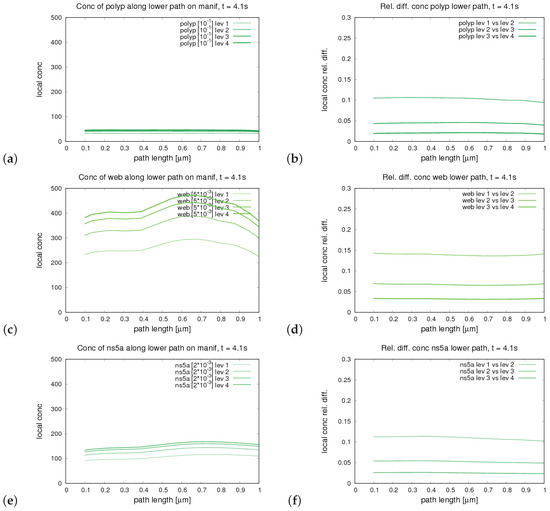

We denote that we compute the concentrations only at those node points that appear also at base level. This restriction is due to comparison reasons for refinement test checks. Therefore, in part, the concentration profiles make the impression that they are in part non-smooth (i.e., incorporating discontinuous derivatives at certain points). However, this is only due to the restricted point number of evaluation for the sake of comparison. The entire refinement tests are displayed in the Appendix F.2.

3.6. Process Analysis—Properties of Our New Model

We have developed a new population dynamics inspired sPDE model which reproduces the HCV HCV RNA replication cycle in a spatially-resolved manner.

Strikingly, our new model reflects the experimental reality in more detail than in our previous study [34]. We have enlarged our former model [34] (which we recapitulate briefly in Section 2.4) by means of two major model properties:

• We introduce population dynamics elements for the structure of diffusion and reaction coefficients. To the best of our knowledge, this feature had not yet been used within computational virology at an intracellular level. (The population dynamics coefficient structure could also contribute improvements to state-of-the-art non-spatial kinetic models of intracellular virus replication.)
• Currently, our spatial model harbors the possibility, that an agent may appear within different aggregate states, e.g., chemically bound or unbound. Similar states are already part of some ODE models (see, e.g., [8,18]).

The utilization of these new features causes the main properties of the HCV RNA replication cycle to be resolved very precisely. Some of the new features have their origin in the use of population dynamics coefficients, some in the use of different aggregate states for the agents, while some arise only because of the combination of both properties in combination with the spatial resolution. The following features arise within our new HCV RNA cycle model.

• The HCV RNA presently harbors different states for each action, namely for:

  –

  translation of viral proteins—ribosomal bound HCV RNA $R_r$;

  –

  polymerizing new HCV RNA—replication complex C formed by a combination of HCV RNA and web proteins

  –

  free HCV RNA $R_f$—may diffuse within the MW and on the ER surface.

• Different NSPs arise from the viral polyprotein: namely

  –

  MW (accumulating or building) web protein; and

  –

  freely diffusing NS5a.

• Population dynamics inspired diffusion and reaction coefficients:

  –

  replace multilinearity (which is valid only in the case of small, but also not too small, concentrations) by coefficients that are valid at all scales of concentrations;

  –

  enable the mimicking of quasi-single particle processes within the framework of continuum models, thus cause that the interpretation of concentrations gets close to the idea of expectation values;

  –

  enable one to model the replication complex state as a combination of a clearly defined number of web proteins together with a HCV RNA; and

  –

  enable one to model that the HCV RNA transport is “boosted” or disabled by NSP/NS5a concentration, depending on the NSP/NS5a concentrations, i.e., NSPs/NS5a may “shuttle” HCV RNA (but adequate parameter choice disables this speculative, even though experimentally encouraged [21,58,59,60] dependency) (cf. some literature citations that favor such a property; Appendix B.2).

• The combination of all aspects of the new model allows for the likely first mathematical model which mimics the requirement that an HCV RNA likely may only be replicated by its own “child” NSPs [56,57], i.e., by NSPs which arise from translation exactly by this HCV RNA (cf. the Appendix B.1). This property is also called “cis” requirement for HCV RNA replication.

Here, we noted in brief the properties of the new model in a more qualitative manner. In the Appendix C, we discuss in detail the representation of the new model properties within the mathematical structure of the equations.

4. Discussion

Our in silico approach mimics the interplay of HCV RNA, non-structural viral proteins, and a host factor. This in silico technique portrays HCV RNA reproduction in a 3D spatiotemporal resolved manner. Our sPDE equations are highly related to the realistic reconstructed ER geometry surfaces, which play a major role in plus strand HCV RNA virus replication [4].

Whilst our previously published models restricted the reactions to their appropriate geometric regions [34] and enabled unexplored insights into viral replication dynamics (e.g., related to the relation of form and function), these basic models harbored various aspects that required improvement. Therefore, the aim of this study was to extend the comparatively basic model of our former paper [34]. (The computational grid we used in this work is the same as what was elaborated on in the former study [34]). The main features of the model extensions of this study were to incorporate more realistic qualitative elements, which mimic better known experimental properties. Hence, we introduced various intermediate aggregate states for the agents of consideration. Furthermore, the parameters for the diffusion and reactions coefficients are modeled in a nonlinear form inspired by population dynamics replacing multilinear functions of the concentrations (as they are state of the art, although they are valid only for the case of small concentrations). Both new properties, especially their combination with spatial resolution, allow for a very realistic description of the dynamics.

In this section, we discuss the properties in a more qualitative manner. For a more technical discussion, we refer to the Appendix D.

4.1. Properties of the New Model to Address Former Restrictions

In Section 3.6, we report the advantages of the new model. Here, we analyze the reasons for the progress induced by the new model in a rather descriptive way. In contrast to this, in the Appendix D.2, we perform a highly technical analysis of the improvements.

The major backbones of the new model properties are based on the use of different aggregate states for the HCV RNA cycle agents, and the use of population dynamics.

The introduction of intermediate aggregate states allowed for quasi-realistic descriptions of the single events. In particular, the uncertainty concerning the action of the HCV RNA was addressed in this study by means of the introduction of different aggregate states for the HCV RNA. Only free HCV RNA may diffuse inside at the ER surface, only ribosomal bound HCV RNA can translate polyprotein, and only RC bound HCV RNA can be replicated. Biologically-incompatible situations resulting in HCV RNA being translated as it diffuses away and being copied at the same time are not possible in the improved model.

Transitions between the different aggregate states are described by means of clearly defined reaction terms, which, for example, may cause free HCV RNA to get “captured” by ribosomes.

In this study, we introduced elements of population dynamics for the structure of reaction coefficients. This indicates that, for the limiting case of small concentrations, processes effectively may not take place. Only once there is enough concentration available, the process is “switched on”. One can generate transitions of function shapes ranging from slow, soft, and smooth schemes up to nearly staircase-like shapes. (We demonstrate this property concerning the shape of some population dynamics type functions for test cases shown in the Appendix I. Indeed, depending on the choice of the parameters entering the population dynamics type functions, the shape of the population dynamic type functions may take forms of rather smooth functions or rather sharp functions which show quasi-step-like transitions).

The feature of population dynamics switching on and off processes depending on the concentrations of the agents is important for the construction of the RC and for the translation of polyprotein by ribosomal bound HCV RNA. The combination of a RC is always practically the same: One HCV RNA always is bound chemically to a defined amount of web proteins and forms the RC. Descriptively, one can imagine the RC construction process as if one (ribosomal bound) HCV RNA “picks up” a defined amount of web proteins W. This combination causes the creation of the replication complex C and is possible only if enough HCV RNA and web proteins are available. We assume that also, within in vivo/in vitro cell experiments, the number of NSPs that are involved within the replication of one HCV RNA is more or less always similar. Therefore, our description approximates biological reality. Furthermore, the polyprotein translation may start within our new model only if a substantial amount of HCV RNA is ribosomal bound, but not before. Finally, the host factor consumption for the construction of one new HCV RNA is now always practically the same and does no longer depend on the concentration of available web proteins.

Population dynamics, however, does not only allow for the “switching on” of a process. In fact, it further restricts the process strength (diffusion or reaction) even in the limit of infinite concentration to a clearly defined value. This ensures that reaction strength does not increase in a biologically unsound manner. Reactions may start only or continue to take place efficiently once a substantial concentration of the corresponding agent is reached, or as long as a substantial concentration of an agent is still present. This property ensures that a reaction may start or continue only if a substantial concentration of the concerning component is reached.

The diffusion coefficients of some components are modeled in population dynamics form such that the concentration of NSPs modulates the possibility to diffuse. Therefore, this form of the diffusion coefficients suggests that diffusion is only possible once sufficient NSPs are available at a spatial point. (The diffusion coefficients have a defined limit for “infinite” NSP concentration, which is practically reached for realistic concentrations.) This property ensures that some agents may only diffuse to such places where NSPs are already located. Therefore, diffusion of free HCV RNA or RC into a web region where the web protein is not dense is no longer possible. This guarantees the theoretically important property that free HCV RNA may not diffuse into other (geometrically defined) MW regions as long as there is not a substantial amount of web proteins that is already accumulated there. The lack of accumulated web proteins corresponds to a geometric MW region where the functional MW has not yet grown.

To this end, choosing model parameters of the reaction and diffusion coefficients that are suitable, our new population dynamics model inherits even the simple linear case as limit. This enables the choice of a simpler model within the given framework.

4.2. Spatiotemporal Resolved Evaluation of the Concentrations

As in the case of the predecessor of this model [34], we may compute the concentrations at each spatial point of the computational grid at each time. We demonstrate this property in Section 3.4. We depicted the evolution of the concentrations of the different aggregate states of the agents of our model integrated within different subdomains and over the complete computational domain. (We also demonstrated the grid convergency of our results; cf., the Appendix F.1). The latter values should serve to compare to experimental values like those published previously [42,43] once the computational domain is extended to complete hepatocytes. Experimental approaches which complement our ansatz in a more refined way can be found in more recent experimental studies (see, e.g., [20,21]).

4.2.1. Simultaneous Observations In Vitro–In Silico “Loupe”

The simulations of our model reproduce the experimentally observed in vitro effects that take place when a hepatocyte cell gets infected with HCV. In particular, the simulations reproduce these effects in a detailed spatiotemporal resolved manner. Quantitative conclusions are possible due to the complex dynamic model. We briefly recapitulate the major effects that can be observed simultaneously in our in silico simulations and which, in principle, can be observed and compared with in vitro experiments: An HCV RNA genome binds to ribosomes and induces viral polyprotein translation. The polyprotein cleaves into different nonstructural viral proteins (NSPs), namely those that form the web regions and others that diffuse away on the ER surface. In experiments as well as in our simulations, one further observes that HCV RNA moves into separable web regions. HCV RNA captures NSPs of the web region forming replication complex (RC) which polymerizes new HCV RNA. Free HCV RNA diffuses away to other ribosomes to start new polyprotein translation at another region of the cell. Here, the modeling approach allows a much more detailed view on these processes as currently available experimental results, but are in agreement with present experimental studies forming the basis of the HCV RNA replication theory (see, e.g., [1,4,6,61]).

The current study forms the basis of a model for which subsequent in vitro experiments could seek to augment. Our simulations resolved the processes at such a small scale in time and space that they will provoke advanced experimentation to validate details of our model, such as: Do the growth of webs spread from single points of origin, or does this process happen randomly? Our detailed model approach is an important and complex step that may allow for further validation from future experiments that provide insight into the dynamics of proteins within cells (in vitro models or even cells originating from an infected liver). Such experiments would also allow further modifications and adjustment of the spatiotemporal model presented here and can provide a quantitative assessment of the model parameters, but are beyond the aim of the present study.

4.2.2. Profiles Of Concentrations Along 1D Trajectories On The ER Surface

To this end, we note that we evaluated profiles of concentrations along selected one dimensional curves on the ER surface (Section 3.5) and we have shown grid convergency of these results (Appendix F.2). Such results could serve for comparisons with, e.g., fluorescence experiments.

4.3. Interpretation of Local Concentrations

Within our population dynamics coefficient structure, one can choose coefficients so that polyprotein translation may only take place if there is at least one HCV RNA bound at the ribosomes, or RC may only be constructed once there are many of web proteins available.

This necessity is better understood if we consider the amount of ribosomal bound HCV RNA concentration (or of available web proteins for RC construction) in a similar way to the expectation value of the spatial variable of a state, e.g., in quantum mechanics, i.e., if we interpret the concentration of ribosomal bound HCV RNA as some sort of probability that a comparable amount of whole-number HCV RNA is bound. For example, a “quarter” of a HCV RNA genome cannot translate polyprotein.

Indeed, one central property of HCV RNA movement and binding in de novo infections is that relatively few HCV RNA genomes are introduced into the host cell during initial infection with HCV [43]. This property indicates that a continuum model of HCV RNA can lead to uncertainties such as: How can a concentration of HCV RNA cause translation if the concentration is much smaller than a single genome (i.e., integrated over the surface of the ribosomes)?

The population dynamics form of the reaction coefficients indicates that translation may only start if a relatively clearly defined amount of HCV RNA is bound at the ribosomal surface. In the case of small concentrations of HCV RNA at a ribosomal region, it is not very likely that a HCV RNA genome is attached to the ribosomal region. Then, translation is effectively not possible.

The introduction of elements of population dynamics into reaction and diffusion coefficient structures of computational virology allows continuum model properties to link to a form of quasi-single-particle model properties. For the transition from lower to higher concentrations, population dynamics allows for quasi-transitions from quasi-few-particle descriptions within the diffusion–reaction parameters to real continuum models for high concentrations. Population dynamics allow for “slow” smooth transitions and, depending on the parameter choice, quasi sharp transitions between continuum and quasi single particle states, respectively. Population dynamics enable quasi-transitions between continuum model descriptions and elements of single particle modeling, however all these effects are described within a continuum model framework. Our ansatz represents a method that emulates few-particle-system properties for small concentrations and entire continuum model properties for high concentrations.

4.4. Summary—Progress Induced by the New Model

The combination of population dynamics and different aggregate states with fully 3D spatial resolution upon realistic reconstructed geometries allows resolution of the major principal aspects of the spatial dynamics, and is more consistent with the biology of the HCV infection cycle.

For example, the “picking up” of a defined number of web proteins by one HCV RNA to form the RC is closer to experimental reality than the previous state-of-the-art models, i.e., the multilinear reaction models.

The combination of population dynamics and spatial resolution further allows for the modeling of the speculative hypothesizes like HCV RNA shuttling by NS5a and the “cis” requirement for HCV RNA replication [20,56,57]. Surprisingly, the cis requirement appears in a rather natural way upon the adaption of the model to experimental reality concerning basic aspects—a 3D realistic geometry combined with different aggregate states. We did not impose the condition directly. Indeed, we did not even try to impose it. It arose once the model got sufficiently realistic. We could delete this condition again by adding additional reaction terms, but we omit such a step at this stage. Indeed, the property that arises from our model is a type of quasi description of this condition. Interestingly, this property arises within the framework of a continuum model. Such a realistic mathematical description is only possible within spatial resolved models.

This model is an approach to describe different experimentally observed facts and experimental-based hypothesis. Such effects (e.g., NSP concentration dependent HCV RNA transport, constant relation of HCV RNA and NSPs within RCs, and HCV RNA replication cis requirement) were not captured within ODE models, to the best of our knowledge.

4.5. Remaining Restrictions of the New Model and Future Model Extensions

There remain some restrictions concerning qualitative aspects of the model.

Particularly, the spatial dynamics of the host factor(s). (In reality, likely far more than one host factors are involved in the process.) We assume that the host factor movement is not restricted in surface movement as it is modeled at the moment. In addition, the spatial dynamics patterns of the HCV RNA movement remains unsolved and respectively challenging also within the experimental context [20,21]. Thus, some questions are challenging for the mathematical side as well as for the experimental side (cf. Section “4.6. The HCV RNA Transport and the Web Movement” of our former paper [34]).

The simplification—that the MWs are resolved only at the surface and not within the volume—is less relevant because of scale arguments, since volume and surface are comparable at this stage. Therefore, the overall dynamics is influenced only minor by this aspect.

The mixture of volume and surface effects is beyond the scope of this study. Future extensions should incorporate the merging of surface and volume effects (cf. our simple volume grid model [34]) concerning the transport mechanisms and properties of the different agents. This indicates to extend the “volume” PDE (vPDE) model (as introduced by us before [34]) by means of incorporating the properties of the complex surface PDE model introduced in this study. We consider this topic in more detail in the Appendix E.1.

An incorporation of degradation effects should be tested, because our present model suffers from permanent bound HCV RNA accumulation caused by the binding of free HCV RNA to the ribosomes. We did not consider this aspect in detail, because we focused upon the introduction of a new model structure. Degradation reactions are easy to incorporate within our technical framework and are already well-known within the literature.

Necessary future improvements are to use realistic values for the parameters of the model, and we are already working on this aspect. Recently, we estimated the diffusion constant of NS5a at the surface of the ER based on experimental FRAP time series data [35,36,37]. The value could be incorporated into our model; however, this only makes sense once there is also a perspective to get experimental data for at least some of the other parameters. To this end, we are looking forward to the present and near-future experimental techniques that may enable access to suitable data for such parameter fits. Such a scenario would likely allow for a rough estimation of the remaining values (i.e., maybe not a strict parameter estimation, but at least some sort of assumption).

To this end, an important topic will be the extension of the simulations to complete cell geometries rather than a subsection of a cell so that whole-cell experimental kinetic data can be compared [42,43]. The present model focuses on perinuclear zones where the cell compartments show a relatively static internal architecture [28,62]. In the long term, the extension of the geometric region of the model evaluation to the peripheral regions will likely need to take into account the random walk properties of, e.g., peripheral NS5A foci [35], as well, which are often highly motile and capable of rapid long-range traffic, i.e., to “jump around” [21,28,32,33].

4.6. Incorporation of Direct and Indirect Antiviral Agents

An inclusion of the mechanisms of action of antiviral components, such as interferon or DAAs in the in silico model is possible. For example, the assumed mechanisms of action of “interferon” can be incorporated into the equation set of Equations (5a)–(5g) using a reduction factor of the reaction rate causing polyprotein translation. Furthermore, a simple multiplication factor in polyprotein translation rate depending on the natural intracellular inhibition pathways induced, e.g., by interferon could account for the interferon effect. A protease inhibitor would strongly reduce the cleavage of polyprotein into the NSPs. This mechanism would be reflected in the model, in the simplest case, by introducing a multiplication factor in the reaction coefficient that describes the polyprotein cleavage. If the factor is sufficiently small, it would describe protease inhibition, which would cause the polyprotein amount to increase strongly, while the NSP amount (in our model: web protein and NS5a) would remain at a low level, causing a very slow web growth and thus preventing quick RC construction. In addition, HCV RNA transport would be more slow than in the case without drug treatment. Since we assumed a coupling of HCV RNA diffusion “speed” to NS5A concentration, the “shuttle” effect cannot take place efficiently. As a final example, a polymerase inhibitor would be modeled by means of a factor which reduces the HCV RNA polymerase performed by the RC. Hence, our model forms a detailed base of the inclusion of direct and indirect antiviral agent effects. (For the case of ODE models, there exist several studies that investigate the reaction coefficient structure in cases when the effects of antivirals are incorporated; see, e.g., [13,63,64]).

5. Conclusions

The current study presents an advanced 3D spatially resolved model of the HCV RNA replication cycle as restricted to a subsection of a hepatocyte represented by its major compartments, namely the realistic reconstructed ER surface together with the reconstructed membranous web regions. In particular, our new model introduces population dynamics methods into computational virology at an intracellular level and different aggregate states for the components of spatially resolved intracellular virus models. The combination of population dynamics, different aggregate states of the agents of the HCV RNA replication cycle, combined with a fully spatially resolved realistic geometric environment allows for mathematical descriptions of various biological facts and experimentally motivated hypothesis (which thus far have not been modeled). Examples of these mathematical descriptions are the clearly defined relation of the ratio HCV RNA-to-NSP number within the replication complex, or the mathematical capturing of the HCV RNA cis replication requirement and the NS5A boosted HCV RNA transport.

To conclude, our population dynamics inspired sPDE model of the HCV RNA cycle increases the potential for new understanding of HCV RNA replication and defines a new basis for computational modeling of virus infections, which could underpin novel future experimental approaches.
