1. Introduction
Pollution and various forms of ecosystem contamination continue to be pressing issues across the globe [
1]. China’s rapid increase in urbanization in the last three decades, for example, has resulted into environmental challenges where air pollution is the leading problem [
2]. Protecting the environment, therefore, is a serious undertaking that faces businesses and governments today. In recent years, there has been increasing pressure on institutions to measure and report environment-related parameters [
3]. For this reason, there has been a significant increase in the number of reporting instruments used globally, of which sustainability reporting instruments account for the largest share owing to government regulations [
4].
Environmental sustainability now underpins the policy-building initiatives of government institutions and businesses alike. In developed countries such as those of the European Union (EU), air pollution damage, which brings about a direct threat to public health, is expected to rise in the next decade. This has compelled the EU governments to give priority to air pollution level reduction above any other climate change policy plans [
5]. In developing countries, however, there are still inadequate air quality policies and environmental monitoring plans. This is a major concern primarily because these are the regions that are more susceptible to increasing levels of air pollution [
6]. There is therefore a challenge in finding economical solutions to monitor pollution levels and other relevant health parameters.
Air pollution from both outdoor and indoor sources constitutes the greatest environmental risk to human health around the globe [
7]. About seven million premature deaths were attributed to air pollution in 2014, based on an estimate by the World Health Organization (WHO). It is projected that, by 2050, outdoor air pollution will be the number one cause of environment-related deaths worldwide [
8]. For these reasons, governments across the globe have started to monitor the levels of major air pollutants, especially in metropolitan and urban areas.
In addition, people spend around 90% of their time indoors, and human exposure to indoor air pollutants may occasionally be more than 100 times higher than outdoor pollutant levels, according to the United States (US) Environmental Protection Agency (EPA). Indoor air pollution is equally detrimental, as statistics show that 4.3 million people per year die from exposure to household air pollution [
9]. Exposure to poor indoor air is a significant cause of productivity loss in the US, as productivity decreases by 0.5 to 5% per workplace, generating a loss of 20 to 200 billion US dollars annually [
10].
Monitoring Personal Air Pollution Exposure (PAPE), which refers to the amount (
g) of pollution being inhaled by an individual, has been a topic of growing interest worldwide, not only as a result of global health policies, but more importantly, due to the interest in understanding its effects on various cardiovascular and respiratory diseases. These diseases have been documented widely in existing epidemiological studies [
11,
12]. Nevertheless, this traditional evaluation of PAPE has not been directly undertaken for individuals, but rather for groups of people exposed to the annual average concentrations of pollution that are indicated by a network of fixed-site outdoor monitors.
Existing studies on the association of air pollution with different diseases [
13,
14] recognize the importance of measuring PAPE among individuals. By monitoring activity patterns, it is possible to establish correlations between different populations or levels of socioeconomic status and PAPE. Although there are novel methods to measure and model these exposures, the great variability in PAPE remains a major challenge [
15] and provides a compelling case for research on the effects of air pollution on health. Dias and Tchepel [
16] suggest that, in order to assess personal exposure, not only the spatial-temporal variability of urban air pollution should be taken into account but also the indoor exposure and the individual time-dependent activities should be measured.
The recent advances in data technology are expected to play major roles in the next decade, permitting easier access and analysis of data [
1]. The Internet of Things (IoT), which is defined as the network of various ubiquitous devices that are capable of computation and communication over the Internet, has been gaining recognition in the development of advanced applications in the healthcare sector [
17]. This wave of digital innovation is driving the healthcare industry and paving the way for cheaper, smaller and more efficient wearable technologies that monitor health indicators in real time [
18].
Health systems around the world are under pressure to come up with economical solutions to existing problems [
18]. These sensor technologies, coupled with sophisticated analytics, have the means to improve process efficiency and achieve cost reductions [
19]. With this kind of digital innovation, an economical and scalable application can be built to help developing countries to measure PAPE and other health parameters to improve their current health risk assessment systems.
Although there was initially a concern about sharing private information from sensor technologies or other similar devices, the general public has started to accept the use of digital services, even for sensitive information such as health data [
20]. In fact, in a consumer survey performed by Price Waterhouse Coopers in 2015, 83% of respondents indicated that they were willing to share data to aid in the diagnosis and treatment of diseases [
21]. With this collaborative support from the general public, exploring IoT applications to test sensor-driven projects can greatly facilitate advances in the healthcare industry [
22]. Insights gained from the surveillance of vital health information, such as PAPE, can establish a foundation for predictive, preventive, and personalized healthcare systems [
18].

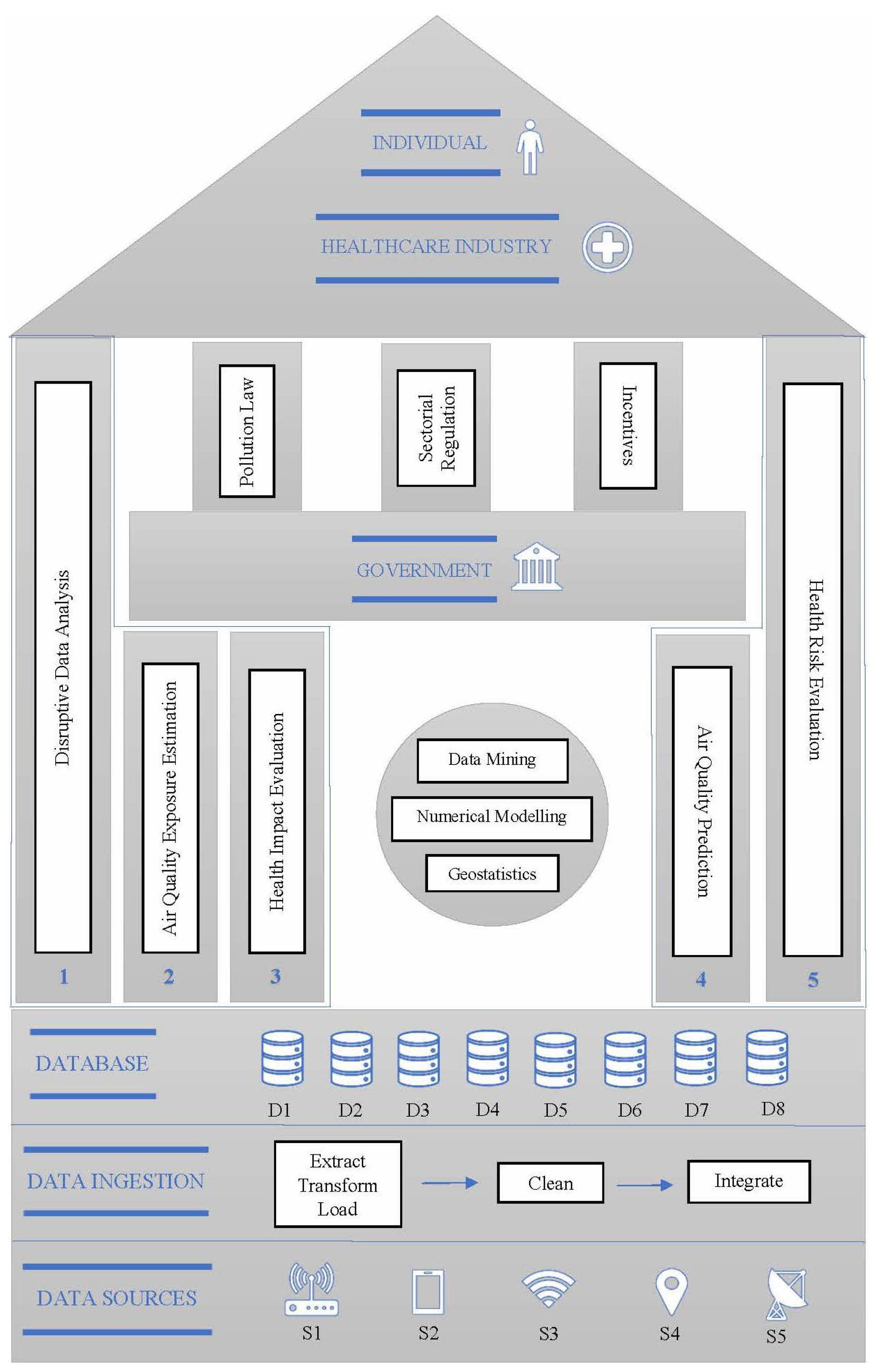

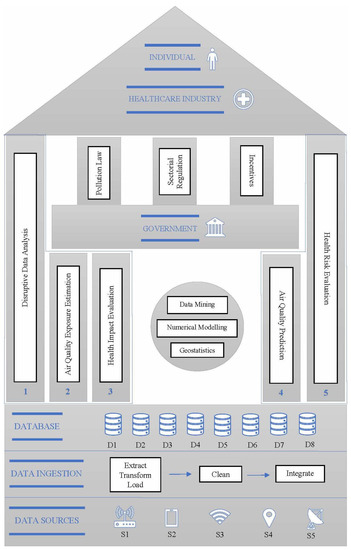

In line with these trends in the healthcare industry, this paper seeks to propose a framework for an Air Quality Decision Support System (AQDSS) and to develop an IoT application that measures PAPE based on this framework. The four sections of this paper are organized as follows. The first section provides a literature review of studies on key air pollutants, determination methods for air pollutants, and PAPE estimation techniques as well as the current opportunities and challenges in the field. The second part discusses the methodology, which includes the proposed framework and an IoT application that was tested by means of a case study. This is followed in the third part by the analysis and a discussion of the results of the case study. The fourth part presents conclusions that highlight the study’s important contributions and directions for future research.
4. Results and Discussion
4.1. Outdoor Pollution Model Performance
The adopted modeling technique based on geostatistics [
65,
66] using hourly-based data [

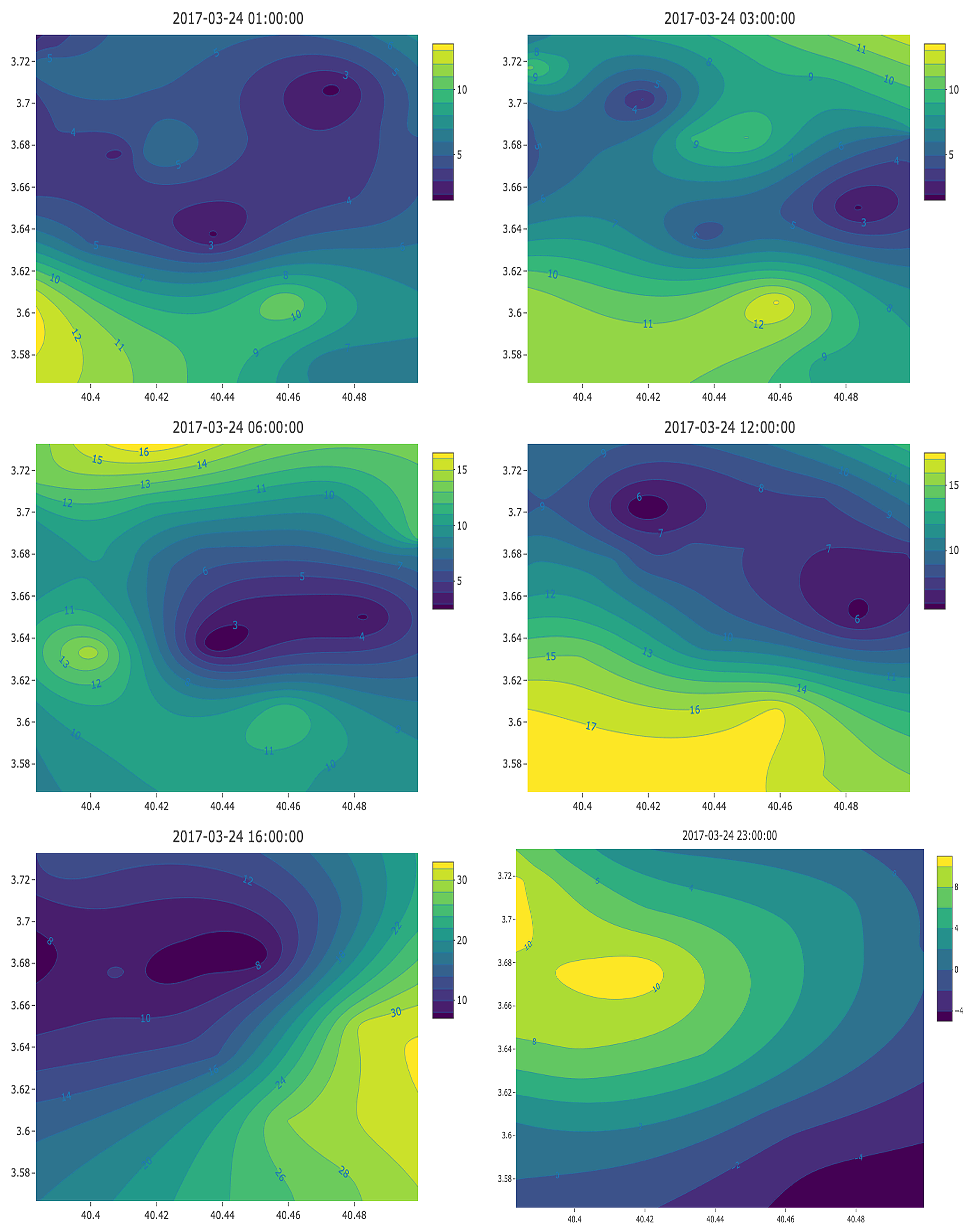

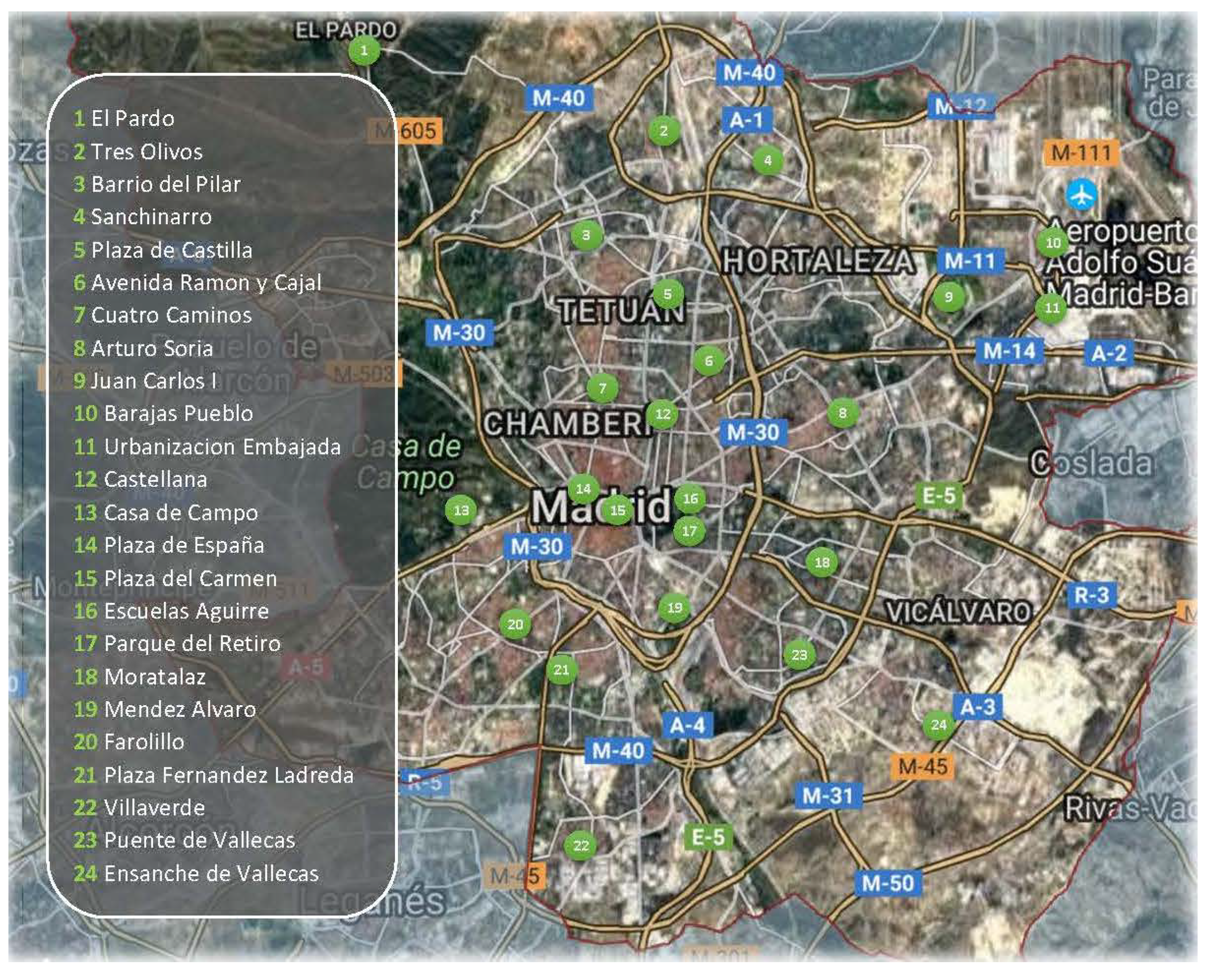

43] from the fixed network of pollution stations can be interpolated by using different techniques, and criteria for technique selection is needed. Therefore, a cross validation with the leave out strategy was adopted. Based on the 5-fold cross validation performed for each of the three modeling techniques, among the 24 hourly datasets of PM
captured on 34 March 2017, the Simple Kriging technique proved to be the best model with a selection occurrence of 13, followed by the Ordinary Kriging with 10, Co-kriging with 7, and IDW with 1, out of 24 datasets. Our results agree with previous studies such as [
88], where Simple Kriging outperformed Co-Kriging, and [
89], in which Simple Kriging turned out to be the best model for estimating NO
and PM
.
It can be argued that some local effects like turbulence around buildings, roughness of constructions, and some other aspects impact the accuracy of the estimation. The techniques used in such dimensions can be those related to the integration of meteorological, chemical and transportation numerical modeling (WRF and CMAQ models), with the limitations of being able to precisely estimate the boundary conditions as well as to properly model the city configuration (buildings, trees, surface properties, etc.). When running with high spatial resolution, they produce good results, although the quality is slightly reduced and numerical stability becomes an issue [
90]. Another potential contribution could be to use artificial-intelligence-based models to estimate pollution levels. In these fields, the authors have already made significant contributions. Actually, some papers [
91] have shown the competitive advantage of these methods over those based on numerical simulations. However, to keep the implementation interoperable and extendable, interpolation was finally adopted, because it can easily be enriched with the data fusion option based on IoT-based, street level pollution sensors.
4.2. Device Performance

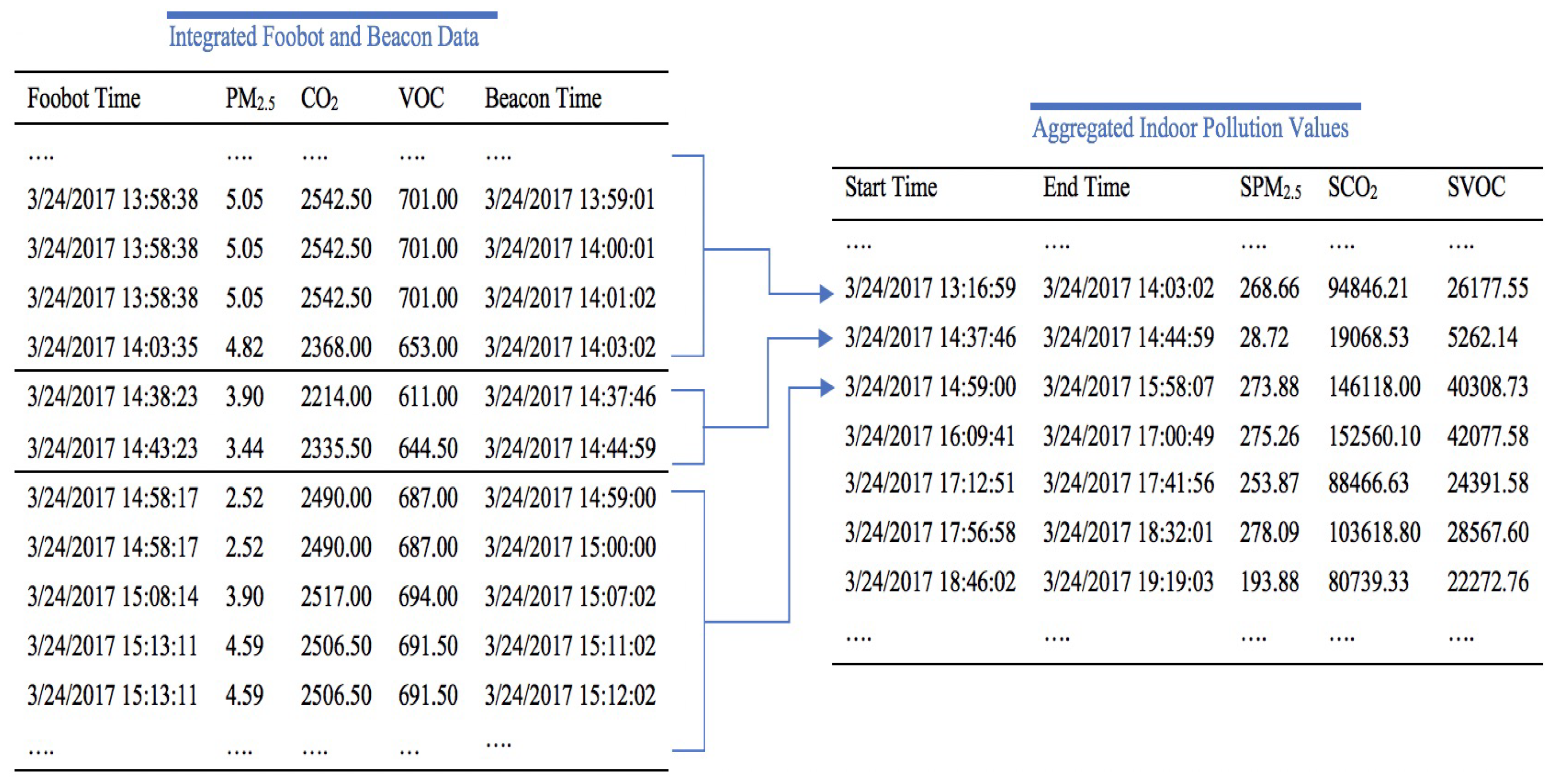

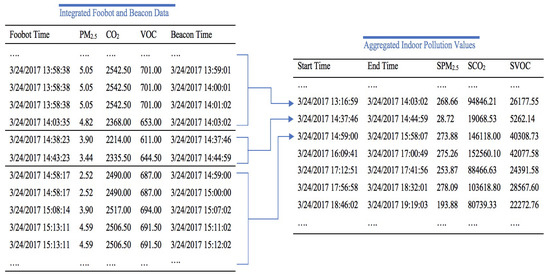

To validate the fully aggregated indoor pollution values (SZ(p)) obtained from the indoor monitor and e-beacon devices, they were matched against the pollution data that were measured simultaneously during the study period using a portable air pollution monitoring tool- Atmotube [
92] that was carried by the individual.

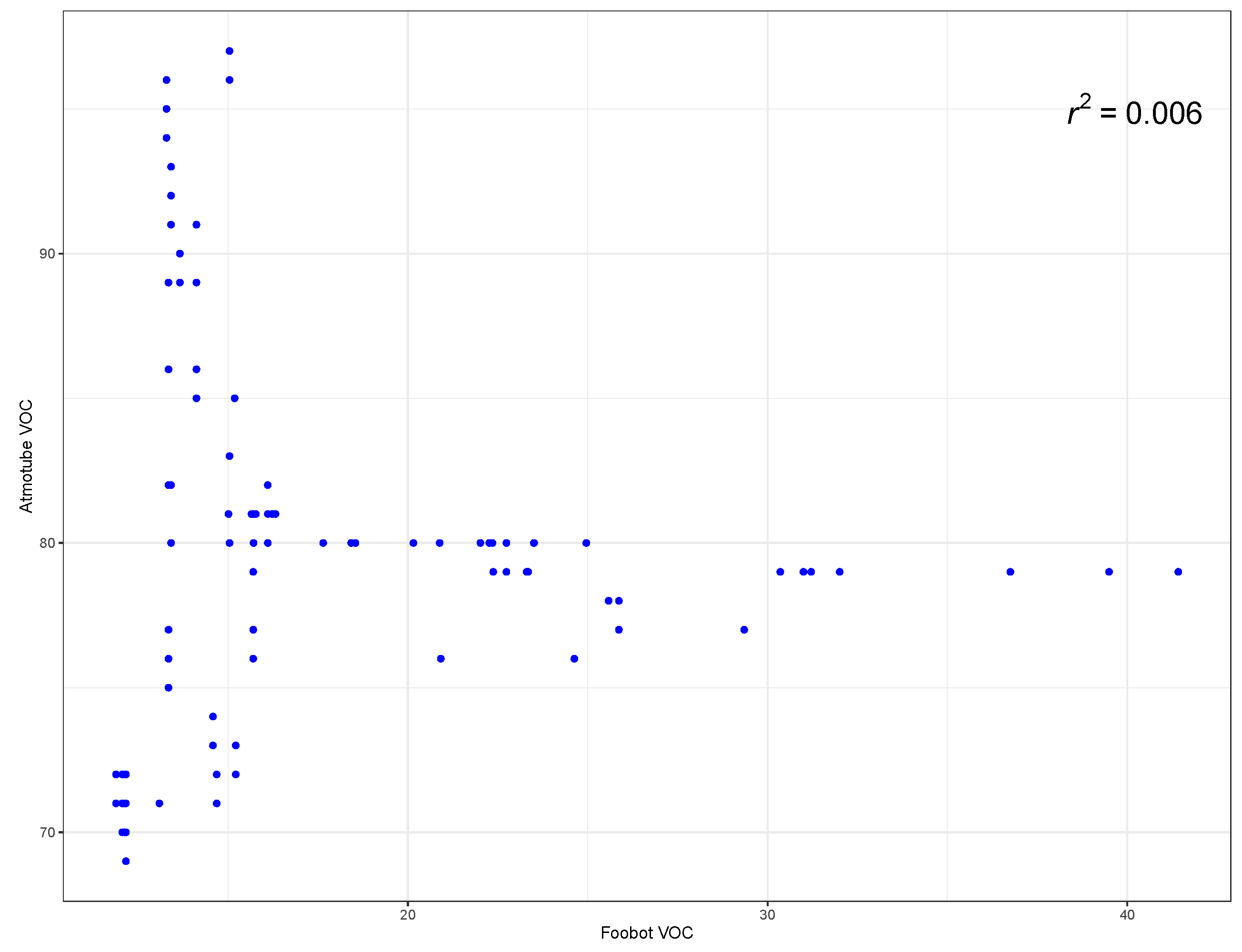

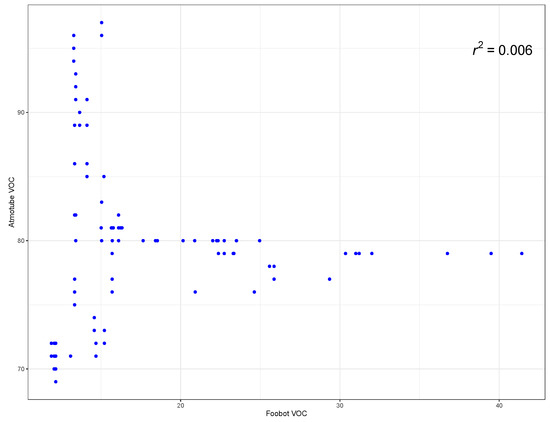

Figure 5 shows the indoor VOC values measured from the Atmotube and the Foobot monitor on 2017-03-31. It can be seen that there is significant measurement variance between the two devices. Nevertheless, the measured values follow the same trend. There is no consistent Air Quality Index (AQI) provided for comparing the pollution values measured by each device. In agreement with [
93], the AQI scales differ across countries, organizations, and devices, and this presents an obstacle for comparison and invalidates its usability, which emphasizes the need for a standardized awareness procedure.
Variance in measurements can be attributed to the differences in calibration and measurement methods that were used by these sensors (see
Figure 5). However, this situation partially unveils the observed difficulties in getting people aware of the real importance of pollution, as someone can exhibit different figures for the same pollutants at the same place and point in time. Actually, it is another strong point to have a common framework such as the one proposed in this paper, because it mainly fosters transparency and then allows interpolated or modeled values for outdoor pollution over time at a particular place to be compared with local, privately owned sensors from both outdoor, and indoor locations. From such observations where different local sensors can indeed participate, a better understanding about outliers and commonalities and trends can be derived.
4.3. PAPE Values

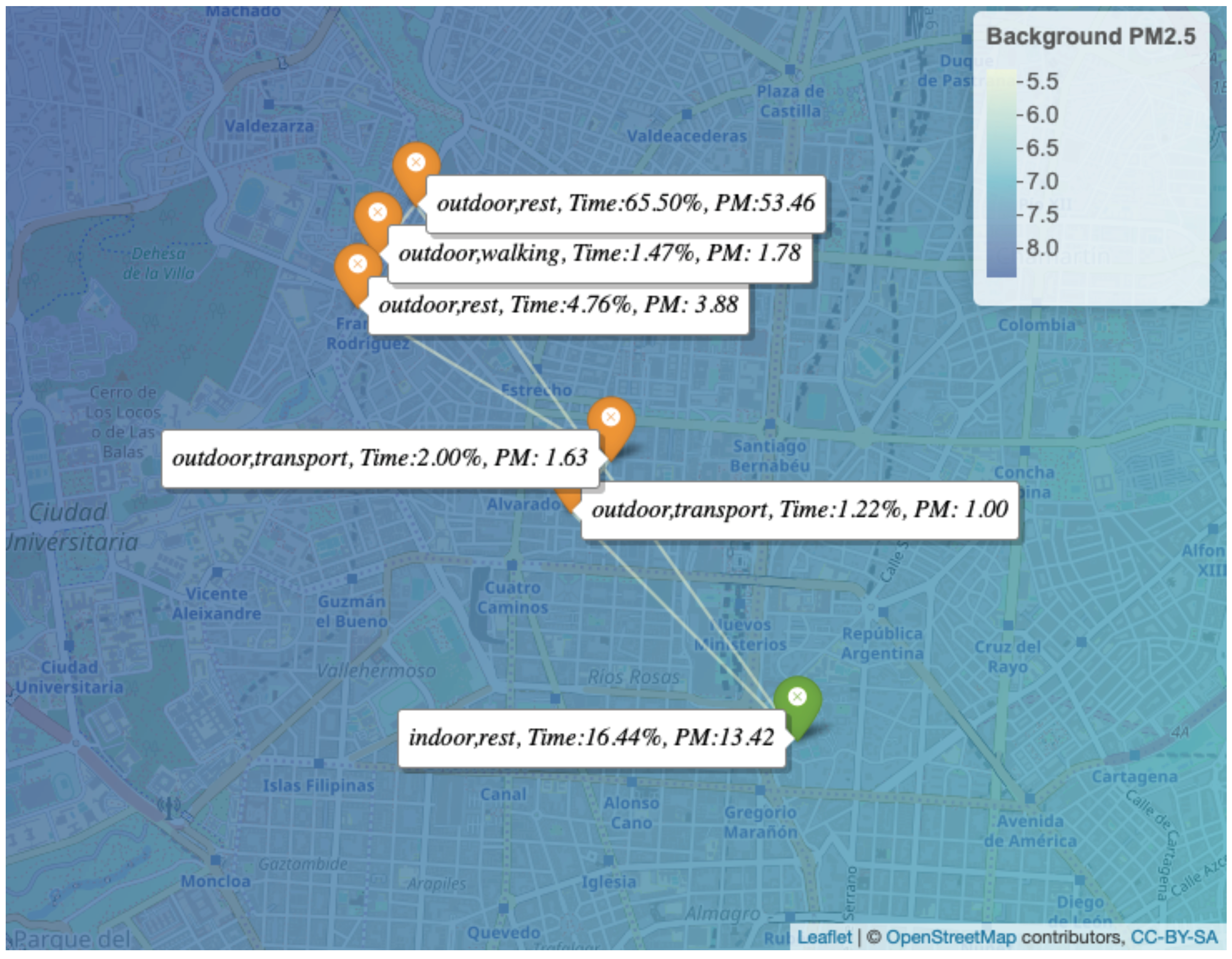

Figure 6 illustrates a color map of the average PM
levels (
g/m
) for one day, in which the range of the specific values is presented on a color scale on the right. The location pins indicate the environment, activity type, time percentage (%), and the respective amount of PM
(
g) that the individual was exposed to within the indicated time duration. It can be seen that the individual spent most of the day (62.78 %) outdoors (i.e., outside the workplace) on the northwest side of the city where the highest daily average pollution level of 12
g/m
was concentrated, and this resulted in a total PM
exposure of 52.7
g.

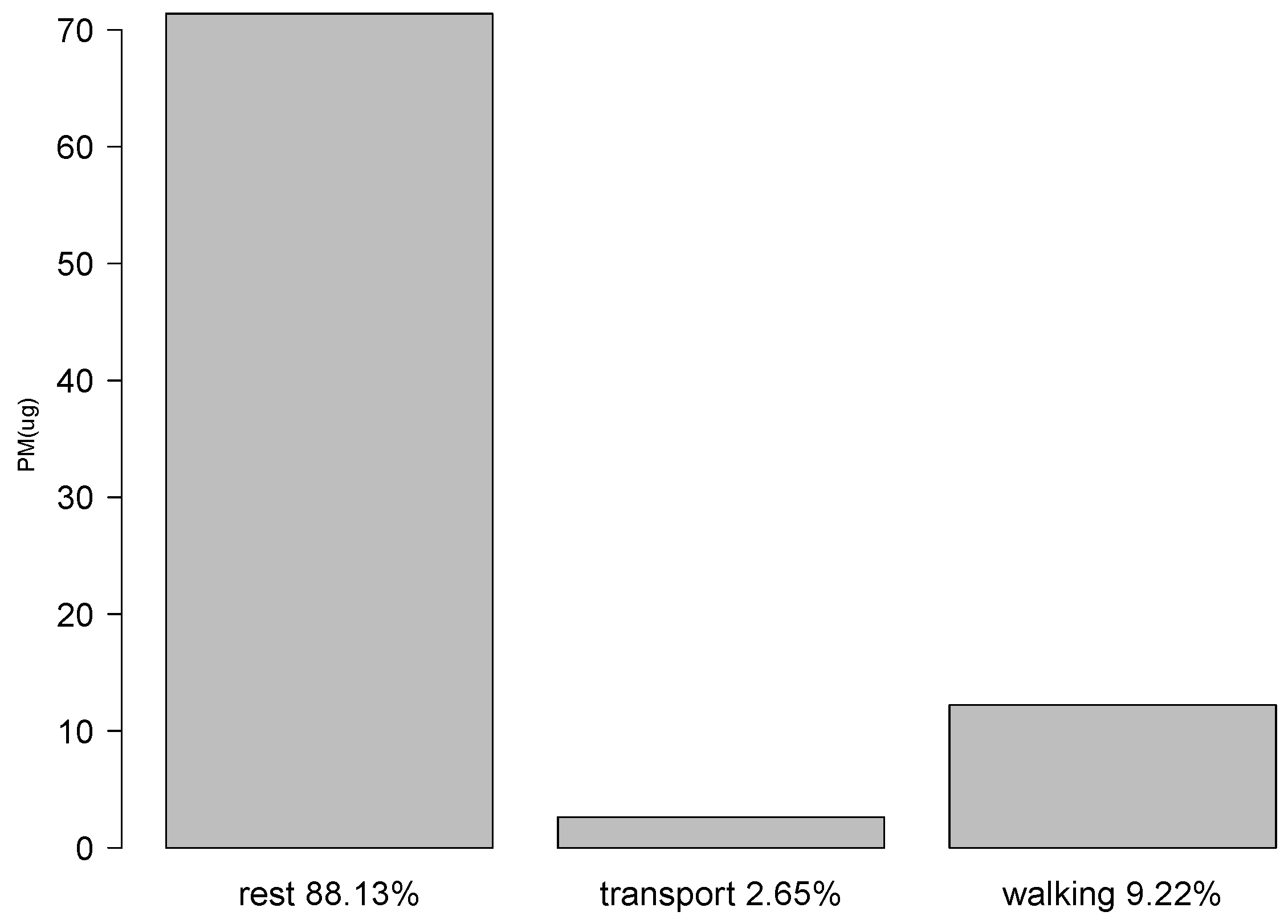

Figure 7 shows the one day PM
exposure levels by activity type. Based on this plot, the individual spent most of the day (88.13%) at rest and was exposed to approximately 70
g of PM
during this period. PM

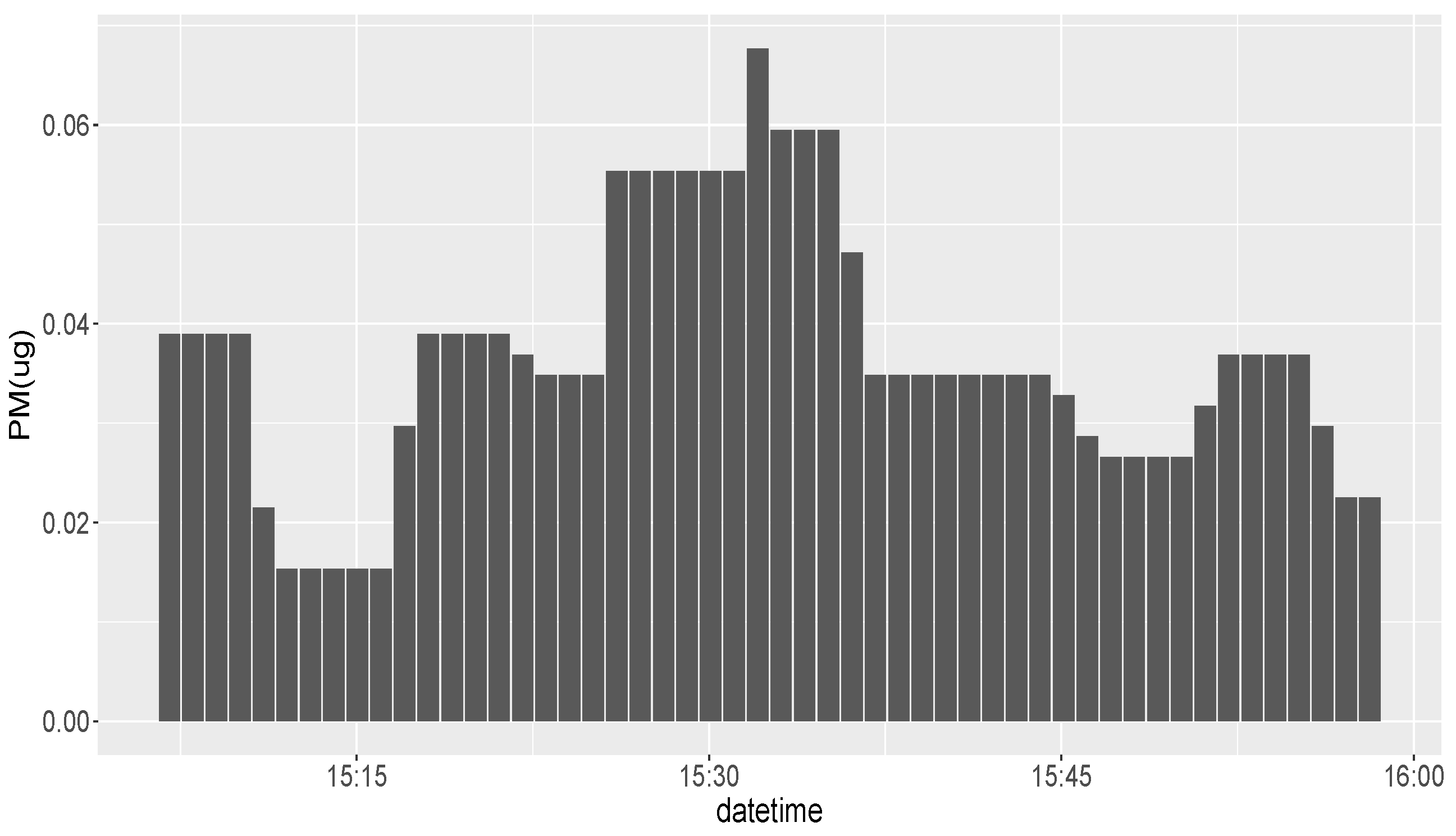

exposure values within a selected time period on the same day are also plotted in
Figure 8, which shows that the individual had the highest pollution exposure at 15:32 in the afternoon during this selected period.
From this analysis, the value of people being able to figure out the distribution of the total intensity of pollutants based on their activity becomes evident, as this method can make them aware of the real dimension of the problem and avoid classical myths, like the idea that most of the pollution is acquired outdoors (see
Figure 6). While there are similar studies such as in [
87], where the authors demonstrated the cleanest air routing algorithm for path navigation by calculating the PM
exposure, they mainly focused on pollution acquired outdoors and not indoors.
Since information is the key aspect in having the opportunity to make proper decisions, the advantage of such an integrated framework that is able to integrate not only outdoor conditions but also indoor ones when available becomes more evident. This can also have an impact not only at the individual level by making everyone aware of their exposed pollution levels but at an aggregated level as well, because the public health dimension is impacted when buildings are seen as actionable regarding the indoor conditions. Therefore, KPIs can be adopted by considering the gradient between outdoor and indoor levels per area of occupancy of the buildings. By having systematic monitoring inside, the management dimension can be adopted.
4.4. Alternative Travel Routes
Similar to [
87,
94], another non-neglectable dimension that is possible to consider is the impact in terms of transportation decisions.

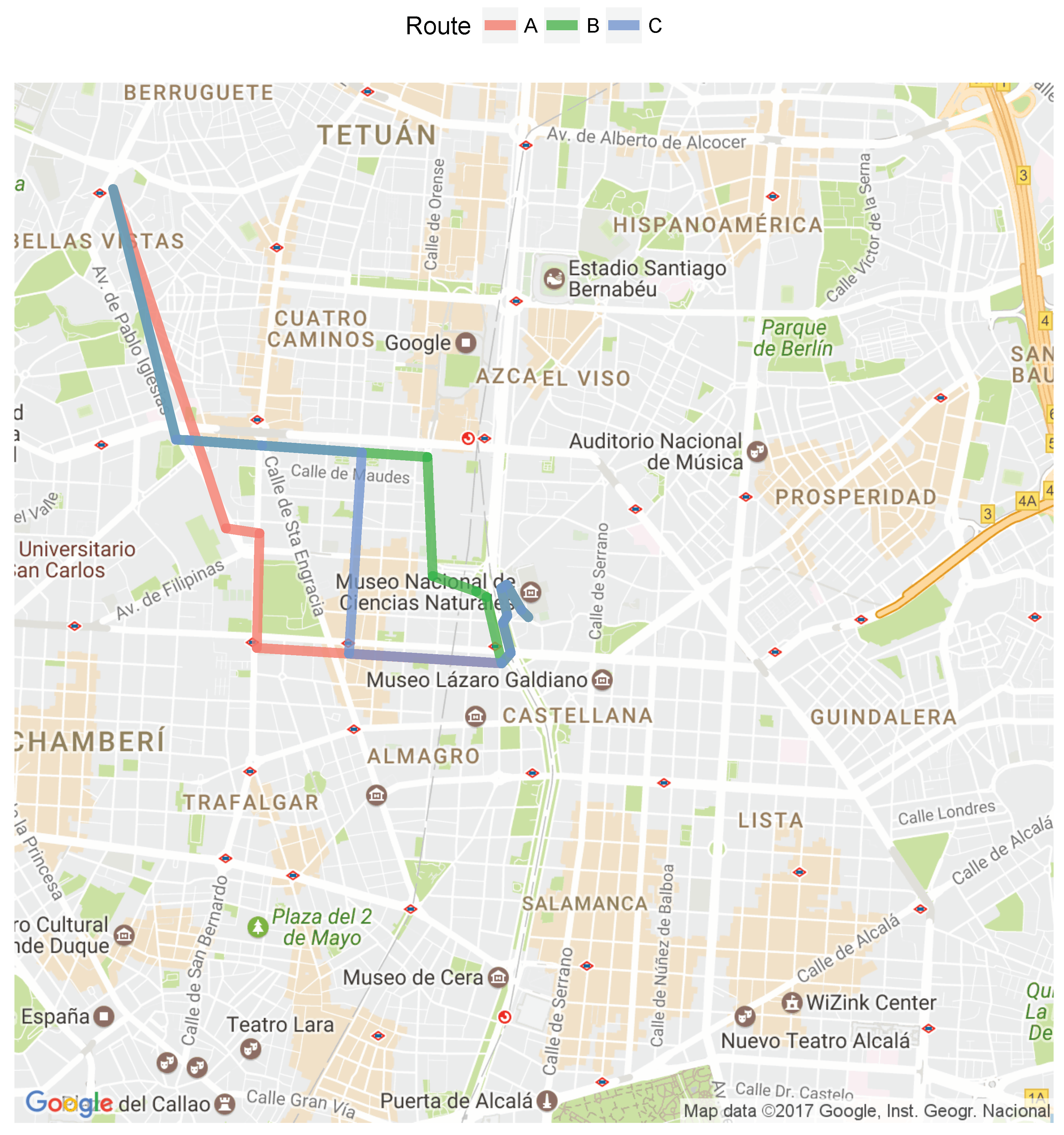

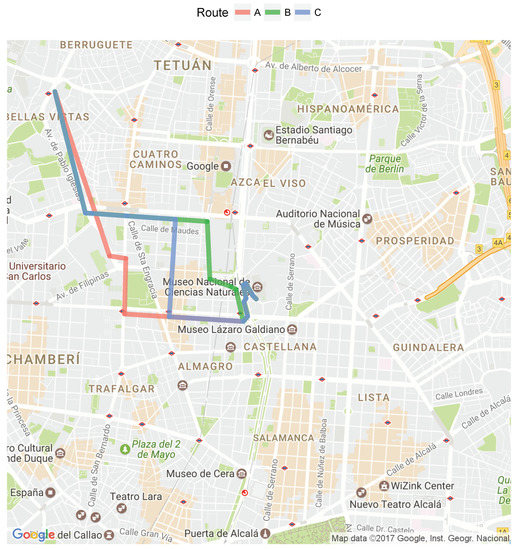

Figure 9 shows different routes that one individual can take when moving from one location to another, and the corresponding aggregated pollution and exposure values are provided in
Table 6. These values were predicted on the basis of the individual’s activity data for 24 March 2017 from 12:04:30 to 12:23:44. The most frequent one adopted by the user was labeled “Actual”, while the other potential routes were named A to C.
In this example, the better individual route will is B, as it causes the least amount of PAPE at 0.769 g, which is 22.75% lower than the actual exposure of 0.995 g. However, the decision process can be more complex, because there will certainly be some time duration uncertainties, which will consequently result in uncertainty about the total PAPE value of each alternative route.
Although most of the tools that give routing solutions for transportation problems are based on duration, some of them have the capability of filtering them out based on pollution exposure outdoors [
87,
94]. In terms of added value, this contribution enables alternatives to be ranked based on estimated pollution levels both outdoors and indoors, provided that pollution data is also available inside public transportation modes such as trains, buses, and subways. In these cases, as forecast for pollution is needed, machine-learning-based models that infer outdoor pollution values need to be used.
4.5. Limitations
Due to the lack of publicly available air quality information for other indoor areas such as shops, buses, cars, metros, etc., outdoor pollution data from the fixed-site outdoors information must be used in such cases. If there are more available resources, additional monitoring IoT devices in other indoor areas will provide greater accuracy. In most cases, good results demand good inputs, and existing data are replaced whenever better data become available. Quality improvements can be expected from those actions. Smart city empowered data sharing platforms such as IOTA Tangle [
95] would boost IoT-based indoor air quality resource availability.
Accuracy for outdoor pollution estimation is another known limitation, both because of the time frequency resolution of available data and because of the interpolation errors. It would be possible to implement Weather Research and Forecasting (WRF) models such as the CMAQ. This decision requires significant effort, not only because of using the appropriate Digital Elevation Model (DEM) required to represent the landscape and building configuration, which is a complex task, but because it requires the boundary conditions to be realistic. This means adopting pressure and wind speed conditions for all surfaces external to the volume of interest. These situations need to be updated regularly throughout the day, as environmental conditions change as well. Indeed, numerical stability conditions must be carefully managed in this case as well.
For future applications, the best solution for environments will come from both the increasing deployment of dense (e.g., street-level) IoT-based air quality sensors and the prosperity of the data sharing platform, which can increase the available data and, consequently, will increase the accuracy.
5. Conclusions
This paper (1) proposed a framework for an AQDSS and (2) developed an IoT application based on this framework. The feasibility of the IoT application in measuring PAPE was evaluated through a case study. In comparison to mobile sensors that were used in previous studies, this IoT application has higher scalability, because it involves minimal cost and intrusion to the individual. This pilot case study also presents evidence that PAPE can be estimated by employing indoor monitors and e-beacon technologies that have not been used previously in similar studies.
Using our proposed framework as a general guideline, the IoT application that we developed can be further extended to include prediction models that will allow an individual to make smart decisions when it comes to PAPE risk. Furthermore, PAPE data obtained from the application can be used in air quality policy development as well as in epidemiological studies to explore the correlations of PAPE with certain diseases.
We faced difficulties during the extraction and integration of data from multiple devices, which highlights the importance of choosing the right technologies to use when developing such IoT applications. There was an observed variance among the different devices, which can be attributed to device calibration and the measurement techniques used. Future research should, therefore, explore these issues and identify emerging technologies that permit seamless data integration and more accurate PAPE measurements.
