Int. J. Environ. Res. Public Health 2019, 16(14), 2478; https://doi.org/10.3390/ijerph16142478

Article
Factors Influencing Escalator-Related Incidents in China: A Systematic Analysis Using ISM-DEMATEL Method
School of Management, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Received: 30 April 2019 / Accepted: 9 July 2019 / Published: 11 July 2019

Abstract

:
Escalator-related incidents (EIs) have recently resulted in serious injuries and even deaths. Given the frequency and severity of EIs, a systematic exploration of factors influencing EIs is critical in order to identify preventive measures. Twenty-two factors influencing EIs were identified by analyzing 213 EI cases in China and related literatures. A combination of the Interpretive Structural Modeling (ISM) and Decision Making Trial and Evaluation Laboratory (DEMATEL) methods were utilized to establish a hierarchical structure of the influencing factors and to distinguish cause factors and effect factors. The results show: (i) behavior, emergency plan, safety rules, safety supervision, information exchange, safety culture, and safety education are the most important factors influencing EIs; (ii) safety education is the cause factor imposing the greatest influence on other factors while behavior is the effect factor that is the most influenced; and (iii) the structure of influencing factors has five hierarchies, and factors in the root cause layer are settings and components, safety rules, safety supervision, safety culture, and safety education. Management priority should be given according to the hierarchy level, and the interaction of factors should be considered when taking preventive measures. The corresponding five-layer countermeasures are proposed to reduce escalator-related injuries.
Keywords:
escalator incidents (EIs); influencing factors; ISM-DEMATEL method; hierarchical structure model; preventive measures; injury prevention

1. Introduction

An escalator is a type of vertical transportation in the form of moving staircases. Along with common transportation instruments like subways and trains, escalators are a special and important part of the public transportation system that enable people to travel to their destinations. However, the dynamic interaction of escalator-to-passenger, passenger-to-passenger, passenger-to-environment, and passenger-to-management forms a complex escalator–passenger–environment–management (EPEM) system. Safety risks in this system are unpredictable, hard to identify and difficult to control, increasing the likelihood of EIs. The recent emergence of EIs in various countries has brought many negative effects on public safety and social sustainability. On 23 October 2018, an escalator incident in a subway station in Rome, Italy injured more than 20 passengers. According to General Administration of Quality Supervision Inspection and Quarantine (AQSIQ) statistics, 56 serious EIs occurred in China in 2017 and 31 occurred in 2018. EIs have consistently been the leading cause of injuries and deaths related to special equipment from 2008 to 2018 in China. A number of serious EIs were reported by mainstream media in recent years and are listed in Table 1. Preventing the occurrence of EIs has become an issue worthy of attention.
Statistical studies on EIs were conducted to analyze the frequency distribution of factors such as cause, hazard pattern, injured body part, gender, and age. Xing et al. identified the main causes of EIs in subway stations in Guangzhou, China as failing to keep balance, carrying out other tasks, not holding the handrail and unhealthy passengers [1]. O’Neil et al. found that escalator-related injuries among old adults in the U.S. were mainly caused by a slip, trip, or fall [2]. Chi et al. investigated 194 EIs cases and suggested that strict design code and in-depth incident investigation are effective measures to prevent incidents [3]. McGeehan et al. studied 26,000 escalator-related injuries of children in the U.S. and found that falls and entrapments were the crucial causes of injuries [4]. Additionally, some studies examining EIs were either case studies or focused on children and old adults [5,6,7].
Simulation methods were utilized to study the evolution process of EIs in a virtual world [8]. Li et al. used simulation tools to study the impact of key factors on group stampede risk during escalator transfer [9]. They concluded that the propagation speed of the incident was always faster than the recovery rate, and timely taking emergency measures can reduce the severity of the accident. Li et al. analyzed the impact of contributing factors on individual stampede probability, and the impact of four factors were queued in descend order: pedestrian traffic, picking-up duration, pedestrian velocity, and escalator velocity [10]. Kauffmann and Kikuchi calculated the practical capacity of escalators through simulation based on passenger behavioral rules and found that prohibiting walking on the escalator can improve evacuation efficiency in emergency scenarios by reducing variability in the escalator system [11].
In the EPEM system, however, EIs are much more likely to be caused by multiple influencing factors rather than one single factor. The dynamic interaction of factors usually constitutes multiple influencing loops to form a complex structure. Influencing factors of EIs have not been adequately analyzed through a traditional linear analysis or simulation method mentioned above. Further in-depth understanding of the influencing mechanism of the factors is crucial for EPEM system safety.
ISM is an analytical method exploring complex socio-economic system problems. It is also an important structural modeling technique for system analysis [12,13,14]. DEMATEL is an approach using graph and matrix theory to analyze system factors [15]. ISM emphasizes establishing hierarchical structure models of complicated systems according to relationships of system factors, while DEMATEL focuses on identifying key factors of systems and distinguishing cause and effect factors. The integrated ISM-DEMETAL method has been widely used to overcome the weaknesses of applying either alone as they are complementary in function. Wang et al. defined the factors of mining safety and revealed the influencing mechanisms by using ISM-DEMETAL method [16]. Fu et al. clarified system structure of communication networks through ISM-DEMETAL and entropy [17]. Shen et al. constructed the multi-level hierarchical structure of factors affecting distributed natural gas-combined cooling, heating, and power systems in China [18]. Mousavizade and Shakibazad studied the critical success factors of knowledge management in Iranian urban water and sewage companies [19]. In this paper, the ISM-DEMETAL method was adopted to analyze the influencing factors of EIs extracted from 213 EIs cases in China and related literatures.
This paper systematically analyzed influencing factors of EIs in China and accordingly proposed preventive measures, providing theoretical support for safety management of escalator passengers. The main aims of this paper were: (a) to identify the influencing factors of EIs and distinguish the importance and degree of influence of each factor; (b) to establish the hierarchical structure of the factors and analyze the influencing mechanism; and (c) to correspondingly propose preventive measures to reduce escalator-related injuries.

2. Materials

2.1. Data Resource

News is an original record with authoritative description, which provides the latest statistics and the detailed information [20]. A Web crawler tool was adopted to obtain Chinese news reports of EIs published between September 2003 and February 2019. Data was recorded from news sites including China News, China Daily, Xinhua Net, People Net, Baidu News, Sina News, CNTV and Youth News [21]. “Escalator injury”, “escalator incident” and “escalator death” were used as subject terms to conduct the retrieval of related news. After dealing with duplicate data, a total of 213 cases of EIs were collected.
Thirty keywords which represent the core topic of EI cases, occurring at least 10 times, were chosen as samples for the descriptive analysis, as listed in Table 2. These keywords exemplify some traits of EIs in China. Firstly, the most common places of EIs are “escalator” (417) in “subway station” (79), “shopping mall” (62), “supermarket” (47), and “plaza” (35). Secondly, “child” (249), “elder” (161), and “women” (54) are the main victims of EIs. Thirdly, the most common hazard pattern of EIs in China are “stumble” (229), “entrap” (67), “stuck” (45), “roll” (40), “slip” (24), “draw” (19), and “fall” (11). Fourthly, keywords such as “injure” (130), “medical care” (90), “fracture” (15), “death” (11), and “graze” (11) reflect that the EIs usually lead to serious consequences for passengers. Fifthly, “handrail” (68), “gap” (35), and “emergency button” (33) are the most frequently mentioned escalator mechanical structures in the incident reports. Finally, the most commonly injured body parts of passengers are “hand” (41), “foot” (35), “finger” (27), “arm” (17), and “head” (11).

2.2. Influencing Factors

According to the analysis of 213 cases in China, each EI was the result of multiple factors, not a single factor. The multiple factors make the EPEM system uncertain and opaque overall, reducing the ability of managers to reduce risk and exacerbating the consequences [22]. Based on collected cases and related literatures, influencing factors of EIs were identified and described in four main areas, i.e., passenger, escalator, environment, and management.

2.2.1. Passenger Factors

Basir et al. conducted research on escalator incidents and found that the main factors in contributing to incidents were passenger factors which are dynamic and complicated [23]. Traditional linear risk model is insufficient to explore the impact of passenger factors on incidents [24]. In this paper passenger factors were analyzed in two dimensions: passenger characteristic and passenger behavior. Passenger characteristic reflects reaction capacity and action capability of the passenger, which affect the safety level of the EPEM system. Passenger characteristic includes physical state such as age and gender, and other features such as mental condition, clothing and safety education level. Escalator-related injuries are believed to be closely related to passenger age, gender and mental condition [1]. Passenger behavior impacts public transportation safety, which has been widely discussed in previous studies [25,26,27,28,29]. Passenger factors were comprehensively considered from eight perspectives: age and gender, mental or physical condition, outfits and belongings, behavior, knowledge about escalators, safety awareness, safety cognition, and safety skill.

2.2.2. Escalator Factors

Escalator factors refer to the factors related to the operation of escalators which might have encouraged, facilitated, or enabled the incident to happen, including type, size, materials, service term, labeling, safety devices, malfunctions and maintenance. Al-Sharif et al. found that escalator braking should be set at 1.16 m·s−2 in order to eliminate the risk of passenger falls caused by unplanned stoppages [30]. Escalator factors were analyzed from four aspects including settings and components, operating status, safety devices, and maintenance.

2.2.3. Environmental Factors

Environmental factors are the factors related to the surroundings of escalators which might have contributed to EIs. The operating environment of escalator is rather complex and has many aspects, such as location, surrounding object, ground, lighting and visibility, and signage. By analyzing previous research results, installation location, size of space, signage, and physical environment were selected as the main environmental factors to be analyzed.

2.2.4. Management Factors

When implementing complex system safety control, human factors, management factors, and organizational factors should be fully considered. Organizational management, safety culture, and employee participation are important to prevent safety incidents in companies [31]. Management errors repeatedly appear in safety incidents. Komljenovic et al. found that analyzing management weakness is useful for probing underlying factors of safety incidents [32]. These studies suggest the importance of management factors in incident prevention. Safety performance has a close relationship with safety culture [33]. Nordlöf et al. concluded that safety culture is closely related to occupational health and safety management based on the statistical analysis [34]. This paper analyzed the effect of safety management from six aspects including safety rules, safety supervision, information exchange, safety culture, emergency plan, and safety education. Twenty-two influencing factors of EIs are summarized and listed in Table 3.

3. Method

ISM-DEMATEL is a systems analysis approach utilizing matrix and graph theory to analyze the relationship between system factors. The combination of ISM and DEMATEL can not only identify the influence degree and importance of factors in the EPEM system, but also comprehensively analyze the hierarchical structure of the system. The framework of the ISM-DEMATEL method is illustrated in Figure 1.
The Equations (1)–(12) for calculating the matrices are listed below. The detailed steps of ISM-DEMATEL method can be found from the related literatures [16,18].
X = 0 x 12 x 1 n x 21 0 x 2 n x n 1 x n 2 0
G = 1 max 1 i n j = 1 n x i j X
T = G I G 1
  f i = j = 1 n t i j i = 1 , 2 , , n
  e i = j = 1 n t j i i = 1 , 2 , , n
m i =   f i +   e i i = 1 , 2 , , n
n i =   f i   e i i = 1 , 2 , , n
H = T + I
k i j = 1 , h i j λ ,   i = 1 , 2 , , n   0 , h i j < λ ,   i = 1 , 2 , , n
  R i =   S j |   S j X , k i j = 1   , i = 1 , 2 , , n
A i =   S j |   S j X , k j i = 1   , i = 1 , 2 , , n
C i =   R i A i

4. Results

4.1. Establishment of Direct Influence Matrix

Based on case study and literature analysis, 22 factors influencing EIs, denoted as S 1 ,   S 2 ,   S 3 ,   ,   S n were identified in Section 2.
Influence relationships between these factors are determined through Delphi method. A 3-point Likert-type scale was designed. Twenty questionnaires were collected from safety management experts in universities, safety managers in subway stations and escalator manufacturers in Wuhan. Questionnaire data were averaged, and the average values were rounded-off to determine the measure of the direct relationship between every two factors. The direct influence matrix X was obtained and is shown in Table S1 in Supplementary Materials. x i j = 0 indicates that factor S i has no influence on factor S j . x i j = 1 suggests that S i has a weak influence on S j and x i j = 2 means that S i has a strong influence on S j . x i j = x j i = 0 when i = j .

4.2. Establishment of Comprehensive Influence Matrix

A direct influence matrix reflects the direct relationship between influencing factors. However, considering just the direct relationship is inadequate, since multiple factors affect the safety risk in the EPEM system. A comprehensive influence matrix reflects the comprehensive relationship among system factors, including both direct and indirect relations. The comprehensive influence matrix T was calculated and is reported in Table S2.

4.3. Calculation of Influencing Degree, Influenced Degree, Centrality, and Causality

Based on the comprehensive influence matrix, influencing degree, influenced degree, centrality and causality of each factor were calculated via Equations (4)–(7). The results are listed in Table 4.
The cause-and-effect relation diagram of the influencing factors is drawn using n i as the x-axis and m i as the y-axis, as shown in Figure 2.
The influencing degree and influenced degree of the factors clearly seen from Table 4. Eight factors have large influencing degrees, including safety education S22, safety rules S17, settings and components S9, safety supervision S18, safety culture S20, safety awareness S6, information exchange S19, and knowledge about escalators S5. These factors are not clearly visible but are very important, as they can affect escalator passenger safety by influencing other factors. Actions should be taken with respect to these factors so as to make a positive change in other factors and eventually lead to a higher safety level of the EPEM system. In the influenced degree ranking, behavior S4, emergency plan S21, maintenance S12, safety cognition S7, safety devices S11, and operating status S10 are the top six factors, indicating that enhancing their influence has a direct impact on improving passenger safety.
Centrality m i reflects the position and importance of the factor S i in the system. Behavior S4 is the most important factor, followed by emergency plan S21, safety rules S17, safety supervision S18, information exchange S19, safety culture S20, safety education S22, and safety awareness S6. The centrality value of these factors is greater than 2.10 in Table 4, and these factors occupy the top region of Figure 2. Two of them are passenger factors and the remaining four are management factors, suggesting that strengthening safety management and enhancing safety awareness are prime means of controlling EI risk.
The causality value of the cause factors is greater than 0, and these factors are on the right region of Figure 2. Half of the 22 factors are cause factors, including safety education S2, settings and components S9, safety rules S17, safety supervision S18, installation location S13, size of space S14, safety culture S20, knowledge about escalators S5, physical environment S16, safety awareness S6, and information exchange S19, while the rest are effect factors. The cause factors are of great importance for system safety, and investment in them tends to create compound returns.

4.4. Establishment of Reachability Matrix

The reachability matrix K was obtained via the total influence matrix and the threshold value λ . By substituting λ into Equation (9), the weak relationships of the factors were eliminated. The reachability matrix was constructed and is reported in Table S3.

4.5. Establishment of Hierarchical Structure Model

Reachable set R i , antecedent set A i and collective set C i of each factor were obtained via Equations (10)–(12). The results are represented in Table 5.
In Table 5, factors S3, S4, S10 and S11, C i = R i (i = 3, 4, 10 and 11), S3, S4, S10, and S11 were classified into L1. The i-th (i = 3, 4, 10, and 11) rows and columns were deleted to create a new reachability matrix. For factors S15 and S16 in this new matrix, C i = R i (i = 15 and 16), then S15 and S16 were classified into L2. This step was repeated until all influencing factors in the EPEM system were classified into 5 layers: L1, L2, L3, L4, and L5. L1 denotes the direct cause layer with four factors such as outfits and belongings S3, behavior S4, operating status S10 and safety devices S11. Signage S15 and physical environment S16 are in the indirect cause layer L2. L3 and L4 are the transition cause layers. L3 has eight influencing factors including age and gender S1, mental or physical condition S2, safety cognition S7, safety skill S8, maintenance S12, installation location S13, size of space S14 and emergency plan S21. L4 consists of three factors including knowledge about escalators S5, safety awareness S6 and information exchange S19. L5 is the root cause layer, including five factors that are settings and components S9, safety rules S17, safety supervision S18, safety culture S20, and safety education S22.
Finally, a hierarchical structure model was established and is illustrated in Figure 3, which clearly reflects the hierarchical structure of the influencing factors and the related influencing mechanisms.
(1) Management priority and preventive measures should be arranged according to the hierarchy level. The rule is that the higher the hierarchy level, the more attention deserved. Root cause factors in L5 are the most fundamental and important factors in the EPEM system. Accordingly, optimization of escalator settings and components, strengthening of safety supervision, and implementation of safety education must be emphasized as the top priority for creating long-term system safety. Transition factors in L4 and L3 connect the root cause layer and the direct cause layer in the system. Enhancing these factors helps to form a positive loop for higher safety levels. Outfits and belongings S3, behavior S4, operating status S10 and safety devices S11 are the direct causes of EIs. These factors should be closely monitored and promptly identified with effective and timely responses so as to prevent the occurrence of EIs.
(2) Factors influencing system safety are interactive, and the interaction should be considered when implementing preventive measures. Factors directly or indirectly influence the factors in lower levels. Factors in the same level also influence each other. In particular, four environmental factors in L2 and L3 include installation location S13, size of space S14, signage S15, and physical environment S16 influence the factors in L1 but are less influenced by other factors. Special attentions should be paid to these factors, and targeted measures should be conducted to mitigate the environment risk.
(3) Factors belonging to the same category are distributed on the same or adjacent hierarchies. Four of management factors include safety rules S17, safety supervision S18, safety culture S20, and safety education S22 are in L5, and information exchange S19 and emergency plan S21 are in L4 and L3, respectively. Passenger characteristic factors are distributed in L4 and L3, and passenger behavior factors in L1. Environmental factors are located in L3 and L2. The exception is escalator factors. One is distributed in L4, two in L3, and two in L1. A general rule is that management factors affect passenger characteristic factors and environmental factors, and characteristic factors and environmental factors affect passenger behavior factors and escalator factors.

5. Discussion

5.1. Academic Implications

The hierarchical structure of factors influencing EIs were deduced using the proposed method. With DEMATEL, influencing factors were divided into cause factors and effect factors, and the importance of all factors is identified. With ISM, the nonlinear and complicated EPEN system was decomposed into five hierarchies according to the relationships of influencing factors.
The distinguishing features of the ISM-DEMATEL method are that it is systematic and quantitative. First, the method stems from system theory, and the analysis is summarized in a hierarchical structure model. The five hierarchies of factors provide a holistic scenario for understanding the EPEN system. Second, the analysis is based solely on mathematical equations.
Additionally, the influencing factors in this paper were determined based on both news reports cases and related literatures. The combination of two data sources to identify factors is more objective and authentic than reliance on single data source.

5.2. Managerial Implications

The hierarchical structure provides a visualization of interrelationships and interdependences among the influencing factors of EIs. It can serve as a useful reference for escalator incident prevention.
The corresponding five-layer countermeasures are proposed to reduce escalator-related injuries.
(1) The top layer measures are to implement safety education and to create a safety climate. A prime example is a more-than-ten-year-old education program called the “Safe-T rider program” in the U.S. that educates school children about how to behave on elevators and escalators. Government management departments of safety in China can consider conducting a similar national escalator safety education program utilizing multi-media and field education modules. Additionally, the public can be educated through publicity campaigns and educational videos. Educational videos and public service announcements on escalator safety can be filmed and broadcasted on mainstream media and social media such as TV channels and Weibo. These efforts should target children and elders. Escalator safety knowledge should be compiled into the safety education textbook for primary students. For elders, watching safety education performances organized by communities is a relaxing and effective way to learn about escalator-related knowledge.
(2) The fourth layer measures are standardizing escalator safety rules and strengthening safety supervision. New standard rules of riding escalators should be formulated and implemented. Escalator safety rule-makers should consist of professionals with escalator safety knowledge and practice, such as escalator technicians, safety managers, safety experts and academics. The formulation of safety rules should refer to the internationally established safety rules for escalators and, more importantly, should be based on the characteristics of passengers and incidents found in safety management practice in China. For example, the rule of walking on the left and standing to the right that originated in the U.K. has been accepted and practiced by escalator passengers worldwide. However, this rule has recently been banned in some cities in China, like Shanghai, Nanjing and Guangzhou, as the practice proven to be unsafe for passengers and damaging to the escalator. Under these circumstances, prohibition of walking on escalators should be written into the safety rules and implemented nationwide. Ensure passengers understand and follow safety rules through communication and supervision.
(3) The third layer measures are to optimize escalator settings and components and to strengthen maintenance. For escalator manufacturers, the construction and installation of escalators must strictly accord with the relevant international standards. The investment in research and development of safety devices should be encouraged since escalator safety could be much improved through the use of high-quality safety devices and equipment. Narrowing the gap between the step and balustrade skirt is another improvement worthy of investment that can reduce the occurrence of the common injury of entrapment. For escalator owners, maintenance on escalators should occur frequently. Quality escalator combined with a robust maintenance program should enable the equipment to last for thirty years. Reliable maintenance helps to reduce overall operating costs and reduce the risk to escalator passengers.
(4) The second layer measures focus on enhancing the management of the environment around escalators. When installing escalators, the specific location of the escalator should be optimized to provide a comfortable and safe environment for passengers. Wet floors and obstacles should be cleaned up in a timely manner. Signage with safety rules should be placed at the entrance to every escalator. Broadcasting escalator safety messages can alert passengers and enhance their safety.
(5) The first layer measures focus on correcting passenger behavior. Passengers are supposed to actively participate in safety education program, learn more escalator safety knowledge and behave properly on escalators. Some of the escalator injuries, such as stumbles and entrapments, are age-specific. Hence, the preventive measures should also be age-specific. Young children should be supervised by parents while riding escalators. They also need to be informed that escalators are dangerous and are not places for jumping or playing. Elders, unhealthy passengers and passengers carrying large luggage or strollers should take elevators instead of escalators. Passengers who wear high-heel shoes, Crocs, long scarves, and long shirts should be on high alert to avoid being entrapped.

6. Conclusions

This study revealed the five-hierarchy structure of factors influencing EIs in China. Importantly, root cause factors, including settings and components, safety rules, safety supervision, safety culture, and safety education, were identified and should be given priority when taking preventive measures. The hierarchical structure model suggests that occurrence of EIs can be reduced in the short-term by correcting passenger behavior and in the long-term by enhancing safety education. The proposed five-layer preventive measures provide both theoretical and practical support for managing the safety of escalator passengers. The findings contribute to passenger safety research by offering a deeper understanding of interactive influencing mechanisms of the EPEM system.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-4601/16/14/2478/s1.

Author Contributions

Methodology, K.X.; writing and revising, Z.L.

Funding

This research was funded by National Social Science Foundation of China, grant number 15AGL021.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xing, Y.; Dissanayake, S.; Lu, J.; Long, S.; Lou, Y. An analysis of escalator-related injuries in metro stations in China, 2013–2015. Accid. Anal. Prev. 2017. [Google Scholar] [CrossRef] [PubMed]
  2. O’Neil, J.; Steele, G.K.; Huisingh, C.; Smith, G.A. Escalator-related injuries among older adults in the United States, 1991–2005. Accid. Anal. Prev. 2008, 40, 527–533. [Google Scholar] [CrossRef] [PubMed]
  3. Chi, C.F.; Chang, T.C.; Tsou, C.L. In-depth investigation of escalator riding accidents in heavy capacity MRT stations. Accid. Anal. Prev. 2006, 38, 662–670. [Google Scholar] [CrossRef] [PubMed]
  4. McGeehan, J.; Shields, B.J.; Wilkins, J.R.; Ferketich, A.K.; Smith, G.A. Escalator-related injuries among children in the United States, 1990–2002. Pediatrics 2006, 118, 279–285. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, Z.; Xian, J. 609 escalator-related injuries against preschoolers: An in-depth investigation in Guangdong province, china. Inj. Prev. 2016, 22, 25–26. [Google Scholar] [CrossRef]
  6. Schminke, L.H.; Jeger, V.; Evangelopoulos, D.S.; Zimmerman, H.; Exadaktylos, A.K. Riding the escalator—How dangerous is it really? West. J. Emerg. Med. 2013, 14, 141–145. [Google Scholar] [CrossRef] [PubMed]
  7. Steele, G.K.; Neil, J.O.; Huisingh, C.; Smith, G.A. Elevator-related injuries to older adults in the United States, 1990 to 2006. J. Trauma Acute Care Surg. 2010, 68, 188–192. [Google Scholar] [CrossRef]
  8. Vermuyten, H.; Beliën, J.; Boeck, L.D.; Reniers, G.; Wauters, T. A review of optimisation models for pedestrian evacuation and design problems. Saf. Sci. 2016, 87, 167–178. [Google Scholar] [CrossRef]
  9. Li, W.; Gong, J.; Yu, P.; Shen, S. Modeling, simulation and analysis of group trampling risks during escalator transfers. Phys. A Stat. Mech. Its Appl. 2016, 444, 970–984. [Google Scholar] [CrossRef]
  10. Li, W.; Gong, J.; Yu, P.; Shen, S.; Li, R.; Duan, Q. Simulation and analysis of individual trampling risk during escalator transfers. Phys. A Stat. Mech. Its Appl. 2014, 408, 119–133. [Google Scholar] [CrossRef]
  11. Kauffmann, P.; Kikuchi, S. Modeling the practical capacity of escalators a behavioral approach to pedestrian simulation. Transp. Res. Rec. J. Transp. Res. Board 2013, 136–142. [Google Scholar] [CrossRef]
  12. Warfield, J.N. Binary matrices in system modeling. IEEE Trans. Syst. Man. Cybern. 1973, SMC-3, 441–449. [Google Scholar] [CrossRef]
  13. Purohit, J.K.; Mittal, M.L.; Mittal, S.; Sharma, M.K. The management of operations interpretive structural modeling-based framework for mass customisation enablers: An Indian footwear case. Prod. Plan. Control 2016, 27. [Google Scholar] [CrossRef]
  14. Watson, R.H. Interpretive Structural modeling-a tool for technology assessment? Technol. Forecast. Soc. Chang. 1978, 185, 165–185. [Google Scholar] [CrossRef]
  15. Falatoonitoosi, E.; Leman, Z.; Sorooshian, S.; Salimi, M. Decision-making trial and evaluation laboratory. Res. J. Appl. Sci. Eng. Technol. 2013, 5, 3476–3480. [Google Scholar] [CrossRef]
  16. Wang, L.; Cao, Q.; Zhou, L. Research on the influencing factors in coal mine production safety based on the combination of DEMATEL and ISM. Saf. Sci. 2018, 103, 51–61. [Google Scholar] [CrossRef]
  17. Fu, K.; Xia, J.; Zhang, X.; Shen, J. System structural analysis of communication networks based on DEMATEL-ISM and entropy. J. Cent. South Univ. 2017, 24, 1594–1601. [Google Scholar] [CrossRef]
  18. Shen, J.; Li, F.; Shi, D.; Li, H.; Yu, X. Factors affecting the economics of distributed natural gas-combined cooling, heating and power systems in china: A systematic analysis based on the integrated decision making trial and evaluation laboratory-interpretative structural modeling (DEMATEL-ISM). Energies 2018, 11, 2318. [Google Scholar] [CrossRef]
  19. Mousavizade, F.; Shakibazad, M. Identifying and ranking CSFs for KM implementation in urban water and sewage companies using ISM-DEMATEL technique. J. Knowl. Manag. 2019, 23, 200–218. [Google Scholar] [CrossRef]
  20. Tsirakis, N.; Poulopoulos, V.; Tsantilas, P.; Varlamis, I. The journal of systems and software large scale opinion mining for social, news and blog data. J. Syst. Softw. 2017, 127, 237–248. [Google Scholar] [CrossRef]
  21. Wang, W.; Stewart, K. Computers, environment and urban systems spatiotemporal and semantic information extraction from Web news reports about natural hazards. Comput. Environ. Urban Syst. 2015, 50, 30–40. [Google Scholar] [CrossRef]
  22. Årstad, I.; Aven, T. Managing major accident risk: Concerns about complacency and complexity in practice. Saf. Sci. 2017, 91, 114–121. [Google Scholar] [CrossRef]
  23. Basir, F.A.M.; Yaziz, A.H.; Zamri, M.H.; Halim, A.H.A. Escalator accidents: Causes and users’ behavior empirical study of kuala lumpur users. In Proceedings of the 2nd Advances in Business Research International Conference, Langkawi Island, Malaysia, 16–17 November 2016; pp. 289–296. [Google Scholar] [CrossRef]
  24. Zio, E. Challenges in the vulnerability and risk analysis of critical infrastructures. Reliab. Eng. Syst. Saf. 2016, 152, 137–150. [Google Scholar] [CrossRef]
  25. Gitelman, V.; Carmel, R.; Doveh, E.; Hakkert, S. Exploring safety impacts of pedestrian-crossing configurations at signalized junctions on urban roads with public transport routes. Int. J. Inj. Control Saf. Promot. 2018. [Google Scholar] [CrossRef] [PubMed]
  26. Johansson, F.; Peterson, A.; Tapani, A. Waiting pedestrians in the social force model. Phys. A Stat. Mech. Its Appl. 2015, 419, 95–107. [Google Scholar] [CrossRef]
  27. Hou, L.; Liu, J.G.; Pan, X.; Wang, B.H. A social force evacuation model with the leadership effect. Phys. A Stat. Mech. Its Appl. 2014, 400, 93–99. [Google Scholar] [CrossRef]
  28. Shaaban, K.; Abdel-Warith, K. Agent-based modeling of pedestrian behavior at an unmarked midblock crossing. Procedia Comput. Sci. 2017, 109, 26–33. [Google Scholar] [CrossRef]
  29. Qu, Y.; Gao, Z.; Xiao, Y.; Li, X. Modeling the pedestrian’s movement and simulating evacuation dynamics on stairs. Saf. Sci. 2014, 70, 189–201. [Google Scholar] [CrossRef]
  30. Al-sharif, L.; Dado, M.H.; Habash, N. Modeling and verification of the kinematics of passenger falls on escalators. Simulation 2012, 88, 988–998. [Google Scholar] [CrossRef]
  31. Zwetsloot, G.I.J.M.; Kines, P.; Ruotsala, R.; Drupsteen, L.; Merivirta, M.L.; Bezemer, R.A. The importance of commitment, communication, culture and learning for the implementation of the Zero Accident Vision in 27 companies in Europe. Saf. Sci. 2017, 96, 22–32. [Google Scholar] [CrossRef]
  32. Komljenovic, D.; Loiselle, G.; Kumral, M. Organization: A new focus on mine safety improvement in a complex operational and business environment. Int. J. Min. Sci. Technol. 2017, 27, 617–625. [Google Scholar] [CrossRef]
  33. Schöbel, M.; Klostermann, A.; Lassalle, R.; Beck, J.; Manzey, D. Digging deeper! Insights from a multi-method assessment of safety culture in nuclear power plants based on Schein’s culture model. Saf. Sci. 2017, 95, 38–49. [Google Scholar] [CrossRef]
  34. Nordlöf, H.; Wiitavaara, B.; Högberg, H.; Westerling, R. A cross-sectional study of factors influencing occupational health and safety management practices in companies. Saf. Sci. 2017, 95, 92–103. [Google Scholar] [CrossRef]
  35. Alonso, F.; Esteban, C.; Useche, S.; Colomer, N. Effect of road safety education on road risky behaviors of spanish children and adolescents: Findings from a national study. Int. J. Environ. Res. Public Health 2018, 15, 2828. [Google Scholar] [CrossRef] [PubMed]
  36. Michael, S.K.W. The Escalator: A conveyor of Hong Kong’s culture. Hum. Relat. 2005, 52, 665–681. [Google Scholar] [CrossRef]
  37. Al-Sharif, L. Intelligent braking systems for public escalators. In Proceedings of the First IEE International Conference on Building Electrical Technology, Hongkong, China, 11–13 October 2004. [Google Scholar] [CrossRef]
  38. Isnaini Janipha, N.A.; Aina Syed Alwee, S.N.; Mohd Ariff, R.; Ismail, F. Maintenance and safety practices of escalator in commercial buildings. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2018; Volume 117. [Google Scholar]
  39. Bardyshev, O.; Popov, V.; Druzhinin, P.; Bardyshev, A. Expert review of metro escalators safety. Transp. Res. Procedia 2017, 20, 31–35. [Google Scholar] [CrossRef]
  40. Lai, L.; Wan, C.; Li, Y. Comparison and analysis of domestic and foreign design methods of escalators. Adv. Mater. Res. 2011, 317, 2501–2504. [Google Scholar] [CrossRef]
  41. Li, W.; Gong, J.; Yu, P.; Shen, S.; Li, R. Simulation and analysis of congestion risk during escalator transfers using a modified social force model. Phys. A Stat. Mech. Its Appl. 2015, 420, 28–40. [Google Scholar] [CrossRef]
  42. Kuutti, J.; Sepponen, R.E.; Saarikko, P. Escalator power consumption compared to pedestrian counting data. In Proceedings of the 2013 International Conference on Applied Electronics, Pilsen, Czech Republic, 10–12 September 2013; pp. 1–4. [Google Scholar]
  43. Ma, W.; Liu, X.; Li, L.; Shi, X.; Zhou, C.Q. Research on the waiting time of passengers and escalator energy consumption at the railway station. Energy Build. 2009, 41, 1313–1318. [Google Scholar] [CrossRef]
  44. Dolan, M.S.; Weiss, L.A.; Lewis, R.A.; Pietrobelli, A.; Heo, M.; Faith, M.S. “Take the stairs instead of the escalator”: Effect of environmental prompts on community stair use and implications for a national “small steps” campaign. Obes. Rev. 2006, 7, 25–32. [Google Scholar] [CrossRef]
  45. Shi, C.; Zhong, M.; Nong, X.; He, L.; Shi, J.; Feng, G. Modeling and safety strategy of passenger evacuation in a metro station in China. Saf. Sci. 2012, 50, 1319–1332. [Google Scholar] [CrossRef]
  46. Kadokura, H.; Sekizawa, A.; Takahashi, W. Study on availability and issues of evacuation using stopped escalators in a subway station. Fire Mater. 2012, 36, 416–428. [Google Scholar] [CrossRef]
  47. Tzeng, G.H.; Huang, C.Y. Combined DEMATEL technique with hybrid MCDM methods for creating the aspired intelligent global manufacturing & logistics systems. Ann. Oper. Res. 2012, 197, 159–190. [Google Scholar] [CrossRef]

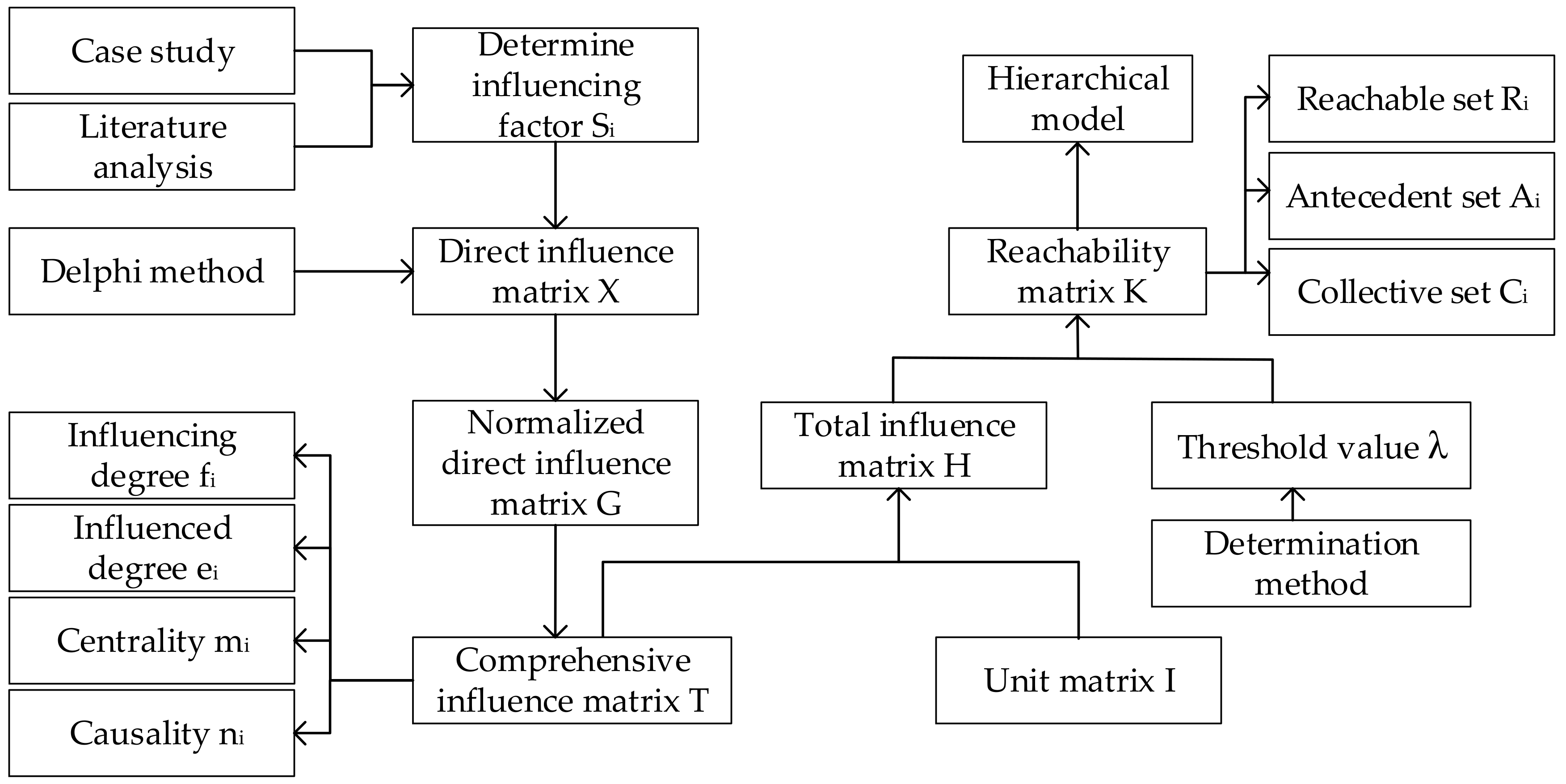

Figure 1. The framework of Interpretive Structural Modeling and Decision Making Trial and Evaluation Laboratory (ISM-DEMATEL) method.
Figure 1. The framework of Interpretive Structural Modeling and Decision Making Trial and Evaluation Laboratory (ISM-DEMATEL) method.
Ijerph 16 02478 g001

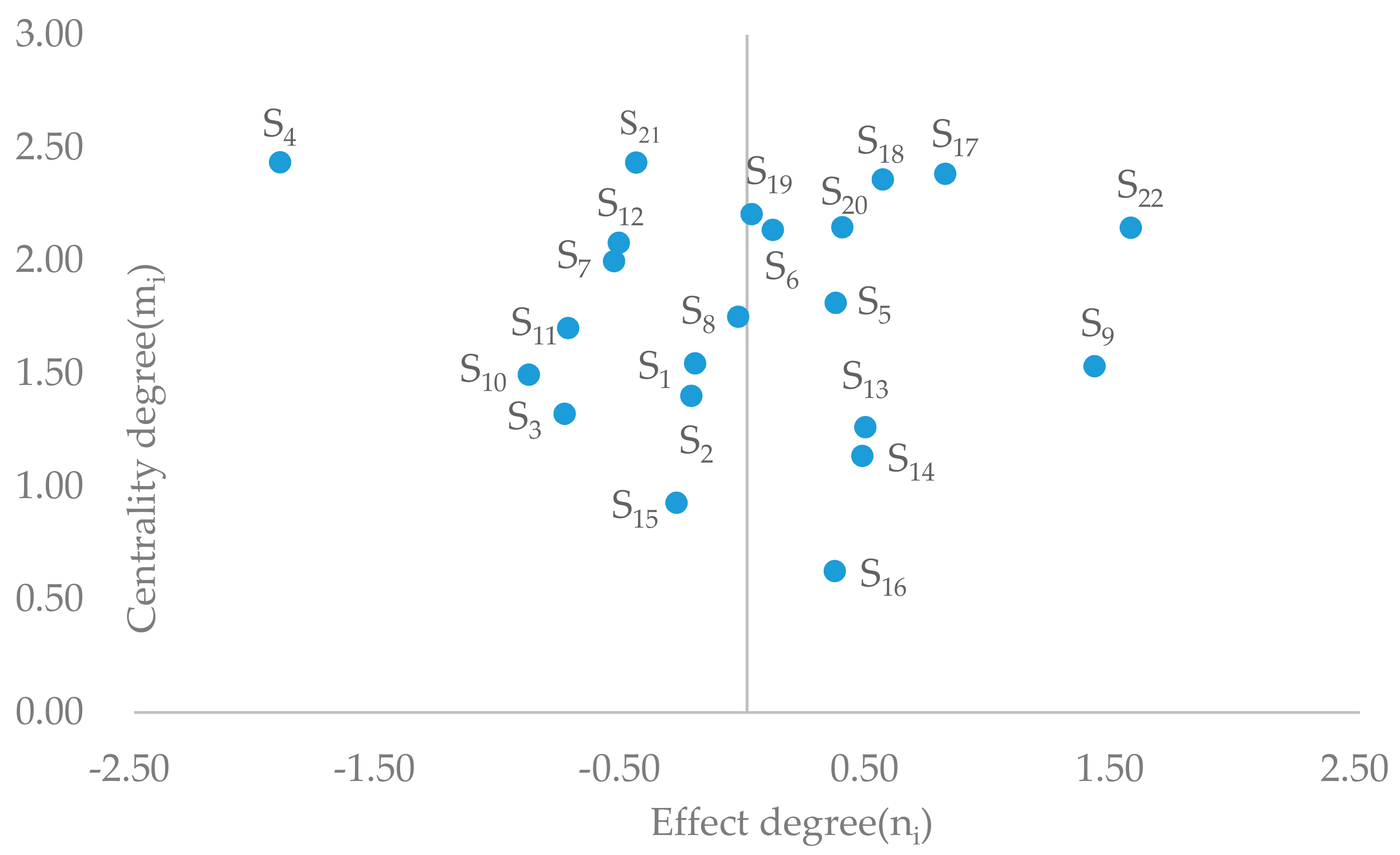

Figure 2. The cause-and-effect relation diagram.
Figure 2. The cause-and-effect relation diagram.
Ijerph 16 02478 g002

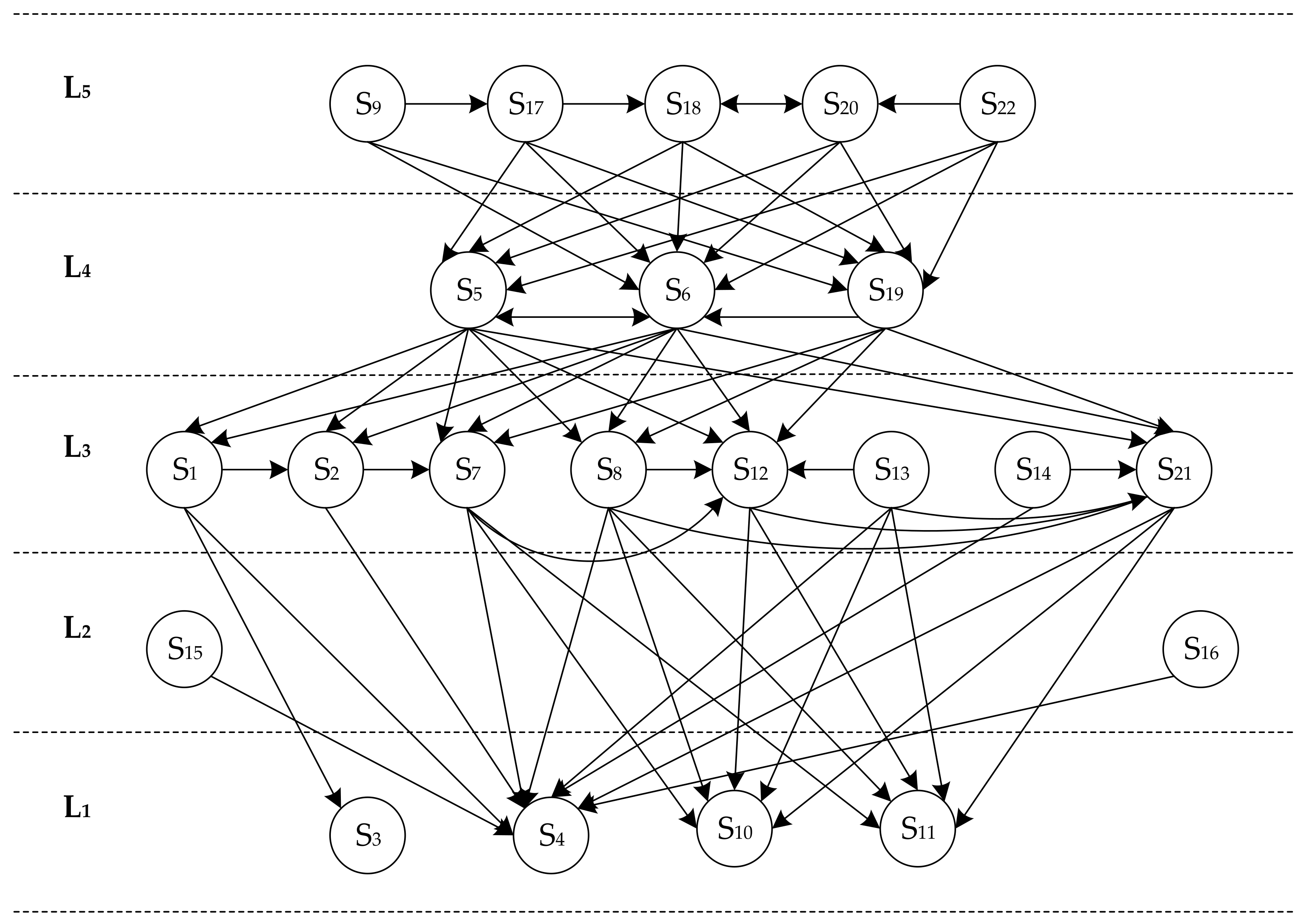

Figure 3. The hierarchical structure model of the influencing factors.
Figure 3. The hierarchical structure model of the influencing factors.
Ijerph 16 02478 g003
Table 1. Part of serious escalator-related incidents (EIs) in China.
Table 1. Part of serious escalator-related incidents (EIs) in China.
TimePlaceCauseConsequence
4 March 2008Subway station, BeijingAbnormal noise causing panic13 injured
24 March 2009Subway station, BeijingEscalator reverse malfunction4 injured (Elders)
14 December 2010Subway station, ShenzhenEscalator reverse malfunction25 injured
5 July 2011Subway station, BeijingEscalator reverse malfunction30 injured (1 dead)
10 July 2011Subway station, ShenzhenEscalator reverse malfunction4 injured
29 March 2013Aquarium, Xi’anEscalator sudden deceleration19 injured (Children)
18 April 2013Shopping mall, ShenzhenBending over to tie shoes at exit10 injured (Children)
2 April 2014Subway station, ShanghaiEscalator reverse malfunction13 injured
18 June 2014Subway station, ShanghaiBaby stroller is stuck in escalator10 injured
10 November 2015Shopping mall, NanjingPassengers congest at exit16 injured (Children)
18 February 2016Subway station, NingboEscalator reverse malfunction5 injured
17 October 2016Train station, HangzhouPassenger falls, causing congestion9 injured (Elders)
25 March 2017Shopping mall, Hong KongEscalator sudden stop17 injured
Notes: Statistics collected from China’s mainstream media.
Table 2. High-frequency keywords of EIs news reports.
Table 2. High-frequency keywords of EIs news reports.
KeywordsFreq.KeywordsFreq.KeywordsFreq.
Escalator417Women54Slip24
Child249Supermarket47Draw19
Stumble229stuck45Arm17
Elder161Hand41Play17
Injure130Roll40Fracture15
Medical care90Plaza35Luggage13
Subway station79Foot35Fall11
Handrail68Gap35Head11
Entrap67Emergency button33Death11
Shopping mall62Finger27Graze11
Table 3. Influencing factors of EIs.
Table 3. Influencing factors of EIs.
SymbolFactorMeaning/ExplanationReference
S1Age and genderPassengers’ age and gender directly affect their perception, judgment and behavior which are closely related to the occurrence of EIs. Children and elders are the most common victims of EIs in China.Xing et al., 2017; O’Neil et al., 2008; Chi et al., 2006; Schminke et al., 2013 [1,2,3,6].
S2Mental or physical conditionMental or physical condition affects passengers’ cognition, decision-making and action ability. Drunkenness, unhealthiness and carelessness are major causes of EIs.Xing et al., 2017; Chi et al., 2006; Schminke et al., 2013; Basir et al., 2017 [1,3,6,23].
S3Outfits and belongingsImproper outfits and large belongings are likely to result in EIs, which include Crocs shoes, high-heeled shoes, scarves, loose shoelaces, drawstrings, mittens, huge luggage, shopping carts, and strollers.Xing et al., 2017; Basir et al., 2017 [1,23].
S4BehaviorBehavior refers to passengers’ actions while riding an escalator. Multi-tasking, not holding the handrail, stepping on step edges, running on escalators and playing on escalators are common improper behaviors which lead to EIs.Xing et al., 2017; Chi et al., 2006; Basir et al., 2017 [1,3,23].
S5Knowledge about escalatorsKnowledge about escalators reflects passengers’ comfort and common sense on escalator such as familiarity with escalator structure, knowing the place of emergency buttons and understanding the safety rules of riding escalators.Alonso et al., 2018; Michael, 2005 [35,36].
S6Safety awarenessSafety awareness refers to a sense for the external conditions that may pose a threat to passenger safety. A high-level of safety awareness helps passengers follow the safety rules and behave properly when riding an escalatorAlonso et al., 2018; Al-sharif, L. 2005 [35,37].
S7Safety cognitionSafety cognition is the ability to evaluate the existing state of safety. The perception of danger is the precondition for making response decisions.Alonso et al., 2018; Michael, 2005 [35,36].
S8Safety skillSafety skill refers to the passengers’ knowledge of escalator safety and ability to handle emergency situation. Passengers with safety skills can confidently handle various situation when riding an escalator, reducing the consequences of EIs.Michael, 2005; Al-sharif, L. 2005 [36,37].
S9Settings and componentsSettings and components of escalators include length, width, slope, operating speed, chains, steps, shirts, handrails and electric equipment. These factors directly affect the probability of EIs. Xing et al., 2017; Li et al. 2014; Isnaini Janipha et al., 2018; Bardyshev et al., 2017; Lai et al.,2011; [1,10,38,39,40].
S10Operating statusA strong operating status can greatly reduce the probability of EIs. Malfunctions such as reverse malfunction and sudden stops are the main causes of EIs in China.Basir et al., 2018; Al-sharif, L. 2005; Bardyshev et al., 2017; Li et al., 2015 [23,37,39,41].
S11Safety devicesSafety devices include comb plates (to prevent passengers from tripping), balustrade skirts (to prevent clothes from getting stuck), automatic service break (to enable the escalator to stop smoothly if the drive chain or step chain is broken or if an object gets stuck into the handrail’s inlet) and emergency buttons.Al-sharif, L. 2012; Isnaini Janipha et al. 2018; Kuutti et al., 2013 [30,38,42].
S12MaintenanceThe maintenance aspect covers engineering areas such as the periodic preventative maintenance and remedial works as well as items such as cleaning (to prevent accumulation of dust and dirt that can lead to escalator fires).Al-Sharif et al. 2012; Bardyshev et al., 2017; Kuutti et al., 2013 [30,39,42].
S13Installation locationInstallation location means the specific place in which the escalator is installed. The location factor covers venue (subway station, train station and shopping mall), floor, and distances to stairs, elevators and exits.Bardyshev et al., 2017; Ma et al., 2009; [39,43].
S14Size of space Size of space includes landing platforms and overhead room. Enough room for passengers can reduce the risk of congestion and stampede when they approach or leave an escalator.Li et al. 2014; Lai et al.,2011; Ma et al., 2009; Dolan et al., 2006 [10,41,43,44]
S15Signage Signage includes path signage, commercial advertising and any other signage that guides or distracts passengers. Signage around the escalator has a positive as well as negative impact on passenger safety.Al-sharif, L. 2005; Dolan et al., 2006 [37,44].
S16Physical environmentPhysical environment denotes the environmental factor that can affect system safety and mainly includes lighting, noise, temperature, humidity, dusts and hazardous gas. Environmental changes affect passengers’ physical and psychological state, and an undesirable physical environment may induce unsafe behavior.Li et al., 2015; Ma et al., 2009; [41,43].
S17Safety rulesSafety rules refer to the safety-related regulations and constraints on the escalator passenger, instructing passengers on what they should do and what they should not do when riding escalators.Schminke et al., 2013; Shi et al., 2012 [6,45].
S18Safety supervisionSafety supervision means on-site management of escalators and passengers by safety staff and managers. Supervision helps to correct improper behavior and identify possible safety risks.Schminke et al., 2013; Shi et al., 2012 [6,45].
S19Information exchangeInformation exchange denotes the exchange of safety information and safety rules between passengers and safety staff. The form of communication includes face-to-face conversation, radio, video, and signage.Al-sharif, L. 2007; Shi et al., 2012 [37,45].
S20Safety cultureSafety culture refers to the ideas and feelings about safety, including safety philosophy, norms of safety behavior, and safety attitude. A strong safety culture is critical to public transportation safety.Alonso et al., 2018; Michael, 2005 [35,36].
S21Emergency planEmergency plan is a pre-defined action plan for emergency actions that occurs in response to possible incidents.Kauffmann and Kikuchi, 2013; Shi et al., 2012; Kadokura et al., 2012 [11,45,46].
S22Safety educationSafety education denotes the training and education for the public on safety cognition, safety knowledge, and safety skill.Alonso et al., 2018; Al-sharif, L. 2005 [35,37,47].
Table 4. Results of influencing and influenced degrees, centrality and causality.
Table 4. Results of influencing and influenced degrees, centrality and causality.
S1S2S3S4S5S6S7S8S9S10S11S12S13S14S15S16S17S18S19S20S21S22
fi0.67 0.59 0.29 0.27 1.09 1.12 0.73 0.86 1.47 0.30 0.49 0.78 0.87 0.80 0.32 0.49 1.60 1.46 1.11 1.27 0.99 1.86
ei0.88 0.81 1.03 2.17 0.73 1.01 1.27 0.89 0.06 1.19 1.21 1.30 0.39 0.33 0.61 0.13 0.79 0.90 1.09 0.88 1.44 0.29
mi1.54 1.40 1.32 2.43 1.81 2.14 2.00 1.75 1.53 1.49 1.70 2.08 1.26 1.13 0.93 0.62 2.38 2.36 2.21 2.15 2.43 2.14
ni−0.21 −0.23 −0.74 −1.90 0.36 0.11 −0.54 −0.03 1.42 −0.89 −0.73 −0.52 0.48 0.47 −0.29 0.36 0.81 0.55 0.02 0.39 −0.45 1.57
Table 5. The reachable set, antecedent set and collective set of factors.
Table 5. The reachable set, antecedent set and collective set of factors.
FactorReachable SetAntecedent SetCollective Set Layers
S1S1–S4S1, S5, S6, S9, S17, S18, S20, S22S1L3
S2S2, S4, S7S1, S2, S5, S6, S17, S18, S20, S22S2L3
S3S3S1, S3, S5, S6, S17−S20, S22S3L1
S4S4S1−S9, S11, S13−S22S4L1
S5S1–S8, S10–S12, S19, S21S5, S6, S17, S18, S20, S22S5, S6L4
S6S1–S8, S10–S12, S21S5, S6, S9, S17−S20, S22S5, S6L4
S7S4, S7, S10–S12S2, S5−S7, S9, S13, S17−S20, S22S7L3
S8S4, S8, S10−S12, S21S5, S6, S8, S17−S20, S22S8L3
S9S1, S4, S6, S7, S9, S10−S15, S17−S21S9S9L5
S10S10S5−S10, S12, S13, S17−S21S10L1
S11S11S5−S9, S11−S13, S17−S22S11L1
S12S10, S11, S12, S21S5−S9, S12, S13, S17, S18−S22S12, S21L3
S13S4, S7, S10−S13, S21S9, S13, S21S13, S21L3
S14S4, S14, S21S9, S14S14L3
S15S4, S15S9, S15S15L2
S16S4, S16S16S16L2
S17S1−S8, S10−S12, S17−S21S9, S17, S20S17, S20L5
S18S1−S8, S10−S12, S18−S21S9, S17, S18, S20, S22S18, S20L5
S19S3−S8, S10−S12, S19, S21S5, S9, S17−S20, S22S19L4
S20S1−S8, S10−S12, S17−S21S9, S17, S18, S20, S22S17, S18, S20, S22L5
S21S4, S10−S13, S21S5, S6, S8, S9, S12−S14, S17 −S22S13, S21L3
S22S1−S8, S11, S12, S18−S22S22S22L5

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Int. J. Environ. Res. Public Health EISSN 1660-4601 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
