Cotreatment of MSWI Fly Ash and Granulated Lead Smelting Slag Using a Geopolymer System
1
Institute of Environmental Science and Engineering, School of Metallurgy and Environment, Central South University, Changsha 410083, Hunan, China
2
Chinese National Engineering Research Center for Control and Treatment of Heavy Metal Pollution, Changsha 410083, Hunan, China
*
Author to whom correspondence should be addressed.
Received: 8 December 2018 / Accepted: 1 January 2019 / Published: 8 January 2019

Abstract

:
Municipal solid waste incineration fly ash (MSWI FA) and granulated lead smelting slag (GLSS) are toxic industrial wastes. In the present study, granulated lead smelting slag (GLSS) was pretreated as a geopolymer precursor through the high-energy ball milling activation process, which could be used as a geopolymeric solidification/stabilization (S/S) reagent for MSWI FA. The S/S process has been estimated through the physical properties and heavy metals leachability of the S/S matrices. The results show that the compressive strength of the geopolymer matrix reaches 15.32 MPa after curing for 28 days under the best parameters, and the physical properties meet the requirement of MU10 grade fly ash brick. In addition, the toxicity characteristic leaching procedure (TCLP) test results show that arsenic and heavy metals are immobilized effectively in the geopolymer matrix, and their concentrations in the leachate are far below the US EPA TCLP limits. The hydration products of the geopolymer binder are characterized by X-ray diffraction and Fourier transform infrared methods. The results show that the geopolymer gel and Friedel’s salt are the main hydration products. The S/S mechanism of the arsenic and heavy metals in the geopolymer matrix mainly involves physical encapsulation of the geopolymer gel, geopolymer adsorption and ion exchange of Friedel’s salt.
Keywords:
MSWI fly ash; granulated lead smelting slag; geopolymer; solidification/stabilization; heavy metals; Friedel’s salt

1. Introduction

The amount of municipal solid waste (MSW) produced in China was approximately 203 million tons in 2016 [1]. Due to the large quantity of MSW generated annually and the shortage of landfill disposal, incineration technology is becoming the first choice for MSW disposal. Between 2004 and 2016, the quantity of incinerated MSW increased from 4.49 to 73.78 million tons annually, and the number of MSW incineration plants increased from 54 to 249 in China [1,2]. Although MSW incineration can produce abundant energy and decrease the waste volume by 85–90% [3], it still has some disadvantages. First, the potentially hazardous municipal solid waste incineration fly ash (MSWI FA) is produced, and the weight of MSWI FA is up to 2–5 wt.% of the initial MSW [4]. Moreover, MSWI FA contains poisonous contaminants, such as heavy metals, dioxins, and furan. As a result, MSWI FA is identified as a hazardous waste according to the List of Hazardous Waste in China. Therefore, MSWI FA should be disposed before the final treatment for decreasing the leaching concentration of the contaminants. In general, the treatments of MSWI FA are mainly divided into three types, that is, separation, thermal treatment, and solidification/stabilization (S/S) [5]. To date, the S/S technology with ordinary Portland cement (OPC) has been used to treat MSWI FA in many countries for several years [6,7,8]. Nevertheless, the disposal of MSWI FA with OPC has become increasingly difficult at the present, owing to the high cost and frequent public opposition to the sifting of new landfills [9]. Due to those reasons, methods that can solidify/stabilize MSWI FA with another waste are urgently needed.
Geopolymer binder is produced from materials containing aluminosilicate (e.g., metakaolin, kaolinite [10], coal fly ash [11], red mud [12] and blast furnace slag [13], etc.) with alkali-activation via the dissolution-polycondensation process [14]. Geopolymer binder possesses a better durability and leads to lower CO2 emission than OPC. Hence, geopolymer as an innovative binder for S/S technology has been utilized to dispose MSWI FA in recent years. For example, Lancellotti et al. [15] utilized metakaolin as the main raw material to synthesize geopolymer for S/S of MSWI FA. Zheng et al. [16] investigated the synthesis of MSWI FA-based geopolymer with water glass after water-wash pretreatment for immobilizing heavy metals. Some researchers [17,18] also investigated the codisposal of MSWI FA and coal fly ash (or red mud) for immobilization of their heavy metals. However, those kinds of treatment methods are either costly, or the MSWI FA-based geopolymer exhibits a low compressive strength when the content and molar ratio of SiO2 and Al2O3 are low. Thus, improving the compressive strength of this kind of MSWI FA-based geopolymer with another industrial waste is very meaningful. According to the previous studies [19,20], improving the content of SiO2 and Al2O3, and the molar ratio of SiO2 and Al2O3 up to 3.4–4.5 can remarkably increase the compressive strength of the geopolymer binder. To our knowledge, granulated lead smelting slag (GLSS) contains plenty of SiO2 and Al2O3, and the molar ratio of SiO2 and Al2O3 is high, which can be considered as an aluminosilicate source for geopolymer production.
GLSS is an industrial waste generated from the smelting furnace during the lead smelting concentration after the smelting process from primary lead production and is rich in Fe, Ca, Si, Al and Zn [21,22]. GLSS is also a toxic industrial waste since it contains quantities of minor and trace heavy metals elements [23,24,25,26,27], and it can contaminate the environment through leaching if it is not constrained [28,29,30,31]. According to the statistics, approximately 2.56 Mt of lead smelting slag is being generated annually in China [32], imposing a great burden on environment protection. As a consequence, arsenic and heavy metals of GLSS and MSWI FA need to be immobilized effectively. According to the previous study, the anionic species is often difficult to solidify/stabilize in geopolymers, but Friedel’s salt seems to immobilize them effectively. Recently, Friedel’s salt has attracted increasing attention in the past several years because of its good ion exchange characteristics [33,34,35,36,37]. It was reported that Friedel’s salt could effectively adsorb Zn2+ [38], AsO43− and PbO2 from wastewater. In addition, MSWI FA and GLSS may synthesize Friedel’s salt with alkali activation. Therefore, Friedel’s salt may immobilize arsenic and heavy metals effectively in the geopolymer binder. Moreover, Shi and Day [39] reported that Friedel’s salt can improve the compressive strength of the slag-based binder, and Cheng et al. [40] also reported that Friedel’s salt may be correlated to the strength enhancement of the S/S matrix. Due to the interesting findings of these studies, the possibility of cotreatment of MSWI FA and GLSS using geopolymerization was investigated. Although this paper focuses on the immobilization of arsenic and heavy metals in the geopolymer binder, it can also be utilized as a replacement for civil engineering materials in the future due to its good physical properties.
The aim of the research was to immobilize MSWI FA using another industrial waste, i.e., GLSS, through the geopolymerization system. First, the reaction products of the geopolymer binder were characterized. Second, the performances tests (i.e., compressive strength, water absorption, dry shrinkage, dry density and heavy metals leachability) of the geopolymer matrix were performed. Finally, the S/S mechanism of arsenic and heavy metals in the geopolymer matrix was discussed.

2. Materials and Methods

2.1. Materials

The MSWI FA was sampled from a waste incineration plant located in the south of China. The MSWI FA was dried at 105 °C. The particle size distribution of the MSWI FA powder is presented in Figure 1. It is obvious that 90% of the MSWI FA particles possess a spherical equivalent diameter below 100 µm, whereas 50% is below 34 µm, and 10% is below 6 µm. Therefore, the MSWI FA did not require grinding pretreatment. The GLSS used in this study was collected from a lead smelter in the south of China. The GLSS was dried at 105 °C in a drying cabinet until a constant mass was reached. Then, the GLSS was ground in a planetary grinding machine for 3 h and passed through a 45 µm mesh sieve [41]. The particle size of the GLSS powder was determined using laser granulometry. As shown in Figure 1, the particle size of the GLSS powder is in the range of 0.92–41.84 µm with a D50 of 5.28 µm.
The bulk chemical analysis results of the MSWI FA and GLSS presented in Table 1 were obtained using a Perkin Elmer ICP-OES following the digestion of a 0.5 g sample. In addition, Cl and Si were analyzed by X-ray fluorescence (XRF). As shown in Table 1, the main elements of the MSWI FA are Ca (28.7%), Cl (17.98%), K (2.57%), Si (2.62%) and Al (2.49%), while the major elements of the GLSS are Fe (26.9%), Si (15.93%), Ca (9.55%), Al (4.32%) and Zn (2.81%). As shown in Figure 2, the GLSS was mainly consisted of an amorphous phase and some crystalline phases of magnetite. The broad and diffuse peaks from the GLSS approximately 28–35° (2θ) reflected the short-range order of the CaO-Al2O3-MgO-FexO-SiO2 glass structure. This is a common feature of the amorphous phase, which is an indication of a rather reactive phase [42]. The leachability of heavy metals was measured using the toxicity characteristic leaching procedure (TCLP) method. According to Table 2, the concentrations of Pb (8.47 mg/L) and Zn (167.16 mg/L) were found to be high in the MSWI FA and GLSS respectively, exceeding the limits of the regulations in China.
The sodium silicate was supplied by Shandong Usolf Chemical Technology Co., Ltd. (LinYi, China). The product specifications of the sodium silicate are listed as follows: SiO2 (26.5 wt.%), Na2O (8.3 wt.%), molar ratio of SiO2/Na2O of 3.3 and density of 1.371 g/cm3. The other chemicals were of analytical grade.

2.2. Experimental Procedures

The MSWI FA was mixed with the GLSS at percentages of 0% (L0M100), 20% (L20M80), 40% (L40M60), 60% (L60M40) and 80% (L80M20), respectively. The mixture samples, sodium silicate and deionized water were added to obtain homogeneous pastes in a paste mixer. Then, the pastes were poured into steel molds (20 mm × 20 mm × 20 mm) and were covered with plastic films. Afterwards, they were cured for 24 h in a cement concrete standard curing box at 20 ± 2 °C and 95% relative humidity. The matrices were demolded and were cured again under the same conditions. Then, the unconfined compressive strength (UCS) and TCLP tests of the geopolymer matrices were performed after curing for 3, 7 and 28 days.

2.3. Tests

The XRF test can provide a qualitative identification and quantitative analysis of elements for solid samples. The MSWI FA and GLSS samples were initially ground to make sure the particle size was less than 45 µm and then pressed to a pellet. An XRF analyzer (S4-Pioneer, Bruker Ltd., Karlsruhe, Germany) then was used for the quantitative chemical analysis of the samples.
X-ray diffraction (XRD) was utilized to determine the mineral compositions of MSWI FA, GLSS, and geopolymer matrices. The samples were ground into powders with a particle size less than 45 µm as a pretreatment. The crystal compositions of the samples were characterized by an XRD tester (D/max2550 VB + 18 KW) with Cu Kα radiation at a scanning rate of 10°/min from 5° to 65°. The diffraction patterns were manually analyzed using the Joint Committee on Powder Diffraction standards.
The infrared spectra of the MSWI FA and the geopolymer matrices were obtained with a Fourier transform infrared (FTIR) spectrometer (Nicolet IS10, Thermo Fisher Scientific, Waltham, MA, USA), and the samples were prepared using the standard KBr pellet method.
The effectiveness of S/S should be characterized for determining the environmental impact of the treated waste before it is disposed or reused [43]. The TCLP test is used to estimate the amount of contaminants that might be released to the environment in simulated landfill conditions, and the concentrations of contaminants in the leachate [44]. The samples were crushed to less than 0.95 cm manually. Then, the crushed samples were leached in an extraction buffer, with acetic acid (pH 2.88 ± 0.05) at a liquid/solid ratio of 20:1. The extraction (at 25 ± 2 °C) was performed by shaking on a shaker at a speed of 30 rpm for 18 h. Subsequently, the leachates were filtered with a 0.45 µm fiber filter, and then the arsenic and heavy metals concentrations of the filtrates were analyzed using ICP-AES (IRIS Intrepid II XSP, Thermo Electron Corporation, Waltham, MA, USA).

3. Results and Discussion

3.1. Characterization of the Reaction Products in the Geopolymer Binder

To understand what were responsible for the physical properties and heavy metals immobilization of the geopolymer matrix, the reaction products could be characterized using XRD and FTIR methods. The MSWI FA and GLSS samples, as well as selected geopolymer matrices, were examined by XRD. As shown in Figure 2, the main crystalline phase of the MSWI FA was identified as CaClOH, SiO2, NaCl, KCl, Ca(OH)2 and CaCO3. The results agreed with that of Kougemitrou et al. [45,46]. When the MSWI FA was alkali-activated without GLSS addition (L0M100), the peak of CaClOH disappeared. At the same time, the peak intensities of CaCO3 and NaCl increased, and a new weak peak of Friedel’s salt appeared. In addition, the geopolymer gel could be observed, which was attributed to the increase of the amorphous “hump” between 20° and 40° according to Phair and van Deventer [47]. Therefore, the following reactions may have occurred:
CaClOH + NaOH → Ca(OH)2 + NaCl
Ca(OH)2 + CO2 → CaCO3 + H2O
M + Si(OH)4 + Al(OH)4 → Mn-[-(SiO2)z-AlO2]n∙wH2O (Geopolymer)
Ca2+ + Al(OH)4 + Cl + H2O → 3CaO∙Al2O3∙CaCl2∙10H2O (Friedel’s salt)
where M is a cation, usually a Na+, K+ or Ca2+, n is a degree of polycondensation, w ≤ 3 and z is 1, 2 or 3.
When the GLSS was added to the MSWI FA, the XRD test results of L40M60 were similar to that of L0M100 except that the peak intensities of Friedel’s salt increased obviously. The result indicated that Al2O3 was dissolved from the GLSS under alkaline conditions, and then generated more Friedel’s salt. However, when the dosage of GLSS was increased to 80% (L80M20), the peaks of Friedel’s salt were not detected, indicating that the content of the Friedel’s salt is too low to detect in the geopolymer matrix.
To verify the XRD results of the geopolymer binder during the hydration process, the microstructure of the original MSWI FA and geopolymer matrix was characterized by FTIR. The FTIR spectra of the original MSWI FA and the geopolymer matrices (L0M100 and L40M60) are shown in Figure 3. The bands located at 3570 and 3643 cm−1 of the original MSWI FA were attributed to the asymmetric stretching vibration of -O-H in Ca(OH)2, and they disappeared in L0M100 and L40M60, indicating that the Ca(OH)2 reacted with others during the hydration process. The bands located at 1422–1471 cm−1 of the original MSWI FA, L0M100 and L40M60 are attributed to the O-C-O asymmetric stretching in the samples [48]; those bands implied the presence of carbonate. The band located at 1155 cm−1 of the original MSWI FA is attributed to the Si-O-Si asymmetric stretching vibration [49], which shifts to higher energies in L0M100 (1157 cm−1) and L40M60 (1157 cm−1). This was indicative of a higher degree of the silicate networks after geopolymerization. The band located at 984 cm−1 in the original MSWI FA was assigned to Al-O-Si, which is associated with the Si/Al molar ratio in the geopolymer framework, and can shift to a higher wavenumber at a higher molar ratio of Si/Al [50]. Hence, the band peak in the original MSWI FA shifted to a higher number (998 cm−1) in L0M100. The band located at 679 cm−1 in the original MSWI FA was assigned to the amorphous aluminosilicate containing ring structures [48]. The amorphous aluminosilicate was dissolved and the band peak disappeared after geopolymerization. According to the pure Friedel’s salt phase, there is a very strong feature at approximately 532 cm−1 [51] and 786 cm−1 [52] which can be ascribed to the Al-OH bending mode. This band shifted to a higher frequency of 537 cm−1 and 789 cm−1 for both L0M100 and L40M60, which possibly meant that the arsenic or heavy metals intruded into the structure of Friedel’s salt.

3.2. Compressive Strength

3.2.1. Effect of GLSS Addition

The UCS of the geopolymer matrices with different dosages of GLSS is shown in Figure 4. With the GLSS dosage increasing from 0 to 40%, the UCS of the geopolymer matrices increased after curing for 3, 7 and 28 days, and then decreased with the further increase of the dosage of GLSS from 40% to 80%. The geopolymer matrix with the GLSS dosage of 40% showed a high UCS of 10.36 MPa at the curing age of 3 days and reached the highest value of 12.87 MPa at 28 days. Conclusively, the optimal GLSS dosage of 40% was selected. This increase was due to the increase of the molar ratio of SiO2/Al2O3 from 2.1 to 3.8 in the geopolymer matrices.
According to Khale et al. [19,20], increasing the molar ratio of SiO2/Al2O3 up to 3.4–4.5 is greatly responsible for the high long term strength of the geopolymer matrices. Moreover, the UCS increase is also due to the bonds of Si-O-Si becoming stronger, when the geopolymer matrix is enriched with a greater amount of Si [53]. In addition, chloride could significantly retard the solidification of the geopolymer gel [54], and lower the UCS by causing structural discontinuity within the geopolymer gel [55]. Ferone et al. [56] have also demonstrated the negative effect of the presence of chloride on the polycondensation kinetic. However, Ca(OH)2, Cl and Al2O3 are conducive to form Friedel’s salt (Equation (4)), which can remarkably reduce the concentration of free chloride ions in the geopolymer binder. In addition, the formation of Friedel’s salt can improve the UCS by filling in the pores of the S/S matrix [39,40]. It could explain the reason why the UCS of the geopolymer matrices reached the highest when the GLSS dosage was 40%.

3.2.2. Effect of Modulus and Dosage of Sodium Silicate

The UCS of the geopolymer matrices with different modulus and dosages of sodium silicate is shown in Figure 5. With the increasing dosage of sodium silicate, the UCS of the geopolymer matrix increased and then decreased remarkably. On the one hand, the increased dosage of sodium silicate can accelerate the dissolution of Al and Si from the MSWI FA and GLSS, and then the hydration rate increased. On the other hand, the sodium silicate provides soluble Si, which is essential for producing geopolymer gels [57]. However, the excess soluble Si would cause cracking on the surface of the geopolymer matrix according to previous studies. As a result, the optimum dosage of sodium silicate WNa2O+SiO2 is 5% and the modulus is 1.5. Under these conditions, the UCS of the geopolymer matrix reached the highest value (15.32 MPa) after curing for 28 days.

3.3. Other Physical Properties

To examine the possible usage of the geopolymer binder as a potential substitute for fly ash bricks, the performances of the geopolymer binder were evaluated based on the building materials industry standard in China (JC239-2001). According to the criteria, the UCS of MU10 grade fly ash brick is commonly between 10 and 15 MPa, and the UCS of the optimal geopolymer matrix was approximately 15 MPa after curing for 28 days. This result showed that the optimal geopolymer matrix met the UCS requirement of MU10 grade fly ash brick. Water absorption is also a significant parameter of durability for fly ash brick. The water absorption is commonly between 14.29% and 16.70% for bricks presented in the previous literature [58], and the water absorption of the optimal geopolymer matrix was 14.44%. The dry shrinkage of fly ash brick is usually between 0.040% and 0.075% according to the criteria. The dry shrinkage and dry density of the optimal geopolymer matrix was 0.058% and 1.67 g/cm3, respectively. From what has been discussed above, a conclusion may be safely drawn that the cotreatment of MSWI FA and GLSS with alkali-activation provided a possible method to utilize them as bricks.

3.4. Heavy Metals Leachability

The TCLP test results of the geopolymer matrices after curing for 28 days and the corresponding limits of waste landfills are given in Table 3. As seen, the results showed that the Pb, As, Cd, Ni, Cr, Ba and Cu leaching concentrations of the geopolymer matrices with GLSS addition were far below the limits allowed, and decreased with the increasing dosage of GLSS except Cd, Cr, Cu and Ni. In addition, the Zn leaching concentrations of GLSS and MSWI FA were 167.16 mg/L and 0.42 mg/L, respectively, but they have fallen to <0.01 mg/L in all geopolymer matrices except L80M20 (3.3 mg/L). The Ag, Hg, Be and Se leaching concentrations of the geopolymer matrices were still at <0.01 mg/L. Meanwhile, from the results of XRD and FTIR analyses, geopolymer gel and Friedel’s salt are the main phases in the geopolymer matrices. Therefore, it can be deduced that the immobilization of arsenic and heavy metals in matrix had a great relation with Friedel’s salt and the geopolymer gel.
Based on the discussion above, the S/S of MSWI FA and GLSS into geopolymers is an effective way to immobilize heavy metals in both of them. Actually, the S/S mechanisms of heavy metals mainly involve physical encapsulation, adsorption, ion exchange, and precipitation of stable compounds in the binders [59]. According to the results of the TCLP tests, Zn, Pb, As, Cd, Ni, Cr, Ba and Cu in the MSWI FA and GLSS can be solidified/stabilized effectively. In terms of the UCS, the values of the geopolymer matrices were high, so it can be deduced that physical encapsulation is responsible for fixing heavy metals in the geopolymer matrices. The geopolymer is also an important phase for stabilizing Zn2+, Pb2+, Cd2+, Ni2+ and other heavy metals through adsorption [60,61]. Moreover, Friedel’s salt has a strong fixing capacity for arsenic and heavy metals, not only the anions of AsO43− [62], CrO42− and PbO2 [63] but also the cations of Zn2+ [38] and Cd2+ [64]. For instance, Zhang et al. discovered that Friedel’s salt can fix AsO43− effectively through anion exchange [65]. Additionally, Zn2+ can be immobilized via the primary precipitation of Zn-Friedel’s salt (3ZnO∙Al2O3∙ZnCl2∙10H2O) in a solution medium as reported by Liu et al. [38]. As a result, the S/S mechanism of arsenic and heavy metals in the geopolymer matrix mainly involves the physical encapsulation of the geopolymer gel, geopolymer adsorption, and ion exchange of Friedel’s salt.

4. Conclusions

This study demonstrates that MSWI FA is successfully cotreated with GLSS. The UCS of the geopolymer matrices increases significantly with the GLSS addition. As a result, the UCS of the geopolymer matrix has reached 15.32 MPa after curing for 28 days, under the best parameters of this binder (mass ratio of m(GLSS): m(MSWI FA) is 40:60, modulus of sodium silicate is 1.5, and dosage of sodium silicate (WNa2O+SiO2 is 5%).
Furthermore, the measured arsenic and heavy metals from all geopolymer matrices with the GLSS addition are far below the permitted limits of the US EPA. The S/S mechanism of the arsenic and heavy metals in the geopolymer matrix mainly involves physical encapsulation of the geopolymer gel, geopolymer adsorption, and ion exchange of Friedel’s salt. Additionally, the physical properties of the optimal geopolymer matrix meet the performance requirements of MU10 grade of fly ash brick. Therefore, the cotreatment of MSWI FA and GLSS using the geopolymer system has provided a potential method to utilize those two wastes as civil engineering materials. However, the long-time durability and the chloride leaching behavior of the geopolymer matrix should be studied in depth in the future.

Author Contributions

Conceptualization, D.-G.L.; Data curation, Z.-B.W.; Formal analysis, Y.-C.L.; Funding acquisition, X.-B.M.; Investigation, H.X., J.-C.F. & G.-H.J.; Methodology, L.-W.Y.; Project administration, X.-B.M.; Resources, Y.-J.L.; Software, Z.-B.W.; Writing-original draft, D.-G.L.; Writing-review & editing, Y.-J.L. and Y.K.

Funding

This research was supported by National Key R&D Program of China (2017YFC0210402), the key project of National Natural Science Foundation of China (51634010), and the Natural Science Foundation of China (51474247), and Science and Technology Project of Hunan Province (2017RS3010).

Acknowledgments

The authors gratefully acknowledge the National Key R&D Program of China, the key project of the National Natural Science Foundation of China, the Natural Science Foundation of China, and the Science and Technology Project of Hunan Province for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. National Bureau of Statistics of China. China Statistical Yearbook 2016; China Statistical Press: Beijing, China, 2016.
  2. National Bureau of Statistics of China. China Statistical Yearbook 2004; China Statistical Press: Beijing, China, 2004.
  3. Hjelmar, O. Disposal strategies for municipal solid waste incineration residues. J. Hazard. Mater. 1996, 47, 345–368. [Google Scholar] [CrossRef]
  4. Zhao, Y.; Song, L.; Li, G. Chemical stabilization of MSW incinerator fly ashes. J. Hazard. Mater. 2002, 95, 47–63. [Google Scholar]
  5. Lam, C.H.K.; Ip, A.W.M.; Barford, J.P.; McKay, G. Use of incineration MSW ash: A review. Sustainability 2010, 2, 1943–1968. [Google Scholar] [CrossRef]
  6. Polettini, A.; Pomi, R.; Sirini, P.; Testa, F. Properties of Portland cement-stabilised MSWI fly ashes. J. Hazard. Mater. 2001, 88, 123–138. [Google Scholar] [CrossRef]
  7. Liu, D.G.; Min, X.B.; Chai, L.Y.; Ke, Y.; Liang, Y.J.; Li, Y.C.; Yao, L.W.; Wang, Z.B. Co-treatment of flotation waste, neutralization sludge and arsenic-containing gypsum sludge from copper smelting: Solidification/stabilization of arsenic and heavy metals with minimal cement clinker. Environ. Sci. Pollut. Res. 2018, 25, 7600–7607. [Google Scholar] [CrossRef] [PubMed]
  8. Li, Y.C.; Min, X.B.; Chai, L.Y.; Shi, M.Q.; Tang, C.J.; Wang, Q.W.; Liang, Y.J.; Lei, J.; Liyang, W.J. Co-treatment of gypsum sludge and Pb/Zn smelting slag for the solidification of sludge containing arsenic and heavy metals. J. Environ. Manag. 2016, 181, 756–761. [Google Scholar] [CrossRef] [PubMed]
  9. Anamul, M.H.; Rahman, J.; Tanvir, M. Zn and Ni of bottom ash as a potential diffuse pollutant and their application as “fine aggregate”. J. Civ. Eng. Res. 2012, 2, 64–72. [Google Scholar] [CrossRef]
  10. Hájková, P. Kaolinite claystone-based geopolymer materials: Effect of chemical composition and curing conditions. Minerals 2018, 8, 444. [Google Scholar] [CrossRef]
  11. Singh, N.B. Fly ash-based geopolymer binder: A future construction material. Minerals 2018, 8, 299. [Google Scholar] [CrossRef]
  12. Li, Y.; Min, X.; Ke, Y.; Liu, D.; Tang, C. Preparation of red mud-based geopolymer materials from MSWI fly ash and red mud by mechanical activation. Waste Manag. 2019, 83, 202–208. [Google Scholar] [CrossRef]
  13. Zhou, Y.; Deng, H.; Liu, J. Rational utilization of fine unclassified tailings and activated blast furnace slag with high calcium. Minerls 2018, 7, 48. [Google Scholar] [CrossRef]
  14. Favier, A.; Habert, G.; Roussel, N.; Lacaillerie, J.B.D.E.D. A multinuclear static NMR study of geopolymerisation. Cem. Concr. Res. 2015, 75, 104–109. [Google Scholar] [CrossRef]
  15. Lancellotti, I.; Kamseu, E.; Michelazzi, M.; Barbieri, L.; Corradi, A.; Leonelli, C. Chemical stability of geopolymers containing municipal solid waste incinerator fly ash. Waste Manag. 2010, 30, 673–679. [Google Scholar] [CrossRef] [PubMed]
  16. Zheng, L.; Wang, W.; Shi, Y. The effects of alkaline dosage and Si/Al ratio on the immobilization of heavy metals in municipal solid waste incineration fly ash-based geopolymer. Chemosphere 2010, 79, 665–671. [Google Scholar] [CrossRef] [PubMed]
  17. Galiano, Y.L.; Pereira, C.F.; Vale, J. Stabilization/solidification of a municipal solid waste incineration residue using fly ash-based geopolymers. J. Hazard. Mater. 2011, 185, 373–381. [Google Scholar] [CrossRef] [PubMed]
  18. Ye, N.; Chen, Y.; Yang, J.; Liang, S.; Hu, Y.; Xiao, B.; Huang, Q.; Shi, Y.; Hu, J.; Wu, X. Co-disposal of MSWI fly ash and bayer red mud using an one-part geopolymeric system. J. Hazard. Mater. 2016, 318, 70–78. [Google Scholar] [CrossRef] [PubMed]
  19. Khale, D.; Chaudhary, R. Mechanism of geopolymerization and factors influencing its development: A review. J. Mater. Sci. 2007, 42, 729–746. [Google Scholar] [CrossRef]
  20. Silva, D.P.; Sagoe-Crenstil, K.; Sirivivatnanon, V. Kinetics of geopolymerization: Role of Al2O3 and SiO2. Cem. Concr. Res. 2007, 37, 512–518. [Google Scholar] [CrossRef]
  21. Liu, Q.; Wang, C.Q.; Tan, J.; Yin, Z.L.; Chen, Q.Y.; Liao, Z.; Zhang, P.M.; Liu, Y. Recovery of iron from lead-zinc metallurgical slags by bath smelting. J. Cent. South Univ. 2015, 22, 1256–1263. [Google Scholar] [CrossRef]
  22. Wang, Z.; Zhao, Z.; Zhang, L.; Liu, F.; Peng, B.; Chai, L.; Liu, D.; Liu, D.; Wang, T.; Liu, H.; et al. Formation mechanism of zinc-doped fayalite (Fe2−xZnxSiO4) slag during copper smelting. J. Hazard. Mater. 2019, 364, 488–498. [Google Scholar] [CrossRef]
  23. Ettler, V.; Komárková, M.; Jehlička, J.; Coufal, P.; Hradil, D.; Machovič, V.; Delorme, F. Leaching of lead metallurgical slag in citric solutions—Implications for disposal and weathering in soil environments. Chemosphere 2004, 57, 567–577. [Google Scholar] [CrossRef]
  24. Chai, L.Y.; Shi, M.Q.; Liang, Y.J.; Tang, J.W.; Li, Q.Z. Behavior, distribution and environmental influence of arsenic in a typical lead smelter. J Cent. South Univ. 2015, 22, 1276–1286. [Google Scholar] [CrossRef]
  25. Ke, Y.; Peng, N.; Xue, K.; Min, X.; Chai, L.; Pan, Q.; Liang, Y.; Xiao, R.; Wang, Y.; Tang, C.; et al. Sulfidation behavior and mechanism of zinc silicate roasted with pyrite. Appl. Surf. Sci. 2018, 435, 1011–1019. [Google Scholar] [CrossRef]
  26. Yao, L.; Min, X.; Xu, H.; Ke, Y.; Liang, Y.; Yang, K. Hydrothermal treatment of arsenic sulfide residues from arsenic-bearing acid wastewater. Int. J. Environ. Res. Public Health 2018, 15, 1863. [Google Scholar] [CrossRef] [PubMed]
  27. He, X.; Deng, F.; Shen, T.; Yang, L.; Chen, D.; Luo, J.; Luo, X.; Min, X.; Wang, F. Exceptional adsorption of arsenic by zirconium metal-organic frameworks: Engineering exploration and mechanism insight. J. Colloid Interface Sci. 2019, 539, 223–234. [Google Scholar] [CrossRef] [PubMed]
  28. Wang, Z.X.; Chai, L.Y.; Wang, Y.Y.; Yang, Z.H.; Wang, H.Y.; Wu, X. Potential health risk of arsenic and cadmium in groundwater near Xiangjiang River, China: A case study for risk assessment and management of toxic substances. Environ. Monit. Assess. 2011, 175, 167–173. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, Z.; Chai, L.; Yang, Z.; Wang, Y.; Wang, H. Identifying sources and assessing potential risk of heavy metals in soils from direct exposure to children in a mine-impacted city, Changsha, China. J. Environ. Qual. 2010, 39, 1616. [Google Scholar] [CrossRef] [PubMed]
  30. Fei, J.C.; Min, X.B.; Wang, Z.X.; Pang, Z.H.; Liang, Y.J.; Ke, Y. Health and ecological risk assessment of heavy metals pollution in an antimony mining region: A case study from South China. Environ. Sci. Pollut. Res. 2017, 24, 27573–27586. [Google Scholar] [CrossRef]
  31. Xie, X.D.; Min, X.B.; Chai, L.Y.; Tang, C.J.; Liang, Y.J.; Li, M.; Ke, Y.; Chen, J.; Wang, Y. Quantitative evaluation of environmental risks of flotation tailings from hydrothermal sulfidation-flotation process. Environ. Sci. Pollut. Res. 2013, 20, 6050–6058. [Google Scholar] [CrossRef]
  32. Gao, W.; Wang, C.Y.; Yin, F.; Chen, Y.Q.; Yang, W.J. Situation and technology progress of lead smelting in China. Adv. Mater. Res. 2012, 581–582, 904–911. [Google Scholar] [CrossRef]
  33. Renew, J.E.; Huang, C.H.; Burns, S.E.; Carrasquillo, M.; Sun, W.L.; Ellison, K.M. Immobilization of heavy metals by solidification/stabilization of co-disposed flue gas desulfurization brine and coal fly ash. Energy Fuels 2016, 30, 5042–5051. [Google Scholar] [CrossRef]
  34. Prasanna, S.V.; Kamath, P.V. Synthesis and characterization of arsenate-intercalated layered double hydroxides (LDHs): Prospects for arsenic mineralization. J. Colloid Interface Sci. 2009, 331, 439–445. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Qian, G.; Cao, Y.; Chui, P.; Tay, J. Utilization of MSWI fly ash for stabilization/solidification of industrial waste sludge. J. Hazard. Mater. 2006, 129, 274–281. [Google Scholar] [CrossRef]
  36. Qian, G.R.; Shi, J.; Cao, Y.L.; Xu, Y.F.; Chui, P.C. Properties of MSW fly ash-calcium sulfoaluminate cement matrix and stabilization/solidification on heavy metals. J. Hazard. Mater. 2008, 152, 196–203. [Google Scholar] [CrossRef] [PubMed]
  37. Li, D.; Guo, X.; Tian, Q.; Xu, Z.; Xu, R.; Zhang, L. Synthesis and application of friedel’s salt in arsenic removal from caustic solution. Chem. Eng. J. 2017, 323, 304–311. [Google Scholar] [CrossRef]
  38. Liu, Q.; Li, Y.; Zhang, J.; Chi, Y.; Ruan, X.; Liu, J.; Qian, G. Effective removal of zinc from aqueous solution by hydrocalumite. Chem. Eng. J. 2011, 175, 33–38. [Google Scholar] [CrossRef]
  39. Shi, C.; Day, R.L. Chemical activation of lime-slag blends. Int. Concr. Abstr. Portal 1995, 153, 1165–1178. [Google Scholar]
  40. Cheng, Y.; Li, Z.G.; Huang, X.; Bai, X.H. Effect of friedel’s salt on strength enhancement of stabilized chloride saline soil. J. Cent. South Univ. 2017, 24, 937–946. [Google Scholar] [CrossRef]
  41. Aydın, S.; Baradan, B. The effect of fiber properties on high performance alkali-activated slag/silica fume mortars. Compos. Part B-Eng. 2013, 45, 63–69. [Google Scholar] [CrossRef]
  42. Xu, H.; Li, Q.; Shen, L.; Wang, W.; Zhai, J. Synthesis of thermostable geopolymer from circulating fluidized bed combustion (CFBC) bottom ashes. J. Hazard. Mater. 2010, 175, 198–204. [Google Scholar] [CrossRef]
  43. Batchelor, B. Overview of waste stabilization with cement. Waste Manag. 2006, 26, 689–698. [Google Scholar] [CrossRef] [PubMed]
  44. U.S. Environmental Protection Agency. Toxicity Characteristic Leaching Procedure; EPA: Washington, DC, USA, 1992.
  45. Kougemitrou, I.; Godelitsas, A.; Tsabaris, C.; Stathopoulos, V.; Papandreou, A.; Gamaletsos, P.; Economou, G.; Papadopoulos, D. Characterisation and management of ash produced in the hospital waste incinerator of Athens, Greece. J. Hazard. Mater. 2011, 187, 421–432. [Google Scholar] [CrossRef] [PubMed]
  46. Sata, V.; Sathonsaowaphak, A.; Chindaprasirt, P. Resistance of lignite bottom ash geopolymer mortar to sulfate and sulfuric acid attack. Cem. Concr. Comp. 2012, 34, 700–708. [Google Scholar] [CrossRef]
  47. Phair, J.W.; Deventer, J.S.J.V. Effect of the silicate activator pH on the microstructural characteristics of waste-based geopolymers. Int. J. Miner. Process. 2002, 66, 121–143. [Google Scholar] [CrossRef]
  48. Lee, W.K.W.; Deventer, J.S.J.V. Structural reorganisation of class F fly ash in alkaline silicate solutions. Colloid Surf. A 2002, 211, 49–66. [Google Scholar] [CrossRef]
  49. Andini, S.; Cioffi, R.; Colangelo, F.; Grieco, T.; Montagnaro, F.; Santoro, L. Coal fly ash as raw material for the manufacture of geopolymer-based products. Waste Manag. 2008, 28, 416–423. [Google Scholar] [CrossRef] [PubMed]
  50. Zheng, L.; Wang, C.; Wang, W.; Shi, Y.; Gao, X. Immobilization of MSWI fly ash through geopolymerization: Effects of water-wash. Waste Manag. 2011, 31, 311–317. [Google Scholar] [CrossRef]
  51. Palomo, A.; Grutzeck, M.W.; Blanco, M.T. Alkali-activated fly ashes: A cement for the future. Cem. Concr. Res. 1999, 29, 1323–1329. [Google Scholar] [CrossRef]
  52. Birnin-Yauri1, U.A.; Glasser, F.P. Friedel’s salt, Ca2Al(OH)6(Cl,OH)·2H2O: Its solutions and their role in chloride binding. Cem. Concr. Res. 1998, 28, 1713–1723. [Google Scholar] [CrossRef]
  53. Songpiriyakij, S.; Kubprasit, T.; Jaturapitakkul, C.; Chindaprasirt, P. Compressive strength and degree of reaction of biomass- and fly ash-based geopolymer. Constr. Build. Mater. 2010, 24, 236–240. [Google Scholar] [CrossRef]
  54. Lee, W.K.W.; Deventer, J.S.J.v. Effects of anions on the formation of aluminosilicate gel in geopolymers. Ind. Eng. Chem. Res. 2002, 41, 4550–4558. [Google Scholar] [CrossRef]
  55. Lee, W.K.W.; Deventer, J.S.J.V. The effects of inorganic salt contamination on the strength and durability of geopolymers. Colloids Surf. A Physicochem. Eng. Asp. 2002, 211, 115–126. [Google Scholar] [CrossRef]
  56. Ferone, C.; Colangelo, F.; Messina, F.; Santoro, L.; Cioffi, R. Recycling of pre-washed municipal solid waste incinerator fly ash in the manufacturing of low temperature setting geopolymer materials. Materials 2013, 6, 3420–3437. [Google Scholar] [CrossRef] [PubMed]
  57. Rowles, M.; O’Connor, B. Chemical optimisation of the compressive strength of aluminosilicate geopolymers synthesised by sodium silicate activation of metakaolinite. J. Mater. Chem. 2003, 13, 1161–1165. [Google Scholar] [CrossRef]
  58. Li, Y.C.; Min, X.B.; Ke, Y.; Chai, L.Y.; Shi, M.Q.; Tang, C.J.; Wang, Q.W.; Liang, Y.J.; Lei, J.; Liu, D.G. Utilization of red mud and Pb/Zn smelter waste for the synthesis of a red mud-based cementitious material. J. Hazard. Mater. 2018, 344, 343–349. [Google Scholar] [CrossRef]
  59. Vempati, R.K.; Mollah, M.Y.A.; Chinthala, A.K.; Cocke, D.L.; Beeghly, J.H. Solidification/stabilization of toxic metal wastes using coke and coal combustion by-products. Waste Manag. 1995, 15, 433–440. [Google Scholar] [CrossRef]
  60. Kara, İ.; Yilmazer, D.; TunaliAkar, S. Metakaolin based geopolymer as an effective adsorbent for adsorption of zinc(II) and nickel(II) ions from aqueous solutions. Appl. Clay Sci. 2017, 139, 54–63. [Google Scholar] [CrossRef]
  61. Zheng, L.; Wang, W.; Qiao, W.; Shi, Y.; Liu, X. Immobilization of Cu2+, Zn2+, Pb2+, and Cd2+ during geopolymerization. Front. Environ. Sci. Eng. 2015, 9, 642–648. [Google Scholar] [CrossRef]
  62. Min, X.B.; Liu, D.G.; Chai, L.Y.; Ke, Y.; Liang, Y.J.; Shi, M.Q.; Li, Y.C.; Tang, C.J.; Wang, Y.Y.; Wang, Z.B. Comparison of arsenic immobilization properties among calcium silicate hydrate, ettringite, and Friedel’s salt in a slag-based binder. Environ. Prog. Sustain. Energy 2018. [Google Scholar] [CrossRef]
  63. Xu, Y.; Ren, Z.; Pu, Q.; Cao, Y.; Zhou, J.; Sun, Y.; Qian, G. Stabilization mechanism of Friedel’s salt on Pb2+. Acta Sci. Circumst. 2009, 29, 594–599. [Google Scholar]
  64. Zhang, J.J.; Zhao, H.; Cao, H.B.; Li, H.P.; Li, Z.B. Removal of Cd2+ from water by Friedel’s salt (FS: 3CaO∙Al2O3∙CaCl2∙10H2O): Sorption characteristics and mechanisms. J. Environ. Sci. China 2013, 25, 1719–1725. [Google Scholar] [CrossRef]
  65. Zhang, D.; Jia, Y.; Ma, J.; Li, Z. Removal of arsenic from water by friedel’s salt (FS: 3CaO·Al2O3·CaCl2·10H2O). J. Hazard. Mater. 2011, 195, 398–404. [Google Scholar] [CrossRef] [PubMed]

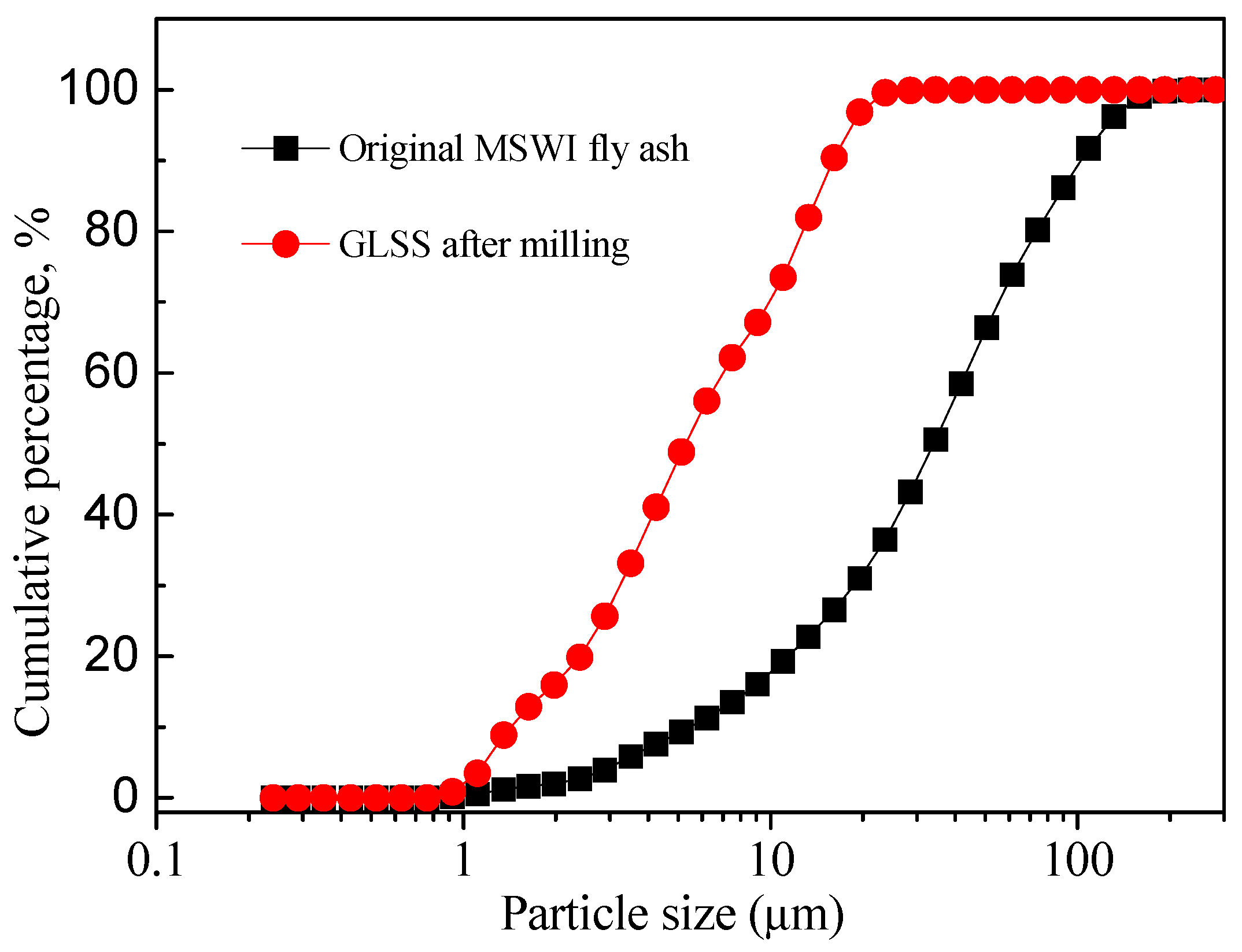

Figure 1. Particle size distributions of the original MSWI FA and GLSS after milling.
Figure 1. Particle size distributions of the original MSWI FA and GLSS after milling.
Ijerph 16 00156 g001

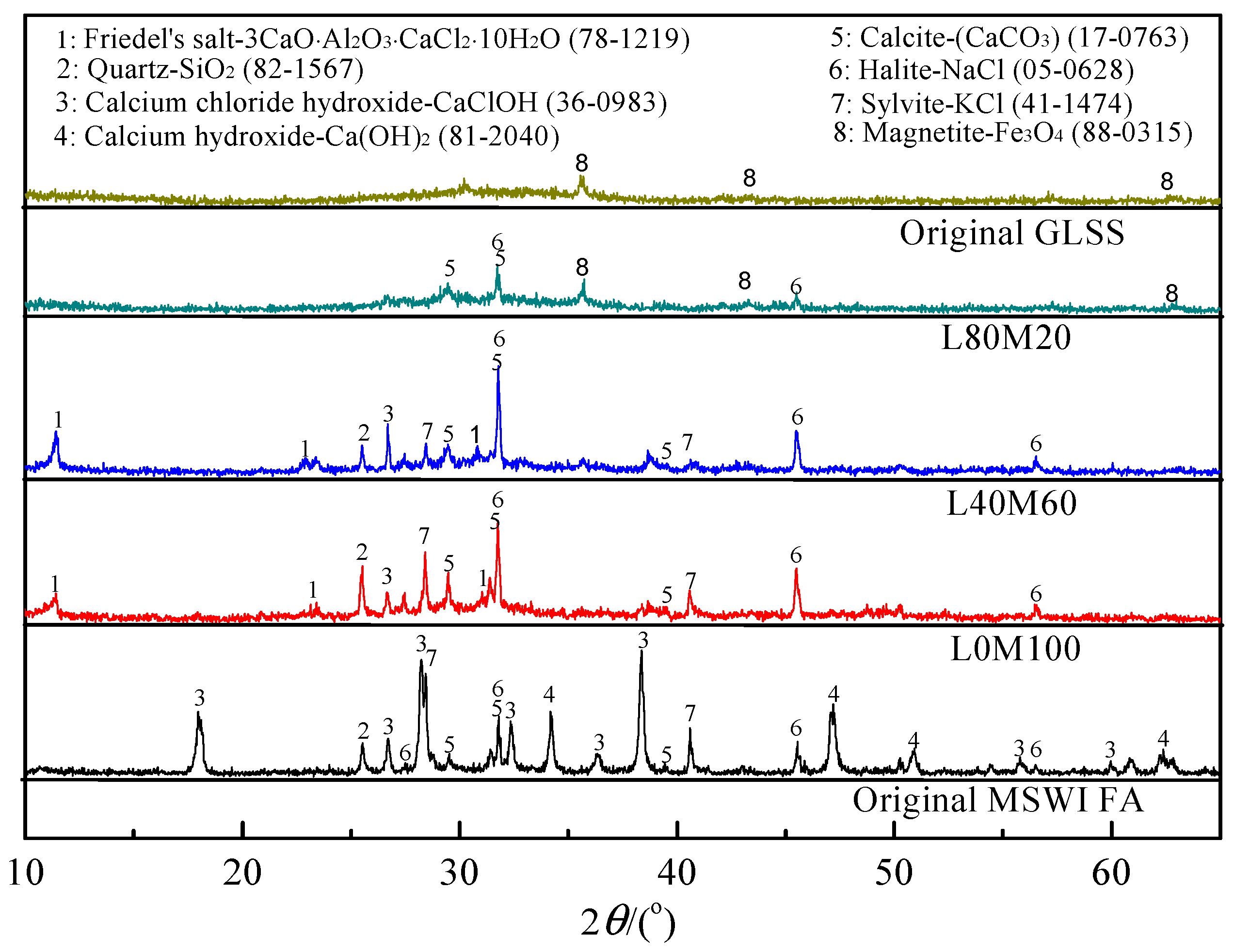

Figure 2. XRD patterns of the MSWI FA, GLSS, and geopolymer matrices.
Figure 2. XRD patterns of the MSWI FA, GLSS, and geopolymer matrices.
Ijerph 16 00156 g002

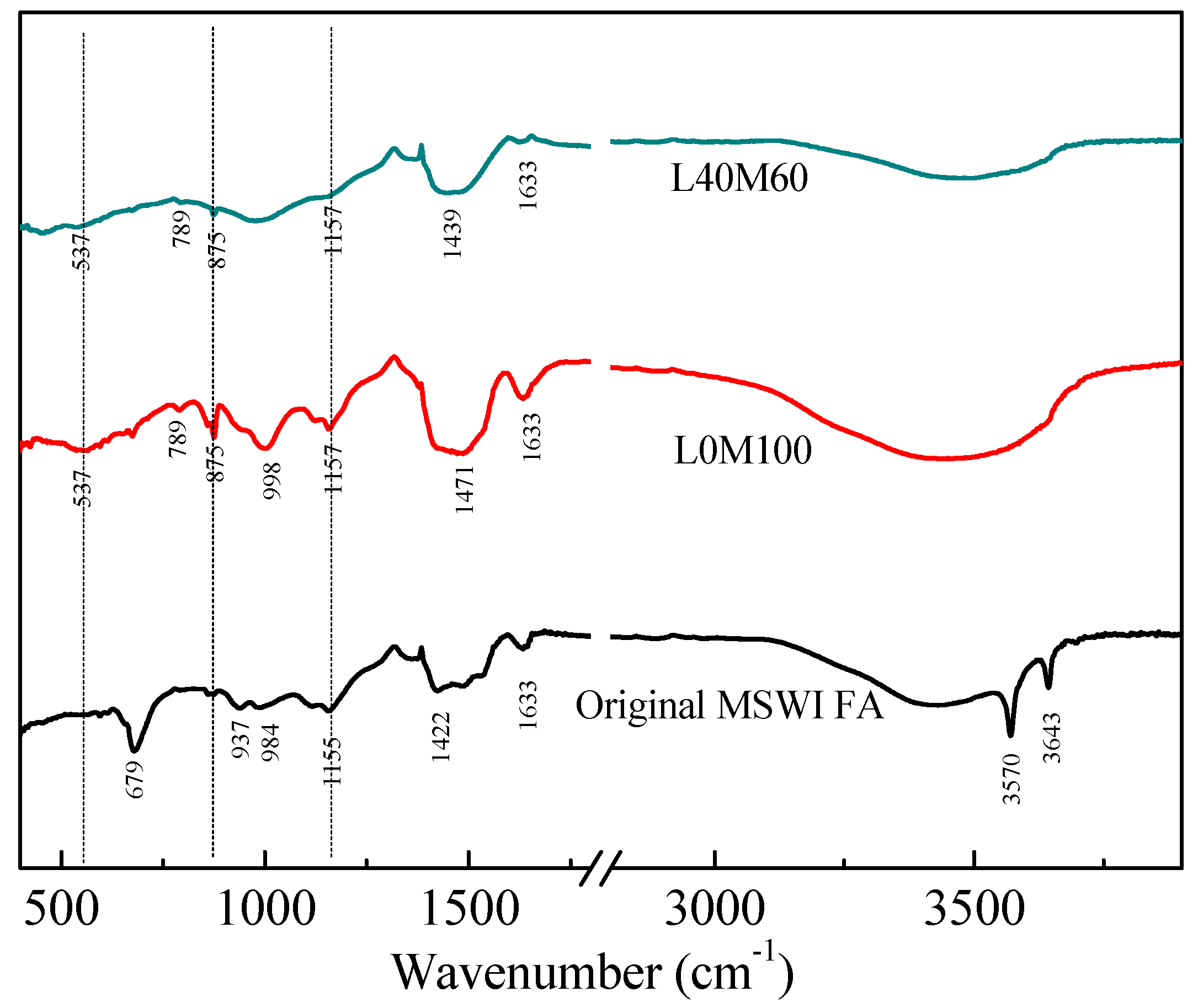

Figure 3. FTIR patterns of the original MSWI FA and geopolymer matrices.
Figure 3. FTIR patterns of the original MSWI FA and geopolymer matrices.
Ijerph 16 00156 g003

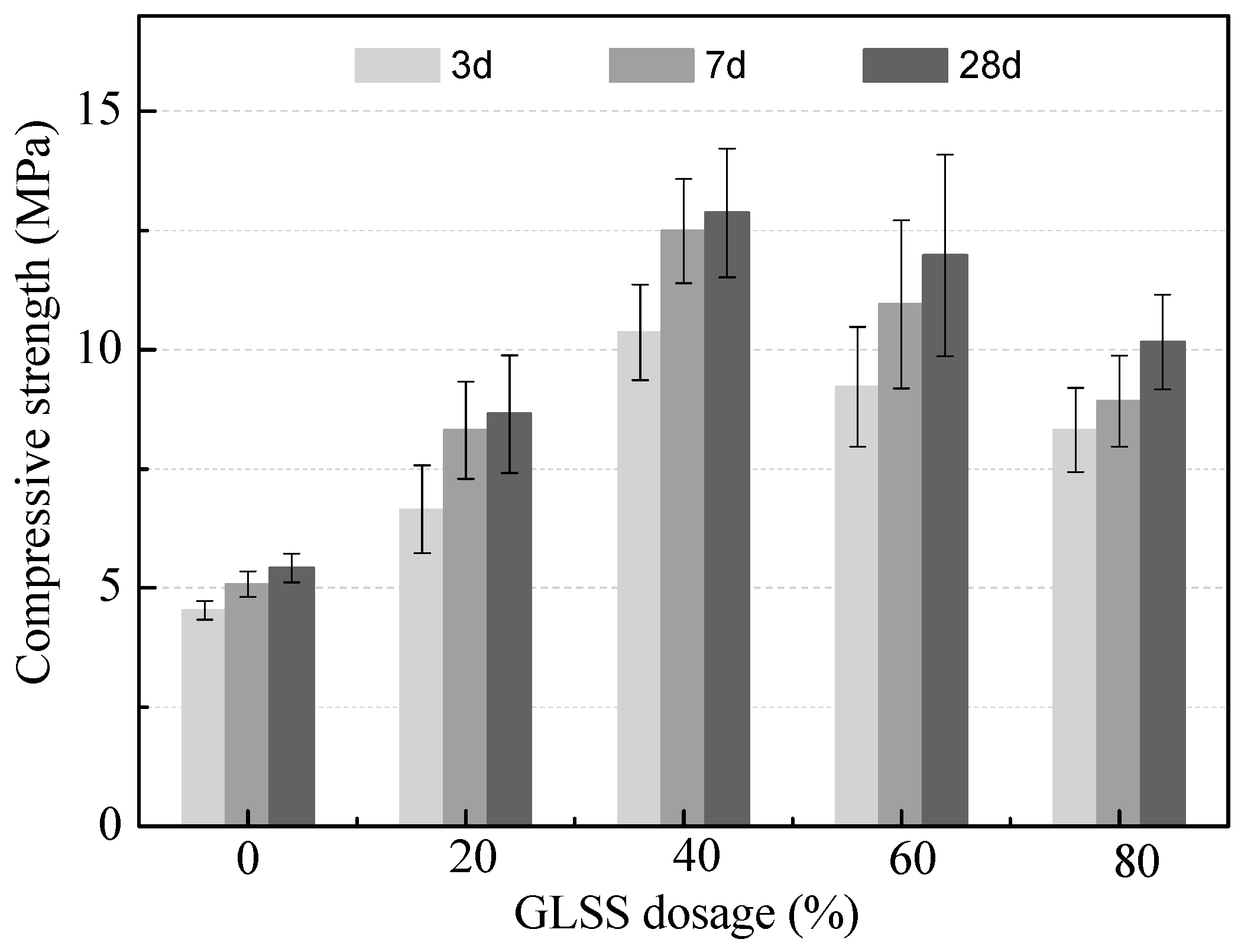

Figure 4. The UCS variations of the geopolymer binder with GLSS addition.
