3.1. Results
3.1.1. Serological MA-Monitoring in the German and Dutch Slaughterhouse(s) and Herd Risk Categorization
In six Dutch slaughterhouses 248,325 blood serum samples were taken from 4,830 herds and examined for MA antibodies. The results showed that 2,495 (1.0%) serum samples had a positive result in the MA-ELISA (
Figure 1). From 4,817 pig herds, at least 36 samples were collected during this period. Twenty five (0.5%) of these herds had two or more positive samples out of 36.
In the German slaughterhouse blood serum samples were taken from 57,044 pigs delivered by 1,249 herds. From these serum samples 984 (1.7%) had a positive result. From 574 herds, at least 36 samples were collected during this period. One hundred of these herds (17.4%) had two or more positive samples out of 36.

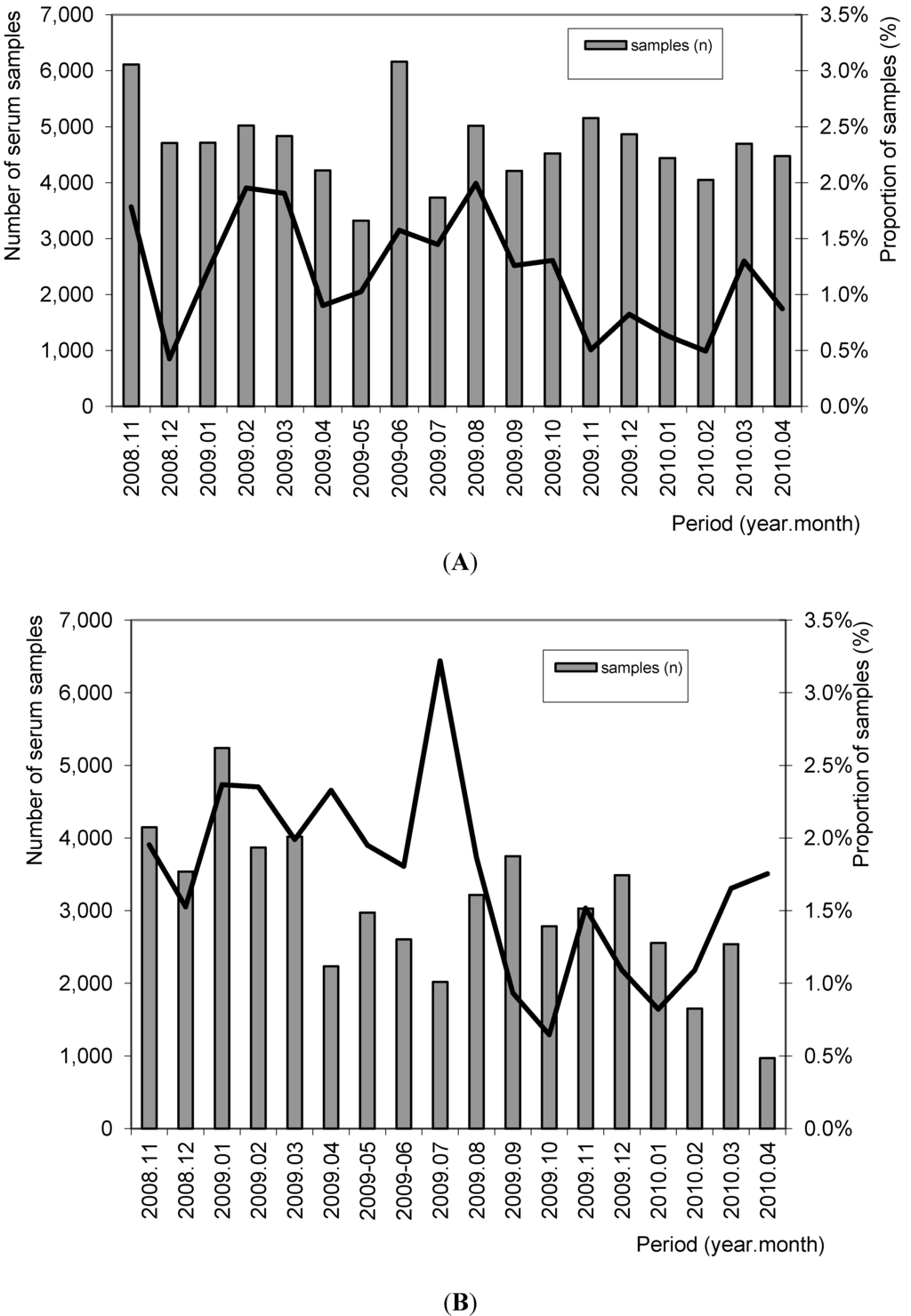

Figure 1.
Proportion of MA-ELISA positive serum samples in relation to the number of tested serum samples in The Netherlands (A) and in Germany (B) in the period 2008–2010.
Figure 1.
Proportion of MA-ELISA positive serum samples in relation to the number of tested serum samples in The Netherlands (A) and in Germany (B) in the period 2008–2010.
The proportion of positive samples in the different months is shown in
Figure 1. The proportion of positive samples (1.7%
versus 1.0%) and herds (17.4%
versus 0.5%) were significantly higher in the tested German population compared to the tested Dutch pigs (Chi-square;
p < 0.05).
3.1.2. Evaluation of Sensitivity under Field Conditions
In four of the eleven serologically identified MA farms, pigs were detected with a positive tuberculin skin test. Additional blood and lymph nodes were sampled on pigs from these four tuberculination positive herds (farm A: Netherlands, farm B: Belgium, farm D, E: Germany) and examined for M. avium Infections.
The results showed that the proportion of the MA-ELISA positive samples at the four farms varied between 3.4% and 11%. The carcass sensitivity (sensitivity of an individual test) based on bacteriological examination of the lymph nodes varied between 2.4% and 16.7% (
Table 1). The average proportion of granulomatous lesions detected by pathological examination in the submaxillary lymph nodes was 22.5% (85 of 378). The lowest proportion of lesions was 8% (9 of 117) (farm B) and the maximum was 31% (57 of 184) (farm A). The carcass sensitivity (sensitivity of an individual test) of the pathological examination under laboratory conditions varied between 19.5% and 67% and on average it was 32.6%. Results of bacteriological examination of the submaxillary and mesenteric lymph nodes showed that on average 50% (188 of 375) of the pigs were infected with
M. avium hominisuis (MAH) (
Table 1), the minimum level of infection with MAH was 32% (6 of 19) (farm E) and the maximum level was 66% (38 of 55) (farm D).
Table 1.
Test characteristics of the applied MA-ELISA validated with animals from four positive farms.
Table 1.
Test characteristics of the applied MA-ELISA validated with animals from four positive farms.
Farm (Country) | Bacteriology 1 +ve/n (%) | Pathology 2 | Serology (PP > 20) |
---|
+ve/n (%) | Se% | Sp% | +ve/n (%) | Se% (carcass) | Sp% | PPV% | NPV% |
---|
A 3 (NL) | 103/184 (56) | 57/184 (31) | 35.0 | 74.1 | 8/184 (4.3) | 4.9 | 96.3 | 62.5 | 44.3 |
B3 (B) | 41/117 (35) | 9/117 (8) | 19.5 | 98.7 | 4/117 (3.4) | 2.4 | 96.1 | 25.0 | 64.6 |
D 4 (GE) | 38/55 (66) | 16/58 (28) | 40.5 | 94.4 | 3/55 (5.5) | 2.7 | 88.9 | 33.3 | 30.7 |
E 4(GE) | 6/19 (32) | 3/19 (16) | 66.7 | 92.3 | 2/19 (11) | 16.7 | 92.3 | 50.0 | 70.1 |
TOTAL (%) | 188/375 (50) | 85/378 (23) | 32.6 | 87.2 | 17/375 (4.5) | 4.3 | 95.2 | 49.4 | 50.0 |
3.1.3. Evaluation of the Carcass Specificity of the MA-ELISA under Field Conditions
From 239 pigs from low MA risk herds the submaxillary and mesenteric lymph nodes were bacteriologically negative for MA. Carcass specificity (specificity of an individual test) of the MA-ELISA at a cut-off of PP 20 was 100% (95% CI: 98.4%–100%). The carcass specificity of the pathological examination under laboratory conditions was 97% (
Table 2).
Table 2.
Results of serological, pathological and bacteriological examinations for M. avium infections on farms categorised at “low” risk for a M. avium infection.
Table 2.
Results of serological, pathological and bacteriological examinations for M. avium infections on farms categorised at “low” risk for a M. avium infection.
Pig farm | Number of pigs sampled | Serology | Lnn. mandibulares | Lnn. mesenteriales |
---|
Pathology 1 | Bacteriology 2 | Pathology | Bacteriology |
---|
PP > 20 | −ve | +ve | +ve | −ve | +ve | +ve |
---|
116 | 3 | 0 | 3 | 0 | 0 | 3 | 0 | 0 |
724 | 10 | 0 | 10 | 0 | 0 | 10 | 0 | 0 |
736 | 10 | 0 | 10 | 0 | 0 | 8 | 2 | 0 |
875 | 33 | 0 | 31 | 2 | 0 | 33 | 0 | 0 |
907 | 41 | 0 | 38 | 3 | 0 | 39 | 2 | 0 |
826 | 39 | 0 | 36 | 1 | 0 | 31 | 0 | 0 |
014 | 33 | 0 | 32 | 0 | 0 | 24 | 2 | 0 |
088 | 71 | 0 | 70 | 1 | 0 | 45 | 0 | 0 |
Total (%) | 239 | 0 | 230 | 7 (3.0%) | 0 | 193 | 6 (3.1%) | 0 |
Sp | | 100% | | 97% | | | 96.9% | |
3.1.4. Herd Sensitivity Calculations
When the observed range of MA-ELISA carcass sensitivities (2.4%–16.7%) and the observed range for bacteriological carcass prevalence of MA bacteria at herd level (32%–66%) were applied for herd sensitivity calculations, the probability to have at least one positive serological sample varies between 23% and 100% (
Table 3). This is the probability that positive herds were recognized with the serological test.
With the average carcass sensitivity of 4.3% and 50% bacteriological positive animals in the affected herds the probability of one positive sample in an affected herd was 54%. The probability to obtain two or more serum samples positive was 3%–97%, depending on the bacteriological prevalence (
Table 3). This is the probability for a herd to become categorised as “at risk”. With the average carcass sensitivity of 4.3% and 50% bacteriological positive animals in the affected herds the herd sensitivity was 18%.
3.1.5. Herd Specificity Calculations
Calculations of the apparent herd prevalence (AHP) showed that when the test systematic has a herd sensitivity of 20% and herd specificity of 98.5% the AHP will not be below 1.5%. These were false positives resulting from the 98.5% herd specificity, based on an assumed carcass specificity of 99.5%. In the Dutch population only 0.5% “at risk” farms were detected. Therefor the herd specificity of the test systematic was higher than 98.5%. This also means that the carcass specificity for an individual test was higher than 99.5%.
Table 3.
Herd sensitivity of the MA-ELISA in a range of observed carcass sensitivities and bacteriological prevalences of M. avium at 1 or more and 2 or more positive samples for a positive herd diagnosis.
Table 3.
Herd sensitivity of the MA-ELISA in a range of observed carcass sensitivities and bacteriological prevalences of M. avium at 1 or more and 2 or more positive samples for a positive herd diagnosis.
Within-herd bacteriological prevalence of M. avium | MA-ELISA carcass sensitivity |
---|
2.4 | 5% | 10% | 16.7% | 20% |
---|
probability ≥ 1 out of 36 positive blood serum samples |
---|
30% | 23% | 42% | 67% | 84% | 89% |
40% | 29% | 52% | 77% | 92% | 95% |
50% | 35% | 60% | 84% | 96% | 98% |
60% | 41% | 67% | 89% | 98% | 99% |
70% | 46% | 73% | 93% | 99% | 100% |
| probability ≥ 2 out of 36 positive blood serum samples |
30% | 3% | 10% | 29% | 54% | 64% |
40% | 5% | 16% | 42% | 70% | 79% |
50% | 7% | 23% | 54% | 81% | 89% |
60% | 9% | 29% | 64% | 89% | 94% |
70% | 12% | 36% | 73% | 93% | 97% |
3.2. Discussion
M. avium subsp.
avium and
M. avium subsp.
hominissuis are relevant food safety risks in pigs [
6,
7,
8]. With the present MA-ELISA detection of MA risk herds can be done much easier than by the classical incision of lymph nodes in the traditional meat inspection. Infections of the lymph nodes are detected by inspection of the submaxillary lymph nodes after incision within the traditional meat inspection in pigs. A recent review showed that during meat inspection in Germany malformations were detected in only 0.22% of slaughtered pig carcasses (Federal Statistical Office of Germany, 2007; according to BfR report). Caseous malformations in porcine lymph nodes and sometimes in kidneys, liver and spleen can be caused by mycobacteria [
9,
18,
19], but most of them originate from
Rhodococcus equi infections [
12,
20,
21]. On the other hand, other studies showed that lymph nodes without any lesions can harbour MA [
20,
22]. Henceforth, the incision of submaxillary lymph nodes in the traditional meat inspection appears to be a non-sensitive and a non-specific test.
In the present study a serological screening for MA infections as alternative method was tested to identify MA positive herds at slaughter. The number of MA positive carcasses was 1.01% and 1.73% in respectively the Dutch and German pig population. These proportions of positive carcasses are comparable to the prevalence of granulomatous malformations in lymph nodes seen at pathological examination, 1.85% by Fischer [
23], 0.89% by Meyer
et al. [
24] and 0.48% by Lücker
et al. [
25] of which about one third showed to be bacteriological positive for MA.
The results of the present study show, that serological screening for MA infections has the capacity to identify bacteriological MA positive herds. Screening results showed that 0.5% of the Dutch herds and 17.4% of the German herds had two or more positive samples out of 36 analysed blood samples. These figures also show that MA infection in pigs occurs at a low level. Additionally they show that the prevalence of MA infections differs across populations. There was a higher level of positive samples and herds in the German population compared to the Dutch. As recent studies show [
10,
11], peat, that is usually used as a feed supplement may be contaminated with MA. In German breeder herds peat is more frequently supplied than in Dutch ones (data not shown) which possibly explains the differences.
The applied MA-ELISA was validated on tuberculation-confirmed MA positive farms. The validation results showed, that the sensitivity of an individual test was low,
i.e., varying sensitivities were found with an average of 4.3%. Nevertheless, it was shown that approximately 20% of bacteriologically positive herds can be identified when 36 blood samples are tested and at least two samples need to be positive above PP 20 in the ELISA. An improvement of the MA-ELISA test sensitivity seems achievable, as in experimentally infected pigs [
13] and in some of the field farms these higher sensitivities were observed. The low average sensitivity might be due to presence of infections with other MA serotypes [
26] that have insufficient cross-immunity toward the antigens used in the test. Additional antigens could be added to the MA-ELISA test to improve its performance.
Besides the fact that screening in pig blood collected at slaughter can efficiently be done, there are important advantages of omitting incision of the lymph nodes within meat inspection. Firstly, cross contamination of salmonella due to incision is prevented [
15,
27]. Secondly, in the supply chain meat inspection system, where this serology is used to categorise herds, much more effort is done to control MA with increased biosecurity standards and follow-up at high risk farms [
17]. This prevention of infection with MA in swine at farm level has not been an active constituent in the traditional meat inspection, which is an end of line check only.
