Ulva (Enteromorpha) Polysaccharides and Oligosaccharides: A Potential Functional Food Source from Green-Tide-Forming Macroalgae

School of Medicine and Holistic Integrated Medicine, Nanjing University of Chinese Medicine, Nanjing 210023, China
Laboratory of Marine Bioresource, College of Food Science and Light Industry, Nanjing Tech University, Nanjing 211816, China
Author to whom correspondence should be addressed.
Mar. Drugs 2022, 20(3), 202;
Submission received: 17 February 2022 / Revised: 6 March 2022 / Accepted: 7 March 2022 / Published: 10 March 2022


The high-valued utilization of Ulva (previously known as Enteromorpha) bioresources has drawn increasing attention due to the periodic blooms of world-wide green tide. The polysaccharide is the main functional component of Ulva and exhibits various physiological activities. The Ulva oligosaccharide as the degradation product of polysaccharide not only possesses some obvious activities, but also possesses excellent solubility and bioavailability. Both Ulva polysaccharides and oligosaccharides hold promising potential in the food industry as new functional foods or food additives. Studies on Ulva polysaccharides and oligosaccharides are increasing and have been the focus of the marine bioresources field. However, the comprehensive review of this topic is still rare and do not cover the recent advances of the structure, isolation, preparation, activity and applications of Ulva polysaccharides and oligosaccharides. This review systematically summarizes and discusses the recent advances of chemical composition, extraction, purification, structure, and activity of Ulva polysaccharides as well as oligosaccharides. In addition, the potential applications as new functional food and food additives have also been considered, and these will definitely expand the applications of Ulva oligosaccharides in the food and medical fields.

Graphical Abstract

1. Introduction

The Ulva (previously known as Enteromorpha Enteromorpha), known as green-tide-forming macroalgae, has drawn increasing attention in both the marine environment protection and marine bioresources fields [1,2]. Recently, the green tide blooms more and more frequently due to the global seawater eutrophication and temperature rise [3,4,5,6,7]. The largest Ulva-forming green tide in history occurred in the Yellow Sea of China this year, and covered almost 1746 km2, producing over 24 million tons of biomass [8]. The Ulva genus belongs to the Ulvaceae family and includes nearly 40 kinds of species such as Ulva prolifera (previously known as Enteromorpha prolifera), Ulva linza (previously known as Enteromorpha linza), and Ulva intestinalis (previously known as Enteromorpha intestinalis) (as shown in Figure 1) [9]. For a long time, the Ulva and Enteromorpha were considered as two different genera, but the molecular evidence indicated that Ulva and Enteromorpha are not distinct evolutionary entities and should not be recognized as separate genera [9]. Therefore, the taxonomic name “Enteromorpha” is currently regarded as a synonym for Ulva.
The Ulva polysaccharide constitutes the main component of the cell wall of Ulva species algae, and it accounts for nearly 18% of the dry weight. In addition, it possesses various physiological properties such as antioxidant, anticoagulant, antitumor, antiaging and immune regulatory activities [10,11,12]. Therefore, the Ulva polysaccharides could be widely used as medicine and chemical agents in the agricultural and medical fields [13,14].
It is worth noting that another green algal polysaccharide, Ulvan, has also drawn increased attention, and its structure has been well characterized. The water-soluble sulfated polysaccharide is mainly extracted from Ulva sp. and consists of a linear backbone with L-rhamnose-3-sulfate (Rha3S), D-glucuronic acid (GlcUA), L-iduronic acid (IdoA) and D-xylose (Xyl), and the sulfate group is linked to the rhamnose. The two major repeating disaccharide units of ulvan are →4)-β-D-glucuronic acid (1→4)-α-L-rhamnose-3-sulfate (1→(A3S) and →4) α-L-iduronic acid (1→4)-α-L-rhamnose-3-sulfate (1→(B3S) [15]. However, the Ulva polysaccharide possesses a more complex chemical composition and fine structure. In addition, the Ulva polysaccharides exhibit great potential as functional foods and food additives due to their obvious metabolism-regulatory activity [16,17,18]. For instance, Guo et al. discovered that the polysaccharides extracted from Ulva prolifera could prevent high-fat diet-induced obesity in hamsters [19]. They also found that polysaccharides isolated from Ulva prolifera could protect against carbon tetrachloride-induced acute liver injury in mice via the activation of Nrf2/HO-1 signaling, and the suppression of oxidative stress, inflammation and apoptosis [20]. Li et al. found that the Ulva polysaccharides could improve blood glucose regulation, blood lipid metabolism and liver oxidative stress in T2DM cells [21]. However, the applications of the Ulva polysaccharide have been greatly limited by its poor solubility and low bioavailability [22]. In order to overcome this drawback, it is feasible to degrade the polysaccharide into oligosaccharide, which also possesses the biological activities but also has much better solubility and bioavailability [23]. The methods for polysaccharide degradation mainly include physicochemical or enzymatic methods [24,25,26]. In particular, the enzymatic method has drawn increasing attention due to its advantages, such as its mild reaction conditions and specific product distributions.
Studies of the Ulva polysaccharide and oligosaccharide have been increasing in the past two decades (Figure 2). Among these, most of them have focused on the structure and activity of the polysaccharides and oligosaccharides [14]. In addition, the preparation of oligosaccharides has drawn increasing attention [22]. However, there is not a comprehensive review which has summarized the recent advances in every aspect of the Ulva polysaccharide and oligosaccharide. In this review, we summarized and discussed the recent advances of chemical composition, extraction, purification, structure, activity and applications of Ulva polysaccharides as well as oligosaccharides. In addition, the potential applications as new functional foods and food additives have also been reviewed.

2. Ulva Polysaccharide

2.1. Chemical Composition and Structure of Ulva Polysaccharide

The chemical composition of the Ulva polysaccharide is more complex than other common algal polysaccharides such as alginate (Phaeophyceae), carrageenan and agar (Rhodophyta) (Figure 3) [22,27,28,29]. The monosaccharide composition of Ulva polysaccharide mainly includes glucose, rhamnose, arabinose, xylose, mannose, galactose, fucose, glucosamine and glucuronic acid [27,28], which is different from algal polysaccharides (such as agar, carrageenan, alginate and fucoidan) that originate from brown and red algae. In addition, the chemical composition of Ulva polysaccharide differs in growth condition, harvesting season and the types of original Ulva species [14,30]. Qi et al. characterized the chemical compositions of the polysaccharides isolated from Ulva linza, Ulva prolifera and Ulva clathrata, respectively [28,31,32]. The results suggested that the chemical compositions of the three kinds of polysaccharides differed from each other. For instance, the polysaccharide from Ulva linza was composed of much rhamnose and a small amount of galactose, xylose and glucuronic acid; while the polysaccharides from Ulva clathrata contained larger amounts of arabinose and galactose and a small amount of rhamnose, fucose and xylose.
In addition, the main component (rhamnose) of the polysaccharides from Ulva prolifera is similar to the polysaccharide from Ulva linza. However, it contains some mannose, glucuronic acid and glucosamine, which is very different from the monosaccharide composition of the polysaccharide from Ulva linza. Moreover, the harvest time of Ulva algae also could influence on the chemical composition of the polysaccharide [31]. Shi et al. investigated the monosaccharide composition of Ulva polysaccharides, which isolated from the Ulva clathrata with different harvesting times [33]. The results suggested that the kinds of monosaccharide for polysaccharides isolated from the Ulva clathrata with different harvesting times seemed to be same. However, the ratios of these monosaccharides were different from each other. For instance, the monosaccharide (mannose, rhamnose, glucose, galactose and xylose) ratios of polysaccharides isolated from Ulva clathrata harvested in January and June are 6.74:65.56:5.54:2.83:19.33 and 2.81:67.55:2.31:2.71:24.61, respectively. In addition, the growth conditions also could exert an influence on the chemical composition of Ulva polysaccharide. Ji et al. analyzed the composition of Ulva clathrata samples and found that the monosaccharide compositions of Ulva clathrata under normal and explosive states exhibited obviously different levels [34]. The polysaccharides isolated from the Ulva clathrata under an explosive state contained iduronic acid, which did not exist in the polysaccharides isolated from Ulva clathrata under normal conditions.
The structure of polysaccharides that originate from Ulva clathrata is much more complex than other algal polysaccharides such as alginate, agar and carrageenan due to its complexity of monosaccharide composition, glycosidic linkage and group modification [14]. In addition, many factors such as the growth condition, harvesting season, the types of original Ulva species, etc., could lead to diverse structures of polysaccharides. Therefore, it is difficult to elucidate the fine structure of Ulva polysaccharide. Qi et al. investigated the fine structures of polysaccharides isolated from different sources in detail [28,32] (Table 1). The results indicated the polysaccharide of Ulva linza consisted of five fractions, namely MCS, MHS, SCS, SH1S and SH2S. In addition, it also included some fragments such as [→4)-β-D-Xylp-(1→], [→2)-α-L-Rhap-(1→], [→3)-α-L-Rhap-(1→], [→3, 4)-α-L-Rhap-(1→], [→2, 3)-α-L-Rhap-(1→], and [→2, 4)-α-L-Rhap-(1→]. The MCS and MHS fractions mainly contained [→4)-α-L-Rhap-(1→], [→2,4)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→], [→4)-β-D-GlcAp-(1→], [→3)-α-L-Rhap-(1→] and [→2)-α-L-Rhap-(1→]. The SCS was consisted of [→3)-α-L-Rhap-(1→], [→2)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→], [→4)-α-L-Rhap-(1→] and [→2,4)-α-L-Rhap-(1→], while the SH1S fraction composed of [→4)-α-L-Rhap-(1→], [→3)-α-L-Rhap-(1→], [→2,4)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→] and [→4)-β-D-GlcAp-(1→]. The last fraction SH2S included [→4)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→], [→2)-α-L-Rhap-(1→], [→3)-α-L-Rhap-(1→], [→3,4)-α-L-Rhap-(1→], [→2,3)-α-L-Rhap-(1→] and [→2,4)-α-L-Rhap-(1→]. They obtained four polysaccharide fractions (QC1S, QCQ2, QCQ3, and QHS) from Ulva prolifera and found that it mainly consisted of two disaccharide units, namely [→4)-β-D-GlcAp-(1→4)-α-L-Rhap3S-(1→] and [→4)-β-D-Xylp-(1→4)-α-L-Rhap3S-(1→]. The QC1S fraction contained [→4)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→], [→2)-α-L-Rhap4S-(1→], [→3)-α-L-Rha4S-(1→], [→4)-α-L-Rhap2S-(1→] and [→3,4)-α-L-Rhap-(1→]. The QHS fraction mainly consisted of [→4)-α-L-Rhap-(1→], [→4)-β-D-Xylp-(1→], [→4)-β-D-GlcAp-(1→], [→3)-α-L-Rhap-(1→] and [→2,4)-α-L-Rhap-(1→]. In addition, three fractions (XCS, XH1S, XH2S) were isolated and characterized, the XCS fraction has been identified to have [→2)-β-D-Galp-(1→], [→3)-β-D-Galp-(1→], [→4)-β-D-Galp-(1→], [→6)-β-D-Galp-(1→], [→4)-β-L-Arap-(1→], [→2)-α-L-Rhap-(1→], [→3)-α-L-Rhap-(1→] and [→2)-α-L-Rhap-(1→]. Moreover, the XH1S fraction consisted of [→4)-β-L-Arap-(1→], [→3)-β-D-Galp-(1→], [→4)-β-D-Galp-(1→] and [→6)-β-D-Galp-(1→]. However, the XH2S fraction possessed new structures of [→4)-β-L-Arap3S-(1→], [→4)-β-L-Arap-(1→], [→3)-α-L-Rhap4S-(1→]. Jiao et al. characterized the fine structure of Ulva intestinalis polysaccharide and found that it mainly included the (1→)-Rha, (1→4)-Rha, (1→2, 4)-Rha, (1→) –Xyl, (1→2,3)-Xyl, (1→3)-Xyl, (1→4)-Glc and (1→3)-Gal structural units (Jiao et al., 2010; Jiao et al., 2009). They also determined the position of sulfate groups for different polysaccharide fractions and found that the position information is also very complicated and that there is not a uniform formula to describe the structures of Ulva polysaccharides [10,32,35].

2.2. Extraction and Purification of Ulva Polysaccharide

The extraction of the Ulva polysaccharide mainly used the common methods which were usually employed in the extraction of plant polysaccharides, especially the hot water extraction method [12,36]. The methods for extraction of Ulva polysaccharide have been summarized in Table 2. Xu et al. extracted the polysaccharide by incubation in hot water (90 °C) for 4 h and obtained 21.96% of polysaccharide [25]. Chattopadhyay et al. incubated the algal powder-water mixture at 80 °C for 1.5 h and extracted 18% of the crude polysaccharide [12]. The hot water extraction is the most commonly used method for preparation of plant polysaccharides. It could be operated easily and suitably for industrial scale application. However, the hot water extraction is time-consuming, and the extracted polysaccharides contained some soluble impurities. In order to improve the polysaccharide’s purity, alcohol was usually added remove the impurity before the hot water extraction. Wu et al. incubated the algal powder with 95% of alcohol at 80 °C for 2 h to remove the substance with low molecular weight and the purity reached 70% [37]. In addition, pH change also could remove the small molecules and further improve the polysaccharide’s purity. For instance, Sun et al. extracted the algal powder in 0.5 M of NaOH solution and incubated the mixture at 90 °C for 2 h. Finally, 33.3% of polysaccharide was obtained [38]. Song et al. incubated the sample in 0.05 M of HCl for 2 h and obtained 86.1% of soluble polysaccharide [39]. The addition of alcohol, acid or alkali could improve the purity of polysaccharide. Therefore, a combination of these agents could be tried in order to enhance the purity and improve the extraction efficiency. The ultrasonication could promote the dissolution of polysaccharide and has been widely used for extraction of Ulva polysaccharide [40]. Guo et al. extracted the polysaccharide under ultrasonication-treatment for 28 min and obtained 25.84 mg/g of crude polysaccharide [41]. Tang et al. obtained 17.42% of polysaccharide by incubation with ultrasonication of 531.17 W for 4.8 min [15]. However, the extraction efficiency of the ultrasonication method was not stable due to its short extraction time [42]. Furthermore, the microwave also has been used for extraction of Ulva polysaccharide due to its promotion of molecular motion [43]. Wang et al. used 610 W of microwave to assist the polysaccharide extraction and obtained 7.58% of crude polysaccharide [44]. Yuan et al. isolated the Ulva polysaccharide under 800 W of microwave and 95 °C, but only 4.04% of polysaccharide was obtained [45]. Therefore, microwave assistance could greatly reduce the extraction time, but could not promote the extraction yield and the purity of the polysaccharide [46,47]. The enzyme-assisted extraction method has drawn increasing attention due to its mild reaction condition and excellent extraction efficiency [48,49,50]. The protease and polysaccharide-degrading enzymes such as cellulase and pectin lyase could destroy the cell wall structure and promote the dissolution of polysaccharide [51]. Lü et al. added the protease into the extraction solution and obtained 27.75% of the polysaccharide [52]. Xu et al. used the cellulase to assist the extraction and the extraction ratio reached 20.22% [25]. However, a combination of different enzymes is needed to promote the extraction efficiency, and it also could increase the complexity of the reaction system. In conclusion, there are various methods for Ulva polysaccharide extraction and they all possess advantages and drawbacks. Therefore, it is reliable to combine these methods together to obtain the Ulva polysaccharide for further research. Because of the addition of enzymes, acid or alkali solution, the polysaccharide obtained by extraction needed to be purified for further structural characterization and activity investigation. At first, the protein could be removed by protease hydrolysis and Savage methods [40]. Then, the small substances produced by protein hydrolysis could be removed by dialysis. In order to obtain the purified polysaccharides, the ion exchange chromatography (IEC) and gel permeation chromatography (GPC) have usually been employed (Table 3) [53]. Qi et al. purified the Ulva polysaccharide from Ulva linza by Q Sepharose Fast Flow with NaCl as mobile phase and obtained five fractions [28,32]. Pan et al. purified four polysaccharide fractions from Ulva intestinalis by DEAE Sepharose Fast Flow with 0.5~1 M NaCl [54]. Jiao et al. used DEAE Sepharose CL-6B to purify the polysaccharide from Ulva intestinalis. In addition, the GPC has also been used for purification of Ulva polysaccharide [10]. Lü et al. purified two fractions by Sephadex G-100 with water as eluent [52] and Xu et al. used Sephadex G-75 to isolate the polysaccharide fractions by 1.0 mL·min−1 of H2O [25]. In practice, the ICE and GPC have usually been used together to purify the polysaccharide with higher purity. Lin et al. first separated the polysaccharide by DEAE-Cellulose 52 with 0.7 M NaCl and then the eluate was further purified by Bio-Gel P-2 with 0.85 mL·min−1 of H2O [55]. Tang et al. isolated the polysaccharide by DEAE-Sepharose CL-6B with 0.2~1.5 M NaCl and Sephadex G-200 with 0.85 mL·min−1 of H2O, respectively [11]. In addition, with the development of chemical engineering, more new technologies have been employed to purify the Ulva polysaccharide [56,57]. For instance, an integrated membrane separation process combining the tubular ceramic microfiltration (MF) membrane and the flat-sheet ultrafiltration (UF) membrane was developed to purify polysaccharides from Ulva prolifera, and the results suggested that the content of oligosaccharides reached 96.3% after purification by this integrated membrane separation process [56]. However, there is no report of polysaccharide purification on a large scale, and commercial polysaccharide is very expensive. It is essential to develop appropriate methods for adequate separation and purification of Ulva polysaccharide for commercial and industrial applications.

2.3. Activity of Ulva Polysaccharide

The activity of Ulva polysaccharide has been symmetrically investigated and characterized, and this green algal polysaccharide exhibited diverse biological activities such as antioxidant, antitumor, immunomodulatory, anticoagulant and hypolipidemic activities [11].

2.3.1. Antioxidant Activity

Many algal polysaccharides such as alginate, carrageenan and agar possessed obvious antioxidant activity by cleaning the oxidant radicals and improving antioxidant enzymes’ activity [22]. Xu et al. evaluated the antioxidant activities of Ulva polysaccharide by determining their ability to scavenge 1, 1-diphenyl-2-picrylhydrazyl (DPPH), hydroxyl (OH), and superoxide anion (O2•−) radicals [25]. The results suggested that the Ulva polysaccharide could clean up DPPH, OH, and O2•− [25]. It could also improve the activities of endogenous antioxidant enzymes such as catalase, glutathione peroxidase, and superoxide dismutase, which have been viewed as the major defense system against ROS during oxidative stress [40]. Moreover, Tang et al. found that the polysaccharides could reduce the content of maleic dialdehyde (MDA) in serum. The low MDA levels resulted in lower oxidant stress and lipid peroxidation [11].

2.3.2. Antitumor Activity

The antitumor activity of Ulva polysaccharide has aroused increasing interest due to the tumor’s multiplicity worldwide [59,60]. Jiao et al. found that polysaccharides could inhibit tumor growth in S180 tumor-bearing mice, and could increase the relative spleen and thymus weight [10]. They also promoted the expression of tumor necrosis factor-alpha (TNF-α) in serum and induced lymphocyte proliferation, induced the production of TNF-α in macrophages, and stimulated macrophages to produce nitric oxide dose-dependently through the up-regulation of inducible NO synthase activity [35]. The Ulva polysaccharide could motivate modulation of the immune system to indirectly inhibit tumor cells without direct cytotoxicity [61].

2.3.3. Immune Regulatory Activity

The immune system includes nonspecific and specific immunity [62]. Nonspecific immunity can immediately respond to invaders without encountering previous pathogens, and gives signals to subsequently activate adaptive specific immunity [63]. Specific immunity involves B- and T-lymphocytes, and its function is activated immediately after the initial antigenic stimulus [64]. The Ulva polysaccharide can significantly increase the relative spleen and thymus weight of tumor-bearing animals, promote the secretion of tumor necrosis factor alpha (TNF-α), stimulate lymphocyte proliferation, and augment phagocytosis and secretion of NO and TNF-α in peritoneal macrophages [65]. In addition, the Ulva polysaccharide could promote the proliferation of B lymphocytes and T lymphocytes, activate the NK cell and induce the delayed apoptosis of neutrophils, as shown in Figure 4. More specifically, the polysaccharides could increase the production of reactive oxygen species (ROS), IL-6, and TNF-α through regulating the expressions of iNOS, IL-6, and TNF-α. In addition, the polysaccharides can strengthen the macrophage phagocytic activity, activate NK cells, increase thymus and spleen indices, and delay neutrophil apoptosis [7,66] (Figure 4).

2.3.4. Anticoagulant Activity

It has been reported that polysaccharides from green alga have been investigated, showing stronger anticoagulant activities than those from brown and red alga [28,67,68]. Wang et al. investigated and elucidated the anticoagulant activity of polysaccharide from green algae Ulva linza in the coagulation assays, and activated partial thromboplastin time (APTT), thrombin time (TT) and prothrombin time (PT) [69]. The results suggested that the sulfated polysaccharides could prolong APTT and TT, but not TP. These activities strongly depended on the degree of sulfation (DS), the molecular weights (MW) and the branching structure of polysaccharides [69]. Qi et al. evaluated the anticoagulant activity of polysaccharides from Ulva clathrata and an in vitro anticoagulant assay indicated that FEP effectively prolonged the activated partial thromboplastin time and thrombin time [28,32].

2.3.5. Hypolipidemic Activity

Hyperlipidemia, as a common endocrine disease, induces cerebrovascular and cardiovascular activity and atherosclerosis [70,71]. While hypolipidemic drugs such as statins prevent and cure hyperlipidemia, their side effects cannot be ignored [70]. Teng et al. reported that Ulva prolifera polysaccharides presented high anti-hyperlipidemic activities which inhibited the body weight gain and also decreased triacylglycerol (TG), the total cholesterol (TC), and low-density lipoprotein cholesterol (LDL-C) levels of plasma and liver [72]. They also inhibited the expressions of sterol regulatory element-binding protein-1c (SREBP-1c) and hepatic acetyl-CoA carboxylase (ACC) in high-fat diet rats. SREBP-1c enhances the transcription of the required genes for fatty acid synthesis [72]. ACC, as the rate-limiting enzyme in de-novo lipogenesis, controls the β-oxidation of fatty acids in the mitochondria. Moreover, Ulva prolifera polysaccharides showed pancreatic lipase inhibition activity [45]. The polysaccharide from Ulva prolifera exhibited a stronger hypolipidemic effect than simvastatin and enhanced endogenous antioxidant enzymes and decreased MDA content and lipid peroxidation in serum [72,73].

3. Ulva Oligosaccharides

The Ulva polysaccharide which acted as the main component of Ulva sp. has attracted increasing attention in the algal bioresources field. As discussed above, the reports of extraction, isolation, purification, structural characterization and physiological activity of this polysaccharide have increased year after year. In addition, the techniques for extracting the polysaccharide have developed rapidly on an industrial scale, and this advance established a solid foundation for the wide application of Ulva polysaccharides. However, the applications of polysaccharide for the food and medical industries have been greatly restricted by its high molecular weight and low solubility, so the degradation of polysaccharide into oligosaccharides has been the area of emerging focus in utilization of Ulva polysaccharide bioresources.

3.1. Preparation of Ulva Oligosaccharides

The Ulva oligosaccharides retained the versatile activities of polysaccharide and were found to possess excellent solubility and bioavailability, and they have drawn increasing attention from scientists from the food and medical fields [23]. The preparation of Ulva oligosaccharides mainly depended on physical degradation, chemical hydrolysis and enzymatic preparation, as shown in Table 4 [22]. Similar to the preparation of other algal oligosaccharides such as alginate oligosaccharides and carrageenan oligosaccharides, the microwave-assisted method has been widely used. Li et al. prepared Ulva oligosaccharides by a microwave-assisted acid hydrolysis method and the results showed that only glycosidic linkages were left without breaking significant structural units [74]. Duan et al. degraded Ulva polysaccharide with HCl and assisted by microwave. The optimal degradation conditions were 900 W at 50 °C for 10 min with 5% H2O2 in 1 mol/L hydrochloric acid solution by single factor and orthogonal experiments [75]. Zhang et al. used the ascorbic acid and H2O2 as degradation reagents to degrade the polysaccharides in order to obtain the lower molecular weight products. The enzymatic preparation of Ulva oligosaccharides has been the research focus due to its advantages such as mild reaction conditions, specific products’ distribution, etc [26].
Zhang et al. degraded the Ulva polysaccharide by degrading enzymes produced by Alteromonas sp. A321 and the oligosaccharides yield reached 61.21% [77]. Xu et al. degraded Ulva polysaccharide by the addition of pectin lyase (9.6 U/mL) and obtained oligosaccharides with different molecular weights [25]. Surprisingly, there are no reports of the gene information for specific enzymes which could degrade the Ulva polysaccharide. As we know, other algal polysaccharides such as alginate, agar, and carrageenan could be specifically degraded by the respective enzymes, namely alginate lyases, agarases and carrageenases. Li et al. screened and identified a new Ulva polysaccharide-degrading strain Alteromonas sp. A321 from the rotten green algae [76,78]. They characterized the enzymes produced by Alteromonas sp. A321 and sequenced the N-terminal of them [76,78]. However, it was unable to be determined whether the two enzymes belonged to polysaccharide lyase or glycosidic hydrolase. Therefore, further and systematic research is required to investigate and elucidate this question.

3.2. Separation and Purification of Ulva Oligosaccharides

The methods used for separation and purification of Ulva oligosaccharides are similar with the methods for purification of Ulva polysaccharides. Xu et al. sequentially purified the Ulva oligosaccharides by DEAE Cellulose-52 chromatography and Sephadex G-100 chromatography. In addition, the molecular weights of these three fractions were measured to be 103, 45.4, and 9.8 kDa, respectively, using high performance gel permeation chromatography (HPGPC) [25]. Lü et al. purified the degraded polysaccharide by Sephadex G-100 with water as eluent, and obtained a yield of 40.00% [52]. Li et al. employed a TSK G4000-PWxl column, using 0.05 M NaNO3 aqueous solution as the mobile phase at a flow rate of 0.5 mL/min with a column temperature of 30 °C to purify the degraded Ulva [76]. According to the examples discussed above, the purification methods of Ulva oligosaccharides seemed similar to the polysaccharides purification procedure, but the purpose of polysaccharide purification is to remove the impurities from the polysaccharide system, while the target of oligosaccharide purification is to separate the oligosaccharide fraction from the mixture. Therefore, it is more difficult to obtain the oligosaccharide monomer since the methods for polysaccharides’ purification have developed, and it is promising for researchers to find more suitable methods for purification of Ulva oligosaccharides.

3.3. Activity of Ulva Oligosaccharides

So far, more and more studies are focusing on the activity of Ulva oligosaccharides [22,23]. However, the current reports are still very scattered with the mechanism of related activity and the structural-activity relationship of oligosaccharides was still undefined due to the complexity of the Ulva oligosaccharides’ structure. Lü et al. evaluated the antibacterial activity of Ulva oligosaccharides and their selenized derivatives prepared by acid method [52]. They found that the selenized Ulva oligosaccharides showed stronger inhibitory activity towards Eschetichia coli and plant pathogenic fungi than that to Staphylococcus aureus [52,79]. Liu et al. studied the anti-aging and anti-oxidation effects of Ulva oligosaccharides in SAMP8 mice [23]. They found that Ulva oligosaccharides can protect neurons in the hippocampus by significantly reducing the secretion of inflammatory factors such as IFN-γ, TNF-α and IL-6, and improving the brain-derived neurotrophic factor (BDNF) [23]. Liu et al. evaluated the immunoregulatory effect of Ulva oligosaccharides in a cyclophosphamide-induced immunosuppression mouse model [80]. It can be found that Ulva oligosaccharides can activate the immune system by promoting the secretion of NO, up-regulating the expression of cytokines such as IL-1β, IL-6 and TNF-α, and activating inflammatory bodies such as iNOS, COX2 and NLRP3 [80]. Xu et al. studied the antioxidant activities of three Ulva oligosaccharides, and found that Ulva oligosaccharides can effectively eliminate the DPPH, OH, and O2•− [25]. Li et al. investigated the antioxidant capacity of Ulva oligosaccharides and found that the activity was closely related to molecular weight [74]. Specifically, Ulva oligosaccharides with low molecular weight can scavenge superoxide anion and hydroxyl radicals with an IC50 of 0.39 mg/mL [74]. Zhang et al. found that 2.28 mg/mL of Ulva oligosaccharides prepared by an H2O2 oxidation method can scavenge 92.2% of the hydroxyl radical, which is higher than Ulva polysaccharides with the same concentration [26]. That is probably because there were more hydroxyl groups in the oligosaccharides’ structure [26]. Cui et al. prepared complexes of Fe2+ ions and Ulva oligosaccharides, which can be used to treat iron deficiency anemia as a nutritional supplement for iron [81]. Wang et al. discovered that Ulva oligosaccharides possessed an anticoagulant activity which was closely related to the number and distribution of sulfuric acid groups in oligosaccharides [69]. Jin et al. prepared ep-3-H, a glucuronic-xylo-rhamnose-component, from Ulva prolifera, and found that EP-3-H could inhibit cell proliferation of human lung cancer cells by interacting with the fibroblast growth factors FGF1 and FGF2 [82]. In addition, the physiological activities may differ in Ulva oligosaccharides and polysaccharides, but the specific mechanism still remains unclear. However, we could propose the possible reasons based on some experience. The active groups appeared after the linkage of the polysaccharide was broken down by physical, chemical or enzymatic hydrolysis, and therefore the activities of Ulva oligosaccharide became more obvious than the polysaccharide. To sum up, the current studies on the activity of Ulva oligosaccharides are relatively superficial since there is still no appropriate method to obtain oligosaccharides with a fine structure for studying the structure-activity relationship of oligosaccharides due to their quite complex structure.

4. Conclusions and Future Perspective

In recent years, the biomass of Ulva has increased rapidly worldwide, resulting in a large number of green tides [4,80,83]. Actually, Ulva prolifera has invaded the Yellow Sea for 15 consecutively years, which has damaged the marine ecological environment in Qingdao and the coastal cities of Shandong Province. It is therefore urgent to effectively curb the growth of Ulva prolifera and achieve the harmless and high-value utilization of Enteromorpha prolifera [84,85,86] (as shown in Figure 5). For instance, the Ulva polysaccharide and oligosaccharide could eliminate the oxidative radicals such as DPPH, OH, and O2•−, and they could also promote the proliferation of probiotics of intestinal microbiome composition. In addition, the Ulva polysaccharide exhibited obvious hypolipidemic activity; therefore, the Ulva polysaccharide and oligosaccharide can be used as a functional food, a food additive, an antioxidant agent, and animal feed. Due to its excellent rheological properties, gelling behavior, texture characteristics and antibacterial activity, the Ulva polysaccharide could be developed as a novel medical dressing to prevent bacterial infection. More importantly, the Ulva polysaccharide and oligosaccharide both possess obvious physiological activities such as immune regulatory, antitumor, anticoagulant and hypolipidemic activities, they are important resources for developing novel marine drugs for curing various malignant tumors, and they are used in the treatment of hyperlipidemia, hypertension and other metabolic diseases. This kind of carbohydrate that originated from green algae has drawn increasing attentions and became a topic of much discussion in the marine bioresources and functional foods fields.
Ulva polysaccharide, as the main active ingredient of the Ulva species, can be used to develop new foods, medicine and health care products. At present, it is easy to extract Ulva polysaccharides at a large-scale level. Nevertheless, it still cannot meet the requirements of high-value utilization due to its low purity. So it is now one of the areas of intensive research to find out how to prepare Ulva polysaccharides with high purity. On the other hand, the solubility and bioavailability of Ulva polysaccharides is restrained by their high molecular weight (>400 kDa), which has further limited the biological activity and application of Ulva polysaccharides. It is therefore another area of focus to prepare Ulva oligosaccharides with Ulva polysaccharides degrading enzymes. In addition, it is still a great challenge to analyze the structure of Ulva polysaccharides and Ulva oligosaccharides due to the complex and diverse monosaccharide composition and glycosidic bond connection modes in Ulva polysaccharides. Therefore, it is of great significance to accurately analyze the fine structure of Ulva polysaccharides and oligosaccharides, which will promote the study of the structure-activity relationship and the high value utilization of Ulva polysaccharides and oligosaccharides. In addition there is a long history of humans utilizing the Ulva bioresources for food, and some beneficial foods such as biscuits, noodles and vegetarian meatballs have been developed. However, the applications of Ulva polysaccharide and oligosaccharide as functional foods have not been realized until now because the studies of the activity and function of the Ulva polysaccharide and oligosaccharide are ongoing. We believe that the Ulva polysaccharide and oligosaccharide could be used as a functional food such as the alginate oligosaccharides in the near future when we have obtained an adequate understanding of them.

Author Contributions

L.N. and B.Z.: Conceptualization, Writing-original draft. B.Z.: Funding acquisition. B.Z. and Z.Y.: Writing-review & editing. Z.Y.: Supervision. All authors have read and agreed to the published version of the manuscript.


The work was supported by the Jiangsu Government Scholarship for Overseas Studies, the Postdoctoral Research Foundation of Jiangsu Province (2021K374C), National Natural Science Foundation of China (31601410), The Suqian City Science and Technology Project (L201906).

Institutional Review Board Statement

This article does not contain any studies involving human participants or animals performed by any of the authors.

Data Availability Statement

Not applicable.


Ning Limin gratefully acknowledges the support of Jiangsu Government Scholarship for Overseas Studies, and Zhu Benwei gratefully acknowledges the support of Jiangsu Overseas Visiting Scholar Program for University Prominent Young and Mid-aged Teachers and Presidents.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.


  1. Blomster, J.; Bäck, S.; Fewer, D.P.; Kiirikki, M.; Lehvo, A.; Maggs, C.A.; Stanhope, M.J. Novel morphology in Enteromorpha (Ulvophyceae) forming green tides. Am. J. Bot. 2002, 89, 1756–1763. [Google Scholar] [CrossRef]
  2. Zhong, L.; Zhang, J.; Ding, Y. Energy Utilization of Algae Biomass Waste Enteromorpha Resulting in Green Tide in China: Pyrolysis Kinetic Parameters Estimation Based on Shuffled Complex Evolution. Sustainability 2020, 12, 2086. [Google Scholar] [CrossRef] [Green Version]
  3. Silveira Coelho, M.; da Silva Menezes, B.; Rivero Meza, S.L.; Lainetti Gianasi, B.; de las Mercedes Salas-Mellado, M.; Copertino, M.; da Rosa Andrade Zimmermann de Souza, M. Potential Utilization of Green Tide-Forming Macroalgae from Patos Lagoon, Rio Grande-RS, Brazil. J. Aquat. Food Prod. Technol. 2016, 25, 1096–1106. [Google Scholar] [CrossRef]
  4. Van Alstyne, K.L.; Nelson, T.A.; Ridgway, R.L. Environmental Chemistry and Chemical Ecology of “Green Tide” Seaweed Blooms. Integr. Comp. Biol. 2015, 55, 518–532. [Google Scholar] [CrossRef]
  5. Wang, Z.; Xiao, J.; Fan, S.; Li, Y.; Liu, X.; Liu, D. Who made the world’s largest green tide in China?—An integrated study on the initiation and early development of the green tide in Yellow Sea. Limnol. Oceanogr. 2015, 60, 1105–1117. [Google Scholar] [CrossRef]
  6. Yabe, T.; Ishii, Y.; Amano, Y.; Koga, T.; Hayashi, S.; Nohara, S.; Tatsumoto, H. Green tide formed by free-floating Ulva spp. at Yatsu tidal flat, Japan. Limnology 2009, 10, 239–245. [Google Scholar] [CrossRef]
  7. Zhang, W.; Oda, T.; Yu, Q.; Jin, J.-O. Fucoidan from Macrocystis pyrifera Has Powerful Immune-Modulatory Effects Compared to Three Other Fucoidans. Mar. Drugs 2015, 13, 1084–1104. [Google Scholar] [CrossRef] [Green Version]
  8. Xiao, J.; Wang, Z.; Liu, D.; Fu, M.; Yuan, C.; Yan, T. Harmful macroalgal blooms (HMBs) in China’s coastal water: Green and golden tides. Harmful Algae 2021, 107, 102061. [Google Scholar] [CrossRef]
  9. Hayden, H.S.; Blomster, J.; Maggs, C.A.; Silva, P.C.; Stanhope, M.J.; Waaland, J.R. Linnaeus was right all along: Ulva and Enteromorpha are not distinct genera. Eur. J. Phycol. 2003, 38, 277–294. [Google Scholar] [CrossRef]
  10. Jiao, L.; Jiang, P.; Zhang, L.; Wu, M. Antitumor and immunomodulating activity of polysaccharides from Enteromorpha intestinalis. Biotechnol. Bioprocess Eng. 2010, 15, 421–428. [Google Scholar] [CrossRef]
  11. Tang, Z.; Gao, H.; Wang, S.; Wen, S.; Qin, S. Hypolipidemic and antioxidant properties of a polysaccharide fraction from Enteromorpha prolifera. Int. J. Biol. Macromol. 2013, 58, 186–189. [Google Scholar] [CrossRef]
  12. Chattopadhyay, K.; Mandal, P.; Lerouge, P.; Driouich, A.; Ghosal, P.; Ray, B. Sulphated polysaccharides from Indian samples of Enteromorpha compressa (Ulvales, Chlorophyta): Isolation and structural features. Food Chem. 2007, 104, 928–935. [Google Scholar] [CrossRef]
  13. Jiang, F.; Chi, Z.; Ding, Y.; Quan, M.; Tian, Y.; Shi, J.; Liu, C. Wound Dressing Hydrogel of Enteromorpha prolifera Polysaccharide–Polyacrylamide Composite: A Facile Transformation of Marine Blooming into Biomedical Material. ACS Appl. Mater. Interfaces 2021, 13, 14530–14542. [Google Scholar] [CrossRef]
  14. Zhong, R.; Wan, X.; Wang, D.; Zhao, C.; Liu, D.; Gao, L.; Cao, H. Polysaccharides from Marine Enteromorpha: Structure and function. Trends Food Sci. Technol. 2020, 99, 11–20. [Google Scholar] [CrossRef]
  15. Tang, Z.; Yu, Z.; Zhao, W.; Guo, J.; Gao, L.; Qin, S. Ultrasonic extraction of polysaccharides from Enteromorpha. Mod. Food Sci. Technol. 2011, 27, 56–59. [Google Scholar]
  16. Liu, W.; Zhou, S.; Balasubramanian, B.; Zeng, F.; Sun, C.; Pang, H. Dietary seaweed (Enteromorpha) polysaccharides improves growth performance involved in regulation of immune responses, intestinal morphology and microbial community in banana shrimp Fenneropenaeus merguiensis. Fish Shellfish. Immunol. 2020, 104, 202–212. [Google Scholar] [CrossRef]
  17. Shang, Q.; Wang, Y.; Pan, L.; Niu, Q.; Li, C.; Jiang, H.; Cai CHao, J.; Li, G.; Yu, G. Dietary Polysaccharide from Enteromorpha Clathrata Modulates Gut Microbiota and Promotes the Growth of Akkermansia muciniphila, Bifidobacterium spp. and Lactobacillus spp. Mar. Drugs 2018, 16, 167. [Google Scholar] [CrossRef] [Green Version]
  18. Xie, C.; Zhang, Y.; Niu, K.; Liang, X.; Wang, H.; Shan, J.; Wu, X. Enteromorpha polysaccharide-zinc replacing prophylactic antibiotics contributes to improving gut health of weaned piglets. Anim. Nutr. 2021, 7, 641–649. [Google Scholar] [CrossRef]
  19. Guo, F.; Han, M.; Lin, S.; Ye, H.; Chen, J.; Zhu, H.; Lin, W. Enteromorpha prolifera polysaccharide prevents high-fat diet-induced obesity in hamsters: A NMR-based metabolomic evaluation. J. Food Sci. 2021, 86, 3672–3685. [Google Scholar] [CrossRef]
  20. Guo, F.; Zhuang, X.; Han, M.; Lin, W. Polysaccharides from Enteromorpha prolifera protect against carbon tetrachloride-induced acute liver injury in mice via activation of Nrf2/HO-1 signaling, and suppression of oxidative stress, inflammation and apoptosis. Food Funct. 2020, 11, 4485–4498. [Google Scholar] [CrossRef]
  21. Li, X.; Guozhu, Z.; Zhifei, L.; Yang, S.; Peijun, L.; Jing, L. Hypoglycemic activity of Enteromorpha intestinalis polysaccharide. Sci. Technol. Food Ind. 2021, 42, 321–326. [Google Scholar] [CrossRef]
  22. Zhu, B.; Ni, F.; Xiong, Q.; Yao, Z. Marine oligosaccharides originated from seaweeds: Source, preparation, structure, physiological activity and applications. Crit. Rev. Food Sci. Nutr. 2021, 61, 60–74. [Google Scholar] [CrossRef]
  23. Liu, X.; Liu, D.; Lin, G.; Wu, Y.; Gao, L.; Ai, C.; Zhao, C. Anti-ageing and antioxidant effects of sulfate oligosaccharides from green algae Ulva lactuca and Enteromorpha prolifera in SAMP8 mice. Int. J. Biol. Macromol. 2019, 139, 342–351. [Google Scholar] [CrossRef]
  24. Shao, L.; Xu, J.; Shi, M.; Wang, X.; Li, Y.; Kong, L.; Hider, R.; Zhou, T. Preparation, antioxidant and antimicrobial evaluation of hydroxamated degraded polysaccharides from Enteromorpha prolifera. Food Chem. 2017, 237, 481–487. [Google Scholar] [CrossRef] [Green Version]
  25. Xu, J.; Xu, L.; Zhou, Q.; Hao, S.; Zhou, T.; Xie, H. Isolation, purification, and antioxidant activities of degraded polysaccharides from Enteromorpha prolifera. Int. J. Biol. Macromol. 2015, 81, 1026–1030. [Google Scholar] [CrossRef]
  26. Zhang, Z.; Wang, X.; Mo, X.; Qi, H. Degradation and the antioxidant activity of polysaccharide from Enteromorpha linza. Carbohydr. Polym. 2013, 92, 2084–2087. [Google Scholar] [CrossRef]
  27. Cho, M.; Yang, C.; Kim, S.M.; You, S. Molecular characterization and biological activities of watersoluble sulfated polysaccharides from Enteromorpha prolifera. Food Sci. Biotechnol. 2010, 19, 525–533. [Google Scholar] [CrossRef]
  28. Qi, X.; Mao, W.; Gao, Y.; Chen, Y.; Chen, Y.; Zhao, C.; Shan, J. Chemical characteristic of an anticoagulant-active sulfated polysaccharide from Enteromorpha clathrata. Carbohydr. Polym. 2012, 90, 1804–1810. [Google Scholar] [CrossRef]
  29. Ray, B. Polysaccharides from Enteromorpha compressa: Isolation, purification and structural features. Carbohydr. Polym. 2006, 66, 408–416. [Google Scholar] [CrossRef]
  30. Yu, Y.; Li, Y.; Du, C.; Mou, H.; Wang, P. Compositional and structural characteristics of sulfated polysaccharide from Enteromorpha prolifera. Carbohydr. Polym. 2017, 165, 221–228. [Google Scholar] [CrossRef]
  31. Qi, X.; Li, H.; Guo, S.; Chen, Y.; Chen, Y.; Xu, J.; Mao, W. Isolation and composition analysis of the polysaccharides from the green algae Enteromorpha prolifera collected in different seasons and sea areas. Period. Ocean. Univ. China 2010, 40, 7–12. [Google Scholar]
  32. Qi, X.; Mao, W.; Chen, Y.; Chen, Y.; Zhao, C.; Li, N.; Wang, C. Chemical characteristics and anticoagulant activities of two sulfated polysaccharides from Enteromorpha linza (Chlorophyta). J. Ocean. Univ. China 2013, 12, 175–182. [Google Scholar] [CrossRef]
  33. Shi, X. Investigation of Chemical Composition and Biological Activities of Polysaccharides from Enteromorpha; Institute of Oceanology, Chinese Academy of Sciences: Qingdao, China, 2009. [Google Scholar]
  34. Ji, G.; Yu, G.; Wu, J.; Zhao, X.; Yang, B.; Wang, L.; Mei, X. Extraction, isolation and physiochemical character studies of polysaccharides from Enteromorpha clathrata in outbreak period. Chin. J. Mar. Drugs 2009, 28, 7–12. [Google Scholar]
  35. Jiao, L.; Li, X.; Li, T.; Jiang, P.; Zhang, L.; Wu, M.; Zhang, L. Characterization and anti-tumor activity of alkali-extracted polysaccharide from Enteromorpha intestinalis. Int. Immunopharmacol. 2009, 9, 324–329. [Google Scholar] [CrossRef] [PubMed]
  36. Li, X.; Xiong, F.; Liu, Y.; Liu, F.; Hao, Z.; Chen, H. Total fractionation and characterization of the water-soluble polysaccharides isolated from Enteromorpha intestinalis. Int. J. Biol. Macromol. 2018, 111, 319–325. [Google Scholar] [CrossRef]
  37. Wu, M.; Jiao, L.; Sun, Y.; Li, T.; Zhang, L. Isolation purification and analysis on the EPIII of polysaccharide of Enteromorpha. J. Northeast Nor. Univ. 2007, 39, 97–100. [Google Scholar]
  38. Sun, S. Study on lowering blood lipid of Polysaccharide from Enteromorpha prolifera by alkali extraction. Chin. J. Mod. Drug Appl. 2010, 4, 118–119. [Google Scholar]
  39. Song, X.; Guo, X.; Zhou, W.; Wen, Y.; Zhu, C.; Yang, H. Composition and biological activity of water-soluble polysaccharide from Enteromorpha prolifera. Lishizhen Med. Mater. Med. Res. 2010, 21, 2448–2450. [Google Scholar]
  40. Lin, G.; Wu, D.; Xiao, X.; Huang, Q.; Chen, H.; Liu, D.; Zhao, C. Structural characterization and antioxidant effect of green alga Enteromorpha prolifera polysaccharide in Caenorhabditis elegans via modulation of microRNAs. Int. J. Biol. Macromol. 2020, 150, 1084–1092. [Google Scholar] [CrossRef]
  41. Guo, L.; Chen, Y. Optimization of ultrasonic-assisted extraction of polysaccharides from Enteromorpha prolifera by response surface methodology. Food Sci. 2010, 31, 117–121. [Google Scholar]
  42. Yang, B.; Zhao, M.; Jiang, Y. Anti-glycated activity of polysaccharides of longan (Dimocarpus longan Lour.) fruit pericarp treated by ultrasonication. Food Chem. 2009, 114, 629–633. [Google Scholar] [CrossRef]
  43. Zhou, C.; Ma, H. Ultrasonic Degradation of Polysaccharide from a Red Algae (Porphyra yezoensis). J. Agric. Food Chem. 2006, 54, 2223–2228. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, B.; Tong, G.Z.; Qu, Y.L.; Li, L. Microwave-Assisted Extraction and In Vitro Antioxidant Evaluation of Polysaccharides from Enteromorpha prolifera. Appl. Mech. Mater. 2011, 79, 204–209. [Google Scholar] [CrossRef]
  45. Yuan, Y.; Xu, X.; Jing, C.; Zou, P.; Zhang, C.; Li, Y. Microwave assisted hydrothermal extraction of polysaccharides from Ulva prolifera: Functional properties and bioactivities. Carbohydr. Polym. 2018, 181, 902–910. [Google Scholar] [CrossRef] [PubMed]
  46. Abdullah Al-Dhabi, N.; Ponmurugan, K. Microwave assisted extraction and characterization of polysaccharide from waste jamun fruit seeds. Int. J. Biol. Macromol. 2020, 152, 1157–1163. [Google Scholar] [CrossRef]
  47. Rostami, H.; Gharibzahedi, S.M.T. Microwave-assisted extraction of jujube polysaccharide: Optimization, purification and functional characterization. Carbohydr. Polym. 2016, 143, 100–107. [Google Scholar] [CrossRef]
  48. Guo, Y.; Shang, H.; Zhao, J.; Zhang, H.; Chen, S. Enzyme-assisted extraction of a cup plant (Silphium perfoliatum L.) Polysaccharide and its antioxidant and hypoglycemic activities. Process Biochem. 2020, 92, 17–28. [Google Scholar] [CrossRef]
  49. Nadar, S.S.; Rao, P.; Rathod, V.K. Enzyme assisted extraction of biomolecules as an approach to novel extraction technology: A review. Food Res. Int. 2018, 108, 309–330. [Google Scholar] [CrossRef]
  50. Song, X.; Xu, Q.; Zhou, Y.; Lin, C.; Yang, H. Growth, feed utilization and energy budgets of the sea cucumber Apostichopus japonicus with different diets containing the green tide macroalgae Chaetomorpha linum and the seagrass Zostera marina. Aquaculture 2017, 470, 157–163. [Google Scholar] [CrossRef]
  51. Xiong, Q.; Song, Z.; Hu, W.; Liang, J.; Jing, Y.; He, L.; Li, S. Methods of extraction, separation, purification, structural characterization for polysaccharides from aquatic animals and their major pharmacological activities. Crit. Rev. Food Sci. Nutr. 2020, 60, 48–63. [Google Scholar] [CrossRef]
  52. Lü, H.; Gao, Y.; Shan, H.; Lin, Y. Preparation and antibacterial activity studies of degraded polysaccharide selenide from Enteromorpha prolifera. Carbohydr. Polym. 2014, 107, 98–102. [Google Scholar] [CrossRef] [PubMed]
  53. Ren, R.; Yang, Z.; Zhao, A.; Huang, Y.; Lin, S.; Gong, J.; Lin, W. Sulfated polysaccharide from Enteromorpha prolifera increases hydrogen sulfide production and attenuates non-alcoholic fatty liver disease in high-fat diet rats. Food Funct. 2018, 9, 4376–4383. [Google Scholar] [CrossRef] [PubMed]
  54. Pan, X.; Wu, H.; Pan, M.; Zhang, Y.; Wei, X.; Cheng, J. Separation, purification and component analysis of Enteromorpha polysaccharides from Jiangsu. Chin. J. New Drugs 2019, 28, 2274–2278. [Google Scholar]
  55. Lin, W.; Wang, W.; Liao, D.; Chen, D.; Zhu, P.; Cai, G.; Kiyoshi, A. Polysaccharides from Enteromorpha prolifera improve glucose metabolism in diabetic rats. J. Diabetes Res. 2015, 2015, 675201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Shao, W.; Zhang, H.; Duan, R.; Xie, Q.; Hong, Z.; Xiao, Z. A rapid and scalable integrated membrane separation process for purification of polysaccharides from Enteromorpha prolifera. Nat. Prod. Res. 2019, 33, 3109–3119. [Google Scholar] [CrossRef] [PubMed]
  57. Zhao, S.; Gao, B.; Yue, Q.; Song, W.; Jia, R.; Liu, P. RETRACTED: Evaluation of floc properties and membrane fouling in coagulation–ultrafiltration system: The role of Enteromorpha polysaccharides. Desalination 2015, 367, 126–133. [Google Scholar] [CrossRef]
  58. Xu, J.; Xu, L.-L.; Zhou, Q.-W.; Hao, S.-X.; Zhou, T.; Xie, H.-J. Enhanced in Vitro Antioxidant Activity of Polysaccharides From Enteromorpha Prolifera by Enzymatic Degradation. J. Food Biochem. 2016, 40, 275–283. [Google Scholar] [CrossRef]
  59. Minton, N.P. Clostridia in cancer therapy. Nat. Rev. Microbiol. 2003, 1, 237–242. [Google Scholar] [CrossRef]
  60. Sawyers, C. Targeted cancer therapy. Nature 2004, 432, 294–297. [Google Scholar] [CrossRef]
  61. Kim, J.-K.; Cho, M.L.; Karnjanapratum, S.; Shin, I.-S.; You, S.G. In vitro and in vivo immunomodulatory activity of sulfated polysaccharides from Enteromorpha prolifera. Int. J. Biol. Macromol. 2011, 49, 1051–1058. [Google Scholar] [CrossRef]
  62. Delves, P.J.; Roitt, I.M. The Immune System. N. Engl. J. Med. 2000, 343, 37–49. [Google Scholar] [CrossRef] [PubMed]
  63. Parkin, J.; Cohen, B. An overview of the immune system. Lancet 2001, 357, 1777–1789. [Google Scholar] [CrossRef]
  64. Levy, M.; Kolodziejczyk, A.A.; Thaiss, C.A.; Elinav, E. Dysbiosis and the immune system. Nat. Rev. Immunol. 2017, 17, 219–232. [Google Scholar] [CrossRef] [PubMed]
  65. Ren, X.; Liu, L.; Gamallat, Y.; Zhang, B.; Xin, Y. Enteromorpha and polysaccharides from Enteromorpha ameliorate loperamide-induced constipation in mice. Biomed. Pharmacother. 2017, 96, 1075–1081. [Google Scholar] [CrossRef] [PubMed]
  66. Zou, M.; Chen, Y.; Sun-Waterhouse, D.; Zhang, Y.; Li, F. Immunomodulatory acidic polysaccharides from Zizyphus jujuba cv. Huizao: Insights into their chemical characteristics and modes of action. Food Chem. 2018, 258, 35–42. [Google Scholar] [CrossRef]
  67. Mao, W.; Zang, X.; Li, Y.; Zhang, H. Sulfated polysaccharides from marine green algae Ulva conglobata and their anticoagulant activity. J. Appl. Phycol. 2006, 18, 9–14. [Google Scholar] [CrossRef]
  68. Yasantha, A.; KiWan, L.; SeKwon, K.; YouJin, J. Anticoagulant activity of marine green and brown algae collected from Jeju Island in Korea. Bioresour. Technol. 2007, 98, 1711–1716. [Google Scholar] [CrossRef]
  69. Wang, X.; Zhang, Z.; Yao, Z.; Zhao, M.; Qi, H. Sulfation, anticoagulant and antioxidant activities of polysaccharide from green algae Enteromorpha linza. Int. J. Biol. Macromol. 2013, 58, 225–230. [Google Scholar] [CrossRef]
  70. Jain, K.S.; Kathiravan, M.K.; Somani, R.S.; Shishoo, C.J. The biology and chemistry of hyperlipidemia. Bioorganic Med. Chem. 2007, 15, 4674–4699. [Google Scholar] [CrossRef]
  71. Ross, R.; Harker, L. Hyperlipidemia and Atherosclerosis: Chronic hyperlipidemia initiates and maintains lesions by endothelial cell desquamation and lipid accumulation. Science 1976, 193, 1094–1100. [Google Scholar] [CrossRef]
  72. Teng, Z.; Qian, L.; Zhou, Y. Hypolipidemic activity of the polysaccharides from Enteromorpha prolifera. Int. J. Biol. Macromol. 2013, 62, 254–256. [Google Scholar] [CrossRef] [PubMed]
  73. Jiang, C.; Xiong, Q.; Gan, D.; Jiao, Y.; Liu, J.; Ma, L.; Zeng, X. Antioxidant activity and potential hepatoprotective effect of polysaccharides from Cyclina sinensis. Carbohydr. Polym. 2013, 91, 262–268. [Google Scholar] [CrossRef] [PubMed]
  74. Li, B.; Liu, S.; Xing, R.; Li, K.; Li, R.; Qin, Y.; Li, P. Degradation of sulfated polysaccharides from Enteromorpha prolifera and their antioxidant activities. Carbohydr. Polym. 2013, 92, 1991–1996. [Google Scholar] [CrossRef] [PubMed]
  75. Duan, K.; Shan, H.; Lin, Y.; Lv, H. Degradation of polysaccharide from Enteromorpha prolifera with hydrochloric acid and hydrogen peroxide assisted by microwave and its antioxidant activity. Food Sci. Technol. 2015, 40, 141–147. [Google Scholar]
  76. Li, Y.; Wang, J.; Yu, Y.; Li, X.; Jiang, X.; Hwang, H.; Wang, P. Production of enzymes by Alteromonas sp. A321 to degrade polysaccharides from Enteromorpha prolifera. Carbohydr. Polym. 2013, 98, 988–994. [Google Scholar] [CrossRef]
  77. Zhang, Z.; Han, X.; Xu, Y.; Li, J.; Li, Y.; Hu, Z. Biodegradation of Enteromorpha polysaccharides by intestinal micro-community from Siganus oramin. J. Ocean Univ. China 2016, 15, 1034–1038. [Google Scholar] [CrossRef]
  78. Li, Y.; Li, W.; Zhang, G.; Lü, X.; Hwang, H.; Aker, W.G.; Wang, P. Purification and characterization of polysaccharides degradases produced by Alteromonas sp. A321. Int. J. Biol. Macromol. 2016, 86, 96–104. [Google Scholar] [CrossRef]
  79. Patra, J.K.; Baek, K.-H. Antibacterial Activity and Action Mechanism of the Essential Oil from Enteromorpha linza L. against Foodborne Pathogenic Bacteria. Molecules 2016, 21, 388. [Google Scholar] [CrossRef] [Green Version]
  80. Liu, D.; Keesing, J.K.; Dong, Z.; Zhen, Y.; Di, B.; Shi, Y.; Shi, P. Recurrence of the world’s largest green-tide in 2009 in Yellow Sea, China: Porphyra yezoensis aquaculture rafts confirmed as nursery for macroalgal blooms. Mar. Pollut. Bull. 2010, 60, 1423–1432. [Google Scholar] [CrossRef]
  81. Cui, J.; Li, Y.; Wang, S.; Chi, Y.; Hwang, H.; Wang, P. Directional preparation of anticoagulant-active sulfated polysaccharides from Enteromorpha prolifera using artificial neural networks. Sci. Rep. 2018, 8, 3062. [Google Scholar] [CrossRef]
  82. Jin, W.; He, X.; Long, L.; Fang, Q.; Wei, B.; Sun, J.; Linhardt, R.J. Structural characterization and anti-lung cancer activity of a sulfated glucurono-xylo-rhamnan from Enteromorpha prolifera. Carbohydr. Polym. 2020, 237, 116143. [Google Scholar] [CrossRef] [PubMed]
  83. Zhang, Y.; He, P.; Li, H.; Li, G.; Liu, J.; Jiao, F.; Jiao, N. Ulva prolifera green-tide outbreaks and their environmental impact in the Yellow Sea, China. Natl. Sci. Rev. 2019, 6, 825–838. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. De Paula Silva, P.H.; McBride, S.; de Nys, R.; Paul, N.A. Integrating filamentous ‘green tide’ algae into tropical pond-based aquaculture. Aquaculture 2008, 284, 74–80. [Google Scholar] [CrossRef]
  85. Song, Y.; Han, A.; Park, S.; Cho, C.; Rhee, Y.; Hong, H. Effect of enzyme-assisted extraction on the physicochemical properties and bioactive potential of lotus leaf polysaccharides. Int. J. Biol. Macromol. 2020, 153, 169–179. [Google Scholar] [CrossRef] [PubMed]
  86. Liu, Y.; Wu, X.; Jin, W.; Guo, Y. Immunomodulatory Effects of a Low-Molecular Weight Polysaccharide from Enteromorpha prolifera on RAW 264.7 Macrophages and Cyclophosphamide-Induced Immunosuppression Mouse Models. Mar. Drugs 2020, 18, 340. [Google Scholar] [CrossRef] [PubMed]
Figure 1. The morphology pictures of three kinds of Ulva species. (A). Ulva compressa; (B). Ulva linza; (C). Ulva intestinalis.
Figure 1. The morphology pictures of three kinds of Ulva species. (A). Ulva compressa; (B). Ulva linza; (C). Ulva intestinalis.
Marinedrugs 20 00202 g001

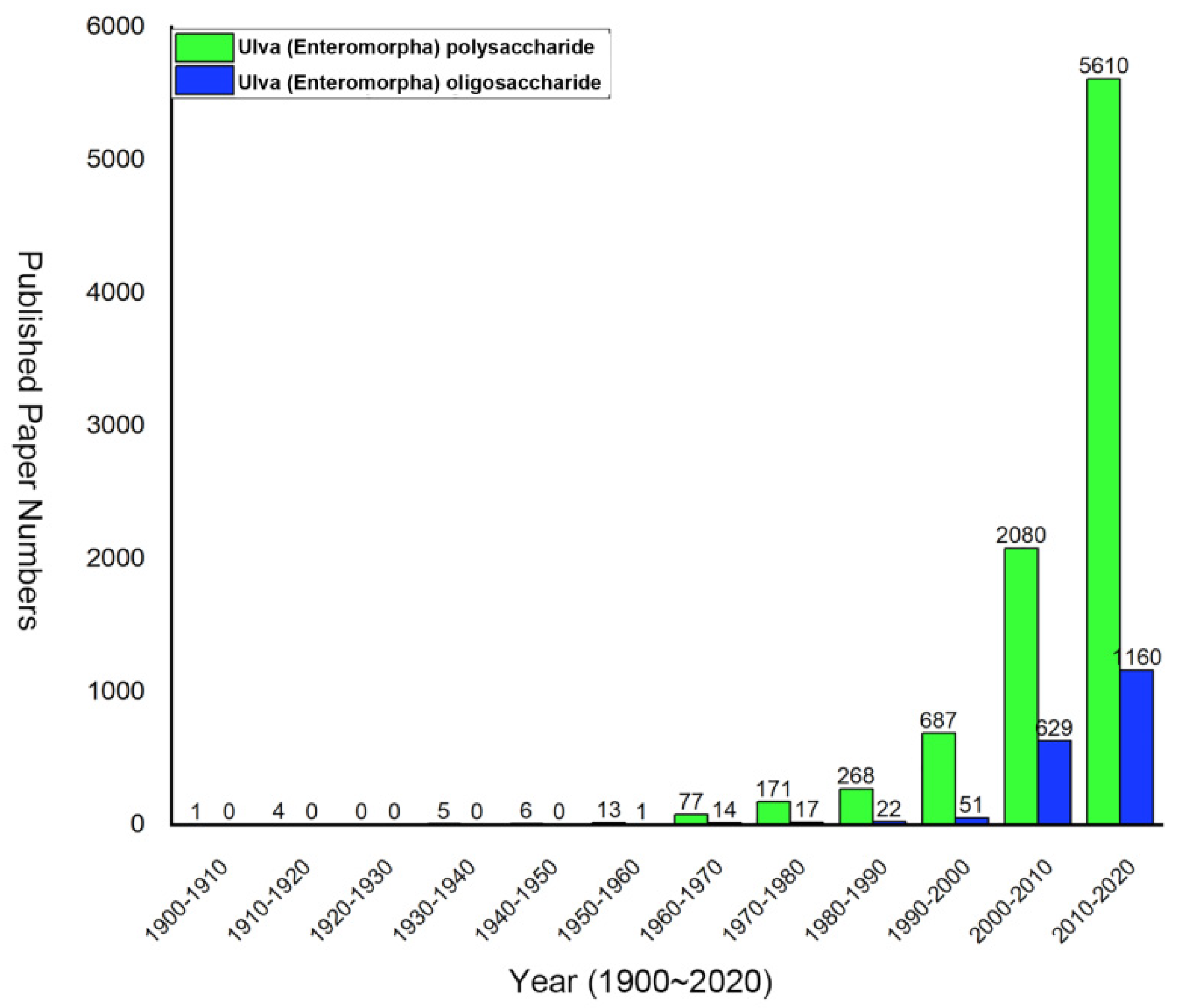

Figure 2. The numbers of published papers with keywords of Ulva polysaccharide and oligosaccharide between 1900 and 2020.
Figure 2. The numbers of published papers with keywords of Ulva polysaccharide and oligosaccharide between 1900 and 2020.
Marinedrugs 20 00202 g002

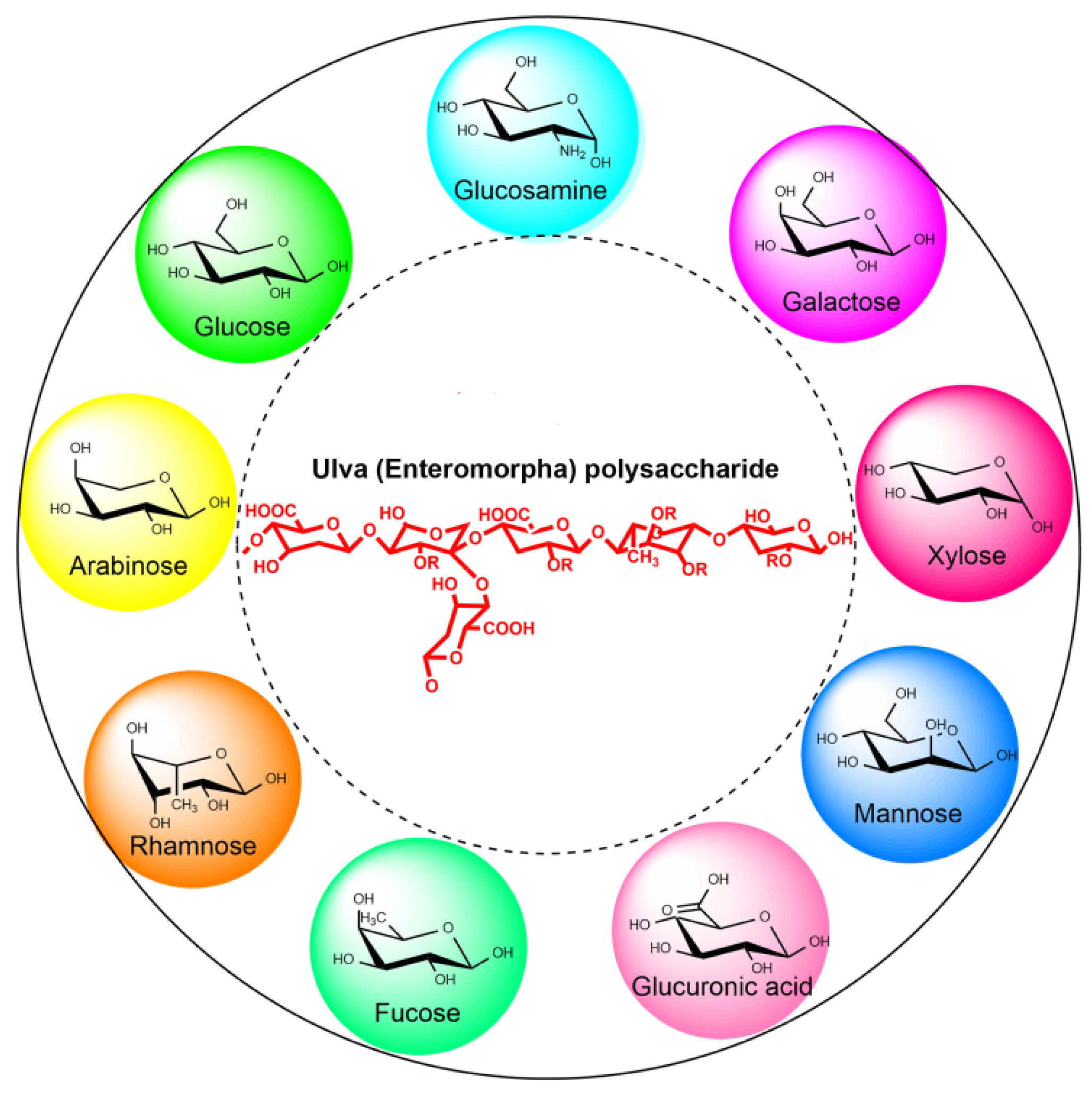

Figure 3. The main monosaccharide composition of Ulva polysaccharides.
Figure 3. The main monosaccharide composition of Ulva polysaccharides.
Marinedrugs 20 00202 g003

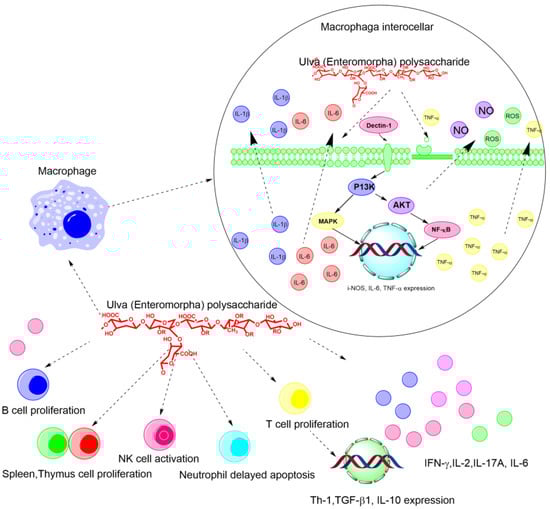

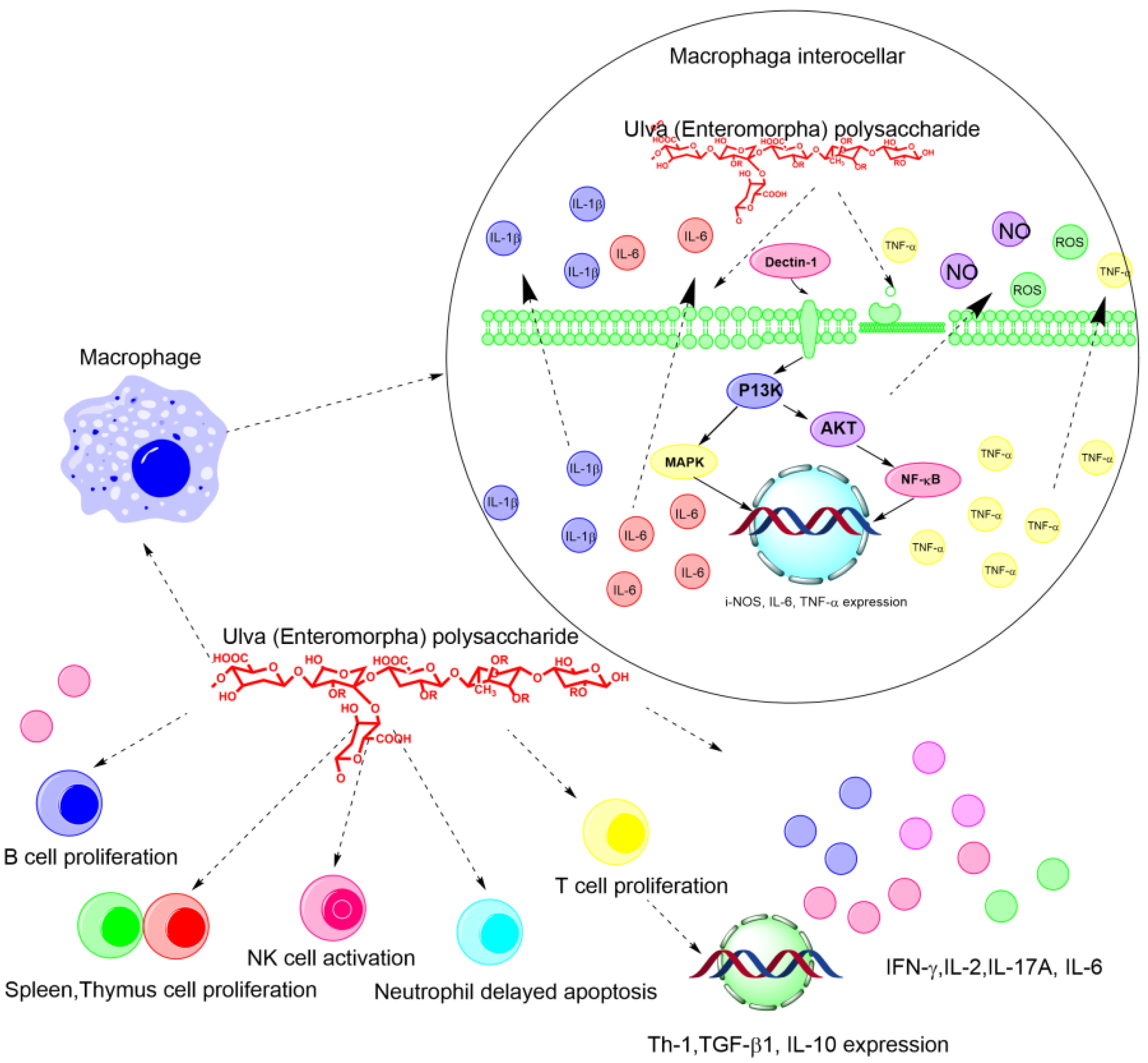

Figure 4. The schematic diagram of the immune regulatory and antitumor mechanism of Ulva polysaccharides on the molecular and cellular level.
Figure 4. The schematic diagram of the immune regulatory and antitumor mechanism of Ulva polysaccharides on the molecular and cellular level.
Marinedrugs 20 00202 g004

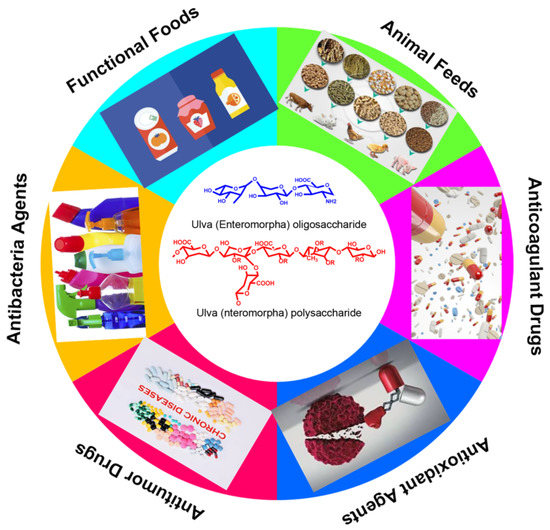

Figure 5. The potential and promising applications of Ulva polysaccharide and oligosaccharides.
Figure 5. The potential and promising applications of Ulva polysaccharide and oligosaccharides.
Marinedrugs 20 00202 g005
Table 1. The summary of structures of polysaccharides originated from different species.
Table 1. The summary of structures of polysaccharides originated from different species.
Ulva linzaUlva proliferaUlva clathrata
FractionMCSMain components[→4)-α-L-Rhap-(1→]
FractionQC1SMain components[→4)-α-L-Rhap-(1→]
FractionXCSMain components[→2)-β-D-Galp-(1→]
Other components[→3)-α-L-Rhap-(1→]
Other components[→2)-α-L-Rhap4S-(1→]
Other components[→4)-β-L-Arap-(1→]
Sulfated positionThe C3 of [→4)-α-L-Rhap-(1→]Sulfated positionThe C6 or C2 [→4)-β-D-Galp-(1→], the C4 or C2 of [→6)-β-D-Galp-(1→]
MHSMain components[→4)-α-L-Rhap-(1→]
QHSMain components[→4)-α-L-Rhap-(1→]
[→4)-β-D-Glc UAp-(1→]
XH1SMain components[→4)-β-L-Arap-(1→]
Other components[→3)-α-L-Rhap-(1→]
Other components[→3)-α-L-Rhap-(1→]
Other components[→3)-β-D-Galp-(1→]
Sulfated positionThe C3 of [→4)-α-L-Rhap-(1→]Sulfated positionThe C3 of [→4)-α-L-Rhap-(1→]Sulfated positionThe C3 of [→4)-β-L-Arap-(1→]
SCSMain components[→3)-α-L-Rhap-(1→]
QCQ2-XH2SMain components[→4)-β-L-Arap3S-(1→]
Sulfated positionThe C2 or C4 of
[→3)-α-L-Rhap-(1→], the C3 or C4 [→2)-α-L-Rhap-(1→], the C2 of [→4)-α-L-Rhap-(1→]
Other components[→4)-β-L-Arap-(1→]
SH1SMain components[→4)-α-L-Rhap-(1→]
[→4)-β-D-Glc UAp-(1→]
Sulfated positionThe C3 of [→4)-α-L-Rhap-(1→]
SH2SMain components[→4)-α-L-Rhap-(1→]
Other components[→2)-α-L-Rhap-(1→]
Sulfated positionThe C3 of [→4)-α-L-Rhap-(1→]
Other components[→2)-α-L-Rhap-(1→]
Table 2. The summary of extraction of Ulva polysaccharide.
Table 2. The summary of extraction of Ulva polysaccharide.
Extraction MethodProcedure TimeYieldRecovery Reference
Hot water extraction with Hot water (90 °C)4 h21.96%-[25]
Hot water extraction with Hot water (80 °C)1.5 h18%-[12]
Hot solution extraction with 95% of alcohol (80 °C)2 h-70%[37]
Hot alkaline solution extraction with 0.5 M NaOH (90 °C)2 h33.3%-[38]
Acidic solution extraction with 0.05 M HCl2 h86.1% [39]
Ultrasonication treatment
Ultrasonication treatment
28 min25.84%-[41]
Ultrasonication treatment
Ultrasonication (531.17 W)
4.8 min17.42%-[15]
Ultrasonication treatment
Ultrasonication (610 W)
Ultrasonication treatment
Ultrasonication (610 W)
Enzymatic extraction with Protease-27.75%-[52]
Enzymatic extraction with Cellulase-20.22%-[25]
Table 3. The summary of purification of Ulva polysaccharide.
Table 3. The summary of purification of Ulva polysaccharide.
Purification MethodColumnMobile PhaseSpeedReference
IECQ Sepharose Fast Flow0~2 M NaCl0.5~2 mL/min[31]
IECDEAE Sepharose Fast Flow0~2 M NaCl0.92 mL/min[33]
IECDEAE Sepharose CL-6B0.9%NaCl0.18 mL/min[35]
IECDEAE Cellulose 520.2~0.8 M NaCl0.5 mL/min[25]
IECDEAE Sephadex A-250~4 M NaCl0.5 mL/min[58]
GPCSephadex G-75H2O1.0 mL/min[25]
GPCSephadex G-100H2O0.4 mL/min[52]
GPCSephacryTm S-300 HR0.9% NaCl0.5 mL/min[58]
GPCSephacryl S-300 HR0.2 M NH4HCO30.5 mL/min[30]
GPCSephacryl S-400/HR0.2 M NH4HCO30.3 mL/min[28]
IEC+GPCDEAE Cellulose 52, Bio-Gel P-20.7 M NaCl0.85 mL/min[40]
IEC+GPCDEAE-Sepharose CL-6B, Sephadex G-2000.2~1.5 M NaCl0.8 mL/min[11]
Table 4. The summary of methods for preparation of Ulva oligosaccharides.
Table 4. The summary of methods for preparation of Ulva oligosaccharides.
Preparation MethodStructureMolecular WeightBioactivitiesReference
Microwave-assisted acid hydrolysis-3.1 kDaAntioxidant activity[76]
Microwave-assisted acid hydrolysis-53.59 kDaAntioxidant activity[75]
H2O2 degradation--Antioxidant activity[26]
Enzymatic degradation-243, 341, 401,
503, 665 Da
Enzymatic degradation-103, 45.4, 9.8 kDaAntioxidant activity[25]
Enzymatic degradationRha1(SO3H)1, Rha1(SO3H)1Glc1,
Rha2(SO3H)2Glc1, Rha3(SO3H)3Glc1Xyl1
244, 402, 628, 760 Da-[78]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ning, L.; Yao, Z.; Zhu, B. Ulva (Enteromorpha) Polysaccharides and Oligosaccharides: A Potential Functional Food Source from Green-Tide-Forming Macroalgae. Mar. Drugs 2022, 20, 202.

AMA Style

Ning L, Yao Z, Zhu B. Ulva (Enteromorpha) Polysaccharides and Oligosaccharides: A Potential Functional Food Source from Green-Tide-Forming Macroalgae. Marine Drugs. 2022; 20(3):202.

Chicago/Turabian Style

Ning, Limin, Zhong Yao, and Benwei Zhu. 2022. "Ulva (Enteromorpha) Polysaccharides and Oligosaccharides: A Potential Functional Food Source from Green-Tide-Forming Macroalgae" Marine Drugs 20, no. 3: 202.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
