Ecological and Pharmacological Activities of Polybrominated Diphenyl Ethers (PBDEs) from the Indonesian Marine Sponge Lamellodysidea herbacea

by
Muhammad R. Faisal
1,
Matthias Y. Kellermann
1,
Sven Rohde
1,
Masteria Y. Putra
2,
Tutik Murniasih
2,
Chandra Risdian
3,4,
Kathrin I. Mohr
3,
Joachim Wink
3,
Dimas F. Praditya
2,5,6,
Eike Steinmann
5,6,
Matthias Köck
7 and
Peter J. Schupp
1,8,*
1
Environmental Biochemistry, Institute of Chemistry and Biology of the Marine Environment (ICBM), Carl-von-Ossietzky University of Oldenburg, Schleusenstr. 1, 26382 Wilhelmshaven, Germany
2
Research Center for Biotechnology, Research Organization for Life Science, National Research and Innovation Agency (BRIN), Cibinong 16911, Indonesia
3
Microbial Strain Collection (MISG), Helmholtz Centre for Infection Research, Inhoffenstraße 7, 38124 Braunschweig, Germany
4
Research Unit for Clean Technology, Indonesian Institute of Sciences (LIPI), Bandung 40135, Indonesia
5
TWINCORE-Centre for Experimental and Clinical Infection Research, Institute of Experimental Virology, Feodor-Lynen-Str. 7–9, 30625 Hannover, Germany
6
Department of Molecular and Medical Virology, Ruhr-University Bochum, 44801 Bochum, Germany
7
Alfred Wegener Institute, Helmholtz Centre for Polar and Marine Research, Am Handelshafen 12, 27570 Bremerhaven, Germany
8
Helmholtz Institute for Functional Marine Biodiversity (HIFMB), University of Oldenburg, Ammerländer Heerstraße 231, 26129 Oldenburg, Germany
*
Author to whom correspondence should be addressed.
Mar. Drugs 2021, 19(11), 611; https://doi.org/10.3390/md19110611
Submission received: 3 September 2021 / Revised: 14 October 2021 / Accepted: 15 October 2021 / Published: 27 October 2021
(This article belongs to the Special Issue Aromatic Marine Natural Products: Chemistry and Bioactivity)
Browse Figures
Versions Notes

Abstract

:
Two known Polybrominated Diphenyl Ethers (PBDEs), 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d) and 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b), were isolated from the Indonesian marine sponge Lamellodysidea herbacea. The structure was confirmed using 13C chemical shift average deviation and was compared to the predicted structures and recorded chemical shifts in previous studies. We found a wide range of bioactivities from the organic crude extract, such as (1) a strong deterrence against the generalist pufferfish Canthigaster solandri, (2) potent inhibition against environmental and human pathogenic bacterial and fungal strains, and (3) the inhibition of the Hepatitis C Virus (HCV). The addition of a bromine atom into the A-ring of compound 2b resulted in higher fish feeding deterrence compared to compound 1d. On the contrary, compound 2b showed only more potent inhibition against the Gram-negative bacteria Rhodotorula glutinis (MIC 2.1 μg/mL), while compound 1d showed more powerful inhibition against the other human pathogenic bacteria and fungi. The first report of a chemical defense by compounds 1d and 2b against fish feeding and environmental relevant bacteria, especially pathogenic bacteria, might be one reason for the widespread occurrence of the shallow water sponge Lamellodysidea herbacea in Indonesia and the Indo-Pacific.

1. Introduction

Sponges are known to harbour a huge variety of secondary metabolites, which could potentially be important leads in drug development [1]. Reported compound classes include but are not limited to peptides [2,3,4], pyridines [5], diterpenoids [6], alkaloids [7], lectins [8], carotenoids [9], steroids [10,11], and sterols [12] with reported bioactivities ranging from pharmaceutical (antimicrobial, antitumor, anti-inflammatory ATPase activator, cytotoxicity, neuroprotective) to ecological (feeding deterrent, antifouling). The continued discovery of novel bioactive marine natural products (MNPs) has been well documented in detailed review articles from Natural Product Reports (i.e., [13,14,15]).
Lamellodysidea herbacea is a common sponge of shallow coral reef habitats, especially reef flats, back-reef, and lagoon-type habitats, throughout the Indo-Pacific. There have likely been several synonyms in the literature for this species, as it has undergone several taxonomic revisions. This species was first described as Spongelia herbacea (Keller, 1889), which was later revised to Dysidea herbacea (Keller, 1889), and is now accepted as Lamellodysidea herbacea (Keller, 1889) [16]. Having several taxonomic revisions also makes it harder to keep track of reported compounds or compound classes for particular species or even higher taxonomic ranks such as genus or family [17]. Based on previous publications, including the synonym genera, Lamellodysidea should be regarded as a sponge genus containing a wide variety of secondary metabolites divided into three distinct classes, namely terpenoids, polychlorinated amino-acids, and polybrominated diphenyl ethers (PBDEs) [18]. Looking at the chemical profiles in L. herbacea, it has been well accepted that this species has at least two chemotypes. One chemotype contains polychlorinated amino acids and sesquiterpenes, and the second chemotype only contains a mix of PBDEs, which can reach concentrations of up to 2% of the sponge dry mass [18,19]. For the latter chemotype, in 1993, Unson and co-workers discovered that PBDEs are mainly produced by its symbiotic bacteria, Oscillatoria spongeliae [18]. PBDEs are the major metabolites in L. herbacea, which have been shown in specimens that have been collected in several biogeographic regions [20,21,22]. There are also several reports of L. herbacea within the Indonesian Archipelago [23,24,25,26,27], which have also identified various bioactivities, including antibacterial [27,28,29,30], cytotoxicity [28,31], icthyotoxicity [29], antiproliferative activity [32], and protein inhibitor [33,34] activities. Reported bioactivities from this species have also been summarized in recent review articles [13,14,15].
However, while pharmacological activities have been well documented for extracts and certain purified compounds, little is known about their ecological function. Our study found multifaceted clinically relevant bioactivities in the crude extract and the isolated PBDEs. In addition, we were also able to identify an ecological function of the crude extract and its fractions by testing these crude extracts against environmental bacteria isolated from similar coral reef habitats as well as by demonstrating antifeeding activity for the isolated PBDEs, 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d) and 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b). To the best of our knowledge, only the tetra brominated diphenyl ether (BDE) 3,5-dibromo-2-(2′,4′-dibromophenoxy)phenol has been shown to exhibit antifeedant activity against fishes [19]. However, no ecological study on the activity of penta- and hexa-BDEs has been reported up until this point. Thus, the information provided here also fills an important gap by considering the ecological significance of PBDE derived from the marine sponge L. herbacea.

2. Results

2.1. Feeding Deterrent Assay

Crude extract of the marine sponge L. herbacea was tested in a feeding deterrent assay using the generalist fish predator, C. solandri. In total, 66.7% of the treated pellets containing crude extract were rejected by the pufferfish. Furthermore, a similar percentage of food pellets containing the n-hexane (HEX) or dichloromethane (DCM) fractions at natural volumetric concentrations also deterred feeding (63.6% and 66.7%, respectively). Since the ethyl acetate (EtOAc) and water (H2O) factions showed only low feeding deterrence with 48.5% and 36.4% percentages, the deterrent compounds had to be present in the HEX and DCM fractions (Figure 1).
We further isolated the major bioactive compounds by reverse-phase SPE fractionation followed by C18 reverse phased high-performance liquid chromatography (HPLC). HPLC purification of the active fractions yielded compounds 1d and 2b at levels of 2.9 mg and 6.8 mg, respectively. Pure compounds were injected at different concentrations to create a calibration curve, which was then used to determine the natural concentrations of the compounds in the sponge tissue. The analysis determined compounds 1d and 2b with concentrations of 1.6 mg and 2.4 mg, respectively, per mL sponge tissue. When tested at these respective concentrations, both PBDEs showed a significant deterrence at natural volumetric concentrations against the tested pufferfish. Compound 2b displayed a high deterrence, with 61.1% of the pellets being rejected (p = 0.008, Fisher’s exact test), while compound 1d revealed a somewhat lower but still significant deterrence, with 44.4% of the pellets being rejected (p = 0.041, Fisher’s exact test). The observed deterrence of the pure compounds was somewhat lower compared to the tested fractions or crude extract, except for the EtOAc and the water fraction, which were not significantly deterred (p = 0.32, Fisher’s exact test).

2.2. Antimicrobial Activity against Pathogenic and Non-Pathogenic Environmental Bacteria

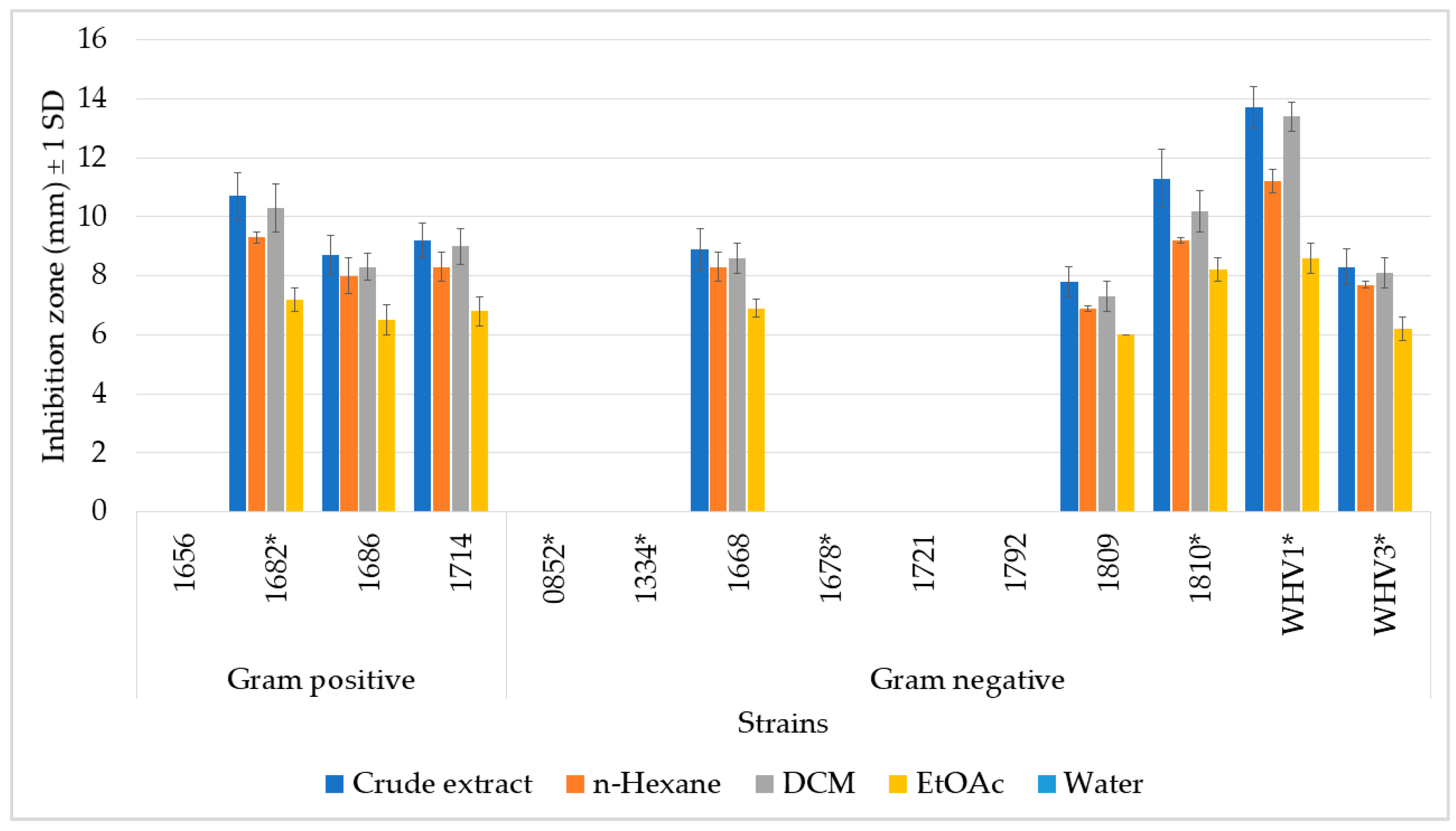

An agar diffusion assay was used to determine possible antimicrobial activity against environmental bacteria, using 14 different pathogenic and non-pathogenic environmental bacteria, which had previously been isolated from a reef flat habitat (Figure 2) [35,36]. The extracts exhibited pronounced antimicrobial activities by inhibiting more than half of the test bacteria, of which four of them were putatively pathogenic. According to the Gram type of the bacteria, the crude extract and liquid-liquid separated fractions inhibited all of the Gram-positive bacteria except Streptomyces sp. (1656), while half of the Gram-negative bacteria were inhibited. Interestingly, the Agar diffusion assay (ADA) showed the same pattern as the one we found in the feeding assay. That is, the crude extract showed the highest activity, followed by its most lipophilic fractions, HEX and DCM. No inhibition zone appeared with the H2O fractions, while only weak inhibition occurred with the EtOAc fraction. All of the tested extracts and fractions showed the highest inhibition activity against WHV1 (Aurantimonas coralicida). Due to the lack of purified PBDEs, no further ADA experiments were performed.

2.3. Antimicrobial Assay against Pathogenic Clinical Microbes

The crude extract and fractions also displayed remarkable bioactivities in the antimicrobial assay against clinically relevant, pathogenic microbial, and fungal strains (cf. Table 1). The crude extract strongly inhibited Bacillus subtilis, Staphylococcus aureus, Mucor hiemalis, and Rhodotorula glutinis, whereas its activities against Escherichia coli and Mycobacterium smegmatis were weak. No activities were detected against Pseudomonas aeruginosa and Candida albicans. Pronounced activities were observed against all of the tested microbes with the HEX and DCM fractions. The EtOAc fraction only showed the potent inhibition of B. subtilis and moderate inhibition against S. aureus, R. glutinis, and M. hiemalis. Screening of the two purified compounds, 1d and 2b, also exhibited a broad range of antimicrobial activities against the seven test strains. The compounds were highly active against all tested strains except E. coli (MIC > 66.7 µg/mL). Both compounds strongly inhibited B. subtilis (MIC 0.5 μg/mL), displaying a five times lower MIC than the positive control tetracycline (2.8 μg/mL). Furthermore, compound 1d exhibited bioactivity against the Gram-positive bacteria S. aureus that was as potent as the positive control gentamicin (MIC 0.5 μg/mL), whereas compound 2b showed four times less bioactivity. Both compounds 1d and 2b were significantly more active (MIC 4.2 µg/mL and 2.1 µg/mL, respectively) than the positive control nystatin against the aerobic yeast cell R. glutinis.

2.4. Inhibitory Effects on HCV Infectivity

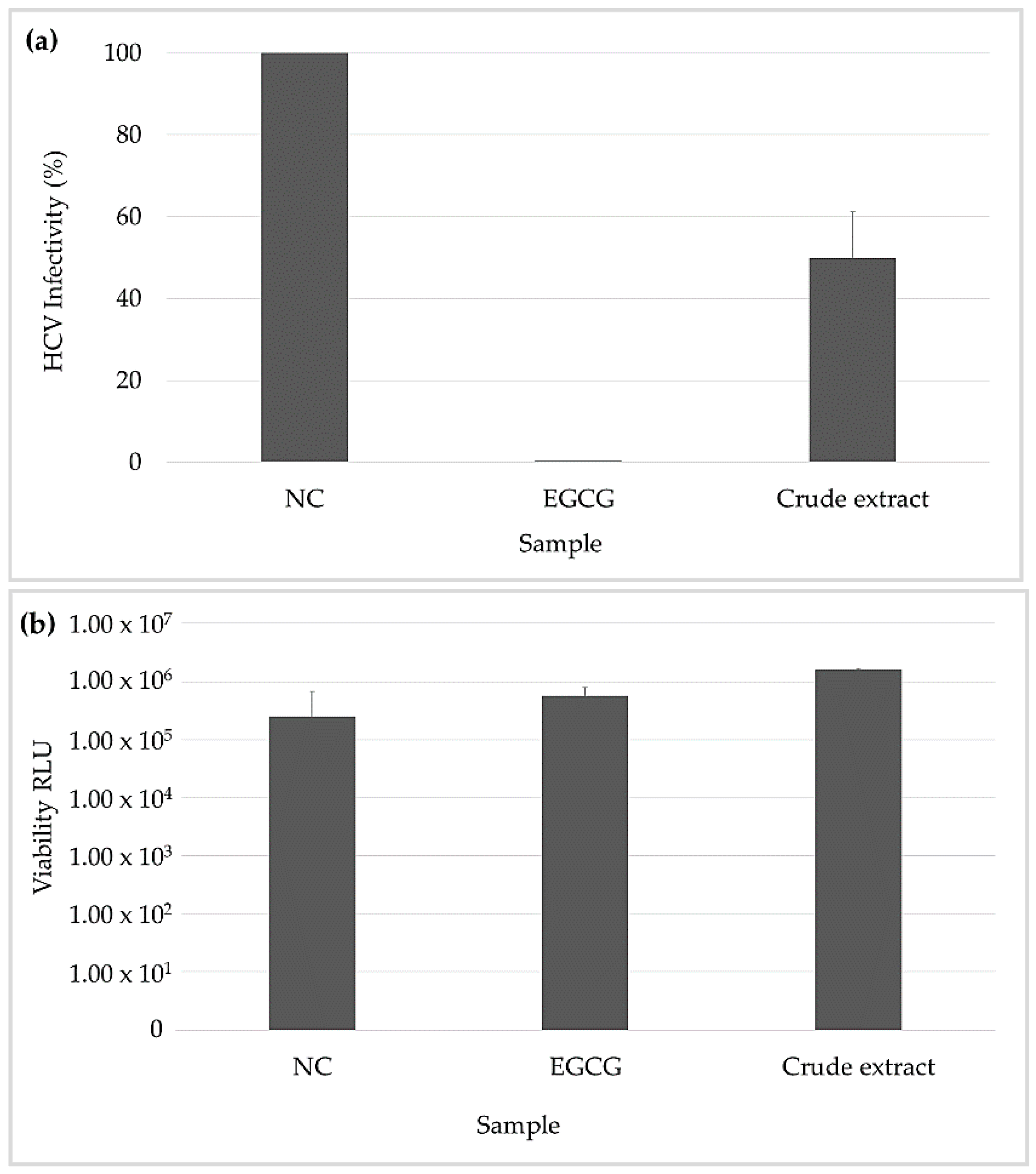

Next, we investigated the inhibitory effect of the L. herbacea crude extract against HCV infectivity in human liver cells. As depicted in Figure 3, only moderate inhibition of 50% was observed in contrast to the EGCG positive control. Therefore, we did not investigate its liquid-liquid fractions further. Interestingly, we found that the organic extract was not toxic in human liver cells, which was in contrast to previous studies that had reported cytotoxic effects by OH-PBDE compounds [30,37,38].

2.5. Structure Elucidation of Compounds 1d and 2b

As the first step in structure elucidation, the exact masses of the purified compounds were obtained with a UPLC-HRMS (Waters Synapt G2-Si, Milford, MA, USA). Mass spectrometry (Waters Synapt G2-Si, Milford, MA, USA) was conducted in negative ionization mode. The HRESIMS of compound 1d showed a pseudomolecular ion peak [M − H]− = 574.6137 indicating the molecular formula of C12H5O2Br5. For compound 2b an exact mass of [M − H]− = 652.5246 was obtained (C12H4O2Br6). Both compounds were compared to compounds in the MarinLit database [39]. The results showed that both sum formulas were related to known PBDEs (Table 2).

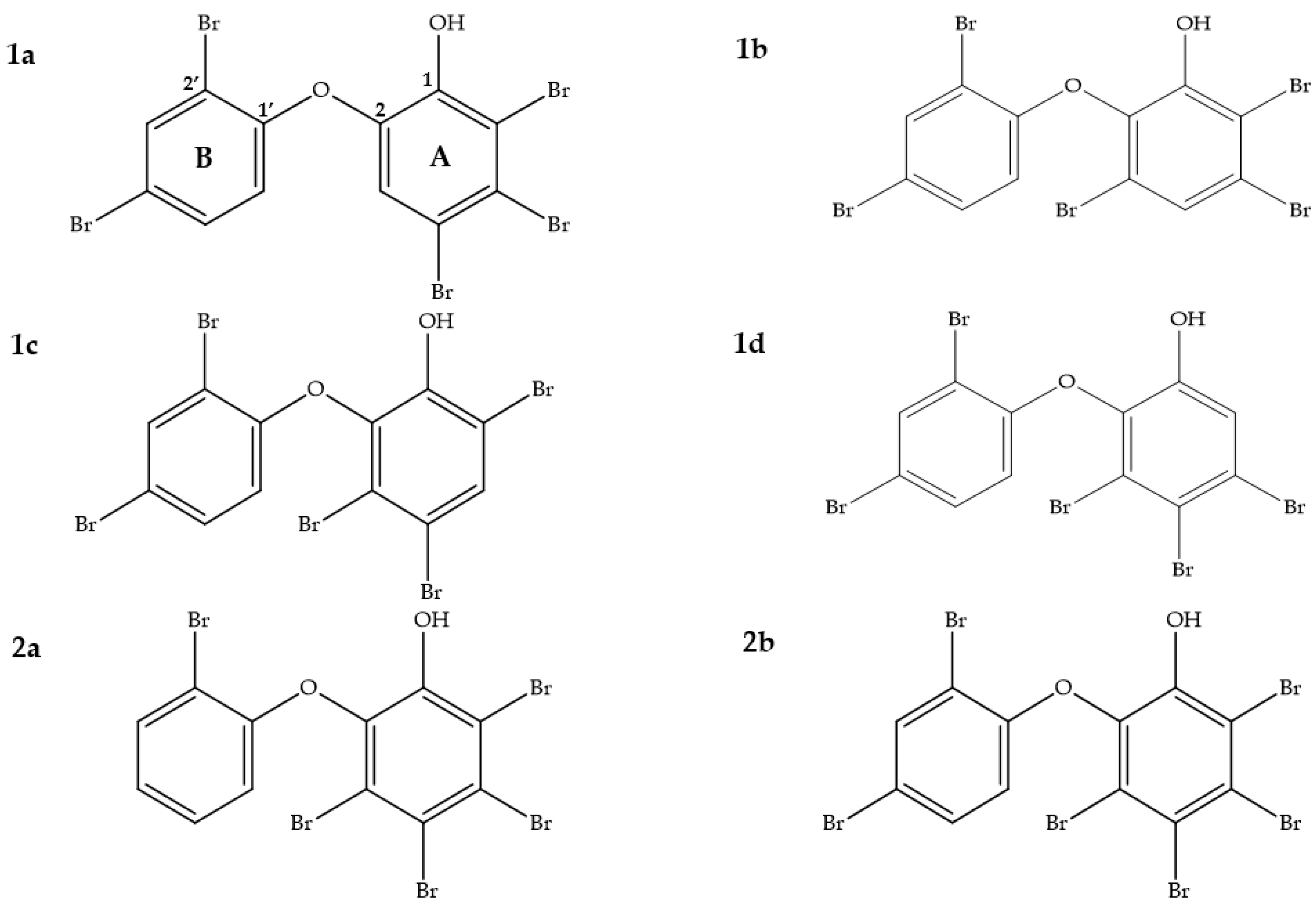

To locate the positions of the bromine atoms in the ring system of compounds 1d and 2b, we conducted 1H and 13C NMR measurements. The results revealed that compound 1d possessed three bromine atoms in the A-ring and two bromine atoms in the B-ring (Figure 4). In addition, an extra bromine atom in the A-ring was determined for compound 2b.
The NMR data clearly indicated that the B-ring in both compounds 1d and 2b was identical. Since the A-ring is hexa-substituted in 2b, there are no structural alternatives, whereas for 1d, four constitutional isomers were possible (1a to 1d). In order to elucidate the correct regioisomers, the 1H and 13C NMR data were compared to existing NMR data in the literature (Table 3 and Table 4). Furthermore, the structures of 1d and 2b were also verified through comparison with predicted 13C NMR chemical shifts [43,44,45,46] using three different computational approaches: NMRPredict [47], NMRShiftDB [48], and CSEARCH [49].

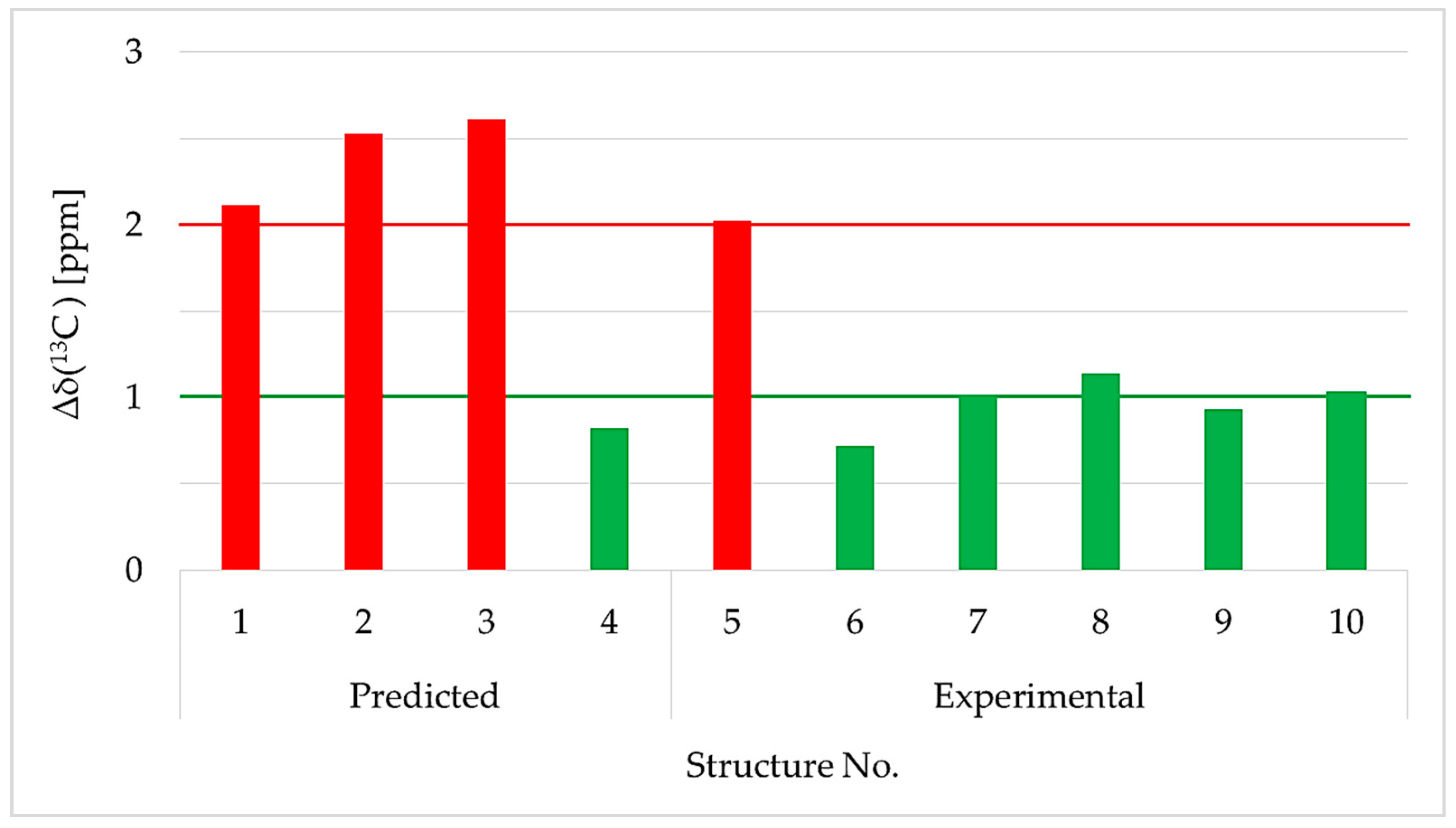

The averaged deviation of δ(13C) for all 12 carbon atoms to the calculated and existing experimental data sets in comparison to our experimental values is given in Figure 5. The results showed that the mean value of 1d was close to the experimental shifts reported for 1d in the literature [49] (Figure 5, bars 6 to 10). Comparison to the calculated values obtained with NMRPredict also preferred constitutional proposals 1d (<1 ppm) over the regioisomers 1a to 1c (>2 ppm). Therefore, 1d was confirmed as 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (Figure 4). In fact, our δ(13C) values for compound 1d were 100% identical to the one’s published by Suyama et al. [40] (Table 4, not shown in Figure 5).
Compound 2b showed very similar 13C chemical shifts compared to the only reported NMR data from Utkina et al. [41] (Table 5 and Table 6). Since we do not have constitutional isomers for the A-ring in compound 2b, we decided to use another compound with the same A-ring in order to determine how well the 13C chemical shifts can be predicted for that ring. A similar compound, 3,4,5,6-tetrabromo-2-(2′-bromophenoxy)phenol (2a), which was first identified by Salva and Faulkner [50], with one less bromine in the B-ring compared to compound 2b was used for comparison (Figure 4). The 13C chemical shifts of the A-ring (C-1 to C-6) of both compounds showed high similarity (Table 6). Therefore, compound 2b was confirmed as 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (Figure 4).

3. Discussion

This is the first study to demonstrate the bioactivity of crude extracts, fractions, and pure compounds in ecological assays for the Indonesian marine sponge L. herbacea. Two of the major metabolites responsible for the observed bioactivities were successfully isolated and confirmed by UPLC-HRMS and NMR structure elucidation. Both compounds were known PBDEs, namely 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d) and 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b).
Compound 1d was first characterized and described in 1969 from Dysidea herbacea from Palau, Micronesia, using only proton NMR spectral data. In the following years, the structure was verified by partial synthesis and further proton NMR analysis [20,51]. Both compounds were also the major metabolites in a different specimen of Dysidea [20,21]. Ten years later, the 13C NMR data of compound 1d were reported for the first time along with new bioactivities, such as the inhibition of inosine monophosphate dehydrogenase (IMPDH), guanosine monophosphate synthetase, and 15-lipoxygenase [21]. Later, compound 1d was detected together with novel PBDEs [50,52,53]. In 2008, Ortlepp and colleagues also reported the antifouling activity of compound 1d against several fouling organisms, such as the axenic diatom Amphora coffeaeformis, the blue mussel Mytilus edulis as well as antibacterial activities isolated from marine biofilms [56]. However, compound 1d was considered to be a toxic compound to the barnacle cyprids in these assays. Suyama and his co-workers rediscovered compound 1d in a red algae cyanobacteria mix (Leptofaucia sp. and Oscillatoria sp., respectively) from the Grabo Reef in Papua New Guinea [40]. This is not surprising, as Unson and colleagues had previously demonstrated that the 3,5-dibromo-2-(2′,4′-dibromophenoxy)phenol reported from Dysidea herabcea was not produced by the sponge itself but rather by its cyanobacterial symbiont (filamentous cyanobacterium), which closely resembles Oscillatoria spongeliae [18], indicating that cyanobacteria, especially of the genus Oscillatoria, is one of the main sources of PBDEs in nature. Suyama and colleagues also provided a few corrections on the 13C chemical shift data that closely match our results using the same CDCl3 solvent [40].
Compound 2b, on the other hand, was first discovered in the 1980s from the marine sponge Dysidea fragilis using HRMS and NMR analysis [41]. The compound exhibited antimicrobial activity against the clinically relevant Gram-positive bacteria S. aureus and B. subtilis [51]. The compound was reisolated recently with the same spectroscopic data along with compound 1d. The study revealed that adding more bromine positions in the B-ring increased the inhibitory potency for the α-D-galactosidase from the marine bacterium Pseudoalteromonas sp. KMM 701 of the GH36 family [55]. Furthermore, the multifaceted activities of compound 2b were also reported by Handayani et al. [30]. The compound showed potent antibacterial activity against the human pathogenic bacteria B. subtilis with a MIC of 3.1 µg/mL along with high cytotoxicity in the brine shrimp lethality test (BSLT), with an LC50 of 0.9 µg/mL. Antifungal activity was shown against Cladosporium cucumerinum at 50 nmol (8 mm inhibition zone) and 25 nmol (5 mm inhibition zone). Antiproliferative activity of compound 2b has been reported against MCF-7 human adenocarcinoma breast cancer cells [37]. Unfortunately, NMR chemical data on compound 2b has only ever been incompletely provided in the more recent literature described above.
Information on deterrent activities of extracts from the sponge Dysidea started in the 1990s when Duffy and Paul reported deterrent activities against fishes during field feeding assays with tetra-brominated BDEs from Dysidea sp. collected in Guam, Micronesia [19]. Unfortunately, only the structure of the BDE was reported, and no structural data were reported for the compound, as they instead referred to the original description of the compound 3,5-dibromo-2-(2′,4′dibromophenoxy)phenol, which Carte and Faulkner [20] described. The compound deterred the fishes in two kinds of feeding assay (paired and multiple-choice assay), where the incorporation of BDE in food pellets resulted in 40–70% rejection rates [19]. In a follow-up study by Pennings et al. [57], the deterrent activity of the compound was again confirmed with general reef fish and the pufferfish C. solandri and the crab Leptodius spp. in aquarium and field assays at 1, 2, and 4% dry mass. Faulkner et al. also confirmed an ecological role of observed BDEs in Dysidea herbacea from Palau, Micronesia. BDEs were abundantly located in needle-like forms and feather-like patterns in the ectosomal layer of the sponge [58]. They conclude that the accumulation of BDEs in the ectosomal layer of the sponge coupled with the feeding deterrent and antimicrobial activities indicates an ecological role of these compounds in defense against bacteria, crab, and fish predators. Further evidence for the defensive role of BDEs was provided by Becerro and colleagues [59], who detected 3,5-dibromo-2-(2′,4′-dibromophenoxy)phenol in the sponge Dysidea granulosa from Guam and the sponge feeding gastropterids Sagaminopteron nigropunctatum and S. psychedelicum. Quantification of the compound revealed its accumulation by both sponge predators in the gastropterids tissue at over twice the sponge concentration, most likely for defense against fish predators [59].
Our results are the first report of sponge-derived PBDEs, penta- and hexa- brominated diphenyl esters (compounds 1d and 2b), exhibiting significant deterrence in the fish feeding assay and in antimicrobial activities against ecological relevant microorganisms. We also found that the presence of one additional bromine on the phenolic A-ring resulted in a higher fish deterrence but not in antimicrobial activity. However, since PBDEs are the major metabolites in the crude extracts (Figure S3) and have considerable antibacterial and antifungal activity against clinically relevant microorganisms, one can assume that PBDEs are also responsible for the observed activities against environmental bacteria. Furthermore, they likely serve an important ecological function, as they were especially active against environmental pathogenic strains, such as Vibrio mediterranei and Aurantimonas coralicida, which have been implicated in several diseases of marine organisms [60,61]. In addition, pathogenic bacteria Pantoea eucrina and Rhodococcus corynebacterioides infections have been reported in humans [62,63].
The pronounced bioactivity of the two isolated PBDEs was further confirmed in antimicrobial assays with clinically relevant strains, where both compounds exhibited high inhibitory activity against B. subtilis, that was even five times stronger than the positive control tetracycline (MIC 2.8 µg/mL). Furthermore, compound 1d also inhibited S. aureus at the same concentration as the control, while it showed weak activity against E. coli and A. baumannii. In addition, both compounds also exhibited pronounced antifungal activity against R. glutinis, demonstrating MIC values that were around ten times lower (4.2 µg/mL and 2.1 µg/mL, respectively) than those of the positive control nystatin (33.3 µg/mL). The yeast Rhodoturula is a ubiquitous genus in different ecosystems, colonizing plants, humans, and other mammals [64]. R. glutinis was also found in benthic animals and deep-sea sediments from the northwest Pacific Ocean [65]. The pathogenicity of the genus Rhodoturula towards animals and humans by causing bloodstream infections, short bowel disease, and acute lymphoid leukemia has been reviewed comprehensively [64]. The emerging resistance of R. glutinis and other Rhodoturula species against caspofungin (100%), fluconazole (94.7%), luliconazole (1–8 µg/mL), and voriconazole (74.4%) has been well documented [66] and emphasizes the need for potent antifungal compounds such as 1d and 2b. Both compounds seem to have broad antifungal activity, as seen by their pronounced inhibition of M. hiemalis. Compound 1d also exhibited about 30% stronger activity against P. anomala than the positive control nystatin. Moderate fungicidal activity was also reported for compound 2b against C. cucumerinum [30].
L. herbacea crude extract showed activity in the HCV inhibitory assay. However, inhibition was weak compared to the positive control epigallocatechin gallate (EGCG) and therefore was not followed up upon with pure compounds. These results differed from a previous study that showed novel HCV inhibitory activity from the PBDE 6-hydroxy-2,2′,4,4′-tetrabromodiphenyl ether from a Japan Dysidea sp [38].
Based on the bioactivity results reported here and previous literature reports, one can assume that PBDEs have an important ecological function in protecting organisms against various fish predators and pathogenic microorganisms. The production of these defensive metabolites might be one reason why L. herbacea is one of the dominant benthic invertebrates in certain areas [67]. In Indonesia, the dominance of Dysidea was recently recorded in the Wakatobi Marine National Park, Sulawesi, particularly in areas with high sedimentation [24,68]. Further research towards the ecological roles of PBDEs and especially their role in competitions with other sessile benthic invertebrates could close the gap of why Lamellodysidea is the prevalent inhabitant of shallow-water coral reefs throughout the Indo-Pacific.

4. Materials and Methods

4.1. Sample Collection

Lamellodysideaherbacea was collected by hand in Pari Island, Kepulauan Seribu, Indonesia, in August 2017. L. herbacea were taken at 3–8 m depths. The samples were cut with a scalpel and were then transferred into an ambient seawater-filled plastic bag. L. herbacea was morphologically identified as belonging to the Dysideidae family, Dictyoceratida order, and Demospongiae class. Collected samples were transferred to the nearest lab, frozen, and then transported to the Environmental Biochemistry working group, Carl von Ossietzky Universität Oldenburg, Oldenburg, Germany.

4.2. Extraction and Isolation

A wet weight sample of the sponge (243 g) was freeze-dried (31.65 g), grounded into powder, and extracted exhaustively with MeOH: EtOAc (1:1; HPLC grade VWR International GmbH, Darmstadt, Germany). Bioassay-guided isolation was conducted using 558 mg of the total organic extracts (4.1 g), which were further polarity partitioned into HEX (96.6 mg), DCM (127.8 mg), EtOAc (8.1 mg), and H2O (305.9 mg). The HEX and DCM fractions were chosen to be tested for all bioactivity screening assays except the HCV inhibitory assay. For identification of the potential bioactive compounds fractions were further separated using an HPLC (Agilent) fraction collector coupled with a UPLC-HRMS (MaXis ESI TOF, Bruker Daltonik GmbH, Bremen, Germany) with a BEH C18 column (Waters ACQUITY, Milford, MA, USA) (1.7 µm 2.1 × 50 mm) [63]. A step gradient was used from 95% H2O and 5% MeCN (solvent A) to 5% H2O and 95% MeCN (solvent B). The resulting fractions were collected in a microplate and tested in MIC assays with clinically relevant pathogenic bacteria (see 4.5 for details). MS and MS/MS of the active peaks were obtained using UPLC-HRMS (Waters Synapt G2-Si, Milford, MA, USA) with the same gradient and column system described above and the MassLynx 4.2 data analysis program.
The masses of the MS of the targeted compounds were obtained in the negative mode. Detected masses were compared to various databases, namely MarinLit (Royal Society of Chemistry, Cambridge, UK), Dictionary of Natural Product (ChemNetBase, Taylor&Francis, Abingdon, UK), and Google scholar. We identified the two targeted compounds as known compounds, namely the 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d) and 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b). Solid-Phased Extraction C18-based (SPE) fractionation was applied to each of the HEX and DCM fractions (used 73 mg each) to isolate the targeted compounds using a C18 reversed-phase cartridge (10 g) with a column capacity of 75 mL (HyperSep C18, Fischer Scientific, Leicestershire, UK). The major OH-BDE compounds were in the fraction of 70:30 CH3CN: H2O (38.6mg).
Purification of the SPE fraction was performed by high-performance liquid chromatography (HPLC) (Agilent 1260 Infinity, Agilent, Santa Clara, SA, USA) using a reversed-phase C18 (Pursuit XRs 5 µm C18 250 × 10.0 mm, Agilent, Santa Clara, SA, USA) semi-preparative column. CH3CN and H2O with the addition of formic acid (FA, 98%, Carl Roth, Karlsruhe, Germany) at a concentration of 0.1% to both the solvent were applied in the running sequence. The column temperature was set at 40 °C. A flow rate of 2 mL/min was applied using a step gradient (sequence: in 50 min 85:15 CH3CN: H2O to 95:5 CH3CN: H2O, 2 min 95:5 CH3CN: H2O to 100:0 CH3CN: H2O, 33 min 100:0 CH3CN: H2O, 2 min 100:0 CH3CN: H2O to 85:15 CH3CN: H2O then 13 min 85:15 CH3CN: H2O). Compounds were detected at 280 nm with the Diode Array Detector (DAD; Agilent 1260 Infinity Diode Array Detector (G4212-60008), Agilent, Santa Clara, SA, USA). The target compounds were eluted between 14 and 16 min. Purification yielded 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d) (2.9 mg) and 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b) (6.8 mg). The NMR spectra were measured on a Bruker 700 MHz cryo NMR spectrometer (Avance III HD) using Topspin 3.6.2 for analysis. The structures of compounds 1d and 2b were verified with the following NMR experiments: 1D proton, 1H,13C-HSQC (pulse program: hsqcedetgpsisp2.3), and 1H,13C-HMBC (pulse program: hmbcgplpndqf) [50,51,52]. The 13C NMR chemical shifts were calculated with the programs NMRPredict, NMRShiftDB, and CSEARCH. However, only the results of the first method are given in the main manuscript (Table 4). The results of the other two methods are provided in the Supplementary Materials (Table S1).
The compound 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d): white powder; molecular formula C12H4Br5O2−; UV (MeOH, photodiode array), λmax 290.407 nm; HRMS-ESI m/z [M − H]−: 574.614, 576.612, 578.610, 580.607, 582.606, 584.604. The 1H and 13C NMR data of the structure are in Table 3 and Table 4.
The compound 3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol (2b): white crystal powder; molecular formula C12H3Br6O2; UV (MeOH, photodiode array), λmax 281.407 nm; HRMS-ESI m/z [M − H]−: 652.524, 654.521, 656.519, 658.518, 660.516, 662.513, 664.512. The 1H and 13C NMR data of the structure are in Table 5 and Table 6.

4.3. Feeding Deterrence

Feeding deterrence assays were conducted using a modified method from Pawlik [69], according to Helber et al. [70]. Thirteen pufferfish, Canthigaster solandri (Richardson, 1845), were chosen as model organisms since they are omnivorous invertebrate predators known to feed on sponges and since they have been used in several previous studies [35,70,71]. The assay was conducted using two kinds of artificial food pastes (0.05 g alginic, 0.075 g powdered squid mantle, one drop food color) consisting of treatment food with natural volumetric concentration of sponge crude extract, fractions or pure compounds added and without sponge chemistry as a control. The paste was made by mixing the ingredients with distilled water that were each loaded into separate 2 mL syringes. A long strand form was created by emptying the syringe content onto the plates containing a 0.25 M calcium chloride solution. The strand was rinsed with seawater several times and was then cut into small pellets to ensure that the puffers could eat them whole.
Thirteen individual puffers were maintained by feeding them with the pellets without the extract for several days before the assays. The assay was started by offering a control and treatment pellet sequentially to each puffer. The puffers were not scored if they did not eat the first control pellet. If the control was eaten, the treated pellet was then offered, and rejection was scored if the fish spat the pellet out or mothed the pellets (see previous studies for details) [70]. Next, another control pellet was offered to confirm that the fish was still hungry. The rejection was not scored if the second control was ignored or rejected. The pellet rejection of the first and second control was excluded from the calculation. The assay was continuously conducted until at least ten puffers participated in the assay. Fisher’s exact test was applied for validating significant differences in the palatability between the control and treated pellet [70]. Further feeding assay with the two purified compounds were also conducted testing them at their natural concentration. The concentration was obtained by calculating the compounds’ total peak area and by comparing it to a calibration curve (Figure S2).

4.4. Agar Diffusion Assay (ADA) against Pathogenic and Non-Pathogenic Environmental Bacteria

Crude extracts were tested against 14 marine environmental bacteria strains, including pathogenic and non-pathogenic bacteria associated with marine diseases, using a modified version of the disk diffusion method [71]. The strains were identified and used by our colleagues in similar assays [35,72]. Marine broth (MB) agar plates were inoculated with 200 μL of the test strain cultures (24 h cultured in 10 mL liquid broth medium). Subsequently, different crude extracts (conc. 0.5 mg/disk), a negative control (MeOH: EtOAc, 15 μL/disk), and positive control (0.1 M Chloramphenicol, Oxoid®, Z 15 μL/disk) were pipetted onto sterile paper disks (Ø 6 mm, Whatman) and dried. The impregnated disks were applied upside down onto the agar medium plates at equidistant points. The diameters of inhibition zones were measured to the closest mm after incubation at 37 °C for 24 and 48 h. The assays were conducted in three replicates. The results were expressed by calculating the average of the total inhibition zone surrounding the disks with the crude extract or fractions.

4.5. Minimum Inhibition Concentration (MIC) Antimicrobial Assay

To evaluate the bioactivity of the fractions against pathogenic bacteria and fungi, a minimum inhibition concentration (MIC) assay in 96-well microplates was conducted following Okanya et al. [73]. The samples were tested using a panel consisting of Gram-positive Bacteria Bacillus subtilis (DSM 10), Staphylococcus aureus (DSM 346), and Gram-negative bacteria Escherichia coli (DSM 1116), Pseudomonas aeruginosa (PA14), and Mycobacterium smegmatis (ATCC700084). Additional antifungal assays against the filamentous fungus, Mucor hiemalis (DSM 2656), and the yeasts Candida albicans (DSM 1665) and Rhodotorula glutinis (DSM 10134) were conducted. The bacterial strains were added into 20 mL MHB (Mueller Hinton Broth) medium, except for Mycobacterium smegmatis, which was added into Middlebrook 7H9 medium. Yeast and fungal strains were added into 20 mL MYC medium (1.0% phytone peptone, 1.0% glucose, 50 mM HEPES (11.9 g/L) pH 7.0). Assay starting conditions were adjusted to OD600 of 0.01 for the bacteria and to 0.05 for the yeast/fungi.
The MIC test was conducted by first pipetting 20 μL aliquots (10 mg/mL) of the sample into 280 μL of microbial culture in the well of the first row (A). Then, serial dilution steps (1:2) were applied until the eighth row (H). The result was evaluated with visual observation after overnight incubation (for Mycobacterium smegmatis was 48 h) on a microplate-vibrating shaker (Heidolph Titramax 1000, Heidolph Instruments GmbH & Co.KG, Schwabach, Germany) at 600 rpm and at 30 °C (for E. coli, P. aeruginosa, M. smegmatis was 37 °C). Negative and positive controls were also applied (Table 1). Clear wells indicated no growth. Compounds were considered more potent if higher dilutions still resulted in no growth (the most potent extracts still inhibited test strains in the eighth row (H)).
Fractions were collected every 30 s using an Agilent 1100 HPLC system equipped with a fraction collector. The fractions were collected in 96-well plates and were dried [74], followed by inoculation with the test bacteria. The growth inhibition in the wells was correlated with the chromatogram peak based on the retention time. UPLC-HRMS was further used to analyze the mass and the UV spectrum of the active target compounds.

4.6. Inhibitory Effects on HCV Infectivity

Huh7.5 cells, steadily expressing Firefly luciferase (Huh7.5 Fluc; 1 × 104/well) were provided by Charles Rice (Rockefeller University, New York, NY, USA) which were generated by the stable retroviral transduction of the gene encoding for the Firefly luciferase (FLuc) via a transduction approach described elsewhere [75]. The cells were provided by Charles Rice (Rockefeller University, New York, NY, USA). Those were seeded in 96-well plates with Dulbecco’s modified Eagle’s medium (DMEM, Gibco, Thermo Fisher Scientific, Schwerte, Germany) containing 2 mM glutamine, 1% minimum essential medium nonessential amino acids (MEM NEAA, Gibco, Thermo Fisher Scientific, Schwerte, Germany), 100 µg/mL streptomycin, 100 IU/mL penicillin (Gibco, Thermo Fisher Scientific, Schwerte, Germany), 10% fetal bovine serum, and 5 µg/mL blasticidin. Cells were incubated at 37 °C with a 5% CO2 supply. The assay was conducted by infecting Huh7.5 cells with the Jc1-derived Renilla reporter viruses in the presence or absence of sponge crude extracts as described elsewhere [72]. Reporter virus infection was determined by Renilla luciferase activity. The cell viability was measured through the determination of Firefly luciferase, which was stably expressed in the target cells. Epigallocatechin gallate (EGCG; was purchased from Sigma-Aldrich, Seelze, Germany) was a positive control. After three days of incubation, the infected cells were washed with PBS, and 50µL H2O was added afterward. The infected cells were lysed and then frozen at −80 °C for 1 h following Renilla and Firefly luciferase activity measurements on a Berthold Technologies Centro XS3 Microplate Luminometer (Berthold Technologies GmbH & Co.KG, Bad Wildbad, Germany) as indicators of viral genome replication and cell viability, respectively.

5. Conclusions

The two isolated PBDEs (1d/2b) from the Indonesian marine sponge L. herbacea were characterized by detailed LC-MS and NMR experiments. Additionally, we used three different chemical shift calculation programs to verify the bromine positions within the PBDE 3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol (1d). Both compounds showed remarkable antimicrobial and feeding deterrent activities. Their ecological role in defense against fish predators and microbial pathogens had so far not been reported and might be a reason for the widespread occurrence of this sponge in shallow water coral reef habitats throughout the Indo-Pacific. This study also provided additional detailed activity results against various clinical pathogenic bacteria and fungi, demonstrating the bioactivity of the investigated PBDEs as potential antimicrobial and antifungal agents.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md19110611/s1, Figure S1a. The HRMS (a,b) and MS/MS spectra (c) of the compound 1d. Figure S1b. The HRMS (a,b) and MS/MS spectra (c) of the compound 2b. Figure S2. Calibration curves of compounds 1d (a) and 2b (b) showing correlation between observed peak areas and injected compound concentrations (0.1 µg/mL, 1 µg/mL, 10 µg/mL, 100 µg/mL, 1 mg/mL). Figure S3. HPLC chromatogram from the crude extract of Lamellodysidea herbacea. It shows that compounds 1d and 2b are the major metabolites of the extract. Figure S4. UV chromatogram of compounds 1d and 2b (a,c), including their UV spectra and λmax [nm] (b,d). Table S1. 13C NMR data for compound 1d in CDCl3 compared to their chemical shift calculations by two NMR prediction programs NMRShiftDB and CSEARCH.

Author Contributions

The experiments were designed and conceptualized by M.R.F., M.Y.K., S.R., M.K., J.W., E.S. and K.I.M. and P.J.S., M.R.F., M.Y.K., M.K., K.I.M., C.R., D.F.P. and P.J.S. performed the experiments and analyzed the data. M.R.F., M.K. and P.J.S. wrote the manuscript, which was reviewed and edited by M.Y.K., S.R., M.Y.P., T.M., C.R., K.I.M., J.W., D.F.P., E.S., M.K. and P.J.S. All authors have read and agreed to the published version of the manuscript.

Funding

M.R.F acknowledges funding by the DAAD program of the Germany-Indonesia Anti-infective Cooperation. P.J.S. acknowledges funding by the Federal Ministry of Education and Research (BMBF) for the GINAICO project, grant 16GW0106, and funding by the Deutsche Forsch-ungsgemeinschaft (DFG) for the large instrument grant INST 184/147-1FUGG for the high-resolution mass spectrometer Waters Synapt G2-Si.

Data Availability Statement

The data presented in this study are available upon request from the corresponding authors.

Acknowledgments

We thank the DAAD program for supporting the Ph.D. scholarship research funding program Biodiversity and Health (2016 for M.R.F and C.R., 2017 for D.F.P), the University of Oldenburg for a DAAD STIBET short term scholarship. The Research Center of Oceanography (RCO), Indonesia Institute of Sciences (LIPI) facilitated the transfer of the samples and the laboratory work. The research was conducted under the GINAICO Cooperation Agreement from July 2015 and MTA and MOU between Carl von Ossietzky Universität Oldenburg and RCO LIPI, Jakarta. P.J.S. acknowledges the research permit by Ristekdikti Jakarta, Indonesia, number 1493/FRP/E5/DIKTI/VII/2017. We also thank the anonymous reviewers for their valuable comments, which helped us to improve the document.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anjum, K.; Abbas, S.Q.; Shah, S.A.A.; Akhter, N.; Batool, S.; ul Hassan, S.S. Marine Sponges as a Drug Treasure. Biomol. Ther. 2016, 24, 347–362. [Google Scholar] [CrossRef] [Green Version]
  2. Molinski, T.F. Cyclic Azole-homologated Peptides from Marine sponges. Org. Biomol. Chem. 2018, 16, 21–29. [Google Scholar] [CrossRef]
  3. Giordano, D.; Costantini, M.; Coppola, D.; Lauritano, C.; Núñez Pons, L.; Ruocco, N.; di Prisco, G.; Ianora, A.; Verde, C. Chapter Five—Biotechnological Applications of Bioactive Peptides from Marine Sources. Adv. Microb. Physiol. 2018, 73, 171–220. [Google Scholar]
  4. Cheung, R.C.F.; Ng, T.B.; Wong, J.H. Marine Peptides: Bioactivities and Applications. Mar. Drugs 2015, 13, 4006–4043. [Google Scholar] [CrossRef]
  5. Sepčić, K. Bioactive Alkylpyridinium Compounds from Marine Sponges. J. Toxicol. Toxin Rev. 2000, 19, 139–160. [Google Scholar] [CrossRef]
  6. Thawabteh, A.M.; Thawabteh, A.; Lelario, F.; Bufo, S.A.; Scrano, L. Classification, Toxicity and Bioactivity of Natural Diterpenoid Alkaloids. Molecules 2021, 26, 4103. [Google Scholar] [CrossRef]
  7. Singh, K.S.; Majik, M.S. Pyrrole-Derived Alkaloids of Marine Sponges and Their Biological Properties. Stud. Nat. Prod. Chem. 2019, 62, 377–409. [Google Scholar]
  8. Gomes Filho, S.M.; Cardoso, J.D.; Anaya, K.; Silva do Nascimento, E.; De Lacerda, J.T.J.G.; Mioso, R.; Santi Gadelha, T.; de Almeida Gadelha, C.A. Marine Sponge Lectins: Actual Status on Properties and Biological Activities. Molecules 2015, 20, 348–357. [Google Scholar] [CrossRef]
  9. Galasso, C.; Corinaldesi, C.; Sansone, C. Carotenoids from Marine Organisms: Biological Functions and Industrial Applications. Antioxidants 2017, 6, 96. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Aiello, A.; Fattorusso, E.; Menna, M. Steroids from Sponges: Recent Reports. Steroids 1999, 64, 687–714. [Google Scholar] [CrossRef]
  11. Ivanchina, N.V.; Kicha, A.A.; Stonik, V.A. Steroid Glycosides from Marine Organisms. Steroids 2011, 76, 425–454. [Google Scholar] [CrossRef]
  12. Kim, S.-K.; Van Ta, Q. Chapter 17—Bioactive Sterols from Marine Resources and Their Potential Benefits for Human Health. Adv. Food Nutr. Res. 2012, 65, 261–268. [Google Scholar]
  13. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine Natural Products. Nat. Prod. Rep. 2019, 36, 122–173. [Google Scholar] [CrossRef] [Green Version]
  14. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine Natural Products. Nat. Prod. Rep. 2020, 37, 175–223. [Google Scholar] [CrossRef]
  15. Carroll, A.R.; Copp, B.R.; Davis, R.A.; Keyzers, R.A.; Prinsep, M.R. Marine Natural Products. Nat. Prod. Rep. 2021, 38, 362–413. [Google Scholar] [CrossRef] [PubMed]
  16. Van Soest, R.W.M.; Boury-Esnault, N.; Hooper, J.N.A.; Rützler, K.; de Voogd, N.J.; Alvarez, B.; Hajdu, E.; Pisera, A.B.; Manconi, R.; Schönberg, C.; et al. World Porifera Database. Lamellodysidea herbacea (Keller, 1889). Available online: http://www.marinespecies.org/porifera/porifera.php?p=taxdetails&id=164988 (accessed on 27 August 2021).
  17. Galitz, A.; Nakao, Y.; Schupp, P.J.; Wörheide, G.; Erpenbeck, D. A Soft Spot for Chemistry–Current Taxonomic and Evolutionary Implications of Sponge Secondary Metabolite Distribution. Mar. Drugs 2021, 19, 448. [Google Scholar] [CrossRef]
  18. Unson, M.D.; Holland, N.D.; Faulkner, D.J. A Brominated Secondary Metabolite Synthesized by The Cyanobacterial Symbiont of A Marine Sponge and Accumulation of The Crystalline Metabolite in The Sponge Tissue. Mar. Biol. 1994, 119, 1–11. [Google Scholar] [CrossRef]
  19. Duffy, J.; Paul, V.J. Prey Nutritional Quality and The Effectiveness of Chemical Defenses against Tropical Reef Fishes. Oecologia 1992, 90, 333–339. [Google Scholar] [CrossRef] [PubMed]
  20. Carte, B.; Faulkner, D.J. Polybrominated Diphenyl Ethers from Dysidea herbacea, Dysidea chlorea and Phyllospongia foliascens. Tetrahedron 1981, 37, 2335–2339. [Google Scholar] [CrossRef]
  21. Fu, X.; Schmitz, F.J.; Govindan, M.; Abbas, S.A.; Hanson, K.M.; Horton, P.A.; Crews, P.; Laney, M.; Schatzman, R.C. Enzyme Inhibitors: New and Known Polybrominated Phenols and Diphenyl Ethers from Four Indo-Pacific Dysidea Sponges. J. Nat. Prod. 1995, 58, 1384–1391. [Google Scholar] [CrossRef] [PubMed]
  22. Cameron, G.M.; Stapleton, B.L.; Simonsen, S.M.; Brecknell, D.J.; Garson, M.J. New Sesquiterpene and Brominated Metabolites from the Tropical Marine Sponge Dysidea sp. Tetrahedron 2000, 56, 5247–5252. [Google Scholar] [CrossRef]
  23. Bell, J.J.; Smith, D. Ecology of Sponge Assemblages (Porifera) in the Wakatobi Region, South-East Sulawesi, Indonesia: Richness and Abundance. J. Mar. Biol. Assoc. U.K 2004, 84, 581–591. [Google Scholar] [CrossRef]
  24. de Voogd, N.J.; Cleary, D.F.R.; Hoeksema, B.W.; Noor, A.; van Soest, R.W.M. Sponge Beta Diversity in the Spermonde Archipelago, SW Sulawesi, Indonesia. Mar. Ecol. Prog. Ser. 2006, 309, 131–142. [Google Scholar] [CrossRef]
  25. de Voogd, N.J.; Becking, L.E.; Cleary, D.F. Sponge Community Composition in the Derawan Islands, NE Kalimantan, Indonesia. Mar. Ecol. Prog. Ser. 2009, 396, 169–180. [Google Scholar] [CrossRef]
  26. Powell, A.L.; Hepburn, L.J.; Smith, D.J.; Bell, J.J. Patterns of Sponge Abundance Across a Gradient of Habitat Quality in The Wakatobi Marine National Park, Indonesia. Open. Mar. Biol. J. 2010, 4, 31–38. [Google Scholar] [CrossRef] [Green Version]
  27. Putra, M.Y.; Hadi, T.A. Chemical Composition, Antimicrobial, Cytotoxic and Antiplasmodial Activities of Three Sponges from Buton Islands, Indonesia. Indones. J. Mar. Sci. Ilmu Kelaut. 2017, 22, 147–154. [Google Scholar] [CrossRef]
  28. Hanif, N.; Tanaka, J.; Setiawan, A.; Trianto, A.; de Voogd, N.J.; Murni, A.; Tanaka, C.; Higa, T. Polybrominated Diphenyl Ethers from the Indonesian Sponge Lamellodysidea herbacea. J. Nat. Prod. 2007, 70, 432–435. [Google Scholar] [CrossRef] [PubMed]
  29. Hanif, N.; Ardan, M.S.; Tohir, D.; Setiawan, A.; de Voogd, N.J.; Farid, M.; Murni, A.; Tanaka, J. Polybrominated Diphenyl Ethers with Broad Spectrum Antibacterial Activity from the Indonesian Marine Sponge Lamellodysidea herbacea. J. App. Pharm. Sci. 2019, 9, 1–6. [Google Scholar] [CrossRef] [Green Version]
  30. Handayani, D.; Edrada, R.A.; Proksch, P.; Wray, V.; Witte, L.; Van Soest, R.W.; Kunzmann, A.; Soedarsono. Four New Bioactive Polybrominated Diphenyl Ethers of the Sponge Dysidea herbacea from West Sumatra, Indonesia. J. Nat. Prod. 1997, 60, 1313–1316. [Google Scholar] [CrossRef] [Green Version]
  31. Torii, M.; Kato, H.; Hitora, Y.; Angkouw, E.D.; Mangindaan, R.E.P.; de Voogd, N.J.; Tsukamoto, S. Lamellodysidines A and B, Sesquiterpenes Isolated from the Marine Sponge Lamellodysidea herbacea. J. Nat. Prod. 2017, 80, 2536–2541. [Google Scholar] [CrossRef] [PubMed]
  32. Arai, M.; Shin, D.; Kamiya, K.; Ishida, R.; Setiawan, A.; Kotoku, N.; Kobayashi, M. Marine Spongean Polybrominated Diphenyl Ethers, Selective Growth Inhibitors against the Cancer Cells Adapted to Glucose Starvation, Inhibits Mitochondrial Complex II. J. Nat. Med. 2017, 71, 44–49. [Google Scholar] [CrossRef]
  33. Yamazaki, H.; Sumilat, D.A.; Kanno, S.; Ukai, K.; Rotinsulu, H.; Wewengkang, D.S.; Ishikawa, M.; Mangindaan, R.E.; Namikoshi, M. A Polybromodiphenyl Ether from an Indonesian Marine Sponge Lamellodysidea herbacea and Its Chemical Derivatives Inhibit Protein Tyrosine Phosphatase 1B, an Important Target for Diabetes Treatment. J. Nat. Med. 2013, 67, 730–735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Kapojos, M.M.; Abdjul, D.B.; Yamazaki, H.; Kirikoshi, R.; Takahashi, O.; Rotinsulu, H.; Wewengkang, D.S.; Sumilat, D.A.; Ukai, K.; Namikoshi, M. Protein Tyrosine Phosphatase 1B Inhibitory Polybromobiphenyl Ethers and Monocyclofarnesol-type Sesquiterpenes from the Indonesian Marine Sponge Lamellodysidea cf. herbacea. Phytochem. Lett. 2018, 24, 10–14. [Google Scholar] [CrossRef]
  35. Kamyab, E.; Rohde, S.; Kellermann, M.Y.; Schupp, P.J. Chemical Defense Mechanisms and Ecological Implications of Indo-Pacific Holothurians. Molecules 2020, 25, 4808. [Google Scholar] [CrossRef] [PubMed]
  36. Petersen, L.-E.; Moeller, M.; Versluis, D.; Nietzer, S.; Kellermann, M.Y.; Schupp, P.J. Mono-and Multispecies Biofilms from a Crustose Coralline Alga Induce Settlement in the Scleractinian Coral Leptastrea purpurea. Coral Reefs 2021, 40, 381–394. [Google Scholar] [CrossRef]
  37. Zhang, H.; Skildum, A.; Stromquist, E.; Rose-Hellekant, T.; Chang, L.C. Bioactive Polybrominated Diphenyl Ethers from the Marine Sponge Dysidea sp. J. Nat. Prod. 2008, 71, 262–264. [Google Scholar] [CrossRef] [PubMed]
  38. Salam, K.A.; Furuta, A.; Noda, N.; Tsuneda, S.; Sekiguchi, Y.; Yamashita, A.; Moriishi, K.; Nakakoshi, M.; Tani, H.; Roy, S.R.; et al. PBDE: Structure-activity Studies for the Inhibition of Hepatitis C Virus NS3 Helicase. Molecules 2014, 19, 4006–4020. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Blunt, J.W.; Munro, M.H. MarinLit Online Database. Available online: https://pubs.rsc.org/marinlit (accessed on 16 June 2021).
  40. Suyama, T.L.; Cao, Z.; Murray, T.F.; Gerwick, W.H. Ichthyotoxic Brominated Diphenyl Ethers from a Mixed Assemblage of a Red Alga and Cyanobacterium: Structure Clarification and Biological Properties. Toxicon 2010, 55, 204–210. [Google Scholar] [CrossRef] [Green Version]
  41. Utkina, N.K.; Kazantseva, M.V.; Denisenko, V.A. Brominated Diphenyl Ethers from the Marine Sponge Dysidea fragilis. Chem. Nat. Compd. 1987, 23, 508–509. [Google Scholar] [CrossRef]
  42. Salva, J.; Faulkner, D.J. A New Brominated Diphenyl Ether from a Philippine Dysidea Species. J. Nat. Prod. 1990, 53, 757–760. [Google Scholar] [CrossRef]
  43. Köck, M.; Junker, J.; Maier, W.; Will, M.; Lindel, T. A Cocon Analysis of Proton-Poor Heterocycles–Application of Carbon Chemical Shift Predictions for the Evaluation of Structural Proposals. Eur. J. Org. Chem. 1999, 579–586. [Google Scholar] [CrossRef]
  44. Junker, J.; Maier, W.; Lindel, T.; Köck, M. Computer-Assisted Constitutional Assignment of Large Molecules:  Cocon Analysis of Ascomycin. Org. Lett. 1999, 1, 737–740. [Google Scholar] [CrossRef]
  45. Meiler, J.; Sanli, E.; Junker, J.; Meusinger, R.; Lindel, T.; Will, M.; Maier, W.; Köck, M. Validation of Structural Proposals by Substructure Analysis and 13C NMR Chemical Shift Prediction. J. Chem. Inf. Comput. Sci. 2002, 42, 241–248. [Google Scholar] [CrossRef]
  46. Meiler, J.; Köck, M. Novel Methods of Automated Structure Elucidation Based on 13C NMR Spectroscopy. Magn. Reson. Chem. 2004, 42, 1042–1045. [Google Scholar] [CrossRef] [PubMed]
  47. NMRPredict; Version 5.1.29; Modgraph Consultants Ltd: Welwyn, UK.
  48. Steinbeck, C.; Krause, S.; Kuhn, S. NMRShiftDBConstructing a Free Chemical Information System with Open-Source Components. J. Chem. Inf. Comput. Sci. 2003, 43, 1733–1739. [Google Scholar] [CrossRef] [Green Version]
  49. Robien, W. The Advantage of Automatic Peer-Reviewing of 13C-NMR Reference Data Using the CSEARCH-Protocol. Molecules 2021, 26, 3413. [Google Scholar] [CrossRef]
  50. Bowden, B.F.; Towerzey, L.; Junk, P.C. A New Brominated Diphenyl Ether from the Marine Sponge Dysidea herbacea. Aust. J. Chem. 2000, 53, 299–301. [Google Scholar] [CrossRef]
  51. Sharma, G.M.; Vig, B. Studies on Antimicrobial Substances of Sponges. VI. Structures of two Antibacterial Substances Isolated from Marine Sponge Dysidea herbacea. Tetrahedron Lett. 1972, 17, 1715–1718. [Google Scholar] [CrossRef]
  52. Agrawal, M.S.; Bowden, B.F. Marine Sponge Dysidea herbacea Revisited: Another Brominated Diphenyl Ether. Mar. Drugs 2005, 3, 9–14. [Google Scholar] [CrossRef] [Green Version]
  53. Fu, X.; Schmitz, F.J. New Brominated Diphenyl Ether from an Unidentified Species of Dysidea Sponge. C-13 NMR Data for Some Brominated Diphenyl Ethers. J. Nat. Prod. 1996, 59, 1102–1103. [Google Scholar] [CrossRef] [PubMed]
  54. Pedradab, S. Isolation and Structure Elucidation of Secondary Metabolites from Marine Sponges and a Marine-derived Fungus. Doctoral Dissertation, Heinrich-Heine Universität, Düsseldorf, Germany, 2005. [Google Scholar]
  55. Utkina, N.K.; Likhatskaya, G.N.; Balabanova, L.A.; Bakunina, I.Y. Sponge-derived Polybrominated Diphenyl Ethers and Dibenzo-p-dioxins, Irreversible Inhibitors of the Bacterial α-d-galactosidase. Environ. Sci. Process. Impacts 2019, 21, 1754–1763. [Google Scholar] [CrossRef]
  56. Ortlepp, S.; Pedpradap, S.; Dobretsov, S.; Proksch, P. Antifouling Activity of Sponge-derived Polybrominated Diphenyl Ethers and Synthetic Analogues. Biofouling 2008, 24, 201–208. [Google Scholar] [CrossRef]
  57. Pennings, S.C.; Pablo, S.R.; Paul, V.J.; Duffy, J.E. Effects of Sponge Secondary Metabolites in Different Diets on Feeding by Three Groups of Consumers. J. Exp. Mar. Bio. Ecol. 1994, 180, 137–149. [Google Scholar] [CrossRef]
  58. Faulkner, D.J.; Unson, M.D.; Bewley, C.A. The Chemistry of Some Sponges and Their Symbionts. Pure Appl. Chem. 1994, 66, 1983–1990. [Google Scholar] [CrossRef]
  59. Becerro, M.A.; Starmer, J.A.; Paul, V.J. Chemical Defenses of Cryptic and Aposematic Gastropterid Molluscs Feeding on Their Host Sponge Dysidea granulosa. J. Chem. Ecol. 2006, 32, 1491–1500. [Google Scholar] [CrossRef]
  60. Andree, K.B.; Carrasco, N.; Carella, F.; Furones, D.; Prado, P. Vibrio mediterranei, a Potential Emerging Pathogen of Marine Fauna: Investigation of Pathogenicity Using a Bacterial Challenge in Pinna nobilis and Development of A Species-specific PCR. J. Appl. Microbiol. 2021, 130, 617–631. [Google Scholar] [CrossRef]
  61. Denner, E.B.; Smith, G.W.; Busse, H.-J.; Schumann, P.; Narzt, T.; Polson, S.W.; Lubitz, W.; Richardson, L.L. Aurantimonas coralicida gen. nov., sp. nov., the Causative Agent of White Plague Type II on Caribbean Scleractinian Corals. Int. J. Syst. Evol. Microbiol. 2003, 53, 1115–1122. [Google Scholar] [CrossRef] [PubMed]
  62. Lotte, L.; Sindt, A.; Ruimy, R.; Neri, D.; Lotte, R.; Weiss, N.; Vassallo, M. Description of the First Case of Catheter-Related Bloodstream Infection Due to Pantoea eucrina in a Cancer Patient. SN Compr. Clin. Med. 2019, 1, 142–145. [Google Scholar] [CrossRef] [Green Version]
  63. Kitamura, Y.; Sawabe, E.; Ohkusu, K.; Tojo, N.; Tohda, S. First Report of Sepsis Caused by Rhodococcus corynebacterioides in a Patient with Myelodysplastic Syndrome. J. Clin. Microbiol. 2012, 50, 1089–1091. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Wirth, F.; Goldani, L.Z. Epidemiology of Rhodotorula: An Emerging Pathogen. Interdiscip. Perspect. Infect. Dis. 2012, 2012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Nagahama, T.; Hamamoto, M.; Nakase, T.; Takami, H.; Horikoshi, K. Distribution and Identification of Red Yeasts in Deep-sea Environments around the Northwest Pacific Ocean. Antonie Van Leeuwenhoek 2001, 80, 101–110. [Google Scholar] [CrossRef]
  66. Gharaghani, M.; Taghipour, S.; Mahmoudabadi, A.Z. Molecular Identification, Biofilm Formation and Antifungal Susceptibility of Rhodotorula spp. Mol. Biol. Rep. 2020, 47, 8903–8909. [Google Scholar] [CrossRef] [PubMed]
  67. Malakar, B.; Venu, S.; Samuel, V.D.; Abhilash, K. Increasing Signs of Degradation of Shallow Water Coral Reefs Due to Repeated Bleaching and Spatial Competition among Benthic Substrates. Wetl. Ecol. Manag. 2020, 1–7. [Google Scholar] [CrossRef]
  68. Powell, A.; Smith, D.J.; Hepburn, L.J.; Jones, T.; Berman, J.; Jompa, J.; Bell, J.J. Reduced Diversity and High Sponge Abundance on a Sedimented Indo-Pacific Reef System: Implications for Future Changes in Environmental Quality. PLoS ONE 2014, 9, 1–14. [Google Scholar] [CrossRef] [PubMed]
  69. Pawlik, J.R.; Chanas, B.; Toonen, R.J.; Fenical, W. Defenses of Caribbean Sponges against Predatory Reef Fish. I. Chemical Deterrency. Mar. Ecol. Prog. Ser. 1995, 127, 183–194. [Google Scholar] [CrossRef] [Green Version]
  70. Helber, S.B.; de Voogd, N.J.; Muhando, C.A.; Rohde, S.; Schupp, P.J. Anti-predatory Effects of Organic Extracts of 10 Common Reef Sponges from Zanzibar. Hydrobiologia 2016, 790, 247–258. [Google Scholar] [CrossRef]
  71. Rohde, S.; Nietzer, S.; Schupp, P.J. Prevalence and Mechanisms of Dynamic Chemical Defenses in Tropical Sponges. PLoS ONE 2015, 10, e0132236. [Google Scholar] [CrossRef]
  72. Helber, S.B.; Hoeijmakers, D.J.J.; Muhando, C.A.; Rohde, S.; Schupp, P.J. Sponge Chemical Defenses are a Possible Mechanism for Increasing Sponge Abundance on Reefs in Zanzibar. PLoS ONE 2018, 13. [Google Scholar] [CrossRef]
  73. Okanya, P.W.; Mohr, K.I.; Gerth, K.; Jansen, R.; Müller, R. Marinoquinolines A− F, Pyrroloquinolines from Ohtaekwangia kribbensis (Bacteroidetes). J. Nat. Prod. 2011, 74, 603–608. [Google Scholar] [CrossRef]
  74. Khosravi Babadi, Z.; Ebrahimipour, G.; Wink, J.; Narmani, A.; Risdian, C. Isolation and Identification of Streptomyces sp. Act4Zk, A Good Producer of Staurosporine and Some Derivatives. Lett. Appl. Microbiol. 2021, 72, 206–218. [Google Scholar] [CrossRef] [PubMed]
  75. Ciesek, S.; von Hahn, T.; Colpitts, C.C.; Schang, L.M.; Friesland, M.; Steinmann, J.; Manns, M.P.; Ott, M.; Wedemeyer, H.; Meuleman, P.; et al. The Green Tea Polyphenol, Epigallocatechin-3-gallate, Inhibits Hepatitis C Virus Entry. Hepatology 2011, 54, 1947–1955. [Google Scholar] [CrossRef] [PubMed]
Marinedrugs 19 00611 g001 550

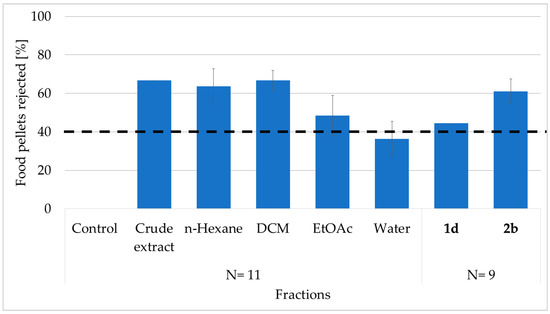

Figure 1. Feeding deterrence activity (%) of the crude extract, fractions (HEX, DCM, EtOAc, and H2O), and pure PBDEs (1d and 2b) of L. herbacea against the pufferfish C. solandri (N = number of specimens tested in the assays). Bars represent the percent of rejected food pellets by the pufferfish (mean ± SD). The dashed line at 40% refers to significance in deterrence p < 0.05 (Fisher’s exact test). Control pellets contained no extract (only MeOH).
Figure 1. Feeding deterrence activity (%) of the crude extract, fractions (HEX, DCM, EtOAc, and H2O), and pure PBDEs (1d and 2b) of L. herbacea against the pufferfish C. solandri (N = number of specimens tested in the assays). Bars represent the percent of rejected food pellets by the pufferfish (mean ± SD). The dashed line at 40% refers to significance in deterrence p < 0.05 (Fisher’s exact test). Control pellets contained no extract (only MeOH).
Marinedrugs 19 00611 g001
Marinedrugs 19 00611 g002 550
Figure 2. Total antibacterial activities of the crude extract and its organic fractions of the marine sponge L. herbacea. Y-axis shows inhibition zones in mm ± 1 SD for each tested strain. Gram-positive strains: 1656: Streptomyces flavoviridis; 1682 *: Rhodococcus corynebacterioides; 1686: Exiguobacterium profundum; 1714: Mycobacterium franklinii. Gram-negative strains: 0852 *: Acitenobacter soli; 1334 *: Aliagarivorans marinus; 1668: Ruegeria areniliotoris; 1678 *: Acinetobacter calcoaceticus; 1721: Microbulbifer variabilis; 1792: Pseudovibrio denitrificans; 1809: Ruegeria areniliticus; 1810 *: Pantoea eucrina; WHV1 *: Aurantimonas coralicida, WHV3 *: Vibrio mediterranei. (*): potentially pathogenic environmental bacteria.
Figure 2. Total antibacterial activities of the crude extract and its organic fractions of the marine sponge L. herbacea. Y-axis shows inhibition zones in mm ± 1 SD for each tested strain. Gram-positive strains: 1656: Streptomyces flavoviridis; 1682 *: Rhodococcus corynebacterioides; 1686: Exiguobacterium profundum; 1714: Mycobacterium franklinii. Gram-negative strains: 0852 *: Acitenobacter soli; 1334 *: Aliagarivorans marinus; 1668: Ruegeria areniliotoris; 1678 *: Acinetobacter calcoaceticus; 1721: Microbulbifer variabilis; 1792: Pseudovibrio denitrificans; 1809: Ruegeria areniliticus; 1810 *: Pantoea eucrina; WHV1 *: Aurantimonas coralicida, WHV3 *: Vibrio mediterranei. (*): potentially pathogenic environmental bacteria.
Marinedrugs 19 00611 g002
Marinedrugs 19 00611 g003 550
Figure 3. (a) shows the inhibition of infectivity by the Hepatitis C Virus (HCV). (b) illustrates the viability of Huh7.5 cells after the exposure of the tested crude extract. Bars represent the inhibition including the standard deviation (SD). MeOH was used as a negative control (NC), and epigallocatechin gallate (EGCG) was used as a positive control.
Figure 3. (a) shows the inhibition of infectivity by the Hepatitis C Virus (HCV). (b) illustrates the viability of Huh7.5 cells after the exposure of the tested crude extract. Bars represent the inhibition including the standard deviation (SD). MeOH was used as a negative control (NC), and epigallocatechin gallate (EGCG) was used as a positive control.
Marinedrugs 19 00611 g003
Marinedrugs 19 00611 g004 550
Figure 4. Four constitutional isomers of PBDEs are given to evaluate their 13C NMR chemical shift deviation (1a)–(1d) and to compare them to compound 1d from our work. Penta-BDE, 3,4,5,6-tetrabromo-2-(2′-bromophenoxy)phenol (2a) that was first reported by Salva and Faulkner [42] is shown as a comparison to compound 2b in our study.
Figure 4. Four constitutional isomers of PBDEs are given to evaluate their 13C NMR chemical shift deviation (1a)–(1d) and to compare them to compound 1d from our work. Penta-BDE, 3,4,5,6-tetrabromo-2-(2′-bromophenoxy)phenol (2a) that was first reported by Salva and Faulkner [42] is shown as a comparison to compound 2b in our study.
Marinedrugs 19 00611 g004
Marinedrugs 19 00611 g005 550
Figure 5. Comparison of the averaged 13C chemical shift deviations of the experimental to predicted values of constitutional isomers 1a to 1d (bars 1 to 4) and experimental data from the literature (bars 5 to 10). Bars 5 and 6 represent the two constitutional isomers described by Bowden et al., 2000 [50], which are identical to 1b and 1d in the current work. Green bars indicate deviations of 1 ppm or less (exception bars 8 and 10), whereas red bars indicate 2 ppm or higher deviations. Compound numbers were mentioned in the original publication: (5) Bowden et al., 2000 [50]—compound No. 1; (6) Bowden et al., 2000 [50]—compound No. 2 and Agarwal and Bowden 2005 [52] compound No. 3; (7) Fu and Schmitz 1996 [53]—compound No. 5; (8) Pedradab 2005 [54] compound No. 12; (9) Fu et al., 1995 [21]—compound No. 13; (10) Utkina et al., 2019 [55]—compound No. 2 (DMSO-d6).
Figure 5. Comparison of the averaged 13C chemical shift deviations of the experimental to predicted values of constitutional isomers 1a to 1d (bars 1 to 4) and experimental data from the literature (bars 5 to 10). Bars 5 and 6 represent the two constitutional isomers described by Bowden et al., 2000 [50], which are identical to 1b and 1d in the current work. Green bars indicate deviations of 1 ppm or less (exception bars 8 and 10), whereas red bars indicate 2 ppm or higher deviations. Compound numbers were mentioned in the original publication: (5) Bowden et al., 2000 [50]—compound No. 1; (6) Bowden et al., 2000 [50]—compound No. 2 and Agarwal and Bowden 2005 [52] compound No. 3; (7) Fu and Schmitz 1996 [53]—compound No. 5; (8) Pedradab 2005 [54] compound No. 12; (9) Fu et al., 1995 [21]—compound No. 13; (10) Utkina et al., 2019 [55]—compound No. 2 (DMSO-d6).
Marinedrugs 19 00611 g005
Table
Table 1. The minimum inhibitory concentrations (MIC) of the crude extract, its fractions, and compounds 1d and 2b against different human pathogenic bacteria and fungi. If the activity of the crude extract was not pronounced (> 66.7 µg/mL) and if the fractions or pure compound amounts were limited, no further testing was conducted with the strain. Test compound activities were compared to the positive controls: gentamicin, tetracycline, and nystatin.
Table 1. The minimum inhibitory concentrations (MIC) of the crude extract, its fractions, and compounds 1d and 2b against different human pathogenic bacteria and fungi. If the activity of the crude extract was not pronounced (> 66.7 µg/mL) and if the fractions or pure compound amounts were limited, no further testing was conducted with the strain. Test compound activities were compared to the positive controls: gentamicin, tetracycline, and nystatin.
SampleMIC [µg/mL]
Gram-Positive StrainsGram-Negative StrainsFungi
BsSaMsEcPaeAbRgMhCaPa
Crude Extract0.50.566.766.7>66.78.31.00.5>66.72.1
HEX0.50.5n.t.1.0n.t.2.10.50.5n.t.1.0
DCM0.50.5n.t.1.0n.t.1.00.51.0n.t.0.5
EtOAc1.04.2n.t.>66.7n.t.>66.716.716.7n.t.33.3
H2O66.7>66.7n.t.>66.7n.t.>66.7n.t.>66.7n.t.>66.7
1d0.50.5n.t.>66.7n.t.16.74.28.3n.t.4.2
2b0.52.1n.t.>66.7n.t.>66.72.18.3n.t.13.9
Gentamicinn.t.0.5n.t.0.5n.t.2.8n.t.n.t.n.t.n.t.
Tetracycline2.8n.t.n.t.n.t.n.t.n.t.n.t.n.t.n.t.n.t.
Nystatinn.t.n.t.n.t.n.t.n.t.n.t.33.38.3n.t.5.6
Gram-positive strains: Bs: Bacillus subtilis; Sa: Staphylococcus aureus; Ms: Mycobacterium smegmatis. Gram-negative strains: Ec: Escherichia coli; Pae: Pseudomonas aeruginosa; Ab: Acinetobacter baumannii. Fungi: Rg: Rhodotorula glutinis; Mh: Mucor hiemalis; Ca: Candida albicans; Pa: Pichia anomala; other abbreviations: n.t.: not tested.
Table
Table 2. MS data for the two isolated compounds 1d and 2b. The exact masses of both compounds were compared to the compounds in the MarinLit database (±0.005 Dalton).
Table 2. MS data for the two isolated compounds 1d and 2b. The exact masses of both compounds were compared to the compounds in the MarinLit database (±0.005 Dalton).
CompoundObserved MSResult in MarinLitReferences
1d574.6137 [M−H]− 575.6210 [M]3,4,5-tribromo-2-(2′,4′-dibromophenoxy)phenol
[M] = 575.6210		[40]
2b652.5246 [M−H]− 653.5318 [M]3,4,5,6-tetrabromo-2-(2′,4′-dibromophenoxy)phenol
[M] = 653.5315		[41]
Table
Table 3. Comparison of 1H NMR data of compound 1d with related structures reported in previous studies.
Table 3. Comparison of 1H NMR data of compound 1d with related structures reported in previous studies.
Position1d
(This Work)		Literature Data
Sharma and Vig 1972
1d		Carte and Faulkner 1981
1d		Bowdenet al., 2000
1b		Bowdenet al., 2000
1d		Fu and Schmitz 1996
1d		Pedpradab 2005
1d		Fu et al., 1995
1d		Fu et al., 1995
1d		Fu et al., 1995
1d		Sumaya et al., 2010
1d		Utkina et al., 2019
1d
δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)δ(1H)
1OHOHOHOHOHOHOHOHOHOHOHOH
2OROROROROROROROROROROROR
3BrBrBrBrBrBrBrBrBrBrBrBr
4BrBrBr7.55BrBrBrBrBrBrBrBr
5BrBrBrBrBrBrBrBrBrBrBrBr
67.457.507.42Br7.427.437.417.427.517.387.447.45
1′OHOHOHOHOHOHOHOHOHOHOHOH
2′BrBrBrBrBrBrBrBrBrBrBrBr
3′7.807.807.767.787.797.847.857.777.827.787.797.90
4′BrBrBrBrBrBrBrBrBrBrBrBr
5′7.317.387.267.287.297.357.317.277.397.287.297.40
6′6.426.566.416.416.416.517.856.386.636.426.416.51
The 1H chemical shifts of compound 1d (this work, solvent CDCl3) were compared to literature data (the atom numbering of Bowden et al., 2000 [50] was used for all literature data). Compound source of the literature comparison (compound numbers and solvents used mentioned in the original publication): Sharma and Vig 1972 [51]—compound No. 1 (D2O); Carte and Faulkner 1981 [20]—compound No. 1 (CCl4); Bowden et al., 2000 [50]—compound No. 1(CDCl3); Bowden et al., 2000 [50]—compound No. 2 (CDCl3) also mentioned in Agarwal and Bowden 2005 [52]—compound No. 3 (CDCl3); Fu and Schmitz 1996 [53]—compound No. 5 (DMSO-d6); Pedradab 2005 [54]—compound No. 12 (DMSO-d6); Fu et al., 1995 [21]—compound No. 13 (CDCl3), (Acetone-d6), (DMSO-d6); Suyama et al., 2010 [40]—compound No. 1b (CDCl3); Utkina et al., 2019 [55]—compound No. 2 (DMSO-d6).
Table
Table 4. 13C NMR data of compound 1d compared to predicted values and literature data for other similar compounds.
Table 4. 13C NMR data of compound 1d compared to predicted values and literature data for other similar compounds.
Positionδ13C [ppm]
1d (This Work)1a *1b *1c *1d *Bowden et al., 2000-1bBowden et al., 2000-1dFu and Schmitz 1996-1dPedpradab 2005-1dFu et al., 1995-1dSumaya et al., 2010-1dUtkina et al., 2019-1d
1148.9150.2148.3146.7151.5148.1148.9150.8151.4150.9148.9150.8
2139.5143.8138.7140.9139.5138.7139.9139.5139.7139.7139.5139.4
3121.1122.1116.8120.2121.4116.7113.6121.5121.9121.6121.1121.6
4119.2115.5128.0116.1116.1128.0119.3115.9116.2116.1119.2116.0
5122.9121.8122.1132.8121.7122.2122.9121.5122.2121.7122.9121.6
6120.7116.5113.3109.8121.0113.4120.8120.7121.9120.9120.7120.5
1′151.7152.1152.1152.2152.3152.1151.8152.3152.6152.4151.7152.3
2′112.7115.0112.6112.4111.9112.6112.8111.7111.9111.9112.7111.8
3′136.3135.4135.7135.7135.7136.1136.4135.1135.9135.3136.3135.1
4′116.2116.1116.1116.1116.1115.8116.3114.1114.5116.0116.2114.0
5′131.6132.6131.4131.4131.4131.3131.6131.5131.9131.6131.6131.7
6′115.7120.8121.9116.9115.8115.8115.8115.9114.5114.4115.7115.9
The 13C chemical shifts of compound 1d (this work) were compared to predicted values and literature data (the atom numbering of Bowden et al., 2000 [50] was used for all literature data). The columns with the calculated 13C chemical shift values (columns 3 to 6) using NMRPredict are indicated by an asterisk (*). The carbon atoms C-3 to C-6 were not explicitly assigned for the prediction of the constitutional isomers 1a to 1c due to very similar 13C chemical shifts (119.2 to 122.9 ppm). Columns 7 to 13 represent reported literature data. Compound source of the literature comparison (compound numbers and solvents used were mentioned in the original publication): Bowden et al., 2000 [50]—compound No. 1 (CDCl3); Bowden et al., 2000 [50]—compound No. 2 (CDCl3) also mentioned in Agarwal and Bowden 2005 [52]—compound No. 3 (CDCl3); Fu and Schmitz 1996 [53]—compound No. 5 (DMSO-d6); Pedradab 2005 [54]—compound No. 12 (DMSO-d6); Fu et al., 1995 [21]—compound No. 13 (DMSO-d6); Suyama et al., 2010 [40]—compound No. 1b (CDCl3); Utkina et al., 2019 [55]—compound No. 2 (DMSO-d6).
Table
Table 5. Comparison of 1H NMR data of compound 2b with related structures reported in previous studies.
Table 5. Comparison of 1H NMR data of compound 2b with related structures reported in previous studies.
Position2b
(This Work)		Literature Data
Utkina et al., 1987
2b		Salva and Faulkner 1990
2a
δ(1H)δ(1H)δ(1H)
1OHOHOH
2OROROR
3BrBrBr
4BrBrBr
5BrBrBr
6BrBrBr
1′OROROR
2′BrBrBr
3′7.807.796.52
4′BrBr6.99
5′7.307.297.18
6′6.416.427.65
The 1H chemical shifts of compound 2b (this work, solvent: CDCl3) were compared to literature data (the atom numbering of Salva and Faulkner [42] was used for all literature data). The compound was confirmed to be identical to compound No. 1 (original publication) in Utkina et al., 1987 [41], which was recently reisolated [55]. Compound source of the literature comparison (all the compound numbers were mentioned in the original publication): Utkina et al., 1987 [41]—compound No. 1 (CDCl3) and Utkina et al., 2019 [55]—compound No. 3 (DMSO-d6); Salva and Faulkner 1990 [50]—compound No. 1 (CDCl3). Compound 2b has also been isolated by Handayani et al., 1997 [30], Zhang et al., 2008 [37], and Suyama et al., 2010 [40]. However, chemical shift comparison could not be performed due to the lack of 1H and 13C NMR data for the related compounds. Therefore, to achieve a close comparison, we used compound 2a from Salva and Faulkner [42], which is similar to compound 2b with an identical A-ring.
Table
Table 6. 13C NMR data of compound 2b compared to predicted values and literature data for similar compounds.
Table 6. 13C NMR data of compound 2b compared to predicted values and literature data for similar compounds.
Positionδ13C [ppm]
2b
(This Work)		2b *Utkina et al., 1987
2b		Salva and Faulkner 1990
2a		2a *
1146.8147.3148.8147.3147.3
2139.2139.8139.8139.5139.5
3121.0120.9117.2120.9120.9
4125.6120.1125.2125.5120.1
5119.7119.4119.8119.4119.4
6114.2114.0115.8114.0114.0
1′151.9152.2152.0152.4152.4
2′112.7112.4112.1111.6111.5
3′136.2135.7135.0134.0133.9
4′115.7116.1114.3124.6125.3
5′131.4131.4131.3128.6128.6
6′116.0116.9116.1114.5114.5
Predicted chemical shift values for 2a * and 2b * were added to clarify the structure of our work. An asterisk (*) represents the calculation result of the 13C chemical shift values using NMRPredict. Compound 2b (this work, solvent: CDCl3) was identical to Utkina et al., 1987 [41]—compound No. 1 (DMSO-d6), which was recently reisolated [55]. Compound 2a [42] was used as a comparison for structure 2b, which differs by one less bromine at C-4′ in the B-ring. Compound 2b has also been isolated by Handayani et al., 1997 [30], Zhang et al., 2008 [37] and Suyama et al., 2010 [40]. However, a chemical shift comparison was not included due to a lack of 1H and 13C NMR data.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Faisal, M.R.; Kellermann, M.Y.; Rohde, S.; Putra, M.Y.; Murniasih, T.; Risdian, C.; Mohr, K.I.; Wink, J.; Praditya, D.F.; Steinmann, E.; et al. Ecological and Pharmacological Activities of Polybrominated Diphenyl Ethers (PBDEs) from the Indonesian Marine Sponge Lamellodysidea herbacea. Mar. Drugs 2021, 19, 611. https://doi.org/10.3390/md19110611

AMA Style

Faisal MR, Kellermann MY, Rohde S, Putra MY, Murniasih T, Risdian C, Mohr KI, Wink J, Praditya DF, Steinmann E, et al. Ecological and Pharmacological Activities of Polybrominated Diphenyl Ethers (PBDEs) from the Indonesian Marine Sponge Lamellodysidea herbacea. Marine Drugs. 2021; 19(11):611. https://doi.org/10.3390/md19110611

Chicago/Turabian Style

Faisal, Muhammad R., Matthias Y. Kellermann, Sven Rohde, Masteria Y. Putra, Tutik Murniasih, Chandra Risdian, Kathrin I. Mohr, Joachim Wink, Dimas F. Praditya, Eike Steinmann, and et al. 2021. "Ecological and Pharmacological Activities of Polybrominated Diphenyl Ethers (PBDEs) from the Indonesian Marine Sponge Lamellodysidea herbacea" Marine Drugs 19, no. 11: 611. https://doi.org/10.3390/md19110611

APA Style

Faisal, M. R., Kellermann, M. Y., Rohde, S., Putra, M. Y., Murniasih, T., Risdian, C., Mohr, K. I., Wink, J., Praditya, D. F., Steinmann, E., Köck, M., & Schupp, P. J. (2021). Ecological and Pharmacological Activities of Polybrominated Diphenyl Ethers (PBDEs) from the Indonesian Marine Sponge Lamellodysidea herbacea. Marine Drugs, 19(11), 611. https://doi.org/10.3390/md19110611

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
