Enhypyrazinones A and B, Pyrazinone Natural Products from a Marine-Derived Myxobacterium Enhygromyxa sp.

Abstract

To date, studies describing myxobacterial secondary metabolites have been relatively scarce in comparison to those addressing actinobacterial secondary metabolites. This realization suggests the immense potential of myxobacteria as an intriguing source of secondary metabolites with unusual structural features and a wide array of biological activities. Marine-derived myxobacteria are especially attractive due to their unique biosynthetic gene clusters, although they are more difficult to handle than terrestrial myxobacteria. Here, we report the discovery of two new pyrazinone-type molecules, enhypyrazinones A and B, from a marine-derived myxobacterium Enhygromyxa sp. Their structures were elucidated by HRESIMS and comprehensive NMR data analyses. Compounds 1 and 2, which contain a rare trisubstituted-pyrazinone core, represent a unique class of molecules from Enhygromyxa sp.

1. Introduction

Myxobacteria are Gram-negative gliding bacteria with large genomes; these organisms also undergo complex multicellular developmental processes that lead to fruiting body formation [1]. Most myxobacteria have a heterotrophic lifestyle and feed on different bacteria and fungi through assorted predatory behaviors [2]. Compared to their non-predatory relatives, predatory myxobacteria possess a higher density of secondary metabolite gene clusters in their genomes; this suggests their great promise as repositories for the discovery of novel natural products [3]. Terrestrial myxobacteria usually do not tolerate NaCl concentrations greater than 1.0%, and before 2005 the vast majority of characterized myxobacteria were obtained from terrestrial habitats. Recently, however, four new genera of halotolerant and obligate marine myxobacteria, Enhygromyxa, Haliangium, Plesiocystis, and Pseudenhygromyxa, have been discovered and classified [4,5,6,7,8,9]. Although not extensively studied, the limited records of marine-derived myxobacteria indicate their immense potential as prolific producers of novel natural compounds with prominent biological activities, making these social microbes highly attractive for drug discovery [10,11,12,13,14,15,16]. The genus Enhygromyxa, in particular, has been shown to produce novel bioactive molecules, including salimabromide [17], salimyxins A and B [18], enhygrolides A and B [18], enhygromic acid [19], and deoxyenhygrolides A and B (Figure 1) [19].

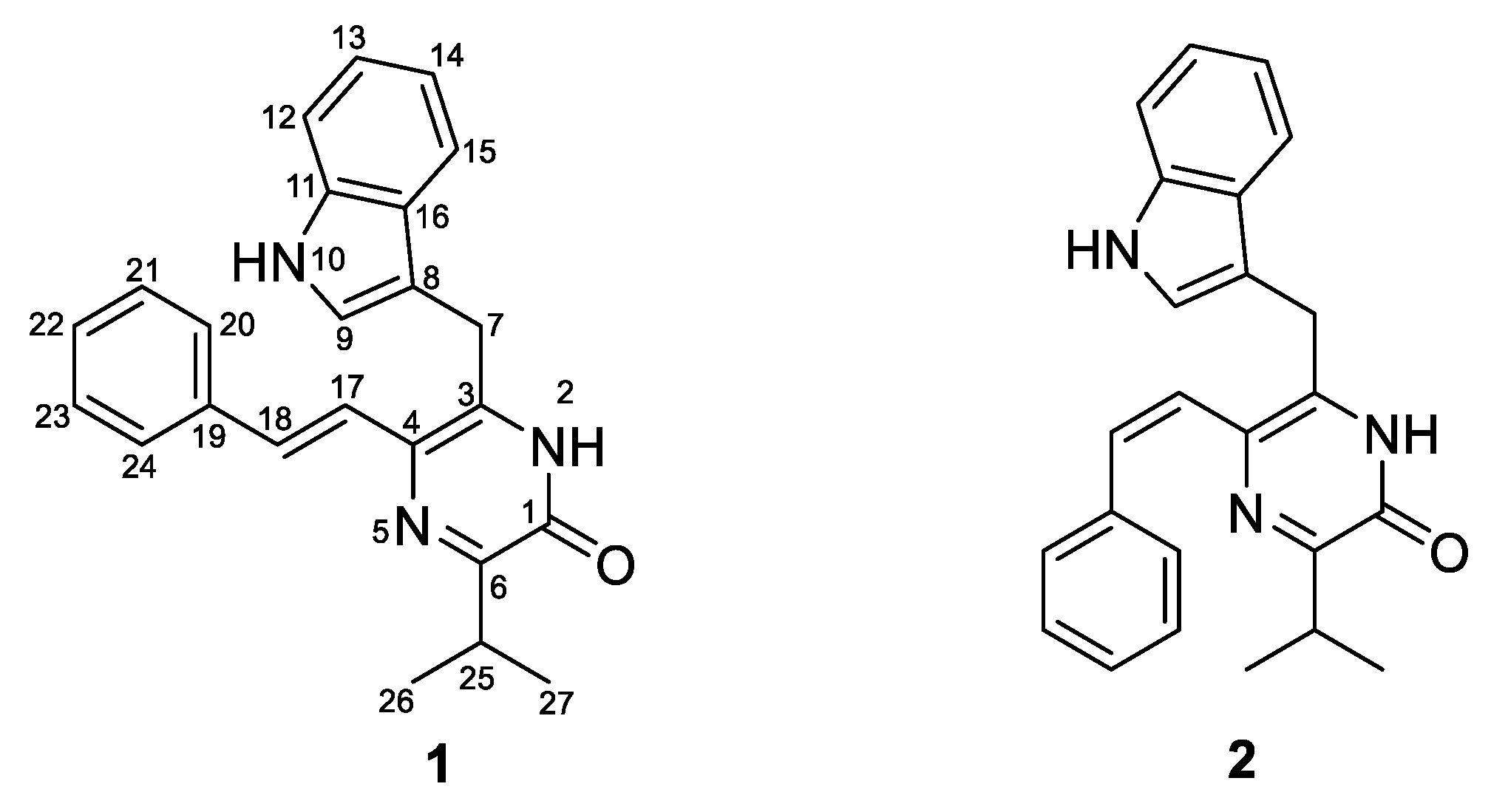

In our efforts to explore the potential of myxobacteria as a source of unique unknown natural products, we isolated a marine myxobacterium from the sponge Biemna sp., which was identified as Enhygromyxa sp. WMMC2659 by 16S sequence analysis. Metabolomics-guided fractionation of strain WMMC2695 led to the discovery of two new pyrazinone derivatives, termed here as enhypyrazinones A (1) and B (2) in Figure 2.

2. Results

2.1. Cultivation Conditions of Marine-Derived Myxobacterium Enhygromyxa sp. WMMC2695

Marine myxobacteria are particularly rare and difficult to handle, because their nutritional and metabolic growth requirements are in most cases not well understood, and need to be determined on a case-by-case basis for each strain. Until now, only a few isolates could be cultured under laboratory conditions. Unlike faster-growing microbes, nutrient-lean media are preferable for marine myxobacteria as they enable the germination of myxospores, and later support swarming of the vegetative cells [20]. Based on previous reports about conditions for isolation and cultivation of Enhygromyxa spp., Escherichia coli [17,18], half-strength yeast cell VB12 medium (VY/2) [4,19], half-strength VY/2 (VY/4) [17,19], and one-third-strength casitone yeast extract medium (1/3 CY) [4] can be used to provide nutrition for the growth of Enhygromyxa spp. Therefore, several media conditions including living E. coli, dead E. coli, VY/2, VY/4, CY, 1/3 CY, and 1/6 CY were tested for the growth of WMMC2659. R2A agar was also included as one of the testing media due to our experiences with other halotolerant myxobacterial isolates. WMMC2659 was found to be cultivable only on living and dead E. coli DH5α, while casitone-containing media seemed to inhibit the growth of WMMC2659 (

Table 1. Tested media conditions for Enhygromyxa sp. WMMC2659.

Media	E. coli	Dead E. coli	VY/2	VY/4	CY	1/3 CY	1/6 CY	R2A
Growth	Yes	Yes	No	No	No	No	No	No

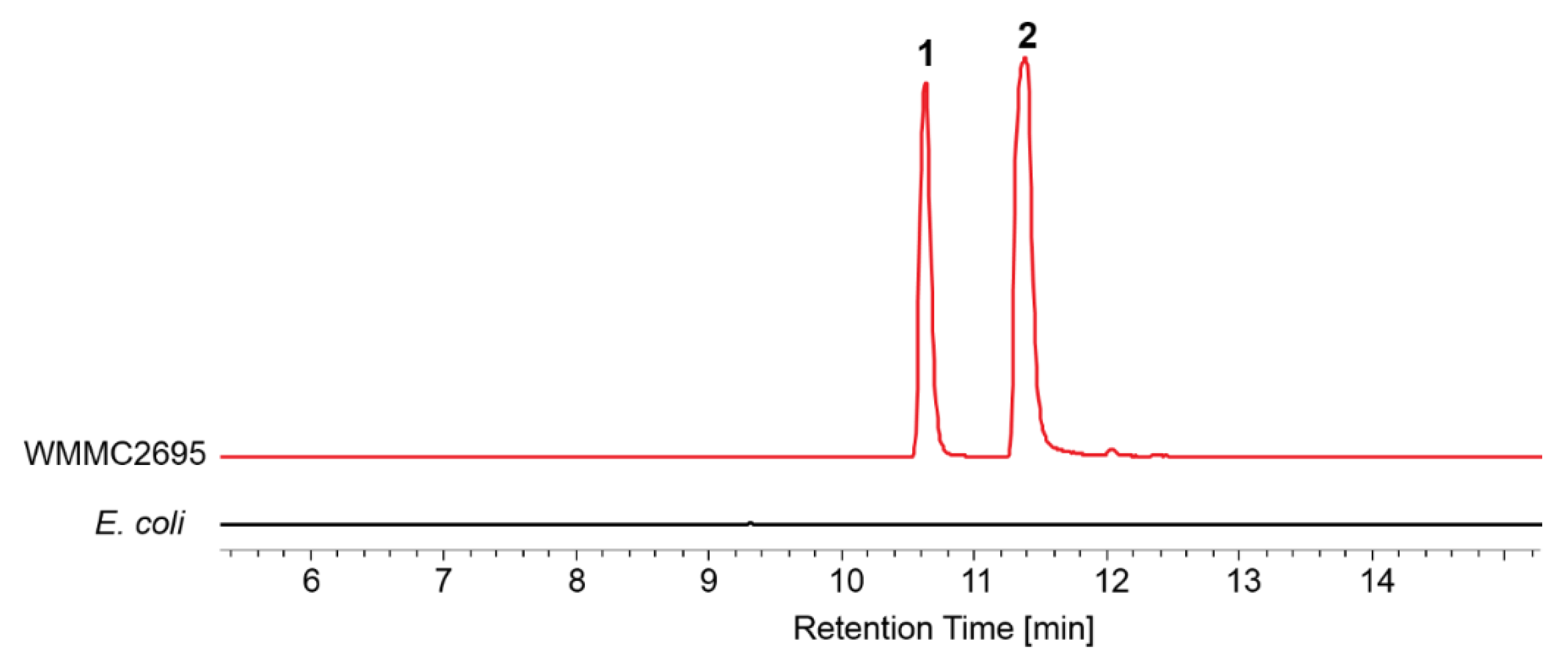

). Furthermore, the growth of WMMC2659 on autoclaved E. coli DH5α was substantially impaired compared to similar systems employing live cells. More importantly, comparisons of the LC-MS analyses of the culture extract from WMMC2659 (living E. coli DH5α as media) and that of E. coli DH5α (Figure 3) clearly indicated that WMMC2659 produced two metabolites when using E. coli DH5α as nutrition.

2.2. Structure Elucidation of Enhypyrazinones A and B

The molecular formula of enhypyrazinone A (1) was determined to be C₂₄H₂₃N₃O on the basis of the HRESIMS data ([M + Na]⁺, m/z 392.1736), indicating 15 degrees of unsaturation. Analysis of the ¹H and ¹³C NMR and HSQC spectra (

Table 2. ¹H and ¹³C NMR Data for Enhypyrazinone A (1) (600 MHz for ¹H, 125 MHz for ¹³C, DMSO-d₆).

Position	δC, mult.	δH (J in Hz)	COSY	1H-13C HMBC a	δNb	1H–15N HMBC c
1	156.3, C
2					187.3
3	137.3, C
4	126.5, C
5					323.2
6	159.0, C
7	25.6, CH2	4.14, s	9	3, 4, 8, 9, 16		2
8	111.1, C
9	123.6, CH	7.22, s	7	8, 11, 16		10
10		11.0, s	9		132.0
11	136.2, C
12	111.6, CH	7.33, d (8.0)	13	14, 16		10
13	121.1, CH	7.05, t (8.0)		11, 15
14	118.5, CH	6.97, t (8.0)	15	12, 16
15	118.6, CH	7.65, d (8.0)	14	8, 11, 13, 16
16	126.7, C
17	123.1, CH	7.42, d (15.5)		4, 19		5
18	126.2, CH	7.24, d (15.5)		4, 19, 20, 24
19	137.5, C
20	126.3, CH	7.51, d (7.7)	21	22, 24
21	128.7, CH	7.32, t (7.7)	20, 22	19, 23
22	127.0, CH	7.20, t (7.7)	21, 23	20, 24
23	128.7, CH	7.32, t (7.7)	22, 24	19, 21
24	126.3, CH	7.51, d (7.7)	23	20, 22
25	29.7, CH	3.30, m	26, 27	1, 6, 26, 27		5
26	20.2, CH3	1.19, d (6.8)	25	6, 25, 27
27	20.2, CH3	1.19, d (6.8)	25	6, 25, 26

^a HMBC correlations are from proton(s) to the indicated carbon. ^b The chemical shifts of ¹⁵N were determined by ¹H–¹⁵N HMBC, and the chemical shifts of ¹⁵N were referenced to liquid NH₃ (under pressure) at 25 °C by the NMR software TopSpin. ^c HMBC correlations are from proton(s) to the indicated nitrogen.

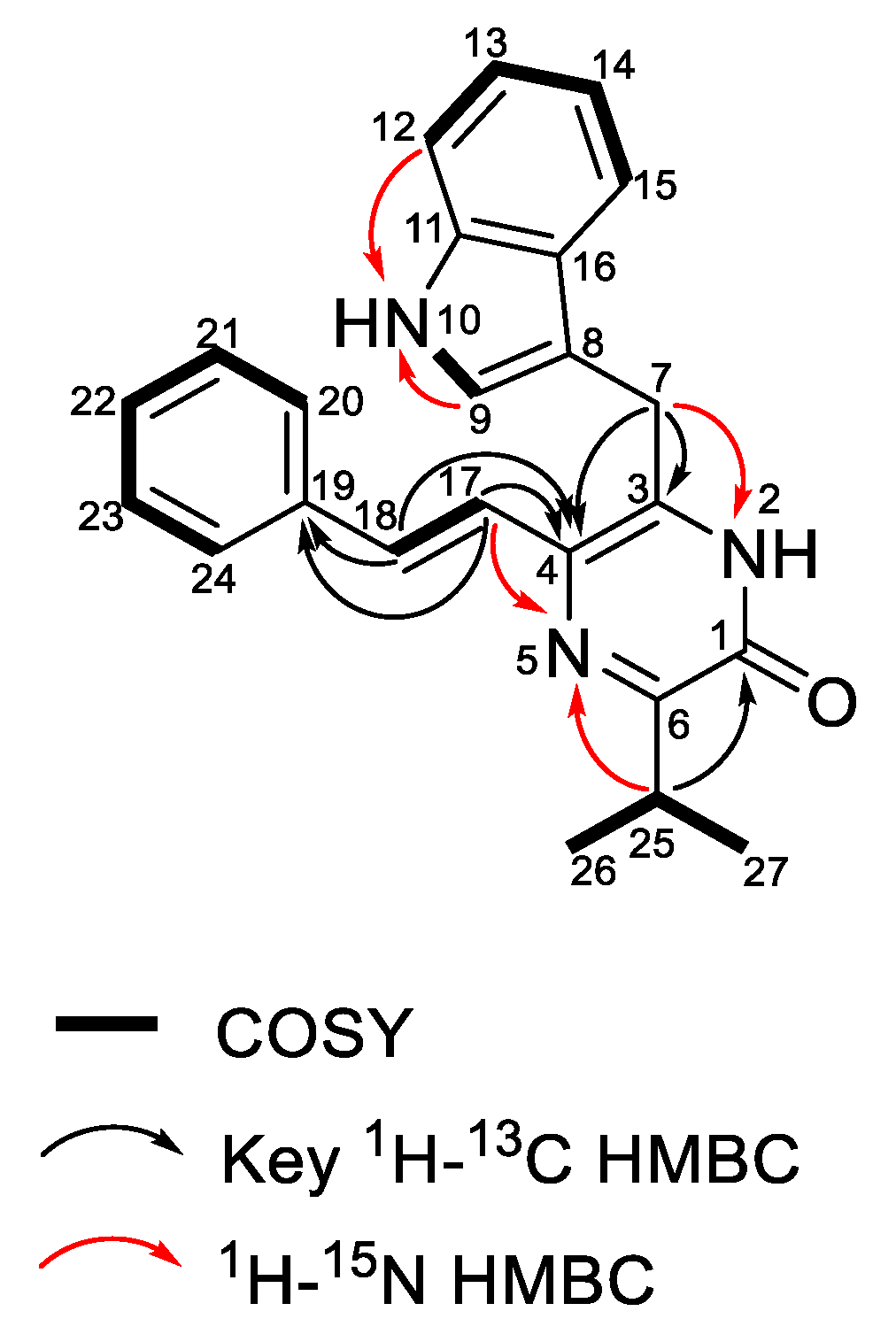

) revealed the presence of eight non-protonated sp²-type carbons, 12 olefin/aromatic protons, one methine, one methylene, and two methyl groups. The presence of five aromatic protons at δ_H 7.51 (H-20/24), 7.32 (H-21/23) and 7.20 (H-22), together with COSY correlations among these aromatic protons (Figure 4), suggested a mono-substituted benzene ring. The HMBC correlations from H-17 and H-18 to C-19 suggested that an olefin was attached to the mono-substituted benzene ring via C-19. Additionally, COSY and ¹H–¹³C HMBC spectra of 1 revealed a typical 3-substituted indole alkaloid moiety [21] with signals at δ_H 7.22 (H-9), 11.0 (NH-10), 7.33 (H-12), 7.05 (H-13), 6.97 (H-14), 7.65 (H-15), and δ_C 111.1 (C-8), 123.6 (C-9), 136.2 (C-11), 111.6 (C-12), 121.1 (C-13), 118.5 (C-14), 118.6 (C-15), 126.7 ppm (C-16). Additionally, HMBC correlations from H₂-7 to C-8, C-9, and C-16 suggested linkage of the methylene to the indole moiety via C-8. In addition, HMBC correlations from H-17 and H-18 to C-4, and from H₂-7 to C-3, indicated the linkages between C-17 and C-4, and between C-7 and C-3, respectively. The COSY correlations between the two methyl groups (H₃-26 and H₃-27) and the methine (H-25) established the isopropyl spin system, and HMBC correlations from H-25, H₃-26, and H₃-27 to C-6 located the isopropyl group at C-6. Although three substructures were deduced, four non-protonated carbons (C-1, C-3, C-4, and C-6), two nitrogens, and one oxygen remained unaccounted for. Therefore, the ¹H–¹⁵N HMBC spectrum was used to unambiguously complete the elucidation of compound 1. The cross-peaks for H-25 and H-17 with N-5 indicated that the linkage between C-4 and C-6 involved N-5 (Figure 4). The HMBC correlations from H₂-7 to C-4 and N-2 revealed that C-3 was attached to C-4 and N-2. An additional HMBC correlation from H-25 to C-1 indicated the connection between C-6 and C-1. Lastly, the carbonyl carbon C-1 (δ_C 156.3) was attached to N-2 to form an α,β-unsaturated amide, thus illustrating the presence of a pyrazinone core. The remaining exchangeable proton was assigned as 2-NH to satisfy the molecular formula. On the basis of the large vicinal ¹H−¹H coupling constants (J = 15.5 Hz), the alkene (H-17, H-18) configuration was assigned as E [22,23]. Taken together, the structure of 1 was therefore established.

Enhypyrazinone B (2) was found to have the same molecular formula (C₂₄H₂₃N₃O) as 1 on the basis of HRESIMS data. Unfortunately, DMSO-d₆ was a poor NMR solvent for compound 2 (Figures S14–S19), and thus a different NMR solvent system (CDCl₃/CD₃OD 1:1) was used for NMR studies of 2 (Figures S8–S12). Interpretation of 1D and 2D NMR data sets suggested that 2 is a stereoisomer of 1. A relatively small coupling constant (J = 12 Hz) between H-17 and H-18 indicated that the geometry of the alkene (H17, H18) was Z [22,23], thereby enabling unambiguous assignment of the structure for 2. All other data supported this conclusion.

2.3. Bioactivity Testing

Compounds 1 and 2 were tested for antibacterial activity against E. coli (ATCC 25922), methicillin-resistant Staphylococcus aureus (MRSA; ATCC 33591), and methicillin-sensitive Staphylococcus aureus (MSSA; ATCC 29213) in disk diffusion assays; only weak activity against MSSA was noted. To gain more accurate antimicrobial bioactivity data for compounds 1 and 2, we determined minimum inhibitory concentration (MIC) values for each species against MSSA. Notably, both 1 and 2 were characterized by MIC values >128 μg/mL, consistent with very low antibacterial activities. Compounds 1 and 2 do not appear to exert antimicrobial effects that clearly benefit the producer, since E. coli DH5α was used to provide nutrition for WMMC2659. Moreover, 1 and 2 are more easily and economically biosynthesized than larger signaling peptides, and thus might have a function related to myxobacterial intra- and extra-species cell-cell interaction.

3. Discussion

In conclusion, two pyrazinone-type metabolites, 1 and 2, were isolated from a marine-derived myxobacterium Enhygromyxa sp. Notably, this is the first report of natural products generated from this bacterial genus under fermentation conditions involving myxobacterial predation and feeding on a different bacterium (E. coli DH5α). Compounds 1 and 2 contain a rare trisubstituted pyrazinone core, and only a few metabolites bearing this moiety have been reported so far. The most related pyrazinone derivatives are tyrvalin and phevalin, from a pathogenic Staphylococcus aureus strain [24,25]; leuvalin, which was found in pathogenic strains of S. aureus, S. epidermidis, S. capitis, and S. lugdunensis [26]; arglecin, argvalin, JBIR-56, and JBIR-57 from Streptomyces sp. [27,28]; sorazinone B, which was from Nannocystis pusilla strain MNa10913 [29]; as well as butrepyrazinone, from a Ghanaian Verrucosispora sp. K51G [30]. In most cases, the C-4 of the pyrazinone ring is unsubstituted. It appears that the pyrazinones are generated by multidomain non-ribosomal peptide synthetase (NRPS) assembly line systems. Notably, for the systems examined thus far, it appears that cleavage from the NRPS proceeds via thioester reduction; this affords a C-terminal aldehyde upon which the N-terminal amino group condenses to afford an imine; ultimately, oxidation of this newly formed heterocycle affords 2(1H)-pyrazinones [25]. For previously reported pyrazinone-producing microbes, the typical absence of a substituent at C-4 is logical given its aldehydic oxidation state following dipeptide liberation from the NRPS machinery [24,25,26,27,28,29,30]. In the case of 1 and 2, it is presently unclear precisely how C-4 comes to be the attachment point for the cinnamoyl moiety, although this question is currently under investigation.

4. Materials and Methods

4.1. General Experimental Procedures

UV spectra were recorded on an Aminco/OLIS UV-Vis Spectrophotometer (Bogart, GA, USA). IR spectra were measured with a Bruker Equinox 55/S FT–IR Spectrophotometer (Santa Barbara, CA, USA). Both 1D and 2D NMR spectra were obtained using a Bruker Avance 500 MHz spectrometer (Billerica, MA, USA) with ¹H{¹³C/¹⁵N} cryoprobe and a 500 MHz spectrometer with ¹³C/¹⁵N{¹H} cryoprobe; chemical shifts were referenced to the residual solvent peaks (CD₃OD: δ_H = 3.31, δ_C = 49.15; DMSO-d₆: δ_H = 2.50, δ_C = 39.51). HRMS data were acquired with a Bruker MaXis 4G QTOF mass spectrometer (Billerica, MA, USA). RP HPLC was performed using a Shimadzu Prominence HPLC system and a Phenomenex Luna C₁₈ column (250 × 10 mm, 5 µm) (Torrance, CA, USA).

4.2. Biological Material

WMMC2659 was isolated from the sponge Biemna sp. which was collected in the Florida Keys, USA (24 39.393, −81 26.268) on August 13th, 2014. A voucher specimen of the sponge is housed at the University of Wisconsin-Madison. WMMC2659 was isolated using the baiting technique as described by Iizuka et al. [5e], only ground sponge was used in place of soil. WMMC2659 was maintained at 28 °C on plates containing 50% artificial seawater (ASW) with 1.5% agar streaked with E. coli DH5α on the surface as the food source. Artificial seawater solutions I (415.2 g NaCl, 69.54 g Na₂SO₄, 11.74 g KCl, 3.40 g NaHCO₃, 1.7 g KBr, 0.45 g H₃BO₃, 0.054 g NaF) and II (187.9 g MgCl₂·6H₂O, 22.72 g CaCl₂·2H₂O, 0.428 g SrCl₂·6H₂O) were made up separately and combined to give a total volume of 20 L.

4.3. Sequencing

The 16S rRNA gene was amplified using colony PCR with the primers 8–27F (5’ to 3’ GAGTTTGATCCTGGCTCAG) and 1492R (5’ to 3’ GGTTACCTTGTTACGACTT). The following PCR conditions were used: 94 °C for 5 min, followed by 35 cycles of 94 °C for 30 s, 55 °C for 1 min, 72 °C for 1.5 min, with a final step of 72 °C for 5 min. The PCR bands were excised from the gel and purified using the QIAquick Gel Extraction kit (QIAGEN, Germantown, MD, USA). Sanger sequencing was performed at the UW Biotechnology Center. WMMC2695 was identified as an Enhygromyxa sp. The 16S sequence for WMMC2695 was deposited in GenBank (accession number MN657412).

4.4. Fermentation, Extraction, and Isolation

A starter culture was prepared by scraping fruiting bodies off of a petri dish and inoculating them into a 125 mL Erlenmeyer flask containing ~1−2 g of washed living E. coli DH5α in 25 mL 50% ASW buffered with HEPES (25 mM, pH 7.8). When the culture showed orange coloration, it was inoculated into 1 L of ASW containing 30−35 g living E. coli DH5α, cyanocobalamin (0.5 mg), Diaion HP20 (7% by weight) and buffered with HEPES (25 mM, pH 7.8). The culture was shaken at 200 rpm at 28 °C for 9 days before extraction. Living E. coli DH5α was prepared by growing overnight cultures in 2xTY and washing them 3 times with sterile MilliQ water. Filtered HP20 was washed with distilled H₂O and extracted with acetone. The acetone extract (2.0 g) was subjected to liquid–liquid partitioning using 30% aqueous CH₃OH and CHCl₃ (1:1). The CHCl₃-soluble partition (0.2 g) was fractionated by Sephadex LH20 column chromatography (CHCl₃:CH₃OH, 1:1). The fractions containing 1 and 2 were further subjected to RP HPLC (45%/55% to 90%/10% CH₃OH-H₂O over 26 min, 4.0 mg/mL) using a Phenomenex Luna C₁₈ column (250 × 10 mm, 5 µm), yielding 1 (5.5 mg, t_R 22.2 min) and 2 (1.5 mg, t_R 19.2 min).

4.5. Spectral Data of Compounds 1 and 2

Enhypyrazinone A (1): yellow powder; UV (CH₃OH/CHCl₃ 1:1) λ_max (log ε) 315 (3.88) nm; IR (ATR) υ_max 3363.9, 2945.3, 2834.3, 1736.9, 1639.2, 1449.9, 1409.6, 1217.0, 1115.3, 1020.0 cm⁻¹; ¹H and ¹³C NMR (See Table 2); HRESIMS m/z 392.1736 [M + Na]⁺ (calcd. for C₂₄H₂₃N₃ONa⁺, 392.1733).

Enhypyrazinone B (2): yellow powder; UV (CH₃OH/CHCl₃ 1:1) λ_max (log ε) 290 (3.89) nm; IR (ATR) υ_max 3341.0, 2944.4, 2832.5, 1737.6, 1641.7, 1449.1, 1229.0, 1116.2, 1022.9 cm⁻¹; ¹H and ¹³C NMR (See Table S1); HRESIMS m/z 392.1735 [M + Na]⁺ (calcd. for C₂₄H₂₃N₃ONa⁺, 392.1733).

4.6. Media Recipe for Other Tested Conditions for the Growth of Enhygromyxa sp. WMMC2659

VY/2 medium contains 5.0 g Baker’s yeast cake, 0.5 mg cyanocobalamin per liter with 50% ASW. VY/4 medium is half-strength VY/2 per liter with 50% ASW. CY medium contains 3.0 g casitone, 1.0 g yeast extract per liter with 50% ASW. 1/3 CY and 1/6 CY media are one-third-strength and one-sixth-strength CY medium per liter with 50% ASW, respectively. R2A medium contains 0.5 g yeast extract, 0.5 g peptone, 0.5 g casamino acids, 0.5 g dextrose, 0.5 g soluble starch, 0.3 g sodium pyruvate, 0.3 g dipotassium phosphate, 0.05 g magnesium phosphate per liter with 50% ASW.

4.7. Antibacterial Assays

Compounds 1 and 2 were tested for antibacterial activity against E. coli (ATCC 25922), MRSA (ATCC 33591), and MSSA (ATCC 25913) in disk diffusion assays. Five microliters (10 mg/mL) of each compound was used for each disk, and only a 1 cm inhibition zone was observed against MSSA for both compounds 1 and 2. MICs were further determined using a dilution antimicrobial susceptibility test for MSSA [31]. Compounds 1 and 2 were dissolved in DMSO, serially diluted to 10 concentrations (0.25–128 μg/mL), and tested in a 96-well plate. Vancomycin was used as the positive control against MSSA, which showed a MIC of 1 μg/mL. Compounds 1, 2, and the positive control were tested in duplicate. Eight untreated media controls were included on each plate. The plates were incubated at 33 °C for 18 h. The MIC was determined as the lowest concentration that inhibited visible growth of bacteria.
