Impact of the Cultivation Technique on the Production of Secondary Metabolites by Chrysosporium lobatum TM-237-S5, Isolated from the Sponge Acanthella cavernosa

Abstract

The fungi Chrysosporium lobatum TM-237-S5 was isolated from the sponge Acanthella cavernosa, collected from the mesophotic coral ecosystem of the Red Sea. The strain was cultivated on a potato dextrose agar (PDA) medium, coupling solid-state fermentation and solid-state extraction (SSF/SSE) with a neutral macroreticular polymeric adsorbent XAD Amberlite resin (AMBERLITE XAD1600N). The SSF/SSE lead to high chemodiversity and productivity compared to classical submerged cultivation. Ten phenalenone related compounds were isolated and fully characterized by one-dimensional and two-dimensional NMR and HRMS. Among them, four were found to be new compounds corresponding to isoconiolactone, (-)-peniciphenalenin F, (+)-8-hydroxyscleroderodin, and (+)-8-hydroxysclerodin. It is concluded that SSF/SSE is a powerful strategy, opening a new era for the exploitation of microbial secondary metabolites.

1. Introduction

The symbiosis between marine sponges and microorganisms is of considerable interest, both biologically and chemically [1,2]. Sponges are benthic organisms that have been colonizing different marine ecosystems, including coral reefs, for 600 million years [3,4]. Their survival under drastically changing conditions requires a variety of adaptations, including the evolving strategy of symbiosis with beneficial microorganisms, which has been taking place since the Precambrian Age [5]. The mutualism between marine sponges and microbial symbionts is mainly related to nutrition and defense [1,6], under the control of dedicated enzymes and active secondary metabolites [2]. Although sponges are the main source of bioactive molecules isolated from marine organisms, a certain amount of evidence indicates that they are biosynthesized by microbial symbionts [7,8]. This has also been corroborated by the massive presence of microorganisms in the mesophyl matrix of the sponges, representing around 50% of their biomass [9,10,11].

Fungi in the marine environment, and especially those associated with marine invertebrates, have been extensively investigated and reviewed [12,13]. A 2019 collaborative review highlighted the present state of knowledge and raised a multitude of open questions regarding the diversity and function of fungi in marine ecosystems [13].

The symbiont assemblages inside the sponge are well organized in biofilms or dense colonies and are stabilized in the skeleton network over time [14,15]. This certainly impacts their development steps and the expression of biosynthetic clusters of secondary metabolites because it is now well documented that, in fungi, secondary metabolism and life cycle among fungi are co-regulated at the genomic level [16,17,18].

This idea drives us to compare the metabolic profile of fungi cultivated on a gar slants and in liquid state. The result is that solid-state cultivation often leads to larger molecular diversity than classical liquid state fermentation LSF [19,20,21]. The major obstacle that stands against agar cultivation is the scale-up. In order to overcome such a challenge, we have developed specific innovative technologies, namely Platotex [22,23] and, more recently, Unifertex [24]. As we systematically coupled the culture of microorganisms with in-situ solid phase extraction (SPE), we also developed a specific SPE procedure for agar cultivation, termed solid-solid extraction (SSE) [25].

In the present study, we report the impact of agar-supported cultivation on the production of secondary metabolites by the marine fungi Chrysosporium lobatum TM-237-S5, isolated from the Red Sea sponge Acanthella cavernosa. Chrysosporium lobatum was previously reported in the literature as a mosquito pathogenic fungus [26]. However, a very limited number of secondary metabolites have been reported in the literature for the genus Chrysosporium. Thus, the strain Chrysosporium queenslandicum IFM produced naphthaquinone-type altersolanols A, B, and C, the antifungal queenslandon, a representative of the zearalenone family of mycotoxin, and the antibacterial dihydronaphthaquinones chrysoqueen and chrysolandol [27]. The diterpenoid derivative RPR113228, a farnesyl transferase inhibitor, was also attributed to Chrysosporium lobatum, yet the identification of the strain was only based on morphological analysis [28]. Furthermore, curvularin and dehydroculvilarin were isolated from Chrysosporium lobatum BK-3 [29].

2. Results and Discussion

2.1. The Context of This Work

The TASCMAR project (Tools And Strategies to access to original bioactive compounds from Cultivation of MARine invertebrates and associated symbionts), funded by the European Union in the frame of the Horizon 2020 framework program, offered the opportunity to investigate the molecules produced by marine invertebrates and their symbionts from mesophotic coral ecosystems (MCEs) (30 to 150 m depth). Among the invertebrates investigated, the sponge Acanthella cavernosa was collected on the upper mesophotic reef of Eilat at Dekel Beach (51 m depth), in the Gulf of Aqaba (Israel, 2 April 2017, 29°32′12.48″N; 34°56′55.656″E). The area is characterized by a moderate slope covered with dense patches of hard substrate, mostly calcareous, and is also inhabited by other invertebrates such as octocorals, stony corals, black corals, and sea anemones (Figure 1).

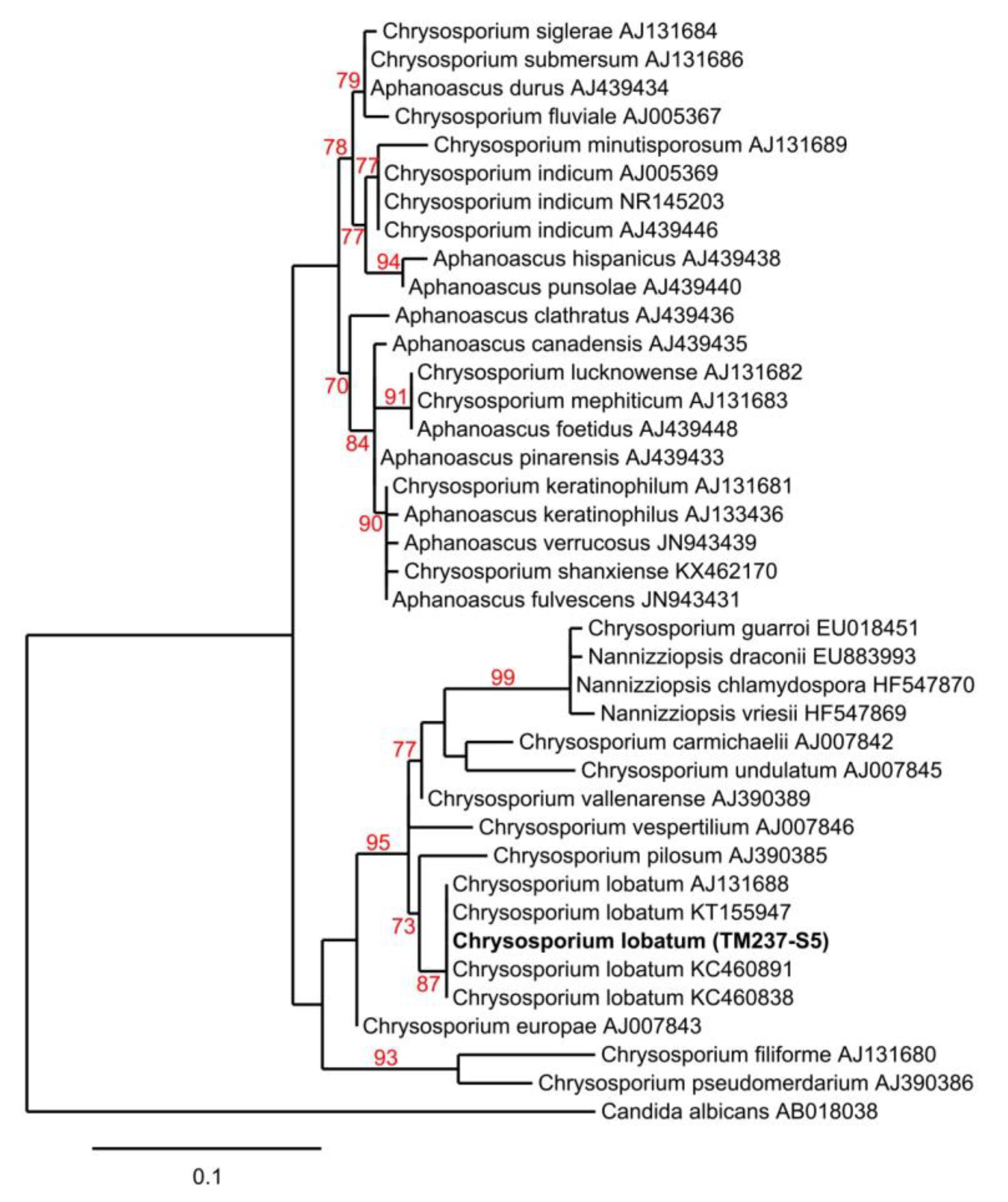

The strain Chrysosporium lobatum TM-237-S5 (Figure 2) was among the strains isolated and identified based on its ITS rDNA sequence (Nuclear ribosomal internal transcribed spacer).

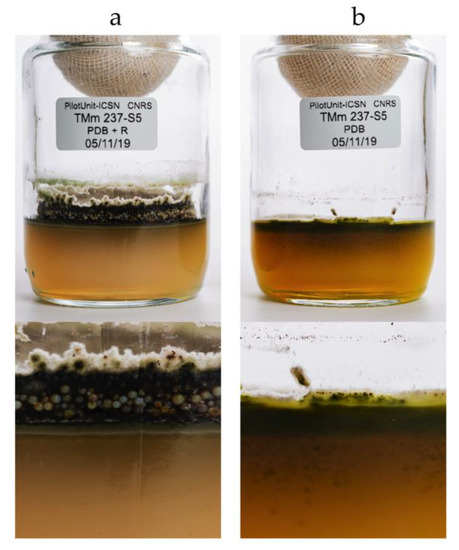

The strain was cultivated on potato dextrose broth (PDB), potato dextrose agar (PDA), marine broth (MB), and marine agar (MA). Solid phase extraction (SPE) with XAD resin (AMBERLITE™ XAD™16HP N) was applied in-situ to both liquid (LSF/SPE) and agar-supported cultures (solid-state fermentation and solid-state extraction (SSF/SSE)). It has been previously reported that in-situ XAD extraction coupled to agar-supported cultivation prevents the diffusion of target compounds to the agar layer and traps the target compounds on the resin beads [25].

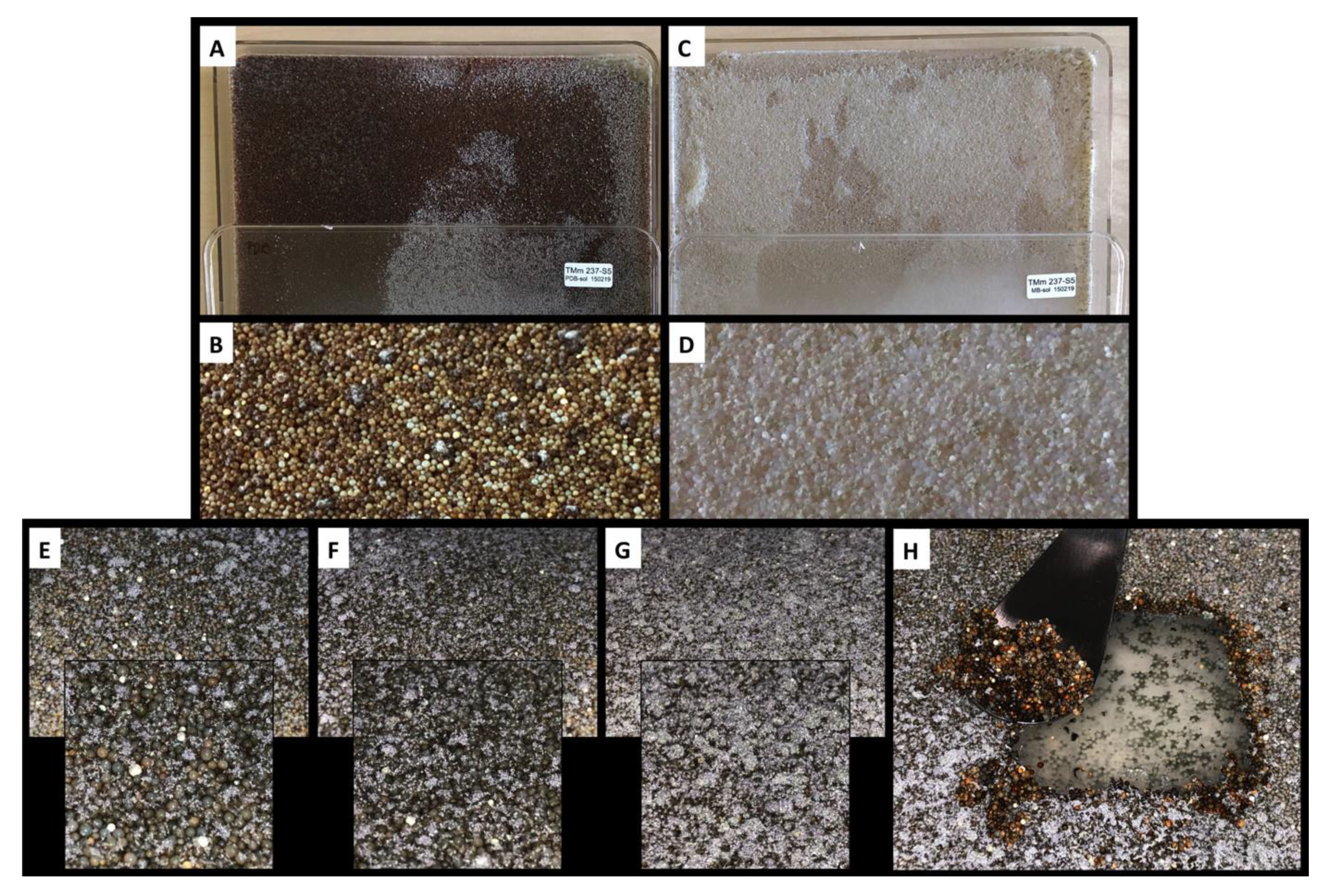

On day four of incubation (Figure 3E), the resin beads became colored, but were not yet covered by the mycelium (white filaments). On day seven (Figure 3F), the resin beads became darker and the mycelium surface increased. On day 10 (Figure 3G), the recovery time, the resin beads were totally covered by the mycelium. We previously reported that such phenomenon is probably due to the lack of oxygen in the viscous resin layer, which pushes the mycelium to reach the surface to access more oxygen. However, the mycelia remained in contact with the agar to access nutriments, as shown on the agar layer, following the recovery of the resin beads (Figure 3H).

After 10 days of incubation, the resin beads were recovered by filtration from the liquid cultures (10 L), and by scraping the surface of the agar cultures (10 × 625 cm² petri plates), and washed extensively with water to remove medium residues and any compounds not trapped by the XAD. Resin beads from the PDB, MB, and MA cultures had a light beige color, while the PDA culture was dark brown; most of the color being trapped by the resin beads (Figure 3A–D and Figure 4).

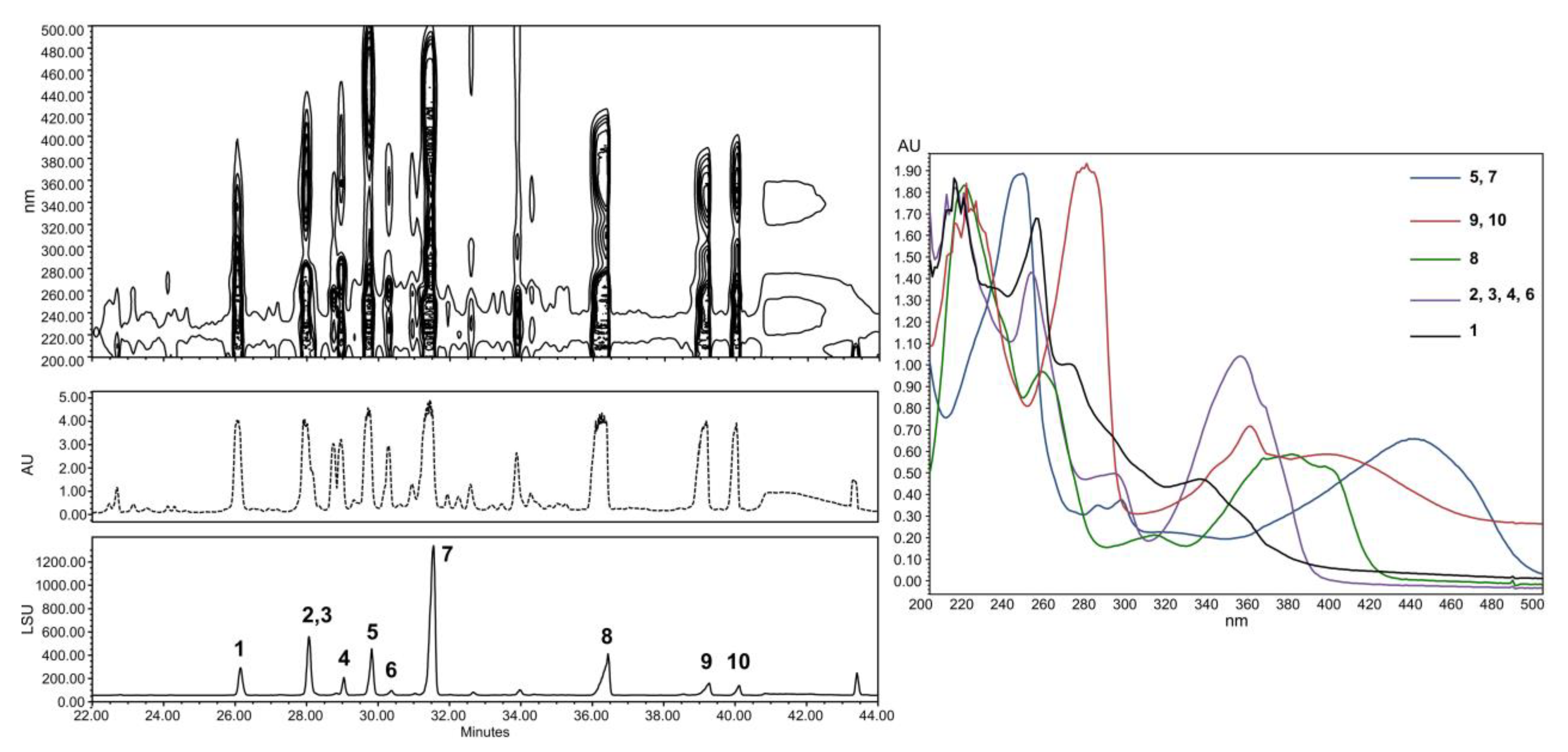

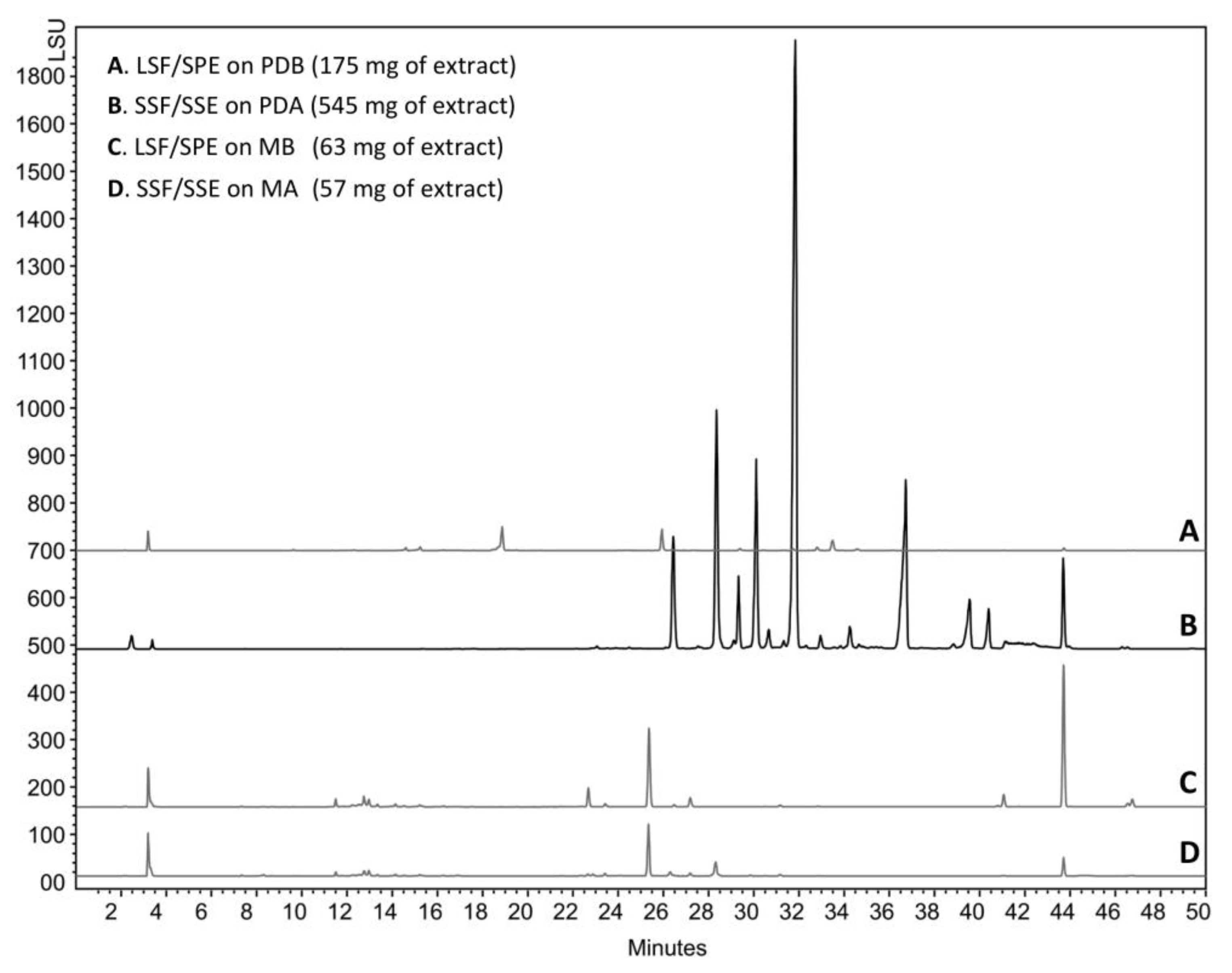

The compounds trapped in the XAD were eluted with ethyl acetate and analyzed by HPLC coupled to photodiode array PDA, light-scattering LSD, and mass spectrometry MS detectors (Figure 5). According to the recovered quantities of extracts and the diversity of metabolites observed in the chromatograms, the current study focused on the extract from agar-supported cultivation coupled to in-situ solid-state extraction (SSF/SSE, Figure 5B). This SSF/SSE on PDA lead to an overall extract yield of 872 mg/m² of cultivation surface, corresponding to 2 L of medium (200 mL per plate). HPLC analysis revealed 10 peaks with specific UV absorption spectra (Figure 6), which were totally absent in the liquid culture (LSF/SPE) (Figure 5C).

2.2. Structural Identification of Compounds 1 to 10

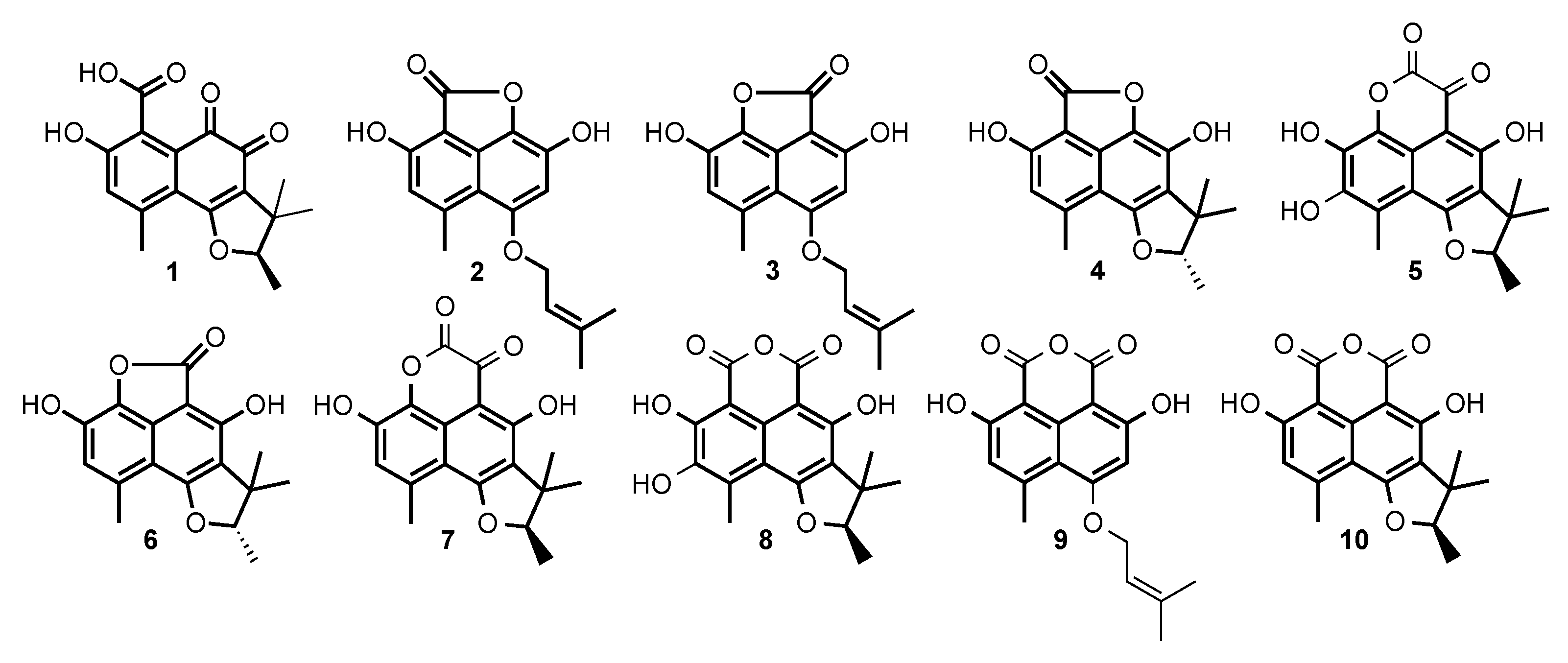

Compounds 1 to 10 in Figure 7 were purified and submitted to one-dimensional and two-dimensional NMR and HRMS analysis. Six compounds were unambiguously identified as peniciphenalenin D (1), isolated from Pebnicillium sp. ZZ901 [30], coniolactone (3), (-)-7,8-Dihydro-3,6-dihydroxy-1,7,7,8-tetramethyl-5H-furo-[2′,3′:5,6] naphtho[1,8-bc]furan-5-one (6), coniosclerodin (9), isolated from Coniothyrium cereale [30,31], (+)-scleroderolide (7), isolated from Gremmeniella abietina [32,33], and (+)-sclerodin (10), isolated from Aspergillus silvaticus [34].

Compounds 2, 4, 5, and 8 were submitted to dereplication based on the Antibase database of microbial compounds (Wiley–VCH) and the natural compounds Reaxys database (Elsevier). Spectroscopic data of these compounds did not match the previously reported compounds or present significant differences, and were submitted to de-novo structural elucidation. Their ¹H and ¹³C NMR data are shown in

Table 1. ¹³C NMR (125 and 150 MHz) of compounds 2, 4, 5, and 8.

Position	δC, Type
	2 a	4 a	5 a	8 b
1	160.2, C	160.2, C	138.9, C	160.0, C
2	118.9, CH	118.5, C	144.9, C	140.4, C
3	149.1, C	147.8, C	120.5, C	130.3, C
4	112.5, C	108.2, C	109.3, C	108.9, C
5	140.2, C	132.9, C	132.9, C	131.9, C
6	100.0, C	100.1, C	117.4, C	92.9, C
7	168.1, C	168.7, C	170.8, C	165.7, C
8	-	-	171.2, C	165.7, C
9	126.5, C	127.4, C	108.1, C	91.8, C
10	139.5, C	139.3, C	166.7, C	162.8, C
11	99.8, CH	122.1, C	120.5, C	119.8, C
12	156.4, C	153.8, C	158.5, C	153.9, C
13	66.8, CH2	91.4, CH	93.7, CH	91.7, CH
14	120.8, CH	46.0, C	44.3, C	43.4, C
15	139.2, C	14.6, CH3	14.9, CH3	14.1, CH3
16	25.8, CH3	21.3, CH3	21.2, CH3	20.3, CH3
17	18.3, CH3	26.3, CH3	25.9, CH3	25.2, CH3
18	23.0, CH3	21.4, CH3	13.7, CH3	13.9, CH3

^a,b; the spectra were recorded in MeOD and CD₂Cl₂, respectively.

and

Table 2. ¹H NMR (500 and 600 MHz) of compounds 2, 4, 5 and 8.

Position	δH, Mult. (J in Hz)
	2 a	4 a	5 a	8 b
1	-	-	-
2	6.70, s	6.70, s	-
3	-	-	-
4	-	-	-
5	-	-	-
6	-	-	-
7	-	-	-
8	-	-	-
9	-	-	-
10	-	-	-
11	6.35,s	-	-
12	-	-	-
13	4.60, d (6.4)	4.50, q (6.5)	4.78, q (6.6)	4.71, q (6.6)
14	5.57, br m	-	-	-
15	-	1.43, d (6.5)	1.52, d (6.7)	1.50, d (6.6)
16	1.83, s	1.23, s	1.31, s	1.30, s
17	1.80, s	1.50, s	1.56, s	1.54, s
18	2.76, s	2.73, s	2.61, s	2.79, s
OH-10				11.36, s

^a,b; the spectra were recorded in MeOD and CD₂Cl₂, respectively.

.

The peak at 28 min exhibits a molecular formula of C₁₇H₁₆O₅, determined by HRESIMS (m/z 301.1076 [M + H]⁺). A careful ¹H and ¹³C NMR analysis of the peak at 28 min revealed a mixture of two compounds with indistinguishable HRMS. De-replication and comparison with published results showed that one of the constituents was unambiguously coniolactone (3). As well as 3, HMBC correlations showed that compound 2 differs only at the ring C configuration. A key HMBC correlation from H-2 (δ_H 6.70, s) to the carbonyl C-7 (δ_C 168.1) indicated that, in 2, the carbonyl at C-7 is connected to C-6 rather than to C-9 in coniolactone (3) (Figure 8). So far, all our attempts to separate 2 and 3 by different chromatographic techniques have failed. Compound 2 was named isoconiolactone.

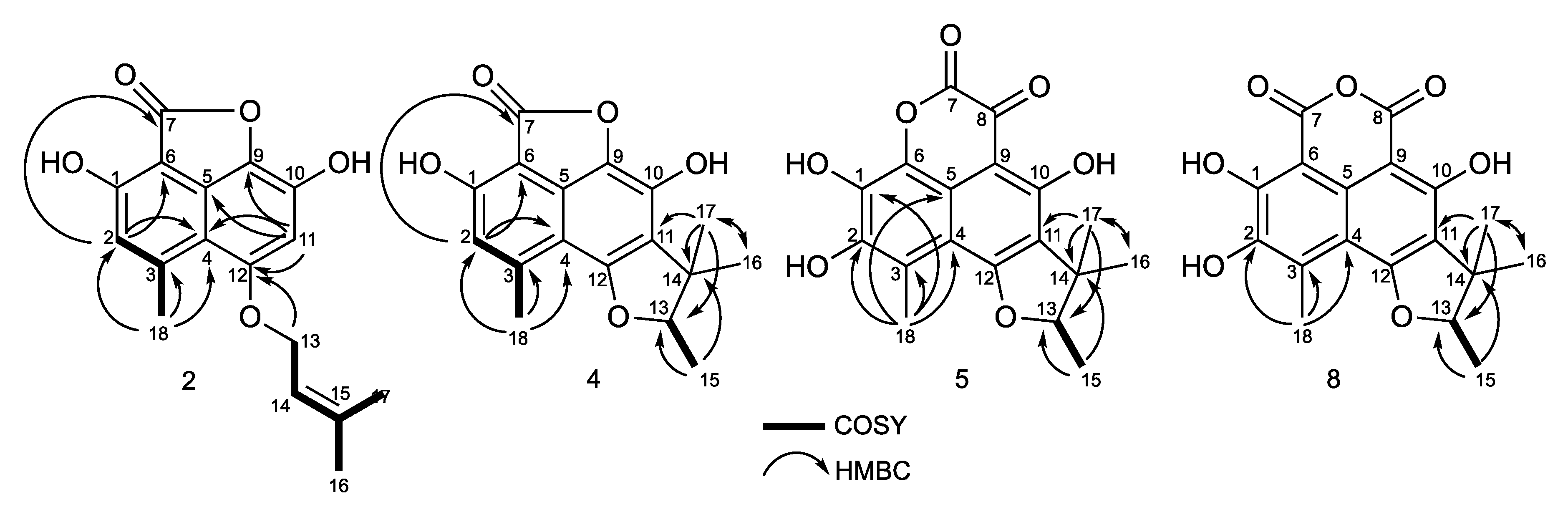

Compound 4 has a molecular formula C₁₇H₁₆O₅, deduced from HRESIMS and NMR data (Table 1 and Table 2). According to NMR and MS data, 4 has the same planar structure as the already known fungal metabolite peniciphenalenin F [30]. However, compound 4 and peniciphenalenin F have an opposite optical rotation; negative for 4 (−36.10° (c 0.10, MeOH)) and positive for the reported peniciphenalenin F (+16.50° (c 0.50, MeOH)). Subsequently, 4 was named (-)-peniciphenalenin F.

Compound 5 had a molecular formula of C₁₈H₁₆O₇, deduced from HRESIMS and NMR data (Table 1 and Table 2). The NRM data of 5 indicates the presence of two carbonyls, eight aromatic carbons, one oxymethine, one quaternary carbon, and four methyls. NMR comparison with previously reported phenalenone derivatives has shown similarities with the isolated (+)-scleroderolide (7) [32,33], except in the C-2 position. Indeed, the aromatic proton, H-2, of scleroderolide is substituted in 5 by a hydroxyl group in C-2 (δ_C 144.9). This finding is also supported by key HMBC correlations from H-18 (2.61, 3H, s) to C-2 (δ_C 144.9), C-3 (δ_C 120.5), and C-4 (δ_C 109.3). Accordingly, compound 5 has been identified as a new phenalenone derivative and was named (+)-8-hydroxyscleroderolide.

Compound 8 has a molecular formula C₁₈H₁₆O₇, deduced from the HRESIMS and NMR data (Table 1 and Table 2). Here again, the NRM data of 8 showed the presence of two carbonyl, eight aromatic carbons, one oxymethine, one quaternary carbon, and four methyls. The NMR data of 8 closely resemble those of the previously described and isolated (+)-sclerodin (10) [34], except in the C-2 position. The aromatic proton, H-2, of the sclerodin structure is substituted in 8 by a hydroxyl group in C-2 (δ_C 140.4). This finding is supported by key HMBC correlations from H-18 (2.79, 3H, s) to C-2 (δ_C 140.4), C-3 (δ_C 130.3), and C-4 (δ_C 108.9).

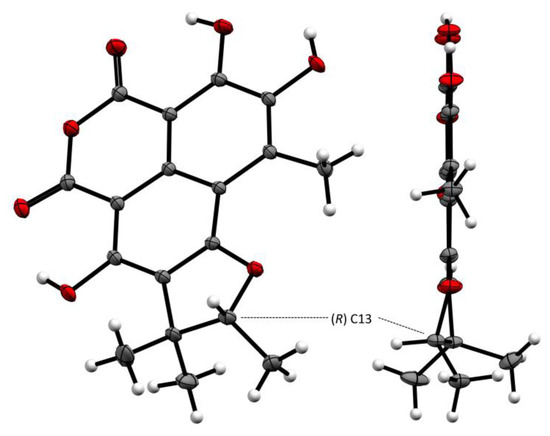

The structure of 8, including the absolute configuration (13R), is secured by a single crystal X-ray crystallographic analyses using anomalous scattering of Mo then CuK α radiation through Bijvoet analysis [35], combining maximum likelihood estimation and Bayesian statistics (Figure 9). Therefore, compound 8 was named (+)-8-hydroxyslerodin.

The current study presents the breakthrough advantage of solid-state fermentation coupled with in-situ solid phase extraction (SSF/SSE). Indeed, SSF/SSE leads to a large chemical diversity and higher yields. In addition, the concentration of the target compounds on the resin beads represents an economic and ecofriendly recovery process involving limited quantities of water for medium preparation, limited use of power for static incubation, a limited amount of solvents for the elution of compounds, and reduced waste. We also solved the issue of scale-up on the Platotex technology, offering a reusable 2 m² cultivation surface, and more recently on the Unifertex technology.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations, [α]_D, were measured using an Anton Paar MCP-300 polarimeter at 589 nm (Anton Paar, Les Ulis, France). NMR experiments were performed using a Bruker Avance III 600 MHz spectrometer equipped with a TCi cryo-probe head for compounds 8, 9, and 10, and a Bruker Avance 500 MHz spectrometer for compounds 1 to 7 (Bruker, Vienna, Austria). The spectra were acquired in CD₃OD (δ_H 3.31 ppm and δ_C 49.15 ppm), in CD₂Cl₂ (δ_H 5.32 ppm and δ_C 53.10 ppm) or in Acetone-d₆ (δ_H 2.04 ppm and δ_C 29.8 ppm and 206.5 ppm) at 300K. High-resolution mass spectra were obtained on a Waters LCT Premier XE spectrometer equipped with an electrospray-time of flight (ESI-TOF) by direct infusion of the purified compounds (Waters SAS, Saint-Quentin-en-Yvelines, France). Pre-packed silica gel Redisep columns were used for flash chromatography using a Combiflash-Companion chromatogram (Serlabo, Entraigues-sur-la-Sorgue, France). All other chemicals and solvents were purchased from SDS (SDS, Peypen, France).

The analytical HPLC system consisted of an Alliance Waters 2695 controller coupled with a PhotoDiode Array Waters 2996, an evaporative light-scattering detector ELSD Waters 2424 detector and a mass detector Waters QDa (Waters SAS, Saint-Quentin-en-Yvelines, France). A Sunfire C₁₈ column (4.6 × 150 mm, 3.5 µm) was used with a flow rate of 0.7 mL/min. The elution gradient consisted of a linear gradient from 100% solvent A to 100% solvent B in 40 min, then 10 min at 100% B (Solvent A: H₂O + 0,1 HCOOH, Solvent B: ACN + 0,1% HCOOH). Preparative HPLC was performed on a semi-preparative Sunfire C₁₈ column (10 × 250 mm, 5 µm) using a Waters autosampler 717, a pump 600, a photodiode array detector 2996, and an ELSD detector 2420 (Waters SAS, Saint-Quentin-en-Yvelines, France). XAD resin (AMBERLITE™ XAD™16HP N) was purchased from DOW (DOW France SAS, Saint-Denis, France).

3.2. Invertebrate Collection

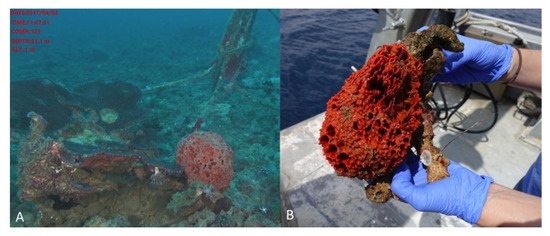

The sponge, Acanthella cavernosa, was collected by a ROV H800 (ECA, Lannion, France) on the upper mesophotic reef of Eilat at Dekel Beach at 51 m depth in the Gulf of Aqaba, Israel (2 April 2017, 29°32′12.48″N; 34°56′55.656″E). The sponge was identified by Dr. Nicole J. de Voogd from Naturalis, Biodiversity Research Center, Leiden, the Netherlands. Collection of animals complied with a permit issued by the Israel Nature and National Parks Protection Authority.

3.3. Strain Isolation and Identification

Chrysosporium lobatum TM-237-S5 was isolated from a 1 cm³ sample of Acanthella cavernosa. The invertebrate was immediately stored after collection and conserved at −20 °C until lab work processing. Part of the invertebrate (1 cm³) was ground in sterile sea water and heated at 50 °C for 1 h. The suspension was serially diluted, plated on selective isolation media, and incubated at 28 °C for at least 6 weeks. The strain was isolated from marine agar medium. The colony was purified on PDA and MA media and preserved in 10% glycerol solution.

Genomic DNA of the strain TM237-S5 was isolated using a DNeasy Plant Mini Kit (Qiagen), according to the manufacturer’s instructions. The ITS region was amplified with primers ITS1F (5′-CTTGGTCATTTAGAGGAAGTAA -3′) and ITS4 (5′-TCCTCCGCTTATTGATATGC) using described polymerase chain reaction (PCR) conditions [36]. Amplicons were sequenced by Sanger sequencing (GATC, Eurofins genomics), and the sequences were aligned against the non-redundant database of the NCBI using the BLASTn program. Then, phylogeny inference was performed on the Phylogeny.fr platform and comprised the following steps [37]: Sequences from TM237-S5 and representative Chrysosporium and Chrysosporium-related sequences described by Gurung et al. (2018) were aligned with MUSCLE (v3.8.31) [38]. After alignment, ambiguous regions were removed with Gblocks (v0.91b) [39]. The phylogenetic tree was reconstructed using the maximum likelihood method implemented in the PhyML program (v3.0 aLRT) [40], and reliability for internal branch was assessed using the aLRT test [41]. Graphical representation and edition of the phylogenetic tree were performed with TreeDyn (v198.3) [42]. The strain Chrysosporium lobatum TM237-S5 was assigned the GenBank number MN080876.

3.4. Microbial Cultivation

Chrysosporium lobatum TM-237-S5 spores were conserved at −20 °C in 10% glycerol. Before cultivation, the strain was revived for 5 days on a 15 cm petri plate containing potato dextrose agar (PDA). Sterile water (4 × 10 mL) was poured on the plate surface, and the spores were recovered from the plates by gentle scratching of the surface with a scalpel. Three plates offer 100 mL of concentrated spore suspension. Ten bottles were filled with 30 g of XAD Resin (AMBERLITE™ XAD™16HP N) and sterilized. 10 mL of Water and 10 mL of spore suspension were introduced in each resin containing bottle. The mixture was stirred, poured on a 25 × 25 cm petri plate containing PDA medium, homogeneously spread on the surface of the plate, and incubated at 27 °C. Preparative cultures were engaged on 10 25 × 25 cm petri plates.

3.5. Extraction/Purification Procedures

On day 10 of incubation, the resin/mycelium layer was recovered from the surface of the plates and re-suspended three times in 500 mL of Ethyl Acetate. Traces of water were removed on anhydrous sodium sulfate, and the solvent evaporated under reduced pressure. 550 mg of dry extract was recovered and submitted for analytical and structural analysis. The extract was fractionated by flash chromatography using a Combiflash-companion chromatogram, and the compounds were further purified by preparative HPLC to offer 6 to 56 mg of pure compound.

3.6. Structural Elucidation

All the compounds were submitted to one-dimensional and two-dimensional NMR analysis, high resolution mass spectrometry, and, when appropriate, to crystallography.

Peniciphenalenin D (1): Red amorphous solid (31 mg); [α]_D²⁵: +119.70° (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 217 (3.83), 279 (3.85), 369 (2.91), 515 (2.90) nm; ¹H and ¹³C NMR data, see Supplementary Information; HRESIMS m/z 317.1005 [M + H]⁺ (calcd. for C₁₇H₁₇O₆, 317.1025).

Isoconiolactone (2) + Coniolactone (3): Orange amorphous powder (40 mg); UV (MeOH) λ_max (log ε) 220 (3.52), 254 (2.54), 346 (1.45) nm; ¹H and ¹³C NMR data, Table 1; Table 2; HRESIMS m/z 301.1067 [M + H]⁺ (calcd. for C₁₇H₁₇O₅, 301.1076)

(−)-Peniciphenalenin F (4): Yellowish amorphous powder (15 mg); [α]_D: −36.10° (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 221 (4.22), 274 (4.21), 357 (3.51), 393 (3.33) nm; ¹H and ¹³C NMR data, Table 1; Table 2; HRESIMS m/z 301.1053 [M + H]⁺ (calcd. for C₁₇H₁₇O₅, 301.1049)

(+)-8-Hydroxyscleroderolide (5): Pale yellowish amorphous powder (36 mg); [α]_D: +65.01° (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 244 (3.56), 448 (1.71) nm; ¹H and ¹³C NMR data, Table 1; Table 2; HRESIMS m/z 345.0967 [M + H]⁺ (calcd. for C₁₈H₁₇O₇, 345.0974).

(−)-7,8-Dihydro-3,6-dihydroxy-1,7,7,8-tetramethyl-5H-furo-[2′,3′:5,6]naphtho[1,8-bc]furan-5-one (6): Yellowish amorphous powder (5 mg); [α]_D: −36.80° (c 0.1, MeOD); UV (MeOH) λ_max (log ε) 226 (1.22), 263 (3.65), 359 (3.52) nm; ¹H and ¹³C NMR data, see Supplementary Information; HRESIMS m/z 301.1064 [M + H]⁺ (calcd. for C₁₇H₁₇O₅, 301.1076).

(+)-Scleroderolide (7): Yellow powder (57 mg); [α]_D: +73.0° (c 0.1, MeOD); UV (MeOH) λ_max (log ε) 226 (3.88), 250 (2.87), 294 (1.22), 439 (2.12) nm; ¹H and ¹³C NMR data, see Supplementary Information; HRESIMS m/z 329.1033 [M + H]⁺ (calcd. for C₁₈H₁₇O₆, 329.1039).

(+)-8-Hydroxysclerodin (8): Pale yellow crystal (38 mg); [α]_D: +66.01° (c 0.1, MeOH); UV (MeOH) λ_max (log ε) 223 (3.38), 308 (1.14), 358 (2.52) nm; ¹H and ¹³C NMR data, Table 1; Table 2; HRESIMS m/z 345.0960 [M + H]⁺ (calcd. for C₁₈H₁₇O₇, 345.0961).

Coniosclerodin (9): Pale yellow powder (8 mg); UV (MeOH) λ_max (log ε) 250 (4.12), 289 (1.14), 351 (3.52) nm; ¹H and ¹³C NMR data, see Supplementary Information; HRESIMS m/z 329.1001 [M + H]⁺ (calcd. for C₁₈H₁₇O₆, 329.1025).

(+)-Sclerodin (10): Yellowish powder (7 mg); [α]_D: +20.01° (c 0.10, CH₂Cl₂); UV (MeOH) λ_max (log ε) 216 (3.25), 256 (4.13), 295 (1.24), 359 (3.98) nm; ¹H and ¹³C NMR data, see Supplementary Information; HRESIMS m/z 329.1015 [M + H]⁺ (calcd. for C₁₈H₁₇O₆, 329.1025).

3.7. X-ray Crystal Structure Analysis

High-resolution crystallographic data for compound 8 were collected using redundant ω scans on a Rigaku XtaLabPro single-crystal diffractometer using microfocus Mo Kα radiation and a HPAD PILATUS3 R 200K detector. Its structure was readily solved by intrinsic phasing methods (SHELXT) and by full-matrix least-squares methods on F2 using SHELX-L [43,44]. The non-hydrogen atoms were refined anisotropically, and hydrogen atoms, all identified in difference maps, were positioned geometrically and refined with U_iso set to xU_eq of the parent atom (x = 1.5 for methyl carbons or hydroxy oxygens and 1.2 for all others). Despite extremely weak anomalous signal and ambiguous Flack parameter [45] obtained with that radiation, the Bijvoet analysis using likelihood methods showed strong probabilities that this characterized enantiopure natural product is (R)-2,3,7-trihydroxy-1,8,8,9-tetramethyl-8,9-dihydro-4H,6H-benzo[de]furo[2,3-g] isochromene-4,6-dione. Duplicated measurements using a Rigaku mm007 rotating anode consolidated our statement (data not deposited).

Crystallographic data for this structure, 8, have been deposited in the Cambridge Crystallographic Data Centre database (CCDC) (deposition number CCDC 1963851). Copies of the data can be obtained free of charge from the CCDC at www.ccdc.cam.ac.uk.

Crystal data for 8: C18H16O7, M = 344.31, Orthorhombic, a = 6.6249(2) Å, b = 10.0615(3) Å, c = 22.5473(6) Å a = b = g = 90°, V = 1502.92(8) Å3, T = 293(2) K, space group P212121, Z = 4, μ(Mo Kα) = 0.118 mm−1, 47,173 reflections measured, 4370 independent reflections (Rint = 0.0456). The final R1 values were 0.0389 (I > 2σ(I)). The final wR (F2) values were 0.1093 (all data). The goodness of fit on F2 was 1.072. Flack parameter = −0.2 (2). Bijvoet Pairs = 1854 (100% coverage): P2 (true) = 1.000. P3 (true) = 0.987, P3 (rac-twin) = 0.013, P3 (false) = 0.8.10⁻⁶. Hooft parameter = −0.1 (2) [35].
