Evaluation of Antifouling Potential and Ecotoxicity of Secondary Metabolites Derived from Red Algae of the Genus Laurencia

by
Maria Protopapa
1,
Manto Kotsiri
1,
Sofoklis Mouratidis
1,
Vassilios Roussis
2,
Efstathia Ioannou
2,* and
Skarlatos G. Dedos
1,*
1
Department of Biology, National and Kapodistrian University of Athens, Panepistimiopolis Zografou, 15784 Athens, Greece
2
Section of Pharmacognosy and Chemistry of Natural Products, Department of Pharmacy, National and Kapodistrian University of Athens, Panepistimiopolis Zografou, 15771 Athens, Greece
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2019, 17(11), 646; https://doi.org/10.3390/md17110646
Submission received: 2 November 2019 / Revised: 13 November 2019 / Accepted: 15 November 2019 / Published: 16 November 2019
Browse Figures
Review Reports Versions Notes

Abstract

:
Red algae of the genus Laurencia are known to biosynthesize and secrete an immense variety of secondary metabolites possessing a spectrum of biological activities against bacteria, invertebrates and mammalian cell lines. Following a rigorous cross-species screening process, herein we report the antifouling potential of 25 secondary metabolites derived from species of the genus Laurencia, as well as the thorough evaluation of the ecotoxicity of selected metabolites against non-target marine arthropods and vertebrate cell lines. A number of these secondary metabolites exhibited potent antifouling activity and performed well in all screening tests. Our results show that perforenol (9) possesses similar antifouling activity with that already described for bromosphaerol, which is used herein as a benchmark.

1. Introduction

Owing to their co-evolution with living organisms and the environment, natural products offer increased specificity and efficiency towards their targets as a means of increasing the fitness and survival of the organism which produces them [1,2,3]. Marine organisms are no exception to this rule, producing an astonishing array of natural products with diverse biological activities [1,2,3]. A characteristic example in the marine environment is the Laurencia paradox [4], referring to species of red algae belonging to the genus Laurencia that biosynthesize a constantly increasing number of new secondary metabolites, which to date exceeds 1,000 chemical entities, with structural and functional diversity [5]. Red algae of the genus Laurencia have been a rich source of structurally diverse and unique secondary metabolites with both attractant and deterring activity against a variety of marine organisms [4,5], which in turn has triggered the interest of researchers towards the evaluation of the isolated metabolites as naturally-occurring chemical compounds with antifouling activity against marine fouling invertebrates.
Although the biosynthetic mechanisms of their secondary metabolites are incompletely understood and proposed to be mediated by haloperoxidases [6] and lactoperoxidases [7] due to the presence of high proportions of brominated, chlorinated and lactone-containing metabolites [4,5,8], their chloroplast is proposed to play a role in the synthesis of their secondary metabolites [6]. Structures within the cells of red algae, mostly localized close to or at the surface cell layer [6], act as storage vesicles for secondary metabolites that help these cells avoid autotoxicity [9] from the metabolites they produce. These subcellular structures can occupy the whole cell, such as in the case of gland or vesicle cells [10], or can be refractive vesicles, such as the corps en cerise [6,11] and the physodes [12]. Irrespective of the intracellular structural form, the transport and exocytosis of the secondary metabolites is much better understood [13] than their biosynthetic pathways [4,8], being shown to occur via actin microfilaments and microtubule-mediated exocytosis [6]. Membranous tubular connections [6] or stalk-like structure connections [14] have been proposed to assist transport of the vesicle content to the thallus surface and thus elicit chemical defense against marine bacteria [14,15] or elicit chemical attraction for the herbivorous marine gastropod mollusk Aplysia brasiliana [16]. Despite the fact that results from in-vitro experiments have shown that the thallus surface concentrations of secondary metabolites, such as elatol [17,18], are low enough to elicit a chemical defense against fouling organisms, the presence of bromine and chlorine in subcellular vesicles is evidence compelling enough to suggest that an increase in fouling pressure and programmed cell death events can cause exudation of metabolites and concomitantly elicit chemical defense [6].
Understanding the distribution of surface-active molecules of red algae in situ and their chemical, biological and ecological consequences have been the pursuit of several studies [19], where the focus has been either on the behaviour of sea hares of the genus Aplysia feeding on Laurencia red algae and the subsequent use of the Laurencia secondary metabolites by the sea hares [16], or the documented settlement deterrence activity of Laurencia secondary metabolites against barnacle species or other marine invertebrates and bacteria [18,19,20].
Barnacle species, and especially the cyprids of the model organism Amphibalanus amphitrite, due to the already established protocols for settlement bioassays [21,22,23], have become one of the most frequently used animals to evaluate the antifouling activity of isolated secondary metabolites or synthetic compounds [18,20,23,24,25,26]. To establish a gregarious mode of settlement, A. amphitrite cyprids deposit a protein named Settlement Inducing Protein Complex (SIPC) which acts as a pheromone cue for their conspecifics to settle nearby and sexually reproduce [27,28,29,30,31,32].
Besides the use of A. amphitrite cyprids, as a model fouling invertebrate in laboratory bioassays of the efficacy of new antifouling formulations, other key biofouling organisms, such as bacteria, microalgae, fungi, macroalgae and other invertebrates, have also been used [17,33,34,35,36]. Providing thorough and rigorous evaluation of the antifouling potential and ecotoxicity of natural compounds has always been the critical point in any documented endeavor to identify new and useful chemical compounds [37]. Not without their limitations [17], such laboratory bioassays offer versatility and ease of assessment when several different compounds have to be tested against a variety of organisms. Several authoritative reviews [33,37,38] have proposed selection and evaluation criteria in the screening of potential antifouling compounds, such as the therapeutic ratio of > 50 [38]. However, the absence of any concrete knowledge on the mode of action of antifouling compounds against biofouling organisms [39] makes it difficult to put forth a single molecule as satisfying all the antifouling and ecotoxicity criteria that have been proposed.
With these limitations in mind and adhering to already proposed evaluation criteria for antifouling compounds [37,38], we screened 25 secondary metabolites isolated from Laurencia species, as well as Aplysia species feeding on the red algae, aiming to assess both their antifouling potential and their ecotoxicity profile. We followed a strict elimination protocol that relied first on the assessment of the settlement inhibitory activity of these metabolites against cyprids of A. amphitrite, followed by the evaluation of their toxicity against Artemia salina, Chaetoceros gracilis, a trout and a human cell line, as well as species of fouling marine bacteria and concluding with the assessment of the surface exploration behaviour by the cyprids of the shortlisted secondary metabolites.

2. Results

Given that a number of secondary metabolites from Laurencia species have already been identified as possessing antifouling activity, we designed a rigorous progressive testing procedure in which a number of compounds isolated from Laurencia and Aplysia species were tested and progressively eliminated in a successive series of model organisms to assess their potential use as antifouling compounds, as well as their ecotoxicity profile.

2.1. Evaluation of Settlement Inhibition of Amphibalanus amphitrite

Initially, we evaluated 25 secondary metabolites isolated from species of the genus Laurencia, as well as sea hares of the genus Aplysia feeding on them (1–25, Figure 1) in settlement bioassays with the model barnacle species A. amphitrite. The cumulative results are shown in Table 1 and Supplementary Figures S1–S3.
Several metabolites displayed EC50 values for settlement inhibition in the lower micromolar range. Some of them, such as laurinterol (6), 4-hydroxy-5-brasilene (8) and elatol (12) had an obvious toxic effect on cyprids (Table 1 and Supplementary Figure S2), while obtusallene I (24) and chondrioallene (25) had a settlement-stimulating activity at the higher concentrations tested (Table 1 and Supplementary Figure S1). Settlement to no metamorphosis ratio at 72 h (Table 1) was calculated to identify whether any metabolite had an undesirable developmental effect on the cyprids [23], with filiformin (5) and (3E)-laurenyne (21) scoring very high on this test. Bromosphaerol, a brominated diterpene (Figure 1) isolated from the red alga Sphaerococcus coronopifolius [24] and used in the current study as a positive control, showed a similar settlement-inhibiting profile, as previously reported [24], but its presence also resulted in a large percentage of animals not progressing to metamorphosis (Table 1 and Supplementary Figure S4).
With bromosphaerol serving as a benchmark, eight compounds (4, 9, 11, 12, 14, 18, 19, and 22) were satisfying the criterion of consistently displaying sub-micromolar EC50 values for settlement inhibition of barnacle cyprids (Table 1).

2.2. Evaluation of Toxicity Against Artemia salina

The eight secondary metabolites that were evaluated as having potentially promising antifouling activity against A. amphitrite (Table 1), as well as bromosphaerol, were subsequently tested in A. salina nauplii toxicity assays at 24 and 48 h of exposure (Table 2). These toxicity assays were conducted to identify if any of the selected metabolites exhibit toxicity towards another invertebrate organism and eliminate those that confer toxicity after longer exposure times (i.e. at 48 h). The exclusion criterion was a >10-fold increase in the EC50 value between the 24 h and 48 h time points. The results showed that iso-laurenisol (4) and elatol (12) did not pass this criterion and were therefore eliminated from further testing. Bromosphaerol did not show any toxicity against A. salina nauplii (Table 2 and Supplementary Figure S5).

2.3. Evaluation of Toxicity against Chaetoceros gracilis

For phytoplankton growth toxicity assays, the criterion for assay validity was that the cell count of the negative control after 96 h should be ≥2 × 105 cells/mL [40]. The exclusion criterion was that a metabolite should exhibit a lower EC50 value than bromosphaerol, which proved to be a very potent inhibitor of C. gracilis growth. The results showed that perforatone (11), 3,15-dibromo-7,16-dihydroxy-isopimar-9(11)-ene (14) and laurencienyne (22) did not pass this criterion and were therefore eliminated from further testing (Table 2 and Supplementary Figure S6).

2.4. Evaluation of Cytotoxicity Against RTL-W1 Cell Line

The RTL-W1 cell line is a non-transformed rainbow trout liver cell line established from the normal liver of an adult rainbow trout by proteolytic dissociation of liver fragments [41]. Shortlisting three metabolites, namely perforenol (9), the dactylomelane diterpene 18 and neorogioldiol (19), we employed three different cytotoxicity tests in an attempt to identify possible modes of action through which each secondary metabolite is affecting cell viability, a prerequisite for any downstream application of these compounds [39]. The results showed (Table 2 and Supplementary Figure S7) that none of the three tested metabolites had an effect on lysosomal activity and/or the general metabolism and mitochondrial activity of this trout liver cell line. The crystal violet assay showed that two of the tested metabolites had an EC50 value at the lower micromolar concentrations (Table 2), while compound 18 and bromosphaerol had sub-micromolar EC50 values (Table 2). Since none of these secondary metabolites proved to be more toxic than bromosphaerol or had an explicit toxic profile in all three assays, none was excluded from subsequent tests.

2.5. Evaluation of Cytotoxicity against HEK293 Cell Line

The HEK293 cell line is a transformed human embryonic kidney cell line of epithelial origin [42]. Testing the same three metabolites (9, 18 and 19) as in the RTL-W1 cell line, using three different cytotoxicity tests, we observed (Table 2 and Supplementary Figure S8) that in the case of HEK293 cells, metabolite 18 and neorogioldiol (19) were very selective against mitochondrial function and metabolism, unlike the RTL-W1 cell line. On the contrary, lysosomal activity was not affected by the presence of any of the three tested metabolites (Table 2). The crystal violet assay (Table 2) showed that perforenol (9) and bromosphaerol exhibited mild cytotoxicity.

2.6. Evaluation of Growth of Marine Bacteria

The activity of perforenol (9), the dactylomelane diterpene (18) and neorogioldiol (19), as well as bromosphaerol was evaluated against five strains of marine bacteria known to exist in biofilms, namely, Bacillus subtilis, Bacillus mojavensis, Bacillus thuringiensis, Pseudomonas putita and Pseudomonas pseudoalcaligenes. The results (Supplementary Figure S9) showed that none of these metabolites had any effect on the growth of the tested bacterial strains.

2.7. Effect of Perforenol and Bromosphaerol on the Settlement Exploration Behaviour of Amphibalanus amphitrite

Finally, in order to assess whether perforenol (9) and bromosphaerol had any effect or interfered with the settlement behaviour of cyprids of A. amphitrite, we carried out modified Western blot assays upon completion of the settlement bioassays with the barnacle cyprids. The results (Figure 2) showed that concentrations of perforenol (9) and bromosphaerol at the EC50 values had no statistically significant effect (p > 0.05) on the deposition of SIPC protein on the surface of the bioassay plates. Bromosphaerol, even at a concentration of 10 μM, did not affect deposition of SIPC by the cyprids relative to the control (ASW) (Figure 2).

3. Discussion

Although the concept of identifying marine natural products as antifouling agents is not new, reports on the variety of secondary metabolites that have antifouling potential against barnacle species has been increasing recently [33,34,37,39,43,44]. Research on the bioactivity and ecological functions of secondary metabolites from red algae of the genus Laurencia has been exponentially increasing in the last two decades, with more than 1,000 compounds added in an ever-increasing list of isolated metabolites [4,5].
In the framework of our ongoing interests in the discovery of bioactive metabolites from marine organisms of the East Mediterranean Sea, we screened 25 compounds isolated from Laurencia and Aplysia species, including 13 sesquiterpenes (1–13), 7 diterpenes (14–20) and 5 C15 acetogenins (21–25), aiming to assess both their antifouling potential and their ecotoxicity profile. Initially, we evaluated the settlement inhibitory activity of these metabolites against cyprids of the barnacle A. amphitrite. By benchmarking the antifouling potential of these metabolites against the already established antifouling activity of bromosphaerol isolated from the red alga Sphaerococcus coronopifolius [24], we identified several of them as having equal or better antifouling activity than bromosphaerol (Table 1). The eight most potent metabolites (4, 9, 11, 12, 14, 18, 19, and 22) were sequentially evaluated for their toxicity against A. salina, C. gracilis, a trout and a human cell line, as well as five species of marine fouling bacteria (Table 2), attempting to exclude any possessing toxicity against other marine non-target organisms that would render these metabolites unsuitable for antifouling applications. Among these, perforenol (9), originally isolated from Laurencia perforata and Laurencia chondrioides [45,46], displayed potent antifouling activity and minimal ecotoxicity.
An extensive literature search revealed that among Laurencia-derived metabolites, only omaezallene [20] and 2,10-dibromo-3-chloro-7-chamigrene [26] have exhibited substantially low EC50 values and deserve being considered for antifouling formulations. Herein, we showed that perforenol (9) can also be included in this short list of secondary metabolites with potent antifouling activity.
Since several secondary metabolites deriving from Laurencia species possess antifouling activity against the barnacle A. amphitrite, we propose that the ability of Laurencia species to deter fouling derives from the concurrent presence of several metabolites, while any antifouling application of these metabolites does not have to rely on the exclusive use of each one of them.

4. Materials and Methods

4.1. Extraction and Isolation of Metabolites

Compounds 1–3, 5, 16–18 and 23 were isolated from Aplysia depilans Gmelin, 1791 (Gastropoda: Heterobranchia: Aplysiida: Aplysiidae [47]), collected off Skyros Island, Greece, at a depth of 2–4 m, in August of 2011, as described by Petraki (2016) and Petraki et al. (2015) [48,49]. Compounds 4 and 13 were isolated from Laurencia microcladia, collected at the coastline of Ag. Kyriaki, in Tinos island, at a depth of 0.5–2 m, in September of 2011, while compounds 4, 24 and 25 were isolated from Laurencia obtusa, collected at the coastline of Ag. Sostis, in Tinos island, at a depth of 0.5–2 m, in September of 2011, as described by Harizani (2013) [50]. Compounds 6–8, 19, 20 and 22 were isolated from Laurencia glandulifera, collected at Vatsa bay, in Kefalonia island, at a depth of 0.5–2 m, in May of 2014, as described by Konidaris (2015) [51]. Compounds 9–11, 13 and 14 were isolated from Laurencia sp., collected at the gulf of Preveza, at a depth of 2–3 m, in July of 2010, as described by Giannaropoulou (2013) [52]. Compound 15 was isolated from Aplysia fasciata, collected in the Alfacs Bay, Delta de l’Ebre, Tarragona, Spain, at a depth of 1–1.5 m, in January of 2008, as described by Ioannou et al. (2009) [53]. Compound 21 was isolated from Laurencia chondrioides, collected at Ag. Theodoroi, in Kefalonia island, Greece, at a depth of 1–2 m, in August of 2010, as described by Kokkotou et al. (2014) [46]. Metabolites 1–25 were identified as laurene (1), debromoallolaurinterol acetate (2), allolaurinterol acetate (3), iso-laurenisol (4), filiformin (5), laurinterol (6), epibrasilenol (7), 4-hydroxy-5-brasilene (8), perforenol (9), perforenone A (10), perforatone (11), elatol (12), obtusenol (13), 3,15-dibromo-7,16-dihydroxy-isopimar-9(11)-ene (14), deoxyparguerol 16-acetate (15), three previously reported dactylomelane diterpenes (16–18), neorogioldiol (19), O11,15-cyclo-14-bromo-14,15-dihydrorogiol-3,11-diol (20), (3Ε)-laurenyne (21), laurencienyne (22), graciosallene (23), obtusallene Ι (24), and chondrioallene (25) by comparison of their spectroscopic and physical characteristics with those reported in the literature.

4.2. Rearing of Barnacles

Adult A. amphitrite (Cirripedia, Balanidae) were collected from boat docks at Port Mikrolimano and Floisvos, Athens, Greece. Animals were cleaned of epibionts with a small hard brush and meticulously identified as individuals of the species. Adult barnacles were kept in separate aerated glass tanks (20 L) containing 200-μm filtered natural seawater at 27 °C and a 12:12 L:D photoperiod. Tanks were fed with 24-h hatched Artemia sp. (Branchiopoda) nauplii and Tetraselmis suecica (Chlorodendrophyceae) and Skeletonema costatum (Bacillariophyceae) algae each day and seawater was changed on alternate days. Upon stress to induce oviposition (exposure to air for 24 h or immersion in fresh water for 5 h), adults were returned to seawater for larval release. Hatched nauplii were attracted to a point light source, collected and placed into a beaker containing 2 or 3 L of 0.7 μm GF/F (GE Healthcare, Little Chalfont, UK )-filtered natural seawater at a density of approximately 1–2 nauplii/mL with gentle aeration. Nauplii were maintained at 27 °C at a 12:12 L:D photoperiod on a diet of C. gracilis (Bacillariophyceae) provided at a density of 2 × 105 cells/mL. Cultured in these conditions, nauplii metamorphosed to cyprids in 5 days. Aliquots of these cyprids were collected with a wide-mouthed Pasteur pipette and aged at 4 °C for 1 day prior to use in settlement assays. Only batches of cyprids that were active and had numerous oil cells, representing energy reserves, were used in settlement assays.

4.3. Amphibalanus amphitrite Settlement Bioassay

Assays were conducted by adding 10 cyprids into individual wells of a 24-well polystyrene sterile microplate (Orange Scientific, Braine l’Alleud, Belgium) with 2 mL of artificial sea water (ASW) (25‰) and various concentrations of the chemical compounds as listed in Table 1. These experiments were repeated at least three times with four replicates for each concentration of any given compound (n = 120 cyprids/compound). Stock solutions for all compounds were prepared in methanol (Scharlab, Barcelona, Spain) and serial dilutions were prepared in 0.7 μm (GF/F, GE Healthcare, Little Chalfont, UK), filtered sea water to have a final concentration of 2.5% methanol in each assay solution. Plates were covered and sealed with Parafilm® to avoid evaporation and incubated at 25 °C away from any light source and examined after 24, 48 and 72 h. Each animal was inspected under a stereomicroscope and its condition was recorded. On each day, cyprids that did not move, had extended thoracopods and did not respond after a light touch with a Pasteur pipette, were regarded as dead. Both permanently attached and metamorphosed individuals were counted as settled or juveniles. The remainder were counted as ‘no metamorphosis’, i.e. animals that responded to light touch and were still cyprids at the end of the experiments with no overt signs of metamorphosis. Results were expressed as a percentage of animals that settled (settlement) or were inactive upon a light touch with a Pasteur pipette (mortality) or did not undergo settlement and metamorphosis (no metamorphosis) from the total number of animals placed in a well of a 24-well tissue culture plate. The IC50 or EC50 was determined as the concentration of each compound that resulted in 50% inhibition of the cyprids’ settlement or metamorphosis, and LC50 was determined as the concentration of each compound that resulted in 50% mortality of the cyprids.

4.4. Artemia salina Toxicity Assay

The short-term toxicity assay with A. salina nauplii [54,55] was used to determine the toxicity of secondary metabolites. Hatching of A. salina nauplii was carried out in ASW (35‰) using 0.5 g of cysts incubated in 500 mL seawater at a temperature of 25 ± 1 °C and lateral illumination (1000 Lux). All cysts were kept in continuous suspension with aeration and 24 h later hatched larvae (instar I) were harvested. Toxicity assays were carried out in three independent experiments in 24-well plates with four replicates of each tested concentration. Ten nauplii per well were transferred with a Pasteur pipette into the 24-well plates and each well was filled with 2 mL of ASW and 50 μL of various concentrations of the tested compounds in methanol. Control treatments received 50 μL of methanol. Plates were incubated in the dark at 25 ± 1 °C for 48 h. Mortality was assessed by recording the number of individuals with no movement of their appendages within 10 seconds and is expressed as the percentage of the total number of assessed individuals for each concentration.

4.5. Chaetoceros gracilis Toxicity Assay

The centric marine diatom C. gracilis Schütt (strain CCMP1315) was grown photoautotrophically in autoclaved artificial seawater (sea salts; Sigma-Aldrich, St. Louis, MO, USA) (30‰) supplemented with F/2 (half-strength medium f [56] as subsequently modified [57]) in 100 mL medium at 20 °C and with ambient air bubbled in the media. By monitoring cell density, an adjusted culture of >1 × 106 cells/mL was used for the toxicity assays. At 96 h, a 0.9 mL aliquot of each treatment was sampled, mixed with 0.1 mL Lugol and cell density was counted. Experiments were assumed valid if cell count in the control after 96 h was ≥2 × 106 cells/mL.

4.6. RTL-W1 Cell Line Cytotoxicity Assay

The RTL-W1 cell line, a non-transformed rainbow trout liver cell line that has already been used in environmental toxicity assays [58], was established from the normal liver of an adult rainbow trout by proteolytic dissociation of liver fragments [41]. RTL-W1 cells were cultured in 75 cm2 culture flasks (Orange Scientific, Braine l’Alleud, Belgium) at 20 °C in Leibovitz’s (L-15, Sigma-Aldrich, St. Louis, MO, USA) medium supplemented with 5% fetal bovine serum (FBS) and 1% L-glutamine in CO2-free incubator. For the cytotoxicity assays of the selected secondary metabolites, cells were seeded at 3 × 104 cells/well density in a 96-well tissue culture plate (Orange Scientific Braine l’Alleud, Belgium) in 100 μL culture medium/well for 2 days before the assays. Three different cytotoxicity protocols were used: 1) The alamar blue/resazurin fluorometric/colorimetric cell viability assay [59] to assess the metabolic capacity and mitochondrial function; 2) the crystal violet cell viability assay for indirect quantification of cell death [60]; and 3) the neutral red cell proliferation assay for lysosomal activity [61]. Two days after seeding the cells, cultures were incubated with various concentrations of selected secondary metabolites at 20 °C for 48 h before cell viability was assessed. Final solvent (methanol) concentration per well in all experiments was 2.5% v/v, a concentration that was found to be non-toxic for the cells. For the alamar blue/resazurin fluorometric/colorimetric cell viability assay [59], 100 μL of 3 μg/100 μL Resazurin sodium salt (Sigma-Aldrich, St. Louis, MO, USA) in incubation medium was added on each well and incubated under sterile conditions at 20 °C for 4 h. For the crystal violet cell viability assay [60], after 48 h of incubation with each secondary metabolite, the culture medium was aspirated and cells were washed twice with sterile dd. H2O. The final wash was aspirated and 50 μL of 0.5% (w/v) crystal violet staining solution (20% methanol in dd. H2O) was added to each well followed by incubation for 20 min at room temperature on a bench rocker with a frequency of 20 oscillations per minute. The staining solution was then aspirated and the plate was washed four times with sterile dd. H2O and left to air-dry without its lid for 3 h at room temperature. Next, 200 μL of methanol was added to each well, and the plate was incubated with its lid on for 20 min at room temperature on a bench rocker with a frequency of 20 oscillations per minute. For the neutral red cell proliferation assay [61], after 48 h of incubation with each secondary metabolite, the culture medium was aspirated and cells were washed twice with phosphate-buffered saline (PBS, pH 7.4). Cells were then incubated with 100 μL of a 40 μg/mL neutral red staining solution in culture medium at 20 °C for 4 h followed by two washes with 150 μL of PBS. Then cells were incubated with 100 μL neutral red destain solution (50% ethanol, 49% dd. H2O, 1% glacial acetic acid) for 10 min on a bench rocker with a frequency of 80 oscillations per minute. Absorbance was read at 570 nm for alamar blue/resazurin and crystal violet and at 540 nm for neutral red using a Tecan infinite M200 Pro microplate reader. For each assay and each secondary metabolite, a minimum of four independent dose–response experiments with three replicates each were carried out. Calculations were carried out using detailed formulas (AbCam, Cambridge, UK, and results were analyzed with GraphPad Prism v.6.

4.7. HEK 293 Cell Line Cytotoxicity Assay

HEK293 cells, a human embryotic kidney cell line, were obtained from ATCC (ATCC® CRL-1573™) at passage 37 of the original clone and used at passage 38. Cells were cultured routinely in 75 cm2 culture flasks (Orange Scientific, Braine l’Alleud, Belgium) at 37 °C (5% CO2) in DMEM cell culture medium (Biosera) supplemented with 10% FBS (Sigma-Aldrich, St. Louis, MO, USA) and 1% L-glutamine. All assay conditions and protocols were identical to those described above for RTL-W1 cells with the exception that incubations were carried out at 37 °C.

4.8. Marine Bacteria Growth Assay

The ability of selected metabolites to inhibit the growth of bacteria was assessed using five strains of marine bacteria involved in marine surface biofilm formation, namely, B. subtilis, B. mojavensis, B. thuringiensis, P. putita and P. pseudoalcaligenes. Bacterial strains were maintained on Zobel marine agar plates [62]. Sterile filter paper discs (4 mm) (GF/F; GE Healthcare, Little Chalfont, UK) were loaded with 40 μL samples of serial dilutions of each tested metabolite, allowed to dry at room temperature and then placed on agar plates (Zobel marine agar, pH = 7.3), which were seeded with a single strain of bacteria. Plates were incubated for 24 h at 25 °C. Marine bacteria growth inhibition was determined by measuring the zone of inhibition in mm around the filter paper disc. As a positive and negative control, standard discs were loaded with 40 μL of 0.5 M penicillin G (2 to 10 mm diameter) or solvent (40 μL methanol), respectively.

4.9. Substrate Exploration Analysis by Amphibalanus amphitrite Cyprids

To test the substrate exploratory behaviour of A. amphitrite cyprids in the presence of selected metabolites, settlement bioassays were conducted by adding 10 cyprids into individual wells of a 24-well polystyrene sterile microplate (Orange Scientific, Braine l’Alleud, Belgium) containing 2 mL of ASW (25‰). These experiments were repeated twice with four replicates per experiment. Plates were covered and sealed with Parafilm® to avoid evaporation and incubated at 25 °C away from any light source for 24 h. Then, the 2 mL of ASW was aspirated from each well and all settled and non-settled cyprids were counted and removed. Wells were then blocked by incubation with 5% BSA in TBST (25 mM Tris-HCl, pH 7.5, 150 mM NaCl, 0.1% Tween 20) for 1 h at room temperature. Wells were then incubated for 1 h at room temperature with the mouse anti-SIPC monoclonal antibody [28] at 1:100 dilution of the cloned cell line culture supernatant in TBST with 5% BSA, washed with TBST (3 × 5 min) and incubated with an HRP-conjugated anti-mouse antibody (1:1000, Cell Signaling Technology, Danvers, MA, USA) for 1 h at room temperature. Wells were then washed with TBST (3 × 5 min) and immunostaining was detected using the 20 × LumiGLO® chemiluminescence kit (Cell Signaling Technology, Danvers, MA, USA) in a Bio-Rad ChemiDoc XRS + Gel Photo Documentation System. To measure the relative intensity of immunoreactive spots on this format of Western blots, images were analyzed with ImageJ 1.52k (NIH, Bethesda, MD, USA), and the adjusted integrated density of the signals was calculated using the formula: Adjusted integrated density (IntDen) = IntDen of experimental region of interest (ROI)—(mean of background ROI × area of experimental ROI). Data were exported and statistically analyzed with GraphPad Prism v.6 using unpaired, two-tailed t-tests at p = 0.05, with Welch’s correction.

4.10. Statistical Analysis

For EC50 or IC50 (the concentration that results in 50% stimulation or inhibition relative to the control) calculations in GraphPad Prism v.6, all data were fitted to the curve according to the following models for normalized response: Y = 100/(1 + 10^((X − LogIC50))) or Y = 100/(1 + 10^((LogEC50 − X))) depending on the trend of the curve.

5. Conclusions

Aiming to identify chemical compounds that can be used as antifouling agents against barnacles, while at the same time testing their ecotoxicity against non-target organisms, we singled out the sesquiterpene perforenol (9) as having potent antifouling activity. Perforenol (9) displayed settlement-inhibiting activity against A. amphitrite cyprids with an IC50 value of about 0.5 μM and, most crucially, did not interfere with the settlement seeking behavior of the cyprids of this species. Several other secondary metabolites, isolated from red algae of the genus Laurencia and sea hare species of the genus Aplysia, had antifouling activity against A. amphitrite cyprids but failed to pass our ecotoxicity tests against non-target organisms.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/11/646/s1, Figures S1–S9: visual representation of the results of the various bioassays.

Author Contributions

Conceptualization, M.P., V.R., E.I. and S.G.D.; Methodology, M.P., M.K., S.M., V.R., E.I. and S.G.D.; Software and Resources, M.P., V.R., E.I. and S.G.D.; Validation and Data Curation; M.P., M.K., V.R., E.I. and S.G.D; Formal Analysis, M.P., E.I. and S.G.D.; Investigation, M.P., M.K., S.M., E.I. and S.G.D.; Writing—Original Draft, S.G.D.; Writing—Review & Editing, M.P., V.R., E.I. and S.G.D; Visualization, M.P., E.I. and S.G.D; Supervision, Project Administration and Funding Acquisition, V.R., E.I. and S.G.D.

Funding

This research was supported by the project “Center for the study and sustainable exploitation of Marine Biological Resources” (CMBR, MIS 5002670) funded in the framework of the National Roadmap for Research Infrastructures and the project GSRT-EPANII-11SYN-5-1274 “MARIPAINTS” implemented under the “COOPERATION 2011” Action funded by the European Social Fund (ESF) and National Resources.

Acknowledgments

The authors thank Sylvie Bony (Laboratoire d’Ecologie des Hydrosystèmes Naturels et Anthropisés, CNRS, UMR 5023-LEHNA, USC INRA 1369, France) and Lucy Lee (Faculty of Science, University of Fraser Valley, Canada) for the kind donation of RTL-W1 cell line.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Alves, C.; Silva, J.; Pinteus, S.; Gaspar, H.; Alpoim, M.C.; Botana, L.M.; Pedrosa, R. From marine origin to therapeutics: The antitumor potential of marine algae-derived compounds. Front. Pharmacol. 2018, 9, 777. [Google Scholar] [CrossRef]
  2. Mishra, B.B.; Tiwari, V.K. Natural products: An evolving role in future drug discovery. Eur. J. Med. Chem. 2011, 46, 4769–4807. [Google Scholar] [CrossRef]
  3. Gribble, G. Biological activity of recently discovered halogenated marine natural products. Mar. Drugs 2015, 13, 4044–4136. [Google Scholar] [CrossRef]
  4. Harizani, M.; Ioannou, E.; Roussis, V. The Laurencia paradox: An endless source of chemodiversity. In Progress in the Chemistry of Organic Natural Products; Kinghorn, A.D., Falk, H., Gibbons, S., Kobayashi, J.I., Eds.; Springer International: Basel, Switzerland, 2016; Volume 102, pp. 91–252. [Google Scholar]
  5. MarinLit. A Database of the Marine Natural Products Literature. Available online: http://pubs.rsc.org/marinlit/ (accessed on 30 September 2019).
  6. Salgado, L.T.; Viana, N.B.; Andrade, L.R.; Leal, R.N.; Da Gama, B.A.P.; Attias, M.; Pereira, R.C.; Amado Filho, G.M. Intra-cellular storage, transport and exocytosis of halogenated compounds in marine red alga Laurencia obtusa. J. Struct. Biol. 2008, 162, 345–355. [Google Scholar] [CrossRef]
  7. Murai, A. Biosynthesis of cyclic bromoethers from red algae. In Comprehensive Natural Products Chemistry; Barton, S.D., Nakanishi, K., Meth-Cohn, O., Eds.; Pergamon: Oxford, UK, 1999; pp. 303–324. [Google Scholar]
  8. Wang, B.-G.; Gloer, J.B.; Ji, N.-Y.; Zhao, J.-C. Halogenated organic molecules of Rhodomelaceae origin: Chemistry and biology. Chem. Rev. 2013, 113, 3632–3685. [Google Scholar] [CrossRef]
  9. McKey, D. The distribution of secondary compounds within plants. In Herbivores. Their Interaction with Secondary Plant Metabolites; Rosenthal, G., Janzen, D., Eds.; Academic Press: New York, NY, USA, 1979; pp. 55–134. [Google Scholar]
  10. Dworjanyn, S.A.; De Nys, R.; Steinberg, P.D. Localisation and surface quantification of secondary metabolites in the red alga Delisea pulchra. Mar. Biol. 1999, 133, 727–736. [Google Scholar] [CrossRef]
  11. Young, D.N.; Howard, B.M.; Fenical, W. Sucellular localization of brominated secondary metabolites in the red alga Laurencia snyderae. J. Phycol. 1980, 16, 182–185. [Google Scholar] [CrossRef]
  12. Schoenwaelder, M.E.A. The occurrence and cellular significance of physodes in brown algae. Phycologia 2002, 41, 125–139. [Google Scholar] [CrossRef]
  13. Reis, V.M.; Oliveira, L.S.; Passos, R.M.F.; Viana, N.B.; Mermelstein, C.; Sant’anna, C.; Pereira, R.C.; Paradas, W.C.; Thompson, F.L.; Amado-Filho, G.M.; et al. Traffic of secondary metabolites to cell surface in the red alga Laurencia dendroidea depends on a two-step transport by the cytoskeleton. PLoS ONE 2013, 8, e63929. [Google Scholar] [CrossRef] [PubMed]
  14. Paul, N.A.; Nys, R.D.; Steinberg, P.D. Chemical defence against bacteria in the red alga Asparagopsis armata: Linking structure with function. Mar. Ecol. Prog. Ser. 2006, 306, 87–101. [Google Scholar] [CrossRef]
  15. Kubanek, J.; Jensen, P.R.; Keifer, P.A.; Sullards, M.C.; Collins, D.O.; Fenical, W. Seaweed resistance to microbial attack: A targeted chemical defense against marine fungi. Proc. Natl. Acad. Sci. USA 2003, 100, 6916–6921. [Google Scholar] [CrossRef] [PubMed]
  16. Nocchi, N.; Soares, A.R.; Souto, M.L.; Fernández, J.J.; Martin, M.N.; Pereira, R.C. Detection of a chemical cue from the host seaweed Laurencia dendroidea by the associated mollusc Aplysia brasiliana. PLoS ONE 2017, 12, e0187126. [Google Scholar] [CrossRef] [PubMed]
  17. De Nys, R.; Leya, T.; Maximilien, R.; Afsar, A.; Nair, P.S.R.; Steinberg, P.D. The need for standardised broad scale bioassay testing: A case study using the red alga Laurencia rigida. Biofouling 1996, 10, 213–224. [Google Scholar] [CrossRef] [PubMed]
  18. Sudatti, D.B.; Rodrigues, S.V.; Coutinho, R.; Da Gama, B.a.P.; Salgado, L.T.; Amado Filho, G.M.; Pereira, R.C. Transport and defensive role of elatol at the surface of the red seaweed Laurencia obtusa (Ceramiales, Rhodophyta). J. Phycol. 2008, 44, 584–591. [Google Scholar] [CrossRef] [PubMed]
  19. Steinberg, P.D.; De Nys, R. Chemical mediation of colonization of seaweed surfaces. J. Phycol. 2002, 38, 621–629. [Google Scholar] [CrossRef]
  20. Umezawa, T.; Oguri, Y.; Matsuura, H.; Yamazaki, S.; Suzuki, M.; Yoshimura, E.; Furuta, T.; Nogata, Y.; Serisawa, Y.; Matsuyama-Serisawa, K.; et al. Omaezallene from red alga Laurencia sp.: Structure elucidation, total synthesis, and antifouling activity. Angew. Chem. Int. Ed. 2014, 53, 3909–3912. [Google Scholar] [CrossRef]
  21. Rittschof, D.; Branscomb, E.S.; Costlow, J.D. Settlement and behavior in relation to flow and surface in larval barnacles, Balanus amphitrite Darwin. J. Exp. Mar. Biol. Ecol. 1984, 82, 131–146. [Google Scholar] [CrossRef]
  22. Rittschof, D.; Clare, A.S.; Gerhart, D.J.; Mary, S.A.; Bonaventura, J. Barnacle in vitro assays for biologically active substances: Toxicity and settlement inhibition assays using mass cultured Balanus amphitrite amphitrite darwin. Biofouling 1992, 6, 115–122. [Google Scholar] [CrossRef]
  23. Kotsiri, M.; Protopapa, M.; Roumelioti, G.-M.; Economou-Amilli, A.; Efthimiadou, E.K.; Dedos, S.G. Probing the settlement signals of Amphibalanus amphitrite. Biofouling 2018, 34, 492–506. [Google Scholar] [CrossRef]
  24. Piazza, V.; Roussis, V.; Garaventa, F.; Greco, G.; Smyrniotopoulos, V.; Vagias, C.; Faimali, M. Terpenes from the red alga Sphaerococcus coronopifolius inhibit the settlement of barnacles. Mar. Biotechnol. 2011, 13, 764–772. [Google Scholar] [CrossRef]
  25. Clare, A.S.; Rittschof, D.; Costlow, J.D. Effects of the nonsteroidal ecdysone mimic RH 5849 on larval crustaceans. J. Exp. Zool. 1992, 262, 436–440. [Google Scholar] [CrossRef]
  26. Al-Lihaibi, S.S.; Abdel-Lateff, A.; Alarif, W.M.; Nogata, Y.; Ayyad, S.E.N.; Okino, T. Potent antifouling metabolites from Red Sea organisms. Asian J. Chem. 2015, 27, 2252–2256. [Google Scholar] [CrossRef]
  27. Aldred, N.; Alsaab, A.; Clare, A.S. Quantitative analysis of the complete larval settlement process confirms Crisp’s model of surface selectivity by barnacles. Proc. R. Soc. 2018, 285, 20171957. [Google Scholar] [CrossRef] [PubMed]
  28. Kotsiri, M.; Protopapa, M.; Mouratidis, S.; Zachariadis, M.; Vassilakos, D.; Kleidas, I.; Samiotaki, M.; Dedos, S.G. Should I stay or should I go? The settlement-inducing protein complex guides barnacle settlement decisions. J. Exp. Biol. 2018, 221, jeb185348. [Google Scholar] [CrossRef] [PubMed]
  29. Dreanno, C.; Kirby, R.R.; Clare, A.S. Locating the barnacle settlement pheromone: Spatial and ontogenetic expression of the settlement-inducing protein complex of Balanus amphitrite. Proc. R. Soc. 2006, 273, 2721–2728. [Google Scholar] [CrossRef] [PubMed]
  30. Dreanno, C.; Kirby, R.R.; Clare, A.S. Smelly feet are not always a bad thing: The relationship between cyprid footprint protein and the barnacle settlement pheromone. Biol. Lett. 2006, 2, 423–425. [Google Scholar] [CrossRef] [PubMed]
  31. Dreanno, C.; Matsumura, K.; Dohmae, N.; Takio, K.; Hirota, H.; Kirby, R.R.; Clare, A.S. An α2-macroglobulin-like protein is the cue to gregarious settlement of the barnacle Balanus amphitrite. Proc. Natl. Acad. Sci. USA 2006, 103, 14396–14401. [Google Scholar] [CrossRef] [PubMed]
  32. Dreanno, C.; Kirby, R.R.; Clare, A.S. Involvement of the barnacle settlement-inducing protein complex (SIPC) in species recognition at settlement. J. Exp. Mar. Biol. Ecol. 2007, 351, 276–282. [Google Scholar] [CrossRef]
  33. Dahms, H.; Dobretsov, S. Antifouling compounds from marine macroalgae. Mar. Drugs 2017, 15, 265. [Google Scholar] [CrossRef]
  34. Dahms, H.; Hellio, C. Laboratory bioassays for screening marine antifouling compounds. In Advances in Marine Antifouling Coatings and Technologies; Hellio, C., Yebra, D., Eds.; Woodhead: Cambridge, UK, 2009; pp. 275–307. [Google Scholar]
  35. Briand, J.-F. Marine antifouling laboratory bioassays: An overview of their diversity. Biofouling 2009, 25, 297–311. [Google Scholar] [CrossRef]
  36. Hellio, C.; De La Broise, D.; Dufossé, L.; Le Gal, Y.; Bourgougnon, N. Inhibition of marine bacteria by extracts of macroalgae: Potential use for environmentally friendly antifouling paints. Mar. Environ. Res. 2001, 52, 231–247. [Google Scholar] [CrossRef]
  37. Qian, P.-Y.; Li, Z.; Xu, Y.; Li, Y.; Fusetani, N. Mini-review: Marine natural products and their synthetic analogs as antifouling compounds: 2009–2014. Biofouling 2015, 31, 101–122. [Google Scholar] [CrossRef] [PubMed]
  38. Qian, P.-Y.; Xu, Y.; Fusetani, N. Natural products as antifouling compounds: Recent progress and future perspectives. Biofouling 2009, 26, 223–234. [Google Scholar] [CrossRef] [PubMed]
  39. Qian, P.-Y.; Chen, L.; Xu, Y. Mini-review: Molecular mechanisms of antifouling compounds. Biofouling 2013, 29, 381–400. [Google Scholar] [CrossRef] [PubMed]
  40. ASTM. Standard Guide for Conducting Static Toxicity Tests with Microalgae. E1218-04; American Society for Testing and Material (ASTM) International: West Conshohocken, PA, USA, 2012. [Google Scholar]
  41. Lee, L.E.; Clemons, J.H.; Bechtel, D.G.; Caldwell, S.J.; Han, K.B.; Pasitschniak-Arts, M.; Mosser, D.D.; Bols, N.C. Development and characterization of a rainbow trout liver cell line expressing cytochrome P450-dependent monooxygenase activity. Cell Biol. Toxicol. 1993, 9, 279–294. [Google Scholar] [CrossRef]
  42. Graham, F.L.; Smiley, J.; Russell, W.C.; Nairn, R. Characteristics of a human cell line transformed by DNA from human adenovirus type 5. J. Gen. Virol. 1977, 36, 59–74. [Google Scholar] [CrossRef]
  43. Almeida, E.; Diamantino, T.C.; De Sousa, O. Marine paints: The particular case of antifouling paints. Prog. Org. Coat. 2007, 59, 2–20. [Google Scholar] [CrossRef]
  44. Almeida, J.R.; Vasconcelos, V. Natural antifouling compounds: Effectiveness in preventing invertebrate settlement and adhesion. Biotechnol. Adv. 2015, 33, 343–357. [Google Scholar] [CrossRef]
  45. Gonzalez, A.G.; Aguiar, J.M.; Darias, J.; Gonzalez, E.; Martin, J.D.; Martin, V.S.; Perez, C.; Fayos, J.; Martinez-Ripoll, M. Perforenol, a new polyhalogenated sesquiterpene from Laurencia perforata. Tetrahedron Lett. 1978, 19, 3931–3934. [Google Scholar] [CrossRef]
  46. Kokkotou, K.; Ioannou, E.; Nomikou, M.; Pitterl, F.; Vonaparti, A.; Siapi, E.; Zervou, M.; Roussis, V. An integrated approach using UHPLC–PDA–HRMS and 2D HSQC NMR for the metabolic profiling of the red alga Laurencia: Dereplication and tracing of natural products. Phytochemistry 2014, 108, 208–219. [Google Scholar] [CrossRef]
  47. MolluscaBase. Aplysia depilans Gmelin, 1791, World Register of Marine Species. Available online: http://www.marinespecies.org/aphia.php?p=taxdetails&id=138754 (accessed on 12 November 2019).
  48. Petraki, A. Isolation and structure elucidation of secondary metabolites from the sea hare Aplysia depilans. Ph.D. Thesis, National and Kapodistrian University of Athens, Athens, Greece, July 2016. [Google Scholar]
  49. Petraki, A.; Ioannou, E.; Papazafiri, P.; Roussis, V. Dactylomelane diterpenes from the sea hare Aplysia depilans. J. Nat. Prod. 2015, 78, 462–467. [Google Scholar] [CrossRef] [PubMed]
  50. Harizani, M. Isolation and Structure Elucidation of Secondary Metabolites from the Red Algae Laurencia microcladia and Laurencia obtusa. Master’s Thesis, National and Kapodistrian University of Athens, Athens, Greece, July 2013. [Google Scholar]
  51. Konidaris, G. Isolation and Structure Elucidation of Secondary Metabolites from the Red Alga Laurencia glandulifera. Master’s Thesis, National and Kapodistrian University of Athens, Athens, Greece, December 2015. [Google Scholar]
  52. Giannaropoulou, E. Isolation and Structure Elucidation of Secondary Metabolites from a Red Alga of the Genus Laurencia. Master’s Thesis, National and Kapodistrian University of Athens, Athens, Greece, December 2013. [Google Scholar]
  53. Ioannou, E.; Nappo, M.; Avila, C.; Vagias, C.; Roussis, V. Metabolites from the sea hare Aplysia fasciata. J. Nat. Prod. 2009, 72, 1716–1719. [Google Scholar] [CrossRef] [PubMed]
  54. Carballo, J.L.; Hernández-Inda, Z.L.; Pérez, P.; García-Grávalos, M.D. A comparison between two brine shrimp assays to detect in vitro cytotoxicity in marine natural products. BMC Biotechnol. 2002, 2, 17. [Google Scholar] [CrossRef] [PubMed]
  55. Vanhaecke, P.; Persoone, G.; Claus, C.; Sorgeloos, P. Proposal for a short-term toxicity test with Artemia nauplii. Ecotoxicol. Environ. Saf. 1981, 5, 382–387. [Google Scholar] [CrossRef]
  56. Guillard, R.R.; Ryther, J.H. Studies of marine planktonic diatoms. I. Cyclotella nana Hustedt, and Detonula confervacea (cleve) Gran. Can. J. Microbiol. 1962, 8, 229–239. [Google Scholar] [CrossRef] [PubMed]
  57. Smith, L.L.; Fox, J.M.; Granvil, D.R. Intensive algae culture techniques. In CRC Handbook of Mariculture, Volume 1 Crustacean Aquaculture, 2nd ed.; McVey, J.P., Ed.; CRC Press, Inc.: Boca Raton, FL, USA, 1993. [Google Scholar]
  58. Kienzler, A.; Tronchère, X.; Devaux, A.; Bony, S. Assessment of RTG-W1, RTL-W1, and PLHC-1 fish cell lines for genotoxicity testing of environmental pollutants by means of a Fpg-modified comet assay. Toxicol. In Vitro 2012, 26, 500–510. [Google Scholar] [CrossRef]
  59. O’Brien, J.; Wilson, I.; Orton, T.; Pognan, F. Investigation of the Alamar Blue (resazurin) fluorescent dye for the assessment of mammalian cell cytotoxicity. Eur. J. Biochem. 2000, 267, 5421–5426. [Google Scholar] [CrossRef]
  60. Feoktistova, M.; Geserick, P.; Leverkus, M. Crystal Violet assay for determining viability of cultured cells. Cold Spring Harb. Protoc. 2016, 4. [Google Scholar] [CrossRef]
  61. Repetto, G.; Del Peso, A.; Zurita, J.L. Neutral red uptake assay for the estimation of cell viability/cytotoxicity. Nat. Protoc. 2008, 3, 1125–1131. [Google Scholar] [CrossRef]
  62. Zobell, C. Studies on marine bacteria. I. The cultural requirements of heterotrophic aerobes. J. Mar. Res. 1941, 4, 42–75. [Google Scholar]
Marinedrugs 17 00646 g001 550

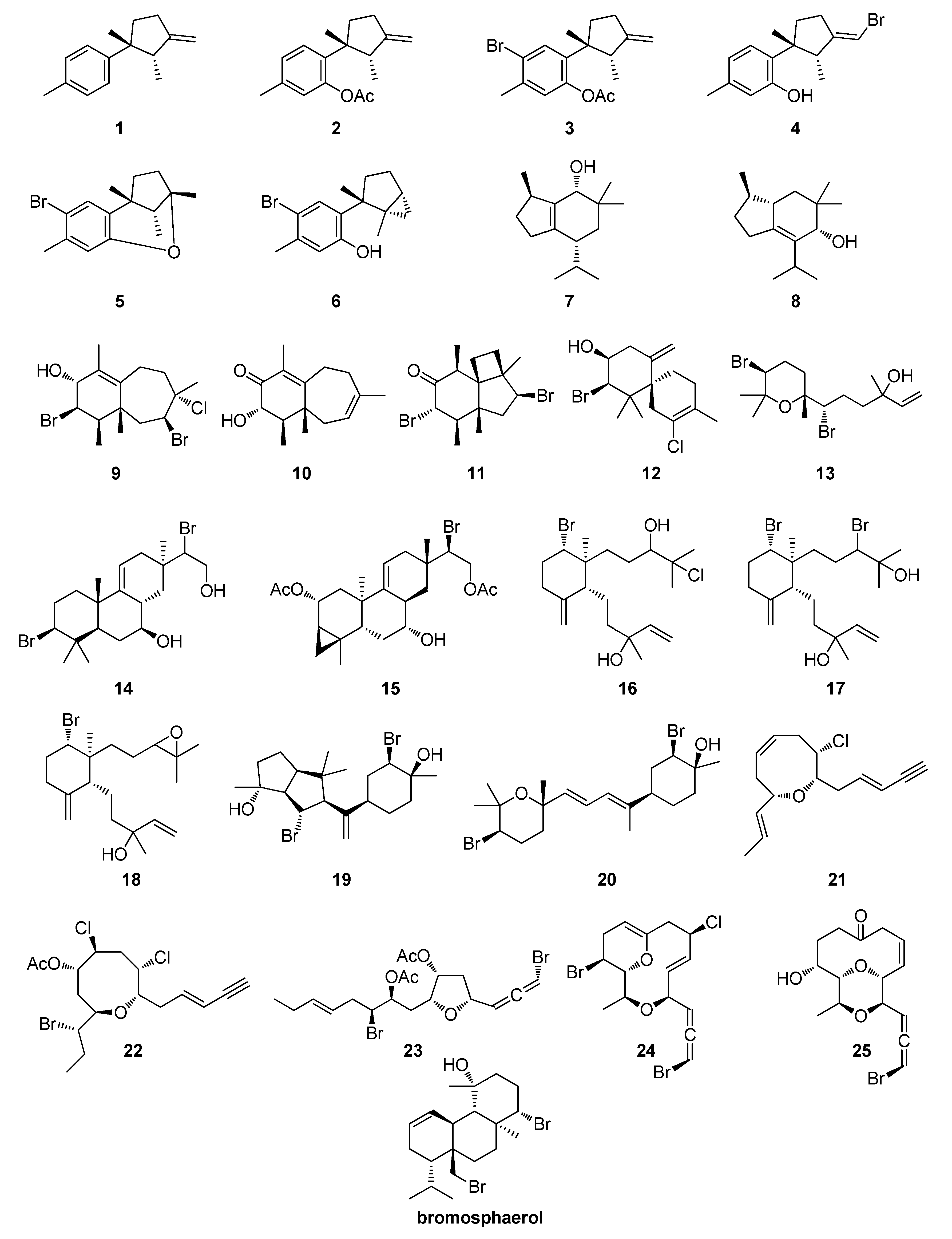

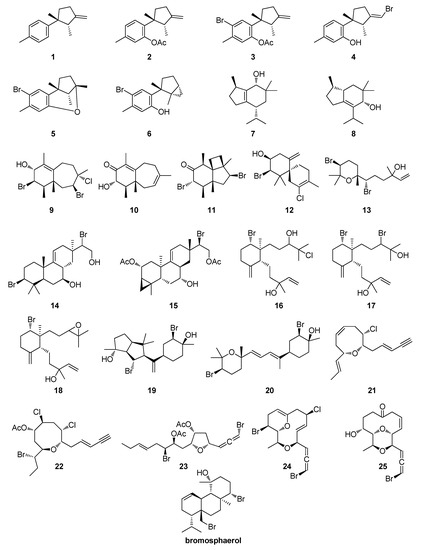

Figure 1. Chemical structures of compounds 1–25 isolated from Laurencia and Aplysia species that were evaluated in the present study and of bromosphaerol that was used as a benchmark.
Figure 1. Chemical structures of compounds 1–25 isolated from Laurencia and Aplysia species that were evaluated in the present study and of bromosphaerol that was used as a benchmark.
Marinedrugs 17 00646 g001
Marinedrugs 17 00646 g002 550

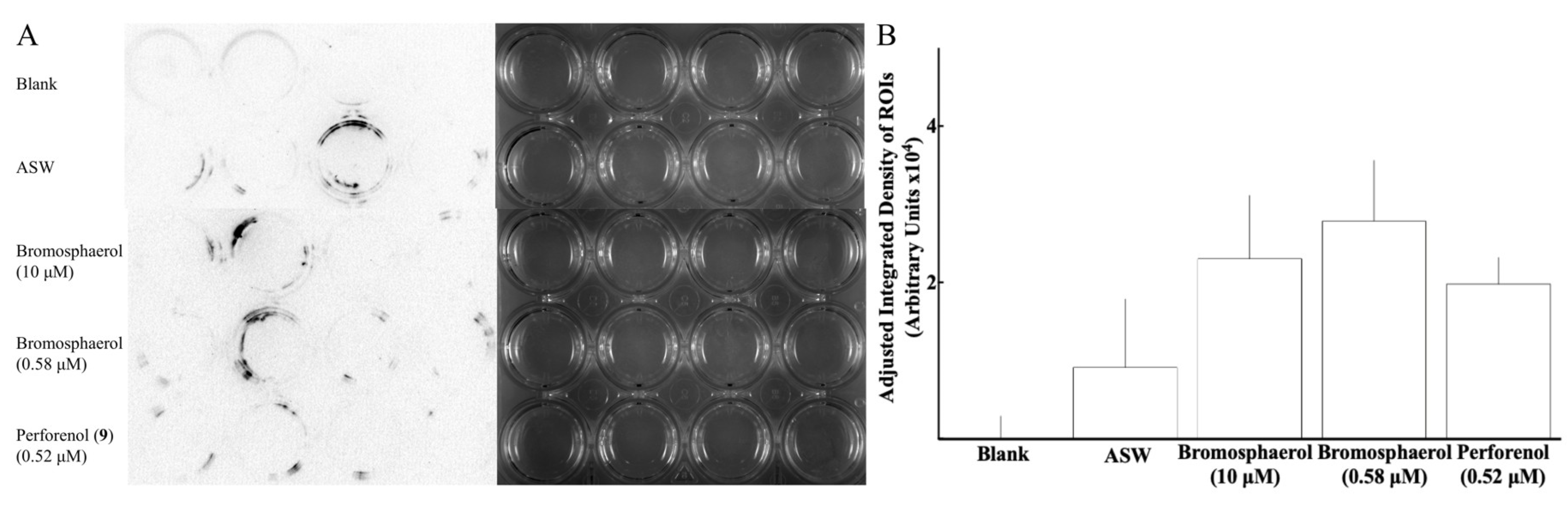

Figure 2. Evaluation of surface exploration activity of A. amphitrite cyprids in the presence of perforenol (9) and bromosphaerol. (A) A mouse anti-SIPC monoclonal antibody that can detect native SIPC deposited by cyprids of A. amphitrite on the surface of polystyrene tissue culture plates [28] was used in Western blots after A. amphitrite settlement bioassays in the presence of perforenol (9) and bromosphaerol or artificial sea water (ASW, serving as control). Sterile tissue culture plates were incubated at 25 °C without (blank) or with 10 cyprids each in 2 mL sterile ASW for 24 h in the presence or absence (ASW) of the indicated concentrations of perforenol (9) or bromosphaerol. Solutions and settled and non-settled cyprids were then removed and Western blots were carried out on the wells with a mouse anti-SIPC monoclonal antibody. The bright-field images for each treatment are shown alongside the corresponding immunostained images. A typical image of duplicate experiments is shown. (B) The intensity of the detected immunoreactivity in each well is calculated and expressed as adjusted integrated density of the signals at the region of interest (ROI; i.e. each well), after subtraction of the mean value of the blank wells. Results of unpaired, two-tailed t-tests with Welch’s correction, showed that none of the two tested compounds (p > 0.05) affected the adjusted integrated density of the detected immunoreactive signals.
Figure 2. Evaluation of surface exploration activity of A. amphitrite cyprids in the presence of perforenol (9) and bromosphaerol. (A) A mouse anti-SIPC monoclonal antibody that can detect native SIPC deposited by cyprids of A. amphitrite on the surface of polystyrene tissue culture plates [28] was used in Western blots after A. amphitrite settlement bioassays in the presence of perforenol (9) and bromosphaerol or artificial sea water (ASW, serving as control). Sterile tissue culture plates were incubated at 25 °C without (blank) or with 10 cyprids each in 2 mL sterile ASW for 24 h in the presence or absence (ASW) of the indicated concentrations of perforenol (9) or bromosphaerol. Solutions and settled and non-settled cyprids were then removed and Western blots were carried out on the wells with a mouse anti-SIPC monoclonal antibody. The bright-field images for each treatment are shown alongside the corresponding immunostained images. A typical image of duplicate experiments is shown. (B) The intensity of the detected immunoreactivity in each well is calculated and expressed as adjusted integrated density of the signals at the region of interest (ROI; i.e. each well), after subtraction of the mean value of the blank wells. Results of unpaired, two-tailed t-tests with Welch’s correction, showed that none of the two tested compounds (p > 0.05) affected the adjusted integrated density of the detected immunoreactive signals.
Marinedrugs 17 00646 g002
Table
Table 1. IC50, LC50 and EC50 values (in μM) for settlement, mortality and metamorphosis inhibition of the cyprids of A. amphitrite after exposure for 24, 48 and 72 h to the tested secondary metabolites.
Table 1. IC50, LC50 and EC50 values (in μM) for settlement, mortality and metamorphosis inhibition of the cyprids of A. amphitrite after exposure for 24, 48 and 72 h to the tested secondary metabolites.
Secondary MetaboliteIC50 SettlementLC50 MortalityEC50 No MetamorphosisTherapeutic Ratio (TR = LC50/IC50)Settlement/No Metamorphosis Ratio IC50/EC50
24 h48 h72 h24 h48 h72 h24 h48 h72 h72 h72 h
127.9014.6416.2126.01229.8029.4637.99NDND1.82ND
22.0218.1119.77>1000790.20191.2043.9938.2436.479.670.54
31.041.802.0066.06382.20269.20ND80.93109.2134.600.02
40.120.180.343.552.982.8010.3512.385.858.240.06
52.265.4512.8733.14NDND27.010.0010.287ND44.84
62.422.221.2712.315.292.3128.3310.8514.981.820.08
717.4917.6910.2824.7523.4224.9625.4121.6853.242.430.19
815.8317.496.957.767.385.936.815.015.420.851.28
90.5200.6600.50076.23116.449.1438.1747.3657.8198.280.01
105.240.6624.6628.8328.4928.7539.2971.0557.176.170.08
110.0030.0020.00256.1438.42ND0.0030.002NDNDND
120.0890.0730.0420.3270.1940.0610.3960.2500.0661.450.64
131.491.061.0229.81848.78.1546.3564.6878.937.990.01
140.0110.0650.0281.963.613.546.425.157.72126.430.00
152.847.025.3731.7133.3534.6563.6355.0972.966.450.07
161.421.962.20>1000>1000>100058.3449.0958.46>10000.04
170.6340.8061.19NDND>10000.0570.921100.60>10000.01
180.0460.0760.31626.2426.3120.3445.3650.3748.5164.370.01
190.4000.9150.756412.9365.8573.152.8057.8970.41758.070.01
202.572.893.32NDND138.346.9811.2810.0541.660.33
213.217.370.5750.5751.1218.637.4218.160.00132.40575.00
220.0250.0430.0556.8610.1171.340.0080.01058.661297.00.00
230.2379.189.70NDNDND0.27610.3111.24ND0.86
24 *ND9.49207.50259.8527.5527.50.05863.06163.42.541.27
25 *62.7255.6275.42643624.6618.247.0742.7553.278.201.42
Bromosphaerol0.5800.6240.83617.904.572.500.4500.2670.5612.991.49
Secondary metabolites that had a settlement stimulating effect are shown by an asterisk (*). ND: An EC50 could not be determined. Detailed graphs of each dose response curve for each secondary metabolite are shown in Figure S1 (settlement), Figure S2 (mortality) and Figure S3 (no metamorphosis). Data for bromosphaerol are shown in Figure S4.
Table
Table 2. EC50 values (in μΜ) of selected secondary metabolites in various toxicity and cell viability assays.
Table 2. EC50 values (in μΜ) of selected secondary metabolites in various toxicity and cell viability assays.
Secondary MetaboliteArtemia salinaChaetoceros gracilisRTL-W1 Cell LineHEK293 Cell Line
24 h48 h96 hMitochondria FunctionCell ViabilityLysosome ActivityMitochondria FunctionCell ViabilityLysosome Activity
421.110.739-------
9283.2018949.81>100015.97>100010.7881.10>1000
1110.051.574.52------
126.590.373-------
1434.1915.131.61------
1834.8838.0510.71>10000.456138.20.225>1000>1000
1931.53303.8352.4>100012.81>10000.062434.10>1000
223.079.632.15------
Bromosphaerol>1000>10004.34>10000.575143.757.6197.12340.40
Mitochondria function refers to the Alamar blue/Resazurin assay. Cell viability refers to the Crystal violet assay. Lysosome activity refers to the Neutral red assay. Detailed graphs of each dose response curve for each selected secondary metabolite are shown in Figure S5 (A. salina toxicity assay), Figure S6 (C. gracilis toxicity assay), Figure S7 (RTL-W1 cell line viability assays) and Figure S8 (HEK293 cell line viability assays).

Share and Cite

MDPI and ACS Style

Protopapa, M.; Kotsiri, M.; Mouratidis, S.; Roussis, V.; Ioannou, E.; Dedos, S.G. Evaluation of Antifouling Potential and Ecotoxicity of Secondary Metabolites Derived from Red Algae of the Genus Laurencia. Mar. Drugs 2019, 17, 646. https://doi.org/10.3390/md17110646

AMA Style

Protopapa M, Kotsiri M, Mouratidis S, Roussis V, Ioannou E, Dedos SG. Evaluation of Antifouling Potential and Ecotoxicity of Secondary Metabolites Derived from Red Algae of the Genus Laurencia. Marine Drugs. 2019; 17(11):646. https://doi.org/10.3390/md17110646

Chicago/Turabian Style

Protopapa, Maria, Manto Kotsiri, Sofoklis Mouratidis, Vassilios Roussis, Efstathia Ioannou, and Skarlatos G. Dedos. 2019. "Evaluation of Antifouling Potential and Ecotoxicity of Secondary Metabolites Derived from Red Algae of the Genus Laurencia" Marine Drugs 17, no. 11: 646. https://doi.org/10.3390/md17110646

APA Style

Protopapa, M., Kotsiri, M., Mouratidis, S., Roussis, V., Ioannou, E., & Dedos, S. G. (2019). Evaluation of Antifouling Potential and Ecotoxicity of Secondary Metabolites Derived from Red Algae of the Genus Laurencia. Marine Drugs, 17(11), 646. https://doi.org/10.3390/md17110646

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
