Article

Algicidal Activity of Bacillamide Alkaloids and Their Analogues against Marine and Freshwater Harmful Algae

by
Bo Wang
1,
Yuanyuan Tao
1,
Qisheng Liu
1,
Na Liu
1,
Zhong Jin
1 and
Xiaohua Xu
1,2,*
1
State Key Laboratory of Elementoorganic Chemistry, Nankai University, Tianjin 300071, China
2
Collaborative Innovation Center of Chemical Science and Engineering (Tianjin), Tianjin 300071, China
*
Author to whom correspondence should be addressed.
Mar. Drugs 2017, 15(8), 247; https://doi.org/10.3390/md15080247
Submission received: 19 June 2017 / Revised: 27 July 2017 / Accepted: 3 August 2017 / Published: 7 August 2017
Browse Figures
Versions Notes

Abstract

:
Harmful algal blooms have become a great challenge to global aquatic ecosystems over the past decades. Given their low toxicity, high selectivity, and environment-friendly properties, the use of natural products and their analogues as algicides has proven to be particularly efficient. In the present study, algicidal activity of naturally occurring bacillamides A–C, alkaloid (1), and neobacillamide A, as well as their synthetic analogues were investigated intensively. Bioassay results showed that, relative to natural bacillamide alkaloids, aniline-derived analogue (10d) exhibited higher algicidal potential against three freshwater harmful algae Mycrocyctis aeruginosa, Scenedesmus obliquus, and Chlorella pyrenoidosa, suggesting that it could be used as a promising lead compound to develop novel algicide for controlling harmful algal blooms.

Graphical Abstract

1. Introduction

Currently, harmful algal blooms (HABs) are emerging as an ever-increasing environmental problem, which do not only influence greatly aquatic-ecosystem sustainability and water resource conservation, but also pose a direct threat to human and animal health as well as economic growth worldwide [1,2,3]. To date, a large number of strategies, which are basically classified into three types: (1) physical methods, e.g., clays, surfactants, and flocculants [4,5,6]; (2) chemical methods, e.g., copper sulfate, sodium hypochlorite, and herbicides such as Diuron, Endothal, Atrazine, and so on [7,8,9,10]; and (3) biological methods, e.g., algicidal bacteria, viruses, and plankton grazers [11,12,13], have been developed for controlling HABs. In spite of these significant advances, unfortunately, all these methods are either too expensive to implement or nonspecific to harmful algae. Therefore, developing inexpensive, selective and eco-friendly algicidal agents against harmful algae still remains a great challenge and active area of research.
Recently, intensive efforts on the use of natural products (NPs) and bacteria to control HABs have been made [14]. Several examples involving the application of compounds derived from natural products as efficient algicidal agents have been reported over the past two decades [15,16,17,18,19,20,21]. Meanwhile, algicidal activity of bacteria was usually thought to be highly associated with chemicals secreted by bacteria [22,23,24,25,26,27]. From the viewpoints of chemical ecology, interaction between algae and bacteria that release algicidal secondary metabolites, namely alleopathy [28], possesses inherent merits such as low mammalian toxicity, high selectivity, easy degradability, and environment-friendly properties. As a result, much interest has been focused on the use of bacteria for controlling blooms of harmful algae in marine and freshwater environments. Some of the related algicidal chemicals have been isolated and identified from these bacteria [29,30,31,32,33,34,35,36]. Amongst them, bacillamide alkaloids, produced by marine Bacillus sp. in succession (Figure 1) [37], contain a common substituted thiazole tryptamide motif. As the first reported secondary metabolite of this family, alkaloid (1), N-(2-(1H-indol-3-yl)ethyl)-2-acetylthiazole-4-carboxamide, was originally isolated from freshwater Thermoactinomyces strain TM-64 in 1976 [38]. Recently, a new member of this family, neobacillamide A, possessing a unique thiazole phenylethylamide moiety in the molecular skeleton, was isolated from marine bacterium Bacillus vallismortis [39]. Bacillamide A, first isolated from a marine Bacillus endophyticus collected during termination of a toxic algal bloom [40], was shown to display antibiotic activity against dinoflagellates and raphidophytes. Unfortunately, due to the insufficient availability of alkaloids of this class from nature, there are not many more algicidal activities that have been reported to date [41].
In our previous work [42], we have described an efficient synthesis of bacillamides A–C. Herein, we reported algicidal activity of alkaloids of this class against several marine and freshwater harmful algae. In addition, several analogues of bacillamides A and B were also prepared and evaluated for their algicidal activities in order to investigate their structure-activity relationship.

2. Results

2.1. Synthesis of Bacillamide Alkaloids

Recently, we have successfully achieved a total synthesis of bacillamides A–C utilizing readily available L-alanine as the starting material (Scheme 1) [42]. Firstly, N-Boc L-alanine (2) was smoothly converted into the amide (3) in excellent yield. Subsequently, the thioamide (4) was produced in the presence of P2S5. Cyclization of thioamide with ethyl 3-bromopyruvate proceeded successfully to afford the key intermediate thiazole carboxylate ester (5) in good yield. Hydrolysis of ethyl ester under basic conditions afforded the corresponding carboxylic acid (6) followed by amidation with tryptamine to give the N-Boc protected amide (7) in high overall yield. After removal of N-Boc protection group, the desired alkaloid (1) was obtained in excellent yield. Finally, selective N-acetylation with Ac2O in the presence of pyridine gave alkaloid bacillamide C in excellent yield. Alternatively, ester (5) could also be converted into the carboxylic acid (8) via oxidation of amine followed by hydrolysis. The amidation of acid (8) successfully afforded alkaloid bacillamide A, which was smoothly reduced to give bacillamide B in almost quantitative yield.
In a similar manner, four amide analogues (10a–d) of bacillamide B and two analogues (9a and 9b) of bacillamide A were readily prepared from the intermediate thiazole carboxylic acid (8) in good yields (Scheme 2).

2.2. Algicidal Activity

Natural bacillamide alkaloids A–C, alkaloid (1), and neobacillamide A, as well as their synthetic analogues (9a, 9b, and 10a–d) were evaluated for their algicidal activity against two typical red tide algae Skeletonema costatum and Gymnodinium catenatum, and three freshwater harmful algae Mycrocyctis aeruginosa, Scenedesmus obliquus, and Chlorella pyrenoidosa. The bioassay results were outlined in Table 1.

3. Discussion

3.1. Synthesis

Synthetically, bacillamide C has been synthesized in a racemic form by Wang et al. [43]. The key transformation involves a thiazole Ugi multicomponent cyclization reaction. At almost the same time, we also described the first enantioselective synthesis of bacillamide C and alkaloid (1) using L-alanine as the starting material [42]. In addition, bacillamides A and B could also be produced by utilizing the thiazole carboxylic acid (8) as the key intermediate. The versatility of this synthetic strategy was further demonstrated in preparation of several amide analogues of bacillamides A and B.

3.2. Algicidal Activity

Algicidal activity for natural bacillamide alkaloids and their synthetic analogues against marine and freshwater harmful algae were listed in Table 1.
From data outlined in Table 1, natural bacillamide alkaloids exhibited good algicidal effects against both red tide algae. Amongst them, bacillamide A displayed excellent algicidal efficacy against S. costatum with EC50 value as low as 0.011 mg/L, while alkaloid (1) showed potent algicidal activity (EC50 = 0.58 mg/L) against G. catenatum, which produces the toxic brevetoxin when they form a red tide bloom. In contrast, both bacillamides B and C revealed moderate algicidal effects against S. costatum and G. catenatum.
Cyanobacterial blooms have become a worldwide aquatic environmental problem because of ever-increasing water eutrophication and climate change. The most popular harmful algal blooming species found in freshwater belongs to the cyanobacteria M. aeruginosa and S. obliquus. As shown in Table 1, natural bacillamides generally showed moderate algicidal potential against three freshwater harmful algae. Comparably, bacillamide A exhibited highest algicidal efficacy (EC50 = 19.3 mg/L) against M. aeruginosa, whereas neobacillamide A and alkaloid (1) showed potent inhibitory activity against S. obliquus with an EC50 value of 5.0 and 14.3 mg/L, respectively.
Encouragingly, all amide analogues (10a–d) of bacillamide B exhibited higher algicidal activity against three freshwater harmful algae than parent bacillamide B. Based on the significant difference of the aldicidal activity between compounds (10a–d) and natural bacillamide B, it was therefore inferred that, not tryptamide motif, but thiazole amide scaffold turned out to be the active pharmacophore for the algicidal activity. Relative to alkyl amine-derived analogues (10a–c), aniline-derived analogue (10d) was found to show highest algicidal potential against three harmful algae with an EC50 value of 2.5, 4.0, and 23.0 mg/L, respectively, suggesting that this analogue could be used as a lead compound for further development of algicides to control HABs. In addition, amide analogue (9b) of bacillamide A also exhibited comparable algicidal activity with that of the corresponding precursor alcohol (10d) against M. aeruginosa and S. obliquus.

4. Materials and Methods

Melting points were determined using an X-4 digital melting point apparatus (Taike HighTech Co., Beijing, China) and thermometer uncorrected. 1H and 13C nuclear magnetic resonanance (NMR) spectra were recorded in deuterochloroform or deutero dimethyl sulfoxide solution with a BRUKER (400 MHz) instrument (Rheinstetten, Germany) using tetramethylsilane as an internal standard, and chemical shift values (δ) were given in parts per million. High resolution mass spectrometer (HRMS) data were obtained on a high resolution ESI-FTICR mass spectrometer (Ionspec 7.0 T, Varian Inc., Palo Alto, CA, USA). All reagents were commercially available and treated according to the standard methods prior to use. Bacillamides A–C, alkaloid (1), and neobacillamide A were prepared according to our previous work [42].

4.1. General Procedure for Synthesis of Analogues of Bacillamide A

To a cooled (0 °C) solution of the carboxylic acid 8 (0.81 g, 4.73 mmol) in dichloromethylene (100 mL) was added N-methyl morpholine (0.5 mL, 4.73 mmol) and iso-butyl chloroformate (0.6 mL, 4.73 mmol). The mixture was stirred at 0 °C for 1 h. The resultant mixture was then added into a solution of amine (4.26 mmol) and N-methyl morpholine (0.5 mL, 4.73 mmol) in dichloromethylene (20 mL) and the reaction mixture was stirred at room temperature for another 2 h. Water (30 mL) was added to the mixture and the layers were separated. The aqueous phase was extracted with dichloromethylene (20 mL). The combined organic phase was dried over anhydrous MgSO4. After removal of solvent under reduced pressure, the residue was purified by silica gel column chromatography (PE/EA = 1:1, v/v) to give the corresponding amide 9.

4.2. General Procedure for Synthesis of Analogues of Bacillamide B

To a solution of compound 9 (3.39 mmol) in MeOH/CHCl3 (140 mL, v/v = 2:3) was added NaBH4 (155 mg, 4.07 mmol, 1.2 equiv) in small portions at 0 °C. After completion of addition, the mixture was stirred for another 2 h and monitored by TLC. The solvent was removed by vacuum and the residue was further purified by silica gel column chromatography (PE/EA = 1:1, v/v) to give the desired products 10.
The characteristic data for these derivatives were outlined as the following:
2-Acetyl-N-benzylthiazole-4-carboxamide (9a). Yellow solid, m.p. 95–97 °C. 1H NMR (Figure S1) (400 MHz, CDCl3) δ 8.46 (s, 1H), 7.69 (s, 1H), 7.46–7.22 (m, 5H), 4.69 (d, J = 5.8 Hz, 2H), 2.69 (s, 3H). 13C NMR (Figure S2) (101 MHz, CDCl3) δ 191.1, 167.0, 160.6, 151.6 138.1, 130.0, 128.8, 127.9, 43.4, 26.0. HRMS (ESI) calcd. for. C13H12N2O2S [M + H]+: 261.0691, found: 261.0687.
2-Acetyl-N-phenyl-thiazole-4-carboxamide (9b). Yellow solid, m.p. 134–136 °C. 1H NMR (Figure S3) (400 MHz, CDCl3) δ 8.99 (s, 1H), 8.44 (s, 1H), 7.66 (d, J = 8.1 Hz, 2H), 7.33–7.31 (m, 2H), 7.11 (m, 1H), 2.72 (s, 3H). 13C NMR (Figure S4) (101 MHz, CDCl3) δ 189.9, 165.7, 157.1, 150.7, 136.2, 129.4, 128.2, 123.8, 119.0, 25.0. HRMS (ESI) calcd. for. C12H10N2O2S [M + H]+: 247.0463, found: 247.0983.
(S)-2-(1-Hydroxyethyl)-N-iso-butylthiazole-4-carboxamide (10a). Yellow oil. 1H NMR (Figure S5) (400 MHz, d6-DMSO) δ 8.23 (t, J = 5.8 Hz, 1H), 8.13 (s, 1H), 6.25 (d, J = 4.9 Hz, 1H), 5.05–4.88 (m, 1H), 3.09 (dd, J = 12.9, 6.6 Hz, 2H), 1.85 (dt, J = 13.5, 6.7 Hz, 1H), 1.49 (d, J = 6.5 Hz, 3H), 0.86 (d, J = 6.7 Hz, 6H). 13C NMR (Figure S6) (101 MHz, d6-DMSO) δ 178.5, 160.6, 149.8, 122.8, 66.6, 28.1, 24.1, 20.0. ESI-HRMS: calcd. for C10H16N2O2S [M + H]+, 229.0932, found: 229.1012.
(S)-2-(1-Hydroxyethyl)-N-phenylethylthiazole-4-carboxamide (10b). Pale yellow oil. 1H NMR (Figure S7) (400 MHz, d6-DMSO) δ 8.33 (s, 1H), 8.14 (s, 1H), 7.43–7.12 (m, 5H), 6.28 (s, 1H), 5.04–4.82 (m, 1H), 3.49 (d, J = 6.2 Hz, 2H), 2.85 (t, J = 6.8 Hz, 2H), 1.49 (d, J = 5.6 Hz, 3H). 13C NMR (Figure S8) (101 MHz, d6-DMSO) δ 178.6, 160.5, 149.7, 139.3, 128.5, 128.3, 126.1, 123.0, 66.6, 40.2, 40.1, 24.1. ESI-HRMS: calcd. for C14H16N2O2S [M + H]+, 277.0932, found: 277.1011.
(S)-N-Benzyl-2-(1-hydroxyethyl)thiazole-4-carboxamide (10c). Pale yellow oil. 1H NMR (Figure S9) (400 MHz, d6-DMSO) δ 8.86 (s, 1H), 8.18 (s, 1H), 7.32 (s, 4H), 7.24 (s, 1H), 4.97 (d, J = 5.9 Hz, 1H), 4.46 (d, J = 4.7 Hz, 2H), 1.50 (d, J = 5.7 Hz, 3H). 13C NMR (Figure S10) (101 MHz, d6-DMSO) δ 178.7, 160.6, 149.6, 139.6, 128.2, 127.3, 126.7, 123.3, 66.6, 42.1, 24.1. ESI-HRMS: calcd. for C13H14N2O2S [M + H]+, 263.0776, found: 263.0853.
(S)-2-(1-Hydroxyethyl)-N-phenylthiazole-4-carboxamide (10d). Yellow oil. 1H NMR (Figure S11) (400 MHz, d6-DMSO) δ 10.09 (s, 1H), 8.35 (s, 1H), 7.83 (d, J = 7.3 Hz, 2H), 7.36 (d, J = 6.6 Hz, 2H), 7.12 (s, 1H), 6.34 (s, 1H), 5.05 (s, 1H), 1.55 (d, J = 4.8 Hz, 3H). 13C NMR (Figure S12) (101 MHz, d6-DMSO) δ 178.9, 159.2, 149.5, 138.3, 128.5, 124.5, 123.8, 120.4, 66.7, 24.2. ESI-HRMS: calcd. for C12H12N2O2S [M + H]+, 249.0619, found: 249.0697.

4.3. Algicide Bioassay

4.3.1. Bioassay Method for Red Tide Algae

Two typical red tide algae S. costatum and G. catenatum were selected to perform exogenous substance exposure experiments. The cultures of algae S. costatum and G. catenatum were obtained from Ocean University of China, Qingdao, China. Algal culture conditions: seawater medium (f/2), lighting ration (14 h/10 h), light intensity during the day (12,000 Lux), and culture temperature (20–25 °C).
A preliminary experiment was first carried out to determine the highest inhibitory concentration which acetone as the solvent has no obvious effect on algae. Drug agent was dissolved in acetone and added into algae cultivation system in logarithmic growing period. The algae without drug agent were used as the control experiments. Each bioassay was repeated for three times at every concentration. The measurement of algal cell density was observed by Hemocytometer under a microscope (Nikon YS100, Nikon Instruments, Tokyo, Japan).
Data processing and evaluation method: Half inhibitory concentration (EC50 value) for each drug after 72 h was calculated based on the inhibitory ratio (IR%) of drug agent against each algae. The inhibitory ratio for each drug was determined according to the following equation:
IR (%) = (1 − N/N0) × 100%
where N is algal density of test sample (with drug agent), N0 is algal density of the control experiment (without drug). The standard deviation was calculated and data reported as the mean ± SD.

4.3.2. Bioassay Method for Freshwater Harmful Algae

Three freshwater algae species Mycrocyctis aeruginosa, Scenedesmus obliquus and Chlorella pyrenoidosa were used to establish bioassay method. (Note: Cyanobacteria M. aeruginosa is most popular in freshwater bodies in China.) Three algae species were obtained from the Freshwater Algae Culture Collection of the Institute of Hydrobiology (FACHB-collection). The culture conditions used were similar to Schrader’s method [44], except that BG-11 and SE were used as the positive media for three algae, and pH value was maintained at 7.1–7.2. The algae were preserved in continuous steady-state cultures to provide a source of cells growing at a fairly constant rate. The algae were maintained at 25 °C with alternating light at 4000 lux.
Bacillamides and their analogs were evaluated using a microplate method in the laboratory and bioassay was performed as described by Schrader et al. [17]. Bacillamides and their analogs were separately dissolved in DMSO to produce the corresponding stock solutions. The resulting solutions were pipetted into each bottle of algal cultures, which had been incubated at continuous conditions for 4 days. At that time, the algal cultures were at the exponential growth phase and ideal for evaluation of algicidal activity. The volume of the medium and algae were calculated using the equation: Y = (5.5 × 105 × 40)/X (X, the algal density; Y, the volume of algae). A 5 mL aliquot of the respective algal culture was pipetted into 35 mL of the medium as the initial algal concentration. The concentrations of the natural products were 300, 200, 100, 50, 25, 12.5, 6.25, 3.12, and 1.56 ppm in the bottles after 20 µL of the respective stock solution was pipetted into each bottle. Three replicates of each natural product at a given concentration as well as the controls were prepared. These bottles were incubated in continuous conditions for another 4 days. The optical densities of the test wells were measured at 650 nm for C. pyrenoidosa and M. aeruginosa and at 670 nm for S. obliquus. The mean values of the optical density measurements for each treatment concentration and the controls were plotted; these graphs were used to determine the EC50 value for each natural product (EC50 is the concentration which 50% of algae was inhibited).
On the basis of area values under the individual growth curves, the inhibitory ratio (%) was determined by individual tested concentration according to the following equation:
Ii = (Ac − Ai)/Ac × 100%
where Ii is inhibitory ratio (%) of biomass growth by toxicant concentration i (%), Ac: average area under the growth curve by control, Ai: average area under the growth curve by tested concentration i.
Mean EC50 value of each compound after 96 h was determined for each group of plates. The standard deviation was calculated and data reported as the mean ± SD. Using obtained data on inhibition calculate the toxicity index EC50 with appropriate 95% confidence interval based on non-linear regression.

5. Conclusions

In summary, the algicidal activity of natural bacillamide alkaloids and their synthetic analogues against several marine and freshwater harmful algae was investigated. The bioassay results showed that some derivatives displayed higher algicidal activity than natural alkaloids, suggesting that they could be used as lead compounds to develop novel algicides for controlling HABs. The preliminary structure-activity relationship studies revealed that, instead of tryptamide motif, thiazole amide scaffold was the active pharmacophore for algicidal activity. Further studies on their environmental safety in catfish ponds, toxicity toward non-target organisms, and potential accumulation in the flesh of channel catfish, as well as algicidal mechanisms, are being pursued in this laboratory.

Supplementary Materials

The following are available online at www.mdpi.com/1660-3397/15/8/247/s1, NMR spectra data for new compounds. Figure S1. 1H NMR of Compound 9a (CDCl3); Figure S2. 13C NMR of Compound 9a (CDCl3); Figure S3. 1H NMR of Compound 9b (CDCl3); Figure S4. 13C NMR of Compound 9b (CDCl3); Figure S5. 1H NMR of Compound 10a (d6-DMSO); Figure S6. 13C NMR of Compound 10a (d6-DMSO); Figure S7. 1H NMR of Compound 10b (d6-DMSO); Figure S8. 13C NMR of Compound 10b (d6-DMSO); Figure S9. 1H NMR of Compound 10c (d6-DMSO); Figure S10. 13C NMR of Compound 10c (d6-DMSO); Figure S11. 1H NMR of Compound 10d (d6-DMSO); Figure S12. 13C NMR of Compound 10d (d6-DMSO).

Acknowledgments

This work was supported financially by Tianjin Research Program of Application Foundation and Advanced Technology (13JCZDJC35700) and the National Natural Science Foundation of China (No. 21342008). We also thank Fengmin Li at Ocean University of China for assistance of bioassay on marine red tide algae.

Author Contributions

Bo Wang and Yuanyuan Tao performed the experiments, Qisheng Liu and Na Liu established the bioassay methods and performed the experiments, Xiaohua Xu conceived and designed the experiments; Xiaohua Xu and Qisheng Liu analyzed the data; Xiaohua Xu and Zhong Jin wrote the paper with feedback from all authors.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Masó, M.; Garcés, E. Harmful microalgae blooms (HAB): Problematic and conditions that induce them. Mar. Pollut. Bull. 2006, 53, 620–630. [Google Scholar]
  2. Glibert, P.M.; Anderson, D.M.; Gentien, P.; Graneli, E.; Sellner, K.G. The global, complex phenomena of harmful algal blooms. Oceanography 2005, 18, 136–147. [Google Scholar] [CrossRef]
  3. Blauw, A.N.; Los, F.J.; Huisman, J.; Peperzak, L. Nuisance foam events and Phaeocystis globosa blooms in Dutch coastal waters analyzed with fuzzy logic. J. Mar. Syst. 2010, 83, 115–126. [Google Scholar] [CrossRef]
  4. Pan, G.; Zou, H.; Chen, H.; Yuan, X.Z. Removal of harmful cyanobacterial blooms in Taihu Lake using local soils: III. Factors affecting the removal efficiency and an in situ field experiment using chitosan-modified local soils. Environ. Pollut. 2006, 141, 206–212. [Google Scholar] [CrossRef] [PubMed]
  5. Pierce, R.H.; Henry, M.S.; Higham, C.J.; Blum, P.; Sengco, M.R.; Anderson, D.M. Removal of harmful algal cells (Karenia brevis) and toxins from seawater culture by clay flocculation. Harmful Algae 2004, 3, 141–148. [Google Scholar] [CrossRef]
  6. Sengco, M.R.; Hagstrom, J.A.; Graneli, E.; Anderson, D.M. Removal of Prymnesium parvum (Haptophyceae) and its toxins using clay minerals. Harmful Algae 2005, 4, 261–274. [Google Scholar] [CrossRef]
  7. Baek, S.H.; Sun, X.X.; Lee, Y.J.; Wang, S.Y.; Han, K.N.; Choi, J.K.; Noh, J.H.; Kim, E.K. Mitigation of harmful algal blooms by sophorolipid. J. Microbiol. Biotechnol. 2003, 13, 651–659. [Google Scholar]
  8. Jeong, H.J.; Kim, H.R.; Kim, K.I.; Kim, K.Y.; Park, K.H.; Kim, S.T.; Yook, Y.D.; Song, J.Y.; Kim, J.S.; Seong, K.A.; et al. NaOCl produced by electrolysis of natural seawater as a potential method to control marine red-tide dinoflagellates. Phycologia 2002, 41, 643–656. [Google Scholar] [CrossRef]
  9. Sun, X.X.; Choi, J.K.; Kim, E.K. A preliminary study on the mechanism of harmful algal bloom mitigation by use of sophorolipid treatment. J. Exp. Mar. Biol. Ecol. 2004, 304, 35–49. [Google Scholar] [CrossRef]
  10. Daniel, J.; Blahoslav, M. Critical review of actually available chemical compounds for prevention and management of cyanobacterial blooms. Chemosphere 2011, 85, 1415–1422. [Google Scholar]
  11. Hare, C.E.; Demir, E.; Coyne, K.J.; Cary, S.C.; Kirchman, D.L.; Hutchins, D.A. A bacterium that inhibits the growth of Pfiesteria piscicida and other dinoflagellates. Harmful Algae 2005, 4, 221–234. [Google Scholar] [CrossRef]
  12. Kim, Y.S.; Lee, D.S.; Jeong, S.Y.; Lee, W.; Lee, M.S. Isolation and characterization of a marine algicidal bacterium against the harmful Raphidophyceae Chattonella marina. J. Microbiol. 2009, 47, 9–18. [Google Scholar] [CrossRef] [PubMed]
  13. Mitra, A.; Flynn, K.J. Promotion of harmful algal blooms by zooplankton predatory activity. Biol. Lett. 2006, 2, 194–197. [Google Scholar] [CrossRef] [PubMed]
  14. Schrader, K.K.; Rimando, A.M.; Duke, S.O. Natural compounds for the management of undersirable freshwater phytoplankton blooms. In Studies in Natural Products Chemistry; Rahman, A.-U., Ed.; Elsevier Science B.V.: Amsterdam, The Netherlands, 2002; Volume 26, pp. 351–389. [Google Scholar]
  15. Schrader, K.K.; de Regt, M.Q.; Tidwell, P.D.; Tucker, C.S.; Duke, S.O. Compounds with selective toxicity towards the off-flavor metabolite-producing cyanobacterium Oscillatoria cf. chalybea. Aquaculture 1998, 163, 85–99. [Google Scholar] [CrossRef]
  16. Schrader, K.K.; Dayan, F.E.; Allen, S.N.; de Regt, M.Q.; Tucker, C.S.; Paul, R.N. 9,10-Anthraquinone reduces the photosynthetic efficiency of Oscillatoria perornata and modifies cellular inclusions. Int. J. Plant Sci. 2000, 161, 265–270. [Google Scholar] [CrossRef] [PubMed]
  17. Schrader, K.K.; Nanayakkara, N.P.D.; Tucker, C.S.; Rimando, A.M.; Ganzera, M.; Schaneberg, B.T. Novel derivatives of 9,10-anthraquinone are selective algicides against the musty-odor cyanobacterium Oscillatoria perornata. Appl. Environ. Microbiol. 2003, 69, 5319–5327. [Google Scholar] [CrossRef] [PubMed]
  18. Nanayakkara, N.P.D.; Schrader, K.K. Synthesis of water-woluble 9,10-anthraquinone analogues with potent cyanobactericidal activity toward the musty-odor cyanobacterium Oscillatoria perornata. J. Agric. Food Chem. 2008, 56, 1002–1007. [Google Scholar] [CrossRef] [PubMed]
  19. Mizuno, C.S.; Schrader, K.K.; Rimando, A.M. Algicidal activity of stilbene analogues. J. Agric. Food Chem. 2008, 56, 9140–9145. [Google Scholar] [CrossRef] [PubMed]
  20. Prucaro, R.; Schrader, K.K.; Burandt, C.; DellaGreca, M.; Meepagala, K.M. Algicide constituents from Swinglea glutinosa. J. Agric. Food Chem. 2009, 57, 10632–10635. [Google Scholar] [CrossRef] [PubMed]
  21. Meepagala, K.M.; Schrader, K.K.; Burandt, C.L.; Wedge, D.E.; Duke, S.O. New class of algicidal comounds and fungicidal activities derived from a chromene amide of Amyris texana. J. Agric. Food Chem. 2010, 58, 9476–9482. [Google Scholar] [CrossRef] [PubMed]
  22. Blom, J.F.; Brutsch, T.; Barbaras, D.; Bethuel, Y.; Locher, H.H.; Hubschwerlen, C.; Gademann, K. Potent algicides based on the cyanobacterial alkaloid nostocarboline. Org. Lett. 2006, 8, 737–740. [Google Scholar] [CrossRef] [PubMed]
  23. Becher, P.G.; Beuchat, J.; Gademann, K.; Juttner, F. Nostocarboline: Isolation and synthesis of a new cholinesterase inhibitor from Nostoc 78–12A. J. Nat. Prod. 2005, 68, 1793–1795. [Google Scholar] [CrossRef] [PubMed]
  24. Lovejoy, C.; Bowman, J.P.; Hallegraeff, G.M. Algicidal effects of novel marine Pseudoalteromonas isolate (class Proteobacteria, gamma subdivision) on harmful algal bloom species of genera Chattonella, Gymnodinium, and Heterosigma. Appl. Environ. Microbiol. 1998, 64, 2806–2813. [Google Scholar] [PubMed]
  25. Holmstrom, C.; Kjelleberg, S. Marine Pseudoalteromonas species are associated with higher organisms and produce biologically active extracellular agents. FEMS Microbiol. Ecol. 1999, 30, 285–293. [Google Scholar] [CrossRef]
  26. Furusawa, G.; Yoshikawa, T.; Yasuda, A.; Sakata, T. Algicidal activity and gliding motility of Saprospira sp. SS98–5. Can. J. Microbiol. 2003, 49, 92–100. [Google Scholar] [CrossRef] [PubMed]
  27. Mitsutani, A.; Takesue, K.; Kirita, M.; Ishida, Y. Lysis of Skeletonema costatum by Cytophaga sp. isolated from the coastal water of the Ariake Sea. Nippon Suisan Gakk. 1992, 58, 2159–2169. [Google Scholar] [CrossRef]
  28. Wu, Y.H.; Liu, J.T.; Yang, L.Z.; Chen, H.; Zhang, S.Q.; Zhao, H.J.; Zhang, N.M. Allelopathic control of cyanobacterial blooms by periphyton biofilms. Environ. Microbl. 2011, 13, 604–615. [Google Scholar] [CrossRef] [PubMed]
  29. Zheng, X.W.; Zhang, B.Z.; Zhang, J.L.; Huang, L.P.; Lin, J.; Li, X.Y.; Zhou, Y.Y.; Wang, H.; Yang, X.R.; Su, J.L.; et al. A marine algicidal actinomycete and its active substance against the harmful algal bloom species Phaeocystis globosa. Appl. Microbiol. Biotechnol. 2013, 97, 9207–9215. [Google Scholar] [CrossRef] [PubMed]
  30. Yang, F.; Yan, H.; Wei, H.Y.; Li, X.Q.; Li, Y.H.; Xiao, B.; Li, X.B.; Li, H.; Yin, L.H.; Yue, P.; et al. Isolation, identification and characterization of an algicidal bacterium from Lake Taihu and preliminary studies against Microcystis aeruginosa. Biomed. Environ. Sci. 2013, 26, 148–154. [Google Scholar] [PubMed]
  31. Li, Z.H.; Lin, S.Q.; Liu, X.L.; Tan, J.; Pan, J.L.; Yang, H. A freshwater bacterial strain, Shewanella sp. Lzh-2, isolated from Lake Taihu and its two algicidal active substances, hexahydropyrrolo[1,2-a]pyrazine-1,4-dione and 2, 3-indolinedione. Appl. Microbiol. Biotechnol. 2014, 98, 4737–4748. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Z.H.; Geng, M.X.; Yang, H. Algicidal activity of Bacillus sp. Lzh-5 and its algicidal compounds against Microcystis aeruginosa. Appl. Microbiol. Biotechnol. 2015, 99, 981–990. [Google Scholar] [CrossRef] [PubMed]
  33. Guo, X.L.; Liu, X.L.; Pan, J.L.; Yang, H. Synergistic algicidal effect and mechanism of two diketopiperazines produced by Chryseobacterium sp. strain GLY-1106 on the harmful bloom-forming Microcystis Aeruginosa. Sci. Rep. 2015, 5, 14720. [Google Scholar] [PubMed]
  34. Volk, R.-B. Antialgal activity of several cyanobacterial exometabolites. J. Appl. Phycol. 2006, 18, 145–151. [Google Scholar] [CrossRef]
  35. Chen, W.M.; Sheu, F.S.; Sheu, S.Y. Novel L-amino acid oxidase with algicidal activity against toxic cyanobacterium Microcystis aeruginosa synthesized by a bacterium Aquimarina sp. Enzym. Microbl. Technol. 2011, 49, 372–379. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, B.X.; Yang, X.R.; Lu, J.; Zhou, Y.; Su, J.; Tian, Y.; Zhang, J.; Wang, G.; Zheng, T. A marine bacterium producing protein with algicidal activity against Alexandrium tamarense. Harmful Algae 2012, 13, 83–88. [Google Scholar] [CrossRef]
  37. Socha, A.M.; Long, R.A.; Rowley, D.C. Bacillamides from a hypersaline microbial mat bacterium. J. Nat. Prod. 2007, 70, 1793–1795. [Google Scholar] [CrossRef] [PubMed]
  38. Yaeko, K.Y.S.; Satoshi, O.; Masayuki, O. Alkaloid from Thermoactinomyces Species. Chem. Pharm. Bull. 1976, 24, 92–96. [Google Scholar]
  39. Yu, L.L.; Li, Z.Y.; Peng, C.S.; Li, Z.Y.; Guo, Y.W. Neobacillamide A, a novel thiazole-containing alkaloid from the marine bacterium Bacillus vallismortis C89, associated with South China Sea Sponge Dysidea Avara . Helv. Chim. Acta 2009, 92, 607–612. [Google Scholar] [CrossRef]
  40. Jeong, S.Y.; Ishida, K.; Ito, Y.; Okada, S.; Murakami, M. Bacillamide, a novel algicide from the marine bacterium, Bacillus sp. SY-1, against the harmful dinoflagellate, Cochlodinium polykrikoides. Tetrahedron Lett. 2003, 44, 8005–8007. [Google Scholar] [CrossRef]
  41. Churro, C.; Alverca, E.; Sam-Bento, F.; Paulino, S.; Figueira, V.C.; Bento, A.J.; Prabhakar, S.; Lobo, A.M.; Calado, A.J.; Pereira, P. Effects of bacillamide and newly synthesized derivatives on the growth of cyanobacteria and microalgae cultures. J. Appl. Phycol. 2009, 21, 429–442. [Google Scholar] [CrossRef]
  42. Li, D.; Yang, H.S.; Xie, L.G.; Xu, X.H. Synthesis of N-[2-(1H-Indol-3-yl)ethyl]-2-acetylthiazole-4-caboxamide and its analogues. Chin. J. Org. Chem. 2010, 30, 238–243. [Google Scholar]
  43. Wang, W.; Joyner, S.; Khoury, K.A.S.; Bacilla, A.D. Bacillamide C: The convergent approach. Org. Biomol. Chem. 2010, 8, 529–532. [Google Scholar] [CrossRef] [PubMed]
  44. Schrader, K.K.; De Regt, M.Q.; Tucker, C.S.; Duke, S.O. A rapid bioassay for selective algaicides. Weed Technol. 1997, 11, 767–774. [Google Scholar]
Marinedrugs 15 00247 g001 550

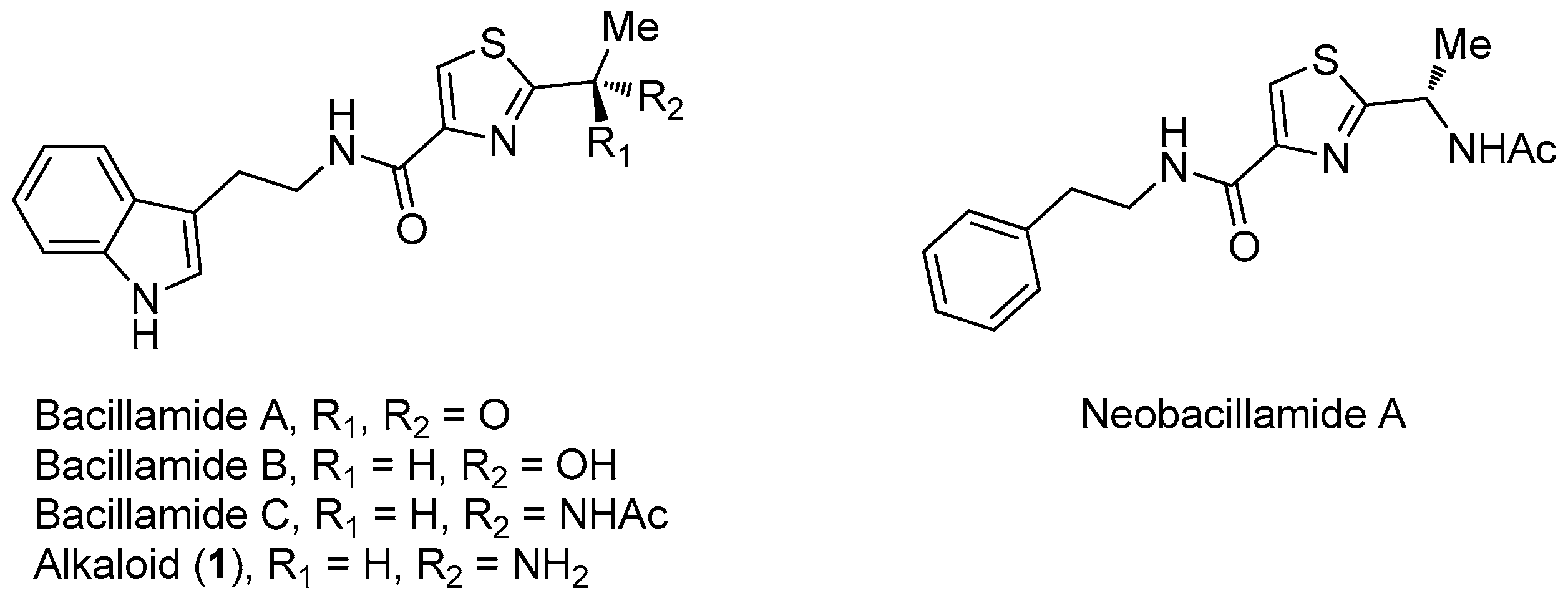

Figure 1. Bacillamide alkaloids.
Figure 1. Bacillamide alkaloids.
Marinedrugs 15 00247 g001
Marinedrugs 15 00247 sch001 550

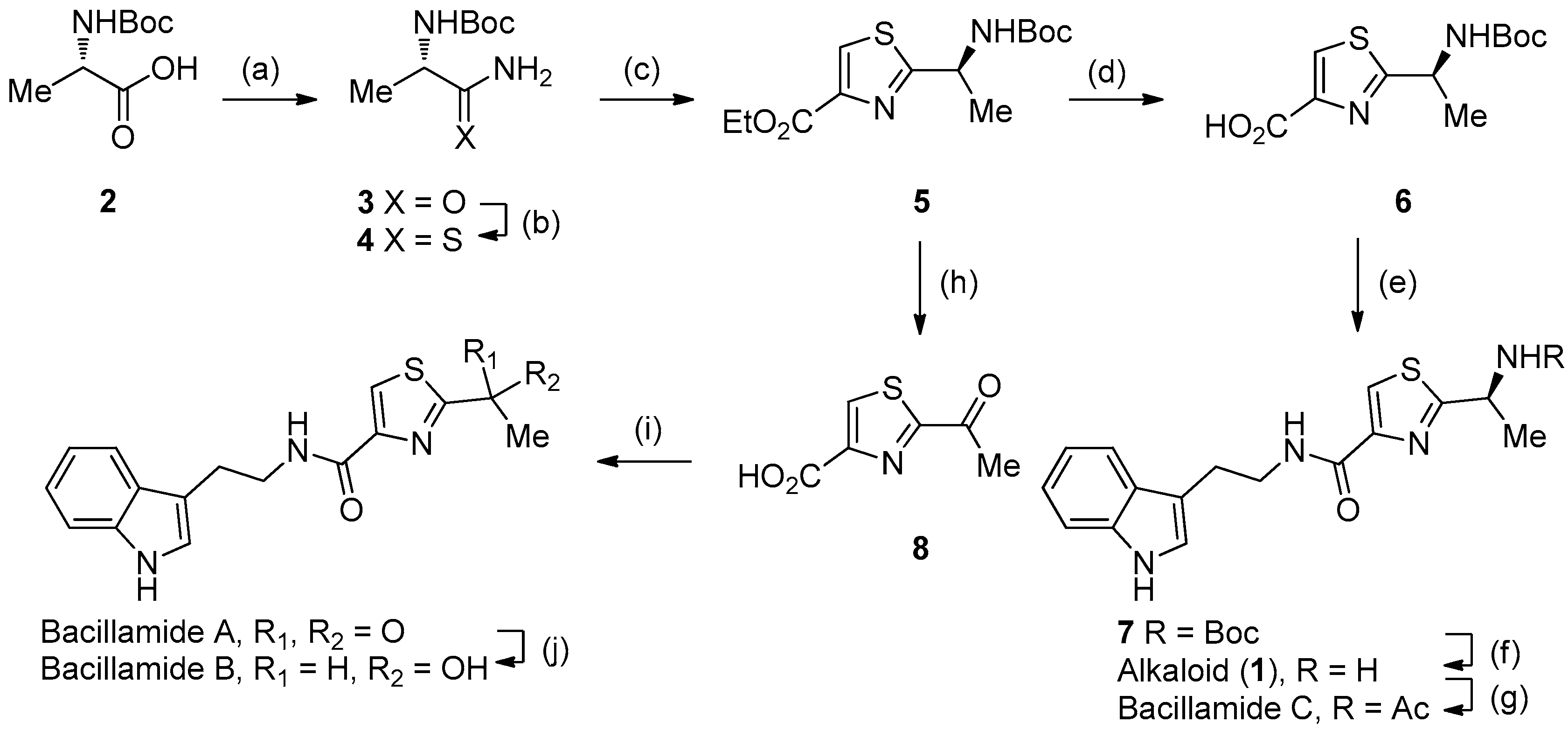

Scheme 1. Synthesis of bacillamide alkalolids (Adapted from [42]. Copyright Shanghai Institute of Organic Chemistry and Chinese Academy of Sciences, 2010.)
Scheme 1. Synthesis of bacillamide alkalolids (Adapted from [42]. Copyright Shanghai Institute of Organic Chemistry and Chinese Academy of Sciences, 2010.)
Marinedrugs 15 00247 sch001
Marinedrugs 15 00247 sch002 550

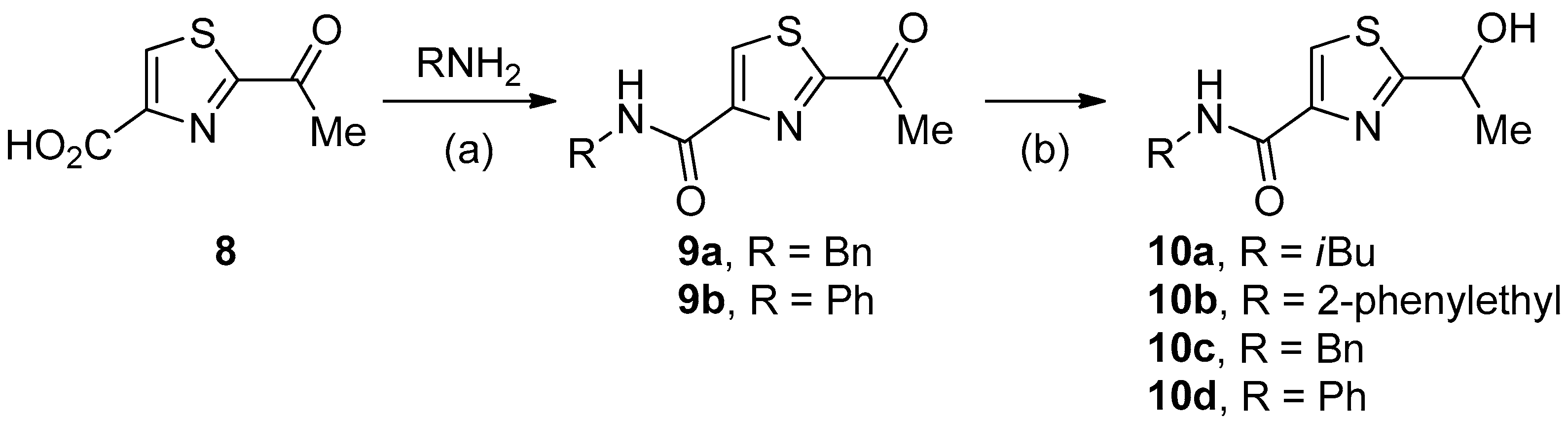

Scheme 2. Preparation of amide analogues of bacillamides A and B. Reagents and conditions: (a) isobutyl chloroformate, NMM, CH2Cl2, then amine, NMM, CH2Cl2, room temperature; (b) NaBH4, MeOH/CHCl3, room temperature.
Scheme 2. Preparation of amide analogues of bacillamides A and B. Reagents and conditions: (a) isobutyl chloroformate, NMM, CH2Cl2, then amine, NMM, CH2Cl2, room temperature; (b) NaBH4, MeOH/CHCl3, room temperature.
Marinedrugs 15 00247 sch002
Table
Table 1. Algicidal activity of bacillamide alkaloids and their synthetic analogues 1.
Table 1. Algicidal activity of bacillamide alkaloids and their synthetic analogues 1.
CompoundEC50 (mg/L) after 72 hEC50 (mg/L) after 96 h
S. costatumG. catenatumM. aeruginosaS. obliquusC. pyrenoidosa
Bacillamide A0.011 ± 0.002112.0 ± 2.5819.33 ± 1.4543.76 ± 3.67250.10 ± 4.56
Bacillamide B15.59 ± 1.12234.56 ± 7.9675.62 ± 5.34219.38 ± 13.56387.77 ± 10.78
Bacillamide C34.70 ± 1.1357.13 ± 2.54291.92 ± 10.3229.54 ± 1.54192.83 ± 6.95
Alkaloid (1)8.65 ± 0.780.58 ± 0.06114.60 ± 3.3514.33 ± 1.15381.57 ± 5.16
Neobacillamide A--86.90 ± 5.454.71 ± 0.4657.87 ± 3.12
10a--13.1 ± 1.5426.7 ± 2.3732.1 ± 1.57
10b--32.1 ± 2.1212.2 ± 0.3623.6 ± 2.18
10c--34.0 ± 3.1311.6 ± 0.9833.9 ± 2.65
10d--2.5 ± 0.124.0 ± 0.4323.0 ± 1.28
9a--7.56 ± 0.2113.12 ± 0.567.81 ± 0.65
9b--2.13 ± 0.023.25 ± 0.1428.91 ± 1.23
1 EC50 value is the concentration when the growth of half of the algae was inhibited.
