Article

Bioprospecting Red Sea Coastal Ecosystems for Culturable Microorganisms and Their Antimicrobial Potential

by
Soha Al-Amoudi
1,
Magbubah Essack
1,
Marta F. Simões
1,2,
Salim Bougouffa
1,
Irina Soloviev
1,
John A. C. Archer
1,
Feras F. Lafi
1,* and
Vladimir B. Bajic
1,*
1
King Abdullah University of Science and Technology (KAUST), Computational Bioscience Research Center (CBRC), Thuwal 23955-6900, Saudi Arabia
2
Biology Department, Edge Hill University, St. Helens Road, Lancashire, Ormskirk L39 4QP, UK
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2016, 14(9), 165; https://doi.org/10.3390/md14090165
Submission received: 27 March 2016 / Revised: 10 August 2016 / Accepted: 10 August 2016 / Published: 10 September 2016
Browse Figures
Versions Notes

Abstract

:
Microorganisms that inhabit unchartered unique soil such as in the highly saline and hot Red Sea lagoons on the Saudi Arabian coastline, represent untapped sources of potentially new bioactive compounds. In this study, a culture-dependent approach was applied to three types of sediments: mangrove mud (MN), microbial mat (MM), and barren soil (BS), collected from Rabigh harbor lagoon (RHL) and Al-Kharrar lagoon (AKL). The isolated bacteria were evaluated for their potential to produce bioactive compounds. The phylogenetic characterization of 251 bacterial isolates based on the 16S rRNA gene sequencing, supported their assignment to five different phyla: Proteobacteria, Firmicutes, Actinobacteria, Bacteroidetes, and Planctomycetes. Fifteen putative novel species were identified based on a 16S rRNA gene sequence similarity to other strain sequences in the NCBI database, being ≤98%. We demonstrate that 49 of the 251 isolates exhibit the potential to produce antimicrobial compounds. Additionally, at least one type of biosynthetic gene sequence, responsible for the synthesis of secondary metabolites, was recovered from 25 of the 49 isolates. Moreover, 10 of the isolates had a growth inhibition effect towards Staphylococcus aureus, Salmonella typhimurium and Pseudomonas syringae. We report the previously unknown antimicrobial activity of B. borstelensis, P. dendritiformis and M. salipaludis against all three indicator pathogens. Our study demonstrates the evidence of diverse cultured microbes associated with the Red Sea harbor/lagoon environments and their potential to produce antimicrobial compounds.

1. Introduction

The imprudent use of antibiotics to treat infectious diseases, along with their widespread use in agriculture and food manufacturing industries, has caused an increase in pathogen resistance which now poses a global public health threat associated with an increase in mortality rates and health care costs [1]. Unfortunately, the successes of screening soil actinomycetes for diffusible broad-spectrum antibiotic agents in the 1940s–1960s has met with diminishing returns, as in several instances, active compounds identified from screening assays have led to previously described compounds. Since the 1960s, only two new classes of antibiotics, the cyclic lipopeptide daptomycin, identified by a classical screening approach [2] and linezolid (a completely synthetic oxazolidinone) [3], have been successfully introduced to the clinic [4]. Since type-I polyketide synthases (PKS-I) and nonribosomal peptide synthetases (NRPS) have been found to support synthesis of secondary metabolites that act as antibiotics, immunosuppressants, toxins, siderophores, or antitumor agents, research is increasingly being focused on identifying microorganisms that harbor these multimodular enzymes [5] (see Table 1). The presence of these genes in the genome does not necessarily imply their expression or function, but does increase chances of identifying organisms capable of producing the above-mentioned bioactive compounds. Nonetheless, marine species that live in habitats with stressful conditions such as low light, low or high temperature, high pressure and salinity, produce different arrays of bioactive secondary metabolites that help them to survive [6], provide defense against other organisms, and help in the competition for food. These species represent an insufficiently explored source of organisms with potential to produce compounds high with antimicrobial activity.
Several recent studies have screened for antimicrobial compounds produced by microorganisms isolated from natural environments such as in hydrothermal vents [7], sediments [8], plants [9], seawater [10], and eukaryotic marine organisms [11]. This broader screening approach has successfully identified promising new antibiotics [12,13,14]. Research targeting sediments has sparked particular interest as soil compositions direct the diversity of the inhabiting microbial communities and their potential to produce antimicrobial compounds. Thus, microorganisms that inhabit unexplored unique soil compositions, such as in the Rabigh harbor lagoon (RHL) and Al-Kharrar lagoon (AKL) of the highly saline and hot Red Sea, represent untapped reservoirs of organisms that potentially produce novel bioactive compounds. RHL and AKL are located on the eastern coast of the Red Sea in Saudi Arabia. Previously, studies related to the sediment configuration of these lagoons have been reported [15,16,17,18]. Additionally, Red Sea mangrove metagenomics [19,20,21,22] have characterized biodiveristy or bioactivity as induced by Red Sea bacteria [11,23,24,25]. Nonetheless, both the lagoons have a higher nutrient content and organic matter when compared to the open sea, making their environments more favorable for this type of research. Additionally, RHL is considered a contaminated site owing to it being used as a harbor and being located near Petro Rabigh (Refining and Petrochemical Company), whereas AKL is considered less contaminated because its coast is poorly inhabited and only minor fishing activity is present in the lagoon.
In this study, we sampled sediments from three Red Sea environments: mangrove mud (MN), microbial mat (MM), and soil (BS) collected from the RHL and AKL. A culture-dependent approach was applied to these sediment samples for the isolation and identification of microorganisms using 16S rRNA gene sequencing. We have also reported their capacity to inhibit the growth of three laboratory pathogens, Staphylococcus aureus ATCC 25923, Pseudomonas syringae pv. tomato dc3000, and Salmonella typhimurium dT2, as well as their genomic potential to produce secondary metabolites with antimicrobial activity.

2. Results and Discussion

2.1. Bacterial Isolation

Characterizing microbial communities in sediment is a difficult task, mostly because of their huge genotypic and phenotypic diversity and heterogeneity [35]. In the top layer of soil, the bacterial inhabitants can be present in densities exceeding 109 cells/g soil [35], and most of these strains seem to be unculturable. It is estimated that live culture techniques address 0.01%–1% of existing microbial diversity [20,36,37]. Only cultivated strains have been studied in detail [35,38], yet they represent less than 5% of the total microbial biomass in the soil [39]. Thus, in an attempt to broaden the diversity of the isolated strains, we employed several culture media: Difco marine agar 2216 (MA), 10% Difco marine agar 2216 (10% MA), Difco Marine agar 2216 with 1 g/L streptomycin (Anti-MA), actinomycetes isolation agar (AIA) and Difco marine broth 2216 gellan gum (MB-GM). Bacterial colonies grew fast on MA, exhibiting a more diverse colony morphology and density than on other media. Growth on the 10% MA medium tended to be similar to MA, but less diverse, while only a small number of colonies grew on Anti-MA and AIA. However, the growth in MB-GM was faster than in an agar-based media. This finding is not surprising as several studies have shown MB-GM to be more successful in isolating bacterial species from marine environments [40], and may isolate specifically rare actinomycetes [41,42]. Isolates were selected for propagation based on morphological distinctiveness (Supplementary Table S1).

2.2. 16S rRNA Gene Sequencing and Phylogenetic Analysis

The 16S rRNA gene of the 251 isolated and purified bacterial strains, was sequenced as a taxonomic marker. Our analysis revealed that 16S rRNA gene sequences for all the strains showed similarity with 16S rRNA gene sequences deposited in the National Center for Biotechnology Information (NCBI) GenBank database in the range of 91%–100% (see Figure 1 and Supplementary Figure S1). The taxonomic classification placed the 251 isolates into five phyla comprising 32 genera: Firmicutes (135 strains; 12 genera), Proteobacteria (99 strains; 11 genera), Planctomycetes (six strains; two genera), Actinobacteria (six strains; four genera) and Bacteroidetes (five strains; three genera) (Figure 2). Firmicutes and Proteobacteria were isolated from all three types of sediments. Interestingly, the number of cultured Proteobacteria decreased in the three sediment types, which is in accordance with the reduction of the sediments exposure to seawater. In contrast, the number of cultured Firmicutes increased in the three sediment types, in accordance with the sediments exposure to seawater. The contrasting counts, for Proteobacteria and Firmicutes in these different sediments types, may be due to the spore-producing Firmicutes ability to survive in more adverse oligotrophic environments such as in BS compared to MN [43]. Additionally, Proteobacteria has the known ability to utilize chemical elements in soil more than other microorganisms, which makes the nutrient rich MN sediment more favorable for this phylum [44,45]. Bacteria from the Actinobacteria phylum were isolated from BS at RHL, and from MN collected from RHL and AKL, while Bacteroidetes were only isolated from BS collected from both locations. Planctomycetes were cultured from various sites such as MM and BS at RHL, and MN at AKL. The Firmicutes genus Bacillus was the predominant taxon isolated from all samples, especially from BS (Supplementary Table S1). The Bacillus species, recognized as an important source of natural bioactive products [46], are commonly found in nutrient-poor soils [47]. We found that the most abundant cultured and widely distributed species in RHL and AKL were: Bacillus subtilis, Bacillus sonorensis and Bacillus licheniformis. In addition, Virgibacillus pantothenticus, Microbulbifer maritimus, Bacillus foraminis, Vibrio alginolyticus and Vibrio furnissii strains were isolated three times or more from MN only.
Out of the 251 isolates, 15 could be considered putative novel species as they have ≤98% similarity to 16S rRNA gene sequences deposited in GenBank [48,49,50,51] (Table 2, Figure 1). The taxonomic classification placed the 15 isolates into five phyla comprising 12 genera and 15 species: Proteobacteria (Vibrio alginolyticus, Microbulbifer maritimus, Microbulbifer gwangyangensis, Oceanicaulis sp., Marinobacter xestospongiae, Pseudoalteromonas espejiana, Pseudoalteromonas flavipulchra, Pseudoalteromonas atlantica), Firmicutes (Bacillus simplex and Exiguobacterium profundum), Planctomycetes (Planctomyces brasiliensis, Planctomycete sp., Blastopirellula cremea), Actinobacteria (Brevibacterium avium) and Bacteroidetes (Flavobacteriaceae bacterium). Interestingly, 11 of the 15 putative novel species were isolated from the 10% MA medium. Thus, low nutrient media may be more suitable for targeting the isolation of those bacteria that are more difficult to culture—the rationale being that it provides an environment that does not facilitate the growth of easily culturable bacteria that thrive in high nutrient media and usually overshadow or outcompete the so-called “unculturable” bacteria. Moreover, from the putative novel species, 53.3% have a genetic affiliation with the phylum Proteobacteria, and 13.3% have a genetic affiliation with the phylum Firmicutes. Interestingly, 75.0% of putative novel strains were isolated from RHL.

2.3. Antimicrobial Screening

In order to defend themselves against other microorganisms, bacteria produce different compounds. Many of these metabolites are bioactive compounds and some have antimicrobial activity [52]. Within this context, we evaluated all 251 isolates for their antimicrobial activity against three pathogens: Staphylococcus aureus ATCC25923, Pseudomonas syringae dc3000, and Salmonella typhimurium dT2. The reason behind the selection of these pathogens was to cover the different spectrum of antimicrobial use. S. aureus causes several human infections such as skin and wound infections, septicemia, endocarditis, food poisoning, toxic shock syndrome, meningitis, pneumonia and osteomyelitis [53]. Additionally, the strain S. aureus ATCC 25923 is commonly used as a control to test for antibiotic susceptibility, and as a quality control strain for commercial products [54]. P. syringae pv. tomato dc3000 is a phytopathogen used as a model to study plant-bacterial interactions [55]. S. enterica serovar typhimurium definitive type 2 (DT2) is host restricted to Columba livia (rock or feral pigeon). However, it is also closely related to S. typhimurium isolates that circulate in livestock and causes zoonosis, that is, gastroenteritis in humans [56].
Of the 251 isolates screened, 49 isolates showed potential antimicrobial activity evidenced through growth inhibition against at least one of the indicator pathogens (included in Supplementary Table S3). These isolates belong to 12 genera of the phylum Firmicutes (genera: Bacillus, Virgibacillus, Brevibacillus, Aneurinibacillus, Staphylococcus, Paenibacillus), Proteobacteria (genera: Microbulbifer, Salinivibrio, Pseudoalteromonas, Pseudomonas, Stenotrophomonas) and Bacteroidetes (genus: Pontibacter). It is noteworthy that, of these 49 isolates, 67.0% were isolated from RHL and 48.9% have a genetic affiliation to genus Bacillus.
Of all isolates, 42 inhibited the growth of S. aureus, 14 isolates inhibited the growth of S. typhimurium and 34 isolates inhibited the growth of P. syringae. Only 10 isolates displayed zone inhibition against all of the three indicator laboratory pathogens (Table 3), of which nine isolates belong to the phylum Firmicutes, while one belongs to the phylum Proteobacteria (Microbulbifer salipaludis (Bac177)). Of these 10 isolates, only zone inhibition for B. licheniformis (Bac84) and A. migulanus (Bac271) showed an annular radius of ≥3.0 mm for all screenings, suggesting a higher activity against all three indicator laboratory pathogens. However, the strain Bac177 of M. salipaludis displayed the most effective zone inhibition against S. typhimurium. Two strains, Bac57 and Bac376, belonging to the species Bacillus amyloliquefaciens and Virgibacillus olivae, respectively, displayed strain-specific activity as shown by an annular radius of ≥3.0mm against P. syringae. Additionally, strains Bac389, Bac375 and Bac380 belonging to Bacillus cereus, Pseudomonas fluorescens and Stenotrophomonas maltophilia respectively, displayed strain-specific activity as shown by an annular radius of ≥3.0 mm against S. aureus. Of the putative novel strains, only a strain (Bac319) of Pseudoalteromonas espejiana displayed zone inhibition as shown by an annular radius of ≥1.0 mm against S. aureus, and a strain (Bac320) of Pseudoalteromonas atlantica revealed zone inhibition as shown by an annular radius of ≥1.0 mm against S. aureus and P. syringae.
Some of the ten strains that inhibited the growth of the three tested pathogens are already known to be producers of bioactive compounds. For example, Gramicidin S, a cyclodecapeptide recently isolated from A. migulanus [57], was originally isolated from the Gram-positive Bacillus brevis and was shown to exhibit an antibiotic effect against some Gram-positive and Gram-negative bacteria, as well as some fungi [58]. In addition, B. licheniformis is used for several biotechnological applications for its capacity to produce degrading enzymes such as proteases, lipases, pectate lyases, and polysaccharides [59]. B. licheniformis has further been shown to exhibit potent antimicrobial activity against indicator strains (Lactococcus lactis, Lactobacillus bulgaricus and Listeria innocua) and is clinically relevant (Listeria monocytogenes, Staphylococcus aureus, Streptococcus agalactiae, Salmonella Typhimurium and Escherichia coli) bacteria [60]. B. subtilis is a recognized producer of natural biocontrol agents, having high antifungal activity against Alternaria solani, Botrytis cinerea, Monilia linhartiana 869, Phytophthora cryptogea 759/1 and Rhizoctonia sp., and antibacterial activity against Pseudomonas syringae pv. tomato Ro and Xanthomonas campestris [61]. B. sonorensis has displayed antifungal activity against Macrophomina phaseolina [62] and has been shown to exhibit antibacterial activity against Staphylococcus aureus and Listeria monocytogenes as a potential food preservative [63]. B. vallismortis showed strong growth inhibition activity in vitro against the phytopathogens Fusarium graminearum, Alternaria alternata, Rhizoctonia solani, Cryphonectria parasitica and Phytophthora capsici [64]. So far, no specific antimicrobial activity has been detected for B. borstelensis, P. dendritiformis and M. salipaludis, which appears to be one of the novel findings of our study.

2.4. PCR-Screening for PKS and NRPS Domains

The 251 isolated strains were screened for the detection of genes involved in the synthesis of bioactive compounds: polyketide synthases type I (PKS-I) and type II (PKS-II), and nonribosomal peptide synthetases (NRPS) [65]. Although these enzymes are known to support synthesis of bioactive secondary metabolites such as antibiotics [66,67], their presence does not imply expression or functionality, but does increase the likelihood that the strain has the potential to produce antimicrobial compounds such as antibiotics, antitumor agents, or immunosuppressants. Only 107 of the isolated strains exhibited PCR products corresponding to at least one biosynthetic gene (see Supplementary Table S1).
For the 49 isolates that exhibited antimicrobial activity, at least one type of biosynthetic gene sequence was recovered from 25 strains. Of these 25 isolates, 56.0% were isolated from RHL, and 48.0% have a genetic affiliation to genus Bacillus. NRPS biosynthetic genes were identified in 40.8% of those selected strains, while PKS-I and PKS-II were identified in 28.5% and 20.4% of isolates respectively (Supplementary Table S3). Six isolates were positive for all biosynthetic genes screened: B. licheniformis (Bac84), B. vallismortis (Bac111), P. espejiana (Bac319), B. subtilis (Bac254) and P. dendritiformis (Bac363 and Bac390). For the isolates that displayed zone inhibition against all of the three indicator laboratory pathogens (Table 3), biosynthetic genes sequences were only found in five isolates: B. licheniformis (Bac84), B. vallismortis (Bac111), B. subtilis (Bac254), P. dendritiformis (Bac363 and Bac390). No biosynthetic gene sequences were recovered from the strains belonging to B. borstelensis (Bac98) and M. salipaludis (Bac177), bacteria for which antimicrobial activity has been reported in literature [68]. Additionally, from the 15 putative novel species (Table 2), biosynthetic gene sequences were recovered from nine strains belonging to the following species: Microbulbifer gwangyangensis (Bac85), Planctomyces brasiliensis (Bac 92), Bacillus simplex (Bac 94), Blastopirellula cremea (Bac175), Brevibacterium avium (Bac181), Marinobacter xestospongiae (Bac216), P. atlantica (Bac288), P. espejiana (Bac319) and Exiguobacterium profundum (Bac387).
Our study shows a rich biodiversity of culturable Firmicutes (Supplementary Table S2) from Red Sea ecosystems on the Saudi Arabian coastline. Of all isolated strains, we found that 49 exhibit potential antimicrobial activity. From these, 25 have at least one type of biosynthetic gene sequence, indicating that these isolates are a valuable resource for the potential discovery of bioactive compounds. Moreover, 75% of putative novel species and 67% of strains that exhibited antimicrobial activity were isolated from RHL.
In this process we have also managed to short list 15 putative novel species that require further experimentation to verify species novelty such as whole genome sequencing. In addition, five additional strains (Bac 84, 111, 254, 363, 390) will be shortlisted for the purification and identification of their antimicrobial compounds using High Performance Liquid Chromotography (HPLC), Nuclear Magnetic Resonance (NMR) and Mass Spectrometry (MS).

3. Material and Methods

3.1. Sediment Sampling

Three types of sediment samples: mangrove mud (MN), microbial mat (MM), and barren soil (BS) were collected from RHL (39°0′35.762′′ E, 22°45′5.582′′ N) and AKL (38°54′39.638′′ E, 22°54′50.251′′ N) in Saudi Arabia (Figure 3). MN mud was sampled from the coastal lagoon of the Red Sea alongside mangrove tree. MM was sampled approximately 7.5 m away from the coastal lagoon, while BS represents sediment that did not come in contact with the lagoon water at high tide. All samples were collected in triplicate from the same depth (2–25 cm), using a hollow steel tube (core sampler—each core was 20–25 cm in length and 5 cm in diameter). Cores were kept on ice until the processing of samples were done on the same day. Eight grams of wet weight sediment were homogenized at low speed with 10 mL of sterilised Red Sea water. The supernatant (100 μL) was diluted five- and 25-fold, and subsequently plated out on different media. Processing was the same for all samples.

3.2. Isolation and Purification of Bacterial Strains

Several selective media types were used: actinomycetes isolation agar for cultivating Actinobacteria, Difco Marine agar 2216 for cultivating heterotrophic bacteria, 10% Difco Marine agar 2216 for cultivating oligotrophic bacteria, Difco Marine agar 2216 with 1 g/L streptomycin for bacteria that are resistant to antibiotic, and Difco Marine broth 2216 gellan gum media for bacteria that do not prefer agar (BD Difco, Franklin Lakes, NJ, USA). All media were prepared in artificial seawater. Inoculated plates were incubated at 28 °C for up to 28 days and colonies were selected based on morphology. After successive transfers, pure isolates were frozen at −80 °C in ddH2O (for DNA extraction and amplification) and 30% glycerol solution for long-term storage.

3.3. Molecular Identification and Phylogenetic Analysis

Genomic DNA was prepared as described previously [69], but with slight modification of the phenol-chloroform extraction and ethanol precipitation, which were done according to [70]. For 16S rRNA gene amplification, universal primers 27F primer (5′-AGAGTTTGATCMTGGCTCAG-3′) and 1492R primer (5′-GGTTACCTTGTTACGACTT-3′), were used in the PCR reaction as previously described [71], with some parameters modified to the thermocycler (Bio-Rad, Hercules, CA, USA) used. Initial denaturation occurred at 95 °C for 7 min, followed by 35 cycles of: denaturation at 95 °C for 1 min, annealing at 54 °C for 45 s, and an extension at 72 °C for 90 min, with a final extension at 72 °C for 5 min. Amplified DNA was electrophoresed on 1% agarose gel. The amplified PCR products of bacterial gene fragments were purified according to the manufacturers recommendations: Nucleospin recommended protocol (Macherey-Nagel GmbH, Düren, North Rhine-Westphalia, Germany). Purified products were submitted for Sanger sequencing of the 16S rRNA gene at the King Abdullah University of Science and Technology (KAUST) Bioscience Core Laboratory. The 16S rRNA gene sequences were compared to sequences within the NCBI database using the Basic Local Alignment Search Tool (BLAST). The phylogenetic tree was built in the ARB package [72], using the SILVA SSU Ref NR 99 (version 119) as the reference tree [73]. Alignment of the 16s rRNA genes (also referred to as species in the text) was performed using SILVA’s SINA on-line aligner [74], with the variability profile set to “Bacteria”, and all other parameters set to default. The alignment was inspected and edited in the ARB package. Initially, we added our species to the reference tree using the parsimony method. Close relatives of the reference tree were selected and a new tree was built using MrBayes [75] in ARB (filter: bacteria, number of substitution type 4, number of cycles for Markov Chain Monte Carlo = 100,000, number of chains = 6, temperature parameter for heating the chains = 0.5, Markov chain sample frequency = 500). Thermogymnomonas acidicola (archaea) was added to the tree as an outgroup. The 16S rRNA gene sequences of the isolates were deposited in GenBank under the following accession numbers KP795796-KP795924 and KP980708-KP980808.

3.4. Screening for Antimicrobial Activity

Three pathogenic test laboratory strains (Staphylococcus aureus strain ATCC25923, Pseudomonas syringae strain dc3000 and Salmonella typhimurium strain dT2) were used to analyze their sensitivity towards the isolated stains. LB agar (Fisher BioReagents, Miller, Pittsburgh, PA, USA) was prepared and autoclaved at 121 °C for 20 min. Stock cultures of the three pathogenic strains and all isolates were cultured individually in LB agar plates and then incubated overnight at 37 °C. One of the grown colonies was collected and mixed individually with 1 mL of LB broth in a 1.5 μL tube and incubated at 37 °C, with shaking at 250 rpm overnight. A new LB agar plate was spread with a 100 μL aliquot of an individual pathogenic strain. Next, the 10 μL aliquot of isolate suspension (optical density 600 nm (OD600) of 0.5) was applied on the inoculated plate which was then incubated overnight aerobically at 37 °C. The inhibition zone of the annular radius and diameter was then been registered (Figure 4) after 24 h.

3.5. PCR Screening for PKS and NRPS Gene Fragments

Specific primers used to screen for domains associated with the PKS and NRPS genes, are listed in Table 4 [65,76]. The PCR products were electrophoresed on a 1% agarose gel, from which the bands of interest (NRPS: 700–800 bp; PKS-I: 1250–1400 bp; PKS-II: 800–900 bp) were cut out and purified using the Wizard® SV Gel and PCR Clean-Up System (Promega, Madison, WI, USA). PCR products were cloned using pGEM®-T and pGEM®-T Easy vectors (Promega, Madison, WI, USA). Plasmids that contain the PCR products were purified using the QIAprep® Spin Miniprep kit (Qiagen, Hilden, North Rhine-Westphalia, Germany). PCR products were then sequenced and compared with PKS and NRPS sequences in the NCBI database by using the Basic Local Alignment Search Tool X (BLASTX).

4. Conclusions

Our study shows a rich biodiversity of culturable Firmicutes (Supplementary Table S2) from Red Sea ecosystems on the Saudi Arabian coastline. Of all isolated strains, we found that 49 exhibit potential antimicrobial activity. From these, 25 have at least one type of biosynthetic gene sequence, indicating that these isolates are a valuable resource for the potential discovery of bioactive compounds. Moreover, 75% of putative novel species and 67% of strains that exhibited antimicrobial activity were isolated from RHL.
In this process, we have also managed to short list 15 putative novel species that require further experimentation to verify species novelty such as whole genome sequencing. In addition, five additional strains (Bac 84, 111, 254, 363, 390) will be shortlisted for the purification and identification of their antimicrobial compounds using High Performance Liquid Chromotography (HPLC), Nuclear Magnetic Resonance (NMR) and Mass Spectrometry (MS).

Supplementary Materials

The following are available online at www.mdpi.com/1660-3397/14/9/165/s1.

Acknowledgments

The authors wish to acknowledge the experimental support from the King Abdullah University of Science and Technology (KAUST) Bioscience Core Laboratory. The computational analysis for this study was performed on Dragon and Snapdragon compute clusters of the Computational Bioscience Research Center at KAUST. The authors would also like to thank Christoph Gehring and his research group for their help and use of their instruments and equipment. We also thank Andre Antunes for his support and advice. This publication is based upon work supported by the KAUST Office of Sponsored Research (OSR) under Awards No URF/1/1976-02 and FCS/1/2448-01, and KAUST base research funds to V.B.B. Funding for open access charge: King Abdullah University of Science and Technology (CCF URF 1976).

Author Contributions

V.B.B. and F.F.L. conceived and designed the experiments; S.A.-A, M.F.S. and I.S. performed the experiments; M.E. and S.B. analyzed the data; V.B.B. contributed reagents/materials/analysis tools; M.E., S.A.-A., J.A.C.A. and V.B.B. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carlet, J.; Collignon, P.; Goldmann, D.; Goossens, H.; Gyssens, I.C.; Harbarth, S.; Jarlier, V.; Levy, S.B.; N’Doye, B.; Pittet, D.; et al. Society’s failure to protect a precious resource: Antibiotics. Lancet 2011, 378, 369–371. [Google Scholar] [CrossRef]
  2. Tally, F.P.; DeBruin, M.F. Development of daptomycin for Gram-positive infections. J. Antimicrob. Chemother. 2000, 46, 523–526. [Google Scholar] [CrossRef] [PubMed]
  3. Leach, K.L.; Brickner, S.J.; Noe, M.C.; Miller, P.F. Linezolid, the first oxazolidinone antibacterial agent. Ann. N. Y. Acad. Sci. 2011, 1222, 49–54. [Google Scholar] [CrossRef] [PubMed]
  4. Donadio, S.; Maffioli, S.; Monciardini, P.; Sosio, M.; Jabes, D. Antibiotic discovery in the twenty-first century: Current trends and future perspectives. J. Antibiot. 2010, 63, 423–430. [Google Scholar] [CrossRef] [PubMed]
  5. Amoutzias, G.D.; Chaliotis, A.; Mossialos, D. Discovery strategies of bioactive compounds synthesized by nonribosomal peptide synthetases and type-I polyketide synthases derived from marine microbiomes. Mar. Drugs 2016, 14, 80. [Google Scholar] [CrossRef] [PubMed]
  6. Debbab, A.; Aly, A.H.; Lin, W.H.; Proksch, P. Bioactive compounds from marine bacteria and fungi. Microb. Biotechnol. 2010, 3, 544–563. [Google Scholar] [CrossRef] [PubMed]
  7. Bourbouli, M.; Katsifas, E.A.; Papathanassiou, E.; Karagouni, A.D. The Kolumbo submarine volcano of Santorini island is a large pool of bacterial strains with antimicrobial activity. Arch. Microbiol. 2015, 197, 539–552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Yekkour, A.; Meklat, A.; Bijani, C.; Toumatia, O.; Errakhi, R.; Lebrihi, A.; Mathieu, F.; Zitouni, A.; Sabaou, N. A novel hydroxamic acid-containing antibiotic produced by a Saharan soil-living Streptomyces strain. Lett. Appl. Microbiol. 2015, 60, 589–596. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, Y.; Gao, B.L.; Li, X.X.; Zhang, Z.B.; Yan, R.M.; Yang, H.L.; Zhu, D. Phylogenetic diversity of culturable endophytic fungi in Dongxiang wild rice (Oryza rufipogon Griff), detection of polyketide synthase gene and their antagonistic activity analysis. Fungal Biol. 2015, 119, 1032–1045. [Google Scholar] [CrossRef] [PubMed]
  10. Hakvag, S.; Fjaervik, E.; Josefsen, K.D.; Ian, E.; Ellingsen, T.E.; Zotchev, S.B. Characterization of Streptomyces spp. isolated from the sea surface microlayer in the Trondheim Fjord, Norway. Mar. Drugs 2008, 6, 620–635. [Google Scholar] [CrossRef] [PubMed]
  11. Abdelmohsen, U.R.; Yang, C.; Horn, H.; Hajjar, D.; Ravasi, T.; Hentschel, U. Actinomycetes from Red Sea sponges: Sources for chemical and phylogenetic diversity. Mar. Drugs 2014, 12, 2771–2789. [Google Scholar] [CrossRef] [PubMed]
  12. Bister, B.; Bischoff, D.; Ströbele, M.; Riedlinger, J.; Reicke, A.; Wolter, F.; Bull, A.T.; Zähner, H.; Fiedler, H.P.; Süssmuth, R.D. Abyssomicin C-A polycyclic antibiotic from a marine Verrucosispora strain as an inhibitor of the p-aminobenzoic acid/tetrahydrofolate biosynthesis pathway. Angew. Chem. Int. Ed. Engl. 2004, 43, 2574–2576. [Google Scholar] [CrossRef] [PubMed]
  13. Ling, L.L.; Schneider, T.; Peoples, A.J.; Spoering, A.L.; Engels, I.; Conlon, B.P.; Mueller, A.; Schäberle, T.F.; Hughes, D.E.; Epstein, S.; et al. A new antibiotic kills pathogens without detectable resistance. Nature 2015, 517, 455–459. [Google Scholar] [CrossRef] [PubMed]
  14. Hamamoto, H.; Urai, M.; Ishii, K.; Yasukawa, J.; Paudel, A.; Murai, M.; Kaji, T.; Kuranaga, T.; Hamase, K.; Katsu, T.; et al. Lysocin E is a new antibiotic that targets menaquinone in the bacterial membrane. Nat. Chem. Biol. 2015, 11, 127–133. [Google Scholar] [CrossRef] [PubMed]
  15. Abd, Y.E.; Awad, M. Evaporitic sediment distributions in Al-Kharrar sabkha, west Red Sea coast of Saudi Arabia, as revealed from electrical soundings. Mar. Geol. 1991, 97, 137–143. [Google Scholar] [CrossRef]
  16. Al-Washmi, H. Sedimentological Aspects and Environmental Conditions Recognized from the Bottom Sediments of Al-Kharrar Lagoon, Eastern Red Sea Coastal Plain, Saudi Arabia. J. KAU Mar. Sci. 1999, 10, 71–87. [Google Scholar] [CrossRef]
  17. Basaham, A.S. Mineralogical and chemical composition of the mud fraction from the surface sediments of Sharm Al-Kharrar, a Red Sea coastal lagoon. Oceanologia 2008, 50, 577–585. [Google Scholar]
  18. Gheith, A.M.; Abou Ouf, M.A. Textural characteristics, mineralogy and fauna in the shore zone sediments at Rabigh and Sharm al-Kharrar, eastern Red Sea, Saudi Arabia. J. KAU Mar. Sci. 1996, 7, 107–131. [Google Scholar] [CrossRef]
  19. Alzubaidy, H.; Essack, M.; Malas, T.B.; Bokhari, A.; Motwalli, O.; Kamanu, F.K.; Jamhor, S.A.; Mokhtar, N.A.; Antunes, A.; Simões, M.F.; et al. Rhizosphere microbiome metagenomics of gray mangroves (Avicennia marina) in the Red Sea. Gene 2016, 576, 626–636. [Google Scholar] [CrossRef] [PubMed]
  20. Simoes, M.F.; Antunes, A.; Ottoni, C.A.; Amini, M.S.; Alam, I.; Alzubaidy, H.; Mokhtar, N.; Archer, J.A.C.; Bajic, V.B. Soil and Rhizosphere Associated Fungi in Gray Mangroves (Avicennia marina) from the Red Sea—A Metagenomic Approach. Genom. Proteom. Bioinform. 2015, 13, 310–320. [Google Scholar] [CrossRef] [PubMed]
  21. Balk, M.; Keuskamp, J.A.; Laanbroek, H.J. Potential Activity, Size, and Structure of Sulfate-Reducing Microbial Communities in an Exposed, Grazed and a Sheltered, Non-Grazed Mangrove Stand at the Red Sea Coast. Front. Microbiol. 2015, 6, 1478. [Google Scholar] [CrossRef] [PubMed]
  22. El-Said, G.F.; Youssef, D.H. Ecotoxicological impact assessment of some heavy metals and their distribution in some fractions of mangrove sediments from Red Sea, Egypt. Environ. Monit. Assess. 2013, 185, 393–404. [Google Scholar] [CrossRef] [PubMed]
  23. Xu, Y.; Kersten, R.D.; Nam, S.J.; Lu, L.; Al-Suwailem, A.M.; Zheng, H.; Fenical, W.; Dorrestein, P.C.; Moore, B.S.; Qian, P.Y. Bacterial biosynthesis and maturation of the didemnin anti-cancer agents. J. Am. Chem. Soc. 2012, 134, 8625–8632. [Google Scholar] [CrossRef] [PubMed]
  24. Sagar, S.; Esau, L.; Hikmawan, T.; Antunes, A.; Holtermann, K.; Stingl, U.; Bajic, V.B.; Kaur, M. Cytotoxic and apoptotic evaluations of marine bacteria isolated from brine-seawater interface of the Red Sea. BMC Complement. Altern. Med. 2013, 13, 29. [Google Scholar] [CrossRef] [PubMed]
  25. Nawwar, M.; Hussein, S.; Ayoub, N.A.; Hashim, A.; Mernitz, G.; Cuypers, B.; Linscheid, M.; Lindequist, U. Deuteromycols A and B, two benzofuranoids from a Red Sea marine-derived Deuteromycete sp. Arch. Pharm. Res. 2010, 33, 1729–1733. [Google Scholar] [CrossRef] [PubMed]
  26. Amin, M.; Rakhisi, Z.; Ahmady, A.Z. Isolation and Identification of Bacillus Species from Soil and Evaluation of Their Antibacterial Properties. Avicenna J. Clin. Microbiol. Infect. 2015, 2. [Google Scholar] [CrossRef]
  27. Shaligram, N.S.; Singhal, R.S. Surfactin—A review on biosynthesis, fermentation, purification and applications. Food Technol. Biotechnol. 2010, 48, 119–134. [Google Scholar]
  28. Schneider, K.; Chen, X.H.; Vater, J.; Franke, P.; Nicholson, G.; Borriss, R.; Süssmuth, R.D. Macrolactin is the polyketide biosynthesis product of the pks2 cluster of Bacillus amyloliquefaciens FZB42. J. Nat. Prod. 2007, 70, 1417–1423. [Google Scholar] [CrossRef] [PubMed]
  29. Gross, H.; Loper, J.E. Genomics of secondary metabolite production by Pseudomonas spp. Nat. Prod. Rep. 2009, 26, 1408–1446. [Google Scholar] [CrossRef] [PubMed]
  30. Hentschel, U.; Piel, J.; Degnan, S.M.; Taylor, M.W. Genomic insights into the marine sponge microbiome. Nat. Rev. Microbiol. 2012, 10, 641–654. [Google Scholar] [CrossRef] [PubMed]
  31. Russo, P.; Kisialiou, A.; Lamonaca, P.; Moroni, R.; Prinzi, G.; Fini, M. New drugs from marine organisms in Alzheimer’s Disease. Mar. Drugs 2015, 14, 5. [Google Scholar] [CrossRef] [PubMed]
  32. Lombó, F.; Velasco, A.; Castro, A.; de la Calle, F.; Braña, A.F.; Sánchez-Puelles, J.M.; Méndez, C.; Salas, J.A. Deciphering the biosynthesis pathway of the antitumor thiocoraline from a marine actinomycete and its expression in two Streptomyces species. ChemBioChem 2006, 7, 366–376. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, J.Y.; Sanchez, L.M.; Rath, C.M.; Liu, X.; Boudreau, P.D.; Bruns, N.; Glukhov, E.; Wodtke, A.; de Felicio, R.; Fenner, A.; et al. Molecular networking as a dereplication strategy. J. Nat. Prod. 2013, 76, 1686–1699. [Google Scholar] [CrossRef] [PubMed]
  34. Della Sala, G.; Hochmuth, T.; Teta, R.; Costantino, V.; Mangoni, A. Polyketide synthases in the microbiome of the marine sponge Plakortis halichondrioides: A metagenomic update. Mar. Drugs 2014, 12, 5425–5440. [Google Scholar] [CrossRef] [PubMed]
  35. Torsvik, V.; Øvreås, L. Microbial diversity and function in soil: From genes to ecosystems. Curr. Opin. Microbiol. 2002, 5, 240–245. [Google Scholar] [CrossRef]
  36. Rappe, M.S.; Giovannoni, S.J. The uncultured microbial majority. Annu. Rev. Microbiol. 2003, 57, 369–394. [Google Scholar] [CrossRef] [PubMed]
  37. Keller, M.; Zengler, K. Tapping into microbial diversity. Nat. Rev. Microbiol. 2004, 2, 141–150. [Google Scholar] [CrossRef] [PubMed]
  38. Borneman, J.; Triplett, E.W. Molecular microbial diversity in soils from eastern Amazonia: Evidence for unusual microorganisms and microbial population shifts associated with deforestation. Appl. Environ. Microbiol. 1997, 63, 2647–2653. [Google Scholar] [PubMed]
  39. Ohtonen, R.; Fritze, H.; Pennanen, T.; Jumpponen, A.; Trappe, J. Ecosystem properties and microbial community changes in primary succession on a glacier forefront. Oecologia 1999, 119, 239–246. [Google Scholar] [CrossRef]
  40. Davis, K.E.; Joseph, S.J.; Janssen, P.H. Effects of growth medium, inoculum size, and incubation time on culturability and isolation of soil bacteria. Appl. Environ. Microbiol. 2005, 71, 826–834. [Google Scholar] [CrossRef] [PubMed]
  41. Suzuki, S.-I. Establishment and use of gellan gum media for selective isolation and distribution survey of specific rare actinomycetes. Actinomycetologica 2001, 15, 55–60. [Google Scholar] [CrossRef]
  42. Stingl, U.; Cho, J.C.; Foo, W.; Vergin, K.L.; Lanoil, B.; Giovannoni, S.J. Dilution-to-extinction culturing of psychrotolerant planktonic bacteria from permanently ice-covered lakes in the McMurdo Dry Valleys, Antarctica. Microb. Ecol. 2008, 55, 395–405. [Google Scholar] [CrossRef] [PubMed]
  43. Moreno-Letelier, A.; Olmedo, G.; Eguiarte, L.E.; Martinez-Castilla, L.; Souza, V. Parallel evolution and horizontal gene transfer of the pst operon in Firmicutes from oligotrophic environments. Int. J. Evol. Biol. 2011, 2011, 781642. [Google Scholar] [CrossRef] [PubMed]
  44. Stolz, J.; Basu, P.; Oremland, R. Microbial transformation of elements: The case of arsenic and selenium. Int. Microbiol. 2002, 5, 201–207. [Google Scholar] [PubMed]
  45. Aislabie, J.; Deslippe, J.; Dymond, J. Soil Microbes and Their Contribution to Soil Services. In Ecosystem Services in New Zealand: Conditions and Trends; Manaaki Whenua Press: Lincoln, New Zealand, 2013; pp. 143–161. [Google Scholar]
  46. Chen, X.-H.; Vater, J.; Piel, J.; Franke, P.; Scholz, R.; Schneider, K.; Koumoutsi, A.; Hitzeroth, G.; Grammel, N.; Strittmatter, A.W.; et al. Structural and functional characterization of three polyketide synthase gene clusters in Bacillus amyloliquefaciens FZB 42. J. Bacteriol. 2006, 188, 4024–4036. [Google Scholar] [CrossRef] [PubMed]
  47. De Boer, A.S.; Priest, F.; Diderichsen, B. On the industrial use of Bacillus licheniformis: A review. Appl. Microbiol. Biotechnol. 1994, 40, 595–598. [Google Scholar] [CrossRef]
  48. Wayne, L.; Brenner, D.J.; Colwell, R.R.; Grimont, P.A.D.; Kandler, O.; Krichevsky, M.I.; Moore, L.H.; Moore, W.E.C.; Murray, R.G.E.; Stackebrandt, E.; et al. Report of the ad hoc committee on reconciliation of approaches to bacterial systematics. Int. J. Syst. Evol. Microbiol. 1987, 37, 463–464. [Google Scholar] [CrossRef]
  49. Johnson, J. Bacterial classification III. Nucleic acids in bacterial classification. In Bergey's Manual of Systematic Bacteriology; Williams & Wilkins: Baltimore, MD, USA, 1984; pp. 8–11. [Google Scholar]
  50. Stackebrandt, E.; Goebel, B. Taxonomic note: A place for DNA-DNA reassociation and 16S rRNA sequence analysis in the present species definition in bacteriology. Int. J. Syst. Evol. Microbiol. 1994, 44, 846–849. [Google Scholar] [CrossRef]
  51. Boone, D.R.; Whitman, W.B.; Rouvière, P. Diversity and Taxonomy of Methanogens. In Methanogenesis; Springer: New York, NY, USA, 1993; pp. 35–80. [Google Scholar]
  52. Bhatnagar, I.; Kim, S.-K. Immense essence of excellence: Marine microbial bioactive compounds. Mar. Drugs 2010, 8, 2673–2701. [Google Scholar] [CrossRef] [PubMed]
  53. Rusin, P.A.; Maxwell, S.L.; Brooks, J.P.; Gerba, C.P.; Pepper, I.L. Evidence for the absence of Staphylococcus aureus in land applied biosolids. Environ. Sci. Technol. 2003, 37, 4027–4030. [Google Scholar] [CrossRef] [PubMed]
  54. Treangen, T.J.; Maybank, R.A.; Enke, S.; Friss, M.B.; Diviak, L.F.; Karaolis, D.K.; Koren, S.; Ondov, B.; Phillippy, A.M.; Bergman, N.H.; et al. Complete genome sequence of the quality control strain Staphylococcus aureus subsp. aureus ATCC 25923. Genome Announc. 2014, 2, e01110-14. [Google Scholar] [CrossRef] [PubMed]
  55. Xin, X.-F.; He, S.Y. Pseudomonas syringae pv. tomato DC3000: A model pathogen for probing disease susceptibility and hormone signaling in plants. Annu. Rev. Phytopathol. 2013, 51, 473–498. [Google Scholar] [CrossRef] [PubMed]
  56. Kingsley, R.A.; Kay, S.; Connor, T.; Barquist, L.; Sait, L.; Holt, K.E.; Sivaraman, K.; Wileman, T.; Goulding, D.; Clare, S.; et al. Genome and transcriptome adaptation accompanying emergence of the definitive type 2 host-restricted Salmonella enterica serovar Typhimurium pathovar. MBio 2013, 4, e00565-13. [Google Scholar] [CrossRef] [PubMed]
  57. Rautenbach, M.; Eyéghé-Bickong, H.A.; Vlok, N.M.; Stander, M.; de Beer, A. Direct surfactin-gramicidin S antagonism supports detoxification in mixed producer cultures of Bacillus subtilis and Aneurinibacillus migulanus. Microbiology 2012, 158, 3072–3082. [Google Scholar] [CrossRef] [PubMed]
  58. Gause, G.F.; Brazhnikova, M.G. Gramicidin S and its use in the Treatment of Infected Wounds. Nature 1944, 154, 703. [Google Scholar] [CrossRef]
  59. Veith, B.; Herzberg, C.; Steckel, S.; Feesche, J.; Maurer, K.H.; Ehrenreich, P.; Bäumer, S.; Henne, A.; Liesegang, H.; Merkl, R.; et al. The complete genome sequence of Bacillus licheniformis DSM13, an organism with great industrial potential. J. Mol. Microbiol. Biotechnol. 2004, 7, 204–211. [Google Scholar] [CrossRef] [PubMed]
  60. Alvarez-Ordonez, A.; Begley, M.; Clifford, T.; Deasy, T.; Considine, K.; O’Connor, P.; Ross, R.P.; Hill, C. Investigation of the antimicrobial activity of Bacillus licheniformis strains isolated from retail powdered infant milk formulae. Probiot. Antimicrob. Proteins 2014, 6, 32–40. [Google Scholar] [CrossRef] [PubMed]
  61. Todorova, S.; Kozhuharova, L. Characteristics and antimicrobial activity of Bacillus subtilis strains isolated from soil. World J. Microbiol. Biotechnol. 2010, 26, 1207–1216. [Google Scholar] [CrossRef] [PubMed]
  62. Pandya, U.; Saraf, M. Isolation and identification of allelochemicals produced by B. sonorensis for suppression of charcoal rot of Arachis hypogaea L. J. Basic Microbiol. 2015, 55, 635–644. [Google Scholar] [CrossRef] [PubMed]
  63. Chopra, L.; Singh, G.; Jena, K.K.; Verma, H.; Sahoo, D.K. Bioprocess. development for the production of sonorensin by Bacillus sonorensis MT93 and its application as a food preservative. Bioresour. Technol. 2014, 175, 358–366. [Google Scholar] [CrossRef] [PubMed]
  64. Zhao, Z.; Wang, Q.; Wang, K.; Brian, K.; Liu, C.; Gu, Y. Study of the antifungal activity of Bacillus vallismortis ZZ185 in vitro and identification of its antifungal components. Bioresour. Technol. 2010, 101, 292–297. [Google Scholar] [CrossRef] [PubMed]
  65. Ayuso-Sacido, A.; Genilloud, O. New PCR primers for the screening of NRPS and PKS-I systems in actinomycetes: Detection and distribution of these biosynthetic gene sequences in major taxonomic groups. Microb. Ecol. 2005, 49, 10–24. [Google Scholar] [CrossRef] [PubMed]
  66. Manivasagan, P.; Venkatesan, J.; Sivakumar, K.; Kim, S.-K. Pharmaceutically active secondary metabolites of marine actinobacteria. Microbiol. Res. 2014, 169, 262–278. [Google Scholar] [CrossRef] [PubMed]
  67. Salomon, C.E.; Magarvey, N.A.; Sherman, D.H. Merging the potential of microbial genetics with biological and chemical diversity: An even brighter future for marine natural product drug discovery. Nat. Prod. Rep. 2004, 21, 105–121. [Google Scholar] [CrossRef] [PubMed]
  68. Baek, D.H.; Song, J.J.; Lee, S.G.; Kwon, S.J.; Asano, Y.; Sung, M.H. New thermostable d-methionine amidase from Brevibacillus borstelensis BCS-1 and its application for d-phenylalanine production. Enzym. Microb. Technol. 2003, 32, 131–139. [Google Scholar] [CrossRef]
  69. Zhou, J.; Bruns, M.A.; Tiedje, J.M. DNA recovery from soils of diverse composition. Appl. Environ. Microbiol. 1996, 62, 316–322. [Google Scholar] [PubMed]
  70. Ausubel, F.; Brent, R.; Kingston, R.E.; Moore, D.D.; Seidman, J.G.; Smith, J.A.; Struhl, K. (Eds.) Short Protocols in Molecular Biology; John Wiley & Sons: New York, NY, USA, 1995; pp. 2–3.
  71. Lane, D. 16S/23S rRNA sequencing. In Nucleic Acid Techniques in Bacterial Systematics; Stackebrandt, E., Goodfellow, M., Eds.; John Wiley and Sons: Chichester, UK, 1991; pp. 115–175. [Google Scholar]
  72. Ludwig, W.; Strunk, O.; Westram, R.; Richter, L.; Meier, H.; Yadhu, K.; Buchner, A.; Lai, T.; Steppi, S.; Jobb, G.; et al. ARB: A software environment for sequence data. Nucleic Acids Res. 2004, 32, 1363–1371. [Google Scholar] [CrossRef] [PubMed]
  73. Pruesse, E.; Quast, C.; Knittel, K.; Fuchs, B.M.; Ludwig, W.; Peplies, J.; Glöckner, F.O. SILVA: A comprehensive online resource for quality checked and aligned ribosomal RNA sequence data compatible with ARB. Nucleic Acids Res. 2007, 35, 7188–7196. [Google Scholar] [CrossRef] [PubMed]
  74. Pruesse, E.; Peplies, J.; Glöckner, F.O. SINA: Accurate high-throughput multiple sequence alignment of ribosomal RNA genes. Bioinformatics 2012, 28, 1823–1829. [Google Scholar] [CrossRef] [PubMed]
  75. Huelsenbeck, J.P.; Ronquist, F. MRBAYES: Bayesian inference of phylogenetic trees. Bioinformatics 2001, 17, 754–755. [Google Scholar] [CrossRef] [PubMed]
  76. Kim, T.K.; Fuerst, J.A. Diversity of polyketide synthase genes from bacteria associated with the marine sponge Pseudoceratina clavata: Culture-dependent and culture-independent approaches. Environ. Microbiol. 2006, 8, 1460–1470. [Google Scholar] [CrossRef] [PubMed]
  77. Ayuso, A.; Clark, D.; González, I.; Salazar, O.; Anderson, A.; Genilloud, O. A novel actinomycete strain de-replication approach based on the diversity of polyketide synthase and nonribosomal peptide synthetase biosynthetic pathways. Appl. Microbiol. Biotechnol. 2005, 67, 795–806. [Google Scholar] [CrossRef] [PubMed]
Marinedrugs 14 00165 g001 1024

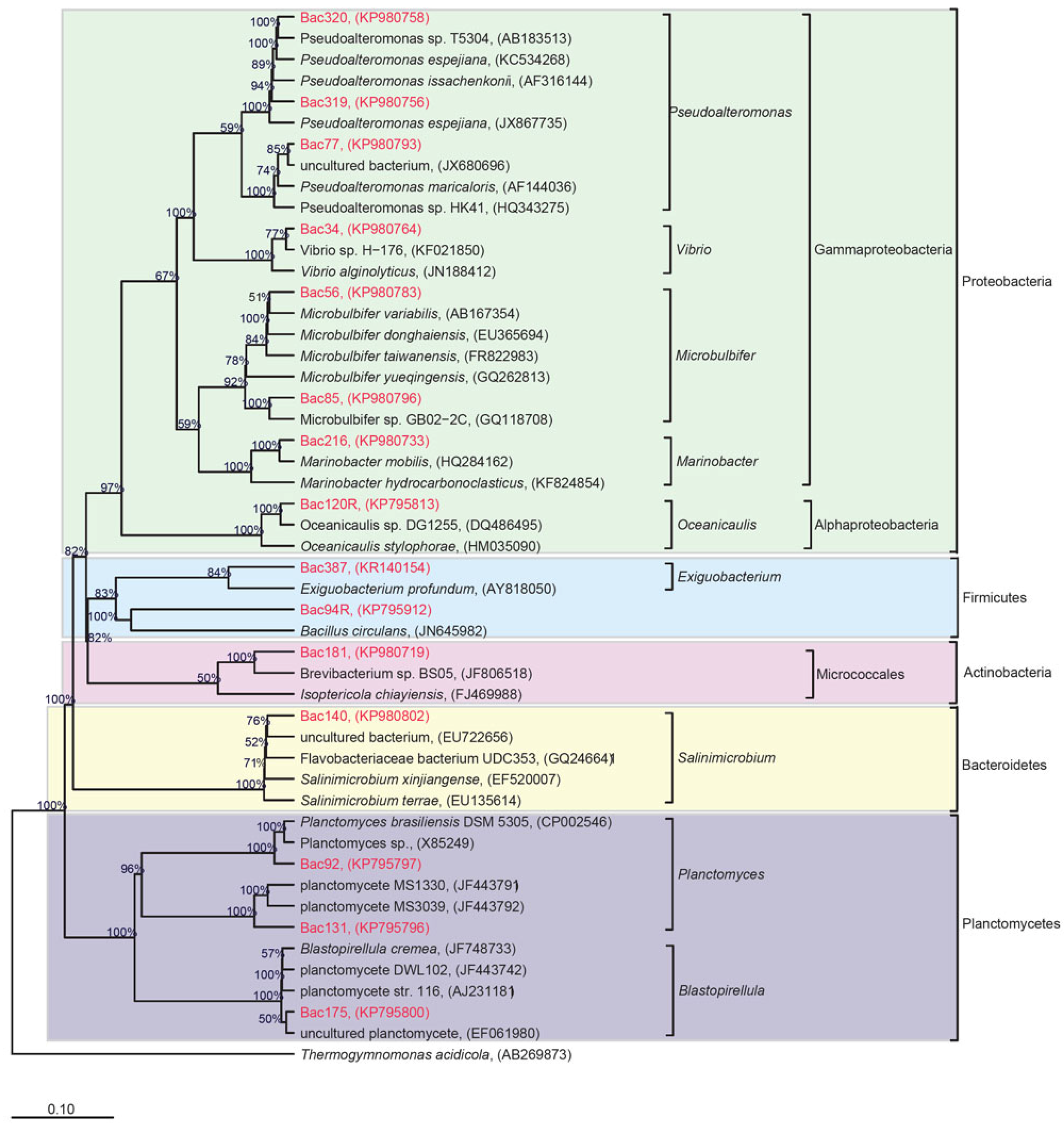

Figure 1. Phylogenetic tree showing the relationship of the 15 putative novel species. The sequence alignment was performed using the SINA online tool and trees were built in the software environment for sequence data called ARB, starting from the ribosomal RNA gene database called SILVA SSU dataset Ref NR 99 (version 119) using MrBayes with 100,000 Markov Chain Monte Carlo (mcmc) cycles.
Figure 1. Phylogenetic tree showing the relationship of the 15 putative novel species. The sequence alignment was performed using the SINA online tool and trees were built in the software environment for sequence data called ARB, starting from the ribosomal RNA gene database called SILVA SSU dataset Ref NR 99 (version 119) using MrBayes with 100,000 Markov Chain Monte Carlo (mcmc) cycles.
Marinedrugs 14 00165 g001
Marinedrugs 14 00165 g002 1024

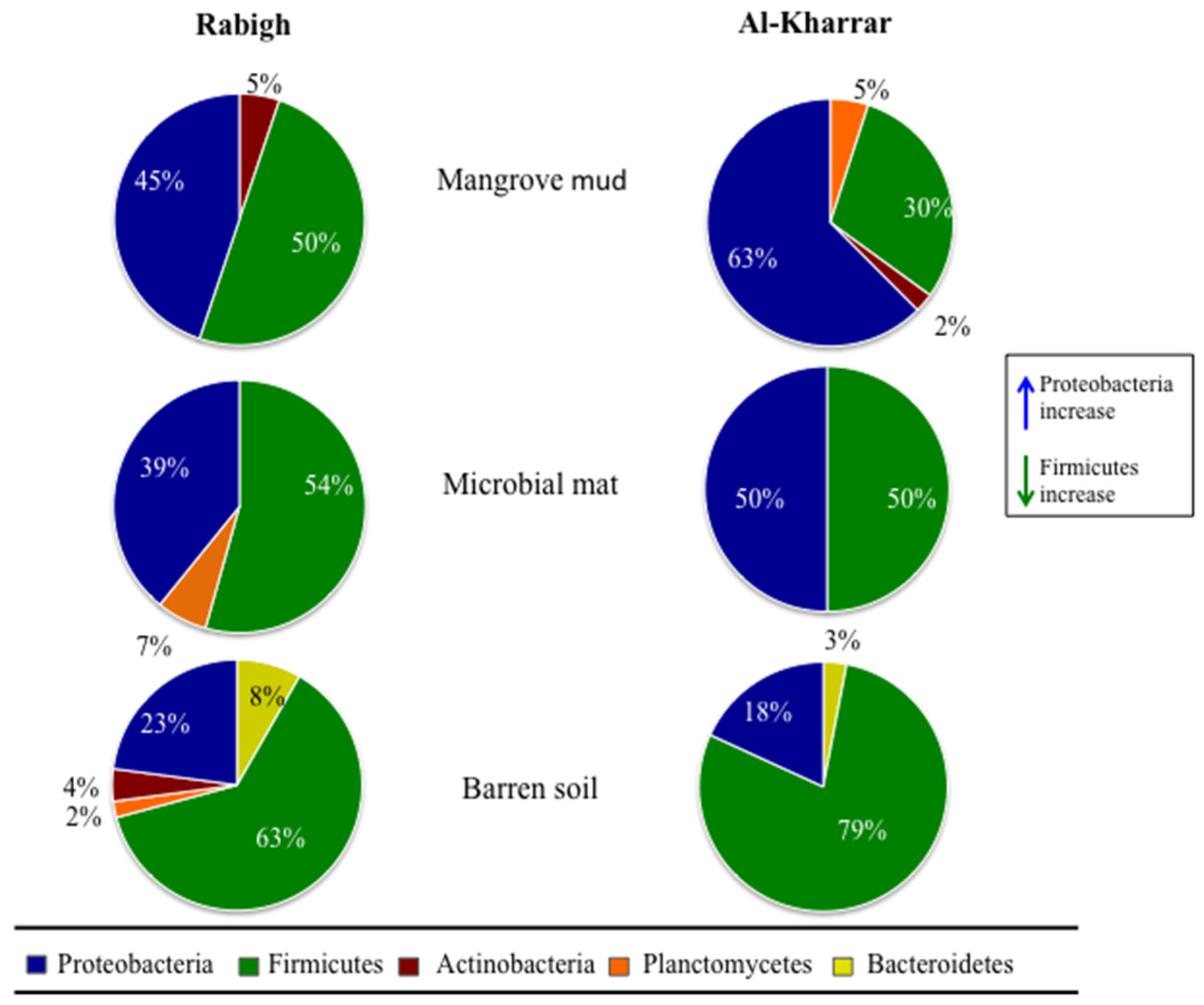

Figure 2. Overview of cultured microorganisms, at phylum level, isolated from Rabigh and Al-Kharrar sediments.
Figure 2. Overview of cultured microorganisms, at phylum level, isolated from Rabigh and Al-Kharrar sediments.
Marinedrugs 14 00165 g002
Marinedrugs 14 00165 g003 1024

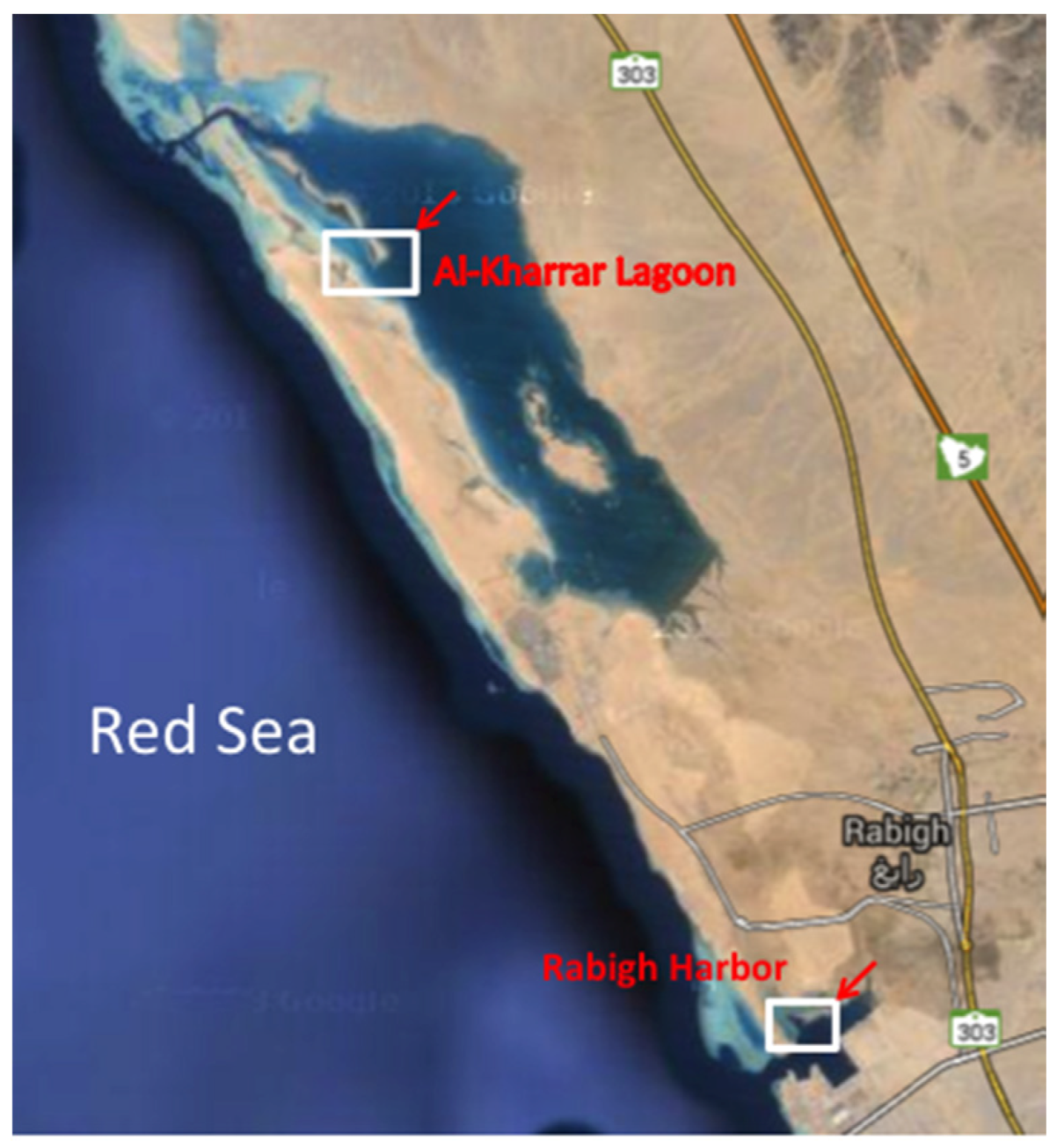

Figure 3. Map showing the sampling locations.
Figure 3. Map showing the sampling locations.
Marinedrugs 14 00165 g003
Marinedrugs 14 00165 g004 1024

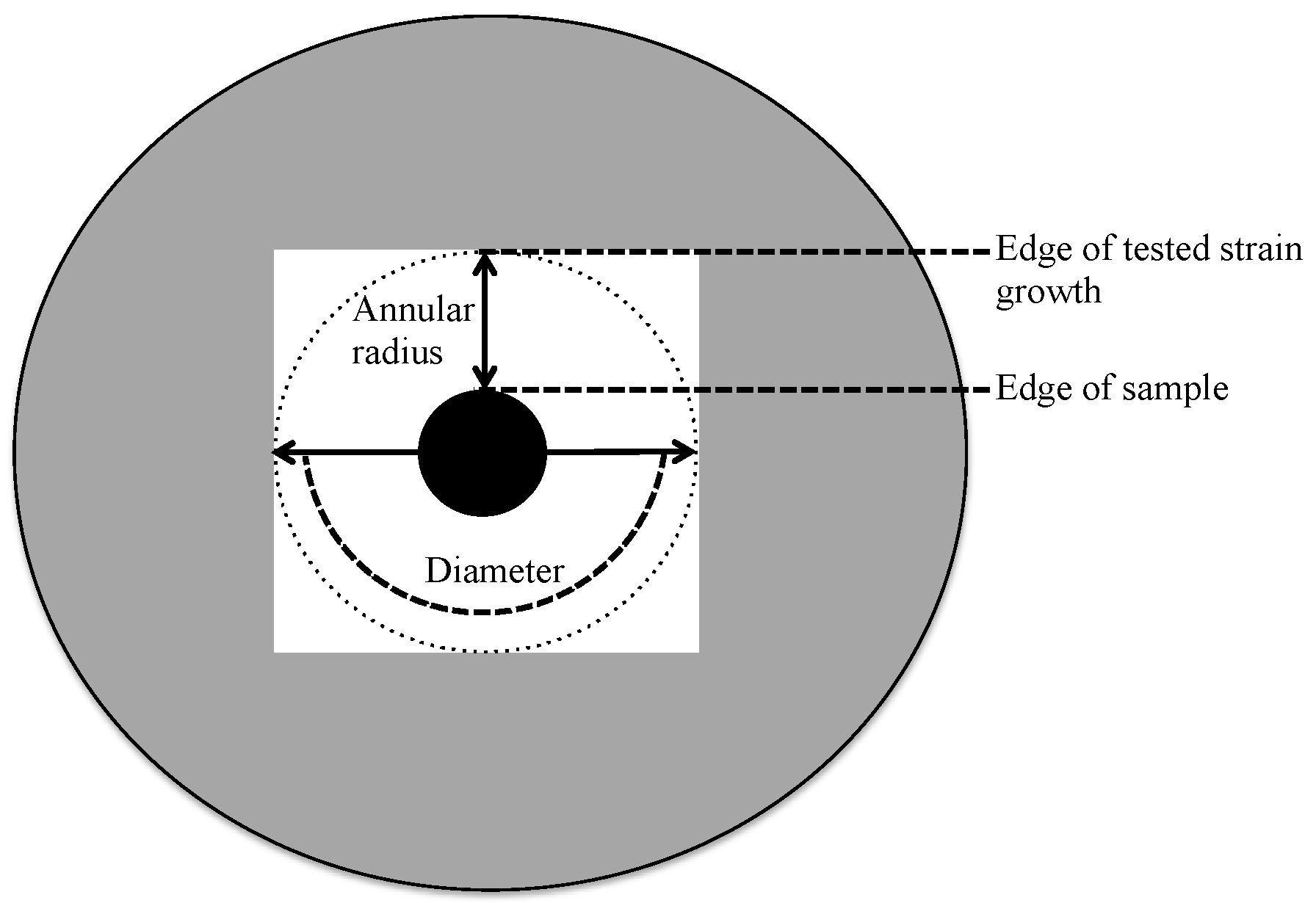

Figure 4. Sketch depicting the annular radius and diameter of the zone of inhibition.
Figure 4. Sketch depicting the annular radius and diameter of the zone of inhibition.
Marinedrugs 14 00165 g004
Table
Table 1. Nonribosomal peptide synthetases (NRPS) and polyketide synthases (PKS) compounds derived from microbes.
Table 1. Nonribosomal peptide synthetases (NRPS) and polyketide synthases (PKS) compounds derived from microbes.
CompoundEnzymeSourceActivityReference
BacitracinNRPSBacillus spp.Antibacterial[26]
SurfactinNRPSBacillus subtilisAntibacterial[27]
MacrolactinPKSBacillus amyloliquefaciensAntibacterial[28]
MupirocinPKSPseudomonads fluorescensAntibacterial[29]
RetimycinNRPSSallinispora arenicolaAntitumor[30]
PederinPKSPaederus fuscipesAntitumor[31]
Salinosporamide KNRPSSalinispora pacificaAntitumor[32]
Salinilactam APKSSalinispora tropicaAntitumor[33]
BryostatinPKSCandidatus Endobugula sertulaAntitumor[34]
Table
Table 2. 16S rRNA gene taxonomic affiliation of the putative novel isolated strains.
Table 2. 16S rRNA gene taxonomic affiliation of the putative novel isolated strains.
Strain ID% Similarity of 16S rRNA Sequences to GenBank Strains:Number of Nucleotides (bp)PhylumLocationSediment TypeMedia
Bac3498% Vibrio alginolyticus1429ProteobacteriaRHLMN10% MA
Bac5698% Microbulbifer maritimus1390ProteobacteriaRHLMN10% MA
Bac7798% Pseudoalteromonas flavipulchra1406ProteobacteriaRHLMM10% MA
Bac8595% Microbulbifer gwangyangensis1406ProteobacteriaRHLMM10% MA
Bac9297% Planctomyces brasiliensis1372PlanctomyceteRHLMMAnti-MA
Bac9498% Bacillus simplex1423FirmicutesRHLMM10% MA
Bac12098% Oceanicaulis sp.1336ProteobacteriaRHLBS10% MA
Bac13198% Planctomycete sp.1417PlanctomyceteRHLBSAnti-MA
Bac14097% Flavobacteriaceae bacterium1394BacteroidetesRHLBS10% MA
Bac17598% Blastopirellula cremea1385PlanctomyceteAKLMNAnti-MA
Bac18191% Brevibacterium avium1341ActinobacteriaAKLMNAIA
Bac21697% Marinobacter xestospongiae1414ProteobacteriaAKLMM10% MA
Bac31998% Pseudoalteromonas espejiana1380ProteobacteriaRHLMM10% MA
Bac32098% Pseudoalteromonas atlantica1392ProteobacteriaRHLMMMB-GM
Bac38796% Exiguobacterium profundum1327FirmicutesRHLMN10% MA
Abbreviations: RHL: Rabigh harbor lagoon; AKL: Al-Kharrar lagoon MN: mangrove mud; MM: microbial mat; BS: barren soil; 10% MA: 10% Difco Marine agar 2216; Anti-MA: Difco Marine agar 2216 with 1 g/L streptomycin; AIA: actinomycetes isolation agar; MB-GM: Difco Marine broth 2216 gellan gum media.
Table
Table 3. Isolates that displayed zone inhibition against all of the three indicator laboratory pathogens.
Table 3. Isolates that displayed zone inhibition against all of the three indicator laboratory pathogens.
Closest Phylogenetic Relative by BLASTSequence Similarity (%)Zone of Inhibition (mm)
Staphylococcus aureusSalmonella typhimuriumPseudomonas syringae
Annular radiusDiameterAnnular radiusDiameterAnnular radiusDiameter
Bacillus licheniformis994.514311311
Bacillus sonorensis993.8122.810311
Brevibacillus borstelensis995150.564.313.5
Bacillus vallismortis99294130.56
Microbulbifer salipaludis993.3116.51817
Bacillus subtilis995153110.56
Aneurinibacillus migulanus99413293.311.5
Aneurinibacillus migulanus995.5163114.514
Paenibacillus dendritiformis990.5631117
Paenibacillus dendritiformis992926515
Table
Table 4. Primers used to screen for domains associated with the PKS and NRPS genes.
Table 4. Primers used to screen for domains associated with the PKS and NRPS genes.
PrimerSequenceTargetReference
A7RSASGTCVCCSGTSCGGTASNRPS[65]
A3GCSTACSYSATSTACACSTCSGG
K1TSAAGTCSAACATCGGBCAPKS-I[65]
M6RCGCAGGTTSCSGTACCAGTA
KSαTSGRCTACRTCAACGGSCACGGPKS-II[77]
KSβTACSAGTCSWTCGCCTGGTTC

Share and Cite

MDPI and ACS Style

Al-Amoudi, S.; Essack, M.; Simões, M.F.; Bougouffa, S.; Soloviev, I.; Archer, J.A.C.; Lafi, F.F.; Bajic, V.B. Bioprospecting Red Sea Coastal Ecosystems for Culturable Microorganisms and Their Antimicrobial Potential. Mar. Drugs 2016, 14, 165. https://doi.org/10.3390/md14090165

AMA Style

Al-Amoudi S, Essack M, Simões MF, Bougouffa S, Soloviev I, Archer JAC, Lafi FF, Bajic VB. Bioprospecting Red Sea Coastal Ecosystems for Culturable Microorganisms and Their Antimicrobial Potential. Marine Drugs. 2016; 14(9):165. https://doi.org/10.3390/md14090165

Chicago/Turabian Style

Al-Amoudi, Soha, Magbubah Essack, Marta F. Simões, Salim Bougouffa, Irina Soloviev, John A. C. Archer, Feras F. Lafi, and Vladimir B. Bajic. 2016. "Bioprospecting Red Sea Coastal Ecosystems for Culturable Microorganisms and Their Antimicrobial Potential" Marine Drugs 14, no. 9: 165. https://doi.org/10.3390/md14090165

APA Style

Al-Amoudi, S., Essack, M., Simões, M. F., Bougouffa, S., Soloviev, I., Archer, J. A. C., Lafi, F. F., & Bajic, V. B. (2016). Bioprospecting Red Sea Coastal Ecosystems for Culturable Microorganisms and Their Antimicrobial Potential. Marine Drugs, 14(9), 165. https://doi.org/10.3390/md14090165

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
