Mar. Drugs 2016, 14(12), 223; https://doi.org/10.3390/md14120223

Article
Two New Diphenylketones and a New Xanthone from Talaromyces islandicus EN-501, an Endophytic Fungus Derived from the Marine Red Alga Laurencia okamurai
1
Laboratory of Marine Biology and Biotechnology, Qingdao National Laboratory for Marine Science and Technology, Key Laboratory of Experimental Marine Biology, Institute of Oceanology, Chinese Academy of Sciences, Nanhai Road 7, Qingdao 266071, China
2
University of Chinese Academy of Sciences, Yuquan Road 19A, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Russell Kerr
Received: 22 October 2016 / Accepted: 28 November 2016 / Published: 7 December 2016

Abstract

:
Two new diphenylketones (1 and 2), a new xanthone (3), and a known xanthone analogue (4) were isolated and identified from Talaromyces islandicus EN-501, an endophytic fungus obtained from the fresh collected marine red alga Laurencia okamurai. Their structures were elucidated on the basis of NMR spectroscopic and X-ray crystallographic analysis. The joint isolation of benzophenones and xanthones from the same fungal strain supports the biogenesis of xanthones via a benzophenone intermediate. It is worth mentioning that xanthones 3 and 4 have a methyl group at C-6 and C-2, respectively, which is uncommon compared with typical xanthones usually having a methyl group at C-8. Compounds 14 exhibited potent antioxidative activities against DPPH (1,1-diphenyl-2-picrylhydrazyl) and ABTS (2,2′-azino-bis(3-ethylbenzothiazoline-6-sulphonate) radicals with IC50 values ranging from 0.58 to 6.92 μg/mL, which are stronger than that of the positive controls BHT (butylated hydroxytoluene) and ascorbic acid. Compounds 1, 3, and 4 also showed inhibitory activities against several pathogenic bacteria.
Keywords:
Laurencia okamurai; Talaromyces islandicus; diphenylketone; xanthone; antioxidative activity; antibacterial activity

1. Introduction

Marine-derived fungi have been evidenced as a prolific source for the discovery of pharmacologically-active natural products [1,2]. As part of our ongoing research toward the discovery of secondary metabolites from marine-derived fungi [3,4,5,6,7,8], an endophytic fungal strain, Talaromyces islandicus EN-501, was selected for chemical investigation. Recently, several new natural products were isolated from plant-derived endophytic species of the genus Talaromyces [9,10,11]. The fungal strain used in the present work was isolated from the inner tissue of the fresh collected marine red alga Laurencia okamurai. As a result, two new diphenylketones (1 and 2), a new xanthone derivative (3), and a known xanthone analogue (4) (Figure 1), were isolated and identified. It should be mentioned that compound 4 was listed as a substance tested for antitermitic activity [12], but no spectroscopic data or source information were reported. The structure elucidation and fully assigned NMR data of 4 are first described herein. The antioxidative activities against DPPH (1,1-diphenyl-2-picrylhydrazyl) and ABTS (2,2′-azino-bis(3-ethylbenzothiazoline-6-sulphonate) radicals, as well as antibacterial activity against six pathogenic strains, were evaluated. This paper describes the isolation, characterization, and bioactivity of compounds 14.

2. Results and Discussion

2.1. Structure Elucidation of the New Compounds

Compound 1 was obtained as yellowish crystals with the molecular formula C14H12O5 as established by HRESIMS (high resolution electrospray ionization mass spectroscopy, Figure S1) data, indicating nine degrees of unsaturation. The 1H NMR spectrum (Figure S2) showed signals for a 1,2,3-trisubstituted phenyl group at ΔH 6.98 (d, J = 7.7 Hz, H-4), 6.77 (t, J = 7.7, Hz, H-5), and 6.71 (d, J = 7.6 Hz, H-6), and a 1,2,3,5-tetrasubstituted phenyl unit at ΔH 6.91 (br s, H-4′) and 6.62 (br s, H-6′) (Table 1). The 13C NMR spectrum (Figure S3) displayed 14 resonances, which were classified by DEPT (distortionless enhancement by polarization transfer, Figure S3) experiments as one methyl, five aromatic methines, and eight non-protonated (including one ketone and seven aromatic) carbons (Table 1). The 1H and 13C NMR spectroscopic data (Figures S2–S6) are evocative of a benzophenone scaffold [13]. In the HMBC spectrum (Figure S6), the correlations from the proton of 2′-OH (ΔH 11.42) to C-1′, C-2′, and C-3′ located the OH group at C-2′, while the correlations from H-7′ (ΔH 2.18) to C-2′, C-3′, and C-4′ placed the methyl group at C-3′, and at last, the correlations from the OH proton at ΔH 9.02 to C-4′, C-5′, and C-6′ determined this OH group at C-5′. As for the other nucleus, HMBC correlations from H-6 to C-2 and C-7, from H-5 to C-1 and C-3, and from H-4 to C-2, as well as the chemical shifts of C-2 and C-3 at ΔC 143.8 and 145.8 determined the locations of two other phenolic OH groups at C-2 and C-3 (Figure 2). Thus, compound 1 was characterized as 2,2′,3,5′-tetrahydroxy-3′-methylbenzophenone, and the structure was confirmed by the single-crystal X-ray diffraction analysis (Figure 3).
Compound 2 was obtained as a yellowish solid with the molecular formula C15H14O5, as established by HRESIMS data (Figure S7), indicating nine degrees of unsaturation. The 1D and 2D NMR spectra data of 2 (Table 1, Figures S8–S12) are reminiscent of those of 1, only differing in the additional resonances from a methoxy group at ΔH 3.93 and ΔC 56.3 in the NMR spectra of 2. In the HMBC spectrum, correlation from the protons of the OMe group to C-3 assigned the methoxy group at C-3 (Figure 2). Therefore, the structure of compound 2 was identified as 2,2′,5′-trihydroxy-3-methoxy-3′-methylbenzophenone.
Compound 3 was also obtained as a yellowish solid with the molecular formula C14H10O5, as established by HRESIMS data (Figure S13), indicating ten degrees of unsaturation. Extensive analysis of the 1H and 13C NMR data (Table 2, Figures S14 and S15) as well as the COSY and HSQC (heteronculear single quantum coherence) spectra (Figures S16 and S17) disclosed that 3 was a xanthone analogue similar to 1,4,7-trihydroxy-xanthone [14]. The main differences are that resonance for one of the five aromatic protons in the 1H NMR spectrum of 1,4,7-trihydroxy-xanthone disappeared in that of 3, and signal for an additional methyl group was observed at ΔH 2.19 and ΔC 14.5 (CH3-6) in the NMR spectra of 3. Moreover, the resonance of C-6—compared to that of the known xanthone—moved to the shielded field in the 13C NMR spectrum of 3. These spectroscopic features suggested that compound 3 was 1,4,7-trihydroxy-6-methylxanthone. The COSY and HMBC correlations (Figure 2, Figures S16 and S18) supported the above deduction.
Compound 4 was obtained as a yellowish solid with the molecular formula C14H10O5, the same as that of 3, as established by HRESIMS data (Figure S19). The 1H and 13C NMR data of 4 (Table 2, Figures S20 and S21) as well as the COSY and HSQC spectra (Figures S22 and S23) showed a close relationship to that of 3. The methylation of C-2 and hydroxylation of C-5 in 4 were supported by the HMBC correlations from CH3-2 to C-1, C-2, and C-3 and from H-7 to C-5, respectively (Figure 2 and Figure S24). Thus, compound 4 was characterized as 1,4,5-trihydroxy-2-methylxanthone. This compound was listed as a substance tested for antitermitic activity [12], but no spectroscopic data or source information were reported. So, its structure elucidation and fully assigned NMR data are provided here.
The biogenesis for most xanthones is known to proceed via a benzophenone intermediate in lichens and fungi [15,16]. The joint isolation of benzophenones and xanthones from T. islandicus EN-501 indicates that benzophenone (1) might serve as an intermediate to afford xanthone (4) upon cyclization. Compound 4 is an atypical xanthone with a methyl group at C-2, which is different from most other xanthones that usually possess a methyl group either at C-3/C-6 or at C-1/C-8 [15,16]. Atypical xanthones with a methyl at C-2/C-7 have been described previously [17,18], which might be derived from a site-selective methylation step involving discrete enzymes [17].

2.2. Biological Activities of the Isolated Compounds

In the antioxidative assay, compounds 14 exhibited comparable DPPH radical scavenging activity, with IC50 values ranging from 1.23 to 6.92 μg/mL (Table 3), stronger than that of BHT (butylated hydroxytoluene), a well-known antioxidant (IC50 = 16.27 μg/mL). In addition, compounds 14 showed potent ABTS radical scavenging activity with IC50 values ranging from 0.58 to 2.35 μg/mL (Table 3), which are stronger than that of ascorbic acid (IC50 = 3.01 μg/mL). Compounds 14 were also evaluated for their antibacterial activities. While compounds 1, 3, and 4 showed potent activities against three human pathogens (Escherichia coli, Pseudomonas aeruginosa, and Staphylococcus aureus) and three aquatic bacteria (Vibrio alginolyticus, V. harveyi, and V. parahaemolyticus), with minimum inhibitory concentration (MIC) values ranging from 4 to 32 μg/mL (Table 4), compound 2 showed weak activity against the tested bacteria (IC50 > 64 μg/mL), suggesting that methoxylation at C-3 weakened the antibacterial activities (1 vs. 2).

3. Experimental Section

3.1. General

Melting points were determined with an SGW X-4 micro-melting-point apparatus. UV spectra were measured using a Lengguang Gold S54 spectrophotometer (Shanghai Lengguang Technology Co.Ltd., Shanghai, China). NMR spectra were acquired using a Bruker Avance 500 spectrometer (Bruker Biospin Group, Karlsruhe, Germany). Mass spectra were measured on a VG Autospec 3000 mass spectrometer (VG Instruments, London, UK) or an API QSTAR Pulsar 1 mass spectrometer (Applied Biosystems, Foster City, CA, USA). HPLC analysis was carried out on a Dionex HPLC system (P680 HPLC pump, UVD 340U UV-visible detector) using a C18 column (5 μm, 8.0 mm i.d. × 250 mm). Column chromatography (CC) was performed with Si gel (200–300 mesh, Qingdao Haiyang Chemical Factory, Qingdao, China), Lobar LiChroprep RP-18 (40–60 μm, Merck, Darmstadt, Germany), and Sephadex LH-20 (18–110 μm, Merck).

3.2. Fungal Material

The fungal endophyte, Talaromyces islandicus EN-501, was isolated following surface sterilization from the marine red alga Laurencia okamurai collected from the coast of Qingdao, China, by using the procedures provided in our earlier report [19]. The isolate was identified by analysis of its morphological characteristics and ITS (internal transcribed spacer) gene sequence, which has been submitted to GenBank (accession number KU885935). A BLAST search result indicated that the sequence is almost same (99%) to the sequence of Talaromyces islandicus CBS 117284 (compared with KF984882.1). The strain was preserved in the Institute of Oceanology, Chinese Academy of Sciences (IOCAS).

3.3. Fermentation

The fermentation was carried out statically in solid rice medium in 1 L Erlenmeyer flasks (each containing 70 g rice, 0.1 g corn flour, 0.3 g peptone, 0.1 g sodium glutamate, and 100 mL naturally sourced and filtered seawater, which was obtained from the Huiquan Gulf of the Yellow Sea near the campus of IOCAS, pH 6.5–7.0) for 30 days at room temperature.

3.4. Extraction and Isolation

The fermented whole culture (90 flasks) was extracted with EtOAc to afford an organic extract (80 g), which was partitioned by Si gel vacuum liquid chromatography (VLC) using different solvents of increasing polarity, from petroleum ether (PE) to methanol (MeOH) to yield nine fractions (Frs. 1–9) based on thin layer chromatography (TLC) and HPLC analysis. Fr.4 (5.5 g), eluted with PE–EtOAc (2:1), was further chromatographed over reversed-phase C18 eluting with a MeOH–H2O gradient (from 1:9 to 1:0, v/v) to afford seven subfractions (Fr.4.1–Fr.4.7). Fr.4.4 (0.5 g) was purified by CC on Si gel (CHCl3–MeOH, from 100:1 to 20:1, v/v) and then on Sephadex LH-20 (MeOH) to yield compound 1 (120.0 mg), while Fr.4.5 (0.4 g) was purified by CC on Si gel (CHCl3–MeOH, from 80:1 to 20:1, v/v) and then on Sephadex LH-20 (MeOH) to yield compound 2 (5.3 mg). Fr.4.6 (0.6 g) was purified by CC on Si gel (CHCl3–acetone, from 40:1 to 3:1, v/v) and Sephadex LH-20 (MeOH), and then purified by prep. TLC (plate: 20 × 20 cm, developing solvents: PE/EtOAc, 2:1) to yield compounds 3 (8.0 mg) and 4 (10.2 mg).
2,2′,3,5-Tetrahydroxy-3′-methylbenzophenone (1): Yellowish crystals; mp 174–176 °C; UV (MeOH) λmax (log ε) 203 (4.56), 208 (4.58), 221 (4.75), 268 (4.56), 376 (4.16) nm; 1H and 13C NMR data, see Table 1. HRESIMS m/z 261.0755 ([M + H]+) (calcd. for C14H13O5, 261.0757, Δ 0.2 ppm).
2,2′,5′-Trihydroxy-3-methoxy-3′-methylbenzophenone (2): Yellowish solid; UV (MeOH) λmax (log ε) 203 (4.25), 209 (4.33), 226 (4.42), 266 (4.26), 383 (3.82) nm; 1H and 13C NMR data, see Table 1. HRESIMS m/z 275.0912 ([M + H]+) (calcd. for C15H15O5, 275.0914, Δ 0.2 ppm).
1,4,7-Trihydroxy-6-methylxanthone (3): Yellowish solid; UV (MeOH) λmax (log ε) 203 (4.92), 213 (4.99), 248 (4.96), 259 (4.92), 314 (4.59) nm; 1H and 13C NMR data, see Table 2. HRESIMS m/z 259.0599 ([M + H]+) (calcd. for C14H11O5, 259.0601, Δ 0.2 ppm).
1,4,5-Trihydroxy-2-methylxanthone (4): Yellowish solid; UV (MeOH) λmax (log ε) 205 (4.86), 212 (4.96), 248 (4.99), 263 (4.97), 317 (4.52) nm; 1H and 13C NMR data, see Table 2. HRESIMS m/z 259.0598 ([M + H]+) (calcd. for C14H11O5, 259.0601, Δ 0.3 ppm).

3.5. X-ray Crystallographic Analysis of Compound 1 [20]

The crystallographic data were collected on a Bruker Smart-1000 CCD diffractometer equipped with a graphite-monochromatic Mo-Kα radiation (λ = 0.71073 Å) at 298(2) K. The data were corrected for absorption by using the program SADABS [21]. The structure was solved by direct methods with the SHELXTL software package [22]. All non-hydrogen atoms were refined anisotropically. The H atoms were located by geometrical calculations, and their positions and thermal parameters were fixed during the structure refinement. The structure was refined by full-matrix least-squares techniques [23].
Crystal data for compound 1: C14H12O5, F.W. = 260.24, orthorhombic space group Pna2(1), unit cell dimensions a = 8.1951(7) Å, b = 17.9481(15) Å, c = 8.1962(8) Å, V = 1205.55(19) Å3, α = γ = β = 90°, Z = 4, dcalcd = 1.434 mg/m3, crystal dimensions 0.42 × 0.40 × 0.37 mm, μ = 0.110 mm−1, F(000) = 544. The 5770 measurements yielded 2070 independent reflections after equivalent data were averaged, and Lorentz and polarization corrections were applied. The final refinement gave R1 = 0.0383 and wR2 = 0.0789 (I > 2σ(I)).

3.6. Antioxidant Assay

Evaluation of pure compounds for antioxidative activity against DPPH and ABTS free radicals was carried out by the method described previously [8]. BHT and ascorbic acid were used as positive controls against DPPH and ABTS free radicals, respectively.

3.7. Antimicrobial Assay

Antimicrobial evaluation against three human pathogens (E. coli, P. aeruginosa, S. aureus) and three aquatic bacteria (V. alginolyticus, V. harveyi, and V. parahaemolyticus) was carried out by the microplate assay [24]. Chloramphenicol was used as positive control.

4. Conclusions

In summary, two new diphenylketones (1 and 2), a new xanthone (3), and a known xanthone analogue (4) were isolated and identified from the marine algal-derived endophytic fungus T. islandicus EN-501. Each of these compounds exhibited potent antioxidative activities against DPPH and ABTS radicals, and compounds 1, 3, and 4 showed strong antibacterial activities.

Supplementary Materials

The following are available online at www.mdpi.com/1660-3397/14/12/223/s1, Figure S1: HRESIMS spectrum of compound 1, Figure S2: 1H NMR (500 MHz, DMSO-d6) of compound 1, Figure S3: 13C NMR and DEPT (125 MHz, DMSO-d6) of compound 1, Figure S4: COSY spectrum of compound 1, Figure S5: HSQC spectrum of compound 1, Figure S6: HMBC spectrum of compound 1, Figure S7: HRESIMS spectrum of compound 2, Figure S8: 1H NMR (500 MHz, CDCl3 ) of compound 2, Figure S9: 13C NMR and DEPT (125 MHz, CDCl3) of compound 2, Figure S10: COSY spectrum of compound 2, Figure S11: HSQC spectrum of compound 2, Figure S12: HMBC spectrum of compound 2, Figure S13: HRESIMS spectrum of compound 3, Figure S14: 1H NMR (500 MHz, DMSO-d6) of compound 3, Figure S15: 13C NMR and DEPT (125 MHz, DMSO-d6) of compound 3, Figure S16: COSY spectrum of compound 3, Figure S17: HSQC spectrum of compound 3, Figure S18: HMBC spectrum of compound 3, Figure S19: HRESIMS spectrum of compound 4, Figure S20: 1H NMR (500 MHz, DMSO-d6) of compound 4, Figure S21: 13C NMR and DEPT (125 MHz, DMSO-d6) of compound 4, Figure S22: COSY spectrum of compound 4, Figure S23: HSQC spectrum of compound 4, Figure S24: HMBC spectrum of compound 4.

Acknowledgments

Financial support from the National Natural Science Foundation of China (31330009) and from the Scientific and Technological Innovation Project of Qingdao National Laboratory for Marine Science and Technology (No. 2015ASKJ02) is gratefully acknowledged. B.-G.W. acknowledges the support of Taishan Scholar Project from Shandong Province.

Author Contributions

H.-L.L. performed the experiments for the isolation, structure elucidation, antimicrobial evaluation, and prepared the manuscript; X.-M.L. performed the 1D and 2D NMR experiments; H.L. participated part of the isolation and structure elucidation works; L.-H.M. and B.-G.W. supervised the research work and revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. Bugni, T.S.; Ireland, C.M. Marine-derived fungi: A chemically and biologically diverse group of microorganisms. Nat. Prod. Rep. 2004, 21, 143–163. [Google Scholar] [CrossRef] [PubMed]
  2. Rateb, M.E.; Ebel, R. Secondary metabolites of fungi from marine habitats. Nat. Prod. Rep. 2011, 28, 290–344. [Google Scholar] [CrossRef] [PubMed]
  3. Du, F.Y.; Zhang, P.; Li, X.M.; Li, C.S.; Cui, C.M.; Wang, B.G. Cyclohexadepsipeptides of the isaridin class from the marine-derived fungus Beauveria felina EN-135. J. Nat. Prod. 2014, 77, 1164–1169. [Google Scholar] [CrossRef] [PubMed]
  4. Luo, H.; Li, X.M.; Li, C.S.; Wang, B.G. Diphenyl ether and benzophenone derivatives from the marine mangrove-derived fungus Penicillium sp. MA-37. Phytochem. Lett. 2014, 9, 22–25. [Google Scholar] [CrossRef]
  5. Meng, L.H.; Zhang, P.; Li, X.M.; Wang, B.G. Penicibrocazines A–E, five new sulfide diketopiperazines from the marine-derived endophytic fungus Penicillium brocae. Mar. Drugs 2015, 13, 276–287. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, P.; Mándi, A.; Li, X.M.; Du, F.Y.; Wang, J.N.; Li, X.; Kurtán, T.; Wang, B.G. Varioxepine A, a 3H-oxepine-containing alkaloid with a new oxa-cage from the marine algal-derived endophytic fungus Paecilomyces variotii. Org. Lett. 2014, 16, 4834–4837. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, P.; Li, X.M.; Wang, J.N.; Li, X.; Wang, B.G. New butenolide derivatives from the marine-derived fungus Paecilomyces variotii with DPPH radical scavenging activity. Phytochem. Lett. 2015, 11, 85–88. [Google Scholar] [CrossRef]
  8. Zhang, P.; Meng, L.H.; Mándi, A.; Li, X.M.; Kurtán, T.; Wang, B.G. Structure, absolute configuration, and conformational study of resorcylic acid derivatives and related congeners from the fungus Penicillium brocae. RSC Adv. 2015, 5, 39870–39877. [Google Scholar] [CrossRef]
  9. Xie, X.S.; Fang, X.W.; Huang, R.; Zhang, S.P.; Wei, H.X.; Wu, S.H. A new dimeric anthraquinone from endophytic Talaromyces sp. YE3016. Nat. Prod. Res. 2016, 30, 1706–1711. [Google Scholar] [CrossRef] [PubMed]
  10. Fu, G.C.; Yang, Z.D.; Zhou, S.Y.; Yu, H.T.; Zhang, F.; Yao, X.J. Two new compounds, deacetylisowortmins A ans B, isolated from an endophytic fungus, Talaromyces wortmannii LGT-4. Nat. Prod. Res. 2016, 30, 1623–1627. [Google Scholar] [CrossRef] [PubMed]
  11. Zhi, K.K.; Yang, Z.D.; Zhou, S.Y.; Yao, X.J.; Li, S.; Zhang, F. A new furanosteroid from Talaromyces sp. lgt-4, a fungal endophyte isolated from Tripterygium wilfordii. Nat. Prod. Res. 2016, 30, 2137–2141. [Google Scholar] [PubMed]
  12. Rudman, P.; Gay, F.J. The Causes of Natural Durability in Timber X. Holzforschung 1963, 17, 21–25. [Google Scholar] [CrossRef]
  13. Fouotsa, H.; Lannang, A.M.; Dzoyem, J.P.; Tatsimo, S.J.N.; Neumann, B.; Mbazoa, C.D.; Razakarivony, A.A.; Nkengfack, A.E.; Eloff, J.N.; Sewald, N. Antibacterial and Antioxidant Xanthones and Benzophenone from Garcinia smeathmannii. Planta Med. 2015, 81, 594–599. [Google Scholar] [CrossRef] [PubMed]
  14. Iinuma, M.; Tosa, H.; Ito, T.; Tanaka, T.; Madulid, D.A. Two xanthones from roots of Cratoxylum formosanum. Phytochemistry 1996, 42, 1195–1198. [Google Scholar] [CrossRef]
  15. Le Pogam, P.; Boustie, J. Xanthones of lichen source: A 2016 update. Molecules 2016, 21, 294. [Google Scholar] [CrossRef] [PubMed]
  16. Wezeman, T.; Bräse, S.; Masters, K.S. Xanthone dimers: A compound family which is both common and privileged. Nat. Prod. Rep. 2015, 32, 6–28. [Google Scholar] [CrossRef] [PubMed]
  17. Dieu, A.; Millot, M.; Champavier, Y.; Mambu, L.; Chaleix, V.; Sol, V.; Gloaguen, V. Uncommon chlorinated xanthone and other antibacterial compounds from the lichen Cladonia incrassata. Planta Med. 2014, 80, 931–935. [Google Scholar] [CrossRef] [PubMed]
  18. Rezanka, T.; Sigler, K. Hirtusneanoside, an unsymmetrical dimeric tetrahydroxanthone from the lichen Usnea hirta. J. Nat. Prod. 2007, 70, 1487–1491. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, S.; Li, X.M.; Teuscher, F.; Li, D.L.; Diesel, A.; Ebel, R.; Proksch, P.; Wang, B.G. Chaetopyranin, a benzaldehyde derivative, and other related metabolites from Chaetomium globosum, an endophytic fungus derived from the marine red alga Polysiphonia urceolata. J. Nat. Prod. 2006, 69, 1622–1625. [Google Scholar] [CrossRef] [PubMed]
  20. Crystallographic data of compound 1 have been deposited in the Cambridge Crystallographic Data Centre as CCDC 1465271. The data can be obtained free of charge via http://www.ccdc.cam.ac.uk/data_request/cif, by emailing [email protected], or by contacting the CCDC, 12 Union Road, Cambridge CB21EZ, UK; Fax: +44-1223-336-033.
  21. Sheldrick, G.M. SADABS, Software for Empirical Absorption Correction; University of Göttingen: Göttingen, Germany, 1996. [Google Scholar]
  22. Sheldrick, G.M. SHELXTL, Structure Determination Software Programs; Bruker Analytical X-ray System Inc.: Madison, WI, USA, 1997. [Google Scholar]
  23. Sheldrick, G.M. SHELXL-97 and SHELXS-97, Program for X-ray Crystal Structure Solution and Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  24. Pierce, C.G.; Uppuluri, P.; Tristan, A.R.; Wormley, F.L., Jr.; Mowat, E.; Ramage, G.; Lopez-Ribot, J.L. A simple and reproducible 96-well plate-based method for the formation of fungal biofilms and its application to antifungal susceptibility testing. Nat. Protoc. 2008, 3, 1494–1500. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Structures of the isolated compounds 14.
Figure 1. Structures of the isolated compounds 14.
Marinedrugs 14 00223 g001

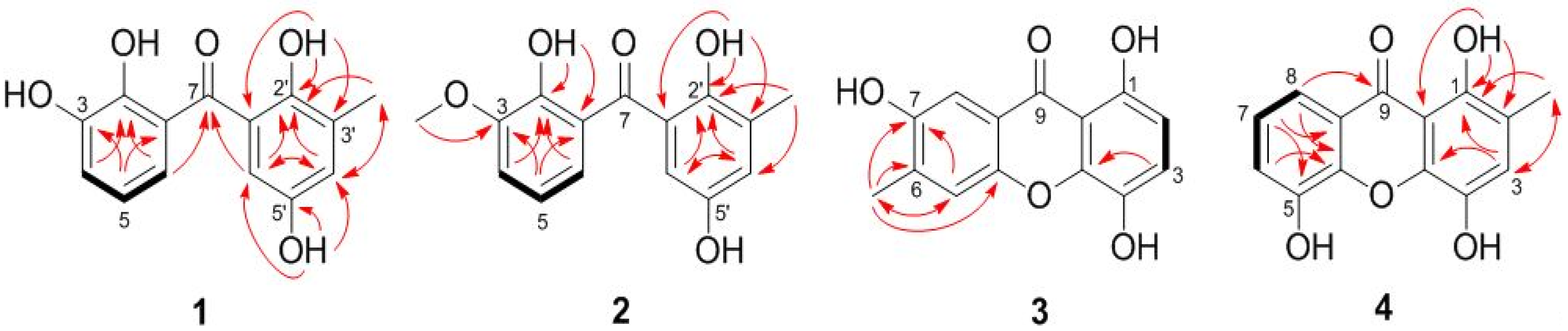

Figure 2. Key 1H-1H COSY (bold lines) and HMBC (red arrows) correlations of compounds 14.
Figure 2. Key 1H-1H COSY (bold lines) and HMBC (red arrows) correlations of compounds 14.
Marinedrugs 14 00223 g002

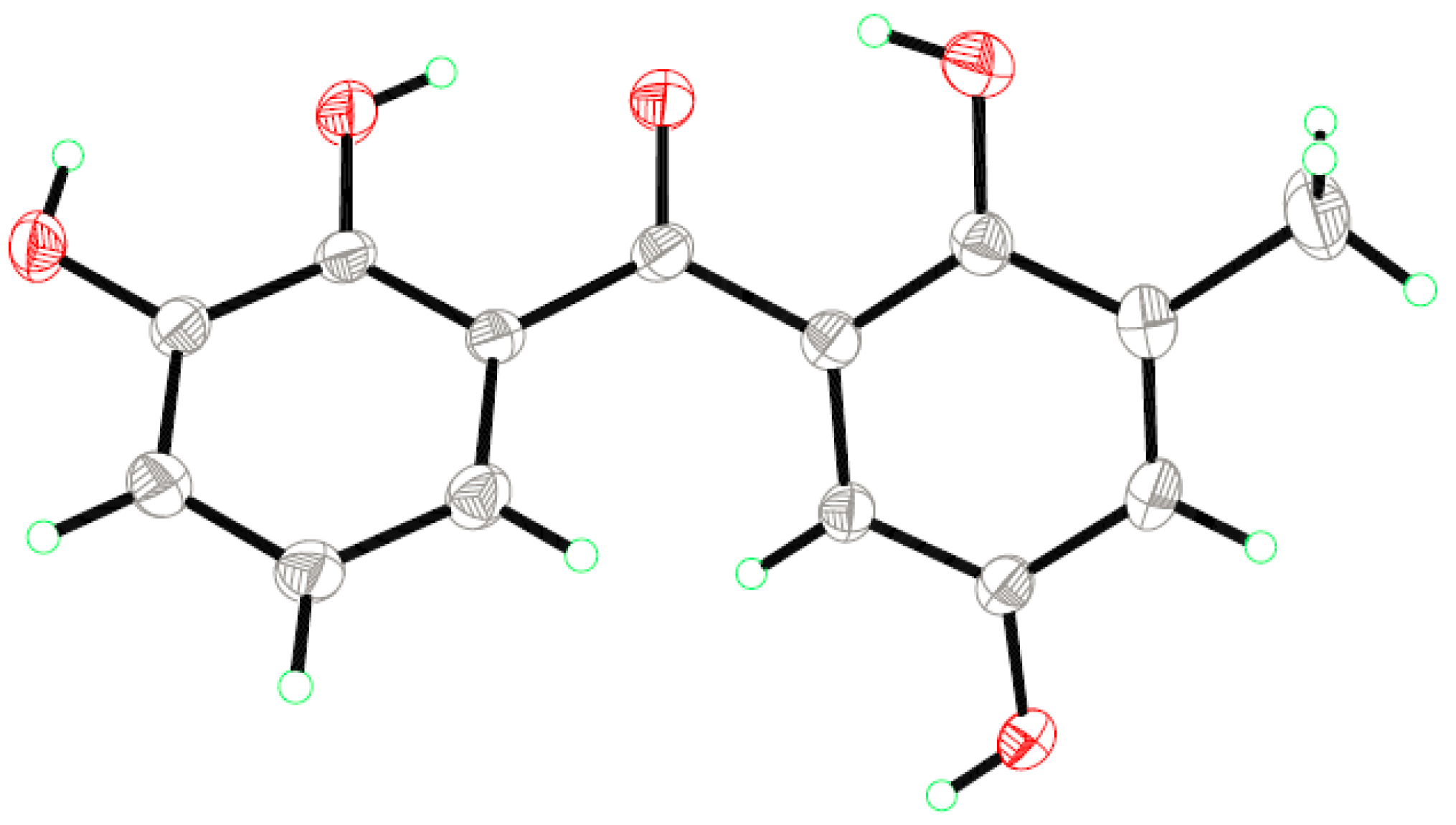

Figure 3. X-ray structure of compound 1.
Figure 3. X-ray structure of compound 1.
Marinedrugs 14 00223 g003
Table 1. 1H and 13C NMR data of compounds 1 and 2 (Δ in ppm, J in Hz).
Table 1. 1H and 13C NMR data of compounds 1 and 2 (Δ in ppm, J in Hz).
Position1 (Measured in DMSO-d6)2 (Measured in CDCl3)
ΔCΔHΔCΔH
1126.1, C 122.1, C
2143.8, C 148.5, C
3145.8, C 148.2, C
4117.7, CH6.98, d (7.7)123.1, CH7.11, d (7.0)
5119.2, CH6.77, t (7.7)118.9, CH6.89, t (7.2)
6119.0, CH6.71, d (7.6)115.2, CH7.04, d (7.0)
7202.5, C 201.7, C
1′120.2, C 119.0, C
2′152.3, C 155.0, C
3′127.1, C 129.0, C
4′125.3, CH6.91, br s125.6, CH6.94, br s
5′148.7, C 146.5, C
6′114.8, CH6.62, br s115.5, CH6.84, br s
7′15.4, CH32.18, s15.8, CH32.27, s
2-OH 9.00, s
3-OH/OMe 9.47, s56.3, CH33.93, s
2′-OH 11.42, s 10.95, s
5′-OH 9.02, s 4.57, s
Table 2. 1H and 13C NMR data of compounds 3 and 4 (Δ in ppm, J in Hz).
Table 2. 1H and 13C NMR data of compounds 3 and 4 (Δ in ppm, J in Hz).
Position3 (Measured in DMSO-d6)4 (Measured in DMSO-d6)
ΔCΔHΔCΔH
1152.0, C 149.7, C
2110.6, CH7.42, d (7.2)117.6, C
3124.5, CH7.24, d (7.2)124.6, CH7.21, s
4137.9, C 137.0, C
4a146.2, C 141.0, C
5123.8, CH7.20, s147.6, C
6117.1, C 120.8, CH7.32, d (7.6)
7149.1, C 124.3, CH7.27, t (7.8)
8120.9, CH7.26, s113.8, CH7.54, d (7.7)
8a120.5, C 120.6, C
9182.8, C 182.3, C
9a107.7, C 107.8, C
10a141.2, C 145.1, C
2-CH3 14.4, CH32.17, s
6-CH314.5, CH32.19, s
1-OH 12.04, s 12.06, s
Table 3. Antioxidant activity of compounds 14 against 1,1-diphenyl-2-picrylhydrazyl (DPPH) and 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulphonate (ABTS) (IC50, μg/mL).
Table 3. Antioxidant activity of compounds 14 against 1,1-diphenyl-2-picrylhydrazyl (DPPH) and 2,2′-azino-bis(3-ethylbenzothiazoline-6-sulphonate (ABTS) (IC50, μg/mL).
Samples1234BHT aAscorbic Acid
DPPH1.261.336.921.2316.27
ABTS0.690.582.351.27 3.01
a BHT: butylated hydroxytoluene.
Table 4. Antibacterial activity of compounds 14 (minimum inhibitory concentration, MIC, μg/mL) a.
Table 4. Antibacterial activity of compounds 14 (minimum inhibitory concentration, MIC, μg/mL) a.
Samples1234Chloramphenicol
EC4>643241
PA4>643244
SA8>64>6482
VA4>643240.5
VH8>643282
VP4>643242
a EC: E. coli; PA: P. aeruginosa; SA: S. aureus; VA: V. alginolyticus; VH: V. harveyi; VP: V. parahaemolyticus.
