Cyanobacterial Metabolite Calothrixins: Recent Advances in Synthesis and Biological Evaluation

Department of Chemistry, University of Alabama at Birmingham, 901, 14th Street South, Birmingham, AL 35294-1240, USA
Author to whom correspondence should be addressed.
Mar. Drugs 2016, 14(1), 17;
Received: 5 August 2015 / Revised: 22 December 2015 / Accepted: 4 January 2016 / Published: 12 January 2016
(This article belongs to the Special Issue Compounds from Cyanobacteria)


The marine environment is host to unparalleled biological and chemical diversity, making it an attractive resource for the discovery of new therapeutics for a plethora of diseases. Compounds that are extracted from cyanobacteria are of special interest due to their unique structural scaffolds and capacity to produce potent pharmaceutical and biotechnological traits. Calothrixins A and B are two cyanobacterial metabolites with a structural assembly of quinoline, quinone, and indole pharmacophores. This review surveys recent advances in the synthesis and evaluation of the biological activities of calothrixins. Due to the low isolation yields from the marine source and the promise this scaffold holds for anticancer and antimicrobial drugs, organic and medicinal chemists around the world have embarked on developing efficient synthetic routes to produce calothrixins. Since the first review appeared in 2009, 11 novel syntheses of calothrixins have been published in the efforts to develop methods that contain fewer steps and higher-yielding reactions. Calothrixins have shown their potential as topoisomerase I poisons for their cytotoxicity in cancer. They have also been observed to target various aspects of RNA synthesis in bacteria. Further investigation into the exact mechanism for their bioactivity is still required for many of its analogs.

Graphical Abstract

1. Introduction

1.1. Marine Natural Products

Dating back to ancient civilizations, natural products have played a vital role in drug discovery. Modern day drugs such as penicillin, morphine, and paclitaxel (Taxol™), which are used for the treatment of bacterial infections, pain, and cancer, respectively, are examples of natural products that have successfully progressed through the drug development pipeline. Natural products are abundant in several sources and are routinely extracted from plants, microorganisms, and animals. While terrestrial plants and terrestrial microbes continue to be the primary contributors to the natural product derived drug market, marine sources are an emerging resource that has been relatively unexplored until recent times [1]. Marine organisms are considered to yield superior natural products compared to terrestrial organisms in terms of novelty of structures and in producing potent bioactivities, due to the distinctive environmental conditions in which marine organisms live [2,3,4]. Factors such as predation, competition for space on highly populated coral reefs, and biochemical warfare between organisms have greatly contributed to the evolution of compounds with unique structures and potent biological effects [5].

1.2. Cyanobacteria

Microbial organisms in the marine environment have increasingly become one of the major focal points for investigations seeking to identify new chemical entities with novel structural backbones and diverse biological activities. In the 1970s, Professor Richard E. Moore at the University of Hawaii began exploring the chemistry of marine cyanobacteria [6]. Cyanobacteria are one of the oldest organisms on Earth, with an existence record of at least 2.7 billion years [7]. These prokaryote organisms are also known as blue green algae, cyanoprokaryotes, and cyanophytes due to their blue-green pigment, c-PC (c-phycocyanin) [8]. This pigment is used for photosynthesis and is considered to have played a crucial role in releasing oxygen into the primitive atmosphere [7,9]. Cyanobacteria possess a broad geographical distribution, ranging from limnic and marine environments to terrestrial habitats [10,11].
A subclass of marine natural compounds is produced by cyanobacteria. The most studied species of marine cyanobacteria include Nostoc, Calothrix, Lyngbya, and Symploca [12]. Cyanobacteria are known to produce potent toxins. Several studies have investigated the pharmaceutical and biotechnological potential of the secondary metabolites isolated from cyanobacteria. These studies revealed a wide range of potent pharmacological effects that include anti-inflammatory, antimalarial, antiprotozoal, antimicrobial, immunosuppressant, anticancer, anti-HIV, antibacterial, anticoagulant, antifungal, anti-tuberculosis, antiviral, and antitumor activities [12,13,14]. A number of compounds that were isolated from aquatic cyanobacteria have showed promise as anticancer leads. Examples of such promising compounds include apratoxin A, cryptophycin, dolastatin 10, and largazole (Figure 1).

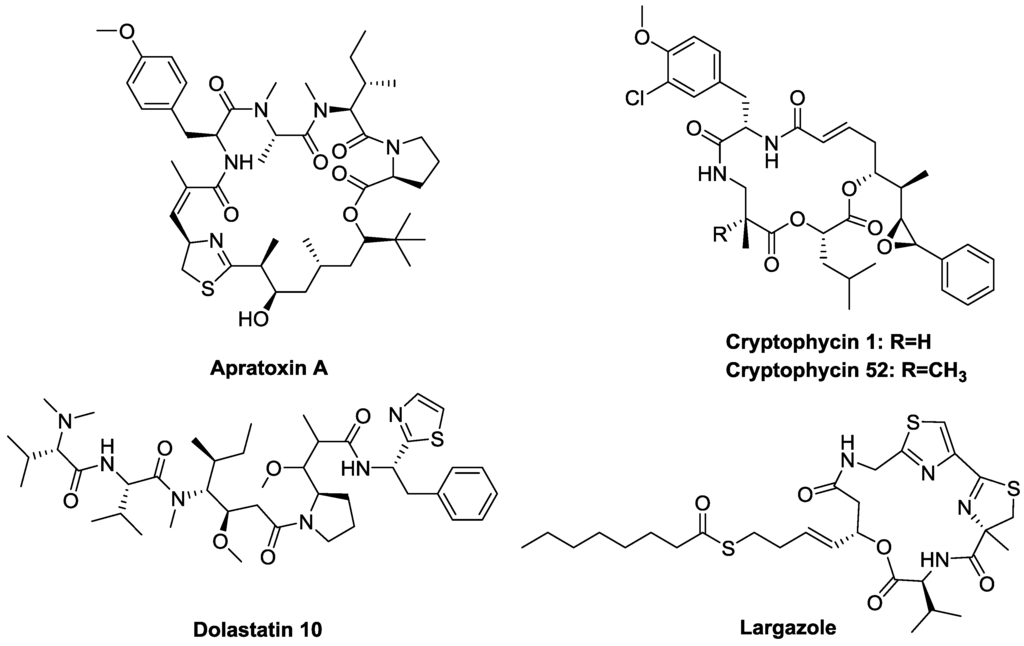

Figure 1. Biologically active natural products isolated from marine cyanobacteria.
Figure 1. Biologically active natural products isolated from marine cyanobacteria.
Marinedrugs 14 00017 g001
Apratoxin A is a cyclodepsipeptide derivative of the apratoxin family of cytotoxins isolated from a Lyngbya sp. collected from Guam [15,16]. It induces G1 phase cell cycle arrest and apoptosis, and has exhibited IC50 values ranging from 0.36 to 0.52 nM in vitro against 60 human tumor cell lines. However, in vivo studies revealed only marginal activity against early stage adenocarcinoma [17,18,19]. Another class of highly potent anticancer agents produced by cyanobacteria is cryptophycins. For example, cryptophycin 1, which was isolated from Nostoc sp. GSV224, has an IC50 of 5 pg/mL against KB human nasopharyngeal cancer cells, and 3 pg/mL against LoVo human colorectal cancer cells [20]. Its mechanism of action is through the suppression of microtubule dynamics, thereby inhibiting cells in G2/M phase. Cryptophycin 52, a chemical analog of cryptophycin 1, entered clinical trials but produced only marginal activity [21].
Dolastatin 10 is cyanobacterial metabolite that was synthesized by Pettit et al. [22,23] in the 1980s and then its origin was later confirmed when its direct isolation occurred from Symploca sp. Dolastatin 10 binds to tubulin on the rhizoxin-binding site and is an established antiproliferative agent that affects microtubule assembly, which leads to cell death during the G2/M phase [24]. In 2005, the efficacy and toxicity of dolastatin 10 were investigated in Phase II clinical trials in patients with advanced prostate cancer but it was discontinued due to the development of peripheral neuropathy in 40% of the patients [25]. Many research groups have sought after SAR studies of the synthetic analogs of this compound, which are now classified as auristatins. This group of compounds showed the most amount of promise as antibody drug conjugates. For example, brentuximab vedotin (adcetris, Seattle Genetics ) is now a FDA-approved drug against lymphoma. This compound is currently undergoing phase 3 studies to study its effect on cutaneous T-cell lymphoma, B-cell lymphomas, and mature T-cell lymphomas [26,27].
The cyclic depsipeptide largazole, of the genus Symploca, is a marine natural product that contains a methylthiazoline linked to a thiazole, as well as a 3-hydroxy-7-mercaptohept-4-enoic acid unit, and a thioester, which had previously not been observed in marine cyanobacterial natural products. This compound has been shown to selectively target transformed over non-transformed cells [28,29], through the inhibition of class I histone deacetylases (HDACs) [30,31]. Largazole’s interesting structure and biological activity have attracted strong interest from the synthetic chemistry community, which seeks to establish synthetic routes to largazole and to investigate its potential as a cancer therapeutic [32,33].
Thus, cyanobacterial metabolites have the potential for expanded utilization in drug discovery. Despite their potent biological activities, very few cyanobacterial compounds have entered clinical trials; one of the reasons is the complexity of synthesis of the natural products. The focus of this review is the natural products called calothrixins, with an emphasis on their synthesis and bioactivities.

1.3. Calothrixins

Calothrixins A and B (Figure 2) are two cyanobacterial metabolites that were first isolated from Calothrix in 1999 by Rickards et al. [34]. Briefly, lyophilized cells of Calothrix strains were extracted with dimethyl sulfoxide (DMSO) and then with ethyl acetate (AcOEt) using Soxhlet extraction conditions. These extracts were fractionalized using a combination of bioassays, differential solubility, and chromatography, which yielded the relatively insoluble calothrixin A (1a) and its more soluble co-metabolite, calothrixin B (1b). Both structures were elucidated by Electron Impact Mass Spectra (EIMS), 1H, 13C and 1H–1H Correlation Spectroscopy (COSY) NMRs. Calothrixins possess an unique indolo[3,2-j]phenanthridine framework with an assembly of quinoline, quinone, and indole pharmacophores. Calothrixin B is generally known to be the neutral analog while calothrixin A is known to be its N-oxide analog.

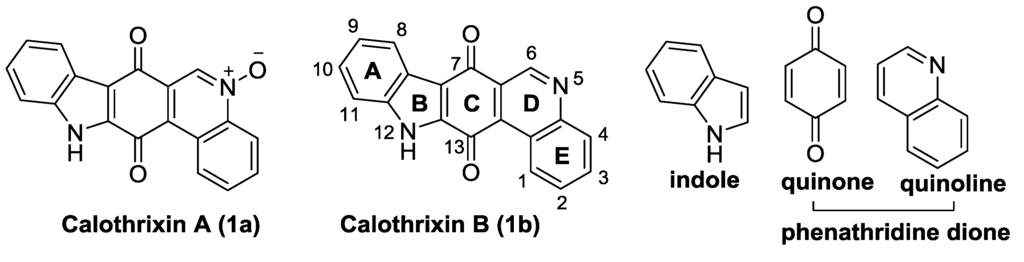

Figure 2. Structures of calothrixins.
Figure 2. Structures of calothrixins.
Marinedrugs 14 00017 g002
These scaffolds have attracted the interests of organic chemists and biologists alike due to their unique structures and the promise they hold as lead compounds for cancer drug discovery. Herein, we summarize the recent advances in synthetic work on calothrixins and their analogs.

2. Synthesis of Calothrixins

Due to the structural complexity and drug discovery potential, organic and medicinal chemists around the world have embarked on developing efficient synthetic methodologies to produce these natural products. Earlier synthesis of calothrixins was reviewed in 2009 by Satoshi Hibino et al. [35]. There has been a lot of progress made in the synthesis of calothrixins and their analogs since then. Herein, the discussion will focus on the progress achieved within the past six years in developing new synthetic routes to achieve the large-scale production of calothrixins.
The calothrixin scaffold consists of five rings (A–E), as shown in Figure 2. Multiple synthetic strategies have been used to synthesize calothrixins starting from suitably substituted indole, quinoline, or carbazole derivatives. The synthetic routes for calothrixins are categorized into three main groups based on the strategy of the last ring closure step in the construction of the calothrixin scaffold (1) ring B closure; (2) ring C closure; and (3) ring D closure (Table 1). No syntheses have been reported in which either ring A or ring E are constructed as the last ring closure step. Recent reports on the synthesis of calothrixins and the key reactions involved in these syntheses are summarized in Table 1.
Table 1. Summary of reported syntheses of calothrixin B since 2009.
Table 1. Summary of reported syntheses of calothrixin B since 2009.
Research GroupYearRing ClosureKey StepReference
Velu et al.2014BMn(OAc)3 mediated oxidative free radical reaction[36]
Ishikura et al.2011 & 2012CPalladium catalyzed tandem cyclization/cross-coupling[37,38]
Dethe et al.2014CLTA mediated rearrangement of o-hydroxy aryl hydrazone[39]
Nagarajan et al.2014CFriedel-Crafts hydroxyalkylation and directed o-lithiation[40]
Mal et al.2014CThe anionic annulation of MOM-protected furoindolone[41]
Kusurkar et al.2012DTwo one pot reaction sequences: a nucleophilic substitution and reduction[42]
Nagarajan et al.2013DPd catalyzed intramolecular cross-coupling reaction via C–H activation[43]
Mohanakrishnan et al.2014DElectrocyclization of 2-nitroarylvinyl-3-phenylsulfonylvinylindole[44]
Kumar et al.2014DPd mediated intramolecular C-X/C-H cross coupling reactions[45]
Hibino et al.2012DAllene mediated electrocyclic reaction of the 6π-electron system[46]
Mohanakrishnan et al.2013C & DFeCl3 mediated domino reaction of enamines[47]

2.1. Formation of Indole (Rings A and B) as the Last Step in the Construction of the Indolo[3,2-j]Phenanthridine Framework

Velu’s Synthesis

In 2014, Velu et al. [36] reported a synthesis of calothrixins in which the indole ring is formed last to construct the five-ring scaffold. This approach relies on the construction of the indole ring (rings A and B) on a phenanthridine dione (ring C, D, and E) via a novel oxidative free radical reaction mediated by manganese triacetate Mn(OAc)3, as outlined in Scheme 1. The method of Mn(OAc)3 mediated oxidative reaction of 2-cyclohexenone with quinones was originally developed by Chuang et al. [48,49,50]. None of the existing reports of calothrixin synthesis utilizes the late-stage indole construction strategy. Through this methodology, calothrixin B was synthesized in seven steps, with an overall yield of 19% starting from 2,4,5-trimethoxyindole.

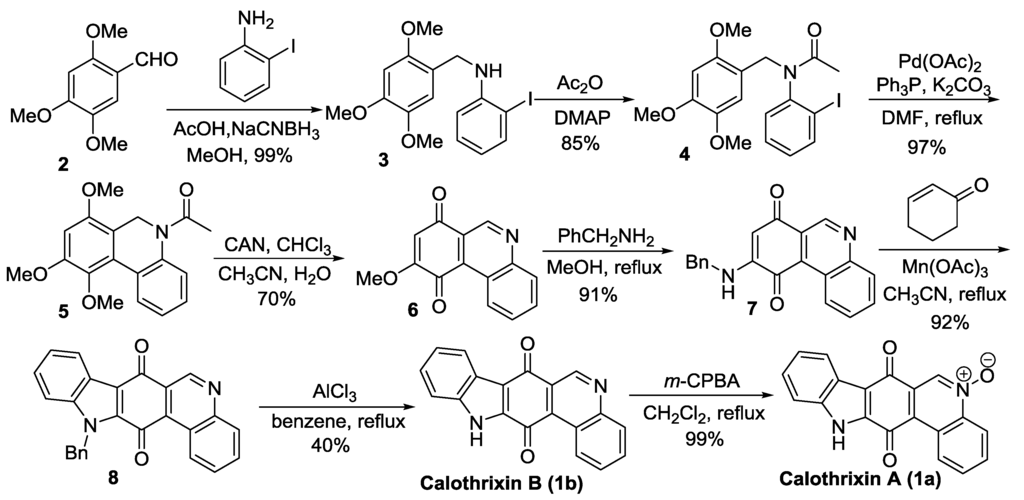

Scheme 1. Velu’s synthesis of calothrixins.
Scheme 1. Velu’s synthesis of calothrixins.
Marinedrugs 14 00017 g003

2.2. Ring C Closure as the Last Step in the Construction of the Indolo[3,2-j]Phenanthridine Framework

A number of calothrixin syntheses have been reported where the ring C closure was used as the last step in the construction of calothrixin scaffold. This includes the two syntheses reported by Ishikura et al. in 2011 and 2012 [37,38], and the three contributions made by Dethe et al. [39], Nagarajan et al. [40], and Mal et al. [41] in 2014.

2.2.1. Ishikura’s Synthesis

Ishikura et al. [37,38] was one of the first groups that designed a synthetic route to calothrixins in which ring C was cyclized last as shown in Scheme 2. In their ongoing studies of trialkyl(indol-2-yl)borates, they previously found that indolylborates show high reactivity in palladium-catalyzed cross-coupling reactions, such as carbonylative cross-coupling and tandem cyclization/cross-coupling reactions. This new approach for the synthesis of calothrixins A and B was demonstrated through a palladium-catalyzed cross-coupling reaction of 1-methoxyindolylborate (generated in situ from 1-methoxyindole by treatment with n-BuLi and BEt3) with the intermediate compound 13 to form the compound 15. Additional novelty of this synthetic route is the strategic use of Cu(OTf)2.toluene complex for the 6π-elecrocyclization of the hexatriene intermediate (16) to cyclize the ring C to form the compound 17. Ishikura’s synthesis yielded calothrixin B in nine steps with an overall yield of 9% starting from 2-iodoaniline.

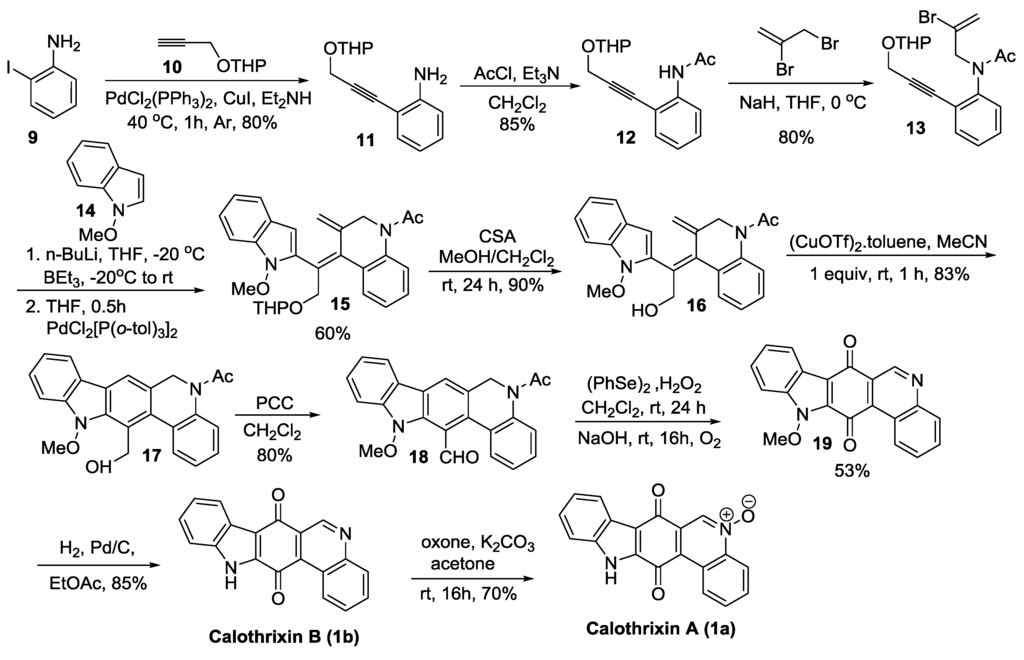

Scheme 2. Ishikura’s synthesis of calothrixins.
Scheme 2. Ishikura’s synthesis of calothrixins.
Marinedrugs 14 00017 g004

2.2.2. Dethe’s Synthesis

Dethe et al. [39] reported a concise five-step total synthesis of calothrixin B using LTA-mediated rearrangement of a suitable o-hydroxy aryl hydrazone into the corresponding quinone as the key step, as outlined in Scheme 3. The synthesis began with the coupling of N-PMB (p-methoxy benzyl) protected indolyl hyrazide (21) and the quinolinone derivative (22) to form the intermediate hydrazone 23. The hydrazone (23) was treated with Pb(OAc)4 to undergo the LTA-mediated oxidative rearrangement followed by a BF3.OEt2-mediated cyclization to form the PMB-protected calothrixin B (25). This synthesis is short and high yielding. The overall yield of the calothrixin B synthesis from ethyl indole-2-carboxylate (20) is 39% for five steps.

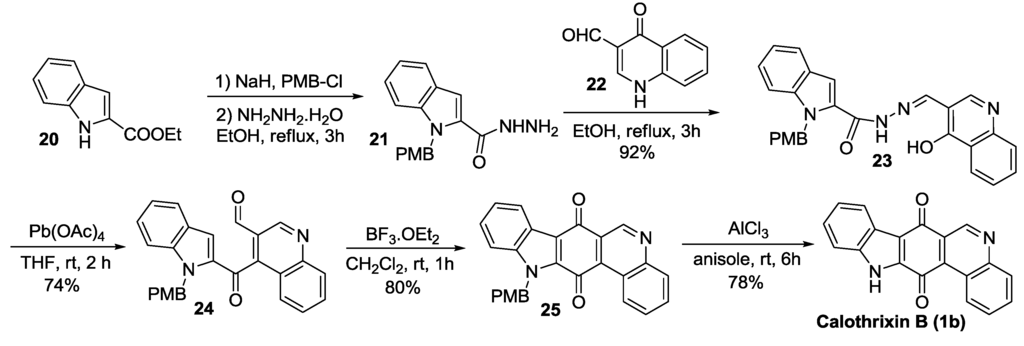

Scheme 3. Dethe’s synthesis of calothrixin B.
Scheme 3. Dethe’s synthesis of calothrixin B.
Marinedrugs 14 00017 g005

2.2.3. Nagarajan’s Synthesis

Nagarajan et al. [40] outlined a strategy for the synthesis of calothrixin B featuring a directed o-metalation reaction as a key step, as outlined in Scheme 4. The synthesis began with the coupling of the commercially available reagents, ethyl indole-2-carboxylate (20) and quinoline-3-carboxaldehyde (26) in the presence of TMG in MeOH followed by the oxidation of the intermediate product with Dess-Martin periodinane (DMP) in CH2Cl2/AcOH. This two-step process yielded compound 27, which was then cyclized by an intramolecular directed o-lithiation reaction using lithium tetramethylpiperidide (LiTMP) to form calothrixin B in 48% yield. This synthetic methodology offers a three-step route to calothrixin B from commercially available reagents in an overall yield of 38%.

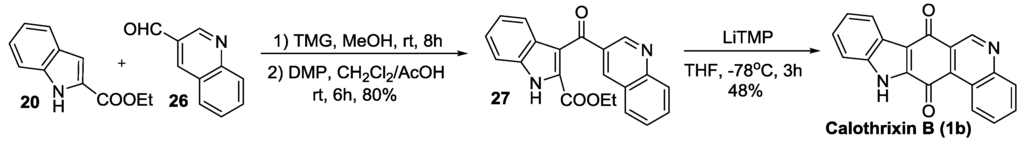

Scheme 4. Nagarajan’s synthesis of calothrixin B.
Scheme 4. Nagarajan’s synthesis of calothrixin B.
Marinedrugs 14 00017 g006

2.2.4. Mal’s Synthesis

Mal et al. [41] reported a two-step synthesis of calothrixin B from the N-protected indololactone (28) as outlined in Scheme 5. This reagent was prepared in three simple steps from commercially available α-acetobutyrolactone [51]. Treatment of compound 28 with 4-bromoquinoline (29) in the presence of lithium diisopropylamide (LDA) in tetrahydrofuran (THF) at −78 °C afforded an inseparable mixture of compounds 30a and 30b. However, after the removal of methoxymethylene (MOM) group using HCl, it gave a mixture of calothrixin B (1b) and its regioisomer (31b) that could be easily separated in the ratio of 40% and 6%, respectively. This synthetic methodology afforded calothrixin B with an overall yield of 47% for two steps starting from compound 28.

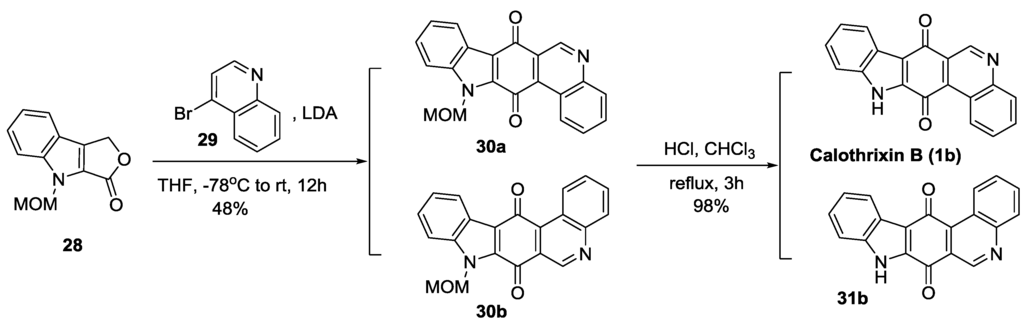

Scheme 5. Mal’s synthesis of calothrixin B and its regioisomer.
Scheme 5. Mal’s synthesis of calothrixin B and its regioisomer.
Marinedrugs 14 00017 g007

2.3. Ring D Closure as the Last Step in the Construction of the Indolo[3,2-j]Phenanthridine Framework

Another strategy for the calothrixin synthesis involves cyclizing ring D as the last step in the construction of calothrixin scaffold. A number of contributions have been made to this category of syntheses. These include four independent publications by Kusurkar et al. in 2012 [42], Nagarajan et al. in 2013 [43], Mohanakrishnan et al. in 2014 [44], Kumar et al. in 2014 [45], and Hibino et al. in 2012 [46].

2.3.1. Kusurkar’s Synthesis

Kusurkar et al. [42] have published a synthesis of calothrixins starting from 4-hydroxy carbazole as outlined in Scheme 6. The novelty of their synthetic route is the unprecedented use of DMF-NaOMe as a reagent for the reduction of the aldehyde group and the use of a high-yielding Pd-catalyzed coupling reaction to construct the ring D of the pentacyclic system. For example, the treatment of compound 35 with NaOMe in dry dimethyl formamide (DMF) and CuI at 120 °C resulted in the substitution of both bromine and benzyloxy groups with methoxy groups with concomitant reduction of the aldehyde resulting in the formation of the compound 36. Pd-catalyzed cyclization of ring D of the scaffold to form compound 39 is another novel key step in this synthesis. The overall yield for Kusurkar’s synthesis of calothrixin B was 25% for nine steps.

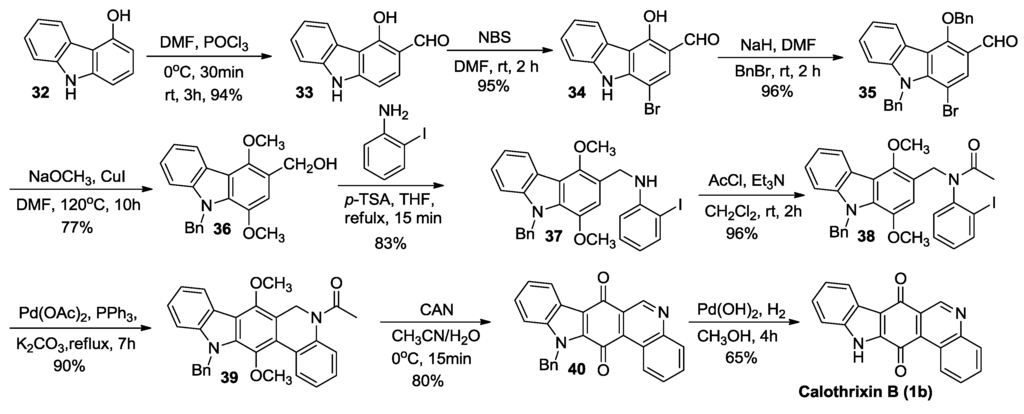

Scheme 6. Kusurkar’s total synthesis of calothrixin B.
Scheme 6. Kusurkar’s total synthesis of calothrixin B.
Marinedrugs 14 00017 g008

2.3.2. Nagarajan’s Synthesis

In addition to developing a synthetic route for calothrixins that involved the closure of ring C in the last step, Nagarajan et al. [43] has also accomplished a synthesis in which ring D was closed last in the preparation of the five-membered ring system, followed by the installation of the necessary substitutions to produce calothrixin B as shown in Scheme 7. This synthesis featured a prominent Pd-catalyzed intramolecular cross-coupling reaction via C-H activation using an appropriately substituted carbazole derivative to construct the indolophenanthridine core ring system of calothrixins. This is the first reported synthesis of calothrixin pentacycles without any protection on the indole N atom. The overall yield for calothrixin B in this Nagarajan’s synthesis is 35% for five steps starting from 4-methoxycarbazole.

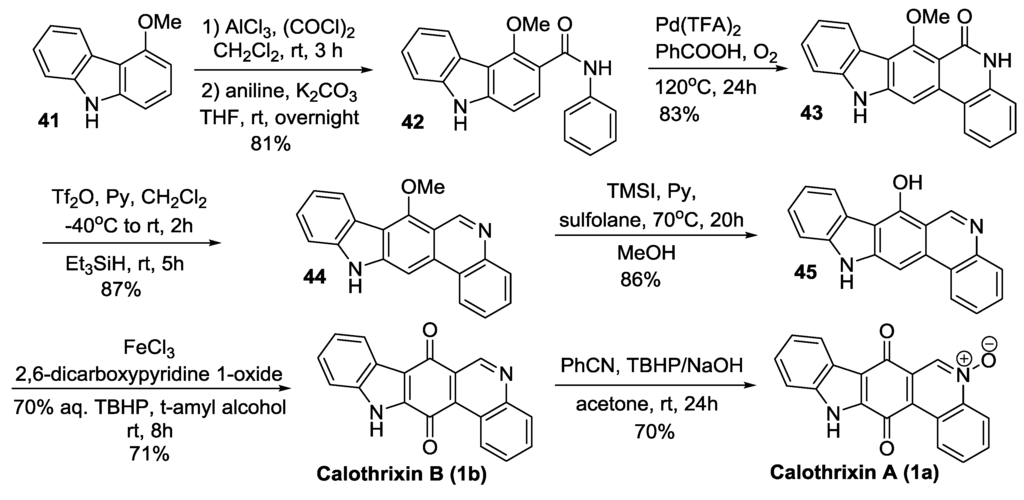

Scheme 7. Nagarajan’s synthesis of calothrixins A and B.
Scheme 7. Nagarajan’s synthesis of calothrixins A and B.
Marinedrugs 14 00017 g009

2.3.3. Mohanakrishnan’s Synthesis

Mohanakrishnan et al. have reported a linear synthesis of calothrixin B using the thermal electro cyclization of 2-nitroarylvinyl-3-phenylsulfonylvinylindole as the key step as outlined in Scheme 8 [44]. In this key step, the 2,3-divinylidole intermediate generated from compound 52 by treatment with Me2SO4 was subjected to thermal cyclization in refluxing xylenes to afford the carbazole derivative 53. Mohanakrishnan’s total synthesis thus afforded calothrixin B from 2-methylindole in 14 steps with an overall yield of about 8%.

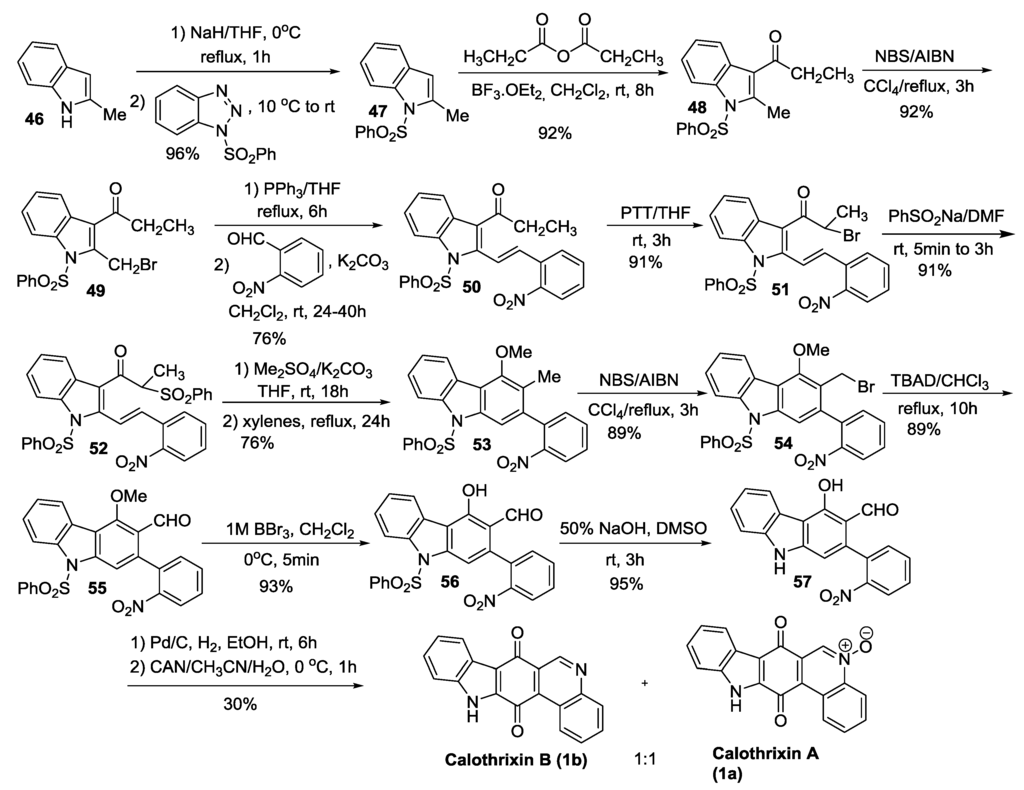

Scheme 8. Mohanakrishnan’s synthesis of calothrixins A and B.
Scheme 8. Mohanakrishnan’s synthesis of calothrixins A and B.
Marinedrugs 14 00017 g010

2.3.4. Kumar’s Synthesis

Kumar et al. [45] reported the total synthesis of calothrixin B via multiple palladium-mediated C-X/C-H cross intramolecular coupling reactions as outlined in Scheme 9. The salient feature of this synthesis is the two intramolecular C-X/C-H cross coupling reactions of the intermediates 60 to form compound 61 and 63 to form the compound 64. The intermediate 60 was cyclized under intramolecular cross coupling reaction condition using Pd(OAc)2, PCy3, and JohnPhos to afford the carbazole derivative 61. The cyclization of 63 was carried out using Pd(OAc)2, PCy3, and K2CO3 to afford the compound 64. Kumar’s methodology thus accomplished the synthesis of calothrixin B in 7 steps starting from 2,5-dimethoxybenzaldehyde in an overall yield of 50%.

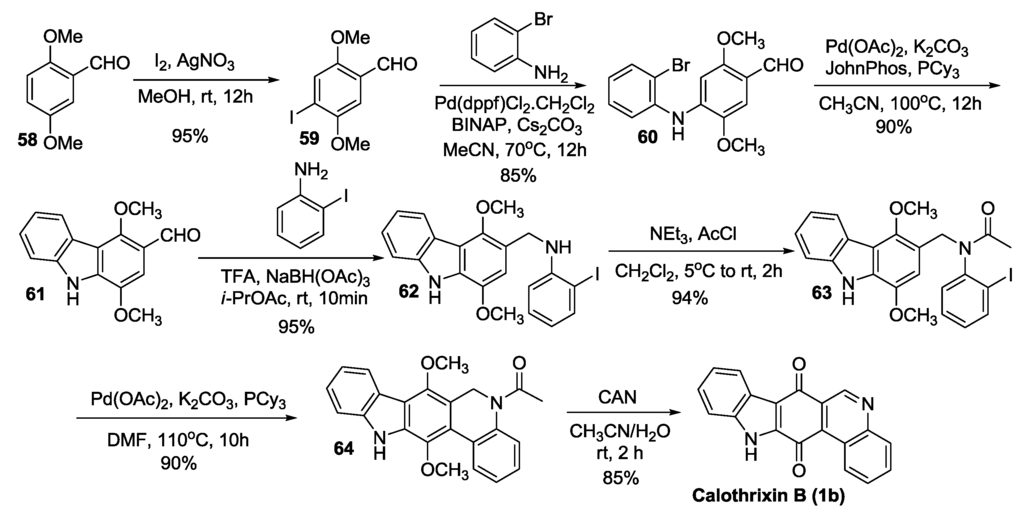

Scheme 9. Kumar’s synthesis of calothrixins B.
Scheme 9. Kumar’s synthesis of calothrixins B.
Marinedrugs 14 00017 g011
Compound 60 in Kumar’s synthesis has also been converted to the key intermediate 64 in three steps as shown in Scheme 10. In this synthesis, rings B and D of the calothrixin scaffold were cyclized in one step by intramolecular C-X/C-H cross coupling reaction using Pd(OAc)2, PCy3, and JohnPhos in the presence of K2CO3 in DMF to afford the key intermediate 64.

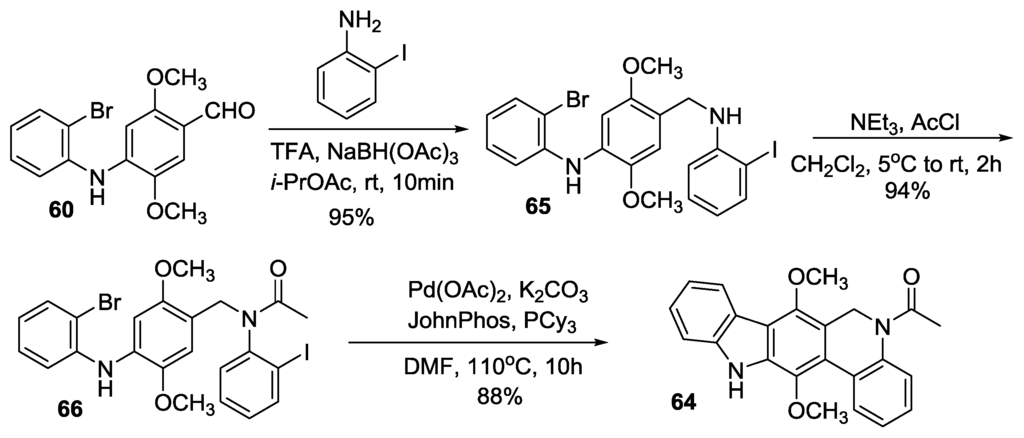

Scheme 10. Alternate synthesis of compound 64.
Scheme 10. Alternate synthesis of compound 64.
Marinedrugs 14 00017 g012

2.3.5. Hibino’s Synthesis

Hibino et al. [46] synthesized calothrixin B and other N-alkyl-calothrixins using a biomimetic approach featuring a key allene-mediated electrocyclic reaction of the 6π-electron system, as outlined in Scheme 11. The synthesis of the key intermediate, indolo[2,3-a]carbazole (72), was carried out by an allene-mediated electrocyclic reaction of MOM-protected compound 71 in the presence of tBuOK in tBuOH-THF. This electrocyclization involved the two [b]-bonds of indole units and the allene double bond generated in situ. The overall yield for Hibino’s synthesis of calothrixin B from 2-bromoindole-3-carboxaldehyde is 22% for nine steps.

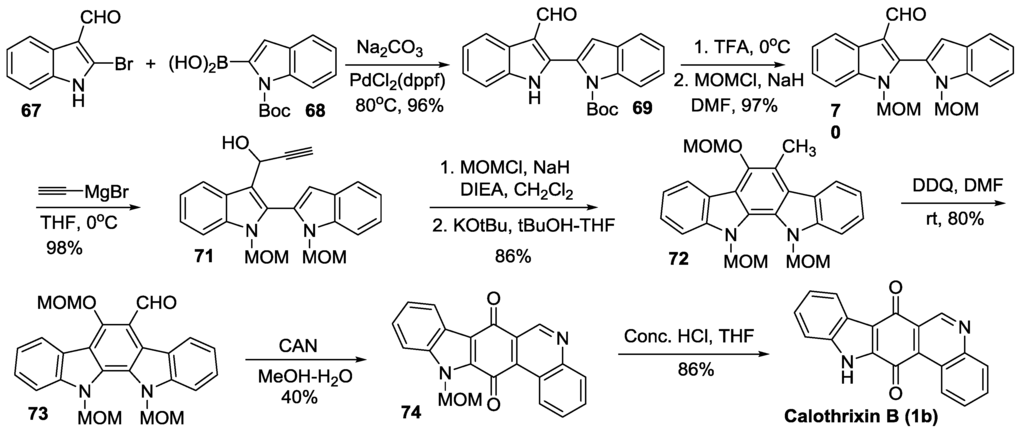

Scheme 11. Hibino’s synthesis of calothrixin B.
Scheme 11. Hibino’s synthesis of calothrixin B.
Marinedrugs 14 00017 g013

2.4. Simultaneous Closure of Rings C and D

Only one methodology of calothrixin synthesis has been developed in which multiple rings were cyclized in a one-pot synthesis. This report was published by Mohanakrisnan et al. [47] in 2013, prior to their report in 2014 [44] in which ring D was the last ring closure step.

Mohanakrishnan’s Synthesis

Mohanakrishnan et al. [47] reported another novel synthesis of calothrixin B involving a key FeCl3 mediated domino reaction of an enamine derivative, as outlined in Scheme 12. In this key step, FeCl3 was used to cyclize the key intermediate 79 to afford calothrixin B. Both rings C and D were created in a sigle step in this synthesis. The overall yield of calothrixin B from the compound 75 is 45% for six steps.

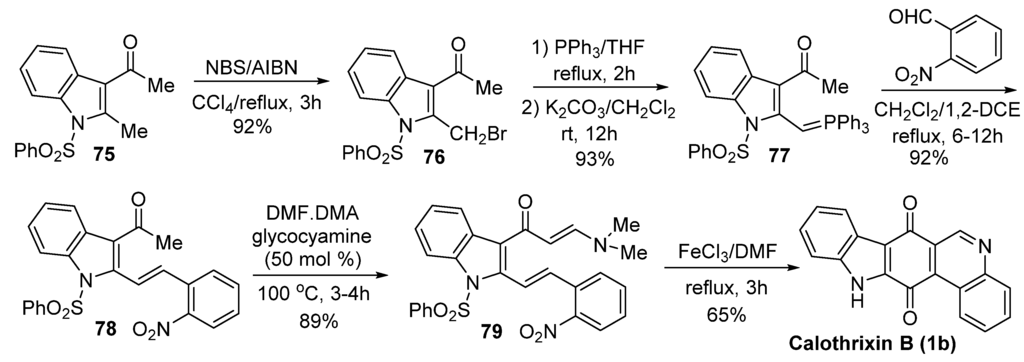

Scheme 12. Mohanakrishnan’s synthesis of calothrixins B.
Scheme 12. Mohanakrishnan’s synthesis of calothrixins B.
Marinedrugs 14 00017 g014

3. Bioactivities of Calothrixins

The most therapeutically relevant biological activity reported for marine cyanobacterial metabolites is their cytotoxicity. While some antimicrobial studies were also conducted, calothrixins were majorly pursued to serve as novel anticancer molecules. Herein, we summarize all bioactivities conducted on calothrixins and their analogs. Following their isolation, calothrixins quickly gained recognition due to their anticancer activity as preliminary studies revealed a high potency against the human cervical cancer cell line, HeLa cells. Since then, calothrixins have been evaluated against several different cell lines and have been studied for their mode of action. Calothrixins were also evaluated for their antiparasitic activity. A summary of their bioactivities is found below.

3.1. Antiparasitic Activity

Along with their discovery in 1999, Smith et al. [34] also reported that the cell extracts from cyanobacteria Calothrix were found to inhibit the growth of malarial strains. The two calothrixins, calothrixin A and B, were evaluated against the chloroquine (QC)-resistant malarial strain, P. falciparum FCR-3 strain (QC-sensitive), and were found to be effective in a dose-dependent manner. The IC50 values were observed to be 58 nM and 180 nM, respectively, compared with 83 nM IC50 value for chloroquine in the same assay [34].
In an attempt to find a better lead against malaria, Hibino et al. [46] synthesized and evaluated several N-alkyl calothrixin analogs for their activity against the chloroquine-resistant strain (Table 2). The results for antimalarial activity were compared against chloroquine. Calothrixin B was observed to be the most active (IC50 = 120 nM), concurring with the findings of Rickards et al. [34]. Calothrixin A was found to be almost equally active (IC50 = 185 nM ) as calothrixin B. Although all compounds showed antimalarial activity, substitution of the indole nitrogen atom with various alkyl groups led to a decrease in activity. Among the analogs, 2-hydroxyethyl group showed slightly better activity in comparison to the other alkyl substitutions.
In addition to its antimalarial activities, Smith et al. [52,53] reported the antibacterial activity of calothrixin A against Bacillus subtilis 168, where it was found to be inhibiting the bacterial growth in a dose-dependent manner without any cell lysis. A complete growth inhibition was achieved at 16 µM concentration.
Table 2. Antimalarial activity calothrixin analogs against FCR-3 strain.
Table 2. Antimalarial activity calothrixin analogs against FCR-3 strain.
CompoundIC50 against FCR-3 Strain (nM)CompoundIC50 against FCR-3 Strain (nM)
Marinedrugs 14 00017 i001185 Marinedrugs 14 00017 i002120
Marinedrugs 14 00017 i003380 Marinedrugs 14 00017 i004490
Marinedrugs 14 00017 i005380 Marinedrugs 14 00017 i006220
Marinedrugs 14 00017 i007320 Marinedrugs 14 00017 i008640
Marinedrugs 14 00017 i009250 Marinedrugs 14 00017 i010330
Marinedrugs 14 00017 i011180

3.2. Anticancer Activity

Along with their antimalarial activity, Rickards et al. [34] reported calothrixins to be potent against HeLa cells. The corresponding IC50 values for calothrixin A and B against the human cervical cancer cell line, HeLa cells, were observed to be 40 nM and 350 nM, respectively. Calothrixins showing similar inhibitory effects against cancer cell lines and malarial strains indicated that they may share a common mode of action. Following this report, in 2003, Waring et al. [54] studied the effect of calothrixin A on apoptosis in human Jurkat cancer cells. A well-known inducer of apoptosis, menadione, was used as a positive control to compare the effects of calothrixin A [55]. Calothrixin A was observed to induce cell death via apoptosis in a time- and concentration-dependent manner, and was found to be more potent than menadione in anti-proliferative activity, with IC50 values of 1.6 µM and 4.7 µM, respectively (Table 3). IC50 values for calothrixin A- and menadione-induced apoptosis were 0.6 µM and 12 µM respectively. Both calothrixin A and menadione were observed to induce cell cycle arrest in the G2/M phase, but the concentration required for calothrixin A was much lower than for menadione. The cell cycle arrest in the G2/M phase indicated intracellular DNA damage, which was further supported by direct DNA damage observed in cell-free experiments.
Both calothrixin A and menadione were found to be redox active through the observation of additional oxygen intake when added to reductant dithiothreitol (DTT, 2 mM at pH 8.0). Quinones can redox cycle by one or two electron transfers, generating reactive oxygen species (ROS), by which they can damage DNA and induce apoptosis [56]. It was postulated that the ring structure of calothrixin might act as a DNA intercalator that might be responsible for its anticancer activity. In addition, calothrixin A was observed to be cleaving DNA, though less effectively than menadione. Menadione caused significant DNA damage at 10 µM after 60 min incubation, whereas calothrixin A exhibited the same effect at 500 µM.
Table 3. Cell cytotoxicities and apoptotic activities of calothrixin A and menadione.
Table 3. Cell cytotoxicities and apoptotic activities of calothrixin A and menadione.
CompoundStructureIC50 for CytotoxicityIC50 for Apoptosis
Calothrixin A Marinedrugs 14 00017 i0121.6 µM0.6 µM
Menadione Marinedrugs 14 00017 i0134.7 µM12 µM
One of the known modes of action for anticancer activities of quinones is by the generation of ROS through redox cycling [56]. In 2004, Wilkes et al. [57] carried out a comparative study of bioactivities of calothrixins and some structurally related quinones. This was the first structure–activity relationship study done for calothrixins. The cytotoxic effect of various quinones was evaluated against human cervical cancer cells, HeLa cells, using 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay (Table 4). Calothrixin A and calothrixin B showed cytotoxicity against HeLa cells with EC50 values of 0.12 µM and 0.24 µM, respectively. Calothrixin B and ellipticine quinone, which differ by the ring E, showed comparable activities, indicating that there might be only a limited role for the ring E in dictating the bioactivity of calothrixins. Introducing the MOM group on the indole nitrogen seemed to decrease the potency of both calothrixin B and ellipticine quinone with EC50 values of 0.42 µM and 0.37 µM, respectively. Further, replacement of the heteroaromatic ring-D with a carbocyclic aromatic ring in ellipticine and its N-methoxymethyl analog also led to a decrease in potency, benzocarbazoledione (0.43 µM), and N-MOM-benzocarbazoledione (1.6 µM). Menadione showed activity at 3.7 µM. Absence of activity for uncyclized precursors of benzocarbazoledione and N-MOM-benzocarbazoledione indicated the importance of a tetracyclic quinone ring structure. In case of all the quinones with EC50 < 1.6 µM, the quinones were observed to be reduced to their respective semiquinones, though no direct correlation was observed between the reduction potentials and bioactivity.
Table 4. Cytotoxicity of quinones against HeLa cells.
Table 4. Cytotoxicity of quinones against HeLa cells.
CompoundStructureEC50 (µM) HeLa Cells
Calothrixin A Marinedrugs 14 00017 i0140.12 ± 0.01
Calothrixin B Marinedrugs 14 00017 i0150.24 ± 0.04
N-MOM-calothrixin B Marinedrugs 14 00017 i0160.42 ± 0.02
Ellipticine quinone Marinedrugs 14 00017 i0170.15 ± 0.09
N-MOM-ellipticine quinone Marinedrugs 14 00017 i0180.37 ± 0.08
Benzocarbazoledione Marinedrugs 14 00017 i0190.43 ± 0.01
N-MOM-Benzocarbazoledione Marinedrugs 14 00017 i0201.6 ± 1.0
Menadione Marinedrugs 14 00017 i0213.7 ± 0.3
Uncyclized precursor to benzocarbazoledione Marinedrugs 14 00017 i022>50
Uncyclized precursor to N-MOM-benzocarbazoledione Marinedrugs 14 00017 i023>50
To study the involvement of the ring structure and the mechanism of action in the inhibitory effects, the same group [58] synthesized and analyzed the activity of various simple quinone analogs of calothrixin B (Table 5) in 2007. The compounds were evaluated for their selectivity and antiproliferative activity, using an MTT assay, against three different cell lines: human cervical cancer (HeLa) cells, murine P388 macrophage cancer cells, and simian non-cancerous CV-1 cells.
In this study, calothrixin B was found to be the most potent against HeLa cells (0.25 µM) followed by indolophenanthrene-7,13-dione analog (1.5 µM), indicating the importance of nitrogen in ring D. The activity was further decreased with the deletion of ring E of this analog to form benzoncarbzoledione (1.8 µM). The rest of the analogs showed moderate activity ranging from 7 to 13 µM, while the carbazole-1,4-dione analog was found to be inactive. The results were not as consistent for the P388 cell line, where murrayaquinone (2.3 µM) and 2-methylcarbazoledione (1 µM) were found to be more active compared to calothrixin B (9 µM) or other analogs, whereas calothrixin B and 2-methylcarbazoledione showed similar activity with 2.4 µM and 1.7 µM, respectively, against non-cancerous cell line CV-1. The rest of the analogs had either very low activity or no measurable activity. These studies indicated the importance of rings A–D in the activity of calothrixins. Also, a selective usage of calothrixin B against human cervical cancer cells was indicated by the 10-fold higher effectiveness against HeLa cells (0.25 µM) as compared to CV-1 (2.4 µM) and 38 times more compared to P388 (9 µM). The quinones containing tetra- and penta cyclic systems (calothrixin-B, indolophenanthrene-7,13-dione and benzocarbazole-1,4-dione) were found to be more active against HeLa cells as compared to p388 and CV-1 cells. However, the trend was reversed in the quinones containing bi- and tricylic systems (murrayaquinone, 2-methylcarbazoledione, and isoquinoline-5,8-dione).
In 2009, another group, Hecht et al. [59], published a study to determine the mechanism of action and the stage of the cell cycle that is targeted by the calothrixins. Calothrixin A and B and the N-methylated derivative were synthesized and tested against CEM leukemia cells to measure their cytotoxicity using an MTT assay. The activity of calothrixin analogs were compared to camptothecin, which is known to cause irreversible DNA damage during the S phase. Delay in S phase due to DNA damage is associated with a block in replication. The IC50 value for calothrixin A was found to be five-fold higher than campothecin and the other two analogs were observed to be much less potent, with N-methylcalothrixin B being the least at 5 µM compared to calothrixin B at 1 µM (Table 6).
Table 5. Antiproliferative activity of calothrixin B and analogs in MTT assay against HeLa cells, P388 cells, and CV-1 cells.
Table 5. Antiproliferative activity of calothrixin B and analogs in MTT assay against HeLa cells, P388 cells, and CV-1 cells.
CompoundStructureEC50 (µM) HeLa CellsEC50 (µM) P388 CellsEC50 (µM) CV-1 Cells
Calothrixin B Marinedrugs 14 00017 i0240.25 ± 0.059 ± 22.4 ± 0.7
Indolophenanthrene-7,13-dione Marinedrugs 14 00017 i0251.5 ± 0.3>50>50
Benzocarbzoledione Marinedrugs 14 00017 i0261.8 ± 0.1>50>50
Carbazole-1,4-dione Marinedrugs 14 00017 i027>50>50>50
Murrayaquinone Marinedrugs 14 00017 i02813 ± 12.3 ± 0.310 ± 2
2-Methylcarbazoledione Marinedrugs 14 00017 i0297 ± 11.0 ± 0.11.7 ± 0.4
Isoquinoline-5,8-dione Marinedrugs 14 00017 i03012 ± 19 ± 2>50
The effect on the cell cycle was studied for these compounds using a mitotic inhibitor nocodazole, which blocks re-entry of cells into the G1 phase. Calothrixin B was observed to arrest the G1 phase at 0.1 μM concentrations, whereas calothrixin A and N-methylcalothrixn B showed no effects at the same concentration. At higher concentrations, calothrixin A and N-methylcalothrixn B led to cell accumulation in S and G2/M phase. Compared to camptothecin, these effects were found to be readily reversible. Calothrixins were also evaluated for their activity against topoisomerase I. The effects of calothrixins were studied keeping camptothecin as a positive control, which is a known topoisomerase I poison [60]. It was observed that calothrixins A, B, and N-methylcalothrixin B were capable of stabilizing the covalent topoisomerase I/DNA complex at 18%, 13%, and 11%, respectively, compared to 100% at 5 µM concentration of camptothecin.
Calothrixins and their analogs were observed to be affecting different stages of cell cycle in a reversible manner, leading to low micromolar range cytotoxicities. Thus, calothrixins have shown a wide array of activity including antimalarial, anticancer, and antibacterial. The modes of action of calothrixins’ bioactivities have not been fully deciphered yet.
Table 6. Cytotoxicity effects against CEM leukemia cell line and topoisomerase I inhibition.
Table 6. Cytotoxicity effects against CEM leukemia cell line and topoisomerase I inhibition.
CompoundStructureIC50 (µM) in CEM Leukemia Cells% Topo I DNA Cleavage at 5 µM% NaCl Induced Reversibility at 5 µM
Camptothecin Marinedrugs 14 00017 i0310.04 ± 0.01100100
Calothrixin A Marinedrugs 14 00017 i0320.20 ± 0.021817
Calothrixin B Marinedrugs 14 00017 i0331.05 ± 0.301316
N-methycalothrixin B Marinedrugs 14 00017 i0345.13 ± 0.721113

4. Conclusions

While the medicinal and biosynthetic potential of terrestrial plants and microbes is fairly well studied, comparatively little is known regarding the chemistry and biological activity of organisms in the marine environment. A unique group of oxygenic photosynthetic bacteria known as cyanobacteria populate diverse habitats throughout the world. Their potential as a good source of new therapeutic lead compounds has been realized during the last few decades. Calothrixins, which are cyanobacterial metabolites, have demonstrated a diverse range of bioactivities that include antimalarial, anticancer, and antibacterial properties. They have been observed to target various aspects of RNA synthesis in bacteria. Further investigation of the exact mechanism for their bioactivity is still required for many analogs, which will be beneficial for the ongoing development and lead optimization. Several research groups have developed synthetic routes to obtain these natural products. This review emphasized the synthetic progress accomplished within the past six years in developing new synthetic routes. Since 2009, 11 novel syntheses have been published to improve upon the efficiency in the production of calothrixins. The number of steps in the various synthetic strategies ranges from 2 to 14, while the overall yield to construct calothrixin B ranges from 8% to 50%. Thus, significant progress has been made in the last decade in attaining more efficient synthesis of calothrixins, which may aid to establish calothrixins as a potential anti-cancer candidate in the future.


We thank the current and former members of Velu lab for their contributions to the research projects that were cited in this review. Sadanandan E. Velu was supported by a Breast Spore pilot grant and a Collaborative Programmatic Development grant from University of Alabama at Birmingham Comprehensive Cancer Center. He was also supported by grant number 1UL1RR025777 from the NIH National Center for Research Resources.

Author Contributions

Sadanandan E. Velu conceived the idea, Su Xu, Bhavitavya Nijampatnam and Shilpa Dutta wrote the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.


Acetyl chloride
Acetic anhydride
Ethyl acetate
Acetic acid
Aluminum chloride
Triethylborane or triethylboron
Boron trifluoride diethyl etherate
Ceric ammonium nitrate
Carbon tetrachloride
Correlation spectroscopy
Camphorsulfonic acid
Copper(I) iodide
Trifluoromethanesulfonate toluene complex
Dess-Martin periodinane
Dimethyl sulfoxide
Directed o-metalation
Iron(III) chloride
Formic acid
Histone deacetylases
Human immunodeficiency virus
Hydrogen peroxide
Potassium carbonate
Lithium diisopropylamide
Lithium tetramethylpiperidide
Lead tetracetate
Manganese triacetate
Methoxymethyl protecting group
3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide
Sodium cyanoborohydride
Sodium hydride
Sodium hydroxide
Sodium methoxide
Hydrazine hydrate solution
Lead(IV) acetate
Pyridinium chlorochromate
Palladium on carbon
Bis(triphenylphosphine)palladium(II) dichloride
[1,1′-Bis(diphenylphosphino)ferrocene] dichloropalladium(II)
Palladium acetate
palladium(II) trifluoroacetate
Diphenyl diselenide
p-Methoxybenzyl chloride
Phosphoryl chloride
p-Toluenesulfonic acid
Polytrimethylene terephthalate
Racemic 2,2′-bis(diphenylphosphino)-1,1′-binaphthalene
Reactive oxygen species
Bis(tetrabutylammonium) dichromate
Tert-butyl hydroperoxide
Trifluoromethanesulfonic anhydride
Trimethylsilyl iodide


  1. Mehbub, M.F.; Lei, J.; Franco, C.; Zhang, W. Marine sponge derived natural products between 2001 and 2010: Trends and opportunities for discovery of bioactives. Mar. Drugs 2014, 12, 4539–4577. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Reen, F.J.; Gutierrez-Barranquero, J.A.; Dobson, A.D.; Adams, C.; O’Gara, F. Emerging concepts promising new horizons for marine biodiscovery and synthetic biology. Mar. Drugs 2015, 13, 2924–2954. [Google Scholar] [CrossRef] [PubMed]
  3. Sawadogo, W.R.; Boly, R.; Cerella, C.; Teiten, M.H.; Dicato, M.; Diederich, M. A survey of marine natural compounds and their derivatives with anti-cancer activity reported in 2012. Molecules 2015, 20, 7097–7142. [Google Scholar] [CrossRef] [PubMed]
  4. Sun, M.K.; Alkon, D.L. Bryostatin-1: Pharmacology and therapeutic potential as a CNS drug. CNS Drug Rev. 2006, 12, 1–8. [Google Scholar] [CrossRef] [PubMed]
  5. Manivasagan, P.; Kang, K.H.; Sivakumar, K.; Li-Chan, E.C.; Oh, H.M.; Kim, S.K. Marine actinobacteria: An important source of bioactive natural products. Environ. Toxicol. Pharmacol. 2014, 38, 172–188. [Google Scholar] [CrossRef] [PubMed]
  6. Cardellina, J.H., II; Moore, B.S. Richard E. Moore (1933–2007). J. Nat. Prod. 2010, 73, 301–302. [Google Scholar] [CrossRef] [PubMed]
  7. Zanchett, G.; Oliveira-Filho, E.C. Cyanobacteria and cyanotoxins: From impacts on aquatic ecosystems and human health to anticarcinogenic effects. Toxins 2013, 5, 1896–1917. [Google Scholar] [CrossRef] [PubMed]
  8. Moreira, C.; Ramos, V.; Azevedo, J.; Vasconcelos, V. Methods to detect cyanobacteria and their toxins in the environment. Appl. Microbiol. Biotechnol. 2014, 98, 8073–8082. [Google Scholar] [CrossRef] [PubMed]
  9. Gabdulkhakov, A.G.; Dontsova, M.V. Structural studies on photosystem II of cyanobacteria. Biochemistry 2013, 78, 1524–1538. [Google Scholar] [CrossRef] [PubMed]
  10. Gehringer, M.M.; Wannicke, N. Climate change and regulation of hepatotoxin production in cyanobacteria. FEMS Microbiol. Ecol. 2014, 88, 1–25. [Google Scholar] [CrossRef] [PubMed]
  11. Sobotka, R. Making proteins green; biosynthesis of chlorophyll-binding proteins in cyanobacteria. Photosynth. Res. 2014, 119, 223–232. [Google Scholar] [CrossRef] [PubMed]
  12. Dixit, R.B.; Suseela, M.R. Cyanobacteria: Potential candidates for drug discovery. Antonie Van Leeuwenhoek 2013, 103, 947–961. [Google Scholar] [CrossRef] [PubMed]
  13. Jakubowska, N.; Szelag-Wasielewska, E. Toxic picoplanktonic cyanobacteria—Review. Mar. Drugs 2015, 13, 1497–1518. [Google Scholar] [CrossRef] [PubMed]
  14. Wijffels, R.H.; Kruse, O.; Hellingwerf, K.J. Potential of industrial biotechnology with cyanobacteria and eukaryotic microalgae. Curr. Opin. Biotechnol. 2013, 24, 405–413. [Google Scholar] [CrossRef] [PubMed]
  15. Masuda, Y.; Suzuki, J.; Onda, Y.; Fujino, Y.; Yoshida, M.; Doi, T. Total synthesis and conformational analysis of apratoxin C. J. Org. Chem. 2014, 79, 8000–8009. [Google Scholar] [CrossRef] [PubMed]
  16. Thornburg, C.C.; Cowley, E.S.; Sikorska, J.; Shaala, L.A.; Ishmael, J.E.; Youssef, D.T.; McPhail, K.L. Apratoxin H and apratoxin A sulfoxide from the red sea cyanobacterium moorea producens. J. Nat. Prod. 2013, 76, 1781–1788. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, Q.Y.; Liu, Y.; Luesch, H. Systematic chemical mutagenesis identifies a potent novel apratoxin A/E hybrid with improved in vivo antitumor activity. ACS Med. Chem. Lett. 2011, 2, 861–865. [Google Scholar] [CrossRef] [PubMed]
  18. Doi, T. Synthesis of the biologically active natural product cyclodepsipeptides apratoxin A and its analogues. Chem. Pharm. Bull. 2014, 62, 735–743. [Google Scholar] [CrossRef] [PubMed]
  19. Doi, T.; Numajiri, Y.; Takahashi, T.; Takagi, M.; Shin-ya, K. Solid-phase total synthesis of (−)-apratoxin A and its analogues and their biological evaluation. Chem. Asian J. 2011, 6, 180–188. [Google Scholar] [CrossRef] [PubMed]
  20. Weiss, C.; Sammet, B.; Sewald, N. Recent approaches for the synthesis of modified cryptophycins. Nat. Prod. Rep. 2013, 30, 924–940. [Google Scholar] [CrossRef] [PubMed]
  21. Suarez-Jimenez, G.M.; Burgos-Hernandez, A.; Ezquerra-Brauer, J.M. Bioactive peptides and depsipeptides with anticancer potential: Sources from marine animals. Mar. Drugs 2012, 10, 963–986. [Google Scholar] [CrossRef] [PubMed]
  22. Gajula, P.K.; Asthana, J.; Panda, D.; Chakraborty, T.K. A synthetic dolastatin 10 analogue suppresses microtubule dynamics, inhibits cell proliferation, and induces apoptotic cell death. J. Med. Chem. 2013, 56, 2235–2245. [Google Scholar] [CrossRef] [PubMed]
  23. Pettit, G.R.; Hogan, F.; Toms, S. Antineoplastic agents. 592. Highly effective cancer cell growth inhibitory structural modifications of dolastatin 10. J. Nat. Prod. 2011, 74, 962–968. [Google Scholar] [CrossRef] [PubMed]
  24. Maderna, A.; Doroski, M.; Subramanyam, C.; Porte, A.; Leverett, C.A.; Vetelino, B.C.; Chen, Z.; Risley, H.; Parris, K.; Pandit, J.; et al. Discovery of cytotoxic dolastatin 10 analogues with N-terminal modifications. J. Med. Chem. 2014, 57, 10527–10543. [Google Scholar] [CrossRef] [PubMed]
  25. Perez, E.A.; Hillman, D.W.; Fishkin, P.A.; Krook, J.E.; Tan, W.W.; Kuriakose, P.A.; Alberts, S.R.; Dakhil, S.R. Phase II trial of dolastatin-10 in patients with advanced breast cancer. Investig. New Drugs 2005, 23, 257–261. [Google Scholar] [CrossRef] [PubMed]
  26. DeVita, M.D.; Evens, A.M.; Rosen, S.T.; Greenberger, P.A.; Petrich, A.M. Multiple successful desensitizations to brentuximab vedotin: A case report and literature review. J. Nat. Compr. Cancer Netw. 2014, 12, 465–471. [Google Scholar]
  27. Moskowitz, C.H.; Nademanee, A.; Masszi, T.; Agura, E.; Holowiecki, J.; Abidi, M.H.; Chen, A.I.; Stiff, P.; Gianni, A.M.; Carella, A.; et al. Brentuximab vedotin as consolidation therapy after autologous stem-cell transplantation in patients with Hodgkin's lymphoma at risk of relapse or progression (AETHERA): A randomised, double-blind, placebo-controlled, phase 3 trial. Lancet 2015, 385, 1853–1862. [Google Scholar] [CrossRef]
  28. Kim, B.; Park, H.; Salvador, L.A.; Serrano, P.E.; Kwan, J.C.; Zeller, S.L.; Chen, Q.Y.; Ryu, S.; Liu, Y.; Byeon, S.; et al. Evaluation of class I HDAC isoform selectivity of largazole analogues. Bioorg. Med. Chem. Lett. 2014, 24, 3728–3731. [Google Scholar] [CrossRef] [PubMed]
  29. Zhou, H.; Jiang, S.; Chen, J.; Ren, X.; Jin, J.; Su, S.B. Largazole, an inhibitor of class I histone deacetylases, attenuates inflammatory corneal neovascularization. Eur. J. Pharmacol. 2014, 740, 619–626. [Google Scholar] [CrossRef] [PubMed]
  30. Ahmed, S.; Riegsecker, S.; Beamer, M.; Rahman, A.; Bellini, J.V.; Bhansali, P.; Tillekeratne, L.M. Largazole, a class I histone deacetylase inhibitor, enhances TNF-alpha-induced ICAM-1 and VCAM-1 expression in rheumatoid arthritis synovial fibroblasts. Toxicol. Appl. Pharmacol. 2013, 270, 87–96. [Google Scholar] [CrossRef] [PubMed]
  31. Bhansali, P.; Hanigan, C.L.; Casero, R.A.; Tillekeratne, L.M. Largazole and analogues with modified metal-binding motifs targeting histone deacetylases: Synthesis and biological evaluation. J. Med. Chem. 2011, 54, 7453–7463. [Google Scholar] [CrossRef] [PubMed]
  32. Bhansali, P.; Hanigan, C.L.; Perera, L.; Casero, R.A., Jr.; Tillekeratne, L.M. Synthesis and biological evaluation of largazole analogues with modified surface recognition cap groups. Eur. J. Med. Chem. 2014, 86, 528–541. [Google Scholar] [CrossRef] [PubMed]
  33. Zhao, Y.; Fang, X.; Wang, Y.; Zhang, J.; Jiang, S.; Liu, Z.; Ma, Z.; Xu, L.; Li, E.; Zhang, K. Comprehensive analysis for histone acetylation of human colon cancer cells treated with a novel HDAC inhibitor. Curr. Pharm. Des. 2014, 20, 1866–1873. [Google Scholar] [CrossRef] [PubMed]
  34. Rickards, R.W.; Rothschild, J.M.; Willis, A.C.; de Chazal, N.M.; Kirk, J.; Kirk, K.; Saliba, K.J.; Smith, G.D. Calothrixins A and B, novel pentacyclic metabolites from calothrix cyanobacteria with potent activity against malaria parasites and human cancer cells. Tetrahedron 1999, 55, 13513–13520. [Google Scholar] [CrossRef]
  35. Choshi, T.; Hibino, S. Progress towards the total synthesis of the bioactive calothrixins A and B. Heterocycles 2009, 77, 85–97. [Google Scholar]
  36. Xu, S.; Nguyen, T.; Pomilio, I.; Vitale, M.C.; Velu, S.E. Total synthesis of calothrixins A and B via oxidative radical reaction of cyclohexenone with aminophenanthridinedione. Tetrahedron 2014, 70, 5928–5933. [Google Scholar] [CrossRef] [PubMed]
  37. Abe, T.; Ikeda, T.; Choshi, T.; Hibino, S.; Hatae, N.; Toyata, E.; Yanada, R.; Ishikura, M. Total synthesis of calothrixins A and B by palladium-catalyzed tandem cyclization/cross-coupling reaction of indolylborate. Eur. J. Org. Chem. 2012, 2012, 5018–5027. [Google Scholar] [CrossRef]
  38. Abe, T.; Ikeda, T.; Yanada, R.; Ishikura, M. Concise total synthesis of calothrixins A and B. Org. Lett. 2011, 13, 3356–3359. [Google Scholar] [CrossRef] [PubMed]
  39. Dethe, D.H.; Murhade, G.M. Diversity-oriented synthesis of calothrixins and ellipticines. Eur. J. Org. Chem. 2014, 2014, 6953–6962. [Google Scholar] [CrossRef]
  40. Ramkumar, N.; Nagarajan, R. Total synthesis of ellipticine quinones, olivacine, and calothrixin B. J. Org. Chem. 2014, 79, 736–741. [Google Scholar] [CrossRef] [PubMed]
  41. Mal, D.; Roy, J.; Biradha, K. Regiodivergent and short total synthesis of calothrixins. Org. Biomol. Chem. 2014, 12, 8196–8203. [Google Scholar] [CrossRef] [PubMed]
  42. Bhosale, S.M.; Gawade, R.L.; Puranik, V.G.; Kusurkar, R.S. An efficient total synthesis of calothrixin B. Tetrahedron Lett. 2012, 53, 2894–2896. [Google Scholar] [CrossRef]
  43. Ramkumar, N.; Nagarajan, R. Total synthesis of calothrixin A and B via C–H activation. J. Org. Chem. 2013, 78, 2802–2807. [Google Scholar] [CrossRef] [PubMed]
  44. Saravanan, V.; Muthu Ramalingam, B.; Mohanakrishnan, A.K. Total synthesis of calothrixin B and its analogs. Eur. J. Org. Chem. 2014, 2014, 1266–1279. [Google Scholar] [CrossRef]
  45. Kaliyaperumal, S.A.; Banerjee, S.; Syam Kumar, U.K. Palladium mediated intramolecular multiple C-X/C-H cross coupling and C–H activation: Synthesis of carbazole alkaloids calothrixin B and murrayaquinone A. Org. Biomol. Chem. 2014, 12, 6105–6113. [Google Scholar] [CrossRef] [PubMed]
  46. Matsumoto, K.; Choshi, T.; Hourai, M.; Zamami, Y.; Sasaki, K.; Abe, T.; Ishikura, M.; Hatae, N.; Iwamura, T.; Tohyama, S.; et al. Synthesis and antimalarial activity of calothrixins A and B, and their N-alkyl derivatives. Bioorg. Med. Chem. Lett. 2012, 22, 4762–4764. [Google Scholar] [CrossRef] [PubMed]
  47. Ramalingam, B.M.; Saravanan, V.; Mohanakrishnan, A.K. Synthesis of calothrixins and its analogs using FeCl3-mediated domino reaction protocol. Org. Lett. 2013, 15, 3726–3729. [Google Scholar] [CrossRef] [PubMed]
  48. Chuang, C.-P.; Tsai, A.I. Oxidative free radical reactions between 2-amino-1,4-benzoquinones and carbonyl compounds. Tetrahedron 2007, 63, 11911–11919. [Google Scholar] [CrossRef]
  49. Chuang, C.-P.; Wu, Y.-L. A novel oxidative free radical reaction between 2-hydroxy-1,4-naphthoquinone and β-enamino carbonyl compounds. Tetrahedron Lett. 2001, 42, 1717–1719. [Google Scholar] [CrossRef]
  50. Tseng, C.-C.; Wu, Y.-L.; Chuang, C.-P. Cerium salts in the oxidative free radical reactions between 2-amino-1,4-naphthoquinones and β-dicarbonyl compounds. Tetrahedron 2002, 58, 7625–7633. [Google Scholar] [CrossRef]
  51. Mal, D.; Senapati, B.K.; Pahari, P. A new synthetic route to indoloquinones: Formal synthesis of ellipticine. Synlett 2005, 6, 994–996. [Google Scholar] [CrossRef]
  52. Doan, N.T.; Rickards, R.W.; Rothschild, J.M.; Smith, G.D. Allelopathic actions of the alkaloid 12-epi-hapalindole e isonitrile and calothrixin a from cyanobacteria of the genera fischerella and calothrix. J. Appl. Phycol. 2000, 12, 409–416. [Google Scholar] [CrossRef]
  53. Doan, N.T.; Stewart, P.R.; Smith, G.D. Inhibition of bacterial RNA polymerase by the cyanobacterial metabolites 12-epi-hapalindole E isonitrile and calothrixin A. FEMS Microbiol. Lett. 2001, 196, 135–139. [Google Scholar] [CrossRef] [PubMed]
  54. Chen, X.X.; Smith, G.D.; Waring, P. Human cancer cell (Jurkat) killing by the cyanobacterial metabolite calothrixin A. J. Appl. Phycol. 2003, 15, 269–277. [Google Scholar] [CrossRef]
  55. Sata, N.; Klonowski-Stumpe, H.; Han, B.; Haussinger, D.; Niederau, C. Menadione induces both necrosis and apoptosis in rat pancreatic acinar AR4-2J cells. Free Radic. Biol. Med. 1997, 23, 844–850. [Google Scholar] [CrossRef]
  56. Bolton, J.L.; Trush, M.A.; Penning, T.M.; Dryhurst, G.; Monks, T.J. Role of quinones in toxicology. Chem. Res. Toxicol. 2000, 13, 135–160. [Google Scholar] [CrossRef] [PubMed]
  57. Bernardo, P.H.; Chai, C.L.; Heath, G.A.; Mahon, P.J.; Smith, G.D.; Waring, P.; Wilkes, B.A. Synthesis, electrochemistry, and bioactivity of the cyanobacterial calothrixins and related quinones. J. Med. Chem. 2004, 47, 4958–4963. [Google Scholar] [CrossRef] [PubMed]
  58. Bernardo, P.H.; Chai, C.L.; Le Guen, M.; Smith, G.D.; Waring, P. Structure-activity delineation of quinones related to the biologically active calothrixin B. Bioorg. Med. Chem. Lett. 2007, 17, 82–85. [Google Scholar] [CrossRef] [PubMed]
  59. Khan, Q.A.; Lu, J.; Hecht, S.M. Calothrixins, a new class of human DNA topoisomerase I poisons. J. Nat. Prod. 2009, 72, 438–442. [Google Scholar] [CrossRef] [PubMed]
  60. Li, T.K.; Liu, L.F. Tumor cell death induced by topoisomerase-targeting drugs. Annu. Rev. Pharmacol. Toxicol. 2001, 41, 53–77. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Xu, S.; Nijampatnam, B.; Dutta, S.; Velu, S.E. Cyanobacterial Metabolite Calothrixins: Recent Advances in Synthesis and Biological Evaluation. Mar. Drugs 2016, 14, 17.

AMA Style

Xu S, Nijampatnam B, Dutta S, Velu SE. Cyanobacterial Metabolite Calothrixins: Recent Advances in Synthesis and Biological Evaluation. Marine Drugs. 2016; 14(1):17.

Chicago/Turabian Style

Xu, Su, Bhavitavya Nijampatnam, Shilpa Dutta, and Sadanandan E. Velu. 2016. "Cyanobacterial Metabolite Calothrixins: Recent Advances in Synthesis and Biological Evaluation" Marine Drugs 14, no. 1: 17.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
