Topical Nitroglycerin for Radial Access Optimization: Supporting Vascular Access in Patients at Risk for Acute Heart Failure
Abstract
1. Introduction
2. Materials and Methods
2.1. Study Design
2.2. Enrollment, Procedure Aspects, and Data Collection
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
TRA | Transradial access |
RAS | Radial artery spasm |
NTG | Nitroglycerine |
BSA | Body surface area |
LV | Left Ventricular |
NYHA | New York Heart Association |
CI | Confidence interval |
SD | Standard deviation |
IQR | Interquartile range |
RAO | Radial artery occlusion |
References
- McDonagh, T.A.; Metra, M.; Adamo, M.; Gardner, R.S.; Baumbach, A.; Böhm, M.; Burri, H.; Butler, J.; Čelutkienė, J.; Chioncel, O.; et al. 2021 ESC Guidelines for the Diagnosis and Treatment of Acute and Chronic Heart Failure. Eur. Heart J. 2021, 42, 3599–3726. [Google Scholar] [CrossRef] [PubMed]
- Jeger, R.V.; Pfister, O.; Radovanovic, D.; Eberli, F.R.; Rickli, H.; Urban, P.; Pedrazzini, G.; Stauffer, J.-C.; Nossen, J.; Erne, P.; et al. Heart Failure in Patients Admitted for Acute Coronary Syndromes: A Report from a Large National Registry. Clin. Cardiol. 2017, 40, 907–913. [Google Scholar] [CrossRef]
- Seko, Y.; Kishimori, T.; Kato, T.; Morimoto, T.; Yaku, H.; Inuzuka, Y.; Tamaki, Y.; Ozasa, N.; Shiba, M.; Yamamoto, E.; et al. Coronary Angiography in Patients with Acute Heart Failure: From the KCHF Registry. ESC Heart Fail. 2022, 9, 531–544. [Google Scholar] [CrossRef]
- Vrints, C.; Andreotti, F.; Koskinas, K.C.; Rossello, X.; Adamo, M.; Ainslie, J.; Banning, A.P.; Budaj, A.; Buechel, R.R.; Chiariello, G.A.; et al. 2024 ESC Guidelines for the Management of Chronic Coronary Syndromes. Eur. Heart J. 2024, 45, 3415–3537. [Google Scholar] [CrossRef] [PubMed]
- Bajraktari, G.; Rexhaj, Z.; Elezi, S.; Zhubi-Bakija, F.; Bajraktari, A.; Bytyçi, I.; Batalli, A.; Henein, M.Y. Radial Access for Coronary Angiography Carries Fewer Complications Compared with Femoral Access: A Meta-Analysis of Randomized Controlled Trials. J. Clin. Med. 2021, 10, 2163. [Google Scholar] [CrossRef]
- Crişan, S.; Petriş, A.O.; Petrescu, L.; Luca, C.T. Current Perspectives in Facilitated Angioplasty. Am. J. Ther. 2019, 26, e208–e212. [Google Scholar] [CrossRef]
- He, G.-W.; Yang, C.-Q. Characteristics of Adrenoceptors in the Human Radial Artery: Clinical Implications. J. Thorac. Cardiovasc. Surg. 1998, 115, 1136–1141. [Google Scholar] [CrossRef]
- Coghill, E.M.; Johnson, T.; Morris, R.E.; Megson, I.L.; Leslie, S.J. Radial Artery Access Site Complications during Cardiac Procedures, Clinical Implications and Potential Solutions: The Role of Nitric Oxide. World J. Cardiol. 2020, 12, 26–34. [Google Scholar] [CrossRef] [PubMed]
- Roczniak, J.; Tarnawski, A.; Dziewierz, A.; Glanowski, S.; Pawlik, A.; Sabatowski, K.; Januszek, R.; Rzeszutko, Ł.; Surdacki, A.; Bartuś, S.; et al. Radial Artery Spasms—Angiographic Morphology, Riskfactors and Management. Adv. Interv. Cardiol. 2024, 20, 53–61. [Google Scholar] [CrossRef]
- Roy, S.; Kabach, M.; Patel, D.B.; Guzman, L.A.; Jovin, I.S. Radial Artery Access Complications: Prevention, Diagnosis and Management. Cardiovasc. Revascularization Med. 2022, 40, 163–171. [Google Scholar] [CrossRef]
- Chen, C.-W.; Lin, C.-L.; Lin, T.-K.; Lin, C.-D. A Simple and Effective Regimen for Prevention of Radial Artery Spasm during Coronary Catheterization. Cardiology 2006, 105, 43–47. [Google Scholar] [CrossRef]
- Kiemeneij, F.; Vajifdar, B.U.; Eccleshall, S.C.; Laarman, G.; Slagboom, T.; Wieken, R.V.D. Evaluation of a Spasmolytic Cocktail to Prevent Radial Artery Spasm during Coronary Procedures. Cathet Cardio Interv. 2003, 58, 281–284. [Google Scholar] [CrossRef] [PubMed]
- Ghosh, A.; Sherpa, M.; Bhutia, Y.; Pal, R.; Dahal, S. Serum Nitric Oxide Status in Patients with Type 2 Diabetes Mellitus in Sikkim. Int. J. Appl. Basic. Med. Res. 2011, 1, 31. [Google Scholar] [CrossRef] [PubMed]
- Gopalakrishnan, P.P.; David, M.; Manoharan, P.; Rufus Ponniah, S.; Duffy, B. Topical Nitroglycerine Reduces Radial Access Site Failure and Femoral Crossover—Topical Nitroglycerine to Prevent Radial Artery Spasm (TNTRASP) Study. Circulation 2020, 142, A16146. [Google Scholar] [CrossRef]
- Hahad, O.; Kuntic, M.; Kuntic, I.; Daiber, A.; Münzel, T. Tobacco Smoking and Vascular Biology and Function: Evidence from Human Studies. Pflug. Arch. 2023, 475, 797–805. [Google Scholar] [CrossRef] [PubMed]
- Valgimigli, M.; Frigoli, E.; Leonardi, S.; Vranckx, P.; Rothenbühler, M.; Tebaldi, M.; Varbella, F.; Calabrò, P.; Garducci, S.; Rubartelli, P.; et al. Radial versus Femoral Access and Bivalirudin versus Unfractionated Heparin in Invasively Managed Patients with Acute Coronary Syndrome (MATRIX): Final 1-Year Results of a Multicentre, Randomised Controlled Trial. Lancet 2018, 392, 835–848. [Google Scholar] [CrossRef]
- Avdikos, G.; Karatasakis, A.; Tsoumeleas, A.; Lazaris, E.; Ziakas, A.; Koutouzis, M. Radial Artery Occlusion after Transradial Coronary Catheterization. Cardiovasc. Diagn. Ther. 2017, 7, 305–316. [Google Scholar] [CrossRef]
- Majure, D.T.; Hallaux, M.; Yeghiazarians, Y.; Boyle, A.J. Topical Nitroglycerin and Lidocaine Locally Vasodilate the Radial Artery without Affecting Systemic Blood Pressure: A Dose-Finding Phase I Study. J. Crit. Care 2012, 27, e9–e532. [Google Scholar] [CrossRef]
- Beyer, A.T.; Ng, R.; Singh, A.; Zimmet, J.; Shunk, K.; Yeghiazarians, Y.; Ports, T.A.; Boyle, A.J. Topical Nitroglycerin and Lidocaine to Dilate the Radial Artery Prior to Transradial Cardiac Catheterization: A Randomized, Placebo-Controlled, Double-Blind Clinical Trial. Int. J. Cardiol. 2013, 168, 2575–2578. [Google Scholar] [CrossRef]
- MikailiMirak, S.; Talasaz, A.H.; Jenab, Y.; Vatanara, A.; Amini, M.; Jalali, A.; Gheymati, A. Novel Combined Topical Gel of Lidocaine–Verapamil–Nitroglycerin Can Dilate the Radial Artery and Reduce Radial Pain during Trans-Radial Angioplasty. IJC Heart Vasc. 2021, 32, 100689. [Google Scholar] [CrossRef]
- Da Silva, R.L.; De Andrade, P.B.; Dangas, G.; Joaquim, R.M.; Da Silva, T.R.W.; Vieira, R.G.; Pereira, V.C.; Sousa, A.G.M.; Feres, F.; Costa, J.R. Randomized Clinical Trial on Prevention of Radial Occlusion After Transradial Access Using Nitroglycerin. JACC Cardiovasc. Interv. 2022, 15, 1009–1018. [Google Scholar] [CrossRef] [PubMed]
- Curtis, E.; Fernandez, R.; Lee, A. The Effect of Topical Medications on Radial Artery Spasm in Patients Undergoing Transradial Coronary Procedures: A Systematic Review. JBI Database Syst. Rev. Implement. Rep. 2018, 16, 738–751. [Google Scholar] [CrossRef] [PubMed]
All Patients N = 100 | Median | Median CI | Median SD | Minimum | Maximum |
---|---|---|---|---|---|
Height (centimeters) | 168.27 | 166.37 to 170.16 | 9.57 | 150 | 190 |
Procedure duration (minutes) | 26.43 | 22.57 to 30.30 | 19.27 | 3 | 133 |
Contrast used during procedure (milliliters) | 147.90 | 126.26 to 169.55 | 107.96 | 50 | 650 |
Pain score (based on Visual Analog Scale) | 3 | 3.0 to 4.0 | 2.27 | 0 | 9 |
Hospital stay duration (days) | 3.38 | 2.90 to 3.85 | 2.39 | 1 | 19 |
All patients N = 100 | Mean | Mean CI | Mean SD | Minimum | Maximum |
Age (years) | 62 | 60 to 67 | 11.23 | 32.00 | 88.00 |
Body mass index (kilograms/meters squared) | 28.07 | 27.56 to 29.30 | 4.77 | 16.89 | 40.62 |
Height (centimeters) | 170 | 166 to 170 | 9.57 | 150 | 190 |
Weight (kg) LV Ejection fraction (%) NYHA class | 80 45 2 | 77.44 to 83.27 40 to 50 2.0 to 2.0 | 14.94 11.15 0.67 | 46 15 1 | 118 65 4 |
Mean blood pressure (mmHg) | 115 | 110 to 120 | 17.75 | 65 | 165 |
Radial artery diameter indexed to body surface area (millimeters/meters squared) | 1.25 | 1.17 to 1.28 | 0.27 | 0.75 | 2.30 |
All Patients N = 100 | N = 100 (%) |
---|---|
Sex | male = 71/100 (71%) |
Presentation | Acute = 44/100 (44%) |
Diabetes mellitus | 32/100 (32%) |
Dyslipidemia | 95/100 (95%) |
Smoking | 36/100 (36%) |
Hypertension | 80/100 (80%) |
Previous radial intervention | 17/100 (17%) |
Radial artery pulse grade | 1/100—absent (1%) 34/100—weak (34%) 48/100—good (48%) 17/100—very good (17%) |
Radial artery puncture success and tries | 4/100—unsuccessful (4%) 83/100—first try (83%) 13/100—2 or more tries (13%) |
Crossover from radial to brachial/femoral access due to failed puncture | 4/100 (4%) |
Radial artery spasm | 63/100 (63%) |
Localized or diffuse spasm | Localized = 20/63 (31.7%) Diffuse = 43/63 (69.3%) |
Radial artery patency at discharge | 95/100 (95%) |
Hematoma at puncture site | 19/100 (19%) |
All Patients N = 100 | Cohort 1: NTG N = 47 Median | Cohort 1 Median CI | Cohort 1 IQR | Cohort 2: Placebo N = 53 Median | Cohort 2 Median CI | Cohort 2 IQR | p | CI |
---|---|---|---|---|---|---|---|---|
Height (centimeters) | 170 | 166.63 to 173.68 | 165 to 175 | 168 | 163.00 to 170.00 | 160.75 to 175.00 | p = 0.1168 | −6.0000 to 0.0000 |
Procedure duration (minutes) | 29 | 15.00 to 32.00 | 11.00 to 40.00 | 20 | 15.00 to 26.96 | 11.00 to 30.75 | p = 0.3276 | −10.0000 to 2.0000 |
Contrast used during procedure (milliliters) | 150 | 50 to 200 | 50 to 200 | 100 | 71 to 150 | 50 to 200 | p = 0.8069 | −50.0000 to 20.0000 |
Pain score (based on Visual Analog Scale) | 4 | 3 to 5 | 2 to 6 | 3 | 3 to 4 | 2 to 5.5 | p = 0.6489 | −1.0000 to 1.0000 |
Hospital stay duration (days) | 3 | 2.31 to 3.68 | 2 to 5 | 3 | 2.89 to 3.00 | 2 to 4 | p = 0.6136 | −1.0000 to 0.0000 |
All patients N = 100 | Cohort 1: NTG N = 47 Mean | Cohort 1 Mean CI | Cohort 1 Mean SD | Cohort 2: Placebo N = 53 Mean | Cohort 2 Mean CI | Cohort 2 Mean SD | p | CI |
Age (years) | 61.08 | 57.60 to 64.56 | 11.86 | 64.52 | 61.63 to 67.42 | 10.49 | p = 0.1267 | −1.02 to 7.91 |
Body mass index (kilograms/meters squared) | 28.56 | 27.33 to 29.80 | 4.20 | 28.94 | 27.48 to 30.39 | 5.2709 | p = 0.6992 | −1.5099 to 2.2552 |
Weight (kg) | 83.04 | 78.879 to 87.20 | 14.17 | 80.90 | 76.587 to 85.22 | 15.66 | p = 0.4757 | −8.0596 to 3.7859 |
LV Ejection fraction (%) | 45.38 | 42.41 to 48.35 | 10.11 | 43.53 | 40.22 to 46.84 | 12.02 | p = 0.409 | −2.54 to 6.25 |
NYHA class | 1.94 | 1.77 to 2.10 | 0.57 | 2.06 | 1.85 to 2.26 | 0.74 | p = 0.551 | −2.0 to 1.0 |
Mean blood pressure (mmHg) | 114.04 | 109.298 to 118.78 | 16.15 | 114.52 | 109.23 to 119.82 | 19.20 | p = 0.8922 | −6.6082 to 7.5797 |
Radial artery diameter (millimeters) | 2.44 | 2.30 to 2.57 | 0.44 | 2.46 | 2.31 to 2.62 | 0.53 | p = 0.7818 | −0.1718 to 0.2276 |
Radial artery diameter indexed to body surface area (millimeters/meters squared) | 1.24 | 1.17 to 1.31 | 0.23 | 1.30 | 1.21 to 1.39 | 0.31 | p = 0.352 | –0.85 to 0.68 |
All Patients N = 100 | Cohort 1: NTG N = 47 | Cohort 2: Placebo N = 53 | p |
---|---|---|---|
Sex | 11/47 (23.4%) female 36/47 (76.6%) male | 18/53 (34%) female 35/53 (66.0%) male | p = 0.2479 |
Acute/chronic presentation | 23/47 (48.9%) | 21/53 (60.4%) | p = 0.3515 |
Diabetes mellitus | 11 out of 47 (25.5%) | 21 out of 53 (39.6%) | p = 0.0842 |
Dyslipidemia | 45/47 (95.7%) | 50/53 (94.3%) | p = 0.7489 |
Smoking | 32/47 no (68.1%) 15/47 yes (31.9%) | 32/53 no (60.4%) 21/53 yes (39.6%) | p = 0.4229 |
Hypertension | 35/47 (74.5%) | 44/53 (83%) | p = 0.2972 |
Previous radial intervention | 11/47 (23.4%) | 6/53 (11.3%) | p = 0.1102 |
Radial artery pulse grade | 0 absent 12 weak (25.5%) 27 good (57.4%) 8 very good (17%) | 1 absent (1.9%) 22 weak (41.5%) 21 good (39.6%) 9 very good (17%) | p = 0.2208 |

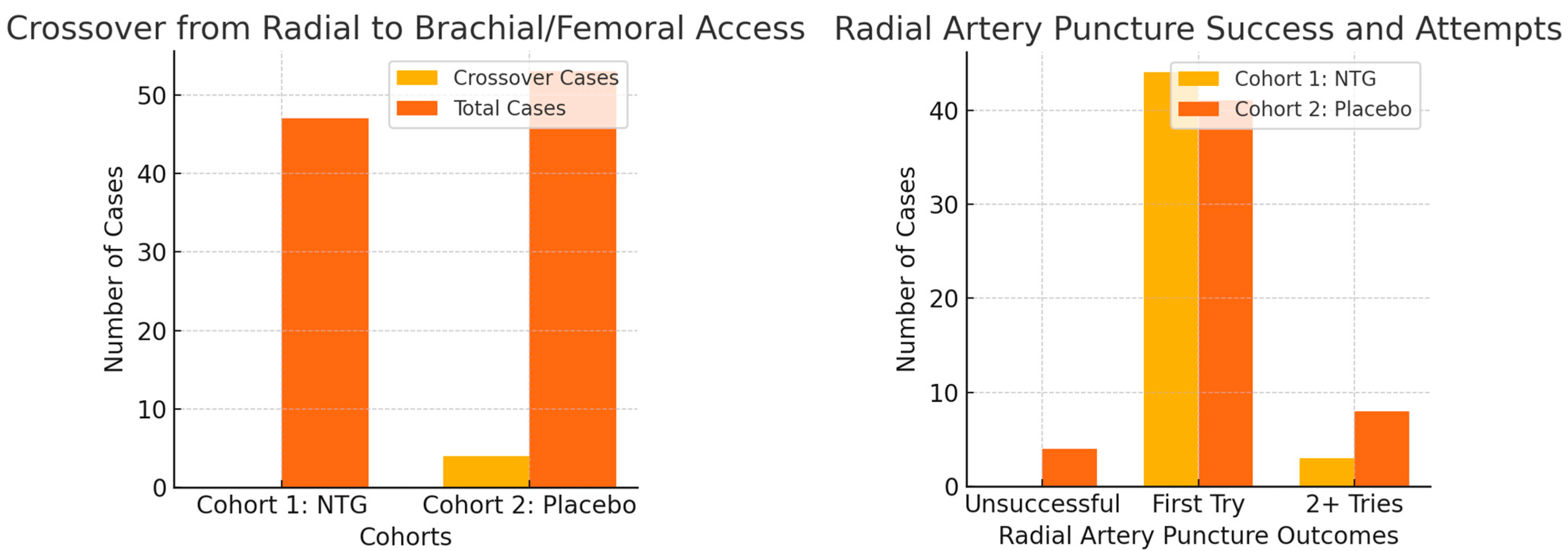

Radial artery puncture success and tries | 0/47 unsuccessful 44/47 (89.4%) first try 3/47 (10.6%) 2 or more tries | 4/53 (7.5%) unsuccessful 41/53 (77.4%) first try 8/53 (15.1%) 2 or more tries | p = 0.0488 |
Crossover from radial to brachial/femoral access | 0/47 (0%) | 4/53 (7.5%) | p = 0.0546 |

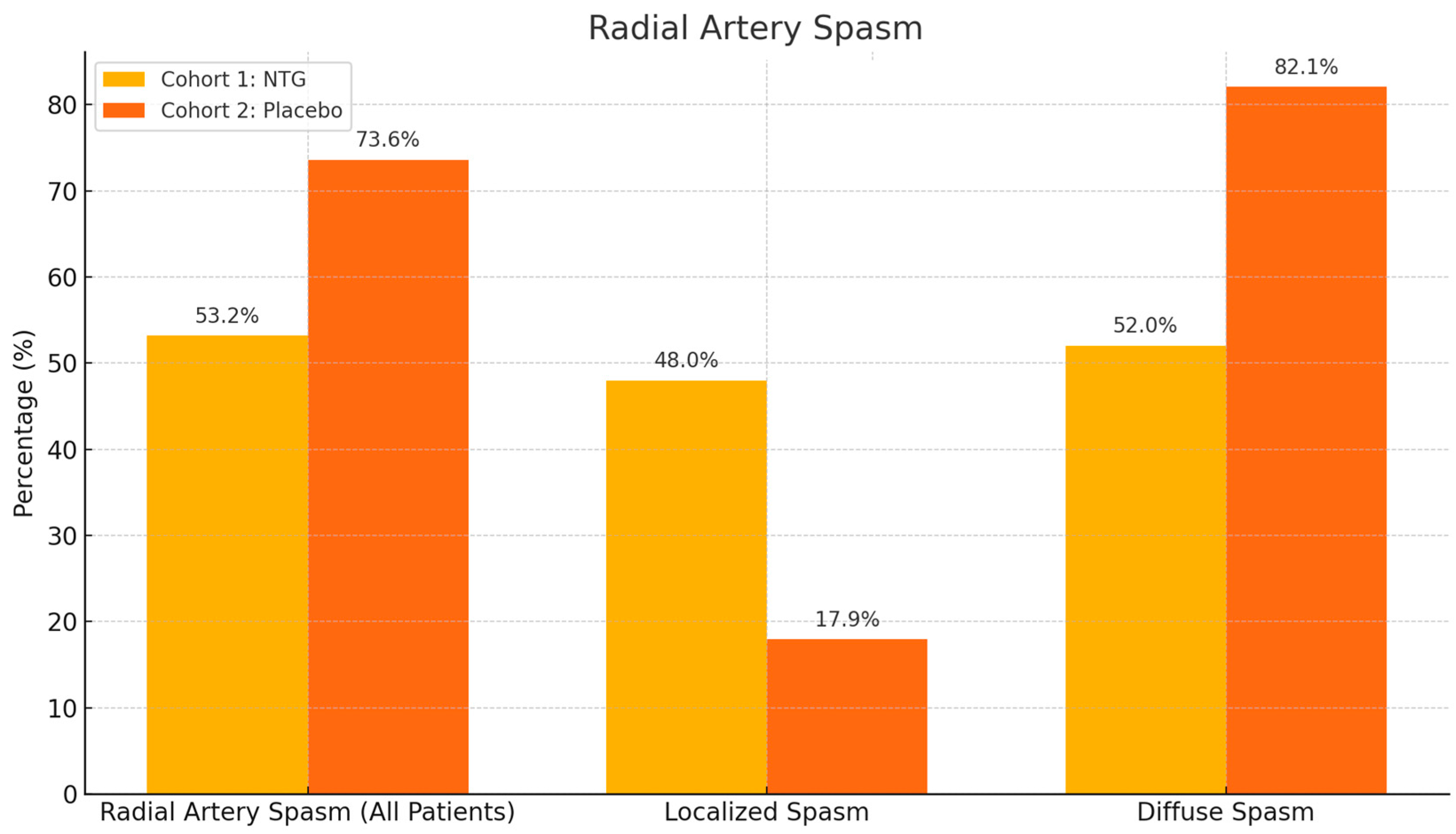

Radial artery spasm | 25/47 (53.2%) | 39/53 (73.6%) | p = 0.0349 |
Localized or diffuse spasm | 12/25 localized (48.0%) 13/25 diffuse (52.0%) | 7/39 (17.9%) localized 32/39 diffuse (82.1%) | p = 0.0109 |
Radial artery patency at discharge | 46/47 (97.9%) | 48/53 (90.6%) | p = 0.1266 |
Hematoma at puncture site | 9/47 (19.1%) | 10/53 (18.9%) | p = 0.9716 |

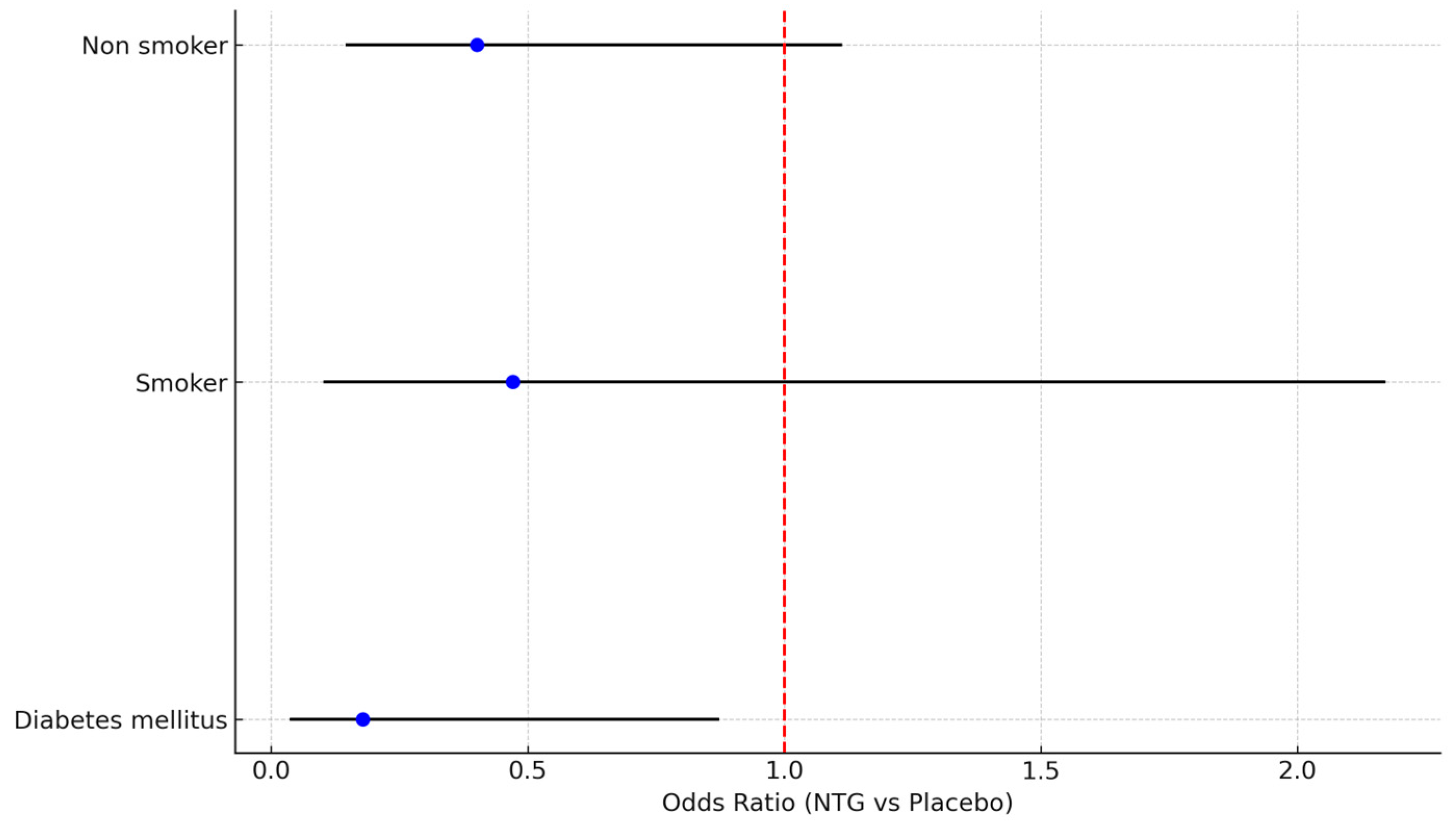

Cohort 1 NTG with Diabetes Mellitus N = 11 | Cohort 2 Placebo with Diabetes Mellitus N = 21 | p | |
---|---|---|---|
Radial artery spasm | 4/11 (36.4%) | 16/21 (76.2%) | p = 0.0296 |
Cohort 1 NTG smoker N = 15 | Cohort 2 Placebo smoker N = 21 | ||
Radial artery spasm | 10/15 (66.6%) | 17/21 (80.9%) | p = 0.5580 |
Cohort 1 NTG Non smoker N = 32 | Cohort 2 Placebo Non smoker N = 32 | ||
Radial artery spasm | 15/32 (46.8%) | 22/32 (68.7%) | p = 0.1290 |
