Nuclear Cross-Section of Proton-Induced Reactions on Enriched 48Ti Targets for the Production of Theranostic 47Sc Radionuclide, 46cSc, 44mSc, 44gSc, 43Sc, and 48V

by
Liliana Mou
1,
Lucia De Dominicis
1,2,*,
Sara Cisternino
1,
Hanna Skliarova
3,
Matteo Campostrini
1,
Valentino Rigato
1,
Laura De Nardo
2,3,
Laura Meléndez-Alafort
4,
Juan Esposito
1,
Férid Haddad
5,6 and
Gaia Pupillo
1,*
1
Laboratori Nazionali di Legnaro (INFN-LNL), Istituto Nazionale di Fisica Nucleare, Viale dell’Università 2, Legnaro, 35020 Padova, Italy
2
Dipartimento di Fisica e Astronomia Galileo Galilei, Università degli Studi di Padova, Via F. Marzolo 8, 35131 Padova, Italy
3
INFN, Sezione di Padova (INFN-PD), Via F. Marzolo 8, 35131 Padova, Italy
4
Istituto Oncologico Veneto IOV-IRCCS, Via Gattamelata 64, 35138 Padova, Italy
5
GIP ARRONAX, 1 Rue Aronnax, 44817 Saint Herblain, France
6
Laboratoire Subatech, IN2P3-CNRS, IMT Atlantique, Nantes Université, 4 Rue Alfred Kastler, 44307 Nantes, France
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2024, 17(1), 26; https://doi.org/10.3390/ph17010026
Submission received: 10 November 2023 / Revised: 12 December 2023 / Accepted: 21 December 2023 / Published: 23 December 2023
(This article belongs to the Special Issue New Trends in Applications and Production of Metal Radionuclides for Nuclear Medicine)
Browse Figures
Versions Notes

Abstract

:
The cross-sections of the 48Ti(p,x)47Sc, 46cSc, 44mSc, 44gSc, 43Sc, and 48V nuclear reactions were measured from 18 to 70 MeV, with particular attention to 47Sc production. Enriched 48Ti powder was deposited on an aluminum backing and the obtained targets were characterized via elastic backscattering spectroscopy at the INFN-LNL. Targets were exposed to low-intensity proton irradiation using the stacked-foils technique at the ARRONAX facility. Activated samples were measured using γ-spectrometry; the results were compared with the data int he literature and the theoretical TALYS-based values. A regular trend in the new values obtained from the different irradiation runs was noted, as well as a good agreement with the literature data, for all the radionuclides of interest: 47Sc, 46cSc, 44mSc, 44gSc, 43Sc, and 48V. 47Sc production was also discussed, considering yield and radionuclidic purity, for different 47Sc production scenarios.

1. Introduction

This work was carried out in the framework of the Production with Accelerator of Sc-47 for Theranostic Applications (PASTA) [1] and Research on Emerging Medical Radionuclides from the X-sections (REMIX) [2] projects, funded by INFN in 2017/2018 and 2021/2023, respectively. With the 70 MeV proton cyclotron installed at the INFN-LNL, the research activities carried out within Laboratory of Radionuclides for Medicine (LARAMED) are focused on the production of emerging radionuclides with proton beams [2]. Among the radionuclides of major interest for our team is 47Sc, a theranostic radionuclide that presents suitable decay characteristics for SPECT imaging and β− therapy (Table 1), which can be also paired with the β+ emitter counterparts 43Sc and 44Sc for PET applications [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. The lack of 47Sc production is limiting its use in preclinical and clinical trials; for this reason, the 47Sc proton-based production routes have been investigated within the PASTA and REMIX projects [1,2]. First, natV targets have been considered [21,22], then the nuclear reactions induced on isotopically enriched 48Ti, 49Ti, and 50Ti targets (natural abundances of 73.72%, 5.41%, and 5.18%, respectively [23]) were studied. This paper presents the new data obtained for the 48Ti(p,x)47Sc, 46cSc, 44mSc, 44gSc, 43Sc, and 48V cross-sections, which we compared with the literature data available on the EXFOR database [24,25,26] and the TALYS estimations [27,28,29]. The results include the 46cSc cumulative cross-section, due to the production of 46gSc with a half-life of 83.79 d, and 46mSc, which has a half-life of 18.75 s and decays to 46gSc. Table 1 reports the main decay characteristics of the radionuclides studied in this work, as extracted from the NuDat 3.0 database [23].
The literature on proton-induced reactions with Ti-enriched targets is scarce; Gadioli et al. [30] and Levkovski [31] published data, respectively, in 1981 and 1991, using enriched 48TiO2 samples. Mausner et al. (1998) measured the relative cross-sections of 46cSc, 44mSc, 48Sc normalized to 47Sc, in the energy range 48–150 MeV using enriched 48TiO2 targets (99.81%); however, it is not possible to extract these absolute cross-section values [32]. Some experimental data are also available for the 48Ti(p,n)48V cross-section by rescaling the low energy (p,n) values obtained with natTi targets for the case of fully enriched material [24].
Enriched metallic 48Ti powder was used in this work and deposited with the high energy vibrational powder plating (HIVIPP) technique [33,34], developed within the E_PLATE project (INFN in 2018/2019), on a substrate [35,36]. A complete characterization of the 48Ti-enriched targets was performed with the elastic backscattering (EBS) method using the proton beam available at the AN2000 accelerator at INFN-LNL. The EBS technique allowed the measurement of the amount of 48Ti deposited (µg/cm2) and its homogeneity. The nuclear cross-section measurements were performed at the ARRONAX facility [37], exploiting the available proton beam with tunable energy ranging from 35 to 70 MeV.

2. Discussion and Results

The nondestructive EBS technique was used to quantify the composition, the Ti deposited amount in µg/cm2, and the lateral homogeneity of the manufactured 48Ti-enriched targets. The spectra acquired on the same target at three different points can overlap; the corresponding values of the Ti amount are thus similar, and the uniformity of the depositions along the diameter is therefore confirmed by the EBS analysis. The final value of the thickness in µg/cm2 used for the nuclear cross-section calculations is the mean of the values measured at the three points. The mean value and the standard deviation for each sample are reported in Table 2. The targets prepared using the HIVIPP technique presented no modification after irradiation; the 48Ti deposit remained adherent to the Al substrate.
The maximum value of the beam energy uncertainty, calculated with SRIM2003 code [38], was 875 keV. The major contribution to the cross-section uncertainty was always the monitor cross-section (max. 5%) [39,40]. The monitor reaction values used in the data analysis are reported in Table 3. The new experimental cross-section values, referring to a 100% enriched 48Ti target, are reported in Table 4 and are plotted in Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5. A comparison with the literature data and the TALYS results (represented with a dashed line) is also given [29]. TALYS simulations were performed using default parameters; additional information on the reaction, level density, and optical models used by the TALYS code can be found in [27,28,41]. The results show a regular trend for all six radionuclides, 47Sc, 46Sc, 44gSc, 44mSc, 43Sc, and 48V.
The data by Levkovski were corrected by a factor of 0.8 due to the monitor values used in 1991 [42]; for this reason, the data presented in the plots (Figure 1, Figure 3, Figure 4, and Figure 6) have a star in the legend to indicate the applied rescaling factor. There is a general good agreement of our new results with the literature data, even though our experimental values are about 20% lower than the data measured by Gadioli et al. (1981) in the energy range between 32 and 50 MeV [30].
A possible explanation could be the targets (e.g., enrichment level, composition, and target manufacturing) or on the monitor reactions and decay data used. The enrichment level of the target material was 99.1% for Gadioli et al., and that for Levkovski ranged from 95% to 98%. Gadioli et al. mixed 48TiO2 powder with natCuO (in a 2:1 ratio) to monitor the beam intensity with 63Cu(p,n)63Zn and 65Cu(p,x)64Cu reactions, respectively, up to 20 MeV and for the 25–85 MeV energy range. Nowadays, the IAEA recommends monitoring the natCu(p,x)63Zn reaction up to 100 MeV [39,40]; thus, it is possible to rescale the IAEA data for the low-energy region, up to the 63Cu(p,n)63Zn channel (EP < 22 MeV), and to compare the actual monitor values with the ones reported by Gadioli et al. 40 years ago. Up to 20 MeV, there is a very good agreement on the monitor reaction values, since the discrepancy is lower than 5%. However, the IAEA does not recommend the 65Cu(p,x)64Cu or the natCu(p,x)64Cu reactions. It is worth noting that the literature data were obtained considering old values for the decay characteristics for the radionuclides of interest (discrepancies of up to 5%); however, it is not possible to correct these cross-section data considering the present values reported in Table 1 or to predict if the eventual correction would lead to an increase or decrease of the published values in 1981 and 1991.
Figure 2 presents the 48Ti(p,x)46cSc cross-section measured up to 70 MeV, which is compared with the data of Gadioli et al. [30] and TALYS results. There is a general very good agreement on the description of the 48Ti(p,x)46cSc nuclear reaction in the entire energy range investigated.
Figure 3 reports the 48Ti(p,x)44gSc cross-section: there is a perfect agreement with the results obtained by Levkovski up to 30 MeV [31]; at higher energies, the new data are about 30% lower than the values measured by Gadioli et al. [30]. In general, our new values seem to be in agreement with the trend described by the TALYS estimations, which however present a slight energy shift toward lower energies, especially for EP > 50 MeV.
The 48Ti(p,x)44mSc cross-section is plotted in Figure 4: there is a general agreement with the results obtained by Levkovski [31], while the TALYS results seem to underestimate the peak at around 30 MeV by a factor of two, but the general trend in this nuclear reaction is properly described.
Figure 5 reports the 48Ti(p,x)43Sc excitation function: a good agreement with the results obtained by Gadioli et al. [30] can be noted. In this case, the TALYS results present a visible energy shift and a general overestimation of the cross-section.
Figure 6 reports the 48Ti(p,x)48V cross-section up to 90 MeV (A) and in the energy range investigated in this work, i.e., 20–70 MeV (B). There are several experimental data available on the EXFOR database [24,25], and our new values are in very good agreement both with the estimations in the literature and those of TALYS, which properly describe the reaction even if an overestimation of the peak value at ca. 13 MeV can be noted.

3. Discussion on 47Sc Production

The new cross-section data provided in this paper can be compared with the proton-based production route investigated with natV targets [1,21,22], especially in the energy region below 45 MeV, where the 47Sc cross-sections present a peak value, as shown in Figure 7. It can be noted that the 47Sc excitation function for 48Ti targets is larger than the one induced with natV targets. As previously reported, in the energy range up to 30 MeV, the 47Sc yield with natV targets is calculated as 41.5 MBq/μA and 111 MBq/μA for 24 h and 80 h irradiation runs, respectively [1]; on the other hand, considering enriched 48Ti targets, the 47Sc yield for EP < 30 MeV is ca. 200 MBq/μA and 530 MBq/μA for 24 h and 80 h, respectively. From these calculations, performed using the ISOTOPIA tool [43] made available by the IAEA, it can be inferred that 47Sc production is about five times larger when using 48Ti targets instead of natV.
Particular attention has to be paid to the coproduction of Sc contaminants, i.e., 46Sc, 44mSc, 44gSc, and 43Sc, whose contribution in the final 47Sc-labeled radiopharmaceutical has to be carefully assessed for each energy range considered. Table 5 reports the Sc radionuclide activities produced in different scenarios considering proton beams and enriched 48Ti targets; in the calculation, all the experimental data available from the EXFOR database and the new ones measured in this work were considered to fit the nuclear cross-sections. Radionuclidic impurities can have undesirable effects on the patient’s overall radiation dose, as well as on the image quality, so the European Pharmacopoeia established limits of radionuclides impurities for each radiopharmaceutical in the individual monographs to guarantee safe clinical application [44]. In general, this limit is set to lower than 1%, but if very-high-purity products are technically achievable, it can be drastically reduced, up to 0.1% [45].
Figure 8 shows the radionuclidic purity (RNP) of 47Sc considering 48Ti targets and different scenarios for 24 h (A) and 80 h (B) irradiation, respectively. For all the cases, the RNP initially rapidly increases due to the decay of the short-half-time 43Sc and 44gSc impurities. After about 30 h, the rise in the RNP occurs more slowly due to the decay of 44mSc.
For irradiations performed at energies equal or larger than 35 MeV, the RNP reaches a maximum (of the order of 50 and 55%, for E < 40 MeV and E < 35 MeV, respectively) and then it decreases due to the contribution of the long-half-life 46Sc impurity. For lower-beam-energy irradiations (i.e., EP < 30 MeV), the RNP instead continuously increases since, in these scenarios, 46Sc is not produced. The limit of 47Sc RNP = 99% can be reached about 1500 h after the EOB, corresponding to almost 20 times the half-time of 47Sc. It can be concluded that the use of 48Ti targets provides, at the EOB, a larger 47Sc yield than natV targets but with a much lower RNP [22].

4. Materials and Methods

4.1. Enriched 48Ti Targets

Thin deposits of enriched 48Ti metallic powder (99.32%, purchased from Trace Sciences International Inc., Wilmington, DE, USA) onto a natural high-purity Al foil (99%, 25 µm thick, Goodfellow Cambridge Ltd., Huntingdon, UK) were obtained using the HIVIPP technique [35,36]. Briefly, the deposition process was based on the application of an electrostatic field of 15 kV/cm between two Al substrates, used as electrodes, to start the superficial charging and the motion of the powder closed inside a quartz cylinder. The process took place in a vacuum of about 1∙10−7 mbar and lasted about 30 h. Figure 9A shows the experimental set up of HIVIPP deposition used in this study. The 48Ti deposit had a diameter of 14 mm, which was cut then with punches (diameter of 12 mm) to fit the target holder used for the irradiation runs. A typical target foil is shown in Figure 9B. The peculiarities of this technique are the possibility of (i) realizing two substrates simultaneously, for which the target areal thickness of 0.2–2 mg/cm2 was achieved, and (ii) recovering undeposited enriched 48Ti powder, limiting the losses of this expensive material. More details about the technique and HIVIPP deposit characteristics are described in Refs. [35,36]. The EBS analysis on 48Ti targets was performed at the AN2000 Van the Graaff accelerator using a collimated 1800 keV proton beam with an approximate size of 1 mm2. The backscattering angle (θout) and the incidence angle with respect to sample normal (θo) were θout = 160° and θo = 0°. The measurements were made using a standard charged particle spectroscopy system consisting of a Si detector and NIM electronics.
The total energy resolution of the spectrometer was 13 keV. To ascertain coating uniformity, EBS measurements were performed for at least three positions on each sample along the sample’s diameter. The aluminum backings were also characterized using proton induced X-ray emission (PIXE) analysis to determine the presence of impurities. It turned out that 0.4 at% (±0.1) Fe was present in the Al substrates. The EBS experimental spectra were simulated using SimNRA 7.03 software [46]. The individual elements’ stopping powers were deduced from SRIM2003 code [38], and Bragg’s rule was used for the compounds. The non-Rutherford oxygen and aluminum backscattering cross-sections were deduced from the IAEA Ion Beam Analysis Nuclear Data Library database [47]. All other heavier relevant elements were assumed to have Rutherford cross-sections. The simulations took into account the significant coating roughness, which determined a long tail of the 48Ti signal toward the low-energy region of the spectra [48], as shown in Figure 10.
Simulation parameters were chosen to allow spectral fitting of the elements characterized by elastic scattering cross-section with a fine structure [49]. In all the analyzed samples titanium resulted oxidized. The determination of the 48Ti content was estimated by considering the Ti EBS simulated spectrum made of two contributions: the high energy part (characterized by low measurement error) and the Ti spectrum region tailing into the lighter elements, to which a higher uncertainty must be attributed due to the errors of the stopping powers and of the non-Rutherford cross sections. The results of the simulations are reported in Table 2.

4.2. Irradiation Runs, γ-Spectrometry, and Data Analysis

Fifteen 48Ti targets, assembled with the well-known stacked-foils technique, were irradiated in eight irradiation runs at the ARRONAX facility [37] to cover the energy range of 18–70 MeV. The irradiation runs had a duration of 50–90 min, with a current of about 100–130 nA, monitored during the bombardment using an instrumented beam dump. The beam line was under vacuum, closed with a 75 µm thick Kapton foil; the stacks were located about 10–15 cm downstream in air; this distance was precisely measured for each irradiation run.
Close to each 48Ti target, a natNi monitor foil was inserted (10 or 25 μm thick) in order to measure the effective beam flux by considering the reference reaction recommended by the International Atomic Energy Agency (IAEA) [39,40] for 57Ni production (half-life 35.60 h, Eγ = 1377.63 keV, Iγ = 81.7%). To catch the eventual 57Ni recoil atoms, a thin aluminum foil (10 μm thick) was inserted after the natNi monitor foil. To decrease the beam energy, some thicker Al foils (500 μm thick) were used in the stacked structure, as shown in Figure 11. All the materials used in the stacks were high-purity foils (≥99%, Goodfellow Cambridge Ltd., Huntingdon, UK).
The proton beam energy in each layer of the stacked target was calculated using SRIM2013 code [50], considering the extracted proton beam energy from the cyclotron, and the energy losses in the Kapton foil, in the air and in each foil of the stacked targets. The uncertainty on the proton beam energy was obtained by considering the uncertainty of the energy extracted from the cyclotron (±500 keV) and calculating the energy straggling through each layer of the stacked target using SRIM.
Given that the 48Ti powder was deposited on an Al substrate, the stacked-foil structure was always assembled in order to have the proton beam impinging on the 48Ti powder first; in this way, recoil atoms were trapped by the Al support.
As soon as possible after the end of bombardment (EOB), a first γ-spectrometry measurement of the irradiated 48Ti sample was carried out to estimate the activity of short-living radionuclides: this acquisition was typically 15 min long, and it was performed about 2–4 h after the EOB. Each 48Ti sample was also measured overnight to check for lower-activity products with a longer acquisition time (about 8–14 h). To follow the decay of the radionuclides of interest and to check for eventual γ-interferences, the γ-spectrometry measurements were repeated for all 48Ti targets each day up to 5 days after the EOB (these acquisitions were typically 1.5–3 h long). All samples were measured with the same high-purity germanium (HPGe) detector (10% relative efficiency, FWHM 1.0 keV at 122 keV, Canberra GC1020), previously calibrated with a 152Eu and an 241Am point-like solid sources (purchased to Cerca-Lea, Tricastin, France). All 48Ti samples were measured with the 48Ti deposit in the direction of the HPGe detector in order to avoid the γ attenuation due to the Al support. The sample–detector distance was fixed at 19 cm to reduce the dead time during measurements, which was always kept below 10%. The γ spectra were analyzed using software jRadView, developed at the INFN-LNL for nuclear physics experiments. A typical γ spectrum obtained for a 48Ti target is shown in Figure 12.
The nuclear data extracted from the NuDat 3.0 database (Table 1) were used in the data analysis, which was carried out following the methods of Otuka et al. [51], which were also used for the uncertainty calculations. In the calculation of the 46cSc cumulative cross-section, only the γ line at 889 keV was used, since the 1120 keV line had an interference with the background 214Bi emission from the natural 238U decay chain. The recoil effect for the monitor 57Ni activity was taken into account, and it was about 1%. The results of the 48Ti(p,x)47Sc, 46cSc, 44mSc, 44gSc, 43Sc, and 48V cross-sections are given for a 100% enriched target. New data were compared with the few experimental values available and with the results obtained from the TALYS code run with the default parameters (version 1.96 released in December 2021) [29].

5. Conclusions

The new cross-section data provided in this paper for the 48Ti(p,x)47Sc, 46cSc, 44mSc, 44gSc, 43Sc, and 48V reactions are generally in a good agreement with the literature data. The TALYS results give a satisfactory description of the trend in the nuclear reactions (e.g., 46cSc and 44gSc), even if there is a considerable energy shift and an overestimation of the experimental values in the case of 43Sc. Theoretical studies to find the best TALYS parameters to properly describe the nuclear reactions are ongoing in the framework of the REMIX collaboration [21,52].
The calculations showed that the 48Ti(p,x)47Sc route provides a larger 47Sc yield compared to the use of natV targets, but with an RNP not suitable for medical applications. To provide a comprehensive overview of the proton-induced routes for 47Sc production, nuclear cross-section measurements using enriched 49Ti and 50Ti targets are ongoing within the REMIX project. These new data will be compared with those based on the use of natV and 48Ti targets to select the most suitable irradiation parameters for a reliable 47Sc supply.

Author Contributions

Conceptualization, L.M., L.D.D. and G.P.; methodology, L.M., L.D.D. and G.P.; formal analysis, L.M., L.D.D., G.P., V.R., M.C., L.M.-A. and L.D.N.; investigation, L.M., L.D.D., G.P., S.C., H.S., V.R. and M.C.; data curation, L.M., L.D.D., V.R. and M.C.; writing—original draft preparation, L.M., L.D.D., G.P., S.C. and V.R.; writing—review and editing, L.M., L.D.D., G.P., S.C., V.R., M.C., H.S., L.M.-A., L.D.N., J.E. and F.H.; supervision, L.M., G.P. and F.H.; project administration, G.P.; funding acquisition, G.P. and J.E. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been supported by French National Research Agency (ANR-11-EQPX-0004, ANR-11-LABX-18-01, ANR-16-IDEX-007).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors thank Carlos Rossi Alvarez for private communications and enlightening scientific discussion, and the LARAMED team and the ARRONAX staff, especially Etienne Nigron, for the support during the experimental runs.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be potential conflicts of interest.

References

  1. Pupillo, G.; Mou, L.; Boschi, A.; Calzaferri, S.; Canton, L.; Cisternino, S.; De Dominicis, L.; Duatti, A.; Fontana, A.; Haddad, F.; et al. Production of 47Sc with Natural Vanadium Targets: Results of the PASTA Project. J. Radioanal. Nucl. Chem. 2019, 322, 1711–1718. [Google Scholar] [CrossRef]
  2. Pupillo, G.; Boschi, A.; Cisternino, S.; De Dominicis, L.; Martini, P.; Mou, L.; Rossi Alvarez, C.; Sciacca, G.; Esposito, J. The LARAMED Project at INFN-LNL: Review of the Research Activities on Medical Radionuclides Production with the SPES Cyclotron. J. Radioanal. Nucl. Chem. 2023. [Google Scholar] [CrossRef]
  3. Müller, C.; Domnanich, K.A.; Umbricht, C.A.; van der Meulen, N.P. Scandium and Terbium Radionuclides for Radiotheranostics: Current State of Development towards Clinical Application. BJR 2018, 91, 20180074. [Google Scholar] [CrossRef] [PubMed]
  4. Domnanich, K.A.; Müller, C.; Benešová, M.; Dressler, R.; Haller, S.; Köster, U.; Ponsard, B.; Schibli, R.; Türler, A.; Meulen, N.P. van der 47Sc as Useful β–-Emitter for the Radiotheragnostic Paradigm: A Comparative Study of Feasible Production Routes. EJNMMI Radiopharm. Chem. 2017, 2, 5. [Google Scholar] [CrossRef] [PubMed]
  5. Loveless, C.S.; Radford, L.L.; Ferran, S.J.; Queern, S.L.; Shepherd, M.R.; Lapi, S.E. Photonuclear Production, Chemistry, and in Vitro Evaluation of the Theranostic Radionuclide 47Sc. EJNMMI Res. 2019, 9, 42. [Google Scholar] [CrossRef] [PubMed]
  6. Loveless, C.S.; Blanco, J.R.; Diehl, G.L.; Elbahrawi, R.T.; Carzaniga, T.S.; Braccini, S.; Lapi, S.E. Cyclotron Production and Separation of Scandium Radionuclides from Natural Titanium Metal and Titanium Dioxide Targets. J. Nucl. Med. 2021, 62, 131–136. [Google Scholar] [CrossRef] [PubMed]
  7. Chernysheva, M.; Loveless, S.C.; Brossard, T.; Becker, K.; Cingoranelli, S.; Aluicio-Sarduy, E.; Song, J.; Ellison, P.; Nolen, J.; Rotsch, D.A.; et al. Accelerator Production of Scandium Radioisotopes: Sc-43, Sc-44, and Sc-47. Curr. Radiopharm. 2021, 14, 359–373. [Google Scholar] [CrossRef]
  8. Mausner, L.F.; Kolsky, K.L.; Joshi, V.; Sweet, M.P.; Meinken, G.E.; Srivastava, S.C. Scandium-47: A Replacement for Cu-67 in Nuclear Medicine Therapy with β/γ Emitters. In Isotope Production and Applications in the 21st Century; World Scientific: Singapore, 2000; pp. 43–45. ISBN 978-981-02-4200-8. [Google Scholar]
  9. Rotsch, D.A.; Brown, M.A.; Nolen, J.A.; Brossard, T.; Henning, W.F.; Chemerisov, S.D.; Gromov, R.G.; Greene, J. Electron Linear Accelerator Production and Purification of Scandium-47 from Titanium Dioxide Targets. Appl. Radiat. Isot. 2018, 131, 77–82. [Google Scholar] [CrossRef]
  10. Abel, E.P.; Domnanich, K.; Clause, H.K.; Kalman, C.; Walker, W.; Shusterman, J.A.; Greene, J.; Gott, M.; Severin, G.W. Production, Collection, and Purification of 47Ca for the Generation of 47Sc through Isotope Harvesting at the National Superconducting Cyclotron Laboratory. ACS Omega 2020, 5, 27864–27872. [Google Scholar] [CrossRef]
  11. Mikolajczak, R.; Huclier-Markai, S.; Alliot, C.; Haddad, F.; Szikra, D.; Forgacs, V.; Garnuszek, P. Production of Scandium Radionuclides for Theranostic Applications: Towards Standardization of Quality Requirements. EJNMMI Radiopharm. Chem. 2021, 6, 19. [Google Scholar] [CrossRef]
  12. Snow, M.S.; Foley, A.; Ward, J.L.; Kinlaw, M.T.; Stoner, J.; Carney, K.P. High Purity 47Sc Production Using High-Energy Photons and Natural Vanadium Targets. Appl. Radiat. Isot. 2021, 178, 109934. [Google Scholar] [CrossRef] [PubMed]
  13. Gizawy, M.A.; Aydia, M.I.; Abdel Monem, I.M.; Shamsel-Din, H.A.; Siyam, T. Radiochemical Separation of Reactor Produced Sc-47 from Natural Calcium Target Using Poly(Acrylamide-Acrylic Acid)/Multi-Walled Carbon Nanotubes Composite. Appl. Radiat. Isot. 2019, 150, 87–94. [Google Scholar] [CrossRef] [PubMed]
  14. Meiers, J.L.; Foley, A.; Beattie, C.; Snow, M.S. Exploring Rapid Chemical Separations of Sc-47 Produced from Photonuclear Reactions on Natural Vanadium Targets. J. Radioanal. Nucl. Chem. 2022, 331, 5623–5630. [Google Scholar] [CrossRef]
  15. Meier, J.P.; Zhang, H.J.; Freifelder, R.; Bhuiyan, M.; Selman, P.; Mendez, M.; Kankanamalage, P.H.A.; Brossard, T.; Pusateri, A.; Tsai, H.-M.; et al. Accelerator-Based Production of Scandium Radioisotopes for Applications in Prostate Cancer: Toward Building a Pipeline for Rapid Development of Novel Theranostics. Molecules 2023, 28, 6041. [Google Scholar] [CrossRef] [PubMed]
  16. Qaim, S.M.; Scholten, B.; Neumaier, B. New Developments in the Production of Theranostic Pairs of Radionuclides. J. Radioanal. Nucl. Chem. 2018, 318, 1493–1509. [Google Scholar] [CrossRef]
  17. Qaim, S.M. Theranostic Radionuclides: Recent Advances in Production Methodologies. J. Radioanal. Nucl. Chem. 2019, 322, 1257–1266. [Google Scholar] [CrossRef]
  18. Kilian, K.; Pyrzyńska, K. Scandium Radioisotopes—Toward New Targets and Imaging Modalities. Molecules 2023, 28, 7668. [Google Scholar] [CrossRef]
  19. Barbaro, F.; Canton, L.; Carante, M.P.; Colombi, A.; Fontana, A. Theoretical Study of 47Sc Production for Theranostic Applications Using Proton Beams on Enriched Titanium Targets. EPJ Web Conf. 2022, 261, 05005. [Google Scholar] [CrossRef]
  20. Dellepiane, G.; Casolaro, P.; Mateu, I.; Scampoli, P.; Voeten, N.; Braccini, S. 47Sc and 46Sc Cross-Section Measurement for an Optimized 47Sc Production with an 18 MeV Medical PET Cyclotron. Appl. Radiat. Isot. 2022, 189, 110428. [Google Scholar] [CrossRef]
  21. Barbaro, F.; Canton, L.; Carante, M.P.; Colombi, A.; De Dominicis, L.; Fontana, A.; Haddad, F.; Mou, L.; Pupillo, G. New Results on Proton-Induced Reactions on Vanadium for 47Sc Production and the Impact of Level Densities on Theoretical Cross Sections. Phys. Rev. C 2021, 104, 044619. [Google Scholar] [CrossRef]
  22. De Nardo, L.; Pupillo, G.; Mou, L.; Furlanetto, D.; Rosato, A.; Esposito, J.; Meléndez-Alafort, L. Preliminary Dosimetric Analysis of DOTA-Folate Radiopharmaceutical Radiolabelled with 47Sc Produced through natV(p,x)47Sc Cyclotron Irradiation. Phys. Med. Biol. 2021, 66, 025003. [Google Scholar] [CrossRef] [PubMed]
  23. NuDat 3. Available online: https://www.nndc.bnl.gov/nudat3/ (accessed on 15 September 2023).
  24. Experimental Nuclear Reaction Data (EXFOR). Available online: https://www-nds.iaea.org/exfor/exfor.htm (accessed on 2 September 2023).
  25. Zerkin, V.V.; Pritychenko, B. The Experimental Nuclear Reaction Data (EXFOR): Extended Computer Database and Web Retrieval System. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2018, 888, 31–43. [Google Scholar] [CrossRef]
  26. Otuka, N.; Dupont, E.; Semkova, V.; Pritychenko, B.; Blokhin, A.I.; Aikawa, M.; Babykina, S.; Bossant, M.; Chen, G.; Dunaeva, S.; et al. Towards a More Complete and Accurate Experimental Nuclear Reaction Data Library (EXFOR): International Collaboration between Nuclear Reaction Data Centres (NRDC). Nucl. Data Sheets 2014, 120, 272–276. [Google Scholar] [CrossRef]
  27. Koning, A.J.; Rochman, D. Modern Nuclear Data Evaluation with the TALYS Code System. Nucl. Data Sheets 2012, 113, 2841–2934. [Google Scholar] [CrossRef]
  28. Koning, A.; Hilaire, S.; Goriely, S. TALYS: Modeling of Nuclear Reactions. Eur. Phys. J. A 2023, 59, 131. [Google Scholar] [CrossRef]
  29. TALYS. Available online: https://www-nds.iaea.org/talys/ (accessed on 28 September 2023).
  30. Gadioli, E.; Gadioli Erba, E.; Hogan, J.J.; Burns, K.I. Emission of Alpha Particles in the Interaction of 10 85 MeV Protons with 48,50Ti. Z. Fur Phys. A Hadron. Nucl. 1981, 301, 289–300. [Google Scholar] [CrossRef]
  31. Levkovski, V.N. Cross Sections of Medium Mass Nuclide Activation (A = 40–100) by Medium Energy Protons and Alpha-Particles (E = 10–50 MeV); Inter-Vesi: Moscow, Russia, 1991; ISBN 5-265-02732-7. [Google Scholar]
  32. Mausner, L.F.; Kolsky, K.L.; Joshi, V.; Srivastava, S.C. Radionuclide Development at BNL for Nuclear Medicine Therapy. Appl. Radiat. Isot. 1998, 49, 285–294. [Google Scholar] [CrossRef]
  33. Sugai, I.; Takeda, Y.; Kawakami, H. Preparation of Thick Enriched Isotopic Si Targets by the HIVIPP Method. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2006, 561, 38–44. [Google Scholar] [CrossRef]
  34. Sugai, I.; Takeda, Y.; Makii, H.; Sano, K.; Nagai, Y. Target Preparation of Highly Adhesive Enriched 12C on Au Substrates by a HIVIPP Method. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2004, 521, 227–234. [Google Scholar] [CrossRef]
  35. Skliarova, H.; Cisternino, S.; Pranovi, L.; Mou, L.; Pupillo, G.; Rigato, V.; Rossi Alvarez, C. HIVIPP Deposition and Characterization of Isotopically Enriched 48Ti Targets for Nuclear Cross-Section Measurements. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrometers Detect. Assoc. Equip. 2020, 981, 164371. [Google Scholar] [CrossRef]
  36. Cisternino, S.; Skliarova, H.; Antonini, P.; Esposito, J.; Mou, L.; Pranovi, L.; Pupillo, G.; Sciacca, G. Upgrade of the HIVIPP Deposition Apparatus for Nuclear Physics Thin Targets Manufacturing. Instruments 2022, 6, 23. [Google Scholar] [CrossRef]
  37. Haddad, F.; Ferrer, L.; Guertin, A.; Carlier, T.; Michel, N.; Barbet, J.; Chatal, J.-F. ARRONAX, a High-Energy and High-Intensity Cyclotron for Nuclear Medicine. Eur. J. Nucl. Med. Mol. Imaging 2008, 35, 1377–1387. [Google Scholar] [CrossRef] [PubMed]
  38. Ziegler, J.F. SRIM-2003. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2004, 219–220, 1027–1036. [Google Scholar] [CrossRef]
  39. Monitor Reaction 2017. Available online: https://www-nds.iaea.org/medical/monitor_reactions.html (accessed on 15 July 2023).
  40. Hermanne, A.; Ignatyuk, A.V.; Capote, R.; Carlson, B.V.; Engle, J.W.; Kellett, M.A.; Kibédi, T.; Kim, G.; Kondev, F.G.; Hussain, M.; et al. Reference Cross Sections for Charged-Particle Monitor Reactions. Nucl. Data Sheets 2018, 148, 338–382. [Google Scholar] [CrossRef]
  41. Koning, A.; Hilaire, S.; Goriely, S. TALYS-1.96/2.0 Simulation of Nuclear Reactions. 2021. Available online: https://www-nds.iaea.org/talys/tutorials/talys_v1.96.pdf (accessed on 15 July 2023).
  42. Takács, S.; Tárkányi, F.; Sonck, M.; Hermanne, A. Investigation of the natMo(p,x)96mgTc Nuclear Reaction to Monitor Proton Beams: New Measurements and Consequences on the Earlier Reported Data. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2002, 198, 183–196. [Google Scholar] [CrossRef]
  43. Koning, A. ISOTOPIA-1.0: Simulation of Medical Isotope Production with Accelerators; 2019. Available online: https://nds.iaea.org/relnsd/isotopia/isotopia.pdf (accessed on 15 July 2023).
  44. Gillings, N.; Todde, S.; Behe, M.; Decristoforo, C.; Elsinga, P.; Ferrari, V.; Hjelstuen, O.; Peitl, P.K.; Koziorowski, J.; Laverman, P.; et al. EANM Guideline on the Validation of Analytical Methods for Radiopharmaceuticals. EJNMMI Radiopharm. Chem. 2020, 5, 7. [Google Scholar] [CrossRef] [PubMed]
  45. Guide for the Elaboration of Monographs on RADIO-PHARMACEUTICAL PREPARATIONS. Available online: https://www.edqm.eu/documents/52006/66555/07-elaboration-monographs-radio-pharmaceutical-preparations-october-2018.pdf/50c9d3d8-ec14-10b9-40b7-ceedd94e3afb?t=1623146155879 (accessed on 10 August 2022).
  46. Mayer, M. SIMNRA, a Simulation Program for the Analysis of NRA, RBS and ERDA. AIP Conf. Proc. 1999, 475, 541–544. [Google Scholar] [CrossRef]
  47. Ion Beam Analysis Nuclear Data Library (IBANDL). Available online: https://www-nds.iaea.org/exfor/ibandl.htm (accessed on 15 January 2023).
  48. Mayer, M. Ion Beam Analysis of Rough Thin Films. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2002, 194, 177–186. [Google Scholar] [CrossRef]
  49. Gurbich, A.F.; Barradas, N.P.; Jeynes, C.; Wendler, E. Applying Elastic Backscattering Spectrometry When the Nuclear Excitation Function Has a Fine Structure. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2002, 190, 237–240. [Google Scholar] [CrossRef]
  50. Ziegler, J.F.; Ziegler, M.D.; Biersack, J.P. SRIM—The Stopping and Range of Ions in Matter (2010). Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2010, 268, 1818–1823. [Google Scholar] [CrossRef]
  51. Otuka, N.; Lalremruata, B.; Khandaker, M.U.; Usman, A.R.; Punte, L.R.M. Uncertainty Propagation in Activation Cross Section Measurements. Radiat. Phys. Chem. 2017, 140, 502–510, Erratum in Radiat. Phys. Chem. 2021, 184, 109440. [Google Scholar] [CrossRef]
  52. Canton, L.; Fontana, A. Nuclear Physics Applied to the Production of Innovative Radiopharmaceuticals. Eur. Phys. J. Plus 2020, 135, 770. [Google Scholar] [CrossRef]
Pharmaceuticals 17 00026 g001

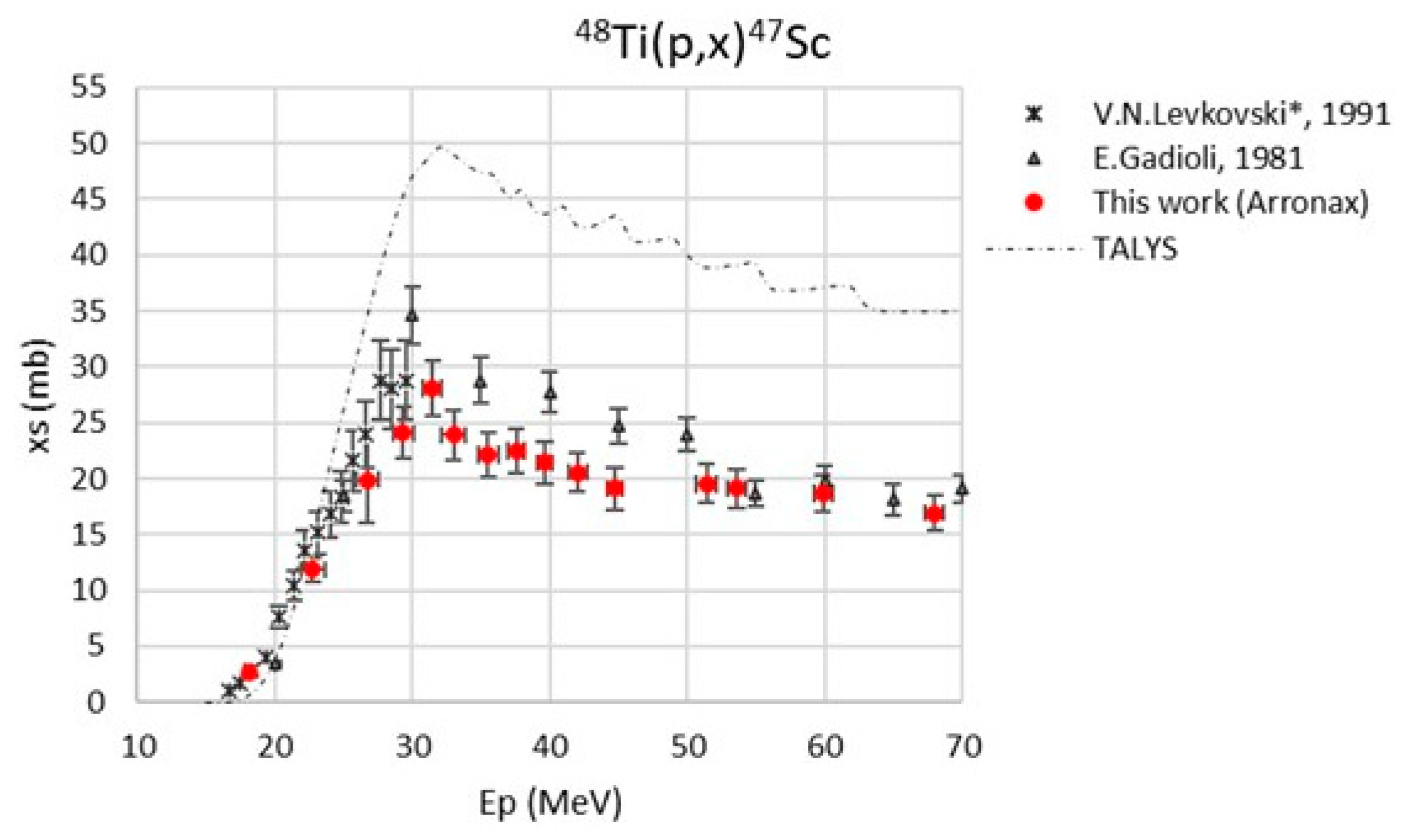

Figure 1. Cross-section of the 48Ti(p,2p)47Sc nuclear reaction [30,31].
Figure 1. Cross-section of the 48Ti(p,2p)47Sc nuclear reaction [30,31].
Pharmaceuticals 17 00026 g001
Pharmaceuticals 17 00026 g002

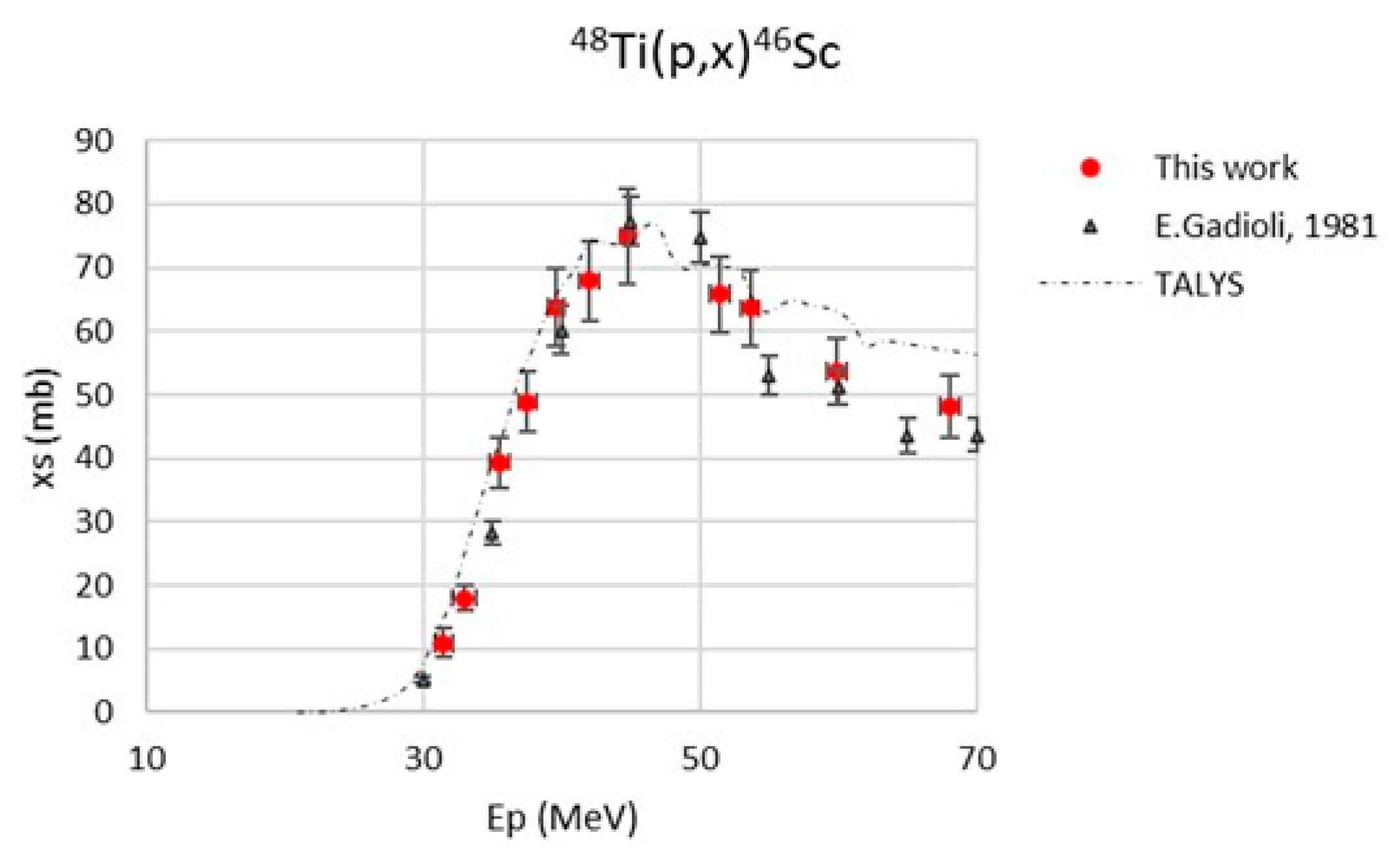

Figure 2. Cross-section of the 48Ti(p,x)46cSc nuclear reaction [30].
Figure 2. Cross-section of the 48Ti(p,x)46cSc nuclear reaction [30].
Pharmaceuticals 17 00026 g002
Pharmaceuticals 17 00026 g003

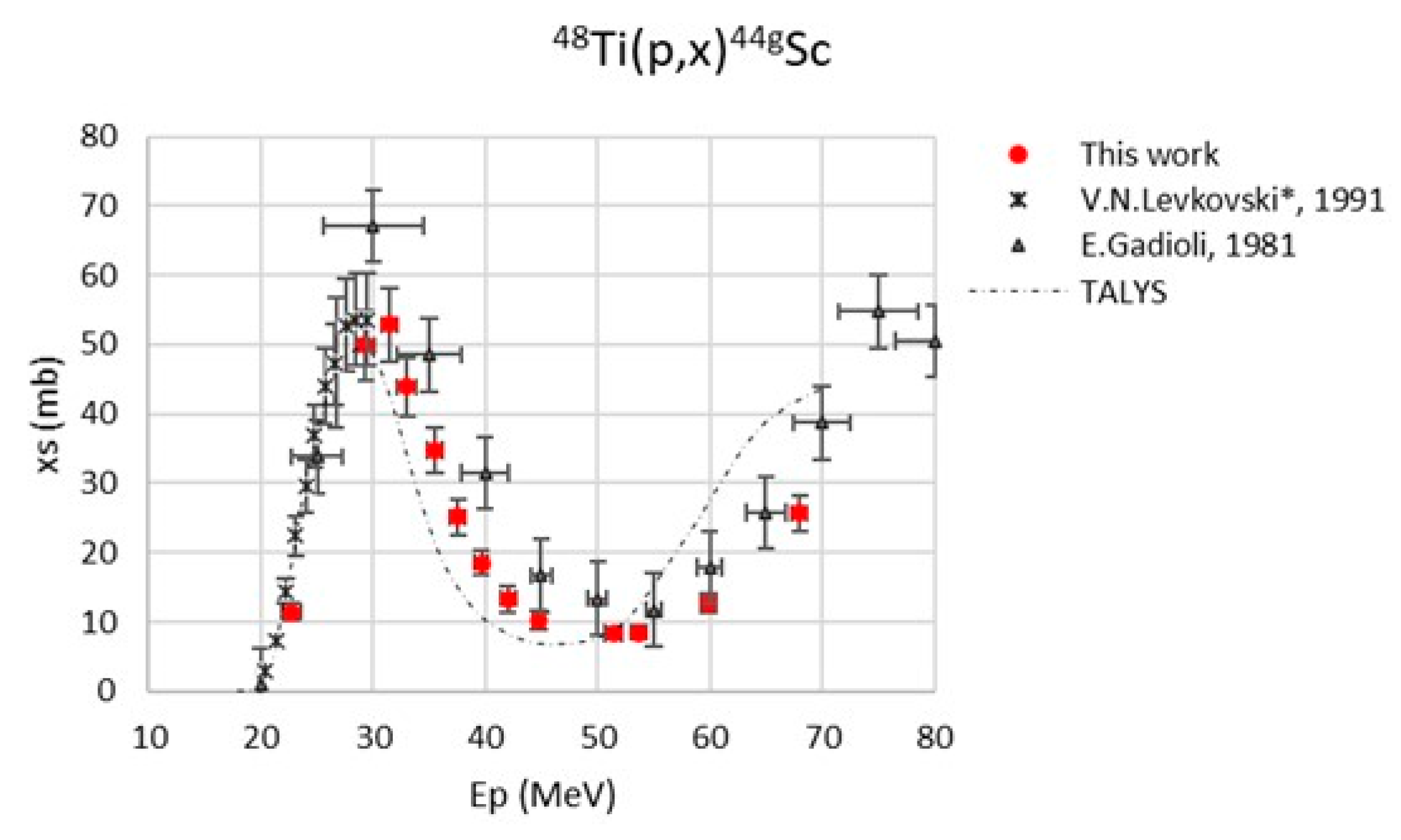

Figure 3. Cross-section of the 48Ti(p,x)44gSc nuclear reaction [30,31].
Figure 3. Cross-section of the 48Ti(p,x)44gSc nuclear reaction [30,31].
Pharmaceuticals 17 00026 g003
Pharmaceuticals 17 00026 g004

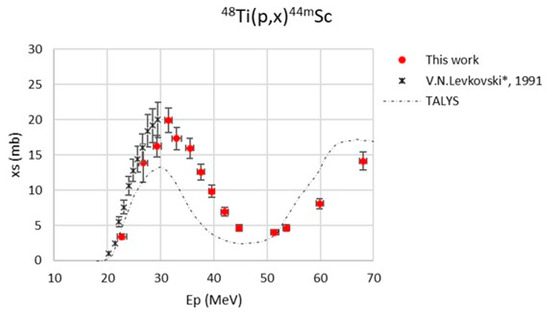

Figure 4. Cross-section of the 48Ti(p,x)44mSc nuclear reaction [31].
Figure 4. Cross-section of the 48Ti(p,x)44mSc nuclear reaction [31].
Pharmaceuticals 17 00026 g004
Pharmaceuticals 17 00026 g005

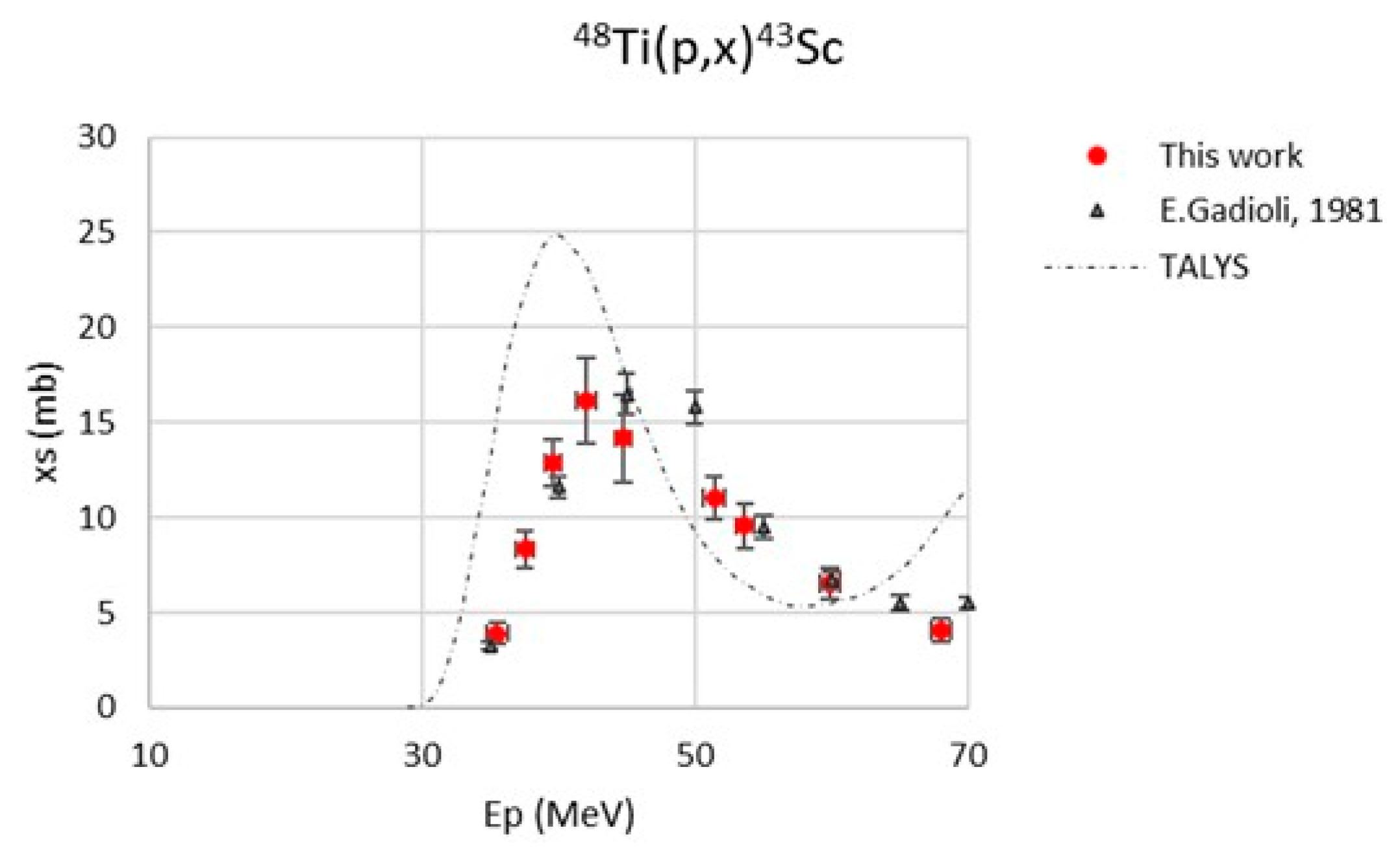

Figure 5. Cross-section of the 48Ti(p,x)43Sc nuclear reaction [30].
Figure 5. Cross-section of the 48Ti(p,x)43Sc nuclear reaction [30].
Pharmaceuticals 17 00026 g005
Pharmaceuticals 17 00026 g006

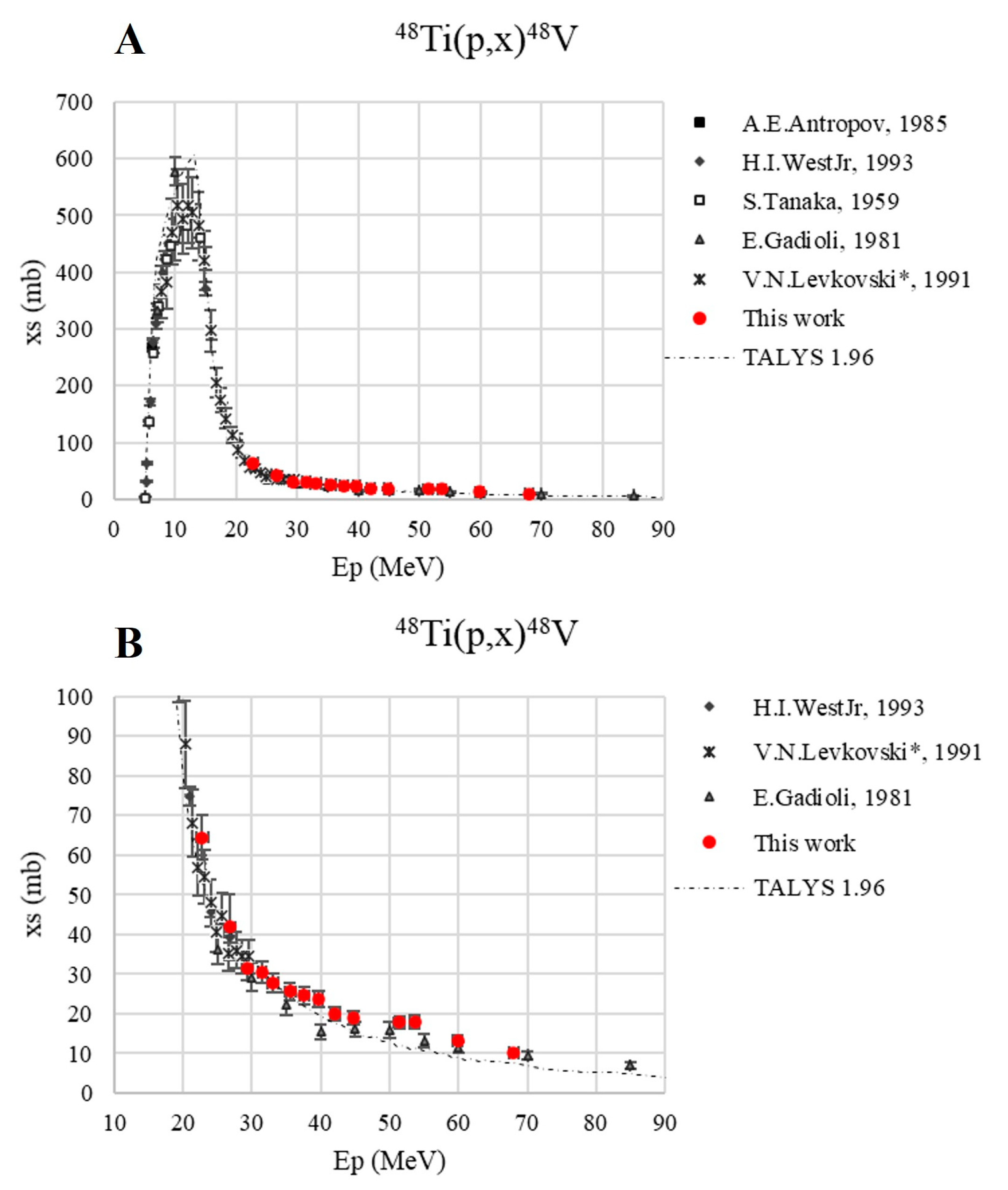

Figure 6. Cross-section of the 48Ti(p,x)48V nuclear reaction [24,25,30,31] up to 90 MeV (A) and in the energy range of interest, 20–70 MeV (B).
Figure 6. Cross-section of the 48Ti(p,x)48V nuclear reaction [24,25,30,31] up to 90 MeV (A) and in the energy range of interest, 20–70 MeV (B).
Pharmaceuticals 17 00026 g006
Pharmaceuticals 17 00026 g007

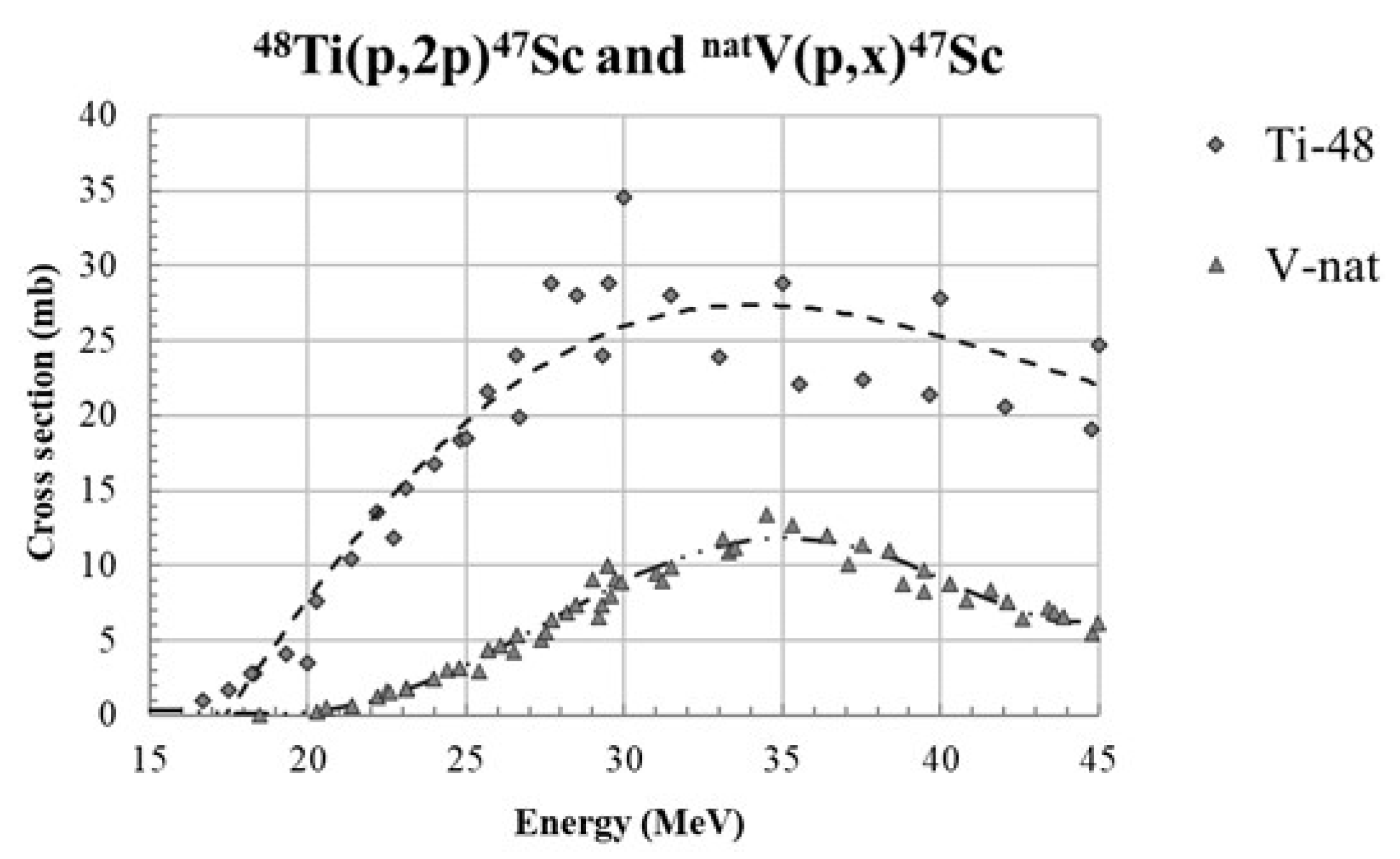

Figure 7. Comparison of the p-induced cross-sections for 47Sc production on 48Ti and natV targets. The dashed lines represent the fit of all the experimental data for both production routes.
Figure 7. Comparison of the p-induced cross-sections for 47Sc production on 48Ti and natV targets. The dashed lines represent the fit of all the experimental data for both production routes.
Pharmaceuticals 17 00026 g007
Pharmaceuticals 17 00026 g008

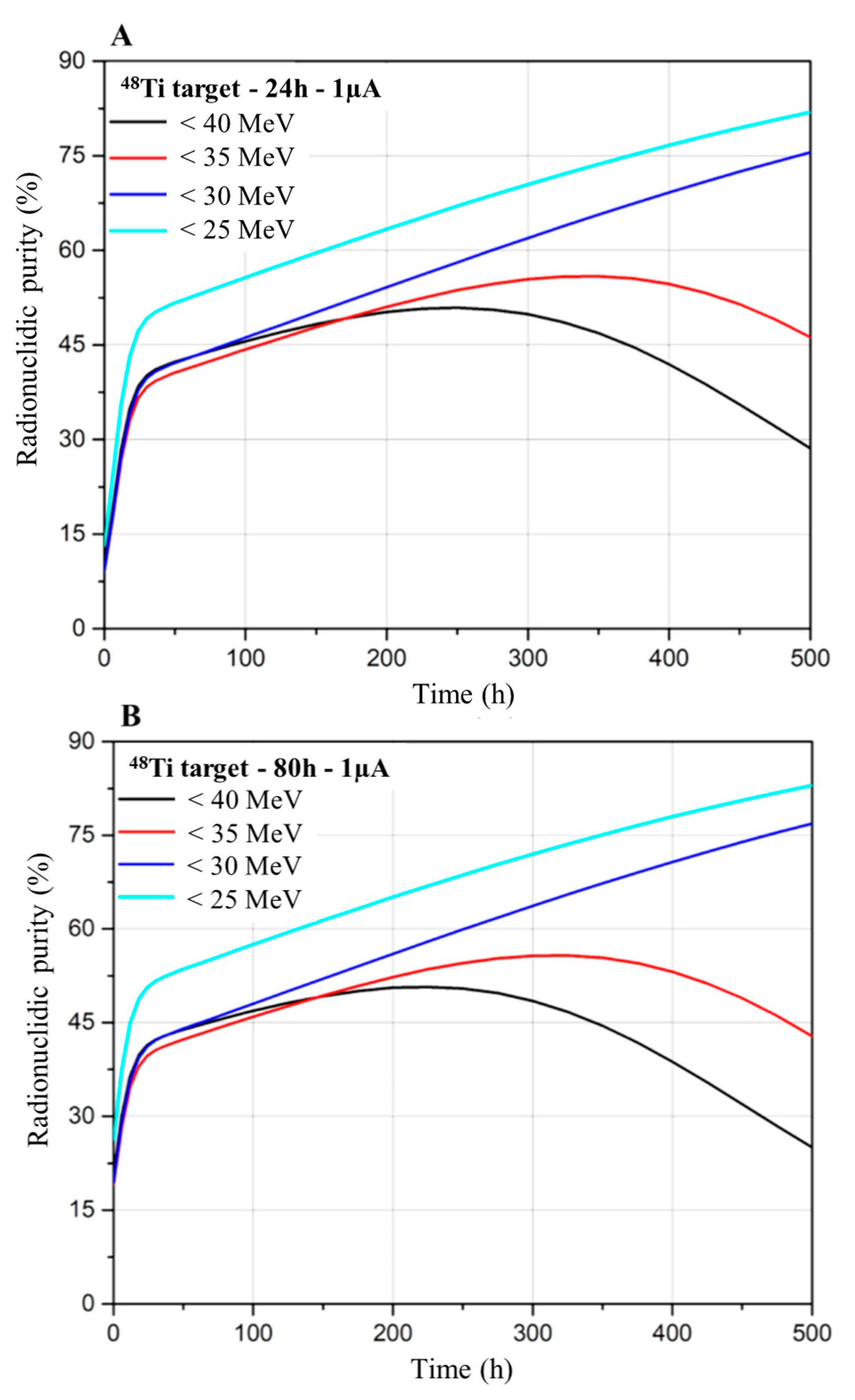

Figure 8. Comparison of the 47Sc RNP for 24 h (A) and 80 h (B) irradiation, using proton beams and 48Ti targets.
Figure 8. Comparison of the 47Sc RNP for 24 h (A) and 80 h (B) irradiation, using proton beams and 48Ti targets.
Pharmaceuticals 17 00026 g008
Pharmaceuticals 17 00026 g009

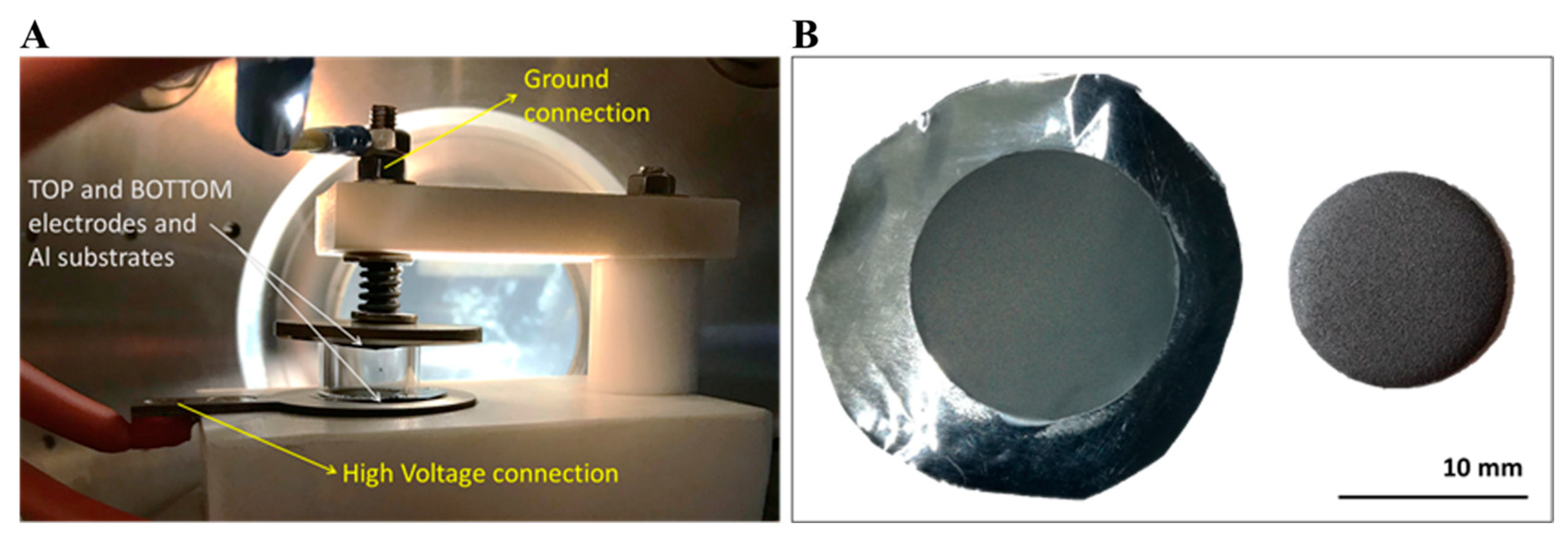

Figure 9. Photograph of the HIVIPP set up inside the vacuum chamber (A). Picture of the 48Ti-7 sample, with a typical 48Ti deposition onto Al, as realized and after punching (B).
Figure 9. Photograph of the HIVIPP set up inside the vacuum chamber (A). Picture of the 48Ti-7 sample, with a typical 48Ti deposition onto Al, as realized and after punching (B).
Pharmaceuticals 17 00026 g009
Pharmaceuticals 17 00026 g010

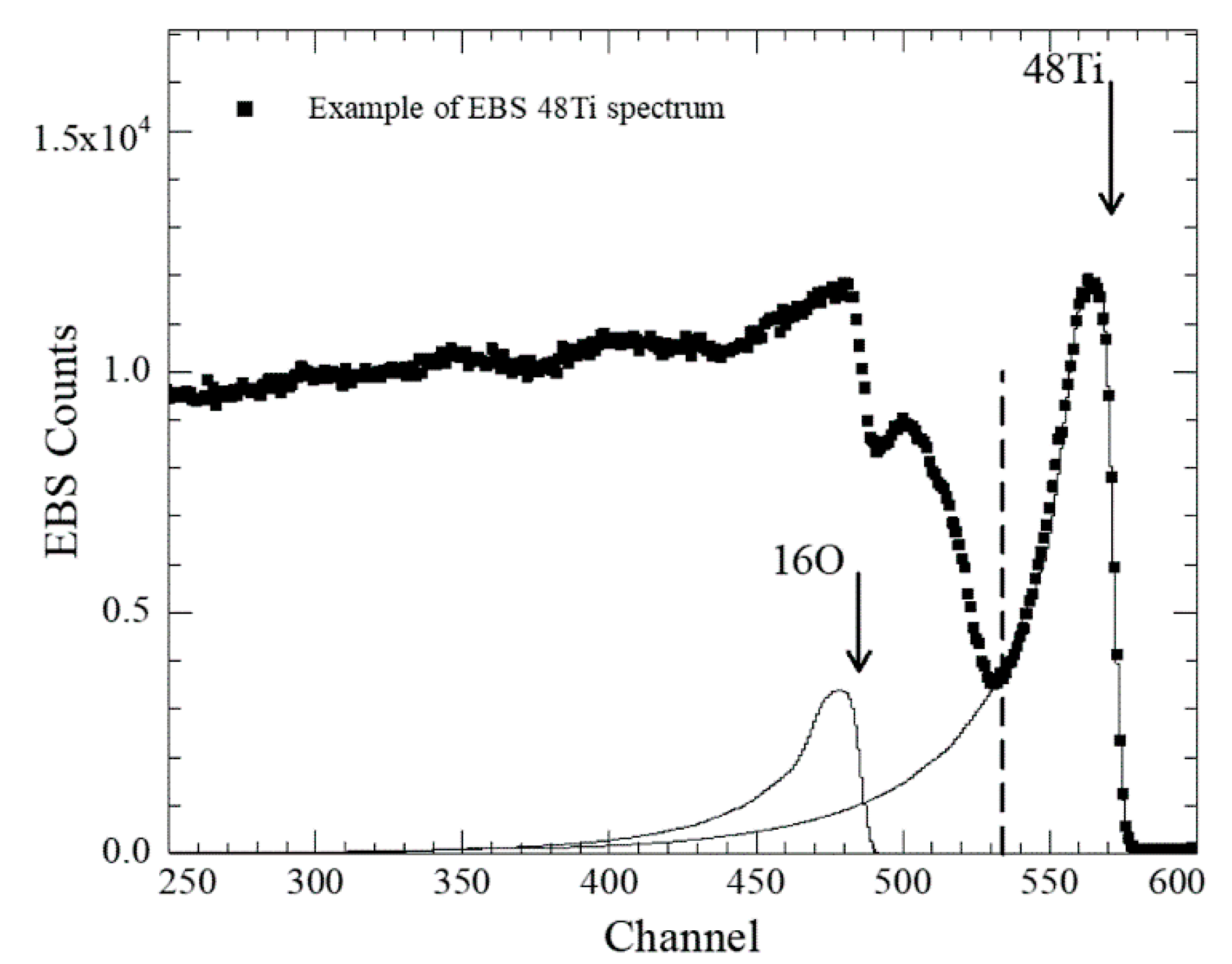

Figure 10. Experimental spectrum of 48Ti coating deposited onto Al substrate. Arrows indicate the 16O and 48Ti contributions.
Figure 10. Experimental spectrum of 48Ti coating deposited onto Al substrate. Arrows indicate the 16O and 48Ti contributions.
Pharmaceuticals 17 00026 g010
Pharmaceuticals 17 00026 g011

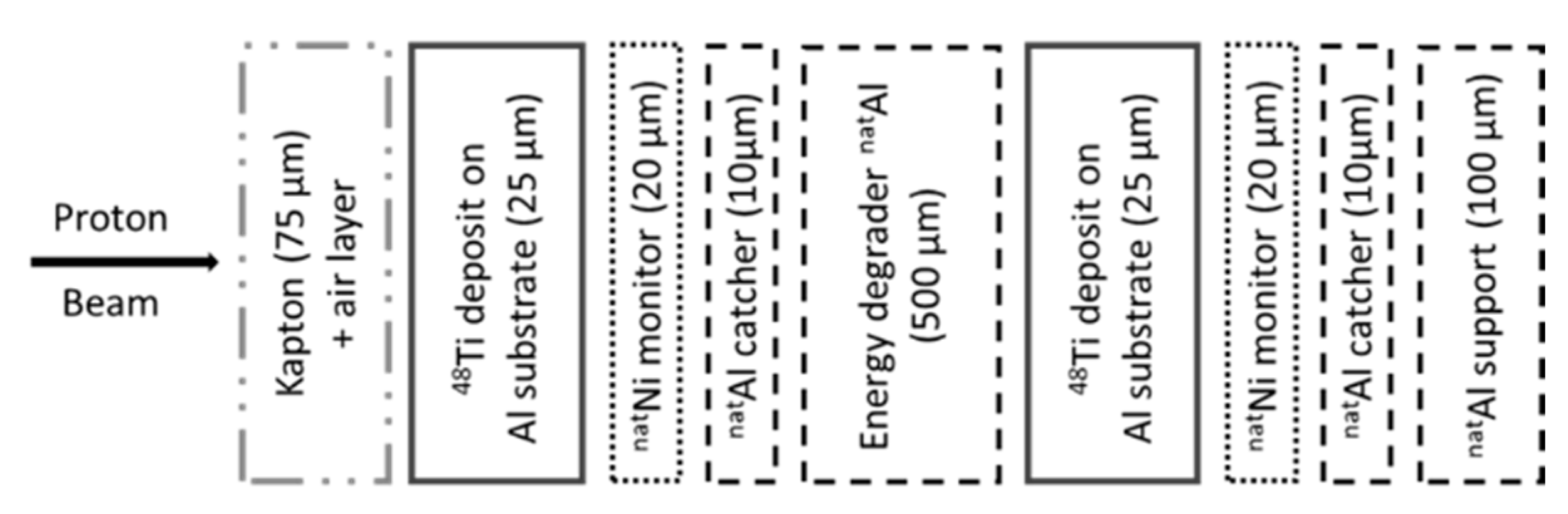

Figure 11. Scheme of a typical SRIM calculation for the stacked-foil target.
Figure 11. Scheme of a typical SRIM calculation for the stacked-foil target.
Pharmaceuticals 17 00026 g011
Pharmaceuticals 17 00026 g012

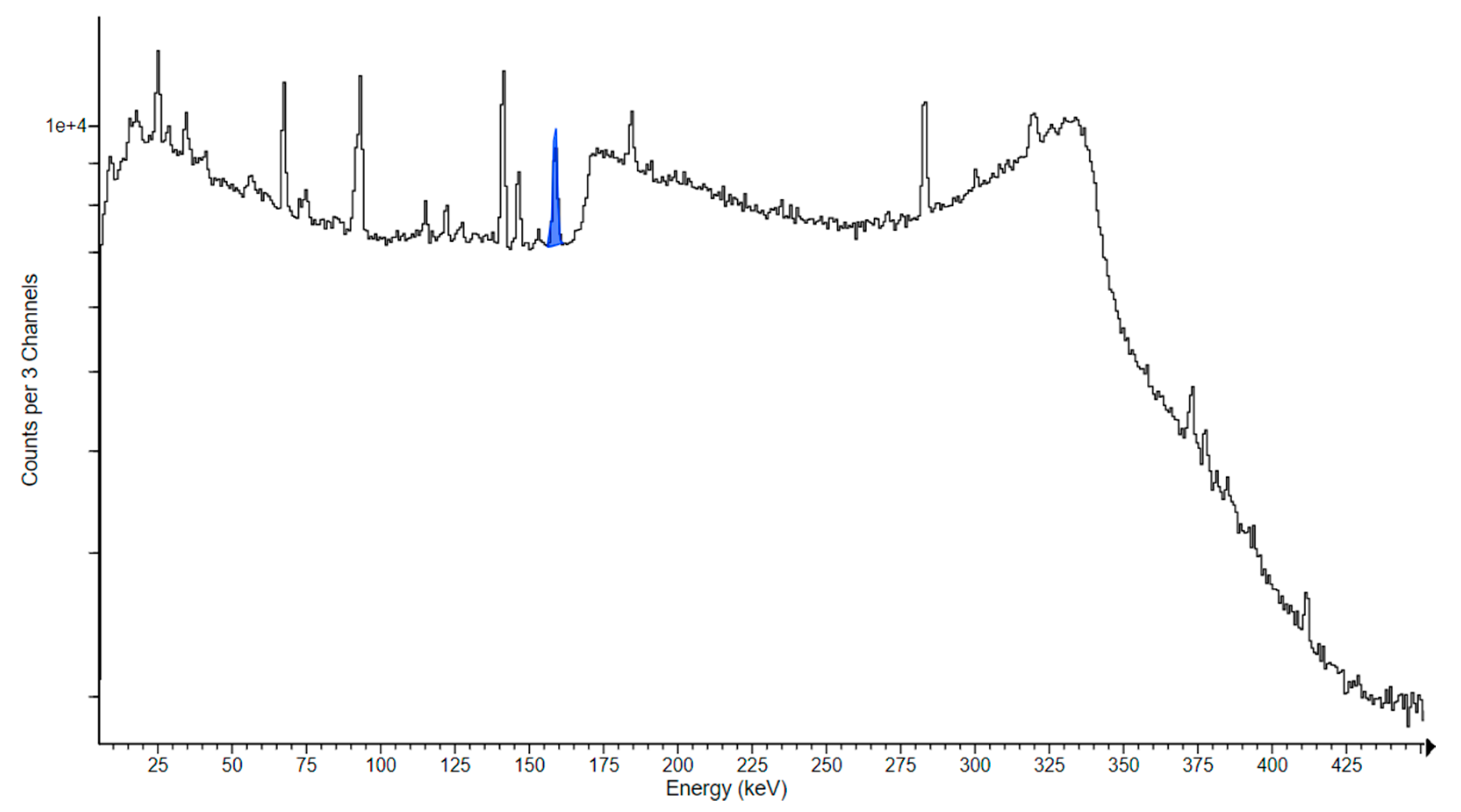

Figure 12. Typical γ spectrum obtained with an HPGe detector for an irradiated 48Ti target. In blue, the 47Sc γ-peak is highlighted.
Figure 12. Typical γ spectrum obtained with an HPGe detector for an irradiated 48Ti target. In blue, the 47Sc γ-peak is highlighted.
Pharmaceuticals 17 00026 g012
Table 1. Nuclear data associated with the radionuclides studied in this work [23]; the uncertainty is reported in brackets.
Table 1. Nuclear data associated with the radionuclides studied in this work [23]; the uncertainty is reported in brackets.
Half-Lifeγ-Ray Energy (keV)γ-Ray Intensity (%)Mean β− Energy (keV)Total β− Intensity (%)Mean β+ Energy (keV)Total β+ Intensity [%]
47Sc3.3492 d (6)159.381 (15)68.3 (4)162.0 (21)100.0 (8)
46Sc83.79 d (4)889.277 (3)
1120.545 (4)		99.9840 (10)
99.9870 (10)		111.8 (3)100.0000 (10)
44mSc58.61 h (10)271.251 (10)
1157.002 (15)		86.72
1.23
44gSc4.0420 h (425)1157.022 (15)99.8867 (30) 630.2 (8)94.278 (11)
43Sc3.891 h (12)372.9 (3)22.5 476 (6)88.1 (8)
48V15.974 d (3)983.525 (4)
1312.105 (6)		99.98 (4)
98.2 (3)		 291.4 (25)50.4 (3)
Table 2. Results of the EBS analysis on the enriched 48Ti samples.
Table 2. Results of the EBS analysis on the enriched 48Ti samples.
Target ID48Ti Deposit
(µg/cm2)		Target ID48Ti Deposit
(µg/cm2)
48Ti-01190 ± 1148Ti-09524 ± 26
48Ti-02292 ± 1048Ti-10183 ± 11
48Ti-03501 ± 1748Ti-11259 ± 11
48Ti-04190 ± 1148Ti-12590 ± 26
48Ti-05292 ± 1048Ti-13524 ± 26
48Ti-06674 ± 3248Ti-14674 ± 32
48Ti-07590 ± 2648Ti-15520 ± 25
48Ti-08520 ± 25
Table 3. IAEA monitor cross-section values for the natNi(p,x)57Ni reaction [39].
Table 3. IAEA monitor cross-section values for the natNi(p,x)57Ni reaction [39].
Energy (MeV)57Ni (mb)Energy (MeV)57Ni (mb)
22.4148.7 ± 6.342.280.4 ± 3.5
26.3180.1 ± 7.544.677.8 ± 3.4
29.0162.8 ± 6.851.373.4 ± 3.1
31.3134.0 ± 5.653.572.3 ± 3.1
33.1116.6 ± 4.959.769.5 ± 3.0
35.699.3 ± 4.267.966.2 ± 2.9
39.385.6 ± 3.6
Table 4. Measured cross-sections for the 48Ti(p,x)47Sc, 46cSc, 44gSc, 44mSc, 43Sc, 48V reactions in the 18–70 MeV energy range.
Table 4. Measured cross-sections for the 48Ti(p,x)47Sc, 46cSc, 44gSc, 44mSc, 43Sc, 48V reactions in the 18–70 MeV energy range.
Target IDEnergy (MeV)47Sc
(mb)		46cSc
(mb)		44gSc
(mb)		44mSc
(mb)		43Sc
(mb)		48V
(mb)
48Ti-0118.2 ± 0.44.0 ± 0.3----
48Ti-0222.7 ± 0.911.9 ±1.1-11.5 ± 1.23.4 ± 0.3-64.5 ± 5.7
48Ti-0326.7 ± 0.819.9 ± 3.9-47.4 ± 9.413.9 ± 2.7-41.9 ± 8.2
48Ti-0429.3 ± 0.824.1 ± 2.3-49.9 ± 5.016.3 ± 1.6-31.4 ± 3.0
48Ti-0531.5 ± 0.728.1 ± 2.510.9 ± 2.252.8 ± 5.219.9 ± 1.8-30.5 ± 2.7
48Ti-0633.0 ± 0.823.9± 2.218.0 ± 2.043.9 ± 4.217.3 ± 1.6-27.8 ± 2.5
48Ti-0735.5 ± 0.722.1 ± 2.039.3 ± 3.934.8 ± 3.316.0 ± 1.43.9 ± 0.625.6 ± 2.3
48Ti-0837.6 ± 0.722.4 ± 2.048.9 ± 4.825.1 ± 2.512.6 ± 1.18.3 ± 0.924.6 ± 2.2
48Ti-0939.6 ± 0.621.4 ± 1.963.7 ± 6.218.5 ± 1.89.8 ± 0.912.9 ± 1.223.7 ± 2.2
48Ti-1042.0 ± 0.720.6 ± 1.867.9 ± 6.213.3 ± 1.96.9 ± 0.616.2 ± 2.219.9 ± 1.7
48Ti-1144.8 ± 0.519.1 ± 1.875.0 ± 7.410.4 ± 1.44.6 ± 0.514.4 ±2.319.0 ± 1.8
48Ti-1251.4 ± 0.819.5 ± 1.765.9 ± 6.08.4 ± 0.84.0 ± 0.411.0 ±1.117.8 ± 1.6
48Ti-1353.6 ± 0.719.1 ± 1.763.7 ± 5.98.4 ± 0.94.6 ± 0.49.6 ± 1.217.9 ± 1.6
48Ti-1459.9 ± 0.718.7 ± 1.753.7 ± 5.112.7 ± 1.38.1 ± 0.76.5 ± 0.813.2 ± 1.2
48Ti-1568.0 ± 0.716.9 ± 1.548.2 ± 4.825.7 ± 2.614.1 ± 1.34.1 ± 0.610.1 ± 1.0
Table 5. Sc radionuclide yields calculated for several scenarios, considering 1 µA proton beam current and enriched 48Ti targets.
Table 5. Sc radionuclide yields calculated for several scenarios, considering 1 µA proton beam current and enriched 48Ti targets.
Ep on 48Ti Targets (MeV)47Sc
[MBq]
(mCi)		46cSc
[MBq]
(mCi)		44gSc
[MBq]
(mCi))		44mSc
[MBq]
(mCi)]		43Sc
[MBq]
(mCi)
Tirr = 24 h
Ep < 2573 (2)-447 (12)39 (1)-
Ep < 30198 (5)-1792 (48)154 (4)-
Ep < 35364 (10)4.8 (0.1)3270 (88)297 (8)19.9 (0.5)
Ep < 40556 (15)19.4 (0.5)4232 (114)412 (11)289 (8)
Tirr = 80 h
Ep < 25196 (5)-454 (12)96 (3)-
Ep < 30529 (14)-1820 (49)381 (10)-
Ep < 35971 (26)15.8 (0.4)3320 (90)736 (20)20.2 (0.6)
Ep < 401481 (40)64 (2)4298 (116)1019 (28)293 (8)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mou, L.; De Dominicis, L.; Cisternino, S.; Skliarova, H.; Campostrini, M.; Rigato, V.; De Nardo, L.; Meléndez-Alafort, L.; Esposito, J.; Haddad, F.; et al. Nuclear Cross-Section of Proton-Induced Reactions on Enriched 48Ti Targets for the Production of Theranostic 47Sc Radionuclide, 46cSc, 44mSc, 44gSc, 43Sc, and 48V. Pharmaceuticals 2024, 17, 26. https://doi.org/10.3390/ph17010026

AMA Style

Mou L, De Dominicis L, Cisternino S, Skliarova H, Campostrini M, Rigato V, De Nardo L, Meléndez-Alafort L, Esposito J, Haddad F, et al. Nuclear Cross-Section of Proton-Induced Reactions on Enriched 48Ti Targets for the Production of Theranostic 47Sc Radionuclide, 46cSc, 44mSc, 44gSc, 43Sc, and 48V. Pharmaceuticals. 2024; 17(1):26. https://doi.org/10.3390/ph17010026

Chicago/Turabian Style

Mou, Liliana, Lucia De Dominicis, Sara Cisternino, Hanna Skliarova, Matteo Campostrini, Valentino Rigato, Laura De Nardo, Laura Meléndez-Alafort, Juan Esposito, Férid Haddad, and et al. 2024. "Nuclear Cross-Section of Proton-Induced Reactions on Enriched 48Ti Targets for the Production of Theranostic 47Sc Radionuclide, 46cSc, 44mSc, 44gSc, 43Sc, and 48V" Pharmaceuticals 17, no. 1: 26. https://doi.org/10.3390/ph17010026

APA Style

Mou, L., De Dominicis, L., Cisternino, S., Skliarova, H., Campostrini, M., Rigato, V., De Nardo, L., Meléndez-Alafort, L., Esposito, J., Haddad, F., & Pupillo, G. (2024). Nuclear Cross-Section of Proton-Induced Reactions on Enriched 48Ti Targets for the Production of Theranostic 47Sc Radionuclide, 46cSc, 44mSc, 44gSc, 43Sc, and 48V. Pharmaceuticals, 17(1), 26. https://doi.org/10.3390/ph17010026

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
