Synthesis, Characterisation and Mechanism of Action of Anticancer 3-Fluoroazetidin-2-ones

Abstract

The stilbene combretastatin A-4 (CA-4) is a potent microtubule-disrupting agent interacting at the colchicine-binding site of tubulin. In the present work, the synthesis, characterisation and mechanism of action of a series of 3-fluoro and 3,3-difluoro substituted β-lactams as analogues of the tubulin-targeting agent CA-4 are described. The synthesis was achieved by a convenient microwave-assisted Reformatsky reaction and is the first report of 3-fluoro and 3,3-difluoro β-lactams as CA-4 analogues. The β-lactam compounds 3-fluoro-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxy phenyl)azetidin-2-one 32 and 3-fluoro-4-(3-fluoro-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one) 33 exhibited potent activity in MCF-7 human breast cancer cells with IC₅₀ values of 0.075 µM and 0.095 µM, respectively, and demonstrated low toxicity in non-cancerous cells. Compound 32 also demonstrated significant antiproliferative activity at nanomolar concentrations in the triple-negative breast cancer cell line Hs578T (IC₅₀ 0.033 μM), together with potency in the invasive isogenic subclone Hs578Ts(i)8 (IC₅₀ = 0.065 μM), while 33 was also effective in MDA-MB-231 cells (IC₅₀ 0.620 μM). Mechanistic studies demonstrated that 33 inhibited tubulin polymerisation, induced apoptosis in MCF-7 cells, and induced a downregulation in the expression of anti-apoptotic Bcl2 and survivin with corresponding upregulation in the expression of pro-apoptotic Bax. In silico studies indicated the interaction of the compounds with the colchicine-binding site, demonstrating the potential for further developing novel cancer therapeutics as microtubule-targeting agents.

1. Introduction

Breast cancer is the most prevalent cancer diagnosed in women, with 2.3 million women diagnosed with breast cancer and 685,000 deaths globally in 2020 [1,2], and is recognised as the leading cause of cancer-related deaths in women. Many successful anticancer agents with different biological targets are used clinically to treat breast cancer [3,4]. Approximately 70–80% of breast cancers are hormone-dependent; the majority are identified as estrogen receptor-positive (ER+) cancers which also express the progesterone receptor (ER+/PR+). The estrogen receptor is directly targeted by selective estrogen receptor modulators (e.g., tamoxifen) and selective estrogen receptor degraders (e.g., fulvestrant). The aromatase inhibitors anastrozole, letrozole and exemestane block a key step in estrogen biosynthesis and are effective clinical adjuvant therapies. Triple-negative breast cancer (TNBC) is an aggressive breast cancer subtype which lacks the estrogen receptor (ER) and progesterone receptor (PR) expression and also lacks overexpression of the human epidermal growth factor receptor 2 (HER2). TNBCs account for 15–20% of diagnosed breast cancers in the US, with mortality of 50% and median overall survival of less than 2 years [5], and are associated with younger age at diagnosis [6]. Patient responses to endocrine and HER2 targeted therapies in TNBCs are poor, and effective targeted therapy has not been well established [7].

Microtubules play a vital role in cell division and mitosis, and their dynamic nature makes them a significant and intensively investigated molecular target for the design of novel anticancer agents. Microtubule-targeting agents (MTAs) suppress microtubule dynamics, inhibit microtubule function and induce apoptosis. The microtubule-stabilising drugs paclitaxel, docetaxel and the epothilone ixabepilone are used in patients with metastatic breast cancer (MBC), together with the mitotic inhibitor eribulin, which is a synthetic macrocyclic ketone analogue of the marine natural product halichondrin B [8,9].

The most recent drugs approved by the European Medicines Agency (2015–2021) for the treatment of breast cancer (including HER2-targeted drugs, CDK 4/6 inhibitors, PIK3CA inhibitors, PARP inhibitors, immunotherapy drugs and antibody–drug conjugates (ADCs)) were recently reviewed by Duranti et al. [10]. Tucatinib is an orally bioavailable tyrosine kinase inhibitor that is approved for HER2-positive MBC [11], while the phosphoinositide-3-kinase (PI3Kα) inhibitor alpelisib is approved for HER2-negative, PIK3CA-mutated advanced breast cancer [12,13]. The immunotherapy drug pembrolizumab is recently approved for early-stage, triple-negative breast cancer (TNBC) [14], while the human epidermal growth factor receptor (HER2) inhibitor margetuximab-cmkb [15] and the antibody–drug conjugate Fam-trastuzumab deruxtecan (HER2-directed antibody which is linked to a topoisomerase inhibitor) also gained FDA approval for the treatment of HER2-positive MBC [16]. In addition, the ADC sacituzumab govitecan (TROP2-targeted antibody linked with a topoisomerase I inhibitor) suitable for previously treated metastatic TNBC [17] and the ADC ladiratuzumab vedotin (a LIV-1-targeted antibody linked to the potent microtubule-disrupting agent monomethyl auristatin E (MMAE)) have gained approval for locally advanced or metastatic TNBC [18].

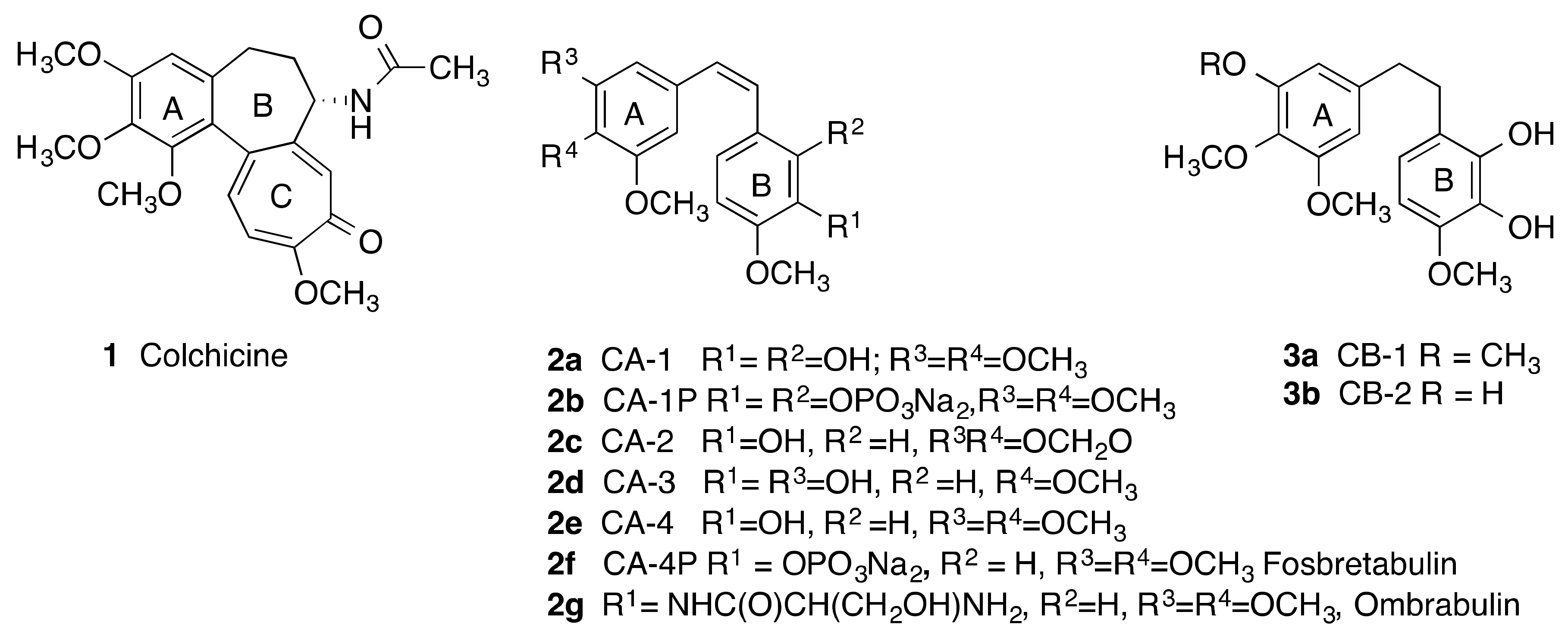

Colchicine 1 (Figure 1) isolated from Colchicum autumnale was the first agent identified to bind at a specific site of tubulin identified as the colchicine domain [19]. Many structurally diverse compounds were subsequently discovered which bind to tubulin at the colchicine-binding site and inhibit tubulin polymerisation, resulting in cell cycle arrest followed by apoptotic cell death [20]. The stilbene combretastatin A-4 (CA-4, 2e, Figure 1), isolated from the African bush willow tree Combretum caffrum, contains two substituted aryl rings, A and B, which are linked by an olefinic bridge [21,22]. CA-4 is a potent inhibitor of tumour cell proliferation, migration and invasion; in addition, CA-4 significantly promotes cell apoptosis, inhibits tubulin polymerisation and disrupts microtubule dynamics. Examples of the combretastatin group 2a–2e are illustrated in Figure 1, including combretastatins CA-1 (2a), CA-2 (2c), CA-3 (2d) and CA-4 (2e) and the combretastatin B-series (CB-1 (3a) and CB-2 (3b)). However, there are many limitations associated with CA-4 such as poor water solubility and chemical instability (by isomerisation to more stable inactive E-isomer during storage and administration), together with phase I and phase II metabolic transformations [22]. The low aqueous solubility has been overcome by the development of the water-soluble phosphate prodrugs CA-1P, 2b, and CA-4P, fosbretabulin, 2f [23,24,25], and the amino prodrug ombrabulin (AVE8062) (2g), a synthetic water-soluble vascular disrupting combretastatin analogue [26] (Figure 1). The isomerisation instability has been overcome by the replacement of the double bond of CA-4 with different heterocycles which lock the E-configuration, leading to the discovery and development of combretastatin analogues [23,27,28,29]. CA-4 and derivatives continue to be of interest in cancer cell biology as potent inhibitors of angiogenesis and cell proliferation and inducers of apoptosis and are known to modulate an extensive network of cell signalling systems [21,30]. Among the heterocyclic structures reported, the β-lactam ring has been explored in the design of CA-4 analogues as it provides a rigid scaffold for the CA-4 aryl rings, preventing the undesired conversion to the inactive trans isomer while maintaining the essential cis geometry between rings A and B of CA-4 and resulting in potent antimitotic compounds [31,32,33,34]. β-Lactam derivatives are versatile and attractive chemical scaffolds for drug discovery [35,36,37], and the β-lactam structure is a useful template for the design of novel anticancer agents [38].

Microtubule-targeting agents (MTAs) are among the most frequently prescribed antitumour chemotherapeutic agents. However, despite the benefits of microtubule-targeting drugs such as taxol and the vinca alkaloids in the clinic, the development of drug resistance and dose-limiting toxicities restrict their clinical efficacy [39]. Recently reported structurally diverse tubulin-targeting compounds with potent activities include the peptide dolastatinol 4 (Figure 2) [40] and the hydroquinoxalinone 5, binding at the colchicine site [41]. The bis-indole sabizabulin 6 (ABI-231, Veru-111) is a potent, orally bioavailable tubulin inhibitor in clinical trials for metastatic castration-resistant prostate cancer. Interaction of 6 and related analogue 7 with the colchicine-binding site is confirmed by X-ray crystallography [42,43]. Additionally, the antiviral activity of sabizabulin against SARS-CoV-2 is reported. Sabizabulin binds to viral tubulin, disrupting the intracellular transport of the SARS-CoV-2 virus together with anti-inflammatory effects [44]. The indolylimidazopyridine 8 is a microtubule-depolymerising agent in metastatic melanomas and P-gp-mediated multidrug-resistant cancers [45]. A phase I/II clinical trial for anaplastic thyroid cancer was completed for the 4-aryl-4H-chromene crolibulin 9 which interacts with tubulin at the colchicine-binding site [46]. The orally active diketopiperazine plinabulin 10 also targets the colchicine-binding site and disrupts tumour growth [47], while the phosphoinositide 3-kinase (PI3K) inhibitor buparlisib 11 disrupts microtubule polymerisation as an off-target effect, and has been assessed in metastatic TNBC [48]. Preclinical studies have suggested that CBSIs are effective in suppressing the overexpression of tubulin isotypes and can prevent P-gp-, MRP1- and MRP2-mediated drug resistance [28]. Tubulin inhibitors as dual targeting small molecules for cancer therapy [49] have been reported; e.g., the dual-targeting inhibitor of tubulin and Src kinase 12 [50] and the hydroxamic acid based microtubule destabilising agent 13 [51]; 14 synergistically targets both the tubulin colchicine site and aryl hydrocarbon receptor [52], and 15 is a dual inhibitor of poly(ADP-ribose) polymerase-1 (PARP-1) and tubulin [53] (Figure 2).

The introduction of fluorine can enhance the potency and target selectivity of a drug by affecting properties such as pKa, lipophilicity, hydrophobic interactions, conformation, membrane permeability and P-gp recognition while oral bioavailability and half-life can also be improved [54]. More than 340 marketed drugs (20% of the market) contain at least one fluorine atom [55]. Fluorinated analogues of CA-1 and CA-4 demonstrate varying effects on cancer cell cytotoxicity and tubulin binding [56]. We have previously reported the synthesis of β-lactams containing various C3 β-lactam ring substituents with antiproliferative activity against breast cancer MCF-7 cells [32,33,34,57].

Synthetic methods for monocyclic β-lactams have been extensively reviewed [58,59,60]. The most popular methods for the construction of β-lactams are ketene/imine cycloadditions (Staudinger reaction), ester or amide enolate–imine condensations and [2 + 2] cycloadditions of isocyanates with vinyl ethers. Ligand-controlled transition metal catalysis such as the alkyne–nitrone Kinugasa reaction and rhodium-mediated diazo activation/C–H bond insertion methods have been developed [35,61]. Structurally diverse β-lactam compounds have attracted considerable interest as core structures of antibiotics and as synthons for chiral β-amino acids [62]. 3-Fluoro-β-lactams have been used in the preparation of fluorinated β-amino acids as core intermediates for more complex molecules such as fluoro analogues of taxol [63,64].

The objective of this research is the synthesis of a series of novel β-lactam bridged CA-4 analogues with 3-fluoro and 3,3-difluoro substituents at the 3-position on the β-lactam ring (Figure 2, target structures) and the investigation of the antiproliferative effects of the compounds in MCF-7 breast cancer cells and in TNBC cell lines. We also aimed to identify the mechanism of action of these compounds as potential antitubulin agents. In addition, we now investigate possible fluorophilic binding sites on the colchicine-binding site which may contribute to stabilisation of the drug–receptor complex [65]. The 3-fluoro β-lactams (14–23) and 3,3-difluoro β-lactams (24–33) identified for study contain the 3,4,5-trimethoxyphenyl ring A (required for potent activity of CA-4), together with selected ring B substituents [33,34]. These compounds will facilitate the investigation of the effect of the introduction of the 3-fluoro substituent on the anticancer activity in MCF-7 breast cancer cells and the tubulin binding effects of the β-lactam CA-4 analogues.

2. Results and Discussion

2.1. Chemistry

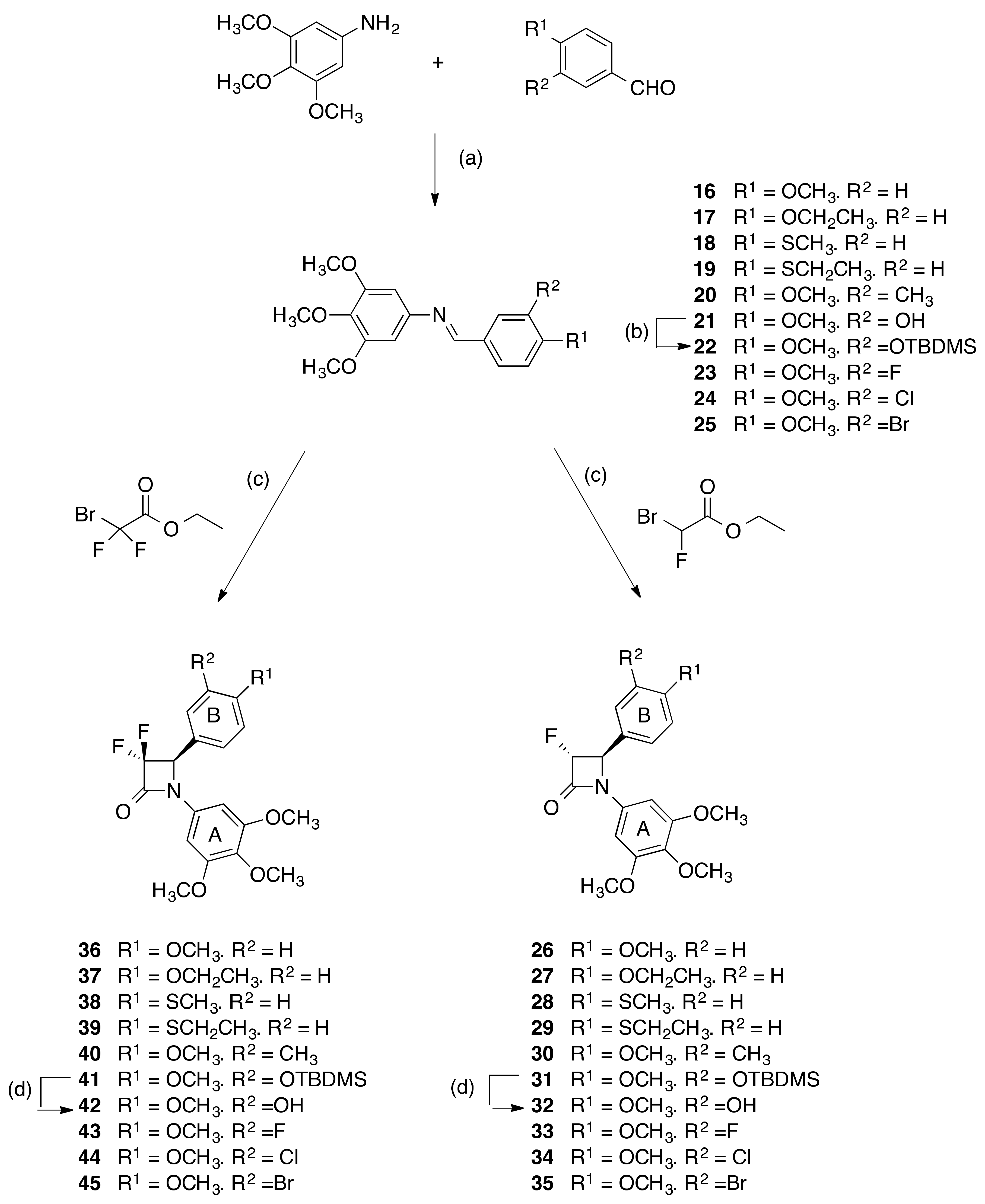

In the present work, the preparation of a series of 3-fluoro and 3,3-difluoro substituted β-lactams 26–45 was achieved using the microwave-assisted Reformatsky reaction of the appropriate imines and ethyl bromofluoroacetate or ethyl bromodifluoroacetate, respectively, in the presence of trimethylchlorosilane and zinc dust (Scheme 1). The imines 16–21 and 23–25 required for the synthetic procedures were obtained by condensation of 3,4,5-trimethoxyaniline with the appropriately substituted benzaldehyde in 75–91% yields (Scheme 1). Phenol 21 was protected as the tert-butyldimethylsilyl (TBDMS) ether 22 by reaction with tert-butyldimethylsilyl chloride. The characteristic imine proton signal was observed in the ¹H NMR spectra of these imines, e.g., for compound 22, as the singlet at δ 8.51, and the aromatic ¹⁹F signal was observed at δ −134.3 in compound 23 (see Supplementary Materials). X-ray crystallography confirmed the E configuration of the imines 18 and 23 (

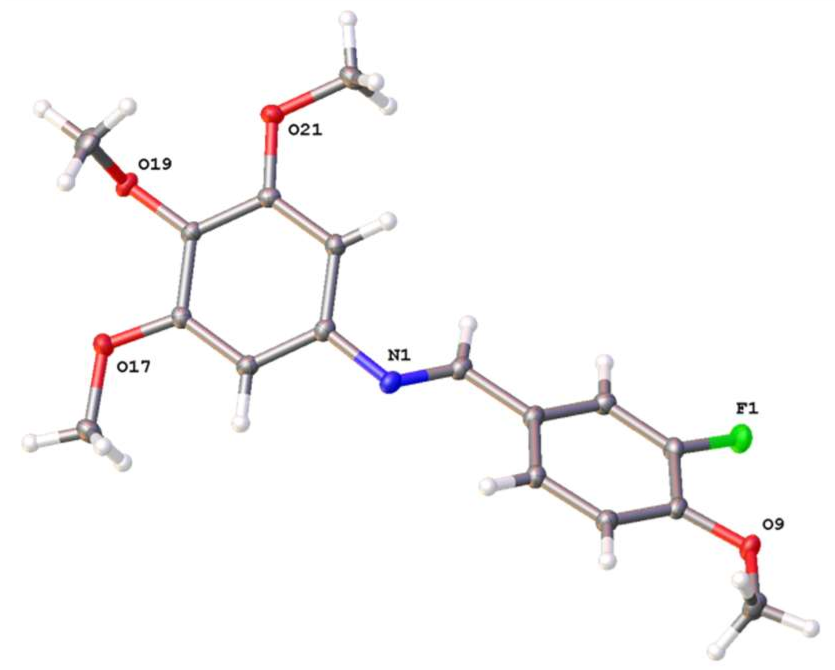

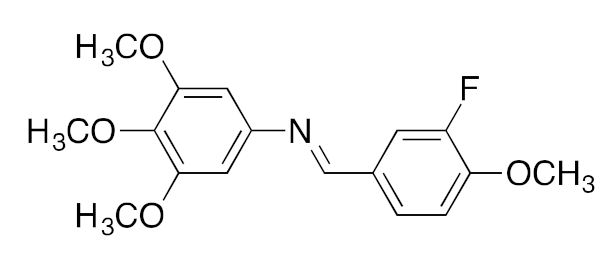

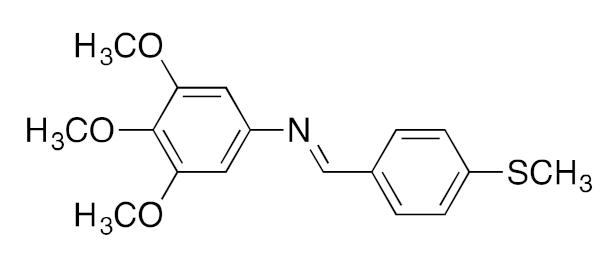

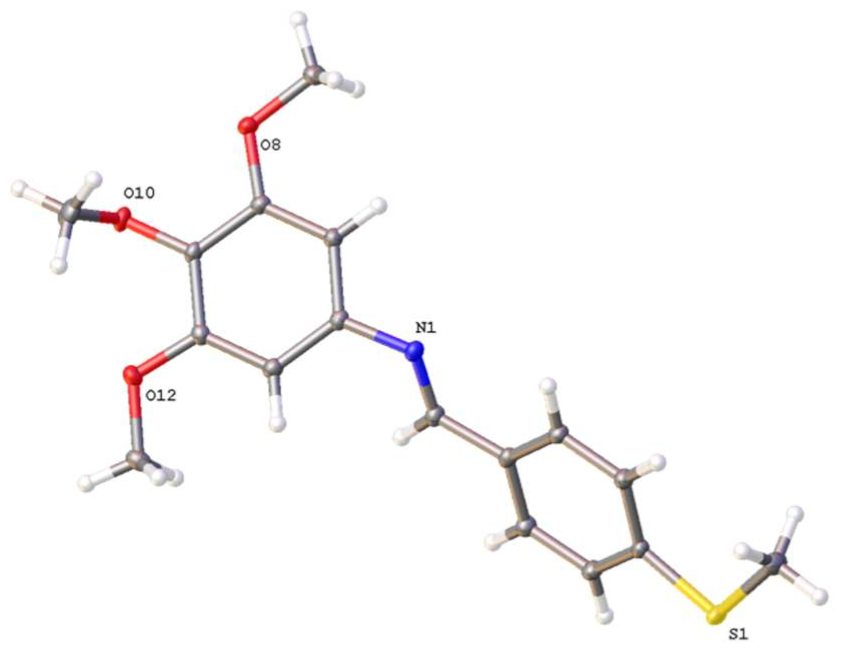

Table 1. X-ray crystal structures of imines 18 and 23.

Compound	Structure	X-ray Representation
18
23

ORTEP representation of the X-ray crystal structures of imines 18 and 23 with 50% thermal ellipsoids with heteroatoms numbered.

), with centrosymmetric and monoclinic packing structure observed for both compounds. The N1-C2 imine bond lengths were 1.2788 (14) Å and 1.2790 (12) Å respectively, with typical bond angles of 117.58° (C2N1C14) and 123.10° (N1C14C15) for compound 18 and 117.64° (C2N1C11) and 122.87° (N1C2C3) for compound 23. The torsion angles for N=C-C-phenyl ring were observed as −177.67 (11)° and 171.67 (9)° for compounds 18 and 23, respectively, with the torsion angles for the C=N-C- phenyl ring measured as −140.42 (11)° and 140.51 (9)°, respectively.

The 3-fluoro-β-lactams 26–31 and 33–35 were obtained by microwave-assisted Reformatsky reaction of the imines 16–21 and 23–25, respectively, with ethyl bromofluoroacetate in a short reaction time (30 min) in moderate yield (6–58%) after purification via flash column chromatography (Scheme 1). Deprotection of the TBDMS ether 31 with tetrabutylammonium fluoride (TBAF) afforded the phenol 32 in 18% yield. For compounds 26–35, the β-lactam carbonyl group was confirmed from the IR spectrum (ν 1736–1762 cm⁻¹). In the ¹H NMR spectrum of compounds 31 and 32, H-3 was observed at 5.14 ppm and 5.11 ppm, respectively; geminal coupling with the 3-fluoro substituent of the β-lactam ring to H3 was demonstrated with ³J fluorine H-F coupling constants of 47 Hz and 48 Hz for 31 and 32, respectively. Due to ²J fluorine coupling, the typical β-lactam doublet for H3 resonates as an apparent double doublet with a second ³J coupling of 1.7 Hz and 2.6 Hz for H₃ of 31 and 32, respectively, to the adjacent H₄ of the β-lactam ring. The characteristic coupling constant indicates that the trans isomer is isolated exclusively in this reaction for the series of compounds. Interestingly, we previously obtained a 2:1 cis/trans mixture of 3-methylazetidin-2-ones by reaction of ethyl-2-bromopropionate with the imine under similar conditions [57]. For both compounds 31 and 32, H₄ resonates also as an apparent double doublet with ³J coupling to both the 3-fluoro substituent and adjacent trans H₃. ³J fluorine coupling constant values for H₄ are narrower than values for geminal fluorine coupling observed for H₃ with values of 25 and 26 Hz for 31 and 32, respectively. Additionally, interesting carbon–fluorine coupling is observed on the ¹³C spectrum for both 31 and 32, at C₂, C₃ and C₄ of the β-lactam ring. For compound 32, C₃ resonates much further downfield compared to C₄ due to the electron-withdrawing effect of the 3-fluoro atom (δ 95.2 ppm and 58.8 ppm, respectively) as an apparent double doublet with carbon–fluorine coupling constant values of 75 and 26 Hz, respectively. The carbonyl carbon (C₂) of the β-lactam ring for 32 resonates as a doublet also coupling to the 3-fluoro substituent with a J value of 31 Hz. The characteristic ¹⁹F NMR spectrum confirmed the presence of the 3-fluoro substituent in compound 31 at δ −203.7 and 32 at δ −203.6.

The 3,3-difluoro-β-lactams 36–41 and 43–45 were similarly prepared by reaction of ethyl bromodifluoroacetate with the imines 16–20 and 22–25, respectively, in 13–65% yield (Scheme 1). Deprotection of the TBDMS ether 41 with TBAF afforded the phenol 42 in 21% yield. In the ¹H NMR spectrum of 3,3-difluoro compound 37, the H4 signal was observed as a double doublet δ 5.29 ppm (J = 12.20 Hz and 1.64 Hz). In the ¹³C NMR spectrum of compound 37, the difluoro-substituted C3 was observed at δ 121.47 ppm (further downfield compared with C-3 of monofluoro-substituted β-lactam, e.g., for compound 31 where C-3 is found at δ 95.2 ppm), and while the resonance of C4 occurred at δ 63.59 ppm. All products were obtained as racemic mixtures, with one enantiomer illustrated (Scheme 1).

2.2. X-ray Structural Study for 3-Fluoro and 3,3-Difluoro-β-lactams 33 and 43

X-ray crystallographic analysis of the 3-fluoro β-lactam 33 and 3,3-difluoro β-lactam 43 confirmed the stereochemical assignments (

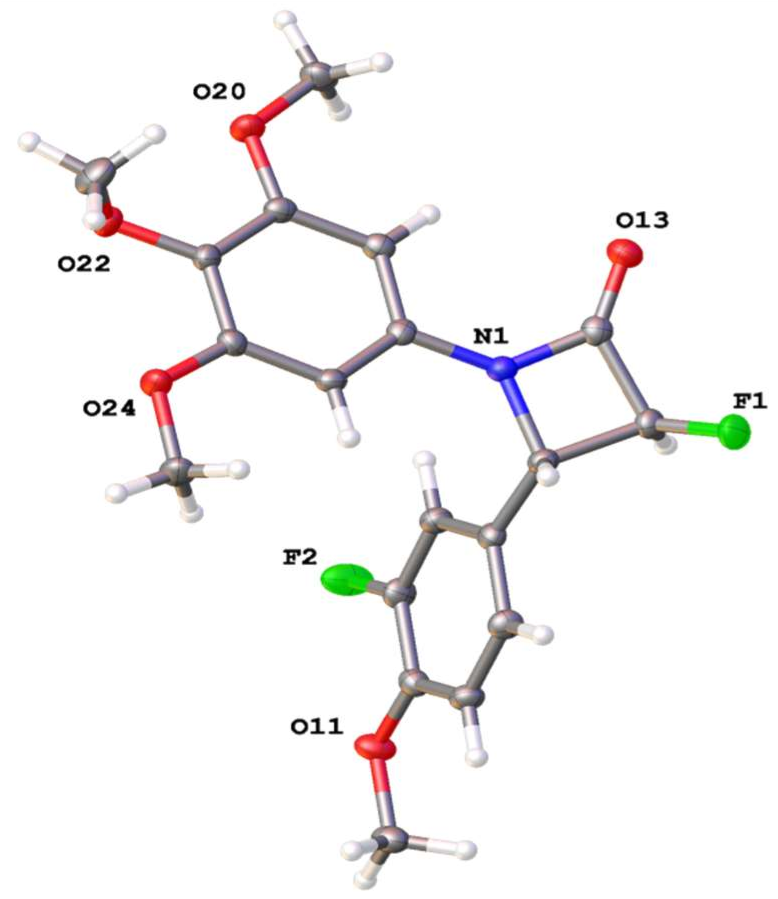

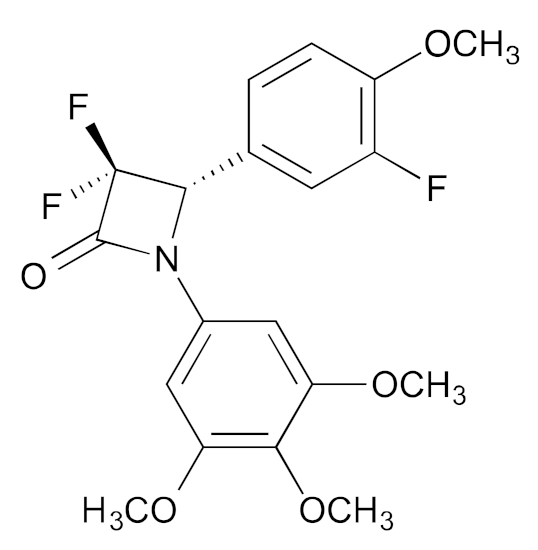

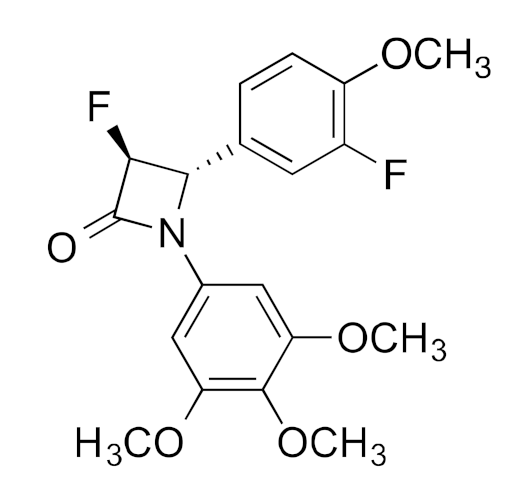

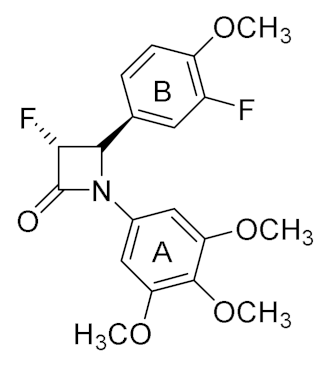

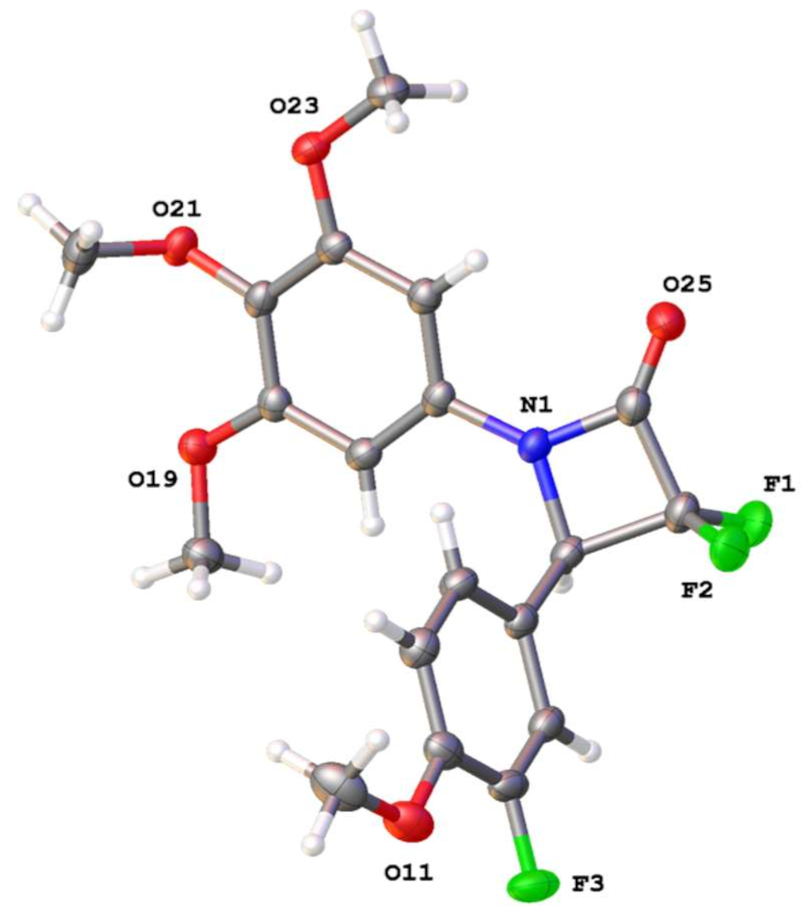

Table 2. X-ray crystal structures of β-lactams 33 and 43 ^a.

Compound	Structure	X-ray Representation
33
43

^a ORTEP representation of the X-ray crystal structures of meta-fluoro ring B β-lactams 33 and 43 with 50% thermal ellipsoids with heteroatoms numbered.

,

Table 3. Crystal data and structure refinement details for imines 18 and 23, 3-fluoro β-lactam 33 and 3,3-difluoro β-lactam 43.

Identification Code	18	23	33	43
CCDC number	2101671	2101672	1537939	1537940
Empirical formula	C17H19NO3S	C17H18NO4F	C19H19F2NO5	C19H18F3NO5
M (g/mol)	317.39	319.32	379.35	397.34
T (K)	100 (2)	100 (2)	100 (2)	100 (2)
Crystal system	Monoclinic	Monoclinic	Monoclinic	Triclinic
SG	P21/c	P21/c	P21/n	P$\overline{1}$
a (Å)	14.1344 (4)	14.2025 (3)	9.9882 (4)	9.2060 (3)
b (Å)	15.5489 (4)	15.1955 (4)	9.9623 (4)	9.6842 (3)
c (Å)	7.2569 (2)	7.2677 (2)	18.1462 (7)	12.3233 (4)
α (°)	90	90	90	104.832 (2)
β (°)	93.9918 (10)	97.3324 (8)	97.1621 (13)	96.939 (2)
γ (°)	90	90	90	117.376 (2)
V (Å3)	1591.01 (8)	1555.65 (7)	1791.56 (12)	905.97 (5)
Z	4	4	4	2
Dcalc (g/cm3)	1.325	1.363	1.406	1.457
μ (mm−1)	0.215	0.105	0.115	1.083
F(000)	672	672.0	792.0	412.0
Radiation	Mo Kα (λ = 0.71073)	Mo Kα (λ = 0.71073)	Mo Kα (λ = 0.71073)	Cu Kα (λ = 1.54178)
Reflections collected	96322	73658	30695	11320
Independent reflections	4710 Rint = 0.0376, Rsigma = 0.0139	4123 Rint = 0.0304, Rsigma = 0.0105	5242 Rint = 0.0417, Rsigma = 0.0363	3379 Rint = 0.0289, Rsigma = 0.0266
Data/restraints/parameters	4710/0/199	4123/0/216	5242/0/248	3379/0/257
Goodness-of-fit on F2 (S)	1.039	1.074	1.023	1.060
Final R indexes [I ≥ 2σ (I)] *	R1 = 0.0323, wR2 = 0.0824	R1 = 0.0332, wR2 = 0.0950	R1 = 0.0393, wR2 = 0.0886	R1 = 0.0404, wR2 = 0.1138
Final R indexes (all data)	R1 = 0.0437, wR2 = 0.0899	R1 = 0.0404, wR2 = 0.1014	R1 = 0.0695, wR2 = 0.0999	R1 = 0.0452, wR2 = 0.1186
Largest diff. peak/hole/e Å−3	0.44/−0.32	0.37/−0.20	0.38/−0.26	0.27/−0.27

* R₁ = ∑||F_o| − |F_c||/∑|F_o|, wR₂ = [∑w(F_o² − F_c²)²/∑w(F_o²)²]^1/2.

and

Table 4. X-ray crystallographic data for β-lactams 3-fluoro β-lactam 33 and 3,3-difluoro β-lactam 43.

	Ring Plane Normal AB Angle (°)	Ring A to Central Torsion (°) a*	Ring B to Central Torsion (°) b*	Ring AB Torsion (°) c*	Ring BC Torsion (°) d,e*
33 R = H	97.60(4)	−154.97(12)	−161.40(11)	62.36(16)	−119.43(11)
43 R = F	90.40(6)	156.49(16)	178.40(17)	−76.6(2)	130.71(15)

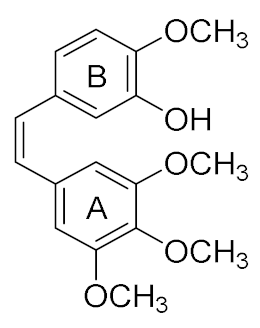

CA-4	-	-	-	55	-
Colchicine	-	-	-	53	-

^a C18-C13-N1-C2, C26-C21-N1-C2, C26-C21-N1-C2, C14-C13-N1-C2, C14-C13-N1-C2, C19-C14-N1-C2, C14-C13-N1-C2; ^b C10-C5-C4-N1, C7-C6-C5-N1, C11-C6-C5-N1, C6-C5-C4-N1, C6-C5-C4-N1, C10-C5-C4-N1, C6-C5-C4-N1; ^c C13-N1-C4-C5, C21-N1-C5-C6, C21-N1-C5-C6, C13-N1-C4-C5, C13-N1-C4-C5, C14-N1-C4-C5, C13-N1-C4-C5; ^d C5-C4-C3-C26, C6-C5-C4-O14, C6-C5-C4-O14, C5-C4-C3-Cl1, C5-C4-C3-O26, C5-C4-C3-F1, C5-C4-C3-F1; ^e Ring C = β-lactam ring; * = 2 independent molecules in the asymmetric unit. Each angle given but only the first atom numbering scheme is outlined above.

). The β-lactam ring in both compounds 33 and 43 is observed with a conformationally restricted scaffold for the planar aryl rings A and B usually required for characteristic interaction with the colchicine-binding site of tubulin. As shown in Table 2, the X-ray structures demonstrated a rigid configuration for both β-lactams with rings A and B not coplanar. The torsional angles (ring A/B) observed for compounds 33 and 43 are 62.3° and −76.6° respectively (Table 4) indicating that compound 33 is more comparable with the related ring A/B torsional angles observed for colchicine [19] and CA-4 [66,67] reported as 53° and 55° respectively. The torsional angle value for ring B and the 3-fluoro group of compound 33 is -119.43° which is similar to our previously reported 3-hydroxy β-lactams (117.0°) and 3-chloro β-lactams (114.4°) [33] (Table 4). In contrast, the torsional angle value increased to 130.71° for 3,3-difluoro β-lactam 43 suggesting that this may modulate the tubulin activity observed for this compound. The β-lactam C=O bond lengths of 1.2134 (15) Å and 1.2012 (19) Å are observed for compounds 33 and 43 respectively, in agreement with carbonyl bond lengths reported for monocyclic β-lactams [68]. The strained β-lactam four-membered ring differs from a normal amide resulting in decreased amide resonance. Monocyclic β-lactams are found to contain a longer C-2/N amide bond length (1.35–1.38 Å) when compared with normal amide bond length of 1.33 Å; also a shorter C=O bond length (1.21–1.23 Å) is observed when compared with a standard amide bond length of 1.24 Å [68]. The data obtained for compounds 33 and 43 show the β-lactam C=O bonds were within the expected range for a monocyclic β-lactam, as were the C-2/N(amide) bond lengths [(1.3706 (15) Å and 1.3724 (19) Å respectively]. The C-2/C-3 bond lengths of 1.5339 (17) Å and 1.534 (2) Å were in the expected range of 1.52–1.55 Å for a β-lactam, while the N/C-4 bond lengths (1.4851 (15) Å and 1.4851 (18) Å respectively were also within the expected range of 1.49–1.51 Å [68,69]. (Numbers in parentheses refer to the second crystallographically independent molecule in the asymmetric unit).

2.3. Stability Study for β-Lactams 33 and 39

The β-lactam ring is known to undergo hydrolysis/degradation depending on the substituent type on the ring. For example, degradation of monocyclic β-lactam antibiotic aztreonam increased with elevated humidity, temperature and acidic pH buffer [70]. Ezetimibe, a monocyclic β-lactam drug used to reduce blood cholesterol, undergoes degradation and hydrolysis more rapidly in neutral and basic pH conditions than in acidic pH [71]. The stability of representative compounds 33 and 39 was also determined at pH 4, pH 7.4 (plasma) and pH 9 (intestine) by HPLC. Interestingly, compound 33 bearing a fluoro substituent at C-3 of β-lactam together with a 3-fluoro on ring B is stable at buffered systems pH 4 and pH 7.4 with 76% and 87%, respectively, remaining at 24 h, while 26% remained at pH 9. The electron-withdrawing effect of the 3-fluoro substituent may result in decreasing stability of the β-lactam ring in response to acid hydrolysis. For the 3,3-difluoro compound 39, 50% remained after 24 h at pH 7.4, 39% at pH 4, while the compound was less stable at pH 9 with 19% remaining at 24 h. Compounds 33 and 39 were further examined under degradation conditions; 33 was found to be stable with 90%, 88%, 60%, 65% and 65% of the compound remaining after 4 h treatment in heat (60 °C), UV light, acidic (0.1 M HCl), alkaline (0.1M NaOH) and oxidative (3% H₂O₂) conditions, respectively. The 3,3-difluoro compound 39 was slightly less stable in these conditions, with 82%, 61%, 54%, 60% and 50% of the compound remaining, respectively (see Supplementary Materials, Table S7).

2.4. Predicted Physicochemical and ADME Properties

Consideration of physicochemical and pharmacokinetic properties of active molecules is useful in the early stages of drug discovery to determine the potential of compounds for further development. The physicochemical properties and metabolic stability predicted for the panel of 3-fluoro and 3,3-difluoro-β-lactams 26–45 were compiled to assess the relevant drug properties of the series (see Supplementary Materials for Tier 1 profiling screen, Tables S1 and S2). Pipeline Pilot Professional [72] was used to calculate the relevant physicochemical and pharmacokinetic properties. The synthesised compounds followed Lipinski and Veber rules with a molecular weight less than 500 Da (within the range of 361–458 Da), ≤10 hydrogen bond acceptors, ≤5 hydrogen bond donors and ≤10 rotatable bonds. The logP for all synthesised compounds was determined to be less than 5 (Supplementary Materials, Table S2) and was in the range 2.68–4.00. The topological polar surface area (TPSA), indicating the ability of the compound to form hydrogen bonds and to permeate cells (indicating good intestinal absorption), was calculated to be in the range 57.23–77.46 Ų and within the acceptable limit of ≤140 Ų. All compounds were predicted to have good passive gastrointestinal absorption properties, high blood–brain barrier (BBB) absorption levels and good plasma protein binding properties (>90%) and were not predicted to inhibit CYP2D6. The synthesised compounds are predicted to be un-ionised at physiological pH. The theoretical pKaH values of phenolic compound 32 calculated with Marvin are 9.82 (phenolic OH) and 11.47 (CH-F), while the corresponding values for compounds 33 and 42 are 11.46 (CH-F) and 9.82 (CH-F), respectively. The compounds are predicted to have low aqueous solubility, with the exception of phenolic compound 32 which is predicted to have good aqueous solubility (logSw = −3.8020 mol/L) (see Supplementary Materials, Table S1). These compounds were soluble in EtOH and DMSO for biological evaluation; improved water solubility may be achieved using phosphate esters, as for CA-4 [73]. In addition, the compounds did not signal an alert for pan-assay interference compounds (PAINS) [74]. As the compounds are predicted to demonstrate good drug-like parameters and bioavailability [75], we proceeded with further biochemical studies to examine their mechanism of action.

2.5. Biochemical Results

2.5.1. In Vitro Antiproliferative Activity of 3-Fluoro β-Lactams and 3,3-Difluoro β-Lactams in MCF-7 Breast Cancer Cells

The antiproliferative potential of the synthesised 3-fluoro β-lactams 26–35 and 3,3-difluoro β-lactams 36–45 was evaluated in MCF-7 human breast cancer cells using the AlamarBlue assay, with CA-4 as reference compound (Figure 3). These compounds were screened at two concentrations (1 and 10 μM) to identify the most potent compounds for further investigations. The results for the preliminary in vitro antiproliferative screen for 3-fluoro β-lactam compounds (26–29), which contain different substituents at the para position in the B ring, are presented in Figure 3A. Compounds 26 (OCH₃), 27 (OCH₂CH₃) and 28 (SCH₃) exhibited good anticancer activity with 40, 46 and 47% viable cells remaining at 10 μM but were only weakly active at 1 μM concentration (>70% viable cells of MCF-7). Compound 29 containing the SCH₂CH₃ substituent was weakly active with 68–90% cell viability for these two concentrations, much less potent compared to the corresponding derivatives containing OCH₃, OCH₂CH₃ and SCH₃ substituents. The 3-fluoro β-lactam compounds (30, 32–35) having different meta substituents on ring B showed more potent cell growth inhibition activity at the higher concentration (10 μM), with 11–46% viable cells remaining after treatment (Figure 3A). Compounds 32 (3-hydroxy) and 33 (3-fluoro) proved to be the most active of the 3-fluoro β-lactam derivatives in this series, with 30 and 37% viable MCF-7 cells at 1 μM.

The antiproliferative effect of 3,3-difluoro β-lactams 36–39 containing different para substituents on ring B is displayed in Figure 3B. All compounds in this series exhibited much weaker activity with 59–67% viable cells at 10 μM and >90% at 1 μM compared to the corresponding 3-fluoro β-lactam derivatives (26–29). In a similar trend, 3,3-difluoro compounds 40 and 42–45 containing various meta substituents on ring B showed poorer antiproliferative activity with >60% cell viability at 10 μM and >80% cell viability at 1 μM compared to their corresponding 3-fluoro β-lactam derivatives (30, 32–35) (Figure 3B). The exception in this series was compound 42 containing meta-hydroxy substituent on ring B, which elicited potent anticancer effects at both concentrations (1 and 10 μM) with 17% and 37% viable MCF-7 cells remaining, respectively. The results suggested that the introduction of an additional fluorine substituent at C-3 of the β-lactam ring significantly reduced the cell growth inhibition activity for most of the compounds and affects the interaction of the β-lactam with the target tubulin-binding site.

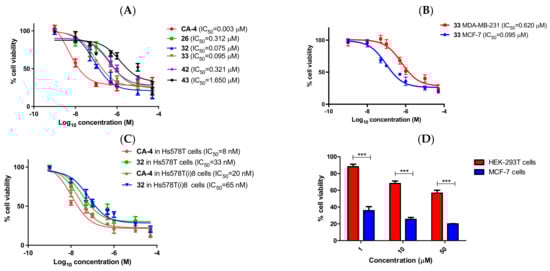

Figure 3 fluoro and 3,3-difluoro β-lactams, five of the more active compounds (26, 32, 33, 42 and 43) were selected for the determination of IC₅₀ values against the MCF-7 cell line (Figure 4A and Supplementary Materials Table S4). 3-Fluoro β-lactam 33 exhibited notable antiproliferative activity against the ER-positive MCF-7 breast cancer cells with an IC₅₀ value of 0.095 μM (Figure 4A). The positive control CA-4 gave an IC₅₀ value of 0.0035 μM in the MCF-7 cell line, which is in good agreement with the reported values for CA-4 in the MCF-7 human breast cancer cell lines [76]. Removal of the ring B 3-fluoro substituent as in compound 26 resulted in a reduction in potency with IC₅₀ = 0.312 μM. The 3-fluoro-β-lactam (ring B 3-hydroxy) 32 demonstrated significant potency (IC₅₀ = 0.075 μM) compared to its corresponding 3,3-difluoro compound 42 which demonstrated a 4-fold reduction in potency (IC₅₀ = 0.321 μM), suggesting that the hydroxyl group contributes to antiproliferative activity but 3,3-difluoro substitution negatively impacts the activity. This effect was also demonstrated in the reduction in activity observed for compound 43 (IC₅₀ = 1.65 μM). It is interesting to see that the phenolic compound 32 with lower logP value (2.68) was more potent (IC₅₀ value = 0.075 μM) than the corresponding ring B 3-fluoro compound 33 (logP 3.10, IC₅₀ value = 0.095 μM); a similar trend was observed for the 3,3-difluoro compounds 42 (logP 2.85, IC₅₀ value = 0.321 μM) and 43 (logP 3.29, IC₅₀ value =1.65 μM), suggesting that the interaction of the phenolic group at the colchicine-binding site is more favourable than the fluorine for optimal tubulin effect. The introduction of the fluorine substituent at C-3 of the β-lactam ring resulted in antiproliferative activities for compounds 32 and 33 at nanomolar concentrations in MCF-7 breast cancer cells similar in potency to our previously reported 3-chloro, 3-vinyl and 3-methylazetidin-2-ones in MCF-7 breast cancer cells [32,33,57], thus indicating the importance of these substituents for the antiproliferative and antimitotic activity of these compounds.

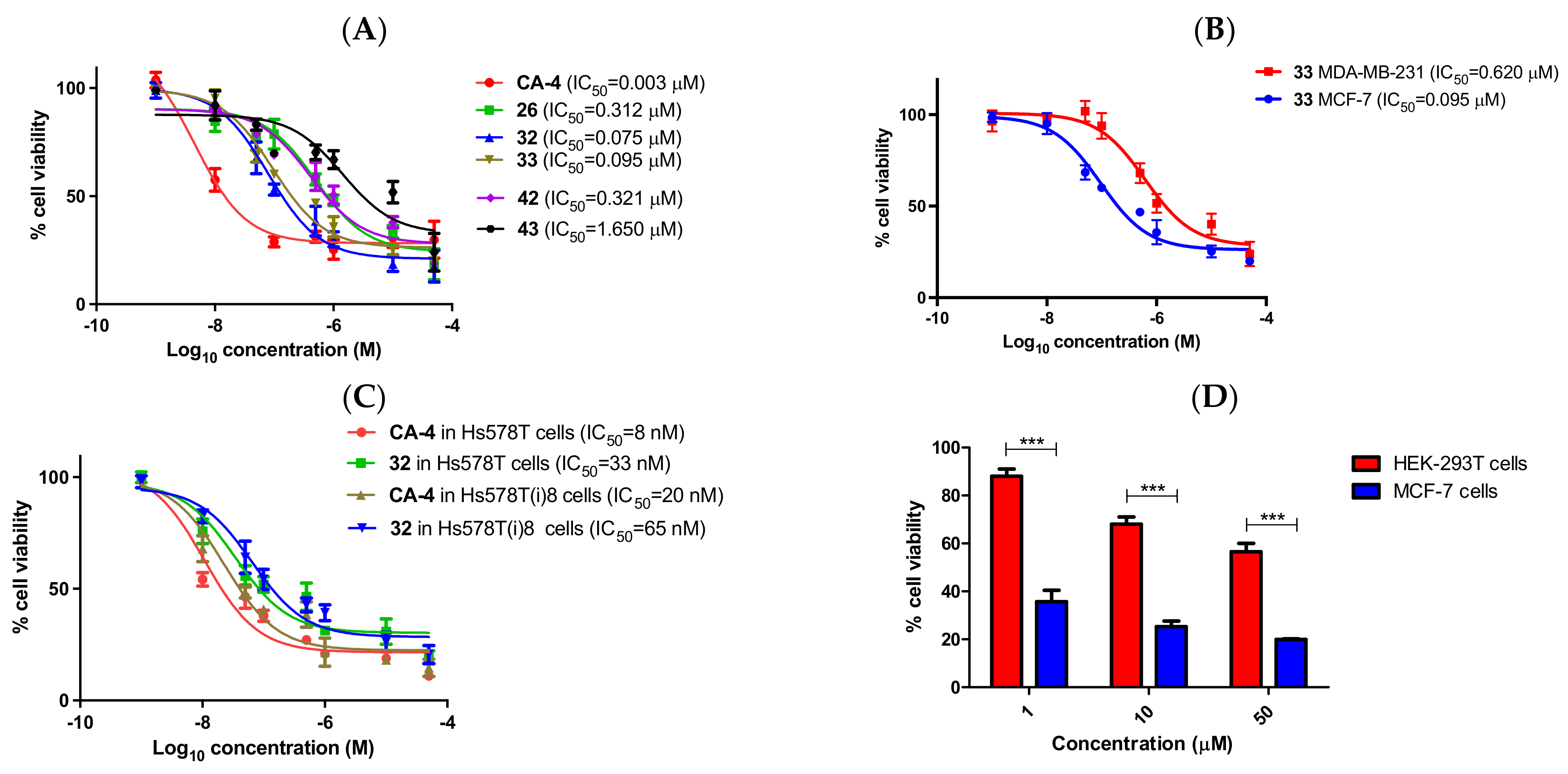

The potent 3-fluoro-β-lactam compound 33 synthesised was also evaluated in the triple-negative MDA-MB-231 cell line which lacks expression of the estrogen and progesterone receptors (ER/PR) and the HER2 receptor. An IC₅₀ value of 0.620 μM was obtained in MDA-MB-231 cells (with incubation time of 72 h), which was not as potent as that observed in the MCF-7 cells (IC₅₀ = 0.095 μM) (Figure 4B). The positive control CA-4 gave an IC₅₀ value of 0.043 μM in the MDA-MB-231 cell line, which is in agreement with the reported values for CA-4 in the MDA-MB-231 human breast cancer cell line [77,78]. Compound 32 was also evaluated in the triple-negative breast cancer cell line Hs578T and its isogenic subclone Hs578T(i)8 (Figure 4C). Hs578Ts(i)8 cells have 2.5-fold more migratory capacity and 3-fold more invasive capacity through the extracellular matrix than the parental cell line (Hs578T) and have 30% more CD44+/CD24-/low cells and in vivo proliferation [79]. Compound 32 demonstrated potent antiproliferative activity in Hs578T cells (IC₅₀ 0.033 ± 0.005 μM) and Hs578Ts(i)8 cells (IC₅₀ = 0.065 ± 0.003 μM) and compares well with CA-4 (IC₅₀ = 0.008 μM in Hs578T and 0.020 μM in Hs578Ts(i)8 cells). These results demonstrate the potential application of this compound as an anticancer agent in the inhibition of tumour invasion and angiogenesis, which are recognised features of tumour growth and metastasis in aggressive breast cancers. Additional evaluation of the compounds 26–45 in the colon cancer cell line SW-480 indicated moderate activity, with compounds 33, 42, 26 and 29 being the most potent with 62%, 56%, 58% and 60% cells remaining at 10 μM concentration (see Supplementary Materials, Figure S11).

The cytotoxicity of the potent β-lactam 33 was investigated in the non-tumourigenic HEK-293T cell line (normal human embryonic kidney) at 72 h. As shown in Figure 4D, the cell viability of HEK-293T cells was notably higher than that observed for MCF-7 cells at 50, 10 and 1 μM concentrations of compound 33. For example, the cell viability of HEK cells at 1 μM was 88% in contrast to the cell viability of 36% for MCF-7 cells at 1 μM. The IC₅₀ value for compound 33 was greater than 50 μM in HEK-293T cells (0.095 μM in MCF-7 cells), demonstrating its selectivity towards cancer cells and the lack of toxicity in non-cancerous cells.

2.5.2. NCI 60 Cell Line Screening for β-Lactam Compounds 33, 37 and 43

The antiproliferative effects of selected compounds 33, 37 and 43 were initially evaluated in the NCI 60 cell line screen at 10 μM concentration [80] (see Supplementary Materials Table S3). Compounds 33, 37 and 43 showed mean growth inhibition of 73.34%, 58.95% and 56.43% at 10 μM over the 60 cell lines tested. Compound 33 demonstrated broad-spectrum activity against the nine panels of cell lines tested (leukaemia, CNS, melanoma, ovarian, renal, non-small-cell lung, colon, breast and prostate cancers). The most potent growth inhibition for all compounds 33, 37 and 43 was observed in the leukaemia panel with a mean growth inhibition of 90.6%, 91.4% and 86.3%, respectively. The activity in MCF-7 confirmed our results, with 87.2%, 82.8% and 84.9% growth inhibition for compounds 33, 37 and 43, respectively.

Compound 33 was next selected for evaluation in the NCI 60 cell line five-dose screen. The GI₅₀ (50% growth inhibition), TGI (total growth inhibition) and LC₅₀ (50% lethal concentration) were determined in the NCI panel of 60 cell lines, using the sulphorhodamine B (SRB) protein assay (Table 5). The GI₅₀ value provides the growth inhibition of the selected compound, while the cytotoxic effect is evaluated in the LC₅₀ value. Compound 33 showed good potency in all leukaemia, breast cancer, ovarian, colon and prostate cell lines and excellent antiproliferative activity at submicromolar concentrations in all cell lines except for melanoma cell lines UACC-257 and CNS SNB-75 (Table 5 and Supplementary Materials Table S3). The GI₅₀ values displayed by compound 33 for breast cancer cell lines MCF-7 (0.0364 μM) and MDA-MB-231 (0.355 μM) confirmed our in-house values for MCF-7 (0.095 μM) and MDA-MB-231 (0.620 μM). Compound 33 exhibited promising antiproliferative activity in the leukemia cell line K-562 (GI₅₀ = 0.038 μM), melanoma cell line M14 (GI₅₀ = 0.025 μM), non-small-cell lung cancer cell line NCI-H552 (GI₅₀ = 0.038 μM), renal cancer cell line RXF393 (GI₅₀ = 0.039 μM), colon cancer cell line HCT-116 (GI₅₀ = 0.0325 μM) and the adenocarcinoma-derived adriamycin-resistant ovarian tumour cell line NCI/ADR-RES (GI₅₀ = 0.042 μM). The compound also displayed good antiproliferative activity in the glioblastoma cell lines U251 (GI₅₀ = 0.0236 μM) and SF-539 (GI₅₀ = 0.0280 μM). Glioblastoma is an aggressive and fast-growing brain tumour with a median survival time of 9–16 months from diagnosis, and these tumours quickly evolve resistance to temozolomide chemotherapy, which is the only FDA-approved treatment [81]. Additionally, the cytotoxicity of compound 33 (determined as the LC₅₀ value) was greater than 100 μM in all cell lines (except COLO 205 (LC₅₀ 8.23 μM) and SK-MEL-5 (LC₅₀ 91.3 μM)), indicating minimal cell death and toxicity. The antiproliferative activity displayed by compound 33 (mean GI₅₀ value 0.2238 μM, mean TGI value 52.48 μM and mean LC₅₀ value 95.49 μM, Table 6) indicated a significant therapeutic window between the concentration required for inhibition of growth of the cancer cells and the concentration of the compound that is lethal to the cells, demonstrating the potential for further development. Further mechanistic and cellular studies were carried out and are described below.

Table 5. Antiproliferative activity of compound 33 in NCI 60 cell line screen ^a,b,c,d.

Panel	Cell Line	GI50 (μM) b	TGI (μM) c	Panel	Cell Line	GI50 (μM) b	TGI (μM) c
Leukaemia	CCRF-CEM	0.0471	>100	Melanoma	LOX IMVI	0.0904	>100
	HL-60(TB)	0.0805	0.399		MALME-3M	Nd d	>100
	K-562	0.0383	>100		M14	0.0254	Nd d
	MOLT-4	0.146	93.4		MDA-MB-435	0.0291	Nd d
	RPMI-8226	0.055	37.3		SK-MEL-2	0.303	>100
	SR	0.0408	>100		SK-MEL-28	15.8	>100
NSCLung	A549/A TCC	0.394	>100		SK-MEL-5	0.0456	0.35
	EKVX	0.203	>100		UACC-257	>100	>100
	HOP-62	0.511	>100		UACC-62	Ndd	>100
	HOP-92	0.266	63.9	Ovarian	IGROV1	0.0946	>100
	NCI-H226	22.2	>100		OVCAR-3	0.0465	0.492
	NCI-H23	0.273	>100		OVCAR-4	0.966	>100
	NCI-H322M	1.63	>100		OVCAR-5	0.423	>100
	NCI-H460	0.356	91.1		OVCAR-8	0.368	>100
	NCI-H522	0.0383	>100		NCI/ADR-RES	0.0424	>100
Colon	COLO 205	0.156	0.503		SK-OV-3	3.45	>100
	HCC-2998	0.406	>100	Renal	786–0	0.0462	15.1
	HCT-116	0.0325	>100		A498	0.847	8.08
	HCT-15	0.0664	>100		ACHN	Nd d	Nd d
	HT29	0.134	>100		RXF 393	0.0398	60
	KM12	0.0596	>100		SN12C	0.482	>100
	SW-620	0.0562	>100		TK-10	38.6	>100
CNS	SF-268	0.324	>100		UO-31	0.171	>100
	SF-295	0.0535	>100	Prostate	PC-3	0.042	>100
	SF-539	0.028	0.217		DU-145	0.269	>100
	SNB-19	0.302	>100	Breast	MCF7	0.0364	>100
	SNB-75	>100	>100		MDA-MB-231/ATCC	0.355	>100
	U251	0.0236	>100		HS 578T	0.295	>100
					BT-549	0.0498	33.8
					T-47D	Nd d	>100
					MDA-MB-468	0.106	Nd d

^a NCI in vitro human tumour cell screen 5-dose assay for compound 33 (NSC 792959). The compound was evaluated using five different concentrations (100 µM, 10 µM, 1 µM, 0.1 µM and 0.01 µM) over the NCI 60 cell line panel, and incubations were carried out over 48 h exposures to the drug [80]. ^b GI₅₀ is the molar concentration of the compound causing 50% inhibition of growth of the tumour cells. ^c TGI: total growth inhibition; TGI is the mean concentration required to completely inhibit the growth of all cells in the NCI 60 cell line panel. ^d Nd: Not determined.

Table 5. Antiproliferative activity of compound 33 in NCI 60 cell line screen ^a,b,c,d.

Panel	Cell Line	GI50 (μM) b	TGI (μM) c	Panel	Cell Line	GI50 (μM) b	TGI (μM) c
Leukaemia	CCRF-CEM	0.0471	>100	Melanoma	LOX IMVI	0.0904	>100
	HL-60(TB)	0.0805	0.399		MALME-3M	Nd d	>100
	K-562	0.0383	>100		M14	0.0254	Nd d
	MOLT-4	0.146	93.4		MDA-MB-435	0.0291	Nd d
	RPMI-8226	0.055	37.3		SK-MEL-2	0.303	>100
	SR	0.0408	>100		SK-MEL-28	15.8	>100
NSCLung	A549/A TCC	0.394	>100		SK-MEL-5	0.0456	0.35
	EKVX	0.203	>100		UACC-257	>100	>100
	HOP-62	0.511	>100		UACC-62	Ndd	>100
	HOP-92	0.266	63.9	Ovarian	IGROV1	0.0946	>100
	NCI-H226	22.2	>100		OVCAR-3	0.0465	0.492
	NCI-H23	0.273	>100		OVCAR-4	0.966	>100
	NCI-H322M	1.63	>100		OVCAR-5	0.423	>100
	NCI-H460	0.356	91.1		OVCAR-8	0.368	>100
	NCI-H522	0.0383	>100		NCI/ADR-RES	0.0424	>100
Colon	COLO 205	0.156	0.503		SK-OV-3	3.45	>100
	HCC-2998	0.406	>100	Renal	786–0	0.0462	15.1
	HCT-116	0.0325	>100		A498	0.847	8.08
	HCT-15	0.0664	>100		ACHN	Nd d	Nd d
	HT29	0.134	>100		RXF 393	0.0398	60
	KM12	0.0596	>100		SN12C	0.482	>100
	SW-620	0.0562	>100		TK-10	38.6	>100
CNS	SF-268	0.324	>100		UO-31	0.171	>100
	SF-295	0.0535	>100	Prostate	PC-3	0.042	>100
	SF-539	0.028	0.217		DU-145	0.269	>100
	SNB-19	0.302	>100	Breast	MCF7	0.0364	>100
	SNB-75	>100	>100		MDA-MB-231/ATCC	0.355	>100
	U251	0.0236	>100		HS 578T	0.295	>100
					BT-549	0.0498	33.8
					T-47D	Nd d	>100
					MDA-MB-468	0.106	Nd d

^a NCI in vitro human tumour cell screen 5-dose assay for compound 33 (NSC 792959). The compound was evaluated using five different concentrations (100 µM, 10 µM, 1 µM, 0.1 µM and 0.01 µM) over the NCI 60 cell line panel, and incubations were carried out over 48 h exposures to the drug [80]. ^b GI₅₀ is the molar concentration of the compound causing 50% inhibition of growth of the tumour cells. ^c TGI: total growth inhibition; TGI is the mean concentration required to completely inhibit the growth of all cells in the NCI 60 cell line panel. ^d Nd: Not determined.

Table 6. NCI 60 cell line in vitro primary screening results for compound 33 ^a.

NCI Ref No.	Compound	Structure	MG-MID GI50 (µM) b	MG-MID TGI (µM) c	MG-MID LC50 (µM) d
D-613729	CA-4		0.099	10.3	85.5
D-792959	33		0.223	52.4	95.49

^a Data obtained from NCI in vitro human tumour cell screen 5-dose assay for CA-4 and compound 33 (NSC 792959). The GI₅₀, TGI and LC₅₀ values are determined; they represent the molar drug concentration required to cause 50% growth inhibition, the concentration required to cause total growth inhibition and the concentration that kills 50% of the cells, respectively. The compounds were evaluated using five different concentrations (100 µM, 10 µM, 1 µM, 0.1 µM and 0.01 µM) over the total NCI 60 cell line panel in the assay, and incubations were carried out over 48 h exposures to the drug [80]. ^b MG-MID: mean-graph midpoint GI₅₀ values. ^c MG-MID mean-graph midpoint TGI values. ^d MG-MID: mean-graph midpoint LC₅₀ values of compounds in the NCI cell panel.

Table 6. NCI 60 cell line in vitro primary screening results for compound 33 ^a.

NCI Ref No.	Compound	Structure	MG-MID GI50 (µM) b	MG-MID TGI (µM) c	MG-MID LC50 (µM) d
D-613729	CA-4		0.099	10.3	85.5
D-792959	33		0.223	52.4	95.49

^a Data obtained from NCI in vitro human tumour cell screen 5-dose assay for CA-4 and compound 33 (NSC 792959). The GI₅₀, TGI and LC₅₀ values are determined; they represent the molar drug concentration required to cause 50% growth inhibition, the concentration required to cause total growth inhibition and the concentration that kills 50% of the cells, respectively. The compounds were evaluated using five different concentrations (100 µM, 10 µM, 1 µM, 0.1 µM and 0.01 µM) over the total NCI 60 cell line panel in the assay, and incubations were carried out over 48 h exposures to the drug [80]. ^b MG-MID: mean-graph midpoint GI₅₀ values. ^c MG-MID mean-graph midpoint TGI values. ^d MG-MID: mean-graph midpoint LC₅₀ values of compounds in the NCI cell panel.

To gain insight into the potential cellular target and molecular mechanism correlating with the cytotoxic effect of 33, NCI COMPARE analysis was carried out [82]. The NCI five-dose cell growth data of 33 were compared with the NCI databases (Standard and Synthetic). The COMPARE algorithm ranks the compared compounds from the NCI databases (Standard and Synthetic, >55,000 compounds) to the seed compound 33 (NCI ref 792959), using Pearson correlation coefficients for the correlation. A correlation coefficient of greater than 0.8 indicates a strong correlation and suggests that the seed compound may have a mechanism of action similar to that of the highly correlated compounds [83,84]. The comparison with the NCI standard database of clinically used drugs resulted in the top-ranked compounds of macbecin II (0.53, Hsp90 inhibitor) and vincristine (0.5, tubulin inhibitor), with values below the acceptable value for useful prediction of the mechanism of action (see Supplementary Materials Table S5, Figure S12). However, the COMPARE analysis using the NCI Synthetic Database of compounds which have known and unknown mechanisms of action resulted in the identification of 19 compounds with correlations in the range of 0.85–0.75 based on GI₅₀ values (see Supplementary Materials Table S6 for details, together with the structures of the compounds identified). Of these, 12 were identified as acting as microtubule-targeting agents with tubulin binding activity, including the highest-ranking compounds which target the colchicine-binding site of tubulin. Compound 33 was designed to target microtubules, so further investigations were carried out to confirm this mechanism of action.

2.5.3. Effect of Compound 33 on the Apoptosis in MCF-7 Cells through Annexin V–FITC/PI Staining

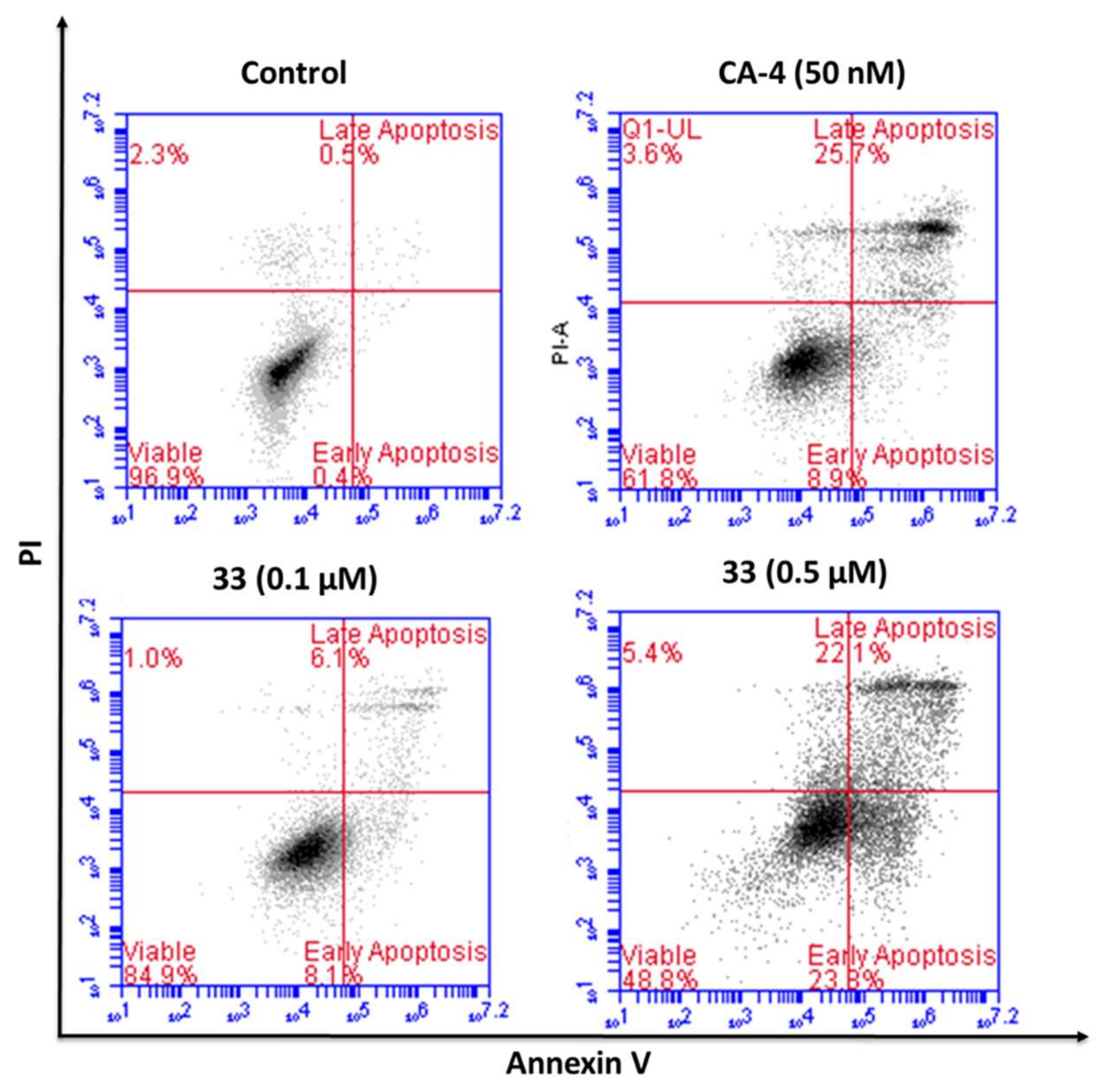

Among the cell death pathways, apoptosis is very important to maintain cellular homeostasis. However, upon severe and irreparable cellular stress, all cells, including cancer cells, undergo apoptosis. In this work, the Annexin V–FITC/PI double-staining method was used in assessing the development of apoptosis when MCF-7 cells are exposed to compound 33 (0.1 and 0.5 μM for 48 h). MCF-7 cells were first treated with compound 33 for 48 h followed by staining with Annexin V–fluorescein isothiocyanate (FITC)/propidium iodide (PI). Live cells (Annexin V⁻/PI⁻), early apoptotic cells (Annexin V⁺/PI⁻), late apoptotic cells (Annexin V+/PI+) and necrotic cells (Annexin V⁻/PI⁺) can be differentiated by tie technique following flow cytometric analysis (Figure 5). The positive control CA-4 (at 50 nM concentration) induced 34.6% Annexin V-positive apoptotic cells, and the vehicle control used was 0.1% ethanol (v/v). Compound 33 was found to induce both early and late apoptosis compared to untreated control cells, and this effect was dose-dependent. β-Lactam 33 induced 14.2% apoptosis (8.1% early apoptotic and 6.1% late apoptotic cells) with 0.1 μM treatment and 45.9% apoptosis (22.1% early apoptotic and 23.8% late apoptotic cells) with 0.5 μM treatment in MCF-7 cells with respect to untreated cells which did not induce any significant apoptotic effect, 0.9% apoptosis (0.4% early apoptotic and 0.5% late apoptotic cells).

2.5.4. Effect of Compound 33 on the Expression of Apoptosis Regulatory Proteins Bcl-2, Bax and Survivin in MCF-7 Cells

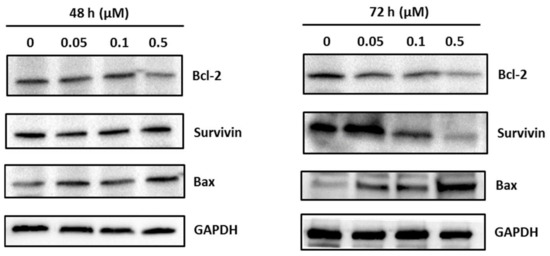

Based on the cell viability results for compound 33, combined with induction of apoptosis, further effects of 33 on the expression of members of the Bcl-2 apoptosis regulatory protein family were next investigated. The Bcl-2 family of apoptosis regulatory proteins includes anti-apoptotic and pro-apoptotic members and is the best-characterised family of proteins involved in the regulation of apoptotic cell death [85]. The pro-apoptotic protein Bax is an important regulator of the intrinsic or mitochondrial apoptosis pathway and triggers the release of caspases, while the anti-apoptotic protein Bcl-2 prevents apoptosis by sequestering caspases or by inhibiting the release of the mitochondrial apoptogenic factors cytochrome c and apoptosis-inducing factor (AIF) into the cytoplasm [86,87].

The selective Bcl-2 inhibitor venetoclax was developed as a BH3-mimetic that binds to the pro-survival protein Bcl-2 and inhibits its ability to bind Bax or Bak. Venetoclax has been approved for clinical use in the treatment of chronic lymphocytic leukaemia (CLL) [86]. MCF-7 cells were treated with compound 33 (0.05, 0.1 and 0.5 μM) for 48 and 72 h as shown in Figure 6. Compound 33 induced downregulation of Bcl-2 expression with corresponding upregulation of Bax at 48 h in a dose-dependent manner. This effect was further increased at 72 h.

Survivin is a member of the inhibitor of apoptosis (IAP) protein family. It is an essential anti-apoptotic protein marker that is overexpressed in most tumour cells and is associated with a poor clinical outcome. Survivin inhibits caspase activation, which is used as an indicator of apoptosis cascades [88,89,90]. Survivin selective inhibitor molecules have been identified as cancer therapeutics, including survivin–partner protein interaction inhibitors, survivin homodimerisation inhibitors, survivin gene transcription inhibitors and survivin mRNA inhibitors [91]. We examined the effect of a range of concentrations of compound 33 (0.05, 0.1 and 0.5 μM) on the level of survivin expressed. Compound 33 caused a downregulation of the expression of survivin in a dose- and time-dependent manner, as demonstrated by Western blotting (Figure 6), confirming the pro-apoptotic effect of 33 in MCF-7 cancer cells. The upregulation of the pro-apoptotic protein Bax and the downregulation of the anti-apoptotic proteins Bcl-2 and survivin support the pro-apoptotic mechanism of action suggested for compound 33, also indicated from the Annexin V/PI flow cytometric analysis.

2.5.5. Effect of Compound 33 on Tubulin Polymerisation

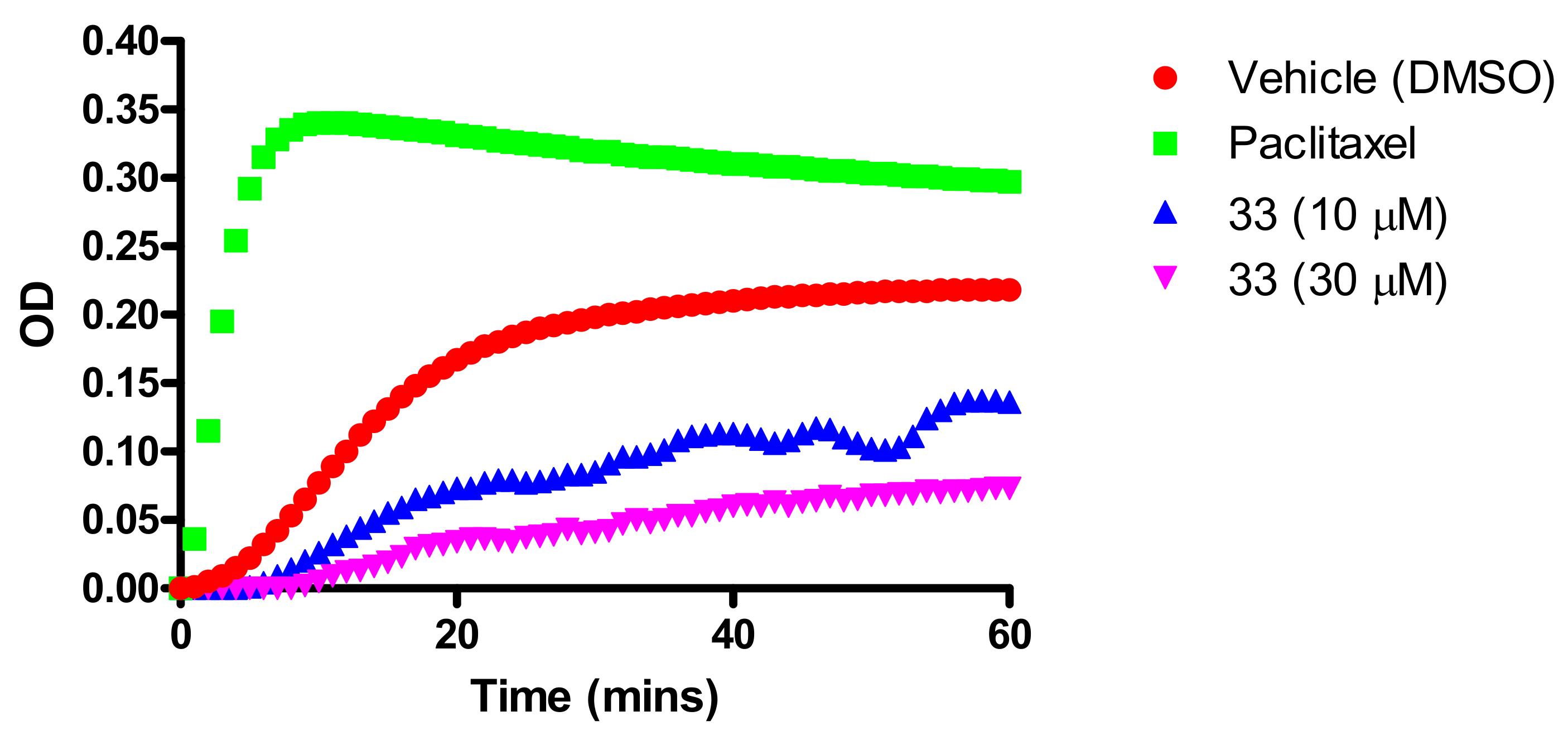

The effect of representative 3-fluoro β-lactam CA-4 analogue compound 33, which exhibited potent anticancer effects in vitro, on the polymerisation of the purified tubulin protein was examined. Tubulin polymerisation was investigated using a turbidimetric assay which determines the light scattering by microtubules (absorbance at 340 nm) that is proportional to the microtubule polymer concentration. Paclitaxel (10 µM), which stabilises the tubulin when compared to the vehicle control (DMSO), was the positive control. Tubulin polymerisation results obtained for 33 showed a 3.5-fold reduction in the V_max (maximum rate of reaction) at 10 µM compared to the vehicle with an increase to 4-fold reduction at the higher concentration of 30 µM (Figure 7), whereas in our previous work we demonstrated that CA-4 induced a 6.3-fold reduction at 10 μM [33]. This result indicated that tubulin is the molecular target of the antiproliferative 3-fluoro β-lactam compound 33 as reported previously for related heterocyclic CA-4 analogues [33].

The tubulin-targeting effect of compound 33 on the microtubule network of MCF-7 cells was further evaluated by immunofluorescence studies to identify the cellular effects that are relevant to its mechanism of action by inhibiting the polymerisation of tubulin. MCF-7 cells displayed a well-organised microtubular network in the control cells (0.1% ethanol (v/v)) (Figure 8). Clearly, significant stabilisation of microtubules in paclitaxel (1.0 μM)-treated cells was observed, while CA-4-treated cells (0.01 μM, positive control) demonstrated depolymerisation and destabilisation of the cell membrane of microtubules. Treatment of MCF-7 cells with compound 33 (0.1, 0.5 and 1.0 μM) induced cell rounding and distinct abnormalities of the spindle formation as well as a loss of the structured tubulin that impacts the microtubule network structure in a dose-dependent manner. These results confirmed our findings that compound 33 acts by destabilising microtubules, supporting the results from the in vitro tubulin polymerisation assay.

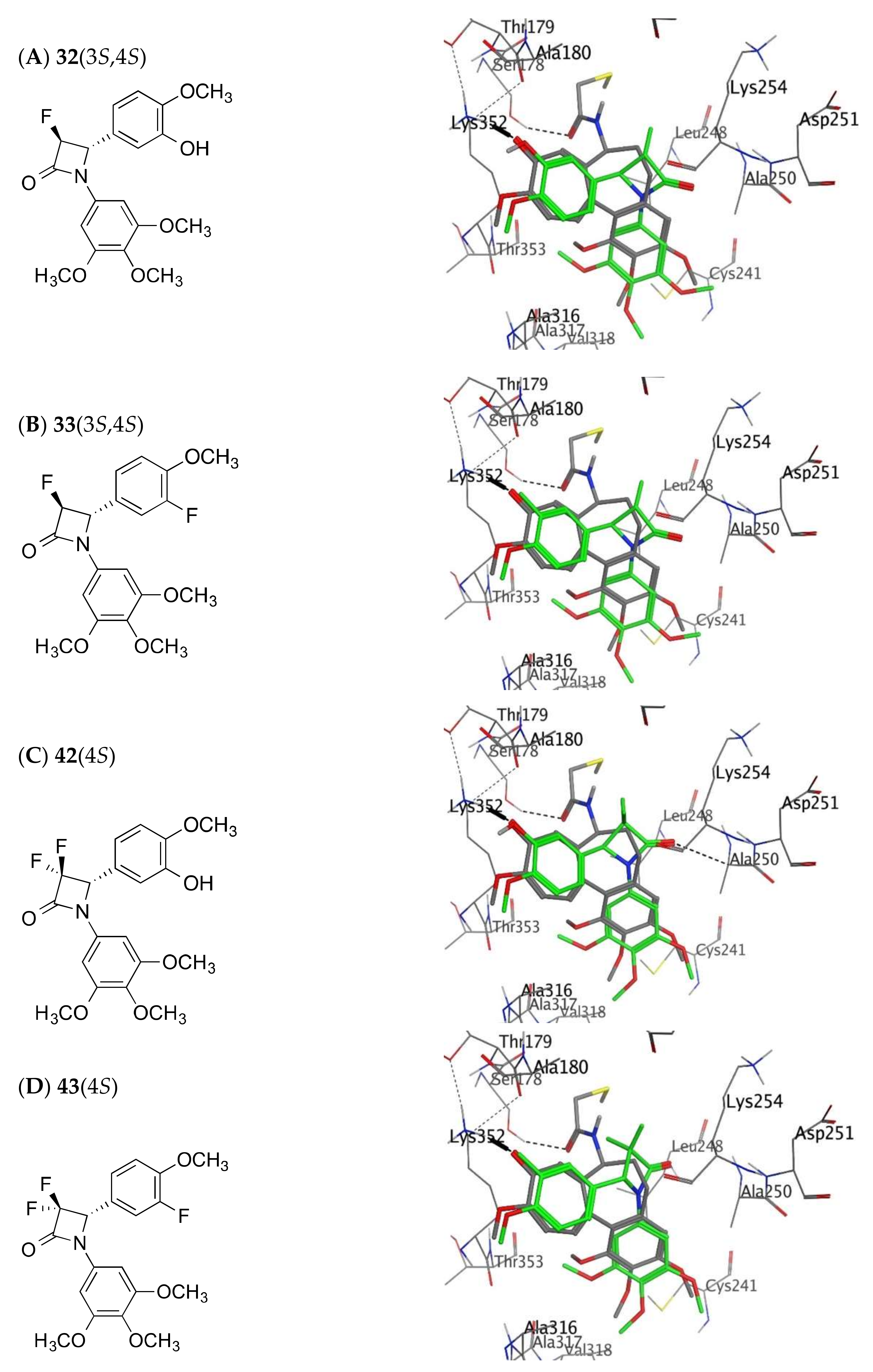

2.6. Molecular Modelling Study for Compounds 32, 33, 42 and 43

A series of molecular docking calculations using MOE 2020.09 were undertaken on both enantiomeric pairs of the 3-fluoro-β-lactam compounds 32, 33, 42 and 43, using the tubulin co-crystallised with DAMA-colchicine ligand (X-ray crystal structure PDB entry 1SA0) [19] (Figure 9). It is evident from ¹H NMR spectroscopy that only the trans isomers of the β-lactam compounds were obtained, and therefore the 3S/4S and 3R/4R enantiomeric pairs were selected for the modelling analysis. For the compounds with two stereogenic centres, in all cases the S,S enantiomers were found to be more highly ranked than the corresponding R,R enantiomeric pair and so will only be discussed in this study. All selected compounds overlaid their B-rings on the C-ring of DAMA-colchicine (resulting in the characteristic hydrogen bond acceptor interactions with Lys352 residue). The 3,4,5-trimethoxyphenyl substituted A-rings occupied the colchicine-binding site, and the 3-fluoro and 3,3-difluoro substituents were located in an open accessible region of the β-tubulin binding site at the monomer interface and did not form interactions with adjacent residues.

The predicted affinity ranking obtained was 32 (3S,4S), 43 (4R), 42 (4S), 33 (3S,4S), 43 (4S), 32 (3R,4R), 33 (3R,4R) and 42 (4R), ordered from best ranked to worst. The docking scores are provided in Supplementary Materials Table S8. When the conformers were generated with OMEGA [92,93] and docking was run with FRED [94], a similar preference was obtained for S,S over R,R enantiomers for compounds 32 and 33. Docking studies are not always ideal when studying changes in cellular efficacy associated with the C-3 ring B fluoro/hydroxyl substitutions. The best ranked enantiomer, 32 (3S,4S), was also the most active analogue in MCF-7 cells with IC₅₀ of 0.075 μM (Figure 9A). The 3-hydroxy substituent on the 4-phenyl ring (ring B) co-located very well with the C-ring of DAMA-colchicine, with the oxygen positioned to act as a hydrogen bond acceptor with Lys352. The 3,4,5-trimethoxyphenyl ring (ring A) interacted slightly deeper in the binding pocket than that of DAMA-colchicine. The β-lactam carbonyl group potentially formed a hydrogen bond acceptor interaction with a backbone hydrogen atom of Ala250. The 3S,4S enantiomer of 33 also presented a similar pose in the binding site (Figure 9B). The ring A, 3,4,5-trimethoxyphenyl groups of the compounds illustrated made favourable van der Waals contacts in the lower sub-pocket defined by residues Val β318 and Cys β241. Figure 9B shows the ring B 3-fluoro substituent of compound 33 occupying the same location as the phenolic hydroxyl group in the 32, acting as a hydrogen bond acceptor with Lys352 which could play a role in stabilisation of protein–drug conformation but which is weaker than the hydrogen bond formed between Lys352 and the hydroxyl group of 32, which may explain the decrease in cellular efficacy of this compound.

Due to the small volume of the 3,3-difluoro substituents at position 3 of the β-lactam ring, different orientations of these groups did not affect binding, which is evident from the near equal docking scores given to the 3,3-difluoro R and S enantiomers of 42 and 43. However, the in vitro antiproliferative activity of the most potent 3-fluoro-β-lactams 32 and 33 of the series is significantly superior when compared with the corresponding 3,3-difluoro-β-lactams 42 and 43 compounds, despite having similar docking scores. Both of the enantiomers of 42 and 43 orientated the 3,4,5-trimethoxyphenyl ring A to overlap with the C-ring of DAMA-colchicine and achieve overlap of the 3,4,5-trimethoxyphenyl groups of colchicine (Figure 9C,D). It is possible that both sets of compounds (monofluoro 32 and 33 and difluoro 42 and 43) may have slightly different target protein profiles or physicochemical properties such as solubility and cellular permeability. The best ranked binding pose of each compound examined in the study is illustrated in Figure 9, showing the shared binding mode for the selected analogues studied.

3. Experimental Section

3.1. Chemistry

Melting points (uncorrected) were measured on a Gallenkamp apparatus. Infrared (IR) spectra were recorded on a Perkin Elmer FT-IR Paragon 1000 spectrometer. ¹H, ¹⁹F and ¹³C nuclear magnetic resonance spectra (NMR) were recorded on a Bruker DPX 400 spectrometer (400.13 MHz, ¹H; 100.61 MHz, ¹³C; 376 MHz, ¹⁹F) in CDCl₃ (internal standard tetramethylsilane (TMS)) at 27 °C. ¹H-NMR spectra were assigned relative to the TMS peak at 0.00 ppm and ¹³C-NMR spectra were assigned relative to the middle CDCl₃ peak at 77.0 ppm. Electrospray ionisation mass spectrometry (ESI-MS) was performed using a liquid chromatography time-of-flight mass spectrometer (Micromass LCT, Waters Ltd., Manchester, UK) in a positive ion mode. The samples were introduced to the ion source by an LC system (Waters Alliance 2795, Waters Corporation, Milford, MA, USA) in acetonitrile:water (60:40 %v/v) at 200 µL/min, with capillary voltage at 3 kV and sample cone (de-clustering) voltage at 40 V. For exact mass determination, the instrument was externally calibrated for the mass range m/z 100 to m/z 1000 with a lock (reference) mass (m/z 556.2771). TLC was run using Merck Silica gel 60 TLC aluminium sheets with fluorescent indicator visualising with UV at 254 nm; silica gel 60 (230–400 mesh) was used for flash chromatography. Analytical high-performance liquid chromatography (HPLC) was performed using Waters 2487 Dual Wavelength Absorbance detector, Waters 1525 binary HPLC pump and Waters 717 plus Autosampler with Varian Pursuit XRs C18 reverse phase 150 × 4.6 mm chromatography column and UV detection at 254 nm. The mobile phase was acetonitrile (70%):water (30%) over 10 min with a flow rate of 1 mL/min. All synthesised products were homogeneous on TLC when isolated; the purity of the biologically tested compounds was confirmed by HPLC (≥95%). Microwave experiments were carried out using a Biotage Discover SP4 and CEM microwave synthesisers using standard power setting (maximum power 300 watts) unless otherwise stated.

3.1.1. General Method I: Preparation of Imines 16–21 and 23–25

The appropriately substituted benzaldehyde (10 mmol) and 3,4,5-trimethoxyaniline (10 mmol) were reacted together at reflux in ethanol (40 mL) for 5 h. Following evaporation of the reaction mixture in vacuo, the product was recrystallised from ethanol. Imines 16–21 and 23–25 were prepared and characterized as described previously [33,34].

3.1.2. [3-(Tert-butyldimethylsilanyloxy)-4-methoxybenzylidene](3,4,5-trimethoxyphenyl)amine 22

To a stirred solution of imine 22 (5 mmol) and tert-butyldimethylsilyl chloride (6 mmol) in anhydrous CH₂Cl₂ (40 mL) under nitrogen was added DBU (8 mmol). After 2–4 h, when the reaction was complete as demonstrated by TLC (eluent, 1:1 hexane/ethyl acetate), the reaction mixture was diluted with CH₂Cl₂ (50 mL); washed with water (100 mL), 0.1 M HCl (50 mL) and NaHCO₃ (50 mL, satd.); and dried (NaSO₄). Removal of the solvent yielded the imine 22 as an amber oil (yield 52%), purity (HPLC): 100%. Imine 22 was characterised as described previously by us [31,57].

3.1.3. General Method II: Preparation of β-Lactams 26–31, 33–41 and 43–45

Activated zinc powder (9 mmol) with trimethylchlorosilane (7 mmol) in anhydrous benzene (4 mL) was heated for 15 min at 40 °C and then at 100 °C for 2 min in a microwave reactor. The mixture was then cooled and the selected imine (2 mmol) and ethyl bromoacetate (5 mmol) were added. The mixture was heated in the microwave reactor for 30 min at 100 °C. The reaction mixture was filtered through Celite; diluted with DCM (30 mL); and washed with ammonium chloride solution (20 mL, satd.) and ammonium hydroxide (20 mL, 25%), HCl (10%, 40 mL) and water (40 mL). The organic phase was dried (anhydrous Na₂SO₄) and the solvent was evaporated in vacuo. Isolation of the crude product was achieved by flash column chromatography over silica gel (eluent: hexane:ethyl acetate gradient).

3.1.4. 3-Fluoro-4-(4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (26)

Compound 26 was obtained from imine 16 and ethyl bromofluoroacetate following the General Method II to afford the product as an oil; yield: 12%, purity (HPLC): 98%. IR ν_max (ATR): 1760.0 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.68 (s, 3 H, OCH₃), 3.74 (s, 9 H, OCH₃), 5.00 (dd, J = 1.65 Hz, 1 H, H3), 5.20 (dd, J = 10.88, 1.26 Hz, 1 H, H4), 6.51 (s, 2 H, ArH), 6.91 (d, J = 8.71 Hz, 2 H, ArH), 7.25 (d, J = 8.71 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.34, 56.01, 60.89, 63.67, 95.48, 96.73, 114.77, 127.61, 132.63, 135.70, 153.49, 160.36, 174.36 (C_2, C=O). HRMS: calculated for C₁₉H₂₁FNO₅ [M + H]⁺ 362.1404; found 362.1409.

3.1.5. 4-(4-Ethoxyphenyl)-3-fluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (27)

Preparation of compound 27 following the General Method II from imine 17 and ethyl bromofluoroacetate afforded the product as an oil; yield: 12%, purity (HPLC): 98%. IR ν_max (ATR): 1758.3 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 1.58 (t, J = 12.23 Hz, 3 H, OCH₂CH₃), 3.61 (s, 3 H, OCH₃), 3.80 (s, 6 H, OCH₃), 3.74 (m, 2 H, CH₂CH₃), 5.30 (d, J = 1.23 Hz, 1 H, H3), 5.55 (d, J = 10.28, 1.124 Hz, 1 H, H4), 6.57 (s, 2 H, ArH), 6.90 (d, J = 8.70 Hz, 2 H, ArH), 7.23 (d, J = 8.75 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.22, 55.81, 56.20, 60.8, 62.27, 95.52, 97.53, 114.14, 128.18, 133.73, 135.43, 136.09, 150.98, 160.25, 172.66 (C_2, C=O). HRMS: calculated for C₂₀H₂₃FNO₅ [M + H]⁺ 376.1560; found 376.1555.

3.1.6. 3-Fluoro-4-(4-(methylthio)phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (28)

Preparation of compound 28 following the General Method II from imine 18 and ethyl bromofluoroacetate afforded the product as a brown oil; yield: 11%, purity (HPLC): 100%. IR ν_max (ATR): 1752.1 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 2.47 (s, 3 H, SCH₃), 3.69 (s, 6 H, OCH₃), 3.75 (s, 3 H, OCH₃), 5.00 (dd, J = 1.21 Hz, 1 H, H3), 5.33 (dd, J = 10.71, 1.66 Hz, 1 H, H4), 6.51 (s, 2 H, ArH), 7.23–7.25 (m, 4 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 15.57, 55.85, 58.93, 60.94, 62.05, 91.66, 126.67, 127.41, 134.59, 138.53, 142.57, 153.38, 167.81 (C_2, C=O). HRMS: calculated for C₁₉H₂₁FNO₄S [M + H]⁺ 378.1175; found 378.1185.

3.1.7. 4-(4-(Ethylthio)phenyl)-3-fluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (29)

Preparation of compound 29 following the General Method II from imine 19 and ethyl bromofluoroacetate afforded the product as an oil; yield: 12%, purity (HPLC): 98%. IR ν_max (ATR): 1762.4 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 1.29 (t, J = 7.26, 3 H, SCH₂CH₃), 2.94 (m, 2 H, SCH₂CH₃), 3.67 (s, 3 H, OCH₃), 3.74 (s, 6 H, OCH₃), 5.00 (dd, J = 12.44 Hz, 1 H, H3), 5.33 (s, 1 H, H4), 6.49 (s, 2 H, ArH), 7.19–7.26 (m, 2 H, ArH), 7.29 (s, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.05, 27.5, 56.15, 60.24, 65.43, 100.12, 106.36, 127.27, 128.19, 130.86, 131.41, 134.92, 139.52, 154.27, 169.38 (C_2, C=O). HRMS: calculated for C₂₀H₂₃FNO₄S [M + H]⁺ 392.1332; found 392.1353.

3.1.8. 3-Fluoro-4-(4-methoxy-3-methylphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (30)

Preparation of compound 30 following the General Method II from imine 20 and ethyl bromofluoroacetate afforded the product as a yellow oil; yield: 58%, purity (HPLC): 96%. IR ν_max (ATR): 1736.1 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 2.29 (s, 3 H, CH₃), 3.66 (s, 3 H, OCH₃), 3.68 (s, 3 H, OCH₃) 3.70 (s, 6 H, 2xOCH₃), 5.01 (dd, J = 2.90 Hz, 1 H, H3), 5.13 (dd, J = 10.14, 2.90 Hz, 1 H, H4), 5.80 (s, 2 H, ArH), 5.86 (s, 1 H, ArH), 6.18 (s, 1 H, ArH), 6.53 (s, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.23, 55.20, 56.95, 65.32, 100.58, 101.22, 112.34, 122.17, 125.26, 129.72, 134.21, 135.63, 137.52, 152.96, 156.24, 170.30 (C_2, C=O). HRMS: calculated for C₂₀H₂₃FNO₅ [M + H]⁺ 376.1560; found 376.1567.

3.1.9. 4-(3-(Tert-butyldimethylsilyl)-4-methoxyphenyl)-3-fluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (31)

Preparation of compound 31 following the General Method II using imine 21 and ethyl bromofluoroacetate afforded the product as an orange oil; yield: 18%, purity (HPLC): 98%. IR ν_max (ATR): 1745.1(C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm: 0.09 (s, 3H, SiCH₃), 0.10 (s, 3H, SiCH), 0.97 (s, 9H, t-butyl), 3.73 (s, 3H), 3.74 (s, 6H), 3.81 (s, 3H), 4.85 (apparent dd, 1H, ³J_F-H = 25.3 Hz, ³J = 2.1 Hz, H₄), 5.14 (apparent dd, 1H, ²J_F-H = 47.4 Hz, ³J = 2.1 Hz, H₃), 5.83 (s, 2H), 6.84 (d, 1H, ³J = 7.8 Hz, Ar-H), 6.86 (d, 1H, ⁴J = 1.7 Hz, Ar-H), 6.95 (dd, 1H, ⁴J′ = 2.7 Hz, ³J = 7.8 Hz, Ar-H) ¹³C NMR (100 MHz, CDCl₃): δ ppm −1.5 (Si-CH₃), 28.14 (CH₃), 31.42 (Si-C-CH₃), 55.6, 55.9, 58.9 (C₃, J_F-C = 21 Hz), 61.1, 61.5, 62.0, 69.0, 91.7 (J_C-F = 91 Hz, C₄), 95.0, 112.2, 119.7, 120.3, 130.1, 130.7, 145.3, 150.8, 153.8, 167.9 (d, J_C-F = 25.6 Hz, C₂) ¹⁹F NMR (376 MHz CDCl₃): δ −203.7. HRMS: calculated for C₂₅H₃₅FNO₅Si [M + H]⁺ 476.2268; found 476.2276.

3.1.10. 3-Fluoro-4-(3-fluoro-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (33)

Preparation of compound 33 following the General Method II from imine 23 and ethyl bromofluoroacetate afforded the product as a yellow oil; yield: 25%, purity (HPLC): 94%. IR ν_max (ATR): 1760.7 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ 3.89 (s, 3 H, OCH₃), 3.70 (s, 6 H, 2xOCH₃), 3.76 (s, 3 H, OCH₃), 5.18 (dd, J = 1.66 Hz, 1 H, H3), 5.31 (dd, J = 11.12, 1.24 Hz, 1 H, H4), 6.50 (s, 2 H, ArH), 6.96–7.08 (m, 3 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.85, 58.93, 60.94, 62.05, 90.42, 91.66, 126.67, 127.41, 130.66, 134.59, 138.53, 138.83, 142.57, 151.32, 153.77, 167.57 (C_2, C=O). ¹⁹F NMR (376 MHz, CDCl₃): δ ppm: −132.65 (ArF), −188.43 (C-F, β-lactam). HRMS: calculated for C₁₉H₂₀F₂NO₅ [M + H]⁺ 380.1310; found 380.1316.

3.1.11. 4-(3-Chloro-4-methoxyphenyl)-3-fluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (34)

Preparation of compound 34 following the General Method II from imine 24 and ethyl bromofluoroacetate afforded the product as a brown oil; yield: 7%, purity (HPLC): 95%. IR ν_max (ATR): 1762.0 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.68 (s, 6 H, 2xOCH₃), 3.70 (s, 3 H, OCH₃), 3.72 (s, 3 H, OCH₃), 4.96 (dd, J = 9.20, 2.70 Hz, 1 H, H3), 5.30 (dd, J = 2.07 Hz, 1 H, H4), 6.48 (s, 2 H, ArH), 6.91 (d, J = 8.71 Hz, 1 H, ArH), 7.17 (d, J = 8.50 Hz, 1 H, ArH), 7.34 (m, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.82, 56.02, 60.29, 62.92, 95.47, 101.34, 112.53, 123.57, 125.71, 128.13, 134.77, 135.35, 153.56, 155.75, 171.04 (C_2, C=O). HRMS: calculated for C₁₉H₂₀³⁵ClFNO₅ [M + H]⁺ 396.1014; found 396.1024.

3.1.12. 4-(3-Bromo-4-methoxyphenyl)-3-fluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (35)

Preparation of compound 35 following the General Method II from imine 25 and ethyl bromofluoroacetate afforded the product as a brown oil; yield: 6%, purity (HPLC): 96%, IRν_max (ATR): 1743.0 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.96 (s, 6 H, 2xOCH₃), 3.70 (s, 3 H, OCH₃), 3.72 (s, 3 H, OCH₃) 5.29 (dd, J = 11.12, 1.70 Hz, 1 H, H3), 5.52 (dd, J = 4.90 Hz, 1 H, H4), 6.52 (s, 2 H, ArH), 7.10 (d, J = 3.40, 1H, ArH), 7.17 (d, J = 2.20 Hz 1 H, ArH), 7.53 (s, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 54.90, 55.57, 61.62, 65.55, 101.73, 102.44, 113.81, 125.28, 132.74, 134.22, 135.31, 136.25, 152.63, 154.78, 170.30 (C_2, C=O). HRMS: calculated for C₁₉H₂₀⁷⁹BrFNO₅ [M + H]⁺ 440.0509; found 440.0517.

3.1.13. 3,3-Difluoro-4-(4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (36)

Preparation of compound 36 following the General Method II from imine 16 and ethyl bromodifluoroacetate afforded the product as a brown oil; yield: 59%, purity (HPLC): 98%. IR ν_max (ATR): 1765.8 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.72–3.78 (m, 12 H, 4xOCH₃), 5.30 (dd, J = 9.41, 1.66 Hz, 1 H, H4), 6.56 (s, 2 H, ArH), 6.88 (d, J = 9.12 Hz, 2 H, ArH), 6.94 (d, J = 9.12 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.57, 56.15, 60.20, 71.33, 100.29, 114.64, 125.85, 129.72, 134.25, 135.83, 136.16, 154.16, 158.22, 170.33 (C_2, C=O). HRMS: calculated for C₁₉H₂₀F₂NO₅ [M + H]⁺ 380.1310; found 380.1329.

3.1.14. 4-(4-Ethoxyphenyl)-3,3-difluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (37)

Preparation of compound 37 following the General Method II from imine 17 and ethyl bromodifluoroacetate afforded the product as a brown oil; yield: 23%, purity (HPLC): 98%. IR ν_max (ATR): 1734.4 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 1.40 (t, J = 7.05 Hz, 3 H, CH₂CH₃), 3.70 (s, 6 H, 2xOCH₃), 3.76 (s, 3 H, OCH₃), 4.03 (q, J = 7.33 Hz, 2 H, CH₂CH₃), 5.28 (dd, J = 12.20, 1.64 Hz, 1 H, H4), 6.56 (s, 2 H, ArH), 6.91 (d, J = 8.71 Hz, 2 H, ArH), 7.27 (d, J = 8.71 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.70, 56.08, 60.92, 63.59, 95.97, 115.10, 121.47, 128.94, 153.58, 160.19 (C_2, C=O). HRMS: calculated for C₂₀H₂₂F₂NO₅ [M + H]⁺ 394.1466; found 394.1478.

3.1.15. 3,3-Difluoro-4-(4-(methylthio)phenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (38)

Preparation of compound 38 following the General Method II from imine 18 and ethyl bromodifluoroacetate afforded the product as an oil; yield: 19%, purity (HPLC): 96%. IR ν_max (ATR): 1734.3 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 2.38 (s, 3 H, CH₃), 3.61–3.69 (m, 9 H, 3xOCH₃), 4.94 (dd, J = 12.87, 1.66 Hz, 1 H, H4), 5.82 (s, 2 H, ArH), 7.16 (m, J = 8.29 Hz, 2 H, ArH), 7.28 (m, J = 8.29 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.07, 60.34, 60.82, 62.88, 63.21, 92.02, 126.25, 127.92, 128.62, 129.73, 130.48, 130.98, 139.60, 153.71, 171.17 (C_2, C=O). HRMS: calculated for C₁₉H₂₀F₂NO₄S [M + H]⁺ 396.1081; found 396.1100.

3.1.16. 4-(4-(Ethylthio)phenyl)-3,3-difluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (39)

Preparation of compound 38 following the General Method II from imine 19 and ethyl bromodifluoroacetate afforded the product as a brown oil; yield: 18%, purity (HPLC): 99%. IR ν_max (ATR): 1774.5 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 1.29 (t, J = 7.46 Hz, 3 H, SCH₂CH₃), 2.90–2.95 (q, J = 7.46 Hz, 2 H, SCH₂CH₃), 3.67 (s, 3 H, OCH₃), 3.74 (s, 6 H, 2xOCH₃), 5.31 (dd, J = 7.05, 1.66 Hz, 1 H, H4), 6.53 (s, 2 H, ArH), 7.24 (m, J = 8.71 Hz, 2 H, ArH), 7.30 (m, J = 8.29 Hz, 2 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 14.02, 26.74, 56.05, 60.36, 60.90, 95.88, 126.72, 127.54, 128.26, 131.60, 135.78, 139.83, 142.29, 153.59, 171.15 (C_2, C=O). HRMS: calculated for C₂₀H₂₂F₂NO₄S [M + H]⁺ 410.1238; found 410.1219.

3.1.17. 3,3-Difluoro-4-(4-methoxy-3-methylphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (40)

Preparation of compound 40 following the General Method II from imine 20 and ethyl bromodifluoroacetate afforded the product as a brown oil; yield: 31%, purity (HPLC): 95%. IR ν_max (ATR): 1769.9 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 2.16 (s, 3 H, CH₃), 3.66 (s, 3 H, OCH₃), 3.72 (s, 3H, OCH₃), 3.77 (s, 6H, 2xOCH₃), 5.80 (dd, J = 7.46, 1.66 Hz, 1 H, H4), 6.55 (s, 2 H, ArH), 6.80 (d, J = 8.29 Hz, 1 H, ArH), 7.08 (s, 1 H, ArH), 7.12 (dd, J = 8.29, 2.07 Hz, 1 H, ArH).¹³C NMR (100 MHz, CDCl₃): δ ppm 16.20, 55.99, 60.79, 69.19, 96.00, 110.13, 121.10, 126.44, 127.68, 129.58, 131.79, 135.70, 136.18, 154.84, 157.92, 171.04 (C_2, C=O). HRMS: calculated for C₂₀H₂₂F₂NO₅ [M + H]⁺ 394.1466; found 394.1478.

3.1.18. 4-(3-(tert-Butyldimethylsilyl)-4-methoxyphenyl)-3,3-difluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (41)

Preparation of compound 41 following the General Method II from imine 22 and ethyl bromodifluoroacetate afforded the product as a yellow oil; yield: 13%, purity (HPLC): 100%. IR ν_max (ATR): 1775.6 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 0.25 (d, J = 7.46 Hz, 6 H, 2xSi-CH₃), 0.91 (s, 9 H, 3xCH₃), 3.68 (s, 3 H, OCH₃), 3.75 (s, 6 H, 2xOCH₃), 5.25 (dd, J = 7.46, 1.66 Hz, 1 H, H₄), 6.56 (s, 2 H, ArH), 6.77 (d, J = 2.07 Hz, 1 H, ArH), 6.86 (d, J = 8.29 Hz, 1 H, ArH), 6.92 (dd, J = 8.29, 2.07 Hz, 1 H, ArH). ¹³C NMR (101 MHz, CDCl₃) δ ppm -1.5 (Si-CH₃), 18.39 (CH₃), 25.54 (Si-C-CH₃), 55.41, 56.02, 60.88, 68.83, 96.02, 112.19, 119.98, 121.38, 121.94, 128.17, 131.69, 135.72, 145.60, 152.31, 153.55, 170.79 (C_2, C=O). HRMS: [M+H]⁺ calculated for C₂₅H₃₄F₂NO₅Si [M + H]⁺ 494.6306; found 494.6289.

3.1.19. 3,3-Difluoro-4-(3-fluoro-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (43)

Preparation of compound 43 following the General Method II from imine 23 and ethyl bromodifluoroacetate afforded the product as a colourless oil; yield: 45%, purity (HPLC): 97%. IRν_max (ATR): 1778.1 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.58 (s, 3 H, OCH₃), 3.64 (s, 9 H, 3xOCH₃), 5.28 (dd, J = 6.63, 1.24 Hz, 1 H, H4), 6.46 (s, 2 H, ArH), 6.95–7.09 (m, 3 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.62, 55.84, 60.16, 63.09, 95.89, 115.23, 123.90, 126.81, 130.98, 131.35, 135.80, 148.80, 151.12, 153.55, 170.93 (C_2, C=O). HRMS: calculated for C₁₉H₁₉F₃NO₅ [M + H]⁺ 398.1215; found 398.1200.

3.1.20. 4-(3-Chloro-4-methoxyphenyl)-3,3-difluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (44)

Preparation of compound 44 w following the General Method II from imine 24 and ethyl bromodifluoroacetate afforded the product as a brown oil; yield: 59%, purity (HPLC): 95%. IR ν_max (ATR): 1774.80 (C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.61 (s, 3 H, OCH₃), 3.66 (s, 6 H, 2xOCH₃), 3.78 (s, 3 H, OCH₃), 5.29 (dd, J = 7.46, 1.25 Hz, 1 H, H4), 6.47 (s, 2 H, ArH), 6.89 (d, J = 8.71 Hz, 1 H, ArH), 7.16 (dd, J = 8.71, 2.07 Hz, 1 H, ArH), 7.31 (d, J = 2.07 Hz, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 55.91, 56.03, 60.69, 68.18, 91.90, 112.37, 122.68, 127.82, 129.24, 131.36, 135.71, 153.53, 156.10, 171.24 (C₂, C=O). HRMS: calculated for C₁₉H₁₉³⁵ClF₂NO₅ [M + H]⁺ 414.0920; found 414.0926.

3.1.21. 4-(3-Bromo-4-methoxyphenyl)-3,3-difluoro-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (45)

Preparation of compound 45 following the General Method II from imine 25 and ethyl bromodifluoroacetate afforded the product as a yellow oil; yield: 65%, purity (HPLC): 98%. IRν_max (ATR): 1774.5cm⁻¹ (C=O, β-lactam). ¹H NMR (400 MHz, CDCl₃): δ ppm 3.54 (s, 6 H, 2xOCH₃), 3.57 (s, 3 H, OCH₃), 3.66 (s, 3 H, OCH₃), 5.81 (dd, J = 7.26, 1.86 Hz, 1 H, H₄), 6.43 (s, 2 H, ArH), 6.80 (s, 1 H, ArH), 7.14 (s, 1 H, ArH), 7.45 (s, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 54.80, 56.75, 60.54, 91.91, 111.59, 112.12, 127.50, 127.56, 130.77, 133.06, 133.18, 135.67, 153.50, 156.93, 170.95 (C_2, C=O). HRMS: [M + H]⁺ calculated for C₁₉H₁₉⁷⁹BrF₂NO₅, 458.0415; found 458.0432.

3.1.22. 3-Fluoro-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (32)

The TBDMS-protected β-lactam 31 (1 mmol) was dissolved under nitrogen in THF. The solution was stirred on ice enabling it to reach 0 °C. tert-Butylammonium fluoride (TBAF) solution (1.0 M, 1.5 equivalents) was added slowly dropwise. The resulting solution was stirred at 0 °C and monitored by TLC until completion of the reaction when the starting material was no longer present (1 h). The reaction mixture was diluted with ethyl acetate (50 mL) and washed with HCl (25 mL, 0.1 M) followed by extraction of the aqueous mixture using ethyl acetate (2 × 25 mL). The combined organic extracts were washed with water (100 mL) and saturated brine (100 mL) and dried over Na₂SO₄. The solution was concentrated in vacuo, and the crude product was purified by flash chromatography over silica gel (hexane:ethyl acetate gradient). The phenolic product 32 was obtained as a brown oil; 18%, purity (HPLC): 100%. IR ν_max (ATR): 3464.54, 1771.07 (OH and C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.72 (s, 3H), 3.74 (s, 6H), 3.87 (s, 3H), 4.86 (apparent dd, ³J_F-H = 26.1 Hz, ³J = 2.6 Hz, 1H, H₄), 5.11 (apparent dd, 1H,²J_F-3 = 48.3 Hz, ³J = 2.6 Hz, H₃), 5.83 (s, 2H), 6.83 (d, 1H, ³J = 8.9 Hz, Ar-H), 6.88 (dd, 1H, ³J = 8.1 Hz, ⁴J = 1.9 Hz), δ 6.98 (d, 1H, ⁴J = 1.9 Hz) ¹³C NMR (100 MHz, CDCl₃) δ ppm 55.9, 56.0, 58.8 (d, J_F-C = 26 Hz, C₄), 61.0, 62.1, 92.3, 95.2 (d, J_F-C = 75 Hz, C₄), 110.8, 113.1, 118.6, 130.4, 131.4, 142.8, 146.2, 153.8, 167.9 (J_F-C = 31 Hz, C₂). ¹⁹F NMR (376 MHz CDCl₃): δ -203.6. HRMS: calculated for C₁₉H₂₁FNO₆ [M + H]⁺, 378.1353; found 378.1347.

3.1.23. 3,3-Difluoro-4-(3-hydroxy-4-methoxyphenyl)-1-(3,4,5-trimethoxyphenyl)azetidin-2-one (42)

Compound 42 was prepared from the TBDMS-protected β-lactam 41 using the procedure described above for 20 to obtain the phenolic product as a yellow oil; yield: 21%, purity (HPLC): 100%. IR ν_max (ATR): 3426.75, 1771.07 (OH, C=O) cm⁻¹. ¹H NMR (400 MHz, CDCl₃): δ ppm 3.69 (s, 6 H, 2xOCH₃), 3.75 (s, 3 H, OCH₃), 3.87 (s, 3 H, OCH₃), 5.25 (d, J = 7.05 Hz, 1 H, H4), 6.36 (s, 1 H, OH), 6.56 (s, 2 H, ArH), 6.85 (s, 2 H, ArH), 6.89 (s, 1 H, ArH). ¹³C NMR (100 MHz, CDCl₃): δ ppm 56.10, 60.89, 69.13, 96.02, 110.96, 113.57, 119.61, 122.74, 125.46, 131.72, 135.75, 146.25, 147.82, 153.56, 171.42 (C₂, C=O). HRMS: calculated for C₁₉H₂₀F₂NO₆ [M + H]⁺, 396.1251; found 396.1253.

3.2. Biochemical Evaluation of Compounds

The biochemical assays were performed in triplicate on at least three independent occasions for the determination of mean values reported.

3.2.1. Cell Culture

The human breast carcinoma cell lines MCF-7 and MDA-MB-231 were purchased from the European Collection of Animal Cell Cultures (ECACC, Salisbury, UK). The SW-480 cells were a kind gift from Dr. Brian Flood, School of Biochemistry and Immunology, Trinity College Dublin. The human breast tumour cell line MCF-7 was cultured in Eagles minimum essential medium with 10% foetal bovine serum, 2 mM L-glutamine and 100 μg/mL penicillin/streptomycin. The medium was supplemented with 1% non-essential amino acids. The human breast tumour cell line MDA-MB-231 cells were maintained in Dulbecco’s modified Eagle’s medium (DMEM) with the addition of penicillin/streptomycin (100 µg/mL), 10% (v/v) foetal bovine serum and 2 mM L-glutamine (complete medium). Breast cancer cell line Hs578T and its isogenic subclone Hs578T(i)8 were a kind gift from Dr. Susan McDonnell, School of Chemical and Bioprocess Engineering, University College Dublin. SW-480 cells, triple-negative breast cancer Hs578T cells and invasive variant Hs578T8i cells were cultured in DMEM with GlutaMAX-I, with the same supplement in the absence of non-essential amino acids. HEK-293T cells (normal epithelial embryonic kidney cells) were cultured in DMEM with GlutaMAX-I in the absence of non-essential amino acids. The SW-480 cells were cultured in DMEM with GlutaMAX-I, with the same supplement in the absence of non-essential amino acids. All media contained 100 U/mL penicillin and 100 μg/mL streptomycin. The cells were seeded into pre-warmed complete medium (10 × 10⁴ cells/mL) and maintained at a cell density of 2–19 × 10⁵ cells /mL by the addition of fresh media. The cell number was monitored using a haemocytometer. Cells were maintained at 37 °C in 5% CO₂ in a humidified incubator. The cells were sub-cultured 3 times weekly by trypsinisation using TrypLE Express (1X).

3.2.2. Cell Viability Assay

Cells were seeded at a density of 5 × 10³ cells/well (MCF-7 and MDA-MB-231) and 1 × 10⁴ cells/well (HEK-293T) in 96-well plates (200 μL per well). After 24 h, cells were then treated with medium alone, with vehicle (1% ethanol (v/v)) or with CA-4 or β-lactam compounds at 1 μM and 10 μM concentrations. For determination of IC₅₀ values, serial dilutions of CA-4 or β-lactam compounds 26–31, 33–41 and 43–45 (0.001–100 μM) in triplicate were used. Cell proliferation for MCF-7 cells was analysed with the AlamarBlue assay (Invitrogen Corp.) as previously described by us [33]. After 72 h, AlamarBlue (10% (v/v)) was added to each well, and plates were incubated for 3–5 h at 37 °C in the dark. Fluorescence results were obtained with a 96-well fluorimeter with excitation at 530 nm and emission at 590 nm with results recorded as percentage viability relative to vehicle control (100%). Dose–response curves were obtained and IC₅₀ values (concentration of drug resulting in 50% reduction in cell survival) were calculated using Prism (GraphPad Software, Inc., La Jolla, CA, USA).

3.2.3. Annexin V/PI Apoptotic Assay

Apoptotic cell death was monitored by flow cytometry using Annexin V and propidium iodide (PI) as previously described by us [33]. MCF-7 cells were seeded in 6-well plates at a density of 1 × 10⁵ cells/mL and treated with either vehicle (0.1% (v/v) EtOH) or β-lactam compound 33 at concentrations 0.1 and 0.5 µM for 48 h. Cells were harvested and prepared for flow cytometric analysis. Cells were washed in 1X binding buffer (20X binding buffer: 0.1 M HEPES, pH 7.4; 1.4 M NaCl; 25 mM CaCl₂ diluted in dH₂O) and incubated in the dark for 30 min on ice in Annexin V-containing binding buffer [1:100]. Cells were then washed in binding buffer and then re-suspended in PI-containing binding buffer (1:1000). Samples were then analysed with the BD Accuri flow cytometer and Prism software. The resulting cell populations were identified as Annexin V- and PI-negative (Q4, healthy cells), Annexin V-positive and PI-negative (Q3, early apoptosis), Annexin V- and PI-positive (Q2, late apoptosis) and Annexin V-negative and PI-positive (Q1, necrosis). The positive control for induction of cell death was paclitaxel.

3.2.4. Immunofluorescence Microscopy

Confocal microscopy was used to determine the effects of novel compound 33 and standard drugs on the MCF-7 cytoskeleton according to the protocols we previously described [33]. For the immunofluorescence study, MCF-7 cells were seeded at 1 × 10⁵ cells/mL using eight chamber glass slides (BD Biosciences). The cells were treated with vehicle control (1% ethanol (v/v)), CA-4 (0.01 μM), paclitaxel (1 µM) and 33 (0.1 µM, 0.5 µM and 1 µM) for 16 h. The cells were gently washed in PBS, fixed with 4% paraformaldehyde in PBS (20 min) and permeabilised in 0.5% Triton X-100. After further washes in PBS (containing 0.1% Tween (PBST)), cells were blocked with 5% bovine serum albumin which was diluted with PBST. Cells were incubated with mouse monoclonal anti-α-tubulin–FITC antibody (clone DM1A) (Sigma) (1:100) at 20 °C for 2 h and then washed in PBST and incubated with Alexa Fluor 488 dye (1:500) for 1 h at 20 °C. Cells were washed in PBST and mounted in Ultra Cruz Mounting Media (Santa Cruz Biotechnology, Santa Cruz, CA, USA) containing 4,6-diamino-2-phenolindol dihydrochloride (DAPI). The images were captured by Leica SP8 confocal microscopy with Leica Application Suite X software. Experiments were performed on three independent occasions and images were collected on the same day using identical parameters.

3.2.5. Evaluation of Expression Levels of Anti-Apoptotic Protein Bcl-2 and Pro-Apoptotic Proteins Bax and Survivin

Western blot analysis was performed according to the protocols we previously described [33]. MCF-7 cells were seeded at a density of 1 × 10⁵ cells/flask in T25 flasks. After 48 h, whole cell lysates were prepared from untreated cells or cells treated with vehicle control (EtOH, 0.1% v/v) or cells treated with compound 33 (0.05 μM, 0.1 μM and 0.5 μM). MCF-7 cells were harvested in RIPA buffer which was supplemented with protease inhibitors (Roche Diagnostics, Rotkreuz, Switzerland), phosphatase inhibitor cocktail 2 (Sigma-Aldrich, Arklow, Ireland) and phosphatase inhibitor cocktail 3 (Sigma-Aldrich, Arklow, Ireland). Equal amounts of protein (as determined by a BCA assay) were resolved by SDS-PAGE (12%) followed by transfer to PVDF membranes. Membranes were blocked in 5% bovine serum albumin/TBST for 1 h and incubated in the relevant primary antibodies at 4 °C overnight, washed with TBST, and incubated in horseradish peroxidase conjugated secondary antibody for 1 h at 20 °C. After washing, Western blot analysis was performed with antibodies directed against Bcl-2 (1:500) (Millipore), Bax (1:1000) (Millipore) or survivin (1:1000) (Millipore) and followed by incubation with a horseradish peroxidase conjugated anti-mouse antibody (1:2000) (Promega, Madison, WI, USA). The blots were probed with anti-GAPDH antibody (1:5000) (Millipore) to confirm equal loading of protein. Proteins were detected using enhanced chemiluminescent Western blot detection (Clarity Western ECL substrate) (Bio-Rad) on the ChemiDoc MP System (Bio-Rad). Experiments were performed on three independent occasions.

3.2.6. Tubulin Polymerisation Assay

Tubulin polymerisation was monitored with purified bovine tubulin using the BK006 kit supplied by Cytoskeleton Inc. (Denver, CO, USA), carried out following the manufacturer’s instructions with the standard assay conditions [95]. Purified (>99%) bovine brain tubulin (3 mg/mL) in a buffer containing PIPES (80 mM, pH 6.9), EGTA (0.5 mM), MgCl₂ (2 mM), GTP (1 mM) and glycerol (10%) was incubated at 37 °C in the presence of either vehicle (2% (v/v) ddH₂O) or paclitaxel (10 µM), CA-4 (10 μM) or 33 (10 and 30 µM). The effect on tubulin assembly was monitored turbidimetrically at 340 nm in a Spectramax 340 PC spectrophotometer (Molecular Devices, Sunnyvale, CA, USA), with the light scattered depending on the concentration of polymerised microtubules formed. The absorbance was measured at 30 s intervals for 60 min.

3.2.7. Stability Study for Compounds 33 and 39

The stability study for compounds 33 and 39 was performed using analytical HPLC (Symmetry column (C18, 5 mm, 4.6 × 150 mm), dual wavelength absorbance detector (Waters 2487), binary HPLC pump (Waters 1525) and autosampler (Waters 717 plus)) with mobile phase acetonitrile (70%)/water (30%), flow rate 1 mL/min over 15 min and detection at λ 254 nm. Stock solutions of compounds 33 and 39 (1 mg/mL in mobile phase) were used. Dilutions of 0.5 mg/mL, 0.25 mg/mL, 0.125 mg/mL, 0.0625 mg/mL, 0.03125 mg/mL, 0.015625 mg/mL and 0.0078 mg/mL were prepared for the calibration curve. (i) Stability of 33 and 39 in phosphate buffers: The phosphate buffers were prepared in accordance with the British Pharmacopoeia 2020 at pH values 4, 7.4 and 9. Stock solution, 300 µL (1 mg/mL ACN), was added to a vial containing buffer (9.7 mL), mixed and pre-heated to 37 °C. 1 mL of the solution was introduced into an HPLC vial. Samples (10 µL) were injected and analysed at time intervals of t = 0 min, 5 min, 30 min, 60 min and hourly for 24 h. The analysis was performed in triplicate. (ii) Thermal stability: Compounds 33 and 39 (1 mL stock solution) were each placed in a vial for 4 h at 60 °C on a heating block. The sample was then cooled, diluted with acetonitrile and analysed by HPLC. (iii) Photostability study: Compounds 33 and 39 (stock solution, 1 mL) were placed in a vial, exposed to UV light for 4 h and then analysed by HPLC. (iv) Stability in acidic conditions: HCl (0.1 M, 0.2 mL) was added to stock solutions (0.8 mL) of 33 and 39 in a vial. The vial was vortexed and retained at room temperature. A sample was neutralised with NaOH (0.1 M, 0.2 mL) each hour for 4 h and then analysed by HPLC. (v) Stability of 33 and 39 in basic (alkaline) conditions: NaOH (0.1 M, 0.2 mL) was added to stock solution (0.8 mL) in a vial. The vial was vortexed and retained at room temperature. A sample was neutralised with HCl (0.1 M, 0.2 mL) every hour for 4 h then analysed by HPLC. (vi) Stability of 33 and 39 in oxidising conditions: H₂O₂ (3%, 0.2 mL) was added to the stock solution (0.8 mL). The vial was vortexed to obtain a homogeneous mixture and retained at room temperature, and a sample was analysed by HPLC every hour for 4 h.

3.2.8. Computational Procedure

The X-ray structure of bovine tubulin co-crystallised with N-deacetyl-N-(2-mercaptoacetyl)-colchicine (DAMA-colchicine) was downloaded from the PDB website (entry 1SA0) [19]. A UniProt Align analysis confirmed a 100% sequence identity between human and bovine β-tubulin. The crystal structure was prepared using QuickPrep (minimised to a gradient of 0.001 kcal/mol/Å), Protonate 3D, Residue pKa and Partial Charges protocols in MOE 2020 using the MMFF94x force field. Compounds 32, 33, 42 and 43 were drawn in MOE, saved as an mdb file and processed in MOE. Both trans enantiomers of compounds 32 and 33 were examined in addition to both enantiomers of compounds 42 and 43. MMFF94x partial charges were calculated for each compound and minimised to a gradient of 0.001 kcal/mol/Å. Default parameters were used for docking; 300 poses were sampled for each compound and the top 50 docked poses were retained for subsequent analysis. Default settings of OMEGA [92,93] were used to generate 50 conformers of each compound prior to running rigid docking with FRED [94], included in the OEDocking suite (OpenEye Scientific Software, Santa Fe, NM, USA; http://www.eyesopen.com) (accessed on 15 September 2021).

3.3. X-ray Crystallography Analysis

Data were collected on a Bruker APEX DUO for samples 18, 23 and 33 using Mo Kα radiation (λ = 0.71073 Å) and 43 using Cu Kα radiation (λ = 1.54178 Å). Each sample was mounted on a MiTeGen cryoloop, and data were collected at 100(2) K using an Oxford Cobra cryosystem. Bruker APEX [96] software was used to collect and reduce data and determine the space group. Absorption corrections were applied using SADABS [97].

All structures were solved with the SHELXT [98] structure solution program using Intrinsic Phasing and refined using the least squares method on F² with SHELXL [99]. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were assigned to calculated positions using a riding model with appropriately fixed isotropic thermal parameters. Molecular graphics were generated using OLEX2 [100].

Crystallographic data for the structures in this paper have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication Nos. 2101671, 2101672, 1537939 and 1537940. Copies of the data can be obtained, free of charge, on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK (Fax: +44-(0)1223-336033 or e-mail: [email protected]).

4. Conclusions

Microtubule-targeting agents are the group of drugs frequently used for cancer treatment both in adults and children; they are effective in suppressing microtubule dynamics and inducing cell death via the mitochondrial intrinsic apoptosis pathway. Significant progress has been achieved in the discovery of targeted cancer therapies; however, it is recognised that resistance (demonstrated by both innate and acquired mechanisms) remains an issue for many clinically successful cancer drugs [32]. The β-lactam scaffold continues to attract much interest due to its utility as a versatile synthetic intermediate and also the many therapeutic applications of this heterocycle. We have now described the synthesis of a series of novel 3-fluoro and 3,3-difluoro-β-lactams which are designed as CA-4 analogues that show significant antiproliferative activity against the MCF-7 cell line. Introduction of fluorine can enhance the potency and target selectivity of a drug by affecting properties such as pKa, lipophilicity, hydrophobic interactions and membrane permeability. In the present work, compounds 32 and 33 were the most potent in this series examined, with IC₅₀ values of 0.075 and 95 µM, respectively, in the MCF-7 cell line. The phenolic compound 32 also demonstrated significant antiproliferative activity at nanomolar concentrations in the triple-negative breast cancer cell line Hs578T (IC₅₀ 0.033 μM), together with potency in the invasive isogenic subclone Hs578Ts(i)8 (IC₅₀ = 0.065 μM), while 33 was also effective in MDA-MB-231 cells (IC₅₀ 0.620 μM). The introduction of the fluorine substituent at C-3 of the β-lactam ring resulted in the antiproliferative profile for compounds 32 and 33 comparable to our previously reported 3-chloro, 3-vinyl and 3-methylazetidin-2-ones as CA-4 analogues. The 3-fluoro compounds demonstrated significant antiproliferative activity at nanomolar concentrations in the NCI 60 cancer cell line panel across a range of human cancer cell lines. Selectivity of the compounds in targeting cancer cells was demonstrated with minimal cytotoxicity shown in non-tumourigenic cell line HEK-293T on treatment with the 3-fluoro-β-lactam compound 33.

The mechanism of action of these compounds was investigated. Induction of apoptosis was confirmed for compound 33 using flow cytometric analysis of Annexin V/PI-stained cells. Additionally, β-lactam 33 was observed to inhibit tubulin polymerisation, causing disruption of tubulin network structure in MCF-7 cells, inducing a disorganised microtubule network with multinucleation effects as also observed for CA-4. The effects on the expression of the characteristic apoptosis-related proteins Bcl-2, Bax and survivin in MCF-7 cells on treatment with compound 33 were demonstrated with Western blot analysis and confirmed the pro-apoptotic action of the 3-fluoro β-lactam 33. The tubulin-targeting effects of compound 33 were demonstrated in a molecular modelling study suggesting interactions of the compound’s A and B rings with the colchicine-binding site of β-tubulin, in a manner similar to that of CA-4. The 3-fluoro-β-lactams 32 and 33 demonstrated potential as lead microtubule-targeting molecules suitable for further preclinical anticancer drug development.
