Synthesis of Quinolones and Zwitterionic Quinolonate Derivatives with Broad-Spectrum Antibiotic Activity

by
Beatriz Suay-García
1,*,
Jose-Ignacio Bueso-Bordils
2,
Gerardo Antón-Fos
2,
María-Teresa Pérez-Gracia
2,
Antonio Falcó
1 and
Pedro Alemán-López
2,*
1
ESI International Chair@CEU-UCH, Departamento de Matemáticas, Física y Ciencias Tecnológicas, Universidad Cardenal Herrera-CEU, CEU Universities San Bartolomé 55, 46115 Alfara del Patriarca, Valencia, Spain
2
Departamento de Farmacia, Universidad Cardenal Herrera-CEU, CEU Universities C/Ramón y Cajal s/n, 46115 Alfara del Patriarca, Valencia, Spain
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(7), 818; https://doi.org/10.3390/ph15070818
Submission received: 26 May 2022 / Revised: 28 June 2022 / Accepted: 29 June 2022 / Published: 1 July 2022
(This article belongs to the Special Issue Novel Antibacterial Agents 2022)
Browse Figures
Versions Notes

Abstract

:
Quinolones are one of the most extensively used therapeutic families of antibiotics. However, the increase in antibiotic-resistant bacteria has rendered many of the available compounds useless. After applying our prediction model of activity against E. coli to a library of 1000 quinolones, two quinolones were selected to be synthesized. Additionally, a series of zwitterionic quinolonates were also synthesized. Quinolones and zwitterionic quinolonates were obtained by coupling the corresponding amine with reagent 1 in acetonitrile. Antibacterial activity was assessed using a microdilution method. All the compounds presented antibacterial activity, especially quinolones 2 and 3, selected by the prediction model, which had broad-spectrum activity. Furthermore, a new type of zwitterionic quinolonate with antibacterial activity was found. These compounds can lead to a new line of antimicrobials, as the structures, and, therefore, their properties, are easily adjustable in the amine in position 4 of the pyridine ring.

1. Introduction

The discovery and synthesis of antibiotic compounds was a turning point in the treatment of infectious diseases. However, the extreme versatility and adaptability of microorganisms has prevented a decrease in the prevalence of these diseases, seeing as bacteria have developed mechanisms that make them resistant to these drugs [1]. The threat of antibiotic-resistant bacteria is such that the World Health Organization (WHO) has announced that, if resistance continues to increase at the current rate, infections caused by antibiotic-resistant bacteria will become the leading cause of death worldwide, exceeding deaths caused by cancer, diabetes and cardiovascular diseases [2].
Within the different antibiotic families being currently used in clinical practice, quinolones are one of the most extensively used therapeutic families in the treatment of infectious diseases. In fact, this group gained clinical relevance due to antibiotic-resistant bacteria, since, during the 1980s, it was used to treat infections caused by Shigella spp. and Escherichia coli strains resistant to other available antibacterial drugs [3]. The pharmacokinetic profile of quinolones, along with their high antibacterial activity and their broad spectrum, result in quinolones having many therapeutic indications, both in hospitals and community settings [4]. However, to avoid the appearance of resistance, these drugs should have been limited to situations where the microorganism presents multi-resistance or there are contraindications for the use of other antibacterial agents.
The development of this antibacterial family is based on the possibility of performing substitutions in all the positions, except for 3 and 4, which must remain constant. These variations affect the selectivity and efficacy of quinolones against different microorganisms and modify pharmacokinetic properties, toxicity and interaction with other drugs [5]. Along these lines, QSAR methods are an efficient tool to carry out virtual screenings to identify antibacterial drug candidates [6]. Furthermore, this chemoinformatic approach allows the prediction of pharmacokinetic and toxicological properties directly related to activity to identify safer and more effective drugs [6].
The aim of this paper is to synthesize new quinolones selected by a prediction model and evaluate their antibiotic activity. Furthermore, three new zwitterionic quinolonate compounds and quinolone 7 were also synthesized and their antibacterial activity was assessed. All these compounds were synthesized using a one-step reaction between the commercial difluorinated quinolone 1 and the corresponding amine (Figure 1).

2. Results

2.1. Compound Selection

A mathematical–topological prediction model previously described by our research group was used to select theoretically active compounds against E. coli from a virtual combinatorial library of 1000 quinolones [7,8]. In total, 298 quinolones from the virtual combinatorial library were selected by the model as theoretically active against E. coli (Figure 2) (see Supplementary Materials).
As the model established, the selected molecules had a value for index Nclass between 11 and 16 and a value for the DF within the 0–28 range [7]. Nclass is a topological index that could be defined as the topological distance (number of axes) between the two furthest vertices of a graph through the shortest path [7]. Molecules containing fluorine in position 7 were not selected as their value for Nclass is < 11 (except for two, all have values for the DF between 0 and 28), which implies that the theoretically active compounds must have a substituent in position 7 with a certain degree of structural complexity. Practically all of the used amines appear within the selected molecules. Regarding the simplest amine, cyclopropylamine, the only compounds selected were those with a benzyl substituent in position 1, seeing as this substituent provides size and complexity, which increases its Nclass value. As for the substituents in positions 1 and 8, no priority was observed among them as all appear in similar proportions in the selected molecules.
In terms of pharmacological activity, six of the quinolones selected by the prediction model have been described in the literature (Figure 3). Those six quinolones correspond to: compound 3, which was synthesized and assayed against methicillin-resistant Staphylococcus aureus (MRSA) by our research group [8], and compounds 8, 9, 10, 11 and 12 [9,10,11,12], which had already been assayed against E. coli with minimum inhibitory concentrations (MICs) between 0.5 and 2 µg/mL. These data validate the ability of our model to find new molecules with antibiotic activity.
Quinolones 2 and 3 were selected to be synthesized by reacting the difluorinated quinolone 1 with the corresponding amine (Table 1) [8]. Furthermore, their antibacterial activity was assessed against different microorganisms. Quinolone 7, which was obtained unexpectedly in the reaction between 1-methylimidazole and compound 1 (Figure 4), was also assayed against a battery of microorganisms.
Additionally, three new zwitterionic quinolonate compounds were also selected to be synthesized and have their antibacterial activity assayed. As will be detailed later on, these compounds appeared during the study of the possibility of accelerating the reaction between 1 and benzymidazole with 4-dimethylaminopyridine (DMAP).
Zwitterionic compounds containing quaternary amines are becoming increasingly popular as new antibiotics due to the ease with which products can be prepared to have a cationic character in the infection site with acidic pH, imitating natural antibacterial peptides [13,14].
Moreover, pyridinium and imidazolium salts have also become popular for being ionic liquids [15]. Different studies show the negative effect these compounds can have on the environment, as well as their toxicological effects in different microorganisms [16,17]. According to Riduan et al. [18], the toxicity of these salts could be due to their amphipathic structure, in which the hydrophilic cation interacts with biological components in the cell membrane or DNA, while the hydrophobic segment causes structural and functional disruptions. Modelling of the toxicity of these pyridinium and imidazolium salts could result in products with interesting applications for humans, such as the design of new antimicrobial agents.
Several studies prove the antibacterial activity of pyridinium salts. One example is that of Li et al. [19], in which they synthesized pyridinium N-chloramines with activity against E. coli and S. aureus. Similarly, Alptunzu et al. [20] synthesized several benzylidenhydrazineilpiridinium salts. Some of them showed activity against S. aureus with an MIC in the 4–8 μg/mL range. A group of chalcone–pyridinium hybrids also presented antibacterial and antitumoral activity similar to that of streptomycin [21].
For these reasons and due to the ease with which compound 4 was obtained, we decided to synthesize structural analogues 5 and 6.
Similar to pyridinium salts, there are numerous studies that point out the potential of imidazolium salts as antimicrobials [22,23,24]. For this reason, the synthesis of quinolonate 13 was planned replacing DMAP with 1-methylimidazole but quinolone 7 was unexpectedly obtained as the only reaction product (Figure 4). Therefore, its activity was also assayed. Testing the activity of secondary products during the synthesis of a compound is a common practice. In fact, the first antimicrobial quinolone was discovered as an impurity in the chemical manufacture of chloroquine [10].

2.2. Quinolone Synthesis

Quinolone 2 was obtained by coupling the corresponding amine with reagent 1 in acetonitrile, following well-established research [25]. The reaction was followed using thin-layer chromatography and, after 3 h, reagent 1 had been completely used up. The mixture was concentrated and, after adding water, the formed precipitate was filtered under high vacuum. Furthermore, the filtration liquid was treated with HCl to adjust its pH to 7, which resulted in the formation of a new solid that was also filtered under high vacuum. Quinolone 2 was obtained with a 60% yield (Table 1, entry 1).
On the other hand, the obtention of compound 3 by reacting 1 with benzimidazole required long reaction times [8]. After 10 days of reaction, the yield was only 18% (Table 1, entry 2) and, due to the great amount of starting reagent remaining, the purification had to be carried out using preparative thin-layer chromatography with CH2Cl2:CH3OH 20:1 as eluent. Along these lines, Gellis et al. [26] described that the substitution reaction of chlorine for amine in position 4 of the quinazoline ring is catalyzed by DMAP. Consequently, we decided to study the possibility of DMAP catalyzing the reaction. When the reaction was carried out adding a catalytic amount of DMAP, the yield increased to 54% in the same reaction time (Table 1, entry 3). Moreover, by increasing the proportion of product in the reaction mixture, the purification could be carried out through simple filtration and washing. Assuming that the catalytic capacity of DMAP is due to its nucleophilic properties, we decided to also try triphenylphosphine as a catalyst. In this case, we found no improvement in the yield and, after 10 days of reaction, product 3 was obtained with a 17% yield (Table 1, entry 4).

2.3. Zwitterionic Quinolonate Synthesis

Compound 4 was obtained quantitatively by reacting compound 1 with an excess of DMAP in reflux with acetonitrile (Table 2, entry 1). The same synthetic methodology was used to obtain compounds 5 and 6, by reacting 1 with 4-(piperidin-1-yl)pyridine and 1-(pyridin-4-yl)piperazine, respectively (Table 2, entries 2 and 3). These reagents were selected because they include piperidine and piperazine rings while barely altering the reactivity of the pyridine’s nitrogen. Piperidine and piperazine scaffolds are included in many drug structures [27,28].
To know if this reaction was extensible to imidazolic derivatives, DMAP was substituted with 1-methylimidazole to obtain compound 13 following the same procedure. However, the reaction did not occur through the imidazole nitrogen; instead, it occurred through the carbon 4 of the imidazole ring. Compound 7 was the only product observed in the reaction and was obtained with an 83% yield (Figure 4).

2.4. Antibiotic Activity (MIC and MBC)

The antibiotic activity assays of compounds 2 and 3 are shown in Table 3, including MIC and MBC after 18–24 h of incubation at 37 °C. Ciprofloxacin was used as the reference antibacterial drug in order to compare the activity of the synthesized quinolones.
Seeing the activity values of both quinolones against E. coli, we decided to study the antimicrobial activity spectrum of compounds 2 and 3 against Gram-positive and Gram-negative bacteria, as well as against Candida albicans (Table 4).
Additionally, the antibacterial activity of the synthesized zwitterionic quinolonates and quinolone 7 was also assessed (Table 5).

3. Discussion

DMAP is a reagent that can act as a nucleophilic catalyst in many transformations [29]. We observed that the reaction of reagent 1 with benzimidazole to obtain quinolone 3 could be catalyzed by DMAP (Table 1, entries 1 and 2), as the addition of this catalyst leads to a yield increase in the same reaction time.
Analogously to the mechanism postulated by Gellis et al., DMAP may react with the difluorinated quinolone 1 to produce the intermediate 4 that would then react with benzimidazole to result in compound 3 and DMAP would be regenerated to participate in the next catalytic cycle (Figure 5). To support this hypothesis, in the same way Gellis et al. did, we decided to synthesize our zwitterionic intermediate 4, which was obtained quantitatively by reacting 1 with an excess DMAP (Table 2, entry 1).
Using the same methodology, treating 1 with an excess of 4-(piperidin-1-yl)pyridine quantitatively precipitated 5 (Table 2, entry 2). However, compound 6 was obtained with a 56% yield. In this case, reagent 1 was also completely used up but the chromatography of the precipitated crude reaction showed that compound 6 had an impurity with lower polarity. Said impurity was eliminated through successive extractions with warm acetonitrile. Mass spectrometry analysis of the impurity showed that it was a compound with molecular formula C27H22O4, eliminating any possibility of it being the quinolone that would result from an attack of the piperazinic nitrogen.
Lastly, the reaction with 1-methylimidazole did not evolve as expected to obtain the corresponding zwitterionic compound. The reaction was slower than with the rest of the amines, seeing as, after 48 h, there was one single product and some reagent 1 left. We decided to stop the reaction and compound 7 was obtained with an 83% yield. When trying to carry out the spectroscopic assignment of the obtained compound, we found that the resulting product was not the expected imidazolium quinolonate 13.
Instead, compound 7 was obtained unexpectedly (Figure 5). The mass spectrometry analysis came out as expected, revealing a compound with molecular formula C17H14FN3O3. However, only five aromatic protons were observed in the 1H NMR, which indicates that the reaction occurred through one of the imidazolic carbons. The reactions of electrophilic C-substitution in the imidazole are difficult to predict. Nitrations and halogenations preferably occur in position C-4 or positions C-4 and C-5 [30]. Reactions of aldehydes and acid chlorides have also been described in position C-2 [31]. The addition in C-2 was rejected because hydrogens in positions C-4 and C-5 of the N-alkylimidazolic derivatives substituted in C-2 usually appear at 7 and 6.9 ppm, respectively [32] and our compound shows two imidazolic hydrogens at 7.9 and 7.7 ppm, which correspond to the hydrogens in positions 2 and 5, respectively.
Seeing as 7 had a quinolone structure, its antibacterial activity was also assayed.
In terms of the antibacterial activity of the synthesized quinolones, compounds 2 and 3 displayed antibacterial activity against E. coli, seeing as both had an MIC value within the sensibility range, established by CLSI guidelines [33]. It must be noted that compound 3 showed a lower MBC (32 mg/L) than ciprofloxacin (64 mg/L) (Table 3).
Furthermore, both quinolones displayed broad-spectrum antimicrobial activity (Table 4) as they presented low-MIC values against Gram-positive and Gram-negative bacteria. More specifically, compound 3 stands out for its high activity against Gram-positive bacteria, reaching an MIC under 0.03 mg/L against B. subtilis (Table 4), which proves it has the same activity as ciprofloxacin (MIC 0.05 mg/L) [34]. It should also be noted that compound 3 is more active than ciprofloxacin against MRSA, as described by Bueso-Bordils et al. [8]. Moreover, this quinolone presents high activity against Gram-negative bacteria, with MICs within the range established by CLSI for quinolones against P. aeruginosa and E. coli, 2 mg/L.
Quinolone 2, while active against Gram-positive and Gram-negative bacteria, must be highlighted for its moderate activity against C. albicans. Other studies reported activity of other commercial quinolones, such as moxifloxacin, gatifloxacin and sparfloxacin, against C. albicans [35,36]. Topoisomerase II has been identified as the main target for quinolones against yeasts [37], which is more susceptible to quinolones in yeasts than in mammals [38]. Therefore, it can be considered that the two synthesized quinolones (compounds 2 and 3) have a broad antimicrobial activity spectrum.
Regarding the antibacterial activity of the zwitterionic quinolonates, Table 5 shows that compounds 4, 5 and 6 have moderate activity against Gram-positive bacteria. Furthermore, the activity of compound 4 against E. coli must also be noted. Thus, these zwitterionic quinolonates could be interesting lead compounds for the development of new antibacterial families. On another note, compound 7 showed activity against E. coli.

4. Materials and Methods

4.1. Synthesis

The solvents used were dried following described procedures [39]. The reagents were obtained from commercial suppliers (Aldrich, Fluka and Scharlaud) and did not undergo any prior purification. The solid reagents were dried before using them by keeping them in a vacuum in the presence of P2O5 for, at least, 12 h. The triethylamine used was distilled at the time it was going to be used, in an argon atmosphere with sodium hydroxide pellets [39].
The thin-layer chromatography (TLC) analyses were carried out in silica gel (Kieselgel 60 F254 on plastic) active under ultraviolet (UV) light and were visualized using 254 nm and/or 365 nm UV light. Iodine was also used as a developer.
The fusion point was determined using a “Cambridge Instruments” machine; it has not been corrected and is only indicative.
The infrared (IR) spectrum was obtained using the Spectrum Two FT-IR spectrometer and the Universal ATR diamond polarization accessory.
The 1H NMR spectra were obtained with a Brucker 300 spectrophotometer, using deuterated chloroform (CDCl3), deuterated dimethylsulfoxide (DMSO-d6), deuterated methanol (CD3OD) or deuterium oxide (D2O) as a solvent. The nuclei chemical shift values are expressed in ∂ values (ppm).
A hybrid mass spectrometer with quadruple time-of-fly analyzer was used to determine mass spectra (TRIPLETOFT5600, ABSciex). The conditions were: direct infusion, electrospray technique (ESI), ion source gas 1 (GC1): 30 psi, ion source gas 2 (GC2): 30 psi, curtain gas 1: 25 psi, 450 °C, ion spray voltage (ISVF): 5500, mass range: 80–950 m/z.
Compound purity was confirmed by a combination of LC-MS (HPLC) and high-resolution mass spectrometry and NMR analysis. All compounds had >95% purity.

4.1.1. Quinolone Synthesis

1-cyclopropyl-6-fluoro-4-oxo-7-((2-(pyrrolidine-1-il) ethyl)amino)-1,4-dihydroquinoline-3-carboxylic acid (2)
A mixture of 1 (209 mg, 0.79 mmol), (2-aminoethyl)pyrrolidine (361 mg, 3.16 mmol) and 8.5 mL of anhydrous CH3CN was refluxed with drying tube. After 3 h, the mixture was concentrated; then, 2 mL of water was added, resulting in the formation of a precipitate which was filtered and washed with cold water and dried under high vacuum. This solid corresponded to 73 mg of 2. Furthermore, the filtration liquid was treated with HCl to adjust its pH to 7, which resulted in the formation of a new solid that was filtered and washed with cold water and dried under high vacuum obtaining 97 mg of 2. Pure fluoroquinolone 2 was obtained with an overall yield of 60% (170 mg) as an off-white solid, mp 179.8 °C. IR (cm−1): 3344.4; 3082.7; 3026.7; 2964.2; 2939.5; 2877.0; 1724.0; 1633.6; 1526.1; 1455.3; 1396.8. NMR 1H (300 MHz, CDCl3) δ: 15.88–14.83 (br, 1H), 8.61(s, 1H), 7.84 (d, J = 11.6 Hz, 1H), 6.90 (d, J = 7.1 Hz, 1H), 5.56–5.45 (m, 1H), 3.45 (tt, J = 7.2, 4.0 Hz, 1H), 3.36–3.23 (m, 2H), 2.81 (t, J = 6.1 Hz, 2H), 2.60–2.49 (m, 4H), 1.79–1.75 (m, 4H) and 1.35–1.07 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C19H22FN3O3 360.1718, found: 360.1725.
7-(1H-benzo[d]imidazol-1-yl)-1-cyclopropyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carboxylic acid (3)
Without a catalyst:
A mixture of 1 (200 mg, 0.754 mmol), benzimidazole (177 mg, 1.5 mmol), anhydrous CH3CN (11 mL) and Et3N (0.41 mL, 3 mmol) was refluxed with drying tube. After 240 h, the resulting suspension was filtered and washed first with CH3CN (3 × 3 mL) and later with water (3 × 3 mL). The solid was purified by PTLC with a mixture CH2Cl2:CH3OH 20:1 as eluent. Compound 3 (49 mg, 18%) was obtained as an off-white solid.
With a catalyst:
A mixture of 1 (200 mg, 1.5 mmol), benzimidazole (295 mg, 2.5 mmol), 8.5 mL of anhydrous CH3CN and Et3N (0.94 µL, 6.7 mmol) and the corresponding catalyst, 0.3 mmol DMAP, was refluxed with drying tube. The white suspension was filtered and the solid was washed first with warm CH3CN and then with cold water. Compound 3 (148 mg, 54%) was obtained as an off-white solid, mp: 292–293 °C. IR (cm−1): 3066.64; 1712.91; 1616.99; 1504.51; 1479.92; 1447.08. NMR 1H (300 MHz, DMSO-d6) δ: 14.70 (s, 1H); 8.85 (s, 1H); 8.75–8.60 (m, 2H); 8.39 (d; J = 10.4 Hz; 1H); 7.92–7.79 (m, 1H); 7.67–7.57 (m, 1H); 7.49–7.30 (m, 2H); 3.99–3.84 (br s, 1H); and 1.35–1.20 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C20H14FN3O3 364.1092. Found 364.1108.

4.1.2. Zwitterionic Quinolonate Synthesis

A mixture of 1 (150 mg, 0.567 mmol), 2.5 or 3.5 equivalents of the corresponding amine (Table 2) and 8.5 mL of anhydrous CH3CN was refluxed with drying tube. After the time indicated in Table 2 had passed, the resulting mixtures were filtered and the solid was washed with warm acetonitrile (3 × 3 mL). After drying the product under vacuum:
1-cyclopropyl-7-[4-(dimethylamino)pyridinium-1-yl]-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carboxilate (4)
Here, 206 mg of white solid was obtained (yield: 99%; m.p.: >350 °C). IR (cm−1): 3096.64; 3068.54; 3047.37; 2882.85; 1703.56; 1650.09; 1587.35; 1474.30; 1167.87. NMR 1H (300 MHz, CD3OD) δ: 8.70 (s, 1H); 8,49 (d; J = 5.6 Hz; 1H); 8.38 (d; J = 5.6 Hz; 2H); 8.16 (d; J = 10.3 Hz; 1H); 7.16 (d; J = 6.0 Hz; 2H); 3.86–3.56 (br, 1H); 3.30 (s, 6H); and 1.40–1.06 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C20H18FN3O3 368.1405, found 368.1404.
1-cyclopropyl-6-fluoro-4-oxo-7-(4-(piperidin-1-yl)pyridin-1-ium-1-yl)-1,4-dihydroquinoline-3-carboxylate (5)
Here, 229 mg of white solid was obtained (yield: 99%; m.p.: 229–233 °C). IR (cm−1): 3375.12, 3084.20, 3069.40, 2952.30, 1643.23, 1617.69, 1561.62, 1483.47. NMR 1H (300 Hz, CD3OD) δ: 8.65–8.45 (br, 2H), 8.47 (s, 1H), 8.31 (s, 1H), 7.94 (d, J = 10.5 Hz, 1H), 7.35 (d, J = 5.2 Hz, 2H), 3.87 (t, J = 4.9 Hz, 4H), 3.80–3.50 (m, 1H), 2.02–1.62 (m, 6H), and 1.45–1.02 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C23H22FN3O3 408.1718, found 408.1713.
1-cyclopropyl-6-fluoro-4-oxo-7-(4-(piperazin-1-yl)pyridin-1-ium-1-yl)-1,4-dihydroquinoline-3-carboxilate (6)
Here, 130 mg of off-white solid was obtained (yield: 56%; m.p.: >350 °C). IR (cm−1): 3377.06, 3205.10, 3092.6, 1615.01, 1556.48, 1481.59. NMR 1H (300 Hz, D2O) δ: 8.49 (s, 1H), 8.43–8.26 (m, 3H), 8.04 (d, J = 10.7 Hz, 1H), 7.25 (d, J = 7.4 Hz, 2H), 3.93 (t, J = 5.3 Hz, 4H), 3.70–3.50 (m, 1H), 3.26 (t, J = 5.3 Hz, 4H), and 1.34–1.03 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C22H21FN4O3 409.1670, found 409.1669.

4.1.3. 1-cyclopropyl-6-fluoro-7-(1-methyl-1H-imidazol-4-yl)-4-oxo-1,4-dihydroquinoline-3-carboxylic acid (7)

A mixture of 1 (150 mg, 0.567 mmol), methylimidazole (0.113 mL, 1.41 mmol) and 8.5 mL of anhydrous CH3CN was refluxed with drying tube. After 48 h, the resulting mixture was filtered and the solid was washed with warm acetonitrile (3 × 3 mL). After drying the product under vacuum, 154 mg of beige solid was obtained (yield: 83%; mp: 266 °C) IR (cm−1): 3174.5, 3117.00, 3042.88, 1726.88, 1618.17, 1544.72, 1488.95. NMR 1H (300 Hz, D2O) δ 8.69 (s, 1H), 8.45 (s, 1H), 8.09 (d, J = 9.0 Hz, 1H), 7.94 (s, 1H), 7.70 (s, 1H), 4.04 (s, 3H), 3.81–3.57 (m, 1H), and 1.44–1.01 (m, 4H). HRMS (ESI-TOF) m/z: (M + H)+ calculated for C17H14FN3O3 328.1092, found 328.1099.

4.2. Antibiotic Activity (MIC and MBC)

All compounds were evaluated for their in-vitro MIC and MBC using standard techniques, following the protocol recommended by CLSI guidelines [33]. The synthesized compounds were dried before preparing stock solutions by keeping them in a vacuum in presence of P2O5 for at least 12 h. From the stock solutions, two-fold serial dilutions were prepared. Ciprofloxacin was used as a reference in order to compare MIC values. All experiments were repeated five times to ensure reproducibility. Activity values are provided as modal MICs and MBCs.
The strains used to perform the antibiotic activity assays are detailed in Table 6.

5. Conclusions

Currently, the development of antibiotic resistance is one of the biggest issues in the treatment of bacterial infections. Molecular topology, along with linear discriminant analysis, have proven to be useful tools in the design and search for new drugs. The present prediction model identified two quinolones with good antibacterial activity against E. coli and other bacteria. Furthermore, the knowledge and study of organic reactions has also resulted in the finding of a new type of zwitterionic quinolonate with antibacterial activity. These compounds can lead to a new line of antimicrobials, since their structures, and, therefore, their properties, are easily adjustable in the amine in position 4 of the pyridine ring.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ph15070818/s1, Figure S1: Virtual combinatorial library, Table S1: theoretically active compounds vs. E. coli. Figure S2. 1H NMR (300 MHz, CDCl3) of 2, Figure S3. HRMS (ESI-TOF) m/z of 2, Figure S4. 1H NMR (300 MHz, DMSO-d6) of 3, Figure S5. HRMS (ESI-TOF) m/z of 3, Figure S6. 1H NMR (300 MHz, CD3OD) of 4, Figure S7. HRMS (ESI-TOF) m/z of 4, Figure S8. 1H NMR (300 MHz, CD3OD) of 5, Figure S9. HRMS (ESI-TOF) m/z of 5, Figure S10. 1H NMR (300 MHz, D2O) of 6, Figure S11. HRMS (ESI-TOF) m/z of 6, Figure S12. 1H NMR (300 MHz, D2O) of 7, Figure S13. HRMS (ESI-TOF) m/z of 7.

Author Contributions

Conceptualization, P.A.-L., G.A.-F., M.-T.P.-G. and B.S.-G.; methodology, B.S.-G. and J.-I.B.-B.; software, A.F.; validation, B.S.-G. and formal analysis, B.S.-G.; investigation, B.S.-G. and J.-I.B.-B.; resources, A.F.; data curation, B.S.-G.; writing—original draft preparation, B.S.-G.; writing—review and editing, B.S.-G. and P.A.-L.; visualization, J.-I.B.-B. and M.-T.P.-G.; supervision, G.A.-F., M.-T.P.-G. and P.A.-L.; project administration, A.F.; funding acquisition, A.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the grant number INDI21/15 from Universidad CEU Cardenal Herrera and the ESI International Chair @ UCH-CEU (https://www.uchceu.es/catedra/esi (accessed on 30 June 2022)).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yeh, R.F.; Palmer, H.R. 49th ICAAC annual meeting: Optimization of anti-infective use in the clinical setting. Expert. Rev. Anti-Infect. Ther. 2009, 7, 1167–1172. [Google Scholar] [CrossRef]
  2. World Health Organization. United Nations Meeting on Antimicrobial Resistance. Available online: https://www.un.org/pga/71/event-latest/high-level-meeting-on-antimicrobial-resistance/ (accessed on 20 May 2022).
  3. Van Bambeke, F.; Michot, J.M.; Van Eldere, J.; Tulkens, P.M. Quinolones in 2005: An update. Clin. Microbiol. Infect. 2005, 11, 256–280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Rotschafer, J.C.; Ullman, M.A.; Sullivan, C.J. Optimal use of fluoroquinolones in the intensive care unit setting. Crit. Care. Clin. 2011, 27, 95–106. [Google Scholar] [CrossRef] [PubMed]
  5. Domagala, J.M. Structure-activity and structure-side-effect relationships for the quinolone antibacterials. J. Antimicrob. Chemother. 1994, 33, 685–706. [Google Scholar] [CrossRef] [PubMed]
  6. Suay-Garcia, B.; Bueso-Bordils, J.I.; Falcó, A.; Pérez-Gracia, M.T.; Antón-Fos, G.; Alemán-López, P. Quantitative structure-activity relationship methods in the discovery and development of antibacterials. WIREs Comput. Mol. Sci. 2020, 10, e1472. [Google Scholar] [CrossRef]
  7. Suay-García, B.; Alemán-López, P.; Bueso-Bordils, J.I.; Falcó, A.; Pérez-Gracia, M.T.; Antón-Fos, G.M. Topological index Nclass as a factor determining the antibacterial activity of quinolones against Escherichia coli. Future Med. Chem. 2019, 11, 2255–2262. [Google Scholar] [CrossRef]
  8. Bueso-Bordils, J.I.; Pérez-Gracia, M.T.; Suay-García, B.; Duart, M.J.; Algarra, R.V.M.; Zamora, L.L.; Anton-Fos, G.M.; Lopez, P.A.A. Topological pattern for the search of new active drugs against methicillin resistant Staphylococcus aureus. Eur. J. Med. Chem. 2017, 138, 807–815. [Google Scholar] [CrossRef]
  9. Cooper, C.S.; Klock, P.L.; Chu, D.T.W.; Hardy, D.J.; Swanson, R.N.; Plattner, J.J. Preparation and in vitro and in vivo evaluation of quinolones with selective activity against gram positive organisms. J. Med. Chem. 1992, 35, 1392–1398. [Google Scholar] [CrossRef]
  10. Ceccheti, V.; Fravolini, A.; Palumbo, M.; Sissi, C.; Tabarrini, O.; Terni, P.; Xin, T. Potent 6-defluoro-8-methylquinolones as new lead compounds in antibacterial chemotherapy. J. Med. Chem. 1996, 39, 4952–4957. [Google Scholar] [CrossRef]
  11. Radl, S.; Kovarova, L. Synthesis and antibacterial activity of new 7-substituted fluoroquinolones. Collect. Czech. Chem. Commun. 1991, 56, 2406–2412. [Google Scholar] [CrossRef]
  12. Kinoshita, S.; Miyashita, M.; Hosaka, M.; Hirai, K. Preparation of quinolonecarboxylic acid derivatives containing 1,2,3,4-tetrahydroisoquinoline ring at 7-position as bactericides. Kokai Tokkyo Koho 1992, 04235982. [Google Scholar]
  13. Engler, A.C.; Wiradharma, N.; Ong, Z.Y.; Coady, D.J.; Hedrick, J.L.; Yang, Y.Y. Emerging trends in macromolecular antimicrobials to fight multi-drug-resistant infections. Nano Today 2012, 7, 201–222. [Google Scholar] [CrossRef]
  14. Locock, K.; Michl, T.D.; Valentin, J.D.; Vasilev, K.; Hayball, J.D.; Qu, Y.; Traven, A.; Griesser, H.J.; Meagher, L.; Haeussler, M. Guanylated polymethacrystals: A class of potent antimicrobial polumers with low hemolytic activity. Biomacromolecules 2013, 14, 4021–4031. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Chan, J.Y.G. Sustainable chemistry: Imidazolium salts in biomass conversion and CO2 fixation. Energy Environ. Sci. 2010, 3, 408–417. [Google Scholar] [CrossRef]
  16. Frade, R.F.; Alfonso, C.A. Impact of ionic liquids in environment and humans: An overview. Hum. Exp. Toxicol. 2010, 29, 1038–1054. [Google Scholar] [CrossRef] [PubMed]
  17. Egorova, K.S.; Ananikov, V.P. Toxicity of ionic liquids: Eco(cyto)activity as complicated, but unavoidable parameter for task-specific optimization. Chem. Sus. Chem. 2014, 7, 336–360. [Google Scholar] [CrossRef] [PubMed]
  18. Riduan, S.N.; Zhang, Y. Imidazolium salts and their polymeric materials for biological applications. Chem. Soc. Rev. 2013, 42, 9055–9070. [Google Scholar] [CrossRef]
  19. Li, L.; Zhao, Y.; Ning, A.; Zhang, F.; Zhao, Z. Synthesis of pyridinium N-chloramines for antibacterial applications. Tetrahedron Lett. 2017, 58, 321–325. [Google Scholar] [CrossRef]
  20. Alptünzü, V.; Parlar, S.; Tash, H.; Erciyas, E. Synthesis and antimicrobial activity of some pyridinium salts. Molecules 2009, 14, 5203–5215. [Google Scholar] [CrossRef]
  21. Gondru, R.; Saini, R.; Vaarla, K.; Singh, S.; Sirassu, N.; Bavantula, R.; Saxena, A.K. Synthesis and characterization of chalcone-pyridinium hybrids as potential anti-cancer and anti-microbial agents. Chem. Select. 2018, 3, 1424–1431. [Google Scholar] [CrossRef]
  22. Elie, C.R.; David, G.; Schmitzer, R. Strong antibacterial properties of anion transporters: A result of depolarization and weakening of the bacterial membrane. J. Med. Chem. 2015, 58, 2358–2366. [Google Scholar] [CrossRef] [PubMed]
  23. Vidal, M.; Elie, C.R.; Campbell, S.; Claing, A.; Schmitzer, A.R. Biologically active binapthol-scaffolded imidazolium salts. Med. Chem. Commun. 2014, 5, 436–440. [Google Scholar] [CrossRef]
  24. Demberelnyamba, D.; Kim, K.S.; Choi, S.; Park, S.Y.; Lee, H.; Kim, C.J.; Yoo, I.D. Synthesis and antimicrobial properties of imidazolium and pyrrolidinonium salts. Bioor. Med. Chem. 2004, 12, 853–857. [Google Scholar] [CrossRef]
  25. Chai, Y.; Liu, M.L.; Wang, B.; You, X.; Feng, L.; Zhang, Y.; Cao, J.; Guo, H. Synthesis and in vitro antibacterial activity of novel fluoroquinolone derivatives containing substituted piperidines. Bioorg. Med. Chem. Lett. 2010, 20, 5195e5198. [Google Scholar] [CrossRef] [PubMed]
  26. Gellis, A.; Kieffer, C.; Primas, N.; Lanzada, G.; Giorgi, M.; Verhaeghe, P.; Vanellea, P. A new DMAP-catalyzed and microwave-assisted approach for introducing heteroarylamino substituents at position-4 of the quinazoline ring. Tetrahedron 2014, 70, 8257–8266. [Google Scholar] [CrossRef] [Green Version]
  27. Abdelshaheed, M.M.; Fawzy, I.M.; El Subbagh, H.I.; Youssef, K.M. Piperidine nucleus in the field of drug discovery. Futur. J. Pharm. Sci. 2021, 7, 188. [Google Scholar] [CrossRef]
  28. Shaquiquzzaman, M.; Verma, G.; Marella, A.; Akhter, M.; Akhtar, W.; Khan, M.F.; Tasneem, S.; Alam, M.M. Piperazine scaffold: A remarkable tool in generation of diverse pharmacological agents. Eur. J. Med. Chem. 2015, 102, 487–529. [Google Scholar] [CrossRef]
  29. Berry, D.J.; DiGiovanna, C.V.; Metrick, S.S.; Murugan, R. Catalysis by 4-dialkylaminopyridines. Arkivoc 2001, 1, 201–226. [Google Scholar] [CrossRef] [Green Version]
  30. Li, J.J. (Ed.) Heterocyclic Chemistry in Drug Discovery; John Wiley & Sons: Hoboken, NJ, USA, 2013. [Google Scholar]
  31. Zificsak, C.A.; Hlasta, D.J. Current methods for the synthesis of 2-substituted azoles. Tetrahedron 2004, 60, 8991–9016. [Google Scholar] [CrossRef]
  32. Basso, D.; Broggini, G.; Passarella, D.; Pilati, T.; Terraneo, A.; Zecchi, G. Synthetic approach to imidazole[1,2-a]pyridine derivatives by the intramolecular nitrone cycloaddition methodology. Tetrahedron 2002, 58, 4445–4450. [Google Scholar] [CrossRef]
  33. Wayne, P.A.; Clinical and Laboratory Standards Institute (CLSI). Performance Standards for Antimicrobial Susceptibility Testing: Twenty-Second Informational Supplement. Inform. Suppl. 2012, 31, 100–121. [Google Scholar]
  34. Yamaguchi, K. Evaluation of in-vitro and in-vivo antibacterial activity of tosufloxacin tosilate. J. Infect. Chemother. 2001, 7, 205–217. [Google Scholar] [CrossRef] [PubMed]
  35. Ozdek, S.C.; Flynn, P.M.; Flynn, H.W. In vitro antifungal activity of the fourth generation of fluoroquinolones against Candida isolates from human ocular infections. Ocul. Immunol. Inflamm. 2006, 14, 347–351. [Google Scholar] [CrossRef] [PubMed]
  36. Sultana, N.; Naz, A.; Khan, B.; Arayne, M.S.; Mesiak, M.A. Synthesis, characterization, antibacterial, antifungal, and immunomodulating activities of gatifloxacin derivatives. Med. Chem. Res. 2010, 19, 1210–1221. [Google Scholar] [CrossRef]
  37. Shen, L.L.; Baranowski, J.M.; Fostel, J.; Montgomery, D.A.; Lartey, P.A. DNA topoisomerases from pathogenic fungi: Targets for the discovery of antifungal drugs. Antimicrob. Agents Chemother. 1992, 36, 2778–2784. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Sugar, A.M.; Liu, X.P.; Chen, R.J. Effectiveness of quinolone antibiotics in modulating the effects of antifungal drugs. Antimicrob Agents Chemother. 1997, 41, 2518–2521. [Google Scholar] [CrossRef] [Green Version]
  39. Perrin, D.D. Purification of Laboratory Chemicals, 2nd ed.; Pergamon Press: Oxford, UK, 1988. [Google Scholar]
Pharmaceuticals 15 00818 g001 550

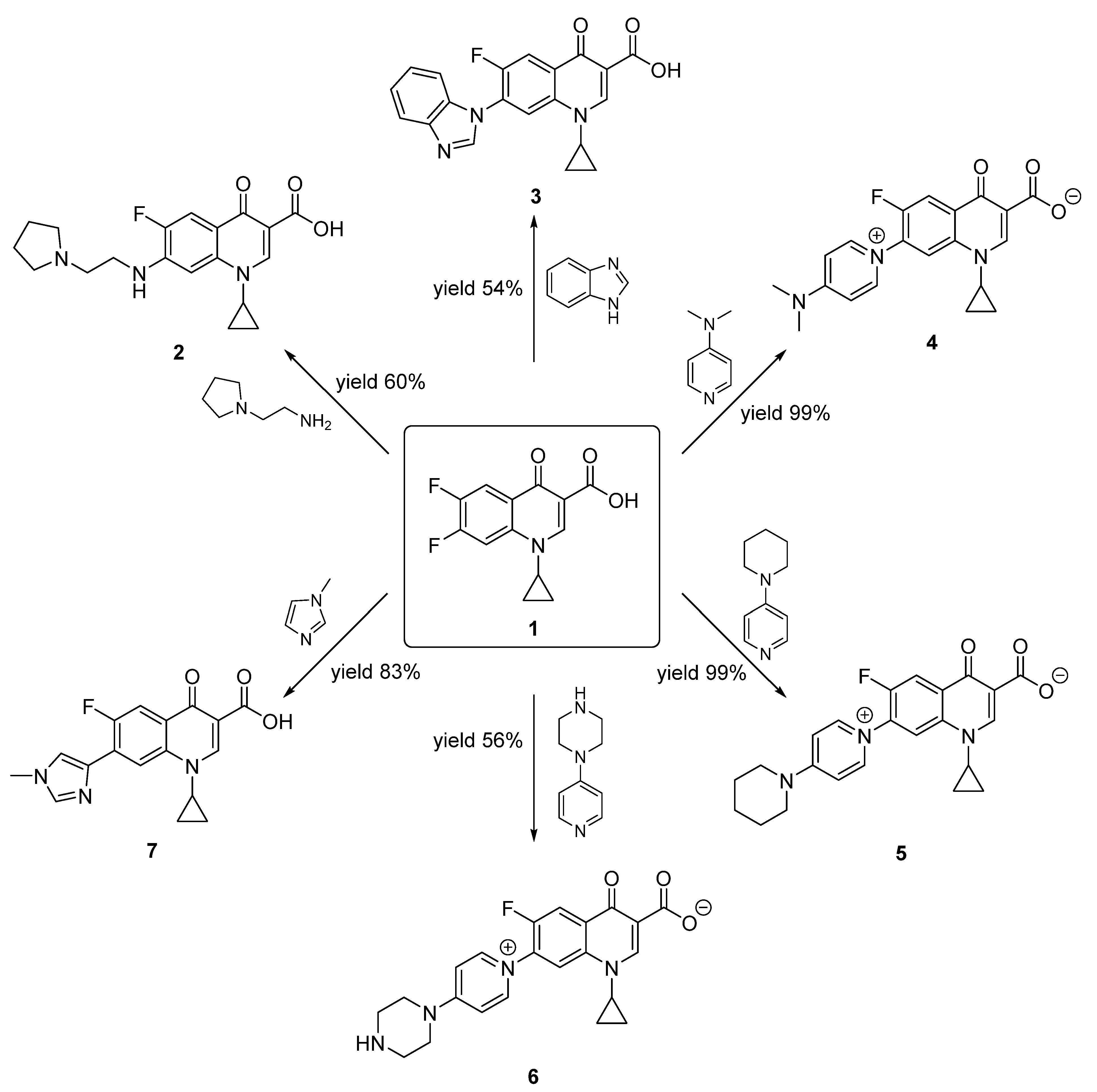

Figure 1. Quinolones and zwitterionic quinolonates synthesized from the commercial difluorinated quinolone 1.
Figure 1. Quinolones and zwitterionic quinolonates synthesized from the commercial difluorinated quinolone 1.
Pharmaceuticals 15 00818 g001
Pharmaceuticals 15 00818 g002 550
Figure 2. Virtual combinatorial chemistry and pharmacological screening to find new quinolones with theoretical antibacterial activity.
Figure 2. Virtual combinatorial chemistry and pharmacological screening to find new quinolones with theoretical antibacterial activity.
Pharmaceuticals 15 00818 g002
Pharmaceuticals 15 00818 g003 550

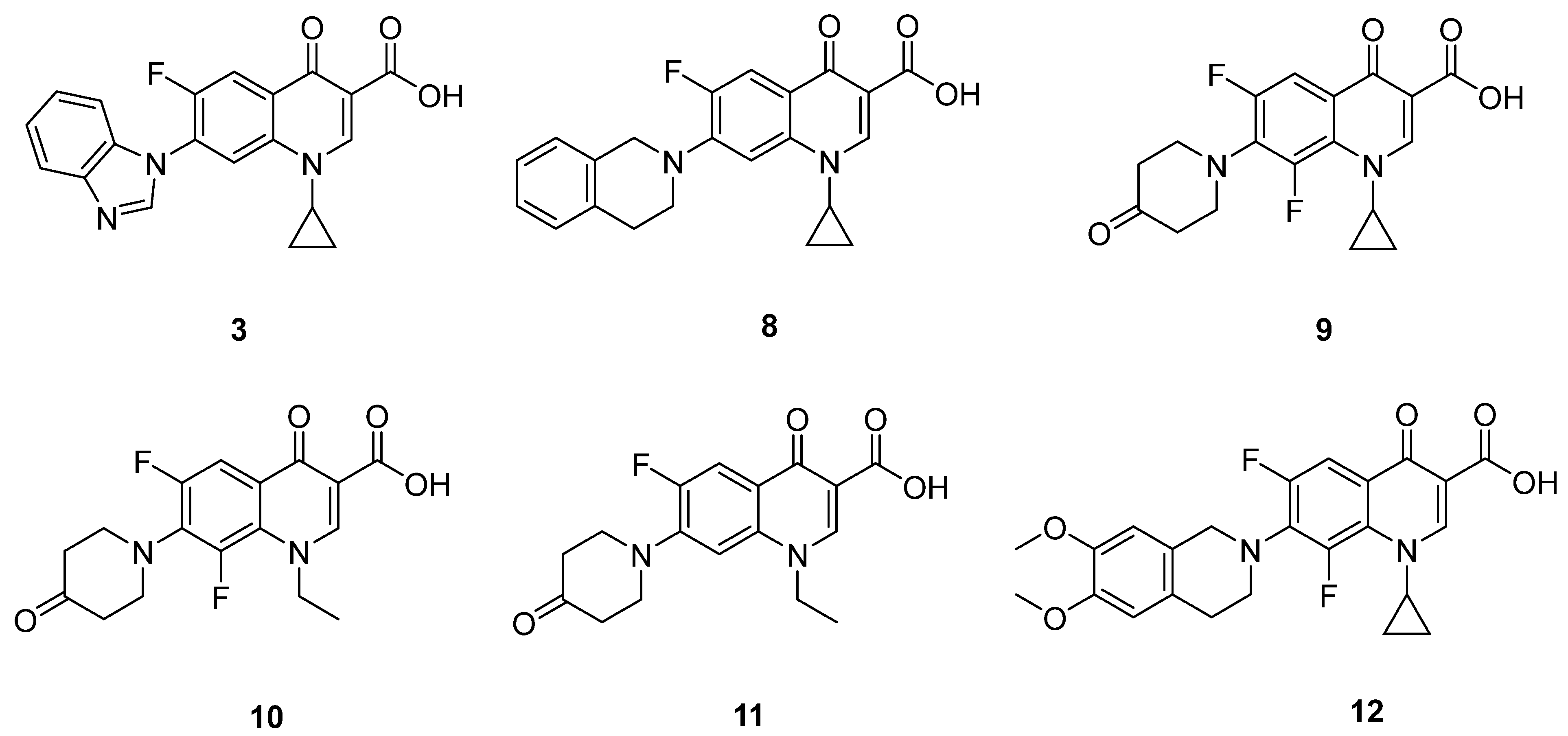

Figure 3. Quinolones selected by the model that had been described in the literature as active antimicrobials.
Figure 3. Quinolones selected by the model that had been described in the literature as active antimicrobials.
Pharmaceuticals 15 00818 g003
Pharmaceuticals 15 00818 g004 550
Figure 4. Obtention of 7 as the only product of the reaction between 1 and 1-methylimidazole.
Figure 4. Obtention of 7 as the only product of the reaction between 1 and 1-methylimidazole.
Pharmaceuticals 15 00818 g004
Pharmaceuticals 15 00818 g005 550

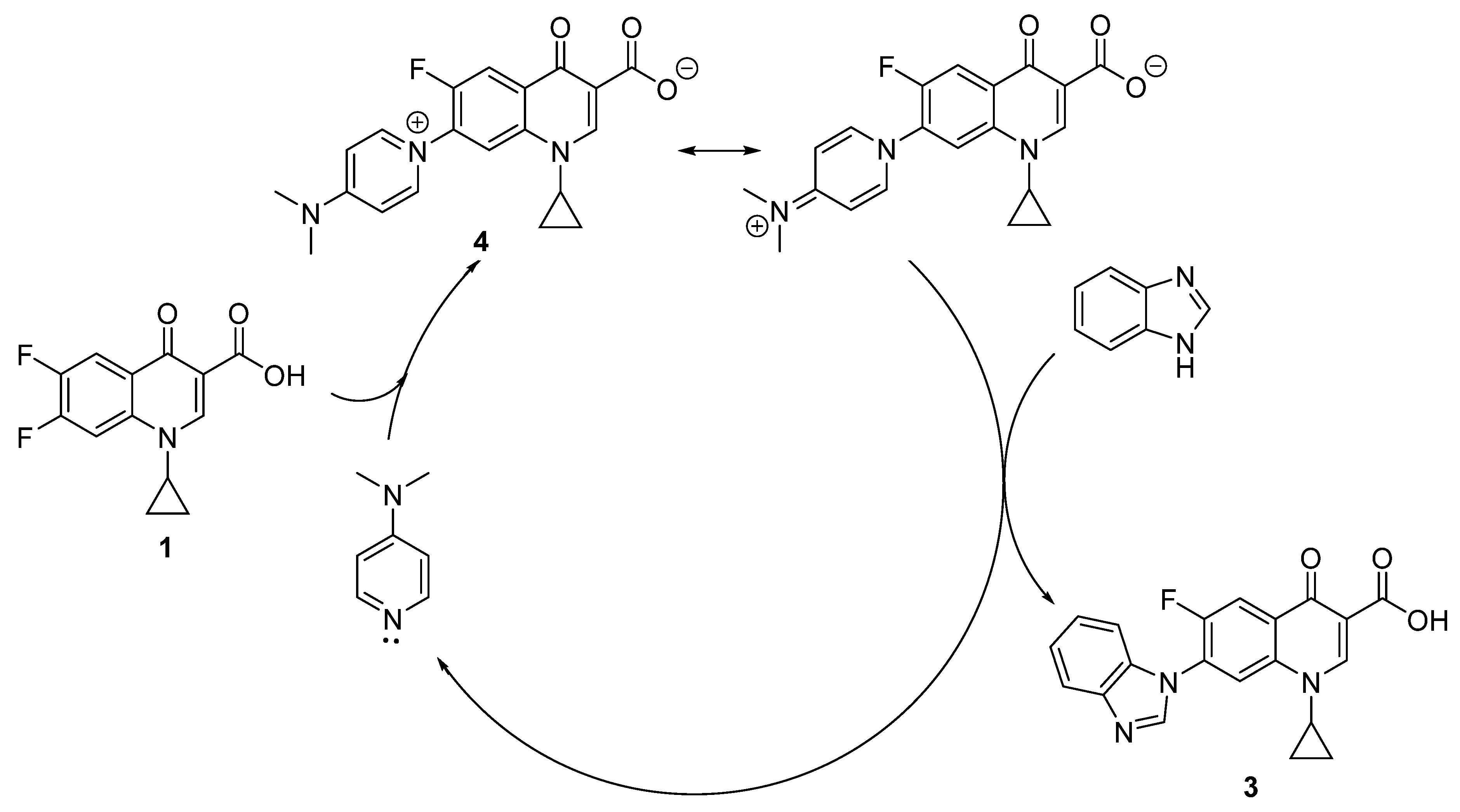

Figure 5. Probable mechanism for the obtention of 3 catalyzed by DMAP.
Figure 5. Probable mechanism for the obtention of 3 catalyzed by DMAP.
Pharmaceuticals 15 00818 g005
Table

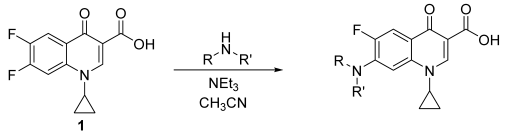

Table 1. Quinolone obtention from difluorinated quinolone 1.
Table 1. Quinolone obtention from difluorinated quinolone 1.
Pharmaceuticals 15 00818 i001
EntryAmineeq.Et3N (eq.)CatalystTimeQuinoloneYield
1 Pharmaceuticals 15 00818 i0024--3 h260%
2 Pharmaceuticals 15 00818 i00323-240 h318%
3 Pharmaceuticals 15 00818 i00423DMAP
20% molar		240 h354%
4 Pharmaceuticals 15 00818 i00523PBu3
20% molar		240 h317%
Table
Table 2. Reaction of 1 with DMAP derivatives and 1-methylimidazole.
Table 2. Reaction of 1 with DMAP derivatives and 1-methylimidazole.
Pharmaceuticals 15 00818 i006
EntryAmineeq.Time ProductYield
1 Pharmaceuticals 15 00818 i0072.53 h Pharmaceuticals 15 00818 i008
4		99%
2 Pharmaceuticals 15 00818 i0093.55 h Pharmaceuticals 15 00818 i010
5		99%
3 Pharmaceuticals 15 00818 i0112.54 h Pharmaceuticals 15 00818 i012
6		56%
Table
Table 3. MIC and MBC values of the newly synthesized quinolones against E. coli.
Table 3. MIC and MBC values of the newly synthesized quinolones against E. coli.
CompoundMIC (mg/L)MBC (mg/L)
21>128
3132
Ciprofloxacin0.2564
Table
Table 4. Antimicrobial activity spectrum of compounds 2 and 3.
Table 4. Antimicrobial activity spectrum of compounds 2 and 3.
MicroorganismCompound 2Compound 3
MIC (mg/L)MBC (mg/L)MIC (mg/L)MBC (mg/L)
MRSA4320.532
Staphylococcus aureus2320.2564
Streptococcus agalactiae--0.1232
Bacillus subtilis0.251<0.030.06
Enterococcus faecalis4>12864>128
Pseudomonas aeruginosa32641128
Serratia marcescens--32128
Candida albicans32128128>128
Table
Table 5. Antibacterial activity spectrum of the zwitterionic quinolonates and the quinolone 7 (mg/L).
Table 5. Antibacterial activity spectrum of the zwitterionic quinolonates and the quinolone 7 (mg/L).
CompoundS. aureusS. agalactiaeS. marcescensE. coli
MICMBCMICMBCMICMBCMICMBC
432>51232>512128>5128256
532>51232512512>512128512
632>512>512>512>512>512512>512
7>512>512>512>512128>51264>512
Table
Table 6. Microorganisms used in the antimicrobial activity assays.
Table 6. Microorganisms used in the antimicrobial activity assays.
MicroorganismStrain
Methicillin-resistant Staphylococcus aureusCECT 5190
Staphylococcus aureusCECT 239
Streptococcus agalactiaeCECT 183
Bacillus subtilisCECT 39
Enterococcus faecalisCECT 481
Escherichia coliCECT 4972
Pseudomonas aeruginosaCECT 110
Serratia marcescensCECT 846
Candida albicansCECT 1394
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Suay-García, B.; Bueso-Bordils, J.-I.; Antón-Fos, G.; Pérez-Gracia, M.-T.; Falcó, A.; Alemán-López, P. Synthesis of Quinolones and Zwitterionic Quinolonate Derivatives with Broad-Spectrum Antibiotic Activity. Pharmaceuticals 2022, 15, 818. https://doi.org/10.3390/ph15070818

AMA Style

Suay-García B, Bueso-Bordils J-I, Antón-Fos G, Pérez-Gracia M-T, Falcó A, Alemán-López P. Synthesis of Quinolones and Zwitterionic Quinolonate Derivatives with Broad-Spectrum Antibiotic Activity. Pharmaceuticals. 2022; 15(7):818. https://doi.org/10.3390/ph15070818

Chicago/Turabian Style

Suay-García, Beatriz, Jose-Ignacio Bueso-Bordils, Gerardo Antón-Fos, María-Teresa Pérez-Gracia, Antonio Falcó, and Pedro Alemán-López. 2022. "Synthesis of Quinolones and Zwitterionic Quinolonate Derivatives with Broad-Spectrum Antibiotic Activity" Pharmaceuticals 15, no. 7: 818. https://doi.org/10.3390/ph15070818

APA Style

Suay-García, B., Bueso-Bordils, J. -I., Antón-Fos, G., Pérez-Gracia, M. -T., Falcó, A., & Alemán-López, P. (2022). Synthesis of Quinolones and Zwitterionic Quinolonate Derivatives with Broad-Spectrum Antibiotic Activity. Pharmaceuticals, 15(7), 818. https://doi.org/10.3390/ph15070818

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
