New Derivatives of the Multi-Stage Active Malaria Box Compound MMV030666 and Their Antiplasmodial Potencies

Abstract

MMV’s Malaria Box compound MMV030666 shows multi-stage activity against various strains of Plasmodium falciparum and lacks resistance development. To evaluate the importance of its diarylether partial structure, diarylthioethers and diphenylamines with varying substitution patterns were prepared. A number of evident structure-activity relationships were revealed. Physicochemical and pharmacokinetic parameters were determined experimentally (passive permeability) or calculated. Compared to the lead compound a diarylthioether was more active and less cytotoxic resulting in an excellent selectivity index of 850. In addition, pharmacokinetic and physicochemical parameters were improved.

1. Introduction

With an estimated 241 million cases and 627,000 deaths in 2020 the hard-earned reduction in malaria casualties fell victim to disruptions in prevention and care due to the COVID-19 pandemic. Furthermore, the number of malaria endemic countries rose from 26 in 2000 to 47 in 2020 [1]. Malaria belongs to the infectious diseases and is caused by eukaryotic, single-celled protozoans of the species Plasmodium. Various strains are human pathogens with Plasmodium falciparum being the most dangerous and deadly [2]. Emerging resistance to the gold standard in malaria therapy, the artemisinins and their partner drugs in the WHO African region are a serious cause for concern, as these countries are among those most affected [3,4,5]. To this day, double or triple Artemisinin-based combination therapies show acceptable efficacy, nonetheless alternative treatments and orally applicable drugs with new modes of action are urgently needed to successfully fight the malaria parasite [6,7,8]. Vaccine development is a difficult task to undertake due to the parasite’s complex life cycle and multiple possible targets. RTS,S/AS01, the first vaccine against any parasitic diseases, shows promising features and activities, however only partial efficacy [9,10,11].

The Medicines for Malaria Venture (MMV) is one of many foundations that made it their business to find new strategies to combat the increasing risk of untreatable malaria. Therefore, they published results of a huge screening project, the so-called Malaria Box, a collection of 400 drug- and probe-like compounds with activities against various strains of Plasmodia [12,13,14]. One of these compounds, the 2-phenoxybenzamide 1, exhibits multi-stage activity against sexual, asexual and liver stages of P. falciparum and lacks resistance development in sub-lethal doses. It shows a metabolomic profile resembling atovaquone. On the one hand, it disrupts the mitochondrial electron transport-chain by inhibiting the dihydroorotate-dehydrogenase and the cytochrome bc1 complex, on the other hand, an interaction with the digestive vacuole was detected [15,16].

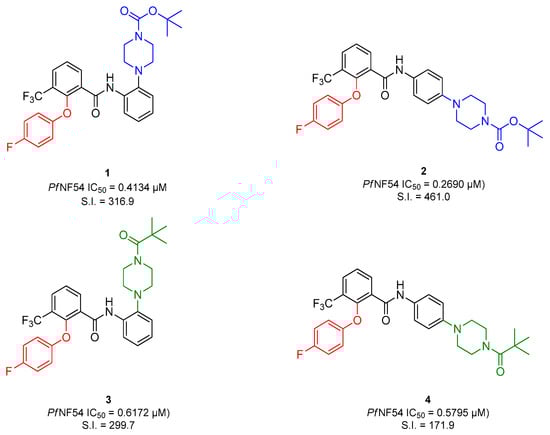

Within our first study, we reported the retrosynthetic preparation of the lead compound 1 via a multi-step synthesis. Furthermore, a series of derivatives was prepared to gain first insights into structure-activity relationships. Thereby, the importance of the 2-phenoxy-group, as well as the beneficial effects of its 4-fluoro substituent on the antiplasmodial activity were determined. A shift of the N-Boc-piperazinyl group from 2′ to 4′ position of the benzanilide of the benzamide further increased the activity of compounds. Replacement of the N-Boc-group with a N-pivaloyl-group enhanced the acid-stability of compounds, whereby only a slight loss in activity was detected (Figure 1) [17]. This paper deals with the preparation of diversely substituted diarylethers, diarylthioethers and diphenylamines to gain further insights into structure-activity relationships.

2. Results and Discussion

2.1. Chemistry

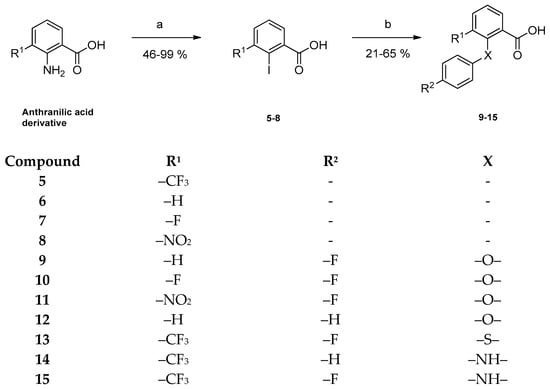

New derivatives of the lead structure 1 were obtained by firstly synthesizing the corresponding carboxylic acid as well as anilino derivatives and subsequently coupling these partial structures to the desired benzamides. Preparation of the substituted benzoic acids started by treating the respective anthranilic acid with sodium nitrite under acidic conditions yielding the diazonium salts. Subsequent Sandmeyer-like reaction with an aqueous potassium iodide solution gave the desired 2-iodo-benzoic acid derivatives 5, 6, 7 and 8 as light brown solids in mostly high yields [18]. In our last study, only 2-phenoxybenzamides were prepared. In order to evaluate the importance of the diarylether partial structure, corresponding diarylthioethers and diphenylamines were prepared. In the course of a copper-catalyzed Ullmann-like ether synthesis, the obtained iodo-benzoic acids 5, 6, 7 and 8 were coupled with phenols or anilines, respectively, giving diarylethers (9–12), a diarylthioether (13) as well as diphenylamines (14, 15) (Figure 2) [19]. Coupling was confirmed by the appearance of additional proton signals in the ¹H NMR spectrum.

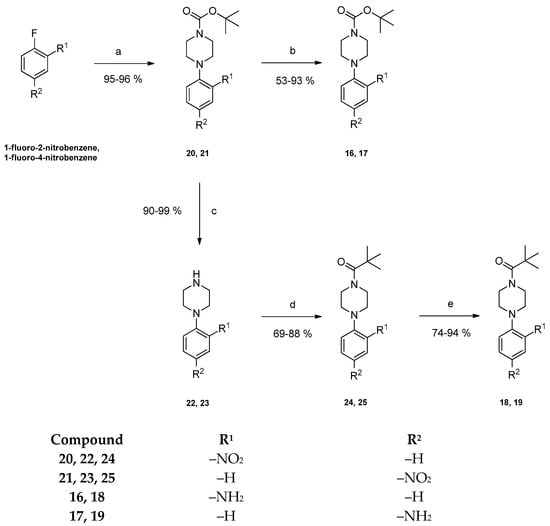

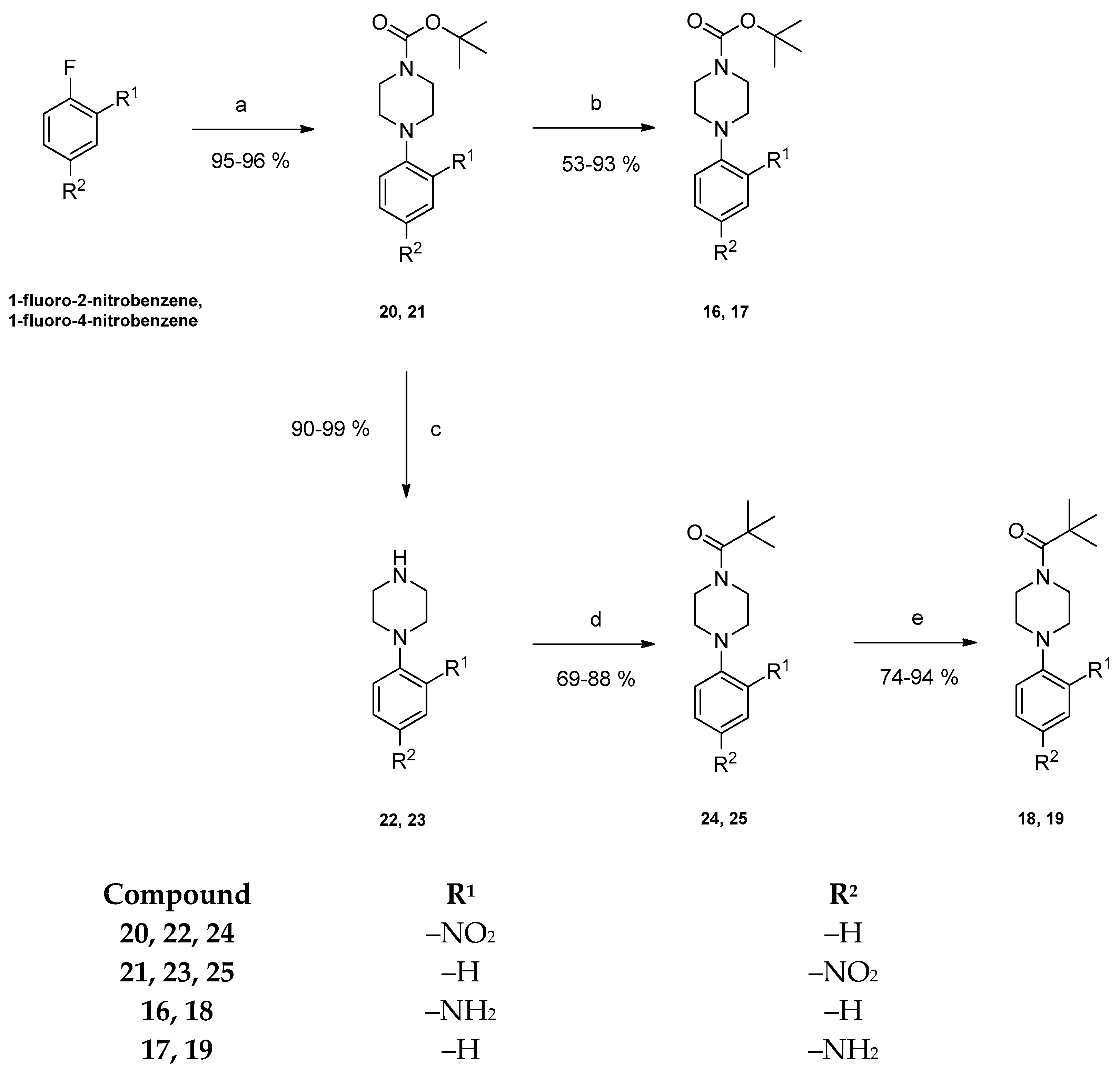

In order to obtain the 2- and 4-substituted derivatives of aniline 16, 17, 18 and 19, 1-fluoro-2-nitrobenzene and 1-fluoro-4-nitrobenzene were firstly treated with N-Boc-piperazine and potassium carbonate in dry DMSO in the course of a nucleophilic aromatic substitution yielding compounds 20 and 21 in high yields [20]. Their N-Boc-group was cleaved using trifluoroacetic acid in dry dichloromethane giving 1-(2-nitrophenyl)piperazine 22 and 1-(4-nitrophenyl)piperazine 23 [21]. Treatment of these piperazine derivatives with triethylamine and pivaloyl chloride in dry dichloromethane yielded the N-pivaloylpiperazinyl analogs 24 and 25 [22]. Subsequent reduction of the nitro group of compounds 20, 21, 24 and 25 with palladium in an atmosphere of hydrogen at the parr-apparatus gave the desired aromatic amines 16, 17, 18 and 19 (Figure 3) [23]. Successful reduction of the nitro group was detected in the ¹H NMR spectrum by a shift of the aromatic protons to lower frequencies as well as by the appearance of a NH₂-signal.

Amide synthesis of carboxylic acids and anilino derivatives was achieved using a combination of 2-chloro-N-methylpyridinium iodide (Mukaiyama reagent) and diisopropylethylamine (DIPEA) in dry dichloromethane (Figure 4) [24]. Efficient amide bond formation was detected in the ¹H NMR spectrum. The NH resonance was shifted 6 ppm downfield.

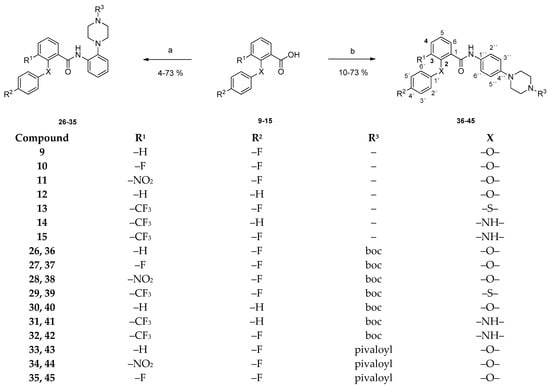

Coupling of the benzoic acid derivatives 9–15 with the 2-substituted anilino derivatives 16 and 18 gave the N-[2-(4-N-Boc-piperazinyl)phenyl]benzamides and the N-[2-(4-N-pivaloyl-piperazinyl)phenyl]benzamides 26–35. Reaction of the carboxylic acids with the 4-substituted aniline analogs 17 and 19 on the other hand, yielded the N-[4-(4-N-Boc-piperazinyl)phenyl]benzamides 36–42, as well as the N-[4-(4-N-pivaloylpiperazinyl)phenyl]benzamides 43–45.

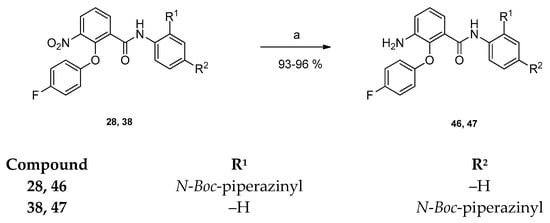

In order to evaluate the influence of an amino-group compared to electron withdrawing trifluoromethyl or nitro groups in ring position 3 of the benzamide, compounds 46 and 47 were prepared. The nitro group of 28 and 38 was reduced with palladium in an atmosphere of hydrogen at the parr-apparatus yielding compounds 46 and 47 (Figure 5) [23]. The reduction was detected by the appearance of a singlet for two amino protons in the ¹H NMR spectrum.

2.2. Antiplasmodial Activity and Cytotoxicity

All newly prepared compounds were tested for their in vitro activity against the chloroquine sensitive strain NF54 of P. falciparum. Cytotoxicity was determined using L-6 cells (rat skeletal myofibroblasts). Chloroquine and podophyllotoxin were used as standards. Results obtained are summarized in

Table 1. Activities of compounds 26–47 against P. falciparum NF54 and L-6 cells, expressed as IC50 (µM) ^a.

Compound	PfNF54 b IC50 (µM)	S.I. = IC50 (Cyt.)/IC50 (PfNF54)	Cytotoxicity L-6 Cells IC50 (µM)
1	0.4134	316.9	131.0
2	0.2690	461.0	124.0
3	0.6172	299.7	185.0
4	0.5795	171.9	99.62
26	0.6266	245.5	153.8
27	0.6496	237.5	154.3
28	0.5908	153.9	90.39
29	0.1946	850.5	165.5
30	1.131	19.87	22.47
31	0.6142	209.6	128.8
32	0.6364	193.8	123.4
33	2.145	17.84	38.27
34	2.613	43.75	114.3
35	2.138	7.275	15.55
36	3.397	59.88	203.4
37	4.072	8.676	35.33
38	1.432	49.46	70.82
39	0.1494	212.8	31.79
40	3.094	31.78	98.30
41	0.6336	53.29	33.76
42	0.5389	174.8	94.17
43	5.615	32.84	184.4
44	1.498	96.41	144.5
45	1.793	60.90	109.2
46	1.010	126.0	127.3
47	3.083	51.38	158.4
CQ	0.009	9672	90.92
POD			0.012

CQ = chloroquine; POD = podophyllotoxin; ^a IC₅₀ values represent the average of four determinations (two determinations of two independent experiments); ^b sensitive to chloroquine.

.

MMVs Malaria Box compound 1 exhibits sub micromolar antiplasmodial activity (PfNF54 IC₅₀ = 0.4134 µM) and promising selectivity (S.I. = 316.9). Apart from the lead compound, its para-substituted analog 2 as well as their N-pivaloyl analogs 3 and 4 served as comparisons for the newly synthesized derivatives.

Replacing the 3-trifluoromethyl group of 1 with other electron-withdrawing groups or hydrogen yielded compounds 26–28 with slightly decreased antiplasmodial activities (PfNF54 IC₅₀ = 0.5908–0.6496 µM) and selectivity indices (S.I. = 153.9–245.5). However, their amino analog 46 showed reduced activity (PfNF54 IC₅₀ = 1.010 µM) and selectivity (S.I. = 126.0). A stark loss of activities was observed in the groups of para-substituted analogs as well as in both N-pivaloyl groups. Substitution of the 3-trifluoromethyl group of 2 (PfNF54 IC₅₀ = 0.2690 µM; S.I. = 461.0) by above-mentioned groups gave compounds 36–38 and 47 with distinctly reduced activity (PfNF54 IC₅₀ = 1.432–4.072 µM) and selectivity (S.I. = 8.676–59.88). The substitution of the 3-trifluoromethyl group of the N-pivaloyl analogs 3 (PfNF54 IC₅₀ = 0.6172 µM; S.I. = 299.7) and 4 (PfNF54 IC₅₀ = 0.5790 µM; S.I. = 171.8) by electron-withdrawing groups or hydrogen gave compounds 33–35 (PfNF54 IC₅₀ = 2.138–2.613 µM; S.I. = 7.275–43.75) and 43–45 (PfNF54 IC₅₀ = 1.498–5.615 µM; S.I. = 32.84–96.41), respectively, with markedly decreased antiplasmodial activities and selectivities.

Replacing the 2-(4-fluorophenoxy) group of 1 with a phenoxy group yielded compound 30 with moderate activity (PfNF54 IC₅₀ = 1.131 µM) and selectivity (S.I. = 19.87). In comparison the anilino analogs 31 and 32 showed only slightly decreased activity (PfNF54 IC₅₀ = 0.6142–0.6364 µM) and selectivity (S.I. = 193.8–209.6). However, the most promising variation in the pattern was the substitution with a 4-(fluorophenyl)sulfanyl group. Compound 29 exhibited distinctly improved selectivity (PfNF54 IC₅₀ = 0.1946 µM) and activity (S.I. = 850.5). The same changes were observed for the para-substituted analogs. The 2-phenoxy derivate 40 (PfNF54 IC₅₀ = 3.094 µM; S.I. = 31.78) was moderately active, but the anilino derivates 41 and 42 (PfNF54 IC₅₀ = 0.5389–0.6336 µM; S.I. = 53.29–174.8) were only slightly less active than 2. Again, the 4-(fluorophenyl)sulfanyl derivate 39 (PfNF54 IC₅₀ = 0.1494 µM; S.I. = 212.8) was the most active.

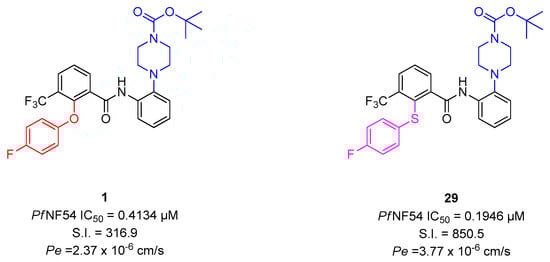

In summary, highest antiplasmodial activity and selectivity was observed for compounds with a trifluoromethyl group in ring position 3 and a 4-(fluorophenyl)sulfanyl or a 4-fluorophenoxy substituent in ring position 2 of the benzamide. The anilino moiety should be substituted by a 4-bocpiperazinyl group in ring positions 2 or 4.

2.3. Physicochemical and Pharmacokinetic Properties

In addition to in vitro activity and cytotoxicity tests, some key pharmacokinetic parameters were calculated (log P, log D, LE) or determined experimentally (Pe). Results obtained are summarized in

Table 2. Key physicochemical parameters and passive permeability values of compounds 26–47.

Compound	log P/log D7.4 a	LE (kcal/mol/HA)	Pe b (10−6 cm/s)
1	6.44	0.219	2.37
2	6.44	0.225	0.09
3	6.57	0.218	0.23
4	5.56	0.236	0.24
26	5.56	0.236	n.d.
27	5.71	0.229	n.d.
28	5.50	0.200	1.68
29	7.13	0.230	3.77
30	5.42	0.233	8.52
31	7.54	0.218	0.65
32	7.68	0.212	0.57
33	5.69	0.222	n.d.
34	5.63	0.201	6.92
35	5.83	0.216	0.00
36	5.56	0.208	2.84
37	5.71	0.200	0.70
38	5.50	0.219	1.53
39	7.13	0.234	4.31
40	5.42	0.216	5.57
41	7.54	0.218	1.32
42	7.68	0.215	0.20
43	5.69	0.206	0.02
44	5.63	0.210	n.d.
45	5.83	0.219	5.13
46	4.73	0.222	1.44
47	4.73	0.204	0.62
Hydrochlorothiazide			0.09
Caffeine			8.00

^a log P and log D were calculated using the ChemAxon software JChem for Excel 14.9.1500.912 (2014) (Chemaxon, Budapest, Hungary); ^b determined by PAMPA, n.d. could not be determined.

. The log P and log D_7.4 values of compounds range from 4.73 up to 7.68. Ligand efficiency (LE) is an important parameter in early drug development. It is defined as the maximum in vitro binding affinity achievable by ligands, that is 1.5 kcal per mole per heavy atom (HA, non-hydrogen atom). The higher the LE value, the higher the binding affinity [25,26]. The calculated values range from 0.200 up to 0.236 kcal/mol/HA. Compounds 29 and 39 with the most promising antiplasmodial activities also exhibit highest ligand efficiencies of 0.230 and 0.234 kcal/mol/HA, respectively.

The parallel artificial membrane permeability assay (PAMPA) is a fast and easy high-throughput assay to determine passive permeability of compounds through semi-permeable membranes (for example the blood-brain-barrier) without the influence of efflux pumps or transporter molecules. Permeability is defined using hydrochlorothiazide (Pe = 0.09 × 10⁻⁶ cm/s) and caffeine (Pe = 8.00 × 10⁻⁶ cm/s) as standards. Compounds with a permeability higher than 1.5 × 10⁻⁶ cm/s are considered to be highly permeable. Permeability through a semi-permeable membrane could be detected for all compounds except 26, 27, 33 and 44 due to insufficient solubility in DMSO and methanol. Compounds 29 and 39 with the highest antiplasmodial activity also exhibit very promising permeability of 4.31 and 3.77 × 10⁻⁶ cm/s, respectively. The unsubstituted 2-phenoxybenzamides 30 (Pe = 8.52 × 10⁻⁶ cm/s) and 40 (Pe = 5.57 × 10⁻⁶ cm/s) as well as the N-pivaloylpiperazinyl derivatives 34 (Pe = 6.92 × 10⁻⁶ cm/s) and 45 (Pe = 5.13 × 10⁻⁶ cm/s) exhibit the by far highest permeabilities.

3. Materials and Methods

3.1. Instrumentation and Chemicals

IR spectra were acquired using a Bruker Alpha Platinum ATR FTIR spectrometer (Bruker, Ettlingen, Germany) (preparation of KBr discs). HRMS: Q Exactive Hybrid Quadrupole-Orbitrap mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) run by Thermo Q Exactive 2.9 (Thermo Fisher Scientific, Waltham, MA, USA) and Thermo Xcalibur^TM Software Version 4.4 (Thermo Fisher Scientific, Waltham, MA, USA). The structures of all new compounds were determined by one- and two-dimensional NMR spectroscopy using a Bruker Avance Neo 400 MHz spectrometer, 5 mm tubes and TMS as internal standard. Shifts in ¹H NMR (400 MHz) and ¹³C NMR (100 MHz) are reported in ppm; ¹H- and ¹³C-resonances were assigned using ¹H,¹H- and ¹H,¹³C-correlation spectra and are numbered as given in Figure 4. Signal multiplicities are abbreviated as follows: br, broad; d, doublet; dd, doublet of doublets; ddd, doublet of doublet of doublets; dt, doublet of triplets; m, multiplet; q, quartet; t, triplet; td, triplet of doublet; s, singlet. Melting points were determined using an Electrothermal IA 9200 melting point apparatus (Fisher Scientific, Birmingham, UK).

Materials: thin layer chromatography (TLC): TLC plates silica gel 60 (F254 (Merck); column chromatography (CC): silica gel 60 (Merck 70–230 mesh, pore diameter 60 Å), flash silica gel (VWR 230–400 mesh, pore diameter 60 Å or Merck 230–400 mesh, pore diameter 60 Å); PAMPA: 96-well pre-coated Corning Gentest PAMPA plate system (Corning, Glendale, AZ, USA), 96-well UV-star Microplates (Greiner Bio-One, Kremsmünster, Austria), SpectraMax M3 UV plate-reader (Molecular Devices, San Jose, CA, USA), ¹H NMR and ¹³C NMR spectra of new compounds are available in the Supplementary Materials Section (Figures S1–S27).

3.2. Syntheses

3.2.1. General Procedure for the Synthesis of Compounds 5–8

The corresponding anthranilic acid (6.00 mmol) was dissolved in (DMSO) (11 mL) and the solution was ice-cooled. Upon adding 11 mL of 30% aq sulfuric acid (H₂SO₄), the reaction mixture was stirred at 0 °C for 5 min. After that, the ice bath was removed and sodium nitrate (13.28 mmol) was added. The reaction mixture was stirred at room temperature for 2 h. Subsequently, a solution of KI (10.92 mmol) in 5 mL of demineralized water was added dropwise with a syringe via a septum. The mixture was stirred for another hour before adding a second portion of KI (6.00 mmol) dissolved in 3 mL of aqua dest. After stirring for 1 h at ambient temperature, 50 mL of ethyl acetate was added. The aqueous and organic phases were separated. The organic phase was washed with water and brine, dried over anhydrous sodium sulfate, filtered and the solvent was removed in vacuo. The respective residues were purified by recrystallization from water.

2-Iodo-3-(trifluoromethyl)benzoic acid (5): The reaction of 3-(trifluoromethyl)anthranilic acid (2.11 g (10.33 mmol)) dissolved in DMSO (17 mL) and 30% aq H₂SO₄ (17 mL) with NaNO₂ (1.54 g (22.35 mmol)) and KI (4.74 g (28.54 mmol)) in water (17 mL) gave the raw benzoic acid. It was purified by recrystallization from water (10 mL) giving compound 5 as brownish solid (2.97 g (91%)). m.P. 134 °C. NMR data were in accordance with literature data [27].

2-Iodobenzoic acid (6): The reaction of anthranilic acid (831 mg (6.06 mmol)) dissolved in DMSO (11 mL) and 30% aq H₂SO₄ (11 mL) with NaNO₂ (921 mg (13.35 mmol)) and KI (2.83 g (17.02 mmol)) in water (8 mL) gave the raw iodobenzoic acid. It was purified by recrystallization from water (7 mL) yielding compound 6 as brown solid (1.48 g (99%)). m.P. 160 °C. NMR data were in accordance with literature data [28].

3-Fluoro-2-iodobenzoic acid (7): The reaction of 2-amino-3-fluorobenzoic acid (313 mg (2.02 mmol)) dissolved in DMSO (4 mL) and 30% aq H₂SO₄ (4 mL) with NaNO₂ (309 mg (4.48 mmol)) and KI (939 mg (5.66 mmol)) in water (3 mL) yielded the raw product. It was purified by recrystallization from water (4 mL) giving compound 7 as brown solid (245 mg (46%)). m.P. 153 °C. NMR data were in accordance with literature data [29].

2-Iodo-3-nitrobenzoic acid (8): The reaction of 2-amino-3-nitrobenzoic acid (558 mg (3.06 mmol)) dissolved in DMSO (6 mL) and 30% aq H₂SO₄ (6 mL) with NaNO₂ (460 mg (6.67 mmol)) and KI (1.42 g (8.55 mmol)) in water (4 mL) gave the raw product. It was purified by recrystallization from water (5 mL) yielding compound 8 as brown solid 799 mg (89%)). m.P. 207 °C. NMR data were in accordance with literature data [30].

3.2.2. General Procedure for the Synthesis of Compounds 9–15

The corresponding 2-iodobenzoic acid derivative (4.00 mmol) was dissolved in dry DMF (32 mL). The respective phenol, thiophenol or aniline (4.20 mmol), catalytic amounts of copper (0.53 mmol) and copper (I) iodide (0.18 mmol), 1,8-diazabicyclo[5.4.0]undec-7-ene (12.00 mmol) and dry pyridine (0.80 mmol) were added. The reaction mixture was refluxed in an oil bath at 160 °C for 2–24 h. Then, it was cooled to ambient temperature and acidified with 2 N HCl to a pH of 1. Ice and dichloromethane were added. Phases were separated. The aqueous phase was extracted twice with dichloromethane. The organic phases were combined, washed with water and brine, dried over anhydrous sodium sulfate and filtered. The solvent was evaporated in vacuo. The crude products were subsequently purified by column chromatography.

2-(4-Fluorophenoxy)benzoic acid (9): The reaction of compound 6 (688 mg (2.77 mmol)) with 4-fluorophenol (334 mg (2.98 mmol)), copper (31 mg (0.49 mmol)), copper (I) iodide (37 mg (0.19 mmol)), DBU (1.27 g (8.32 mmol)) and dry pyridine (44 mg (0.56 mmol)) in dry DMF (23 mL) for 2 h gave the crude product. It was purified by column chromatography (flash silica gel, cyclohexane (CH)/ethyl acetate (EtAc)/EtOH/AcOH) 9:1 (3:1:0.08)) yielding compound 9 as white amorphous solid (386 mg (60%)). NMR data were in accordance with literature data [30].

3-Fluoro-2-(4-fluorophenoxy)benzoic acid (10): To a solution of compound 7 (595 mg (2.24 mmol)) in dry DMF (18 mL), 4-fluorophenol ((263 mg (2.35 mmol)), copper (19 mg (0.30 mmol)), copper (I) iodide (19 mg (0.10 mmol)), DBU (1.02 g (6.72 mmol)) and dry pyridine (36 mg (0.45 mmol)) were added. The reaction mixture was refluxed for 2 h giving the crude product. It was purified by column chromatography (silica gel, CH₂Cl₂/MeOH/AcOH 75:1:1) yielding compound 10 as yellow amorphous solid (240 mg (43%)). m.P. 134 °C. IR = 3427, 1703, 1504, 1468, 1268, 1222, 1190, 770; ¹H NMR (CDCl₃) δ = 6.84–6.88 (m, 2H, 2′-H, 6′-H), 6.95–7.01 (m, 2H, 3′-H, 5′-H), 7.29 (td, J = 8.1, 4.8 Hz, 1H, 5-H), 7.40 (ddd, J = 10.0, 8.3, 1.7 Hz, 1H, 4-H), 7.86 (dt, J = 7.9, 1.5 Hz, 1H, 6-H); ¹³C NMR (CDCl₃) δ = 116.09 (d, J = 23.6 Hz, C-3′, C-5′), 116.72 (d, J = 8.2 Hz, C-2′, C-6′), 122.02 (d, J = 18.7 Hz, C-4), 125.44 (C-1), 125.69 (d, J = 7.5 Hz, C-5), 127.75 (d, J = 3.6 Hz, C-6), 143.08 (q, J = 13.1 Hz, C-2), 153.92 (t, J = 2.3 Hz, C-1′), 155.63 (d, J = 252 Hz, C-3), 158.44 (d, J = 241 Hz, C-4′), 167.73 (C=O); HRMS (ESI−) calcd for C₁₃H₇F₂O₃⁻ [M − H]⁻: 249.0363; found: 249.0364.

2-(4-Fluorophenoxy)-3-nitrobenzoic acid (11): The reaction of compound 8 (2.46 g (8.41 mmol)) with 4-fluorophenol (1.00 g (8.92 mmol)), copper (83 mg (1.31 mmol)), copper (I) iodide (76 mg (0.40 mmol)), DBU (3.84 g (25.23 mmol) and dry pyridine (132 mg (1.67 mmol)) in dry DMF (68 mL) for 2 h gave the crude product. It was purified by column chromatography (silica gel, CH₂Cl₂/MeOH/AcOH 149:1:1) yielding compound 11 as pale orange amorphous solid (1.52 g (65%)). IR = 3077, 1707, 1539, 1504, 1447, 1359, 1309, 1249, 1221, 1180, 1096, 829, 782, 695; ¹H NMR (CDCl₃) δ = 6.74–6.78 (m, 2H, 2′-H, 6′-H), 6.93–7.00 (m, 2H, 3′-H, 5′-H), 7.48 (t, J = 8.0 Hz, 1H, 5-H), 8.12 (dd, J = 8.1, 1.8 Hz, 1H, 4-H), 8.25 (dd, J = 7.9, 1.8 Hz, 1H, 6-H); ¹³C NMR (CDCl₃) δ = 116.15 (d, J = 23.6 Hz, C-3′, C-5′), 116.65 (d, J = 8.4 Hz, C-2′, C-6′), 125.45 (C-5), 126.23 (C-1), 130.06 (C-4), 136.67 (C-6), 144.92 (C-3), 148.06 (C-2), 154.04 (d, J = 2.4 Hz, C-1′), 158.41 (d, J = 241 Hz, C-4′), 167.94 (C=O); HRMS (ESI−): calcd for C₁₃H₇FNO₅⁻ [M − H]⁻: 276.0308; found: 276.0308.

2-Phenoxybenzoic acid (12): The reaction of compound 6 (992 mg (4.00 mmol)) with phenol (395 mg (4.2 mmol)), copper (34 mg (0.53 mmol)), copper (I) iodide (34 mg (0.18 mmol)), DBU (1.83 g (12.00 mmol)) and dry pyridine (63 mg (0.80 mmol)) in dry DMF (32 mL) gave the crude product. It was purified by column chromatography (silica gel, CH/EtAc/EtOH/AcOH 160:30:9.2:0.8) yielding compound 12 as white amorphous solid (554 mg (65%)). NMR data were in accordance with literature data [30].

2-[(4-Fluorophenyl)sulfanyl]-3-(trifluoromethyl)benzoic acid (13): To a solution of compound 5 (1.90 g (6.02 mmol)) in dry DMF (48 mL), 4-fluorothiophenol (806 mg (6.29 mmol)), copper (76 mg (1.20 mmol)), copper (I) iodide (60 mg (0.32 mmol)), DBU (2.74 g (17.99 mmol)) and dry pyridine (94 mg (1.19 mmol)) were added. The reaction mixture was refluxed for 24 h giving the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/MeOH/AcOH 149:1:1) yielding compound 13 as light brown amorphous solid (199 mg (21%)). IR = 3066, 1714, 1582, 1492, 1315, 1274, 1231, 1209, 1135, 827, 676; ¹H NMR (DMSO-d₆) δ = 7.04–7.14 (m, 4H, 2′-H, 3′-H, 5′-H, 6′-H), 7.75 (t, J = 7.8 Hz, 1H, 5-H), 7.88 (d, J = 7.8 Hz, 1H, 6-H), 7.99 (d, J = 7.8 Hz, 1H, 4-H), 13.74 (br, 1H, OH); ¹³C NMR (DMSO-d₆) δ = 116.11 (d, J = 22.3 Hz, C-3′, C-5′), 123.28 (q, J = 274 Hz, CF3), 127.83 (C-2), 128.72 (q, J = 5.7 Hz, C-4), 130.00 (d, J = 8.2 Hz, C-2′, C-6′), 130.67 (C-5), 132.12 (d, J = 3.1 Hz, C-1′), 132.52 (C-6), 133.04 (q, J = 29.1 Hz, C-3), 143.31 (C-1), 160.78 (d, J = 244 Hz, C-4′), 167.86 (C=O); HRMS (ESI−): calcd for C₁₄H₇F₄O₂S⁻ [M − H]⁻: 315.0109; found: 315.0114.

2-Anilino-3-(trifluoromethyl)benzoic acid (14): Reaction of compound 5 (1.26 g (4.00 mmol)) with aniline (391 mg (4.20 mmol)), copper (34 mg (0.53 mmol)), copper (I) iodide (34 mg (0.18 mmol)), DBU (1.83 mmol (12.00 mmol)) and dry pyridine (63 mg (0.80 mmol)) in dry DMF (32 mL) gave the crude product. It was purified by column chromatography (silica gel, CH₂Cl₂/MeOH/AcOH 29:1:0.3) yielding compound 14 as pale brown amorphous solid (231 mg (21%)). IR = 3344, 1674, 1594, 1497, 1453, 1317, 1253, 1136, 1090, 757, 665; ¹H NMR (CDCl₃) δ = 6.75–6.77 (m, 2H, 2′-H, 6′-H), 6.94–6.98 (m, 1H, 4′-H), 7.18–7.24 (m, 2H, 3′-H, 5′-H), 7.36 (t, J = 7.9 Hz, 1H, 5-H), 7.89 (dd, J = 7.9, 1.6 Hz, 1H, 4-H), 8.30 (dd, J = 7.9, 1.6 Hz, 1H, 6-H); ¹³C NMR (CDCl₃) δ = 117.77 (C-2′, C-6′), 122.69 (C-4′), 123.49 (q, J = 274 Hz, CF₃), 124.13 (C-5), 125.63 (C-1), 125.84 (q, J = 30.2 Hz, C-3), 129.32 (C-3′, C-5′), 132.55 (q, J = 5.2 Hz, C-4), 136.07 (C-6), 141.70 (br, C-2), 144.78 (C-1′), 168.62 (C=O); HRMS (ESI+): calcd for C₁₄H₁₁F₃NO₂⁺ [M + H]⁺: 282.0736; found: 282.0729.

2-(4-Fluoroanilino)-3-(trifluoromethyl)benzoic acid (15): Reaction of compound 5 (2.28 g (7.23 mmol)) with 4-fluoroaniline (707 mg (7.60 mmol)), copper (60 mg (0.96 mmol)), copper (I) iodide (62 mg (0.33 mmol)), DBU (3.31 g (21.00 mmol)) and dry pyridine (115 mg (1.45 mmol)) in dry DMF (58 mL) for 24 h gave the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/MeOH/AcOH 29:1:0.2) yielding compound 15 as yellow amorphous solid (564 mg (26%)). IR = 3330, 1671, 1594, 1508, 1445, 1308, 1264, 1219, 1171, 1128, 1090, 763, 685; ¹H NMR (CDCl₃) δ = 6.75–6.79 (m, 2H, 2′-H, 6′-H), 6.89–6.95 (m, 2H, 3′-H, 5′-H), 7.28 (t, J = 7.9 Hz, 1H, 5-H), 7.87 (dd, J = 7.9, 1.7 Hz, 1H, 4-H), 8.25 (dd, J = 7.9, 1.7 Hz, 1H, 6-H); ¹³C NMR (CDCl₃) δ = 115.88 (d, J = 22.8 Hz, C-3′, C-5′), 120.36 (d, J = 8.0 Hz, C-2′, C-6′), 123.06 (C-5), 123.48 (q, J = 274 Hz, CF₃), 123.79 (C-1), 124.78 (q, J = 30.3 Hz, C-3), 133.03 (q, J = 5.3 Hz, C-4), 136.12 (C-6), 140.93 (br, C-1′), 143.14 (C-2), 158.83 (d, J = 242 Hz, C-4′), 169.57 (C=O); HRMS (ESI+): calcd for C₁₄H₁₀F₄NO₂⁺ [M + H]⁺: 300.0642; found: 300.0635.

3.2.3. General Procedure for the Synthesis of Compounds 20 and 21

N-Boc-piperazine (14.00 mmol) and potassium carbonate (14 mmol) were suspended in dry DMSO (40 mL). The corresponding fluoronitrobenzene (7.00 mmol) was added and the suspension was refluxed at 80 °C for 72 h. The reaction mixture was cooled to ambient temperature and acidified with 2 N HCl to a pH of 1. Phases were separated. The aqueous phase was extracted with diethyl ether. The organic phases were combined, washed with ice water and brine, dried over anhydrous sodium sulfate and filtered. The solvent was evaporated in vacuo yielding the pure products.

tert-Butyl 4-(2-nitrophenyl)piperazine-1-carboxylate (20): The 1-fluoro-2-nitrobenzene (1.00 g (7.10 mmol)) was refluxed with N-Boc-piperazine (2.64 g (14.20 mmol)) and potassium carbonate (1.96 g (14.20 mmol)) in dry DMSO giving compound 20 as orange oil (2.07 g (95%)). It was used without further purification. NMR data were in accordance with literature data [23].

tert-Butyl 4-(4-nitrophenyl)piperazine-1-carboxylate (21): The reaction of 1-fluoro-4-nitrobenzene (988 mg (7.00 mmol)) with N-Boc-piperazine (2.69 g (14.44 mmol)) and potassium carbonate (1.94 g (14.02 mmol)) in dry DMSO yielded compound 21 as orange amorphous solid (2.07 g (96%)) which was used without further purification. NMR data were in accordance with literature data [31].

3.2.4. General Procedure for the Synthesis of Compounds 22 and 23

The corresponding N-Boc-piperazinyl derivative (1.00 mmol) was dissolved in dry dichloromethane (10 mL) and cooled to 0 °C in an ice bath. A solution of trifluoroacetic acid (30 mmol) in dry dichloromethane (3 mL) was added via a dropping funnel. After that, the ice bath was removed and the reaction mixture was stirred at room temperature for 24 h. Subsequently, the solvent and access trifluoroacetic acid were evaporated in vacuo. The residue was suspended in a solution of potassium carbonate (20 mmol) in water (6 mL). The aqueous suspension was extracted five times with dichloromethane/propan-2-ol 3:1. The combined organic phases were dried over anhydrous sodium sulfate and filtered. The solvent was evaporated in vacuo yielding the desired compounds as pure products.

1-(2-Nitrophenyl)piperazine (22): Compound 20 (2.24 g (7.30 mmol)) reacted with trifluoroacetic acid (5.00 g (43.80mmol)) in dry dichloromethane (95 mL) giving the protonated form of compound 22. A solution of potassium carbonate (6.06 g (43.80 mmol)) in water (88 mL) was added to obtain compound 22 as orange oil (1.36 g (90%)) which was used without further purification. NMR data were in accordance with literature data [32].

1-(4-Nitrophenyl)piperazine (23): The reaction of compound 21 (1.02 g (3.33 mmol)) with trifluoroacetic acid (4.45 g (39.00 mmol)) in dry dichloromethane (42 mL) gave the protonated product 23. Work-up with an aqueous solution of potassium carbonate (2.70 g (19.56 mmol)) in 40 mL of water yielded compound 23 as brownish amorphous solid (683 mg (99%)) which was used without further purification. NMR data were in accordance with literature data [33].

3.2.5. General Procedure for the Synthesis of Compounds 24 and 25

The corresponding piperazinyl derivative (2.00 mmol) was dissolved in dry dichloromethane (8 mL) and cooled to 0 °C in an ice bath. Dry triethylamine (3.00 mmol) was added dropwise. Pivaloyl chloride (2.10 mmol) was added with a syringe via a septum. The ice bath was removed and the reaction mixture was stirred at ambient temperature for 24 h. After that, water (30 mL) was added. The aqueous and organic phases were separated. The organic phase was washed with 2 N HCl, 8% aq NaHCO₃ and brine, dried over anhydrous sodium sulfate and filtered. The solvent was evaporated in vacuo yielding the pivaloylpiperazine derivatives which were used without further purification.

2,2-Dimethyl-1-[4-(2-nitrophenyl)piperazin-1-yl]propan-1-one (24): The reaction of the piperazinyl derivative 22 (555 mg (2.68 mmol)) with dry triethylamine (815 mg (8.05 mmol)) and pivaloyl chloride (340 mg (2.82 mmol)) in dry dichloromethane (11 mL) yielded compound 24 as yellow amorphous solid (322 mg (69%)) which was used without further purification. NMR data were in accordance with literature data [17].

2,2-Dimethyl-1-[4-(4-nitrophenyl)piperazin-1-yl]propan-1-one (25): The reaction of compound 23 (414 mg (2.00 mmol)) with dry triethylamine (607 mg (6.00 mmol)) and pivaloyl chloride (253 mg (2.10 mmol)) in dry dichloromethane (8 mL) gave the pivaloylpiperazinyl derivative 25 as orange amorphous solid (513 mg (88%)) which was used without further purification. NMR data were in accordance with literature data [17].

3.2.6. General Procedure for the Synthesis of Compounds 16–19, 46 and 47

To a solution of 15% (m/m) palladium on activated carbon in dry methanol (100 mL) the corresponding nitro compound (2.00 mmol) was added. Reduction of the nitro group was performed in an atmosphere of hydrogen (50 psi) at the parr apparatus at ambient temperature for 24 h. The reaction mixture was filtered and the solvent was removed in vacuo yielding the desired anilino-derivatives that were either purified by column chromatography or used without further purification.

tert-Butyl 4-(2-aminophenyl)piperazine-1-carboxylate (16): The nitro group of compound 20 (3.67 g (11.93 mmol)) was reduced with PdC (560 mg) in dry methanol (100 mL) to obtain the raw anilino derivative. It was purified by column chromatography (silica gel, CH₂Cl₂/MeOH 79:1) yielding compound 16 as pale brown amorphous solid (1.75 g (53%)). NMR data were in accordance with literature data [23].

tert-Butyl 4-(4-aminophenyl)piperazine-1-carboxylate (17): The reaction of compound 21 (1.98 g (6.45 mmol)) with PdC (299 mg) in dry methanol (100 mL) yielded the anilino derivative 17 as dark red oil (1.66 g (93%)) which was used without further purification. NMR data were in accordance with literature data [34].

1-[4-(2-Aminophenyl)piperazin-1-yl]-2,2-dimethylpropan-1-one (18): The nitro group of compound 24 (555 mg (1.90 mmol)) was reduced with PdC (111 mg) in dry methanol (90 mL) to obtain compound 18 as grey amorphous solid (367 mg (74%)) which was used without further purification. NMR data were in accordance with literature data [17].

1-[4-(4-Aminophenyl)piperazin-1-yl]-2,2-dimethylpropan-1-one (19): The nitro group of compound 25 (410 mg (1.41 mmol)) was reduced with PdC (69 mg) in dry methanol (100 mL) yielding the anilino derivative 19 as dark red oil (346 mg (94%)) which was used without further purification. NMR data were in accordance with literature data [17].

tert-Butyl 4-{2-[3-amino-2-(4-fluorophenoxy)benzamido]phenyl}piperazine-1-carboxylate (46): The reaction of compound 28 (294 mg (0.55 mmol)) with PdC (42 mg) in dry methanol (100 mL) gave the pure product 46 as white amorphous solid (258 mg (93%)). IR = 3354, 1692, 1619, 1498, 1452, 1365, 1249, 1191, 765; ¹H NMR (CDCl₃) δ = 1.50 (s, 9H, (CH₃)₃), 2.81–2.84 (m, 4H, N(CH₂)₂), 3.63 (br, 4H, N(CH₂)₂), 3.85 (s, 2H, NH₂), 6.81–6.84 (m, 2H, 2′-H, 6′-H), 6.88–6.92 (m, 2H, 3′-H, 5′-H), 6.97 (dd, J = 8.0, 1.5 Hz, 1H, 4-H), 7.02–7.07 (m, 1H, 4″-H), 7.09–7.15 (m, 2H, 3″-H, 5″-H), 7.20 (t, J = 7.9 Hz, 1H, 5-H), 7.42 (dd, J = 7.8, 1.5 Hz, 1H, 6-H), 8.42 (d, J = 8.1 Hz, 1H, 6″-H), 9.70 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.42 ((CH₃)₃), 44.05 (N(CH₂)₂), 52.12 (N(CH₂)₂), 80.07 (CMe₃), 116.26 (d, J = 8.1 Hz, C-2′, C-6′), 116.46 (d, J = 23.6 Hz, C-3′, C-5′), 119.58 (C-4), 120.14 (C-3″), 120.26 (C-6″), 120.32 (C-6), 124.00 (C-4″), 125.54 (C-5″), 126.66 (C-5), 133.49 (C-1″), 138.49 (C-2), 140.26 (C-3), 141.23 (C-2″), 152.77 (d, J = 2.4 Hz, C-1′), 154.72 (N(C=O)O), 158.33 (d, J = 243 Hz, C-4′), 163.28 ((C=O)NH); HRMS (ESI+): calcd for C₂₈H₃₂FN₄O₄⁺ [M + H]⁺: 507.2408; found: 507.2416.

tert-Butyl 4-{4-[3-amino-2-(4-fluorophenoxy)benzamido]phenyl}piperazine-1-carboxylate (47): The nitro group of compound 38 (157mg (0.29 mmol)) was reduced with PdC (22 mg) in dry methanol (80 mL) yielding the pure compound 47 as pale yellow amorphous solid (142 mg (96%)). IR = 3396, 1687, 1516, 1499, 1474, 1417, 1366, 1323, 1231, 1196, 830, 767; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 3.04–3.08 (m, 4H, N(CH₂)₂), 3.54–3.57 (m, 4H, N(CH₂)₂), 3.80 (s, 2H, NH₂), 6.84–6.91 (m, 4H, 2′-H, 3″-H, 5″-H, 6′-H), 6.94–7.00 (m, 3H, 3′-H, 4-H, 5′-H), 7.20 (t, J = 7.8 Hz, 1H, 5-H), 7.35 (d, J = 8.6 Hz, 2H, 2″-H, 6″-H), 7.53 (d, J = 7.7 Hz, 1H, 6-H), 8.71 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.40 ((CH₃)₃), 43.57 (N(CH₂)₂), 49.75 (N(CH₂)₂), 79.89 (CMe₃), 115.90 (d, J = 8.2 Hz, C-2′, C-6′), 116.70 (d, J = 23.6 Hz, C-3′, C-5′), 117.16 (C-3″, C-5″), 119.72 (C-4), 121.02 (C-6), 121.43 (C-2″, C-6″), 126.73 (C-5), 128.79 (C-1), 130.83 (C-1″), 138.01 (C-2), 148.30 (C-4″), 152.26 (d, J = 2.4 Hz, C-1′), 154.68 (N(C=O)O), 158.51 (d, J = 242 Hz, C-4′), 162.72 ((C=O)NH); HRMS (ESI−): calcd for C₂₈H₃₀FN₄O₄⁻ [M − H]⁻: 505.2251; found: 505.2251.

3.2.7. General Procedure for the Synthesis of Compounds 26–45

The corresponding benzoic acid derivative (1.00 mmol) and the anilino derivative (1.00 mmol) were dissolved in dry dichloromethane (30 mL) and cooled in an ice bath to 0 °C. The Mukaiyama reagent (1.75 mmol) and DIPEA (5.00 mmol) were added. The reaction mixture was stirred at room temperature for 24–48 h. After that, 20% aq ammonium chloride (50 mL) was added. Phases were separated. The aqueous phase was extracted twice with EtAc. The organic phases were combined, washed with 8% aq NaHCO₃ and brine, dried over anhydrous sodium sulfate and filtered. The solvent was evaporated in vacuo yielding the raw products that were subsequently purified.

tert-Butyl 4-{2-[2-(4-fluorophenoxy)benzamido]phenyl}piperazine-1-carboxylate (26): Reaction of the carboxylic acid 9 (238 mg (1.02 mmol) with the amine 16 (281 mg (1.01 mmol)), 2-chloro-N-methylpyridinium iodide (451 mg (1.77 mmol) and DIPEA (646 mg (5.00 mmol)) in dry dichloromethane (30 mL) gave the raw benzamide. It was purified by column chromatography (silica gel, CH/EtAc 6:1) yielding compound 26 as pale orange amorphous solid (363 mg (73%)). IR = 3318, 2971, 1694, 1662, 1589, 1516, 1501, 1453, 1395, 1364, 1309, 1277, 1203, 1114, 854, 766; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 2.75–2.79 (m, 4H, N(CH₂)₂), 3.32 (br, 4H, N(CH₂)₂), 6.79 (br d, J = 8.3 Hz, 1H, 3H), 7.06–7.13 (m, 6H, 2′-H, 3′-H, 3″-H, 4″-H, 5′-H, 6′-H), 7.17–7.25 (m, 2H, 5-H, 5″-H), 7.41 (td, J = 7.8, 1.7 Hz, 1H, 4-H), 8.34 (dd, J = 7.9, 1.7 Hz, 1H, 6-H), 8.60 (d, J = 8.1 Hz, 1H, 6″-H), 10.45 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.40 ((CH₃)₃), 43.73 (N(CH₂)₂), 52.21 (N(CH₂)₂), 79.90 (CMe₃), 117.00 (d, J = 23.5 Hz, C-3′, C-5′), 117.32 (C-3), 120.35 (C-3″), 121.04 (C-6″), 122.39 (d, J = 8.4 Hz, C-2′, C-6′), 123.57 (C-5), 124.08 (C-1), 124.13 (C-4″), 125.59 (C-5″), 132.69 (C-6), 133.04 (C-4), 134.01 (C-1″), 141.99 (C-2″), 151.10 (d, J = 2.8 Hz, C-1′), 154.80 (N(C=O)O), 156.17 (N), 159.83 (d, J = 245 Hz, C-4′), 162.77 ((C=O)NH); HRMS (ESI+) calcd for C₂₈H₃₁FN₃O₄⁺ [M + H]⁺: 492.2299; found: 492.2301.

tert-Butyl 4-{4-[3-fluoro-2-(4-fluorophenoxy)benzamido]phenyl}piperazin-1-carboxylate (27): Reaction of the carboxylic acid 10 (100 mg (0.40 mmol)) with the amine 16 (111 mg (0.40 mmol)), 2-chloro-N-methylpyridinium iodide (179 mg (0.70 mmol)) and DIPEA (259 mg (2.00 mmol)) in dry dichloromethane (12 mL) gave the crude product. It was purified by column chromatography (flash silica gel, petroleum ether/EtAc 5.5:3) yielding compound 27 as white amorphous solid (62 mg (30%)). IR = 3441, 1692, 1668, 1501, 1455, 1267, 1178, 765; ¹H NMR (CDCl₃) δ = 1.50 (s, 9H, (CH₃)₃), 2.77–2.81 (m, 4H, N(CH₂)₂), 3.54 (br, 4H, N(CH₂)₂), 6.95 (br s, 2H, 3′-H, 5′-H), 6.97 (br s, 2H, 2′-H, 6′-H), 7.06–7.14 (m, 2H, 3″-H, 4″-H), 7.18 (br td, J = 7.4, 2.0 Hz, 1H, 5″-H), 7.29–7.35 (m, 2H, 4-H, 5-H), 8.00–8.02 (m, 1H, 6-H), 8.50 (d, J = 8.1 Hz, 1H, 6″-H), 10.07 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.43 ((CH₃)₃), 43.97 (N(CH₂)₂), 52.22 (N(CH₂)₂), 80.05 (CMe₃), 116.42 (d, J = 23.7 Hz, C-3′, C-5′), 117.99 (d, J = 8.2 Hz, C-2′, C-6′), 120.36 (d, J = 18.6 Hz, C-4), 120.40 (C-3″), 120.75 (C-6″), 124.47 (C-4″), 125.58 (C-5″), 126.08 (d, J = 7.7 Hz, C-5), 126.87 (d, J = 3.5 Hz, C-6), 130.14 (C-1), 133.40 (C-1″), 141.44 (d, J = 12.6 Hz, C-2), 141.75 (C-2″), 153.52 (t, J = 2.1 Hz, C-1′), 154.72 (N(C=O)O), 155.11 (d, J = 252 Hz, C-3), 158.91 (d, J = 243 Hz, C-4′), 161.73 (d, J = 3.1 Hz, ((C=O)NH)); HRMS (ESI+): calcd for C₂₈H₃₀F₂N₃O₄⁺ [M + H]⁺: 510.2199; found: 510.2191.

tert-Butyl 4-{2-[2-(4-fluorophenoxy)-3-nitrobenzamido]phenyl}piperazine-1-carboxylate (28): Reaction of the carboxylic acid 11 (567 mg (2.05 mmol)) with the aniline 16 (555 mg (2.00 mmol)), 2-chloro-N-methylpyridinium iodide (895 mg (3.50 mmol)) and DIPEA (1292 mg (10.00 mmol)) in dry dichloromethane (60 mL) gave the raw product. It was purified by column chromatography (silica gel, CH/EtAc 3:1) yielding compound 28 as pale green amorphous solid (634 mg (59%)). IR = 3321, 1688, 1594, 1523, 1498, 1452, 1422, 1364, 1249, 1177, 1130, 837, 775; ¹H NMR (CDCl₃) δ = 1.50 (s, 9H, (CH₃)₃), 2.78–2.81 (m, 4H, N(CH₂)₂), 3.58 (br, 4H, N(CH₂)₂), 6.79–6.83 (m, 2H, 2′-H, 6′-H), 6.90–6.95 (m, 2H, 3′-H, 5′-H), 7.08–7.18 (m, 3H, 3″-H, 4″-H, 5″-H), 7.54 (t, J = 8.0 Hz, 1H, 5-H), 8.07 (dd, J = 8.0, 1.4 Hz, 1H, 4-H), 8.35–8.41 (m, 2H, 6-H, 6″-H), 9.81 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 44.20 (N(CH₂)₂), 52.29 (N(CH₂)₂), 80.15 (CMe₃), 116.57 (d, J = 23.8 Hz, C-3′, C-5′), 117.36 (d, J = 8.3 Hz, C-2′, C-6′), 120.24 (C-6″), 120.61 (C-3″), 124.76 (C-4″), 125.76 (C-5″), 126.17 (C-5), 128.63 (C-4), 132.12 (C-1), 133.00 (C-1″), 136.07 (C-6), 141.48 (C-2″), 143.87 (C-3), 145.56 (C-2), 153.09 (d, J = 2.6 Hz, C-1′), 154.60 (N(C=O)O), 158.83 (d, J = 243 Hz, C-4′), 160.95 ((C=O)NH); HRMS (ESI+) calcd for C₂₈H₃₀FN₄O₆⁺ [M + H]⁺: 537.2149; found: 537.2155.

tert-Butyl 4-(2-{2-[(4-fluorophenyl)sulfanyl]-3-(trifluoromethyl)benz-amido}phenyl) piperazine-1-carboxylate (29): Reaction of the carboxylic acid 13 (235 mg (0.74 mmol)) with the amine 16 (212 mg (0.76 mmol)), 2-chloro-N-methylpyridinium iodide (339 mg (1.33 mmol)) and DIPEA (479 mg (3.70 mmol)) in dry dichloromethane (22 mL) for 48 h gave the raw product. It was purified by column chromatography (silica gel, CH/EtAc 4:1) yielding compound 29 as white amorphous solid (189 mg (44%)). IR = 3331, 2976, 1693, 1590, 1516, 1490, 1418, 1366, 1313, 1231, 1171, 828, 761, 687; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 2.78–2.81 (m, 4H, N(CH₂)₂), 3.47 (br, 4H, N(CH₂)₂), 6.75–6.79 (m, 2H, 3′-H, 5′-H), 7.05–7.13 (m, 3H, 2′-H, 4″-H, 6′-H), 7.15–7.22 (m, 2H, 3″-H, 5″-H), 7.58 (t, J = 7.7 Hz, 1H, 5-H), 7.75 (dd, J = 7.7, 1.4 Hz, 1H, 6-H), 7.89 (dd, J = 7.7, 1.4 Hz, 1H, 4-H), 8.34 (dd, J = 8.1, 1.5 Hz, 1H, 6″-H), 9.01 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.39 ((CH₃)₃), 44.14 (N(CH₂)₂), 52.37 (N(CH₂)₂), 80.11 (CMe₃), 116.16 (d, J = 22.2 Hz, C-3′, C-5′), 119.24 (C-6″), 120.86 (C-3″), 123.26 (q, J = 274 Hz, CF₃), 124.32 (C-4″), 126.04 (C-5″), 128.48 (q, J = 5.7 Hz, C-4), 129.40 (C-5), 130.77 (d, J = 3.3 Hz, C-1′), 131.21 (C-2), 132.50 (d, J = 8.3 Hz, C-2′, C-6′), 132.75 (C-6), 133.35 (C-1″), 134.27 (q, J = 29.7 Hz, C-3), 140.89 (C-2″), 144.33 (C-1), 154.62 (N(C=O)O), 161.98 (d, J = 248 Hz, C-4′), 164.81 ((C=O)-NH); HRMS (ESI+): calcd for C₂₉H₃₀F₄N₃O₃S⁺ [M + H]⁺: 576.1938; found: 576.1925.

tert-Butyl 4-[2-(2-phenoxybenzamido)phenyl]piperazin-1-carboxylate (30): Reaction of the carboxylic acid 12 (263 mg (1.23 mmol)) with the amine 16 (341 mg (1.23 mmol)), 2-chloro-N-methylpyridinium iodide (549 mg (2.15 mmol)) and DIPEA (795 mg (6.15 mmol)) in dry dichloromethane (37 mL) gave the crude product. It was purified by column chromatography (silica gel, CH/EtAc 3:1) yielding compound 30 as white amorphous solid (192 mg (33%)). IR = 3313, 2970, 1695, 1656, 1591, 1513, 1452, 1393, 1363, 1308, 1276, 1215, 1161, 1114, 762; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, ((CH₃)₃)), 2.74–2.78 (m, 4H, N(CH₂)₂), 3.30 (br, 4H, N(CH₂)₂), 6.83 (d, J = 8.2 Hz, 1H, 3-H), 7.05–7.15 (m, 4H, 2′-H, 3″-H, 4″-H, 6′-H), 7.17–7.26 (m, 3H, 4′-H, 5-H, 5″-H), 7.36–7.43 (m, 3H, 3′-H, 4-H, 5′-H), 8.36 (dd, J = 7.9, 1.9 Hz, 1H, 6-H), 8.60 (d, J = 8.0 Hz, 1H, 6″-H), 10.51 (br s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.42 ((CH₃)₃), 43.56 (N(CH₂)₂), 52.18 (N(CH₂)₂), 79.73 (CMe₃), 117.74 (C-3), 120.30 (C-3″), 120.86 (C-2′, C-6′), 121.10 (C-6″), 123.42 (C-5), 124.07 (C-4″), 124.08 (C-1), 125.31 (C-4′), 125.48 (C-5″), 130.27 (C-3′, C-5′), 132.58 (C-6), 132.98 (C-4), 134.03 (C-1″), 142.09 (C-2″), 154.79 (N(C=O)O), 155.29 (C-1′), 156.08 (C-2), 162.88 ((C=O)NH); HRMS (ESI+): calcd for C₂₈H₃₂N₃O₄⁺ [M + H]⁺: 474.2387; found: 474.2376.

tert-Butyl 4-{2-[2-anilino-3-(trifluoromethyl)benzamido]phenyl}piperazin-1-carboxylate (31): Reaction of the carboxylic acid 14 (376 mg (1.34 mmol)) with the amine 16 (370 mg (1.34 mmol)), 2-chloro-N-methylpyridinium iodide (598 mg (2.34 mmol)) and DIPEA (862 mg (6.67 mmol)) in dry dichloromethane (40 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/MeOH 149:1) obtaining compound 31 as pale yellow oil (50 mg (7%)). IR = 3302, 1693, 1649, 1594, 1518, 1453, 1366, 1323, 1251, 1171, 1132, 748, 691; ¹H NMR (CDCl₃) δ = 1.50 (s, 9H, (CH₃)₃), 2.73–2.76 (m, 4H, N(CH₂)₂), 3.55 (br, 4H, N(CH₂)₂), 6.23 (br s, 1H, NH), 6.70–6.74 (m, 2H, 2′-H, 6′-H), 6.78–6.83 (m, 1H, 4′-H), 6.99–7.03 (m, 1H, 4″-H), 7.05–7.11 (m, 4H, 3′-H, 3″-H, 5′-H, 5″-H), 7.39 (br t, J = 7.9 Hz, 1H, 5-H), 7.83 (dd, J = 7.9, 1.7 Hz, 1H, 4-H), 8.08 (dd, J = 7.9, 1.7 Hz, 1H, 6-H), 8.21 (br d, J = 7.6 Hz, 1H, 6″-H), 9.79 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 44.34 (N(CH₂)₂), 52.16 (N(CH₂)₂), 80.18 (CMe₃), 116.39 (C-2′, C-6′), 119.76 (C-6″), 120.34 (C-3″), 121.93 (C-4′), 123.95 (q, J = 274 Hz, CF₃), 124.05 (C-4″), 124.46 (C-5), 125.09 (q, J = 29.2 Hz, C-3), 125.66 (C-5″), 129.28 (C-3′, C-5′), 129.73 (q, J = 5.3 Hz, C-4), 132.87 (C-1), 133.20 (C-1″), 134.27 (C-6), 138.44 (q, J = 1.4 Hz, C-2), 141.13 (C-2″), 144.57 (C-1′), 154.64 (N(C=O)O), 164.07 ((C=O)NH); HRMS (ESI+): calcd for C₂₉H₃₂F₃N₄O₃⁺ [M + H]⁺: 541.2421; found: 541.2409.

tert-Butyl 4-{2-[2-(4-fluoroanilino)-3-(trifluoromethyl)benzamido]phenyl}piperazin-1-carboxylate (32): Reaction of the carboxylic acid 15 (444 mg (1.48 mmol)) with the amine 16 (418 mg (1.50 mmol)), 2-chloro-N-methylpyridinium iodide (662 mg (2.58 mmol)) and DIPEA (957 mg (7.40 mmol)) in dry dichloromethane (45 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/MeOH 79+1) yielding compound 32 as pale yellow amorphous solid (22 mg (4%)). IR = 3328, 2977, 1693, 1591, 1508, 1453, 1366, 1319, 1169, 1034, 1001, 912, 824, 760, 690; ¹H NMR (CDCl₃) δ = 1.49 (s, 9H, (CH₃)₃), 2.75–2.78 (m, 4H, N(CH₂)₂), 3.54 (br, 4H, N(CH₂)₂), 6.26 (br s, 1H, NH), 6.67–6.71 (m, 2H, 2′-H, 6′-H), 6.76–6.81 (m, 2H, 3′-H, 5′-H), 7.01–7.12 (m, 3H, 3″-H, 4″-H, 5″-H), 7.37 (br t, J = 7.8 Hz, 1H, 5-H), 7.82 (dd, J = 7.8 Hz, 1H, 4-H), 8.03 (dd, J = 7.8, Hz, 1H, 6-H), 8.20 (d, J = 7.9 Hz, 1H, 6″-H), 9.68 (br s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.40 ((CH₃)₃), 44.24 (N(CH₂)₂), 52.17 (N(CH₂)₂), 80.23 (CMe₃), 115.90 (d, J = 22.9 Hz, C-3′, C-5′), 118.54 (d, J = 7.9 Hz, C-2′, C-6′), 119.64 (C-6″), 120.34 (C-3″), 123.93 (q, J = 273 Hz, CF₃), 124.18 (C-5), 124.22 (C-4″), 124.69 (q, J = 29.4 Hz, C-3), 125.75 (C-5″), 129.80 (q, J = 5.2 Hz, C-4), 132.24 (C-1), 133.04 (C-1″), 134.13 (C-6), 139.10 (C-2), 140.78 (d, J = 2.6 Hz, C-1′), 141.05 (C-2″), 154.63 (N(C=O)O), 158.25 (d, J = 241 Hz, C-4′), 164.12 ((C=O)NH); HRMS (ESI+): calcd for C₂₉H₃₁F₄N₄O₃⁺ [M + H]⁺: 559.2327; found: 559.2313.

N-{2-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-2-(4-fluorophenoxy)benzamid (33): Reaction of the carboxylic acid 9 (232 mg (1.00 mmol)) with the amine 18 (261 mg (1.00 mmol)), 2-chloro-N-methylpyridinium iodide (447 mg (1.75 mmol)) and DIPEA (646 mg (5.00 mmol)) in dry dichloromethane (30 mL) gave the crude product. It was purified by column chromatography (silica gel, CH/EtAc 3:1) yielding compound 33 as white amorphous solid (340 mg (72%)). IR = 3307, 1622, 1589, 1500, 1451, 1308, 1211, 1016, 750; ¹H NMR (CDCl₃) δ = 1.25 (s, 9H, (CH₃)₃), 2.78–2.82 (m, 4H, N(CH₂)₂), 3.51 (br, 4H, N(CH₂)₂), 6.79 (dd, J = 8.3, 1.1 Hz, 1H, 3-H), 7.07–7.14 (m, 6H, 2′-H, 3′-H, 3″-H, 4″-H, 5′-H, 6′-H), 7.19–7.27 (m, 2H, 5-H, 5″-H), 7.41 (ddd, J = 8.3, 7.3, 1.9 Hz, 1H, 4-H), 8.36 (dd, J = 7.9, 1.8 Hz, 1H, 6-H), 8.63 (dd, J = 8.3, 1.4 Hz, 1H, 6″-H), 10.50 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.31 ((CH₃)₃), 38.59 (CMe₃), 45.05 (N(CH₂)₂), 52.50 (N(CH₂)₂), 117.08 (d, J = 24.0 Hz, C-3′, C-5′), 117.10 (C-3), 120.49 (C-3″), 121.07 (C-6″), 122.60 (d, J = 8.4 Hz, C-2′, C-6′), 123.57 (C-5), 123.86 (C-1), 124.14 (C-4″), 125.81 (C-5″), 132.78 (C-6), 133.10 (C-4), 134.13 (C-1″), 141.51 (C-2″), 151.00 (d, J = 2.9 Hz, C-1′), 156.23 (C-2), 159.89 (d, J = 246 Hz, C-4′), 162.75 ((C=O)NH), 176.42 (C=O); HRMS (ESI+): calcd for C₂₈H₃₁FN₃O₃⁺ [M + H]⁺: 476.2344; found: 476.2332.

N-{2-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-2-(4-fluorophenoxy)-3-nitrobenzamid (34): Reaction of the carboxylic acid 11 (150 mg (0.54 mmol)) with the amine 18 (141 mg (0.54 mmol)), 2-chloro-N-methylpyridinium iodide (243 mg (0.95 mmol)) and DIPEA (349 mg (2.70 mmol)) in dry dichloromethane (16 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/CH/EtAc 3:2:1) yielding compound 34 as pale green amorphous solid (172 mg (61%)). IR = 3441, 1630, 1519, 1499, 1449, 1361, 1184, 775; ¹H NMR (CDCl₃) δ = 1.33 (s, 9H, (CH₃)₃), 2.81–2.85 (m, 4H, N(CH₂)₂), 3.79 (br, 4H, N(CH₂)₂), 6.80–6.84 (m, 2H, 2′-H, 6′-H), 6.91–6.96 (m, 2H, 3′-H, 5′-H), 7.08–7.19 (m, 3H, 3″-H, 4″-H, 5″-H), 7.55 (t, J = 8.0 Hz, 1H, 5-H), 8.06 (dd, J = 8.0, 1.8 Hz, 1H, 4-H), 8.37–8.42 (m, 2H, 6-H, 6″-H), 9.84 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.43 ((CH₃)₃), 38.71 (CMe₃), 45.48 (N(CH₂)₂), 52.55 (N(CH₂)₂), 116.64 (d, J = 23.8 Hz, C-3′, C-5′), 117.49 (d, J = 8.2 Hz, C-2′, C-6′), 120.37 (C-6″), 120.64 (C-3″), 124.81 (C-4″), 125.93 (C-5″), 126.20 (C-5), 128.67 (C-4), 131.98 (C-1), 133.04 (C-1″), 136.13 (C-6), 141.08 (C-2″), 143.92 (C-3), 145.63 (C-2), 153.04 (d, J = 2.6 Hz, C-1′), 158.89 (d, J = 244 Hz, C-4′), 160.93 ((C=O)NH), 176.48 (C=O); HRMS (ESI+): calcd for C₂₈H₃₀FN₄O₅⁺ [M + H]⁺: 521.2195; found: 521.2183.

N-{2-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-3-fluoro-2-(4-fluorophenoxy)benzamid (35): Reaction of the carboxylic acid 10 (100 mg (0.40 mmol)) with the amine 18 (105 mg (0.40 mmol)), 2-chloro-N-methylpyridinium iodide (179 mg (0.70 mmol)) and DIPEA (259 mg (2.00 mmol)) in dry dichloromethane (12 mL) gave the raw product. It was purified by column chromatography (flash silica gel, CH/EtAc 2.75:1) yielding compound 35 as white amorphous solid (114 mg (58%)). IR = 3331, 2928, 1670, 1631, 1579, 1499, 1454, 1267, 1184, 1015, 765; ¹H NMR (CDCl₃) δ = 1.31 (s, 9H, (CH₃)₃), 2.80–2.83 (m, 4H, N(CH₂)₂), 3.73 (br, 4H, N(CH₂)₂), 6.96–6.99 (m, 4H, 2′-H, 3′-H, 5′-H, 6′-H), 7.07–7.14 (m, 2H, 3″-H, 4″-H), 7.17–7.21 (m, 1H, 5″-H), 7.31–7.37 (m, 2H, 4-H, 5-H), 8.02–8.05 (m, 1H, 6-H), 8.52 (br d, J = 8.0 Hz, 1H, 6″-H), 10.11 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.42 ((CH₃)₃), 38.70 (CMe₃), 45.32 (N(CH₂)₂), 52.49 (N(CH₂)₂), 116.46 (d, J = 23.7 Hz, C-3′, C-5′), 118.23 (d, J = 8.4 Hz, C-2′, C-6′), 120.42 (d, J = 18.8 Hz, C-4), 120.49 (C-3″), 120.83 (C-6″), 124.50 (C-4″), 125.78 (C-5″), 126.07 (d, J = 7.6 Hz, C-5), 126.96 (d, J = 3.3 Hz, C-6), 129.93 (C-1), 133.49 (C-1″), 141.32 (C-2″), 141.59 (d, J = 12.4 Hz, C-2), 153.50 (t, J = 2.2 Hz, C-1′), 155.08 (d, J = 252 Hz, C-3), 157.05 (d, J = 243 Hz, C-4′), 161.71 (d, J = 3.2 Hz, (C=O)NH), 176.50 (C=O); HRMS (ESI+): calcd for C₂₈H₃₀F₂N₃O₃⁺ [M + H]⁺: 494.2250; found: 494.2236.

tert-Butyl 4-{4-[2-(4-fluorophenoxy)benzamido]phenyl}piperazine-1-carboxylate (36): Reaction of the carboxylic acid 9 (240 mg (1.03 mmol)) with the amine 17 (281 mg (1.01 mmol)), 2-chloro-N-methylpyridinium iodide (449 mg (1.76 mmol) and DIPEA (646 mg (5.00 mmol)) in dry dichloromethane (30 mL) gave the raw product. It was purified by column chromatography (silica gel, CH/EtAc 2:1) yielding compound 36 as pale brown amorphous solid (136 mg (27%)). IR = 3376, 1689, 1662, 1597, 1538, 1501, 1476, 1449, 1414, 1365, 1317, 1282, 1233, 1202, 1119, 924, 866, 763; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 3.06–3.09 (m, 4H, N(CH₂)₂), 3.56–3.59 (m, 4H, N(CH₂)₂), 6.83 (d, J = 8.1 Hz, 1H, 3-H), 6.89–6.92 (m, 2H, 3″-H, 5″-H), 7.06–7.13 (m, 4H, 2′-H, 3′-H, 4′-H, 5′-H), 7.22–7.26 (m, 1H, 5-H), 7.41 (td, J = 8.1, 1.7 Hz, 1H, 4-H), 7.50–7.53 (m, 2H, 2″-H, 6″-H), 8.32 (dd, J = 7.9, 1.7 Hz, 1H, 6-H), 9.42 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 43.77 (N(CH₂)₂), 49.84 (N(CH₂)₂), 79.86 (CMe₃), 116.94 (d, J = 23.6 Hz, C-3′, C-5′), 117.23 (C-3″, C-5″), 117.80 (C-3), 121.14 (d, J = 8.4 Hz, C-2′, C-6′), 121.68 (C-2″, C-6″), 123.96 (C-5), 124.07 (C-1), 131.09 (C-1″), 132.49 (C-6), 132.95 (C-4), 148.31 (C-4″), 151.07 (d, J = 2.7 Hz, C-1′), 154.66 (N(C=O)O), 155.42 (C-2), 159.64 (d, J = 244 Hz, C-4′), 162.33 ((C=O)NH); HRMS (ESI+) calcd for C₂₈H₃₁FN₃O₄⁺ [M + H]⁺: 492.2299; found: 492.2302.

tert-Butyl 4-{4-[3-fluoro-2-(4-fluorophenoxy)benzamido]phenyl}piperazine-1-carb-oxylate (37): Reaction of the carboxylic acid 10 (106 mg (0.42 mmol)) with the amine 17 (119 mg (0.43 mmol)), 2-chloro-N-methylpyridinium iodide (191 mg (0.75 mmol)) and DIPEA (273 mg (2.12 mmol)) in dry dichloromethane (13 mL) gave the raw product. It was purified by column chromatography (silica gel, CH₂Cl₂/EtAc 9:1) yielding compound 37 as light brown amorphous solid (92 mg (43%)). IR = 3276, 1688, 1654, 1601, 1517, 1501, 1468, 1415, 1365, 1326, 1266, 1232, 1183, 1122, 1002, 927, 881, 834, 768; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 3.06–3.09 (m, 4H, N(CH₂)₂), 3.55–3.58 (m, 4H, N(CH₂)₂), 6.87 (d, J = 8.9 Hz, 2H, 3″-H, 5″-H), 6.93–6.97 (m, 2H, 2′-H, 6′-H), 6.99–7.04 (m, 2H, 3′-H, 5′-H), 7.31–7.37 (m, 2H, 4-H, 5-H), 7.42 (d, J = 8.9 Hz, 2H, 2″-H, 6″-H), 8.05 (dd, J = 7.9, 1.9 Hz, 1H, 6-H), 9.02 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 43.52 (N(CH₂)₂), 49.68 (N(CH₂)₂), 79.88 (CMe₃), 116.59 (d, J = 23.7 Hz, C-3′, C-5′), 116.72 (d, J = 8.3 Hz, C-2′, C-6′), 117.12 (C-3″, C-5″), 120.24 (d, J = 18.4 Hz, C-4), 121.56 (C-2″, C-6″), 126.24 (d, J = 7.6 Hz, C-5), 127.08 (d, J = 3.3 Hz, C-6), 129.39 (C-1), 130.52 (C-1″), 140.40 (d, J = 12.8 Hz, C-2), 148.53 (C-4″), 153.00 (t, J = 2.2 Hz, C-1′), 154.66 (N(C=O)O), 154.98 (d, J = 252 Hz, C-3), 158.84 (d, J = 243 Hz, C-4′), 161.17 (d, J = 3.1 Hz, ((C=O)NH)); HRMS (ESI+): calcd for C₂₈H₃₀F₂N₃O₄⁺ [M + H]⁺: 510.2199; found: 510.2190.

tert-Butyl 4-{4-[2-(4-fluorophenoxy)-3-nitrobenzamido]phenyl}piperazine-1-carb-oxylate (38): Reaction of the carboxylic acid 11 (562 mg (2.03 mmol)) with the amine 17 (557 mg (2.01 mmol)), 2-chloro-N-methylpyridinium iodide (898 mg (3.51 mmol)) and DIPEA (1292 mg (10.00 mmol)) in dry dichloromethane (60 mL) gave the raw product. It was purified by column chromatography (silica gel, CH₂Cl₂/acetonitrile 12:1) yielding compound 38 as yellow amorphous solid (415 mg (39%)). IR = 3422, 1672, 1534, 1500, 1418, 1365, 1229, 1174, 828, 776; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 3.06–3.10 (m, 4H, N(CH₂)₂), 3.54–3.58 (m, 4H, N(CH₂)₂), 6.83–6.88 (m, 4H, 2′-H, 3″-H, 5″-H, 6′-H), 6.96–7.01 (m, 2H, 3′-H, 5′-H), 7.32 (d, J = 8.8 Hz, 2H, 2″-H, 6″-H), 7.54 (t, J = 8.0 Hz, 1H, 5-H), 8.07 (dd, J = 8.1, 1.7 Hz, 1H, 4-H), 8.43 (dd, J = 7.9, 1.7 Hz, 1H, 6-H), 8.66 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.40 ((CH₃)₃), 43.48 (N(CH₂)₂), 49.51 (N(CH₂)₂), 79.93 (CMe₃), 116.59 (d, J = 8.3 Hz, C-2′, C-6′), 116.81 (d, J = 22.9 Hz, C-3′, C-5′), 117.00 (C-3″, C-5″), 121.70 (C-2″, C-6″), 126.30 (C-5), 128.60 (C-4), 129.80 (C-1″), 131.13 (C-1), 136.57 (C-6), 143.82 (C-3), 144.96 (C-2), 148.80 (C-4″), 152.85 (d, J = 2.5 Hz, C-1′), 154.65 (N(C=O)O), 158.89 (d, J = 243 Hz, C-4′), 160.47 ((C=O)NH); HRMS (ESI−) calcd for C₂₈H₂₈FN₄O₆⁻ [M − H]⁻: 535.1993; found: 535.1989.

tert-Butyl 4-(4-{2-[(4-fluorophenyl)sulfanyl]-3-(trifluoromethyl)benzamido}phenyl) piperazine-1-carboxylate (39): Reaction of the carboxylic acid 13 (212 mg (0.67 mmol)) with the amine 17 (190 mg (0.69 mmol)), 2-chloro-N-methylpyridinium iodide (300 mg (1.17 mmol)) and DIPEA (433 mg (3.35 mmol)) in dry dichloromethane (20 mL) gave the raw product. It was purified by column chromatography (silica gel, CH₂Cl₂/MeOH 79:1) yielding compound 39 as pale brown amorphous solid (66 mg (17%)). IR = 3424, 1656, 1518, 1423, 1313, 1231, 1128, 830; ¹H NMR (CDCl₃) δ = 1.49 (s, 9H, (CH₃)₃), 3.09–3.12 (m, 4H, N(CH₂)₂), 3.57–3.60 (m, 4H, N(CH₂)₂), 6.82–6.90 (m, 4H, 3′-H, 3″-H, 5′-H, 5″-H), 7.06–7.10 (m, 2H, 2′-H, 6′-H), 7.26–7.30 (m, 2H, 2″-H, 6″-H), 7.58 (t, J = 7.8 Hz, 1H, 5-H), 7.70 (s, 1H, NH), 7.84 (d, J = 7.8 Hz, 1H, 6-H), 7.89 (d, J = 7.8 Hz, 1H, 4-H); ¹³C NMR (CDCl₃) δ = 28.42 ((CH₃)₃), 43.40 (N(CH₂)₂), 49.67 (N(CH₂)₂), 79.94 (CMe₃), 116.38 (d, J = 22.2 Hz, C-3′, C-5′), 117.08 (C-3″, C-5″), 120.96 (C-2″, C-6″), 123.25 (q, J = 274 Hz, CF₃), 128.55 (q, J = 5.7 Hz, C-4), 129.50 (C-5), 130.25 (C-1″), 130.36 (C-2), 130.92 (d, J = 3.2 Hz, C-1′), 131.66 (d, J = 8.1 Hz, C-2′, C-6′), 133.67 (C-6), 134.32 (q, J = 29.5 Hz, C-3), 143.80 (C-1), 148.53 (C-4″), 154.68 (N(C=O)O), 161.95 (d, J = 248 Hz, C-4′), 164.48 ((C=O)NH); HRMS (ESI+): calcd for C₂₉H₃₀F₄N₃O₃S⁺ [M + H]⁺: 576.1938; found: 576.1927.

tert-Butyl 4-[4-(2-phenoxybenzamido)phenyl]piperazin-1-carboxylate (40): Reaction of the carboxylic acid 12 (291 mg (1.36 mmol)) with the amine 17 (378 mg (1.36 mmol)), 2-chloro-N-methylpyridinium iodide (608 mg (2.38 mmol)) and DIPEA (879 mg (6.80 mmol)) in dry dichloromethane (40 mL) gave the crude product. It was purified by column chromatography (silica gel, CH/EtAc 2.5:1) yielding compound 40 as white amorphous solid (262 mg (40%)). IR = 3372, 1691, 1662, 1598, 1537, 1514, 1475, 1449, 1415, 1364, 1317, 1282, 1217, 1163, 1119, 923, 829, 753; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, ((CH₃)₃)), 3.06–3.09 (m, 4H, N(CH₂)₂), 3.55–3.58 (m, 4H, N(CH₂)₂), 6.87–6.91 (m, 3H, 3-H, 3″-H, 5″-H), 7.11 (d, J = 7.9 Hz, 2H, 2′-H, 6′-H), 7.20–7.27 (m, 2H, 4′-H, 5-H), 7.40–7.44 (m, 3H, 3′-H, 4-H, 5′-H), 7.51 (d, J = 8.9 Hz, 2H, 2″-H, 6″-H), 8.33 (d, J = 7.9, 1.8 Hz, 1H, 6-H), 9.51 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 43.52 (N(CH₂)₂), 49.86 (N(CH₂)₂), 79.85 (CMe₃), 117.23 (C-3″, C-5″), 118.44 (C-3), 119.46 (C-2′, C-6′), 121.66 (C-2″, C-6″), 123.95 (C-5), 124.24 (C-1), 124.85 (C-4′), 130.27 (C-3′, C-5′), 131.20 (C-1″), 132.41 (C-6), 132.90 (C-4), 148.24 (C-4″), 154.67 (N(C=O)O), 155.14 (C-2), 155.36 (C-1′), 162.40 ((C=O)NH); HRMS (ESI+): calcd for C₂₈H₃₂N₃O₄⁺ [M + H]⁺: 474.2387; found: 474.2376.

tert-Butyl 4-{4-[2-anilino-3-(trifluoromethyl)benzamido]phenyl}piperazin-1-carboxylate (41): Reaction of the carboxylic acid 14 (230 mg (0.82 mmol)) with the amine 17 (227 mg (0.82 mmol)), 2-chloro-N-methylpyridinium iodide (367 mg (1.44 mmol)) and DIPEA (530 mg (4.10 mmol)) in dry dichloromethane (25 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH/EtAc 3:1) yielding compound 41 as pale brown amorphous solid (44 mg (10%)). IR = 3320, 1705, 1640, 1597, 1528, 1453, 1420, 1316, 1232, 1167, 1131, 753; ¹H NMR (CDCl₃) δ = 1.47 (s, 9H, (CH₃)₃), 3.02–3.05 (m, 4H, N(CH₂)₂), 3.52–3.55 (m, 4H, N(CH₂)₂), 6.09 (br s, 1H, NH), 6.75–6.79 (m, 4H, 2′-H, 3″-H, 5″-H, 6′-H), 6.89–6.93 (m, 1H, 4′-H), 7.05–7.09 (m, 2H, 2″-H, 6″-H), 7.17–7.22 (m, 2H, 3′-H, 5′-H), 7.44 (td, J = 7.9 Hz, 1H, 5-H), 7.84 (dd, J = 7.9, 1.6 Hz, 1H, 4-H), 8.34 (dd, J = 7.9, 1.6 Hz, 1H, 6-H), 9.42 (br s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 43.53 (N(CH₂)₂), 49.65 (N(CH₂)₂), 79.88 (CMe₃), 115.95 (C-2′, C-6′), 116.93 (C-3″, C-5″), 121.23 (q, J = 274 Hz, CF₃), 122.18 (C-2″, C-4′, C-6″), 125.37 (C-5), 125.53 (q, J = 29.2 Hz, C-3), 129.71 (C-3′, C-5′), 129.80 (q, J = 5.5 Hz, C-4), 130.08 (C-1″), 132.57 (C-1), 135.49 (C-6), 137.41 (q, J = 1.3 Hz, C-2), 144.60 (C-1′), 148.48 (C-4″), 154.68 (N(C=O)O), 163.11 ((C=O)NH); HRMS (ESI+): calcd for C₂₉H₃₂F₃N₄O₃⁺ [M + H]⁺: 541.2421; found: 541.2410.

tert-Butyl 4-{4-[2-(fluoroanilino)-3-(trifluoromethyl)benzamido]phenyl}piperazin-1-carboxylate (42): Reaction of the carboxylic acid 15 (299 mg (1.00 mmol)) with the carboxylic acid 17 (277 mg (1.00 mmol)), 2-chloro-N-methylpyridinium iodide (447 mg (1.75 mmol)) and DIPEA (646 mg (5.00 mmol)) in dry dichloromethane (30 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH₂Cl₂/MeOH 79:1) yielding compound 42 as pale brown amorphous solid (124 mg (22%)). IR = 3427, 1665, 1508, 1454, 1315, 1229, 1167, 824; ¹H NMR (CDCl₃) δ = 1.48 (s, 9H, (CH₃)₃), 3.04–3.07 (m, 4H, N(CH₂)₂), 3.53–3.56 (m, 4H, N(CH₂)₂), 6.05 (br s, 1H, NH), 6.72–6.76 (m, 2H, 2′-H, 6′-H), 6.79–6.81 (m, 2H, 3″-H, 5″-H), 6.85–6.90 (m, 2H, 3′-H, 5′-H), 7.13 (d, J = 8.9 Hz, 2H, 2″-H, 6″-H), 7.42 (t, J = 7.9 Hz, 1H, 5-H), 7.83 (dd, J = 7.9, 1.6 Hz, 1H, 4-H), 8.28 (dd, J = 7.9, 1.6 Hz, 1H, 6-H), 9.24 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 43.38 (N(CH₂)₂), 49.62 (N(CH₂)₂), 79.89 (CMe₃), 116.22 (d, J = 22.9 Hz, C-3′, C-5′), 116.97 (C-3″, C-5″), 117.80 (d, J = 7.9 Hz, C-2′, C-6′), 121.89 (C-2″, C-6″), 123.94 (q, J = 273 Hz, CF₃), 125.13 (q, J = 29.2 Hz, C-3), 125.16 (C-5), 129.79 (q, J = 5.2 Hz, C-4), 130.00 (C-1″), 132.16 (C-1), 135.45 (C-6), 137.86 (q, J = 1.8 Hz, C-2), 140.74 (d, J = 2.5 Hz, C-1′), 148.53 (C-4″), 154.68 (N(C=O)O), 158.34 (d, J = 241 Hz, C-4′), 163.13 ((C=O)NH); HRMS (ESI+): calcd for C₂₉H₃₁F₄N₄O₃⁺ [M + H]⁺: 559.2327; found: 559.2311.

N-{4-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-2-(4-fluorophenoxy)benzamid (43): Reaction of the carboxylic acid 9 (232 mg (1.00 mmol)) with the amine 19 (261 mg (1.00 mmol)), 2-chloro-N-methylpyridinium iodide (447 mg (1.75 mmol)) and DIPEA (646 mg (5.00 mmol)) in dry dichloromethane (30 mL) gave the crude product. It was purified by column chromatography (silica gel, CH/EtAc 1:1) yielding compound 43 as pale yellow amorphous solid (158 mg (33%)). IR = 3385, 1654, 1614, 1518, 1504, 1477, 1419, 1321, 1205, 857; ¹H NMR (CDCl₃) δ = 1.31 (s, 9H, (CH₃)₃), 3.10–3.13 (m, 4H, N(CH₂)₂), 3.78–3.81 (m, 4H, N(CH₂)₂), 6.83 (d, J = 7.8 Hz, 1H, 3-H), 6.90 (d, J = 9.0 Hz, 2H, 3″-H, 5″-H), 7.06–7.14 (m, 4H, 2′-H, 3′-H, 5′-H, 6′-H), 7.23–7.28 (m, 1H, 5-H), 7.42 (ddd, J = 9.0, 7.9, 1.8 Hz, 1H, 4-H), 7.53 (d, J = 9.0 Hz, 2H, 2″-H, 6″-H), 8.32 (dd, J = 7.9, 1.9 Hz, 1H, 6-H), 9.42 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.42 ((CH₃)₃), 38.65 (CMe₃), 44.97 (N(CH₂)₂), 49.98 (N(CH₂)₂), 116.95 (d, J = 23.6 Hz, C-3′, C-5′), 117.01 (C-3″, C-5″), 117.80 (C-3), 121.15 (d, J = 8.3 Hz, C-2′, C-6′), 121.69 (C-2″, C-6″), 123.97 (C-5), 124.03 (C-1), 131.20 (C-1″), 132.49 (C-6), 132.98 (C-4), 147.98 (C-4″), 151.06 (d, J = 2.6 Hz, C-1′), 155.43 (C-2), 159.65 (d, J = 244 Hz, C-4′), 162.35 (N(C=O)O), 176.37 ((C=O)NH); HRMS (ESI+): calcd for C₂₈H₃₁FN₃O₃⁺ [M + H]⁺: 476.2344; found: 476.2332.

N-{4-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-2-(4-fluorophenoxy)-3-nitrobenzamid (44): Reaction of the carboxylic acid 11 (140 mg (0.51 mmol)) with the amine 19 (133 mg (0.51 mmol)), 2-chloro-N-methylpyridinium iodide (227 mg (0.89 mmol)) and DIPEA (300 mg (2.55 mmol)) in dry dichloromethane (15 mL) gave the crude product. It was purified by column chromatography (silica gel, EtAc/CH 3:1) yielding compound 44 as orange amorphous solid (194 mg (73%)). IR = 3423, 1677, 1604, 1524, 1501, 1363, 1323, 1189, 836, 776; ¹H NMR (CDCl₃) δ = 1.31 (s, 9H, (CH₃)₃), 3.10–3.13 (m, 4H, N(CH₂)₂), 3.77–3.80 (m, 4H, N(CH₂)₂), 6.83–6.87 (m, 4H, 2′-H, 3″-H, 5″-H, 6′-H), 6.96–7.01 (m, 2H, 3′-H, 5′-H), 7.33 (d, J = 9.0 Hz, 2H, 2″-H, 6″-H), 7.55 (t, J = 8.0 Hz, 1H, 5-H), 8.08 (dd, J = 8.0, 1.8 Hz, 1H, 4-H), 8.44 (dd, J = 8.0, 1.8 Hz, 1H, 6-H), 8.66 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 38.66 (CMe₃), 44.91 (N(CH₂)₂), 49.68 (N(CH₂)₂), 116.60 (d, J = 8.3 Hz, C-2′, C-6′), 116.81 (C-3″, C-5″), 116.82 (d, J = 23.8 Hz, C-3′, C-5′), 121.71 (C-2″, C-6″), 126.32 (C-5), 128.63 (C-4), 129.93 (C-1″), 131.12 (C-1), 136.58 (C-6), 143.84 (C-3), 144.97 (C-2), 148.52 (C-4″), 152.86 (d, J = 2.6 Hz, C-1′), 158.91 (d, J = 244 Hz, C-4′), 160.49 ((C=O)NH), 176.38 (C=O); HRMS (ESI+): calcd for C₂₈H₃₀FN₄O₅⁺ [M + H]⁺: 521.2195; found: 521.2183.

N-{4-[4-(2,2-Dimethylpropanoyl)piperazin-1-yl]phenyl}-3-fluoro-2-(4-fluorophenoxy)benzamid (45): Reaction of the carboxylic acid 10 (100 mg (0.40 mmol)) with the amine 19 (105 mg (0.40 mmol)), 2-chloro-N-methylpyridinium iodide (179 mg (0.70 mmol)) and DIPEA (259 mg (2.00 mmol) in dry dichloromethane (12 mL) gave the crude product. It was purified by column chromatography (flash silica gel, CH/CH₂Cl₂/EtAc 1:0.3:1.25) yielding compound 45 as pale yellow amorphous solid (122 mg (63%)). IR = 3405, 1623, 1502, 1462, 1417, 1320, 1270, 1232, 1188, 1016, 828, 767; ¹H NMR (CDCl₃) δ = 1.31 (s, 9H, (CH₃)₃), 3.09–3.12 (m, 4H, N(CH₂)₂), 3.77–3.81 (m, 4H, N(CH₂)₂), 6.88 (d, J = 9.0 Hz, 2H, 3″-H, 5″-H), 6.93–6.97 (m, 2H, 2′-H, 6′-H), 6.99–7.04 (m, 2H, 3′-H, 5′-H), 7.30–7.38 (m, 2H, 4-H, 5-H), 7.42 (d, J = 9.0 Hz, 2H, 2″-H, 6″-H), 8.04–8.07 (m, 1H, 6-H), 9.03 (s, 1H, NH); ¹³C NMR (CDCl₃) δ = 28.41 ((CH₃)₃), 38.65 (CMe₃), 44.93 (N(CH₂)₂), 49.84 (N(CH₂)₂), 116.61 (d, J = 23.8 Hz, C-3′, C-5′), 116.72 (d, J = 8.3 Hz, C-2′, C-6′), 116.93 (C-3″, C-5″), 120.29 (d, J = 18.6 Hz, C-4), 121.55 (C-2″, C-6″), 126.27 (d, J = 7.7 Hz, C-5), 127.10 (d, J = 3.3 Hz, C-6), 129.32 (C-1), 130.63 (C-1″), 140.40 (d, J = 13.1 Hz, C-2), 148.22 (C-4″), 152.96 (t, J = 2.2 Hz, C-1′), 154.98 (d, J = 252 Hz, C-3), 158.85 (d, J = 243 Hz, C-4′), 161.17 (d, J = 3.2 Hz, (C=O)NH), 176.36 (C=O); HRMS (ESI+): calcd for C₂₈H₃₀F₂N₃O₃⁺ [M + H]⁺: 494.2250; found: 494.2234.

3.3. Biological Tests

3.3.1. In Vitro Microplate Assay against P. falciparum NF54

The in vitro activity of compounds against erythrocytic stages of the drug sensitive NF54 strain of P. falciparum originating from Thailand was determined using a ³H-hypoxanthine incorporation assay [35,36,37]. Compounds were dissolved in DMSO at 10 mg/mL and further diluted in medium before adding to parasite cultures that were incubated in RPMI 1640 medium without hypoxanthine, supplemented with HEPES (5.94 g/L), NaHCO₃ (2.1 g/L), neomycin (100 U/mL), AlbumaxR (5 g/L) and washed human red blood cells A+ at 2.5% haematocrit (0.3% parasitaemia). Serial drug dilutions of eleven 3-fold dilutions steps covering a range from 100 to 0.002 µg/mL were prepared. The 96-well plates were incubated in a humidified atmosphere at 37 °C; 4% CO₂, 3% O₂, 93% N₂. After 48 h of incubation time, 0.05 mL of ³H-hypoxanthine (=0.5 µCi) was added to each well of the plate. The plates were incubated for further 24 h under the same conditions. Plates were then harvested using a Betaplate^TM cell harvester (Wallac, Zurich, Switzerland). Red blood cells were transferred onto a glass fiber filter and then washed with distilled water. The dried filters were inserted into a plastic foil with 10 mL of scintillation fluid and counted in a Betaplate^TM liquid scintillation counter (Wallac, Zurich, Switzerland). IC₅₀ values were calculated from sigmoidal inhibition curves by linear regression using Microsoft Excel [38]. Chloroquine (Sigma C6628) was used as control.

3.3.2. In Vitro Cytotoxicity with L-6 Cells

The cytotoxicity assays were performed using 96-well microtiter plates, each well containing 4000 L-6 cells (a primary cell line derived from rat skeletal myofibroblasts, ATCC CRL-1458^TM) in 0.1 mL of RPMI 1640 medium supplemented with 1% glutamine (200 mM) and 10% fetal bovine serum [39,40]. Serial drug dilutions of eleven 3-fold dilution steps covering a range from 100 to 0.002 µg/mL were prepared. After 70 h of incubation, the plates were inspected under an inverted microscope to assure growth of the controls and sterile conditions. Then, 0.01 mL resazurin solution (resazurin, 12.5 mg in 100 mL double-distilled water) was added to each well and the plates were incubated for another 2 h. The plates were read with a Spectramax Gemini XS microplate fluorometer (Molecular Devices Cooperation, Sunnyvale, CA, USA) using an excitation wavelength of 536 nm and an emission wavelength of 588 nm. IC₅₀ values were calculated by linear regression from the sigmoidal dose inhibition curves using SoftmaxPro software (Molecular Devices Cooperation, Sunnyvale, CA, USA) [38]. Podophyllotoxin (Sigma P4405) was used as control.

3.3.3. Parallel Artificial Membrane Permeability Assay

With the high-throughput PAMPA the newly synthesized compounds were tested for their passive permeability through cell membranes without the influence of efflux pumps or transporter proteins. The assay was performed using a Corning^® Gentest^TM Pre-coated PAMPA Plate System with 96-well polystyrene plates. The bottom of the acceptor plate consists of a porous membrane, whereby the pores are lined with a lipid-oil-lipid triple layer. Stock solutions of each test compound at 10 mM were prepared in DMSO or methanol and diluted with phosphate-buffered saline (PBS at a pH of 7.4) to a final concentration of 200 µM. Hydrochlorothiazide (Pe = 0.9 nm/s) and caffeine (Pe = 80 nm/s) were used as standards. The donor plate (bottom plate) was filled with the compound solutions, whereby all compounds were tested in quadruplicates. Each well of the acceptor plate (top plate) was filled with PBS buffer. Donor and acceptor plates were combined and incubated at room temperature for 5 h. After that, the plates were separated and 150 µL of each well of both plates were transferred to 96-well UV plates (Greiner Bio-One). Absorption at different wavelengths covering a range from 200 to 300 nm was measured using a SpectraMax M3 UV plate reader. By measuring serial dilutions of five dilution steps covering a range from 200 to 12.5 µM, a calibration curve was prepared. The plates were analyzed at the wavelength where the R² value of the calibration curve was higher than 0.99 [41]. Effective permeability Pe of each test compound was calculated using the following Equations (1)–(3):

$$Pe=\frac{-\ln \left[1-\frac{c_A\left(t\right)}{c_{equ}}\right]}{S\ast \left(\frac{1}{V_D}+\frac{1}{V_A}\right)\ast t}$$

(1)

where:

• Pe—effective permeability;
• S—filter area (0.3 cm²);
• V_D—donor well volume (0.3 mL);
• V_A—acceptor well volume (0.2 mL);
• t—incubation time (18,000 s);
• c_A(t)—acceptor well compound concentration at time t;
• c_equ—equilibrium concentration.

$$c_{equ}=\frac{[c_D\left(t\right)\ast V_D+c_A\left(t\right)\ast V_A]}{\left(V_D+V_A\right)}$$

(2)

where:

• V_D—donor well volume (0.3 mL);
• V_A—acceptor well volume (0.2 mL);
• c_A(t)—acceptor well compound concentration at time t;
• c_D(t)—donor well compound concentration at time t.

Recovery of compounds from donor and acceptor wells (mass retention) was calculated as shown in the equation below. Data were only accepted when recovery exceeded 70%.

$$R=1-\frac{\left[c_D\left(t\right)\ast V_D+c_A\left(t\right)\ast V_A\right]}{\left(c_0\ast V_D\right)}$$

(3)

where:

• R—mass retention (%);
• V_D—donor well volume (0.3 mL);
• V_A—acceptor well volume (0.2 mL);
• c_A(t)—acceptor well compound concentration at time t;
• c_D(t)—donor well compound concentration at time t;
• c₀—initial donor well compound concentration (200 µM).

3.3.4. Ligand Efficiency (LE)

Ligand efficiency was calculated as shown in the following Equation (4):

$$LE=\frac{1.37}{HA}\ast pI{C}_{50}$$

(4)

where:

• LE—ligand efficiency;
• HA—number of heavy atoms;
• pIC₅₀—negative logarithm of IC₅₀.

4. Conclusions

This paper deals with the synthesis of derivates of MMV’s Malaria Box compound 1, which exhibits multi-stage activity against different strains of P. falciparum and lack of resistance development. It is a 2-(4-fluorophenoxy)-3-(trifluoromethyl)benzanilide with a N-bocpiperazinyl group in ortho position of the anilide nitrogen. The first series focused on the derivatization of the anilino moiety showing the positive influence of a N-bocpiperazinyl group or a 4-pivaloylpiperazinyl group in ortho or para position, which became partial structure of all of the new compounds. The 3-(trifluoromethyl) group was replaced by hydrogen, fluoro, amino or nitrogen substituents, but turned out to be the preferable substitution. The 2-(4-fluorophenoxy) moiety was replaced by an anilino, a 4-fluoroanilino or a (4-fluorophenyl)sulfanyl substituent. The latter was partial structure of 29 which exhibits a N-bocpiperazinyl group in 2′-position of the benzanilide. Compared to 1 it showed improved activity, selectivity and passive permeability (Figure 6).
