Review

Renal Proximal Tubular Cells: A New Site for Targeted Delivery Therapy of Diabetic Kidney Disease

by
Hao Li
,
Wenni Dai
,
Zhiwen Liu
and
Liyu He
*
Department of Nephrology, The Second Xiangya Hospital of Central South University, Hunan Key Laboratory of Kidney Disease and Blood Purification, Changsha 410011, Hunan, China
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(12), 1494; https://doi.org/10.3390/ph15121494
Submission received: 6 November 2022 / Revised: 28 November 2022 / Accepted: 29 November 2022 / Published: 30 November 2022
(This article belongs to the Special Issue Feature Reviews in Pharmaceutical Technology)
Browse Figure
Versions Notes

Abstract

:
Diabetic kidney disease (DKD) is a major complication of diabetes mellitus (DM) and the leading cause of end-stage kidney disease (ESKD) worldwide. A significant number of drugs have been clinically investigated for the treatment of DKD. However, a large proportion of patients still develop end-stage kidney disease unstoppably. As a result, new effective therapies are urgently needed to slow down the progression of DKD. Recently, there is increasing evidence that targeted drug delivery strategies such as large molecule carriers, small molecule prodrugs, and nanoparticles can improve drug efficacy and reduce adverse side effects. There is no doubt that targeted drug delivery strategies have epoch-making significance and great application prospects for the treatment of DKD. In addition, the proximal tubule plays a very critical role in the progression of DKD. Consequently, the purpose of this paper is to summarize the current understanding of proximal tubule cell-targeted therapy, screen for optimal targeting strategies, and find new therapeutic approaches for the treatment of DKD.

1. Introduction

Diabetic kidney disease (DKD) is one of the main complications of diabetes mellitus (DM) and is also the main cause of end-stage kidney disease (ESKD). The prevalence of ESKD in the general adult population in mainland China is 10.8%. With the rapid development of the world economy and the increasingly serious aging of the population, the incidence of ESKD is increasing year by year [1,2]. At present, there are approximately 100 million DKD patients in the world, resulting in huge medical costs and a huge economic burden [3]. The main treatment methods for DKD are blood pressure control and blood glucose control, and commonly used drugs include angiotensin-converting enzyme inhibitors (ACEI), angiotensin II receptor blockers (ARB), mineralocorticoid receptor antagonists (MRAs), dipeptidyl peptidase 4(DPP-4) inhibitor glucagon-like peptide-1 (GLP-1) receptor agonist, and sodium glucose cotransporter 2(SGLT2) inhibition [4,5,6,7,8,9]. In addition, in recent years, papers have reported new drugs for the treatment of DKD, such as: luteolin attenuates, protein arginine methyltranferase-1, stanniocalcin-1 (STC-1), adiponectin, and microRNA-122-5p [10,11,12,13,14]. However, these drugs make it difficult for them to control the progression of DKD due to their side effects or difficulties in achieving effective accumulation in the kidney. In such cases, many patients inevitably develop ESKD. Therefore, new therapeutic methods are urgently needed to be developed and applied to DKD.
Targeted drug delivery therapy refers to the use of the specific carrier to wrap active pharmaceutical ingredients [15] that can be transported to designated organs or cells via the carrier. In this way, its local drug concentration can be greatly increased and its side effects can be deeply reduced. Targeted drug delivery therapy is a new treatment method that has been widely used in various tumors, such as urothelial carcinoma, breast cancer, non-small cell lung cancer, and so on [16,17,18]. The study of kidney-targeted drug delivery began in 1990, and the concept was comprehensively proposed by Haas in 2002 [19]. During these two decades, various studies on kidney-targeted drug delivery have been published. It is well known that the kidney consists of basic renal units, which are composed of glomeruli and tubules, and the main pathological changes in DKD are glomerulosclerosis, tubular dysfunction, and tubulointerstitial fibrosis [20,21,22]. Therefore, the targeted treatment of DKD to glomeruli and tubules is of great significance. In current studies, the main focus is on glomerular podocytes, glomerular mesangial cells, and proximal tubular cells [23]. The purpose of this paper is to provide a comprehensive and important update on the development of drug delivery strategies for this target in proximal tubular epithelial cells, to summarize the rationale of its targeting and the associated drug carriers, in order to find new methods for the treatment of DKD.

2. Renal Proximal Tubular Cells

Targeted drug delivery to proximal tubular cells not only significantly enhances the efficiency of drug effects but also extremely reduces the negative side effects caused by drug action to other sites. This provides a new idea for the treatment of pathological changes such as tubulointerstitial fibrosis caused by DKD. In order to understand the targeted drug delivery to proximal tubular cells, we must first understand the physiological characteristics of the proximal tubule, its relationship with DKD, and its mechanism of drug uptake.

2.1. Physiological Characteristics of Proximal Tubule Cells

The kidney consists of basic renal units, which are composed of glomeruli and tubules. The renal tubule consists of a single layer of epithelial cells arranged on the proximal tubule, distal tubule, and collecting duct, which undertakes the exchange of substances between blood and urine. Therefore, the main physiological functions of renal tubules are reabsorption and secretion [24]. The proximal tubule plays a primary role in reabsorption, participating in the reabsorption of approximately two-thirds of the filtrate and recovering many compounds from the urine [25]. In addition, proximal tubules also have a potent secretory role, especially activated proximal tubular epithelial cells, which can promote the formation and development of tubulointerstitial lesions, reduced renal function, interstitial inflammation, and fibrosis through chemotaxis, antigen presentation, and cytokine autocrine and paracrine patterns [26,27]. This is very closely related to the development of DKD.

2.2. Relationship with DKD Progression

Currently, the most significant research on diabetes kidney disease has been focused on the glomerulus-centered research model. The pathological changes of the glomerulus, such as glomerular basement membrane thickening, mesangial expansion, increased resistance of endothelial cell fenestrations and podocyte injury [28,29,30,31], are the main pathological changes of DKD and are closely related to proteinuria, which is the signature of DKD. However, it has been shown that some patients with advanced disease show neither substantial glomerulopathy nor proteinuria but demonstrate a decline in traditional indicators of renal function (such as the presence of microalbuminuria or a decrease in glomerular filtration rate) [32]. Thus, structural and functional alterations of the renal tubules have an irreplaceable role in the progression of DKD. Renal tubular injury, mostly in the proximal tubule, is associated with abnormal activation of the AGEs-RAGE signaling pathway and is closely related to tubulointerstitial fibrosis, interstitial inflammation, and decreased renal function [33]. The mechanism that causes its injury is that due to the dependence of the proximal tubule itself on high energy and aerobic metabolism, when ischemic injury occurs in diabetic patients, increased consumption, impaired utilization, and reduced delivery of oxygen lead to apoptosis and fibrosis in the renal unit of the proximal tubule [34].

2.3. Mechanism of Proximal Tubule Uptake of Drugs

Although the renal tubules consist of proximal tubules, distal tubules, and collecting ducts, most tubule-targeting systems are aimed at the proximal tubules [35]. According to the anatomy of the kidney, drugs have to travel from the blood circulation to the proximal tubular cells, and there are two anatomical barriers between them, glomerular filtration barriers and basolateral barriers [36]. The glomerular filtration barrier is a highly specialized capillary wall that consists of three parts, including endothelial cells, podocytes, and basement membrane [37]. First, glomerular endothelial cells have the function of window opening, and the diameter of their window opening is approximately 70–100 nm [38]. There is an endothelial surface layer consisting of a membrane-bound layer of proteoglycans, glycosaminoglycans, and salivary proteins, a glycocalyx, and a loosely attached endothelial cell shell. Since salivary proteins, sulfated glycosaminoglycans, and hyaluronic acid in the endothelial surface layer are negatively charged, positively charged carriers pass through more easily [39]. Second, the glomerular basement membrane is composed of laminins, collagen IV, nidogens, and the heparan sulfate proteoglycans agrin, perlecan, and collagen XVIII. GBM is negatively charged due to the presence of negatively charged heparan sulfate proteoglycans agrin, which facilitates the passage of positively charged carriers [40]. Third, the podocyte is the terminally differentiated epithelial cell of the glomerulus, and its structure is traditionally divided into three distinct subcellular compartments: the cell body, the microtubule-driven membrane-extended primary process, and the actin-driven membrane-extended peduncle [41,42]. Adjacent podocyte cross each other at their foot processes, which are also called the slit diaphragm. The size of these slit diaphragms determines the size of the carrier that can pass through, with a passable carrier diameter of approximately 5–7 nm [43]. The basolateral barrier consists of the periportal capillary endothelium and the tubular mesenchyme between the capillaries and the proximal tubular cells. In order to cross this barrier, it first depends on the windowing of the peritubular capillary endothelium, which has a diameter of approximately 60–70 nm [44]. These opening windows are covered by a septum of approximately 3–5 nm thickness, which is composed of radial fibrils. The pore size to pass through these fibers is approximately 5.0–5.5 nm [45,46,47]. The surface layer of peritubular capillary endothelial cells contains negatively charged heparan sulfate so that positively charged drug carriers pass through more easily than negatively charged ones [48,49].
As the above description shows, it is easy to know that positively charged drugs with sizes smaller than 5–7 nm can reach proximal tubule cells from the bloodstream relatively easily and smoothly through the anatomical barrier. However, there are two ways that the drugs are taken up by the proximal tubule, one is the transporter protein, and the other is the receptor-mediated endocytosis [50]. The SLC subgroup is the uptake of drugs following chemical gradient-mediated passive transport. The ABC family is the uptake of drugs relying on ATP-depleted active transport [51,52]. Although there are so many transporter proteins, the feasibility of choosing them as transporters for targeted drug uptake is not high. First, as they are mainly involved in the uptake of small endogenous molecules and small molecules, targeted drugs with carriers may be too large for them. Second, the drug that is transported in by a transporter protein on one side of the proximal tubule may be quickly transported out again by the same or a different transporter protein on the other side. This may make it difficult to achieve effective drug concentrations in the proximal tubule. Finally, these transport proteins are widely distributed not only in the kidney but also in other organs [53,54]. This is the most limiting point for its application, because the most important thing for our targeted therapy is to increase the concentration of the drug in the kidney and reduce its side effects in other sites.

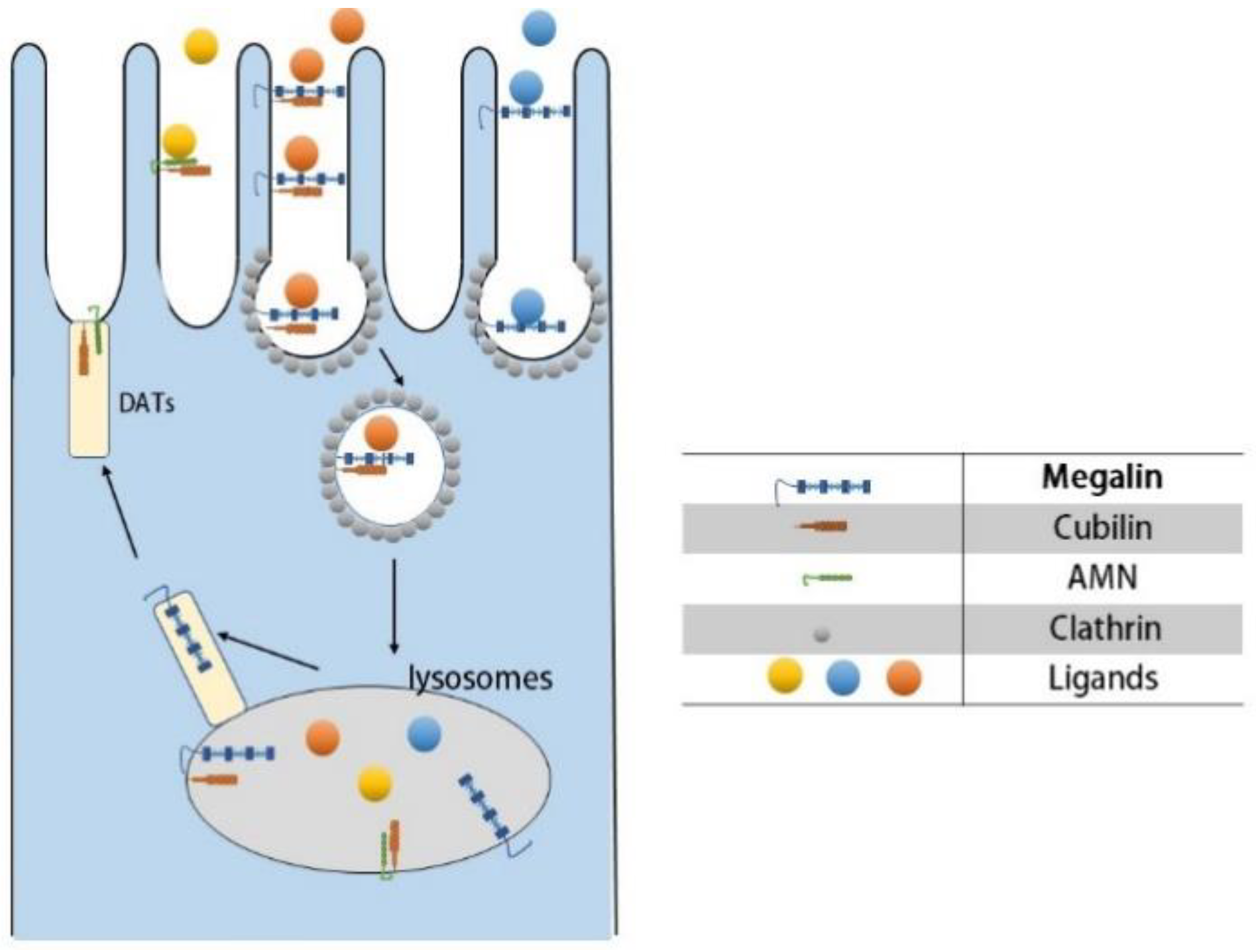

Consequently, we have to focus on receptor-mediated endocytosis (Figure 1). There are four receptors associated with targeted therapy, namely: megalin, cubilin, amnionless(AMN), and folate receptors [35]. Megalin and cubilin are present in the parietal membrane of proximal tubule epithelial cells, and it was shown that megalin cooperates with cubilin to facilitate the reabsorption of almost all filtered plasma proteins [55,56]. Megalin, as a multispecific clearance receptor, has a large extracellular structural domain, a single transmembrane structural domain, and a small cytoplasmic structural domain. In contrast, cubilin has only one extracellular structural domain and lacks the transmembrane and cytoplasmic structural domains, and it must interact with other membrane proteins for endocytosis. AMN has an extracellular structural domain, transmembrane structural domain, and cytoplasmic structural domain, and its main role is to assist the endocytosis of cubilin [57,58]. Based on differences in cellular ultrastructure, the proximal tubule is anatomically divided into three distinct segments S1 to S3, and it was shown that the s1 segment is highly specialized for receptor-mediated endocytosis [59,60]. Therefore, it is not difficult to conclude that the s1 fragment is the primary location where our targeted therapeutic drug is taken up by the proximal tubule. Megalin and cubilin combine and mediate endocytosis of a large and highly diverse set of ligands, including plasma proteins, peptides, enzymes, vitamin-binding proteins, hormones, and hormone-binding proteins, as well as drugs and toxins. Even though these two receptors have a wide range of ligands, their interaction with the ligands is specific [61]. As for the folate receptor (FR), its main role is to reabsorb folate from the renal tubular lumen. Among the four folate receptor subtypes identified in humans, the membrane-associated folate receptors FRα and FRβ were detected only in proximal renal tubule cells, which have a high specificity. In addition, folate receptors are overexpressed in a variety of malignant tissues and have been used for tumor-targeted delivery of anticancer drugs [62,63]. In summary, receptor-mediated endocytosis will be an important mechanism for our proximal tubule-targeted therapy.
(A)
Ligand–receptor binding: Cubilin, due to its lack of transmembrane and cytoplasmic structural domains, must form a dual receptor complex with megelin or amnionless (AMN) for endocytosis to occur. Different ligands bind to the corresponding receptors with different affinities.
(B)
Vesicle transport: After receptor–ligand binding, lattice proteins wrap the vesicles and transport them to the corresponding organelles (e.g., lysosomes) for further processing.
(C)
Receptor recycling: After vesicle release of ligand, the receptor is recycled to the cell membrane by the apical tubules (DATs).

3. Targeted Drug Delivery Strategy

As previously discussed, the glomerular filtration barrier requires drugs smaller than 5–7 nm in diameter and positively charged to cross the barrier and reach the proximal tubule. Carriers that can be used as proximal tubule cell-targeted therapeutics include common proteins and peptides, polymers, small molecule prodrugs, and nanoparticles. I will summarize and discuss the applications and feasibility of these carriers in detail in the following sections.

3.1. Protein-Based and Peptide-Based Carriers

Low molecular weight proteins are the most widely researched carriers, which reach renal tubular cells via receptor-mediated endocytosis. The most popular of the low-molecular-weight proteins is lysozyme, with a molecular weight of approximately 14 kDa, which freely passes through the glomerular basement membrane and is endocytosed into proximal tubular cells expressing the giant protein receptor. Haas et al. [64] used lysozyme as a carrier to wrap naproxen targeted to the proximal tubule, resulting in a significant increase in naproxen accumulation in the kidney of approximately 70-fold. Dolman et al. [65] linked sunitinib analogs to lysozyme via a platinum-based linker to target them to the proximal tubule. The area of subcurvilinear renal drug levels was increased by 28-fold compared to equimolar doses of sunitinib malate, and its toxicity was substantially reduced. In spite of the fact that lysozyme is widely studied, the carrier itself can cause adverse effects such as systemic blood pressure and adverse effects on renal function [66]. In addition to lysozyme, another low molecular weight protein is the human serum protein fragment. Vegt et al. [67] first suggested in 2008 that the serum albumin fragment could be targeted to the kidney. Z.-x. Yuan et al. [68] used human serum albumin as the starting material, cleaved it into albumin fragments, and separated and purified the degradation products using Superdex 75 and CM-Sepharose FF to obtain three peptide fragments with specific sequences (PF-A1–123, PF-A124–298, and PF-A299–585). By studying their nephrotoxicity and cellular uptake, it was concluded that the human serum protein fragments not only showed good targeting (with PF-A299–585 being the best) but also no nephrotoxicity despite concentrations up to 5.00 mg/mL. Furthermore, in their next study [69], they applied PF-A299–585 as a vector to carry the Chinese herbal medicine rehmannia methylestradiol, which successfully targeted the kidney and alleviated the symptoms in a rodent model of membranous nephropathy. This certainly indicates that human serum protein fragment is an effective targeting carrier. Moreover, other proteins that can be reabsorbed by renal tubules, such as streptavidin [70] and somatostatin [71], also have some potential to become proximal tubule carriers. Thus, low molecular weight proteins have a bright and wide application prospect as targeting carriers for proximal tubule cells.

3.2. Polymeric Carriers

A number of studies have demonstrated that polymers can be used as carriers for proximal tubule targeting. The ability of polymers to accumulate in the renal tubules depends primarily on the type of anionic group, the copolymer monomer content, and the molecular weight of the final polymer. For example, low molecular weight polyvinylpyrrolidone (PVP) is excreted in the urine and does not accumulate in the kidney. However, anionized polyvinylpyrrolidones can remain in the kidney and carboxylated PVP exhibits higher renal accumulation than sulfonated PVPs. Kodeira et al. [72] found that carboxylated PVP accumulated in the kidney at 30% of the injected dose 3 h after administration, and most carboxylated PVP accumulated in the proximal tubule. On the basis of PVP, another PVP copolymer, poly (vinylpyrrolidone-co-dimethyl maleic anhydride) co-polymer (PVD), which has a higher renal accumulation, was investigated. Kamada et al. [73] found that approximately 80% of the 10-kDa PVD selectively accumulated in the kidney 4 h after intravenous administration of PVD to mice. Moreover, approximately 40% remained in the kidney 96 h after treatment. Yamamoto et al. [74], who used PVD as a carrier for the protein drug superoxide dismutase (SOD), showed that approximately six times more L-PVD-SOD than natural SOD was distributed to the kidney 3 h after intravenous injection.
Another targeting carrier that has been extensively studied is acetylated low molecular weight chitosan (LMWC). Using fluorescence imaging, Z.-X. Yuan et al. [75] found that random 50% N-acetylated low molecular weight chitosan (LMWC) selectively accumulated in the kidney, especially in the proximal tubule, and used LMWC as a carrier to piggyback on prednisolone and showed that the binding with a molecular weight of 19 kD had the highest accumulation rate in the kidney, and the total amount in the kidney was 13 times higher than that in the control prednisolone group D.-W. Wang et al. [76] constructed stepwise targeted chitosan triphenylphosphine-low molecular weight chitosan-curcumin (TPP-LMWC-CUR, TLC) and TLC in kidney tissue, causing rapid preferential distribution followed by specific internalization by renal tubular epithelial cells via interaction of the megalin with LMWC. LMWC is now well established for the targeted treatment of AKI and hyperuricemic kidney stones [76,77]; therefore, LMWC should have great potential as a vehicle for the treatment of DKD.
A recently emerging research trend is the use of various amino-acid-modified polyamide amine dendrimers as targeting carriers, which have been extensively investigated in tumors as well as osteoporosis [78,79]. Matsuura et al. [80] used L-serine (Ser)-modified polyamide amine dendrimers (PAMAM) as effective kidney-targeting drug carriers and showed that 3 h after intravenous injection, approximately in contrast, unmodified PAMAM, L-threonine-modified PAMAM, and L-tyrosine-modified PAMAM resulted in 28%, 35%, and 31% renal accumulation, respectively. The results suggest that Ser modification is a promising approach for renal targeting using macromolecular drug carriers.
Other carriers with proximal tubule targeting potential have been reported in the literature. For example, poly(N-(2-hydroxypropyl) methacrylamide) (pHPMA), which was applied for targeted tumor therapy, is currently being used [81,82]. In a study of the distribution of pHPMA in tumor-bearing mice, Kissel et al. [83] found a 33-fold higher concentration of biotin-pHPMA than HPMA in proximal tubular cells of both kidneys by day 7 after intravenous injection. This suggests that biotinylated pHPMA has the potential to target the kidney. However, its application is limited by the non-degradable nature of its backbone [84].
Similarly, poly-l-glutamic acid (PG) is widely used as a carrier for the delivery of anticancer chemotherapeutic drugs [85,86]. H.-J. Chai et al. [87] administered 3H-deoxycytidine-labeled PG and 3H-deoxycytidine intravenously to normal and streptozotocin-induced diabetic rats. The results showed that in normal rats, the renal accumulation was 7- or 15-fold higher in the group injected with PG carrier conjugates than in the non-injected group at 24 h after injection. In the kidneys of diabetic rats, the PG conjugate injected group was 8-fold higher than the control group. Additionally, after 24 h of injection, PG can be selectively deposited in the renal tubular epithelium. This study demonstrates the favorable accumulation properties of PG in normal and oxidative stress-induced kidneys with the potential for proximal tubule-targeted drug carriers. With the advancement of technology, more and more polymers are being invented, and polymer carriers have strong application prospects.

3.3. Small-Molecule Prodrugs

Prodrugs are simple chemical derivatives that require one or two enzymatic or chemical transformations to produce an active drug [88]. Large molecule drugs such as proteins often encounter significant barriers to penetration, so small molecule prodrugs are urgently needed. Folic acid, a carrier that has long been widely used in tumor-targeted therapy [89,90,91], works on the principle that tumor cells express folate receptors. Normal renal proximal tubules also express several folate receptors, so folic acid can be used to target drugs to proximal renal tubular cells [92]. When Trump et al. [93] labeled folic acid conjugates with radionuclides to observe their distribution at the tumor site, they unexpectedly found a high initial uptake of radionuclides in the proximal tubules of the kidney (17% ID/g at five minutes), which increased to 48% ID/g after 4 h. A noteworthy point is that folate receptors are expressed not only in proximal tubules but also in activated macrophages/monocytes and in organs other than the kidney (e.g., liver) [94]. Therefore, folic acid is controversial as a carrier for proximal-tubule-targeted therapy. Hyaluronic acid (HA) is also a small molecule prodrug, and Hu et al. [95] developed an HA-curcumin (HA-CUR) polymeric prodrug targeting proximal tubular epithelial cells. The biodistribution results showed a 13.9-fold increase in the accumulation of HA-CUR in the kidney compared to free CUR. This indicates that HA has a high prospect for proximal tubule targeting applications. There is also a small molecule prodrug called glycosylated small molecule prodrug. Lin et al. [96] designed carbamate-glucosamine conjugate (PCG), a combination of 2-aminoglucose and prednisolone, to ascertain the renal targeting ability of 2-aminoglucose. The results were poor tissue-specific localization of prednisolone and selective accumulation of PCG in the kidney with an 8.1-fold increase in drug concentration in the kidney 60 min after intravenous administration. The specific structural modification of the parent drug is key to the development of renal-targeted prodrugs [97].

3.4. Nanoparticles

Nanoparticles are a popular research topic nowadays. Nanoparticles are defined as particles less than 100 nm in diameter. Nanoparticles include: nanoliposomes, solid lipid nanoparticles, inorganic nanoparticles, organic nanoparticles, and micelles [98,99]. Because of their distinctive physical properties, such as surface effect and volume, in the past few years, nanoparticles have been successfully applied in many fields of medicine, such as cancer, diabetes, osteoarthritis, etc. [100,101,102]. The kidney has always been an important area for nanoparticle applications as well, not only because of the important role of the kidney in physiology but also because of the important role of the kidney in the filtration and excretion of nanoparticles [103]. Therefore, targeting nanoparticles to the renal tubules for the treatment of diabetic nephropathy is also very prospective. Whether the nanoparticles can reach the specified cellular destination depends on the size, homogeneity, surface potential, and drug loading of nanoparticles [104]. In the following, we detail the studies concerning these nanoparticles targeting the renal tubules.
First, nanoliposomes are an ideal and safe form of drug delivery with a characteristic lipid bilayer similar to the cytoplasmic membrane. They can incorporate a wide range of drug candidates in their hydrophilic and hydrophobic compartments [105]. Nanoliposomes can be administered by a variety of routes, including intravenous, transdermal, subcutaneous, or inhalation [106]. Nanoliposomes already have applications in Alzheimer’s disease, osteoporosis, and cancer, as well as promising applications in the treatment of kidney disease [107,108,109]. In a study by C. Huang et al. [110] they have prepared calycosin-loaded nanoliposomes for the treatment of diabetic nephropathy. The particle size, zeta potential, drug loading, and entrapment efficiency of this microparticle were 80 nm, −20.53 ± 3.57, 7.48 ± 1.19%, and 88.37 ± 2.28%, respectively. They used calycosin, an antioxidant, that plays a key role in reducing oxidative stress damage in kidney cells. As we mentioned before, oxidative stress is a key mechanism for tubular damage in diabetic nephropathy. They found that calycosin-loaded nanoliposomes not only reduced the first-pass effect of calycosin to improve its oral absorption but also prolonged its mean bioavailability to provide a slow release.
Second, the concept of solid lipid nanoparticles was first introduced in the early 1990s and has developed rapidly during the last three decades [111]. Solid lipid nanoparticles were investigated intensively as drug delivery systems for a number of delivery pathways, such as oral, parenteral, dermal, and topical delivery [112,113]. In contrast to nanoliposomes, solid lipid nanoparticles are devoid of cavities made up of bilayers. Ahangarpour et al. [114,115,116] utilized solid lipid nanoparticles of myricitrin, which has poor bioavailability, to successfully improve oxidative stress in proximal tubules induced by hyperglycemia. The microparticles they designed were spherical in shape with an average particle size, zeta potential, encapsulation efficiency, and encapsulation capacity of 76.1 nm, −5.51 mV, 56.2%, and 5.62% respectively. It is definitely exciting news for us to target proximal tubule cells for the treatment of DKD. In addition, in a work by M. H. Asfour et al. [117], they ingeniously designed all-trans retinoic acid loaded chitosan/tripolyphosphate lipid hybrid nanoparticles to treat DKD. This is a chitosan-coated solid lipid nanoparticle encapsulated with all-trans retinoic acid, which can greatly increase the oral availability of the drug. All-trans retinoic acid can protect renal tubules in the progression of DKD by inhibiting fibrosis [118]. They have produced spherical microparticles with a size of 338.26 nm and an encapsulation efficiency of 94.19%. Furthermore, when designing the solid nanoparticles, they have applied the characteristic surface effect of nanoparticles to increase the surface area and solubility of the drug.
Third, as for organic nanoparticles, Liu et al. [119] wrapped Chinese medicine monomer Gypenoside (Gyp) XLIX with polymeric nanoparticles to form polylactic acid-co-glycoside (PLGA)-Gyp XLIX nanoparticles. Particle size, zeta potential, encapsulation rate, and drug loading capacity of the microparticles, which they prepared by applying nanoprecipitation and nano-self-assembly methods, were 128 ± 5.89 nm, −35.6 ± 3.18 mV, 82.4 ± 5.36%, and 9.04 ± 0.76%, respectively. The microparticles they prepared targeted the kidney and effectively inhibited tubular fibrosis and tubular necrosis, which are pathological changes found in DKD. Oroojalian et al. [120] used polymyxin-polyetherimide/DNA nanoparticles formulated with polymyxin B to successfully target proximal tubule cells expressing the megalin and demonstrated that it has higher transfection efficiency and lower cytotoxicity than unmodified PEIs/DNA nanoparticles. The microparticles sizes and zeta potentials prepared were 143–180 nm and 16.4 ± 1.87 to 23.43 ± 1.25 mV, correspondingly.
Fourth, inorganic nanoparticles, such as Fe3O4 magnetic nanoparticles, attenuated renal tubular injury and effectively inhibited tubular fibrosis with Fe3O4 magnetic albumin nanoparticles in a study by Liu et al. [121]. The hydrodynamic size and zeta potential of these microparticles were 102 nm and −18.6 mV, respectively. The intelligent use of albumin-coated iron particles effectively prolonged the in vivo circulation time of the particles and reduced off-target side effects [122].
Finally, Micelles are nanoparticles in the size range of 10–100 nm formed by the polymerization of monomers consisting of a hydrophilic head group and a hydrophobic tail group. J. Wang et al. [123] used micelles linked to kidney-targeting peptide (Lys-Lys-Glu-Glu-Glu)3-Lys) to successfully target the megalin on renal tubular epithelial cells. The average diameter of these particles was 15.0 ± 0.0 nm with the zeta potential of −7.8 ± 0.5 mV.
On the other hand, mesoscale nanoparticles refer to the larger gamut of nanoparticles above 100 nm in diameter. In the study by Williams et al. [124,125], they prepared a type of mesoscale nanoparticles with a diameter of approximately 400 nm that were formed from poly (lactic-co-glycolic acid) conjugated to polyethylene glycol, and observed that the nanoparticles could selectively and stably localize to the renal proximal tubular epithelial cells in experimental animals by the fluorescent tracer method. This microparticle size and surface charge were 347.6 ± 21.0 nm and −19.0 ± 0.3 mV, respectively. Their studies found that surface PEGylation facilitated particle localization to the kidney, long-term degradation, and controlled payload release. Moreover, they found that their localization efficiency in the kidney was 26–94 times higher than that in other organs, and they specifically targeted the renal tubules, and they had no inhibitory effect on renal function and no systemic toxicity. This carrier particle has already been successfully applied to encapsulate the selective TLR9 antagonist ODN2088 renal tubular targeting to treat tubular necrosis, inflammation, and apoptosis. This certainly encourages its application for therapeutic studies in DKD [126].
In addition, nanomaterials are not only nanoparticles but also nanotubes, nanocapsules, nanofibers and nanofilms. The tunneling nanotube is a channel that connects cells over long distances and has a diameter of 20–500 nm. The tunneling nanotube-TNFAIP2/M-sec system is used to treat autophagy of podocytes in DKD [127]. From this, we can look forward to future studies to discover whether new proteins present in the renal tubules are involved in the formation of tunneling nanotubes for the targeted treatment of DKD. Nanocapsules are also a common nanomaterial that has great potential in the therapy of DKD. In a study by M. Yu et al. [128], they used reactive-oxygen-species-responsive nanocapsules wrapped around adropin to effectively control blood glucose and lipid levels in DKD mice, inhibit the production of reactive oxygen species, and alleviate oxidative stress in DKD.

4. Conclusions and Future Perspectives

Drug targeting to proximal renal tubular cells is an increasingly sophisticated technique with great potential for development. The proximal tubular cell is a very promising targeting cell because it can transport and accumulate carriers into proximal tubular cells via receptor-mediated endocytosis to achieve appropriate drug concentrations and reduce drug side effects. We summarize four types of carriers that can target proximal tubule cells, including protein- and peptide-based carriers, polymeric carriers, small-molecule prodrugs, and nanoparticles. (Table 1) Among them, nanoparticles may be the most promising carriers for future clinical practice. Compared with the other three carriers, it has lower nephrotoxicity than protein and peptide carriers, better properties than polymer carriers with almost no renal excretion, and better targeting efficiency and retention than small molecule pre-drugs. Nanoparticles have their own unique nano-effects, such as surface effects that can greatly increase the surface area of the encapsulated drug to increase its absorbability. At present, the point that needs to be overcome for nanoparticle carriers is whether mass production and more precise targeting can be achieved. Nanotechnology is developing rapidly today, with technologies such as nanoenzymes, atomic force microscopes, and nanochips making a splash in various fields. We believe that with the future expansion of the field of nanotechnology, it is hopeful that nanoparticles with the ability to mass-produce and precisely target proximal renal tubular cells will be developed to slow down the progression of DKD and cur more and more patients with DKD.

Author Contributions

Writing—original draft preparation: H.L.; writing—review and editing, H.L.; W.D.; Z.L.; L.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [Hunan Provincial Natural Science Foundation for Outstanding Youth] grant number [No. 2022JJ10093], [the Scientific Research Fund of Hunan Provincial Health Commission] grant number [B202303056777], [Natural Science Foundation of China] grant number [81870500]. And The APC was funded by [The Second Xiangya Hospital of Central South University].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
