Article

Less Polar Compounds and Targeted Antioxidant Potential (In Vitro and In Vivo) of Codium adhaerens C. Agardh 1822

1
Department of Organic Chemistry, Faculty of Chemistry and Technology, University of Split, Ruđera Boškovića 35, 21000 Split, Croatia
2
Department of Process Engineering, Faculty of Food Technology, Josip Juraj Strossmayer University of Osijek, Franje Kuhača 18, 31000 Osijek, Croatia
3
Department of Food and Nutrition Research, Faculty of Food Technology, Josip Juraj Strossmayer University of Osijek, Franje Kuhača 18, 31000 Osijek, Croatia
4
Laboratory for Aquaculture Biotechnology, Division of Materials Chemistry, Ruđer Bošković Institute, Bijenička cesta 54, 10000 Zagreb, Croatia
5
Department of Food Technology, Faculty of Food Technology, Josip Juraj Strossmayer University of Osijek, Franje Kuhača 18, 31000 Osijek, Croatia
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2021, 14(9), 944; https://doi.org/10.3390/ph14090944
Received: 26 August 2021 / Revised: 17 September 2021 / Accepted: 18 September 2021 / Published: 21 September 2021
(This article belongs to the Special Issue Chemistry and Biomedical Potential of Marine Natural Products)

Abstract

:
Codium adhaerens from the Adriatic Sea (Croatia) was comprehensively investigated regarding less polar compounds for the first time. Although there are several phytochemical studies on C. adhaerens from other regions, this is the first report on volatile organic compounds (VOCs) from fresh (FrCa) and air-dried (DrCa) samples. The novelty is also related to its targeted antioxidant potential in vitro and in vivo. The main aims were to: (a) identify and compare VOCs of FrCa and DrCa obtained by headspace solid-phase microextraction (HS-SPME) and hydrodistillation (HD); (b) determine fatty acid (FA) composition of freeze-dried sample (FdCa); (c) determine the composition of less polar fractions of FdCa by high-performance liquid chromatography–high-resolution mass spectrometry with electrospray ionisation (UHPLC-ESI-HRMS); and (d) comprehensively evaluate the antioxidant activity of the fractions by four in vitro assays and in vivo zebrafish model (including embryotoxicity). Significant changes of VOCs were found after air drying. ω6 FAs were present in higher content than ω3 FAs indicating C. adhaerens as a good source of dietary polyunsaturated FAs. The results obtained in vivo correlate well with in vitro methods and both fractions exerted similar antioxidative responses which is in agreement with the high abundance of present biomolecules with known antioxidant properties (e.g., fucoxanthin, pheophytin a, and pheophorbide a). These results suggest that C. adhaerens might be a potent source of natural antioxidants that could be further used in the research of oxidative stress-related diseases.

Graphical Abstract

1. Introduction

Interest in using green seaweeds as natural resources has recently increased because of their bioactive constituents, which may be used for medical purposes. Green seaweeds, in general, contain lipids, proteins, peptides, polysaccharides, carotenoids, phenolic compounds, and alkaloids [1,2]. Seaweeds are known to possess nutritional benefits as food and have found much use in industry and medicine for various purposes. Their compounds have complex structures that have shown different biological activities [3,4,5], including anticancer activity, in several in vitro and in vivo models such as polysaccharides (antibacterial, anticancer, anticoagulant, anti-inflammatory, antioxidant, antiviral, hepatoprotective, immunostimulatory, others), phlorotanins (antibacterial, anti-Alzheimer’s, anticancer, antidiabetic, anti-inflammatory, antioxidant, antiviral, cytoprotective, hepatoproptective, immunomodulatory, neuroprotective, others), terpenoids (anticancer, antifungal, antioxidant, others), alkaloids (antibacterial, anticancer, anti-inflammatory, antioxidant, antiviral, neuroprotective, others), or carotenoids (anticancer, antidiabetic, anti-inflammatory, anti-obesity, antioxidant, neuroprotective, others).
A survey of the literature revealed different phytochemical studies on Codium adhaerens. Bioactive compounds present in its ethanol extract were analysed by gas chromatography–mass spectrometry (GC-MS) after the silylation [6]. Proline, mannitol and β-sitosterol were found. Concerning fatty acids, it was found that C. adhaerens contained palmitic, α-linolenic, oleic, stearic, arachidonic, eicosapentaenoic and arachidic acids. Relative pigment composition of C. adhaerens was determined by the cellulose thin-layer chromatogram and chlorophyll a, chlorophyll b and siphonaxanthin were determined [7]. Amino acid composition was determined before and after the hydrolysis in C. adhaerens ethanol extract and alanine, asparagine, aspartic acid, glutamic acid, glutamine, glycine, isoleucine, proline, serine, taurine, threonine and valine were found [8]. The sterol profiles were evaluated by the procedure involving alkaline hydrolysis and extraction followed by separation by reversed-phase high-performance liquid chromatography (HPLC)–diode array detection (HPLC-DAD) and C. adhaerens contained desmosterol, ergosterol, fucosterol, cholesterol, campesterol, stigmasterol and β-sitosterol [9]. Recently, a great deal of interest has been directed toward the isolation of novel sulfated polysaccharides (SPs) from marine green algae because of their numerous health-beneficial effects. Green seaweeds are known to synthesise large quantities of SPs, and arabinose was reported to be the major monosaccharide of SPs from C. adhaerens [2,10]. These SPs exhibit many beneficial biological activities, such as anticoagulant, antiviral, antioxidative, antitumor, immunomodulating, antihyperlipidemic and antihepatotoxic activities [2,10].
However, no reports on the volatile organic compounds (VOCs) from C. adhaerens were found, and therefore we decided to investigate them in detail. Since our previous studies [11,12] indicated great diversity of VOCs from fresh and air-dried samples (including Codium bursa) we decided to research the variability of VOCs of C. adhaerens from fresh (FrCa) and air-dried (DrCa) samples. In addition, VOCs have often been related to less polar constituents, whose comprehensive antioxidant potential from C. adhaerens (in vivo and in vitro) was targeted in the current research for the first time. The main goals of the present research were to: (a) identify and compare VOCs of FrCa and DrCa obtained by headspace solid-phase microextraction (HS-SPME) and hydrodistillation (HD) followed by analysis with gas chromatography and mass spectrometry (GC-MS); (b) determine fatty acid composition of freeze-dried sample (FdCa) after derivatisation as methyl esters by gas chromatography analysis with flame-ionisation detector (GC-FID); (c) determine the composition of less polar fractions of FdCa by high-performance liquid chromatography–high-resolution mass spectrometry with electrospray ionisation (UHPLC-ESI-HRMS); (d) comprehensively evaluate the antioxidant activity of the fractions by four in vitro assays (Folin–Ciocalteu, reduction of radical cation ABTS•+, 2,2-diphenyl-1-picryl-hydrazyl-hydrate (DPPH) assay, and ferric reducing antioxidant power (FRAP)) and in vivo zebrafish model (including embryotoxicity).

2. Results and Discussion

2.1. Headspace Composition

Two fibres of different polarity (divinylbenzene/carboxene/polydimethylsiloxane (DVB/CAR/PDMS) and polydimethylsiloxane/divinylbenzene (PDMS/DVB)) were used for HS-SPME. By this approach, more complete headspace profile could be achieved due to combination of the fibres of different polarities. In FrCa headspace (HS-FrCa) 91.52% of VOCs were identified in total by HS-SPME with DVB/CAR/PDMS fibre and 83.25% by HS-SPME with PDMS/DVB fibre, Table 1.
In DrCa headspace (HS-DrCa), 82.08% (DVB/CAR/PDMS fibre) and 84.91% (PDMS/DVB fibre) of VOCs were identified in total by HS-SPME. The majority of identified VOCs in HS-FrCa belong to sulphur compounds, organoiodines, esters, and lactones, and in HS-DrCa the majority of VOCs were comprised of saturated hydrocarbons. The dominant compound in HS-FrCa was dimethyl disulfide, DMS, (54.25%—DVB/CAR/PDMS fibre; 37.83%—PDMS/DVB fibre). Distribution of the compound structural groups in HS-FrCa and HS-DrCa is presented in Figure 1.
The headspace chemical profile showed that DMS was the main identified compound in the seagrass Posedonia oceanica (59.3%), green alga Flavellia petiolata (22.2%), brown alga Halopteris filicina (12.8%) [13] and green alga C. bursa (56.51%) [12]. It is known that DMS can be easily oxidised into dimethyl sulfoxide (DMSO) in the contact with air [14,15] which can be noticed as the result of air-drying of C. adhaerens. Namely, the amount of DMS decreased 129.2 times (DVB/CAR/PDMS fibre) or 61.0 times (PDMS/DVB fibre) in the sample after air-drying, resulting in the detection of highly abundant DMSO (19.50%; 12.38%). The second dominant compound in HS-FrCa was the aromatic compound benzaldehyde (12.84%; 12.22%), which decreased 3.5 or 5.9 times in HS-DrCa (3.64%; 2.06%). The loss of benzaldehyde during air-drying could be a consequence of its higher volatility in comparison to benzyl alcohol rather than its oxidation to benzoic acid that cannot be found by HS-SPME, and was also not identified by HD. The percentage of aromatic compound benzyl alcohol, as the second most abundant compound is HS-DrCa, increased 3.0 (or 7.7) times in HS-DrCa from 2.22% (or 1.60%) to 6.71% (or 12.35%). Its increase during drying could be connected to lignin degradation, since lignin-related compounds were found in the plant cell walls of Codium fragile [16]. In fact, the green algae extracellular coverings, including cell walls, showed remarkable structural and biochemical similarity to the land plant cell walls containing assemblages of polymers with notable similarity to pectins, cellulose, hemicelluloses, extensin, arabinogalactan proteins (AGPs), and lignin [17]. Aliphatic hydrocarbon heptadecane was the major compound in HS-DrCa. Heptadecane is known to be the most abundant alkane in green algae [18,19]. The abundance of heptadecane in HS-DrCa was higher with DVB/CAR/PDMS fibre (26.61%) with respect to PDMS/DVB fibre (23.12%). The increment of heptadecane with air-drying was noticed (4.0 times—DVB/CAR/PDMS fibre; 2.1 times—PDMS/DVB fibre), probably as a result of fatty acid decarboxylation [20]. Additionally, two saturated aliphatic hydrocarbons were noticed to increase by a great percentage after air-drying (probably due to fatty acids degradation): tridecane (3.2 times; or 2.5 times) and pentadecane (9.1 times; or 4.9 times). In HS-DrCa, three organoiodines were identified (more abundant with PDMS/DVB fibre): iodomethane (2.00%; or 2.48%), diiodomethane (0.26%; or 0.40%) and 1-iodopentane (0.31%; or 0.90%); while in HS-FrCa none of them were detected. Marine macroalgae showed great potency of linking halogen ions resulting in halogenated secondary metabolites formation [21]. Palmer et al. [22] showed that different oxidative stress, including desiccation, increased the volatile iodinated compounds in brown alga Laminaria digitata. Bravo-Linares et al. [23] investigated the production of VOCs in response to environmental stresses and they have found that all tested algae showed greater release of iodinated compounds under stress, especially iodomethane. Even though the brown algae showed the greatest release of iodinated compounds (iodoethane, 2-iodopropane, 1-iodobutane, diiodomethane and iodomethane), the green algae Ulva lactuca and Enteromorpha sp. also contained iodinated compounds that increased during drying process. In the chemical profile of brown alga Aschophyllum nodosum headspace 1-iodopentane (0.8%) was identified as the only organoiodine [13]. It has already been indicated that the volatile halogenated compounds may be involved in the defence mechanism of many different organisms including algae [24]. The enzymes involved in halogenated organic compounds synthesis are haloperoxidases [24].

2.2. Volatile Oil Composition

In the hydrodistillate of FrCa (HD-FrCa) 87.16% and of DrCa (HD-DrCa) 97.96% of total ion chromatogram area were identified in total, Table 2.
The majority of the identified VOCs in both HD-FrCa and HD-DrCa belong to the group of aliphatic compounds—more precisely, saturated hydrocarbons (50.53% HD-FrCa; 27.88% HD-DrCa), Table 2. The prevalent compound in HD-FrCa was saturated hydrocarbon heptadecane (29.32%), which was found with 2.4 times lower abundance in HD-DrCa (12.29%). The origin of heptadecane was connected with direct decarboxylation of stearic acid [19]. The second most abundant saturated hydrocarbon, pentadecane, decreased 1.8 times during air-drying (HD-FrCa 3.25%; HD-DrCa 1.84%), and the most abundant unsaturated hydrocarbon, pentadec-1-ene, decreased 3.2 times after air-drying (HD-FrCa 2.12%; HD-DrCa 0.67%). Although hexadecane was previously found in C. bursa among the major constituents [12], pentadecane was found with a small percentage only in air-dried C. bursa hydrodistillate. The group of chlorophyll derivatives, as the second most represented group (22.80%), and carotenoid degradation products (norisoprenoids) (7.03%) showed significant increase in HD-DrCa. The major photosynthetic pigments of green algae are chlorophyll a and b [25]. Phytol, acyclic diterpene alcohol, is linked to the chlorophyll forming ester linkage [26]. The percentage of (E)-phytol increased from 5.00% in HD-FrCa to 16.99% in HD-DrCa, indicating chlorophyll degradation. The percentage of phytone, the oxidation product of phytol, increased from 2.03% in HD-FrCa to 5.81% in HD-DrCa. Jerković et al. [12] reported a great increase of phytol and phytone in hydrodistillate of air-dried C. bursa. Five norisoprenoids were identified in HD-FrCa: C11-norisoprenoid (β-cyclohomocitral), and C13-norisoprenoids (3,4-dehydroionene, hexahydropseudoionone, α-ionone and β-ionene). The oxidative cleavage of carotenoids leads to the formation of norisoprenoid compounds. Due to differences in the length of carotenoid precursor chain and possible positions of the cleavage, C9- to C13-norisoprenoids could be formed [27]. Hence, in HD-DrCa, two C10-norisoprenoids (safranal and β-cyclocitral) and one C13-norisoprenoid (β-ionone) were identified. α-Ionone and β-ionene showed the percentage increase during air-drying (probably due to the oxidation): α-ionone (0.61% in HD-FrCa; 5.84% in HD-DrCa) and β-ionene (0.85% in HD-FrCa; 1.81% in HD-DrCa). Even though hydrodistillation is not very adequate for long chain fatty acids determination (since they are semivolatile or nonvolatile) several fatty acids were detected: dodecanoic (C12:0) acid (0.52% in HD-FrCa; 0.19% in HD-DrCa), tetradecanoic (C14:0) acid (2.43% in HD-FrCa; 0.24% in HD-DrCa), hexadecanoic (C16:0) acid (8.62% in HD-FrCa; 10.55% in HD-DrCa) and (9Z)-octadec-9-enoic (C18:1n9c) acid (0.49% in HD-FrCa; 2.53% in HD-DrCa). Distribution of the compound structural groups in HD-FrCa and HD-DrCa is presented in Figure 2.

2.3. Fatty Acid Composition

A total of 13 fatty acids were identified in freeze dried C. adhaerens (FdCa), Table 3. The most abundant fatty acids (FAs) were palmitic (C16:0) and arachidic (C20:0) acids with average values 25.50% and 22.48%, respectively.
Pereira et al. [28] and Andrade et al. [6] also confirmed the dominance of the mentioned fatty acids in marine green algae from Codium species. Generally, the total saturated fatty acid (SFA) content (64.94%) was higher than the content of unsaturated fatty acids (UFAs), which was 35.51% (24.66% for monounsaturated FAs (MUFAs) and 10.85% for polyunsaturated FAs (PUFAs)). The prevalence of SFAs over UFAs in Codium species has been reported previously [6,28,29]. Oleic acid isomers (C18:1n9c+ C18:1n9t) were the main unsaturated fatty acids (16.91%) followed by palmitoleic acid (C16:1) and cis-linoleic acid (C18:2n6c) whose content was 5.79% and 4.67%, respectively. Although SFAs are dominant in analysed C. adhaerens, ω6 FAs were presented in higher content than ω3 FAs (Table 3). Higher ω6 FAs than ω3 FAs content was found in a previous study [9] for C. bursa. PUFAs are well known for their positive impact on human health. The importance is even higher if the ω6 FAs: ω3 FAs ratio in food is between 1.5 and 3 that is generally accepted as the balance value for human nutrition [30]. Considering that the ω6 FAs: ω3 FAs ratio obtained in this study was 2.92, marine green alga C. adhaerens can be considered a good source of dietary PUFAs.

2.4. Less Polar Non-Volatile Compounds from F3 and F4 Fractions

The FdCa sample was fractionated (Section 3.7) to obtain less polar fractions F3 and F4, which were analysed by high-performance liquid chromatography–high-resolution mass spectrometry with electrospray ionisation (UHPLC-ESI(+)-HRMS). The major compounds (in terms of signal intensity) from the obtained chromatograms in positive ion mode were tentatively identified on the basis of their elemental compositions and tandem mass spectra (Table 4), and they belong to: chlorophyll derivatives, fatty acid glycerides and related compounds, terpenes, steroids, and carotenoids. Total ion chromatograms of the fractions F3 and F4 are shown in Figure 3 and extracted ion chromatograms (XIC) of most abundant ions in the fractions F3 and F4 are shown in Figure 4.
Well-known green pigment chlorophyll was not detected in the fractions, but its derivatives devoid of magnesium atoms constituted the major compounds, particularly in F4 (Table 4). Identified chlorophyll derivatives can be divided into two sub-groups containing 55 or 35 (without the aliphatic side chain) carbon atoms. The first subgroup includes four highly lipophilic compounds with significant abundance mainly in F4, except for the compound 18 (Table 4), which was also present in F3, since it is more polar due to the additional keto group. The main component of this sub-group is pheophytin a, which has previously been found in notable amounts in different macroalgae [31]. Pheophytin a has been identified from edible green alga Enteromorpha prolifera, and showed a potent anti-inflammatory activity [32], and has been reported to be a potent suppressive substance against umu C gene expression in a tester bacteria induced by genotoxic substances [33]. In addition, previous studies have reported that pheophytin a and pheophytin a-related compounds show antioxidant activity in the autooxidation of lipids [34,35]. The other three compounds of this subgroup were pheophytin a derivatives characterised by the presence of an additional double bond, carbonyl, or hydroxyl group in their composition. The second subgroup consisted of three compounds (Table 4) having the common structure (pheophorbide a and its derivatives differ from pheophytin a by the absence of the long side hydrocarbon chain). Pheophorbide a was much more abundant in F3 than in F4. It is a photosensitiser that can induce significant anti-proliferative effects in several human cancer cell lines [36].
Fatty acid glycerides in F3 and F4 consisted of monoglycerides of palmitic, stearic, oleic, and arachidonic acids that were found prevailing in C. adhaerens fatty acid composition (Table 3). Three diglycerides (one of stearic acid and two of oleic acid) were found (Table 4). Three other compounds, chemically related to this group, were identified as fatty amide (13-docosenamide), fatty acid esters (palmitate and stearate) of 2-hydroxypropanol. Sugar fatty acid ester (octadecatrienoate) and diester of octadecatrienoic and hexadecatrienoic acids were also found. One glycosylmonoacylglycerol (gingerglycolipid A) was present. In addition, the high molecular derivative of 4-oxobutanoic acid with elemental composition C44H80N2O17 was identified (Table 4, compound 14).
Terpenes and steroids comprised five compounds (Table 4). The tandem mass spectrum of C20H32O2 showed two H2O molecules loss and specific carbon backbone fragmentation pattern that permitted assigning diterpenoid isoamijiol structure, similar to F. virsoides [8]. Previously, it was isolated from brown alga Dictyota linearis [37]. Another compound (more abundant in F3) with a similar retention time and the same molecular formula C20H30O2 containing only one hydroxyl was tentatively identified as isoamijiol oxidation product possessing keto-group. Two major steroids (Table 4) were identified as monool (β-stigmasterol) and (3β)-3-hydroxystigmast-5-en-7-one possessing hydroxy and keto groups.
Among xanthophyll carotenoids, only fucoxanthin was found in F3 and F4. It has been reported as the main carotenoid pigment in all brown algae [11,38] that possess different biological activities, i.e., antioxidant and anticancer [39,40].

2.5. Antioxidant Activity of F3 and F4 Fractions In Vitro

Within this study, in vitro evaluation of the antioxidant activity of two less polar fractions F3 and F4 obtained from C. adhaerens was performed using four different spectroscopic methods: Folin–Ciocalteu (F–C), FRAP, DPPH, and ABTS assays. Although F–C assay is commonly known as a measure of total phenolic content, here it represents a rate of an overall antioxidant activity since the extracts do not contain phenols (as in our previous study on F. virsoides [11]). The results obtained using F–C assay indicated 3-fold higher (p < 0.0001) activity of F4 (64.27 ± 0.73 mg GAE/g F4) then F3 (21.12 ± 0.91 mg GAE /g F3). Interestingly, although the obtained values correspond to the values from our two previously published studies on Amphiroa rigida [41] and Fucus virsoides [11], one peculiarity can be observed. In C. adhaerens, higher activity was observed for F4, which is not the case in the other two macroalgae where higher activity is obtained in F3. This aberration could be explained by the different chemical compositions of C. adhaerens fractions (Table 4). The antioxidant activity of F3 and F4 was further tested by implementing additional two antioxidant assays—DPPH and FRAP, as depicted in Figure 5. Although DPPH implies dominant reaction through single electron transfer (SET), DPPH radical can also react through transfer of hydrogen atom (HAT), while FRAP assay is only based on SET. The inhibition percentage using DPPH assay for a tested concentration of 1 mg/mL for both fractions was around 20%. Nevertheless, when normalised per gram of the fraction, F3 (59.69 ± 2.32 mg AAE/g fraction) showed slightly higher (p < 0.005) antioxidant activity then F4 (44.34 ± 4.05 mg AAE/g fraction). However, the reverse result was obtained when conducting FRAP analysis. Higher activity (p < 0.0001) was obtained for F4 (6.54 ± 0.15 mmol ferrous eq./g fraction), then F3 (4.80 ± 0.04 mmol ferrous eq./g fraction). In F4, the dominant compound is pheophytin a along with its derivatives which are known for their antioxidant ability [42], while in F3 pheophytin a is not detected. This is in accordance with the results obtained using FRAP assay, where higher activity was observed in F4, thus indicating easier reaction through single electron transfer probably due to pheophytin a and its side chain in the molecular structure. Conversely, the results obtained using DPPH assay showed relatively low antioxidant activity of both fractions, but slightly higher activity for F3 could be explained by the presence of pheophorbide a (PPBa), which is also a known product related to the chlorophyll with already proven biological activity [36]. Sudha et al. [43] evaluated the antioxidant activity of C. adhaerens by implementing soxhlet extraction with ethyl acetate as solvent. The obtained extract showed the highest activity against free DPPH radical at the concentration of 1000 μg/mL with an inhibition percentage of around 70%.
Additionally, the reduction of radical cation by implementing ABTS assay was also evaluated. To obtain the IC50 curve, different concentrations of F3 and F4 were prepared ranging from 0.05 to 5 mg/mL, followed by increasing the inhibition percentage. IC50 values for both F3 and F4 were calculated as shown in Table 5 with the corresponding confidence interval, slope and coefficient of determination (R2). As can be seen, the IC50 value for both fractions is almost identical and is around 2.4 mg/mL, which represents the higher concentration responsible for the inhibition of 50% of free radicals. This could be explained by the dominant presence of different pigments, i.e., the presence of PPBa in F3 and pheophytin a in F4 with the addition of carotenoid fucoxanthin that exhibits antioxidant activity [44] and is present in both fractions in a similar ratio. Pinteus et al. [45] also analysed the antioxidant activity of numerous algae, including C. adhaerens, but with an emphasis on more polar compounds. They also observed relatively low antioxidant activity with IC50 values for both methanolic and dichloromethane extracts higher than 1000 μg/mL [45]. The inhibition percentage using ABTS assay for tested concentration of 1 mg/mL for both fractions was around 40% (data not shown).

2.6. Developmental Toxicity of F3 and F4 Fractions in Zebrafish Embryo

To evaluate the potential toxicity of tested C. adhaerens fractions on embryonic development of zebrafish, mortality, morphological changes and hatchability at 96 hpf were analysed. Upon exposure to 500, 250 and 125 µg/mL of F3 and F4, no statistically significant changes in survival were observed (p < 0.05; data not shown). Additionally, no significant morphological abnormalities or hatching inhibition were seen in the tested concentration range. Mortality in the control groups (negative control (AW) and solvent controls (1% MeOH, 1% DMSO)) was <5%. Given the obtained results, concentrations of 500, 250 and 125 µg/mL were selected for further experiments.

2.7. Protective Effects of F3 and F4 Fractions against H2O2-Induced Oxidative Stress

Although valuable, in vitro methods do not reflect physiological processes like absorption and metabolism of antioxidants, and therefore a compound that shows good antioxidant properties within in vitro tests may not necessarily be biologically active. For that reason, zebrafish Danio rerio embryos were employed for this research, as currently one of the most perspective vertebrate model organisms [46]. To determine whether C. adhaerens fractions play a role in ROS-mediated oxidative stress, zebrafish embryos were exposed to F3 and F4 fractions in the presence of H2O2. A statistically significant increase in the mortality rate was observed in the H2O2-treated group (66.7 ± 5.8%). However, pre-treatment with the highest tested concentration (500 µg/mL) of both, F3 and F4, declined mortality rates by 23.3% and 26.7%, respectively, compared to H2O2-treated group. Lower concentrations (125 µg/mL and 250 µg/mL) of both fractions had no impact on zebrafish survival.
ROS production was significantly elevated by H2O2 treatment (255.9%) when compared to control groups (normalised to 100%). A concentration-dependent reduction in the DCF fluorescence intensity was observed in the specimens preincubated with the highest concentration of the fractions (Figure 6). The treatment with 500 µg/mL of F3 and F4 resulted in significant decrease of ROS generation to 154.8% (p < 0.001) and 132.7% (p < 0.001), respectively.
Such findings imply that tested fractions protect cells against H2O2-induced oxidative stress, ultimately leading to a decrease in zebrafish mortality. When compared, the results obtained using the zebrafish in vivo model correlate well with the ones obtained with in vitro methods. According to both used methods, F3 and F4 exerted similar antioxidative responses which is in agreement with the high abundance of the biomolecules in the fractions with already proven antioxidant properties. Specifically, fucoxanthin, pheophytin a, and pheophorbide a have attracted extensive interest due to their beneficial biological activities including anti-cancer, anti-inflammatory, anti-oxidant, anti-angiogenic, and anti-wrinkle activity [47,48,49]. Kang et al. [44] demonstrated the protective effects of fucoxanthin (25–100 µM) against high glucose-induced oxidative damage in a zebrafish model. Even though antioxidant activities of phaeophytin a and pheophorbide a were not determined using zebrafish model, in vitro methods (DPPH, TBARS assay) proved their strong antioxidant potential [48]. Moreover, the reduction of free radicals and the protection of cultured lymphocytes against oxidative DNA damage was observed in the presence of those two chlorophyll a derivatives [48,50]. For that reason, we assume that the high abundance of pheophytin a in F4 contributed to the higher antioxidant potential.
When compared with the results published in our previous study on Fucus virsoides F3 and F4 fractions [8], the antioxidant potential of C. adhaerens was notably lower. For that reason, one should note that the antioxidant activity of each tested fraction cannot be related to the particular compound due to possible synergistic/antagonistic interactions between bioactive compounds. Thus, we strongly encourage further studies to revealthe mechanisms behind the functionality of antioxidant mixtures that can ultimately result in implementation in the food, cosmeceutical, and pharmaceutical industry.

3. Materials and Methods

3.1. Chemicals

The fatty acids methyl esters (FAMEs) were purchased from Supelco Co. (Bellefonte, PA, USA). The standards of L-ascorbic acid (≥99%), gallic acid (>97.5%), DPPH (2,2-diphenyl-1-picrylhydrazyl), TPTZ (2,4,6-tripyridyl-S-triazine, ≥98%), ABTS (diammonium salt of 2,2′-azino-bis(3-ethylbenzthiazolin-6-yl)sulfonic acid, >99.0%), and dichloro-dihydro-fluorescein diacetate (≥97%, DCF-DA) were purchased from Sigma-Aldrich (St. Louis, MO, USA).
Organic solvents (dimethyl sulfoxide (DMSO, p.a.), ethanol (p.a.), methanol (p.a.)), hydrochloric acid (HCl, p.a.), iron (III) chloride (FeCl3, p.a.), Folin–Ciocalteu reagent and NaHCO3 (p.a.) were obtained from Kemika (Zagreb, Croatia), while potassium persulfate (>98%) was purchased from Scharlab (Barcelona, Spain). Hydrogen peroxide (H2O2, 30%) was obtained from Alkaloid Skopje (Skopje, North Macedonia).
Acetonitrile with 0.1% (v/v) formic acid and water with 0.1% (v/v) formic acid, both hypergrade for HPLC-MS LiChrosolv®, were purchased from Supelco Co. (Bellefonte, PA, USA).
Zebrafish D. rerio adults of wild-type WIK strain were obtained from the European Zebrafish Resource Center of the Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany.
Used solvents were of HPLC grade and were obtained from J.T. Baker (Bridgewater, NJ, USA).

3.2. Macroalga Sample

Codium adhaerens C. Agardh 1822 was collected in November 2020 by a single-point collection from the Adriatic Sea (Poluotok Rtina/Paška vrata) with the sampling geographical coordinates 44°19′14″ N; 15°55′42″ E. The sea depth was 1–3 m with the sea temperature at 15 °C. An air-tight plastic bag containing seawater and collected alga was transported to the laboratory immediately after the collection and was kept in the dark at 4 °C for not more than 48 h until further analysis. A part of the collected sample of C. adhaerens was placed in the dark at the room temperature for 14 days for air-drying. Both fresh and air-dried samples were cut in small pieces before further analysis.
A part of C. adhaerens was freeze-dried for the procedures in the Section 3.5 and Section 3.6. Before the freeze-drying, the sample was washed in water (5 times) and in deionised water (2 times), then it was cut in 5–10 mm slices and frozen at −60 °C in an ultra-low freezer (CoolSafe PRO, Labogene, Lillerød, Denmark) for 24 h. The freeze-drying was performed under a high vacuum (0.13–0.55 hPa) at −30 °C and 20 °C as the primary and secondary drying temperatures for 24 h.

3.3. Headspace Solid-Phase Microextraction (HS-SPME)

A part of the fresh sample was placed between two filter paper layers for few minutes to remove a part of the excess seawater. HS-SPME was performed with PAL Auto Sampler System (PAL RSI 85, CTC Analytics AG, Schlieren, Switzerland) using two SPME fibres covered with DVB/CAR/PDMS (divinylbenzene/carboxen/polydimethylsiloxane) or PDMS/DVB (polydimethylsiloxane/divinylbenzene). Both fibres were purchased from Supelco Co. (Bellefonte, PA, USA) and were conditioned prior to the extraction. Prepared samples (1 g) were placed into 20 mL glass vials sealed with stainless steel cap with polytetrafluorethylene (PTFE)/silicon septa. The method was set to equilibrate the sample at 60 °C for 15 min and then extract the sample for 45 min. The injector temperature was set to 250 °C and the thermal desorption directly to the GC column was carried out for 6 min. HS-SPME was performed in triplicate.

3.4. Hydrodistillation (HD)

Hydrodistillation (HD) was performed in a modified Clevenger apparatus for 2 h. Pentane (Fluka, Merck KGaA, Darmstadt, Germany) and diethyl ether (J.T. Baker Inc., Bridgewater, NJ, USA) were used as the solvent trap in v/v ratio 1:2 (1 mL). The prepared samples of fresh and air-dried C. adhaerens were used separately for HD. The volatile oil dissolved in the solvent trap was removed with a pipette, passed through the layer of MgSO4 in a small glass funnel and slowly concentrated by the slow flow of nitrogen until the volume of 0.2 mL. 2 µL were used for GC-MS analyses.

3.5. Gas Chromatography Mass Spectrometry Analysis of VOCs

The GC-MS analyses of isolated VOCs were carried out with an Agilent Technologies (Palo Alto, Santa Clara, CA, USA) gas chromatograph model 8890 equipped with a mass spectrometer detector model 5977E MSD (Agilent Technologies). The VOCs separation was achieved on HP-5MS capillary column (30 m × 0.25 mm, 0.25 µm film thickness, Agilent Technologies, Palo Alto, Santa Clara, CA, USA). The GC conditions and the detailed procedure are described in our previously published papers [11,12,13]: the injector and detector temperatures were 250 °C and 300 °C and the oven temperature was set up isothermal at 70 °C for 2 min. Temperature gradient was achieved increasing the temperature from 70–200 °C at 3 °C/min then was held isothermally at 200 °C for 15 min. Split ratio was 1:50; carrier gas was helium (He at flow rate 1.0 mL/min). The MSD (EI mode) was operated at 70 eV, and the mass range was set from 30 to 300 amu. The identification of the compounds was based on the comparison of their retention indices (RI), determined relative to the retention times of n-alkanes (C9–C25), with those reported in the literature (National Institute of Standards and Technology) and their mass spectra with the spectra from Wiley 9 (Wiley, New York, NY, USA) and NIST 17 (D-Gaithersburg) mass spectral libraries. The percentage composition of the samples was calculated using the normalisation method (without correction factors). The average component percentages in Table 1 and Table 2. were calculated from GC–MS analyses of three replicates.

3.6. Gas Chromatography Flame-Ionisation Detection Analysis of Fatty Acids

Total lipids were extracted from freeze dried C. adhaerens sample (FdCa) using Folch method [51] with chloroform/methanol (2:1 v/v). The detailed methodology of lipid extraction and preparation of FAMEs was described in our previous paper [11]. The separation of prepared FAMEs was performed on a Shimadzu GC-2010 Plus gas chromatograph equipped with a flame ionisation detector (FID) and fitted with an SH-FAMEWAXTM capillary column (30 m, 0.32 mm ID and 0.25 µm df). The injector and detector temperatures were set at 240 °C and 250 °C, respectively. The injection volume was 2 μL with a split ratio of 1:100. The GC oven program was as follows: 120 °C hold for 5 min, to 220 °C at 5 °C/min, hold for 20 min. Nitrogen was used as carrier gas, flowing at the constant flow rate of 1.26 mL/min. The identification of separated FAMEs was achieved based on the comparison of retention times with the retention times of certified reference standard (Supelco F.A.M.E. Mix, C4–C24, St. Louis, MO, USA) analysed under the same conditions. The results were expressed as the percentage of identified fatty acid on total fatty acids (%).

3.7. Fractionation by Solid-Phase Extraction (SPE)

The freeze-dried C. adhaerens (FdCa) was extracted (10 mL/g solvent:solid ratio) three times with sonication (ultrasound-bath Elma, Elmasonic P 70 H, Singen, Germany; 37 kHz/50 W) for 5 min applying methanol:dichloromethane (MeOH/DCM, 1:1, v/v). The obtained extract was evaporated under nitrogen (5.0, Messer, Zapresic, Croatia), and was mixed with C18 powder (40–63 µm, Macherey-Nagel Polygoprep 60-50 C18, Fisher Scientific, Hampton, NH, USA). The obtained dry extract was then placed on an SPE cartridge (C18, particle size 40 µm, bed weight 1g, column capacity 6 mL, Agilent Bond Elut, Waldbronn, Germany), which was previously conditioned with MeOH and ultrapure water. Then the sample was eluted by applying the solvents of decreasing polarity to obtain the fractions F1 to F4 as was done in our previous paper [11]: F1 (with H2O), F2 (with H2O/MeOH (1:1, v/v)), F3 (with MeOH), and F4 (with MeOH/DCM (1:1, v/v)). Targeted less polar compounds were eluted in F3 and F4 and were dried by SpeedVac (SPD1030, Thermo Scientific, Waltham, MA, USA) and stored at 4 °C in dark.

3.8. Ultra High-Performance Liquid Chromatography–High-Resolution Mass Spectrometry (UHPLC-ESI-HRMS) of F3 and F4

The UPLC-HRMS analyses were performed using an ExionLC AD system (AB Sciex, Concord, Canada) equipped with the ExionLC solvent delivery system, ExionLC AD Pump, ExionLC AD Degasser, ExionLC AD Column oven, ExionLC AD Autosampler and ExionLC Controller combined with quadrupole-time-of-flight (Q-TOF) mass spectrometer TripleTOF 6600+ (AB Sciex, Concord, Canada) with Duospray ion source. The analytical column used for chromatographic separations was Acquity UPLC BEH Phenyl-Hexyl, 2.1 mm × 100 mm, particle size 1.7 µm (Waters, Milford, MA, USA). The column oven temperature was set at 30 °C and the flow rate was set at 0.4 mL/min. The mobile phases were water (A) and acetonitrile (B) both containing 0.1% formic acid. After 0.6 min of isocratic condition with 2% of B, the elution program was applied as follows: 0.6–18.5 min (B linear gradient to 100%), 18.5–25 min (100% B). The injection volume was 4 µL.
Mass spectrometry detection was conducted in the positive electrospray ionisation (ESI+). Tandem (MS/MS) mass spectra were recorded using collision-induced dissociation (CID) in information-dependent acquisition (IDA) mode for precursor ions with the signal intensities above 200 cps threshold. The maximum number of precursor ions simultaneously subjected to CID was 15. The ion source parameters were: nebulising gas (air, gas 1) pressure 40 psi, heater gas (air, gas 2) pressure 15 psi, curtain gas (nitrogen) pressure 30 psi, ESI capillary voltage 5.5 kV and the source temperature 300 °C. The recording mass spectra parameters were: declustering potential 80 V, m/z range 100–1000 (MS) and 20–1000 (MS/MS), and accumulation time 100 ms. The collision gas was nitrogen with the collision energy 40 eV with a spread of 20 eV. The mass scale calibrations (in the MS and MS/MS modes) were done prior to each run in an automatic regime using a Tuning Solution (AB Sciex, Concord, Canada).
The data were processed using ACD/Spectrus Processor 2021.1.0. (ACD/Labs, Toronto, Canada). The elemental compositions of the compounds were determined based on the accurate masses of the corresponding protonated molecules, their isotopic distributions, and the product ions m/z in MS/MS spectra. The tentative identification of detected components was carried out on the basis of their elemental compositions, tandem mass spectra and search in the ChemSpider database with a further selection of hits matching with MS/MS data.

3.9. Antioxidant Activity of Tested Fractions by In Vitro Assays

In vitro determination of antioxidant activity in this study employed four methods, including Folin–Ciocalteu method, ferric reducing antioxidant power (FRAP), reduction of the radical cation (ABTS) and 2,2-diphenyl-1-picryl-hydrazyl-hydrate (DPPH) assay. The measurements were carried out using a UV/Vis microplate reader (Infinite M200 PRO, TECAN, Männedorf, Switzerland) in multi-well plates (96-well) in triplicate. The results for all assays are expressed as mean ± standard deviation (n = 3). All four mentioned methods were conducted in accordance with our previous research [11]. Briefly, obtained fractions were tested for their antioxidant activity by the reactions with appropriate reagents, incubated for a known period and change in colour with regards to control or blank sample was measured. Additionally, IC50 curve was obtained for both F3 and F4 by implementing the ABTS assay.

3.10. Zebrafish Embryotoxicity Test (ZET)

A breeding stock of healthy mature wild-type strain zebrafish Danio rerio (original supplier: European Zebrafish Resource Center of the Karlsruhe Institute of Technology (KIT), Karlsruhe, Germany) was used within this research. Zebrafish maintenance and embryo production was described in the paper of Babić et al. (2021) [52].
ZET was performed in accordance with OECD Test Guideline, in detail described in our previous study [11]. The fractions were tested in three concentrations (500, 250 and 125 µg/mL) using 10 embryos in three replicates. Final solvent concentration (F3: MeOH; F4: DMSO) did not exceed 1%. As a negative control artificial water was used, while 1% of MeOH and DMSO was tested as the solvent control. At 96 h of exposure, mortality and abnormality rates were recorded using an inverted microscope (Olympus CKX41) equipped with Leica EC3 digital camera and LAS EZ 3.2.0 digitising software.

3.11. Antioxidant Effect of Tested Fractions Using Zebrafish Model

The evaluation of the protective effect of F3 and F4 against H2O2-induced oxidative stress was conducted following the protocol described in our previous study [11]. Briefly, since no toxicity was recorded when performing the ZET test, zebrafish embryos were pre-treated with F3 and F4 in the concentration of 500, 250 and 125 µg/mL for 2 h. After pre-treatment, oxidative stress was initiated with the addition of 5 mM H2O2. Upon 96 h of the exposure, the mortality rate was recorded, and survived specimens were stained with 10 μM of fluorogenic dye dichloro-dihydro-fluorescein diacetate (DCF-DA) [11]. Intracellular ROS level in zebrafish larvae was visualised using a fluorescent microscope (Olympus® BX51 light binocular microscope; Microsoft® AnalySIS Soft Imaging System Software) with a green fluorescent filter. The fluorescence intensity of images was quantified using ImageJ software.
Statistical analysis and graphical representation were performed using GraphPad Prism version 8.0.1 for Windows, GraphPad Software, San Diego, CA, USA, www.graphpad.com accessed on 26 August 2021. One-way analysis of variance (ANOVA) and Tukey’s post hoc test were performed to examine the significance between negative control and tested samples, as well as among treatments. When the assumption for normality was violated the Kruskal–Wallis one-way analysis of variance on ranks was performed. Student’s paired t-test was chosen to analyse the data obtained with in vitro assays. The results were expressed as means ± SD, and p ≤ 0.05 was used as a cut-off value of statistical significance throughout the paper.

4. Conclusions

C. adhaerens from the Adriatic Sea (Croatia) was comprehensively investigated regarding less polar compounds for the first time. Although there are several phytochemical studies of C. adhaerens from other regions, this is the first report on the volatile organic compounds (VOCs) from both fresh (FrCa) and air-dried (DrCa) samples. Great variability among HS-FrCa and HD-FrCa, as well as among HS-DrCa and HD-DrCa, was noted, as was expected according to the previous studies on different algae. This variability is the consequence of different applied methods isolating more and less volatile compounds as well as air-drying. However, the composition of HD and HS was partially similar to our previous study on C. bursa, indicating the same major VOCs (DMS and heptadecane) as chemical markers of Codium sp. DMS was the major compound in HS-FrCa. The oxidation of DMS to DMSO was noticed during air-drying. In HS-DrCa the majority of the identified compounds belong to alkanes with heptadecane as dominant. In HS-DrCa, three organoiodines were identified: iodomethane, diiodomethane and 1-iodopentane confirming the release of iodinated compounds under oxidative stress. The majority of VOCs in HD-FrCa and HD-DrCa belong to aliphatic compounds. The prevalent compound in HD-FrCa was heptadecane, which decreased in HD-DrCa. Both chlorophyll derivatives and carotenoid degradation products (norisoprenoids) showed significant increase in HD-DrCa. The percentage of (E)-phytol and its oxidative product phytone increased during air-drying, indicating chlorophyll degradation. In HD-DrCa, two C10-norisoprenoids (safranal and β-cyclocitral) and one more C13-norisoprenoid (β-ionone) were identified, confirming oxidative cleavage of carotenoids and further cleavage of norisoprenoid compounds.
Considering the ω6 FAs: ω3 FAs ratio, C. adhaerens can be considered a good source of dietary PUFAs. The ω6 fatty acids were present in higher content than ω3 fatty acids, as was found in previous studies, and the most abundant fatty acids were palmitic and arachidic acids.
The less polar fractions F3 and F4 were analysed by (UHPLC-ESI(+)-HRMS) for the first time. The major identified compounds were less polar compounds: chlorophyll derivatives (two sub-groups contacting 55 or 35 carbon atoms, mainly pheophytin a, pheophorbide a and their derivatives), fatty acid glycerides, terpenes, steroids, and carotenoids.
The novelty of the present research is also related to in vitro and in vivo research on targeted antioxidant potential of less polar compounds from C. adhaerens. When compared, the results obtained by in vivo correlate well with in vitro methods and both fractions exerted similar antioxidative responses which is in agreement with the presence of a high abundance of biomolecules with known antioxidant properties (e.g., fucoxanthin, pheophytin a, and pheophorbide a). The results obtained using in vitro and in vivo approaches showed that the tested F3 and F4 fractions, in particular the chemical composition of C. adhaerens from the Adriatic Sea, exhibited high antioxidant activity and protective effects against H2O2-induced mortality of zebrafish embryos. These results suggest that C. adhaerens might be a potent source of natural antioxidants that could be used in research of oxidative stress-related diseases associated with the excess generation of reactive oxygen species such as cancer, cardiovascular and neurodegenerative diseases and therefore further research of this alga is encouraged.

Author Contributions

Conceptualisation, I.J., S.J. and S.B.; methodology, S.R., A.-M.C., I.F., S.B. and L.Č.; formal analysis, I.J., S.R., S.J., R.Č.-R. and D.Š.; investigation, R.Č-R., I.J. and S.J.; resources, S.R., I.J., S.B. and L.Č.; data curation, I.J., S.J., S.R., S.B., L.Č.; writing—original draft preparation, I.J., S.J., D.Š., R.Č.-R.; writing—review and editing, I.J., S.J. and R.Č.-R.; supervision, R.Č.-R. funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Croatian Government and the European Union through the European Regional Development Fund—the Competitiveness and Cohesion Operational Programme (KK.01.1.1.01) through the project Bioprospecting of the Adriatic Sea (K.K.01.1.1.01.001) granted to The Scientific Centre of Excellence for Marine Bioprospecting—BioProCro.

Institutional Review Board Statement

Animal housing and spawning were performed in aquaria units approved by the Croatian Ministry of Agriculture and according to the Directive 2010/63/EU. All experiments in this study were conducted on the non-protected embryonic stages (up to 96 hpf), which do not require permission by animal welfare commissions (Directive 2010/63/EU).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

We would like to thank the Croatian Government and the European Union (European Regional Development Fund—the Competitiveness and Cohesion Operational Programme—KK.01.1.1.01) granted to The Scientific Centre of Excellence for Marine Bioprospecting—BioProCro. We thank also Donat Petricioli for the sample collection and identification.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ibñez, E.; Cifuentes, A. Benefits of using algae as natural sources of functional ingredients. J. Sci. Food Agric. 2013, 93, 703–709. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Wang, L.; Wang, X.; Wu, H.; Liu, R. Overview on biological activities and molecular characteristics of sulfated polysaccharides from marine green algae in recent years. Mar. Drugs 2014, 12, 4984–5020. [Google Scholar] [CrossRef] [PubMed]
  3. Rengasamy, K.R.R.; Mahomoodally, M.F.; Aumeeruddy, M.Z.; Zengin, G.; Xiao, J.; Kim, D.H. Bioactive compounds in seaweeds: An overview of their biological properties and safety. Food Chem. Toxicol. 2020, 135, 111013. [Google Scholar] [CrossRef]
  4. Vinayak, R.C.; Sudha, S.A.; Chatterji, A. Bio-screening of a few green seaweeds from India for their cytotoxic and antioxidant potential. J. Sci. Food Agric. 2011, 91, 2471–2476. [Google Scholar] [CrossRef]
  5. Gutiérrez-Rodríguez, A.G.; Juárez-Portilla, C.; Olivares-Bañuelos, T.; Zepeda, R.C. Anticancer activity of seaweeds. Drug Discov. Today 2018, 23, 434–447. [Google Scholar]
  6. Andrade, P.B.; Barbosa, M.; Matos, R.P.; Lopes, G.; Vinholes, J.; Mouga, T.; Valentão, P. Valuable compounds in macroalgae extracts. Food Chem. 2013, 138, 1819–1828. [Google Scholar] [CrossRef]
  7. Yokohama, Y.; Kageyama, A.; Ikawa, T.; Shimura, S. A carotenoid characteristic of chlorophycean seaweeds living in deep coastal waters. Bot. Mar. 1977, 20, 433–436. [Google Scholar] [CrossRef]
  8. Miyazawa, K.; Ito, K.; Matsumoto, F. Amino acids and peptide in seven species of marine green algae. J. Fac. Appl. Biol. Sci. Hiroshima Univ. 1976, 15, 161–169. [Google Scholar]
  9. Lopes, G.; Sousa, C.; Bernardo, J.; Andrade, P.B.; Valentão, P. Sterol profiles in 18 macroalgae of the portuguese coast. J. Phycol. 2011, 47, 1210–1218. [Google Scholar] [CrossRef]
  10. Lee, J.B.; Hayashi, K.; Maeda, M.; Hayashi, T. Antiherpetic activities of sulfated polysaccharides from green algae. Planta Med. 2004, 70, 813–817. [Google Scholar] [CrossRef] [PubMed]
  11. Jerković, I.; Cikoš, A.-M.; Babić, S.; Čižmek, L.; Bojanić, K.; Aladić, K.; Ul’yanovskii, N.V.; Kosyakov, D.S.; Lebedev, A.T.; Čož-Rakovac, R.; et al. Bioprospecting of less-polar constituents from endemic brown macroalga Fucus virsoides J. Agardh from the Adriatic Sea and targeted antioxidant effects in vitro and in vivo (Zebrafish Model). Mar. Drugs 2021, 19, 235. [Google Scholar] [CrossRef] [PubMed]
  12. Jerković, I.; Kranjac, M.; Marijanović, Z.; Šarkanj, B.; Cikoš, A.-M.; Aladić, K.; Pedisić, S.; Jokić, S. Chemical diversity of Codium bursa (Olivi) C. Agardh headspace compounds, volatiles, fatty acids and insight into its antifungal activity. Molecules 2019, 24, 842. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Jerković, I.; Marijanović, Z.; Roje, M.; Kuś, P.M.; Jokić, S.; Čož-Rakovac, R. Phytochemical study of the headspace volatile organic compounds of fresh algae and seagrass from the Adriatic Sea (single point collection). PLoS ONE 2018, 13, e0196462. [Google Scholar]
  14. Malin, G.; Steinke, M. Dimethyl sulfide production: What is the contribution of the coccolithophores? In Coccolithophores; Thierstein, H.R., Young, J.R., Eds.; Springer: Berlin/Heidelberg, Germany, 2004; pp. 127–164. [Google Scholar]
  15. Alcolombri, U.; Ben-Dor, S.; Feldmesser, E.; Levin, Y.; Tawfik, D.S.; Vardi, A. Identification of the algal dimethyl sulfide–releasing enzyme: A missing link in the marine sulfur cycle. Science 2015, 348, 1466–1469. [Google Scholar] [CrossRef]
  16. Estevez, J.M.; Fernández, P.V.; Kasulin, L.; Dupree, P.; Ciancia, M. Chemical and in situ characterization of macromolecular components of the cell walls from the green seaweed Codium fragile. Glycobiology 2009, 19, 212–228. [Google Scholar] [CrossRef][Green Version]
  17. Domozych, D.; Ciancia, M.; Fangel, J.U.; Mikkelsen, M.D.; Ulvskov, P.; Willats, W.G. The cell walls of green algae: A journey through evolution and diversity. Front. Plant Sci. 2012, 3, 8. [Google Scholar] [CrossRef][Green Version]
  18. Rezanka, T.; Zahradník, J.; Podojil, M. Hydrocarbons in green and blue-green algae. Folia Microbiol. 1982, 27, 450–454. [Google Scholar] [CrossRef]
  19. Mironov, O.G.; Shchekaturina, T.L.; Tsimbal, I.M. Saturated hydrocarbons in marine organisms. Mar. Ecol. Prog. Ser. 1981, 5, 303–309. [Google Scholar] [CrossRef]
  20. Han, J.; Chan, H.W.-S.; Calvin, M. Biosynthesis of alkanes in Nostoc muscorum. J. Am. Chem. Soc. 1969, 91, 5156–5159. [Google Scholar] [CrossRef]
  21. Moore, R.E. Volatile compounds from marine algae. Acc. Chem. Res. 1977, 10, 40–47. [Google Scholar] [CrossRef]
  22. Palmer, C.J.; Anders, T.L.; Carpenter, L.J.; Küpper, F.C.; McFiggans, G.B. Iodine and halocarbon response of Laminaria digitata to oxidative stress and links to atmospheric new particle production. Environ. Chem. 2006, 2, 282–290. [Google Scholar] [CrossRef]
  23. Bravo-Linares, C.M.; Mudge, S.M.; Loyola-Sepulveda, R.H. Production of volatile organic compounds (VOCs) by temperate macroalgae: The use of Solid Phase Microextraction (SPME) coupled to GC-MS as method of analysis. J. Chilean Chem. Soc. 2010, 55, 227–232. [Google Scholar] [CrossRef][Green Version]
  24. Franssen, M.C.R. Halogenation and oxidation reactions with haloperoxidases. Biocatalysis 1994, 10, 87–111. [Google Scholar] [CrossRef]
  25. Nozaki, H. Flagellated green algae. In Freshwater Algae of North America: Ecology and Classification, 1st ed.; Wehr, J.D., Sheath, R.G., Eds.; Academic Press: London, UK, 2003; pp. 225–252. [Google Scholar]
  26. Gutbrod, P.; Yang, W.; Grujicic, G.V.; Peisker, H.; Gutbrod, K.; Du, L.F.; Dörmann, P. Phytol derived from chlorophyll hydrolysis in plants is metabolized via phytenal. J. Biol. Chem. 2021, 296, 100530. [Google Scholar] [CrossRef]
  27. Rodríguez-Bustamante, E.; Sánchez, S. Microbial production of C13-norisoprenoids and other aroma compounds via carotenoid cleavage. Crit. Rev. Microbiol. 2007, 33, 211–230. [Google Scholar] [CrossRef]
  28. Pereira, H.; Barreira, L.; Figueiredo, F.; Custódio, L.; Vizetto-Duarte, C.; Polo, C.; Rešek, E.; Engelen, A.; Varela, J. Polyunsaturated fatty acids of marine macroalgae: Potential for nutritional and pharmaceutical applications. Mar. Drugs 2012, 10, 1920–1935. [Google Scholar] [CrossRef][Green Version]
  29. Goecke, F.; Hernández, V.; Bittner, M.; González, M.; Becerra, J.; Silva, M. Fatty acid composition of three species of Codium (Bryopsidales, Chlorophyta) in Chile. Rev. Biol. Mar. Oceanogr. 2010, 45, 325–330. [Google Scholar] [CrossRef][Green Version]
  30. van Ginneken, V.J.T.; Helsper, J.P.F.G.; de Visser, W.; van Keulen, H.; Brandenburg, W.A. Polyunsaturated fatty acids in various macroalgal species from north Atlantic and tropical seas. Lipids Health Dis. 2011, 10, 104. [Google Scholar] [CrossRef][Green Version]
  31. Kuczynska, P.; Jemiola-Rzeminska, M.; Strzalka, K. Photosynthetic pigments in diatoms. Mar. Drugs 2015, 13, 5847–5881. [Google Scholar] [CrossRef] [PubMed]
  32. Okai, Y.; Higashi-Okai, K. Potent anti-inflammatory activity of pheophytin a derived from edible green alga, enteromorpha prolifera (sujiao-nori). Int. J. Immunopharmacol. 1997, 19, 355–358. [Google Scholar] [CrossRef]
  33. Okai, Y.; Ishizaka, S.; Higashi-Okai, K.; Yamashita, U. Detection of immunomodulating activities in an extract of Japanese edible seaweed Laminaria japonica (Makonbu). J. Sci. Food Agric. 1996, 72, 455–460. [Google Scholar] [CrossRef]
  34. Cahyana, A.H.; Shuto, Y.; Kinoshita, Y. Pyropheophytin a as an antioxidative substance from the marine alga Arame (Eisenis bicyclis). Biosci. Biotech. Biochem. 1992, 56, 1533–1535. [Google Scholar] [CrossRef]
  35. Nishibori, S.; Namiki, K. Antioxidative substances in the green fractions of the lipid of Aonori (Enteromorpha sp.). J. Home Econ. 1998, 39, 1173–1178. [Google Scholar]
  36. Saide, A.; Lauritano, C.; Ianora, A. Pheophorbide a: State of the Art. Mar. Drugs 2020, 18, 257. [Google Scholar] [CrossRef] [PubMed]
  37. Ochi, M.; Watanabe, M.; Miura, I.; Taniguchi, M.; Tokoroyama, T. Amijiol, isoamijiol, and 14-deoxyamijiol, three new diterpenoids from the brown seaweed Dictyota linearis. Chem. Lett. 1980, 9, 1229–1232. [Google Scholar] [CrossRef]
  38. Matsuno, T. Aquatic animal carotenoids. Fish. Sci. 2001, 67, 771–783. [Google Scholar] [CrossRef]
  39. Maeda, H.; Fukuda, S.; Izumi, H.; Saga, N. Anti-oxidant and fucoxanthin contents of brown alga ishimozuku (Sphaerotrichia divaricata) from the west coast of Aomori, Japan. Mar. Drugs 2018, 16, 255. [Google Scholar] [CrossRef][Green Version]
  40. Méresse, S.; Fodil, M.; Fleury, F.; Chénais, B. Fucoxanthin, a marine-derived carotenoid from brown seaweeds and microalgae: A promising bioactive compound for cancer therapy. Int. J. Mol. Sci. 2020, 21, 9273. [Google Scholar] [CrossRef]
  41. Cikoš, A.-M.; Flanjak, I.; Bojanić, K.; Babić, S.; Čižmek, L.; Čož-Rakovac, R.; Jokić, S.; Jerković, I. Bioprospecting of coralline red alga Amphiroa rigida J.V. Lamouroux: Volatiles, fatty acids and pigments. Molecules 2021, 26, 520. [Google Scholar] [CrossRef]
  42. Pangestuti, R.; Kim, S.-K. Biological activities and health benefit effects of natural pigments derived from marine algae. J. Funct. Foods 2011, 3, 255–266. [Google Scholar] [CrossRef]
  43. Sudha, K.; Mohana Priya, K.; Nancy Veena, K.; Palanichamy, V. Screening of antioxidant potential of green alga Codium adhaerens. Int. J. Drug Dev. Res. 2014, 6, 103–111. [Google Scholar]
  44. Foo, S.C.; Yusoff, F.M.; Ismail, M.; Basri, M.; Yau, S.K.; Khong, N.M.H.; Chan, K.W.; Ebrahimi, M. Antioxidant capacities of fucoxanthin-producing algae as influenced by their carotenoid and phenolic contents. J. Biotechnol. 2017, 241, 175–183. [Google Scholar] [CrossRef] [PubMed]
  45. Pinteus, S.; Silva, J.; Alves, C.; Horta, A.; Fino, N.; Rodrigues, A.I.; Mendes, S.; Pedrosa, R. Cytoprotective effect of seaweeds with high antioxidant activity from the Peniche coast (Portugal). Food Chem. 2017, 1, 591–599. [Google Scholar] [CrossRef]
  46. Horzmann, K.A.; Freeman, J.L. Making waves: New developments in toxicology with the zebrafish. Toxicol. Sci. 2018, 163, 5–12. [Google Scholar] [CrossRef][Green Version]
  47. Kang, M.C.; Lee, S.H.; Lee, W.W.; Kang, N.; Kim, E.A.; Kim, S.Y.; Lee, D.H.; Kim, D.; Jeon, Y.-J. Protective effect of fucoxanthin isolated from Ishige okamurae against high-glucose inducedoxidative stress in human umbilical veinendothelial cells and zebrafish model. J. Funct. Foods 2014, 11, 304–312. [Google Scholar] [CrossRef]
  48. Hsu, C.Y.; Chao, P.Y.; Hu, S.P.; Yang, C.M. The antioxidant and free radical scavenging activities of chlorophylls and pheophytins. Food Sci. Nutr. 2013, 4, 1–8. [Google Scholar] [CrossRef][Green Version]
  49. Lee, H.; Park, H.Y.; Jeong, T.S. Pheophorbide a derivatives exert antiwrinkle effects on UVB-induced skin aging in human fibroblasts. Life 2021, 11, 147. [Google Scholar] [CrossRef] [PubMed]
  50. Hsu, C.Y.; Yang, C.M.; Chen, C.M.; Chao, P.Y.; Hu, S.P. Effects of chlorophyll-related compounds on hydrogen peroxide induced DNA damage within human lymphocytes. J. Agric. Food Chem. 2005, 53, 2746–2750. [Google Scholar] [CrossRef]
  51. Folch, J.; Lees, M.; Stanley, G.H.S. A simple method for the isolation and purification of total lipides from animal tissues. J. Biol. Chem. 1957, 226, 497–509. [Google Scholar] [CrossRef]
  52. Babić, S.; Čižmek, L.; Maršavelski, A.; Malev, O.; Pflieger, M.; Strunjak-Perović, I.; Topić Popović, N.; Čož-Rakovac, R.; Trebše, P. Utilization of the zebrafish model to unravel the harmful effects of biomass burning during Amazonian wildfires. Sci. Rep. 2021, 11, 1–12. [Google Scholar] [CrossRef]

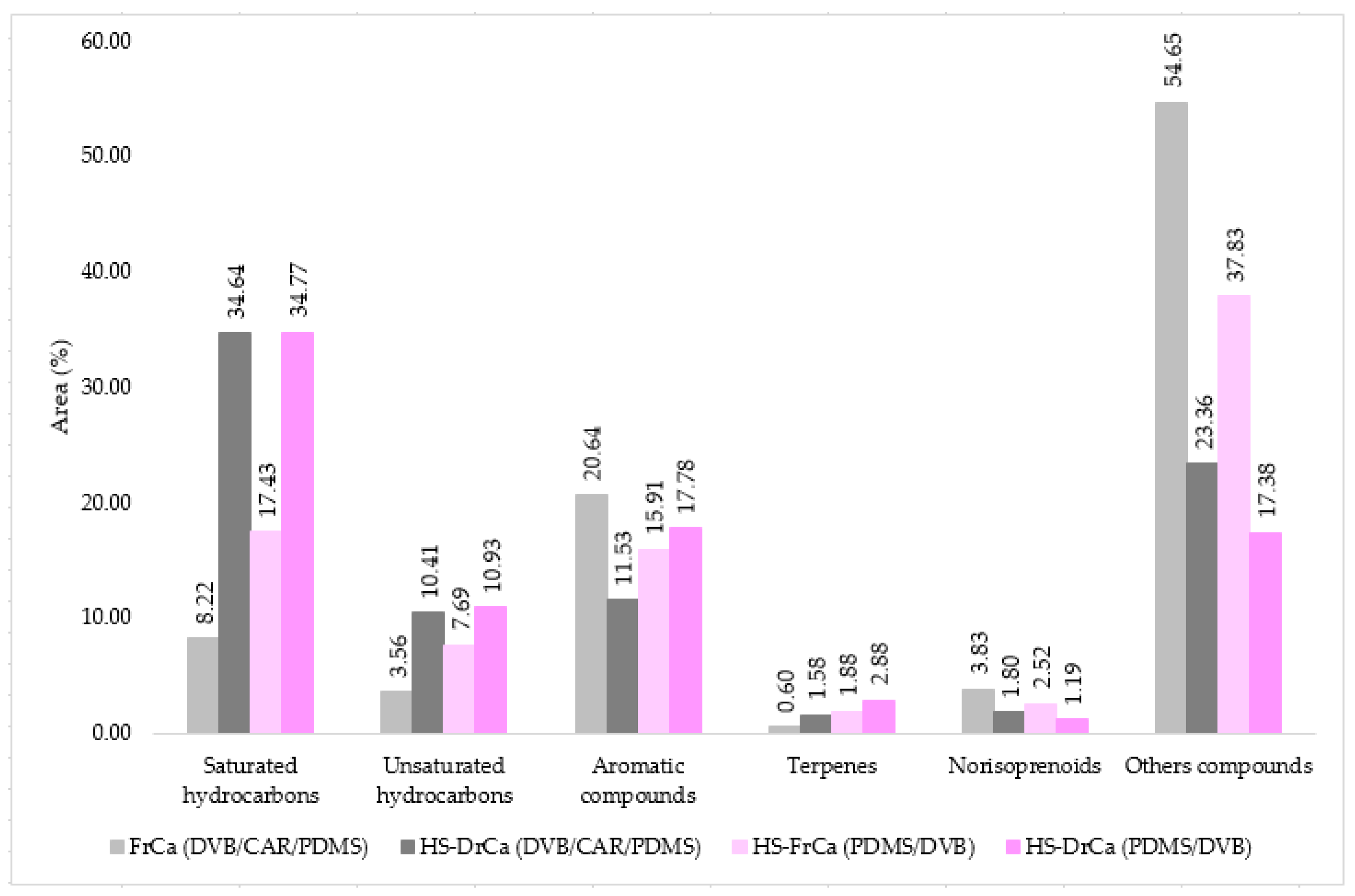

Figure 1. The VOCs from C. adhaerens sorted by structural groups extracted by HS-SPME.
Figure 1. The VOCs from C. adhaerens sorted by structural groups extracted by HS-SPME.
Pharmaceuticals 14 00944 g001

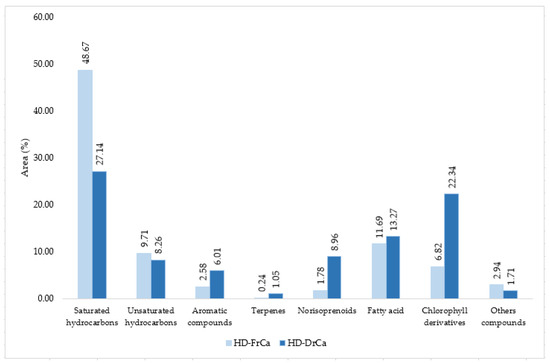

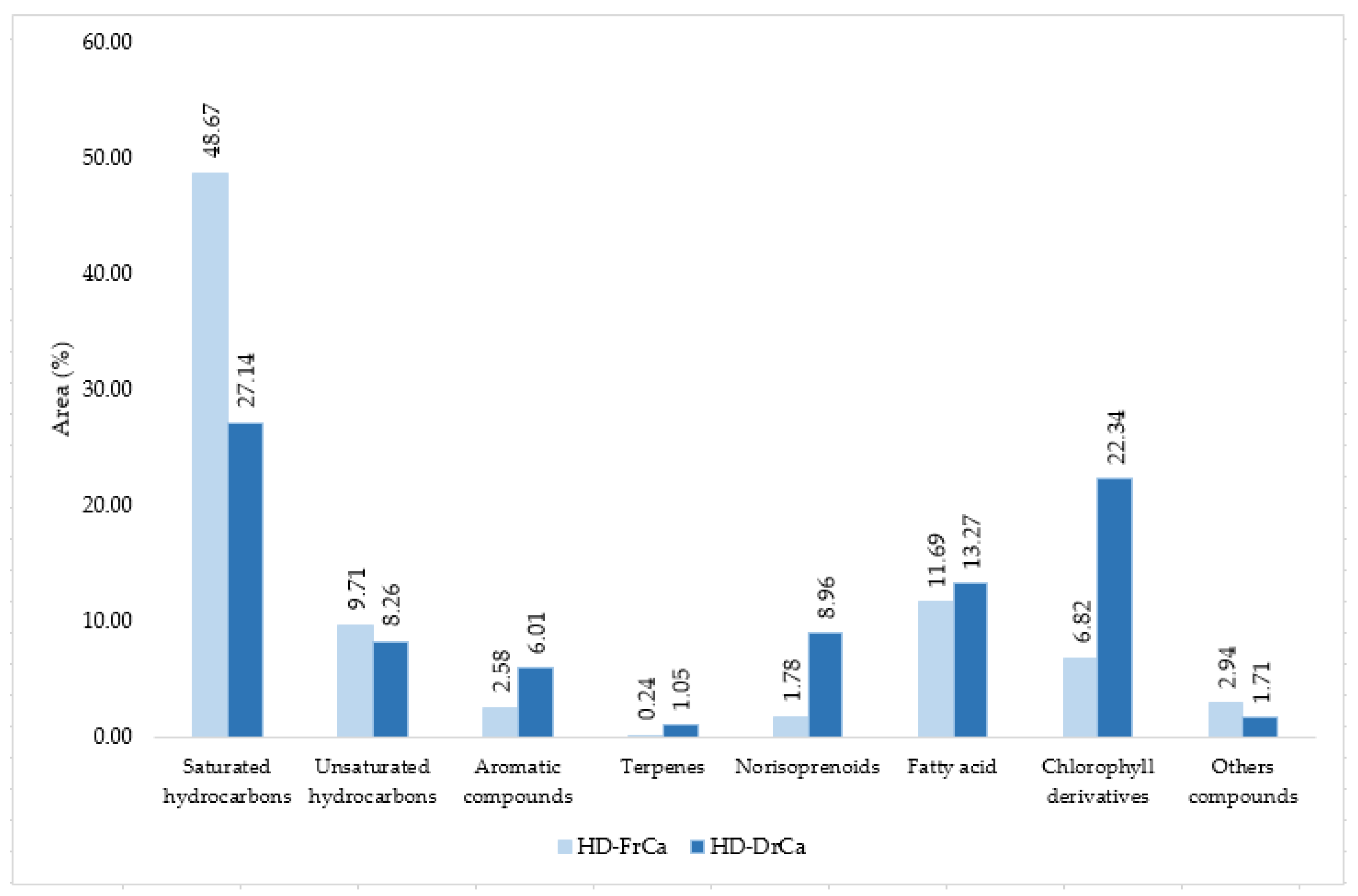

Figure 2. The VOCs from C. adhaerens obtained by HD sorted by structural groups.
Figure 2. The VOCs from C. adhaerens obtained by HD sorted by structural groups.
Pharmaceuticals 14 00944 g002

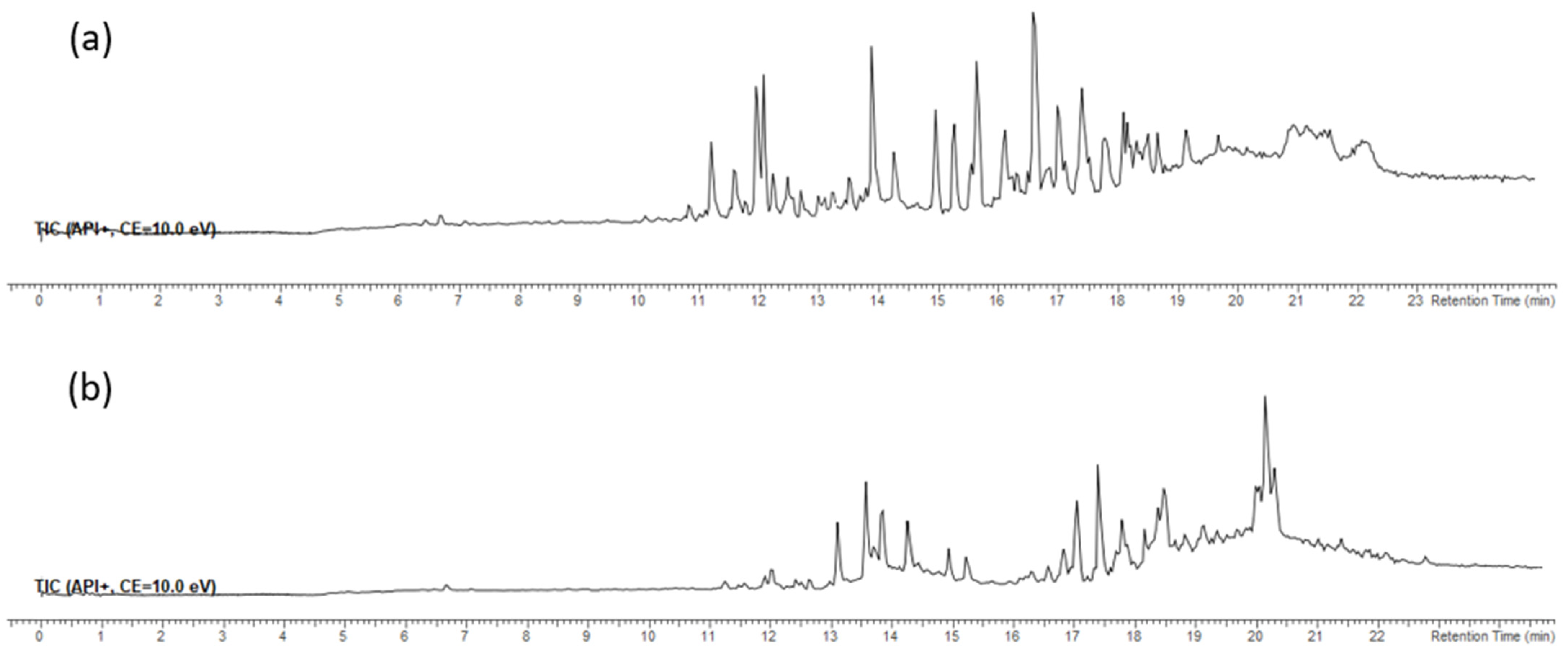

Figure 3. Total ion chromatogram (TIC) of the fractions (a) F3 and (b) F4.
Figure 3. Total ion chromatogram (TIC) of the fractions (a) F3 and (b) F4.
Pharmaceuticals 14 00944 g003

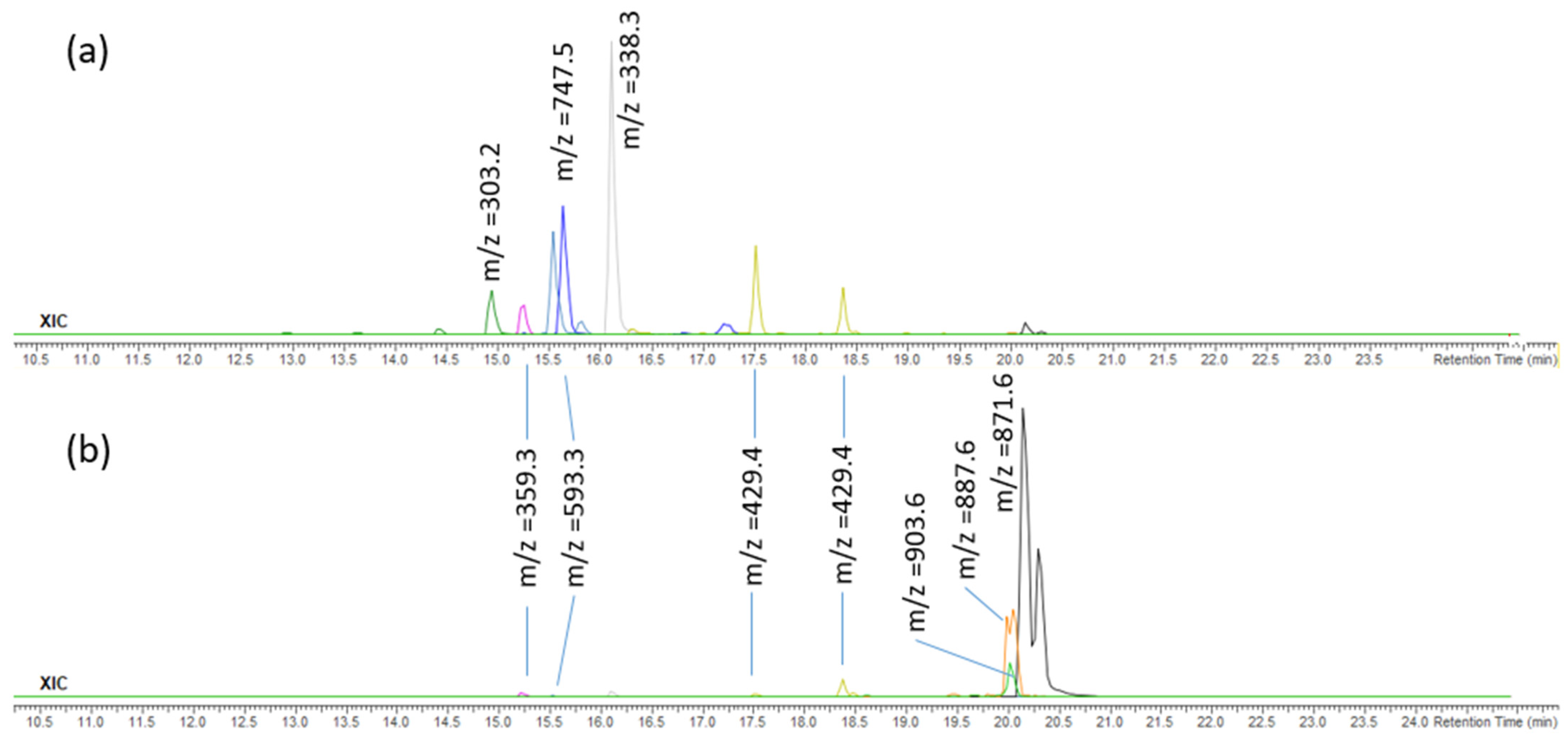

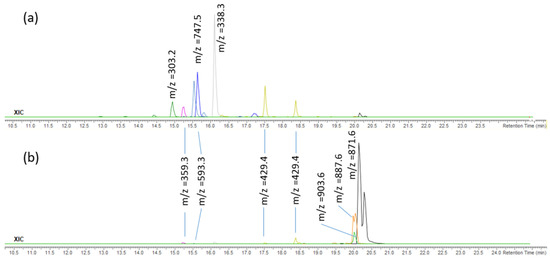

Figure 4. Extracted ion chromatograms (XIC) of most abundant ions in the fractions (a) F3 and (b) F4 (zoomed).
Figure 4. Extracted ion chromatograms (XIC) of most abundant ions in the fractions (a) F3 and (b) F4 (zoomed).
Pharmaceuticals 14 00944 g004

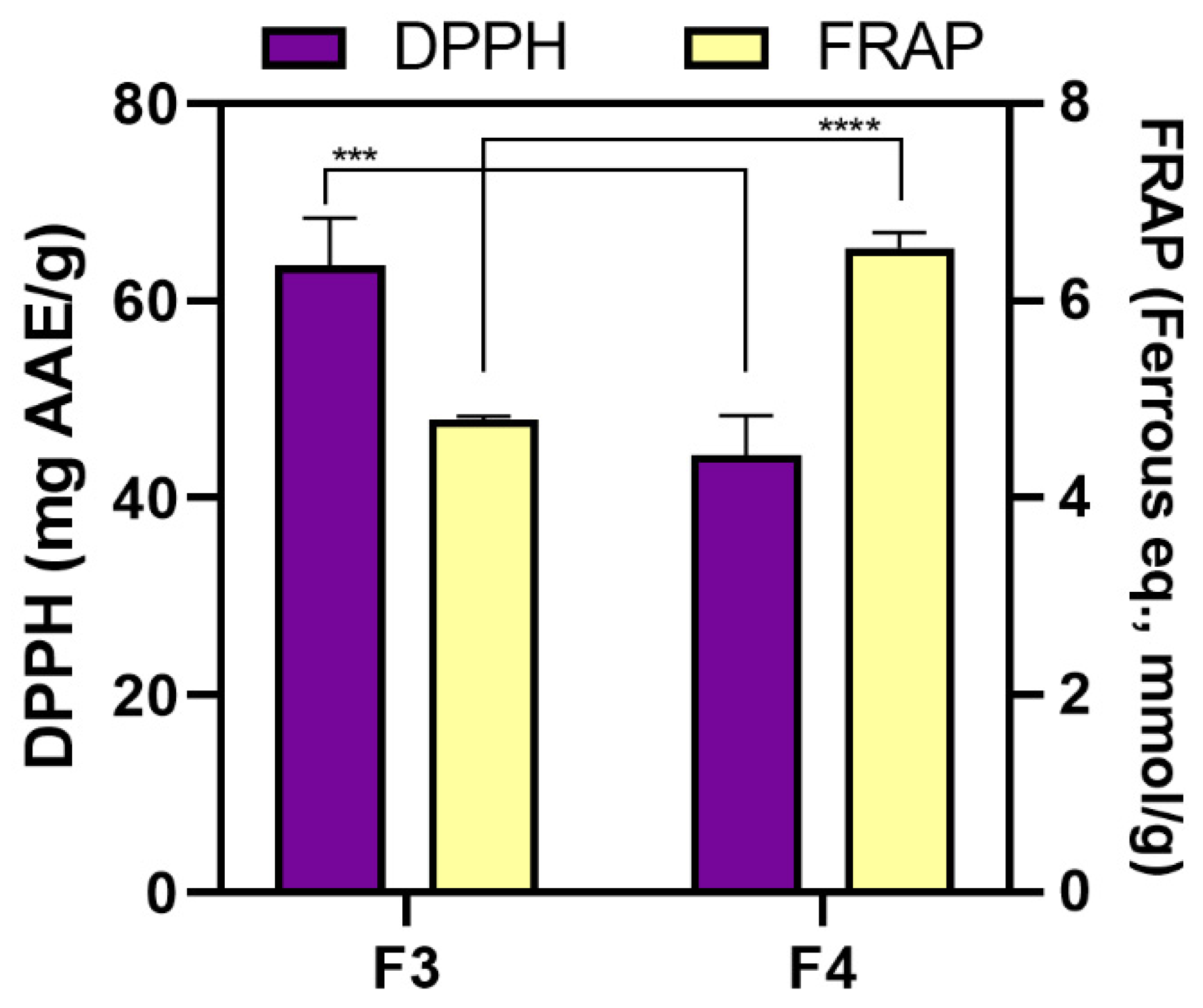

Figure 5. Antioxidant activity of C. adhaerens less polar fractions (F3 and F4) obtained using 2,2-diphenyl-1-picryl-hydrazyl-hydrate (DPPH) and ferric reducing antioxidant power (FRAP) in vitro assays (mean ± SD; n = 3). An asterisk indicates a significant difference between F3 and F4 (*** p < 0.01; **** p < 0.001).
Figure 5. Antioxidant activity of C. adhaerens less polar fractions (F3 and F4) obtained using 2,2-diphenyl-1-picryl-hydrazyl-hydrate (DPPH) and ferric reducing antioxidant power (FRAP) in vitro assays (mean ± SD; n = 3). An asterisk indicates a significant difference between F3 and F4 (*** p < 0.01; **** p < 0.001).
Pharmaceuticals 14 00944 g005

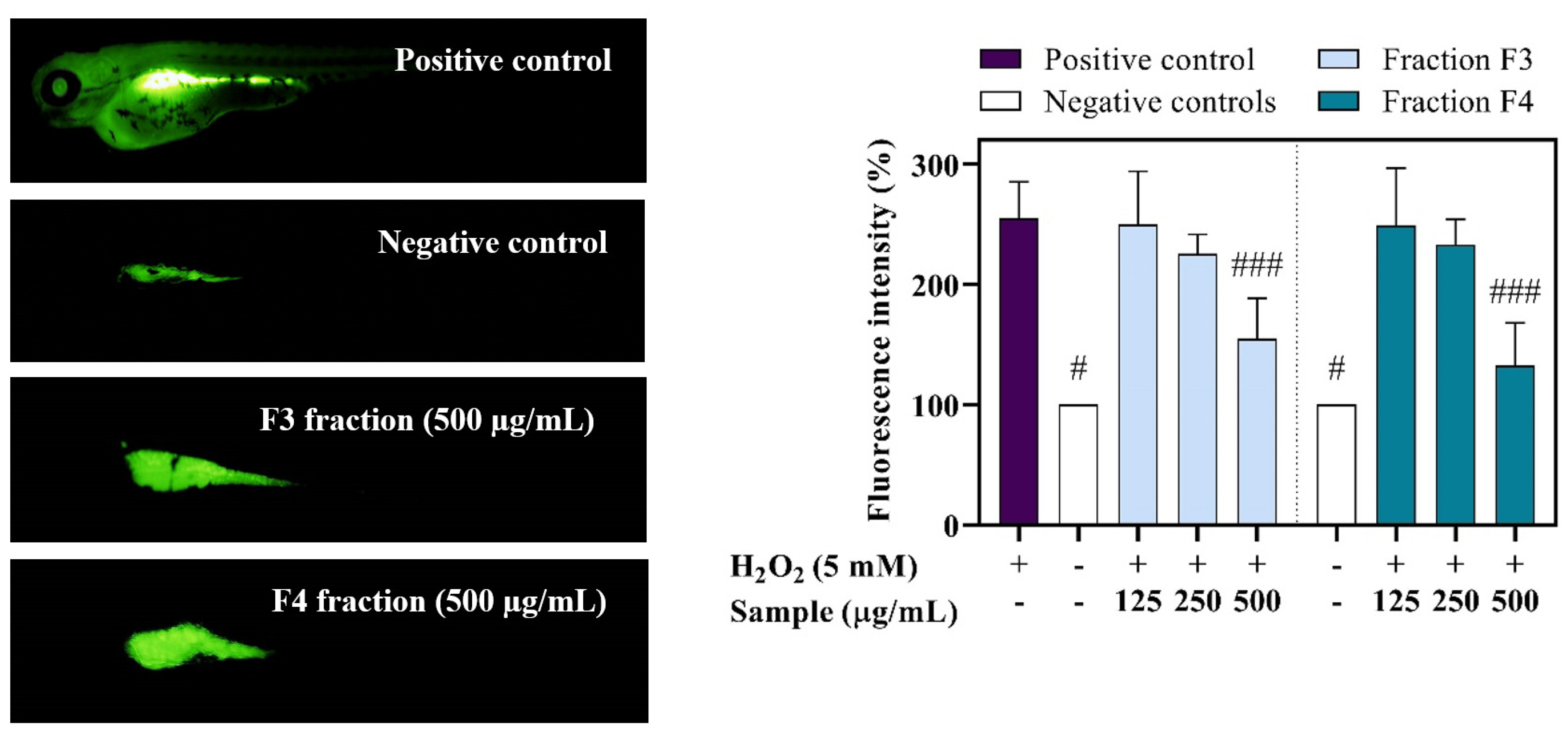

Figure 6. ROS scavenging potential of C. adhaerens fractions F3 and F4 in zebrafish. Left: Representative fluorescence images of H2O2 treated and the fractions co-treated zebrafish larvae. Right: Mean fluorescent intensity of DCF in the whole larvae calculated using Image J program. Sign # represents significant difference when compared with H2O2-treated group (# p < 0.05; ### p < 0.001). Each treatment was normalised relative to non-treated controls (100%).
Figure 6. ROS scavenging potential of C. adhaerens fractions F3 and F4 in zebrafish. Left: Representative fluorescence images of H2O2 treated and the fractions co-treated zebrafish larvae. Right: Mean fluorescent intensity of DCF in the whole larvae calculated using Image J program. Sign # represents significant difference when compared with H2O2-treated group (# p < 0.05; ### p < 0.001). Each treatment was normalised relative to non-treated controls (100%).
Pharmaceuticals 14 00944 g006
Table 1. The volatile compounds from Codium adhaerens isolated by headspace solid-phase microextraction (HS-SPME) and analysed by gas chromatography–mass spectrometry (GC-MS): (I—fresh C. adhaerens extracted by DVB/CAR/PDMS fibre, II—air-dried C. adhaerens extracted by DVB/CAR/PDMS fibre, III—fresh C. adhaerens extracted by PDMS/DVB fibre, IV—air-dried C. adhaerens extracted by PDMS/DVB fibre).
Table 1. The volatile compounds from Codium adhaerens isolated by headspace solid-phase microextraction (HS-SPME) and analysed by gas chromatography–mass spectrometry (GC-MS): (I—fresh C. adhaerens extracted by DVB/CAR/PDMS fibre, II—air-dried C. adhaerens extracted by DVB/CAR/PDMS fibre, III—fresh C. adhaerens extracted by PDMS/DVB fibre, IV—air-dried C. adhaerens extracted by PDMS/DVB fibre).
No.CompoundRIArea (%) ± SD
IIIIIIIV
1Dimethyl sulfide<90054.25 ± 2.130.42 ± 0.0337.83 ± 1.190.62 ± 0.03
2Iodomethane <9002.0 ± 0.072.48 ± 0.09
32-Ethylfuran<9004.52 ± 0.18
4Pentanal<9000.20 ± 0.070.11 ± 0.04
5Hexanal<9000.65 ± 0.031.67 ± 0.092.46 ± 0.932.59 ± 0.36
6Dimethylsulfoxide<90019.50 ± 0.4912.38 ± 0.62
7Heptanal9020.95 ± 0.160.90 ± 0.352.29 ± 0.37
8Diodomethane9230.26± 0.010.40 ± 0.10
91-Iodopentane9270.31 ± 0.040.902 ± 0.21
10α-Pinene9410.25 ± 0.050.73 ± 0.21
11(2E)-Hept-2-enal9640.86 ± 0.30
12Benzaldehyde96612.84 ± 0.503.64 ± 0.0412.22 ± 5.622.06 ± 0.13
13Oct-1-en-3-ol9852.45 ± 0.101.95 ± 0.012.40 ± 0.681.27 ± 0.11
14Phenol9870.64 ± 0.081.20 ± 0.17
156-Methylhept-5-en-2-one9890.63 ± 0.020.64 ± 0.010.43 ± 0.160.63 ± 0.01
162-Pentylfuran9961.07 ± 0.040.90 ± 0.000.58 ± 0.221.80 ± 0.20
17Octanal10040.75 ± 0.050.73 ± 0.281.15 ± 0.13
18(2E,4E)-Hepta-2,4-dienal10150.37 ± 0.031.02 ± 0.420.80 ± 0.10
192-Ethylhexan-1-ol10330.89 ± 0.24
20p-Cymene10340.35 ± 0.17
21Limonene10370.60 ± 0.020.75 ± 0.250.68 ± 0.26
22Benzyl alcohol10422.22 ± 0.096.71 ± 0.121.60 ± 0.4412.35 ± 0.88
23(2E)-Oct-2-enal10630.77 ± 0.011.29 ± 0.661.25 ± 0.17
24(3E,5E)-Octa-3,5-dien-2-one10971.20 ± 0.04 0.93 ± 0.03
25Linalool11020.22 ± 0.020.41 ± 0.150.53 ± 0.21
26Nonanal11070.89 ± 0.101.41 ± 0.552.20 ± 0.28
27(2E,4E)-Octa-2,4-dienal1114 1.36 ± 0.19
282,6-Dimethylcyclohexanol11150.61 ± 0.02 0.61 ± 0.14
296-[(Z)-1-Butenyl]-1,4-cycloheptadiene (Dictyopterene D)11590.72 ± 0.28
30(2Z)-Non-2-enal11650.61 ± 0.112.47 ± 0.44
31Indole12970.27 ± 0.050.86 ± 0.340.37 ± 0.15
32Tridecane13000.93 ± 0.042.96 ± 0.390.71 ± 0.131.81 ± 0.06
33α-Ionone14332.63 ± 0.101.18 ± 0.012.52 ± 0.781.19 ± 0.29
34Dimethyl phthalate14610.44 ± 0.010.59 ± 0.04
35(E)-β-Farnesene 14630.89 ± 0.190.31 ± 0.03
36β-Ionone14871.21 ± 0.050.61 ± 0.04
37α-Curcumene14880.58 ± 0.220.29 ± 0.03
38Pentadec-1-ene14950.51 ± 0.040.42 ± 0.08
39Pentadecane15000.48 ± 0.024.36 ± 0.010.47 ± 0.182.30 ± 0.48
405,6,7,7a-Tetrahydro-4,4,7a-trimethyl-2(4H)-benzofuranone 15340.39 ± 0.020.40 ± 0.07
41Dihydroactinolide15340.33 ± 0.13
42Heptadecane17006.65 ± 0.2626.61 ± 0.9011.22 ± 3.0123.12 ± 1.86
SD—standard deviation.
Table 2. The volatile compounds from C. adhaerens isolated by hydrodistillation (HD) and analysed by gas chromatography–mass spectrometry (GC-MS): (VI—hydrodistillate of fresh C. adhaerens, VII—hydrodistillate of air-dried C. adhaerens).
Table 2. The volatile compounds from C. adhaerens isolated by hydrodistillation (HD) and analysed by gas chromatography–mass spectrometry (GC-MS): (VI—hydrodistillate of fresh C. adhaerens, VII—hydrodistillate of air-dried C. adhaerens).
No.CompoundRIArea (%) ± SD
VIVII
1Furan-2-carbaldehyde<9000.06 ± 0.010.11 ± 0.04
2(2E)-Hex-2-enal<9000.36 ± 0.110.13 ± 0.05
34-Methyloctane<9000.15 ± 0.040.36 ± 0.19
4Hexan-1-ol<9000.21 ± 0.06
5Heptan-3-one<9000.07 ± 0.020.08 ± 0.00
65-Methylhexan-2-one<9000.31 ± 0.08
7Non-1-ene<9000.05 ± 0.01
8(2E,4E)-Hexa-2,4-diene<9000.04 ± 0.01
9Heptanal9020.18 ± 0.040.51 ± 0.11
10Hepta-2,4-dien-1-al *9070.07 ± 0.02
11Diodomethane9230.16 ± 0.00
121-Iodopentane9270.08 ± 0.03
13α-Pinene9410.03 ± 0.01
14Benzaldehyde9660.40 ± 0.100.77 ± 0.14
15Sabinene9790.03 ± 0.01
16Oct-1-en-3-ol9850.10 ± 0.020.24 ± 0.02
17Octan-2,3-dione9860.44 ± 0.16
18Phenol9870.13 ± 0.040.08 ± 0.03
196-Methylhept-5-en-2-one9890.13 ± 0.04
202-Pentylfuran9960.21 ± 0.060.90 ± 0.04
212,4,6-Trimethylpyridine
(α-Collidine)
9970.09 ± 0.030.19 ± 0.09
22Octanal10040.10 ± 0.050.28 ± 0.06
23(2E,4E)-Hepta-2,4-dienal10150.08 ± 0.000.13 ± 0.05
242-Ethylhexan-1-ol10330.11 ± 0.030.25 ± 0.09
25Benzyl alcohol10420.65 ± 0.140.67 ± 0.04
262,4,4-Trimethylcyclohex-2-en-1-ol10590.15 ± 0.030.35 ± 0.01
27(2E)-Oct-2-enal10630.27 ± 0.060.33 ± 0.02
28Acetophenone10720.11 ± 0.030.17 ± 0.01
29Octylcyclopropane10740.19 ± 0.080.17 ± 0.06
30Nonan-2-one10950.07 ± 0.03
31(3E,5E)-Octa-3,5-dien-2-one10970.26 ± 0.01
32Linalool11020.13 ± 0.030.07 ± 0.02
33Nonanal11070.17 ± 0.020.25 ± 0.02
342,6-Dimethylcyclohexanol11150.13 ± 0.030.28 ± 0.05
35α-Cyclocitral11220.03 ± 0.01
362-Hydroxy-3,5,5-trimethylcyclohex-2-en-1-one
(2-Hydroxyisophorone)
11260.03 ± 0.01
374-Ketoisophorone11500.18 ± 0.030.13 ± 0.02
38(2Z)-Non-2-enal11650.16 ± 0.030.22 ± 0.04
39Benzylmethylsulfide11710.20 ± 0.01
402,4-Dimethylbenzaldehyde11800.09 ± 0.03
41Decan-2-one11960.48 ± 0.11
42Safranal12040.36 ± 0.06
43Decanal12090.14 ± 0.020.08 ± 0.04
44β-Cyclocitral12260.15 ± 0.05
45Benzothiazole12290.07 ± 0.02
46β-Cyclohomocitral12630.11 ± 0.040.11 ± 0.00
47δ-Octalactone12640.18 ± 0.03
48(3Z)-Tridec-3-ene12950.12± 0.03
491H-Indole12970.30 ± 0.071.37 ± 0.19
50Tridecane13002.38 ± 0.521.04 ± 0.21
51Undecanal13110.14 ± 0.05
52(2E,4E)-Deca-2,4-dienal13210.15 ± 0.000.12 ± 0.03
531,1,6-Trimethyl-2H-naphthalene
(3,4-Dehydroionene)
13580.09 ± 0.020.05 ± 0.02
54Hexahydropseudoionone14090.16 ± 0.030.08 ± 0.03
55α-Ionone14330.61 ± 0.125.84 ± 0.72
562-Methoxynaphthalene14530.09 ± 0.030.05 ± 0.02
57(Z)-Geranylacetone14590.48 ± 0.06
58(5E)-Dodec-5-en-1-ol14670.23 ± 0.04
59β-Ionone14871.22 ± 0.45
60β-Ionene14900.85 ± 0.141.81 ± 0.33
61Pentadec-1-ene14952.12 ± 0.360.67 ± 0.12
62Pentadecane15003.25 ± 0.671.84 ± 0.27
63(7E)-Pentadec-7-ene15090.26 ± 0.04
64Tridecanal15150.21 ± 0.010.09 ± 0.03
65Dihydroactinolide15340.45 ± 0.08
66Tetradecan-2-one15660.21 ± 0.060.16 ± 0.01
67Dodecanoic acid15730.52 ± 0.060.19 ± 0.07
68Tridecan-1-ol15800.52 ± 0.020.37 ± 0.06
69Diethyl phthalate15990.32 ± 0.12
70Hexadecane16000.40 ± 0.150.14 ± 0.05
71Tetradecanal16170.54 ± 0.000.14 ± 0.03
72Benzophenone16300.23 ± 0.08
73(6Z)-Dodec-6-en-4-olide
((Z)-6-γ-Dodecenolactone)
16612.46 ± 0.170.85 ± 0.09
74Tetradecan-1-ol16833.55 ± 0.382.16 ± 0.26
75(8E)-Heptadec-8-ene16900.44 ± 0.060.30 ± 0.11
76Heptadec-1-ene16972.80 ± 0.421.61 ± 0.13
77Heptadecane170029.32 ± 6.8612.29 ± 0.25
78(3Z)-Heptadec-3-ene17090.32 ± 0.050.11 ± 0.04
79Pentadecanal17200.56 ± 0.030.17 ± 0.06
807-Methylheptadecane17500.31 ± 0.000.70 ± 0.02
81Tetradecanoic acid17722.43 ± 0.390.24 ± 0.04
82Octadec-1-ene17900.19 ± 0.07
83Octadecane18000.29 ± 0.030.09 ± 0.03
84Hexadecanal18221.32 ± 0.080.19 ± 0.02
85Neophytadiene18450.16 ± 0.060.10 ± 0.04
86Hexahydrofarnesyl acetone (Phytone)18522.03 ± 0.105.81 ± 0.48
87p-Cumylphenol18570.27 ± 0.04
88(9Z)-Hexadeca-1,9-diene18660.49 ± 0.136.53 ± 0.48
89(11Z)-Hexadec-11-enal18700.21 ± 0.030.25 ± 0.04
90Diisobutyl phthalate18740.42 ± 0.021.10 ± 0.05
91(9E)-Nonadec-9-ene18790.49 ± 0.010.22 ± 0.03
92Hexadecan-1-ol18861.63 ± 0.251.57 ± 0.50
93Nonadec-1-ene18980.25 ± 0.040.10 ± 0.04
94Nonadecane19000.70 ± 0.080.33 ± 0.00
95Hexadecanoic acid19818.62 ± 1.6110.55 ± 1.40
96Cyclooctasulfur20180.57 ± 0.050.42 ± 0.16
97Octadecanal20250.71 ± 0.080.22 ± 0.03
98Methyl octadecyl ether20342.06 ± 0.241.22 ± 0.08
99Octadecan-1-ol20860.51 ± 0.131.75 ± 0.90
100(E)-Phytol21195.00 ± 1.1416.99 ± 2.69
101(9Z)-octadec-9-enoic acid (Oleic acid)21460.49 ± 0.272.53 ± 0.37
102(5E)-Icos-5-ene22930.65 ± 0.172.68 ± 1.32
1034,8,12,16-Tetramethylheptadecan-4-olide23830.33 ± 0.11
SD—standard deviation; *—correct isomer is not identified.
Table 3. Fatty acid composition of C. adhaerens determined by GC-FID.
Table 3. Fatty acid composition of C. adhaerens determined by GC-FID.
No.Fatty AcidAv ± SD (%)
1Dodecanoic acid (Lauric acid) (C12:0)4.02 ± 1.16
2Tetradecanoic acid (Myristic acid) (C14:0)4.10 ± 0.28
3Hexadecanoic acid (Palmitic acid) (C16:0)25.50 ± 0.13
4Octadecanoic acid (Stearic acid) (C18:0)7.12 ± 0.26
5Eicosanoic acid (Arachidic acid) (C20:0)22.48 ± 0.49
6Docosanoic acid (Behenic acid) (C22:0)1.72 ± 0.19
Total saturated fatty acids (SFA)64.94
7(9Z)-Hexadec-9-enoic acid (Palmitoleic acid) (C16:1)5.79 ± 0.65
8(10Z)-Heptadec-10-enoic acid (cis-Heptadecenoic acid) (C17:1)1.96 ± 0.24
9(9Z)-Octadec-9-enoic acid+(9E)-Octadec-9-enoic acid
(cis-Oleic acid+trans-Oleic acid) (C18:1n9c+t)
16.91 ± 1.46
Total monounsaturated fatty acids (MUFA)24.66
10(9Z,12Z)-Octadeca-9,12-dienoic acid
(cis-Linoleic acid) (C18:2n6c)
4.67 ± 0.33
11(9Z,12Z,15Z)-Octadeca-9,12,15-trienoic acid
(α-Linolenic acid) (C18:3n3)
2.77 ± 0.41
12(5Z,8Z,11Z,14Z)-Icosa-5,8,11,14-tetraenoic acid
(Arachidonic acid) (C20:4n6)
1.78 ± 0.32
13(13Z,16Z)-Docosa-13,16-dienoic acid
(Docosadienoic acid) (C22:2n6)
1.63 ± 0.49
Total polyunsaturated fatty acids (PUFA)10.85
Total ω3 fatty acids2.77
Total ω6 fatty acids8.08
Table 4. Major non-volatile compounds in F3 and F4 fractions and their tentative identification by UHPLC-ESI(+)-HRMS.
Table 4. Major non-volatile compounds in F3 and F4 fractions and their tentative identification by UHPLC-ESI(+)-HRMS.
No.CompoundRt (min)Elemental Compositionm/z
(Error, ppm)
Peak Area
(Arbitrary Units)
F3F4
1Gingerglycolipid A11.194C33H56O14677.37267
(2.379)
276,841.591288.25
22-Hydroxy-3-(β-L-talopyranosyloxy)propyl (9Z,12Z,15Z)-octadeca-9,12,15-trienoate11.976C27H46O9515.32020
(2.445)
469,972.093546.75
31,3-Dihydroxy-2-propanyl icosa-5,8,11,14-tetraenoate13.971C23H38O4379.28354
(1.972)
54,160.8628,397.43
42,3-Dihydroxypropyl palmitate14.222C19H38O4331.28296
(4.030)
377,335.75495,766.09
52,3-Dihydroxypropyl octadec-9-enoate14.561C21H40O4357.30074
(−2.247)
40,879.4-
6Isoamijiol oxidation product *14.939C20H30O2303.23271
(−2.803)
994,098.6318,848.2
72,3-Dihydroxypropyl stearate15.254C21H42O4359.31454
(2.932)
505,462.75659,353.94
82-Hydroxypropyl palmitate15.379C19H38O3315.29087
(−4.761)
52,074.77141,670.42
9Pheophorbide a15.537C35H36N4O5593.27486
(1.663)
1,478,183.5175,460.75
10Isoamijiol15.569C20H32O2305.24830
(−2.598)
552,684.3166,746.24
11Fucoxanthin15.6C42H58O6659.42919
(2.169)
23,608.5920,924.63
12(2E)-3-[21-(Methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9,14-divinyl-3,4-didehydro-3--24,25-dihydrophorbinyl]acrylic acid15.632C35H30N4O5587.22619
(4.618)
16,648.7694,242.22
133-[21-(Methoxycarbonyl)-4,8,13,18-tetramethyl-20-oxo-9,14-divinyl-3,4-didehydro-3--24,25-dihydrophorbinyl]propanoic acid15.632C35H32N4O5589.24226
(3.887)
18,364.7762,398.75
144-{[6-{[5-({[3-Carboxy-3-(dodecylamino)propanoyl]oxy}methyl)-3,4-dihydroxy-2-(hydroxymethyl)tetrahydro-2-furanyl]oxy}-3,4,5-trihydroxytetrahydro-2H-pyran-2-yl]methoxy}-2-(dodecylamino)-4-oxobutanoic acid15.632C44H80N2O17909.55133
(1.815)
387,109.443907.02
1513-Docosenamide16.103C22H43NO338.34153
(0.637)
3958,621859,522.19
162-Hydroxypropyl stearate16.29C21H42O3343.32107
(−1.159)
114,486.16343,931.75
173-(β-D-Galactopyranosyloxy)-2-[(7Z,10Z,13Z)-7,10,13-hexadecatrienoyloxy]propyl (9Z,12Z,15Z)-octadeca-9,12,15-trienoate16.605C43H70O10747.50298
(1.590)
755,057.4417,590.1
18(3β,6α)-14-Methylergosta-8,24(28)-diene-3,6-diol17.512C29H48O2429.37200
(1.646)
1,082,618.7558,710.11
19β-Stigmasterol17.701C29H46395.36791 **
(−1.717)
58,667.22514,958.41
201-Hydroxy-3-(tetradecanoyloxy)-2-propanyl (9Z)-9-octadecenoate17.985C35H66O5567.49797
(0.580)
28,771.63419,526.25
21(3β)-3-Hydroxystigmast-5-en-7-one18.364C29H48O2429.37170
(2.352)
440,882287,291.56
223-Hydroxy-1,2-propanediyl bis(9-octadecenoate)19.631C39H72O5621.54313
(3.412)
76,716.0696,810.66
233-Hydroxy-2-(palmitoyloxy)propyl stearate19.663C37H72O5597.54727
(−3.374)
134,634.83139,876.53
24Methyl 14-ethyl-4,8,13,18-tetramethyl-20-oxo-3-(3-oxo-3-{[(2E)-3,7,11,15-tetramethyl-2-hexadecen-1-yl]oxy}propyl)-9-vinyl-3,4-didehydro-24,25-dihydrophorbine-21-carboxylate19.982C55H72N4O5869.55660
(1.098)
-281,383.5
25Methyl 9-acetyl-14-ethylidene-4,8,13,18-tetramethyl-20-oxo-3-{3-oxo-3-[(3,7,11,15-tetramethyl-2-hexadecen-1-yl)oxy]propyl}-13,14-dihydro-21-phorbinecarboxylate20.011C55H74N4O6887.57206
(−4.454)
33,461.4518,710,810
26Methyl (10Z,14Z,20Z)-12-ethyl-3-hydroxy-13,18,22,27-tetramethyl-5-oxo-23-(3-oxo-3-{[(2E)-3,7,11,15-tetramethyl-2-hexadecen-1-yl]oxy}propyl)-17-vinyl-4-oxa-8,24,25,26-tetraazahexacyclo[19.2.1.16,9.111,14.116,19.02,7]hep-tacosa-1(24),2(7),6(27),8,10,12,14,16,18,20-decaene-3-carboxylate20.013C55H74N4O7903.56436
(−1.473)
-4582,960
27Pheophytin a20.168C55H74N4O5871.57287
(0.375)
-45,562,208
*—exact compound not determined; **—dehydrated molecule [M-H2O+H]+.
Table 5. Antioxidant activity of C. adhaerens fractions (F3 and F4) obtained using ABTS assay with corresponding IC50 values and the significance parameters (confidence interval, slope and coefficient of determination, R2).
Table 5. Antioxidant activity of C. adhaerens fractions (F3 and F4) obtained using ABTS assay with corresponding IC50 values and the significance parameters (confidence interval, slope and coefficient of determination, R2).
SampleIC50 Value, mg/mLConfidence IntervalSlopeR2
F32.441.94–3.641.36 0.997
F42.491.92–3.861.26 0.997
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Radman, S.; Cikoš, A.-M.; Flanjak, I.; Babić, S.; Čižmek, L.; Šubarić, D.; Čož-Rakovac, R.; Jokić, S.; Jerković, I. Less Polar Compounds and Targeted Antioxidant Potential (In Vitro and In Vivo) of Codium adhaerens C. Agardh 1822. Pharmaceuticals 2021, 14, 944. https://doi.org/10.3390/ph14090944

AMA Style

Radman S, Cikoš A-M, Flanjak I, Babić S, Čižmek L, Šubarić D, Čož-Rakovac R, Jokić S, Jerković I. Less Polar Compounds and Targeted Antioxidant Potential (In Vitro and In Vivo) of Codium adhaerens C. Agardh 1822. Pharmaceuticals. 2021; 14(9):944. https://doi.org/10.3390/ph14090944

Chicago/Turabian Style

Radman, Sanja, Ana-Marija Cikoš, Ivana Flanjak, Sanja Babić, Lara Čižmek, Drago Šubarić, Rozelindra Čož-Rakovac, Stela Jokić, and Igor Jerković. 2021. "Less Polar Compounds and Targeted Antioxidant Potential (In Vitro and In Vivo) of Codium adhaerens C. Agardh 1822" Pharmaceuticals 14, no. 9: 944. https://doi.org/10.3390/ph14090944

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
