Article

Asymmetric Total Syntheses of Both Enantiomers of Plymuthipyranone B and Its Unnatural Analogues: Evaluation of anti-MRSA Activity and Its Chiral Discrimination

1
Department of Chemistry, School of Science and Technology, Kwansei Gakuin University, 2-1 Gakuen, Sanda 669-1337, Japan
2
Division of Pharmacodynamics, Faculty of Pharmacy, Keio University, 1-5-30 Shibakoen, Minato-ku, Tokyo 105-8512, Japan
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2021, 14(9), 938; https://doi.org/10.3390/ph14090938
Received: 1 August 2021 / Revised: 8 September 2021 / Accepted: 8 September 2021 / Published: 19 September 2021
(This article belongs to the Special Issue Chirality in Drug Discovery)

Abstract

:
Chiral total syntheses of both enantiomers of the anti-MRSA active plymuthipyranone B and all of the both enantiomers of three unnatural and synthetic analogues were performed. These two pairs of four chiral compounds are composed of the same 3-acyl-5,6-dihydro-2H-pyran-2-one structure. The starting synthetic step utilized a privileged asymmetric Mukaiyama aldol addition using Ti(OiPr)4/(S)-BINOL or Ti(OiPr)4/(R)-BINOL catalysis to afford the corresponding (R)- and (S)-δ-hydroxy-β-ketoesters, respectively, with highly enantiomeric excess (>98%). Conventional lactone formation and successive EDCI-mediated C-acylation produced the desired products, (R)- and (S)-plymuthipyranones B and three (R)- and (S)- synthetic analogues, with an overall yield of 42–56% with a highly enantiomeric excess (95–99%). A bioassay of the anti-MRSA activity against ATCC 43300 and 33591 revealed that (i) the MICs of the synthetic analogues against ATCC 43300 and ATCC 33591 were between 2 and 16 and 4 and 16 μg/mL, respectively, and those of vancomycin (reference) were 1 μg/mL. (ii) The natural (S)-plymuthipyranone B exhibited significantly higher activity than the unnatural (R)-antipode against both AACCs. (iii) The natural (R)-plymuthipyranone B and (R)-undecyl synthetic analogue at the C6 position exhibited the highest activity. The present work is the first investigation of the SAR between chiral R and S forms of this chemical class.

1. Introduction

The chiral discrimination of bioactivity between enantiomers has occupied a central position in modern research and the development of pharmaceuticals and agrochemicals. 3-Acyl-5,6-dihydro-2H-pyran-2-ones are unique heterocyclic molecules with a tricarbonyl moiety at the C(3)-position and an asymmetric center at the C(6)-position [1]. Several natural products contain these compounds, as depicted in Figure 1.
Alternaric acid (1) with three contiguous stereocenters and non-conjugated dienes is the most representative phytotoxic and antifungal natural product isolated from Alternaria solani [2]. The distinctive and exquisite structure of 1 renders this compound a worthy synthetic target. The total or formal chiral syntheses of 1 have been achieved by the following several groups: (i) the first total synthesis started from (S)-methylbutanol and methyl (R)-hydroxybutanoate (Ichihara’s group) [3,4], (ii) formal synthesis utilizing Ru-catalyzed alder ene type reactions (Trost’s group) [5], (iii) formal synthesis utilizing a silyl glyoxylate three-component-coupling method (Johnson and Slade) [6] and (iv) total synthesis utilizing asymmetric Ti-Claisen condensation by our group [7,8].
Antifungal active (R)-podoblastins A–C (2a2c) and S (2d) against rice-blast disease were isolated from Podophyllum peltatum L. [9] and synthesized as racemic forms utilizing a Fries-type acyl group rearrangement [10] and 1,3-dipolar cycloaddition [11]. A chiral pool total synthesis of (R)-podoblastins S (2d) starting from (S)-glycelaldehyde acetonide was reported [12]. A related antifungal antagonistic active (R)-lachnelluloic acid (3) against Dutch elm disease was isolated from Lachnellula fuscosanguinea (Rehm) Dennis, and its racemic form was synthesized [13]. Later, a formal synthesis of 3 was reported [14]. Recently, the chiral total syntheses of (R)-podoblastin S (2d) and (R)-lachnelluloic acid were performed utilizing catalytic asymmetric Mukaiyama aldol reactions [15].
Notably, despite these extensive studies, chiral discrimination studies of C(6R) and anti-podal C(6S) isomers have not yet been performed, simply due to the lack of an accessible method for synthesizing the 6(S) enantiomer, i.e., syntheses have been limited to C(6R) isomers. Very recently, Broberg’s group disclosed that plymuthipyranones A (4a) and B (4b), having a 3-butanoyl-5,6-dihydro-2H-pyran-2-one structure, which were isolated from Serratia plymuthica strain MF371-2, exhibited highly potent activity against Gram-positive Staphylococcus aureus LMG 15975 (MRSA) [16] (Figure 2). They reported that the absolute configuration of plymuthipyranones A and B is R [16], according to the analogous optical rotation minus value [9,15]. They reported that racemic plymuthipyranones B (4b) was more potent than racemic A (4a), based on the MIC (minimal inhibition concentration) value. In addition, the racemic synthetic analogue 4d exhibited the highest anti-MRSA activity among 4a4d with variable C(6)-side chains [16,17].

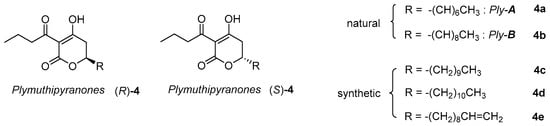

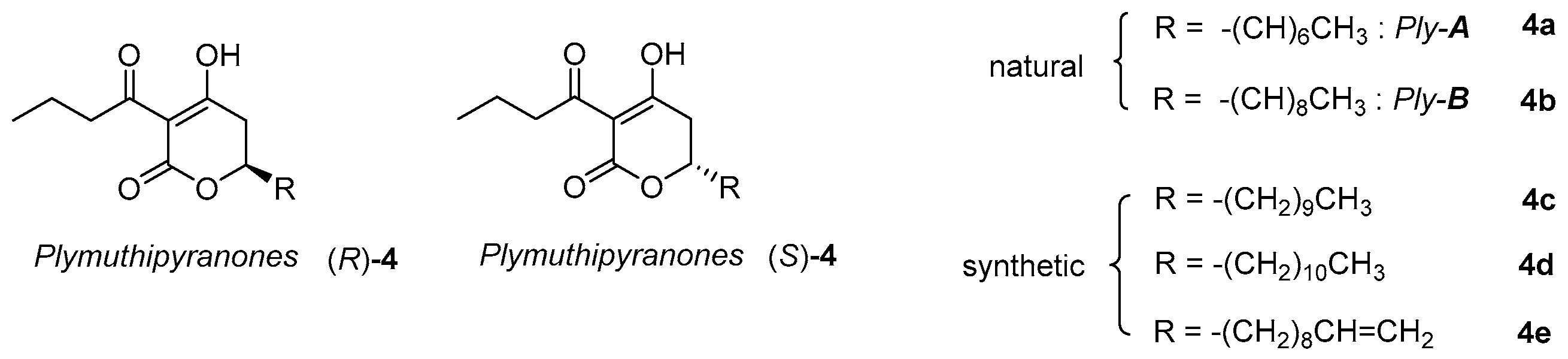

Consistent with our continuing interest in chiral discrimination studies between enantiomers and diastereomers [18,19,20,21,22,23], a major topic in pharmaceutical and agrochemical research, we envisaged the chiral total syntheses of three sets of plymuthipyranones to evaluate the anti-MRSA activity of natural plymuthipyranone B (more active than A), synthetic analogues 4c, 4d and novel synthetic analogue 4e. This study is closely related to our total synthetic studies of a 3-acyl-5,6-dihydro-2H-pyran-2-one series [7,10,15] and relevant 4-methoxy derivatives (all four stereoisomers of pestalotin) [24].

2. Results and Discussion

2.1. Synthesis of Three Sets of Natural Plymuthipyranone B and Two Sets of Synthetic Analogues

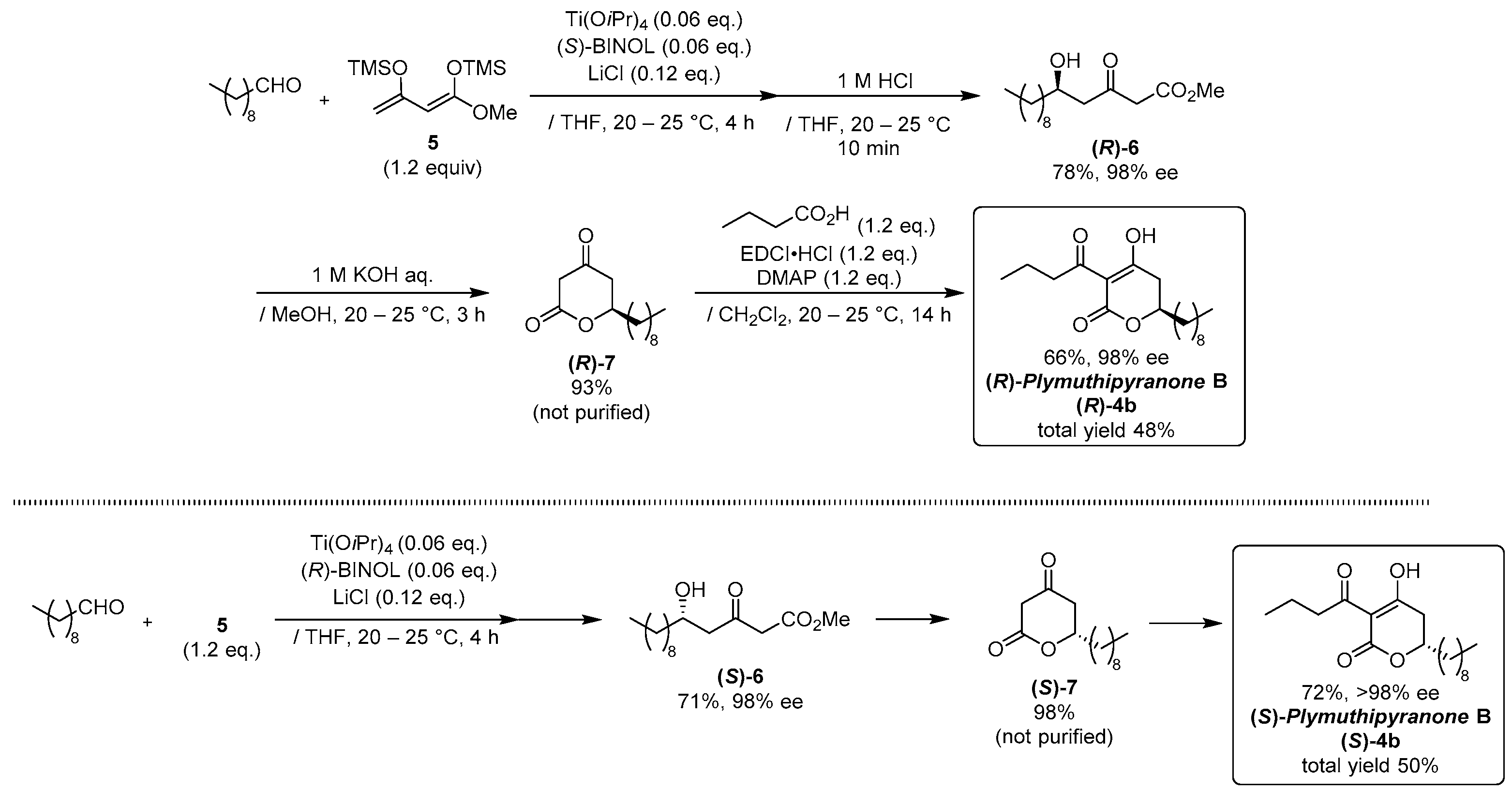

Our synthesis commenced with the privileged asymmetric Mukaiyama aldol addition using Ti(OiPr)4/(S)-BINOL catalysis originally developed by Soriente and Scettri’s group [25,26,27,28], which consistently produced the (R)-aldol adducts. In addition, (S)-aldol adducts can be obtained in a similar and stereocomplementary manner by switching the chiral catalysis from (S)-BINOL to (R)-BINOL.
The reaction of 1,3-bis(trimethylsiloxy)diene (Chan’s diene) 5 [29,30,31] with decanal afforded (R)-δ-hydroxy-β-ketoester 6 with a 78% yield with an excellent 98% ee (Scheme 1). The conventional KOH-hydrolysis of (R)-6 and the subsequent acid-catalyzed lactone formation afforded the desired (R)-5,6-dihydro-2H-pyran-2-one (R)-7 with a 93% yield. For the C-acylation step, we adopted a mild and direct method utilizing an EDCI reagent [3,4] rather than an indirect O-acylation and successive Fries-type acyl group rearrangement [10,16]. Thus, the final EDCI-mediated C-acylation of (R)-7 with butanoic acid furnished (R)-plymuthipyranone B [(R)-4b] with a 66% yield with 95% ee (HPLC analysis, SI). In a similar procedure, (S)-plymuthipyranone B [(S)-4b] was synthesized using Ti(OiPr)4/anti-podal (R)-BINOL catalysis. Consequently, the present total syntheses of both enantiomers of plymuthipyranone B were performed in a total of five steps, achieving an overall yield of 48–50% with excellent enantioselectivity (95–97% ee).
Eventually, (R)- and (S)-stereocomplementary syntheses were performed by only switching (S)- and (R)-BINOL catalysts, respectively, both of which are commercially available with nearly the same prices.

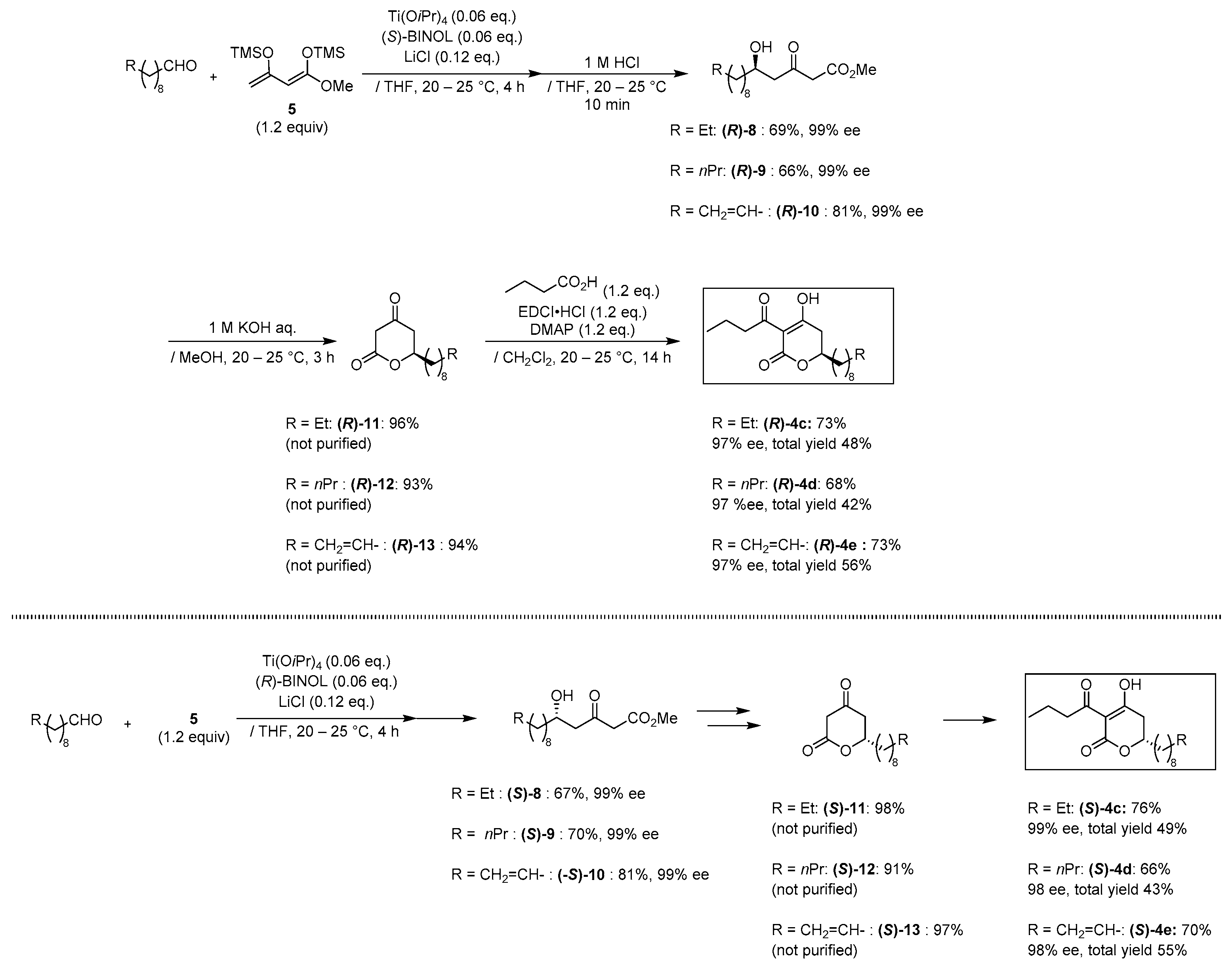

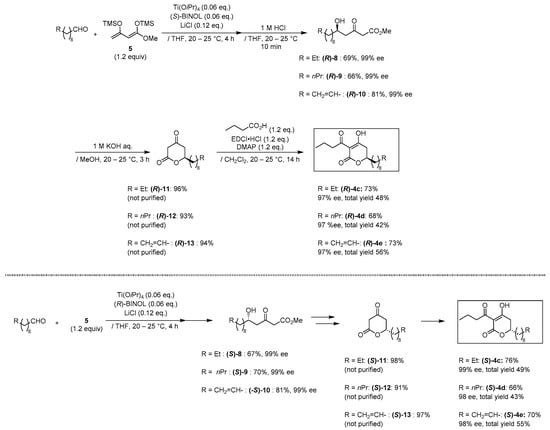

We next turned our attention to the syntheses of the two enantiomer sets of unnatural (synthetic) analogues of (R)-4c and (S)-4c, (R)-4d and (S)-4d, respectively (Scheme 2). A racemic compound of 4d exhibited the highest anti-MRSA activity among a series of these compounds [16]. Novel analogues (R)-, (S)-4d containing a terminal double bond in the substituent at the C(6)-position were selected as candidates, because (i) podoblastin B with a similar terminal double bond exhibited higher antifungal activity than podoblastins A and C with simple alkyl groups and (ii) starting 10-undecenal was commercially available.
The syntheses of all the six target compounds were implemented similarly to the synthesis of plymuthipyranones B mentioned above. In all the cases, asymmetric Mukaiyama aldol addition using diene 5 to undecanal, 10-undecenal and dodecanal afforded (R)-8, (R)-9, (R)-10, (S)-8, (S)-9 and (S)-10 with a 66–81% yield with excellent enantioselectivity (99% ee). The subsequent KOH-hydrolysis and HCl treatment produced the corresponding (R)-5,6-dihydro-2H-pyran-2-ones (R)-11, (R)-12, (R)-13, (S)-11, (S)-12 and (S)-13. The final C-acylations of (R)-11, (R)-12, (R)-13, (S)-11, (S)-12 and (S)-13 using the EDCI reagent furnished the target 4-acylated products (R)-4c, (R)-4d, (R)-4e, (S)-4c, (S)-4d and (S)-4e, respectively, with an acceptable overall yield (42–56%) with an excellent enantioselectivity (97–99% ee).

2.2. Antibacterial Evaluation against MRSA

The stereostructure-activity relationships between all the enantiomers of plymuthipyranone B (4b) and synthetic analogues 4c, 4d, 4e were assayed using two American Type Culture Collection (ATCC) cell lines (43300 and 33591) on the basis of their minimal inhibitory concentration (MIC) values against MRSA (Table 1). Broberg’s group reported that the anti-MRSA activity order was 4d > 4c > plymuthipyranone B (4b) > 4e as “the racemic forms” [16].
The salient features are as follows: (i) The MICs of the synthetic analogues against ATCC 43300 and ATCC 33591 were between 2 and 16 and 4 and 16 μg/mL, respectively, and those of vancomycin (reference) were 1 μg/mL. (ii) As expected, natural plymuthipyranone B (S)-4b exhibited significantly higher activity than the unnatural antipode (R)-4b against both ATCCs. (iii) In clear contrast, reverse antipodal (S)-4c exhibited higher activity than (R)-4c against both ATCCs. (iv) Regarding the most active analogue 4d (the racemic form), however, the activity was (S)-4d = (R)-4d against ATCC 3300 and (S)-4d > (R)-4d against ATCC 33591. (v) These results are in reasonable accordance with the reported data of racemates 4b, 4c and 4d. (vi) (R)-4e and (S)-4e possessing a terminal double bond were quite less reactive in contrast to the SAR of podoblastins [15]. (vii) The MICs of the most active (R)-4c and (S)-4d were approximately half that of vancomycin.
Among various biologically active 3-acyl-5,6-dihydro-2H-pyran-2-one compounds, this is the first investigation of the stereostructure-activity relationship (SAR) between chiral R and S forms. Eventually, the subtle changes of the chain length at the C6-position significantly influenced the inherent activity and chiral discrimination. On the other hand, the following SAR studies remain: (i) variation of 3-acyl substituent and (ii) isosterism for other related heterocycles such as 2H-pyrones, piperidine, etc.

3. Materials and Methods

3.1. Synthesis

All reactions were carried out in oven-dried glassware under an argon atmosphere. Flash column chromatography was performed with silica gel 60 (230–400 mesh ASTM, Merck, Darmstadt, Germany). TLC analysis was performed on Merck 0.25-millimeter Silicagel 60 F254 plates. Melting points were determined on a hot stage microscope apparatus (ATM-01, AS ONE, Osaka, Japan) and were uncorrected. NMR spectra were recorded on a JEOLRESONANCE EXC-400 or ECX-500 spectrometer (JEOL, Akishima, Japan) operating at 400 or 500 MHz for 1H-NMR and 100 and 125 MHz for 13C NMR. Chemical shifts (δ ppm) in CDCl3 were reported downfield from TMS (= 0) for 1H-NMR. For 13C-NMR, chemical shifts were reported in the scale relative to CDCl3 (77.00 ppm) as an internal reference. Mass spectra were measured on a JMS-T100LC spectrometer (JEOL, Akishima, Japan). HPLC data were obtained on a SHIMADZU (Kyoto, Japan) HPLC system (consisting of the following: LC-20AT, CMB20A, CTO-20AC and detector SPD-20A measured at 254 nm) using Chiracel AD-H or Ad-3 column (Daicel, Himeji, Japan, 25 cm) at 25 °C. Optical rotations were measured on a JASCO DIP-370 (Na lamp, 589 nm). All NMR spectra figures could be found in Supplementary Materials.
Methyl (R)-5-hydroxy-3-oxotetradecanoate [(R)-6] [25].
Pharmaceuticals 14 00938 i009
Ti(OiPr)4 (0.11 mL, 0.36 mmol) was added to the solution of (S)-BINOL (103 mg, 0.36 mmol) and LiCl (31 mg, 0.72 mmol) in THF (18 mL) at 20–25 °C under an Ar atmosphere. After 5 min, decanal (938 mg, 6.00 mmol) was added to the solution, at same temperature. After 10 min, 1,3-bis(TMS)diene 5 (2.97 g, 63% purity, 7.20 mmol) was added to the solution, at same temperature, followed by being stirred for 4 h. The mixture was quenched with 1 M HCl aq. (6 mL), and stirred for 10 min. The mixture was extracted three times with AcOEt, combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified using SiO2-column chromatography (hexane-AcOEt = 10/1) to give the desired product (R)-6 (1.28 g, 78%).
Pale yellow crystal; mp 34–36 °C, [α]D24 −25.5 (c 1.05, CHCl3) [lit. [25] [α]Dunknown −22 (c 1, CHCl3)]; 98% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 6.79, 7.45, 10.44, and 11.10 min. tR[(R)-form] = 7.44 and 11.07 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.22–1.54 (m, 16H), 2.64 (dd, J = 9.2 Hz, 17.2 Hz, 1H), 2.73 (dd, J = 2.9 Hz, 17.2 Hz, 1H), 3.50 (s, 2H), 3.75 (s, 3H), 4.05–4.10 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 14.1, 22.6, 25.4, 29.3, 29.5, 29.5, 29.5, 31.8, 36.5, 49.6 (2C), 52.4, 67.5, 167.3, 203.6.; IR (neat): νmax = 3468, 2926, 2855, 1748, 1715, 1439, 1321, 1238, 1159, 1012, 760.; HRMS (ESI): m/z calculated for C15H28O4 [M + Na]+ 295.1885; found: 295.1912.
Methyl (S)-5-hydroxy-3-oxotetradecanoate [(S)-6] [26].
Pharmaceuticals 14 00938 i010
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (R)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), decanal (938 mg, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.97 g, 63% purity, 7.20 mmol) and THF (18 mL) gave the desired product (S)-6 (1.16 g, 71%).
Pale yellow crystal; mp 35–36 °C, [α]D25 +25.7 (c 1.07, CHCl3) [lit. [26] [α]D25 +26.2 (c 1.0, CHCl3)]; 99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 6.79, 7.45, 10.44 and 11.10 min. tR[(S)-form] = 6.62 and 10.06 min.
Methyl (R)-5-hydroxy-3-oxopentadecanoate [(R)-8].
Pharmaceuticals 14 00938 i011
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (S)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), undecanal (1.02 g, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.57 g, 73% purity, 7.20 mmol) and THF (18 mL) gave the desired product (R)-8 (1.19 g, 69%).
Pale yellow crystal; mp 45–46 °C, [α]D22 −26.3 (c 1.04, CHCl3); 99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 6.82, 7.53, 10.35 and 10.95 min. tR[(R)-form] = 7.55 and 10.98 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.23–1.54 (m, 18H), 2.65 (dd, J = 9.2 Hz, 17.2 Hz, 1H), 2.71 (d, J = 3.4 Hz, 1H), 2.74 (dd, J = 2.9 Hz, 17.2 Hz, 1H), 3.50 (s, 2H), 3.75 (s, 3H), 4.05–4.10 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 14.1, 22.6, 25.4, 29.3, 29.5, 29.6(3C), 31.9, 36.4, 49.6(2C), 52.4, 67.5, 167.4, 203.7.; IR (neat): νmax = 3374, 2953, 2849, 1734, 1715, 1470, 1331, 1150, 1059, 1034, 910.; HRMS (ESI): m/z calculated for C16H30O4 [M + Na]+ 309.2042; found: 309.2062.
Methyl (S)-5-hydroxy-3-oxopentadecanoate [(S)-8].
Pharmaceuticals 14 00938 i012
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (R)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), undecanal (1.02 g, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.57 g, 73% purity, 7.20 mmol) and THF (18 mL) gave the desired product (S)-8 (1.16 g, 67%).
Pale yellow crystal; mp 44–45 °C, [α]D22 +25.2 (c 1.08, CHCl3); 99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 6.82, 7.53, 10.35 and 10.95 min. tR[(S)-form] = 6.31 and 9.56 min.
Methyl (R)-5-hydroxy-3-oxohexadecanoate [(R)-9].
Pharmaceuticals 14 00938 i013
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (S)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), dodecanal (1.11 g, 6.00 mmol), 1,3-bis (TMS)diene 5 (2.57 g, 73% purity, 7.20 mmol) and THF (18 mL) gave the desired product (R)-9 (1.19 g, 66%).
Pale yellow crystal mp 45–46 °C, [α]D22 −24.1 (c 1.04, CHCl3); 99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 5.90, 6.56, 8.86 and 9.45 min. tR[(R)-form] = 6.58 and 9.47 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.21–1.54 (m, 20H), 2.65 (dd, J = 9.2 Hz, 17.8 Hz, 1H), 2.74 (dd, J = 2.9 Hz, 17.8 Hz, 1H), 3.50 (s, 2H), 3.75 (s, 3H), 4.05–4.10 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 14.1, 22.7, 25.4, 29.3, 29.5, 29.6(2C), 29.6, 29.6, 31.9, 36.4, 49.6(2C), 52.4, 67.5, 167.3, 203.7.; IR (neat): νmax = 3347, 2914, 2849, 1736, 1717, 1470, 1437, 1335, 1209, 1138, 854.; HRMS (ESI): m/z calculated for C17H32O4 [M + Na]+ 323.2198; found: 323.2211.
Methyl (S)-5-hydroxy-3-oxohexadecanoate [(S)-9] [14].
Pharmaceuticals 14 00938 i014
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (R)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), dodecanal (1.11 g, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.57 g, 73% purity, 7.20 mmol) and THF (18 mL) gave the desired product (S)-9 (1.27 g, 70%).
Pale yellow crystal; mp 46–47 °C, [α]D24 +24.7 (c 1.02, CHCl3) [lit. [14] [α]Dunknown −26.2 (c 1.9, CHCl3)]; 99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 5.90, 6.56, 8.86 and 9.45 min. tR[(S)-form] = 5.93 and 8.88 min.
Methyl (R)-5-hydroxy-3-oxopentadec-14-enoate [(R)-10].
Pharmaceuticals 14 00938 i015
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (S)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), 10-undecenal (1.01 g, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.97 g, 63% purity, 7.20 mmol) and THF (18 mL) gave the desired product (R)-10 (1.39 g, 81%).
Pale yellow crystal; mp 29–30 °C, [α]D24 −24.5 (c 1.02, CHCl3); >99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 7.33, 8.10, 11.39 and 12.18 min. tR[(R)-form] = 8.01 and 12.00 min.; 1H NMR (500 MHz, CDCl3): δ = 1.22–1.54 (m, 14H), 2.04 (q, J = 6.9 Hz, 2H), 2.65 (dd, J = 9.2 Hz, 17.8 Hz, 1H), 2.69 (brs, 1H), 2.74 (dd, J = 2.9 Hz, 17.8 Hz, 1H), 3.50 (s, 2H), 3.75 (s, 3H), 4.56–4.10 (m, 1H), 4.93 (dd, J = 1.2 Hz, 10.3 Hz, 1H), 5.00 (dd, J = 1.7 Hz, 17.2 Hz, 1H), 5.77–5.85 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 25.4, 28.8, 29.0, 29.3, 29.4, 29.4, 33.7, 36.4, 49.6 (2C), 52.4, 67.5, 114.1, 139.2, 167.3, 203.6.; IR (neat): νmax = 3503, 2926, 2855, 1748, 1715, 1639, 1437, 1406, 1325, 1269, 910. HRMS (ESI): m/z calculated for C16H28O4 [M + Na]+ 307.1885; found: 307.1872.
Methyl (S)-5-hydroxy-3-oxopentadec-14-enoate [(S)-10].
Pharmaceuticals 14 00938 i016
Following a similar procedure for the synthesis of (R)-6, the reaction using Ti(OiPr)4 (0.11 mL, 0.36 mmol), (R)-BINOL (103 mg, 0.36 mmol), LiCl (31 mg, 0.72 mmol), 10-undecenal (1.01 g, 6.00 mmol), 1,3-bis(TMS)diene 5 (2.97 g, 63% purity, 7.20 mmol) and THF (18 mL) gave the desired product (S)-9 (1.38 g, 81%).
Pale yellow crystal; mp 30–31 °C, [α]D24 +24.9 (c 1.13, CHCl3); >99% ee; HPLC analysis (AD-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 15:1) tR(racemic) = 7.33, 8.10, 11.39 and 12.18 min. tR[(S)-form] = 7.32 and 11.37 min.
(R)-6-Nonyldihydro-2H-pyran-2,4(3H)-dione [(R)-7] [32].
Pharmaceuticals 14 00938 i017
(R)-Aldol adduct (R)-6 (640 mg, 2.35 mmol) was added to a stirred 1M KOH aq. solution (2.4 mL) at 20–25 °C under an Ar atmosphere and the mixture was stirred at same temperature for 3 h. The resulting mixture was quenched with 1M HCl aq. solution, which was extracted twice with AcOEt. The combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude crystal (R)-7 (526 mg, 93%) was used for the next step without purification.
Pale yellow crystal; mp 82–83 °C, 1H NMR (500 MHz, CDCl3): δ = 0.87 (t, J = 6.9 Hz, 3H), 1.16–1.57 (m, 14H), 1.64–1.71 (m, 1H), 1.78–1.85 (m, 1H), 2.46 (dd, J = 11.5 Hz, 18.3 Hz, 1H)), 2.69 (dd, J = 2.3 Hz, 18.3 Hz, 1H), 3.42 (d, J = 18.9 Hz, 1H), 3.55 (d, J = 18.9 Hz, 1H), 4.58–4.64 (m, 1H); 13C NMR (125 MHz, CDCl3): δ =14.1, 22.6, 24.7, 29.2, 29.2, 29.4, 29.4, 31.8, 34.6, 43.5, 47.0, 75.6, 167.3, 200.1.; IR (neat): νmax =2922, 2855, 2666, 1697, 1585, 1389, 1285, 1248, 1043, 833. HRMS (ESI): m/z calculated for C14H24O3 [M + Na]+ 263.1623; found: 263.1604.
(S)-6-Nonyldihydro-2H-pyran-2,4(3H)-dione [(S)-7] [32].
Pharmaceuticals 14 00938 i018
Following a similar procedure for the synthesis of (R)-7, the reaction using (S)-aldol adduct (S)-8 (817 mg, 3.00 mmol) gave the desired product (S)-7 (710 mg, 98%).
Pale yellow crystal; mp 82–83 °C.
(R)-6-Decyldihydro-2H-pyran-2,4(3H)-dione [(R)-11].
Pharmaceuticals 14 00938 i019
Following a similar procedure for the synthesis of (R)-7, the reaction using aldol adduct (R)-10 (859 mg, 3.00 mmol) gave the desired product (R)-11 (733 mg, 96%).
Pale yellow crystal; mp 72–74 °C; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.27–1.57 (m, 16H), 1.66–1.73 (m, 1H), 1.80–1.87 (m, 1H), 2.48 (dd, J = 11.5 Hz, 18.3 Hz, 1H), 2.71 (dd, J = 2.3 Hz, 18.3 Hz, 1H), 3.44 (d, J = 18.9 Hz, 1H), 3.57 (d, J = 18.9 Hz, 1H), 4.60–4.66 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 14.1, 22.7, 24.7, 29.2, 29.3, 29.4, 29.5, 29.5, 31.9, 34.5, 43.5, 47.0, 75.5, 167.3, 200.2.; IR (neat): νmax = 2922, 2853, 1697, 1587, 1315, 1285, 1244, 910, 831, 735.; HRMS (ESI): m/z calculated for C15H26O3 [M + Na]+ 277.1780; found: 277.1770.
(S)-6-Decyldihydro-2H-pyran-2,4(3H)-dione [(S)-11].
Pharmaceuticals 14 00938 i020
Following a similar procedure for the synthesis of (R)-7, the reaction using (S)-aldol adduct (S)-8 (859 mg, 3.00 mmol) gave the desired product (S)-11 (745 mg, 98%).
Pale yellow crystal; mp 73–74 °C.
(R)-6-Undecyldihydro-2H-pyran-2,4(3H)-dione [(R)-12].
Pharmaceuticals 14 00938 i021
Following a similar procedure for the synthesis of (R)-7, the reaction using aldol adduct (R)-9 (901 mg, 3.00 mmol) and 1M KOH aq. solution (3.0 mL) gave the desired product (S)-12 (748 mg, 93%).
Pale yellow crystal; mp 80–81 °C, 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.21–1.54 (m, 18H), 1.66–1.73 (m, 1H), 1.80–1.87 (m, 1H), 2.47 (dd, J = 11.5 Hz, 18.3 Hz, 1H), 2.71 (dd, J = 2.9 Hz, 18.3 Hz, 1H), 3.44 (d, J = 18.9 Hz, 1H), 3.57 (d, J = 18.9 Hz, 1H), 4.60–4.65 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 14.1, 22.7, 24.7, 29.2, 29.3, 29.4, 29.5, 29.6(2C), 31.9, 34.5, 43.5, 47.0, 75.5, 167.3, 200.2.; IR (neat): νmax = 2920, 2853, 1697, 1585, 1470, 1389, 1285, 1043, 907, 831, 737.; HRMS (ESI): m/z calculated for C16H28O3 [M + Na]+ 291.1936; found: 291.1949.
(S)-6-Undecyldihydro-2H-pyran-2,4(3H)-dione [(S)-12].
Pharmaceuticals 14 00938 i022
Following a similar procedure for the synthesis of (R)-7, the reaction using aldol adduct (S)-9 (901 mg, 3.00 mmol) and 1M KOH aq. solution (3.0 mL) gave the desired product (S)-12 (733 mg, 91%).
Pale yellow crystal; mp 77–79 °C.
(R)-6-(Dec-9-en-1-yl)dihydro-2H-pyran-2,4(3H)-dione [(R)-13].
Pharmaceuticals 14 00938 i023
Following a similar procedure for the synthesis of (R)-7, the reaction using (R)-aldol adduct (R)-10 (853 mg, 3.00 mmol) gave the desired product (R)-13 (709 mg, 94%).
Pale yellow crystal; mp 69–71 °C; 1H NMR (500 MHz, CDCl3): δ = 1.22–1.59 (m, 12H), 1.66–1.73 (m, 1H), 1.80–1.87 (m, 1H), 2.02–2.07 (m, 2H), 2.47 (dd, J = 11.5 Hz, 18.3 Hz, 1H), 2.71 (dd, J = 2.9 Hz, 18.3 Hz, 1H), 3.44 (d, J = 18.9 Hz, 1H), 3.57 (d, J = 18.9 Hz, 1H), 4.60–4.65 (m, 1H), 4.94 (dquin J = 1.2 Hz, 10.3 Hz, 1H), 5.00 (ddd J = 1.7 Hz, 4.0 Hz, 17.2 Hz, 1H), 5.77–5.85 (m, 1H); 13C NMR (125 MHz, CDCl3): δ = 24.7, 28.8, 29.0, 29.2, 29.3 (2C), 33.7, 34.5, 43.5, 47.0, 75.5, 114.2, 139.1, 167.3, 200.2.; IR (neat): νmax = 2924, 2855, 1697, 1585, 1389, 1285, 1244, 908, 833, 737. HRMS (ESI): m/z calculated for C15H24O3 [M + Na]+ 275.1623; found: 275.1638.
(S)-6-(Dec-9-en-1-yl)dihydro-2H-pyran-2,4(3H)-dione [(S)-13].
Pharmaceuticals 14 00938 i024
Following a similar procedure for the synthesis of (R)-7, the reaction using (S)-aldol adduct (S)-10 (853 mg, 3.00 mmol) and 1M KOH aq. solution (3.0 mL) gave the desired product (S)-13 (732 mg, 97%).
Pale yellow crystal; mp 68–70 °C.
(R)-3-Butyryl-4-hydroxy-6-nonyl-5,6-dihydro-2H-pyran-2-one [(R)-Plymuthipyranone B: (R)-4b] [16].
Pharmaceuticals 14 00938 i025
1-Ethyl-3-(3-dimethylaminopropyl)carbodiimide hydrochloride (EDCI•HCl) (115 mg, 0.60 mmol) was added to a stirred suspension of pyrone (R)-7 (120 mg, 0.50 mmol), butanoic acid (0.055 mL, 0.60 mmol) and DMAP (73 mg, 0.60 mmol) in CH2Cl2 (1.5 mL) at 0–5 °C under an Ar atmosphere, and the mixture was stirred for 15 h at 20–25 °C. The resulting mixture was quenched with 1 M-HCl aq. solution, which was extracted twice with AcOEt. The combined organic phase was washed with water, brine, dried (Na2SO4) and concentrated. The obtained crude oil was purified using SiO2-column chromatography (hexane/AcOEt = 20:1) to give the desired product [(R)-Plymuthipyranone B: (R)-4b; 95% ee, 103 mg, 66%].
Pale yellow crystal; mp 45–46 °C, [α]D27 −23.9 (c 0.73, MeOH) [lit. [16] [α]Dunknown −22 (c 0.041, MeOH)]; 95% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.89 and 11.14 min. tR[(R)-form] = 7.82 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.00 (t, J = 7.5 Hz, 3H), 1.22–1.53 (m, 14H), 1.61–1.84 (m, 4H), 2.60 (dd, J = 4.0 Hz, 17.2 Hz, 1H), 2.67 (dd, J = 11.5 Hz, 17.2 Hz, 1H), 2.94–3.09 (m, 2H), 4.33–4.38 (m, 1H), 17.90 (s, 1H); 13C NMR (125 MHz, CDCl3): δ = 13.9, 14.2, 18.5, 22.7, 24.8, 29.3 (2C), 29.5, 29.5, 31.9, 34.7, 38.0, 40.4, 73.9, 103.3 164.4, 195.2, 204.4.; IR (neat): νmax = 2957, 2926, 2855, 1717, 1558, 1466, 1275, 1070, 910, 735.
(S)-3-Butyryl-4-hydroxy-6-nonyl-5,6-dihydro-2H-pyran-2-one [(S)-Plymuthipyranone B: (S)-4b] [16].
Pharmaceuticals 14 00938 i026
Following a similar procedure for the synthesis of (R)-Plymuthipyranone B [(R)-4b], the reaction using EDCI•HCl (115 mg, 0.80 mmol), pyrone (S)-7 (160 mg, 0.67 mmol), butanoic acid (0.073 mL, 0.80 mmol), DMAP (98 mg, 0.80 mmol) gave the desired product (S)-Plymuthipyranone B [(S)-4b] (149 mg, 72%).
Pale yellow crystal; mp 43–44 °C, [α]D27 +25.7 (c 0.67, MeOH) [lit. [16] [α]Dunknown +33 (c 2.4, CH2Cl2)]; >97% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.89 and 11.14 min. tR[(S)-form] = 10.99 min.
(R)-3-Butyryl-6-decyl-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(R)-4c].
Pharmaceuticals 14 00938 i027
Following a similar procedure for the synthesis of (R)-4b, the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (R)-11 (254 mg, 1.00 mmol), butyric acid (0.11 mL, 1.20 mmol), DMAP (147 mg, 1.20 mmol) and CH2Cl2 (3.0 mL) gave the desired product (R)-4c (236 mg, 73%).
Pale yellow crystal; mp 47–48 °C, [α]D24 –25.2 (c 1.03, MeOH); 97% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.54 and 10.66 min. tR[(R)-form] = 7.45 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.00 (t, J = 7.5 Hz, 3H), 1.21–1.54 (m, 16H), 1.61–1.84 (m, 4H), 2.57–2.70 (m, 2H), 2.94–3.09 (m, 2H), 4.33–4.39 (m, 1H), 17.93 (s, 1H); 13C NMR (125 MHz, CDCl3): δ = 13.8, 14.1, 18.3, 22.7, 24.6, 29.3, 29.3, 29.4, 29.5, 29.5, 31.9, 34.6, 37.8, 40.3, 73.8, 103.2, 164.4, 195.1, 204.4. IR (neat): νmax = 2963, 2920, 2849, 1709, 1692, 1557, 1466, 1281, 1081, 912, 762; HRMS (ESI): m/z calculated for C19H32O4 [M + Na]+ 347.2198; found: 347.2181.
(S)-3-Butyryl-6-decyl-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(S)-4c].
Pharmaceuticals 14 00938 i028
Following a similar procedure for the synthesis of (R)-4b, the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (S)-11 (254 mg, 1.00 mmol), butyric acid (0.11 mL, 1.20 mmol), DMAP (147 mg, 1.20 mmol) and CH2Cl2 (3.0 mL) gave the desired product (S)-4c (246 mg, 76%).
Pale yellow crystal; mp 47–48 °C, [α]D21 +24.9 (c 1.03, MeOH); 99% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.54 and 10.66 min. tR[(S)-form] = 10.47 min.
(R)-3-Butyryl-6-undecyl-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(R)-4d].
Pharmaceuticals 14 00938 i029
Following a similar procedure for the synthesis of (R)-plymuthipyranone B [(R)-4b], the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (R)-12 (268 mg, 1.00 mmol), butanoic acid (0.11 mL, 1.20 mmol), DMAP (147 mg, 1.20 mmol) and CH2Cl2 (3.0 mL) gave the desired product (R)-4d (230 mg, 68%).
Pale yellow crystal; mp 50–51 °C, [α]D24 –23.5 (c 1.00, MeOH); 97% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.09 and 9.90 min. tR[(R)-form] = 6.98 min.; 1H NMR (500 MHz, CDCl3): δ = 0.88 (t, J = 6.9 Hz, 3H), 1.00 (t, J = 7.5 Hz, 3H), 1.23–1.54 (m, 18H), 1.61–1.83 (m, 4H), 2.57–2.70 (m, 2H), 2.94–3.09 (m, 2H), 4.33–4.39 (m, 1H), 17.92 (s, 1H); 13C NMR (125 MHz, CDCl3): δ = 13.8, 14.1, 18.4, 22.7, 24.7, 29.3, 29.3, 29.4, 29.5, 29.6(2C), 31.9, 34.6, 37.9, 40.3, 73.9, 103.2, 164.4, 195.1, 204.4 IR (neat): νmax = 2920, 2849, 1707, 1688, 1558, 1468, 1070, 912, 735.; HRMS (ESI): m/z calculated for C20H34O4 [M + Na]+ 361.2355; found: 361.2337.
(S)-3-Butyryl-6-undecyl-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(S)-4d].
Pharmaceuticals 14 00938 i030
Following a similar procedure for the synthesis of (R)-plymuthipyranone B [(R)-4b], the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (S)-12 (268 mg, 1.00 mmol), butanoic acid (0.11 mL, 1.20 mmol), DMAP (147 mg, 1.20 mmol) and CH2Cl2 (3.0 mL) gave the desired product (S)-4d (222 mg, 66%).
Pale yellow crystal; mp 48–49 °C, [α]D26 +23.5 (c 0.93, MeOH); 98% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1) tR(racemic) = 7.09 and 9.90 min. tR[(S)-form] = 9.74 min.
(R)-3-Butyryl-6-(dec-9-en-1-yl)-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(R)-4e].
Pharmaceuticals 14 00938 i031
Following a similar procedure for the synthesis of (R)-plymuthipyranone B [(R)-4b], the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (R)-13 (252 mg, 1.00 mmol), butanoic acid (0.11 mL, 1.20 mmol) and DMAP (147 mg, 1.20 mmol) gave the desired product (R)-4e (237 mg, 73%).
Pale yellow crystal; mp 34–35 °C, [α]D25 -25.1 (c 0.64, MeOH); 97% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1), tR(racemic) = 10.06 and 15.51 min. tR[(R)-form] = 9.96 min.; 1H NMR (500 MHz, CDCl3): δ = 1.00 (t, J = 7.5 Hz, 3H), 1.22–1.56 (m, 12H), 1.61–1.83 (m, 4H), 2.02–2.06 (m, 2H), 2.60 (dd, J = 3.4 Hz, 17.2 Hz, 1H), 2.68 (dd, J = 11.5 Hz, 17.2 Hz, 1H), 2.94–3.09 (m, 2H), 4.33–4.39 (m, 1H), 4.92–5.02 (m, 2H), 5.77–5.85 (m, 1H), 17.92 (s, 1H); 13C NMR (125 MHz, CDCl3): δ = 13.8, 18.4, 24.6, 28.9, 29.0, 29.2, 29.3, 29.3, 33.8, 34.6, 37.9, 40.3, 73.8, 103.2, 114.1, 139.1, 164.3, 195.1, 204.4.; IR (neat): νmax = 2926, 2857, 1715, 1558, 1464, 1273, 1069, 910, 767; HRMS (DART): m/z calculated for C19H30O4 [M + H]+ 323.2222; found: 323.2205.
(S)-3-Butyryl-6-(dec-9-en-1-yl)-4-hydroxy-5,6-dihydro-2H-pyran-2-one [(S)-4e].
Pharmaceuticals 14 00938 i032
Following a similar procedure for the synthesis of (R)-Plymuthipyranone B, the reaction using EDCI•HCl (230 mg, 1.20 mmol), pyrone (S)-13 (252 mg, 1.00 mmol), butanoic acid (0.11 mL, 1.20 mmol) and DMAP (147 mg, 1.20 mmol) gave the desired product (S)-4e (227 mg, 70%).
Pale yellow crystal; mp 34–35 °C, [α]D26 +24.9 (c 0.75, MeOH); 98% ee; HPLC analysis (OJ-H, flow rate 1.00 mL/min, solvent: hexane/iPrOH = 50:1), tR(racemic) = 10.06 and 15.51 min. tR[(S)-form] = 15.39 min.

3.2. Bioassay

ATCC 43300 and ATCC 33591 were purchased from the American Type Culture Collection and were stored at −80 °C in a freezer by using the Microbank system (IWAKI & CO., Ltd., Tokyo, Japan). For each experiment, a bacterial strain was cultured overnight on mannitol salt agar plates to confirm the purity and viability of the microbe.
The minimal inhibitory concentration (MIC) of synthetics were determined by microdilution method using Mueller–Hinton broth according to Clinical and Laboratory Standards Institute (CLSI) guidelines [33,34]. Briefly, after diluting the suspension of bacteria equivalent to 1 × 106 colony-forming units (CFU)/mL with Mueller–Hinton II broth (Becton, Dickinson and Company, MD, USA) with 17.5 mg/L of calcium, the dilution (50 μL) was applied into 96-well plate, which included synthetics or vancomycin (Cayman Chemical Company, MI, USA) (50 μL) at concentrations of 0.5–256 μg/mL. Final inoculum concentration was approximately 5 × 105 CFU/mL. Synthetics concentration was 0.25–128 μg/mL. After incubation at 37 °C for 16–20 h, MICs were determined.

4. Conclusions

We performed asymmetric total syntheses of all of the both enantiomers of the anti-MRSA active plymuthipyranone B and three unnatural analogues. The present synthetic method utilized a privileged asymmetric Mukaiyama aldol addition using Ti(OiPr)4/(S)- or (R)-BINOL catalysis as the key step, originally developed by Soriente and Scettri’s group. The total syntheses were each implemented in three steps and an overall yield of 42–56% with a highly enantiomeric excess (95–99%). The bioassay of the anti-MRSA activity against ATCC 43300 and 33591 revealed that natural (R)-plymuthipyranone B and (R)-undecyl synthetic analogue at the C6 position exhibited the highest activity with low MIC values.
These findings provide new insight into the SAR with the chiral discrimination regarding anti-MRSA compounds comprising the 3-acyl-5,6-dihydro-2H-pyran-2-one structure.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ph14090938/s1, 1H NMR, 13C NMR spectra for compounds 6–13, 4b–4e (Figures S1–S28). Figure S1. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 6. Figure S2. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 6. Figure S3. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 8. Figure S4. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 8. Figure S5. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 9. Figure S6. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 9. Figure S7. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 10. Figure S8. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 10. Figure S9. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 7. Figure S10. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 7. Figure S11. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 11. Figure S12. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 11. Figure S13. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 12. Figure S14. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 12. Figure S15. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 13. Figure S16. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 13. Figure S17. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4b. Figure S18. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4b. Figure S19. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 4b. Figure S20. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4c. Figure S21. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4c. Figure S22. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 4c. Figure S23. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4d. Figure S24. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4d. Figure S25. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 4d. Figure S26. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4e. Figure S27. 1H NMR (500 MHz, CDCl3) Spectrum of the Compound 4e. Figure S28. 13C NMR (125 MHz, CDCl3) Spectrum of the Compound 4e. Charts of HPLC analyses for compounds 6 (racemic), (R)-6, (S)-6, 8 (racemic), (R)-8, (S)-8, 9 (racemic), (R)-9, (S)-9, 10 (racemic), (R)-10, (S)-10, 4b (racemic), (R)-4b, (S)-4b, 4c (racemic), (R)-4c, (S)-4c, 4d (racemic), (R)-4d, (S)-4d, 4e (racemic), (R)-4e and (S)-4e.

Author Contributions

M.M., X.L. and Y.E. contributed the majority of experiments. K.M. supervised the bioassay and prepared the part of manuscript. Y.T. conceived and designed the project, and prepared the whole manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially supported by Grant-in-Aids for Scientific Research on Basic Area (B) “18350056”, Basic Areas (C) 15K05508 and Priority Areas (A) “17035087” and “18037068”, and Exploratory Research “17655045” from the Ministry of Education, Culture, Sports, Science and Technology (MEXT).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from subjects involved in the study.

Data Availability Statement

Data is contained within article and supplementary material.

Acknowledgments

We thank Atsushi Fujiwara and Takeshi Tsutsumi for their preliminary synthetic efforts. One of the authors (Y.T.) offers his warmest congratulations to Ben L. Feringa (University of Groningen, The Netherlands) on being awarded the 2016 Nobel Prize in Chemistry. This article is dedicated to the late Teruaki Mukaiyama who passed away in 2018 and the late Kenji Mori who passed away in 2019.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Davies-Coleman, M.T.; Rivett, D.E.A. Naturally Occurring 6-Substituted 5,6-Dihydro-α-pyrones. In Progress in the Chemistry of Organic Natural Products; Herz, W., Grisebach, H., Kirby, G.W., Tamm, C., Eds.; Springer: New York, NY, USA, 1989; Volume 55, pp. 1–35. ISBN 978-3-7091-9004-3. [Google Scholar]
  2. Brian, P.W.; Curtis, P.J.; Hemming, H.G.; Unwin, C.H.; Wright, J.M. Alternaric Acid, a Biologically Active Metabolic Product of the Fungus Alternaria solani. Nature 1949, 164, 534. [Google Scholar] [CrossRef]
  3. Tabuchi, H.; Ichihara, A. Structures and stereochemistries of new compounds related to alternaric acid. J. Chem. Soc. Perkin Trans. 1994, 1, 125. [Google Scholar] [CrossRef]
  4. Tabuchi, H.; Hamamoto, T.; Miki, S.; Tejima, T.; Ichihara, A. Total Synthesis and Stereochemistry of Alternaric Acid. J. Org. Chem. 1994, 59, 4749–4759. [Google Scholar] [CrossRef]
  5. Trost, B.M.; Probst, G.D.; Schoop, A. Ruthenium-Catalyzed Alder Ene Type Reactions. A Formal Synthesis of Alternaric Acid. J. Am. Chem. Soc. 1998, 120, 9228–9236. [Google Scholar] [CrossRef]
  6. Slade, M.C.; Johnson, J.S. Alternaric acid: Formal synthesis and related studies. Beilstein J. Org. Chem. 2013, 9, 166–172. [Google Scholar] [CrossRef][Green Version]
  7. Nagase, R.; Oguni, Y.; Ureshino, S.; Mura, H.; Misaki, T.; Tanabe, Y. Asymmetric Ti-crossed Claisen condensation: Application to concise asymmetric total synthesis of alternaric acid. Chem. Commun. 2013, 49, 7001. [Google Scholar] [CrossRef]
  8. Sugi, M.; Nagase, R.; Misaki, T.; Nakatsuji, H.; Tanabe, Y. Asymmetric Total Synthesis of (-)-Azaspirene by Utilizing Ti-Claisen Condensation and Ti-Direct Aldol Reaction. Eur. J. Org. Chem. 2016, 2016, 4834–4841. [Google Scholar] [CrossRef]
  9. Miyakado, M.; Inoue, S.; Tanabe, Y.; Watanabe, K.; Ohno, N.; Yoshioka, H.; Mabry, T.J. Podoblastin A, B and C. New antifungal 3-acyl-4-hydroxy-5,6-dihydro-2-pyrones obtained from Podophyllum Peltatum L. Chem. Lett. 1982, 11, 1539. [Google Scholar] [CrossRef][Green Version]
  10. Tanabe, Y.; Miyakado, M.; Ohno, N.; Yoshioka, H. A new 3-acyl-4-hydroxy-2-pyrone synthesis and its application to total synthesis of (±) podoblastin A, B and C. Chem. Lett. 1982, 11, 1543–1546. [Google Scholar] [CrossRef][Green Version]
  11. Kawakami, H.; Hirokawa, S.; Asaoka, M.; Takei, H. New Method for the Synthesis of Podoblastin Derivatives and 3-Acyltetronic Acids. Chem. Lett. 1987, 16, 85. [Google Scholar] [CrossRef]
  12. Ichimoto, I.; Machiya, K.; Kirihata, M.; Ueda, H. Stereoselective Synthesis of Podoblastins and Their Antiblast Activity. J. Pestic. Sci. 1988, 13, 605–613. [Google Scholar] [CrossRef][Green Version]
  13. Ayer, W.A.; Villar, J.D.F. Metabolites of Lachnellulafuscosanguinea (Rehm). Part 1. The isolation, structure determination, and synthesis of lachnelluloic acid. Can. J. Chem. 1985, 63, 1161–1165. [Google Scholar] [CrossRef][Green Version]
  14. Mineeva, I.V. Asymmetric synthesis of (+)-(S)-Massoia lactone, pheromone of Idea leuconoe. Formal total synthesis of valilactone and lachnelluloic acid. Russ. J. Org. Chem. 2013, 49, 1647–1654. [Google Scholar] [CrossRef]
  15. Fujiwara, T.; Tsutsumi, T.; Nakata, K.; Nakatsuji, H.; Tanabe, Y. Asymmetric Total Syntheses of Two 3-Acyl-5,6- dihydro-2H-pyrones: (R)-Podoblastin-S and (R)- Lachnelluloic Acid with Verification of the Absolute Configuration of (−)-Lachnelluloic Acid. Molecules 2017, 22, 69. [Google Scholar] [CrossRef]
  16. Bjerketorp, J.; Levenfors, J.J.; Sahlberg, C.; Nord, C.L.; Andersson, P.F.; Guss, B.; Öberg, B.; Broberg, A. Antibacterial 3,6-Disubstituted 4-Hydroxy-5,6-dihydro-2H-pyran-2-ones from Serratia plymuthica MF371-2. J. Nat. Prod. 2017, 80, 2997–3002. [Google Scholar] [CrossRef]
  17. Broberg, A.; Andersson, P.; Levenfors, J.; Bjerketorp, J.; Sahlberg, C. Preparation of Substituted Dihydropyranones and Methods of Treating Bacterial Infections. WO Patent 2017095319 A1, 8 June 2017. [Google Scholar]
  18. Tanabe, Y.; Suzukamo, G.; Komuro, Y.; Imanishi, N.; Morooka, S.; Enomoto, M.; Kojima, A.; Sanemitsu, Y.; Mizutani, M. Structure-activity relationship of optically active 2-(3-pyridyl)thiazolidin-4-ones as a PAF antagonists. Tetrahedron Lett. 1991, 32, 379–382. [Google Scholar] [CrossRef]
  19. Tanabe, Y.; Yamamoto, H.; Murakami, M.; Yanagi, K.; Kubota, Y.; Okumura, H.; Sanemitsu, Y.; Suzukamo, G. Synthetic study of the highly potent and selective anti-platelet activating factor thiazolidin-4-one agents and related compounds. J. Chem. Soc. Perkin Trans. 1995, 1, 935–947. [Google Scholar] [CrossRef]
  20. Nishii, Y.; Wakimura, K.-I.; Tsuchiya, T.; Nakamura, S.; Tanabe, Y. Synthesis and Stereostructure-activity Relationship of a Synthetic Pyrethroid, 2-chloro-1-methyl-3-phenylcyclopropylmethyl-3-phenoxybenzyl ether. J. Chem. Soc. Perkin Trans. 1996, 1, 1243–1249. [Google Scholar] [CrossRef]
  21. Nishii, Y.; Maruyama, N.; Wakasugi, K.; Tanabe, Y. Synthesis and stereostructure–activity relationship of three asymmetric center pyrethroids: 2-methyl-3-phenylcyclopropyl-methyl 3-phenoxybenzyl ether and cyanohydrin ester. Bioorg. Med. Chem. 2001, 9, 33–39. [Google Scholar] [CrossRef]
  22. Taniguchi, T.; Taketomo, Y.; Moriyama, M.; Matsuo, N.; Tanabe, Y. Synthesis and Stereostructure-Activity Relationship of Novel Pyrethroids Possessing Two Asymmetric Centers on a Cyclopropane Ring. Molecules 2019, 24, 1023. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Kawamoto, M.; Moriyama, M.; Ashida, Y.; Matsuo, N.; Tanabe, Y. Total Syntheses of All Six Chiral Natural Pyrethrins: Accurate Determination of the Physical Properties, Their Insecticidal Activities, and Evaluation of Synthetic Methods. J. Org. Chem. 2020, 85, 2984–2999. [Google Scholar] [CrossRef]
  24. Moriyama, M.; Nakata, K.; Fujiwara, T.; Tanabe, Y. Divergent Asymmetric Total Synthesis of All Four Pestalotin Diastereomers from (R)-Glycidol. Molecules 2020, 25, 394. [Google Scholar] [CrossRef][Green Version]
  25. Soriente, A.; De Rosa, M.; Villano, R.; Scettri, A. Enantioselective aldol condensation of 1,3-bis-(trimethylsilyloxy)-1-methoxy-buta-1,3-diene promoted by chiral Ti(IV)/BINOL complex. Tetrahedron Asymmetry 2000, 11, 2255–2258. [Google Scholar] [CrossRef]
  26. Soriente, A.; De Rosa, M.; Stanzione, M.; Villano, R.; Scettri, A. An efficient asymmetric aldol reaction of Chan’s diene promoted by chiral Ti(IV)–BINOL complex. Tetrahedron Asymmetry 2001, 12, 959–963. [Google Scholar] [CrossRef]
  27. Villano, R.; Rosaria, M.; De Rosa, M.; Soriente, A.; Stanzione, M.; Scettri, A. Pronounced asymmetric amplification in the aldol condensation of Chan’s diene promoted by a Ti(IV)/BINOL complex. Tetrahedron Asymmetry 2004, 15, 2421–2424. [Google Scholar] [CrossRef]
  28. Xu, Q.; Yu, J.; Han, F.; Hu, J.; Chen, W.; Yang, L. Achiral additives dramatically enhance enantioselectivities in the BINOL–Ti(IV) complex catalyzed aldol condensations of aldehydes with Chan’s diene. Tetrahedron Asymmetry 2010, 21, 156–158. [Google Scholar] [CrossRef]
  29. Chan, T.-H.; Brownbridge, P. Reaction of electrophiles with 1,3-bis(trimethylsiloxy)-1-methoxybuta-1,3-diene, a dianion equivalent of methyl acetoacetate. J. Chem. Soc. Chem. Commun. 1979, 578–579. [Google Scholar] [CrossRef]
  30. Chan, T.-H.; Brownbridge, P. Chemistry of enol silyl ethers. 5. A novel cycloaromatization reaction. Regiocontrolled synthesis of substituted methyl salicylates. J. Am. Chem. Soc. 1980, 102, 3534–3538. [Google Scholar] [CrossRef]
  31. Langer, P. Cyclization Reactions of 1,3-Bis-Silyl Enol Ethers and Related Masked Dianions: A Review. Synthesis 2002, 441–459. [Google Scholar] [CrossRef]
  32. Garnero, J.; Caperos, J.; Anwander, A.; Jacot-Guillarmod, A. Flavoring substances: Design of 6-alkyl- (and 6,6-dialkyl-) 5,6-dihydro-2-pyrone. Dev. Food Sci. 1988, 18, 903–913. [Google Scholar]
  33. Clinical and Laboratory Standards Institute. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically; Approved Standard, 10th ed.; CLSI Document M07-A10; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2015. [Google Scholar]
  34. Clinical and Laboratory Standards Institute. Performance Standards for Antimicrobial Susceptibility Testing, 27th ed.; CLSI Supplement M100; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2017. [Google Scholar]

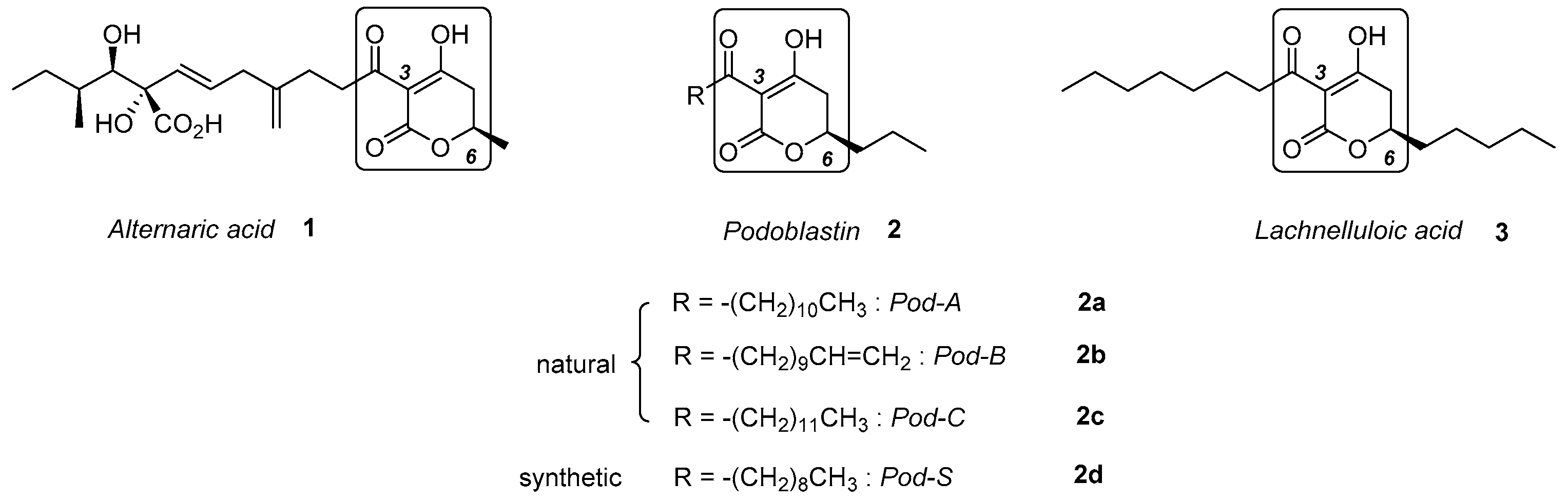

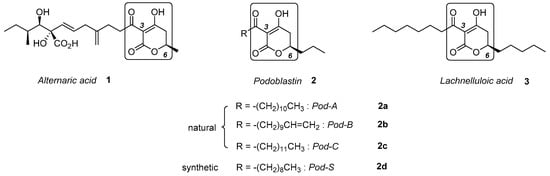

Figure 1. Representative natural products (1, 2ac, 3) and a synthetic analogue (2d) containing the 3-acyl-5,6-dihydro-2H-pyran-2-one structure.
Figure 1. Representative natural products (1, 2ac, 3) and a synthetic analogue (2d) containing the 3-acyl-5,6-dihydro-2H-pyran-2-one structure.
Pharmaceuticals 14 00938 g001
Figure 2. Natural plymuthipyranone A, B (4a, 4b) and synthetic analogues (4c4e) containing the 3-acyl-5,6-dihydro-2H-pyran-2-one structure.
Figure 2. Natural plymuthipyranone A, B (4a, 4b) and synthetic analogues (4c4e) containing the 3-acyl-5,6-dihydro-2H-pyran-2-one structure.
Pharmaceuticals 14 00938 g002
Scheme 1. Asymmetric total synthesis of (R)- and (S)-plymuthipyranones B.
Scheme 1. Asymmetric total synthesis of (R)- and (S)-plymuthipyranones B.
Pharmaceuticals 14 00938 sch001
Scheme 2. Asymmetric synthesis of (R)- and (S)-synthetic analogues of plymuthipyranones B.
Scheme 2. Asymmetric synthesis of (R)- and (S)-synthetic analogues of plymuthipyranones B.
Pharmaceuticals 14 00938 sch002
Table 1. Susceptibility testing all four pairs against ATCC 43300 and ATCC 33591.
Table 1. Susceptibility testing all four pairs against ATCC 43300 and ATCC 33591.
MIC (µg/mL)MIC (µg/mL)
ATCC 43300ATCC 33591ATCC 43300ATCC 33591
Pharmaceuticals 14 00938 i001
plymuthipyranone B
(R)-4b
48 Pharmaceuticals 14 00938 i002
plymuthipyranone B
(S)-4b
1616
Pharmaceuticals 14 00938 i003
(R)-4c
48 Pharmaceuticals 14 00938 i004
(S)-4c
24
Pharmaceuticals 14 00938 i005
(R)-4d
24 Pharmaceuticals 14 00938 i006
(S)-4d
44
Pharmaceuticals 14 00938 i007
(R)-4e
1616 Pharmaceuticals 14 00938 i008
(S)-4e
1616
vancomycin11
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Moriyama, M.; Liu, X.; Enoki, Y.; Matsumoto, K.; Tanabe, Y. Asymmetric Total Syntheses of Both Enantiomers of Plymuthipyranone B and Its Unnatural Analogues: Evaluation of anti-MRSA Activity and Its Chiral Discrimination. Pharmaceuticals 2021, 14, 938. https://doi.org/10.3390/ph14090938

AMA Style

Moriyama M, Liu X, Enoki Y, Matsumoto K, Tanabe Y. Asymmetric Total Syntheses of Both Enantiomers of Plymuthipyranone B and Its Unnatural Analogues: Evaluation of anti-MRSA Activity and Its Chiral Discrimination. Pharmaceuticals. 2021; 14(9):938. https://doi.org/10.3390/ph14090938

Chicago/Turabian Style

Moriyama, Mizuki, Xiaoxi Liu, Yuki Enoki, Kazuaki Matsumoto, and Yoo Tanabe. 2021. "Asymmetric Total Syntheses of Both Enantiomers of Plymuthipyranone B and Its Unnatural Analogues: Evaluation of anti-MRSA Activity and Its Chiral Discrimination" Pharmaceuticals 14, no. 9: 938. https://doi.org/10.3390/ph14090938

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
