Article

Comprehensive and Rapid Quality Evaluation Method for the Ayurvedic Medicine Divya-Swasari-Vati Using Two Analytical Techniques: UPLC/QToF MS and HPLC–DAD

1
Drug Discovery and Development Division, Patanjali Research Institute, Haridwar 249 405, Uttarakhand, India
2
Department of Allied and Applied Sciences, University of Patanjali, Haridwar 249 405, Uttarakhand, India
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2021, 14(4), 297; https://doi.org/10.3390/ph14040297
Received: 12 February 2021 / Revised: 5 March 2021 / Accepted: 13 March 2021 / Published: 27 March 2021

Abstract

:
Divya-Swasari-Vati (DSV) is a calcium-containing herbal medicine formulated for the symptomatic control of respiratory illnesses observed in the current COVID-19 pandemic. DSV is an Ayurvedic medicine used for the treatment of chronic cough and inflammation. The formulation has shown its pharmacological effects against SARS-CoV-2 induced inflammation in the humanized zebrafish model. The present inventive research aimed to establish comprehensive quality parameters of the DSV formulation using validated chromatographic analytical tools. Exhaustive identification of signature marker compounds present in the plant ingredients was carried out using ultra performance liquid chromatography-quadrupole time-of-flight mass spectrometry (UPLC/QToF MS). This was followed by simultaneous estimation of selected marker components using rapid and reliable high-performance liquid chromatography (HPLC) analysis. Eleven marker components, namely gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin, were selected out of seventy-four identified makers for the quantitative analysis in DSV formulation. Validation of the HPLC method was evaluated by its linearity, precision, and accuracy tests as per the International Council of Harmonization (ICH) guidelines. Calibration curves for the eleven marker compounds showed good linear regression (r2 > 0.999). The relative standard deviation (RSD) value of intraday and interday precision tests were within the prescribed limits. The accuracy test results ranged from 92.75% to 100.13%. Thus, the present inclusive approach is first of its kind employing multi-chromatographic platforms for identification and quantification of the marker components in DSV, which could be applied for routine standardization of DSV and other related formulations.

1. Introduction

The world community is grappling with the devastating effects of the novel coronavirus disease (COVID-19) caused by Severe Acute Respiratory Syndrome Corona Virus 2 (SARS-CoV-2). The pandemic has caused a serious medical crisis, infecting more than 120 million people and leading to more than 2 million deaths [1]. The situation is considered to be more serious for patients suffering from respiratory syndromes. Infection with this respiratory virus is associated with robust inflammatory responses, which further worsen the condition [2]. The immune system plays an essential role in COVID-19 infection. Hence, enhancing the (natural body system) immunity may represent a major contribution as a prophylactic measure against multiple pathogenic conditions as well as maintaining optimum health [3].
Currently, the pandemic has entered a perilous phase where there are no specific drugs or other therapeutics against this viral outbreak [4]. The scientific community is working relentlessly to discover active pharmacological moieties that might provide new tools against this unabated transmission. Traditional, complementary and alternative medicines have emerged as the bright ray of hope in this regard [5]. Since immune dysfunction plays a vital role in disease progression, consumption of herbal medicines containing certain active compounds which have antimicrobial or antiviral, anti-inflammatory and immuno-stimulatory activities, might have potentials as effective prophylactic or even therapeutic against SARS-CoV-2 [6].
Divya-Swasari-Vati (DSV) is a calcio-herbal tablet formulation consisting of sixteen herbo-mineral ingredients (Table 1). The formulation is concocted using different parts of several medicinal plants which have a long history of usage for the treatment of respiratory infections and bronchitis. Herbal ingredients like roots of Glycyrrhiza glabra (licorice) have been used ethno-medicinally for the treatment of coughs, cold and COPD. Glycyrrhizin, a triterpenoid saponin from licorice has performed remarkably in inhibiting the replication of earlier SARS virus with very few side effects [7]. Eugenol, one of the abundant phenolics found in the buds of Syzygium aromaticum and bark of Cinnamomum zeylanicum (cinnamon), is very well known for its anti-inflammatory and free radical scavenging properties [8]. Pistacia integerrima (zebrawood) is known to exert anti-asthmatic action by mitigating TNFα activity [9]. Cressa cretica is known to have bronchodilatory and mast cell-stabilizing activity [10]. Zingiber officinale (ginger), has been used for ages as a home remedy for the treatment of common cold, asthma and bronchitis. A novel compound having structural similarities with 6-gingerol showed strong binding affinities SARS-CoV-2 viral receptors [11]. Piperine from the fruits of Piper nigrum (black pepper) and Piper longum (long pepper), has been shown to possess endothelial barrier protective and leukocyte migration suppressive effects [12]. Secondary metabolites from the roots of Anacyclus pyrethrum (Spanish chamomile) like saponins and tannins are known to exert immunomodulatory and immune-stimulating effects [13]. The ethno-medicinal uses of DSV ingredients have been recently validated in a mouse model of allergic asthma where the ingredients potentially suppressed the allergic asthma by modulating pro-inflammatory cytokines [14]. It is well established that the pathophysiology of SARS-CoV-2 infectivity involves different pro-inflammatory cytokines, which put the host immune system into overdrive. Thus, blocking the cytokine storm could represent a vital weapon for combating SARS-CoV-2 infectivity. Indeed, DSV successfully ameliorated SARS-CoV-2 spike protein-induced inflammation in a humanized zebrafish model by blocking the IL-6 and TNF α cytokine surge [15].
Plant extracts are exceedingly complex multicomponent mixtures. These wide arrays of phytochemical components may either function alone or in amalgamation with other components to yield the desired pharmacological effects [16]. Chromatographic fingerprinting and chemical profiling are very much essential for global acceptance of traditional herbal medicines (THMs); and have proved to be a favorable approach to ensure quality control of herbal preparations. Many agencies such as the World Health Organization (WHO), the Food and Drug Administration (FDA), and the European Medicines Agency (EMA) recommend the use of analytical modern analytical tools to monitor critical quality attributes of in-process materials in a timely manner. This approach is quintessential to verify the stability and consistency of THMs [17,18]. Poly-herbs of DSV consist of a myriad of secondary metabolites. Consequently, in order to standardize the formulation, and to help manufacturers to have consistent products, a suitable selection of analytical techniques becomes imperative.
Thus, for the comprehensive quality control of DSV, we describe herein the development of a simple, reliable, and sensitive high-performance liquid chromatography–diode array detection (HPLC–DAD) method for the simultaneous analysis of eleven marker components in the formulation. The intrinsic complexity of THMs with no obvious targets for quantification is one of the biggest challenges when it comes to ensuring their identity and quality. Ultra-performance liquid chromatography–mass spectrometry coupled with a quadrupole time of flight analyzer (UPLC/QToF MS) is one of the most powerful analytical tools which excels in the identification of ionisable moieties with high mass accuracy [19]. Seventy-four compounds were characterized in the DSV formulation using UPLC/QToF MS out of which eleven—gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin—were chosen as the signature analytes of the formulation. A validated HPLC method was then successfully applied for the simultaneous quantification of target components in five different batches of DSV.

2. Results

2.1. UPLC/QToF MS Analysis Characterized Chemical Markers in DSV

Peaks corresponding to chemical metabolites in DSV (Figure 1) were identified using the UPLC/QToF MS system and have been listed in Table 2. Fifty-nine compounds were identified in the positive mode of ionization (Figure 1A, Table 2) and forty-five compounds were identified in the negative mode of ionization (Figure 1B, Table 2). Thirty common compounds were found in both the ionization modes, i.e., positive and negative modes. Eleven markers (gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin, Supplementary Figures S3 and S4) were selected out of seventy-four identified compounds as chemical markers to represent the herbal components in the DSV formulation. The identification of compounds relied on the mass fragmentation pattern data and accurate mass measurement of the selected chemical markers with the aid of a mass spectral library created in-house and reported literature values (Supplementary Figures S3 and S4). The triterpenoid glycyrrhizin and the isoflavonnoid glabridin were selected as the signature markers for Glycyrrhiza glabra. Eugenol, a phenylpropanoid derivative, and cinnamic acid were chosen for Sygygium aromaticum and Cinnamomum zelanicum, respectively. Methyl gallate, one of the active constituents present in the galls of Pistacia integerrima, was selected as its signature marker. Coumarins are the biologically active constituents of the halophytic plant Cressa cretica hence coumarin was selected as the marker for that species. 6-Gingerol, a very well-known pungent phenol from Zingiber officinale was designated as the marker for this plant. The alkaloid piperine was chosen as the representative marker for Piper nigrum and Piper longum. Roots of Anacylus pyrethrum are rich in tannins, hence, the most popular tannins—gallic acid and ellagic acid—were selected for the same.

2.2. Establishment and Optimization of the HPLC–DAD Method:

Chromatographic separation seems to be a challenging task when it comes to structurally diversified phyto-components for these compounds possess very broad range of polarity. The aim was to separate the targeted components gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin with a compatible solvent system. Compared with isocratic elution, gradient elution gave a shorter overall analysis and optimum resolution. After several trials, the best separation of all the marker components was found with a solvent system consisting 0.1% orthophosphoric acid in water adjusted to pH 2.5 with diethylamine (solvent A) and 0.1% orthophosphoric acid in acetonitrile: water (88:12) adjusted to pH 2.5 (solvent B) with gradient programming. Finally, optimized chromatographic conditions to ensure good separation were achieved by injecting 10 μL of standard and sample solution using a Shodex C18-4E (5 µm, 4.6 mm × 250 mm) maintained at 35 °C and subjected to binary gradient elution. The wavelengths at which all the signature analytes were detected were found to be 278 nm and 250 nm. The chromatograms, acquired with a flow rate of 1.0 mL/min showed effective separation of analytes (Figure 2).

2.3. Validation of the Developed and Optimized HPLC Method for Quantitative Analysis of Eleven Marker components in DSV

The HPLC method was validated by defining the linearity, limits of quantification and detection, accuracy, precision, robustness and ruggedness. Validation was performed on DSV (batch #B SWV117) of as per the requirements established by ICH guidelines [20].

2.3.1. Specificity, Linearity, Limits of Quantification and Detection

No interference was detected close to the retention times of the selected marker components indicating that the detected peaks were free from co-eluting interferents. The result indicates that the peak of the analyte was pure which confirmed the specificity of the method (Supplementary Figure S1). The linear regression analysis data for the calibration plot exhibited good linear relationship for all the compounds over the concentration range proposed. The correlation coefficient for the calibration curves of all the targeted signature analytes was found to be higher than 0.99 (Supplementary Figure S2). The results of regression equation, the correlation coefficient (r2) along with the concentration range are listed in Table 3. The LOD of marker components was found to below the prescribed limit (NMT 33%) whereas, the LOQ values were also within the assigned permissible range (NMT 10%) (Table 3).

2.3.2. Accuracy and Precision

The recoveries of the eleven marker compounds at the three different concentrations were observed to be in the range from 92.75% to 100.13%. The results provided evidence that the established HPLC method is accurate for the simultaneous determination of eleven marker components in DSV (Table 3). Precision in interday and intraday runs are shown in Table 3. The values of the precision were within the permissible criteria of ˂2% for gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin indicating that the method is sufficiently precise for them (Table 3).

2.3.3. Robustness and Ruggedness

Deliberate variations in terms of column temperature and flow rate were taken into consideration for this method (Table 3). In all modifications, good separation of targeted analytes was achieved, and it was observed that %RSD was within the limit of not more than 20% indicating the robustness of the method. All the marker components showed %RSD less than 10% except methyl gallate which was found to be 15.63%. Ruggedness for the developed HPLC method was calculated by the %RSD of intermediate precision. The results in Table 3 show that % RSD for gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin (NMT 10%) which indicates the ruggedness of the developed method for the analysis of the targeted analytes.

2.4. Validated HPLC–DAD Method Simultaneously Quantified Eleven Marker Analytes in Five Different Batches of DSV

The validated method was applied for the simultaneous determination of eleven marker components in five batches of DSV. The results of quantitative analysis are depicted in Figure 3. It was viewed, that the signature analytes, gallic acid, glycyrrhizin, eugenol and piperine showed marked prominence in all the batches of formulation. It is obvious from the results that detection of a single component cannot control the quality of DSV effectively. Thus simultaneous determination of multiple markers becomes imperative in this situation. Our developed HPLC method suitably detected the targeted analytes in all five DSV batches, with acceptable batch to batch variance. Gallic acid (3438 ± 550.7 µg/g), glycyrrhizin (4214 ± 201.9 µg/g), eugenol (5385 ± 980.2 µg/g) and piperine (5763 ± 699.4 µg/g) stood out in terms of showing marked prominence in DSV batches, whereas, the mean concentration of—protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, 6-gingerol and glabridin—were found to be 65.79 ± 9.109 µg/g, 875.7 ± 260.3 µg/g, 283.3 ± 68.82 µg/g, 49.85 ± 8.979 µg/g, 40.24 ± 2.514 µg/g, 494.1 ± 34.03 µg/g, and 241.2 ± 39.32 µg/g, respectively (Figure 3).

3. Discussion

For millennia, traditional herbal medicines (THMs) have proven their value as sources of active therapeutic molecules [21]. THMs are made up of multiple herbs containing a plethora of secondary metabolites in variable concentrations. Phyto-therapeutics are complex, systematic and multi-targeted which are claimed to work synergistically [22]. The quality of THM products are usually influenced by their different plant species, growing conditions, harvest seasons, processing and other factors, which [23] have made their use more challenging. A number of attempts have been made in the academic and industrial settings, for mitigating the attrition rates of herbal drug development and their translatability to human applications. The intrinsic complexities associated with the botanicals demand the development of novel analytical procedures for reviving their lost translational capabilities [24]. The development and validation of analytical procedures plays a pivotal role in discovery, development, and manufacture of pharmaceuticals [25]. Validated test procedures further verify that the proposed analytical method is accurate and reliable for the assessment of APIs in a given drug preparation [26].
Examination of complex herbal blends bears several essential issues and significant challenges. Subsequently the identification and quantification of desired chemical markers becomes imperative, which further ensures their safety and efficacy [27]. Marker-based standardization of medicinal plants is a widely accepted and reliable technique. Ideally, the markers are selected on the basis of their therapeutic action (active constituent marker). These components must be stable and most importantly must be present consistently in the ingredients as well as in their respective formulations [28]. Another relevant criterion for their selection relies on the ease of isolation, characterization and availability. In this study, ultra-liquid chromatography coupled to quadruple time of flight (QToF) mass spectrometry was used for identification and selection of analytical markers for quality control of DSV formulation. The technique offers very high resolution and selectivity in terms of providing abundant mass information, with accurate mass measurements, and, therefore is quite useful for identifying the target compounds thoroughly [29]. Based on the existing literature [30] and the analyst’s own expertise, a UPLC/QToF/MS method was developed. The developed method was utilized to identify seventy-four (74) phyto-metabolites in the DSV formulation. For example, compound number 1, showed m/z 191.0555 in negative ionization mode, its respective mass fragmentation pattern was observed to be m/z 173.0445, m/z 149.0443, m/z 129.0184, m/z 113.0258, m/z 89.0267 which confirmed the presence of quinic acid (192.0634 Da) with [H-] adduct. Compound number 3 was detected in negative ionization mode and showed m/z 169.0136, so the compound was confirmed as gallic acid (170.0215 Da), by its mass fragmentation pattern in which peaks were observed at m/z 153.0177, m/z 137.0238, m/z 125.0238 with [H-] adduct. Likewise, seventy four compounds were identified and confirmed in the formulation on the basis of their accurate mass screening and fragmentation patterns as depicted in Table 2. Figures S3 and S4. Eleven markers—gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin— were selected out of seventy four identified compounds. The strategies behind the selection of the targeted eleven markers were based on their availability, therapeutic activity and abundancy in a particular medicinal plant component. Moreover, an extensive literature search also helped in the selection of marker analytes, symbolic of a particular herb in the DSV formulation. The chief sweet-tasting triterpenoidal saponin of licorice, glycyrrhizin, represents 10% of the licorice root and glabridin, the chief isoflavone identified is found in the range of 0.08% and 0.35% [31]. Eugenol, the chief essential oil component (≈ 89%) is considered to be emblematic of clove [32]. Aerial parts of Cressa cretica are found to be rich in coumarins [10]. Phytochemical characterization of Anacylus pyrethrum showed the presence of cinnamic acid [33]. 6-Gingerol, the main bioactive component of ginger, was quantified and found to be 60.44 ± 2.53 mg/g of ginger extract [34]. Galls of Pistacia integerrima are reported to be rich in polyphenolics, i.e., gallic acid [35]. Chemical characterization of Cinnamomum zeylamicum bark revealed the presence of eugenol in appreciable amounts [36]. Besides, the herbal components, DSV formulation also contains seven different bhasma (Table 1). These are unique Ayurvedic herbo-mineral preparations, which are added to a formulation to provide optimal alkalinity, by neutralization of the harmful acids in the body. Moreover, these preparations are considered to be efficacious and non-toxic in nature [37]. Therapeutic efficacies of Tankan and Sphatika bhasma against diseases of the throat and palate are well documented [38]. Kapardak bhasma, Abhraka bhasma, Godanti bhasma and Mukta shukti bhasma are reported to have potential anti-inflammatory potential [14]. Praval pishti, processed coral calcium, is imbued with anti-inflammatory properties, moreover the preparation also confers benefits against coughs and related ailments [39]. Thus, the anti-inflammatory potentials of the herbo-mineral elements of the formulation might be beneficial to provide symptomatic relief in the current SARS-CoV-2 infectivity. It is worth mentioning that since the bhasma are inorganic compounds they exhibit poor solubility in the organic solvent methanol. Hence, these herbo-mineral preparations are not expected to hinder the current analytical strategy.
HPLC is a versatile, precise and foremost favored method among the accessible chromatographic strategies for herbal analysis [40]. HPLC frameworks hyphenated with a spectroscopic detector gives a readier data of the analytes present in a sample. [41]. Thus, chemical astuteness of DSV was investigated utilizing a validated HPLC procedure.
An analytical strategy can certainly be titled paramount which is capable of providing reliable, consistent and precise information, when performed by diverse investigators in different research environments. Optimization is much sought after for the accomplishment of consistent and repeatable outcomes. Validation plays an imperative part in fulfilling this objective [42]. Development of the HPLC method, constituted of several trial and error procedures for selection of a suitable mobile phase. Moreover, pharmacoepial and FDA requirements to achieve optimum resolution and specificity of the targeted analytes were also taken into consideration [43,44]. A few solvent compositions appeared to give longer run times, and some of them were incapable of resolving the targeted analytes at the same time. Finally, the best resolution of all the marker components was achieved using 0.1% orthophosphoric acid in water adjusted to pH 2.5 with diethylamine (solvent A) and 0.1% orthophosphoric acid in acetonitrile: water (88:12) adjusted to pH 2.5 (solvent B) with a gradient elution program. Chromatographic quality and analysis time is strongly dependent on the flow rate of the mobile phase passing through the column in unit time. The chromatograms, acquired with a flow rate of 1 mL/min appeared to give convincing partition of the analytes. Pronounced analytical outcomes are accomplished with the proper selection of wavelength. For that, it is exceptionally imperative to assess the absorption spectra of the compound intrigued. The wavelengths for the individual compounds were selected based on their λmax as depicted in Figure 2. Notably, piperine shows an absorption maximum at 340 nm, but for the simplicity of the developed HPLC method we preferred to quantify the same at 278 nm. A good peak resolution relies on the choice of a suitable column. The best resolution of the targeted analytes was accomplished by employing a Shodex C18-4E (5 µm, 4.6 mm × 250 mm) column maintained at 35 °C and subjected to binary gradient elution.
Validation methods are established documented proofs that assure that the conditions selected for the strategy will reliably deliver consistent results. In addition, validation also considers the danger related with the components of a methodologically developed procedures by evaluating if the strategy is reproducible and scientifically sound [45]. These documented evidences further build certainty for the usage of the method. Thus, the developed HPLC method for the targeted analytes, gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin were validated as per the ICH guidelines [20].
Specificity is the foremost essential parameter of any analytical procedure. It alludes to its capacity to produce a signal solely due to the analyte, in the presence of hindrances such as excipients, enantiomers and degradation products that are suspected to be present in the test framework [20]. The test should segregate the desired peak of analyte from other peaks of chromatogram. In this study, no peak was recognized near the retention times of the targeted analytes in standard solution when compared with a solvent blank. Thus, the developed HPLC method is specific for the determination of the targeted analytes in the tested DSV formulation. Limit of detection (LOD) and limit of quantification (LOQ) are the two vital performance characteristics in method validation. [20]. Signal to noise (S/N) is one of the classical methodologies for the determination of the above two important parameters. The concentration having signal to noise ratio 3:1 is referred as LOD and 10:1 as LOQ. The validation results revealed that the LOD and LOQ values for the targeted analytes were within the permissible limits, indicating the sensitivity of the developed analytical method. The linearity of an analytical method can be explained as its capability to show that the obtained test results are directly proportional to the analyte concentration within a given range. Correlation coefficient (r2) of 0.99 is an indicative of the linearity [20]. For HPLC, the calibration curves of all the targeted analytes exhibited good linear relationship r2 > 0.99. The residual analysis was performed on the individual targeted analytes (Table S1). The smaller residual sum of square (RSS) values in comparison to the regression sum of squares further confirmed that the values obtained by plotting response vs concentration are linear [46]. Thus the proposed method is in the accordance with the ICH guidelines and appropriate for the simultaneous quantification of the desired signature compounds. The precision studies were conducted at two levels, repeatability (intraday precision), which signifies the precision under the same operating conditions over a short interval of time and intermediate precision (interday precision) which represents the precision on different days. [20]. The obtained RSD values of all the targeted analytes were found to be less than 2%, confirming that the developed method is sufficiently precise. The recovery refers to the percentage of the concentration of the targeted analyte in a sample [20]. The percentage recoveries of all the targeted analytes at the three different concentrations ranged from 92.75 to 100.13% demonstrating their good recovery. The results provided evidence that established HPLC–DAD method is accurate for simultaneous estimations of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin in DSV. The operational components in a research area tend to vary within a realistic range. Robustness studies aim to examine the influence of the potential sources of variations such as, flow rate and column temperature in the responses of the method. The robustness of an analytical strategy is the degree of its capacity to stay unaffected by small but deliberate variations in the method parameters, likely to happen amid the routine usage [20]. %RSD of all the eighteen determinations were found to be within the prescribed limits according to the ICH guidelines indicating the robustness of the method. Rugged strategies are the one that endures minor variation in test conditions, can be run effectively by any regular chromatographer, and does not essentially requires identical HPLC system for its use. Rugged methods are essentially trouble free and transferable [20]. The results indicated that %RSD of targeted analytes were within permissible range (NMT 10%) which indicated the ruggedness of the developed HPLC method.
The developed and validated HPLC–DAD method was further applied for the simultaneous estimation of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin in five different batches of DSV. Differences in the climatic as well as growing conditions of herbs often leads to the variability in the detected quantity of the secondary metabolites. For this quality assessment of the herbals utilizing a single marker is considered as a very vague approach. Thus, for qualitative check of botanicals, choice of multiple markers becomes rather vital. Hence, we confirm that the proposed analytical strategy is adequate, validated and pertinent for the quality control of DSV formulation.

4. Materials and Methods

4.1. Chemicals, Reagents and Samples

The AR grade solvents, toluene, ethyl acetate, formic acid, acetic acid and methanol (HPLC grade) were procured from Merck (Darmstad, Germany), acetonitrile from Honeywell (Dusseldorf, Germany) and deionized water was obtained from a Milli Q system (Millipore, Billerica, MA, USA). Authentic standards of gallic acid (Cat No. 91215, Sigma Aldrich, St. Louis, MO, USA), protocatechuic acid (Cat No. P006, Natural Remedies, Bangalore, Karnataka, India), coumarin (Cat No. C4261, Sigma Aldrich, St. Louis, MO, USA), cinnamic acid (Cat No. 29955, Sisco Research Lab, Mumbai, Maharashtra, India), eugenol (Cat No. 35995, Sigma Aldrich, St. Louis, MO, USA), 6-gingerol (Cat No. 11707, Cayman Chemical, Ann Arbor, MI, USA), piperine (Cat No. P49007-5G, Sigma Aldrich, St. Louis, MO, USA), glabridin (Cat No. G005, Natural Remedies, Bangalore, Karnataka, India), ellagic acid (Cat No. E2250, Cayman Chemical, Ann Arbor, MI, USA) and glycyrrhizin (Cat No. G008, Natural Remedies, Bangalore, Karnataka, India) were used for the analysis. Samples from five different batches of Divya-Swasari-Vati, (#B SWV117, #B SWV084, #A SWV023, #A SWV102 and #B SWV239) were used for the chemical analysis. DSV samples were sourced from Divya Pharmacy (Haridwar, India) and were stored in airtight bottles for further use.

4.2. Analytical Investigations

4.2.1. UPLC/QToF MS Analysis

  • Preparation of DSV sample solution:
10 mL of methanol:water (80:20) was added to about 100 mg of powdered DSV sample and sonicated for 15 min. The sonicated solution was then centrifuged for 5 min at 5000 rpm and filtered using 0.22 μm nylon filter. The filtered DSV solution was further used for the analysis.
  • Instrumentation
Analysis was performed on a Xevo G2-XS QToF with Acquity UPLC-I Class and Unifi software (Waters Corporation, Milford, MA, USA). The main working parameters for mass spectrometry were set as follows, ionization type-ESI, mode-MSE, acquisition time-56 min, mass range (m/z)—50–1200 m/z, low collision energy—6 eV, high collision energy—20–40 eV (ramp), cone voltage—40 V, capillary voltage—1.5 kV (for positive mode), 2 kV (for negative mode), source temperature—120 °C, desolvation temperature—500 °C, cone gas flow—50 L/h, desolvation gas flow—900 L/h. Mass was corrected during acquisition, using an external reference (Lock–Spray) consisting of 0.2 ng/mL solution of leucine enkephalin infused at a flow rate of 10 µL/min via a lock–spray interface, generating a reference ion for the positive ion mode [(M + H)+ m/z 556.2766] and for the negative ion mode [(M − H) m/z 554.2620] to ensure mass correction during the MS analysis. The lock–spray scan time was set at 0.25 s with an interval of 30 s. The elution was carried out at a flow rate of 0.3 mL/min using gradient elution of mobile phase 0.1% formic acid in water (mobile phase A) and 0.1 % formic acid in acetonitrile (mobile phase B). The volume ratio of solvent B was changed as follows, 5–10% B for 0–5 min, 10–30% B for 5–15 min, 30–55% B for 15–25 min, 55–70% B for 25–40 min, 70–80% B for 40–50 min, 80–85% B for 50–55 min, 85–5% B for 55–56 min, 5% B for 56–60 min. A total of 2 µL of the test solution was injected for the screening and the chromatograph was recorded for 56 min.
  • Identification of marker components in DSV
Compounds were analyzed by their respective mass to charge ratio and fragmentation pattern. Mass/charge (m/z) ratio was selected based on the molecular ions of these compounds. Data acquisitions were collected under both positive (+ve) and negative (−ve) modes of ionization using full spectrum scan analysis. Further, the identified components were grouped in according to their optimum determination in each ionization mode.

4.2.2. HPLC–DAD Method Development and Optimization

  • Preparation of standard solution:
Stock solutions of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin (1000 ppm) were prepared by dissolving accurately weighed standards in methanol. The stock solutions were mixed and diluted with methanol: water (80:20) to prepare the appropriate concentrations (50 ppm) for working standard solutions.
  • Preparation of DSV sample solution
Samples of 0.5 g of powdered DSV from batches #B SWV117, #B SWV084, #A SWV023, #A SWV102 and #B SWV239 were diluted with 10 mL water:methanol (20:80) and sonicated for 30 min. The sonicated solution was centrifuged for 5 min at 10,000 rpm and filtered through 0.45 µm nylon filter (Test solution) and used for the analysis of protocatechuic acid, coumarin, cinnamic acid, 6-gingerol and glabridin. Solution A was further diluted up to 10 times with the same solvent and used for the analysis of gallic acid, methyl gallate, eugenol, piperine, ellagic acid and glycyrrhizin.
  • Instrumentation and chromatographic conditions
Analysis was performed on HPLC equipment, Prominence-i LC-2030c 3D Plus (Shimadzu Corporation, Kyoto, Japan). Three different reversed phase columns, Shodex C18-4E (5 µm, 4.6 mm× 250 mm) column, Shim pack GIST-HP C18 (3 µm, 4 mm× 150 mm) column, Shim pack GIST-HP C18 (5 µm, 4.6 mm × 250 mm) column were evaluated during chromatographic optimization. Separation was achieved using a Shodex C18-4E (5 µm, 4.6 mm × 250 mm) column. Different mobile phase, including methanol–0.1% glacial acetic acid in water, acetonitrile–0.1% acetic acid in water, methanol–0.1% orthophosphoric acid in water, acetonitrile–0.1% phosphoric acid in water, and acetonitrile–0.2% formic acid, were tried, at different pH of the mobile phase were tried. Finally, the elution was carried out using binary gradient mode using the mobile phase composed of 0.1% orthophosphoric acid in water (pH 2.5) and diethylamine (solvent A) and 0.1% orthophosphoric acid in acetonitrile: water (88:12) (solvent B) in binary gradient mode. The volume ratio of solvent B was changed as follows, 5–10% B for 0–10 min, 10–35% B for 10–30 min, 35–50% B for 30–40 min, 50–75% B for 40–50 min, 75% B for 50–55 min, 75–85% B for 55–60 min, 85–5% B for 65–66 min, 5% B for 66–70 min. The effluent from the column was detected by a diode array detector and the detection wavelength was set at 278 nm for gallic acid, methyl gallate, protocatechuic acid, coumarin, cinnamic acid, eugenol, 6-gingerol, piperine and glabridin, whereas for ellagic acid and glycyrrhizin, the detection was carried out at 250 nm. The temperature of the column was kept at 35 °C and the sample injection volume was 10 µL. The method was optimized using a suitable solvent system and monitoring suitable wavelength for separation of components with the highest sensitivity. Other parameters with optimized injection volume, flow rate and column temperature were used for maximum resolution and short analysis time.

4.3. Method Validation

Eleven marker components, namely gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin were validated using HPLC in DSV sample as per the recommendations of International Council on Harmonization (ICH) guidelines [20]. Specificity of an analytical procedure refers to its ability to unequivocally assess an analyte in the presence of the other components which may be expected to be present [20]. The specificity of the HPLC method was evaluated to ensure that there was no interference between the solvent blank and standard solution. The specificity was studied by injecting 10 μL solutions of blank at 278 nm and 250 nm respectively. The linearity of an analytical procedure is an important parameter which signifies to its ability to produce the test results that are directly proportional to the concentration of an analyte in a given concentration range [20]. To evaluate the linearity and range of the developed method eleven different standard solutions for each of the targeted analytes were prepared in different concentration ranges (0.15–100 µg/g) by diluting the stock solutions with methanol. The calibration curves were constructed by plotting the peak area of standards versus respective concentrations. The degree of linearity was estimated by calculating correlation coefficient, using the calibration curve. The limit of detection (LOD) is described as the lowest concentration of the analyte in a sample which can be reliably detected but not necessarily quantitated by a particular analytical method. Whereas, the limit of quantification (LOQ) is considered as the lowest concentration of the analyte which can be quantitatively determined with suitable precision and accuracy [20]. LOD and LOQ of each marker component were determined based on signal-to-noise method (S/N ratio). S/N ratio for LOD was performed by injecting 6 replicates of minimum concentration at which the component was reliably detected, similarly LOQ was performed by injecting six replicates of a concentration at which the analyte can be reliably quantified. Moreover, the limit of peak area %RSD for LOD and LOQ was set at NMT 33% and NMT 10% respectively. The parameter precision expresses the degree of scatter between a series of measurements obtained from a multiple sampling of the homogeneous sample [20]. The intraday (repeatability) and interday (intermediate precision) precision (n = 6) was evaluated by calculating the relative standard deviation (%RSD) with accuracy in the quantification of the sample set. Accuracy of an analytical procedure refers to the closeness of the agreement between the value which is true and the experimental value [20]. The accuracy of the developed method was thoroughly evaluated by recovery studies. Analytical recovery was performed by spiking DSV sample with the reference standards at known concentration levels, such as 80%, 100% and 120% as per the area ratio method. Recoveries at three different concentrations were thus calculated. Robustness of the method provides an indication of its reliability during normal usage [20]. Robustness of method performance was verified by incorporating small intentional changes in the experimental parameters for example column temperature, and flow rate. Obtained data for each case was evaluated by calculating %RSD. Ruggedness of the current method was confirmed by testing the reproducibility of the test results under the variation in operational conditions by different analysts on different days to assure for any changes in the result. The percentage RSD for the retention area was calculated.

4.4. Quantitative Analysis of Targeted Analytes in Five Different Batches of DSV

For assuring the reliability of the developed and validated method quantitative analysis of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin was carried out in different batches of DSV. Quantitative analysis of particular targeted analyte was carried out against its reference standard by calculating area under the peak of analyte, in HPLC chromatogram.

4.5. Data Analysis

Statistical analyses were performed using Graph Pad Prism 7.0 (GraphPad Software, Inc., San Diego, CA, USA). Characterization of the marker analytes was performed using the Unifi software (Waters Corporation).

5. Conclusions

The analysis and quality control of traditional herbal medicines is heading in the direction of extensive and comprehensive research for uncovering their inalienable complexities. The present inventive research is an attempt to outline the applicability of two state-of-art chromatographic techniques, UPLC/QToF MS and HPLC–DAD on the quality of the calcio-herbal formulation Divya-Swasari-Vati (DSV). Seventy four phytometabolites were identified in the formulation using UPLC/QToF MS. Further, the simultaneous analysis of the selected markers—gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhizin, eugenol, 6-gingerol, piperine and glabridin—in five different batches of DSV was carried out using the novel validated HPLC method. The established method was rapid, simple and reliable for simultaneous quantitative estimation of eleven marker components in Divya-Swasari-Vati. These outcomes may also assist in analysis of other extracts and formulations, having similar marker profiles.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ph14040297/s1, Figure S1: Chromatograph of blank solution and standard mixture solution, Figure S2: Regression equation and correlation coefficient, Figure S3: Mass fragment pattern of the characterized fifty-nine compounds in Divya-Swasari-Vati (DSV) as observed in positive ionization mode, Figure S4: Mass fragment pattern of the characterized forty-five compounds in Divya-Swasari-Vati (DSV) as observed in negative ionization mode, Table S1: Residual sum of square (RSS) analysis of the targeted analytes.

Author Contributions

A.B., provided broad direction for the study, identified the formulations for testing, generated resources, and gave final approval for the manuscript; P.S., performed data curing, and wrote the manuscript; S.V., performed UPLC/QToF MS analysis and investigations, M.T., performed HPLC–DAD analysis and investigations; J.S., Supervised analytical chemistry experiments and reviewed the manuscript; A.V., conceptualized and supervised the overall studies, generated resources, critically reviewed, and finally approved the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding. This presented work has been conducted using internal research funds from Patanjali Research Foundation Trust, Haridwar, India.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available within the article, the associated supplementary materials, or on request from the corresponding author.

Acknowledgments

Authors thank Suman Jha and Vallabh Prakash Mulay for their relentless supports. We extend our gratitude to Priyanka Kandpal, Tarun Rajput, Gagan Kumar, and Lalit Mohan for their swift administrative supports.

Conflicts of Interest

The test articles were provided by Divya Pharmacy, Haridwar, Uttarakhand, India. Acharya Balkrishna is an honorary trustee in Divya Yog Mandir Trust. In addition, he holds an honorary managerial position in Patanjali Ayurved Ltd., Haridwar, India. Other than providing the test formulations, Divya Pharmacy was not involved in any aspect of research reported in this study. All other authors declare no conflict of interests with regards to the submitted work.

References

  1. Chakraborty, I.; Maity, P. COVID-19 outbreak: Migration, effects on society, global environment and prevention. Sci. Total Environ. 2020, 728, 138882. [Google Scholar] [CrossRef]
  2. Casadei, E.; Salinas, I. Comparative models for human nasal infections and immunity. Dev. Comp. Immunol. 2019, 92, 212–222. [Google Scholar] [CrossRef]
  3. Jayawardena, R.; Sooriyaarachchi, P.; Chourdakis, M.; Jeewandara, C.; Ranasinghe, P. Enhancing immunity in viral infections, with special emphasis on COVID-19: A review. Diabetes Metab. Syndr. Clin. Res. Rev. 2020, 14, 367–382. [Google Scholar] [CrossRef] [PubMed]
  4. Das, S.; Das, S.; Ghangrekar, M.M. The COVID-19 pandemic: Biological evolution, treatment options and consequences. Innov. Infrastruct. Solut. 2020, 5, 1–12. [Google Scholar] [CrossRef]
  5. Antonio, A.D.S.; Wiedemann, L.S.M.; Veiga-Junior, V.F. Natural products’ role against COVID-19. RSC Adv. 2020, 10, 23379–23393. [Google Scholar] [CrossRef]
  6. Nugraha, R.V.; Ridwansyah, H.; Ghozali, M.; Khairani, A.F.; Atik, N. Traditional herbal medicine candidates as complementary treatments for COVID-19: A review of their mechanisms, pros and cons. Evid. Based Complement Alternat. Med. 2020, 2020, 1–12. [Google Scholar] [CrossRef]
  7. Chen, F.; Chan, K.; Jiang, Y.; Kao, R.Y.; Lu, H.; Fan, K.; Cheng, V.C.; Tsui, W.H.; Hung, I.F.; Lee, T.S. In vitro susceptibility of 10 clinical isolates of SARS coronavirus to selected antiviral compounds. J. Clin. Virol. 2004, 31, 69–75. [Google Scholar] [CrossRef]
  8. Barboza, J.N.; da Silva Maia Bezerra Filho, C.; Silva, R.O.; Medeiros, J.V.R.; de Sousa, D.P. An Overview on the Anti-inflammatory Potential and Antioxidant Profile of Eugenol. Oxid. Med. Cell. Longev. 2018, 2018, 1–9. [Google Scholar] [CrossRef]
  9. Rana, S.; Shahzad, M.; Shabbir, A. Pistacia integerrima ameliorates airway inflammation by attenuation of TNF-α, IL-4, and IL-5 expression levels, and pulmonary edema by elevation of AQP1 and AQP5 expression levels in mouse model of ovalbumin-induced allergic asthma. Phytomedicine 2016, 23, 838–845. [Google Scholar] [CrossRef] [PubMed]
  10. Priyashree, S.; Jha, S.; Pattanayak, S.P. Bronchodilatory and mast cell stabilising activity of Cressa cretica L.: Evaluation through in vivo and in vitro experimental models. Asian Pac. J. Trop. Med. 2012, 5, 180–186. [Google Scholar] [CrossRef][Green Version]
  11. Rathinavel, T.; Palanisamy, M.; Palanisamy, S.; Subramanian, A.; Thangaswamy, S. Phytochemical 6-Gingerol—A promising Drug of choice for COVID-19. Int. J. Adv. Sci. Eng. 2020, 06, 1482–1489. [Google Scholar] [CrossRef]
  12. Lee, W.; Yoo, H.; Kim, J.A.; Lee, S.; Jee, J.-G.; Lee, M.Y.; Lee, Y.-M.; Bae, J.-S. Barrier protective effects of piperlonguminine in LPS-induced inflammation in vitro and in vivo. Food Chem. Toxicol. 2013, 58, 149–157. [Google Scholar] [CrossRef]
  13. Bendjeddou, D.; Lalaoui, K.; Satta, D. Immunostimulating activity of the hot water-soluble polysaccharide extracts of Anacyclus pyrethrum, Alpinia galanga and Citrullus colocynthis. J. Ethnopharmacol. 2003, 88, 155–160. [Google Scholar] [CrossRef]
  14. Balkrishna, A.; Solleti, S.K.; Singh, H.; Tomer, M.; Sharma, N.; Varshney, A. Calcio-herbal formulation, Divya-Swasari-Ras, alleviates chronic inflammation and suppresses airway remodelling in mouse model of allergic asthma by modulating pro-inflammatory cytokine response. Biomed. Pharmacother. 2020, 126, 110063. [Google Scholar] [CrossRef]
  15. Balkrishna, A.; Verma, S.; Solleti, S.K.; Khandrika, L.; Varshney, A. Calcio-herbal medicine Divya-Swasari-Vati ameliorates SARS-CoV-2 spike protein-induced pathological features and inflammation in humanized zebrafish model by moderating IL-6 and TNF-α cytokines. J. Inflamm. Res. 2020, 13, 1219–1243. [Google Scholar] [CrossRef]
  16. Altemimi, A.; Lakhssassi, N.; Baharlouei, A.; Watson, D.; Lightfoot, D. Phytochemicals: Extraction, isolation, and identification of bioactive compounds from plant extracts. Plants 2017, 6, 42. [Google Scholar] [CrossRef]
  17. Cieśla, Ł. Biological fingerprinting of herbal samples by means of liquid chromatography. Chromatogr. Res. Int. 2012, 2012, 1–9. [Google Scholar] [CrossRef][Green Version]
  18. WHO. General Guidelines for Methodologies on Research and Evaluation of Traditional Medicine; World Health Organization: Geneva, Switzerland, 2000. [Google Scholar]
  19. Shoko, T.; Maharaj, V.J.; Naidoo, D.; Tselanyane, M.; Nthambeleni, R.; Khorombi, E.; Apostolides, Z. Anti-aging potential of extracts from Sclerocarya birrea (A. Rich.) Hochst and its chemical profiling by UPLC-Q-TOF-MS. BMC Complement Altern. Med. 2018, 18, 54. [Google Scholar] [CrossRef] [PubMed]
  20. International Conference on Harmonization (ICH-Q2 R1). Validation of Analytical Procedures: Text and Methodology; ICH Secretariat: Geneva, Switzerland, 2005.
  21. Atanasov, A.G.; Waltenberger, B.; Pferschy-Wenzig, E.-M.; Linder, T.; Wawrosch, C.; Uhrin, P.; Temml, V.; Wang, L.; Schwaiger, S.; Heiss, E.H.; et al. Discovery and resupply of pharmacologically active plant-derived natural products: A review. Biotechnol. Adv. 2015, 33, 1582–1614. [Google Scholar] [CrossRef][Green Version]
  22. Pan, S.-Y.; Zhou, S.-F.; Gao, S.-H.; Yu, Z.-L.; Zhang, S.-F.; Tang, M.-K.; Sun, J.-N.; Ma, D.-L.; Han, Y.-F.; Fong, W.-F.; et al. New perspectives on how to discover drugs from herbal medicines: CAM’s outstanding contribution to modern therapeutics. Evid Based Complement Alternat Med. 2013, 2013, 1–25. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Lautié, E.; Russo, O.; Ducrot, P.; Boutin, J.A. Unraveling Plant Natural Chemical Diversity for Drug Discovery Purposes. Front. Pharmacol. 2020, 11, 397. [Google Scholar] [CrossRef] [PubMed]
  24. Cordell, G.A. Phytochemistry and traditional medicine—The revolution continues. Phytochem. Lett. 2014, 10, 391–398. [Google Scholar] [CrossRef]
  25. Harvey, A.L.; Edrada-Ebel, R.; Quinn, R.J. The re-emergence of natural products for drug discovery in the genomics era. Nat. Rev. Drug Discov. 2015, 14, 111–129. [Google Scholar] [CrossRef][Green Version]
  26. Betz, J.M.; Brown, P.N.; Roman, M.C. Accuracy, precision, and reliability of chemical measurements in natural products research. Fitoterapia 2011, 82, 44–52. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Hou, J.-J.; Zhang, J.-Q.; Yao, C.-L.; Bauer, R.; Khan, I.A.; Wu, W.-Y.; Guo, D. Deeper chemical perceptions for better traditional chinese medicine standards. Engineering 2019, 5, 83–97. [Google Scholar] [CrossRef]
  28. Bandaranayake, W.M. Quality Control, Screening, Toxicity, and Regulation of Herbal Drugs. In Modern Phytomedicine; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2006; pp. 25–57. ISBN 3527315306. [Google Scholar]
  29. Zhou, Y.; Huang, S.-X.; Pu, J.-X.; Li, J.-R.; Ding, L.-S.; Chen, D.-F.; Sun, H.-D.; Xu, H.-X. Ultra performance liquid chromatography coupled with quadrupole time-of-flight mass spectrometric procedure for qualitative and quantitative analyses of nortriterpenoids and lignans in the genus Schisandra. J. Pharm. Biomed. Anal. 2011, 56, 916–927. [Google Scholar] [CrossRef] [PubMed]
  30. Vogeser, M.; Seger, C. A decade of HPLC–MS/MS in the routine clinical laboratory—Goals for further developments. Clin. Biochem. 2008, 41, 649–662. [Google Scholar] [CrossRef]
  31. Pastorino, G.; Cornara, L.; Soares, S.; Rodrigues, F.; Oliveira, M.B.P. Liquorice (Glycyrrhiza glabra): A phytochemical and pharmacological review. Phyther. Res. 2018, 32, 2329–2339. [Google Scholar] [CrossRef]
  32. Cortés-Rojas, D.F.; de Souza, C.R.F.; Oliveira, W.P. Clove (Syzygium aromaticum): A precious spice. Asian Pac. J. Trop. Biomed. 2014, 4, 90–96. [Google Scholar] [CrossRef][Green Version]
  33. Jawhari, F.Z.; Moussaoui, A.E.L.; Bourhia, M.; Imtara, H.; Saghrouchni, H.; Ammor, K.; Ouassou, H.; Elamine, Y.; Ullah, R.; Ezzeldin, E.; et al. Anacyclus pyrethrum var. pyrethrum (L.) and Anacyclus pyrethrum var. depressus (Ball) Maire: Correlation between total phenolic and flavonoid contents with antioxidant and antimicrobial activities of chemically characterized Extracts. Plants. 2021, 10, 149. [Google Scholar] [CrossRef] [PubMed]
  34. Rai, S.; Mukherjee, K.; Mal, M.; Wahile, A.; Saha, B.P.; Mukherjee, P.K. Determination of 6-gingerol in ginger (Zingiber officinale) using high-performance thin-layer chromatography. J. Sep. Sci. 2006, 29, 2292–2295. [Google Scholar] [CrossRef]
  35. Zahoor, M.; Zafar, R.; Rahman, N.U. Isolation and identification of phenolic antioxidants from Pistacia integerrima gall and their anticholine esterase activities. Heliyon 2018, 4, e01007. [Google Scholar] [CrossRef][Green Version]
  36. Sulekha, G.; Tambe, E. Identification of chemical constituents of cinnamon bark oil by GCMS and comparative study garnered from five different countries. Glob. J. Sci. Front. Res. C Biol. Sci. 2019, 19, 35–42. [Google Scholar]
  37. Pal, D.; Sahu, C.; Haldar, A. Bhasma: The ancient Indian nanomedicine. J. Adv. Pharm. Technol. Res. 2014, 5, 4–12. [Google Scholar] [CrossRef]
  38. Sahoo, I.; More, S.S.; Jadhav, V.; Dalai, S.; Sahoo, M. Clinical appraisal on therapeutic efficacy of tankana & sphatika bhasma with madhu pratisarana in tundikeri. J. Drug Deliv. Ther. 2019, 9, 130–134. [Google Scholar] [CrossRef]
  39. Mishra, A.; Mishra, A.K.; Tiwari, O.P.; Jha, S. In-house preparation and characterization of an Ayurvedic bhasma: Praval bhasma. J. Integr. Med. 2014, 12, 52–58. [Google Scholar] [CrossRef]
  40. Proestos, C.; Chorianopoulos, N.; Nychas, G.-J.E.; Komaitis, M. RP-HPLC Analysis of the phenolic compounds of plant extracts. investigation of their antioxidant capacity and antimicrobial activity. J. Agric. Food Chem. 2005, 53, 1190–1195. [Google Scholar] [CrossRef]
  41. Wilson, I.; Brinkman, U.A.T. Hyphenation and hypernation: The practice and prospects of multiple hyphenation. J. Chromatogr. A 2003, 1000, 325–356. [Google Scholar] [CrossRef]
  42. Shabir, G.A. Validation of high-performance liquid chromatography methods for pharmaceutical analysis. J. Chromatogr. A 2003, 987, 57–66. [Google Scholar] [CrossRef]
  43. U.S. Department of Health and Human Services, Bioanalytical Method Validation Guidance for Industry; U.S. Department of Health and Human Services Food and Drug Administration: Rockville, MD, USA, 2018. Available online: https://www.fda.gov/files/drugs/published/Bioanalytical-Method-Validation-Guidance-for-Industry.pdf (accessed on 15 March 2021).
  44. USP. <1225> Validation of Compendial Procedures. United States Pharmacopoeia XXXVII Natl. Formul. XXXII 2007. Available online: http://www.uspbpep.com/usp29/v29240/usp29nf24s0_c1225.html (accessed on 15 March 2021).
  45. Seno, S.; Ohtake, S.; Kohno, H. Analytical validation in practice at a quality control laboratory in the Japanese pharmaceutical industry. In Validation in Chemical Measurement; Springer: Berlin/Heidelberg, Germany, 1997; pp. 56–61. ISBN 3540207880. [Google Scholar]
  46. Prichard, L.; Barwick, V. Preparation of Calibration Curves a Guide to Best Practice; LGC Limited: Teddington, UK, 2003. [Google Scholar] [CrossRef]

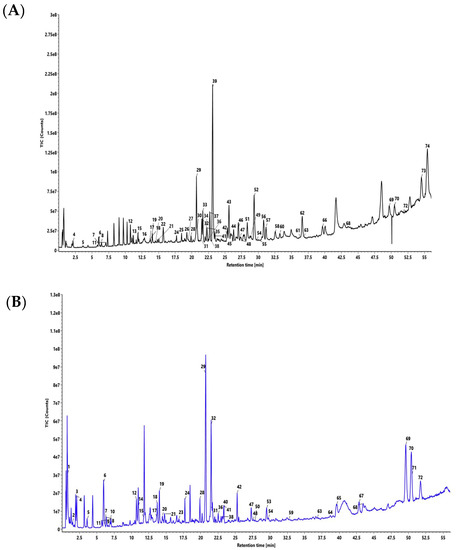

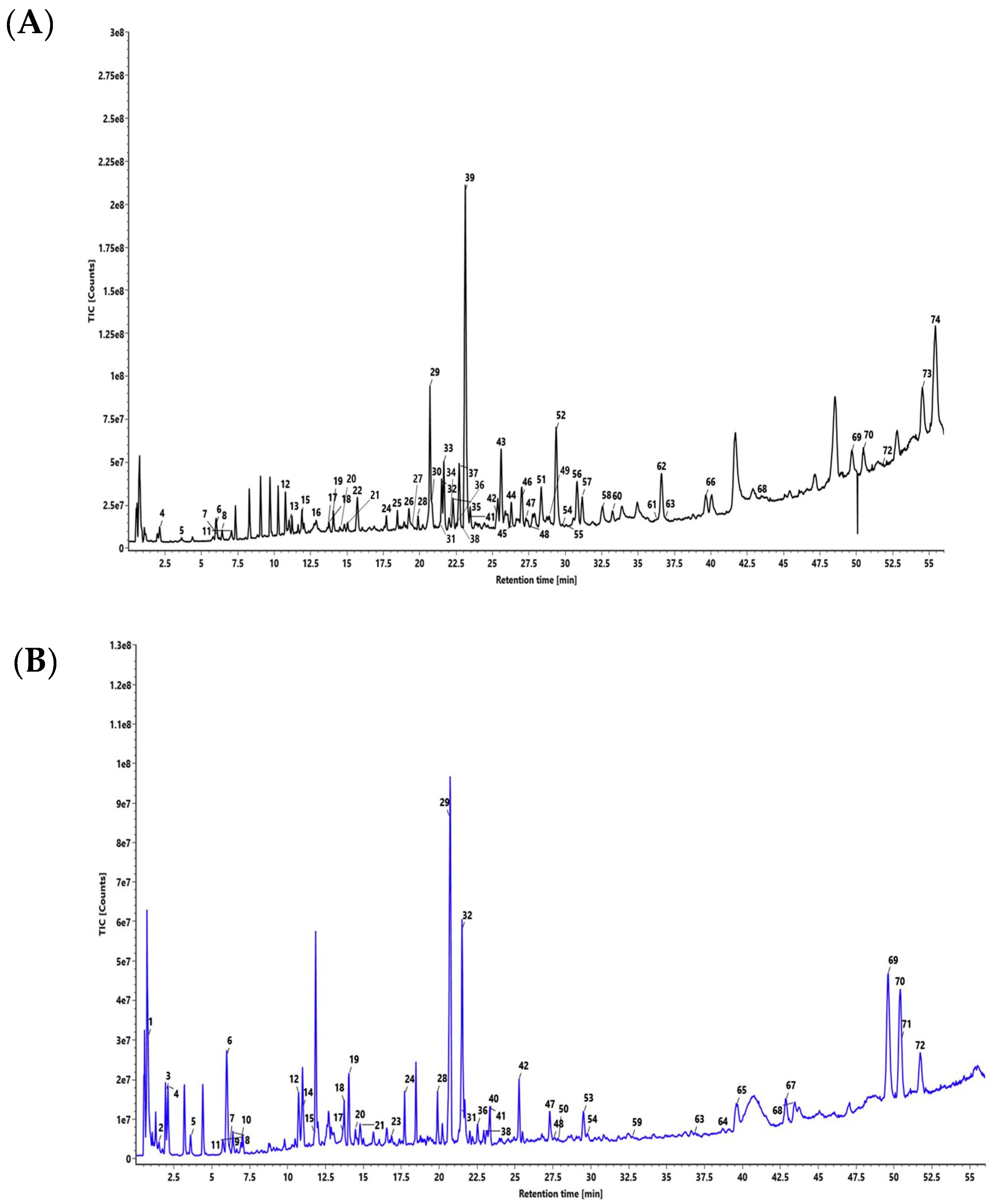

Figure 1. Total ion chromatogram of seventy-four compounds characterized in Divya-Swasari-Vati (DSV) in (A) positive mode and (B) negative mode using UPLC/QToF MS. The seventy-four compounds are, (1) quinic acid, (2) galloyl glucose, (3) gallic acid, (4) Theogallin, (5) protocaechuic acid, (6) methyl gallate, (7) 3, 4-di-O-galloylquinic acid, (8) chlorogenic acid, (9) 1,6-di-O-galloyl-glucose, (10) digallic acid, (11) cryptochlorogenic acid, (12) neoliquiritrin, (13) liquiritigenin, (14) ellagic acid, (15) quercetin-3-O-β-d-glucuronide, (16) coumarin, (17) kushenol O, (18) licurazide, (19) liquiritin apioside, (20) liquiritrin, (21) N-feruloyltyramine, (22) cinnamic acid, (23) 24-hydroxy licoricesaponin A3, (24) licoricesaponin A3 (25) glabrolide, (26) eugenol, (27) piperanine, (28) licoricesaponin G2, (29) glycyrrhizin, (30) piperyline, (31) 3-o-(β-d-glucoronopyranosyl (1-2)-β-d-galacto pyranosyl) glycyrrhetic acid, (32) licoricesaponin K2, (33) 6-gingerol, (34) 4,5-dihydropiperlonguminine, (35) piperlonguminine, (36) licoricesaponin J2, (37) feruperine, (38) licoricesaponin C2, (39) piperine, (40) shinpterocarpin, (41) licoricesaponin B2, (42) glabridin, (43) piperettine, (44) piperolein A, (45) dipiperamide E, (46) retrofractamide A, (47) glabrol, (48) 1- methoxyphaseollidin, (49) piperolactam-C9:1 (8E), (50) 1-methoxyphaseollin, (51) dehydropipernonaline, (52) pipernonaline, (53) 2-αhydroxyursolic acid, (54) licochalcone A, (55) dipiperamide-D, (56) piperolein B, (57) pipercide, (58) 10,11-dihydropipercide, (59) sophoranodichromane D, (60) piperundecalidine, (61) shinflavanone, (62) guineesine, (63) glycyrrhetic acid, (64) ursolic acid, (65) glycyrrhetol, (66) liquidambronal, (67) betulonic acid, (68) oleanonic acid, (69) deoxyglabrolide, (70) glypallidifloric acid, (71) 5-hydroxyeicosatetraenoic acid, (72) ginkgolic acid, (73) N-isobutyl-(2E,4E)-octadecadienamide, (74) pipnoohine.
Figure 1. Total ion chromatogram of seventy-four compounds characterized in Divya-Swasari-Vati (DSV) in (A) positive mode and (B) negative mode using UPLC/QToF MS. The seventy-four compounds are, (1) quinic acid, (2) galloyl glucose, (3) gallic acid, (4) Theogallin, (5) protocaechuic acid, (6) methyl gallate, (7) 3, 4-di-O-galloylquinic acid, (8) chlorogenic acid, (9) 1,6-di-O-galloyl-glucose, (10) digallic acid, (11) cryptochlorogenic acid, (12) neoliquiritrin, (13) liquiritigenin, (14) ellagic acid, (15) quercetin-3-O-β-d-glucuronide, (16) coumarin, (17) kushenol O, (18) licurazide, (19) liquiritin apioside, (20) liquiritrin, (21) N-feruloyltyramine, (22) cinnamic acid, (23) 24-hydroxy licoricesaponin A3, (24) licoricesaponin A3 (25) glabrolide, (26) eugenol, (27) piperanine, (28) licoricesaponin G2, (29) glycyrrhizin, (30) piperyline, (31) 3-o-(β-d-glucoronopyranosyl (1-2)-β-d-galacto pyranosyl) glycyrrhetic acid, (32) licoricesaponin K2, (33) 6-gingerol, (34) 4,5-dihydropiperlonguminine, (35) piperlonguminine, (36) licoricesaponin J2, (37) feruperine, (38) licoricesaponin C2, (39) piperine, (40) shinpterocarpin, (41) licoricesaponin B2, (42) glabridin, (43) piperettine, (44) piperolein A, (45) dipiperamide E, (46) retrofractamide A, (47) glabrol, (48) 1- methoxyphaseollidin, (49) piperolactam-C9:1 (8E), (50) 1-methoxyphaseollin, (51) dehydropipernonaline, (52) pipernonaline, (53) 2-αhydroxyursolic acid, (54) licochalcone A, (55) dipiperamide-D, (56) piperolein B, (57) pipercide, (58) 10,11-dihydropipercide, (59) sophoranodichromane D, (60) piperundecalidine, (61) shinflavanone, (62) guineesine, (63) glycyrrhetic acid, (64) ursolic acid, (65) glycyrrhetol, (66) liquidambronal, (67) betulonic acid, (68) oleanonic acid, (69) deoxyglabrolide, (70) glypallidifloric acid, (71) 5-hydroxyeicosatetraenoic acid, (72) ginkgolic acid, (73) N-isobutyl-(2E,4E)-octadecadienamide, (74) pipnoohine.
Pharmaceuticals 14 00297 g001

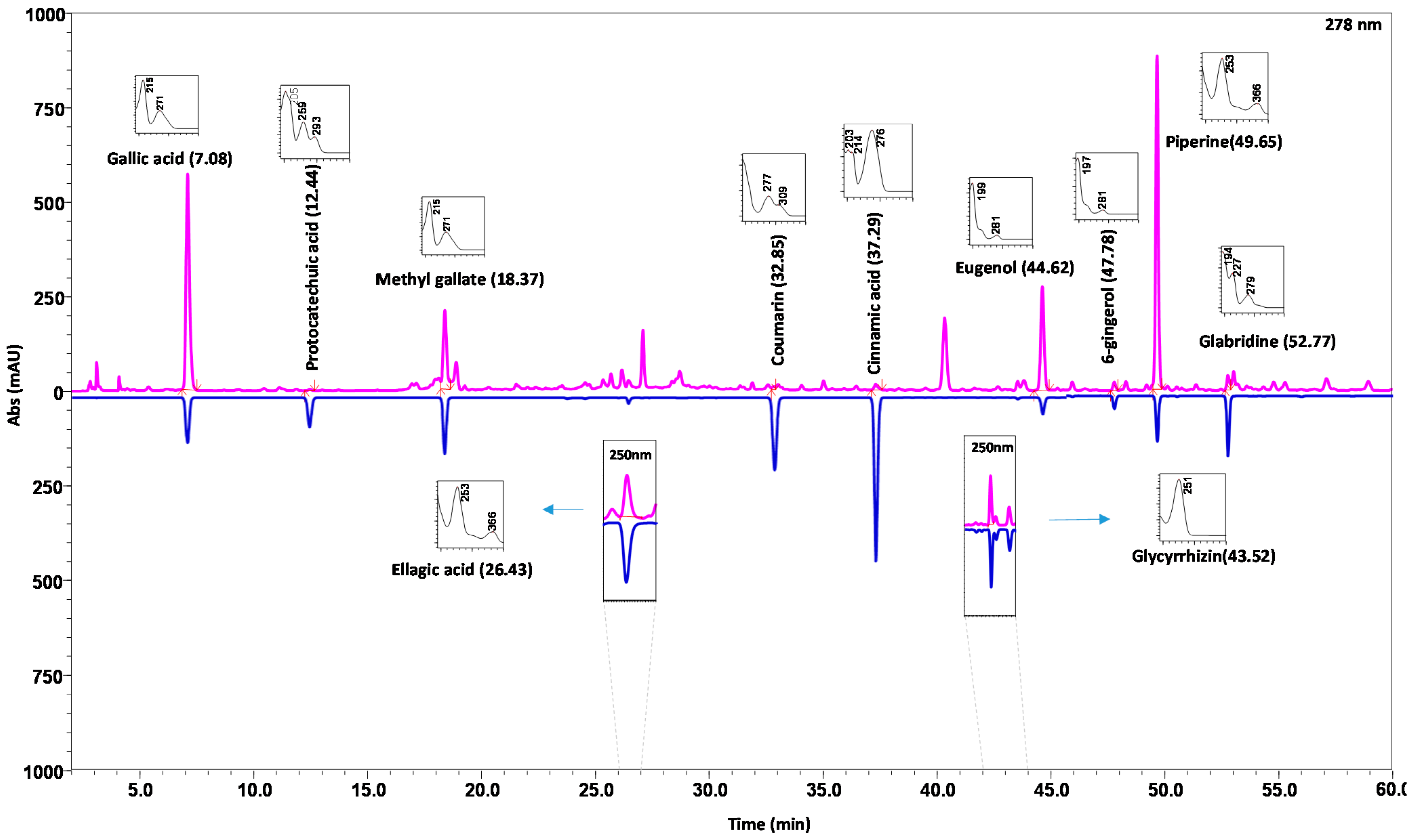

Figure 2. HPLC–DAD analysis identified and quantified the presence of 11 targeted marker components in DSV. The DSV sample (pink lines) was compared using reference standard mix (blue lines). The chromatograms were recorded at 278 nm for (methyl gallate, coumarin, cinnamic acid, eugenol, 6-gingerol, piperine and glabridin), and at 250 nm for ellagic acid and glycyrrhizin. UV-spectra of each detected analyte has been shown in the respective insets, along with HPLC retention times.
Figure 2. HPLC–DAD analysis identified and quantified the presence of 11 targeted marker components in DSV. The DSV sample (pink lines) was compared using reference standard mix (blue lines). The chromatograms were recorded at 278 nm for (methyl gallate, coumarin, cinnamic acid, eugenol, 6-gingerol, piperine and glabridin), and at 250 nm for ellagic acid and glycyrrhizin. UV-spectra of each detected analyte has been shown in the respective insets, along with HPLC retention times.
Pharmaceuticals 14 00297 g002

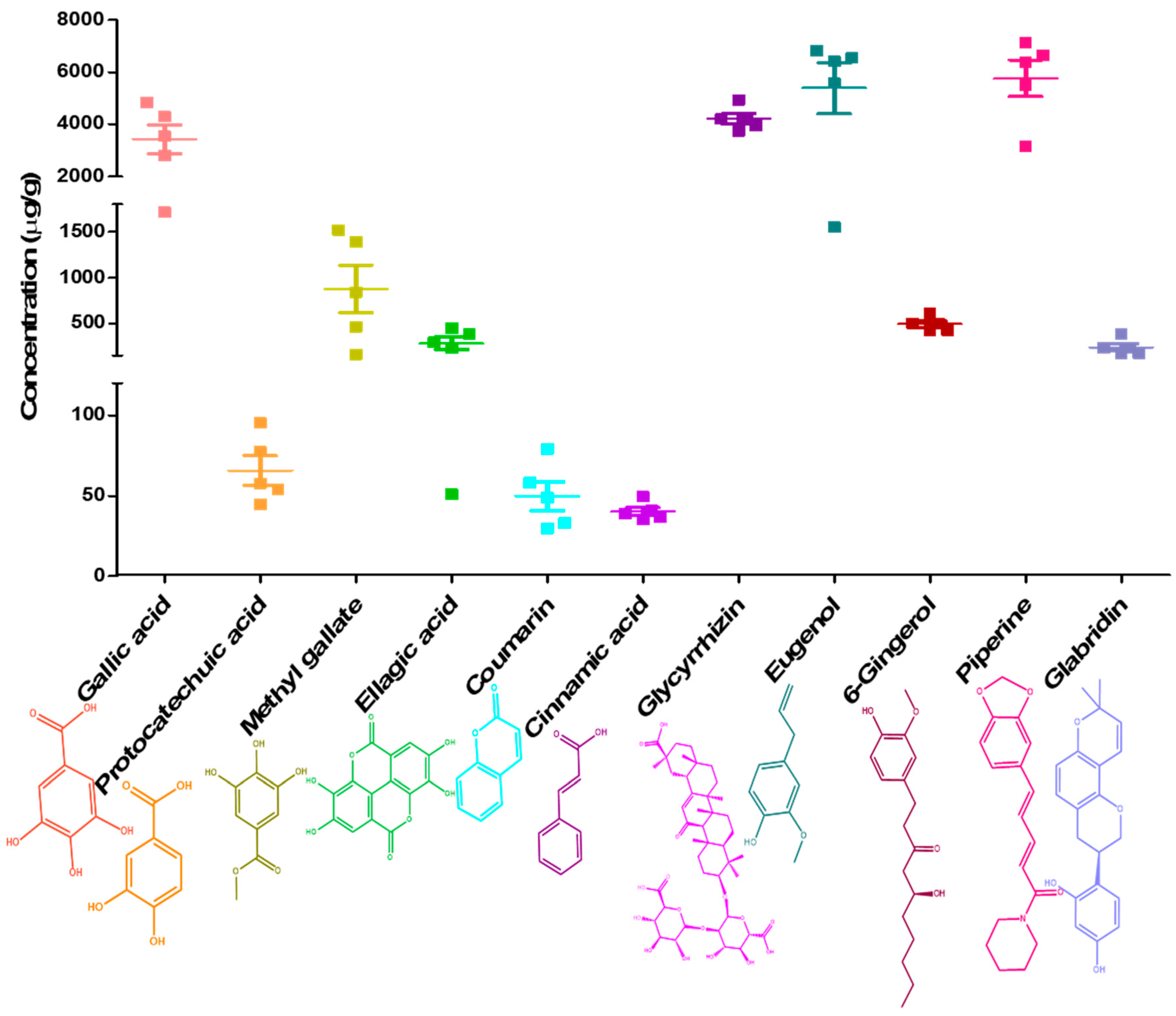

Figure 3. Quantitative analysis of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhzin, eugenol, 6-gingerol, piperine and glabridin using HPLC-DAD analysis in five different batches of Divya-Swasari-Vati (DSV). Scatter plot show detected concentrations of each analyte with mean and SEM (n = 5), in DSV formulation. Chemical structure of analytes have been sourced from www.pubchem.com (accessed on 22 March 2021).
Figure 3. Quantitative analysis of gallic acid, protocatechuic acid, methyl gallate, ellagic acid, coumarin, cinnamic acid, glycyrrhzin, eugenol, 6-gingerol, piperine and glabridin using HPLC-DAD analysis in five different batches of Divya-Swasari-Vati (DSV). Scatter plot show detected concentrations of each analyte with mean and SEM (n = 5), in DSV formulation. Chemical structure of analytes have been sourced from www.pubchem.com (accessed on 22 March 2021).
Pharmaceuticals 14 00297 g003
Table 1. Ingredients and Composition of Divya-Swasari-Vati (DSV) tablet formulation. Excipients: gum acacia (Acacia arabica) 4.62%, hydrated magnesium silicate 1.38% and colloidal silicon dioxide 1.38% are also present in the formulation.
Table 1. Ingredients and Composition of Divya-Swasari-Vati (DSV) tablet formulation. Excipients: gum acacia (Acacia arabica) 4.62%, hydrated magnesium silicate 1.38% and colloidal silicon dioxide 1.38% are also present in the formulation.
S. No.DSV Constituent’s Scientific NameHindi Vernacular Name% in Each DSV Tablet
1Pistacia integerrimaKakadasingi11.66
2Glycyrrhiza glabraMulethi11.85
3Cressa creticaRudanti11.66
4Piper nigrumMarich7.77
5Piper longumChoti pippal7.77
6Zingiber officinaleSounth7.77
7Cinnamomum zeylanicumDalchini5.92
8Syzygium aromaticumLavang5.92
9Anacylus pyrethrumAkarkara5.92
10Herbally processed ash from calcined shell of pearl oyster (Pinctada fucata)Mukta- Shukti Bhasma2.33
11Herbally processed ash from rich gypsumGodanti Bhasma2.33
12Herbally processed ash from calcined cowry shell of Cypraea monetaKapardak Bhasma2.33
13Herbally processed ash from calcined micaAbharak Bhasma2.33
14Herbally processed ash from calcined form of alumSphatika Bhasma2.33
15Coral calcium powder processed with rose waterPraval Pishti2.33
16Herbally processed ash from calcined boraxTankan Bhasma2.33
Table 2. Identified metabolites in Divya-Swasari-Vati (DSV) on UPLC/QToF MS analysis.
Table 2. Identified metabolites in Divya-Swasari-Vati (DSV) on UPLC/QToF MS analysis.
PeakAnalyteFormulaNeutral Mass (D)Observed Mass (D)RT (min)ModeFragments
1Quinic acidC7H12O6192.0634191.05550.80−ve[C7H12O6]−H, m/z 173.0445, m/z 149.0443, m/z 129.0184, m/z 113.0258, m/z 89.0267
2GalloylglucoseC13H16O10332.0744331.06651.50−ve[C13H16O10]−H, m/z 271.0442, m/z 211.0231, m/z 169.0130, m/z 151.0026
3Gallic acidC7H6O5170.0215169.01361.95−ve[C7H6O5]−H, m/z 153.0177, m/z 137.0238, m/z 125.0238
4TheogallinC14H16O10344.0744345.08212.13+ve[C14H16O10]+H, m/z 327.0714, m/z 247.0211, m/z 192.0607, m/z 153.0187, m/z 125.0239
343.06672.00−ve[C14H16O10]−H, m/z 297.0600, m/z 271.0448, m/z 191.0550, m/z 166.9973, m/z 123.0092
5Protocatechuic acidC7H6O4154.0266155.03403.65+ve[C7H6O4]+H, m/z 137.0237
153.01853.61−ve[C7H6O4]−H
6Methyl gallateC8H8O5184.0372185.0447 6.04+ve[C8H8O5]+H, m/z 169.0107, m/z 153.0186, m/z 139.0408
183.02925.99−ve[C8H8O5]−H, m/z 168.0051, m/z 153.0181, m/z 124.0160, m/z 123.0079, m/z 106.0077
73,4-Di-O-galloylquinic acidC21H20O14496.0853497.0923 6.24+ve[C21H20O14]+H, m/z 327.0702, m/z 247.0232, m/z 153.0186, m/z 139.0408
495.07756.18−ve[C21H20O14]−H, m/z 343.0652, m/z 245.0076, m/z 191.0547, m/z 166.9966
8Chlorogenic acidC16H18O9354.0951355.1026 6.43+ve[C16H18O9]+H, m/z 319.0814, m/z 235.0602, m/z 205.0496, m/z 163.0395, m/z 130.0664
353.08746.39−ve[C16H18O9]−H, m/z 275.0537, m/z 233.0444, m/z 205.0495, m/z 163.0388
91,6-Di-O-galloyl-glucoseC20H20O14484.0853483.07756.64−ve[C20H20O14]−H, m/z 313.0547, m/z 271.0442, m/z 169.0129, m/z 169.0050
10Digallic acidC14H10O9322.0325321.02466.94−ve[C14H10O9]−H, m/z 275.0173, m/z 257.0064, m/z 169.0130, m/z 168.0047, m/z 125.0237
11Cryptochlorogenic acidC16H18O9354.0951355.10287.08+ve[C16H18O9]+H, m/z 319.0818, m/z 301.0712, m/z 235.0606, m/z 217.0499, m/z 149.0238
353.08737.05−ve[C16H18O9]−H, m/z 335.0735, m/z 233.0442, m/z 217.0489, m/z 217.0489, m/z 191.0324, m/z 147.0429
12NeoliquiritinC21H22O9418.1264419.134310.76+ve [C21H22O9]+H, m/z 389.1238, m/z 285.0760, m/z 257.0813, m/z 191.0330, m/z 137.0238, m/z 133.0863
417.119210.73−ve[C21H22O9]−H, m/z 399.1010, m/z 297.0736, m/z 255.0651, m/z 254.0565, m/z 191.0328, m/z 135.0079
13LiquiritigeninC15H12O4256.0736257.081411.03+ve[C15H12O4]+H, m/z 239.0707, m/z 215.0715, m/z 163.0399, m/z 137.0239, m/z 119.0498
14Ellagic acidC14H6O8302.0063300.998611.03−ve[C14H6O8]−H, m/z 283.9943, m/z 178.9969, m/z 151.0027, m/z 135.0080
15Quercetin-3-O-β-d-glucuronideC21H18O13478.0747479.082611.81+ve[C21H18O13]+H, m/z 303.0506, m/z 245.0452, m/z 147.0448
477.067711.77−ve[C21H18O13]−H, m/z 301.0336, m/z 299.0180, m/z 243.0281, m/z 151.0025
16CoumarinC9H6O2146.0368147.044612.88+ve[C9H6O2]+H, m/z 131.0499
17Kushenol OC27H30O13562.1686563.176313.67+ve [C27H30O13]+H, m/z 549.1600, m/z 387.1322, m/z 269.0813, m/z 237.0543, m/z 153.0719
561.161913.65−ve[C27H30O13]−H, m/z 547.1428, m/z 401.0868, m/z 267.0648, m/z 252.0410, m/z 151.0391
18LicurazideC26H30O13550.1686551.1762 13.77+ve[C26H30O13]+H, m/z 461.1421, m/z 419.1335, m/z 317.0667, m/z 257.0812, m/z 239.0705, m/z 137.0238
549.161613.74−ve[C26H30O13]−H, m/z 417.1159, m/z 357.0962, m/z 255.0650, m/z 254.0566, m/z 135.0082
19Liquiritin apiosideC26H30O13550.1686551.1757 14.07+ve[C26H30O13]+H, m/z 453.1153, m/z 419.1333, m/z 389.1236, m/z 269.0813, m/z 257.0813, m/z 137.0238
549.161414.04−ve[C26H30O13]−H, m/z 533.1630, m/z 399.1061, m/z 255.0651, m/z 165.0549, m/z 135.008
20LiquiritinC21H22O9418.1264419.134414.51+ve[C21H22O9]+H, m/z 355.1184, m/z 257.0811, m/z 255.0655, m/z 147.0446
417.119114.47−ve[C21H22O9]−H, m/z 343.1189, m/z 299.0544, m/z 255.0650, m/z 253.0490, m/z 163.0387, m/z 135.0079
21N-feruloyltyramineC18H19NO4313.1314314.139514.83+ve[C18H19NO4]+H, m/z 177.0552, m/z 145.0289, m/z 121.0652
312.124014.80−ve[C18H19NO4]−H, m/z 297.0988, m/z 178.0501, m/z 148.0520
22Cinnamic acidC9H8O2148.0524149.060315.71+ve[C9H8O2]+H, m/z 131.0498
2324-Hydroxy-licoricesaponin A3C48H72O221000.4515999.448516.86−ve[C48H72O22]−H, m/z 939.4566, m/z 819.3776, m/z 485.3237, m/z 373.1632, m/z 179.0701
24Licoricesaponin A3C48H72O21984.4566985.463317.71+ve[C48H72O21]+H, m/z 866.3528, m/z 809.4295, m/z 615.3875, m/z 453.3357, m/z 435.3246, m/z 153.0184
983.452517.72−ve[C48H72O21]−H, m/z 645.3610, m/z 469.3300, m/z 351.0545, m/z 193.0348
25GlabrolideC30H44O4468.3240469.331918.46+ve[C30H44O4]+H, m/z 439.3570, m/z 405.3154, m/z 315.1961, m/z 233.1539, m/z 175.1485, m/z 149.1327
26EugenolC10H12O2164.0837164.083819.26+ve[C10H12O2]-e, m/z 149.0603, m/z 131.0498, m/z 119.0497
27PiperanineC17H21NO3287.1521288.160819.40+ve[C17H21NO3]+H, m/z 256.1340, m/z 203.0709, m/z 171.0440, m/z 137.0604
28Licoricesaponin G2C42H62O17838.3987839.4069 19.88+ve[C42H62O17]+H, m/z 582.2634, m/z 487.3414, m/z 469.3309, m/z 189.1641, m/z 175.1484
837.394419.89−ve[C42H62O17]−H, m/z 793.3981, m/z 623.2339, m/z 431.2272, m/z 351.0551, m/z 193.0342
29GlycyrrhizinC42H62O16822.4038823.411520.71+ve[C42H62O16]+H, m/z 700.4142, m/z 647.3781, m/z 453.3364, m/z 435.3262, m/z 272.1290, m/z, 189.1645
821.399420.69−ve[C42H62O16]−H, m/z 759.3939, m/z 645.3619, m/z 499.3038, m/z 351.0555, m/z 193.0348
30PiperylineC16H17NO3271.1208272.129320.84+ve[C16H17NO3]+H, m/z 244.1349, m/z 242.1165, m/z 201.0551, m/z 171.0447, m/z 135.0449, m/z 122.0360
313-O-(β-d-Glucuronopyranosyl-(1-2)-β-d-galactopyranosyl)glycyrrhetic acidC42H64O15808.4245809.4319 21.41+ve[C42H64O15]+H, m/z 633.3987, m/z 439.3571, m/z 437.3407, m/z 241.0879, m/z 175.1114
807.419721.42−ve[C42H64O15]−H, m/z 745.4132, m/z 485.3251, m/z 303.2322, m/z 187.0961
32Licoricesaponine K2C42H62O16822.4038823.4114 21.51+ve[C42H62O16]+H, m/z 700.4185, m/z 647.3779, m/z 453.3364, m/z 435.3259, m/z 235.1698, m/z 189.1644
821.399121.52−ve[C42H62O16]−H, m/z 807.4142, m/z 645.3607, m/z 485.3251, m/z 351.0550, m/z 193.0344
336-GingerolC17H26O4294.1831317.173821.66+ve[C17H26O4]+Na, m/z 259.1702, m/z 177.0917, m/z 162.0680, m/z 137.0605
344,5-DihydropiperlonguminineC16H21NO3275.1521276.160422.03+ve[C16H21NO3]+H, m/z 246.1507, m/z 203.0712, m/z 135.0446, m/z 131.0494
35PiperlonguminineC16H19NO3273.1365274.144822.29+ve[C16H19NO3]+H, m/z 262.1438, m/z 201.0549, m/z 171.0446, m/z 135.0447, m/z 115.0992
36Licoricesaponine J2C42H64O16824.4194825.4265 22.53+ve[C42H64O16]+H, m/z 613.3720, m/z 455.3516, m/z 409.3463, m/z 205.1061
823.414722.53−ve[C42H64O16]−H, m/z 761.4095, m/z 597.2575, m/z 439.1797, m/z 351.0551, m/z 193.0346, m/z 175.0214
37FeruperineC17H21NO3287.1521288.160222.72+ve[C17H21NO3]+H, m/z 270.1496, m/z 217.1090, m/z 203.0709, m/z 135.0447, m/z 124.0768
38Licoricesaponin C2C42H62O15806.4089829.399122.94+ve [C42H62O15]+Na, m/z 560.3732, m/z 437.3411, m/z 396.2542, m/z 285.1852, m/z 173.0946
805.404222.95−ve[C42H62O15]−H, m/z 743.3975, m/z 645.3662, m/z 501.3191, m/z 351.0552, m/z 167.0342
39PiperineC17H19NO3285.1365286.144923.13+ve[C17H19NO3]+H, m/z 258.1495, m/z 201.0552, m/z 171.0447, m/z 135.0449, m/z 112.0763
40ShinpterocarpinC20H18O4322.1205321.113523.28−ve[C20H18O4]−H, m/z 306.0883, m/z 265.0490, m/z 237.0542, m/z 175.0758, m/z 145.0290
41Licoricesaponin B2C42H64O15808.4245831.413123.34+ve [C42H64O15]+Na, m/z 731.3659, m/z 602.2705, m/z 485.3259, m/z 439.3567, m/z 279.1421, m/z 213.1123
807.420123.35−ve[C42H64O15]−H, m/z 779.4222, m/z 695.3628, m/z 473.2729, m/z 351.0551, m/z 193.0343
42GlabridinC20H20O4324.1362325.1445 25.28+ve[C20H20O4]+H, m/z 309.1130, m/z 270.0883, m/z 189.0916, m/z 173.0606, m/z 123.0447
323.129225.26−ve[C20H20O4]−H, m/z 308.1037, m/z 268.0723, m/z 201.0915, m/z 135.0449
43PiperettineC19H21NO3311.1521312.160525.59+ve[C19H21NO3]+H, m/z 294.1501, m/z 227.0709, m/z 197.0603, m/z 161.0602, m/z 138.0920
44Piperolein AC19H25NO3315.1834316.192126.29+ve[C19H25NO3]+H, m/z 231.1025, m/z 194.1547, m/z 135.0448, m/z 131.0497
45Dipiperamide EC34H38N2O6570.2730571.280926.41+ve[C34H38N2O6]+H, m/z 444.1771, m/z 286.1444, m/z 201.0520, m/z 173.0559
46Retrofractamide AC20H25NO3327.1834328.191927.05+ve[C20H25NO3]+H, m/z 227.1072, m/z 187.0758, m/z 161.0602, m/z 131.0498
47GlabrolC25H28O4392.1988393.2070 27.31+ve [C25H28O4]+H, m/z 337.1442, m/z 321.1129, m/z 281.0814, m/z 203.0708, m/z 149.0240, m/z 137.0604
391.192227.29−ve[C25H28O4]−H, m/z 203.0707, m/z 187.1122, m/z 132.0577
481-MethoxyphaseollidinC21H22O5354.1467355.1551 27.58 +ve[C21H22O5]+H, m/z 265.0494, m/z 189.0912, m/z 153.0557
353.139727.55−ve[C21H22O5]−H, m/z 295.0591, m/z 201.0911, m/z 150.0315
49Piperolactam-C9:1(8E)C20H27NO3329.1991330.207127.81+ve[C20H27NO3]+H, m/z 259.1323, m/z 208.1702, m/z 135.0446, m/z 133.0650
501-MethoxyphaseollinC21H20O5352.1311351.123927.86−ve[C21H20O5]−H, m/z 321.1108, m/z 267.0644, m/z 201.0913, m/z 146.0356
51DehydropipernonalineC21H25NO3339.1834340.191528.34+ve[C21H25NO3]+H, m/z 286.1445, m/z 227.1071, m/z 179.1310, m/z 161.0602, m/z 112.0761
52PipernonalineC21H27NO3341.1991342.207229.38+ve[C21H27NO3]+H, m/z 314.2119, m/z 229.1227, m/z 161.0601, m/z 135.0447, m/z 112.0761
532α-Hydroxyursolic acidC30H48O4472.3553471.348829.52−ve[C30H48O4]−H, m/z 423.3237, m/z 393.3123, m/z 279.2320
54Licochalcone AC21H22O4338.1518339.160029.82+ve[C21H22O4]+H, m/z 276.0771, m/z 229.1227, m/z 189.0913, m/z 137.0602
337.144929.79−ve[C21H22O4]−H, m/z 322.1187, m/z 267.0662, m/z 201.0910, m/z 175.0756, m/z 134.0369
55Dipiperamide DC36H40N2O6596.2886597.296130.18+ve[C36H40N2O6]+H, m/z 512.2070, m/z 334.1427, m/z 286.1444, m/z 186.0655
56Piperolein BC21H29NO3343.2147344.223030.81+ve[C21H29NO3]+H, m/z 286.1447, m/z 222.1860, m/z 154.1234, m/z 135.0448
57PipercideC22H29NO3355.2147356.223131.16+ve[C22H29NO3]+H, m/z 283.1334, m/z 255.1387, m/z 234.1858, m/z 135.0448, m/z 133.1014
5810,11-DihydropipercideC22H31NO3357.2304358.238532.50+ve[C22H31NO3]+H, m/z 285.1489, m/z 191.1066, m/z 135.0445
59Sophoranodichromane DC25H28O5408.1937407.186532.73−ve[C25H28O5]−H, m/z 350.1141, m/z 203.1064, m/z 203.0696, m/z 148.0522
60PiperundecalidineC23H29NO3367.2147368.223233.25+ve[C23H29NO3]+H, m/z 340.2281, m/z 255.1386, m/z 215.1071, m/z 135.0447, m/z 133.1011
61ShinflavanoneC25H26O4390.1831391.191236.31+ve[C25H26O4]+H, m/z 375.1594, m/z 257.0773, m/z 215.1072, m/z 189.0914, m/z 147.0810
62GuineesineC24H33NO3383.2460384.254336.61+ve[C24H33NO3]+H, m/z 311.1648, m/z 283.1702, m/z 257.1535, m/z 175.0757, m/z 135.0447, m/z 131.0497
63Glycyrrhetic acidC30H46O4470.3396471.347136.90+ve[C30H46O4]+H, m/z 407.3320, m/z 364.3158, m/z 229.1937, m/z 175.1489, m/z 173.1333
469.332536.85−ve[C30H46O4]−H, m/z 451.3185, m/z 407.3289
64Ursolic acidC30H48O3456.3604455.353838.72−ve[C30H48O3]−H, m/z 389.3044, m/z 331.2605, m/z 125.0969
65GlycyrrhetolC30H48O3456.3604455.353839.61−ve[C30H48O3]−H, m/z 407.3301
66LiquidambronalC30H46O2438.3498439.357839.68+ve[C30H46O2]+H, m/z 408.3381, m/z 297.2555, m/z 255.2120, m/z 203.1800, m/z 191.1800, m/z 135.1173
67Betulonic acidC30H46O3454.3447453.338742.87−ve[C30H46O3]−H, m/z 301.2136, m/z 247.2058
68Oleanonic acidC30H46O3454.3447455.351143.51+ve[C30H46O3]+H, m/z 409.3453, m/z 343.2649, m/z 261.2222, m/z 203.1799, m/z 177.1643
453.338443.44−ve[C30H46O3]−H, m/z 422.2805
69DeoxyglabrolideC30H46O3454.3447455.352249.70+ve[C30H46O3]+H, m/z 437.3415, m/z 353.2489, m/z 321.2565, m/z 215.1799, m/z 189.1644, m/z 161.1330
453.338749.60−ve[C30H46O3]−H, m/z 393.3134, m/z 317.2845, m/z 245.1536, m/z 177.0910, m/z 153.1281
70Glypallidifloric acidC30H46O3454.3447455.352150.49+ve[C30H46O3]+H, m/z 437.3417, m/z 353.2487, m/z 297.2582, m/z 203.1800, m/z 161.1330, m/z 135.1175
453.338850.40−ve[C30H46O3]−H, m/z 393.3133, m/z 167.1100
715-Hydroxyeicosatetraenoic acidC20H32O3320.2351319.228750.50−ve[C20H32O3]−H, m/z 275.2378, m/z 273.2217, m/z 205.1217, m/z 153.1275
72Ginkgolic acidC22H34O3346.2508347.259051.83+ve[C22H34O3]+H, m/z 329.2486, m/z 233.1530, m/z 189.0919, m/z 161.0603, m/z 133.0294
345.244251.73−ve[C22H34O3]−H, m/z 301.2531, m/z 299.2372, m/z 203.1433, m/z 175.1123, m/z 133.0651
73N-Isobutyl-(2E,4E)-octadecadienamideC22H41NO335.3188336.327854.54+ve[C22H41NO]+H, m/z 322.3121, m/z 280.2647, m/z 182.1551, m/z 154.1237, m/z 135.1176
74PipnoohineC24H43NO361.3345362.343855.42+ve[C24H43NO]+H, m/z 348.3279, m/z 306.2809, m/z 264.2334, m/z 191.1805, m/z 154.1238, m/z 135.1178
Table 3. Validation parameters for marker components in Divya-Swasari-Vati (DSV) (batch #B SWV117) using HPLC–DAD analysis.
Table 3. Validation parameters for marker components in Divya-Swasari-Vati (DSV) (batch #B SWV117) using HPLC–DAD analysis.
ParametersAcceptance CriteriaResults Obtained
Gallic AcidProtocatechuic AcidMethyl GallateEllagic AcidCoumarinCinnamic AcidGlycyrrhizinEugenol6-GingerolPiperineGlabridin
SpecificityNo interference at retention timeIn compliance
LinearityCorrelation coefficient (r2) NLT 0.990.99920.99910.99920.99920.99820.99950.99740.99720.99750.99740.9992
Range (μg/g)20.0–2000 20.0–20006.6–2000 20.0–20006.6–20003.0–200020.0–200020.0–200020.0–20006.6–20006.6–2000
Precision
Intraday%RSD NMT 21.130.320.340.670.960.491.551.160.130.860.93
Interday%RSD NMT 21.080.441.361.011.520.170.471.720.391.750.68
Mean average recovery (%)90–110%96.1295.2993.6094.6595.3095.4397.4097.5494.4792.75100.13
RuggednessNMT 101.131.912.793.263.946.923.792.056.874.205.22
Robustness
Flow rate%RSD NMT 202.669.5615.636.415.266.867.802.134.652.707.48
Column temperature%RSD NMT 205.519.6115.154.095.183.233.741.724.055.608.47
Limit of Detection (LOD)%RSD of area NMT 331.531.510.511.420.490.763.350.816.110.980.68
LOD (μg/g)0.330.330.110.330.110.050.330.330.330.110.11
Limit of Quantification (LOQ)%RSD of area NMT 100.600.931.101.480.991.641.020.520.381.280.48
LOQ (μg/g)1.01.00.331.00.330.151.01.01.00.330.33
Note: All the parameters are validated as per the ICH-Q2 (R1) guidelines. NMT: Not More Than; NLT: Not Less Than.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Balkrishna, A.; Verma, S.; Sharma, P.; Tomer, M.; Srivastava, J.; Varshney, A. Comprehensive and Rapid Quality Evaluation Method for the Ayurvedic Medicine Divya-Swasari-Vati Using Two Analytical Techniques: UPLC/QToF MS and HPLC–DAD. Pharmaceuticals 2021, 14, 297. https://doi.org/10.3390/ph14040297

AMA Style

Balkrishna A, Verma S, Sharma P, Tomer M, Srivastava J, Varshney A. Comprehensive and Rapid Quality Evaluation Method for the Ayurvedic Medicine Divya-Swasari-Vati Using Two Analytical Techniques: UPLC/QToF MS and HPLC–DAD. Pharmaceuticals. 2021; 14(4):297. https://doi.org/10.3390/ph14040297

Chicago/Turabian Style

Balkrishna, Acharya, Sudeep Verma, Priyanka Sharma, Meenu Tomer, Jyotish Srivastava, and Anurag Varshney. 2021. "Comprehensive and Rapid Quality Evaluation Method for the Ayurvedic Medicine Divya-Swasari-Vati Using Two Analytical Techniques: UPLC/QToF MS and HPLC–DAD" Pharmaceuticals 14, no. 4: 297. https://doi.org/10.3390/ph14040297

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
