Synthesis of New 1, 3, 4-Oxadiazole-Incorporated 1, 2, 3-Triazole Moieties as Potential Anticancer Agents Targeting Thymidylate Synthase and Their Docking Studies

by
Mohammad Mahboob Alam
1,
Abdulraheem SA Almalki
2,
Thikryat Neamatallah
3,†,
Nada M. Ali
1,
Azizah M. Malebari
4 and
Syed Nazreen
1,*,†
1
Department of Chemistry, Faculty of Science, Albaha University, Albaha-1988, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Taif University, Taif-21974, Saudi Arabia
3
Department of Pharmacology and Toxicology, Faculty of Pharmacy, King Abdulaziz University, Jeddah 21589, Saudi Arabia
4
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, King Abdulaziz University, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Pharmaceuticals 2020, 13(11), 390; https://doi.org/10.3390/ph13110390
Submission received: 22 October 2020 / Revised: 9 November 2020 / Accepted: 12 November 2020 / Published: 14 November 2020
(This article belongs to the Special Issue Anticancer Drugs 2021)
Browse Figures
Versions Notes

Abstract

:
Thymidylate synthase (TS) has emerged as a hot spot in cancer treatment, as it is directly involved in DNA synthesis. In the present article, nine hybrids containing 1,2,3-triazole and 1,3,4-oxadiazole moieties (6–14) were synthesized and evaluated for anticancer and in vitro thymidylate synthase activities. According to in silico pharmacokinetic studies, the synthesized hybrids exhibited good drug likeness properties and bioavailability. The cytotoxicity results indicated that compounds 12 and 13 exhibited remarkable inhibition on the tested Michigan Cancer Foundation (MCF-7) and Human colorectal Carcinoma (HCT-116) cell lines. Compound 12 showed four-fold inhibition to a standard drug, 5-fluoruracil, and comparable inhibition to tamoxifen, whereas compound 13 exerted five-fold activity of tamoxifen and 24-fold activity of 5-fluorouracil for MCF-7 cells. Compounds 12 and 13 inhibited thymidylate synthase enzyme, with an half maximal inhibitory concentration, IC50 of 2.52 µM and 4.38 µM, while a standard drug, pemetrexed, showed IC50 = 6.75 µM. The molecular docking data of compounds 12 and 13 were found to be in support of biological activities data. In conclusion, hybrids (12 and 13) may inhibit thymidylate synthase enzyme, which could play a significant role as a chemotherapeutic agent.

Graphical Abstract

1. Introduction

Cancer is uncontrolled cell growth and cell proliferation, and remains a global burden despite the advancements in cancer diagnosis and treatment [1]. The available anticancer drugs on the market develop resistance against the chemotherapeutic agents and toxicity to normal cells [2,3]. Chemotherapy is the only effective treatment, causing the inhibition of cancer cell growth and induction of apoptosis, as the DNA levels in tumor cells are significantly higher than in normal cells [4,5]. Interestingly, thymidylate synthase (TS) has now emerged as an important target for chemotherapy for cancer treatment, as it is directly involved in DNA synthesis [6].
Thymidylate synthase enzyme catalyzes the reductive methylation of deoxyuridine monophosphate (dUMP) to deoxythymidine monophosphate (dTMP) and 5,10-methylenetetrahydrofolate (CH2THF) [7,8]. This dTMP upon phosphorylation changes into thymine triphospate (dTTP), which acts as a direct precursor for the synthesis of DNA [9,10]. The blocking of dTMP causes a decrease in deoxythymidine triphosphate (dTTP), thereby interrupting DNA biosynthesis causing DNA damage [11]. In addition, TS inhibition causes an increase in dUMP, leading to surge in the deoxyuridine triphosphate (dUTP) level [12]. One of the anticancer drugs, 5-fluoruracil (5-FU), acts as a strong thymidylate inhibitor for various cancers [13]. Also, a 5-FU metabolite, fluorodeoxyuridine monophosphate (FdUMP), binds with a TS active site to form a stable ternary complex, thus blocking the binding of the dUMP with TS and leading to the inhibition of dTMP synthesis [14].
Heterocycle has been a main pharmacophore in drug discovery and development. In the last few years, there is an emergence in the development of different 1,2,3-triazole-linked heterocycles, due to their excellent pharmacological properties, including anticancer [15], antiviral [16], antidiabetic [17], antimicrobial [18], anti-inflammatory [19], and antitubercular [20]. Compounds containing 1,2,3-triazoles have been reported to exert anticancer effect by inhibiting TS enzymes [21,22,23]. On the other hand, 1,3,4-oxadiazole plays a crucial part in medicinal chemistry. Zibotentan, an anticancer drug containing 1,3,4-oxadiazole as a pharmacophore, is used for various cancers [24]. Furthermore, 1,3,4-oxadiazole-linked heterocycles have also been reported to act as potential TS inhibitors [25,26]. Therefore, combining these two heterocycles in one molecule may lead to development of effective TS inhibitor (Figure 1).
In our previous work, we have reported thiazolidinedione-linked 1,3,4-oxadiazole as a promising TS inhibitor [27]. In continuation of our work to develop an effective TS inhibitor, we tried to conjugate 1,3,4-oxadiazole and 1,2,3-triazole pharmacophore in a single hybrid, which can inhibit the TS enzyme effectively. In this work, we describe the synthesis, pharmacokinetic study, anticancer, and TS inhibitory activities. The active compounds were docked against the thymidylate synthase enzymes to see the molecular interactions of active compounds with binding proteins.

2. Results and Discussion

2.1. Chemistry

Esterification of benzoic acid 1 in the presence of MeOH and concentrated H2SO4 yielded methyl benzoate 2, which further reacted with hydrazine monohydrate in absolute ethanol to give acid hydrazide 3. To this acid hydrazide 3 were added ethanol, carbon disulphide, and KOH, and the mixture was stirred for 24 h and then refluxed for 14 h. After completion of the reaction, monitored by Thin Layer Chromatography (TLC), the reaction mixture was concentrated, and 100 mL cold water was added. The acidification of aqueous solution with concentrated HCl (pH 3–4) produced a white precipitate, which was filtered and recrystalized in ethanol to afford compound 4. The propargylation of compound 4 in the presence of potassium carbonate and propargyl bromide yielded the key intermediate 5. Finally, the key intermediate 5, using a click chemistry approach with different aromatic azides in the presence of copper sulphate pentahydrate and sodium ascorbate, yielded final compounds 6–14 (Figure 2).
All the synthesized conjugates have been confirmed using different analytical techniques, such as IR, NMR, and mass spectrometry. Formation of the compounds 2 and 3 were done by the presence of the molecular ion peak at 137 in Electron Spray Ionisation (ESI ) mass spectra and from their boiling point and melting point, respectively [28]. Formation of compound 4 was done by the presence of stretching frequency of an oxadiazole ring at 1500–1600 cm−1,–SH bond stretching at 2400 cm−1 in the IR spectrum, presence of an S–H singlet at δ 10.77 ppm in the 1H NMR spectrum, and the molecular ion signal at δ 179 [M + H]+ in mass spectrum. The propargylation of compound 4 to compound 5 was confirmed by the absence of chemical shift of an –SH proton at δ 10.77 ppm, as well as the presence of a triplet at δ 2.34 ppm and a singlet at δ 4.5 ppm for terminal alkyne proton and S–CH2- protons, respectively. Finally, the formation of the compound 5 was supported by the presence of a molecular ion signal at 217 [M + H] + in the ESI mass spectrum. Structural confirmation of final hybrids 6–14 was observed by disappearance of terminal alkyne proton peak at δ 2.34 ppm, as well as the appearance of a 1,2,3-triazole ring proton in the range of δ 8.19–8.89 ppm with additional aromatic protons. Finally, the presence of molecular ion peaks in the mass spectrum confirmed the formation of all the final compounds (The spectra are provided in Supplementary Materials).

2.2. Pharmacokinetics Studies/ADME Predictions

Nowadays, in silico pharmacokinetic predictions are extensively used in drug discovery to reduce the cost and time. To be orally available, the molecule is not only required to have excellent biological activity, but it must follow the desired pharmacokinetic properties. The in silico studies that have been carried out on synthesized molecules 6–14 have been to check whether these molecules satisfy the desirable pharmacokinetics or not, which plays a crucial role in drug discovery. The physicochemical properties directly affect the pharmacokinetic behavior. The synthesized molecules should obey the Lipinski [29] and Veber [30] rules for an orally available drug. The molecule must follow the following paremeters: molecular weight (MW) should be less than 500, the number of hydrogen bond acceptors (HBAs) should be fewer than 10, the number of hydrogen bond donors (HBD) should be fewer than 5, the partition coefficient (logP) should be less than 5, and the number of rotatable bonds should be ≤10 for drug likeness and good bioavailability (Table 1).
From the above data, it was noticed that the synthesized molecules 6–14 follow the desired pharmacokinetic properties. All the final compounds, except compound 11, showed high gastrointestinal absorption. The % absorption of the molecules was found to be in the range 60.44–76.24. Compounds 6, 7, 8, 9, 10, and 12 showed the highest absorption of 76.24%, while compound 11 showed the lowest absorption at 60.44%. All the compounds followed Lipinki and Veber rules, i.e., molecular weight ranging from 335–414, hydrogen bond acceptors ranging from 5–7, hydrogen bond donors ranging from 0–1, lipophilicity appearing in the range 2.48–3.62, and the number of rotatable bonds between 5 and 7. The synthesized compounds exhibited higher logP values, in the range 2.48–3.62, suggesting higher cell membrane permeability. The final hybrids exhibited topological polar surface areas (TPSAs) between 94.93–140.75 A², which suggests good intestinal absorption. The pharmacokinetic results indicate that these compounds satisfy the criteria for good drug likeness parameters and good bioavailability.

2.3. Biological Studies

2.3.1. Cytotoxicity Assay

The final compounds 6–14 were screened for their antiproliferative effect using an MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide) assay. These compounds were tested against breast MCF-7 and colorectal HCT-116 cell lines. These compounds exhibited moderate to significant activity compared to standard drugs tamoxifen and 5-fluorouracil (5-FU). The results are presented in Table 2.
Among the tested compounds, compounds 12 and 13 showed significant inhibitory effects on the viability of MCF-7 and HCT-116 cells (Figure 3). Compound 12 (IC50 = 5.8 µM) showed comparable inhibition to the standard drug tamoxifen (IC50 = 5.12) µM and four-fold inhibition compared to the standard drug 5-fluoruracil (IC50 = 24.74 µM). Compound 13, however, was found to exhibit promising inhibition against MCF-7, with IC50 = 1.26 µM, while the two standard drugs, tamoxifen and 5-florouracil, showed IC50 = 5.12 µM and 24.74 µM, respectively. It is clear from the results that compound 13 was more potent in exerting the anticancer effect, with five times the activity of tamoxifen and 24 times the activity of 5-fluorouracil for MCF-7 (Figure 4).
The same two compounds (12 and 13) also displayed significant inhibition against HCT-116 cells. Compound 12 (IC50 = 14.8 µM) revealed 1.7-fold activity compared to tamoxifen (IC50 = 25.41 µM) and 2.2-fold activity compared to 5-fluorouracil (IC50 = 32.68 µM) against HCT-116, while compound 13 (IC50 = 17.3 µM) displayed 1.9-fold activity compared to 5-FU and 1.5-fold the activity of tamoxifen. Other compounds, 6, 7, 8, 9, 10, 11, and 14, exhibited moderate cytotoxicity with the MCF-7, with IC50 values in the range 25.9–98.28 µM. On the other hand, compounds 6, 7, 9, 10, and 14 displayed inhibition with IC50 values in the range of 32.7–89.2 µM, whereas compounds 8 and 11 were found to be inactive (IC50 > 100) against the HCT-116 cells.
The most potent compounds, 12 and 13, were also tested on non-tumorigenic cell line HEK 293 (normal human embryonic kidney) cells, in order to investigate the toxicity and selectivity of these two potent compounds (Figure 5 and Figure 6). It was found that these two compounds (12 and 13) showed IC50 values above 50 μM on HEK 293 cells, which was higher than those observed against the two cancer cell lines—MCF-7: IC50 = 5.8 μM (12), 1.26 μM (13); HCT-116: IC50 = 14.8 μM (12), 17.3 μM (13)—indicating that these molecules was less toxic to human normal cells and selective to cancerous cells. From these results, it is clear that compound 12 with no substituents and compound 13 with a –COOMe group at the ortho position exerted promising antiproliferative effects on both the tested cells, whereas the presence of halogens and electron withdrawing groups (nitro) on the aromatic ring did not played a significant role in exerting the anticancer effect.

2.3.2. In Vitro Thymidylate Synthase Activity

Thymidylate synthase (TS) has become an important target for cancer treatment, as it is involved in DNA synthesis. The inhibition of this enzyme plays a vital role in chemotherapy treatment. The active compounds (12 and 13) from the MTT assay were screened for in vitro thymidylate synthase, to confirm its mechanism of action. These compounds inhibited the TS enzyme significantly compared to the standard drug pemetrexed. Compound 12 inhibited TS with IC50 = 2.52 µM, and 13 inhibited it with IC50 = 4.38 (Table 3). It was observed that compounds 12 and 13 showed 2.6- and 1.5-fold activity compared to pemetrexed (IC50 = 6.75 µM). From these results, it can be inferred that compounds 12 and 13 inhibit TS by binding with the active binding site of the enzyme, which results in the blocking of dUMP with TS, leading to inactivation of dTMP. This inactivation of dTMP results in a reduction of deoxythymidine triphosphate (dTTP), leading to the disruption of DNA synthesis and cessation of cell growth and proliferation (Figure 7). These results support our antiproliferative results.

2.4. Molecular Docking

It is a computational technique used frequently to know the possible interactions of a molecule with a receptor. The active compounds from in vitro studies were docked against TS proteins (PDB = 6QXG) to support our in vitro thymidylate synthase results, as well as to know the possible binding modes with the protein. The 5-fluorouracil has been reported as a TS inhibitor that interacts with the active binding site of the protein through different residues [31,32]. Therefore, we have docked our active compounds 12 and 13 against this protein, in order to support our in vitro findings.The results are presented in Figure 8 and Table 4.
From the docking results, it was observed that compound 12 (−3.81) and 13 (−4.25) showed higher dock scores than the standard drug 5-fluorouracil (−3.5). The nitrogen of the 1,2,3-triazole ring in compounds 12 and 13 showed hydrogen bonding interactions with ASN 226 residues, while two pi–pi interactions were also observed in compound 13. One pi interaction was between a 1,2,3-oxadiazole ring and HIE 196, and another was the interaction of a 1,2,3-triazole ring with a PHE 225 residue. The standard drug 5-FU showed H-bonding interactions of ASP 218 with a C=O group at the 2 position, and ASN 226 with N–H and a C=O group at the 3 and 4 positions. The binding pattern of compounds 12 and 13, as well as 5-FU, was found to be similar to the thymidylate synthase protein. These finding suggests that these two compounds (12 and 13) exert anticancer effects by inhibiting the thymidylate synthase enzyme, which supports the in vitro TS results of hybrids 12 and 13, with IC50 values of 2.52 and 4.38 µM, respectively.

3. Experimental

3.1. Chemistry

The chemicals and other reagents were procured from Sigma Aldrich (Germany) and Loba Chem (India), and were used without further purification. FTIR spectra were recorded on a Thermo Scientific iS 50 by ATR method. Nuclear magnetic resonance (NMR) analysis was performed on Bruker 300 and 850 MHz instruments in CDCl3 or DMSO-d6 solvents; tetramethylsilane (TMS) was used as an internal reference. Chemical shift and coupling constant are provided in parts per million (ppm) and Hertz, respectively. All the samples were analyzed by mass spectrometry on a Thermo Scientific-LCQ Fleet (LCF10605) using the electron spray ionization method, and are provided in m/z. The melting points of the compounds were determined on the electro-thermal melting point apparatus (Stuart SMP40). A LEECO Elementar Analyzer was used for elemental analysis of the synthesized compounds, which was reported in % standard; these were ±0.4% of the calculated values. Monitoring of the reaction and purity of the compounds were checked on a silica gel G plate (Merck, Germany).

3.2. General Procedure for the Synthesis of 1,3,4-Oxadiazole Linked 1,2,3-Triazole Hybrids (6–14)

Compound 5 (0.01 mmole) was charged in a 100 mL round-bottom flask, followed by addition of tert-BuOH–H2O (1:1, 30–50 mL). The reaction mixture was heated to get a clear solution and cooled to room temperature. To this reaction mixture, copper sulphate pentahydrate (0.0013 mmol) and sodium ascorbate (0.0013 mmol) was added and stirred for 30 mins, followed by drop-wise addition of aromatic azides (0.15 mmole). The reaction mixture was stirred for 5–12 hrs at room temperature, and the progress of the reaction was monitored by TLC, using n-hexane/ethylacetate (6:4) as eluents. After completion of the reaction, water (50 mL) was added to the reaction mixture and the products were extracted with dichloromethane (100 mL × 2). The dichloromethane layer was combined, dried over anhydrous sodium sulphate, concentrated, and recrystallized using dichloromethane and cyclohexane to get target compounds 6–14 in 65–85% yield.

3.2.1. 4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)-1-p-tolyl–1H-1,2,3-triazole (6)

Grey crystals, yield = 80%, melting point (MP) = 146–147 °C. IR (ATR) νmax: 3086 (C–H), 1559 (C=C), 1518 1468, 1340, 1257, 1232 (C=N, C–N), 1192, 1079 (C–O), 700, 688 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 2.40 (s, 3H), 4.69 (s, 2H), 7.28 (d, J = 8.1 Hz, 2H), 7.46–7.59 (m, 5H), 7.98 (d, J = 7.2 Hz, 2H), 8.19 (s, 1H). 13C NMR (75 MHz, CDCl3): δ 21.01, 27.25, 120.41, 122.48, 123.49, 126.87, 129.86, 130.68, 132.49, 134.68, 138.86, 143.91, 163.40, 165.84. ESI MS: 350 (M+ + H). C18H15N5OS (calculated): C = 61.87; H = 4.33; N = 20.04; O = 4.58; S = 9.18; observed: C = 61.42; H = 4.35; N = 20.01; O = 4.60; S = 9.16.

3.2.2. 4-((5-phenyl–1,3,4-oxadiazol-2-ylthio)methyl)–1-o-tolyl-1H–1,2,3-triazole (7)

White powder, yield = 75%, MP = 112–113 °C. IR (ATR) νmax: 3123 (C–H aromatic), (C–H), 2920 (C–H), 1606, 1557 (C=C), 1505, 1491, 1466, 1382, 1341 (C=N, C–N), 1185, 1076 (C–O), 701, 683 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 2.52 (s, 3H), 4.75 (s, 2H), 7.11–7.14 (m, 2H), 7.57–7.66 (m, 3H), 7.77–8.0 (3, 4H), 8.72 (s, 1H). 13C NMR (75 MHz, CDCl3): δ 17.75, 27.33, 123.51, 125.94, 126.41, 126.89, 127.43, 129.86, 130.31, 131.80, 132.50, 133.47, 136.57, 142.86, 163.36, 165.87. ESI MS: 350 (M+ + H). C18H15N5OS (calculated): C = 61.87; H = 4.33; N = 20.04; O = 4.58; S = 9.18; observed: C = 61.82; H = 4.36; N = 20.01; O = 4.60; S = 9.17.

3.2.3. 4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)–1-(2-chlorophenyl)-1H–1,2,3-triazole (8)

White crystals, yield = 65%, MP = 111–112 °C. (ATR) νmax: 3142, 3089 (C–H aromatic), 1557 (C=C), 1490, 1470, 1342 (C=N, C–N), 1192, 1073, 1064 (C–O), 769, 717 (C–Cl), 704, 686 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 4.71 (s, 1H), 7.39–7.61 (m, 7H), 7.97–8.00 (m, 2H), 8.23 (s, 1H). 13C NMR (75 MHz, CDCl3): δ 27.19, 123.49, 126.51, 126.89, 128.77, 128.85, 128.92, 129.86, 130.99, 132.13, 132.50, 134.80, 142.98, 163.31, 165.87. ESI MS: 370 (M+ + H), 372 (M+ + 2 + H). C17H12N5OS (calculated): C = 55.21; H = 3.27; N = 18.94; O = 4.33; S = 8.67; observed: C = 55.16; H = 3.30; N = 18.89; O = 4.35; S = 8.64.

3.2.4. 4-((5-phenyl–1,3,4-oxadiazol-2-ylthio)methyl)–1-(4-chlorophenyl)-1H–1,2,3-triazole (9)

Brown powder, yield = 75%, MP = 200–202 °C. (ATR) νmax: 3082 (C–H, aromatic), 2920 (C–H), 1558 (C=C), 1490, 1473, 1448, 1427, 1339 (C=N, C–N), 1195, 1093, 1077, 1051 (C–O), 846, 827 (C–Cl), 702, 686 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 4.68 (s, 2H), 7.26–7.28 (m, 5H), 7.49 (t, J = 7.8 Hz, 2H), 7.67 (d, J = 8.7 Hz, 2H), 7.87 (d, J = 6.6 Hz, 2H), 8.24 (s, 1H). 13C NMR (75 MHz, CDCl3): δ 27.18, 119.06, 120.30, 122.77, 123.47, 126.83, 128.97, 129.81, 132.00, 132.45, 134.64, 137.92, 144.23, 163.33, 165.82. ESI MS: 370 (M++H), 372 (M++2+H). C17H12N5OS (calculated): C = 55.21; H = 3.27; N = 18.94; O = 4.33; S = 8.67; observed: C = 55.16; H = 3.30; N = 18.93; O = 4.37; S = 8.63.

3.2.5. 4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)-1-(3-bromophenyl)-1H–1,2,3-triazole (10)

White flakes, yield = 70%, MP = 146–148 °C. IR (ATR) νmax: 3137, 3083 (C–H, aromatic), 1607, 1588 (C=C), 1558, 1486, 1471, 1461, 1341, 1289, 1255 (C=N, C–N), 1191, 1077, 1046 (C–O), 702 (C–S), 691 (C–Br) cm−1. 1H NMR (300 MHz, CDCl3): δ 4.67 (s, 2H), 7.35–7.68 (m, 6H), 7.92–8.00 (m, 3H), 8.24 (s, 1H). 13C NMR (75 MHz, CDCl3): δ 27.19, 119.53, 122.79, 122.89, 123.09, 123.50, 126.87, 129.86, 131.95, 132.28, 132.49, 138.02, 144.22, 163.32, 165.85. ESI MS: 414 (M+ + H), 416 (M+ + 2 + H). C17H12N5OS: (calculated): C = 49.29; H = 2.92; N = 16.90; O = 3.86; S = 7.74; observed: C = 49.31; H = 2.94; N = 16.87; O = 3.83; S = 7.76.

3.2.6. 4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)–1-(4-nitrophenyl)-1H–1,2,3-triazole (11)

Light orange solid, yield = 65%, MP = 202–204 °C. IR (ATR) νmax: 3127, 3079 (C–H, aromatic), 1596 (C=C), 1558 (N–O) 1523, 1505, 1473, 1388 (C=N, C–N), 1260, 1232, 1191, 1109 (C–O), 703, 686 (C–S) cm−1. 1H NMR (850 MHz, DMSO–d6) δ: 4.79 (s, 2H), 7.27–8.01 (m, 9H), 8.26 (s, 1H). 13C NMR (213 MHz, DMSO) δ: 27.25, 120.17, 12.87, 123.38, 126.60, 127.47, 127.66, 128.54, 128.70, 131.98, 132.22, 137.11, 147.54, 163.52, 165.58. ESI MS: 381 (M + H). C17H12N6O3S (calculated): C = 53.68; H = 3.18; N = 22.09; O = 12.62; S = 8.43; observed: C = 53.69; H = 3.20; N = 22.07; O = 12.62; S = 8.42.

3.2.7. 4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)-1-phenyl-1H–1,2,3-triazole (12)

White flakes, yield = 75%, MP = 130–131 °C. IR (ATR) νmax: 3144 (C–H), 1594 (C=C), 1506, 1466, 1344, 1290, 1256 (C=N, C–N), 1191, 1173, 1077, 1064 (C–O), 702, 683 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 4.69 (s, 2H), 7.36–8.24 (m, 10H), 8.35 (s, 1H).13C NMR (75 MHz, CDCl3): δ 27.26, 120.55, 122.58, 123.51, 126.86, 129.21, 129.85, 130.34, 132.48, 136.92, 143.99, 163.37, 165.85; ESI MS: 336 (M+ + H). C17H13N5OS (calculated): C = 60.88; H = 3.91; N = 20.88; O = 4.77; S = 9.56; observed: C = 60.81; H = 3.95; N = 20.85; O = 4.80; S = 9.55.

3.2.8. Methyl 2-(4-((5-phenyl–1,3,4-oxadiazol-2-ylthio)methyl)-1H–1,2,3-triazol–1-yl)benzoate (13)

Brown flakes, yield = 70%, MP = 119–120 °C. IR (ATR) νmax: 3127, 3083 (C–H, aromatic), 2953 (C–H), 1727 (C=O), 1602, 1558 (C=C), 1506, 1472, 1450, 1340, 1272 (C=N, C–N), 1192, 1134, 1053 (C–O), 702, 688 (C–S) cm−1. 1H NMR (300 MHz, CDCl3): δ 3.85 (s, 3H), 4.68 (s, 2H), 6.99 (d, J = 9.0 Hz, 2H), 7.21–7.75 (m, 5H), 7.93–8.44 (m, 2H), 8.45 (s, 1H). 13C NMR (75 MHz, DMSO) δ:27.30, 56.00, 115.32, 122.21, 122.51, 122.83, 123.51, 126.86, 129.84, 130.34, 132.46, 143.66, 163.40, 165.84, 169.77. ESI MS: 394 (M+ + H). C19H15N5O3S (calculated): C = 58.01; H = 3.84; N = 17.80; O = 12.20; S = 8.15; observed: C = 58.02; H = 3.82; N = 17.81; O = 12.21; S = 8.14.

3.2.9. 2-(4-((5-phenyl–1,3,4-oxadiazol–2-ylthio)methyl)-1H–1,2,3-triazol–1-yl)benzoic acid (14)

White solid, yield = 72%, MP = 119–120 °C. IR (ATR) νmax: 3127 (brs–OH) 3083, 2953 (C–H), 1727 (C = O), 1602, 1558 (C=C), 1506, 1472, 1450, 1340, 1272 (C=N, C–N), 1260, 1192, 1134, 1053 (C–O), 702, 688 (C–S) cm−1.1H NMR (400 MHz, DMSO): δ 4.69 (s, 2H), 7.13–7.24 (m, 2H), 7.41–7.99 (m, 7H), 8.89 (s, 1H), 10.66 (s, 1H).13C NMR (213 MHz, DMSO): δ 27.26, 120.01, 125.48, 126.76, 132.57, 134.09, 135.61, 138.57, 143.77, 163.92, 165.21, 167.27; ESI MS: 380 (M+ + H). C18H13N5O3S (calculated): C = 56.98; H = 3.45; N = 18.46; O = 12.65; S = 8.45; observed: C = 56.99; H = 3.47; N = 18.43; O = 12.64; S = 8.45.

3.3. Anticancer Activity

3.3.1. Cell Lines and Culture Medium

The human breast cancer cell line (MCF-7) used in the present study was obtained from Dr. Neamatallah’s lab. The cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% (v/v) fetal bovine serum (FBS), 10,000 units/mL penicillin/streptomycin, and 1% (v/v) L-glutamine at 37 °C in humidified 5% CO2 incubator.

3.3.2. Cytotoxicity Assay

The cytotoxicity activity was done by MTT assay [33]. Breast MCF-7 and colorectal HCT-116 cancer cells were added at 1 × 105 cells/mL into a 96-well plate with three replicates, and incubated overnight for attachment at 37 °C in a 5% CO2 humidified atmosphere. Drug concentrations at six serial dilutions (100.0, 50.0, 10.0, 1.0, 0.5, and 0.1 μM) were added in triplicate and incubated at 37 °C and 5% CO2 for 72 h. Drugs were dissolved in 0.1% DMSO as a vehicle. Untreated cells were used as control. Tamoxifen and 5-fluorouracil (5-FU) was used as positive controls. Thereafter, each well for each time point was removed and replaced with 100 μM of full medium containing 10% 3-(4,5- dimethylthiaxolyl-2)-2,5-diphenyltetrazoliumbromide (MTT) (10 mg/mL). Then the media was removed and 100 µl of DMSO was added, and cells were incubated for a further 5 mins at 37 °C and 5% CO2. Plates were quantified using the SpectraMax M3 plate reader at 570 nm. The percentage inhibition was calculated as 100 − ((mean OD of treated cell × 100)/Mean OD of vehicle treated cells (DMSO)). All the experiments were repeated in at least three independent experiments (Table 2, Figure 3, Figure 4, Figure 5 and Figure 6).

3.4. In Vitro Thymidylate Synthase Enzyme Assay

A thymidylate synthase enzymatic assay was carried out according to the reported method [34,35]. It involves a mixture containing 2-mercaptoethanol (0.1 M), (6R,S)-tetrahydrofolate (0.0003 M), formaldehyde (0.012 M), MgCl2 (0.02 M), dUMP (0.001 M), TrisHCl (0.04 M), and NaEDTA (0.00075 M).This assay was done spectrophotometrically at 30° C and pH 7.4. The reaction was initiated by the addition of an amount of enzyme, giving a change in absorbance at 340 nm of 0.016/min in the absence of inhibitor. The percent inhibition was determined at a minimum of four inhibitor concentrations within 20% of the 50% point. The standard deviations for determination of the 50% points were within ± 10% of the values given. The results are presented in Table 3 and Figure 7.

3.5. Molecular Docking

Molecular docking studies involve mainly protein selection and preparation, grid generation, ligand preparation, docking, and further analysis of docking studies. A protein with accession number 6QXG was selected and downloaded from Protein Data Bank. This protein is reported to act as a thymidylate synthase inhibitor. The protein was imported, optimized, and minimized by removing unwanted molecules and other defects reported by the software. The minimized protein was used for grid generation, which involves the selected ligand as the reference, as it signifies the binding sites of the drug with respect to the target. Molecules drawn in 3D form were refined by the LigPrep module. The molecules were subjected to an OPLS-2005 force field to generate a single, low-energy 3D structure for each input structure. Docking studies was carried using Glide software. It was carried out using extra precision and write XP descriptor information. This generates favorable ligand poses, which are further screened through filters to examine the spatial fit of the ligand in the active site. Ligand poses, which pass through an initial screening, are subjected to evaluation and minimization of grid approximation. Scoring was then carried on energy-minimized poses to generate a Glide score [36] (Table 4, Figure 8).

4. Conclusions

In the present article, a series of nine hybrids of 1,2,3-triazole and 1,3,4-oxadiazole moieties (6–14) have been described. The final compounds have been characterized using different analytical techniques. These hybrids have been tested for in vitro anticancer and thymidylate synthase activities. According to in silico pharmacokinetic studies, the synthesized hybrids exhibited good drug likeness properties and bioavailability. The cytotoxicity results indicated that compounds 12 and 13 exhibited remarkable inhibition on the tested MCF-7 and HCT-116 cell lines. Compound 12 showed four-fold inhibition compared to the standard drug 5-fluoruracil, and comparable inhibition to tamoxifen, whereas compound 13 exerted five-fold and 24 times the activity of tamoxifen and 5-fluorouracil, respectively, for MCF-7 cells. The same compounds (12 and 13) also revealed significant inhibition against HCT-116 cells. Compound 12 revealed 1.7-fold activity of tamoxifen and 2.2-fold activity of 5-fluorouracil, while compound 13 displayed 1.9-fold the activity of 5-FU and 1.5-fold that of tamoxifen against HCT-116. The in vitro thymidylate synthase activity results supported our cytotoxicity results. Compounds 12 and 13 inhibited thymidylate synthase enzyme with IC50 values of 2.52 µM and 4.38 µM, respectively, while the standard drug pemetrexed showed an IC50 of 6.75 µM. The molecular docking data of compounds 12 and 13 supported the in vitro biological activity data. In conclusion, hybrids (12 and 13) may inhibit the thymidylate synthase enzyme, which could play a significant role as a chemotherapeutic agent.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8247/13/11/390/s1, Figures S1–S9: 1H NMR spectra of all final compounds; Figures S10–S18: 13C NMR spectra of all final compounds; Figures S19–S27: Mass spectra of all final compounds.

Author Contributions

M.M.A. and S.N. designed the experiment and supervised. T.N. and N.M.A. carried out the pharmacology work, M.M.A and A.S.A.A. performed the synthetic work, A.M.M. and S.N. analyzed the data, characterized the compounds, and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

Taif University Researchers Supporting Project (Number TURSP-2020/44) for financial assistance for the project work.

Acknowledgments

A.S.A.A. acknowledges the Taif University Researchers Supporting Project (Number TURSP-2020/44) for financial assistance. M.M.A and S.N. thanks the Chemistry department, Albaha University, for providing the necessary facilities to carry out the project work. We also thank Safaa S. Bayashut, King Abdulaziz University (KAU) for helping perform the pharmacological activities. The non-tumorigenic HEK-293 cells (normal human embryonic kidney) were generously provided by Anwar Hashem, Vaccine and Immunotherapy Unit, King Fahd Medical Research Centre, KAU.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mansoori, B.; Mohammadi, A.; Davudian, S.; Shirjang, S.; Baradaran, B. The different mechanism of Cancer drug resistance. A brief review. Adv. Pharm. Bull. 2017, 7, 339–348. [Google Scholar] [CrossRef] [PubMed]
  2. Vasan, N.; Baselga, J.; Hyman, D.M. A view on drug resistance in cancer. Nature 2019, 575, 299–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Housman, G.; Byler, S.; Heerboth, S.; Lapinska, K.; Longacre, M.; Snyder, N.; Sarkar, S. Drug resistance in cancer: An overview. Cancers 2014, 6, 769–1792. [Google Scholar] [CrossRef] [Green Version]
  4. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Li, X.Y.; Liang, J.W.; Mohamed, K.O.; Zhang, T.J.; Lu, G.Q.; Meng, F.H. Design, synthesis and biological evaluation of N-phenyl-(2,4- dihydroxypyrimidine-5-sulfonamido)benzoyl hydrazide derivatives as thymidylate synthase (TS) inhibitors and as potential antitumor drugs. Eur. J. Med. Chem. 2018, 154, 267–279. [Google Scholar] [CrossRef]
  6. Carreras, C.W.; Santi, D.V. The catalytic mechanism and structure of thymidylate synthase. Annu. Rev. Biochem. 1995, 64, 721–762. [Google Scholar] [CrossRef]
  7. Rode, W.; Les, A. Molecular mechanism of thymidylate synthase-catalyzed reaction and interaction of the enzyme with 2- and/or 4-substituted analogues of dUMP and 5-fluoro-dUMP. Acta Biochim. Pol. 1996, 43, 133–142. [Google Scholar] [CrossRef]
  8. Hardy, L.W. Structural aspects of the inhibition and catalytic mechanism of thymidylate synthase. Acta Biochim. Pol. 1995, 42, 367–380. [Google Scholar] [CrossRef]
  9. Kumar, V.P.; Cisneros, J.A.; Frey, K.M.; Castellanos-Gonzalez, A.; Wang, Y.; Gangjee, A.; White, A.C.; Jorgensen, W.L.; Anderson, K.S. Structural studies provide clues for analog design of specific inhibitors of Cryptosporidium hominis thymidylate synthase-dihydrofolate reductase. Bioorg. Med. Chem. Lett. 2014, 24, 4158–4161. [Google Scholar] [CrossRef] [Green Version]
  10. Catalano, A.; Luciani, R.; Carocci, A.; Cortesi, D.; Pozzi, C.; Borsari, C.; Ferrari, S.; Mangani, S. X-ray crystal structures of Enterococcus faecalis thymidylate synthase with folate binding site inhibitors. Eur. J. Med. Chem. 2016, 123, 649–664. [Google Scholar] [CrossRef] [Green Version]
  11. Houghton, J.A.; Tillman, D.M.; Harwood, F.G. Ratio of 2′-deoxyadenosine-5′-triphosphate/thymidine-5′-triphosphate influences the commitment of human colon carcinoma cells to thymineless death. Clin. Cancer Res. 1995, 1, 723–730. [Google Scholar] [PubMed]
  12. Aherne, G.W.; Hardcastle, A.; Raynaud, F.; Jackman, A.L. Immunoreactive dUMP and TTP pools as an index of thymidylate synthase inhibition; effect of tomudex (ZD1694) and a non polyglutamated quinazoline antifolate (CB30900) in L1210 mouse leukaemia cells. Biochem. Pharmacol. 1996, 51, 1293–1301. [Google Scholar] [CrossRef]
  13. Alvarez, P.; Marchal, J.A.; Boulaiz, H.; Carrillo, E.; Velez, C.; Rodríguez-Serrano, F.; Melguizo, C.; Prados, J.; Madeddu, R.; Aranega, A. 5-Fluorouracil derivatives: A patent review. Expert Opin. Ther. Pat. 2015, 22, 107–123. [Google Scholar] [CrossRef] [PubMed]
  14. Santi, D.V.; McHenry, C.S.; Sommer, H. Mechanism of interaction of thymidylate synthetase with 5-fluorodeoxyuridylate. Biochemistry 1974, 13, 471–481. [Google Scholar] [CrossRef]
  15. Pinheiro, S.; Pessoa, J.C.; Pinheiro, E.M.C.; Muri, E.M.F.; Greco, S.J. 2H-1,2,3-Triazole-chalcones as novel cytotoxic agents against prostate cancer. Bioorg. Med. Chem. Lett. 2020, 30, 127457–127463. [Google Scholar] [CrossRef]
  16. Yan, L.; Yin, Z.; Niu, L.; Shao, J.; Chen, H.; Li, X. Synthesis of pentacyclic iminosugars with constrained butterfly-like conformation and their HIV-RT inhibitory activity. Bioorg. Med. Chem. Lett. 2018, 28, 425–428. [Google Scholar] [CrossRef]
  17. Saeedi, M.; Mohammadi-Khanaposhtani, M.; Pourrabia, P.; Razzagi, N.; Ghadimi, R.; Imanparast, S.; Faramarzi, M.A.; Bandarian, F.; Esfahani, E.N.; Safavi, M.; et al. Design and synthesis of novel quinazolinone-1,2,3-triazole hybrids as new anti-diabetic agents: In vitro α-glucosidase inhibition, kinetic, and docking study. Bioorg Chem. 2019, 83, 161–169. [Google Scholar] [CrossRef]
  18. Bi, F.; Ji, S.; Venter, H.; Liu, J.; Semple, S.J.; Ma, S. Substitution of terminal amide with 1H-1,2,3-triazole: Identification of unexpected class of potent antibacterial agents. Bioorg. Med. Chem. Lett. 2018, 28, 884–891. [Google Scholar] [CrossRef]
  19. Moussa, G.; Alaaeddine, R.; Alaeddine, L.M.; Nasra, R.; Belal, A.S.F.; Ismail, A.; El-Yazbi, A.F.; Abdel-Ghany, Y.S.; Hazza, A. Novel click modifiable thioquinazolinones as anti-inflammatory agents: Design, synthesis, biological evaluation and docking study. Eur. J. Med. Chem. 2018, 144, 635–650. [Google Scholar] [CrossRef]
  20. Yan, X.; Lv, Z.; Wen, J.; Zhao, S.; Xu, Z. Synthesis and in vitro evaluation of novel substituted isatin-propylene-1H-1,2,3-triazole-4- methylene-moxifloxacin hybrids for their anti-mycobacterial activities. Eur. J. Med. Chem. 2018, 143, 899–904. [Google Scholar] [CrossRef]
  21. Lu, G.Q.; Li, X.Y.; Mohamed, O.K.; Wang, D.; Meng, F.H. Design, synthesis and biological evaluation of novel uracil derivatives bearing 1, 2, 3-triazole moiety as thymidylate synthase (TS) inhibitors and as potential antitumor drugs. Eur. J. Med. Chem. 2019, 171, 282–296. [Google Scholar] [CrossRef] [PubMed]
  22. Baraniak, D.; Baranowski, D.; Ruszkowski, P.; Boryski, J. Nucleoside dimmers anlogues with a 1,2,3-triazole linkage: Conjugation of floxuridine and thymidine provides novel tools for cancer treatment. Nucleosides Nucleotides Nucleic Acids 2019, 38, 807–835. [Google Scholar] [CrossRef] [PubMed]
  23. Onen, F.E.; Boum, Y.; Jacquement, C.; Spanedda, M.V.; Jaber, N.; Scherman, D.; Myllykallio, H.; Herscovici, J. Design, synthesis and evaluation of potent thymidylate synthase X inhibitors. Bioorg. Med. Chem. Lett. 2008, 18, 3628–3631. [Google Scholar] [CrossRef] [PubMed]
  24. Shen, W.; Xi, H.; Li, C.; Bian, S.; Cheng, H.; Cui, J.; Wang, N.; Wei, B.; Huang, X.; Chen, L. Endothelin-A receptor in gastric cancer and enhanced antitumor activity of trastuzumab in combination with the endothelin-A receptor antagonist ZD4054. Ann. N.Y. Acad. Sci. 2019, 1448, 30–41. [Google Scholar] [CrossRef]
  25. Du, Q.R.; Li, D.D.; Pi, Y.Z.; Li, J.R.; Sun, J.; Fang, F.; Zhong, W.Q.; Gong, H.B.; Zhu, H.L. Novel 1,3,4-oxadiazole thioether derivatives targeting thymidylate synthase as dual anticancer/antimicrobial agents. Bioorg. Med. Chem. 2013, 21, 2286–2297. [Google Scholar] [CrossRef] [PubMed]
  26. Li, X.; Wang, D.; Lu, G.; Lu, K.; Zhang, T.; Li, S.; Mohamed, K.O.; Xue, W.; Qian, X.; Meng, F. Development of a novel thymidylate synthase (TS) inhibitor capable of up-regulating P53 expression and inhibition angiogenesis in NSCLC. J. Adv. Res. 2020, 26, 95–110. [Google Scholar] [CrossRef]
  27. Alzhrani, Z.M.M.; Alam, M.M.; Neamatallah, T.; Nazreen, S. Design, synthesis and in vitro antiproliferative activity of new thiazolidinedione-1,3,4-oxadiazole hybrids as thymidylate synthase inhibitors. J. Enzyme Inhib. Med. Chem. 2020, 35, 1116–1123. [Google Scholar] [CrossRef]
  28. Jha, K.K.; Samad, A.; Kumar, Y.; Shaharyar, M.; Khosa, R.L.; Jain, J.; Kumar, V.; Singh, P. Design, synthesis and biological evaluation of 1,3,4-oxadiazole derivatives. Eur. J. Med. Chem. 2010, 45, 4963–4967. [Google Scholar] [CrossRef]
  29. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Freener, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  30. Veber, D.F.; Johnson, S.R.; Cheng, H.Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular properties that influence the oral bioavailability of drug candidates. J. Med. Chem. 2002, 45, 2615–2623. [Google Scholar] [CrossRef]
  31. Lamia, H.T.A.; Taghreed, Z.S.; Abeer, M.N. Design, synthesis, anticancer evaluation and docking studies of new pyrimidine derivatives as potent thymidylate synthase inhibitors. Bioorg. Chem. 2019, 9, 103159–103173. [Google Scholar]
  32. Ahmed, F.E.; Qasem, M.A.A.; Emad, S.I.H. Design, synthesis, molecular docking of new thiopyrimidine-5-carbonitrile derivatives and their cytotoxic activity against HepG2 cell line. J. Appl. Pharm. Sci. 2014, 4, 102–111. [Google Scholar]
  33. Meerloo, J.V.; Kaspers, G.J.L.; Cloos, J. Cell sensitivity assays. Methods Mol. Biol. 2011, 731, 237–245. [Google Scholar] [PubMed]
  34. Wahba, A.J.; Friedkin, M. The enzymatic synthesis of thymidylate: I. early steps in the purification of thymidylate synthetase of Escherichia coli. J. Biol. Chem. 1962, 237, 3794–3801. [Google Scholar]
  35. Davisson, V.J.; Sirawaraporn, W.; Santi, D.V. Expression of human thymidylate synthase in Escherichia coli. J. Biol. Chem. 1989, 264, 9145–9148. [Google Scholar]
  36. Nazreen, S.; Alam, M.S.; Hamid, H.; Yar, M.S.; Shafi, S.; Dhulap, A.; Alam, P.; Pasha, M.A.Q.; Bano, S.; Alam, M.M.; et al. Design, synthesis, in silico molecular docking and biological evaluation of novel oxadiazole based thiazolidine-2,4-diones bis-heterocycles as PPAR-γ agonists. Eur. J. Med. Chem. 2014, 87, 175–185. [Google Scholar] [CrossRef]
Pharmaceuticals 13 00390 g001 550

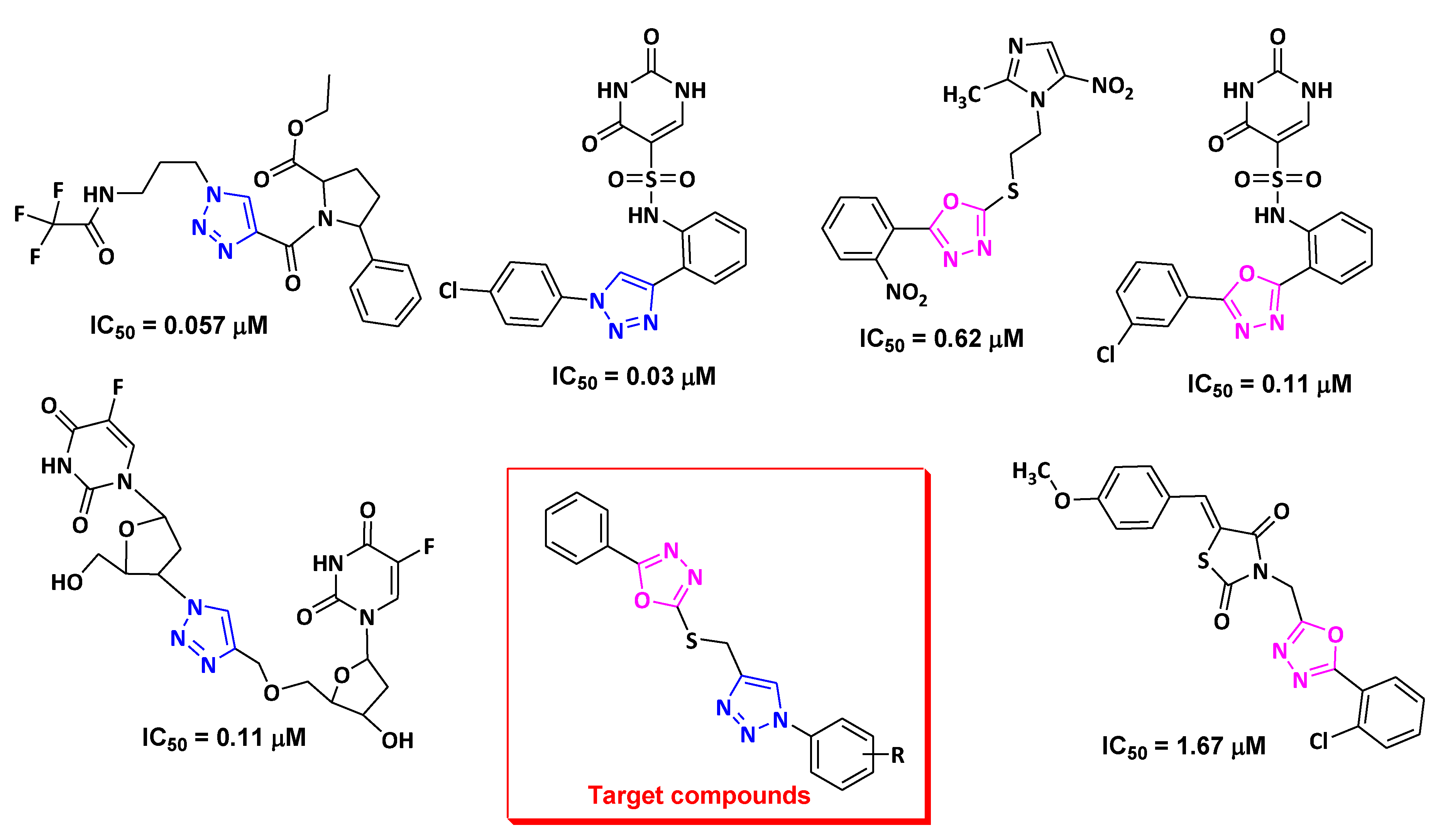

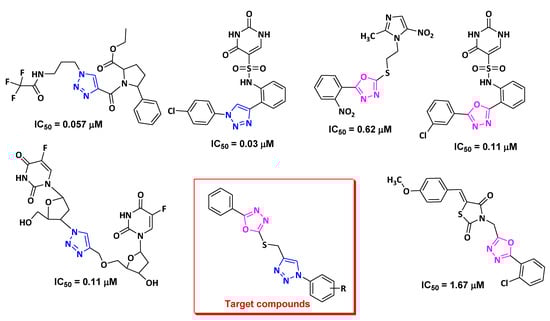

Figure 1. Reported thymidylate synthase inhibitors containing 1,3,4-oxadiazole and 1,2,3-triazoles.
Figure 1. Reported thymidylate synthase inhibitors containing 1,3,4-oxadiazole and 1,2,3-triazoles.
Pharmaceuticals 13 00390 g001
Pharmaceuticals 13 00390 g002 550

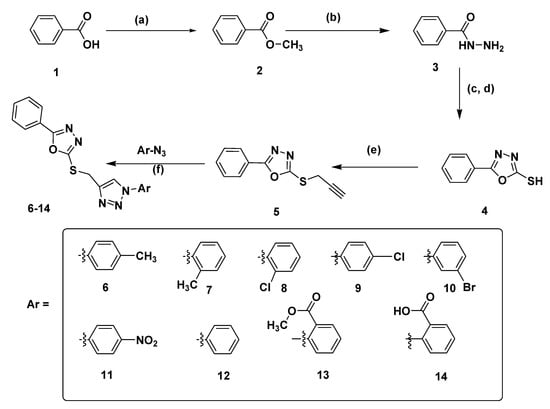

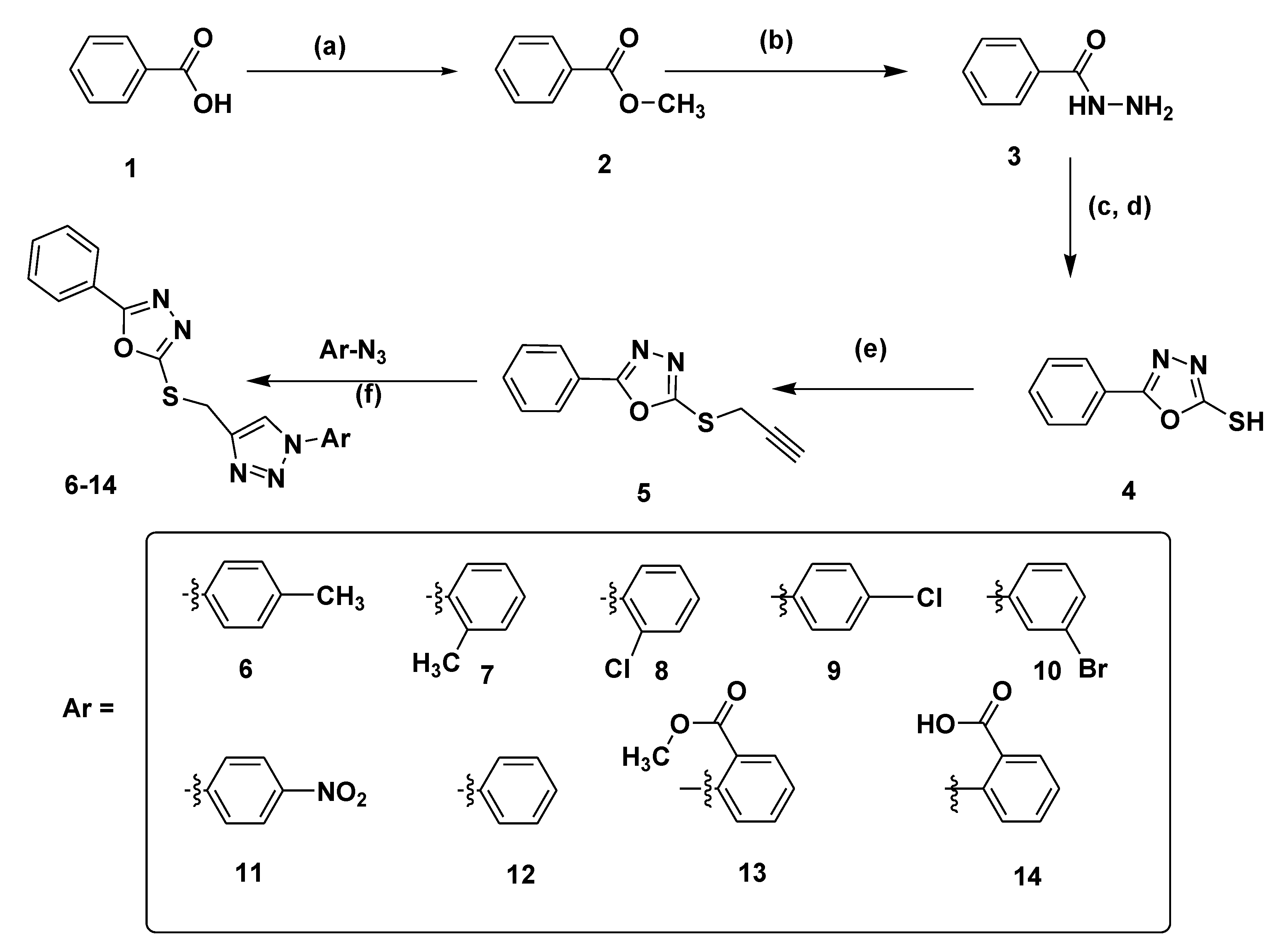

Figure 2. Synthesis of 1,3,4-oxadiazole linked 1,2,3-triazole hybrids. Reagents and conditions: (a) Methanol, Conc. H2SO4, reflux, 6h; (b) Absolute ethanol, H2N-NH2.H2O, reflux 4h; (c) Absolute ethanol, CS2, KOH, stir, 24 h; (d) reflux, 14 h, Conc. HCl; (e) Acetone, K2CO3, Propargyl bromide, stir, 50–60 °C, 6h; (f) tert.butanol:water (1:1), CuSO4.5H2O, sodium ascorbate, stir, 6–12 h.
Figure 2. Synthesis of 1,3,4-oxadiazole linked 1,2,3-triazole hybrids. Reagents and conditions: (a) Methanol, Conc. H2SO4, reflux, 6h; (b) Absolute ethanol, H2N-NH2.H2O, reflux 4h; (c) Absolute ethanol, CS2, KOH, stir, 24 h; (d) reflux, 14 h, Conc. HCl; (e) Acetone, K2CO3, Propargyl bromide, stir, 50–60 °C, 6h; (f) tert.butanol:water (1:1), CuSO4.5H2O, sodium ascorbate, stir, 6–12 h.
Pharmaceuticals 13 00390 g002
Pharmaceuticals 13 00390 g003 550

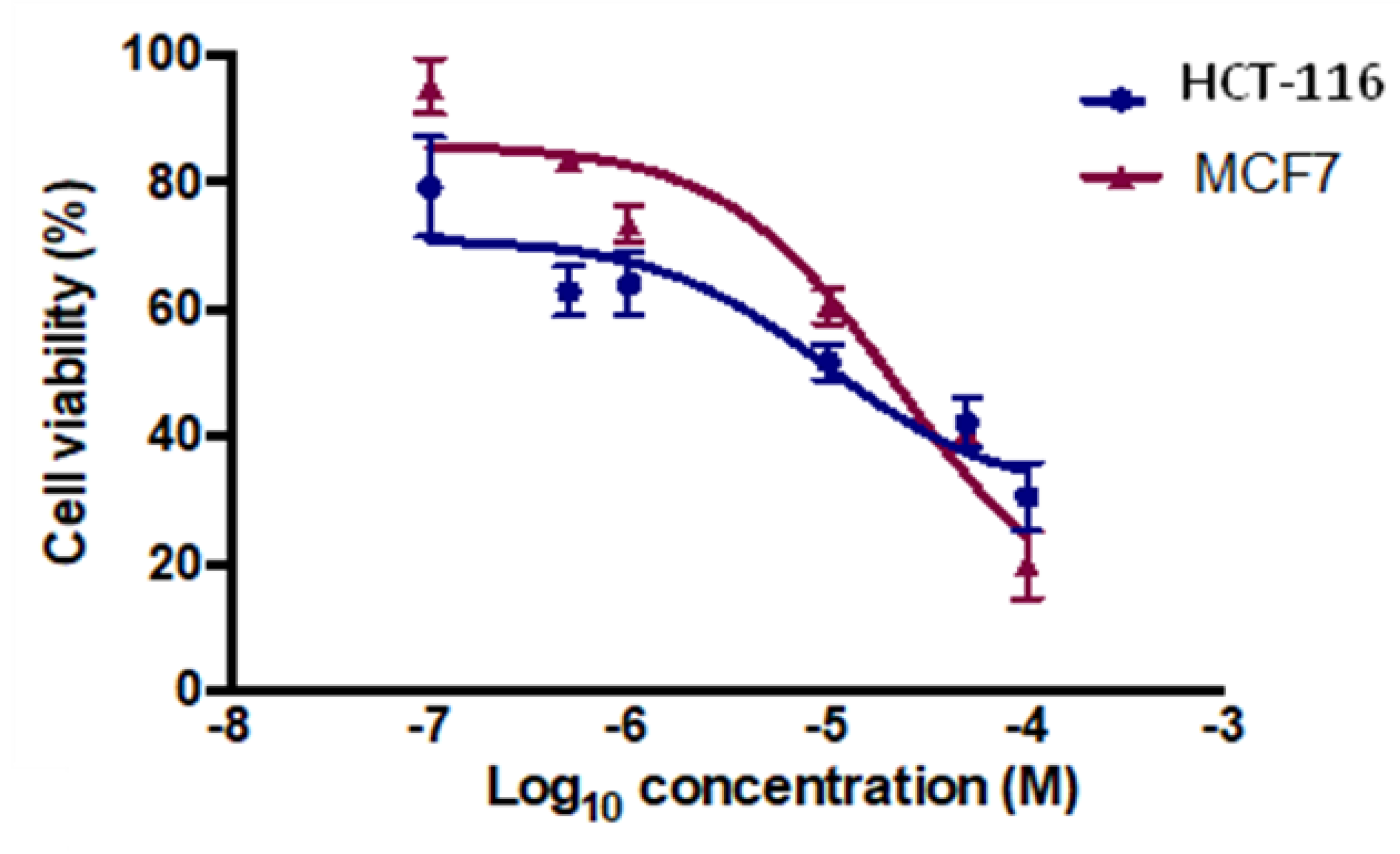

Figure 3. Antiproliferative effects of compound 12 in HCT-116 and MCF-7 cells. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) and was measured by MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide) assay. The values represent the mean ± standard error of the mean (SEM) for three independent experiments performed in triplicate.
Figure 3. Antiproliferative effects of compound 12 in HCT-116 and MCF-7 cells. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) and was measured by MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide) assay. The values represent the mean ± standard error of the mean (SEM) for three independent experiments performed in triplicate.
Pharmaceuticals 13 00390 g003
Pharmaceuticals 13 00390 g004 550

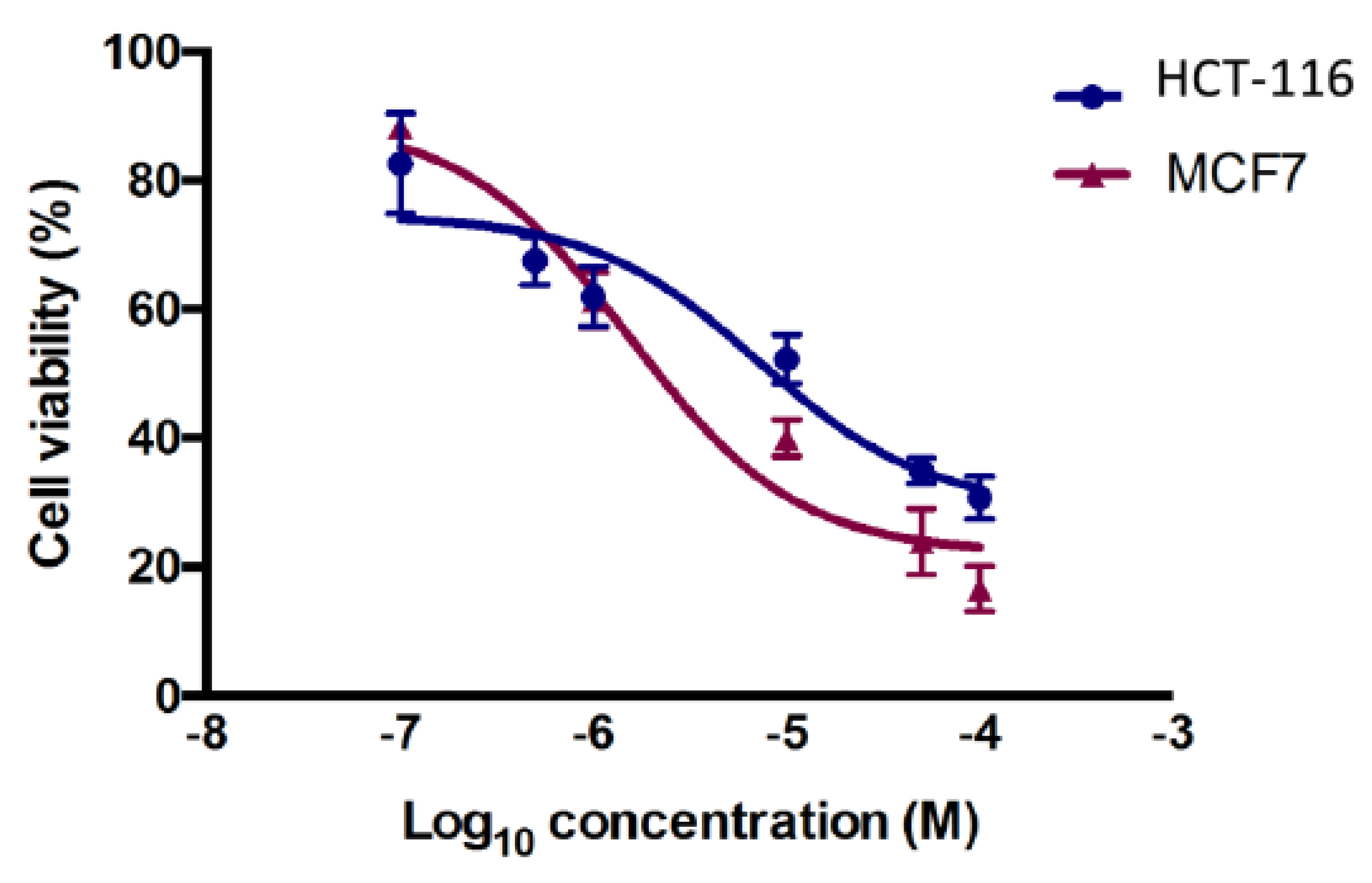

Figure 4. Antiproliferative effects of compound 13 in HCT-116 and MCF-7 cells. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) and was measured by MTT assay. The values represent the mean ± SEM for three independent experiments performed in triplicate.
Figure 4. Antiproliferative effects of compound 13 in HCT-116 and MCF-7 cells. Cell viability was expressed as a percentage of vehicle control (ethanol 1% (v/v)) and was measured by MTT assay. The values represent the mean ± SEM for three independent experiments performed in triplicate.
Pharmaceuticals 13 00390 g004
Pharmaceuticals 13 00390 g005 550

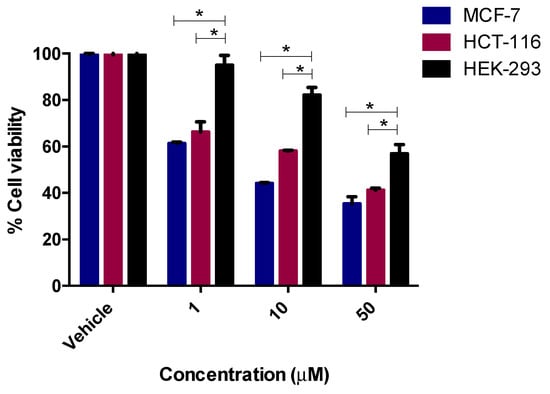

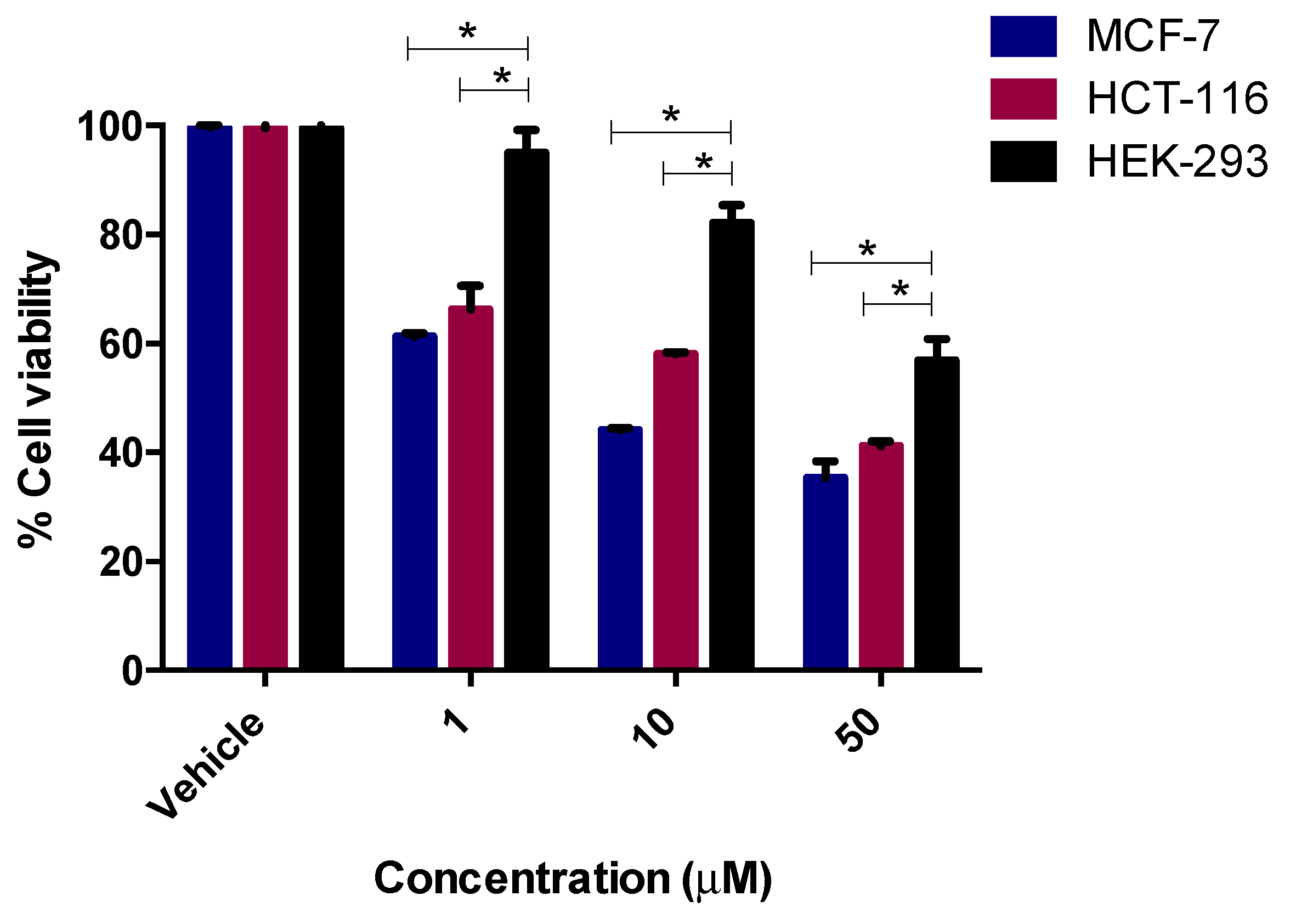

Figure 5. Antiproliferative effects of compound 12 on the viability of cancerous MCF-7 and HCT-116 cells, as well as non-tumorigenic HEK-293 cells. The values represent the mean ± SEM for three independent experiments performed in triplicate. * p < 0.05 between the indicated groups, via two-way ANOVA (Bonferroni post-test).
Figure 5. Antiproliferative effects of compound 12 on the viability of cancerous MCF-7 and HCT-116 cells, as well as non-tumorigenic HEK-293 cells. The values represent the mean ± SEM for three independent experiments performed in triplicate. * p < 0.05 between the indicated groups, via two-way ANOVA (Bonferroni post-test).
Pharmaceuticals 13 00390 g005
Pharmaceuticals 13 00390 g006 550

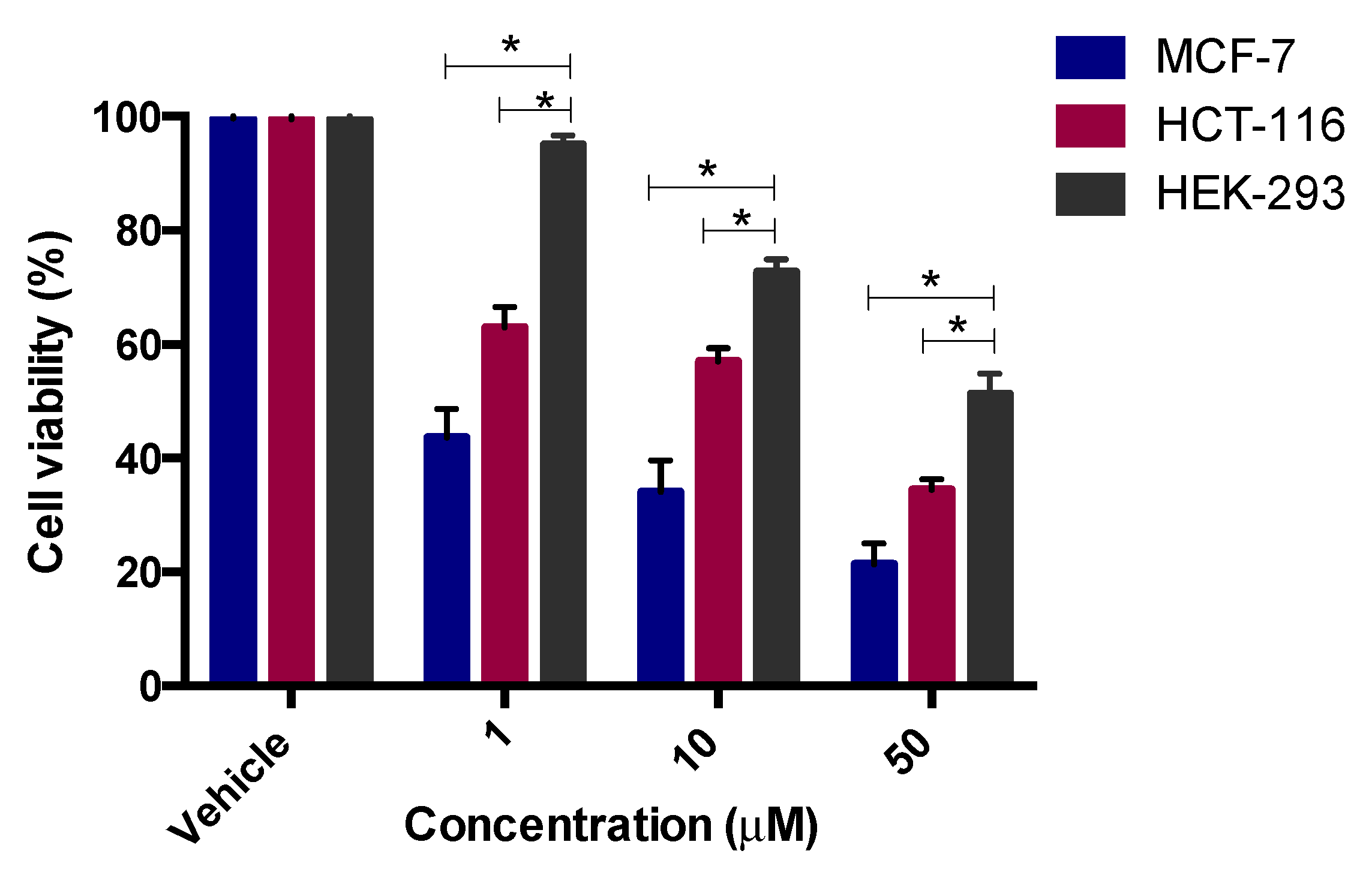

Figure 6. Antiproliferative effects of compound 13 on the viability of cancerous MCF-7 and HCT-116 cells, as well as non-tumorigenic HEK-293 cells. The values represent the mean ± SEM for three independent experiments performed in triplicate. * p < 0.05 between indicate groups, via two-way ANOVA (Bonferroni post-test).
Figure 6. Antiproliferative effects of compound 13 on the viability of cancerous MCF-7 and HCT-116 cells, as well as non-tumorigenic HEK-293 cells. The values represent the mean ± SEM for three independent experiments performed in triplicate. * p < 0.05 between indicate groups, via two-way ANOVA (Bonferroni post-test).
Pharmaceuticals 13 00390 g006
Pharmaceuticals 13 00390 g007 550

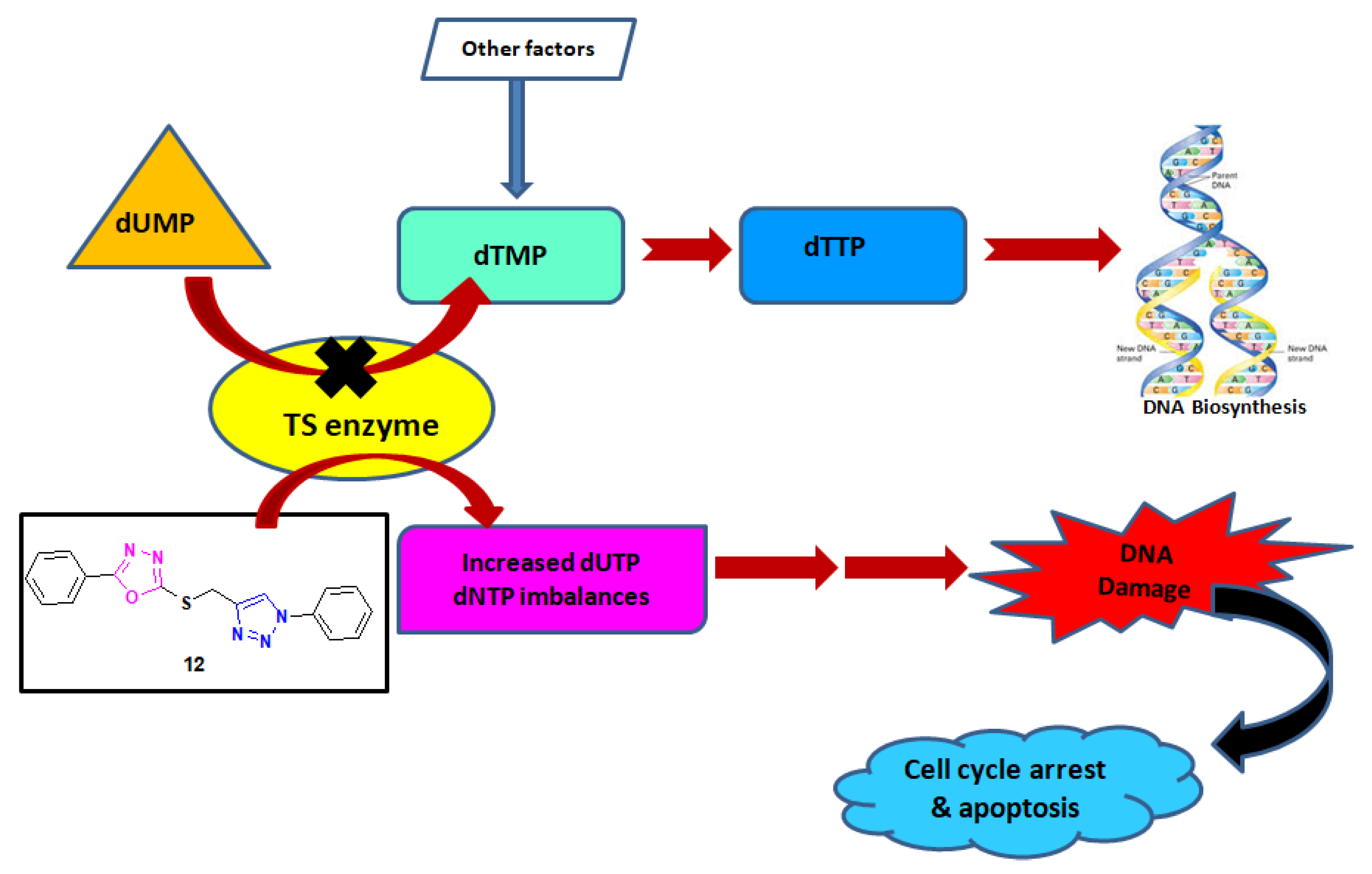

Figure 7. Mechanism of action of compound 12 on thymidylate synthase enzyme.
Figure 7. Mechanism of action of compound 12 on thymidylate synthase enzyme.
Pharmaceuticals 13 00390 g007
Pharmaceuticals 13 00390 g008 550

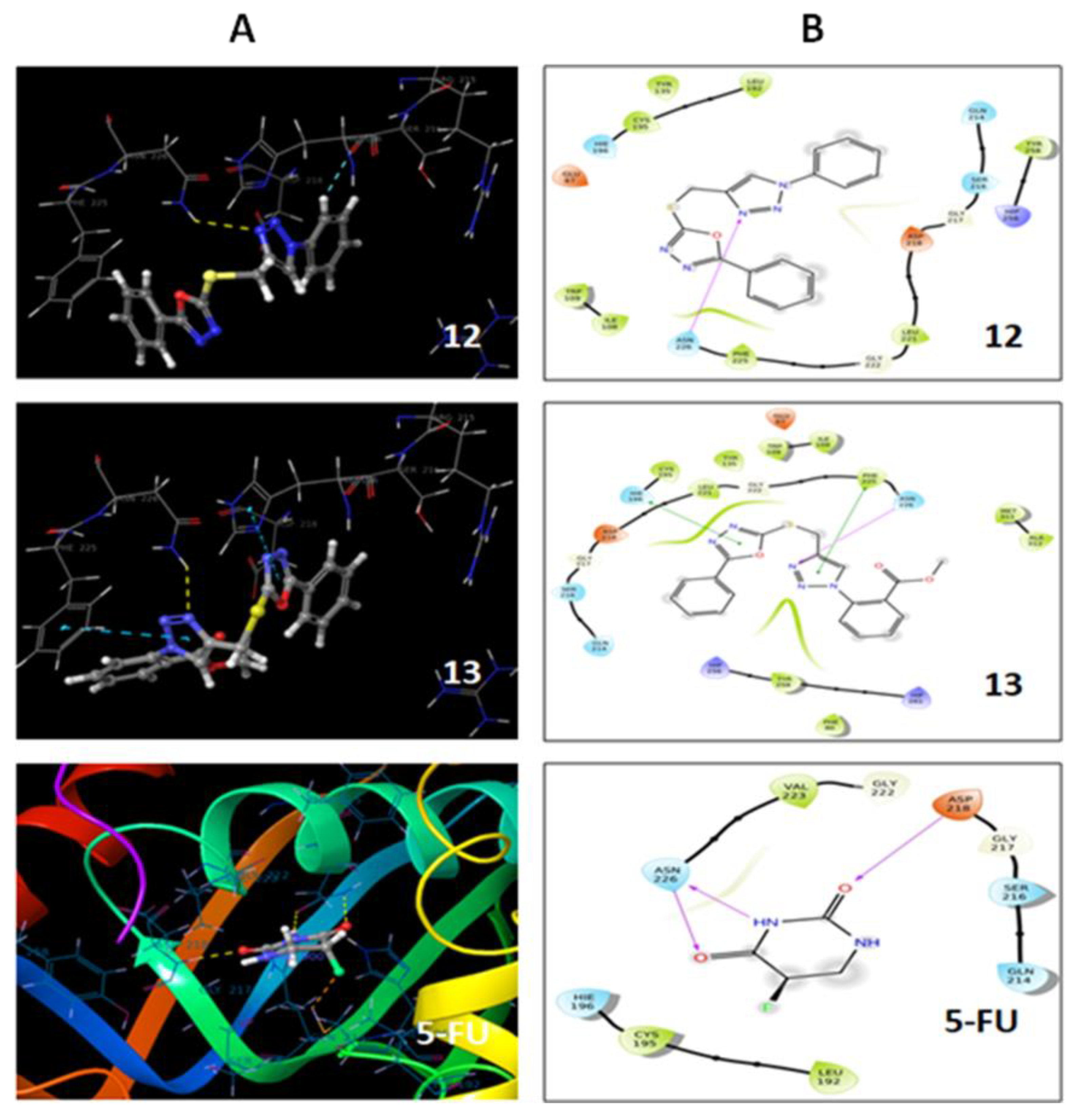

Figure 8. Molecular docking of the active compounds 12 and 13, as well as 5-FU, against thimidylate synthase (TS) protein 6QXG. (A) Binding mode of 12, 13, and 5-FU at the TS binding site, with a three-dimensional (3D) plot. (B) Binding mode of 12, 13, and 5-FU at the TS binding site on a two-dimensional (2D) plot. 5-FU: 5-fluorouracil.
Figure 8. Molecular docking of the active compounds 12 and 13, as well as 5-FU, against thimidylate synthase (TS) protein 6QXG. (A) Binding mode of 12, 13, and 5-FU at the TS binding site, with a three-dimensional (3D) plot. (B) Binding mode of 12, 13, and 5-FU at the TS binding site on a two-dimensional (2D) plot. 5-FU: 5-fluorouracil.
Pharmaceuticals 13 00390 g008
Table
Table 1. Pharmacokinetic/Absorption, Distribution, Metabolism and Elimination (ADME) predictions of the target compounds 6–14.
Table 1. Pharmacokinetic/Absorption, Distribution, Metabolism and Elimination (ADME) predictions of the target compounds 6–14.
No.Lipinski ParametersnROTB eTPSA f%ABS gBBB hGI ABS i
MW aHBAs bHBDs cLogP dViolations
6349.41503.540594.9376.24NoHigh
7349.41503.50594.9376.24NoHigh
8369.83503.330594.9376.24NoHigh
9369.83503.50594.9376.24NoHigh
10414.28503.620594.9376.24NoHigh
11380.38702.9706140.7560.44NoLow
12335.38503.210594.9376.24NoHigh
13393.42703.3907121.2367.17NoHigh
14379.39712.4806132.2363.38NoHigh
a Molecular weight; b hydrogen bond acceptors; c hydrogen bond donors; d partition coefficient; e number of rotatable bonds; f topological polar surface area; g absorption (%); h blood–brain barrier; i gastro-intestinal absorption.
Table
Table 2. The IC50 (µM) of the synthesized compounds (6–14) against tested human cancer cell lines (MCF-7 and HCT-116).a
Table 2. The IC50 (µM) of the synthesized compounds (6–14) against tested human cancer cell lines (MCF-7 and HCT-116).a
CompoundMCF-7 bHCT-116 c
679.8089.20
730.7034.30
873.30107.50
934.4036.70
1025.9032.70
1198.20102.30
125.8014.80
131.2617.30
1440.6046.80
Tam d5.1226.41
5-FU e24.7432.68
a IC50 values are the concentrations that cause 50% inhibition of cancer cell growth. Data represent the mean values ± standard deviation of three independent experiments, performed in triplicate; b breast cancer (MCF-7); c colorectal cancer (HCT-116); d Tam: tamoxifen; e 5-FU: 5-florouracil, which was used as a reference drug (positive control).
Table
Table 3. In vitro thymidylate synthase (TS) activity of the active compounds 12 and 13, as well as PTX.
Table 3. In vitro thymidylate synthase (TS) activity of the active compounds 12 and 13, as well as PTX.
CompoundsIC50 (µM)
122.52
134.38
PTX6.75
IC50 values are the mean ± SD of three separate experiments. PTX: pemetrexed.
Table
Table 4. Docking scores of active compounds 12 and 13 against human thymidylate synthase protein 6QXG.
Table 4. Docking scores of active compounds 12 and 13 against human thymidylate synthase protein 6QXG.
CompoundDocking ScoreAmino Acid Residue
12−3.81ASN 226
13−4.25ASN 226, PHE 225, HIE 196
5-FU−3.5ASP 218, ASN 226
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alam, M.M.; Almalki, A.S.; Neamatallah, T.; Ali, N.M.; Malebari, A.M.; Nazreen, S. Synthesis of New 1, 3, 4-Oxadiazole-Incorporated 1, 2, 3-Triazole Moieties as Potential Anticancer Agents Targeting Thymidylate Synthase and Their Docking Studies. Pharmaceuticals 2020, 13, 390. https://doi.org/10.3390/ph13110390

AMA Style

Alam MM, Almalki AS, Neamatallah T, Ali NM, Malebari AM, Nazreen S. Synthesis of New 1, 3, 4-Oxadiazole-Incorporated 1, 2, 3-Triazole Moieties as Potential Anticancer Agents Targeting Thymidylate Synthase and Their Docking Studies. Pharmaceuticals. 2020; 13(11):390. https://doi.org/10.3390/ph13110390

Chicago/Turabian Style

Alam, Mohammad Mahboob, Abdulraheem SA Almalki, Thikryat Neamatallah, Nada M. Ali, Azizah M. Malebari, and Syed Nazreen. 2020. "Synthesis of New 1, 3, 4-Oxadiazole-Incorporated 1, 2, 3-Triazole Moieties as Potential Anticancer Agents Targeting Thymidylate Synthase and Their Docking Studies" Pharmaceuticals 13, no. 11: 390. https://doi.org/10.3390/ph13110390

APA Style

Alam, M. M., Almalki, A. S., Neamatallah, T., Ali, N. M., Malebari, A. M., & Nazreen, S. (2020). Synthesis of New 1, 3, 4-Oxadiazole-Incorporated 1, 2, 3-Triazole Moieties as Potential Anticancer Agents Targeting Thymidylate Synthase and Their Docking Studies. Pharmaceuticals, 13(11), 390. https://doi.org/10.3390/ph13110390

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
