Wireless in-situ Sensor Network for Agriculture and Water Monitoring on a River Basin Scale in Southern Finland: Evaluation from a Data User’s Perspective
Abstract
:1. Introduction
2. SoilWeather sensor network and applications
2.1. Karjaanjoki river basin

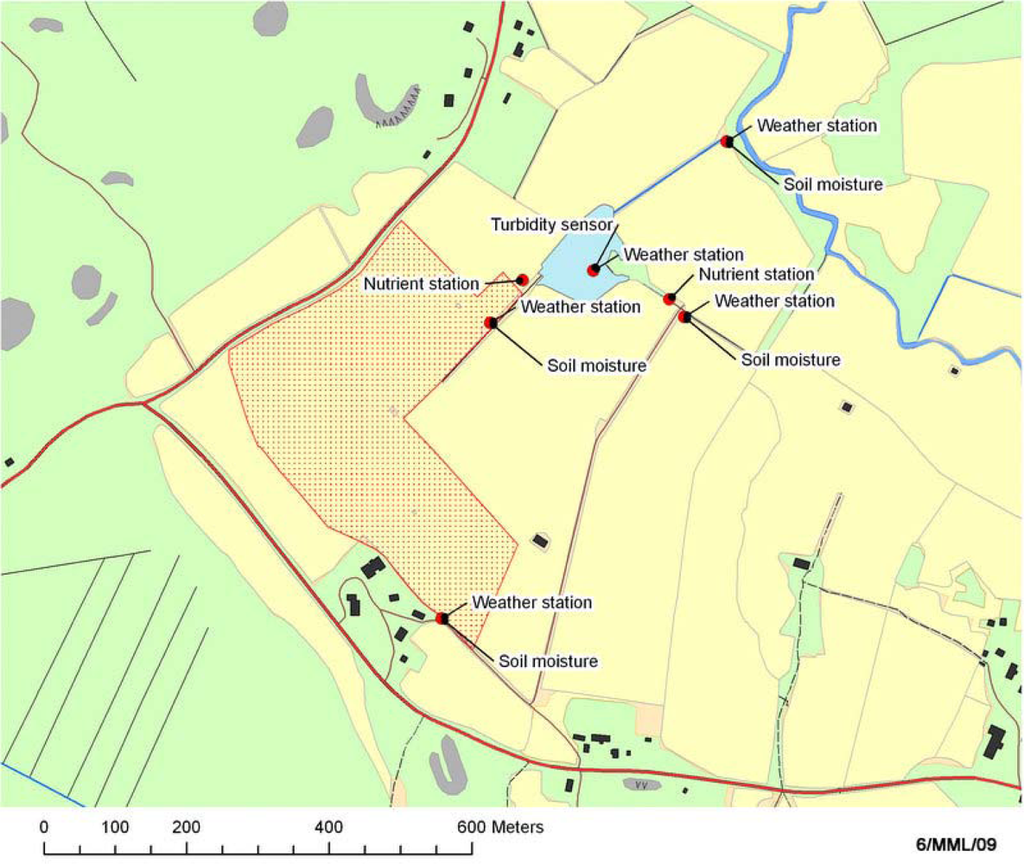

2.2. Sensors, sensor network and infrastructure

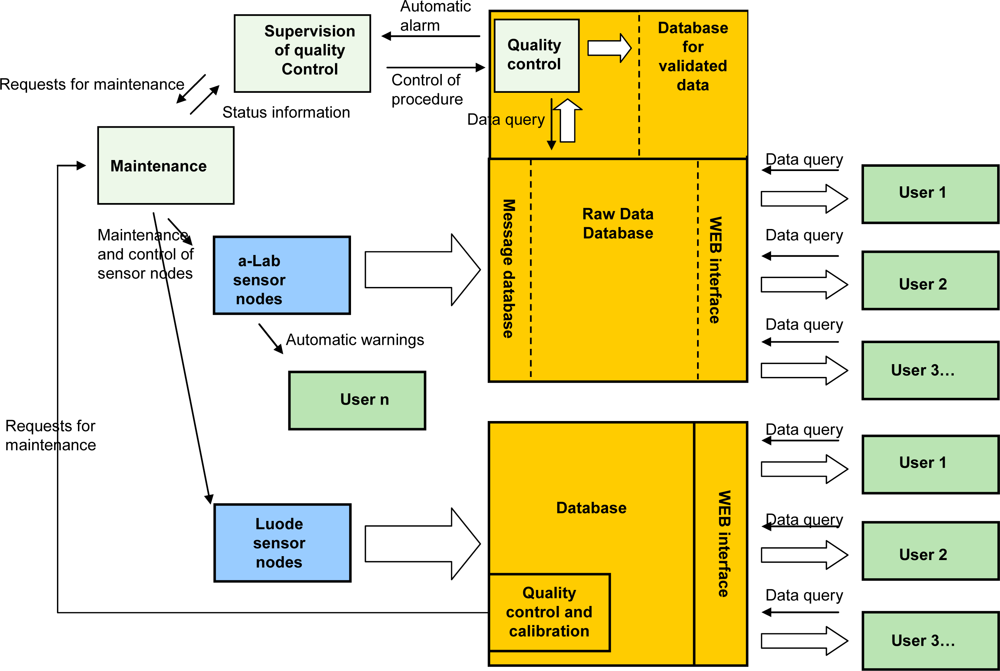

2.3. Data quality control and network maintenance
- missing data test
- missing observations test
- variation test and
- range test.
2.4. Applications

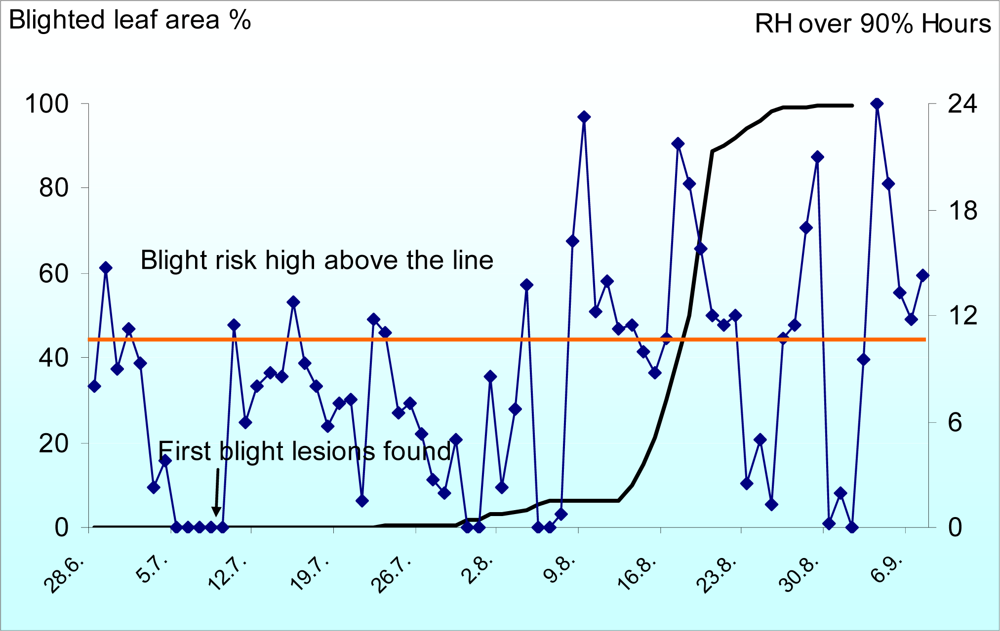

- in predicting potato late blight risk
- in developing interpolation methods for weather parameters into 30 m resolution grid
- in monitoring water quality and nutrient retention in rivers and in constructed wetland
- in improving hydrological model at river basin scale
- in leaching model in sub-catchment scale
- in soil moisture model at field parcel level
- in precision agriculture.
3. Results and discussion
3.1. Performance of the network
3.2. Performance of applications
3.3. Benefits and challenges
4. Conclusions
Acknowledgments
References and Notes
- Wang, N.; Zhang, N.; Wang, M. Wireless sensors in agriculture and food industry - recent development and future perspective. Comput. Electron. Agric 2006, 50, 1–14. [Google Scholar]
- Liang, S.H.L.; Croitoru, A.; Vincent Tao, C. A distributed geospatial infrastructure for sensor web. Comput. Geosci 2005, 31, 221–231. [Google Scholar]
- Pierce, F.J.; Elliott, T.V. Regional and on-farm wireless sensor networks for agricultural systems in Eastern Washington. Comput. Electron. Agric 2008, 61, 32–43. [Google Scholar]
- Hart, J.K.; Martinez, K. Environmental sensor networks: A revolution the earth system science? Earth-Science Reviews 2006, 78, 177–191. [Google Scholar]
- Delin, K.A.; Jackson, S.P.; Johnson, D.W.; Burleigh, S.C.; Woodrow, R.R.; McAuley, M.; Britton, J.T.; Dohm, J.M.; Ferré, T.P.A.; Ip, F.; Rucker, D.F.; Baker, V.R. Sensor web for spatio-temporal monitoring of a hydrological environment. Proceedings of the 35th Lunar and planetary science conference, League City, Texas, USA, March 2004.
- Teillet, P.M.; Chichagov, A.; Fedosejevs, G.; Gauthier, R.P.; Ainsley, G.; Maloley, M.; Guimond, M.; Nadeau, C.; When, H.; Shankaie, A.; Yang, J.; Cheung, M.; Smith, A.; Bourgeois, G.; deJong, R.; Tao, V.C.; Liang, S.H.L.; Freemantle, J. An integrated earth sensing: sensorweb for improved crop and rangeland yield predictions. Can. J. Rem. Sens 2007, 33, 88–98. [Google Scholar]
- Botts, M.; Percivall, G.; Reed, C.; Davidson, J. OGC® Sensor Web Enablement: overview and high level architecture. In Geosensor Networks, 2nd Ed; Nittel, S., Labrinidis, A., Stefanidis, A., Eds.; Springer-Verlag: Berlin, German, 2008; pp. 175–190. [Google Scholar]
- Nittel, S.; Stefanidis, A. GeoSensor networks and virtual GeoReality. In GeoSensor Networks; Stefanidis, A., Nittel, S., Eds.; CRC Press LLC: Boca Raton, Florida, USA, 2005; pp. 1–9. [Google Scholar]
- Euroopan parlamentin ja neuvoston direktiivi 2000/60/EY, yhteisön vesipolitiikan puitteista. Euroopan yhteisöjen virallinen lehti 2000, L327, 1–72.
- Helcom Baltic Action Plan. HELCOM Ministerial meeting, Krakow, Poland, 2007. http://www.helcom.fi/stc/files/BSAP/BSAP_Final.pdf.
- Ympäristöministeriö. Vesiensuojelun suuntaviivat vuoteen 2015: valtionneuvoston periaatepäätös. Suomen Ympäristö 2007, 10, 1–90. [Google Scholar]
- Fabre, F.; Plantegenest, M.; Yuen, J. Financial benefit of using crop protection decision rules over systematic spraying strategies. Phytopathology 2007, 97, 1484–1490. [Google Scholar]
- Hansen, J.G.; Kleinhenz, B.; Jörg, E. Results of validation trials of Phytophthora DSS in Europe in 2000. Proceedings of the Workshop of an European network for development of an integrated control strategy of potato late blight, Münich, Germany, September 2000; pp. 23–38.
- Hadders, J. Don't call us, we call you. Proceedings of the 6th workshop of an European network for development of an integrated control strategy of potato late blight, Edinburgh, Scotland, September 2001.
- Kim, Y.; Evans, R.G.; Iversen, W.; Pierce, F.J. Instrumentation and Control for Wireless Sensor Network for Automated Irrigation. In the ASABE Annual International Meeting, Portland, OR, USA, July 2006.
- Steere, D.; Baptista, A.; McNamee, D.; Pu, C.; Walpole, J. Research Challenges in Environmental Observation and Forecasting Systems. Proceedings of the 6th Annual International Conference on Mobile Computing and Networking (MobiCom 00), Boston, MA, USA, August 2000.
- Seders, L.A.; Shea, C.A.; Lemmon, M.D.; Maurice, P.A.; Talley, J.W. LakeNet: An integrated Sensor network for environmental sensing of lakes. Environ. Eng. Sci 2007, 24, 183–191. [Google Scholar]
- Kido, M.H.; Mundt, C.W.; Montgomery, K.N.; Asquith, A.; Goodale, D.W.; Kaneshiro, K.Y. Integration of Wireless Sensor Networks into cyberinfrastructure for Monitoring Hawaiian “Mountain-to-Sea” Environments. Environ. Manage 2008, 42, 658–666. [Google Scholar]
- Floodnet. Available online: http://envisense.org/floodnet/floodnet.htm (accessed on Oct 28–29, 2008).
- Langendoen, K.; Baggio, A.; Visser, O. Murphy Loves Potatoes Experiences from a Pilot Sensor Network Deployment in Precision Agriculture. Proceedings of the IEEE 14th International Workshop on Parallel and Distributed Real-Time Systems, Rhodes, Greece, April 2006.
- Yick, J.; Mukherjee, B.; Ghosal, D. Wireless sensor network survey. Comput. Netw 2008, 52, 2292–2330. [Google Scholar]
- Akyildiz, I.F.; Su, W.; Sankarasubramaniam, Y.; Cayirci, E. Wireless Sensor Networks: a survey. Comput. Netw 2008, 38, 393–422. [Google Scholar]
- Karjaanjoki life. Available online: http://www.karjaanjokilife.fi/.
- Koskiaho, J. Retention performance and hydraulic design of constructed wetlands treating runoff waters arable land. In Acta Univ. Oul. C252; University of Oulu: Oulu, Finland, 2006. [Google Scholar]
- Arnold, J.G.; Srinivasan, R.; Muttiah, R.S.; Williams, J.R. Large area hydrologic modeling and Assessment part I: model development. J. Am. Water Resour. Assoc 1998, 34, 73–89. [Google Scholar]
- Neitsch, S.L.; Arnold, J.G.; Kiniry, J.R.; Williams, J.R. Soil and Water Assessment Tool - Theoretical Documentation - Version 2005. Blackland Research Center - Agricultural Research Service: Temple, TX, USA, 2005. [Google Scholar]
- Hyytiäinen, U-M. Hiidenveden hoito ja kunnostus 2005?2007. Uudenmaan ympäristökeskuksen raportteja 2007, 12, 27. [Google Scholar]
- Vejen, F.; Jacobsson, C.; Fredriksson, U.; Moe, M.; Andresen, L.; Hellsten, E.; Rissanen, P. Pálsdóttir, Þ.; Arason, Þ. Quality Control of Meteorological Observations - Automatic Methods Used in the Nordic Countries, DNMI Klima report. 2002; 8. [Google Scholar]
- Zwankhuizen, M.J.; Zadoks, J.C. Phytophthora infestans's 10-year truce with Holland: a long-term analysis of potato late-blight epidemics in the Netherlands. Plant Pathol 2002, 51, 413–423. [Google Scholar]
- Hannukkala, A.O.; Kaukoranta, T.; Lehtinen, A. Late-blight epidemics on potato in Finland, 1933–2002; increased and earlier occurrence of epidemics associated with climate change and lack of rotation. Plant Pathol 2007, 56, 167–176. [Google Scholar]
- Baker, K.M.; Kirk, W.W. Comparative analysis of models integrating synoptic forecast data into potato late blight risk estimate systems. Comput. Electron. Agric 2007, 57, 23–32. [Google Scholar]
- Fry, W.E.; Apple, A.E.; Bruhn, J.A. Evaluation of potato late blight forecasts modified to incorporate host resistance and fungicide weathering. Phytopathology 1983, 73, 1054–1059. [Google Scholar]
- Lehtinen, A.; Hannukkala, A.O. Oospores of Phytophthora infestans in soil provide an important new source of primary inoculum in Finland. Agr. Food. Sci 2004, 13, 399–410. [Google Scholar]
- Andrade-Piedra, J.L.; Forbes, G.A.; Shtienberg, D.; Grunwald, N.J.; Chacon, M.G.; Taipe, M.V.; Hijmans, R.J.; Fry, W.E. Qualification of a plant disease simulation model: Performance of the LATEBLIGHT model across a broad range of environments. Phytopathology 2005, 95, 1412–1422. [Google Scholar]
- Hansen, J.G.; Nielsen, B.J.; Bødger, L.; Andersson, B.; Yuen, J.; Wiik, L.; Hermansen, A.; Nærstad, R.; Le, V.H.; Brurberg, M.B.; Hannukkala, A.; Lehtinen, A. Blight management in the Nordic countries. Proceedings of the 9th workshop of an European network for development of an integrated control strategy of potato late blight, Tallinn, Estonia, October 2007.
- Lehtinen, A.; Hannukkala, A.; Andersson, B.; Hermansen, A.; Le, V.H.; Nærstad, R.; Brurberg, M.B.; Nielsen, B.J.; Hansen, J.G.; Yuen, J. Phenotypic variation in Nordic populations of Phytophthora infestans in 2003. Plant Pathol 2008, 57, 227–234. [Google Scholar]
- Lehtinen, A.; Andersson, B.; Le, V.H.; Nærstad, R.; Rastas, M.; Ketoja, E.; Hannukkala, A.; Hermansen, A.; Nielsen, B.J.; Hansen, J.G.; Yuen, J. Aggressiveness of Phytophthora infestans on detached potato leaflets in four Nordic countries. Plant Pathol 2009, (in press).. [Google Scholar]
- Koskiaho, J.; Puustinen, M.; Kotamäki, N. Retention performance of a constructed wetland as measured automatically with sensors. Prog. Environ. Sci. Technol 2009, II. (submitted).. [Google Scholar]
- Kaukoranta, T.; Hannukkala, A.; Merkkiniemi, R.; Aaltonen, A. Predicting Sclerotinia stem rot by using GIS and spatially interpolated weather data. Proceedings of the Workshop on Weather Information and Plant Protection: models forecasting methods and information systems, Ultuna, Sweden, November 1994.
- Cao, X.; Chen, J.; Zhang, Y.; Sun, Y. Development of an integrated wireless sensor network micro-environmental monitoring system. ISA Trans. (in press)..
Sensor node | Sensors | Parameters | Producer's web page |
---|---|---|---|
a-Weather station basic core | Pt1000 | Temperature | www.a-lab.fi |
AST2 Vaisala HMP50 | Humidity | www.vaisala.com | |
Davis Rain Collector II | Precipitation | www.davisnet.com | |
Davis Anemometer | Wind direction | ||
Davis Anemometer | Wind speed | ||
Additional parameters | Decagon ECHO (capacitance) | Soil moisture | www.decagon.com |
FDR (Frequency Domain Reflectometry) | Soil moisture | www.a-lab.fi | |
OBS3+ | Water turbidity | www.d-a-instruments.com/ | |
Keller 0.25 bar | Water level | www.keller-druck.ch | |
Nutrient measurement station | s::can spectrometer | Nitrate conc. | www.s-can.at/ |
Water turbidity | |||
Water level | |||
Water temperature |
MONTH | WARNING_LOW | WARNING_HIGH | ERROR_LOW | ERROR_HIGH |
---|---|---|---|---|
1 | −37 | 11 | −47 | 17 |
2 | −35 | 11 | −45 | 17 |
3 | −31 | 15 | −41 | 22 |
4 | −19 | 23 | −29 | 27 |
5 | −7 | 29 | −17 | 31 |
6 | −2 | 32 | −12 | 36 |
7 | 2 | 33 | −8 | 36 |
8 | 0 | 32 | −10 | 36 |
9 | −7 | 26 | −17 | 31 |
10 | −16 | 19 | −26 | 28 |
11 | −23 | 12 | −33 | 20 |
12 | −35 | 10 | −45 | 16 |
Problem | Manifestation in the data | Number of occasions |
---|---|---|
1. Battery voltage decreasing | Missing data and/or air humidity decreases too much | 48 |

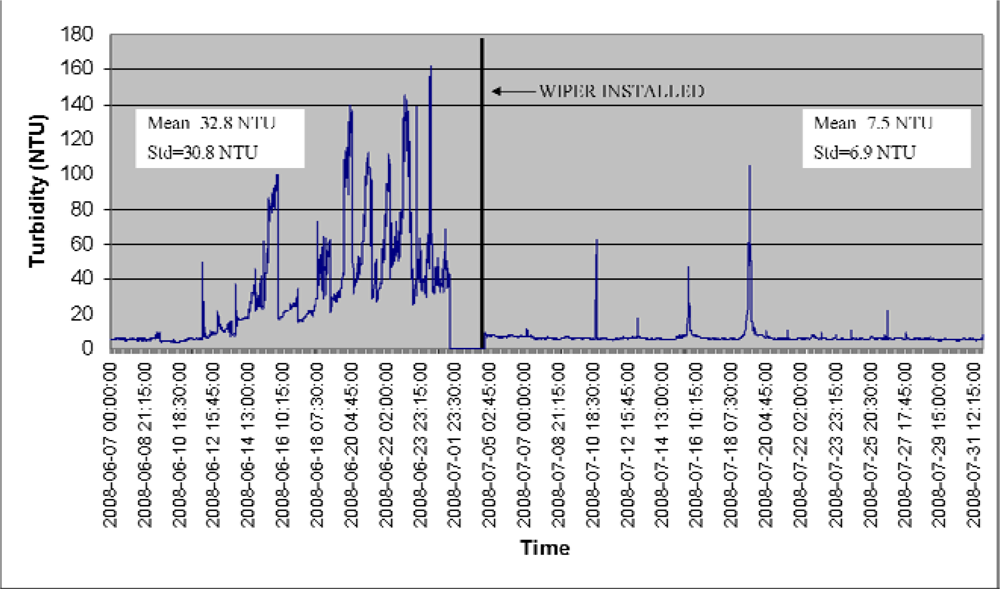

2. Turbidity sensor contaminated | Turbidity values too high and increasing | 64 |
3. Problems with battery contact | Missing data or station down | Ca. 40 |
4. Organisms on the turbidity sensor | Saw tooth pattern in the data | several |
5. Rain gauge clogged up | No accumulation of the precipitation despite of the nearby rain | 18 |
6. Station fell down | Possible problems with wind data and/or no precipitation | 12 |
7. Station malfunction | Missing data or station down regardless of battery condition | 5 |
Parameter | Number of suspicious measurements | Number of erroneous measurements |
---|---|---|
Air temperature | 114 | - |
Water level | 900 | 30 |
Air pressure | 250 | - |
Turbidity | 323 | 80 |
