Study on a Concentric Tube Bulb Manometer and its Performance Compared to U-shaped Manometer

by
Syed S. Daood
1,*,
Aamir Ijaz
2 and
Muhammad A. Butt
2
1
School of Process, Environmental and Materials Engineering, University of Leeds, LS2 9JT, Leeds, U.K.
2
Institute of Chemical Engineering and Technology, University of the Punjab, Quaid-e-Azam Campus, Lahore (54590), Pakistan
*
Author to whom correspondence should be addressed.
Sensors 2007, 7(11), 2835-2845; https://doi.org/10.3390/s7112835
Submission received: 21 September 2007 / Accepted: 13 November 2007 / Published: 20 November 2007
Browse Figures
Versions Notes

Abstract

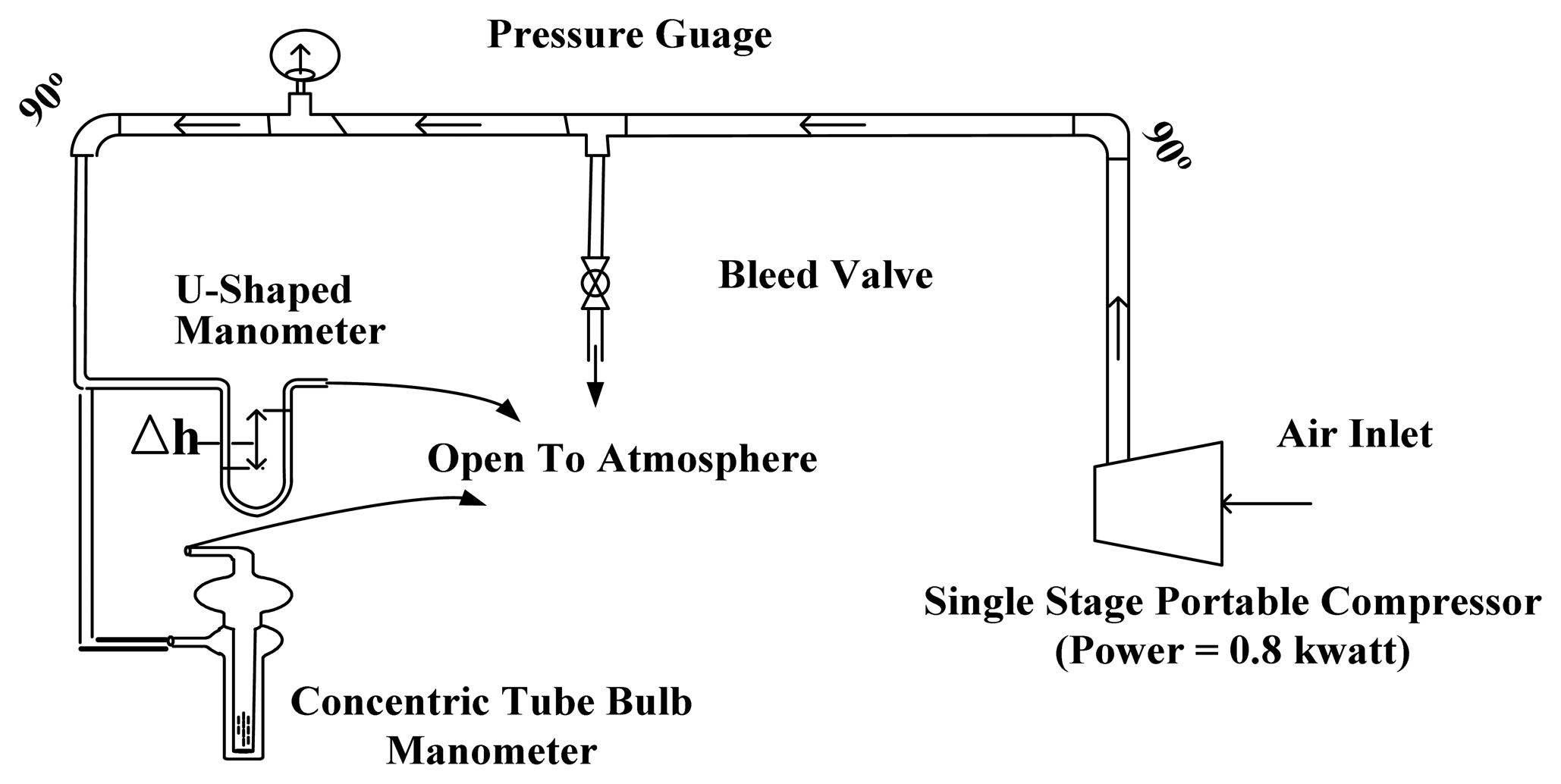

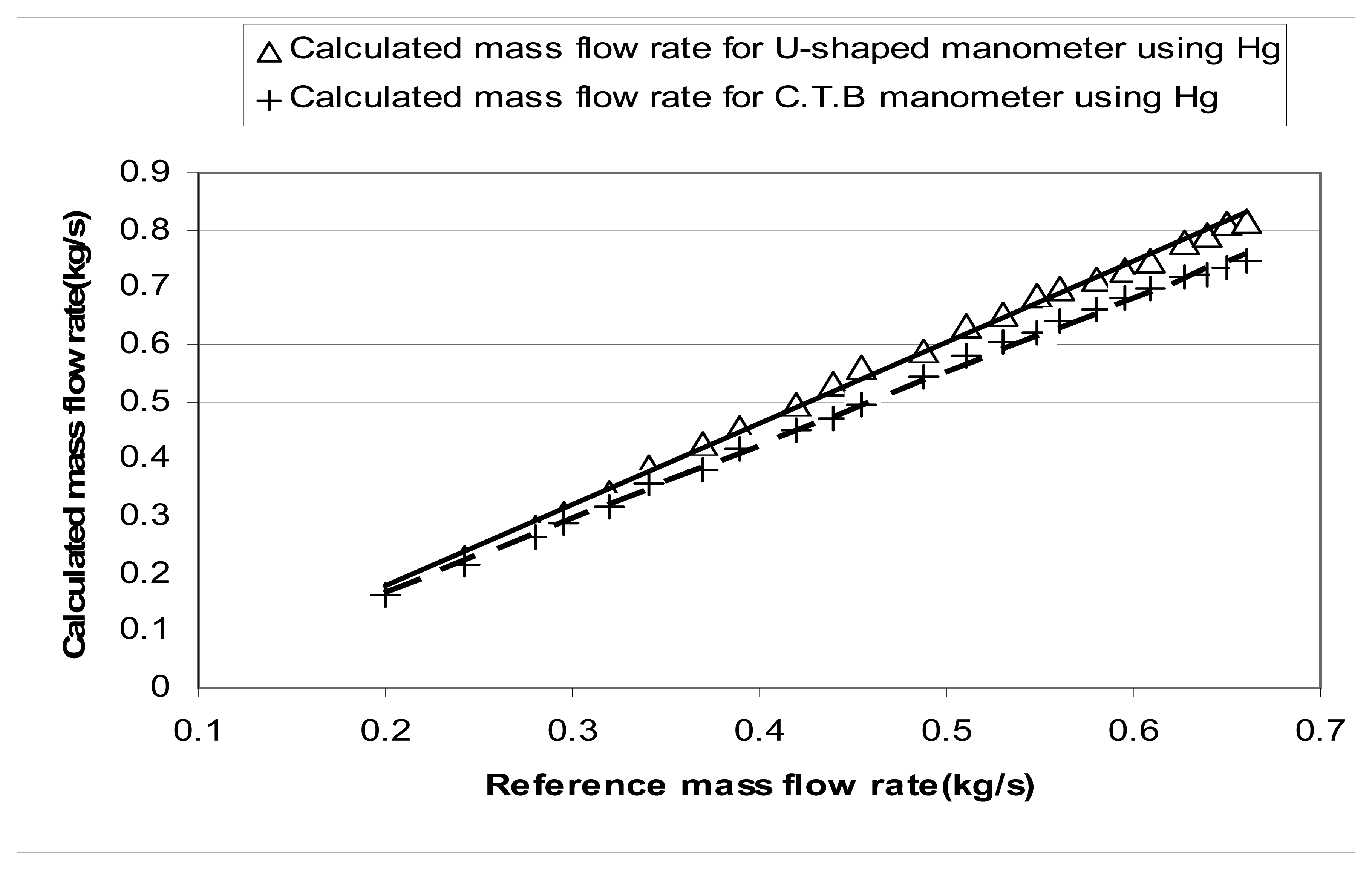

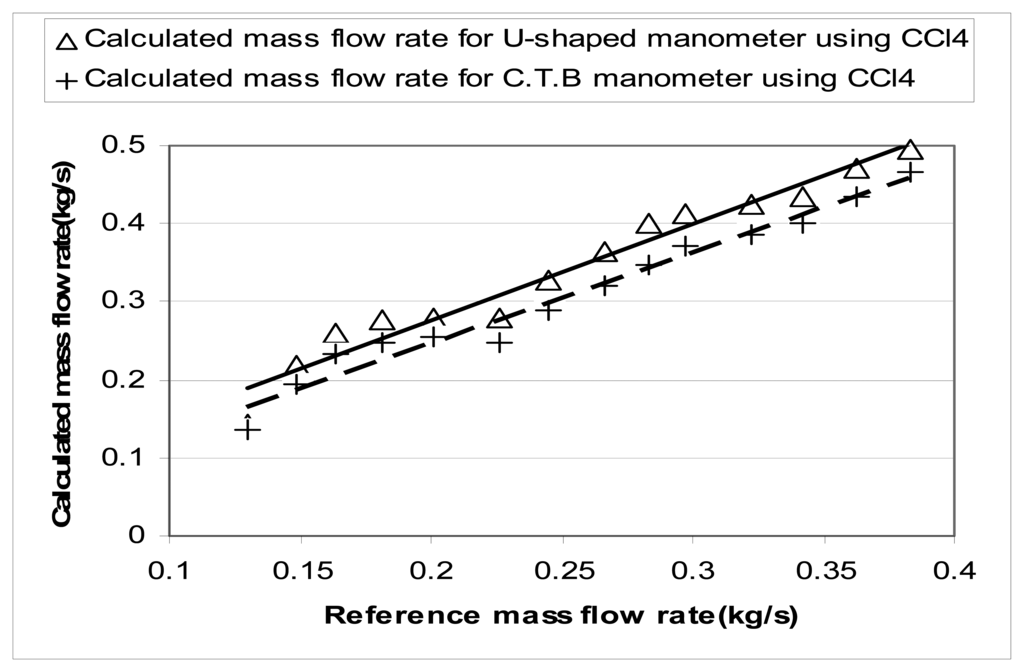

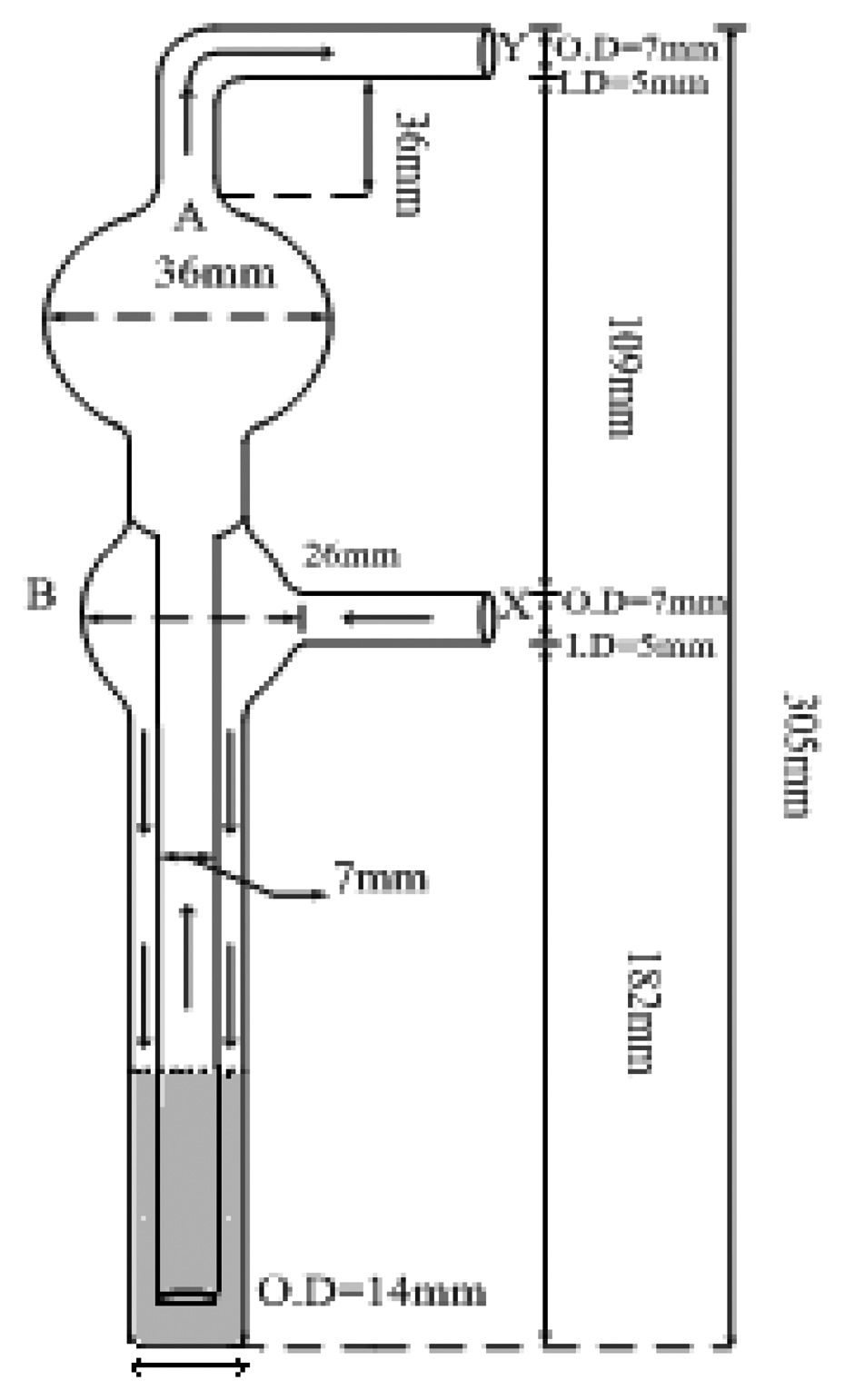

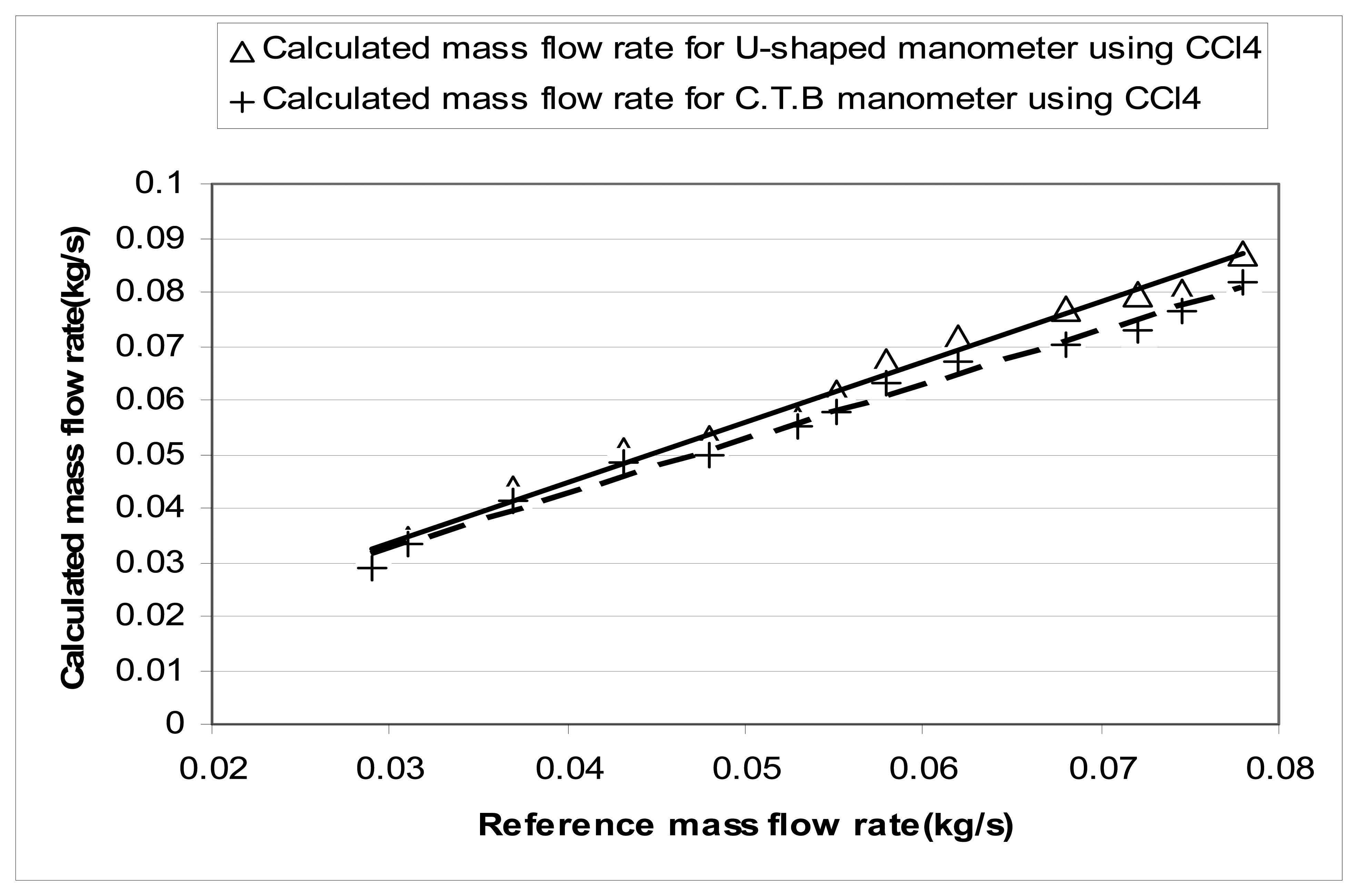

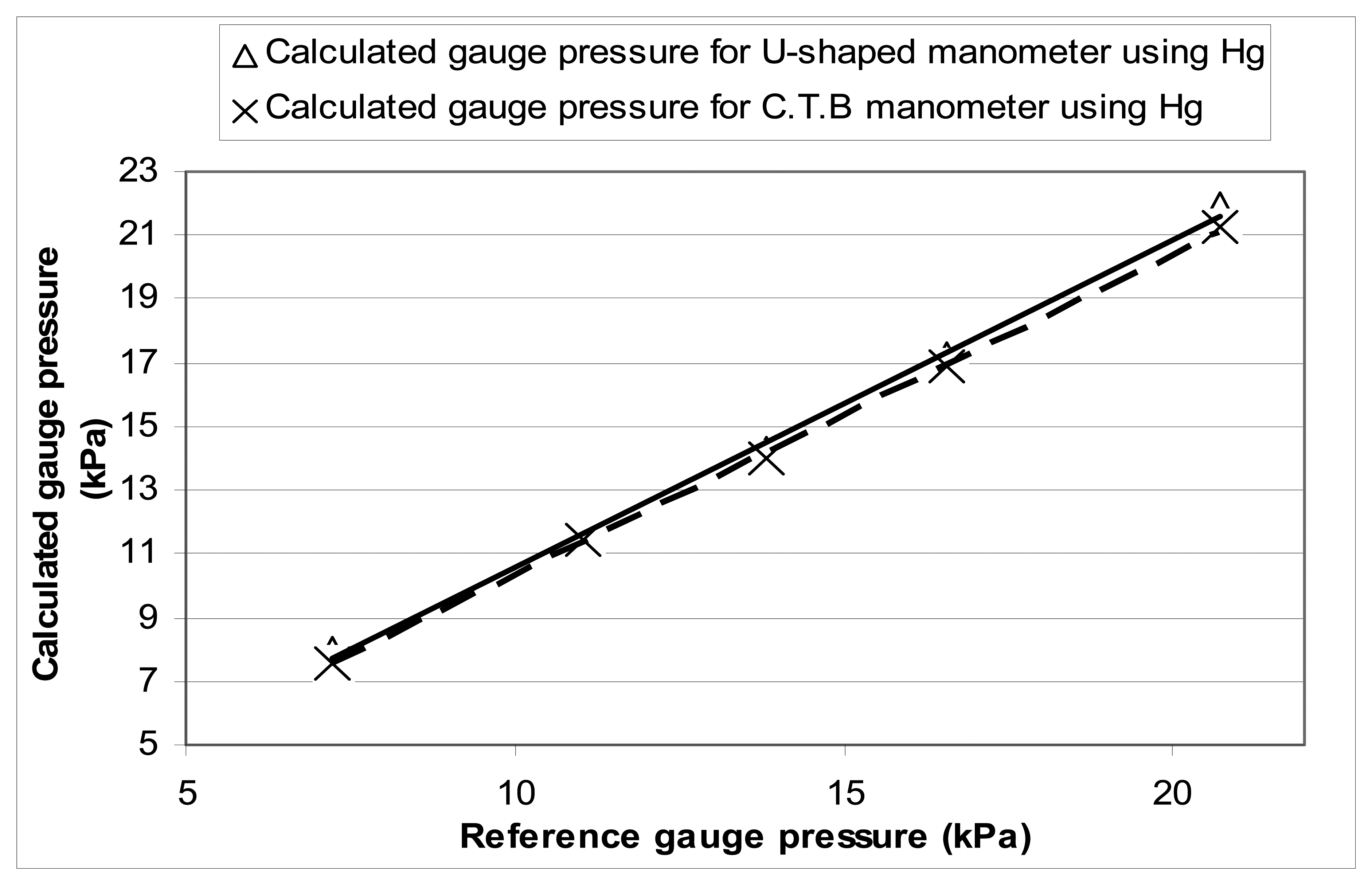

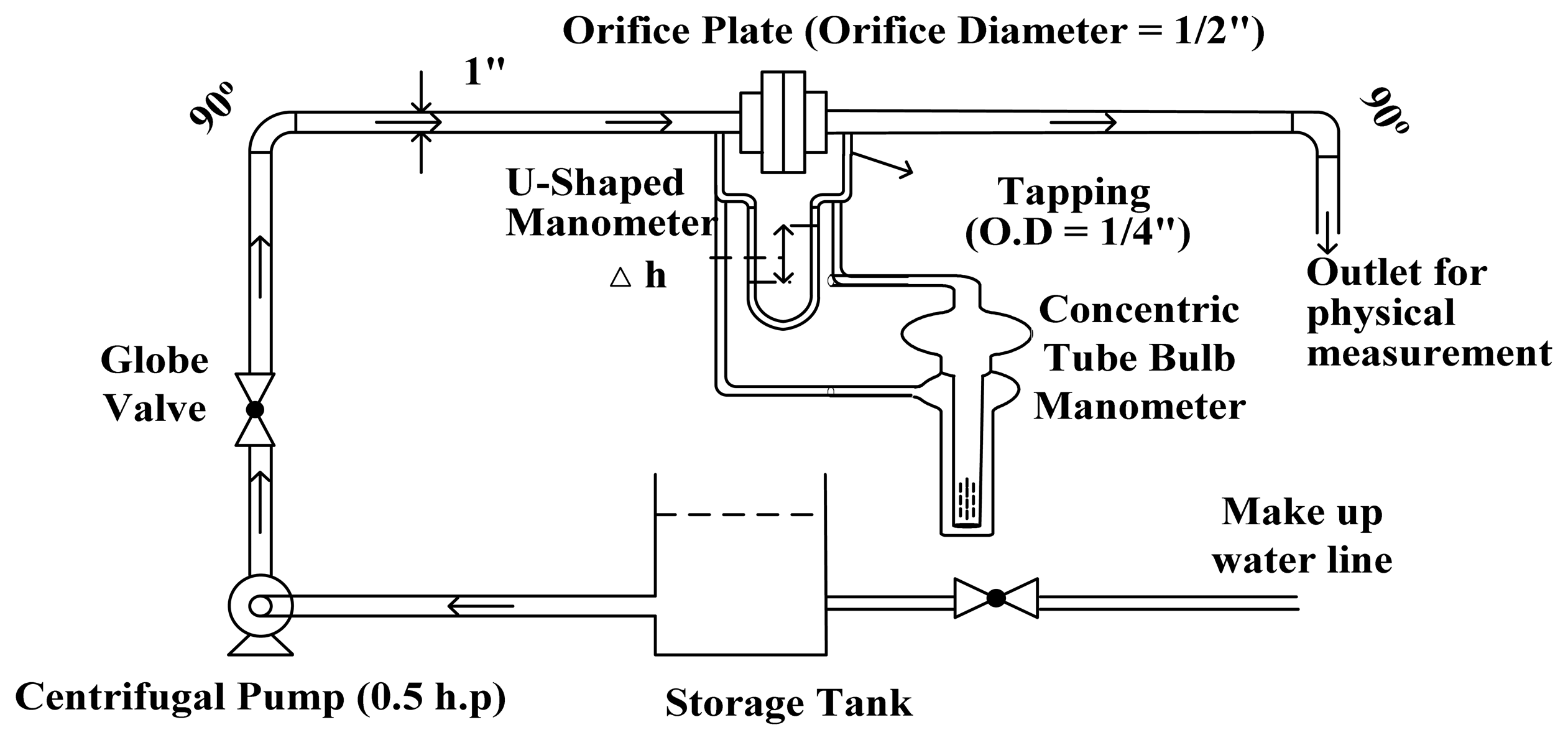

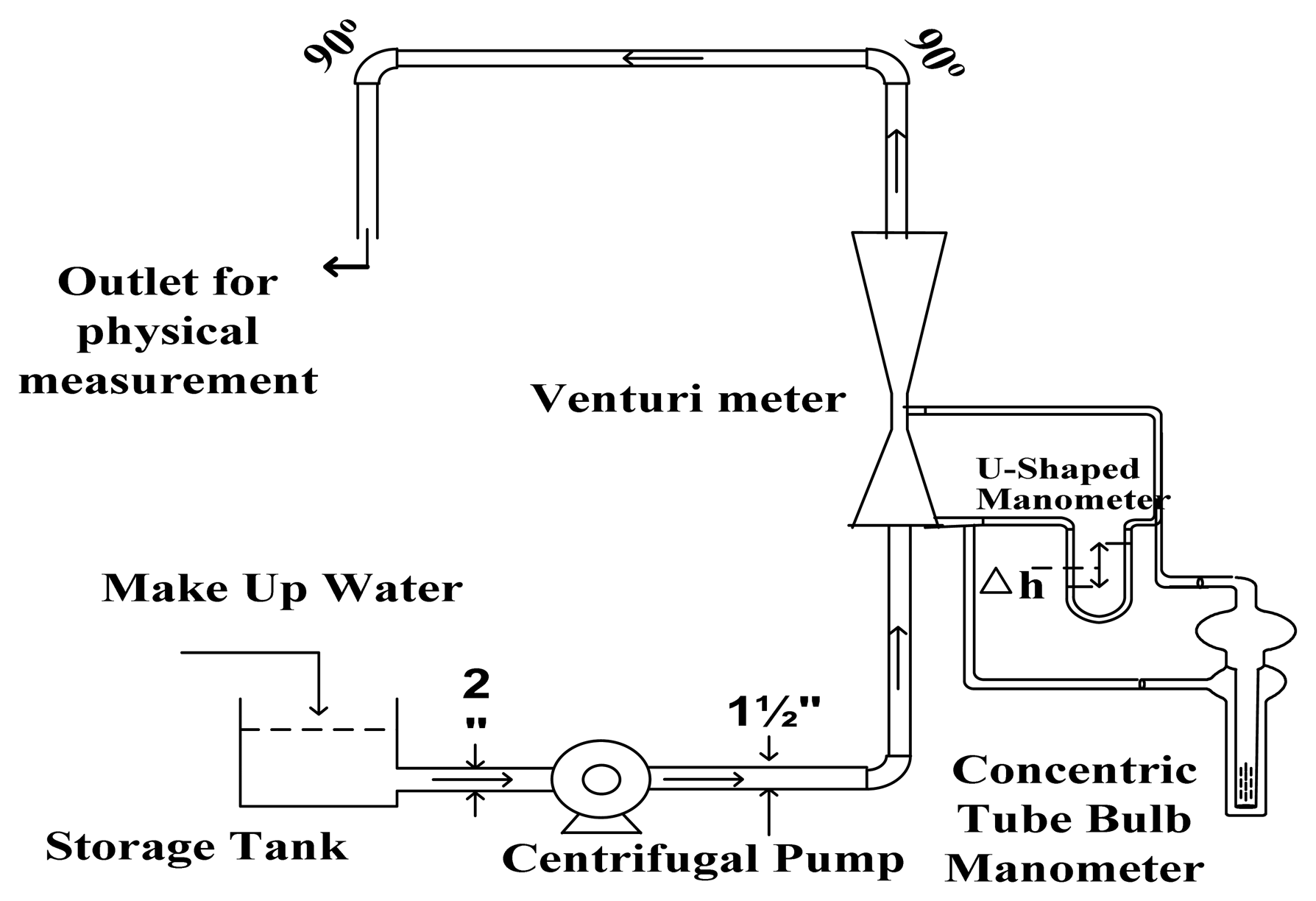

This paper presents comparative study of a new type of manometer calledconcentric tube bulb (C.T.B) manometer. Its performance of measuring differential heightis studied against conventional U-shaped manometer. Pressure drops and mass flow ratesare calculated by taking various systems comprising of different flow measuring devicessuch as orifice and venturimeters using both U- shaped and C.T.B manometers.Comparison between the physically measured values of differential pressure drops andmass flow rates with the calculated values based on theoretical equations is also made.Experiments are carried out using mercury and CCl4 in these manometers as sensing fluids.Water is used as flowing fluid for mass flow rate and pressure drop measurements, whereasin gauge pressure measurements air is used.
Keywords: Comparative study; Differential height; Concentric tube bulb manometer; Mass flow rates; Sensing fluids. Comparative study; Differential height; Concentric tube bulb manometer; Mass flow rates; Sensing fluids.
