A New Overpotential — Capacitance Mechanism for H2 Electrode

1
Department of Physics, University of Missouri-Kansas City, Kansas City, MO 64110, USA
2
Glenn Wei, Weiss Research, Inc., 13211 Stafford Road, Suite 600, Missouri City, , TX 77489, USA
*
Author to whom correspondence should be addressed.
Sensors 2006, 6(10), 1187-1198; https://doi.org/10.3390/s6101187
Submission received: 22 July 2006 / Accepted: 28 September 2006 / Published: 1 October 2006

Abstract

:
The H2 electrode is commonly assumed to be a half-cell, 2 H+ + 2e == H2, and explained by the Nernst equation. We cannot assume that the H+ is easily reduced to H2 in an H2 saturated solution, and H2 becoming oxidized to H+ in a strongly acid solution against the equilibrium principle. How can the H2 gas is involved from a basic solution where there is practically no H+ ions? Another equilibrium has been postulated, H2 (soln) = 2H (adsorbed on metal) = 2 H+ + 2e. This paper reports the results of studying the H2 electrode using various techniques, such as adsorption, bubbling with H2, and N2, charging, discharging, and recharging, replacing the salt bridge with a conducting wire, etc. An interesting overpotential was observed that bubbling H2 into the solution caused a sudden change of potential to more negative without changing the solution pH. The H2 may be replaced by N2 to give a similar calibration curve without the overpotential. The results contradict the redox mechanism. When the Pt is separated by H2 coating, it cannot act as a catalyst in the solution. Our results seem to explain the H2 electrode mechanism as the combination of its overpotential and capacitance potential. Bubbling of H2 or N2 only removes interfering gases such as O2 and CO2. Since neither H2 nor N2 is involved in the potential development, it is improper to call the H2 or N2 electrode. A term of pH / OH Pt electrode, like the pH / OH glass electrode, is suggested.

1. Introduction

The reaction of the H2 electrode has been commonly reported as H2 == 2 H+ + 2e. Since the H+ and H2 are in the solution and the Pt electrode does not take part in the overall reaction, the H2 electrode is considered to be a redox electrode. Two different reaction mechanisms are discussed which may be the Volmer-Tafel mechanism [1, 2].
H + + e = = H ( Volmer reaction )
H + H = = H 2 ( Tafel reaction )
Under certain condition, particularly in an alkaline solution, the Volmer reaction must be modified to be
H 2 O + e = = H + OH
The second reaction mechanism of importance for the H2 electrode is called the Volmer-Heyrovsky mechanism. The complete reaction is
H + + e = = H ( Volmer reaction )
H + + H + e = = H 2 ( Heyrovsky reaction )
The Heyrovsky reaction as well as the Volmer reaction can proceed with H2O molecules. This will be the case particularly in alkaline solution. The whole reaction is
H 2 O + H + e = = H 2 + OH
The redox reaction is represented by the Nernst equation.
E = E o + RT / 2 F ln ( [ H + ] 2 / P H 2 )
There is an important difference between the H2 electrode and other reversible redox electrodes. It is that the exchange equilibrium
H 2 ( soln ) = = 2 H + ( soln ) + 2 e
is not established in the solution phase [1]. If an inert metal electrode is placed in a solution containing H2 and H+, it will assume a potential defined by this equilibrium for the equilibrium does not exist [2]. It must assume to have a catalytic reaction. The above is a brief review and found in analytical chemistry textbooks. We do not report theoretical and kinetic papers on H2 electrode here because they did not provide any experimental evidence for the mechanism. Before we are sure to know the catalytic reactions, it is a black box covered with a “catalysis” sign. It is not convinced for the following reasons:
  • Evolution of H2 at a cathode is opposed.
  • It should be a requirement that the second step of the electrochemical description of hydrogen atoms occur in one cooperative act.
  • No H+ production from H2 has been confirmed.
  • The theoreticians made the redox assumption at the beginning to calculate the kinetics before ascertaining the mechanism [2]. Reaction mechanisms must be confirmed experimentally. In summary, the earlier work was deficient experimentally. Any theory of how the H2 electrode works must be judged by its usefulness and experimental evidence.

2. Results and Discussion

2.1 Use of Pt Wire Instead of Salt Bridge

Our results contradict the existing redox mechanisms. If the H2 electrode acts as a redox cell, there must be a salt bridge to balance the ionic concentrations in the two compartments. Now if we could measure the Pt black potential with a Pt wire, Fig. 1, it would mean we measured the potential requiring no ionic balance. This also means that we measured capacitance potentials [9]. Any redox reactions consisting of two half-cells need a salt bridge. The calibration curves, one with a Pt wire and one with a salt bridge, are shown in Fig. 2. They are identical. The salt bridge can also act as a conducting wire.

2.2 Nernst Hiatuses

The Nernst equation has been commonly used to explain the H2 electrode potential, because it has been assumed that there are equilibrium redox reactions involved in the H2 electrode potential development. This assumption is questionable because we have not found any experimental evidence of redox reactions for the H2 electrode. In the literature, it has generally explained all electrode potentials with the Nernst equation, neglecting the capacitance potential. In recent years, the first Nernst hiatus [5] and the second Nernst hiatus [6] have been reported as it has been misused. It can only be applied to the reversible redox reactions, not to the overpotential or the capacitance potential. In discussing the H2 electrode mechanism, the Equation (1) is commonly cited, E = E° + 0.059 log ([H+] 2 / PH2). This equation shows no relationship of potential and [OH-], and indicates that the potential should be inversely proportional to the H2 pressure. On the contrary, it was found that the Pt black electrode potential was directly proportional to the H2 pressure [3, 4]. Furthermore, after stopping bubbling H2 we did not notice any H2 gas generated on the Pt electrode surface.

2.3. Charging, Discharging and Recharging in Connection with Overpotential

Charging, discharging, and recharging have demonstrated that the Pt electrode potential could be developed to a more negative potential (Figs. 3, 4 and 5). This shows the case of polarization, overpotential (η = Ei − Ee.). This polarization was formed due to the adsorption of a layer of H2 at the Pt electrode interface. The non-conducting gas inhibits the electron current flow. The H2 overpotential was found to be approximately 1040 mV. The misapplication of the Nernst equation to the overpotential is an example of the first Nernst hiatus as pointed out by Bockris [5]. The results shown in Figs. 3, 4 and 5 indicate the storage of charges at the Pt electrode surface; this is the case of a capacitor, not the redox reactions in the solution. Because we could measure the capacitance potential with a conductor instead of a salt bridge, there was no need of balancing ionic concentrations with a limited current. On the other hand, for redox reactions, the electron transfers are taken place in the solution or at the electrode surface. Now the Pt surface is blocked by the H2 gas. Adsorption of H+ and OH- ions at the inner and double layers has caused the Pt electrode potential changes. In the presence of a thin layer of H2 at the Pt interface, the H+ and OH- ions still could diffuse to the Pt surface slowly (Figs. 3, 4, 5 and 6). In an acid solution, the potential is relatively positive, in a basic solution the potential is much more negative. We could not determine the amount of H+ and OH- ions adsorbed on the Pt surface assuming that they were at the interface inner or double layer. But we noticed that addition of acid to the Pt black suspension caused its rapid coagulation, meaning a neutralization of negatively charged Pt colloidal particles by the positively charged H+. With addition of a NaOH solution to the suspension, no coagulation was observed. In the near neutral solutions, we observed adsorption of H+ and OH- by the Pt black particles. If more Pt black was added (say, 5 g. instead of 0.5 g), more pronounced H+ and OH- adsorptions would be observed (Table 1).

2.4. Stirring Effect

Experiments with stirring effects were carried out with a stirring bar without bubbling H2 or N2. Stirring made the potential move to more positive, after stopping the stirring, the potential returned to the original potential [8] (Figs. 7-8). This indicates that stirring did not cause any redox actions, it only disturbed the double layer or triple layer [11]. It is possible that some of N2 was also adsorbed on the Pt, when stirring took place, spinning off the N2, the overpotential effect decreased. However, Hills and Ives stated that in both acid and basic solutions caused polarization [1]. Such different results may need further studies. At least the polarization by stirring is recognized. Also, stirring changes the electrode potential by removing the counterion triple layer and part of double layer [11].

2.5. pH of the Solution Was Independent of Pt Black Electrode Potential

The overpotential of H2 electrode potential was discussed [1]. The results in Fig. 9 show very interesting overpotential phenomena that the electrode changed to very negative potentials with bubbling H2, meantime the solution pH was kept constant. This means that the solution pH was independent of the electrode potential, it does not agree with the Nernst equation. This is another misleading use of the Nernst equation. If we subtract the constant overpotential, we could obtain the smooth calibration curves (Fig. 2). After stopping bubbling H2, we introduced the N2, the potentials gradually returned to more positive at the original position. It seemed that the H2 overpotential effect could be removed by N2 because the Pt adsorbs only insignificant amount of N2 (Figs. 10, 11). These potential changes were mainly caused by physical actions, not by the redox or chemical electron transfers in the solution. We want to stress that our statements are based on our experimental results, not speculative reactions with many mathematical equations.

2.6. No Catalyst

No apparent catalytic reactions were observed. We need experimental evidence to show any catalytic actions of Pt black electrode. We have not found any evolution of H2, or formation of H+ from H2 gas. In the literature, it was assumed that the electron comes from Pt. This seems unlikely because if it comes from Pt, the electrode potential should be positive instead of becoming very negative with bubbling H2. When Pt is separated from the solution by the H2 adsorption, it cannot act as a catalyst in the solution. The proton reduction needs applying a certain voltage, without applied potential there is no H2 gas evolution [13]. In the H2 electrode no potential is applied, its potential is measured.

2.7. Interference

It is known that H2 may react with O2 in the presence of Pt as a catalyst. In the case of the Pt black electrode, the O2 is removed by bubbling with H2 or N2. Other substances interfere as they tend to be adsorbed on the surface to occupy the active sites. Potassium phthalate and FeSO4 are known to interfere. Assume that many other substances would interfere, as the H2 electrode is not a selective technique for pH measurement and used as a reference electrode in a separate container [1].

3. Experimental Section

The Pt black was prepared from the PtCl6 by electroplating it on a Pt strip [1]. The reference electrode was the Ag/AgCl or SCE in a separate beaker containing 3.5 M KCl instead of a commonly used salt bridge, a Pt wire was used (Fig. 1). The pH of the solution was determined by the Weiss Research pH glass electrode and a separate pH meter.

4. Conclusions

Our results have contradicted the prevailing redox mechanisms of the H2 electrode. We believe that it is not a half-cell but instead a capacitor. Its potential is a combination of its overpotential and capacitance potential. The Nernst equation applied to the H2 electrode potential mechanisms, conventionally described in the textbooks, needs to be critically reviewed and scrutinized. We have obtained a calibration curve for potential vs. pH using a Pt wire without a salt bridge and H2 bubbling which are required in the redox reactions. The H2 may serve the purpose of removing the O2, and other interfering gases. Since H2 tends to be adsorbed at the Pt interface interacting with the double or triple layer, the overpotential is resulted in a tremendous negative potential drop. The potential changes are mainly originated from physical actions, not redox reactions. The Nernst equation cannot explain the potential in the alkaline solution because the OH- does not participate in the redox reactions. And there is practically no H+ ion in a basic solution. Stirring also caused the Pt electrode potential changes, not as great as the potential change caused by bubbling with H2, 1040 mV, but meantime the solution pH had remained constant. When Pt is separated from the solution by H2, there is then little chance for Pt to catalyze any redox reactions in solution. This has clearly demonstrated that the Nernst equation has nothing to do with the Pt black. Redox electrodes are not suitable for acting as a reference electrode because they are easily subject to interference. Hills and Ives emphasized that “No simple conclusions emerge upon which to build a general theory of the H2 electrode” [1, p. 83]. Reaction mechanisms must be found by experiments, not by speculation, imagination, or illusion. We should realize that for the H2 electrode the plane Pt does not work, it needs the Pt black with a large amount of surface area for ion adsorption as a capacitor. We have found the adsorption property of Pt black electrode to offer an unusually high sensitivity. The calibration curve slope reached to be 260 mV/pH at pH 3-5, instead of regular 59 mV/pH, with a capillary function [14]. This is another proof of the evidence of adsorption mechanism. In addition, the charging, discharging, and recharging results clearly demonstrate the origin of electrode potentials.
We would like someone to repeat our experiments and offer their interpretations. Our results may be just the beginning to stimulate further studies on the double and triple layers of Pt electrode interface. We welcome any new ideas and mechanism with experimental supports. Recently the IUPAC Analytical Chemistry and Physical Chemistry Divisions solicited suggestions on pH definition and mechanism concept [12]. Readers may find our unconventional results interesting and try some fresh ideas. In practice, our results will not change anything for the H2 electrode, we still take it as a standard reference electrode, arbitrarily to be E° = 0.00 V. We may change its mechanism, Ered to Ecapacitance. We would like to emphasize that in order to understand how the electrode works we must find its mechanism experimentally with correct assumptions. Any theoretical speculations must be verified by facts and logics. It is important to teach our future chemists the correct concepts and mechanisms of the fundamental reference electrode. We like to emphasize that all commonly used important reference electrodes, H2, calomel, Ag/AgCl, and pH glass electrodes are capacitors, not redox half-cells.

Acknowledgments

The authors thank the K. L. Cheng Trust for its financial support.

References

  1. Ives, D. J.G.; Janz, G. J. Reference Electrodes.; Academic Press: New York, 1961. [Google Scholar]
  2. Vetter, K. J. Electrochemical Kinetics.; Academic Press: New York, 1967. [Google Scholar]
  3. Bates, B. G. Determination of pH. Theory and Practice, 2nd ed.; Wiley: New York, 1964. [Google Scholar]
  4. Beans, H.T.; Hammett, P. Experimental Studies on the H2 Electrode. J. Am. Chem. Soc. 1925, 47, 1215–1226. [Google Scholar]
  5. Bockris, J. O'M.; Reddy, A. K. N. Modern Electrochemistry; Vol. 1, Plenum: New York, 1977; p. 16. [Google Scholar]
  6. Cheng, K.L. Microchem. J. 1990, 42, 5–24.Also Internet J. of Chem. 2001, 4, 1.
  7. Cheng, K. L. pH Glass Electrode and Its Mechanism. In Electrochemistry, Past and Present; Stock, J.T., Orno, M. V., Eds.; ACS Symposium Series: Washington, D.C., 1989; 390, pp. 286–302. [Google Scholar]
  8. Huang, C. I.; Huang, H.J.; Cheng, K. L. Applications of Membrane-Mimetic Chemistry; Yen, T. F., et al., Eds.; Plenum: NY, 1994; pp. 209–225. [Google Scholar]
  9. Cheng, K.L. Microchem. J. 1998, 59, 323–325.
  10. Cheng, K.L. Microchem. J. 1998, 59, 457–461.
  11. Cheng, K.L. J. Coll. Interface. Sci. 2001, 239, 385–390.
  12. Murray, R.W. IUPAC revised, (Editorial). Anal. Chem. 1998, 70, 623 A.Also Anal. Chem. 1997, 69, 521 A.
  13. Zhou, J.; Zu, Y.; Bard, A.J. Scanning electrochemical microscopy part 39. J. Electroanal. Chem. 2000, 491, 22–29. [Google Scholar]
  14. Sun, Y.; Wei, G.; Cheng, K. L. An unusually high sensitivity of platinum black pH electrode. Paper presented at the 80thACS Colloid and Surface Science Symposium, the University of Colorado, June 20, 2006.

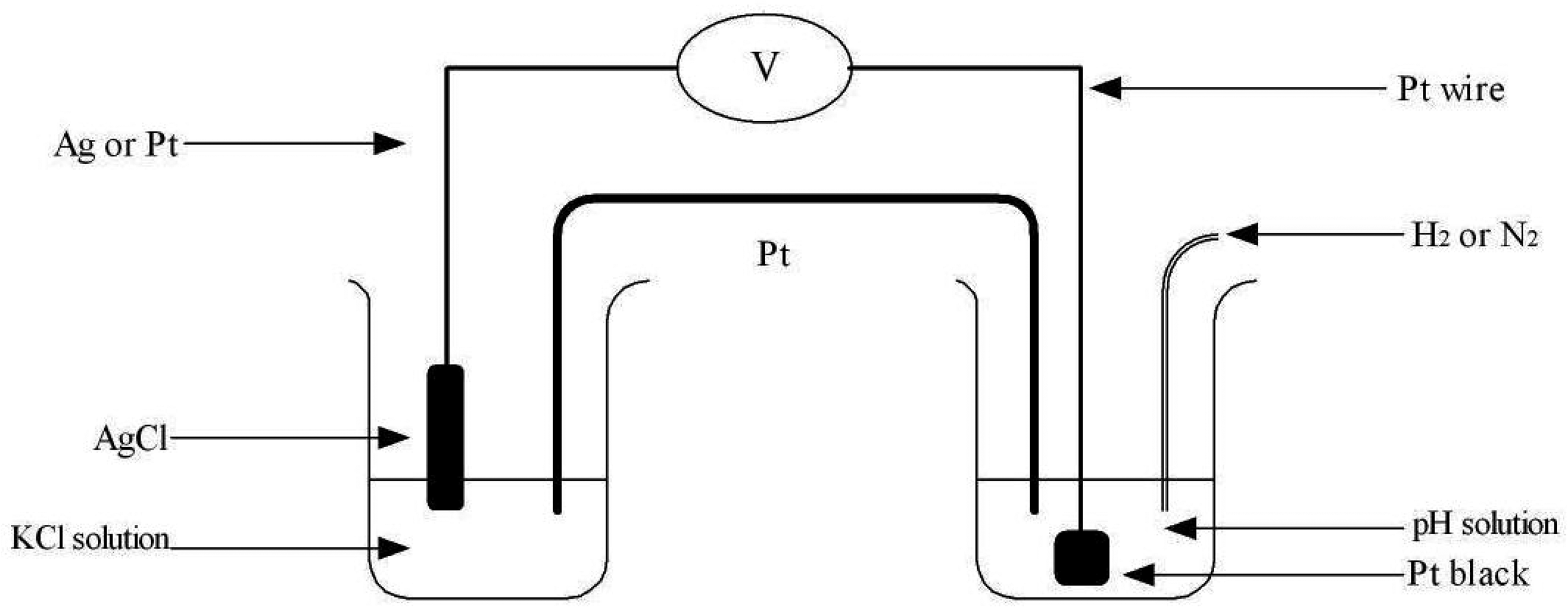

Figure 1. Experimental setup. Ag/AgCl or Pt/AgCl electrode is dipped progressively in a solution of KCl. Potentials are measured against a constant pH glass electrode.
Figure 1. Experimental setup. Ag/AgCl or Pt/AgCl electrode is dipped progressively in a solution of KCl. Potentials are measured against a constant pH glass electrode.
Sensors 06 01187f1

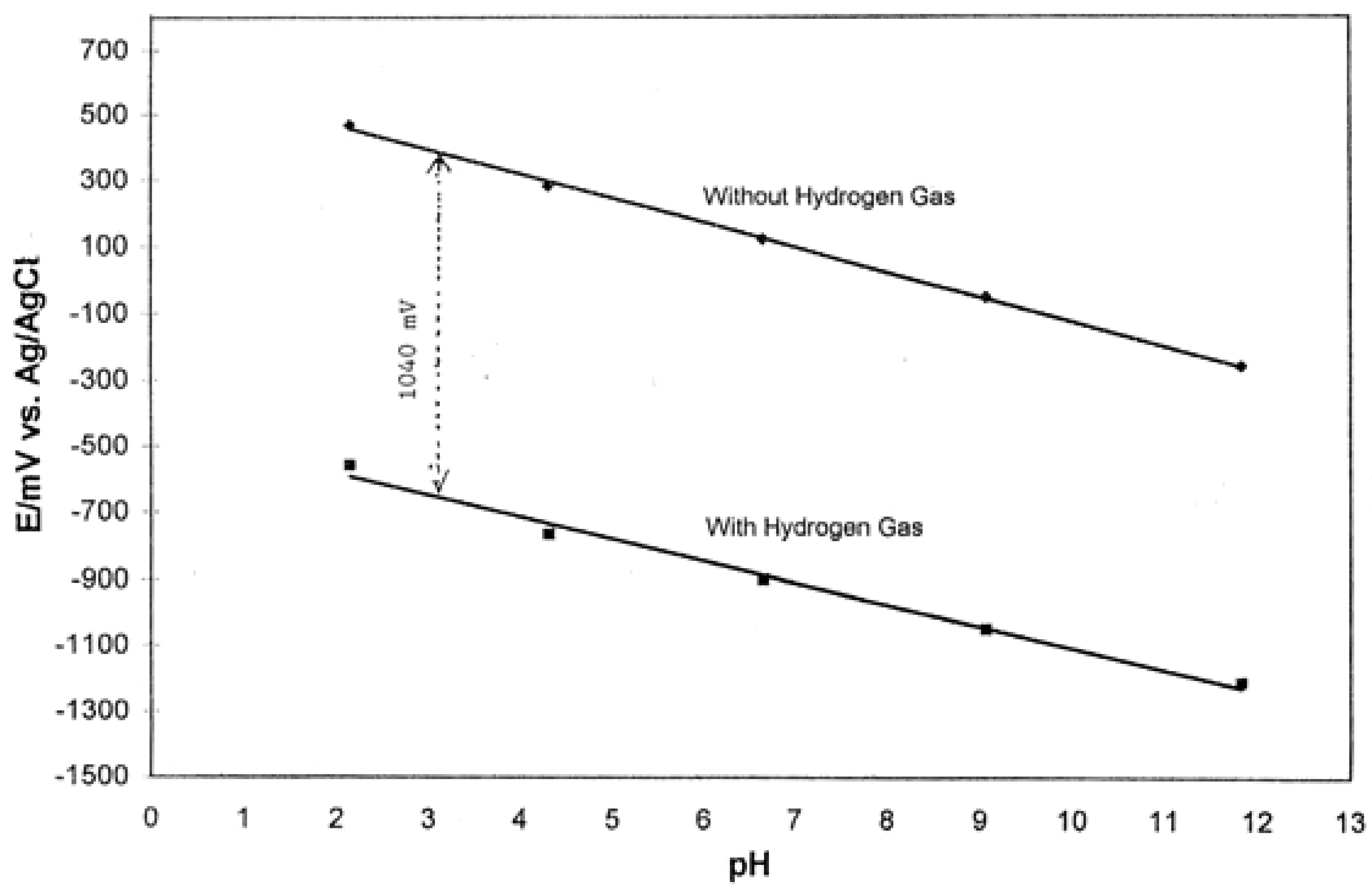

Figure 2. Calibration Curve with Pt-Black as Indicator Electrode Overpotential Effect.
Figure 2. Calibration Curve with Pt-Black as Indicator Electrode Overpotential Effect.
Sensors 06 01187f2

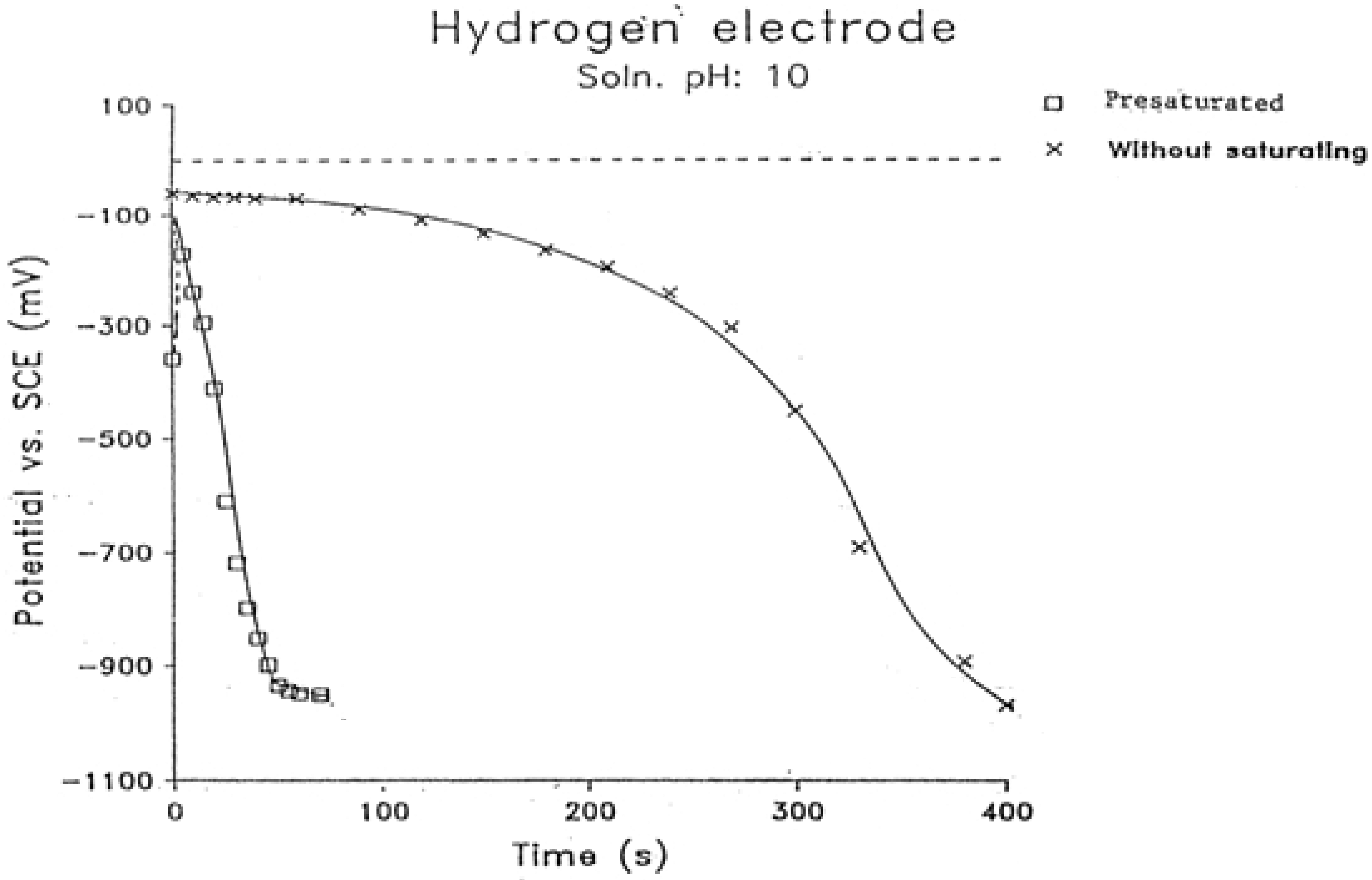

Figure 3. Potential changes during charging of hydrogen electrode both with and without presaturation of solution with H2 gas.
Figure 3. Potential changes during charging of hydrogen electrode both with and without presaturation of solution with H2 gas.
Sensors 06 01187f3

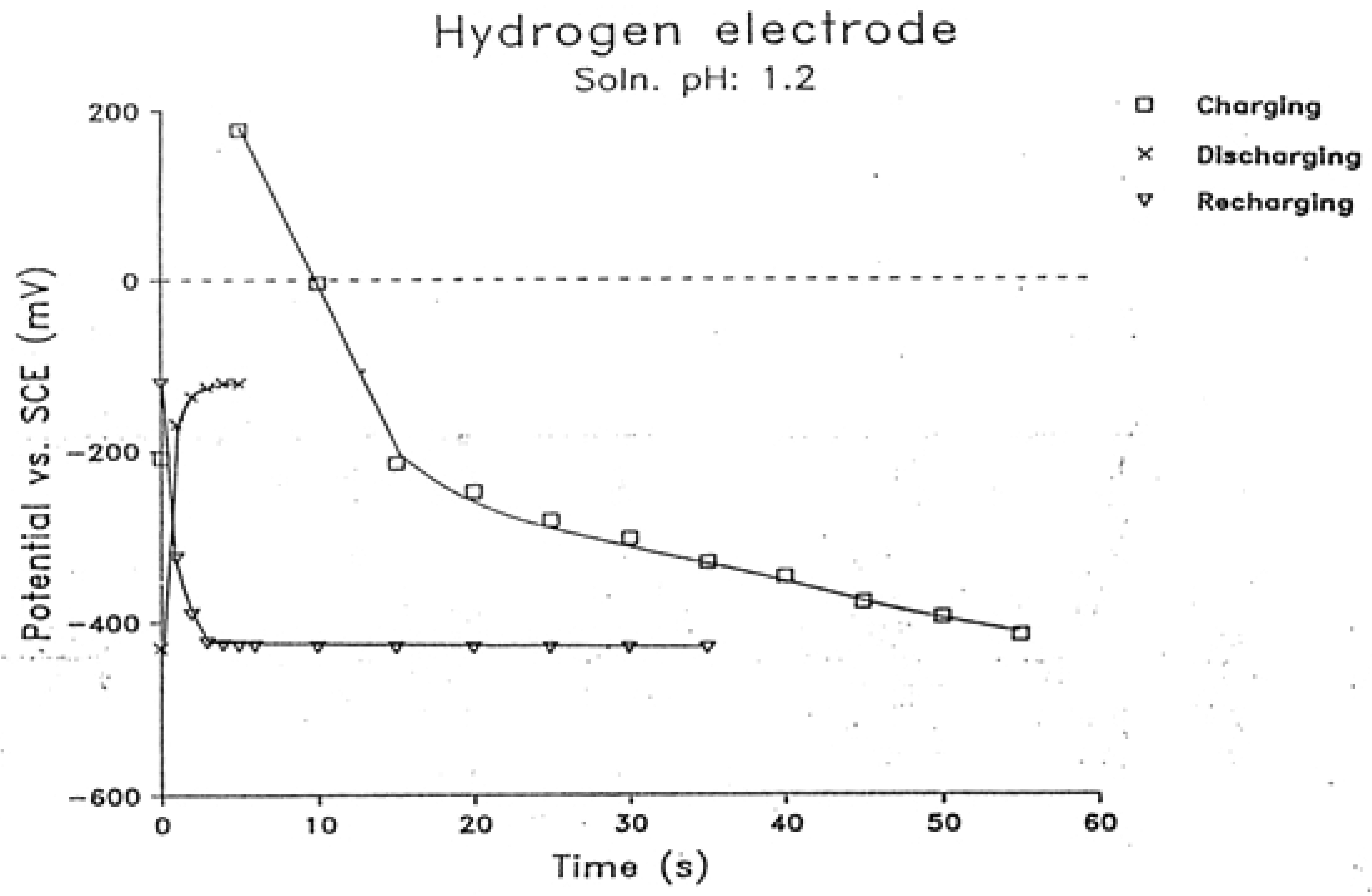

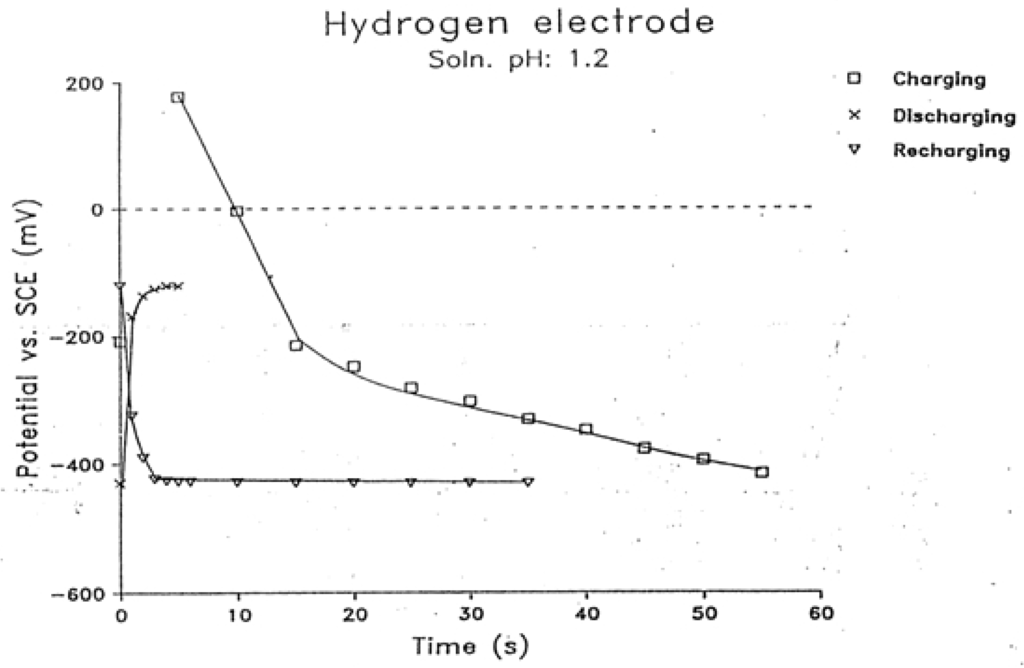

Figure 4. Potential changes during charge, discharge, and recharge of hydrogen electrode (solution pH: 1.2).
Figure 4. Potential changes during charge, discharge, and recharge of hydrogen electrode (solution pH: 1.2).
Sensors 06 01187f4

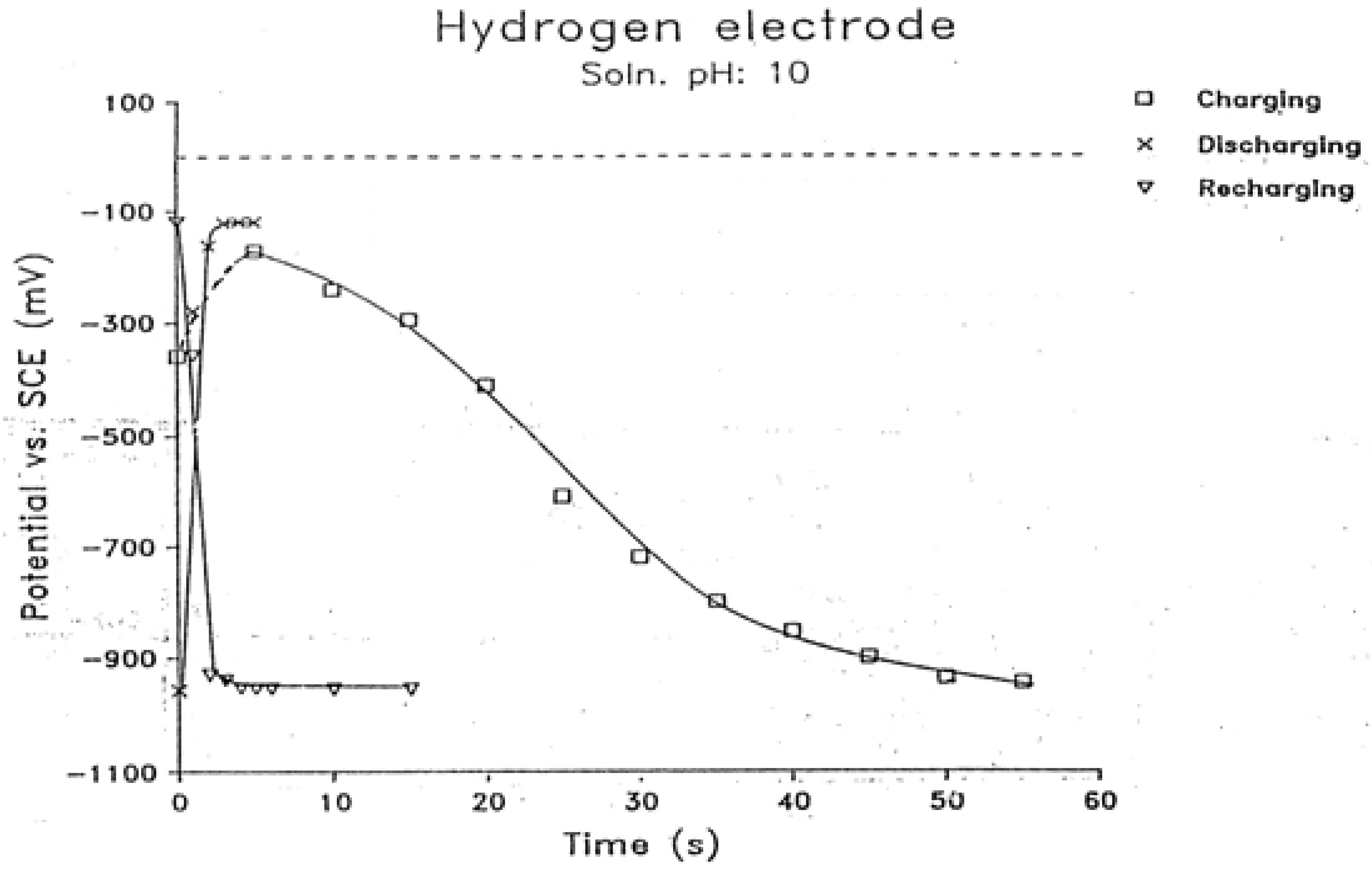

Figure 5. Potential changes during charge, discharge, and recharge of hydrogen electrode (solution pH: 10).
Figure 5. Potential changes during charge, discharge, and recharge of hydrogen electrode (solution pH: 10).
Sensors 06 01187f5

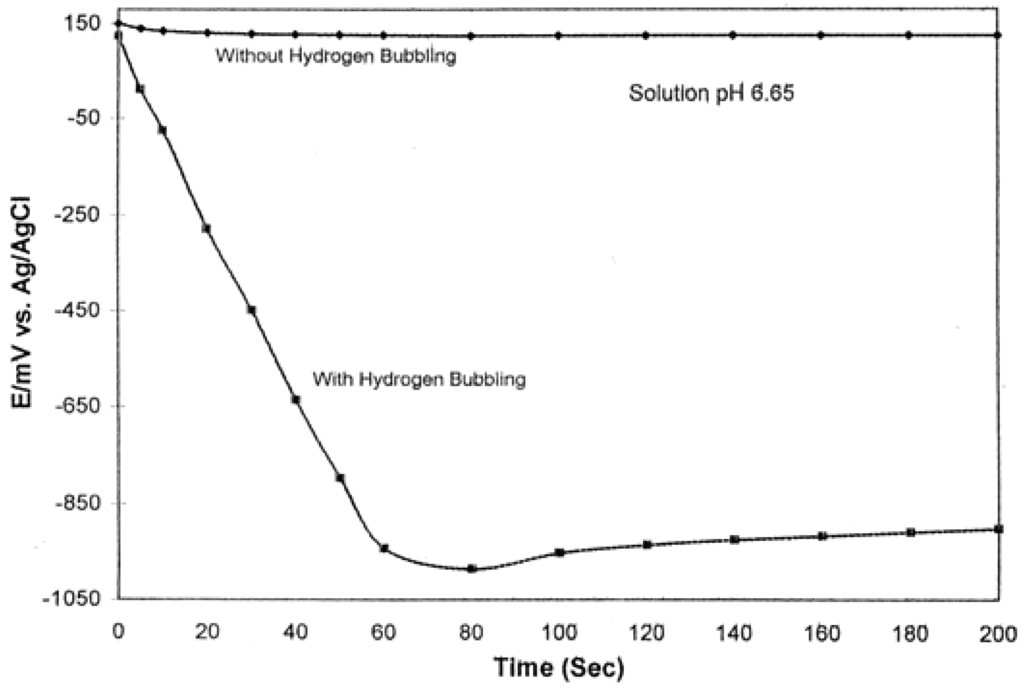

Figure 6. Change of Pt – Black Electrode Potential with or without Hydrogen Gas.
Figure 6. Change of Pt – Black Electrode Potential with or without Hydrogen Gas.
Sensors 06 01187f6

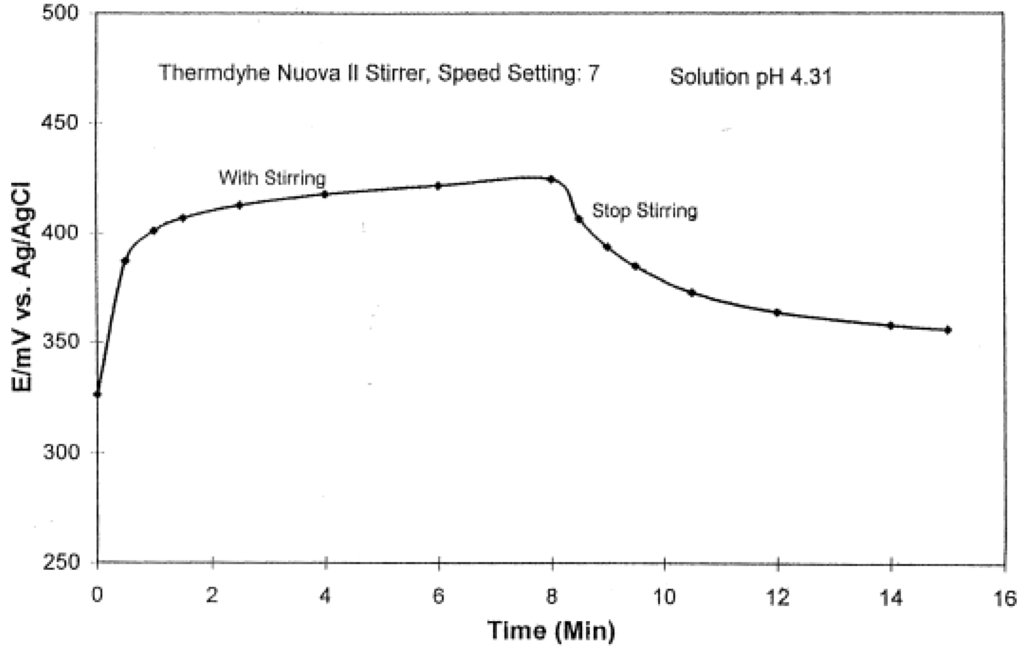

Figure 7. Stirring Effect on Potential of Pt – Black Electrode in Acidic Solution.
Figure 7. Stirring Effect on Potential of Pt – Black Electrode in Acidic Solution.
Sensors 06 01187f7

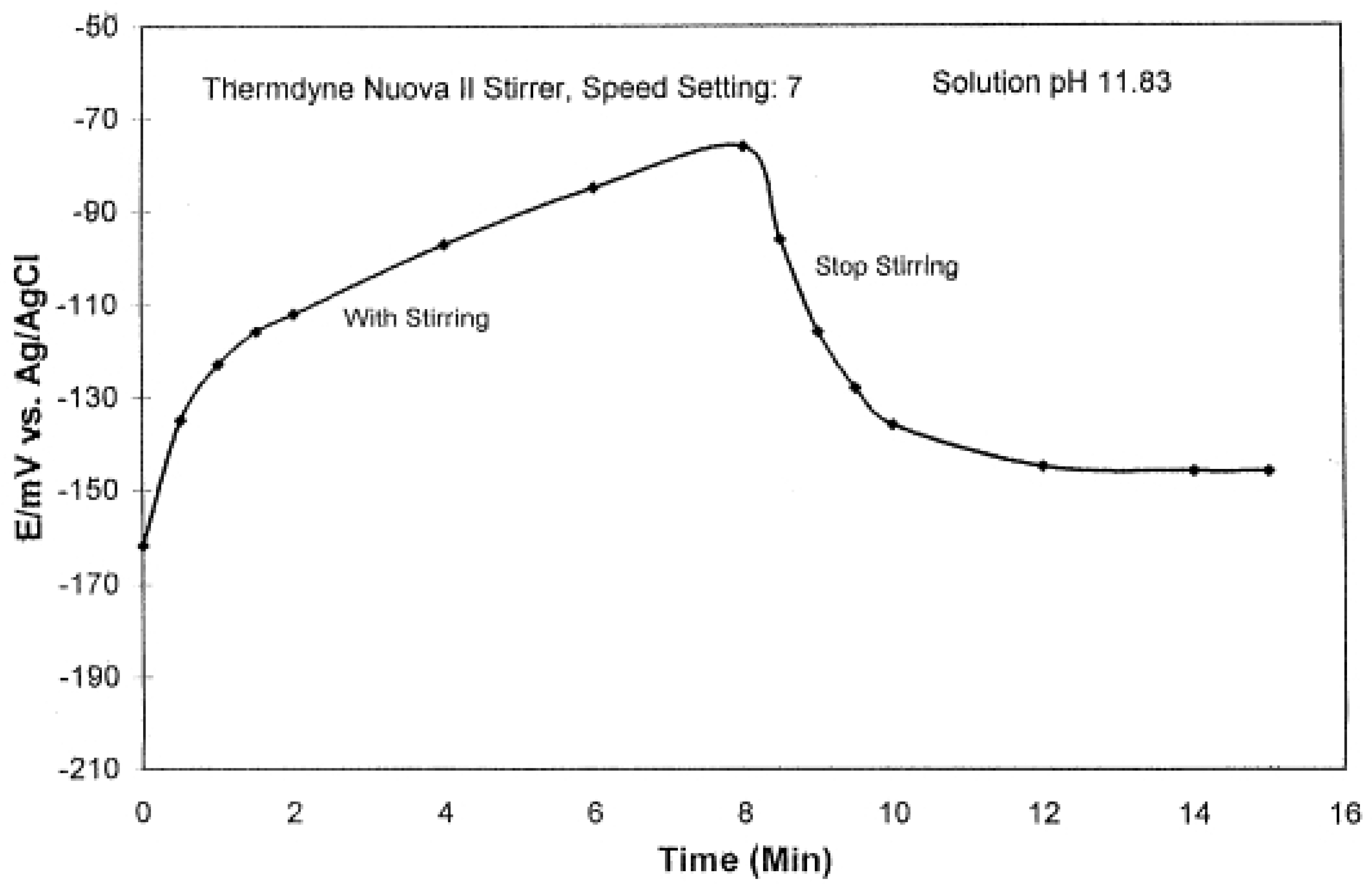

Figure 8. Stirring Effect on Potential of Pt – Black Electrode in Basic Solution.
Figure 8. Stirring Effect on Potential of Pt – Black Electrode in Basic Solution.
Sensors 06 01187f8

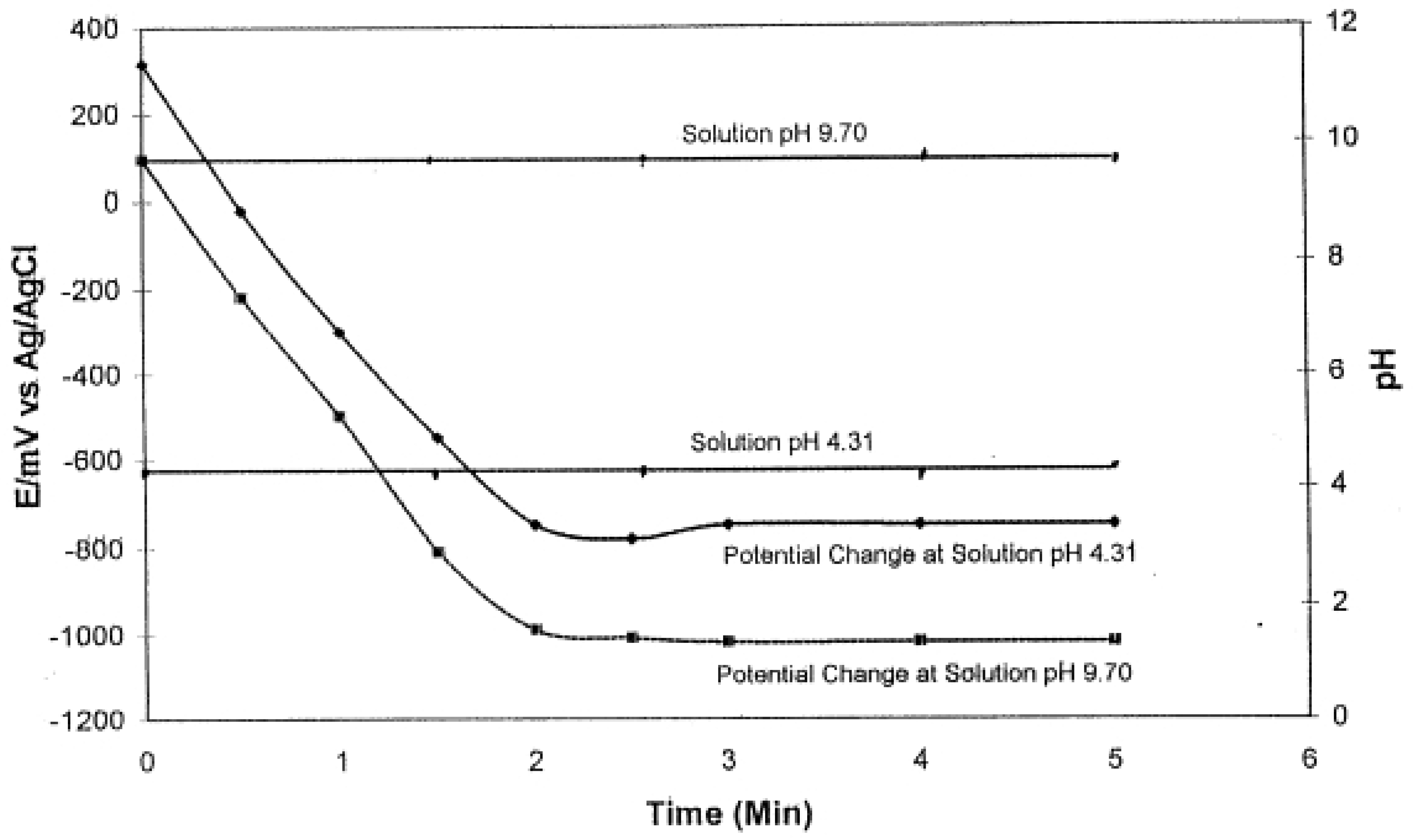

Figure 9. Effect of Bubbling Hydrogen Gas on Potential of Pt – Black Electrode in Acid and Basic Solution.
Figure 9. Effect of Bubbling Hydrogen Gas on Potential of Pt – Black Electrode in Acid and Basic Solution.
Sensors 06 01187f9

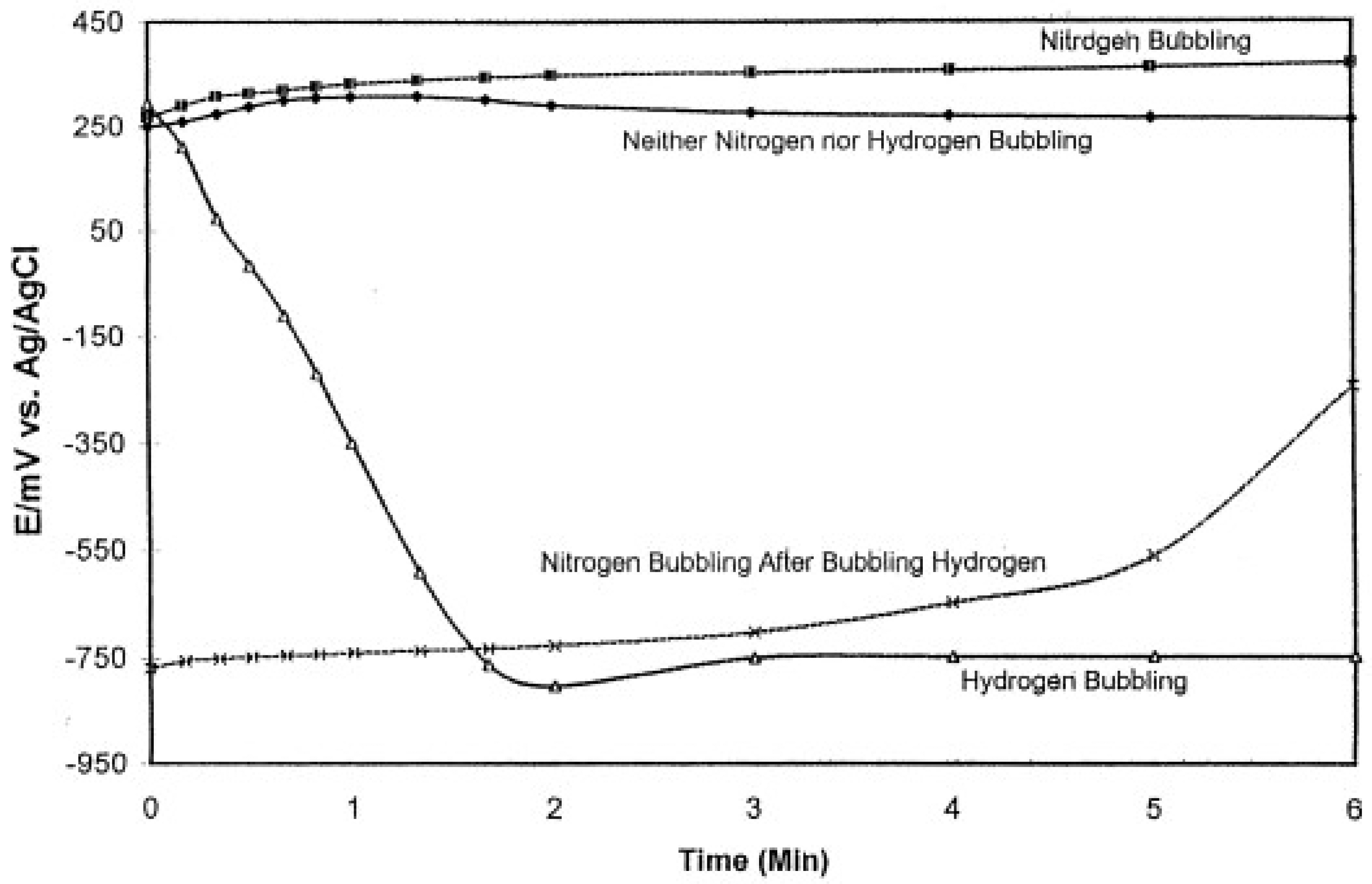

Figure 10. Effect of Bubbling Hydrogen or Nitrogen Gas on Potential of Pt – Black Electrode at pH 4.38.
Figure 10. Effect of Bubbling Hydrogen or Nitrogen Gas on Potential of Pt – Black Electrode at pH 4.38.
Sensors 06 01187f10

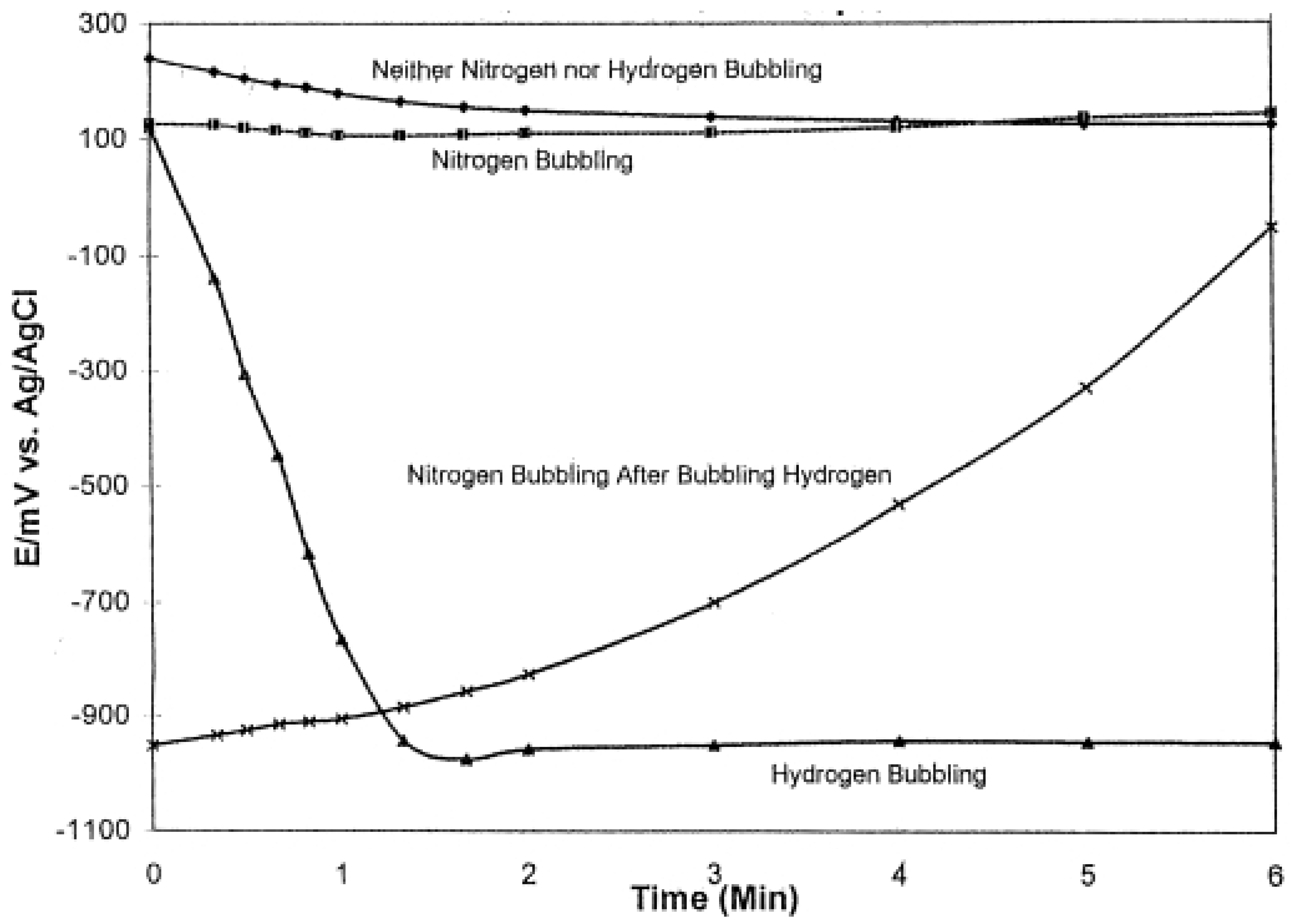

Figure 11. Effect of Bubbling Hydrogen or Nitrogen on Potential of Pt – Black Electrode at pH 8.50.
Figure 11. Effect of Bubbling Hydrogen or Nitrogen on Potential of Pt – Black Electrode at pH 8.50.
Sensors 06 01187f11
Table 1. Adsorption of H+ and OH- by Pt black powder in different pH solutions.
Table 1. Adsorption of H+ and OH- by Pt black powder in different pH solutions.
pH of solution
Before adding Pt black1.242.214.316.509.4311.791.44*
After adding Pt Black1.262.225.266.257.1511.601.44
5.0 g of Pt black powder was added to 20 mL of un-buffered solution.
Bubbled with H2 gas.
*No H2 gas added.
