High-Sensitive Microwave Humidity Sensor Using Polyvinyl Alcohol/Carboxymethyl Cellulose (PVA/CMC) Composites

by
Junho Yeo
1,* and
Younghwan Kwon
2
1
Department of Artificial Intelligence, Daegu University, 201 Daegudae-ro, Gyeongsan-si 38453, Republic of Korea
2
Department of Energy System Engineering, Daegu University, 201 Daegudae-ro, Gyeongsan-si 38453, Republic of Korea
*
Author to whom correspondence should be addressed.
Sensors 2026, 26(4), 1099; https://doi.org/10.3390/s26041099
Submission received: 29 December 2025 / Revised: 3 February 2026 / Accepted: 6 February 2026 / Published: 8 February 2026
(This article belongs to the Special Issue Advanced Microwave Sensors and Their Applications in Measurement)
Browse Figures
Versions Notes

Abstract

This study investigates the humidity sensing characteristics of microwave sensors coated with polyvinyl alcohol/carboxymethyl cellulose (PVA/CMC) composites with different weight percentages. The microwave sensor has a band-stop filter characteristic and consists of a microstrip transmission line with an interdigital capacitor-defected ground structure (IDC-DGS). To evaluate performance, PVA/CMC composites were prepared in 100/0 (pure PVA), 90/10, 80/20, 60/40, and 0/100 (pure CMC) weight percentages. The humidity sensing capability of the IDC-DGS-based microwave sensors coated with the PVA/CMC composites with different weight percentages was compared by measuring the variations in the resonant frequency and magnitude level of the transmission coefficient. The relative humidity (RH) was changed from 40% to 90% with increments of 10% at a temperature around 25 °C. The experimental results demonstrate that the humidity sensing capability of the microwave sensor in terms of the variations in the resonant frequency and magnitude level of the transmission coefficient increased as the weight percentage of CMC content increased. Pure CMC shows enhanced humidity sensing performance compared to gelatin and PVA in terms of the percent relative frequency shift and effective relative permittivity.

1. Introduction

Humidity is one of the most widely measured physical quantities along with temperature across diverse sectors [1]. In recent years, accurate measurement and control of humidity has become increasingly important because it affects people and the surrounding environment across various areas, such as human health, industrial production, and environmental management [2]. Relative humidity (RH) is the percentage ratio of the current amount of water vapor in the air to the maximum (saturated) possible water vaper at the same given temperature [3], and it is most commonly used for humidity measurement because of simple sensing structure and low cost. While various humidity transduction methods exist—including electrical, optical, surface acoustic waves, piezoresistive, and magnetoelastic [4]—resistance, capacitance, or impedance methods using the electrical characteristics of humidity sensing materials have been widely used because of their advantages, such as low cost, ease of fabrication, and sensitivity across a broad range of humidity levels [5].
The detection of the RH fundamentally relies on the physical and chemical interactions between sensing materials and water molecules. Consequently, materials characterized by porous architectures and high surface-to-volume ratios are highly sought after to maximize sensitivity [6]. These humidity-sensitive materials are generally classified into five major categories: ceramics, carbon-based nano-materials, two-dimensional (2D) materials, polymers, and their respective composites [7]. Semiconducting metal oxides, perovskites, and spinel-type oxides represent the conventional ceramic approach [8]. More recently, carbon-based nano-materials—ranging from carbon black (CB), carbon dots (CDs), carbon fibers (CFs), carbon nano-coils (CNCs), carbon nano-tubes (CNTs) to nitrogen-doped carbon oxide quantum dots (NCQDs)—have demonstrated significant potential for the humidity sensing materials [9,10,11,12,13,14,15]. Furthermore, 2D materials, including graphene, graphene oxide (GO), MXene, transition metal dichalcogenides (TMDC), black phosphorus, and titanium disillicide (TiSi2), has introduced ultra-thin sensing platforms with good sensitivity [16,17,18,19,20,21].
Resistive polymer humidity sensors measure the RH by detecting changes in the electrical resistance or conductivity [2,22]. Polyelectrolytes, such as quaternary ammonium salt, sulfonate salt, and phosphonium salt, utilize an ionic conduction through ionic salts to detect the RH [3], whereas conducting polymers—including polyaniline (PANI), polypyrrole (PPy), poly(4-vinylpyridine) (PVP), polythiophene (PTh), poly(3,4-ethylenedioxythiophene) (PEDOT), and poly(3,4-ethylenedioxythiophene)–poly(styrene-sulfonate) (PEDOT-PSS)—use electronic conduction to modulate resistance in response to moisture levels [23,24,25,26,27,28].
Capacitive polymer humidity sensors measure the RH by detecting changes in the electrical capacitance through the variations in relative permittivity of polymers [7]. To date, various synthetic insulating polymers, such as polyimide (PI), poly(methyl methacrylate) (PMMA), poly(2-hydroxyethyl methacrylate) (PHEMA), poly(vinyl alcohol) (PVA), and polyethyleneimine (PEI), have been used [29,30,31,32,33]. Recently, biopolymers obtained from living organisms, such as alginate, agarose, chitosan, cellulose acetate butyrate (CAB), cellulose nanofibers (CNF), gelatin, konjac glucomannan (KGM), psyllium, and starch, have been extensively investigated for capacitive polymer humidity sensors offering bio-compatibility with good sensitivity [34,35,36,37,38,39,40,41,42].
Recently, composite materials incorporating diverse material classes have been extensively investigated for humidity sensors to overcome the limits of single materials and achieve enhanced sensing properties [7]. In particular, polymer-based composite materials, such as blending of different polymers, polymers with metal oxides, polymers with carbon-based nano-materials, and polymers with 2D materials, offer a versatile platform through various blending strategies [6]. Examples of polymer-polymer blends are PVA/poly acrylic acid (PAA), PANI/PVA, and polyethylene oxide (PEO)/PVA [43,44,45]. Regarding polymers with metal oxides, notable examples include zinc oxide (ZnO)/polyethylenimine (PEI), ZnO/PANI, and titanium dioxide (TiO2)/PPy [46,47,48]. Furthermore, researchers have investigated polymers integrated with carbon-based nano-materials, such as CB/PI, CNF/CB, PI/multi-walled CNT, and single-walled CNT/PVA [49,50,51,52]. Recently, polymer-2D material hybrids, including PI/GO, PVA/mxene, and PPy/reduced GO (rGO) have also gained significant attention [53,54,55].
PVA is a water-soluble synthetic polymer characterized by a carbon backbone combined with hydroxyl (-OH) functional groups [39]. CMC is a water-soluble derivative of cellulose with anionic carboxymethyl groups (i.e., -CH2COOH) bound to some of hydroxyl groups of cellulose [56], and it has been widely used as a suspending and thickening agent in the biomedical, food, pharmaceutical, and textile industries. Since CMC is not stable in a high humidity environment, a resistive humidity sensor using CMC cross-linked with epichlorohydrin (ECH) was studied [57]. Alternatively, CMC can be effectively cross-linked with PVA through the hydrogen bonding between the OH groups in PVA and the carboxymethyl groups in CMC [58]. While previous studies have characterized the differential scanning calorimetery (DSC), thermogravimetric analysis (TGA), dielectric, and electrical properties of the PVA/CMC composite with different weight percentages [59,60], the humidity sensing characteristics of the PVA/CMC composites with different weight percentages using a capacitive microwave sensor have not yet been investigated.
In this paper, the humidity sensing performance of the PVA/CMC composites across various weight percentages was evaluated. Planar microwave sensors have been widely used because of their advantages, such as their low profile, low cost, their simple structure, and their ease of fabrication [61]. To characterize these materials, we employed a high-sensitivity microwave sensor featuring a microstrip transmission line integrated with an interdigital capacitor-defected ground structure (IDC-DGS). The IDC-DGS configuration was specifically selected for its superior sensitivity to relative permittivity variations compared to alternative designs, such as single-ring, rotated single-ring, or double-ring complementary split-ring resonators [32,39,62]. The PVA/CMC composites—prepared in 100/0, 90/10, 80/20, 60/40, and 0/100 weight percentages—were coated onto the IDC-DGS region of the microwave sensors. Sensing performance was analyzed by monitoring shifts in the first resonant frequency and the corresponding magnitude of the transmission coefficient (S21) for the microwave sensors. Measurements were conducted under RH levels ranging from 40% to 90% (in 10% increments) at a controlled temperature of 25 °C in a commercial temperature and humidity chamber.
Figure 1 shows the sensing mechanism of the proposed IDC-DGS-based microwave sensor coated with the PVA/CMC composite. When the coated PVA/CMC composite on the IDC-DGS-base microwave sensor is exposed to a specific RH within the environmental chamber, it undergoes a direct interaction with ambient water molecules. This interaction induces a significant modulation in the relative permittivity and loss tangent of the composite material. Specifically, as the RH increases, the higher concentration of absorbed water molecules elevates the effective relative permittivity and dielectric loss of the PVA/CMC composite, consequently leading to a downward shift in the resonant frequency of the S21 characteristic and a simultaneous increase in the magnitude level. These concurrent variations in the transmission characteristics serve as the fundamental mechanism for humidity detection. All electromagnetic simulations were performed using CST Studio Suite (Dassault Systèmes Co., Vélizy-Villacoublay, France) [63].

2. Structure and Characteristics of IDC-DGS-Based Microwave Sensor

Figure 2a shows the structure of the IDC-DGS-based microwave sensor, and its input reflection and transmission coefficients with a band-stop characteristic are shown in Figure 2b. The IDC-DGS-based microwave sensor was designed on a 50 mm × 50 mm RF-301 substrate (relative permittivity εr = 2.97, thickness h = 0.76 mm, loss tangent tan δ = 0.0009) to achieve the first resonant frequency (fr) of S21 at 1.5 GHz under unloaded (uncoated) conditions [32,39]. A 50 Ω microstrip transmission line with a width of 1.68 mm was positioned on the top side of the substrate, while the IDC-DGS was etched on the bottom ground plane. The IDC-DGS consists of a square aperture and a ridge with an IDC-shaped gap [62], with an outer dimension of 16.01 mm and gap width of 0.5 mm. Other geometric dimensions are shown in Figure 2a. To ensure complete coverage of the sensing area, the PVA/CMC composite was applied over an area of 18.05 mm in length, which is slightly larger than that of the IDC-DGS, with a measured thickness of 0.02 mm [32,39].
Figure 3 illustrates the simulated performance of the IDC-DGS-based microwave sensor, focusing on the S21 responses as a function of frequency, and the first resonant frequency (fr) and the percent relative frequency shift (PRFS) of the S21. These parameters were analyzed as a function of the relative permittivity (εr) for the 0.02 mm thick polymer coating, which varied from 1 to 80 (assuming tan δ = 0). The PRFS is defined as the percentage difference between the loaded and unloaded first resonant frequencies relative to the unloaded first resonant frequency for S21 [32,39,64]. As shown in Figure 3b, the first resonant frequency exhibited a cubic decline from 1.5 GHz to 1.176 GHz, when the relative permittivity increased from 1 to 80. Concurrently, the PRFS followed a cubic growth trend, rising from 0% to 21.6%.
Table 1 summarizes the simulated first resonant frequencies and the corresponding PRFS values for S21 responses as a function of the coating’s relative permittivity, ranging from 1 to 80.
Utilizing the simulated PRFS data for various relative permittivity values listed in Table 1, a cubic regression model was established. The mathematical relationship between the relative permittivity and PRFS was derived using the regression analysis tool in SigmaPlot software (Systat Software Inc., San Jose, CA, USA) [65], as expressed in the following equation:
ε r = C 0 + C 1 × P R F S + C 2 × ( P R F S ) 2 + C 3 × ( P R F S ) 3
where C 0 = 1.0513 , C 1 = 2.5286 , C 2 = 0.0368 , and C 3 = 0.0007 .

3. Experiment Results and Discussion

Figure 4a displays prototypes of the fabricated IDC-DGS-based microwave sensors, coated with the PVA/CMC composites at different weight percentages (100/0, 90/10, 80/20, 60/40, and 0/100). The PVA (degree of polymerization = 1500, degree of saponification = 99 mol%) was purchased from Yakuri Pure Chemicals Co., Ltd., Kyoto, Japan [32,39]. The CMC sodium salt (CMC Na) was obtained from Duksan C&P Co. Ltd., Daejeon, Republic of Korea. The fabrication process of the sensing layers was performed in four distinct stages.
First, the PVA/CMC polymer composite solutions with a concentration of 5 wt% using different weight percentages of 100/0, 90/10, 80/20, 60/40, and 0/100 were prepared by dissolving each PVA/CMC polymer composite using deionized water as a solvent. Second, 55 mg of each PVA/CMC polymer composite solution was spread over the IDC-DGS sensing area of each fabricated microwave sensor using a precision brush. Third, the PVA/CMC polymer composite-coated microwave sensors were primarily dried using a convection oven (OF4-10P, JEIO TECH Co., Ltd., Daejeon, Republic of Korea) for about 120 min at a temperature of 60 °C. Finally, to ensure complete solvent removal, a subsequent overnight drying process was conducted in a vacuum oven (JSOV-30T, JS Research Inc., Gongju, Republic of Korea) at a temperature of 80 °C. The average thickness of the PVA/CMC polymer composite coating was measured by using a field-emission scanning electron microscopy (S-4300, Hitachi Co., Ltd., Tokyo, Japan) at a voltage of 15 kV, and it was around 0.02 mm (20 μm), as shown in Figure 4b.
Figure 5 shows the block diagram of the humidity measurement setup. Measurements were conducted within a calibrated commercial temperature and humidity chamber (DS-150MP, Daewon Science Inc., Bucheon, Republic of Korea). The S21 characteristics of the fabricated microwave sensors coated with the PVA/CMC composites at different weight percentages of 100/0, 90/10, 80/20, 60/40, and 0/100 were acquired by using the Tektronix TTR 506A (Beaverton, OR, USA) vector network analyzer.
To evaluate sensing performances, the RH of the DS-150MP temperature and humidity chamber was incrementally increased from 40% to 90% (in 10% steps) at a constant temperature of 25 °C. At each step, a 30 min stabilization period was maintained to ensure both environmental equilibrium within the chamber and complete moisture absorption by the PVA/CMC sensing layers before data were recorded on a notebook computer.
Figure 6 presents the measured S21 characteristics of the fabricated microwave sensors coated with the five different weight percentages of the PVA/CMC composites. When unloaded, the fabricated IDC-DGS-based microwave sensors exhibited the measured first resonant frequency around 1.526 GHz with a corresponding magnitude of −37.38 dB. For the pure PVA (PVA/CMC (100/0)) coating, the first resonant frequency shifted from 1.498 GHz to 1.448 GHz as the RH increased from 40% to 90%, whereas its magnitude level increased from −34.53 dB to −23.21 dB. For the PVA/CMC (90/10) coating, the first resonant frequency moved from 1.496 GHz to 1.432 GHz, whereas its magnitude level rose from −34.37 dB to −20.17 dB. For the PVA/CMC (80/20) coating, the first resonant frequency shifted from 1.493 GHz to 1.402 GHz, whereas its magnitude level increased from −33.90 dB to −17.39 dB. For the PVA/CMC (60/40) coating, the first resonant frequency decreased from 1.491 GHz to 1.363 GHz, whereas its magnitude level moved from −33.31 dB to −13.00 dB. Finally, for the pure CMC (PVA/CMC (0/100)) coating, the first resonant frequency shifted from 1.477 GHz to 1.254 GHz, whereas its magnitude level increased from −31.67 dB to −9.15 dB. It is observed that as the CMC weight percentage increased, the first resonant frequency underwent a more pronounced downward shift and a corresponding upward trend in magnitude.
Table 2, Table 3, Table 4, Table 5 and Table 6 summarize the values of the measured first resonant frequencies, PRFSs, magnitude levels, and percent relative magnitude shifts (PRMSs) of the fabricated IDC-DGS-based microwave humidity sensors coated with the five different weight percentages of the PVA/CMC composites. The PRMS represents the percentage difference between the magnitude levels at the loaded and unloaded first resonant frequencies relative to the magnitude level at the unloaded first resonant frequency [32,39].
The graphs of the measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of the fabricated IDC-DGS-based microwave humidity sensors coated with the five different weight percentages of the PVA/CMC composites as a function of the RH, which are obtained from Table 2, Table 3, Table 4, Table 5 and Table 6, are shown in Figure 7. For pure PVA (PVA/CMC (100/0)) coating, the PRFS increased 2.79 times as the RH increased from 40% to 90%, while the PRMS increased 4.97 times. For the PVA/CMC (90/10) coating, the PRFS and PRMS increased by factors of 3.13 and 5.73, respectively. The PVA/CMC (80/20) composite-coated IDC-DGS-based microwave sensor exhibited a 3.76-fold increase in PRFS and a 5.74-fold increase in PRMS. For the PVA/CMC (60/40) coating, the PRFS increased 4.66 times, while the PRMS increased 6.0 times. For pure CMC (PVA/CMC (0/100)) coating, the PRFS and PRMS increased by factors of 5.55 and 4.95, respectively. Analysis of the sensing parameters revealed distinct trends for PRFS and PRMS relative to the CMC concentration. The PRFS variation exhibited a monotonic increase, with the growth factor rising from 2.79 to 5.55 as the CMC weight percentage increased. In contrast, the PRMS variation followed a non-monotonic trend; it initially ascended from 4.97 to a peak of 6.0 for the PVA/CMC (60/40) composite, before declining to 4.95 for the pure CMC (PVA/CMC 0/100) coating. Both PVA and CMC are hydrophilic polymers, but they possess different types of active sites for water molecule interaction. While PVA relies only on hydroxyl (-OH) groups, CMC contains a high density of carboxymethyl groups (-CH2COONa) along with hydroxyl groups. As the CMC ratio increases, the concentration of carboxylate groups and sodium ions within the composite matrix rises. These groups act as high-affinity sites for water vapor adsorption through hydrogen bonding and ion-dipole interactions. A higher CMC fraction facilitates a greater volume of moisture uptake. Since water has a high relative permittivity around 80 with high loss tangent, its increased presence significantly boosts the effective permittivity and loss tangent of the composite, leading to the observed variations in the PRFS and PRMS [58,59,60]. While the present results provide valuable insights into the sensing mechanism of the PVA/CMC composite, they are based on a single experiment. Subsequent statistical verification across multiple trials is necessary to ensure the reproducibility and generalizability of the findings.
Figure 8 shows the relative permittivity of the fabricated IDC-DGS-based microwave sensors coated with the five different weight percentages of the PVA/CMC composites, extracted by applying the measured PRFS data to Equation (1). For pure PVA (PVA/CMC (100/0)) coating, the relative permittivity increased 2.58 times from 5.82 to 15.03 as the RH increased from 40% to 90%. For the PVA/CMC (90/10) coating, the relative permittivity increased by a factor of 2.95 (6.17 to 18.19). The PVA/CMC (80/20) composite-coated IDC-DGS-based microwave sensor exhibited a 3.64-fold increase (6.70 to 24.40) in the relative permittivity. For the PVA/CMC (60/40) coating, the relative permittivity increased 4.70 times from 7.05 to 33.11. The pure CMC (PVA/CMC (0/100)) coating exhibited the maximum dielectric range, shifting from 9.57 to 61.78, representing a 6.46-fold enhancement in the relative permittivity. The results demonstrate a significant enhancement in dielectric response as the CMC content increases. This systematic increase in the relative permittivity correlates directly with the enhanced humidity sensitivity observed in the PRFS.
According to [39], gelatin showed a 2.19-fold increasement from 9.47 to 20.74 in relative permittivity as the RH increased from 50% to 80%. For the same increasement in the RH, pure CMC showed a 2.44-fold increasement from 10.86 to 26.57. Therefore, the humidity sensing performance of pure CMC outperforms gelatin and PVA in terms of the PRFS and effective relative permittivity. The enhanced humidity-sensing capability of CMC might be attributed to its carboxylate groups and sodium ions, which facilitates more robust interaction with water molecules. It is hypothesized that the presence of these ionic species promotes a more significant change in dielectric perturbation upon moisture adsorption.

4. Conclusions

The humidity sensing properties of the PVA/CMC composites with different weight percentages were studied by using the high-sensitivity IDC-DGS-based microwave sensors with a first resonant frequency at 1.5 GHz under unloaded conditions. To establish a correlation between the dielectric properties of the coating and the sensor response, S21 characteristics as a function of frequency, and their first resonant frequency and PRFS for the IDC-DGS-based microwave sensor were simulated by varying the relative permittivity of a 0.02 mm thick polymer coating from 1 to 80 (with tan δ = 0). Utilizing a regression analysis tool, a cubic relationship was subsequently derived to express the coating’s relative permittivity as a function of the PRFS, characterized by four specific coefficients.
Prototypes of the IDC-DGS-based microwave sensors were fabricated on RF-301 substrates and functionalized with the PVA/CMC composites at various weight ratios (100/0, 90/10, 80/20, 60/40, and 0/100). The humidity-sensing performance was evaluated by monitoring the variations in the first resonant frequency and magnitude level of the S21 as the RH was varied from 40% to 90% with a step of 10% at a temperature of 25 °C. The results indicated that the PRFS variation exhibited a monotonic increase, rising from 2.79 to 5.55 times as the CMC content transitioned from 0% to 100%. However, the PRMS variation showed a non-monotonic trend, peaking at 6.0 times for the PVA/CMC (60/40) composite before declining to 4.95 times for the pure CMC (PVA/CMC (0/100)) sensor.
The variations in the extracted relative permittivity of the PVA/CMC composites, derived from the measured PRFS data, exhibited a trend consistent with that of the PRFS. As the CMC weight percentage increased from 0% to 100%, the growth factor of the extracted relative permittivity showed a monotonic escalation, rising from 2.58 to 6.46 times. This strong correlation validates the use of PRFS as a reliable indicator for characterizing the dielectric fluctuations of the composite layers under varying humidity. In addition, comparative analysis reveals that the humidity sensing performance of pure CMC outperforms gelatin and PVA in terms of the PRFS and effective relative permittivity.
Consequently, pure CMC can be a highly viable candidate to replace conventional PVA in humidity-sensing materials in diverse microwave applications, including chipless RFID tags, wireless sensors, and wearable electronics. Future research will focus on a comprehensive characterization of PVA/CMC composites, specifically addressing their long-term mechanical and chemical stability. Furthermore, essential sensor parameters, including repeatability, hysteresis, and response/recovery time, will be rigorously evaluated to ensure suitability for practical applications.

Author Contributions

J.Y. contributed the idea, the simulation, the analysis, and the overall research. Y.K. contributed fabrications and measurements. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by Daegu University Research Grant 2023.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Patil, Y.H.; Ghosh, A. Optical fiber humidity sensors: A review. In Proceedings of the 2020 4th International Conference on Trends in Electronics and Informatics (ICOEI), Tirunelveli, India, 15–17 June 2020; pp. 207–213. [Google Scholar]
  2. Arman Kuzubasoglu, B. Recent studies on the humidity sensor: A mini review. ACS Appl. Electron. Mater. 2022, 4, 4797–4807. [Google Scholar] [CrossRef]
  3. Farahani, H.; Wagiran, R.; Hamidon, M.N. Humidity sensors principle, mechanism, and fabrication technologies: A comprehensive review. Sensors 2014, 14, 7881–7939. [Google Scholar] [CrossRef]
  4. Lee, C.Y.; Lee, G.B. Humidity sensors: A review. Sens. Lett. 2005, 3, 1–15. [Google Scholar] [CrossRef]
  5. Ali, S.; Hassan, A.; Hassan, G.; Bae, L.; Lee, C. All-printed humidity sensor based on graphene/methyl-red composite with high sensitivity. Carbon 2016, 105, 23–32. [Google Scholar] [CrossRef]
  6. Qian, J.; Tan, R.; Feng, M.; Shen, W.; Lv, D.; Song, W. Humidity sensing using polymers: A critical review of current technologies and emerging trends. Chemosensors 2024, 12, 230. [Google Scholar] [CrossRef]
  7. Sajid, M.; Khattak, Z.; Rahman, K.; Hassan, G.; Choi, K.H. Progress and future of relative humidity sensors: A review from materials perspective. Bull. Mater. Sci. 2022, 45, 238. [Google Scholar] [CrossRef]
  8. Blank, T.A.; Eksperiandova, L.P.; Belikov, K.N. Recent trends of ceramic humidity sensors development: A review. Sens. Actuators B Chem. 2016, 228, 416–442. [Google Scholar] [CrossRef]
  9. Tulliani, J.-M.; Inserra, B.; Ziegler, D. Carbon-based materials for humidity sensing: A short review. Micromachines 2019, 10, 232. [Google Scholar] [CrossRef] [PubMed]
  10. Somarathna, U.S.; Garakani, B.; Weerawarne, D.L.; Alhendi, M.; Poliks, M.D.; Misner, M. Reliability of screen-printed water-based carbon resistors for sustainable wearable sensors. IEEE Sens. J. 2025, 25, 6449–6463. [Google Scholar] [CrossRef]
  11. Rivadeneyra, A.; Salmeron, J.F.; Murru, F.; Lapresta-Fernández, A.; Rodríguez, N.; Capitan-Vallvey, L.F.; Morales, D.P.; Salinas-Castillo, A. Carbon dots as sensing layer for printed humidity and temperature sensors. Nanomaterials 2020, 10, 2446. [Google Scholar] [CrossRef]
  12. Monereo, O.; Claramunt, S.; de Marigorta, M.M.; Boix, M.; Leghrib, R.; Prades, J.D.; Cornet, A.; Merino, P.; Merino, C.; Cirera, A. Flexible sensor based on carbon nanofibers with multifunctional sensing features. Talanta 2013, 107, 239–247. [Google Scholar] [CrossRef]
  13. Wu, J.; Sun, Y.M.; Wu, Z.; Li, X.; Wang, N.; Tao, K.; Wang, G.P. Carbon nanocoil-based fast-response and flexible humidity sensor for multifunctional applications. ACS Appl. Mater. Interfaces 2019, 11, 4242–4251. [Google Scholar] [CrossRef] [PubMed]
  14. Zhao, Z.-G.; Liu, X.-W.; Chen, W.-P.; Li, T. Carbon nanotubes humidity sensor based on high testing frequencies. Sens. Actuators A Phys. 2011, 168, 10–13. [Google Scholar] [CrossRef]
  15. Kondee, S.; Arayawut, O.; Pon-On, W.; Wongchoosuk, C. Nitrogen-doped carbon oxide quantum dots for flexible humidity sensor: Experimental and SCC-DFTB study. Vacuum 2022, 195, 110648. [Google Scholar] [CrossRef]
  16. Smith, A.D.; Elgammal, K.; Niklaus, F.; Delin, A.; Fischer, A.C.; Vaziri, S.; Lemme, M.C. Resistive graphene humidity sensors with rapid and direct electrical readout. Nanoscale 2015, 7, 19099–19109. [Google Scholar] [CrossRef]
  17. An, A.; Bansal, S. Low-cost flexible graphene oxide humidity sensor fabricated using inkjet printing and aerosol deposition. J. Electrochem. Soc. 2024, 171, 077513. [Google Scholar] [CrossRef]
  18. Li, X.; Sun, B.; Xue, T.; Pan, K.; Su, Y.; Jiang, Y.; Du, B.; Yang, D. Mxene-based fiber-optic humidity sensor for fast human breath monitoring. Photonics 2024, 11, 79. [Google Scholar] [CrossRef]
  19. Awais, M.; Khan, M.U.; Hassan, A.; Bae, J.; Chattha, T.E. Printable highly stable and superfast humidity sensor based on two dimensional molybdenum diselenide. Sci. Rep. 2020, 10, 5509. [Google Scholar] [CrossRef]
  20. Korotcenkov, G. Black phosphorus-new nanostructured material for humidity sensors: Achievements and limitations. Sensors 2019, 19, 1010. [Google Scholar] [CrossRef]
  21. Shaukat, R.A.; Khan, M.U.; Saqib, Q.M.; Chougale, M.Y.; Kim, J.; Bae, J. All range highly linear and sensitive humidity sensor based on 2D material TiSi2 for real-time monitoring. Sens. Actuators B Chem. 2021, 345, 130371. [Google Scholar] [CrossRef]
  22. He, H.; Yao, Y.; Liu, T. Flexible humidity sensor based on crosslinked polyethyleneimine/tannic acid and porous carbonaceous interdigitated electrode. Sens. Actuators B Chem. 2023, 393, 134194. [Google Scholar] [CrossRef]
  23. Zeng, F.-W.; Liu, X.-X.; Diamond, D.; Lau, K.T. Humidity sensors based on polyaniline nanofibres. Sens. Actuators B 2010, 143, 530–534. [Google Scholar] [CrossRef]
  24. Yang, M.-Z.; Dai, C.-L.; Lu, D.-H. Polypyrrole porous micro humidity sensor integrated with a ring oscillator circuit on chip. Sensors 2010, 10, 10095–10104. [Google Scholar] [CrossRef] [PubMed]
  25. Sakai, Y.; Sadaoka, Y.; Matsuguchi, M. A humidity sensor using cross-linked quaternized polyvinylpyridine. J. Electrochem. Soc. 1989, 136, 171. [Google Scholar] [CrossRef]
  26. Sears, W.M. The effect of humidity on the electrical conductivity of mesoporous polythiophene. Sens. Actuators B Chem. 2008, 130, 661–667. [Google Scholar] [CrossRef]
  27. Skabara, P.J.; Li, L.; Vilela, F.; Uttamchandani, D.; Forgie, J. Miniature humidity micro-sensor based on organic conductive polymer—Poly(3,4-ethylenedioxythiophene). Micro Nano Lett. 2009, 4, 84–87. [Google Scholar]
  28. Liu, J.; Agarwal, M.; Varahramyan, K.; Berney, E.S.; Hodo, W.D. Polymer-based microsensor for soil moisture measurement. Sens. Actuators B Chem. 2008, 129, 599–604. [Google Scholar] [CrossRef]
  29. Boudaden, J.; Steinmaßl, M.; Endres, H.-E.; Drost, A.; Eisele, I.; Kutter, C.; Müller-Buschbaum, P. Polyimide-based capacitive humidity sensor. Sensors 2018, 18, 1516. [Google Scholar] [CrossRef]
  30. Roman, C.; Bodea, O.; Prodan, N.; Levi, A.; Cordos, E.; Manoviciu, I. A capacitive-type humidity sensor using crosslinked poly(methylmethacrylate-co-(2 hydroxypropyl)-methacrylate). Sens. Actuators B Chem. 1995, 25, 710–713. [Google Scholar] [CrossRef]
  31. Reddy, A.S.G.; Narakathu, B.B.; Atashbar, M.Z.; Rebros, M.; Rebrosova, E.; Joyce, M.K. Fully printed flexible humidity sensor. Proced. Eng. 2011, 25, 120–123. [Google Scholar] [CrossRef]
  32. Yeo, J.; Kwon, Y. Humidity sensing performance of defected ground structure-based microwave sensors coated with PMMA, PHEMA, and PVA. Microw. Opt. Technol. Lett. 2021, 63, 1194–1200. [Google Scholar] [CrossRef]
  33. Chen, W.T.; Mansour, R.R. RF humidity sensor implemented with PEI-coated compact microstrip resonant cell. In Proceedings of the 2017 IEEE MTT-S International Microwave Workshop Series on Advanced Materials and Processes for RF and THz Applications (IMWS-AMP), Pavia, Italy, 20–22 September 2017; pp. 1–3. [Google Scholar]
  34. Han, Y.C.; Kong, X.Y.; Wu, W.; Li, J.S.; Yang, X.; Guo, Y.J.; Fu, Y.Q.; Torun, H.; Xiang, X.; Tang, Y.L.; et al. Environment-friendly surface acoustic wave humidity sensor with sodium alginate sensing layer. Micro Nano Eng. 2022, 15, 100127. [Google Scholar] [CrossRef]
  35. Xu, W.; Shi, J.; Yang, X.; Xu, D.; Rong, F.; Zhao, J.; Yao, J. Relative humidity sensor based on no-core fiber coated by agarose-gel film. Sensors 2017, 17, 2353. [Google Scholar] [CrossRef]
  36. Kumari, P.; Kumar, A.; Yadav, A.; Gupta, G.; Gupta, G.; Shivagan, D.D.; Bapna, K. Chitosan-based highly sensitive viable humidity sensor for human health monitoring. ACS Omega 2023, 8, 39511–39522. [Google Scholar] [CrossRef]
  37. Ducéré, V.; Bernès, A.; Lacabanne, C. A capacitive humidity sensor using cross-linked cellulose acetate butyrate. Sens. Actuators B Chem. 2004, 106, 331–334. [Google Scholar] [CrossRef]
  38. Eyebe, G.A.; Bideau, B.; Boubekeur, N.; Loranger, É.; Domingue, F. Environmentally-friendly cellulose nanofibre sheets for humidity sensing in microwave frequencies. Sens. Actuators B Chem. 2017, 245, 484–492. [Google Scholar] [CrossRef]
  39. Yeo, J.; Kwon, Y. Gelatin-coated high-sensitivity microwave sensor for humidity-sensing applications. Sensors 2024, 24, 6286. [Google Scholar] [CrossRef] [PubMed]
  40. Momtaz, M.; Chen, J. High-performance colorimetric humidity sensors based on konjac glucomannan. ACS Appl. Mater. Interfaces 2020, 12, 54104–54116. [Google Scholar] [CrossRef] [PubMed]
  41. Bourely, J.; De Sousa, L.; Fumeaux, N.; Vorobyov, O.; Beyer, C.; Briand, D. Biodegradable materials as sensitive coatings for humidity sensing in S-band microwave frequencies. Micro Nano Eng. 2023, 19, 100185. [Google Scholar] [CrossRef]
  42. Xie, F. Natural polymer starch-based materials for flexible electronic sensor development: A review of recent progress. Carbohydr. Polym. 2024, 337, 122116. [Google Scholar] [CrossRef]
  43. Hashim, A.; Habeeb, M.A.; Khalaf, A.; Hadi, A. Fabrication of (PVA-PAA) blend-extracts of plants bio-composites and studying their structural, electrical and optical properties for humidity sensors applications. Sens. Lett. 2017, 15, 589. [Google Scholar] [CrossRef]
  44. Deshkulkarni, B.; Viannie, L.R.; Ganachari, S.V.; Banapurmath, N.R.; Shettar, A. Humidity sensing using polyaniline/polyvinyl alcohol nanocomposite blend. In Proceedings of the International Conference on Advances in Manufacturing, Materials and Energy Engineering (ICon MMEE 2018), Karnataka, India, 2–3 March 2018. [Google Scholar]
  45. Yousaf, H.M.Z.; Javed, M.; Bashir, M.M.; Shaukat, R.A.; Mahmood, H. Highly stable and temperature-independent humidity sensor based on PEO/PVA polymer composite. J. Compos. Sci. 2025, 9, 85. [Google Scholar] [CrossRef]
  46. Samaeifar, F.; Azadinia, M.; Ghorbani, A.; Chen, J.; Gratuze, M.; Ketabi, M.; Izquierdo, R.; Aziz, H. Highly sensitive and fully printable humidity sensor on a flexible substrate based on a zinc oxide and polyethylenimine composite. Flex. Print. Electron. 2022, 7, 034003. [Google Scholar] [CrossRef]
  47. Gu, W.; Zhang, H.; Chen, C.; Zhang, J. Study on the design of ZnO/PANI composites and the mechanism of enhanced humidity sensing properties. Curr. Appl. Phys. 2022, 34, 112–121. [Google Scholar] [CrossRef]
  48. Su, P.-G.; Huang, L.-N. Humidity sensors based on TiO2 nanoparticles/polypyrrole composite thin films. Sens. Actuators B Chem. 2007, 123, 501–507. [Google Scholar] [CrossRef]
  49. Kim, J.; Cho, J.-H.; Lee, H.-M.; Hong, S.-M. Capacitive humidity sensor based on carbon black/polyimide composites. Sensors 2021, 21, 1974. [Google Scholar] [CrossRef]
  50. Buga, C.; Viana, J. Flexible CNF/CB-based humidity sensors with optimized sensitivity and performance. J. Mater. Chem. C 2025, 13, 6508–6526. [Google Scholar] [CrossRef]
  51. Tang, Q.Y.; Chan, Y.C.; Zhang, K. Fast response resistive humidity sensitivity of polyimide/multiwall carbon nanotube composite films. Sens. Actuators B Chem. 2011, 152, 99–106. [Google Scholar] [CrossRef]
  52. Zhou, G.; Byun, J.H.; Oh, Y.; Jung, B.-M.; Cha, H.-J.; Seong, D.G.; Um, M.K.; Hyun, S.; Chou, T.W. High sensitive wearable textile-based humidity sensor made of high-strength, single-walled carbon nanotube (SWCNT)/Poly(Vinyl Alcohol) (PVA) filaments. ACS Appl. Mater. Interfaces 2017, 9, 4788–4797. [Google Scholar] [CrossRef]
  53. Malinský, P.; Romanenko, O.; Havránek, V.; Cutroneo, M.; Novák, J.; Štěpanovská, E.; Mikšová, R.; Marvan, P.; Mazánek, V.; Sofer, Z.; et al. Graphene oxide and polymer humidity micro-sensors prepared by carbon beam writing. Polymers 2023, 15, 1066. [Google Scholar] [CrossRef]
  54. Wang, D.; Zhang, D.; Li, P.; Yang, Z.; Mi, Q.; Yu, L. Electrospinning of flexible poly(vinyl alcohol)/mxene nanofiber-based humidity sensor self-powered by monolayer molybdenum diselenide piezoelectric nanogenerator. Nano-Micro Lett. 2021, 13, 57. [Google Scholar] [CrossRef] [PubMed]
  55. Ravikiran, Y.T.; Chethan, B.; Prasad, V.; Raj Prakash, H.G.; Prashantkumar, M.; Tiwari, S.K.; Thomas, S. Polypyrrole/reduced graphene oxide composite as a low-cost novel sensing material for fast-response humidity sensor. Mater. Chem. Phys. 2023, 303, 127800. [Google Scholar] [CrossRef]
  56. Rahman, M.S.; Hasan, M.S.; Nitai, A.S.; Nam, S.; Karmakar, A.K.; Ahsan, M.S.; Shiddiky, M.J.A.; Ahmed, M.B. Recent developments of carboxymethyl cellulose. Polymers 2021, 13, 1345. [Google Scholar] [CrossRef] [PubMed]
  57. Pinming, C.; Sukgorn, N.; Suhatcho, T.; Saetang, B.; Kerdkhong, P.; Maboonchuay, T.; Siraleartmukul, K. Humidity sensor using carboxymethyl cellulose hydrogel membrane. In Proceedings of the 13th International Conference on Electrical Engineering/Electronics, Computer, Telecommunications and Information Technology (ECTI-CON), Chiang Mai, Thailand, 28 June–1 July 2016. [Google Scholar]
  58. Khoramabadi, H.N.; Arefian, M.; Hojjati, M.; Tajzad, I.; Mokhtarzade, A.; Mazhar, M.; Jamavari, A. A review of polyvinyl alcohol/carboxymethyl cellulose (PVA/CMC) composites for various applications. J. Compos. Compd. 2020, 2, 69–76. [Google Scholar]
  59. El-Sayed, S.; Mahmoud, K.H.; Fatah, A.A.; Hassen, A. DSC, TGA and dielectric properties of carboxymethyl cellulose/polyvinyl alcohol blends. Phys. B Condens. Matter 2011, 406, 4068–4076. [Google Scholar] [CrossRef]
  60. Saadiah, M.A.; Samsudin, A.S. Electrical study on carboxymethyl cellulose-polyvinyl alcohol based bio-polymer blend electrolytes. IOP Conf. Ser. Mater. Sci. Eng. 2018, 342, 012045. [Google Scholar] [CrossRef]
  61. Liu, C.; Liao, C.; Peng, Y.; Zhang, W.; Wu, B.; Yang, P. Microwave sensors and their applications in permittivity measurement. Sensors 2024, 24, 7696. [Google Scholar] [CrossRef]
  62. Yeo, J.; Lee, J.-I. High-sensitivity microwave sensor based on an interdigital-capacitor-shaped defected ground structure for permittivity characterization. Sensors 2019, 19, 498. [Google Scholar] [CrossRef]
  63. Electromagnetic Simulation Solvers, CST Studio Suite. Available online: https://www.3ds.com/products-services/simulia/products/cst-studio-suite/solvers/ (accessed on 25 January 2026).
  64. Yeo, J.; Lee, J.-I. Slot-loaded microstrip patch sensor antenna for high-sensitivity permittivity characterization. Electronics 2019, 8, 502. [Google Scholar] [CrossRef]
  65. A Powerful and Versatile Scientific Tool for Data Analysis & Visualization, SigmaPlot. Available online: https://grafiti.com/sigmaplot-detail/ (accessed on 25 January 2026).
Sensors 26 01099 g001

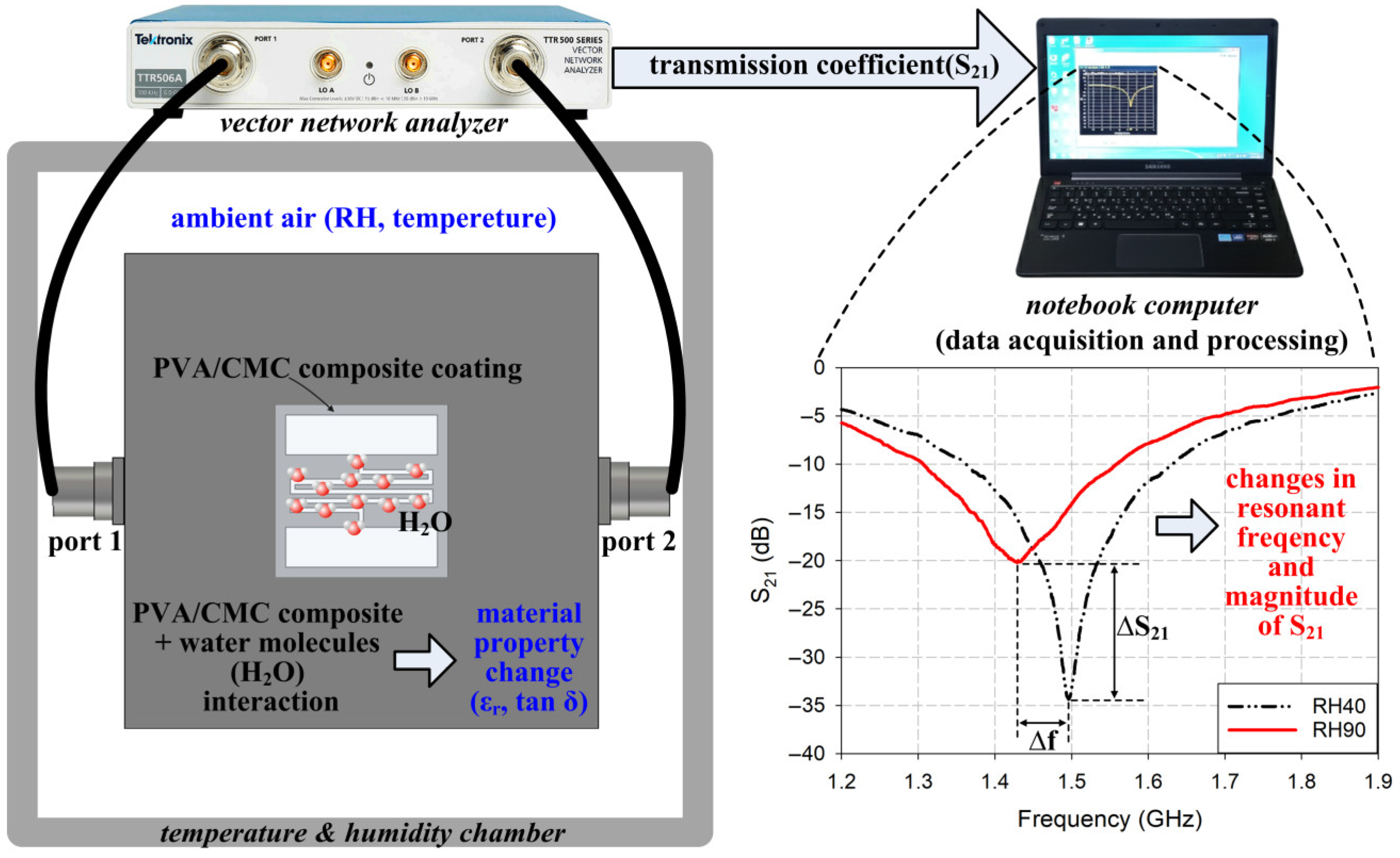

Figure 1. Sensing mechanism of an IDC-DGS-based microwave sensor.
Figure 1. Sensing mechanism of an IDC-DGS-based microwave sensor.
Sensors 26 01099 g001
Sensors 26 01099 g002

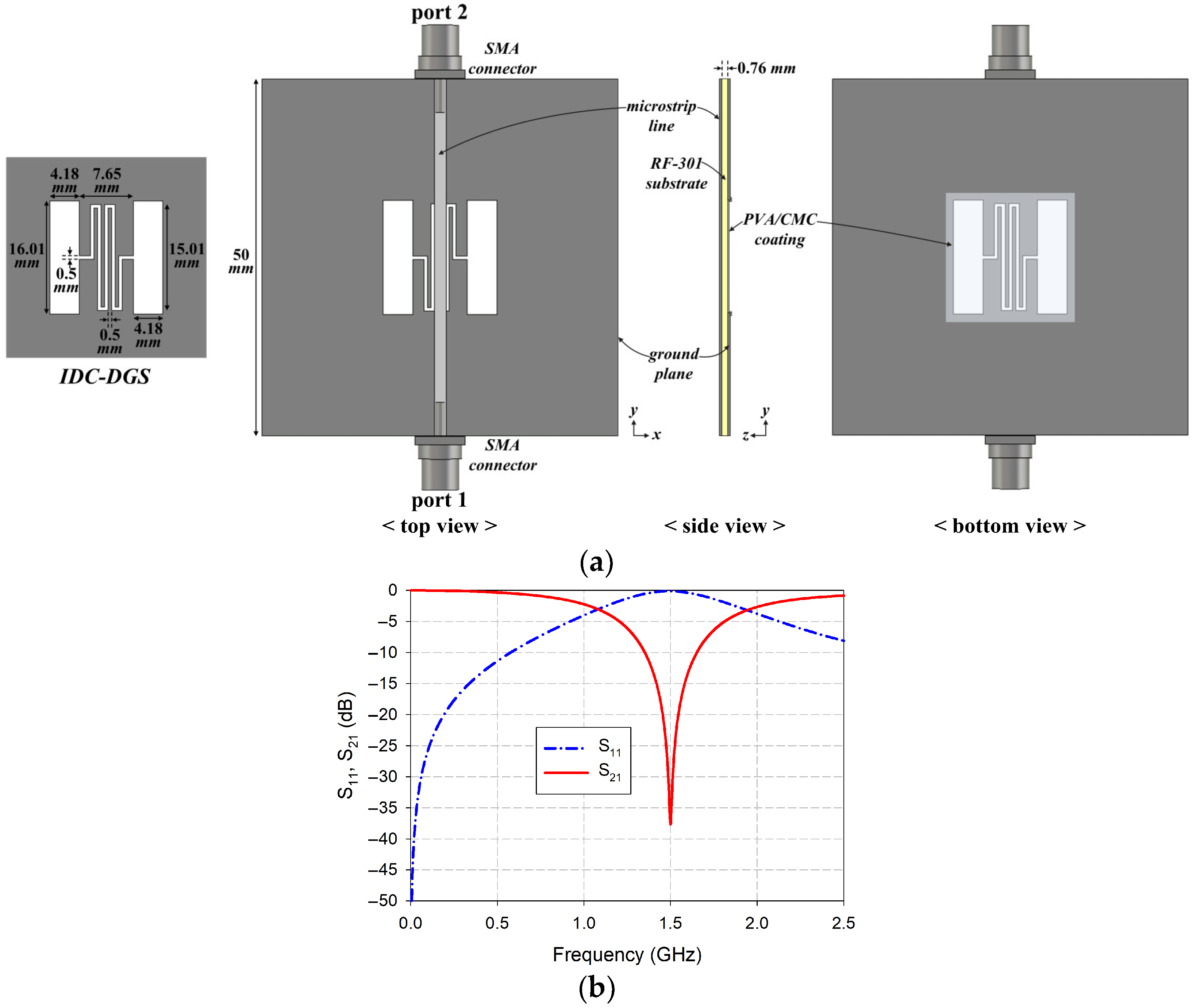

Figure 2. IDC-DGS-based microwave sensor. (a) structure; (b) input reflection and transmission coefficients vs. frequency.
Figure 2. IDC-DGS-based microwave sensor. (a) structure; (b) input reflection and transmission coefficients vs. frequency.
Sensors 26 01099 g002
Sensors 26 01099 g003

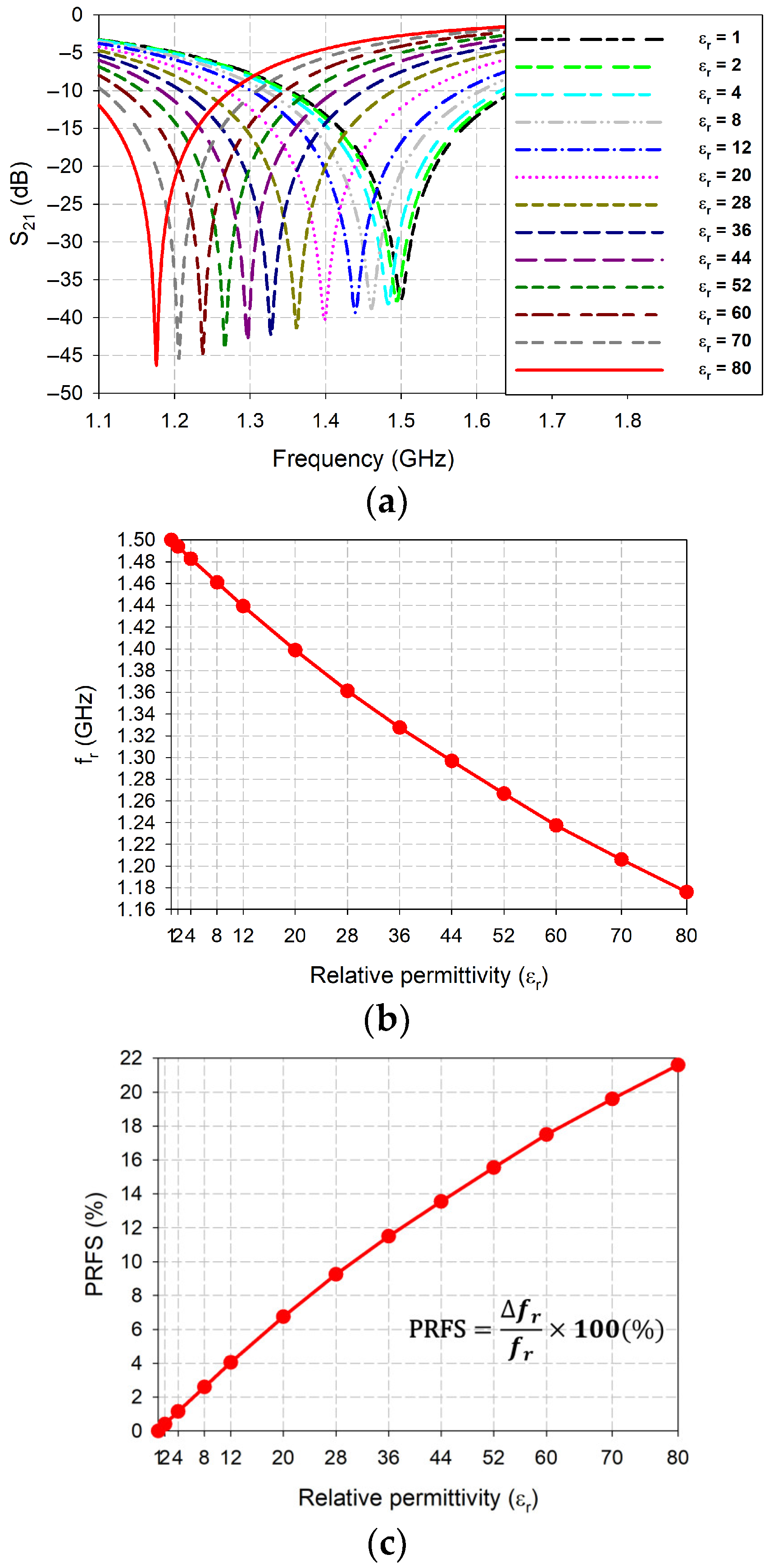

Figure 3. Characteristics of the IDC-DGS-based microwave sensor for varying relative permittivity of the coated dielectric polymer (tan δ = 0). (a) S21; (b) fr; (c) percent relative frequency shift (PRFS).
Figure 3. Characteristics of the IDC-DGS-based microwave sensor for varying relative permittivity of the coated dielectric polymer (tan δ = 0). (a) S21; (b) fr; (c) percent relative frequency shift (PRFS).
Sensors 26 01099 g003
Sensors 26 01099 g004

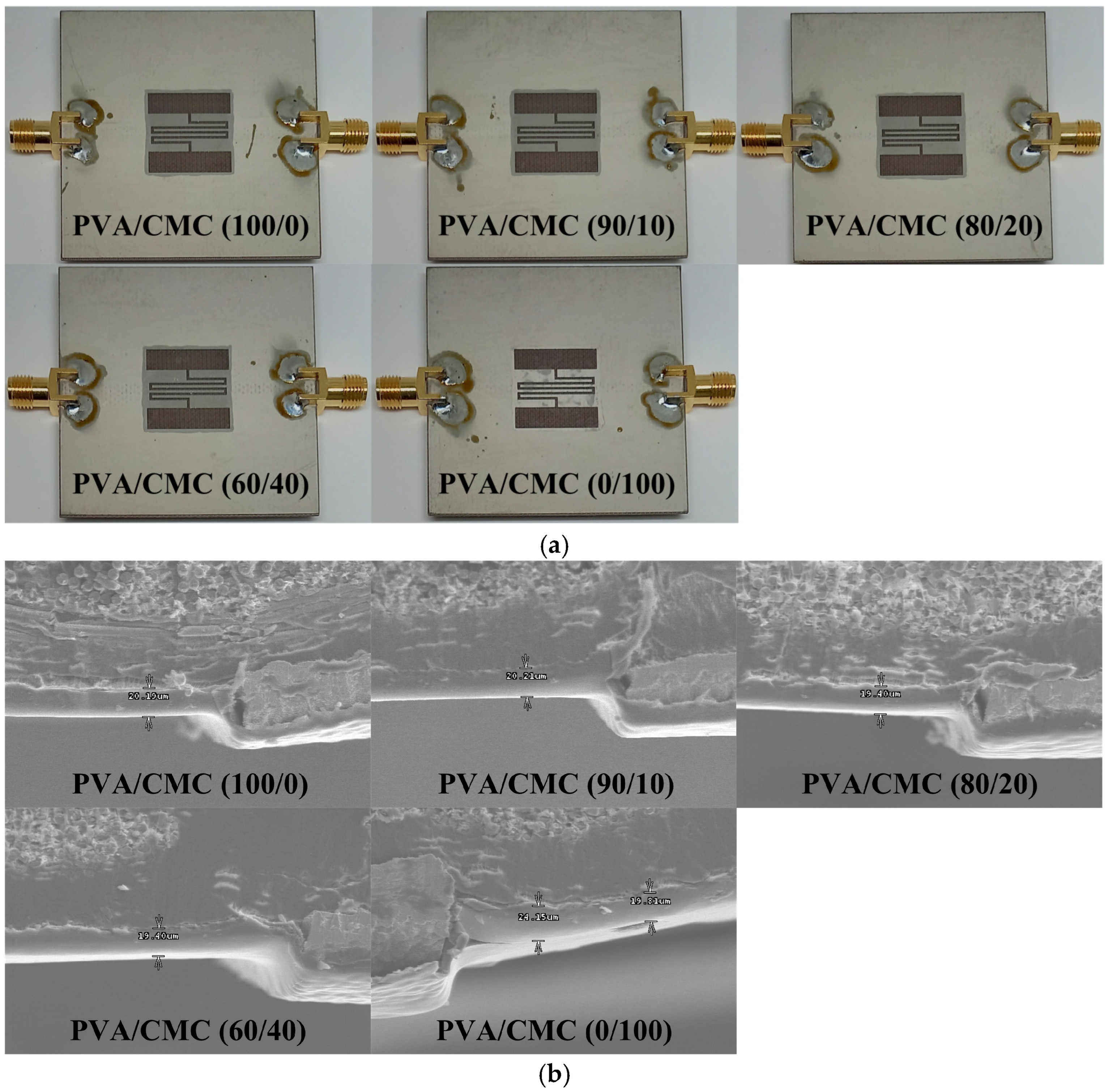

Figure 4. (a) Prototype photographs and (b) cross-sectional scanning electron microscopy photographs of the fabricated microwave sensors coated with PVA/CMC (100/0), PVA/CMC (90/10), PVA/CMC (80/20), PVA/CMC (60/40), and PVA/CMC (0/100).
Figure 4. (a) Prototype photographs and (b) cross-sectional scanning electron microscopy photographs of the fabricated microwave sensors coated with PVA/CMC (100/0), PVA/CMC (90/10), PVA/CMC (80/20), PVA/CMC (60/40), and PVA/CMC (0/100).
Sensors 26 01099 g004
Sensors 26 01099 g005

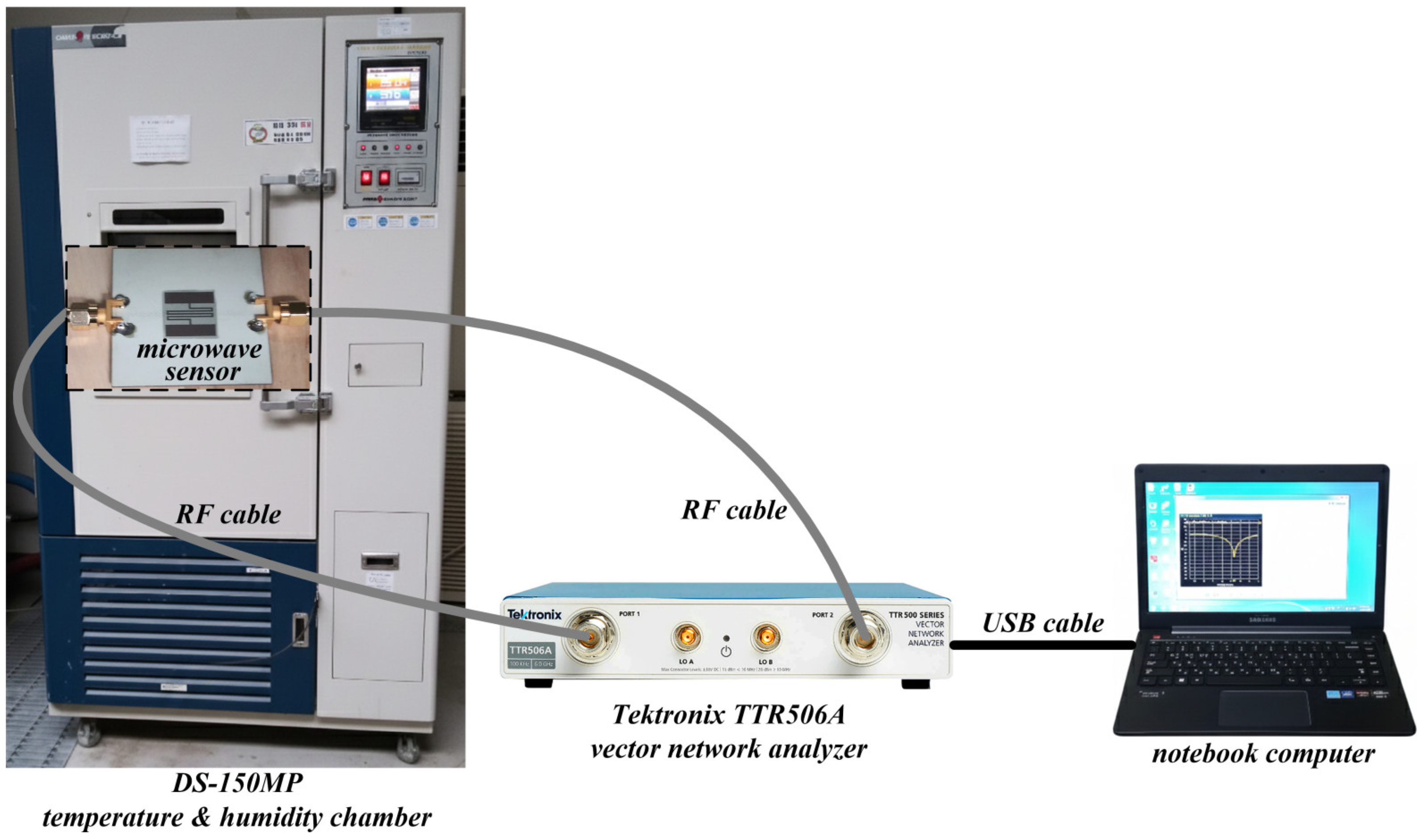

Figure 5. Block diagram of the humidity measurement setup.
Figure 5. Block diagram of the humidity measurement setup.
Sensors 26 01099 g005
Sensors 26 01099 g006

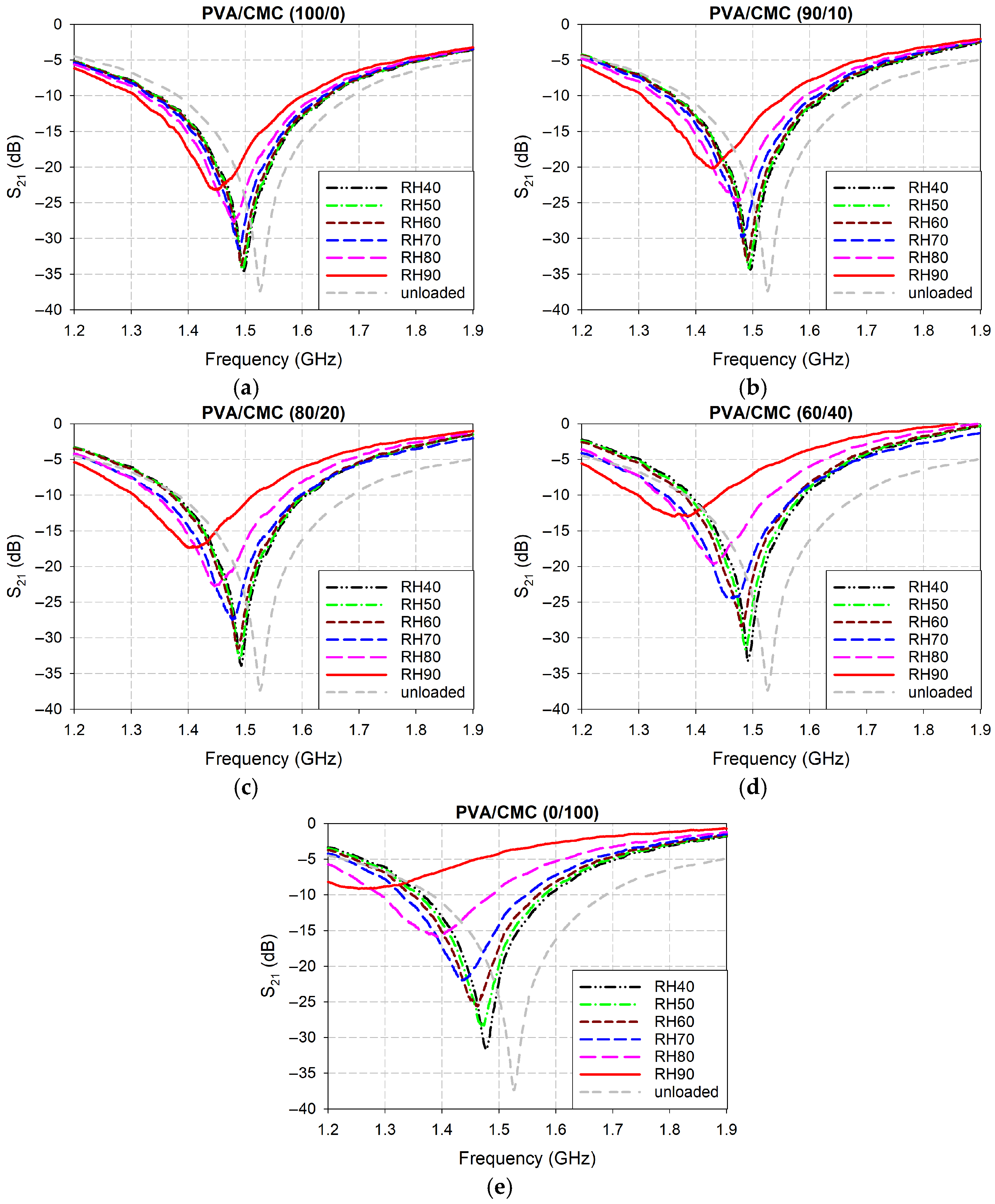

Figure 6. Measured S21 characteristics of the fabricated microwave sensors coated with the five different weight percentages of the PVA/CMC composites. (a) PVA/CMC (100/0), (b) PVA/CMC (90/10), (c) PVA/CMC (80/20), (d) PVA/CMC (60/40), and (e) PVA/CMC (0/100).
Figure 6. Measured S21 characteristics of the fabricated microwave sensors coated with the five different weight percentages of the PVA/CMC composites. (a) PVA/CMC (100/0), (b) PVA/CMC (90/10), (c) PVA/CMC (80/20), (d) PVA/CMC (60/40), and (e) PVA/CMC (0/100).
Sensors 26 01099 g006
Sensors 26 01099 g007

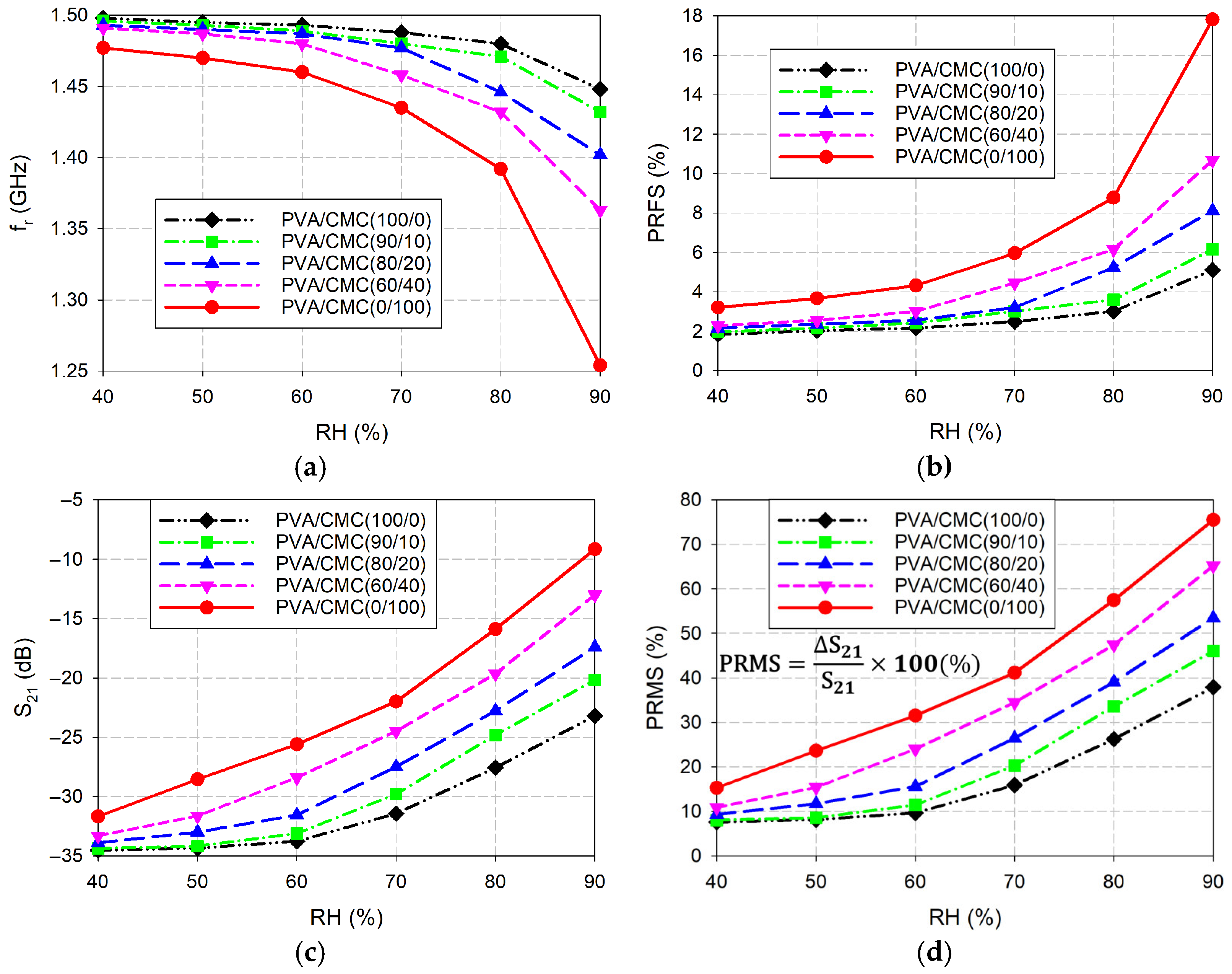

Figure 7. Performance comparison of the fabricated IDC-DGS-based microwave sensors coated with the five different weight percentages of the PVA/CMC composites. (a) fr, (b) PRFS, (c) S21 magnitude, and (d) PRMS.
Figure 7. Performance comparison of the fabricated IDC-DGS-based microwave sensors coated with the five different weight percentages of the PVA/CMC composites. (a) fr, (b) PRFS, (c) S21 magnitude, and (d) PRMS.
Sensors 26 01099 g007
Sensors 26 01099 g008

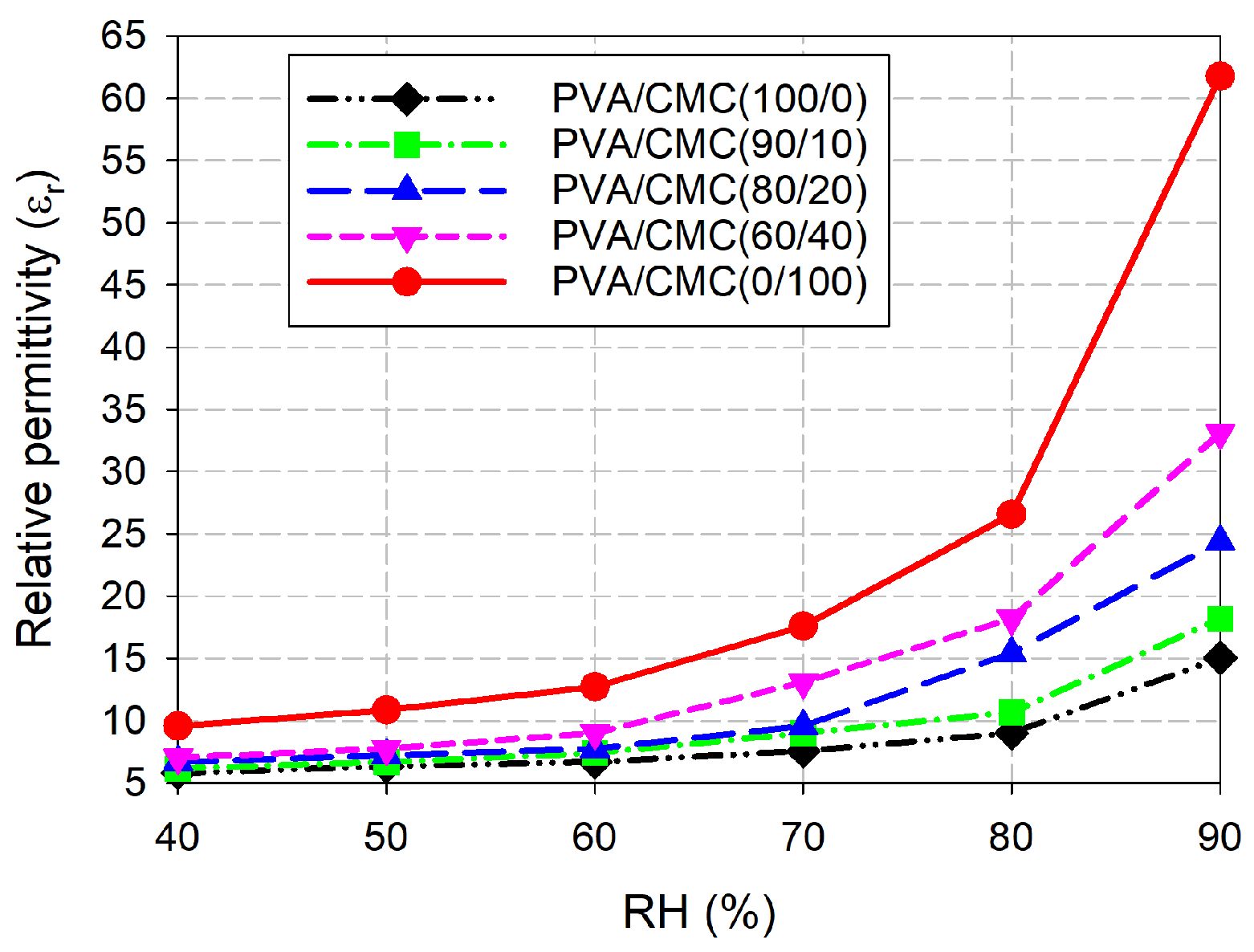

Figure 8. Comparison of the extracted relative permittivity for the fabricated IDC-DGS-based microwave sensors coated with the five different weight percentages of the PVA/CMC composites.
Figure 8. Comparison of the extracted relative permittivity for the fabricated IDC-DGS-based microwave sensors coated with the five different weight percentages of the PVA/CMC composites.
Sensors 26 01099 g008
Table 1. First resonant frequencies and PRFSs of S21 characteristics for the IDC-DGS -based microwave sensor for varying the relative permittivity of the coated polymer with tan δ = 0.
Table 1. First resonant frequencies and PRFSs of S21 characteristics for the IDC-DGS -based microwave sensor for varying the relative permittivity of the coated polymer with tan δ = 0.
εr = 1εr = 2εr = 4εr = 8εr = 12εr = 20εr = 28εr = 36εr = 44εr = 52εr = 60εr = 70εr = 80
fr (GHz)1.51.49401.48281.46101.43931.39871.36131.32751.29671.26681.23751.2061.176
PRFS (%)00.41.152.64.056.759.2511.513.5515.5517.519.621.6
Table 2. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (100/0) (pure PVA) for varying RH.
Table 2. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (100/0) (pure PVA) for varying RH.
PVA/CMC (100/0)UnloadedRH40RH50RH60RH70RH80RH90
fr (GHz)1.5261.4981.4951.4931.4881.4801.448
PRFS (%)01.832.032.162.493.015.11
S21 (dB)−37.38−34.53−34.34−33.77−31.44−27.58−23.21
PRMS (%)07.638.149.6615.8926.2237.92
Table 3. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (90/10) for varying RH.
Table 3. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (90/10) for varying RH.
PVA/CMC (90/10)UnloadedRH40RH50RH60RH70RH80RH90
fr (GHz)1.5261.4961.4931.4891.4801.4711.423
PRFS (%)01.972.162.423.013.606.16
S21 (dB)−37.38−34.37−34.17−33.11−29.79−24.83−20.17
PRMS (%)08.048.5811.4320.2933.5846.05
Table 4. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (80/20) for varying RH.
Table 4. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (80/20) for varying RH.
PVA/CMC (80/20)UnloadedRH40RH50RH60RH70RH80RH90
fr (GHz)1.5261.4931.4901.4871.4771.4461.402
PRFS (%)02.162.362.563.215.248.13
S21 (dB)−37.38−33.90−33.00−31.56−27.50−22.78−17.39
PRMS (%)09.3111.7215.5726.4339.0753.48
Table 5. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (60/40) for varying RH.
Table 5. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (60/40) for varying RH.
PVA/CMC (60/40)UnloadedRH40RH50RH60RH70RH80RH90
fr (GHz)1.5261.4911.4871.4801.4581.4321.363
PRFS (%)02.292.563.014.466.1610.68
S21 (dB)−37.38−33.31−31.64−28.41−24.50−19.64−13.00
PRMS (%)010.8815.3624.0034.4647.4565.23
Table 6. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (0/100) (pure CMC) for varying RH.
Table 6. Measured first resonant frequencies, PRFSs, magnitude levels, and PRMSs of S21 characteristics of the fabricated microwave sensor coated with the PVA/CMC (0/100) (pure CMC) for varying RH.
PVA/CMC (0/100)UnloadedRH40RH50RH60RH70RH80RH90
fr (GHz)1.5261.4771.4701.4601.4351.3921.254
PRFS (%)03.213.674.335.968.7817.82
S21 (dB)−37.38−31.67−28.55−25.60−22.00−15.89−9.15
PRMS (%)015.2723.6131.5041.1557.5075.52
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yeo, J.; Kwon, Y. High-Sensitive Microwave Humidity Sensor Using Polyvinyl Alcohol/Carboxymethyl Cellulose (PVA/CMC) Composites. Sensors 2026, 26, 1099. https://doi.org/10.3390/s26041099

AMA Style

Yeo J, Kwon Y. High-Sensitive Microwave Humidity Sensor Using Polyvinyl Alcohol/Carboxymethyl Cellulose (PVA/CMC) Composites. Sensors. 2026; 26(4):1099. https://doi.org/10.3390/s26041099

Chicago/Turabian Style

Yeo, Junho, and Younghwan Kwon. 2026. "High-Sensitive Microwave Humidity Sensor Using Polyvinyl Alcohol/Carboxymethyl Cellulose (PVA/CMC) Composites" Sensors 26, no. 4: 1099. https://doi.org/10.3390/s26041099

APA Style

Yeo, J., & Kwon, Y. (2026). High-Sensitive Microwave Humidity Sensor Using Polyvinyl Alcohol/Carboxymethyl Cellulose (PVA/CMC) Composites. Sensors, 26(4), 1099. https://doi.org/10.3390/s26041099

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
